144

2-2. Charging

■

Charging time may increase

In the following situations, charging time may become longer than normal:

●

In very hot or very cold temperatures.

●

The vehicle is consuming a lot of electricity, for example, when the head
light switch is on etc.

●

There is a power outage during charging.

●

There is an interruption in the electrical supply.

●

There is a drop in the voltage of external power source.

●

The charge in the 12-volt battery is low, for example due to the vehicle being
left unused for a long period of time.

●

The maximum charging current is set to 8A through the “Vehicle Settings”
settings. (



P. 140)

●

When the “Traction Battery Heater” operates.

●

When the “Traction Battery Cooler” is operated before charging. (if
equipped) (



P. 145)

●

When the plug generates heat due to a loose socket connection etc.

■

Using a DC Charger

DC Chargers cannot be used with this vehicle.

This vehicle is equipped with several functions that are linked with
charging.

■

“Traction Battery Heater”

When the outside temperature is low and the charging cable is con-
nected to the vehicle, this function automatically warms the hybrid
battery (traction battery) until it reaches or exceeds a certain tem-
perature.

●

When the charging cable is removed from the vehicle or remains
connected to the vehicle for approximately 3 days, the system
automatically stops.

●

When the charging schedule is used (



P. 166), this function will

operate according to the charging schedule.

Charging-linked functions

145

2-2. Charging

2

P

lu

g

-in

 hy
br

id

 s

ys

tem

■

“Traction Battery Cooler” (if equipped)

When the hybrid battery (traction battery) is hot, this function pro-
tects it by using the vehicle air conditioning to cool it before
charging is carried out.

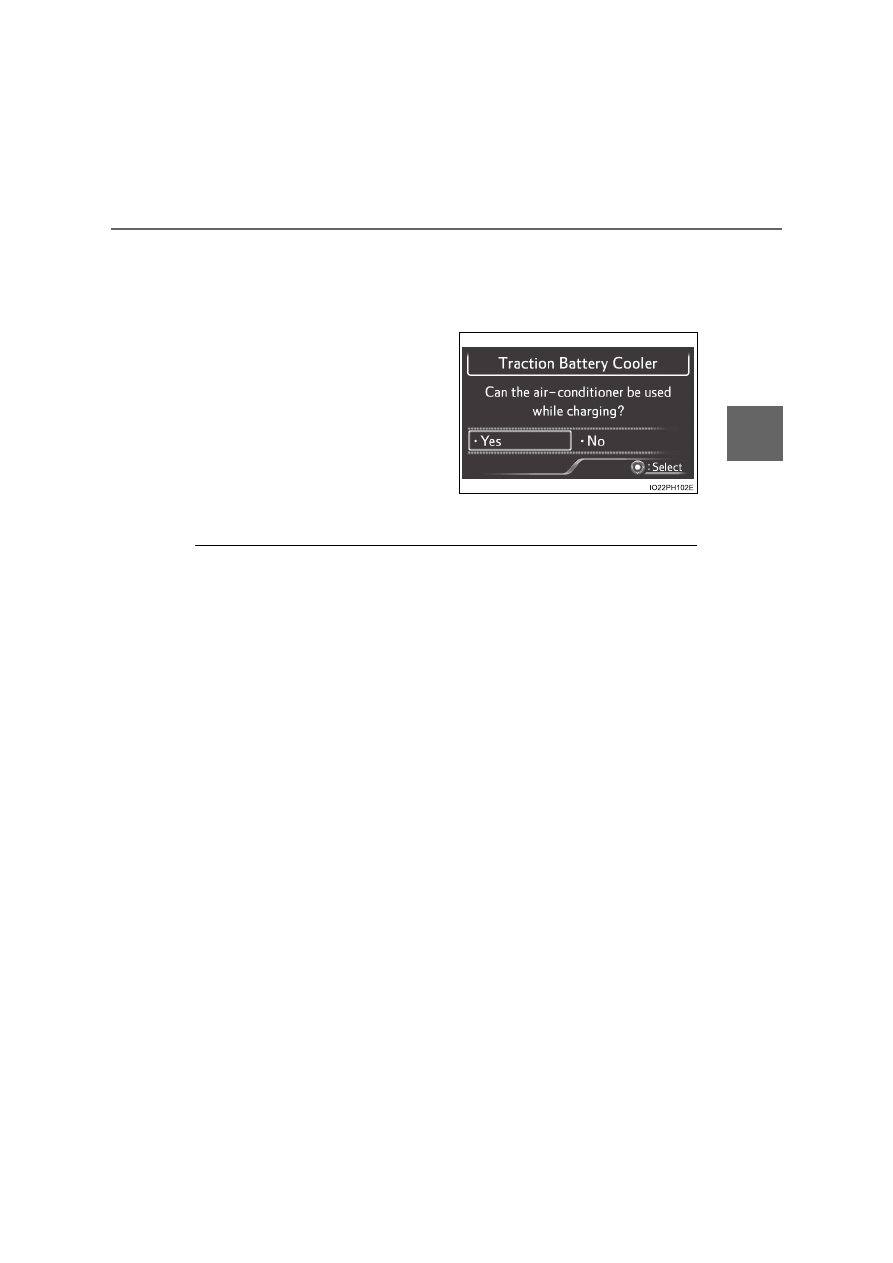

When the hybrid battery (trac-
tion battery) is above a certain
temperature and the power
switch is turned off, a check
screen is displayed on the
multi-information display that
indicates whether “Traction Bat-
tery Cooler” is implemented.

When “No” is selected, the hybrid battery (traction battery) cooling sys-
tem does not operate.

■

“Traction Battery Heater”

●

“Traction Battery Heater” may operate when charging is not being per-
formed.

●

When “Traction Battery Heater” is operating, the charging indicator illumi-
nates.

●

When “Traction Battery Heater” is operating during charging, the charging
time may be longer than normal.

●

If the outside temperature becomes high while “Traction Battery Heater” is
operating, charging may complete earlier than the “Departure” time set.
(



P. 166)

●

“Traction Battery Heater” can be turned on and off in the “Vehicle Settings”
settings on the multi-information display. (



P. 726)

●

“Traction Battery Heater” may operate even when the hybrid battery (trac-
tion battery) is fully charged depending on the temperature of the hybrid bat-
tery (traction battery).
• The remaining charge of the hybrid battery (traction battery) decreases

when “Traction Battery Heater” operates. The charging operation may
start again to charge the hybrid battery (traction battery).

• “Charging Stopped Due to Pulled Charging Connector” may be shown

when the charging connector is removed while recharging. (



P. 187)

146

2-2. Charging

■

“Traction Battery Cooler” (if equipped)

●

When the hybrid battery (traction battery) is above a certain temperature
and the power switch is turned off, a check screen is displayed on the multi-
information display that indicates whether “Traction Battery Cooler” is imple-
mented. Approximately 5 minutes after selecting “Yes” on this screen, sys-
tem operation becomes possible.

●

When charging starts, “Traction Battery Cooler” only operates if the hybrid
battery (traction battery) temperature is hot.

●

The charging indicator is illuminated while “Traction Battery Cooler” is on
standby or operating.

●

“Traction Battery Cooler” is implemented for a maximum of approximately
30 minutes. However, when the “Departure” time is set (



P. 166) and there

is not sufficient time between the current time and the time that charging will
complete, “Traction Battery Cooler” operation time may become shorter.

●

When there is a small amount of remaining charge in the hybrid battery
(traction battery), even if the hybrid battery (traction battery) is hot, “Traction
Battery Cooler” may not be implemented.

●

When the following operations are performed while “Traction Battery Cooler”
is operating, the hybrid battery (traction battery) cooling operation stops.
• A door is opened
• The hood is opened
• The power switch is turned to any mode other than off
• The alarm operates (if equipped) (



P. 76)

• The shift position is changed to any position other than P
• The Remote Air Conditioning System is operated (



P. 535)

• “Charge Now” is implemented (



P. 167)

• The amount of remaining charge in the hybrid battery (traction battery) is

below a certain amount

●

When the power switch is turned off, a check screen is displayed on the
multi-information display that indicates whether “Traction Battery Cooler” is
implemented. This check screen can be turned on and off in the “Meter Cus-
tomize” settings on the multi-information display (



P. 250). However, when

the check screen is set to “Off”, “Traction Battery Cooler” is no longer oper-
ates.

●

“Traction Battery Cooler” uses the power of the hybrid battery (traction bat-
tery) and external power source.
• While “Traction Battery Cooler” is operating, the amount of the remaining

charge of the hybrid battery (traction battery) increases and decreases in
a certain range, and does not increase as in normal charging.

• The operation of “Traction Battery Cooler” is recognized as charging by a

charger. The charger that calculates the fee according to charging time
causes a charging fee.

147

2

2-2. Charging

P

lu

g

-in

 hy
br

id

 s

ys

tem

Charging tips

To enable the use of EV mode, we recommend systematically
charging the vehicle.

Before leaving home

In order to use EV mode, charge the hybrid battery (traction battery) at
home before leaving.
The charging schedule function (



P. 166) can be used to set the system

to automatically fully charge the hybrid battery (traction battery) before
your desired departure time. It is also possible to set the air conditioning to
make the interior in a comfortable state before your desired departure time.

At your destination

Use a public charging station to charge the hybrid battery (traction battery).
If there are no charging facilities at your destination, the hybrid battery
(traction battery) can be charged using the hybrid battery (traction battery)
charge mode. (



P. 87)

*

This section explains methods for using the charging function
for this vehicle and checking information related to charging.

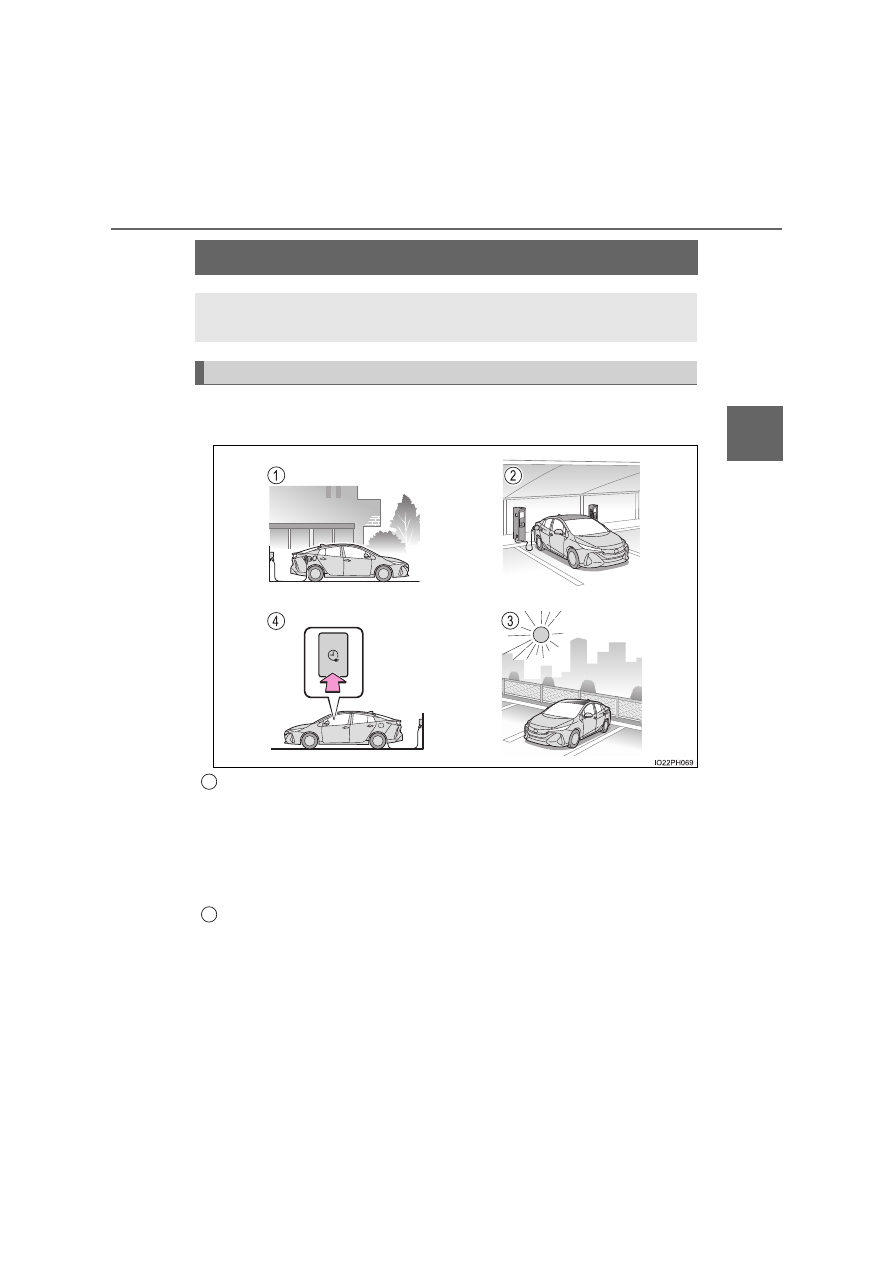

Systematically charging

1

2

148

2-2. Charging

While parking

For vehicles with a solar charging system, solar charging is performed to
charge the hybrid battery (traction battery) when the necessary conditions
such as parking are met. (



P. 178)

After returning home

In order to drive the next time, charge the hybrid battery (traction battery).
Settings the charge schedule allows you to charge the hybrid battery (trac-
tion battery) at the desired time such as late at night or early in the morn-
ing. Furthermore, the charging schedule can be set to automatically
charge the hybrid battery (traction battery) every day or at the same time
on certain days. (



P. 166)

Vehicles with a solar charging system:
When the hybrid battery (traction battery) is fully charged, charging the
battery via the solar charging system is not performed. If you are not plan-
ning on driving the vehicle for a few days, refraining from charging the
vehicle until right before you plan on using it will allow the solar charging
system to be used effectively.

*

: When using the hybrid battery (traction battery) charge mode while parked,

make sure that no flammable objects are near the vehicle and the vehicle is
parked in a well-ventilated area. (



P. 97)

3

4

149

2-2. Charging

2

P

lu

g

-in

 hy
br

id

 s

ys

tem

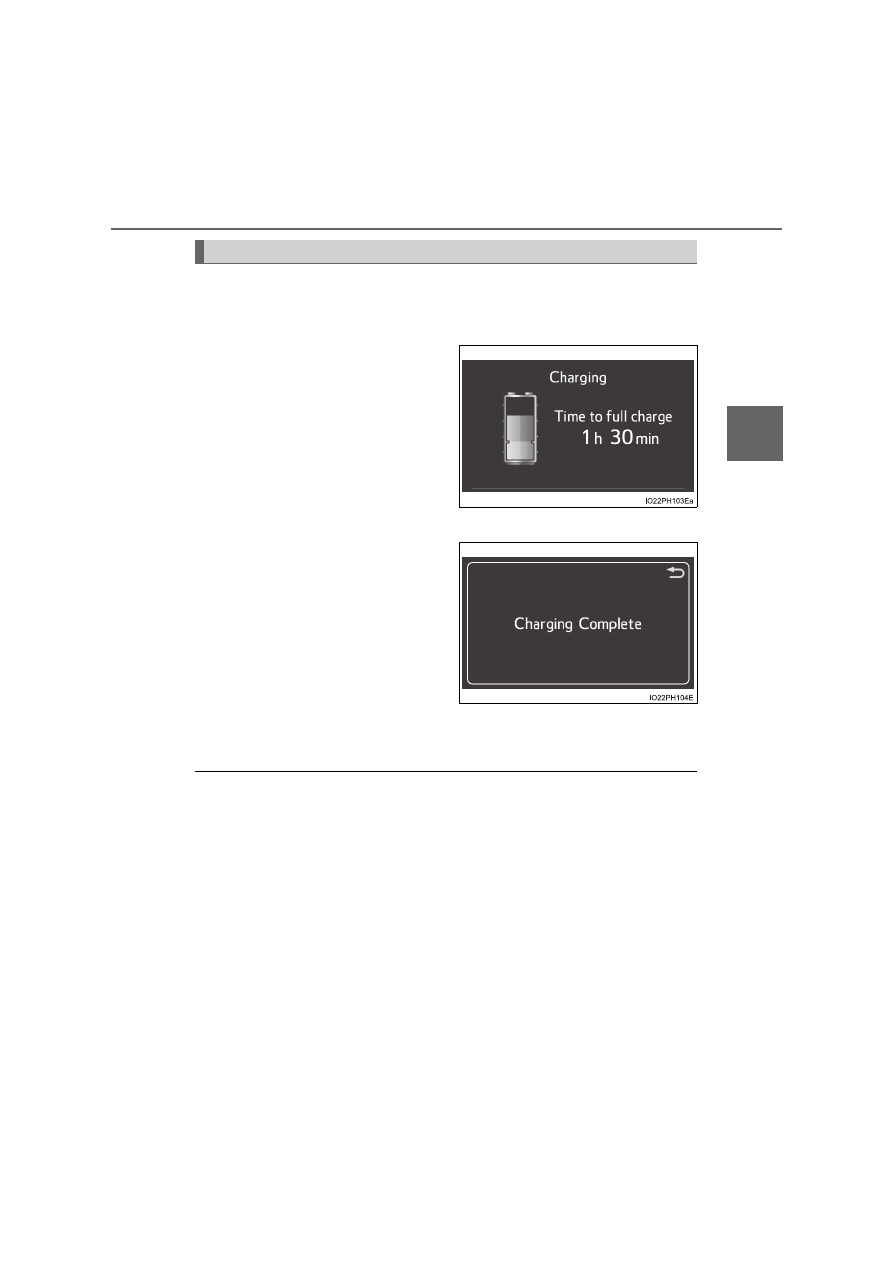

Information related to charging can be displayed and checked on the
multi-information display.

■

While charging

When any door is opened
during charging, the current
charging condition and remain-
ing time until charging is com-
plete can be checked.

■

After charging is complete

After charging is complete, the
first time that the hybrid system
is started, a message detailing
the results of the charging is
displayed. Also, a message is
displayed if an operation that
stops charging is performed or
a situation where charging can-
not be performed occurs.

When a message is displayed, follow the instructions displayed on the
screen. (



P. 187)

■

Combination meter display during charging

If approximately 100 seconds elapse after the power switch is turned to ON
mode during charging, the power switch will automatically turn off and the dis-
play will disappear.

Checking information related to charging

150

2-2. Charging

Things to know before charging

This vehicle has been designed to allow charging from an external
power source using a charging cable for exclusive use with standard
household AC sockets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause fire
or electric shock, possibly leading to death or serious injury.

●

The charging operation is designed to operate at 10A continuously
for the charge duration (up to 3 hours 10 minutes). (



P. 143)

●

Charging can be conducted outdoors.

To charge properly, follow the procedure after reading the explanation
below. Charging is intended to be carried out by licensed drivers only
who properly understand the charging procedure.

●

Do not allow children to use the charging cable without supervision.
Also, keep the charging cable out of reach of infants.

●

When charging with a charger, follow the procedures for using each
charger.

●

When charging using a public charging facility, check the setting of
the charging schedule function.

• When the charge schedule is registered, temporarily turn off the

function or turn “Charge Now” on. (



P. 172, 174)

• When the charge schedule is set to ON, charging will not start

even if the charging cable is connected. Also, charging fee may
occur due to connection of the charging cable.

Make sure to read the following precautions before connecting
the charging cable to the vehicle and charging the hybrid battery
(traction battery).

Charging precautions

151

2-2. Charging

2

P

lu

g

-in

 hy
br

id

 s

ys

tem

Before charging, always check the following items.

●

The parking brake is applied. (



P. 336)

●

The headlights are switched off or set to AUTO, and lights such as
the emergency flashers and interior lights etc. are switched off.

If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.

●

The power switch is off. (



P. 323)

Before charging, make sure that each part of the charging cable is in
good condition. (



P. 126)

■

Safety functions

●

The hybrid system will not start while the charging cable is attached to the
vehicle, even if the power switch is operated.

●

If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving will not be possi-
ble.

●

When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.

■

During charging

The followings occur, however, it does not indicate a malfunction.

●

The charging starting time may differ depending on the state of the vehicle.

●

During charging, the sound of the fan may be heard from the onboard trac-
tion battery charger cooling air intake vents. (



P. 154)

●

During and after charging, the rear seat and its surrounding area in which
the onboard traction battery charger is installed may get warm.

Confirm the following before charging

Inspecting the charging cable

152

2-2. Charging

■

Capacity reduction of the hybrid battery (traction battery)

The capacity of the hybrid battery (traction battery) will decline gradually
when the hybrid battery (traction battery) is in use. The rate at which it
declines will differ in accordance with environmental conditions and the way
in which the vehicle is used. Observing the following can help suppress bat-
tery capacity decline.

●

Avoid parking the vehicle in areas with a high temperature under direct sun-
light when the hybrid battery (traction battery) is fully charged.

●

Avoid accelerating and decelerating frequently and suddenly when EV driv-
ing.

●

Avoid frequent driving near the top speed for EV driving. (



P. 94)

●

Leave a low level of charge in the hybrid battery (traction battery) when
leaving the vehicle undriven for a long period of time.
After confirming that EV mode has switched to HV mode, turn the power
switch off.

●

Use the charging schedule function as much as possible in order to fully
charge the hybrid battery (traction battery) immediately before starting off.
(



P. 166)

Also, if the hybrid battery (traction battery) capacity reduces, the distance that
can be driven in EV mode decreases. However, vehicle performance does
not significantly become worse.

■

When the remaining charge of the hybrid battery (traction battery) is low
after charging

In the following situations, the remaining charge of the hybrid battery (traction
battery) after charging completes may be less than normal in order to protect
the system (the EV driving range after the battery is fully charged may be
shorter).

*

●

Charging is carried out when the outside temperature is low or high

●

Charging is carried out immediately after high-load driving or in extreme
heat

When none of the above situations apply and there is a drastic drop in the
remaining charge of the hybrid battery (traction battery) after charging com-
pletes, have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.

*

: When this occurs, even if the remaining charge display of the hybrid battery

(traction battery) shows that it is fully charged, the remaining charge rapidly
decreases faster than normal.

■

When the charging amount sent to the hybrid battery (traction battery)
decreases

When the amount of power supplied by the charger is low or operation of the
“Traction Battery Heater”, etc., reduces the charging power sent to the hybrid
battery (traction battery), the charging amount sent to the hybrid battery (trac-
tion battery) may decrease.

153

2-2. Charging

2

P

lu

g

-in

 hy
br

id

 s

ys

tem

WARNING

■

Caution when charging

People with implantable cardiac pacemakers or cardiac resynchronization
therapy-pacemakers should not carry out the charging procedure. Ask
someone else to do it.

●

Do not approach the charger and charging cable while charging.
Charging procedure may affect the operation of such devices.

●

Do not remain in the vehicle during charging.
Charging procedure may affect the operation of such devices.

●

Do not enter the vehicle even to take something out of the luggage com-
partment.
Charging procedure may affect the operation of such devices.

■

When the charging cable is connected to the vehicle

Do not operate the shift lever.
In the unlikely event that the charging cable has been damaged, the shift
position may change from P to another position and the vehicle could move,
possibly leading to an accident.

NOTICE

■

Precautions when handling charging cable

Make sure to observe the following precautions. Failure to observe these
precautions may result in damage to the charging cable and charging inlet.

●

Insert the charging connector straight into the charging inlet.

●

After inserting the charging connector, do not apply excessive force to or
twist the connector. Also, do not lean on the connector or hang any objects
from it.

●

Do not step on or trip over the charging cable.

●

Before removing the charging connector, make sure that it is unlocked.
(



P. 161)

●

After removing the charging cable, promptly return it to its proper location.

●

After removing the charging connector, securely install the charging inlet
cap.

154

2-2. Charging

NOTICE

■

Onboard traction battery charger cooling air intake vents

●

Do not block the air intake vents with seat covers or luggage

●

If the air intake vents are clogged with dust, clean them with a vacuum
cleaner

●

Do not allow water or foreign matter to enter the air intake vents

●

Do not spill large amounts of water near the air intake vents
If water is spilled, have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer and do not
charge the hybrid battery (traction battery) before the inspection.

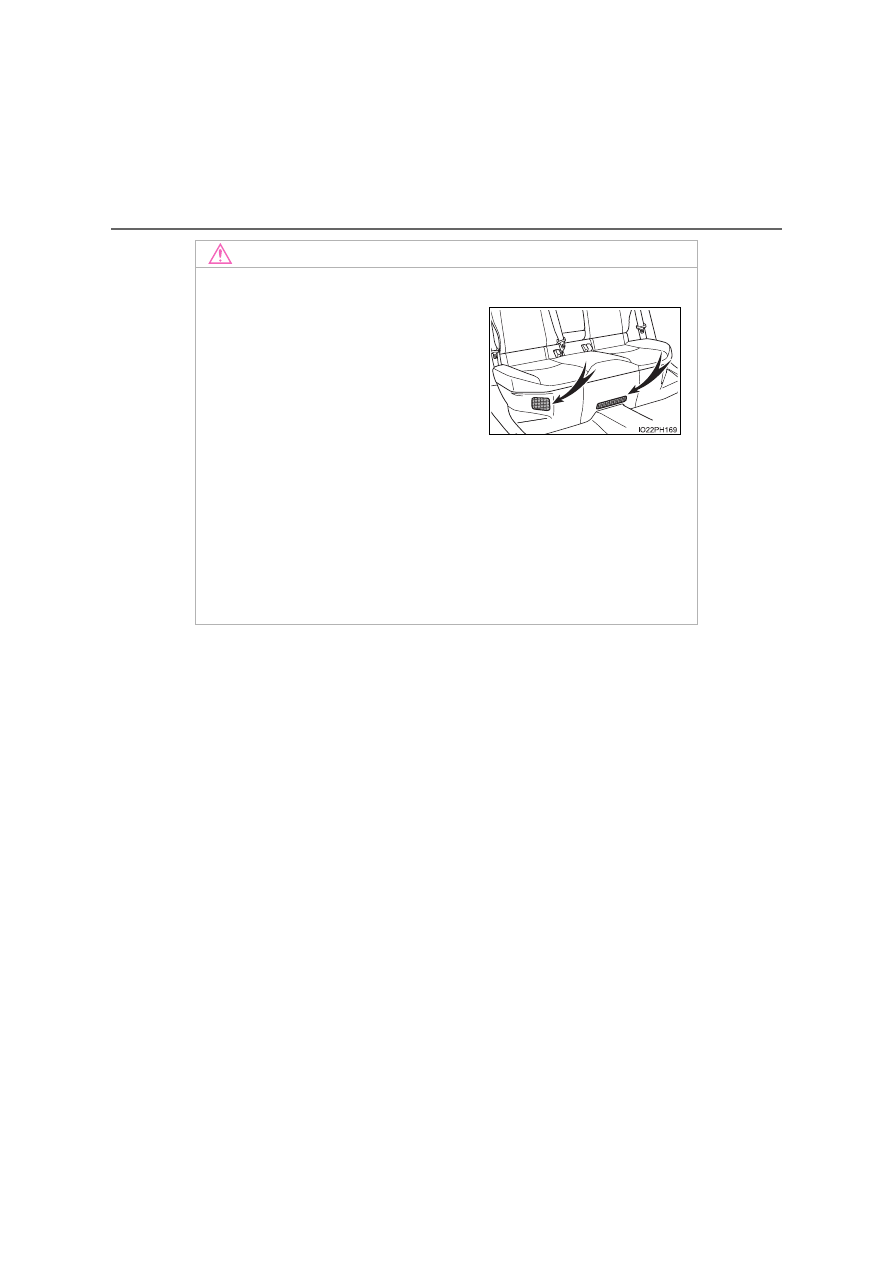

The grilles under the rear seats are the
cooling air intake vents for the onboard
traction battery charger installed under
the seats.
Make sure to observe the following pre-
cautions regarding the cooling air intake
vents. Failure to observe these precau-
tions may result in a charging system
malfunction.

155

2

2-2. Charging

P

lu

g

-in

 hy
br

id

 s

ys

tem

How to charge



P. 151

Prepare the charging cable.



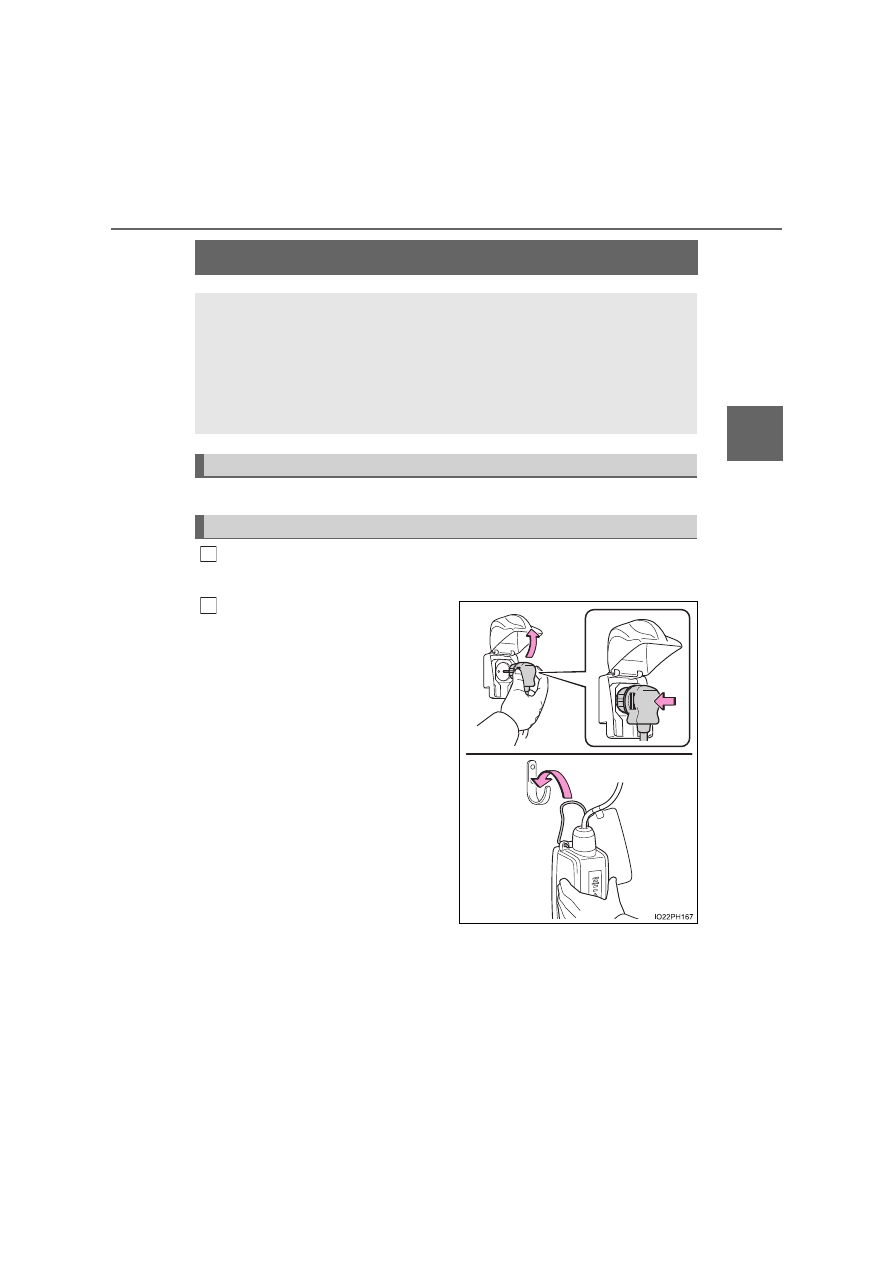

When using the Mode 2 charging cable

Make sure to hold the body of
the plug and insert it firmly into
the socket.

If you have a remote switch, turn it
on.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated. (If it
is not illuminated, refer to P. 182)
Use a string, etc. to hang the CCID
(Charging Circuit Interrupting
Device) on a hook or equivalent
when a load is applied to the
socket and plug due to the installa-
tion height of the socket.
The CCID (Charging Circuit Inter-
rupting Device) can be hung by
using the hole in the back. Do not
attach the CCID (Charging Circuit
Interrupting Device) to the wall with
screws.

This section explains the procedure for charging the hybrid bat-
tery (traction battery) with the equipped charging cable.
When using a charging station, make sure to check the opera-
tion instructions on the charging station.

When the charge schedule is registered, make sure “Charge Now”
is turned on before charging. (



P. 174)

Confirm the following before charging

When charging

1

2

156

2-2. Charging



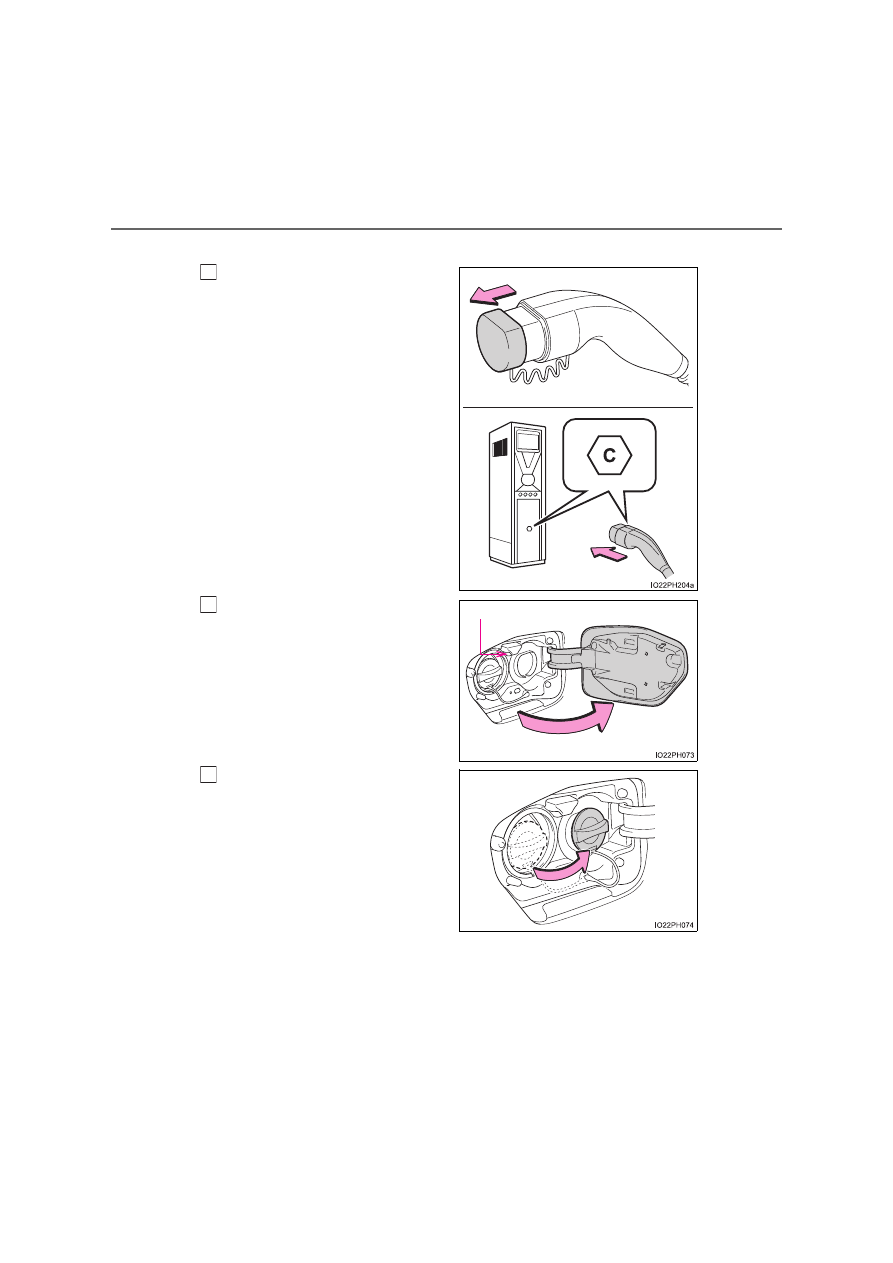

When using the Mode 3 charging cable (if equipped)

Remove the cap of the charging
plug and then connect the
charging plug to the charger.

When connecting the charging
plug into the charger, make sure
that the identification symbols are
the same.
Make sure to hold the body of the
charging plug and insert it firmly
and fully into the charger.
Follow the instructions of the char-
ger for details regarding how to
connect the charging cable and
how to start charging.
Depending on the charger, it may
be necessary to receive authoriza-
tion to use it. For details, refer to
the information of the charger.

Open the charging port lid.
(



P. 112)

The charging inlet light will illumi-
nate.

Remove the charging inlet cap
and secure it as shown in the
illustration.

2

Charging inlet light

3

4

157

2-2. Charging

2

P

lu

g

-in

 hy
br

id

 s

ys

tem

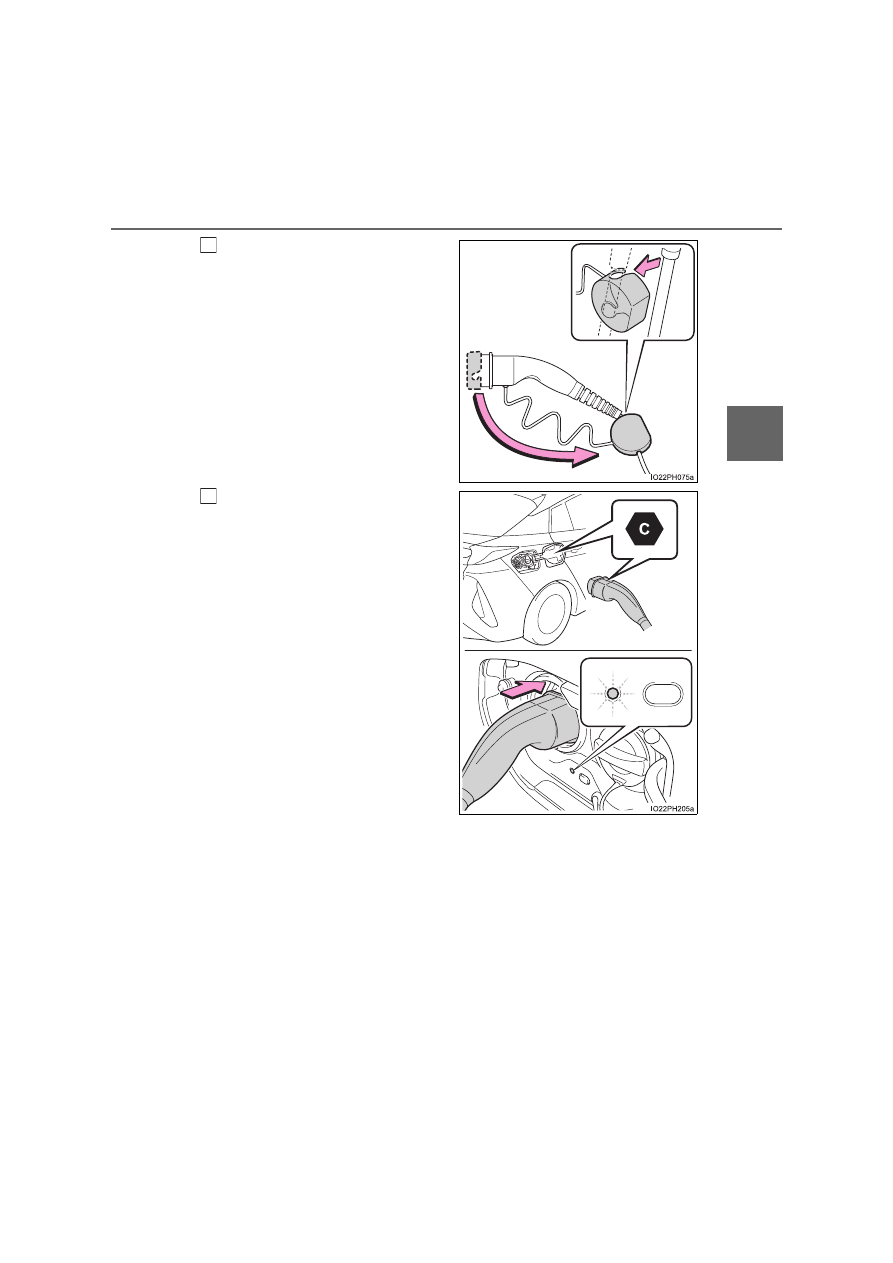

Remove the protective cap of
the charging connector and
secure it to the cable.

The illustration uses a Mode 2
charging cable as an example.

Make sure to hold the body of
the charging connector and
insert it firmly and fully into the
charging inlet.

When connecting the charging
connector into the charging inlet,
make sure that the identification
symbols are the same.
When the charging connector is
inserted straight as far as possible,
it will automatically lock.
Check that the charging indicator
illuminates. If the charging indica-
tor does not illuminate, the
charging connector is not locked.

*

If the charging connector is not
locked, remove and reinsert it.
After the charging connector is
locked, the charging connector
cannot be unlocked by pressing
the charging connector lock switch
if the electronic key is not in detec-
tion area of charging port lid.
(



P. 284)

*

: If the charging connector is not firmly inserted, locking operation will be

performed several times.

5

6

158

2-2. Charging

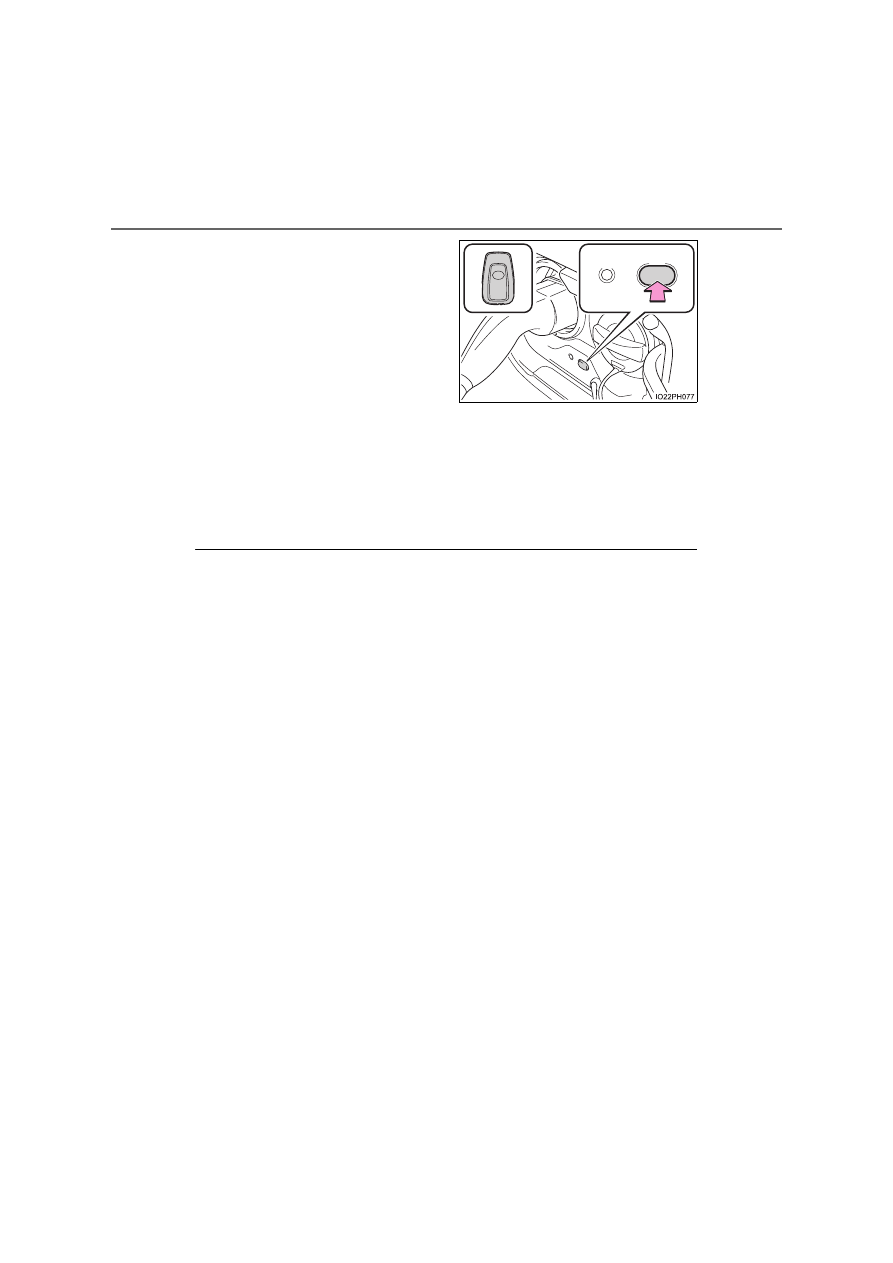

If the charging indicator flashes
after inserting the charging con-
nector:
The charge schedule is regis-
tered (



P. 166). Carry an elec-

tronic key and press the
charging connector lock switch
to unlock the charging connec-
tor.

After temporarily removing the charging connector, reinsert it within
approximately 5 seconds. (



P. 158)

If the error warning indicator on the CCID (Charging Circuit Interrupting
Device) flashes during charging, check P. 120 and follow the correction
procedure.
The charging indicator will turn off when charging is completed.

■

During charging

●

The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction. (When using Mode 2 charging
cable.)

●

Depending on radio wave conditions, interference may be heard on the
radio.

●

The current charging condition and the estimated time until charging will
complete can be checked on the multi-information display. (



P. 149)

●

During charging, the hybrid battery (traction battery) status indicator illumi-
nates and flashes, and changes according to the charging amount.
(



P. 113)

■

If the charging indicator flashes after connecting the charging cable

The charge schedule (



P. 166) is registered and charging cannot be per-

formed. To cancel charging using the charging schedule and start charging,
perform any of the following procedures.

●

Turn “Charge Now” on (



P. 174)

●

While the charging indicator is flashing, remove and reconnect the charging
connector within 5 seconds

■

When the charging connector cannot be inserted into the charging inlet



P. 135

159

2-2. Charging

2

P

lu

g

-in

 hy
br

id

 s

ys

tem

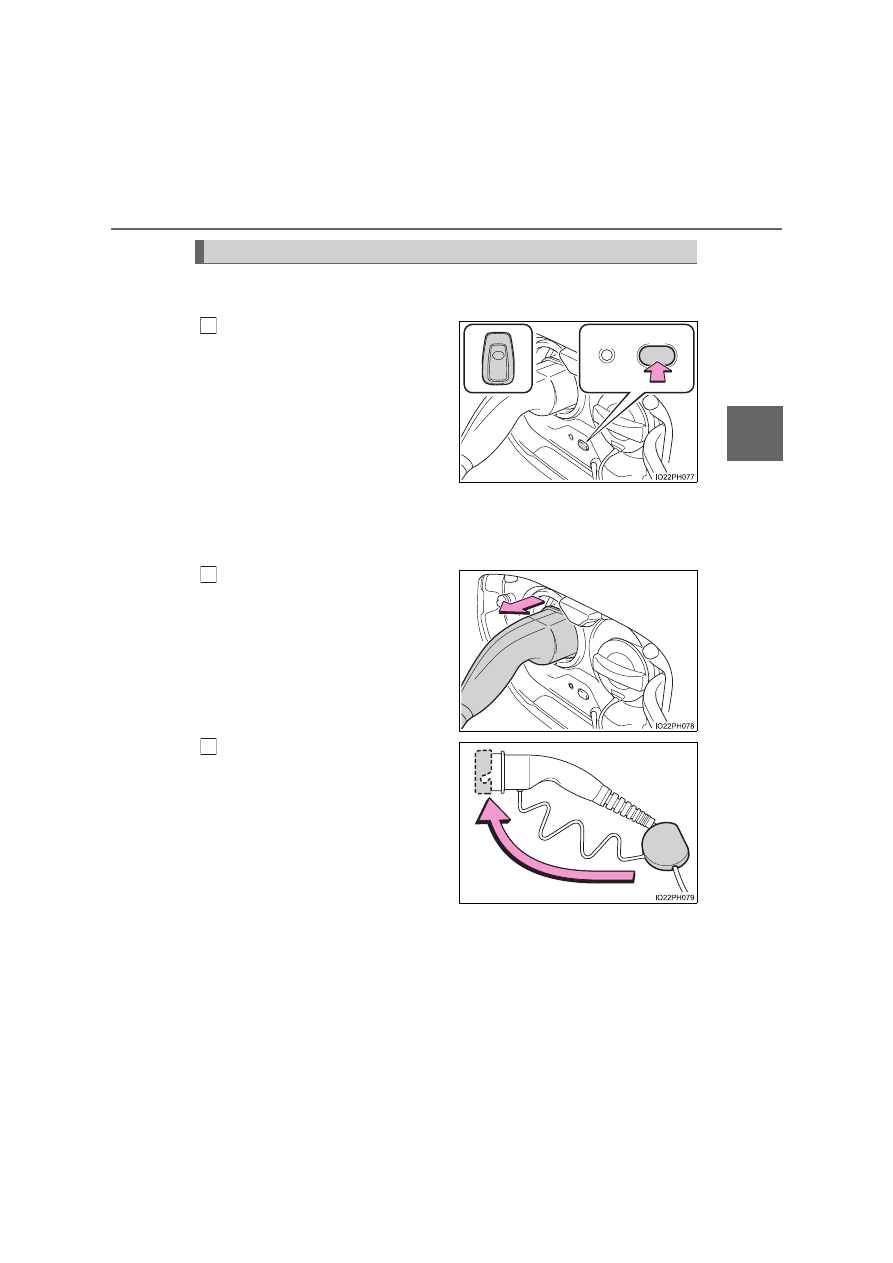

To prevent electrical shock, be sure to remove by following the proce-
dures below.

Carry an electronic key and
press the charging connector
lock switch to unlock the
charging connector.

The charging connector is
unlocked by the smart lid & con-
nector locking system.
If the charging connector is
unlocked during charging (while
the charging indicator is on),
charging will be interrupted.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.

Make sure to hold the body of
the charging connector and pull
it towards you.

Attach the charging connector
cap.

After charging

1

2

3
