2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

turned on/off. (Customizable fea-

tures:



P.502)

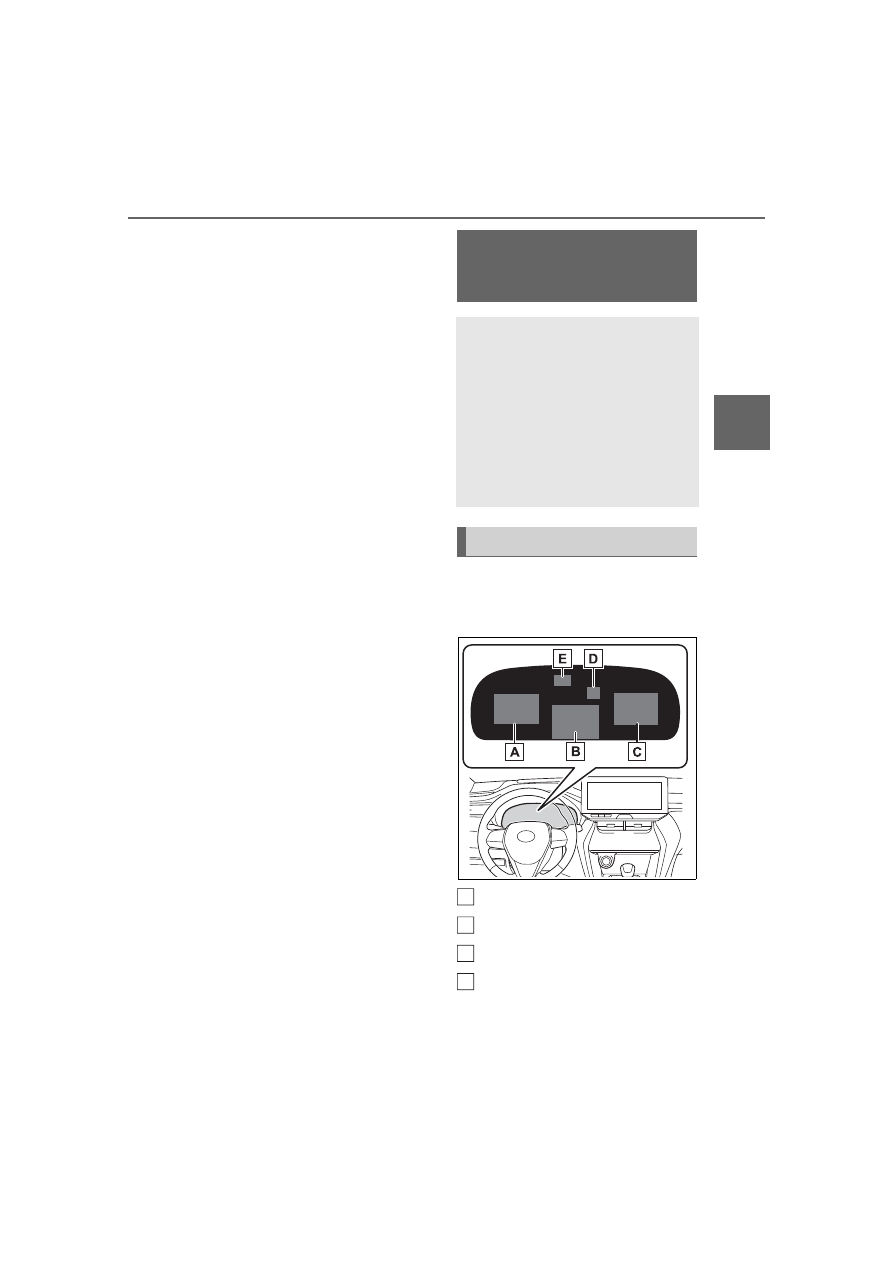

Following information is dis-
played on the multi-information
display.

Content display area (left)

Content display area (center)

Content display area (right)

Driving support system infor-
mation display area

When driving information support

Multi-information dis-

play (12.3-inch multi-

information display)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

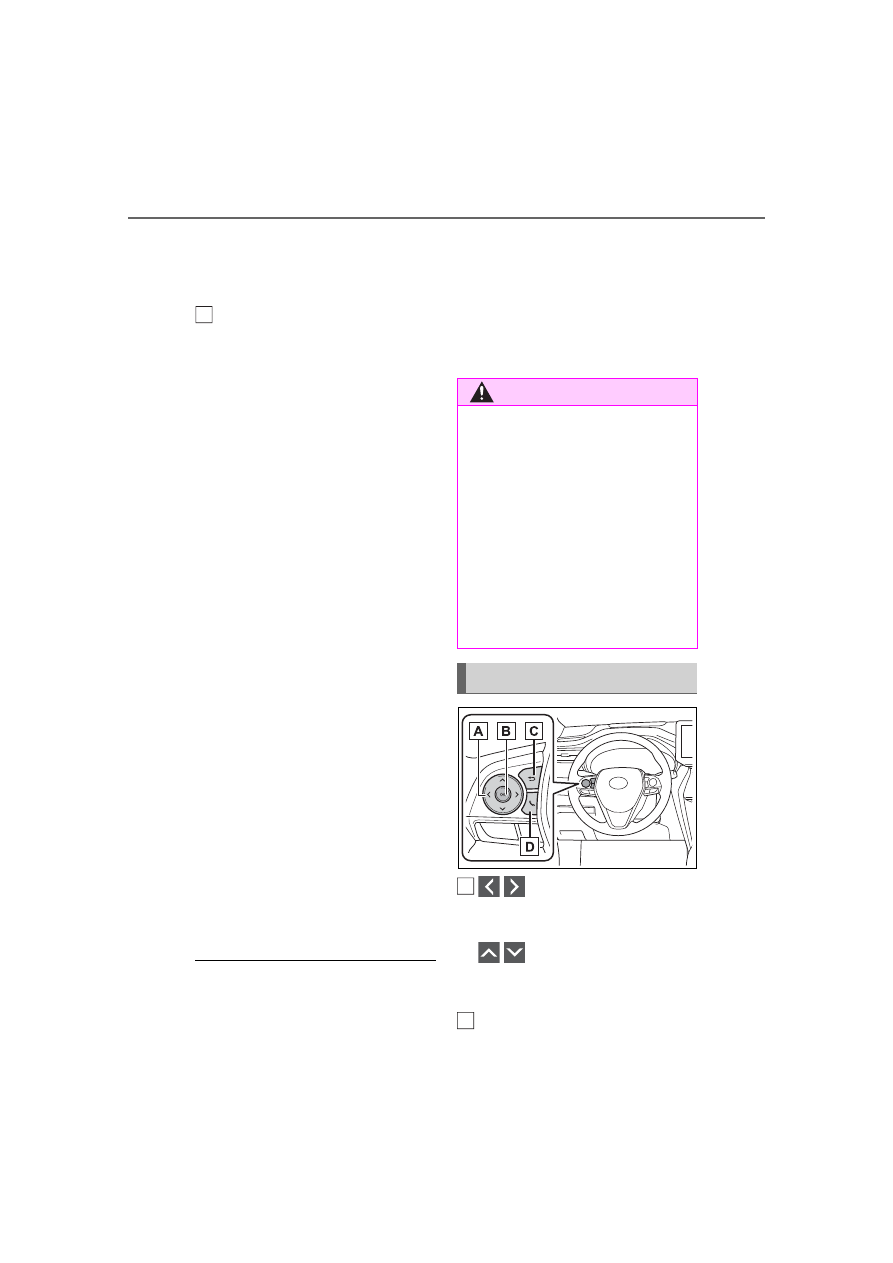

112

2-1. Instrument cluster

system is displayed on the content
display area, the system operating
state will not be displayed in this
area.

RSA (Road Sign Assist) dis-
play area (if equipped)

■

Content display area (cen-
ter)



Driving support system infor-
mation display



Settings display



Warning message display

■

Content display area (cen-
ter)



Fuel Economy (



P.114)



ECO Accelerator Guid-
ance/“Eco Score” (



P.114)



Driving time since starting/EV
Driving Ratio (



P.116)



Driving support system infor-
mation display



Navigation system-linked
information display (



P.116)

(if equipped)



Audio system-linked display
(



P.116)



Drive information (



P.116)



Energy monitor (



P.128)



Tire pressure (



P.402)



AWD operation status display
(



P.117)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode.

(



P.304)

: Change the screen

and move the cursor
up/down

: Change displayed

content and scroll up/down
the screen

Press: Enter/Set

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.98

Meter control switches

113

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Press and hold: Reset, dis-
play the cursor and display
customizable items

Move the main meter and
return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

The multi-information display is
operated using the meter control
switches.

■

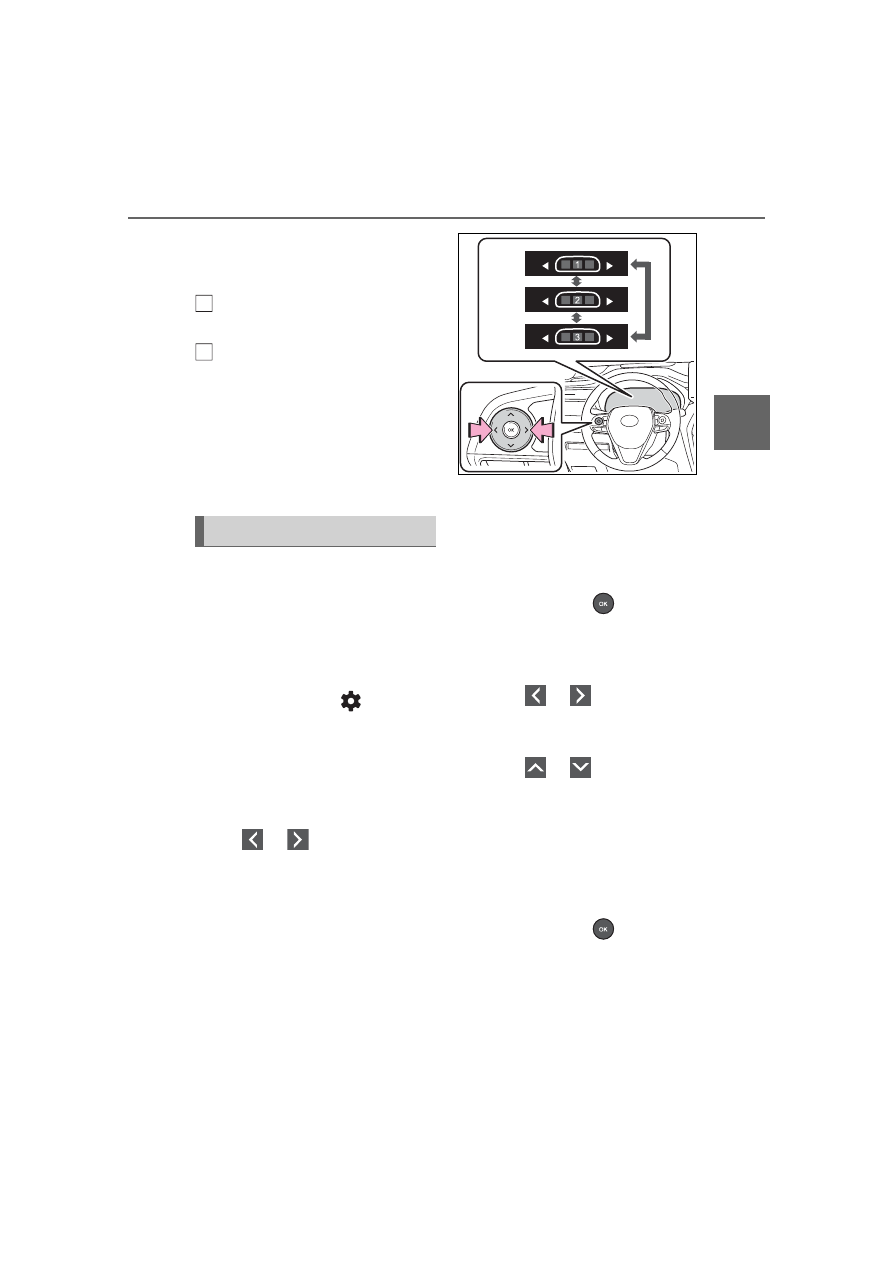

Changing the meter display
type setting

The meter display type setting
can be changed on

(



P.117)

■

Changing the screen

Select items from the combina-
tion of 3 screens to display on
each 3 content display areas.
Press

of the meter

control switch to scroll the
screen.

■

Changing the display con-
tents

Switches items displayed on
each contents display area
(left/center/right).

Press and hold

of the

meter control switch to dis-
play cursor on the content
display area (center).

Press

to move the

cursor and select the content
display area.

Press

to select the

items.

■

Items displayed in the con-
tent display area

Select to enable/disable items
on the content display area
(left/right).

Press and hold

of the

meter control switch to dis-
play cursor on the content
display area (center).

Changing the display

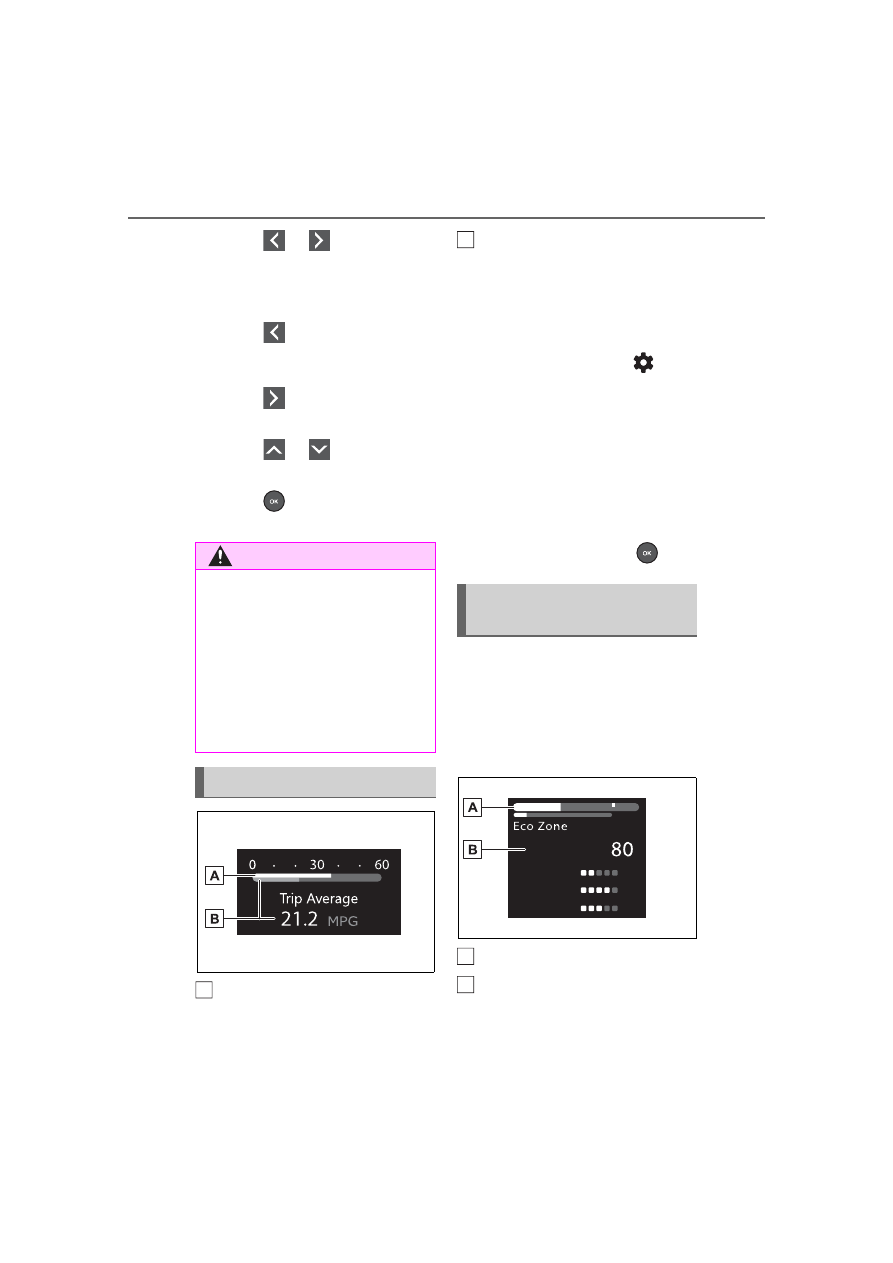

114

2-1. Instrument cluster

Press

to move the

cursor and select the content
display area.

Contents display area (left):
Press

to display contents

list.
Contents display area (right):
Press

to display contents

list.

Press

to select the

items.

Press

to select

enable/disable items.

Current fuel economy

Displays the driving range with
remaining fuel.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed.

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy after

starting is reset each time the
hybrid system stops.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

ECO Accelerator Guidance

“Eco Score”

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Fuel Economy

ECO Accelerator Guid-
ance/“Eco Score”

守宦宲季宖宦宲宵宨

宖宷室宵宷

宖宷宲害

宆宵宸宬家宨

115

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-
ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.

■

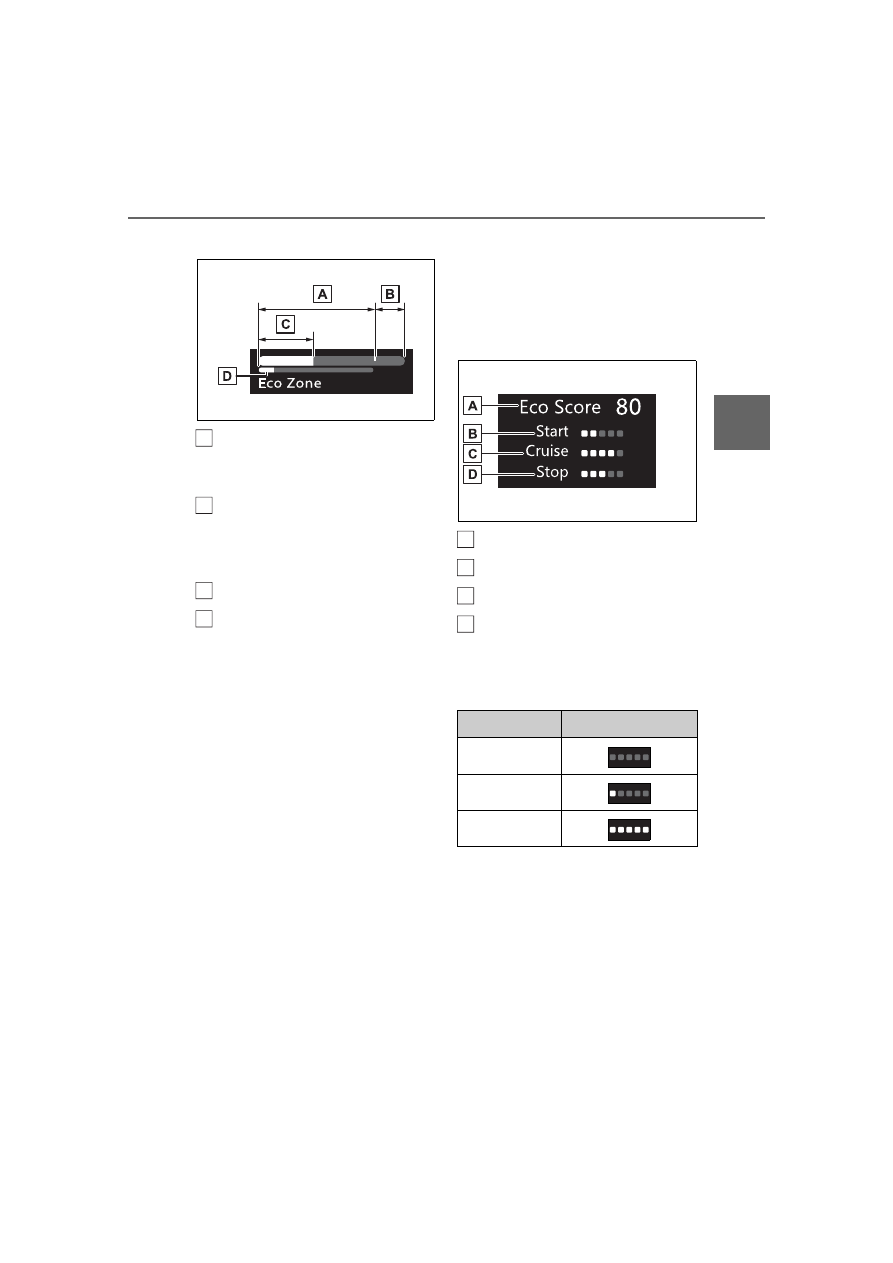

“Eco Score”

The driving status for the follow-
ing 3 situations are evaluated in
5 levels: Smooth start-off accel-
eration (“Start”), driving without

sudden acceleration (“Cruise”)
and smooth stopping (“Stop”).
Each time the vehicle is
stopped, a score result is dis-
played out of a perfect score of
100 points.

Score result

Eco start status

Eco cruise status

Eco stop status

3 situations are displayed with each
icon while driving.

How to read the bar display:

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately 19
mph (30 km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.

Score

Bar display

Unrated

Low

High

116

2-1. Instrument cluster

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control.

EV driving ratio after starting

Displays the percentage of EV driv-
ing since the hybrid system was
started.

Elapsed time after starting

Displays the elapsed time since
hybrid system was started.

: It is reset each time the hybrid

system stops.

Select to display the operational
status of the following systems:



PCS (Pre-Collision System)
(



P.239)



LTA (Lane Tracing Assist)

(



P.250)



Dynamic radar cruise control
with full-speed range
(



P.262)

Select to display the following
navigation system-linked infor-
mation.



Route guidance to destination



Street name



Compass

Select to enable selection of an
audio source or track on the
meter

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed and distance)
can be displayed vertically.

Use the displayed information as a
reference only.

• Average Speed: Displays the

average vehicle speed since
hybrid system start

• Distance: Displays the dis-

tance driven since hybrid sys-
tem start

EV Ratio/EV Driving Ratio

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play

Driving information dis-
play

117

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

• Elapsed time: Displays

elapsed time since hybrid sys-
tem start

: These items are reset each time

the hybrid system stops.

■

Trip information

2 items that are selected using
the “TRIP A Items” or “TRIP B
Items” setting (average speed
and distance) can be displayed
vertically.
Use the displayed information
as a reference only.
• Average Speed: Displays the

average vehicle speed since
the display was reset

• Distance: Displays the dis-

tance driven since the display
was reset

• Elapsed time: Displays

elapsed time since the display
was reset

: To reset, display the desired item

and press and hold



P.128



P.402

■

Tire pressure

●

It may take a few minutes to dis-

play the tire inflation pressure

after the power switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

●

“---” may be displayed if the tire

position information cannot be

determined due to unfavorable

radio wave conditions.

●

Tire inflation pressure changes

with temperature. The displayed

values may also be different from

the values measured using a tire

pressure gauge.

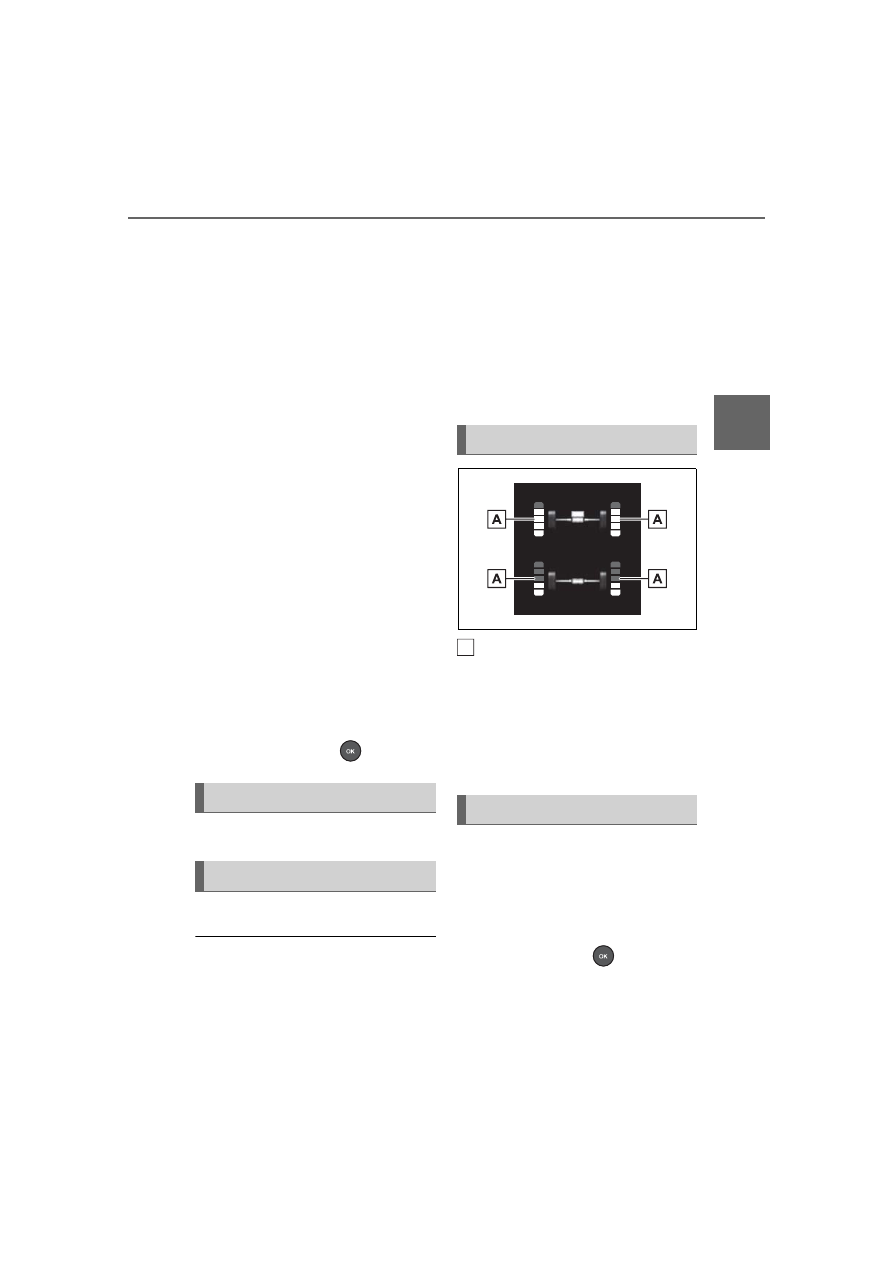

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.
The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

Press and hold

of the

meter control switch to dis-
play cursor on the content
display area (center).

Energy monitor

Tire Pressure

AWD system display

Settings display

118

2-1. Instrument cluster

Press

with the cur-

sor on the content display
area (center) to select

and then press

Press

of the meter

control switch and move the
cursor to select the item for
changing settings.

If the function is turned on and off

or the volume, etc. is changed on

the setting screen, the setting is
changed each time is pressed

For functions that allow operation

contents, display contents, etc., of

function to be selected, the setting

screen is displayed by pressing and
holding

. When the setting

screen is displayed, select the set-

ting or desired value (time, etc.)
with

After changing the settings,
press

of the meter control

switches.

■

HUD (Head-up display) (if
equipped) (



P.123)

Select to change the head-up
display setting.

■

LTA (Lane Tracing

Assist) (if equipped)
(



P.250)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Alert Options”

Select to set the alert type.



“Sensitivity”

Select to set the warning sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

BSM (Blind Spot Moni-

tor) (



P.277)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off
Select to enable/disable the
BSM system.



“Sensitivity”
Select to change the alert tim-
ing for an approaching vehi-
cle.



“Brightness”
Select to switch the bright-
ness of the outside rear view
mirror indicators. (



P.278)

■

PCS (Pre-Collision Sys-

tem)

Select to set up the following
items.



PCS on/off
Select to enable/disable the
pre-collision system.



“Sensitivity”
Select to change the pre-colli-
sion warning timing.

119

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Intuitive parking assist

(if equipped) (



P.287)

Select to set up the following
items.



Intuitive parking assist on/off
Select to enable/disable the
Intuitive parking assist.



“Volume”
Select to set the volume of the
buzzer which sounds when
the Intuitive parking assist is
operated.

■

RCTA (Rear Cross Traf-

fic Alert) (



P.283)

Select to set up the following
items.



RCTA (Rear Cross Traffic
Alert) on/off
Select to enable/disable the
RCTA system.



“Volume”
Select to set the volume of the
buzzer which sounds when
the RCTA and the Toyota
parking assist-sensor is oper-
ated.

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.295)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign

Assist) (if equipped)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
(Road Sign Assist).



“Notification Method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



DRCC

Select to change the curve speed
reduction function setting.



PBD (Power Back Door)

(



P.143)

Select to set up the following
items.

• System settings

Select to enable/disable the
power back door system.

• “Hands Free” (if equipped)

Select to enable/disable the
Hands Free Power Back Door
operation.

• “Opening Adjustment”

Select the open position when
power back door is fully open.

• “Volume”

Select to enable/disable the
power back door system.



“TPWS” (Tire Pressure Warn-
ing System) (



P.402)

• “Setting Pressure”

120

2-1. Instrument cluster

Select to initialize the tire pres-
sure warning system.

• “Identifying Each Wheel & Posi-

tion”
Select to change the tire pressure
warning system sensor ID code
set. To enable this function, a
second set of tire pressure warn-
ing system sensor ID codes must
be registered by a Toyota dealer.
For information regarding chang-
ing the registered ID code set,
contact your Toyota dealer.

• “Pressure unit setting”

Select to change the units of
measure displayed.



“Scheduled Maintenance”
(



P.380)

Select to reset the scheduled
maintenance information
(message indicating mainte-
nance is required and dis-
tance until the next
maintenance) after all mainte-
nance is performed.



Oil Maintenance
Select to reset the Oil mainte-
nance. (



P.392)



Rear Seat Reminder
(



P.139)

Select to enable/disable the
rear seat reminder function.

■

Settings



“Language”
Select to change the lan-
guage on the multi-informa-
tion display.



“Units”
Select to change the unit of

measure for fuel consump-
tion.



Meter Type
Select to change the meter
type setting.



Meter Style
Select to change the meter
style.



Dial Type
Select to change dial type.
(



P.94)



EV indicator

Select to enable/disable the
EV indicator.



Fuel Economy
Select to change the display
on Fuel Economy. (



P.114)



Hybrid System
Select to enable/disable refer-
ence operation range.



Drive Info
Select to change displayed
items on drive information dis-
play. (



P.116)



Pop-Up Display
Select to enable/disable the
pop-up displays, which may
appear in some situations.



Default Settings
Select to reset the meter dis-
play settings.

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

121

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

●

If a warning message is displayed,

operation of the settings display

will be suspended.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.451)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to enable the
power back door

If the power back door system is
disabled (setting on

set to

off) and the power back door
switch on the instrument panel
is operated, a suggestion mes-
sage will be displayed asking if
you wish to enable the power
back door system. To enable
the power back door system,
select “Yes”.

After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Suggestion to close the
power windows (Driving at
high speeds)

If the vehicle speed exceeds a
certain speed with a power win-
dow open, a suggestion mes-
sage will be displayed asking if
you wish to close the power win-
dows. To close all of the power
windows, select “Yes”.

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

Suggestion function

123

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

: If equipped

Illustrations used in this text are intended as examples, and may differ from
the image that is actually displayed by the head-up display.

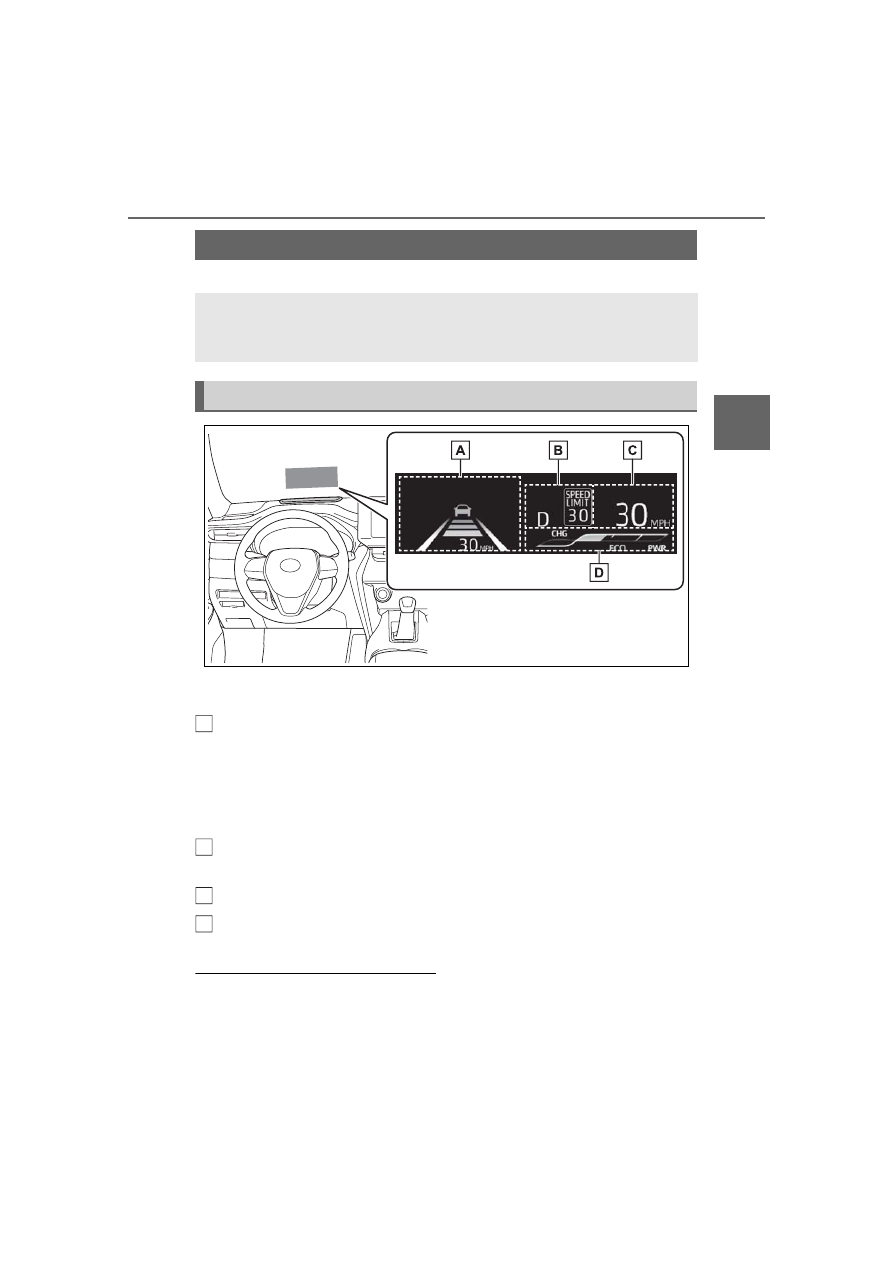

Driving support system display area (



P.125)/

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Shift position/RSA (Road Sign Assist) display (if equipped) area
(



P.208)

Speedometer

Hybrid System Indicator/Tachometer/Outside temperature dis-
play area (



P.126)

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

Head-up display

The head-up display projects a variety of driving-related infor-
mation and the operating state of the driving support systems
on the windshield.

System components

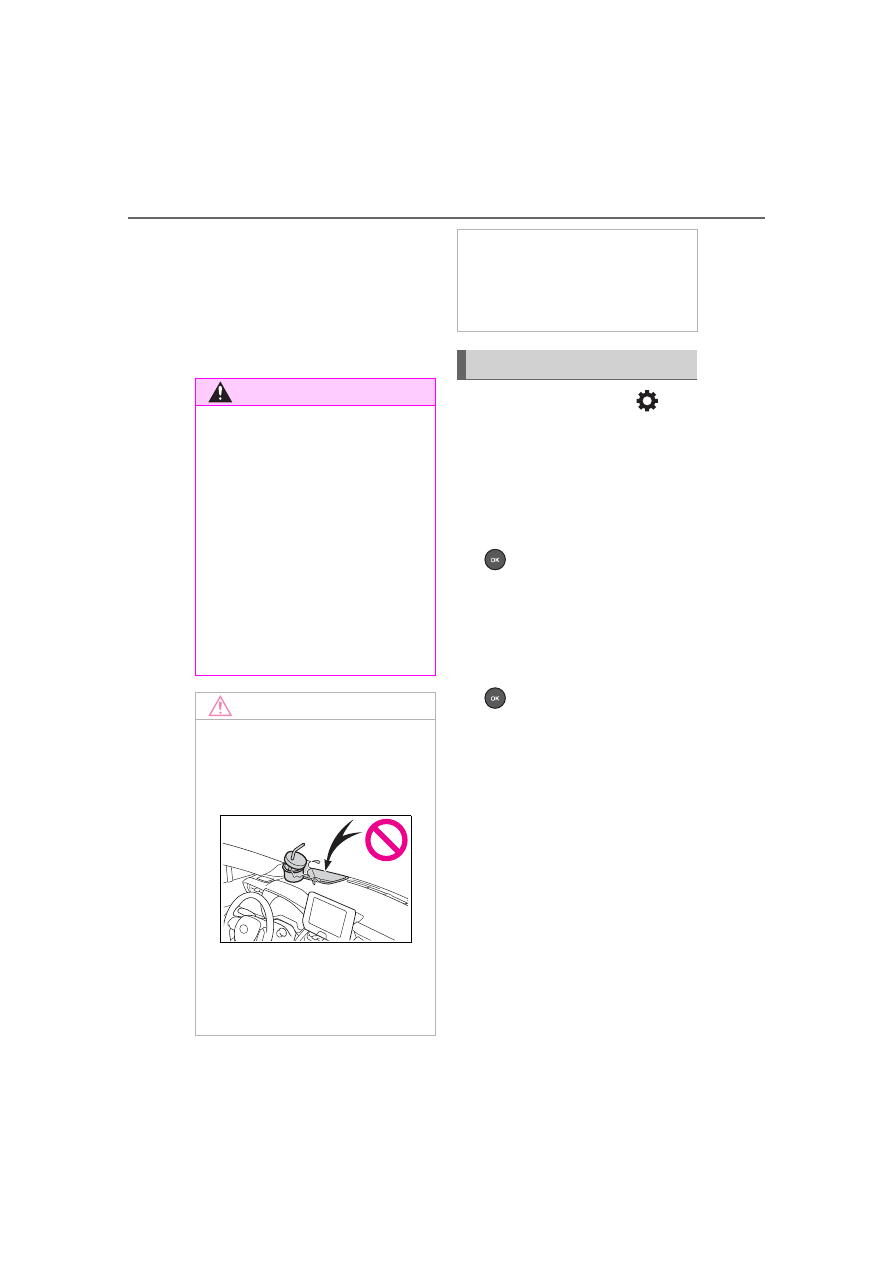

124

2-1. Instrument cluster

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are

included in the map data will be dis-

played.

Select the “HUD” on the

screen of the multi-information
display. (



P.106)

■

Enabling/disabling the
head-up display

The head-up display enabled
and disabled with each press of
the

of the meter control

switches.

■

Changing settings of the
head-up display

The following settings can be
changed pressing and hold of
the

of the meter control

switches.



Brightness and vertical posi-
tion of the head-up display

Select to adjust the brightness or
vertical position of the head-up dis-
play.



Tachometer Settings

Select to display the blank, Hybrid
System Indicator or tachometer.



Display content

Select to enable/disable the follow-
ing items:
• Navigation display (if equipped)

• Driving Assist display

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt head-

up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

125

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

• Compass (heading-up display) (if

equipped)

• Audio system operation status

: Make sure to enable this display

when using the driving support
systems



Display angle

Select to adjust the angle of the
head-up display.

■

Enabling/disabling of the head-

up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on the

screen of the multi-information dis-
play. Also, it is automatically
adjusted according to the ambient
brightness.

■

Head-up display automatic

position adjustment

If the display position is recorded

into memory, the head-up display

will be automatically adjusted to the

desired position. (



P.163)

■

When the 12-volt battery is dis-

connected

The customize settings of the head-

up display will be reset.

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.250)



Dynamic radar cruise control
with full-speed range
(



P.265)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

Pop-up displays for the following

WARNING

■

Caution for changing settings

of the head-up display

As the hybrid system needs to be

operating while changing the set-

tings of the head-up display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while chang-

ing the settings of the head-up

display.

Driving support system
display area

Pop-up display

126

2-1. Instrument cluster

systems will be displayed when
necessary.

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.239)



PKSB (Parking Support
Brake) (if equipped) (



P.295)



Brake Override System
(



P.189)



Drive-Start Control (DSC)
(



P.194)



LTA (Lane Tracing Assist)
(



P.250)



Dynamic radar cruise control
with full-speed range
(



P.265)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

icons

Displays the following multi-
information display linked icons:

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display.

: Information icon

Displayed when a sugges-
tion/advice pop-up display is dis-
played on the multi-information

display.

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display.

■

Audio system operation
status

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status

Displayed when the hands-free
system is operated.

■

When a pop-up display is dis-

played

When a pop-up display is displayed,

a current display may no longer be

displayed. In this case, the display

will return after the pop-up display

disappears.

■

Hybrid System Indicator

Hybrid System Indica-
tor/tachometer/Outside
temperature area

Toyota Venza Hybrid (2023 year). Manual in english - page 7
