Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.98 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Widget (Fuel economy)

Displays the engine coolant temperature (



P.116)

While list of items for content display area (



P.113) is displayed, widget

will not be displayed.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.98)

2-1. Instrument cluster



Type 3

The location of some displayed items and the units of measure may differ
depending on the intended destination of the vehicle.

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.97)

Multi-information display

Presents the driver with a variety of vehicle data (



P.111)

Displays warning messages if a malfunction occurs (



P.441)

Outside temperature (



P.98)

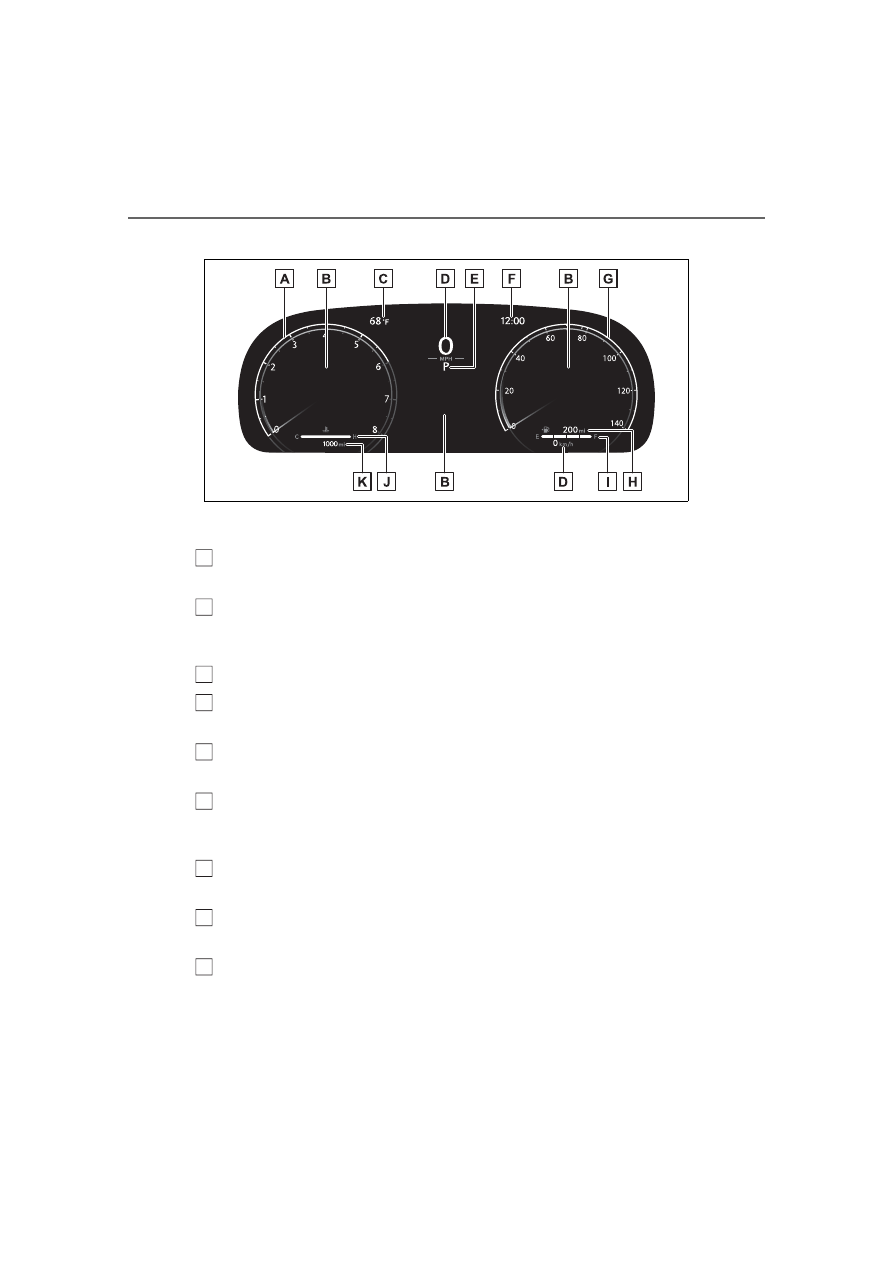

Digital speedometer

Displays the vehicle speed

Shift position and shift range

Displays the selected shift position or selected shift range (



P.208)

Clock

The GPS clock’s time is automatically adjusted by utilizing GPS time infor-
mation.

Analog speedometer

Displays the vehicle speed

Distance to empty

Displays the driving range with remaining fuel (



P.97)

Fuel gauge

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.99)

■

The meters and display illumi-

nate when

The power switch is in ON.

■

Engine speed

On hybrid vehicles, engine speed is

precisely controlled in order to help

improve fuel efficiency and reduce

exhaust emissions etc.
There are times when the engine

speed that is displayed may differ

even when vehicle operation and

driving conditions are the same.

■

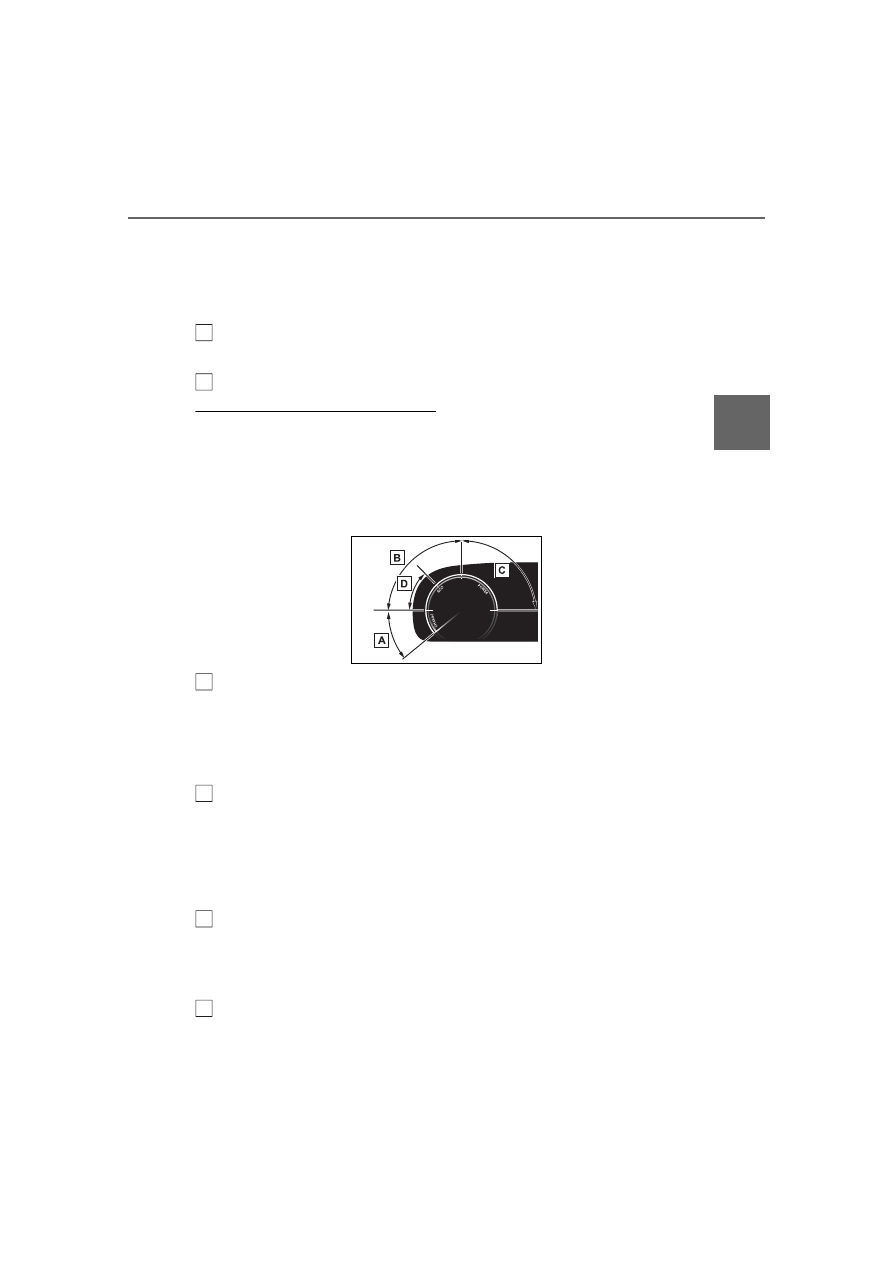

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the bar display within
Eco area, more Eco-friendly driving
can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

Hybrid Eco area

Shows that gasoline engine power

is not being used very often. The
gasoline engine will automatically
stop and restart under various con-
ditions.

: When used in this manual, regen-

eration refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch off. If

the vehicle is refueled without

turning the power switch off, the

2-1. Instrument cluster

display may not be updated.

(



P.98)

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated. Refuel immediately.

■

Manually updating the fuel

gauge and possible driving

range

The fuel gauge and the possible

driving range are linked. If the dis-

plays of the fuel gauge and possible

driving range do not update after

adding a small amount of fuel, the

displays can be updated by per-

forming the following procedure.

Stop the vehicle on a level sur-

face.

Press the “ODO TRIP” switch to

change the odometer and trip

meter display to odometer.

Turn the power switch off.

While pressing and holding the

“ODO TRIP” switch, turn the

power switch to ON.

Continue to hold the “ODO TRIP”

switch for approximately 5 sec-

onds, and then release it once

the odometer begins flashing.

Updating is complete once the

odometer flashes for approximately

5 seconds and then the display

returns to normal.

■

Outside temperature display

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C)

●

Low outside temperature indica-

tor comes on when the ambient

temperature is 37°F (3°C) or

lower.

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display



P.112

■

Free/Open Source Software

Information

This product contains Free/Open

Source Software (FOSS).

The license information and/or the

source code of such FOSS can be

found at the following URL.

https://www.denso.com/global/en/

opensource/meter/toyota/

■

Customization

The gauges and meters can be cus-
tomized on

of the multi-informa-

tion display. (



P.117)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.
When the trip meter is displayed,
pressing and holding the switch will
reset the trip meter.



Distance until next engine oil
change

Displays the distance the vehicle
can be driven until an oil change is
necessary.

■

Changing the display

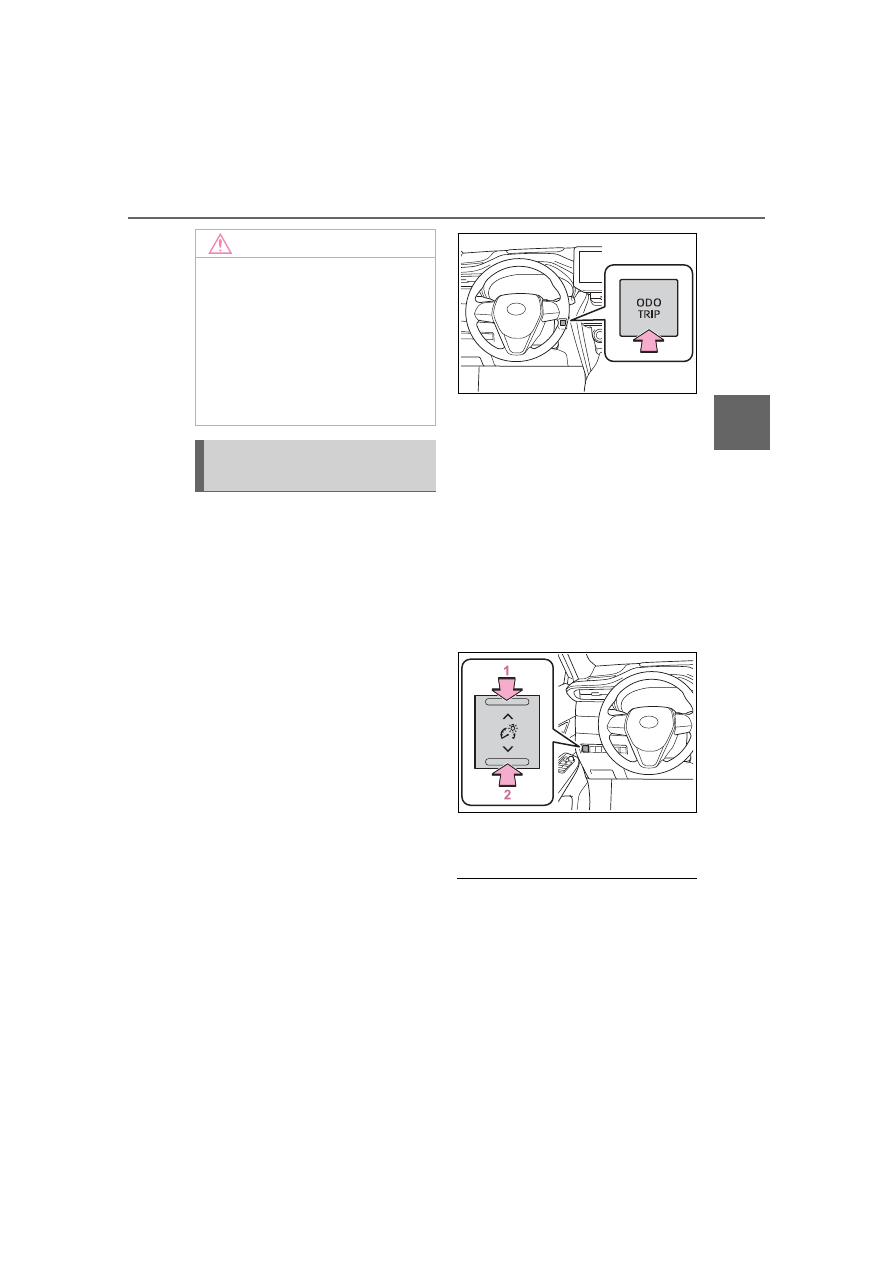

Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

■

Pop-up display

Distance until the next engine oil
change will be displayed when a
warning message indicating that
oil maintenance is required or
should be performed soon is
displayed.

■

Changing the instrument
panel light brightness

The brightness of the instrument
panel lights can be adjusted.

Brighter

Darker

■

Brightness of the meter lights

(day mode and night mode)

The brightness of the meter lights

can be adjusted individually.

In the following situations, the

meters changes between day mode

and night mode.

●

Day mode: When the tail lights are

off or when the tail lights are on

NOTICE

■

To prevent damage to the

engine and its components

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.473)

Odometer and trip meter
display

100

2-1. Instrument cluster

but the surrounding area is bright

●

Night mode: When the tail lights

are on and the surrounding area is

dark

Following information is dis-
played on the multi-information
display.

Driving support system infor-
mation

Display the operational status of
the following systems:
• LTA (Lane Tracing Assist)

(



P.250)

• Dynamic radar cruise control with

full-speed range (



P.265)

RSA (Road Sign Assist) (if
equipped)

Displays recognized signs while the

Multi-information dis-

play (7-inch multi-

information display)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

101

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

RSA (Road Sign Assist) (if
equipped) is operating. (



P.262)

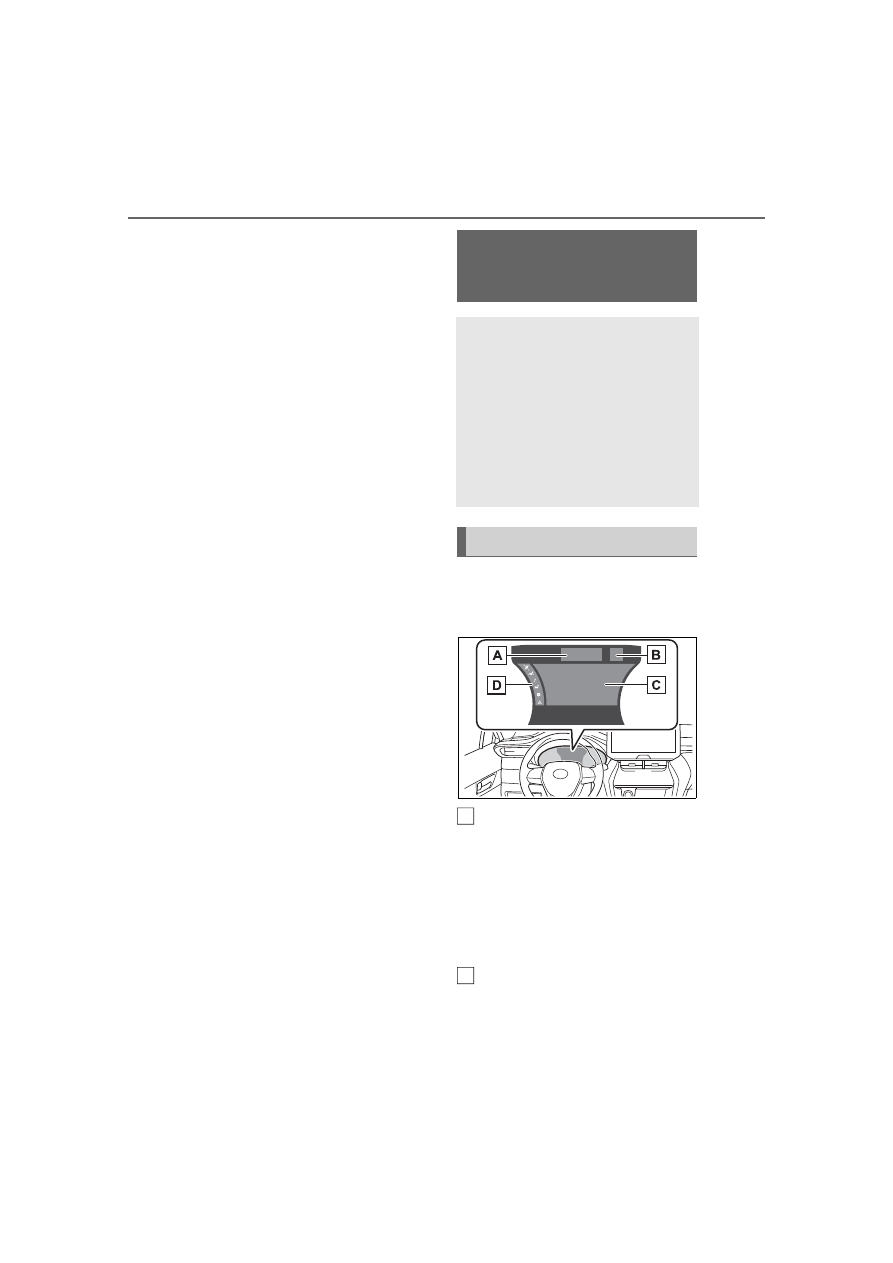

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

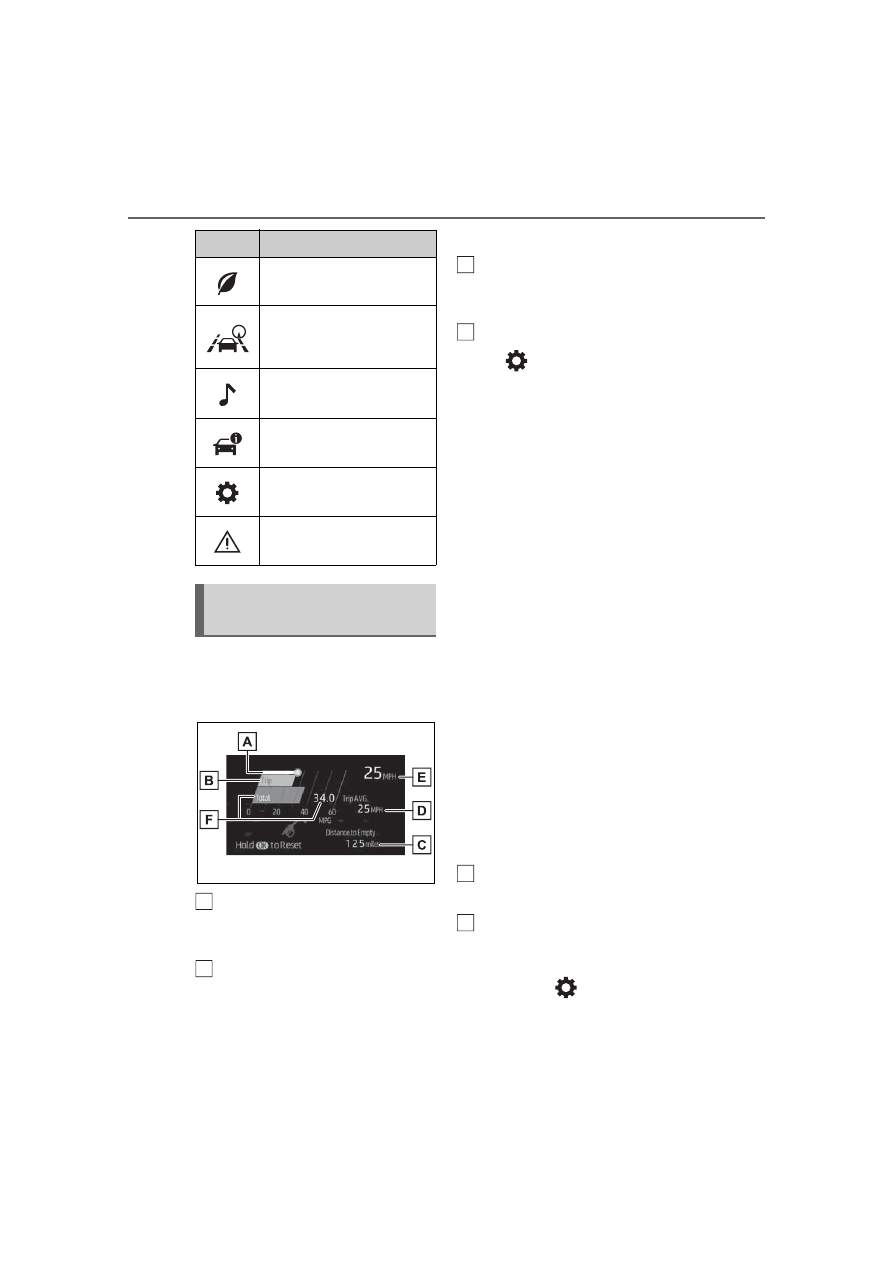

Menu icons (



P.101)

■

The multi-information display is

displayed when

The power switch is in ON.

■

When changing to a driving

mode other than normal mode



P.304

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

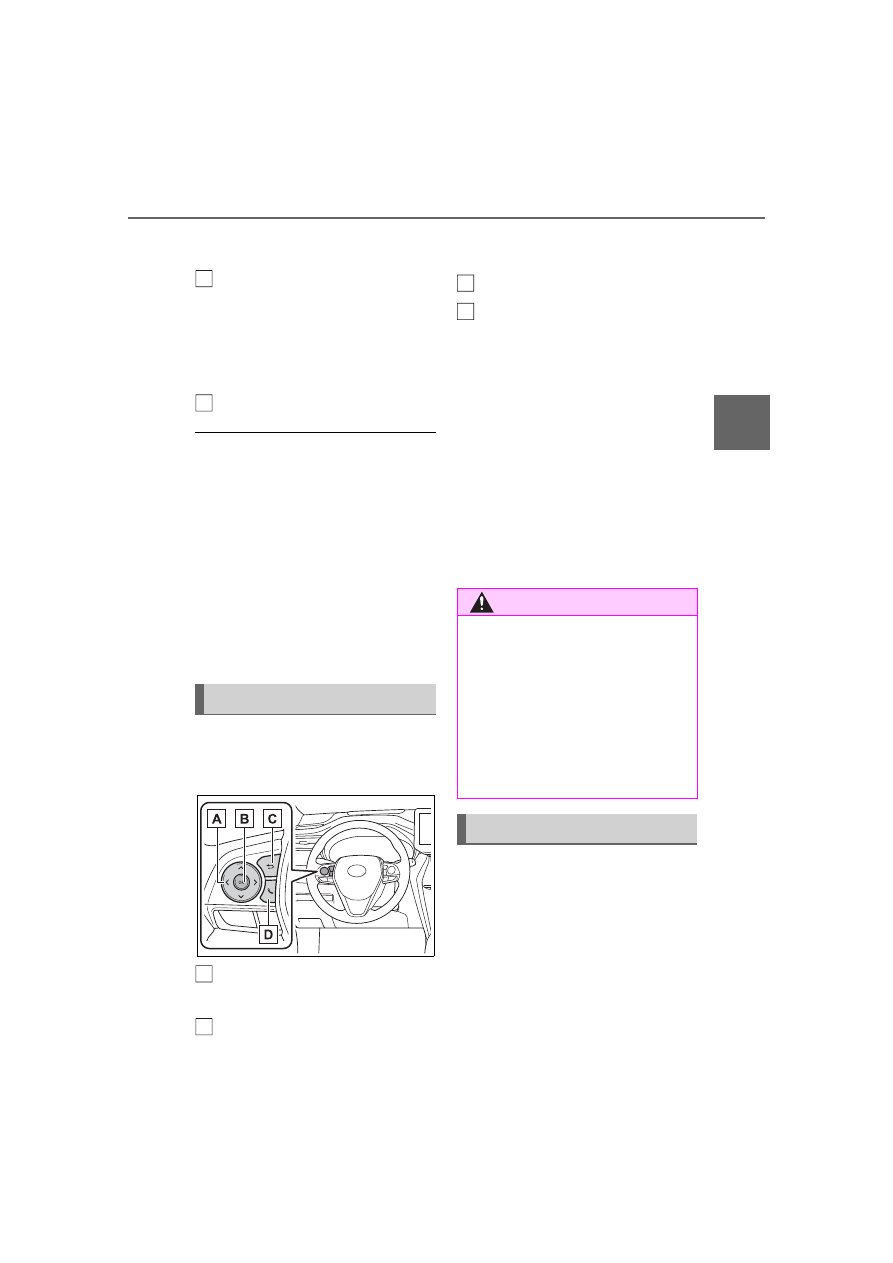

The multi-information display is
operated using the meter control
switches.

Scroll the screen

/switch the

display

/move the cursor

Press: Enter/Set

Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display
Linked with the hands-free
system, sending or receiving
call is displayed. For details
regarding the hands-free sys-
tem, refer to “MULTIMEDIA
OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Changing the display

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

102

2-1. Instrument cluster

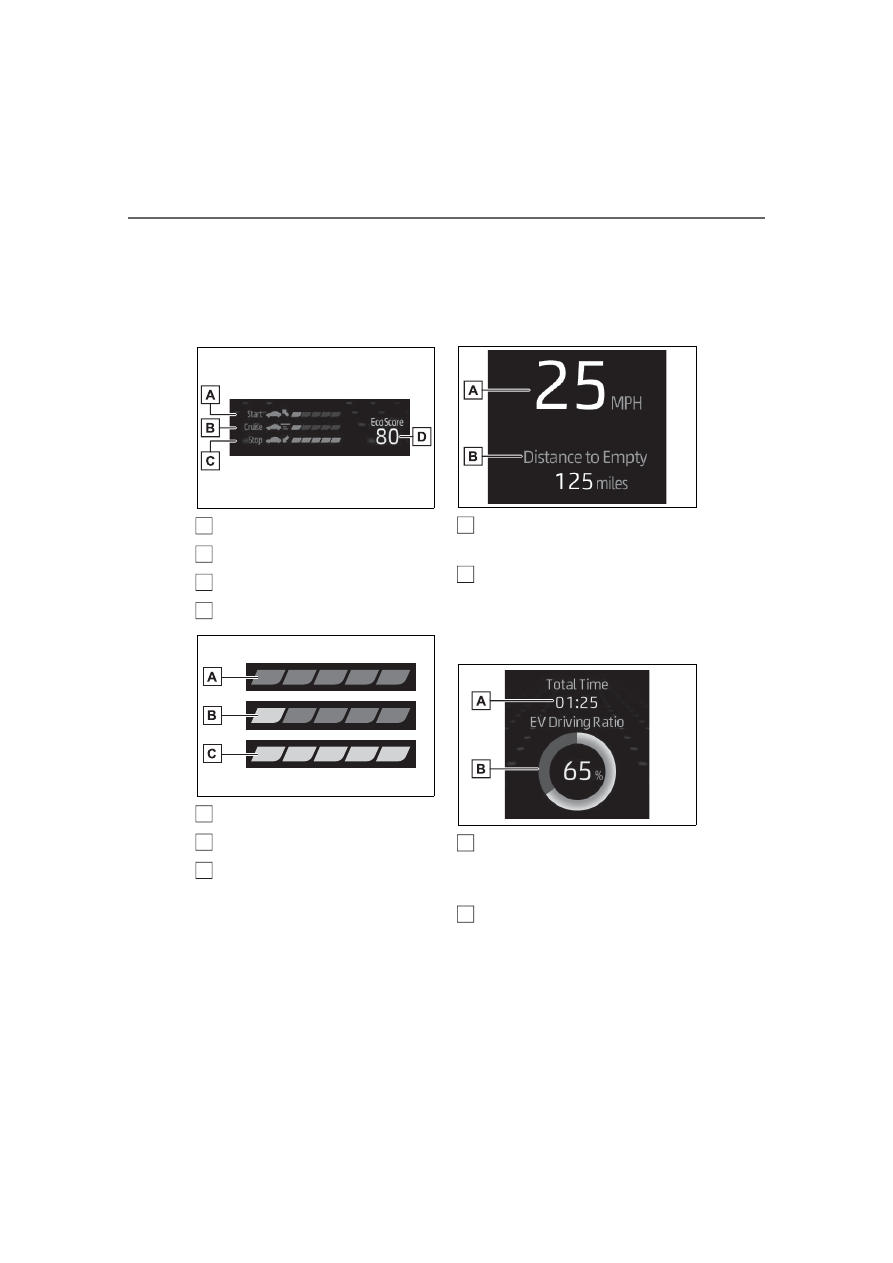

Select to display fuel consump-
tion data in various forms.

■

Fuel Economy

Current fuel consumption

Displays the instantaneous current
fuel consumption.

Average fuel economy (after
start)

Displays the average fuel con-
sumption since hybrid system

start.

Distance to empty

Displays the driving range with
remaining fuel. (



P.105)

Gadget

On the

screen, “Select Gadget”

provides the selection of the items
displayed in the gadget, and “Fuel
Economy Type” also provides the
selection of the gadget display type
between “Total” and “Trip”.
(



P.106)

• No Display:
No item
• Average speed
After start: Displays average vehi-
cle speed since hybrid system start.
After reset: Displays average vehi-
cle speed since the display was
reset

• Distance
After start: Displays the distance
driven since vehicle start.
After reset: Displays the distance
driven since the display was
reset

• Total time
After start: Displays elapsed time
since hybrid system start.
After reset: Displays elapsed time
since the display was reset

Speedometer display

Displays the vehicle speed.

Average fuel economy

Displayed item (listed below) can
be changed on the fuel economy
type screen of

. (



P.106)



Total (after reset)

Icon

Display

Driving information dis-
play (



P.102)

Driving support system
information display
(



P.105)

Audio system-linked dis-
play (



P.105)

Vehicle information dis-
play (



P.105)

Settings display
(



P.106)

Warning message dis-
play (



P.110)

Driving information dis-
play

103

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Displays the average fuel con-
sumption since the display was
reset.

*1, 3



Tank (after refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch
off, the display may not be updated.

:Use the displayed fuel consump-

tion as a reference only.

:The default setting is no display.

:This display can be reset by

pressing and holding

while it

is displayed.

■

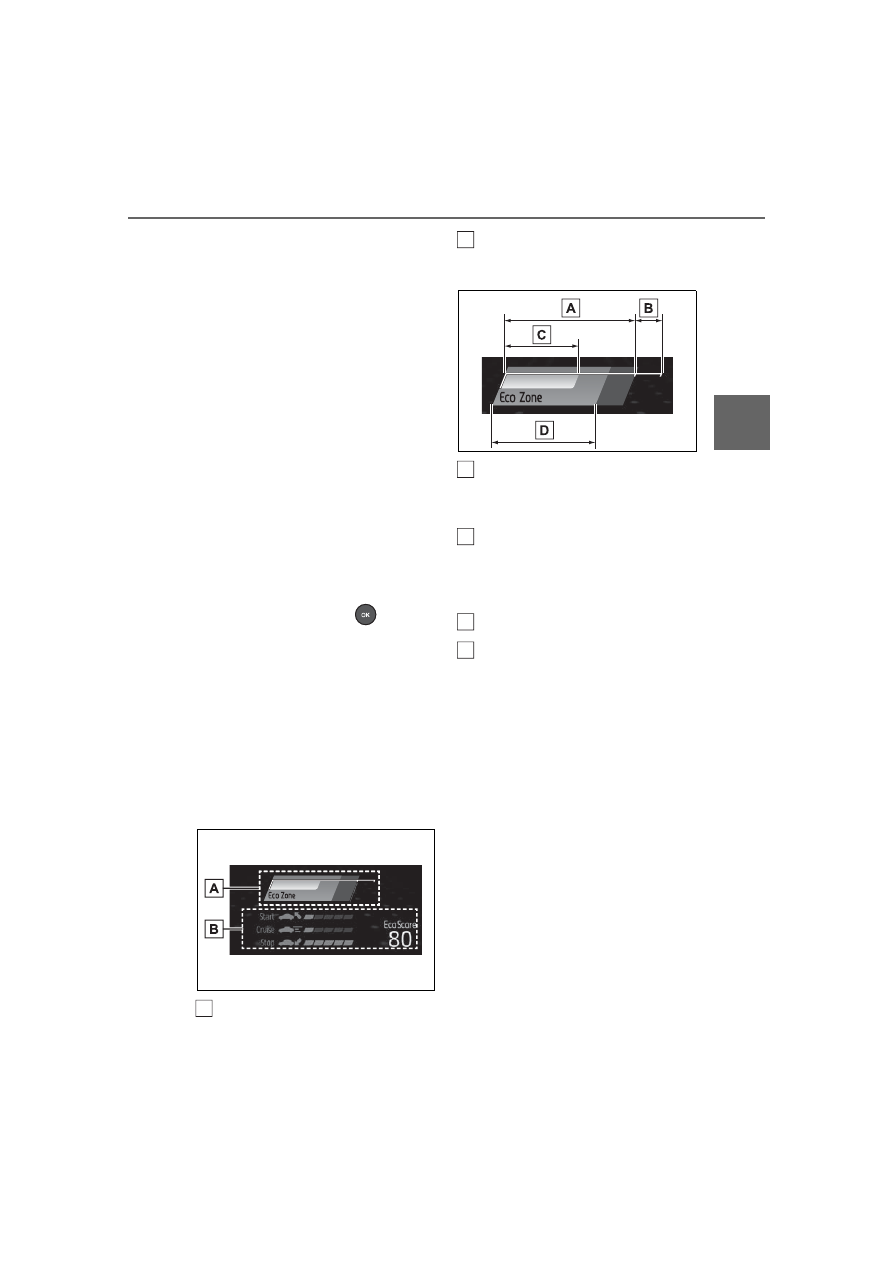

ECO Accelerator Guid-
ance/“Eco Score”

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

ECO Accelerator Guidance

“Eco Score”



ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-
ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.



“Eco Score”

The driving status for the following
3 situations are evaluated in 5 lev-
els: Smooth start-off acceleration

104

2-1. Instrument cluster

(“Start”), driving without sudden
acceleration (“Cruise”) and smooth
stopping (“Stop”). Each time the
vehicle is stopped, a score result is
displayed out of a perfect score of
100 points.

Eco start status

Eco cruise status

Eco stop status

Score result

Not yet evaluated

Low

High

• After the hybrid system is

started, the Eco score will not
be displayed until the vehicle
speed exceeds approxi-
mately 19 mph (30 km/h).

• The Eco score will be reset

each time the hybrid system
is started.

• When the hybrid system is

stopped, the total score of the
current trip will be displayed.

■

Speedometer display/Dis-
tance to empty

Speedometer display

Displays the vehicle speed.

Distance to empty

Displays the driving range with
remaining fuel. (



P.105)

■

EV Ratio/EV Driving Ratio

EV ratio after starting

Displays the elapsed time since
hybrid system start.

EV driving ratio after starting

The percent traveled using only
electric motor power after starting
the hybrid system is displayed.

: It is reset each time the hybrid

system stops.

105

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch off. If

the vehicle is refueled without

turning the power switch off, the

display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

■

Driving support system
information display

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.250)



RSA (Road Sign Assist) (if
equipped) (



P.262)



Dynamic radar cruise control
with full-speed range

(



P.265)

Select to display the following
navigation system-linked infor-
mation.



Route guidance to destination



Compass display (heading-up
display)

Select to enable selection of an
audio source or track on the dis-
play.

■

Energy monitor



P.128

■

Tire pressure



P.402

■

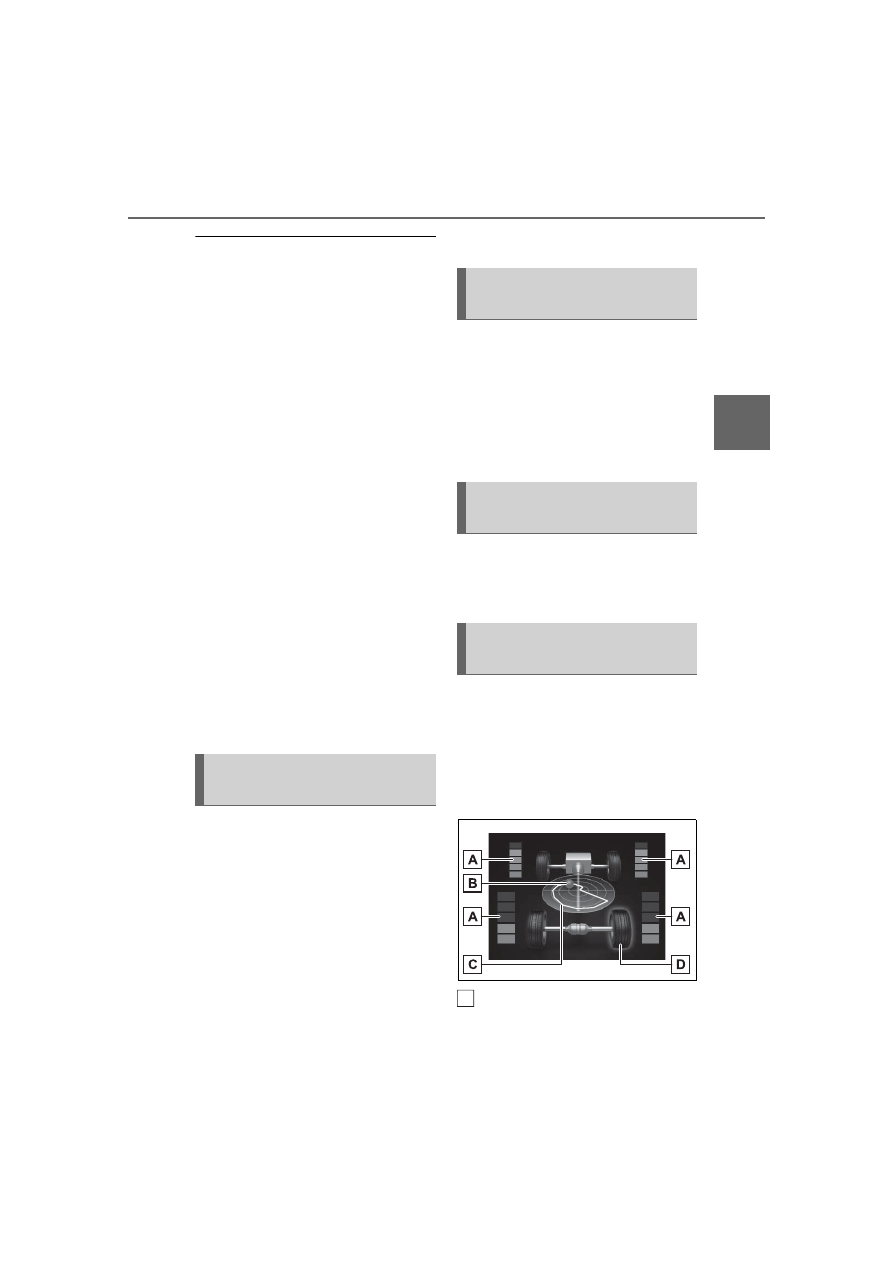

AWD system display

Torque distribution display

Displays the drive status of each

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play

Vehicle information dis-
play

106

2-1. Instrument cluster

wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.

Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.

■

Safety system status

Select to display the operational
status of the following systems:



PCS (Pre-Collision System)
(



P.239)



Intuitive parking assist (if
equipped) (



P.287)



BSM (Blind Spot Monitor)
(



P.277)



RCTA (Rear Cross Traffic
Alert) (



P.277)

Vehicle settings and the content
displayed on the screen can be

changed by using the meter
control switches.

■

Setting procedure

Operate

of the

meter control switches and
select

Operate

of the

meter control switches and
select the desired item.

• If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time

is pressed.

• For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding

. When the setting

screen is displayed, select the
setting or desired value (time,
etc.) with

After changing the settings,
press

of the meter control

switches.

■

LTA (Lane Tracing

Assist) (



P.250)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Alert”

Select to set the alert type.

Settings display

107

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



“Sensitivity”

Select to set the warning sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

PCS (Pre-Collision Sys-

tem) (



P.239)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Sensitivity”

Select to change the pre-collision
warning timing.

■

BSM (Blind Spot Moni-

tor) (



P.277)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.278)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

(Intuitive parking

assist) (if equipped)
(



P.287)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (



P.277)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.295)

Select to enable/disable the
Parking Support Brake function.

■

HUD (Head-up display) (if
equipped) (



P.124)

Select to change the head-up
display setting.

■

RSA (Road Sign

Assist) (if equipped)
(



P.262)

Select to set up the following
items.

108

2-1. Instrument cluster



Road Sign Assist on/off

Select to enable/disable the RSA
(Road Sign Assist).



“Notification method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

DRCC

Select to change the curve
speed reduction function setting.

■

Vehicle Settings



PBD (Power Back Door)

(



P.143)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.
• “Hands Free” (if equipped)
Select to enable/disable the Hands
Free Power Back Door operation.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.



“TPWS setting” (Tire Pres-
sure Warning System)

(



P.402)

• “Setting Pressure”
Select to initialize the tire pressure
warning system.
• “Identify Wheel”
Select to change the tire pressure
warning system sensor ID code set.
To enable this function, a second
set of tire pressure warning system
sensor ID codes must be registered
by a Toyota dealer. For information
regarding changing the registered
ID code set, contact your Toyota
dealer.
• “Setting Unit”
Select to change the units of mea-
sure displayed.



Rear Seat Reminder
(



P.139)

Select to enable/disable the rear
seat reminder function.



“Scheduled Maintenance”
(



P.380)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.



Oil Maintenance

Select to reset the Oil maintenance.
(



P.392)

■

Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-

109

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

sure displayed.



(EV indicator) (



P.71)

Select to enable/disable the EV
indicator.



Digital Speed (



P.104)

Select to enable/disable the Digital
Speed.



Gadget Content

Select to change the Gadget set-
ting.



Fuel Economy Type
(



P.102)

Select to change the fuel economy
and Gadget type display between
“Trip”, “Total”

and “Tank”

:Even if “Trip” is selected, the dis-

play of the average fuel con-
sumption will not change.

:If “Tank” is selected, the gadget

will be hidden.



“Pop-Up Display”

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• Intersection guidance display of

the navigation system-linked sys-
tem (if equipped)

• Incoming call display of the

hands-free phone system

• Audio operation
• Volume operation
• Voice control (if equipped)
• Brightness



“MID OFF”

A blank screen is displayed.



“Default Settings”

Select to reset the meter display
settings.

■

Tire pressure

• It may take a few minutes to dis-

play the tire inflation pressure

after the power switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

• “---” may be displayed if the tire

position information cannot be

determined due to unfavorable

radio wave conditions.

• Tire inflation pressure changes

with temperature. The displayed

values may also be different from

the values measured using a tire

pressure gauge.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

110

2-1. Instrument cluster

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.451)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to enable the
power back door

If the power back door system is
disabled (setting on

set to

off) and the power back door
switch on the instrument panel
is operated, a suggestion mes-

sage will be displayed asking if
you wish to enable the power
back door system. To enable
the power back door system,
select “Yes”.

After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Suggestion to close the
power windows (Driving at
high speeds)

If the vehicle speed exceeds a
certain speed with a power win-
dow open, a suggestion mes-
sage will be displayed asking if
you wish to close the power win-
dows. To close all of the power
windows, select “Yes”.

■

Customization

The suggestion function can be

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

Suggestion function

Toyota Venza Hybrid (2023 year). Manual in english - page 6
