5-4. Using the other interior features

Interior

featur

A portable device can be
charged by just placing Qi stan-
dard wireless charge compatible
portable devices according to
the Wireless Power Consortium,
such as smartphones and

mobile batteries, etc., on the
charge area.
This function cannot be used
with portable devices that are
larger than the charging area.
Also, depending on the portable
device, it may not operate as
normal. Please read the opera-
tion manual for portable devices
to be used.

■

The “Qi” symbol

The “Qi” symbol is a trademark
of the Wireless Power Consor-
tium.

■

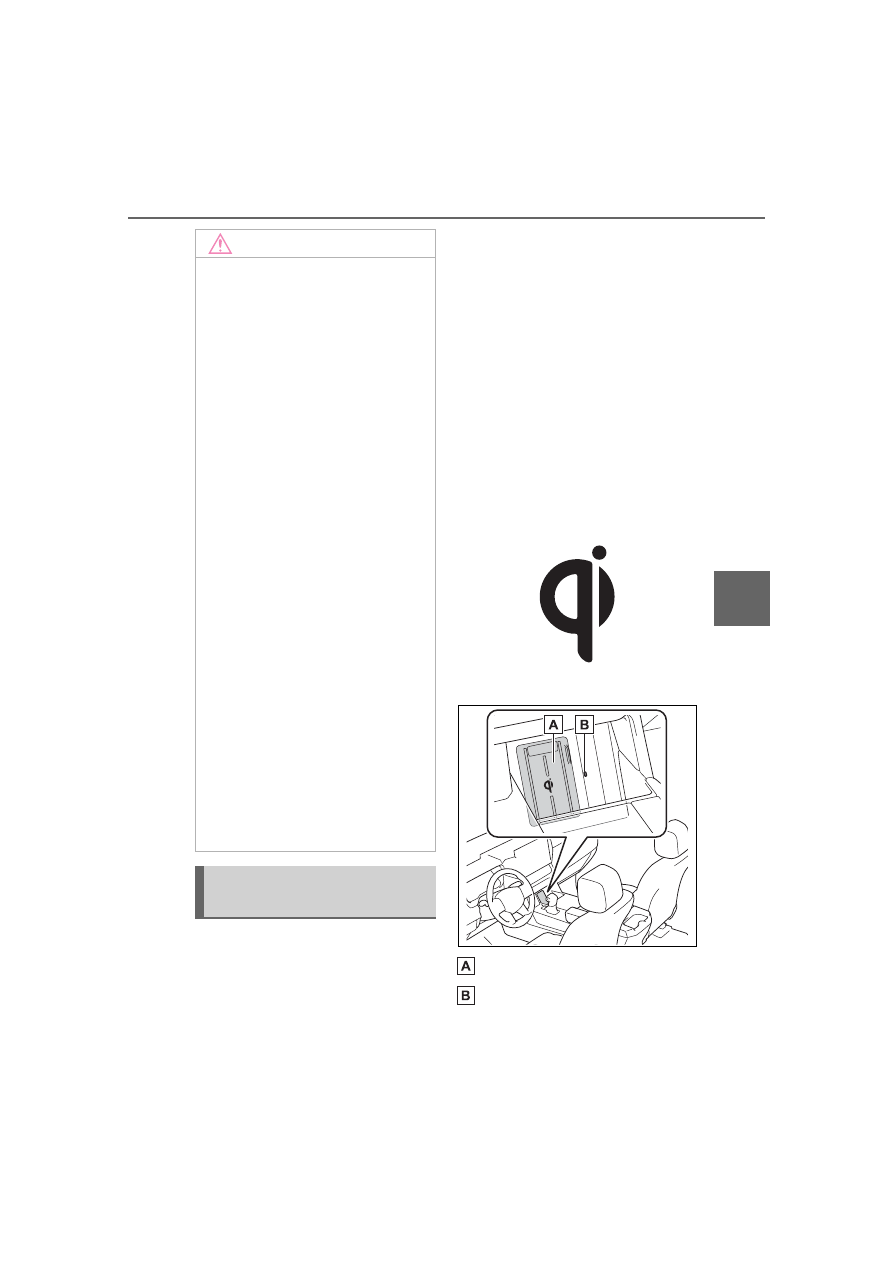

Name for all parts

Charge area

Operation indicator light

NOTICE

■

To prevent damage to the

USB charging ports

●

Do not insert foreign objects into

the ports.

●

Do not spill water or other liq-

uids into the ports.

●

Rear of console box: When the

USB charging ports are not in

use, close the lids. If a foreign

object or liquid enters a port

may cause a short circuit.

●

Do not apply excessive force to

or impact the USB charging

ports.

●

Do not disassemble or modify

the USB charging ports.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent battery discharge

Do not use the USB charging

ports for a long period of time with

the engine stopped.

Wireless charger (if
equipped)

434

5-4. Using the other interior features

■

Using the wireless charger

Turn the engine switch to
ACC or ON.

When turned on, the operation indi-

cator light (green) comes on.

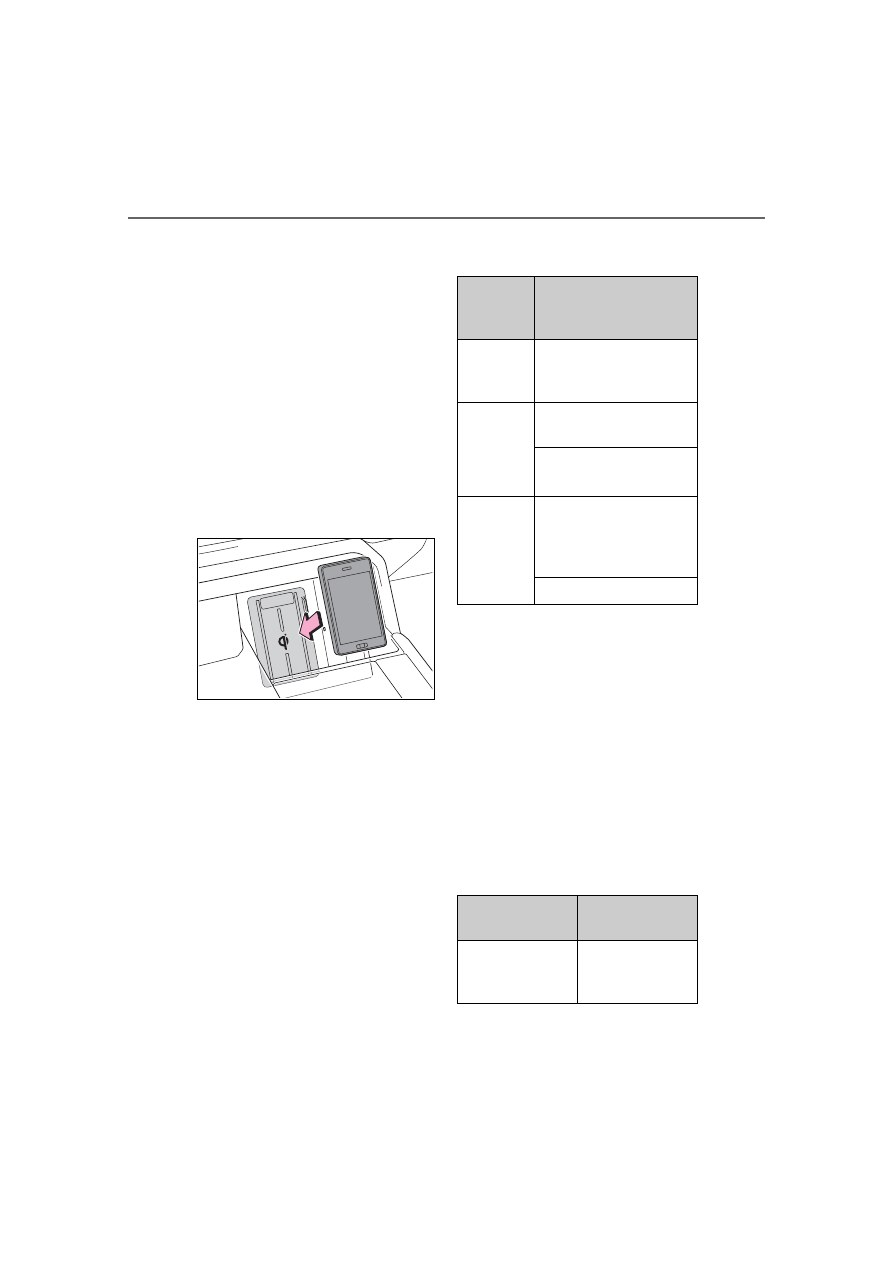

Place the charging side of
the portable device down.

When charging, the operation indi-

cator light (orange) comes on.
If charging is not occurring, try plac-

ing the portable device as close to

the center of the charging area as

possible.
When charging is complete, the

operation indicator light (green)

comes on.

■

Recharging function



When charging is complete
and after a fixed time in the
charge suspension state,
charging restarts.



When the portable device is
moved, charging is stopped
for a moment and then it
restarts.

■

Lighting conditions of oper-
ation indicator light

: Depending on the portable

device, there are cases where the
operation indicator light will con-
tinue being lit up orange even
after the charging is complete.



When the operation indicator
light flashes

When an error occurs, the opera-
tion indicator light flashes an
orange color.
Handle the error based on the fol-
lowing tables.
• Flashing repeatedly once every

second (Orange)

• Repeatedly flashes 3 times con-

Operation

indicator

light

Conditions

Turning off

When the Wireless
charger power supply
is off

Green
(comes
on)

On Standby (charging
possible state)

When charging is com-
plete

Orange
(comes
on)

When placing the por-
table device on the
charging area (detect-
ing the portable device)

Charging

Suspected

causes

Handling method

Vehicle to char-
ger communica-
tion failure.

Contact your
Toyota dealer.

435

5-4. Using the other interior features

Interior

featur

tinuously (Orange)

• Repeatedly flashes 4 times con-

tinuously (Orange)

■

The wireless charger can be

operated when

The engine switch is in ACC or ON.

■

Usable portable devices

●

Qi standard wireless charge stan-

dard can be used on compatible

devices. However, not all Qi stan-

dard devices and compatibility are

guaranteed.

●

Starting with mobile phones and

smartphones, it is aimed for low

power electrically supplied porta-

ble devices of no more than 5W.

■

When covers and accessories

are attached to portable devices

Do not charge in situations where

cover and accessories not able to

handle Qi are attached to the porta-

ble device. Depending on the type

of cover and accessory, it may not

be possible to charge. When

charging is not performed even with

the portable device placed on the

charge area, remove the cover and

accessories.

■

Important points of the wire-

less charger

●

If the electronic key cannot be

detected within the vehicle inte-

rior, charging cannot be done.

When the door is opened and

closed, charging may be tempo-

rarily suspended.

●

When charging, the wireless

charging device and portable

device will get warmer, however

this is not a malfunction.

When a portable device gets

warm while charging, charging

may stop due to the protection

function on the portable device

side. In this case, when the tem-

perature of the portable device

drops significantly, charge again.

■

Operation sounds

When the power supply is turned

on, while searching for the portable

device a sound will be produced,

however this is not a malfunction.

■

Certification



P.624

Suspected

causes

Handling method

A foreign sub-
stance is
between the por-
table device and
charge area.

Remove the for-
eign substance
from between
portable device
and the charge
area.

The portable
device is out of
sync due to the
device being
shifted from the
center of the
charge area.

Place the porta-
ble device near
the center of the
charge area.

Suspected

causes

Handling method

Temperature ris-
ing within the
wireless charger.

Stop charging at
once and start
charging again
after a while.

WARNING

■

Caution while driving

When charging a portable device,

for safety reasons, the driver

should not operate the main part

of the portable device while driv-

ing.

436

5-4. Using the other interior features

WARNING

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy-pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger. The opera-

tions of the wireless charger may

have an affect on medical

devices.

■

To prevent damage or burns

Observe the following precau-

tions.

Failure to do so may result in a

possibility of equipment failure

and damage, catch fire, burns due

to overheat.

●

Do not insert any metallic

objects between the charging

area and the portable device

while charging

●

Do not attach stickers, metallic

objects, etc., to the charger area

or portable device

●

Do not cover with cloth, etc.,

and charge

●

Do not charge portable devices

other than designated

●

Do not attempt to dismantle for

disassembly or modifications

●

Do not hit or apply a strong

force

NOTICE

■

Conditions in which the func-

tion may not operate cor-

rectly

In the following conditions, it may

not operate correctly

●

The portable device is fully

charged

●

There is foreign matter between

the charge area and portable

device

●

The temperature of the portable

device gets higher from

charging

●

The charging surface of the por-

table device is facing up

●

The placement of the portable

device is out of alignment with

the charge area

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other

facility that generates strong

radio waves or electrical noise

●

When the portable device is in

contact with, or is covered by

the following metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alu-

minum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

437

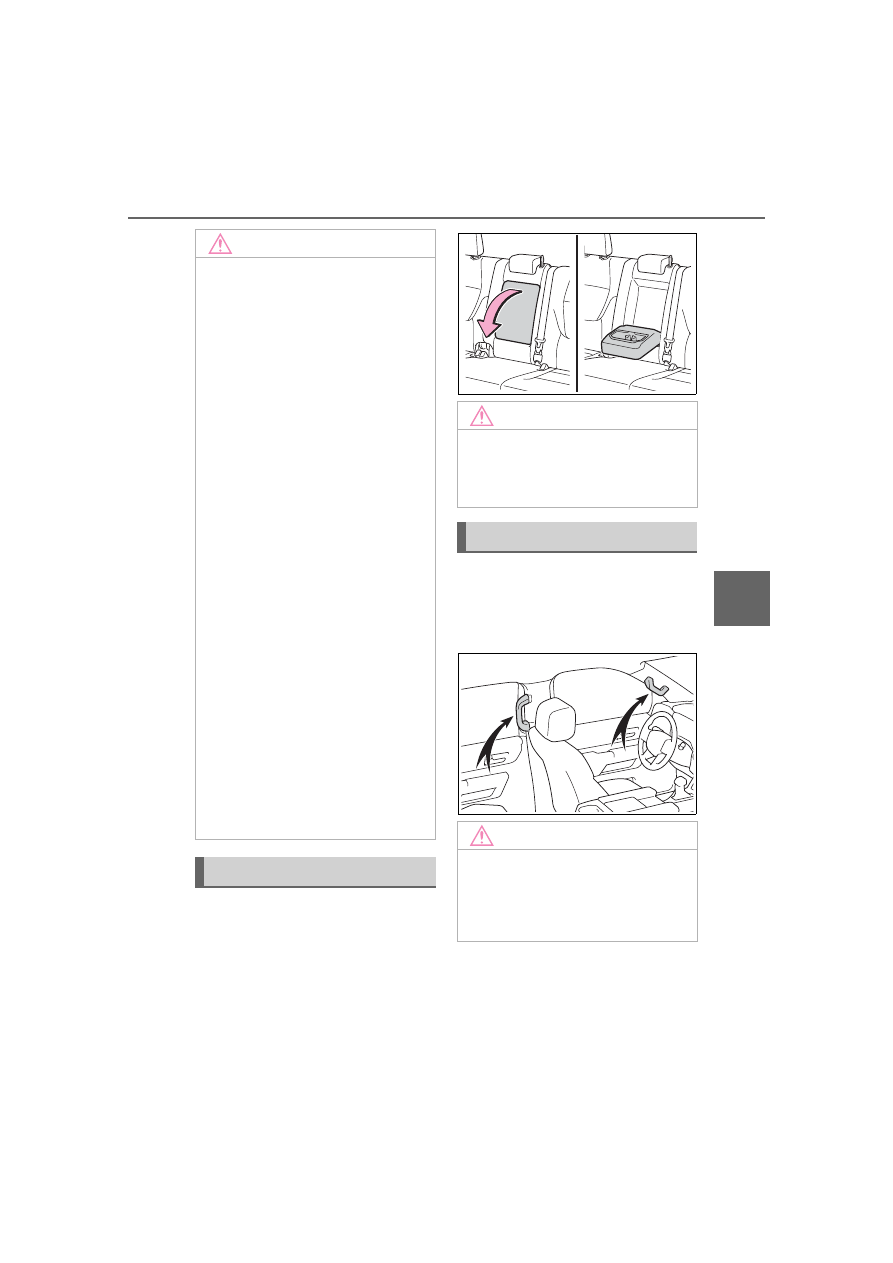

5-4. Using the other interior features

Interior

featur

Pull the armrest down for use.

An assist grip installed on the
pillar can be used when getting
in or out of the vehicle and oth-
ers.

NOTICE

●

When other wireless keys (that

emit radio waves) are being

used nearby

In addition, excluding the above-
mentioned, when the charger
does not perform normally or the
operation display lamp is flashing
continuously, it is considered that
the wireless charger is malfunc-
tioning. Contact authorized Toyota
dealer.

■

To prevent failure or damage

to data

●

Do not bring magnetic cards,

such as credit cards, or mag-

netic recording media, etc.,

close to the charger while

charging, otherwise, data may

disappear under the influence of

magnetism. Also, do not bring

precision instruments such as

wrist watches, etc., close to the

charger, as such objects may

break.

●

Do not leave portable devices in

the cabin. The temperature

inside the cabin may become

high, when under the sun, and

cause damage to the device.

■

To prevent battery discharge

When the engine is stopped, do

not use the wireless charger for a

long time.

Armrest (if equipped)

NOTICE

■

To prevent damage to the

armrest

Do not place too much strain on

the armrest.

Assist grips

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

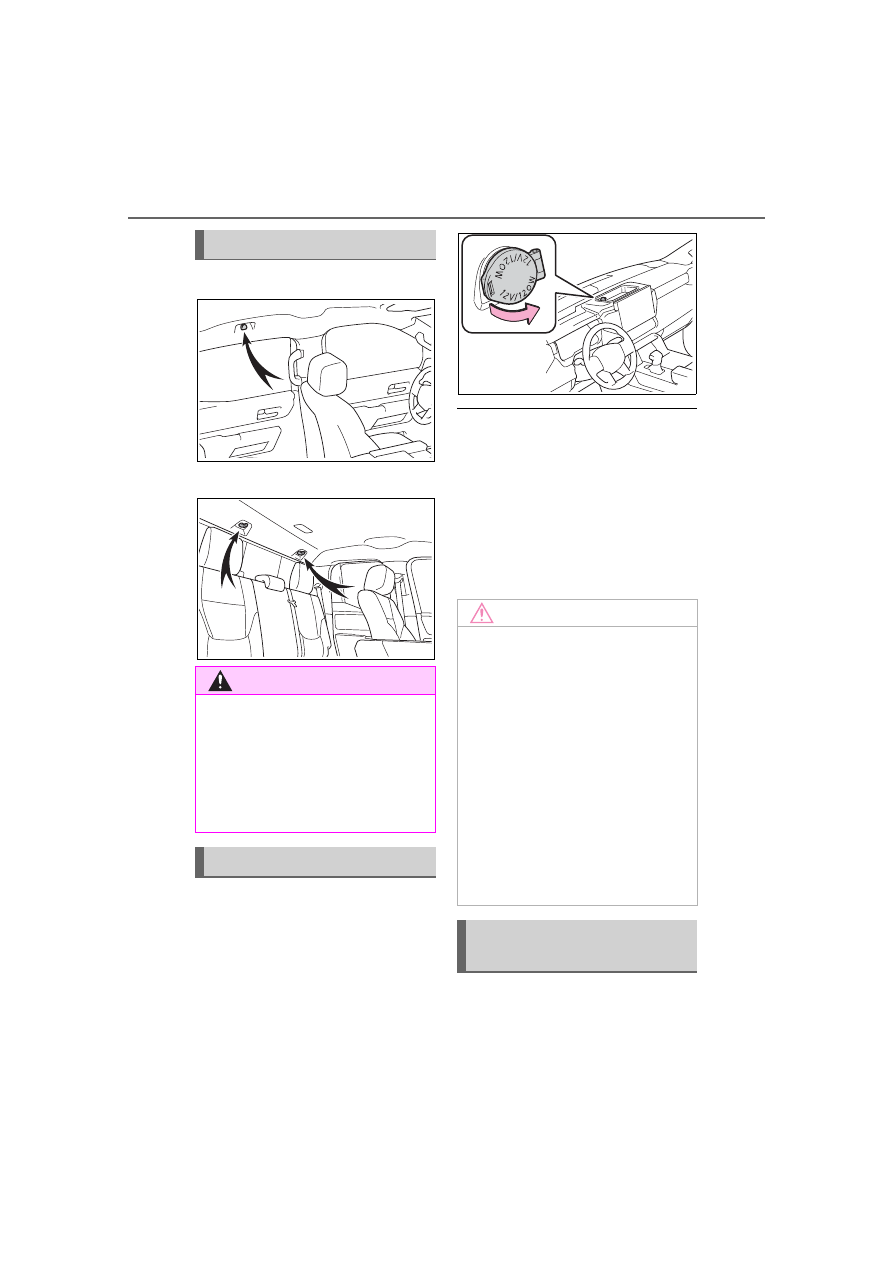

438

5-4. Using the other interior features



Type A



Type B

The power outlet can be used
for 12 V accessories that run on
less than 10 A.
Open the lid.

■

The power outlet can be used

when

The engine switch is in ACC or ON.

■

When turning the engine switch

off

Disconnect electrical devices with

charging functions, such as mobile

battery packs. If such devices are

left connected, the engine switch

may not be turned off normally.

Please use as a power supply
for electronic devices that use
less than 120 VAC.

Coat hooks

WARNING

■

Items that must not be hung

on the hook

Do not hang a coat hanger or

other hard or sharp object on the

hook. If the SRS curtain shield air-

bags deploy, these items may

become projectiles that cause

death or serious injury.

Power outlet (12 VDC)

NOTICE

■

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent the fuse from

being blown

Do not use an accessory that

uses more than 12 V 10 A.

■

To prevent battery discharge

Do not use the power outlet lon-

ger than necessary when the

engine is not running.

Power outlets (120 VAC)
(if equipped)

439

5-4. Using the other interior features

Interior

featur

■

Using the power outlets



Rear of the console box

Open the lid.



Bed

Open the lid.

■

When turning the power
outlets on

Press the “AC120V” switch.
The power outlets can be used
when the indicator on the
“AC120V” switch is illuminated.
The power outlets are turned
off/on each time the “AC120V”
switch is pressed.

■

Maximum available capac-
ity of the power outlet



While the vehicle is being
driven

The maximum capacity of the
power outlet is always 120 V
AC/100 W.



When the vehicle is stationary

• The maximum capacity is

restricted to 120 V AC/100 W
when the shift lever is moved to
any positions other than P or N.

• The maximum capacity is 120 V

AC/400 W when the shift lever is
in P or N.

The maximum capacity of 400
W can only be restored by turn-
ing the power outlet main switch
off and then on again under con-
dition described above.

■

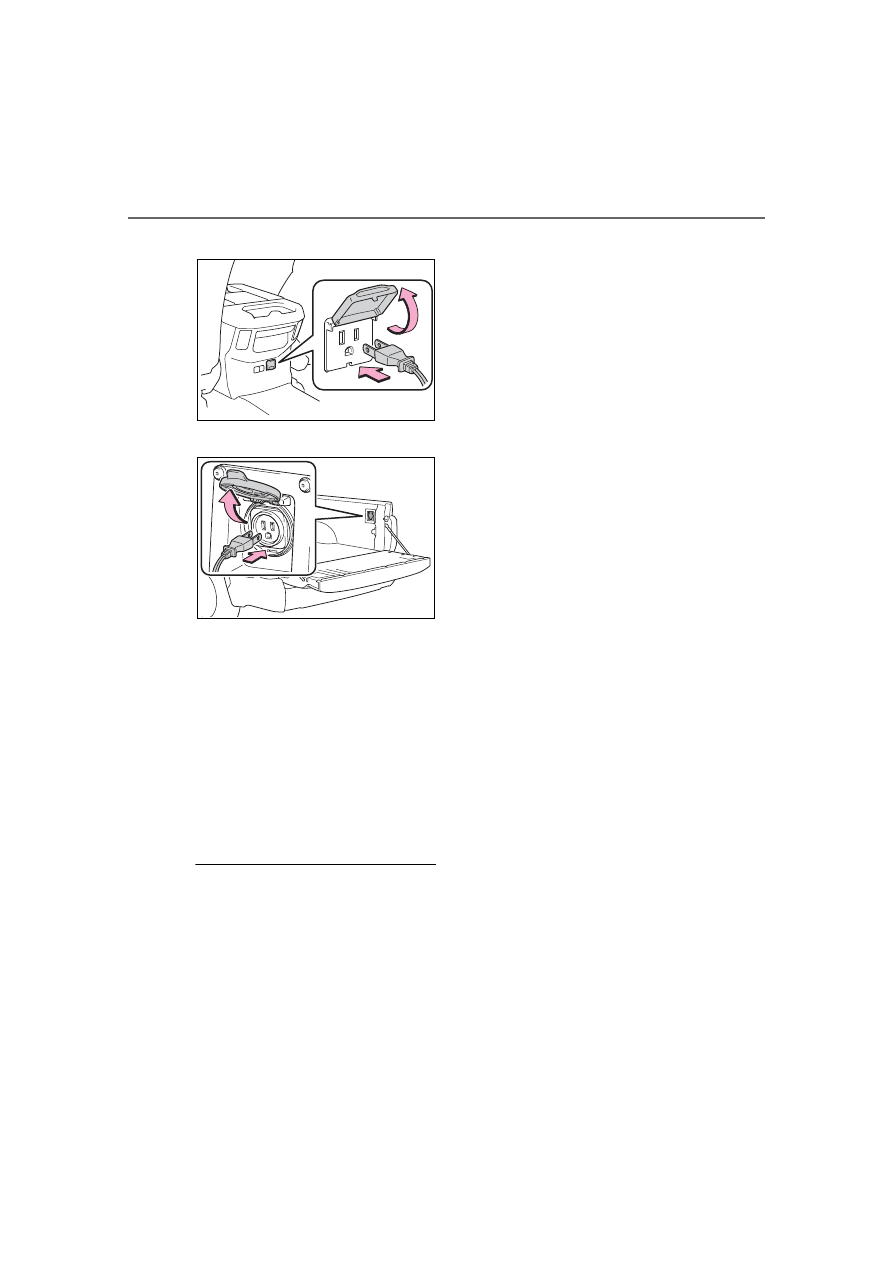

When connecting a device

Open the lid, and fully and
securely insert the plug of the
device into the power outlet.

440

5-4. Using the other interior features



Rear of the console box



Bed

■

When turning the power
outlets off

Turn the connected devices
off.

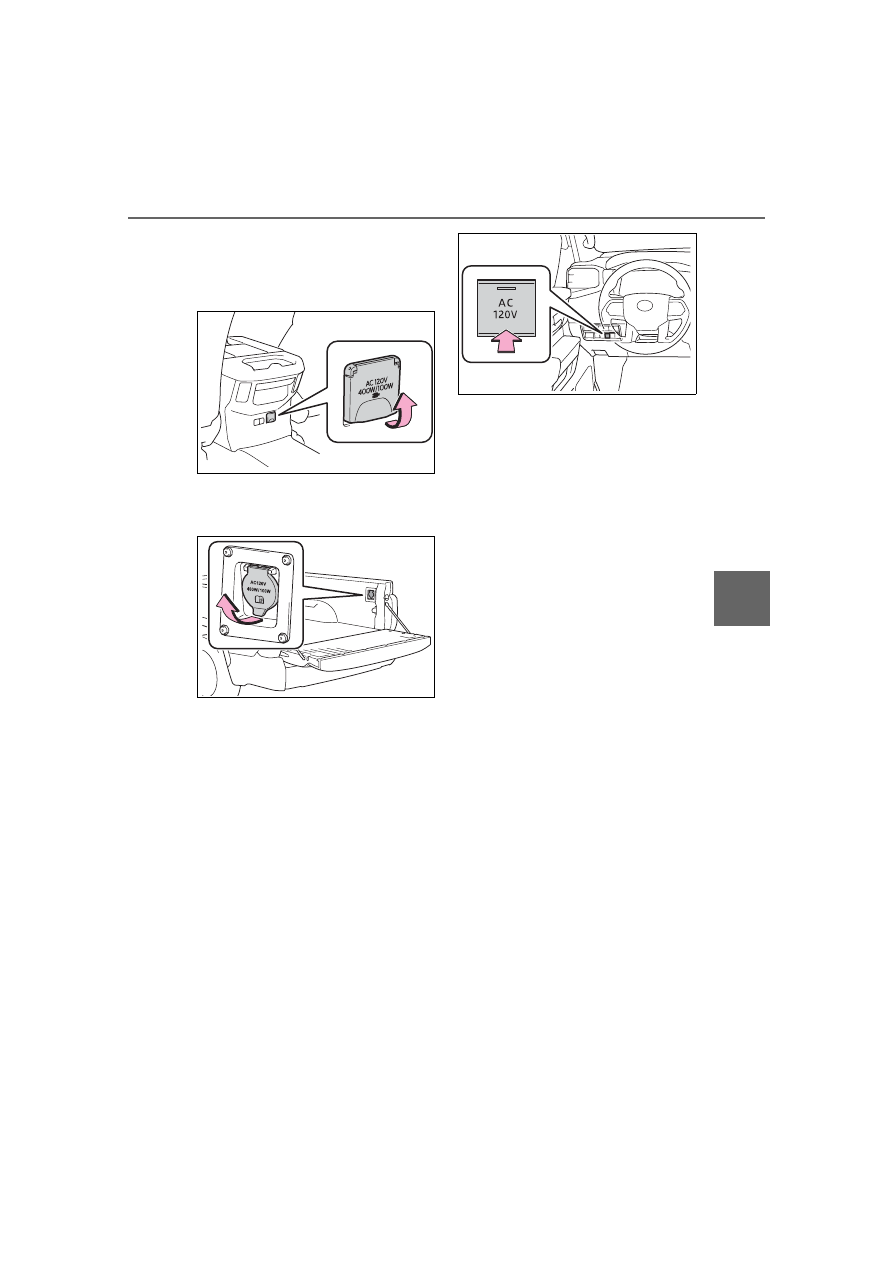

Press the “AC120V” switch to
turn the power outlets off.

Disconnect each plug from
the power outlets.

Close the lid of each power
outlet.

■

The power outlet can be used

when

The engine is running.

■

Electronic devices that can be

connected to the power outlets

Use electronic devices that can be

connected to the 120 VAC power

outlets. Depending on the devices

being used, the current flow may

become high and the electric power

for a moment may exceed the regu-

lated capacity. If the regulated

capacity is exceeded by the elec-

tronic devices being used, the pro-

tection function of the power outlet

may operate and power outlet may

not be able to be used, but this is

not a malfunction. However,

observe the following precautions:

●

Depending on the devices used, it

may cause interference with TV

and radio broadcasts.

●

Observe the precautions that are

stated in the instruction manuals

for each of the electronic devices.

●

It is assumed that many typical

general electronic devices will not

be used within the vehicle. The

following problems may occur

when using electronic devices

within the vehicle.

• Electronic device malfunction due

to vibrations while driving.

• Electronic device malfunction or

poor operations due to tempera-
ture changes

within the vehicle.

• The installation is unstable and

may not operate normally as the

compartment within the vehicle is

not flat.

: Depending on the weather, sea-

son, usage environment, etc., the
vehicle compartment may
undergo extreme high or low tem-
peratures.

■

Power outlet

The power outlet on the console box

is a device in order to use electronic

devices within the vehicle.

■

Devices which may not operate

correctly

The following 120 VAC devices may

not operate properly:

●

Devices with high initial peak watt-

age

●

Measuring devices that process

precise data

●

Devices that require an extremely

441

5-4. Using the other interior features

Interior

featur

stable power supply

●

Devices that require a constant

power supply from the power out-

let, such as a device with a timer.

■

When the power supply func-

tion cannot be used

If the “AC120V” switch is pressed

but the switch indicator does not illu-

minate, the protection circuit may

have operated.
In this case, perform the appropriate

procedures as follows.

●

Disconnect the plug of each

device from the power outlets,

check that the total power con-

sumption of all devices to be con-

nected to the power outlets,

reconnect the devices and then

press the “AC120V” switch again.

●

Disconnect the plug of each

device from the power outlets,

check that the devices are not

malfunctioning, reconnect the

devices and then press the

“AC120V” switch again.

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked under the

sun, move the vehicle to a shaded

area, use the air conditioning sys-

tem to sufficiently cool the interior,

and then press the “AC120V”

switch again.

If the power outlets cannot be used

even after performing the appropri-

ate procedures above, have the

vehicle inspected by your Toyota

dealer.

●

If any electrical device has mal-

functioned, park the vehicle in a

safe location and turn the

“AC120V” switch off.

●

If the protection function activates

and power is cut, perform the fol-

lowing procedure.

Stop the vehicle in a safe place

and set the parking brake.

Ensure that the shift lever is in P

or N.

Check that the power consumed

by the electrical devices is within

400 W and any device has not

malfunctioned.

Press the “AC120V” switch.

If the inside of the vehicle is hot,
open the windows to lower the tem-
perature and turn the switch back on
once the inside of the vehicle
reaches a normal temperature. If
following the procedure above does
not restore power, have the vehicle
inspected at your Toyota dealer.

WARNING

■

For safe use

Observe the following precau-

tions.
Failure to do so may lead to an

accident, resulting in death or

serious injury.

●

Do not use devices such as the

following when driving:

• Devices which cannot be prop-

erly secured within the vehicle.

• Devices which may distract the

driver and be a hindrance to

safe driving, such as a TV, DVD

player, etc.

• Unsecured devices which gen-

erate heat, such as a toaster,

microwave, electric heater, elec-

tric kettle, coffee maker, etc., as

they may cause burns or a fire

in the case of sudden braking or

an accident.

• Devices which may fall under

the pedals and prevent the

brake pedal from being

depressed.

442

5-4. Using the other interior features

WARNING

●

Do not use devices which pro-

duce steam while the windows

are closed. Doing so may cause

the windows to fog up, reducing

visibility and making it difficult to

drive safely. Also, the steam

may damage or negatively

affect other devices. If the

device must be used, stop the

vehicle and open the windows

before use.

●

Do not use damaged electronic

devices. The power supply

function may not be able to be

used.

●

Do not disconnect the plug of a

device while your hands are wet

or insert a pin or other object

into the power outlet. Also, if a

liquid or snow is on the power

outlet, dry the outlet before

using it.

●

Do not attempt to modify, disas-

semble or repair a power outlet.

For information on repairs, con-

tact your Toyota dealer.

●

Do not let children touch the

power outlets.

●

Keep the power outlets free of

dust and foreign matter. Also,

regularly clean the power outlet.

●

If the plug of a device fits

loosely in a power outlet, even

though it is fully inserted,

replace the power outlet. For

information on replacement,

contact your Toyota dealer.

■

Using the power outlets while

parked or stopped

Observe the following precau-

tions.
Failure to do so may lead to an

accident, possibly resulting in

death or serious injury.

●

Do not leave the vehicle unat-

tended while the engine is run-

ning and a device is connected

to a power outlet.

●

Do not place luggage or get

near the vicinity of the tailpipe.

●

Make sure that the hood is

closed. Do not put your head or

hands anywhere inside the

engine room, as the cooling

fans may operate suddenly. If

too close, hands and clothing

(especially a tie, scarf, etc.) may

get caught in a fan.

●

Do not stop the vehicle near

objects which burn easily.

●

Install and use appropriately

related devices to make air sup-

ply and exhaust ventilation pos-

sible in places where ventilation

is bad, such as within garages,

and places where the vehicle is

surrounded (places where snow

accumulates).

●

Do not use in places where ven-

tilation is bad, such as within

garages where there are no air

supply and exhaust ventilation

devices, and places where the

vehicle is surrounded (places

where snow accumulates, etc.).

●

Do not use the power outlets if

the vehicle has a vehicle cover

installed.

●

Do not sleep in the vehicle while

using devices such as an elec-

tric heater.

■

Devices to be connected

●

Read the instruction manual

included with the electronic

device being used and observe

the precautions that are stated

regarding the product.

●

Do not use when the power plug

or electronic device are dam-

aged.

443

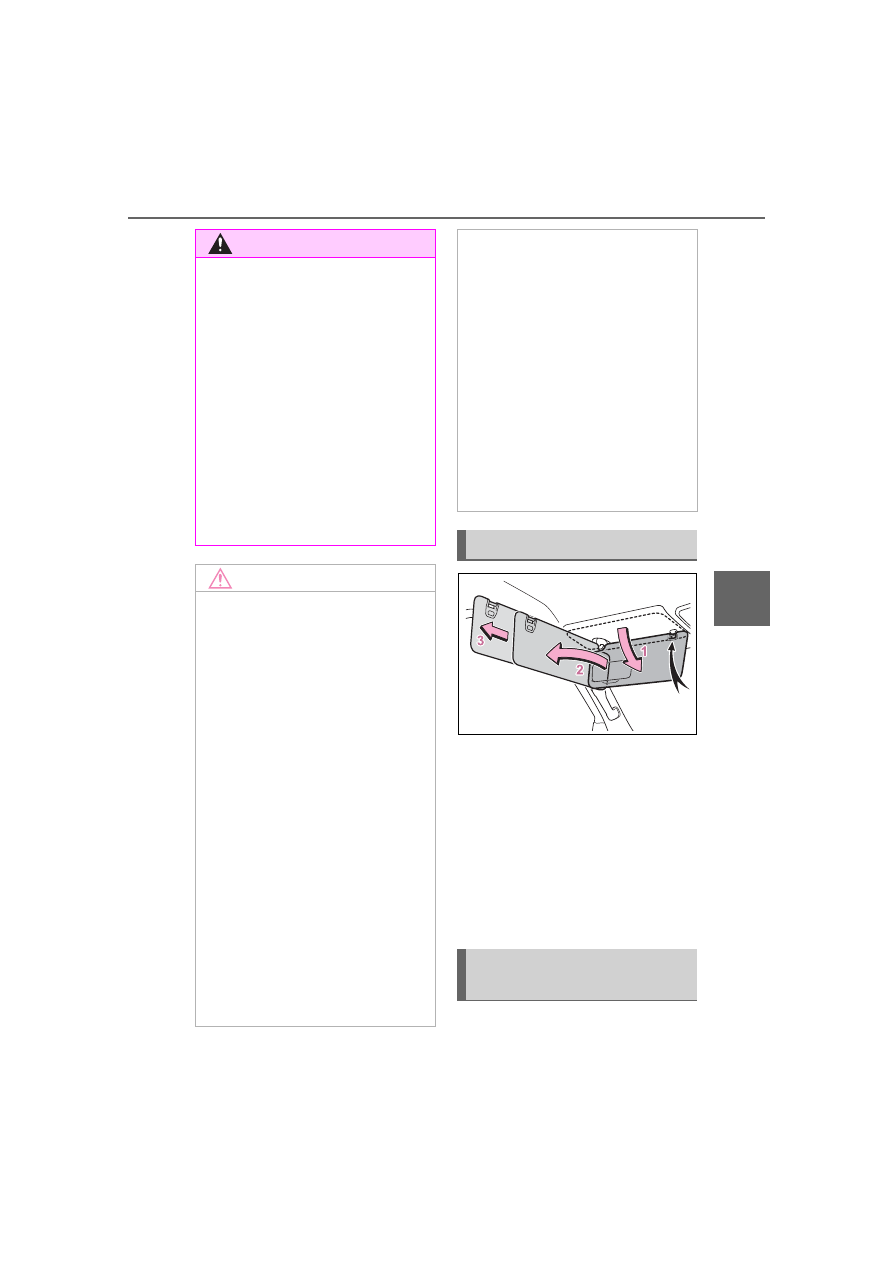

5-4. Using the other interior features

Interior

featur

To set the visor in the forward
position, flip it down.

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

To use the side extender,
place the visor in the side
position, then slide it back-
ward.

Open the cover.

WARNING

●

Malfunctions or poor operations

may occur when the outside

temperatures are particularly

high or low.

●

Normal operations may not be

possible for electronic devices

that require level installation.

●

Excluding electronic devices

with waterproof specifications,

do not use in places where it

can be covered by rain or water,

or places with lots of humidity.

●

Do not use medical equipment

as the power supply function

may temporarily stop depending

the conditions of the vehicle.

NOTICE

Observe the following precau-

tions.
Failure to do so may lead to the

power outlets not operating cor-

rectly or damage to the vehicle or

a connected device.

■

To avoid short circuit or mal-

function

●

Do not set a device which gen-

erates heat near the interior

components or on a seat. Heat

may cause these parts to melt

or burn.

●

Do not use devices which are

sensitive to vibration or heat in

the vehicle.

These devices may malfunction

due to vibration while driving or

heat while the vehicle is parked

in the sun.

●

When not using a power outlet,

make sure to close the cover. If

foreign matter or a liquid enters

the power outlet, it may cause a

malfunction or short circuit.

●

Do not use a multi-point outlet

adapter as doing so may over-

load the power outlet.

●

Immediately stop using if there

is an unusual amount of heat

being felt from the power outlet.

■

When the ambient tempera-

ture is high

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked under the

sun, move the vehicle to a shaded

area, use the air conditioning sys-

tem to sufficiently cool the interior,

and then press the “AC120V”

switch again.

Sun visors

Vanity mirrors (if
equipped)

444

5-4. Using the other interior features

The vanity light turns on.

■

To prevent battery discharge

If the vanity lights remain on when

the engine switch is turned off, the

lights will go off automatically after

20 minutes.

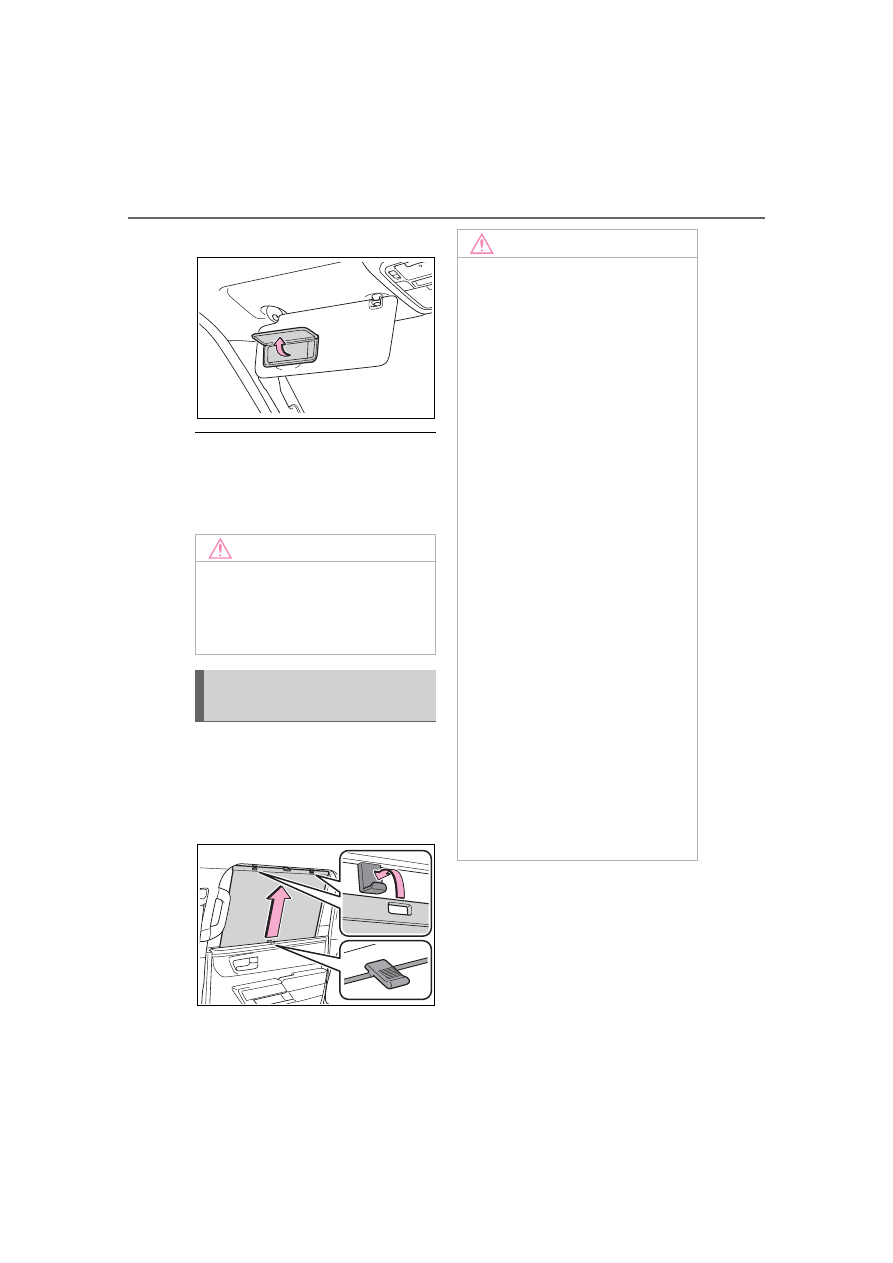

Pull up the tab of the sunshade
and hook the shade on using
the anchors.

To retract the sunshade, unhook
the sunshade and retract it slowly.

NOTICE

■

To prevent the battery from

being discharged

Do not leave the vanity lights on

for extended periods while the

engine is off.

Rear door sunshades (if
equipped)

NOTICE

■

To ensure normal operation

of the sunshades

Observe the following precau-

tions:

●

Do not place anything where it

may hinder the opening/closing

of the rear door sunshades.

●

Do not attach items to the rear

door sunshades.

●

Do not apply excessive load to

the rear door sunshades while

they are hanging from the

hooks.

●

Do not operate the rear door

sunshade while the rear door is

opening/closing.

●

Do not store the rear door sun-

shade in a tilted position. If

stored in a tilted position, the

rear door sunshade screen may

become creased.

■

To prevent damage to the rear

door sunshade

Observe the following precau-

tions:

●

Do not use the rear door sun-

shade when either hook is

detached. When the rear door is

opened/closed, the rear door

sunshade may be damaged.

●

Do not pull on the screen while

the hooks are attached. The

screen may be damaged.

445

5-4. Using the other interior features

Interior

featur

: If equipped

■

HomeLink

programming pro-

cedure

The programming procedures can

also be found at the following URL.

Website: www.homelink.com/toyota

For support, contact customer sup-

port at the following.
Help Line: 1-800-355-3515

The HomeLink

wireless control

system in your vehicle has 3
buttons which can be pro-
grammed to operate 3 different
devices. Refer to the program-
ming methods on the following
pages to determine the method
which is appropriate for the
device.



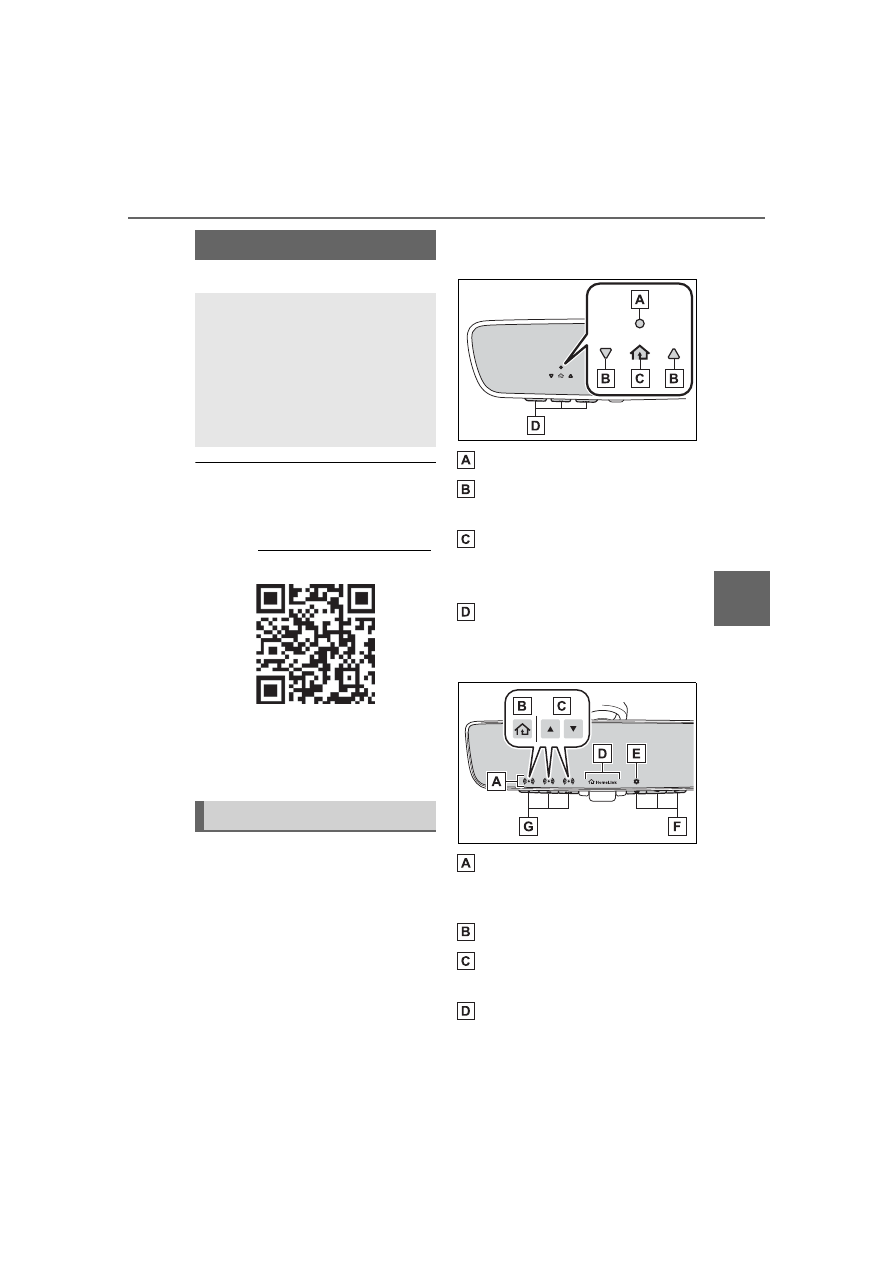

Vehicles with auto anti-glare
inside rear view mirror

HomeLink

indicator light

Garage door operation indi-
cators

HomeLink

icon

Illuminates while HomeLink

operating.

Buttons



Vehicles with Digital Rear-
view Mirror

HomeLink

indicator light

Illuminates above each button
selected.

HomeLink

icon

Garage door operation indi-
cators

HomeLink

logo

Garage door opener

The garage door opener can
be programmed using the
HomeLink

to operate

garage doors, gates, entry
doors, door locks, home
lighting systems, security
systems, and other devices.

System components

446

5-4. Using the other interior features

Appears while HomeLink

is oper-

ating. When the menu button
(



P.145) is pressed, the logo dis-

appears even while the HomeLink

is operating.

Setting icon

Press the menu button to change
the setting.

Menu buttons

HomeLink

buttons

■

Codes stored in the Home-
Link

memory

●

The registered codes are not

erased even if the battery cable is

disconnected.

●

If learning failed when registering
a different code to a HomeLink

button that already has a code

registered to it, the already regis-

tered code will not be erased.

■

Certification



P.625

■

Before programming Home-
Link



During programming, it is pos-
sible that garage doors,
gates, or other devices may
operate. For this reason,
make sure that people and
objects are clear of the
garage door or other devices
to prevent injury or other
potential harm.



It is recommended that a new
battery be placed in the
remote control transmitter for
more accurate programming.



Garage door opener motors
manufactured after 1995 may
be equipped with rolling code
protection. If this is the case,

WARNING

■

When programming a garage

door or other remote control

device

The garage door or other device

may operate, so ensure people

and objects are out of danger to

prevent potential harm.

■

Conforming to federal safety

standards

Do not use the HomeLink

com-

patible transceiver with any

garage door opener or device that

lacks safety stop and reverse fea-

tures as required by federal safety

standards.
This includes any garage door

that cannot detect an interfering

object. A door or device without

these features increases the risk

of death or serious injury.

■

When operating or program-
ming HomeLink

Never allow a child to operate or
play with the HomeLink

buttons.

Programming the Home-
Link

447

5-4. Using the other interior features

Interior

featur

you may need a stepladder or
other sturdy, safe device to
reach the “Learn” or “Smart”
button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be per-

formed within 60 seconds, oth-
erwise the indicator light will
stop flashing and programming
will not be successfully com-
pleted.

Vehicles with Digital Rear-
view Mirror: Press the Home-
Link

button or menu button

When the HomeLink

button

is pressed: Homelink

Train-

ing Tutorial will be displayed
to assist you programming
the HomeLink

When the menu button is pressed:
Press the menu button

and

select the “SET UP”. Homelink

Training Tutorial will be displayed to
assist you programming the Home-
Link

Press and release the Home-
Link

button you want to pro-

gram and check that the
HomeLink

indicator light

flashes (orange).

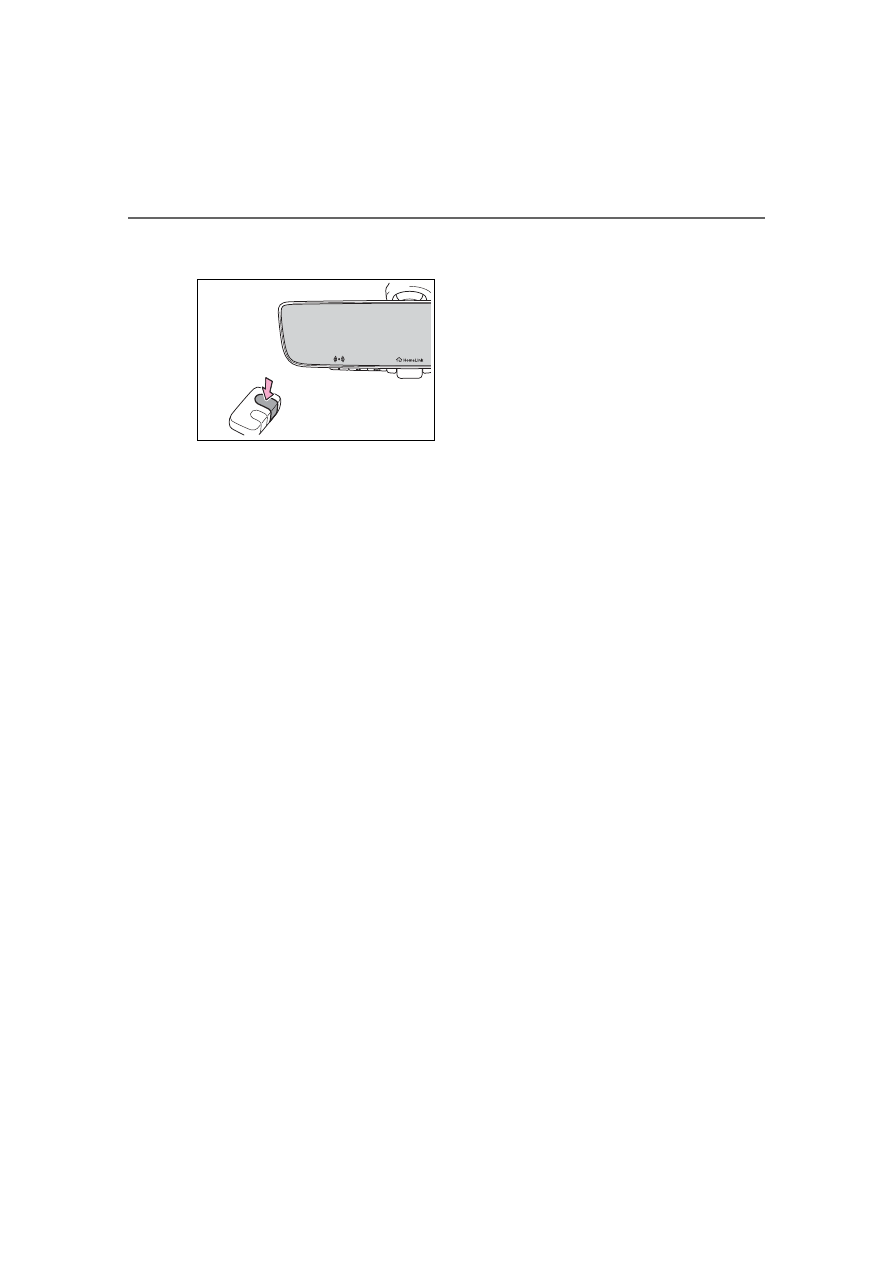

Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the
HomeLink

buttons.

Keep the HomeLink

indicator light

in view while programming.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rear-
view Mirror

Program a device.



Vehicles with auto anti-glare
inside rear view mirror

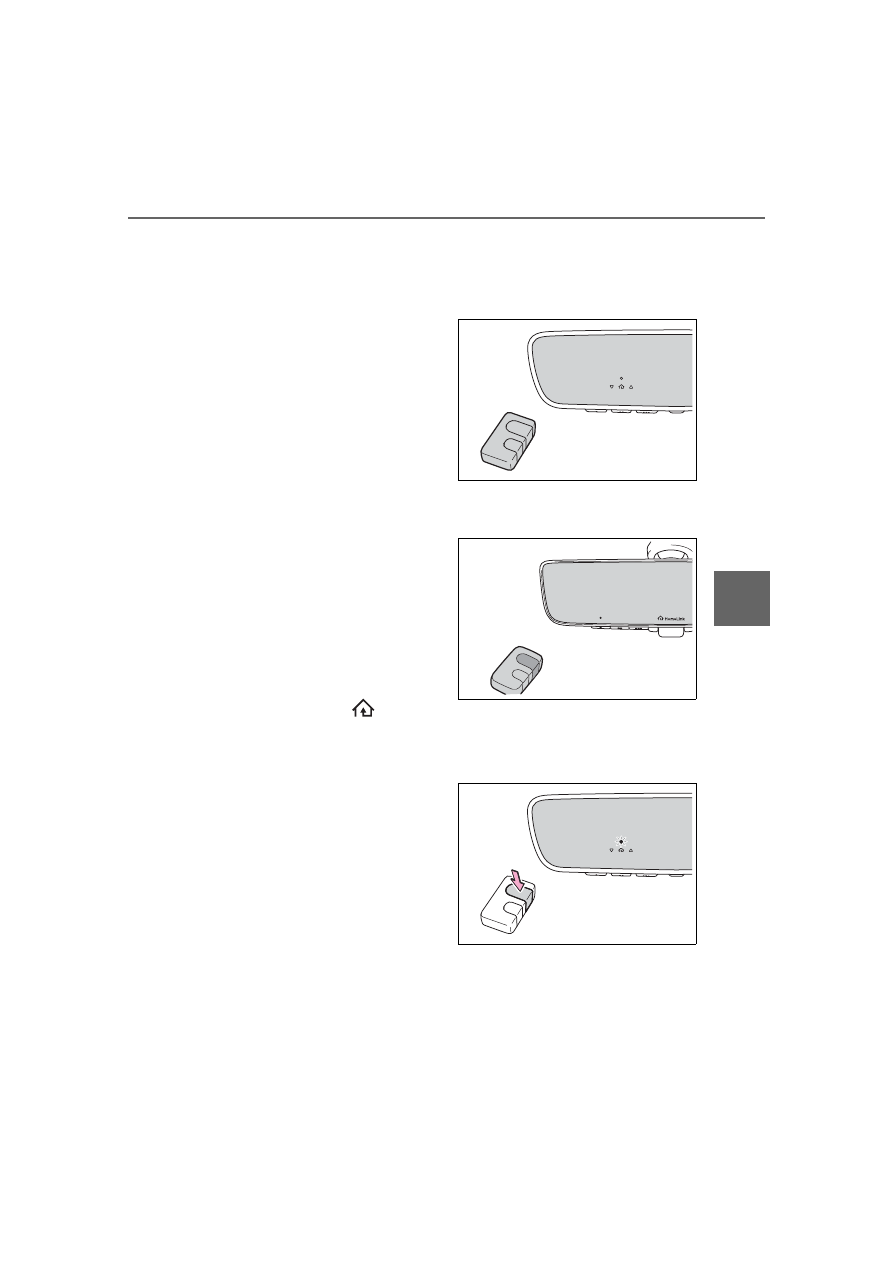

448

5-4. Using the other interior features



Vehicles with Digital Rear-
view Mirror



Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the remote control
transmitter button until the Home-
Link

indicator light changes from

slowly flashing orange to rapidly
flashing green (rolling code) or con-
tinuously lit green (fixed code), then
release the button.



Programming an entry gate
(for U.S.A. owners)/Program-
ming a device in the Cana-
dian market

Press and release the remote con-
trol transmitter button at 2 second
intervals, repeatedly, until the
HomeLink

indicator light changes

from slowly flashing (orange) to
rapidly flashing (green) (rolling
code) or continuously lit (green)
(fixed code).

Test the HomeLink

opera-

tion by pressing the newly
programmed button and
observing the indicator light:



HomeLink

indicator light illu-

minates: Programming of a
fixed code device has com-

pleted. The garage door or
other device should operate
when a HomeLink

button is

pressed and released.



HomeLink

indicator light

flashes rapidly: The garage
door opener motor or other
device is equipped with a roll-
ing code. To complete pro-
gramming, firmly press and
hold the HomeLink

button

for 2 seconds then release it.



If the garage door or other
device does not operate, pro-
ceed to “Programming a roll-
ing code system”.

Repeat the steps above to
program another device for
any of the remaining Home-
Link

buttons.

■

Programming a rolling code
system

Two or more people may be
necessary to complete rolling
code programming.

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found

where the hanging antenna wire is

attached to the unit. The name and

color of the button may vary by

manufacturer. Refer to the owner’s

manual supplied with the garage

Toyota Tundra (2023 year). Manual in english - page 27
