Toyota RAV4 Prime (2023 year). Manual in english

193

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

etc.) with

After changing the settings,
press

of the meter control

switches.

■

LTA (Lane Tracing

Assist) (



P.351)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Alert”

Select to change each notification
method of the lane departure alert.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

PCS (Pre-Collision Sys-

tem) (



P.340)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Sensitivity”

Select to change the pre-collision
warning timing.

■

BSM (Blind Spot Moni-

tor) (



P.378)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.379)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

(Intuitive parking

assist) (if equipped)
(



P.387)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (



P.378)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

194

3-1. Instrument cluster

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.395)

Select to enable/disable the
Parking Support Brake function.

■

“HUD Main” (if equipped)
(



P.208)



HUD on/off

Select to enable/disable the head-
up display.



“HUD Brightness/Position”

Select to adjust the brightness or
vertical position of the head-up dis-
play.



“HUD Driving Support”

Select to change the items dis-
played on the head-up display.



“HUD Rotation”

Select to adjust the angle of the
head-up display.

■

RSA (Road Sign

Assist) (if equipped)
(



P.363)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.



“Notification Method”

Select to change each notification
method used to notify the driver
when the system detects driving
conditions that are prohibited by
signs.



“Notification Level”

Select to change each notification

level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



“Charging Settings”

Select to set up the following items.
• “Charging Schedule”
Select to register or change the
charging schedule. (



P.128)

• “Charging Current”
Select to change the charging cur-
rent. (



P.111)

• “Connector Lock”
Select to change the charging con-
nector lock settings. (



P.107)

• “Battery Heater”
Select to enable/disable the bat-
tery heater. (



P.113)

• “Battery Cooler”
Select to enable/disable the bat-
tery cooler. (



P.114)



PBD (Power Back Door)

(if equipped) (



P.231)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.

• “Hands Free”

Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the

195

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

power back door system operates.

: Vehicles with Hands Free Power

Back Door



“TPWS” (Tire Pressure Warn-
ing System) (if equipped)
(



P.500)

• “Setting Pressure”
Select to initialize the tire pressure
warning system.
• “Identify Wheel”
Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.
• “Setting Unit”
Select to change the units of mea-
sure displayed.



“Scheduled Maintenance”
(



P.479)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.



“Rear Seat Reminder”
(



P.224)

Select to enable/disable the rear
seat reminder.

■

Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



“Meter Type”

Select to change the speedometer

display.



(EV indicator) (



P.80)

Select to enable/disable the EV
indicator.



(Driving information dis-

play settings)

Select to set up the following items.
• “Hybrid System”
Select to enable/disable the ECO
Accelerator Guidance (



P.187).

• “Fuel Economy”
Select to change the display on
Fuel Economy (



P.186).

• “Power Consumption”
Select to change the display on
Power Consumption (



P.186).



(Audio settings) (if

equipped)

Select to enable/disable

screen.



(Vehicle information dis-

play settings)

• “Display Contents”
Select to set up the following items.
“Energy monitor”:
Select to enable/disable the Energy
monitor (



P.212)

“AWD”:
Select to enable/disable the AWD
system display (



P.191).

• “Drive Info Type”
Select to change the drive informa-
tion type display between trip and
total. (



P.190).

• “Drive Info Items”

196

3-1. Instrument cluster

Select to set the items on the upper
and lower side of the drive informa-
tion screen from three items, aver-
age speed, distance and total time.



“Closing Display”

Select to set the items displayed
when the power switch is turned off.



“Pop-Up Display” (if
equipped)

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• Intersection guidance display of

the navigation system-linked sys-
tem (if equipped)

• Incoming call display of the

hands-free phone system (if
equipped)

• Audio operation (if equipped)
• Volume operation (if equipped)
• Voice control (if equipped)



“Calender”

Select to set up the calender.
This can only be set if GPS calibra-
tion of clock is turned off in the mul-
timedia system settings.



“MID OFF”

A blank screen is displayed.



“Default Settings”

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.552)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

Convenience Services
(Suggestion function)

197

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Suggestion to enable the
power back door (if
equipped)

If the power back door system is
disabled on the

screen and

After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

The Convenience Services (Sug-

gestion function) can be turned

on/off. (Customizable features:



P.601)

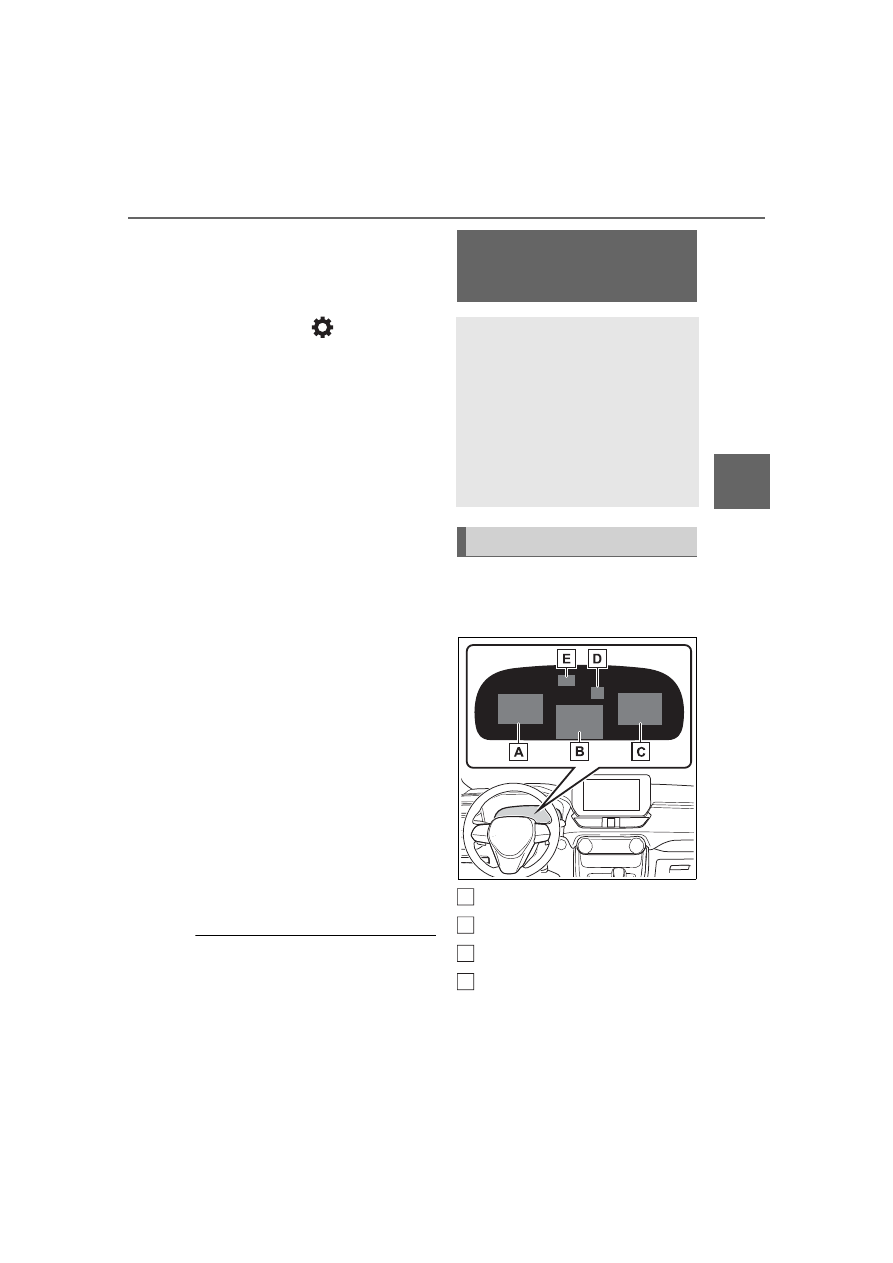

Following information is dis-
played in each area on the
multi-information display.

Content display area (left)

Content display area (center)

Content display area (right)

Driving support system infor-
mation display area

When driving support system infor-

Multi-information dis-

play (with 12.3-inch

display)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

198

3-1. Instrument cluster

mation is displayed on the content
display area, the system operating
state will not be displayed in this
area.

RSA (Road Sign Assist) dis-
play area (if equipped)
(



P.363)

■

Content display area (cen-
ter)



Driving support system infor-
mation display (



P.202)



Settings display (



P.203)



Warning message display

■

Content display area
(left/right)



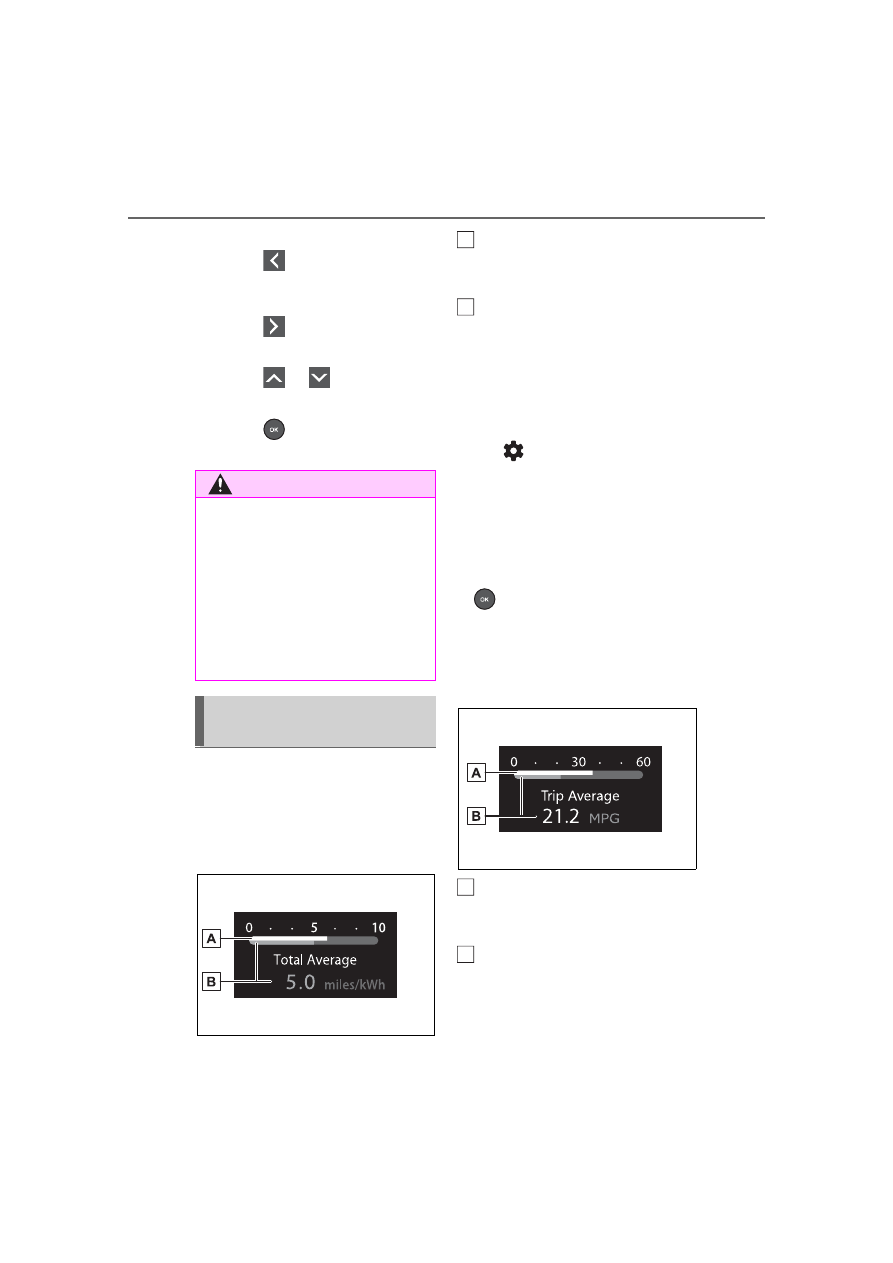

Power Consumption/Fuel
Economy (



P.199)



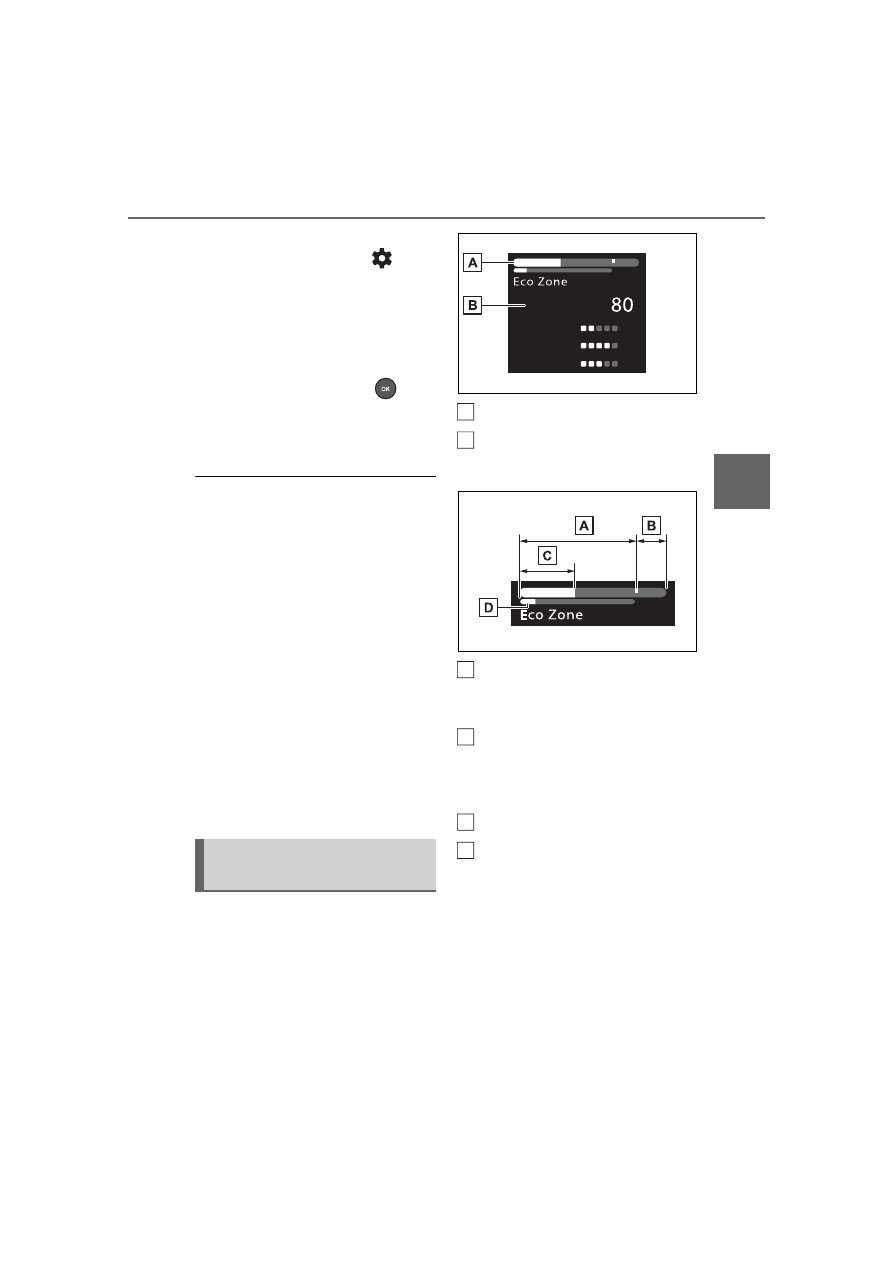

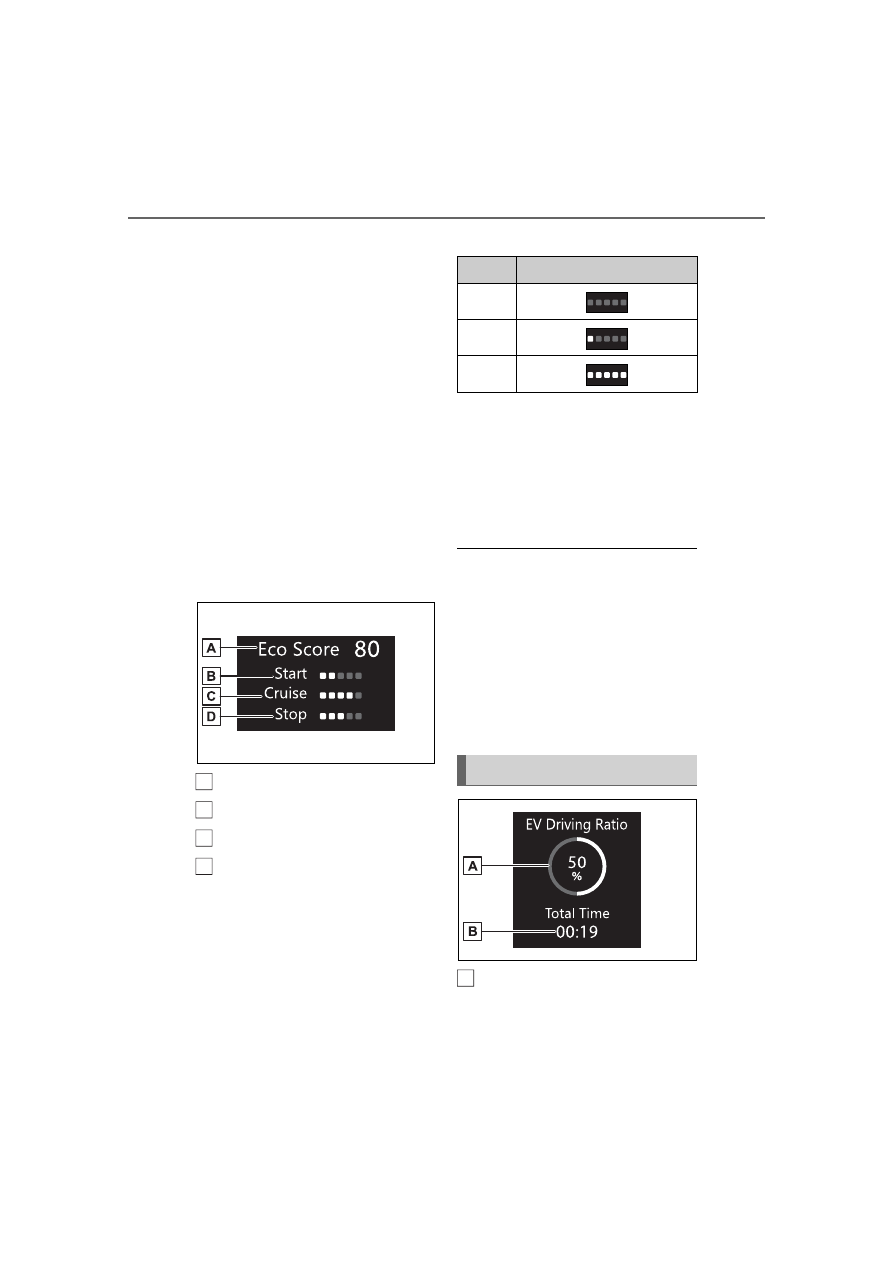

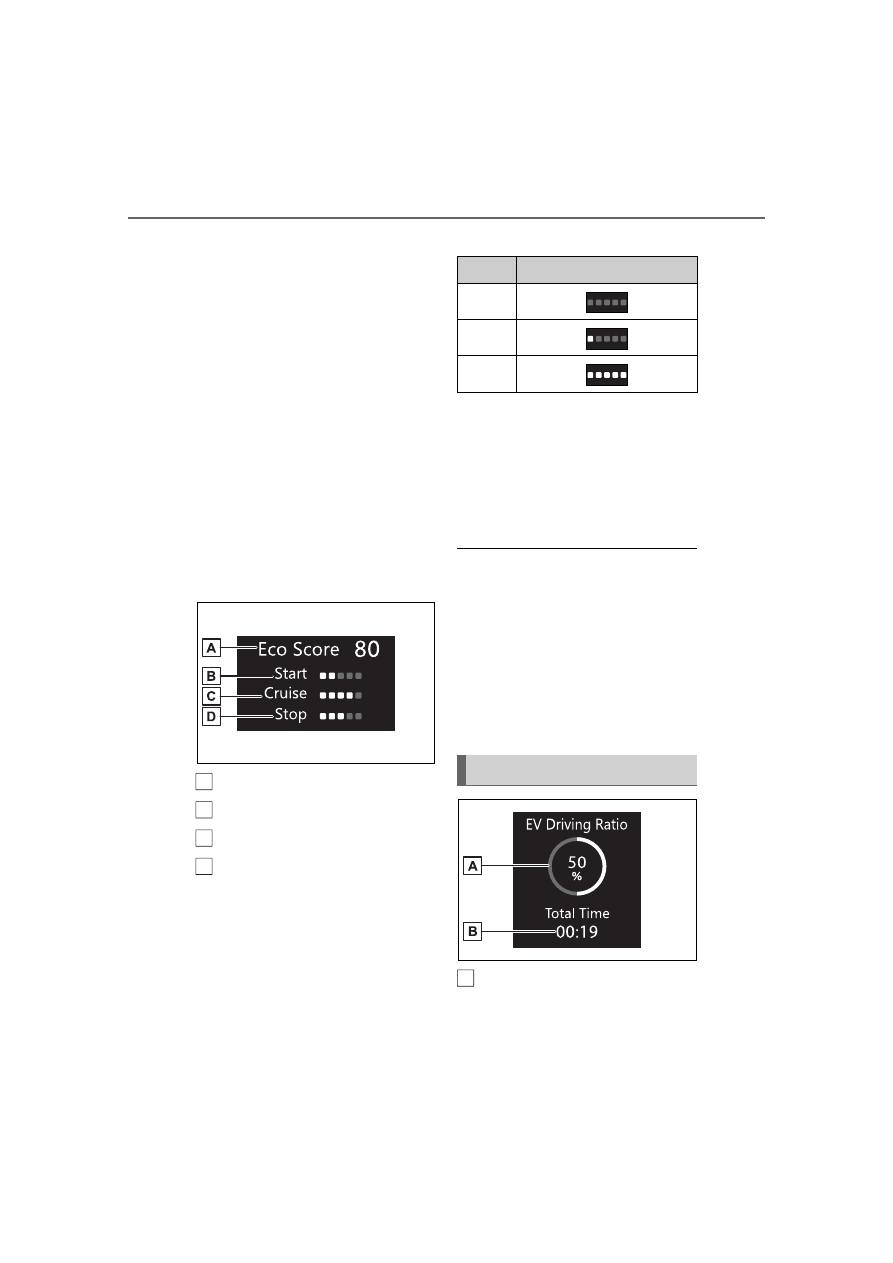

ECO Accelerator Guid-
ance/“Eco Score” (



P.200)



EV Ratio/EV Driving Ratio
(



P.201)



Driving support system infor-
mation display (



P.202)



Audio system-linked display
(



P.202)



Drive information (



P.202)



Energy monitor (



P.212)



AWD system display
(



P.203)

■

The multi-information display is

displayed when

The power switch is in ON.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode.

(



P.404)

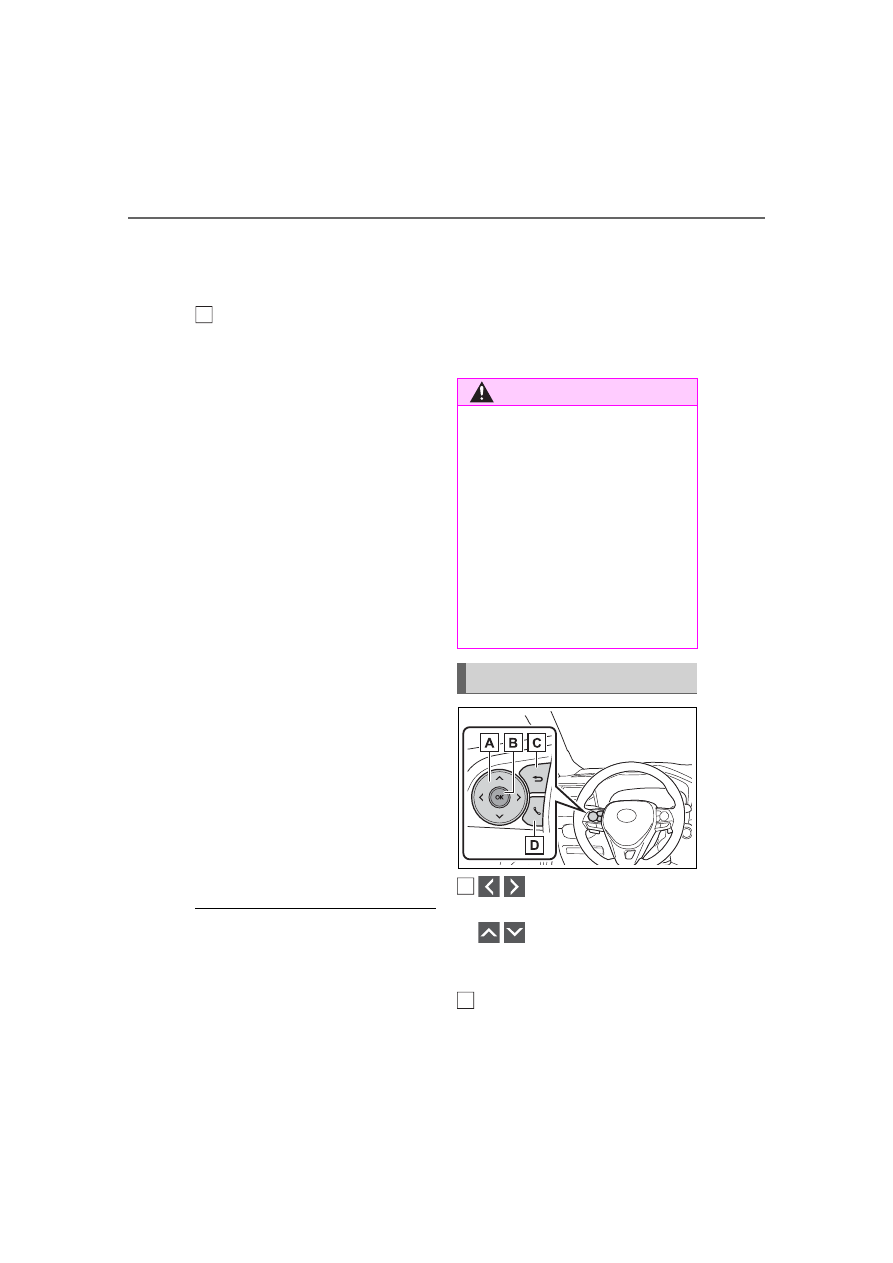

: Change the screen

and move the cursor

: Change displayed

content and scroll up/down
the screen

Press: Enter/Set
Press and hold: Reset/Dis-

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.176

Meter control switches

199

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

play customizable items/Dis-
play the cursor

Move the main meter and
return to the previous screen

Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

The multi-information display is
operated using the meter control
switches.

■

Changing the meter display
type setting

The meter display type setting
can be changed on

(



P.203)

■

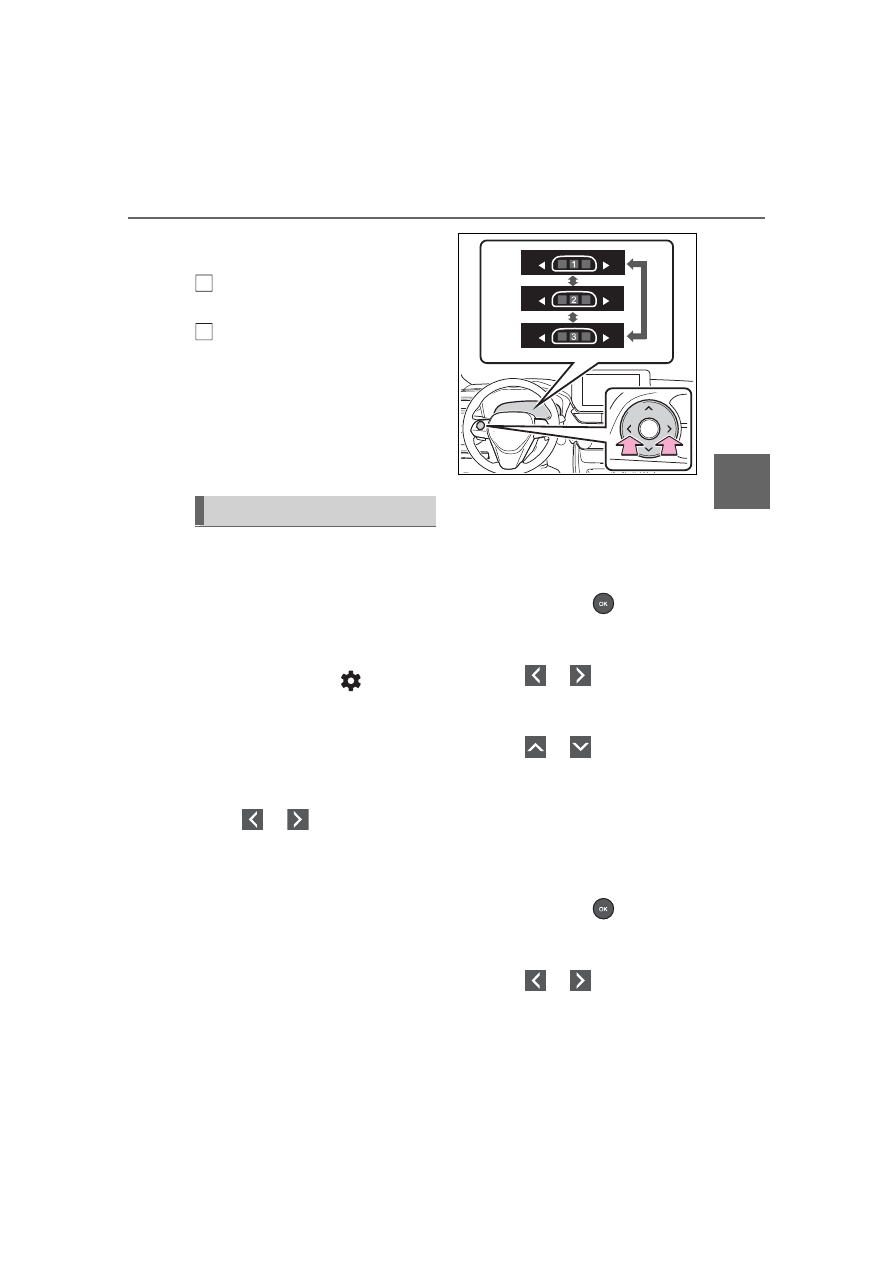

Changing the screen

Select items from the combina-
tion of 3 screens to display on
each 3 content display areas.
Press

of the meter

control switches to scroll the
screen.

■

Changing the display con-
tents

Switches items displayed on
each contents display area
(left/center/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Press

to select the

items.

■

Items displayed in the con-
tent display area

Select to enable/disable items
on the content display area
(left/right).

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

to move the

cursor and select the content
display area.

Changing the display

200

3-1. Instrument cluster

Contents display area (left):
Press

to display contents

list.
Contents display area (right):
Press

to display contents

list.

Press

to select the

items.

Press

to select/deselect

items.

The display contents are differ-
ent in EV mode or AUTO EV/HV
mode, and HV mode.



EV mode or AUTO EV/HV
mode

Current power consumption

Displays the instantaneous current
power consumption.

Average power consumption

Displays the average power con-
sumption since the function was
reset or the average power con-
sumption after starting.

*1, 2, 3

The average power consumption
selected by “Power Consumption”
on the

screen is displayed.

(



P.191)

:Use the displayed power con-

sumption as a reference only.

:Average power consumption

since the function was reset can
be reset by pressing and holding

:Average power consumption

after starting is reset each time
the hybrid system stops.



HV mode

Current fuel economy

Displays the instantaneous current
fuel economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Power Consumption/Fuel
Economy

201

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed. (



P.191)

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

:Average fuel economy after

starting is reset each time the
hybrid system stops.

■

Electricity consumption

When the unit is set to “MPH”:
Electricity consumption is the con-

sumption rate of the electricity when

EV driving is performed and equiva-

lent to the fuel consumption for the

gasoline vehicles. For this vehicle,

driven distance per kWh of electric-

ity consumed (“miles/kWh”) is dis-

played as electricity consumption on

each screen.
When the unit is set to “km/h”:
Electricity consumption is the con-

sumption rate of the electricity when

EV driving is performed and equiva-

lent to the fuel consumption for the

gasoline vehicles. For this vehicle,

electricity consumed per 100 km

(“kWh/100 km”) is displayed as

electricity consumption on each

screen.

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

ECO Accelerator Guidance

“Eco Score”

■

ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-

ECO Accelerator Guid-
ance/“Eco Score”

守宦宲季宖宦宲宵宨

宖宷室宵宷

宖宷宲害

宆宵宸宬家宨

202

3-1. Instrument cluster

ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.

■

“Eco Score”

The driving status for the follow-
ing 3 situations are evaluated in
5 levels: Smooth start-off accel-
eration (“Start”), driving without
sudden acceleration (“Cruise”)
and smooth stopping (“Stop”).
Each time the vehicle is
stopped, a score result is dis-
played out of a perfect score of
100 points.

Score result

“Start”

“Cruise”

“Stop”

3 situations are displayed with
each icon while driving.

How to read the bar display:

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately
19mph (30km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

EV driving ratio after starting

Displays the percentage of EV driv-
ing since the hybrid system was

Score

Bar display

Unrated

Low

High

EV Ratio/EV Driving Ratio

203

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

started.

Elapsed time after starting

Displays the elapsed time since
hybrid system was started.

: It is reset each time the hybrid

system stops.

Select to display the operational
status of the following systems:



Dynamic radar cruise control
with full-speed range

(



P.366)



LTA (Lane Tracing Assist)
(



P.351)

Select to display the following
navigation system-linked infor-
mation.



Route guidance to destination



Street name



Compass

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed and distance)
can be displayed vertically.

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed
since hybrid system start

• “Distance”: Displays the dis-

tance driven since hybrid sys-
tem start

• “Total Time”: Displays

elapsed time since hybrid sys-
tem start

: These items are reset each time

the hybrid system stops.

■

Trip information

2 items that are selected using
the “TRIP A Items” or “TRIP B
Items” setting (average speed
and distance) can be displayed
vertically.

Use the displayed information as a
reference only.

• “Average Speed”: Displays

the average vehicle speed
since the display was reset

• “Distance”: Displays the dis-

tance driven since the display
was reset

• “Total Time”: Displays

elapsed time since the display
was reset

Driving support system
information display

Navigation system-linked
display (if equipped)

Audio system-linked dis-
play

Driving information dis-
play

204

3-1. Instrument cluster

: To reset, display the desired item

and press and hold



P.212

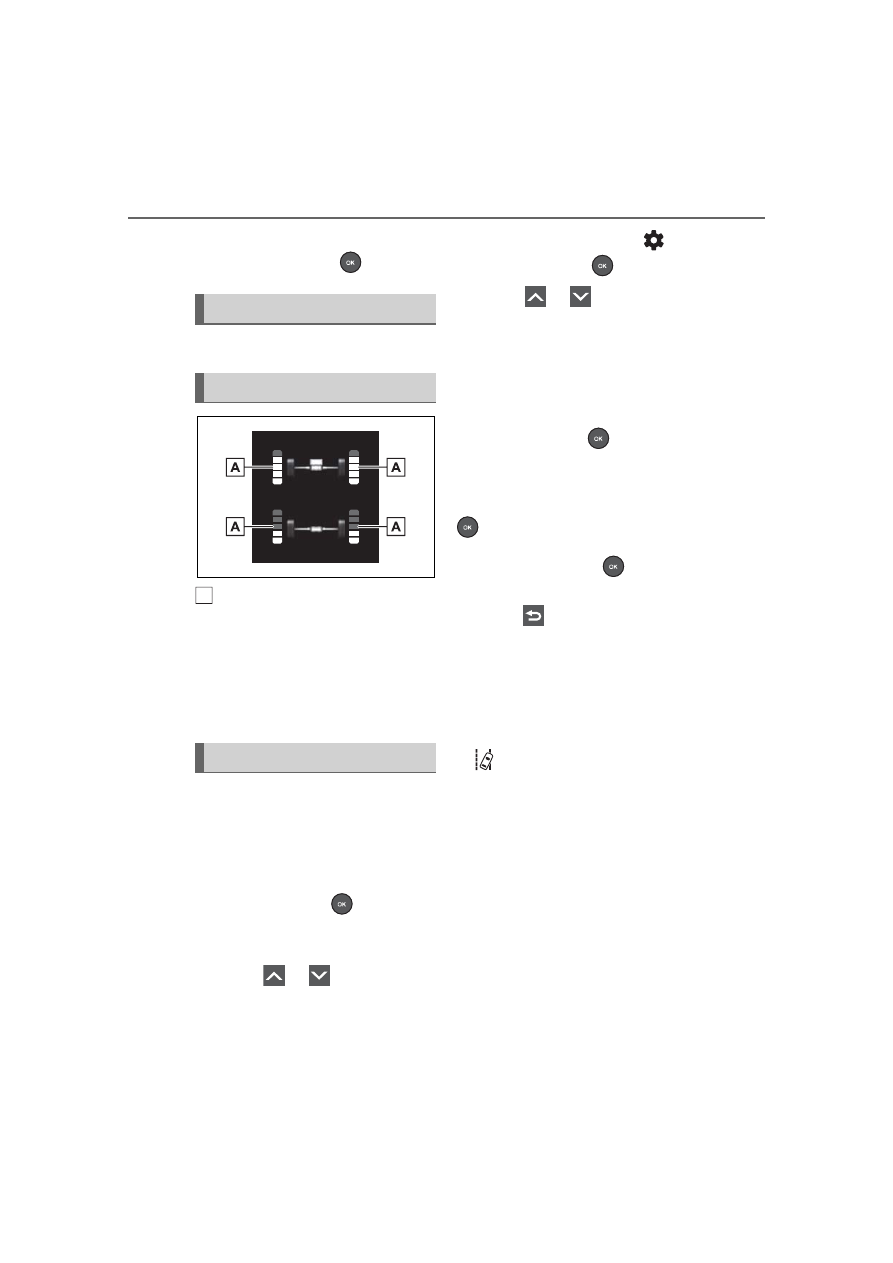

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.
The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

Press and hold

to display

the cursor on the content dis-
play area (center).

Press

with the cur-

sor on the content display

area (center) to select

and then press

Press

of the meter

control switches and move
the cursor to select the item
for changing settings.

If the function is turned on and off

or the volume, etc. is changed on

the setting screen, the setting is
changed each time

is pressed.

For functions that allow operation

contents, display contents, etc., to

be selected, the setting screen is

displayed by pressing and holding

. When the setting screen is dis-

played, select the setting or desired
value (time, etc.) with

After changing the settings,
press

of the meter control

switches.

■

Head-up display (if
equipped) (



P.208)

Select to change the head-up
display setting.

■

LTA (Lane Tracing

Assist) (



P.351)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Alert Options”

Select to change each notification
method of the lane departure alert.



“Sensitivity”
Select to set the lane depar-
ture alert sensitivity.

Energy monitor

AWD system display

Settings display

205

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”
Select to set the vehicle sway
warning sensitivity.

■

BSM (Blind Spot Moni-

tor) (



P.378)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off
Select to enable/disable the
BSM system.



“Sensitivity”
Select to change the alert tim-
ing for an approaching vehi-
cle.



“Brightness”
Select to switch the bright-
ness of the outside rear view
mirror indicators. (



P.379)

■

PCS (Pre-Collision Sys-

tem)

Select to set up the following
items.



PCS on/off
Select to enable/disable the
pre-collision system.



“Sensitivity”
Select to change the pre-colli-
sion warning timing.

■

Intuitive parking

assist (



P.387)

Select to set up the following
items.



Intuitive parking assist on/off
Select to enable/disable the
intuitive parking assist.



“Volume”
Select to set the volume of the
buzzer which sounds when
the intuitive parking assist is
operated.

■

RCTA (Rear Cross Traf-

fic Alert) (



P.383)

Select to set up the following
items.



RCTA (Rear Cross Traffic
Alert) on/off
Select to enable/disable the
RCTA system.



“Volume”
Select to set the volume of the
buzzer which sounds when
the RCTA is operated.

■

PKSB (Parking Sup-

port Brake System)
(



P.395)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign

Assist) (if equipped)
(



P.363)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.



“Notification Method”

Select to change each notification
method used to notify the driver

206

3-1. Instrument cluster

when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



“Charging Settings”

Select to set up the following items.
• “Charging Schedule”
Select to register or change the
charging schedule. (



P.128)

• “Charging Current”
Select to change the charging cur-
rent. (



P.111)

• “Battery Cooler”
Select to enable/disable the bat-
tery cooler. (



P.114)

• “Battery Heater”
Select to enable/disable the bat-
tery heater. (



P.113)



DRCC

Select to change the curve speed
reduction function setting.



PBD (Power Back Door)

(



P.229)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.
• “Hands Free”
Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”

Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.



“TPWS” (Tire Pressure Warn-
ing System) (if equipped)
(



P.500)

• “Setting Pressure”

Select to initialize the tire pres-
sure warning system.

• “Identifying Each Wheel & Posi-

tion”
Select to change the tire pressure
warning system sensor ID code
set. To enable this function, a
second set of tire pressure warn-
ing system sensor ID codes must
be registered by a Toyota dealer.
For information regarding chang-
ing the registered ID code set,
contact your Toyota dealer.

• “Pressure unit setting”

Select to change the units of
measure displayed.



Rear Seat Reminder
(



P.224)

Select to enable/disable the
rear seat reminder function.

■

Settings



“Language”
Select to change the lan-
guage on the multi-informa-
tion display.



“Units”
Select to change the unit of
measure for fuel consump-
tion.

207

3-1. Instrument cluster

Vehicle

s information an

d in
dicat



Meter Type
Select to change the meter
type setting.



Meter Style
Select to change the meter
style.



Dial Type
Select to change dial type.
(



P.178)

Depending on the selected dial
type, this item will not be displayed.



EV indicator

Select to enable/disable the
EV indicator.



Fuel Economy
Select to change the display
on Fuel Economy. (



P.199)



“Hybrid System”
Select to enable/disable refer-
ence operation range.



“Power Consumption”

Select to change the display on
Power Consumption. (



P.199)



Drive Info
Select to change displayed
items on drive information dis-
play. (



P.202)



“Calendar”

Select to set up the calender. This
can only be set if GPS calibration of
clock is turned off in the multimedia
system settings.



Pop-Up Display
Select to enable/disable the
pop-up displays, which may
appear in some situations.



Default Settings

Select to reset the meter dis-
play settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.552)

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

208

3-1. Instrument cluster

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to enable the
power back door (if
equipped)

If the power back door system is
disabled on the

screen and

the power back door switch on
the instrument panel is oper-
ated, a suggestion message will
be displayed asking if you wish
to enable the power back door
system. To enable the power
back door system, select “Yes”.
After enabling the power back
door system, press the power
back door switch again to open
or close the power back door.

■

Suggestion to turn on the
headlights

If the headlights turn off, and the
vehicle speed is 5 km/h (3 mph)
or higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time with the
headlight switch in

after the

power switch has been turned
off, a suggestion message will
be displayed asking if you wish
to turn the headlights off.
To turn the headlights off, select
“Yes”.

If a front door is opened after the
power switch is turned off, this sug-
gestion message will not be dis-
played.

To close all of the power win-
dows, select “Yes”.

■

Customization

Some functions can be customized.

(Customizable features:



P.599)

Convenience Services
(Suggestion function)

Toyota RAV4 Prime (2023 year). Manual in english - page 12
