3-1. Instrument cluster

Vehicle

s information an

d in
dicat

: If equipped

Illustrations used in this text are
intended as examples, and may dif-
fer from the image that is actually
displayed by the head-up display.

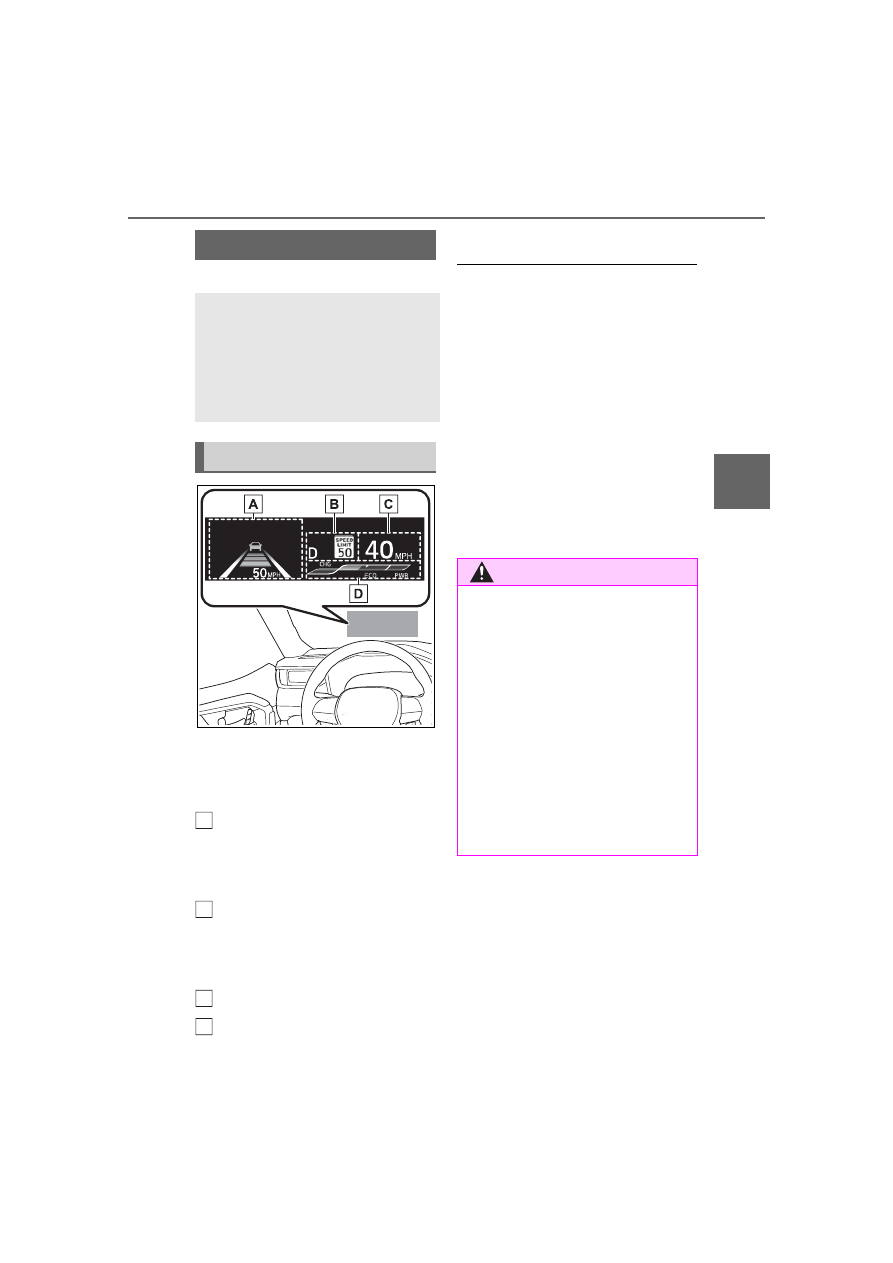

Driving support system infor-
mation/navigation system-
linked display area (if
equipped) (



P.210)

Shift position display
area/RSA (Road Sign Assist)
display area (if equipped)
(



P.309, 363)

Vehicle speed display

Hybrid System Indica-

tor/tachometer (



P.212)

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display (vehicles

with navigation system)

Only street names which are

included in the map data will be dis-

played.

Head-up display

The head-up display proj-
ects a variety of driving-
related information and the
operating state of the driv-
ing support systems on the
windshield.

System components

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

210

3-1. Instrument cluster

Vehicle settings and the content
displayed on the head-up dis-
play can be changed by using
the meter control switches.
(



P.191, 203)

Operate the meter control
switches and select

the multi-information display.

Operate

of the

meter control switches and
select “HUD Main” to set up
the following items.

■

Enabling/disabling the
head-up display

Press

to enable/disable the

head-up display.

■

Changing the head-up dis-
play settings

Press and hold

to display the

setting screen and change the
following settings:



Brightness and vertical posi-
tion of the head-up display

Select to adjust the brightness or
vertical position of the head-up dis-
play.



Display content

Select to change the display
between the following:
• No content
• Hybrid System Indicator
• Tachometer
Select to enable/disable the follow-
ing items:

NOTICE

■

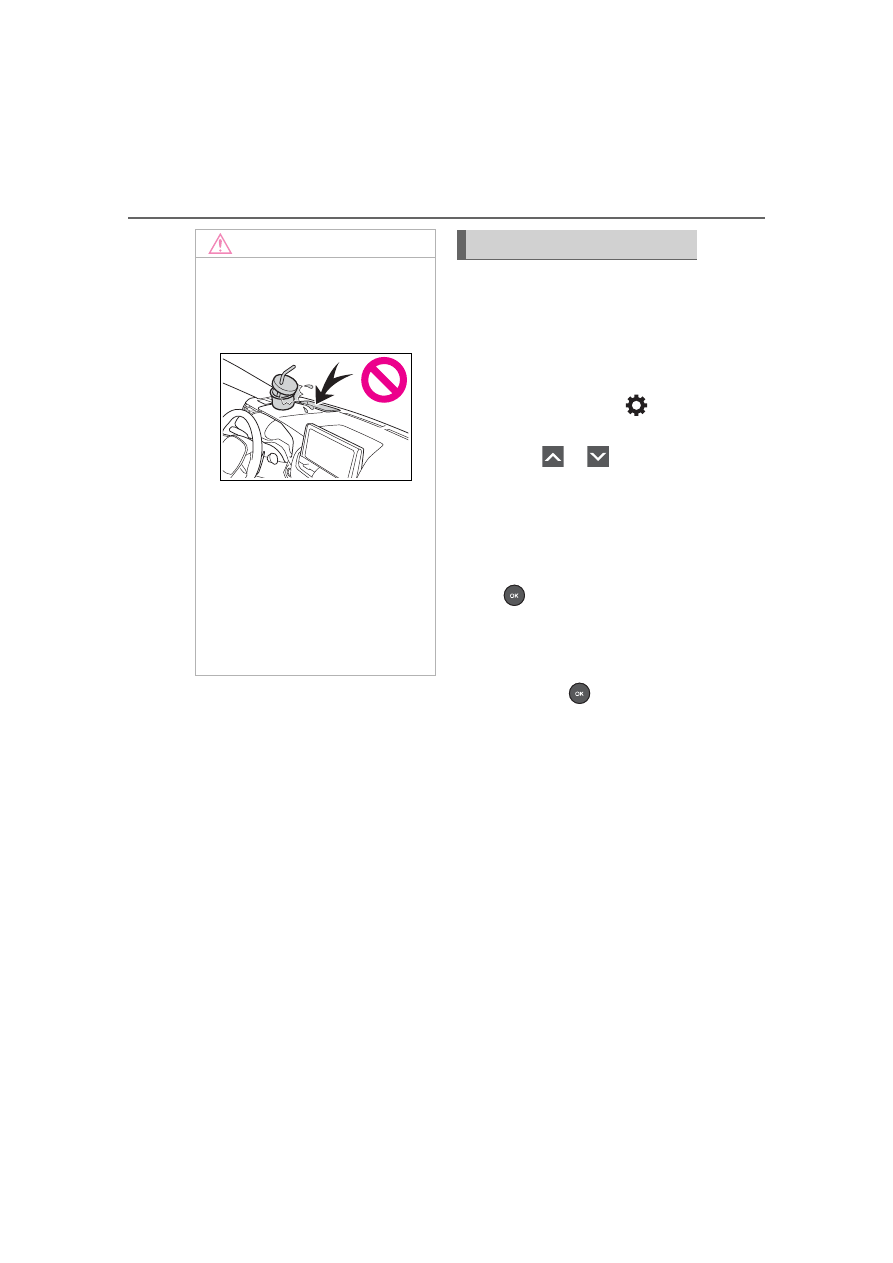

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt head-

up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

211

3-1. Instrument cluster

Vehicle

s information an

d in
dicat

• Route guidance to destination (if

equipped)

• Driving support system informa-

tion display

• Compass (if equipped)
• Audio system operation status



Display angle

Select to adjust the angle of the
head-up display.

■

Enabling/disabling of the head-

up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

screen

of the multi-information display.
Also, it is automatically adjusted
according to the ambient brightness.

■

Driving support system
information display

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.351)



Dynamic radar cruise control
with full-speed range
(



P.366)

Displayed content is the same as
that displayed on the multi-informa-
tion display. For details, refer to the
explanations of each system.

■

Navigation system-linked
display area (if equipped)

Displays the following items
which are linked to the naviga-
tion system:



Street name



Route guidance to destination



Compass

Pop-up displays for the following

WARNING

■

Caution for changing settings

of the head-up display

If the hybrid system is operating

when changing the display set-

tings, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while chang-

ing the settings of the head-up

display.

Driving support system
information/navigation
system-linked display
area (if equipped)

Pop-up display

212

3-1. Instrument cluster

systems will be displayed when
necessary:

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.340)



Brake Override System
(



P.283)



Drive-Start Control (



P.283)



Parking Support Brake func-
tion (static objects) (if
equipped) (



P.400)

Displayed content is the same as
that displayed on the meter. For
details, refer to the explanations of
each system.

■

icons

Displays the following multi-
information display linked icons:

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display.

: Information icon

Displayed when a sugges-
tion/advice pop-up display is dis-
played on the multi-information
display.

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

Displayed content is the same as

that displayed on the multi-informa-
tion display. For details, refer to the
explanations of each system.

■

Audio system operation
status (if equipped)

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status
(if equipped)

Displayed when the hands-free
system is operated.

■

Outside temperature dis-
play

Displayed when the power
switch is turned to ON or when
the low outside temperature
indicator is flashing.

■

When a pop-up display is dis-

played

When a pop-up display is displayed,

a current display may no longer be

displayed. In this case, the display

will return after the pop-up display

disappears.

■

Outside temperature display

●

When the ambient temperature is
approximately 37°F (3°C) or
lower,

will flash for approxi-

mately 10 seconds and the out-
side temperature display will turn
off.

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped (including when

using “My Room Mode”), or driv-

ing at low speeds (less than 12

mph [20 km/h])

213

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

Display content selected by
“HUD Driving Support” on the

screen is displayed.

(



P.209)

■

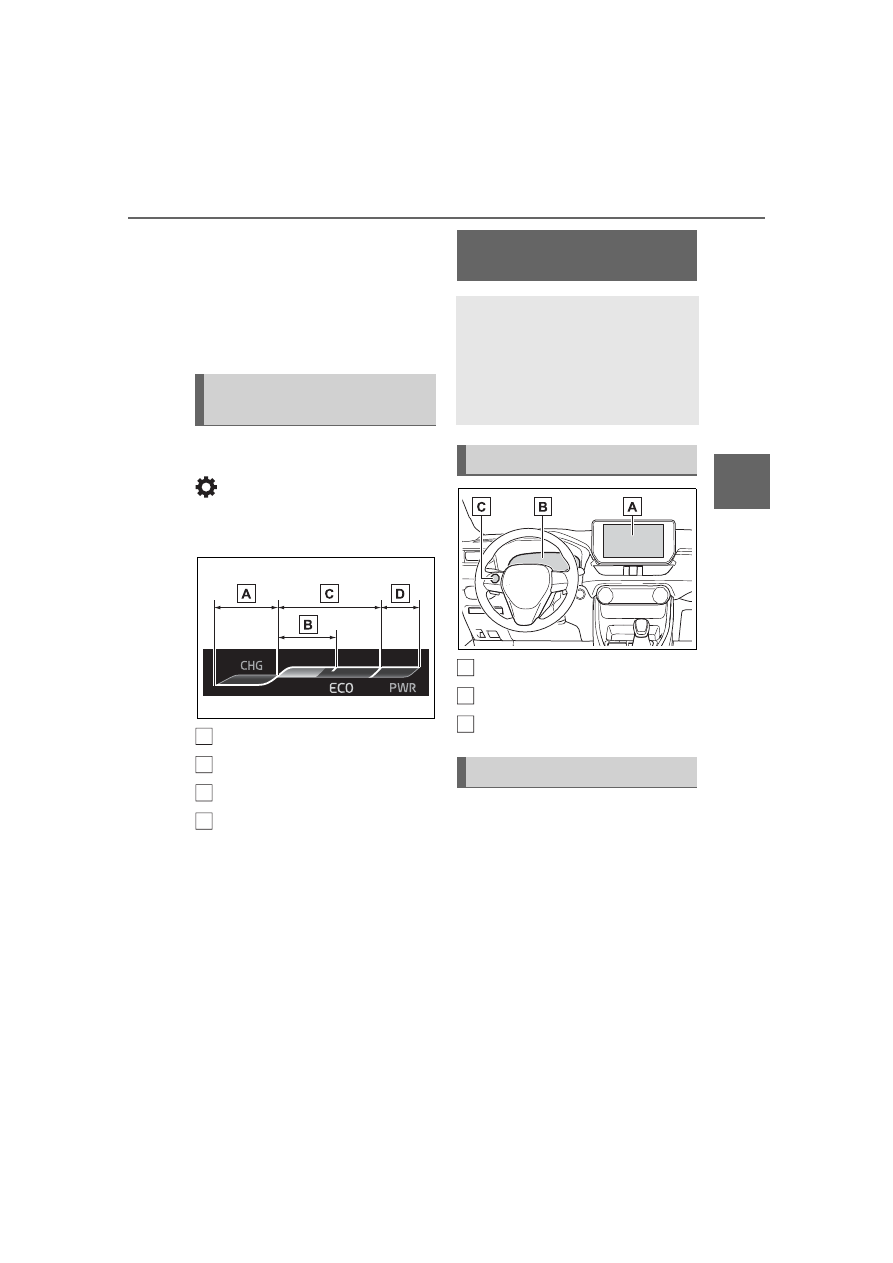

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as
that displayed on the multi-informa-
tion display (Hybrid System Indica-
tor).
For details, refer to P.175.

■

Tachometer

Displays the engine speed in
revolutions per minute.

Multimedia Display

Multi-information display

Meter control switches

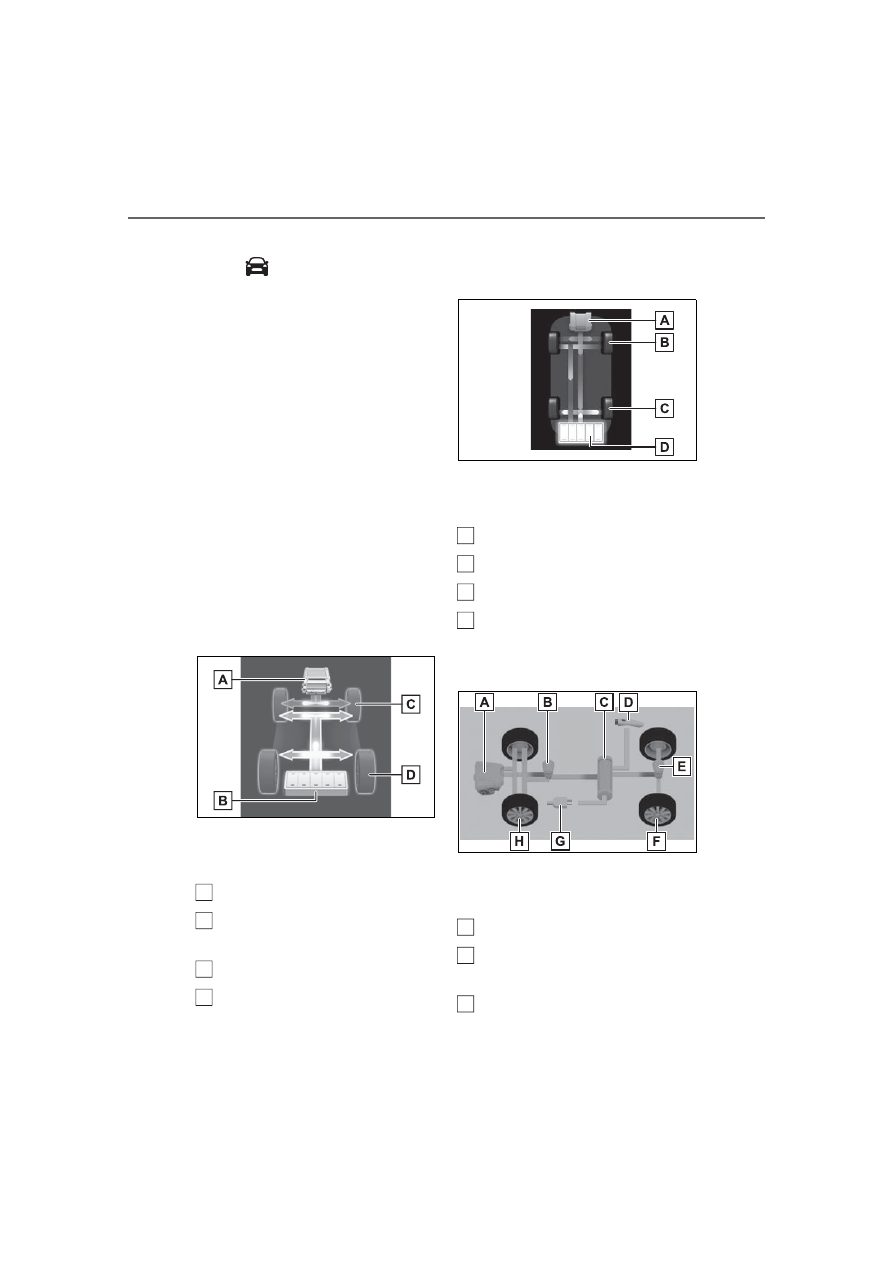

The energy monitor can be used
to check the vehicle drive status,
hybrid system operation status
and energy regeneration status.

■

Display procedure



Multi-information display

Use the meter control switches,
display the energy monitor on
the multi-information display.

For detail regarding the multi-infor-
mation display, refer to P.190, 203.

Hybrid System Indica-
tor/Tachometer

Energy monitor/con-

sumption screen

You can view the status of
your hybrid system and fuel
consumption information
on the multi-information
display and Multimedia Dis-
play.

System components

Energy monitor

214

3-1. Instrument cluster



Multimedia Display

Press

from the main menu,

then press “Energy flow”.

■

Reading the display

The arrows will appear in accor-
dance with the energy flow.
When there is no energy flow,
arrows will not be displayed.

The color of the arrows will change
as follows
Blue: When the hybrid battery (trac-
tion battery) is regenerated or
charged.
Orange: When the hybrid battery
(traction battery) is in use.
Red: When the gasoline engine is
in use.



Multi-information display
(vehicles with 7-inch display)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-
tery)

Front tires

Rear tires



Multi-information display
(vehicles with 12.3-inch dis-
play)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Front tires

Rear tires

Hybrid battery (traction bat-
tery)



Multimedia Display

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Front electric motor (traction
motor)

Hybrid battery (traction bat-
tery)

215

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Charging connector

Rear electric motor (traction
motor)

Rear tires

Power outlet

(120 VAC) (if

equipped)

Front tires

:The energy flow is displayed

while charging (



P.121).

:The energy flow is displayed

when the accessory power outlet
can be used.

■

Color of the hybrid battery

(traction battery) on the center

display

It will be green when the hybrid bat-

tery (traction battery) is being

charged, and yellow when the

hybrid battery (traction battery) is

being used.

■

Remaining charge amount

warning of hybrid battery (trac-

tion battery)

●

The buzzer sounds intermittently

when the hybrid battery (traction

battery) remains without charging

while the shift lever is in N, or the

remaining charge amount drops

below a certain level. If the

remaining charge amount drops

further, the buzzer sounds contin-

uously.

●

When a warning message is

shown on the multi-information

display and the buzzer sounds,

follow the instructions displayed

on the screen to perform trouble-

shooting.

■

Color of the gasoline engine on

the center display

It will be blue when the engine is

warming up, and it will turn to red

when the warming up is finished.

■

Display procedure

Press

from the main menu,

then press “Trip information”.

■

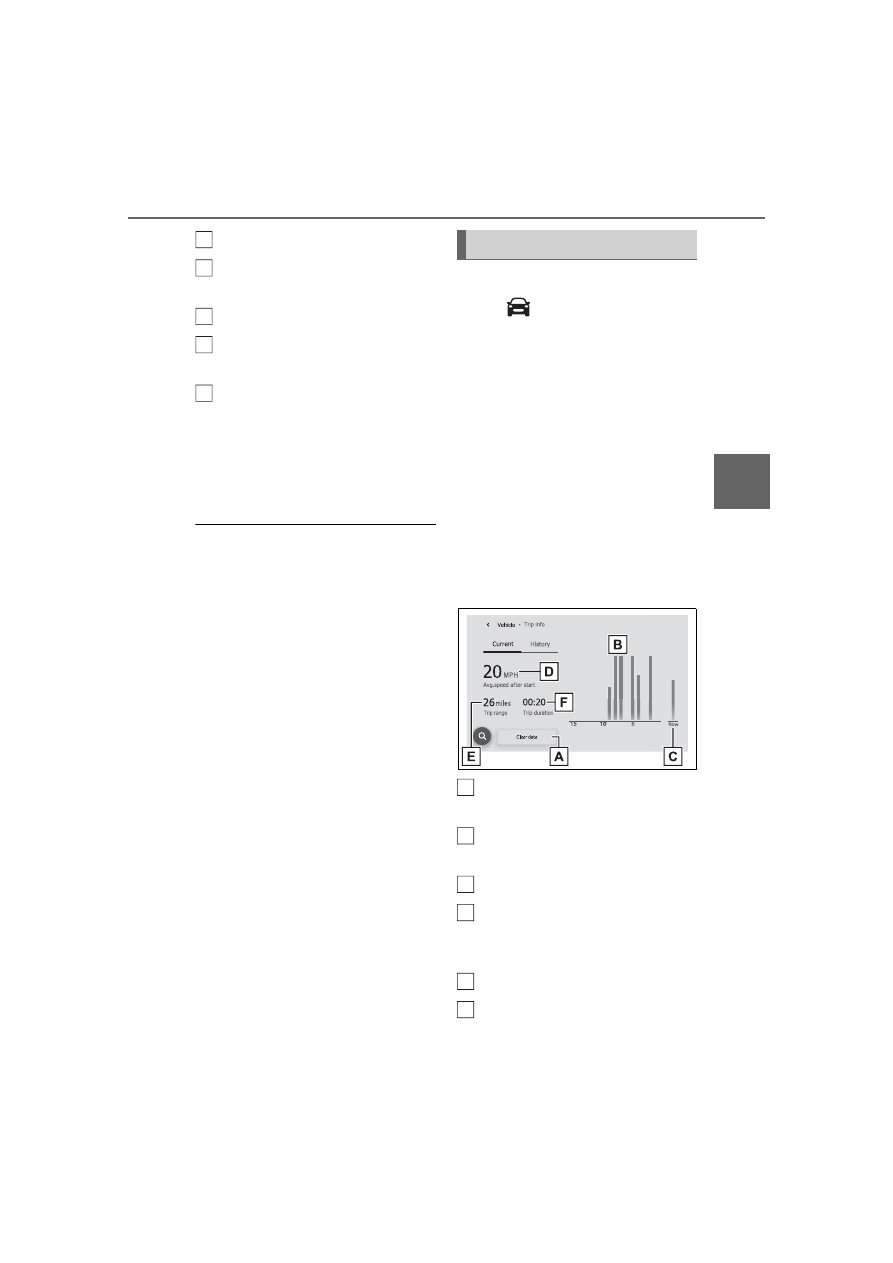

Current fuel consumption
screen

If a screen other than current
fuel consumption screen is dis-
played, press “Current”.

Use the displayed average fuel
consumption as a reference.
Some screens may vary depending
on the type of multi-media display.
The image is an example only, and
may vary slightly from actual condi-
tions.

Resetting the consumption
data

Fuel consumption in the past
15 minutes

Current fuel consumption

Average vehicle speed since
the hybrid system was
started.

Trip range

Elapsed time since the hybrid
system was started.

Consumption screen

216

3-1. Instrument cluster

■

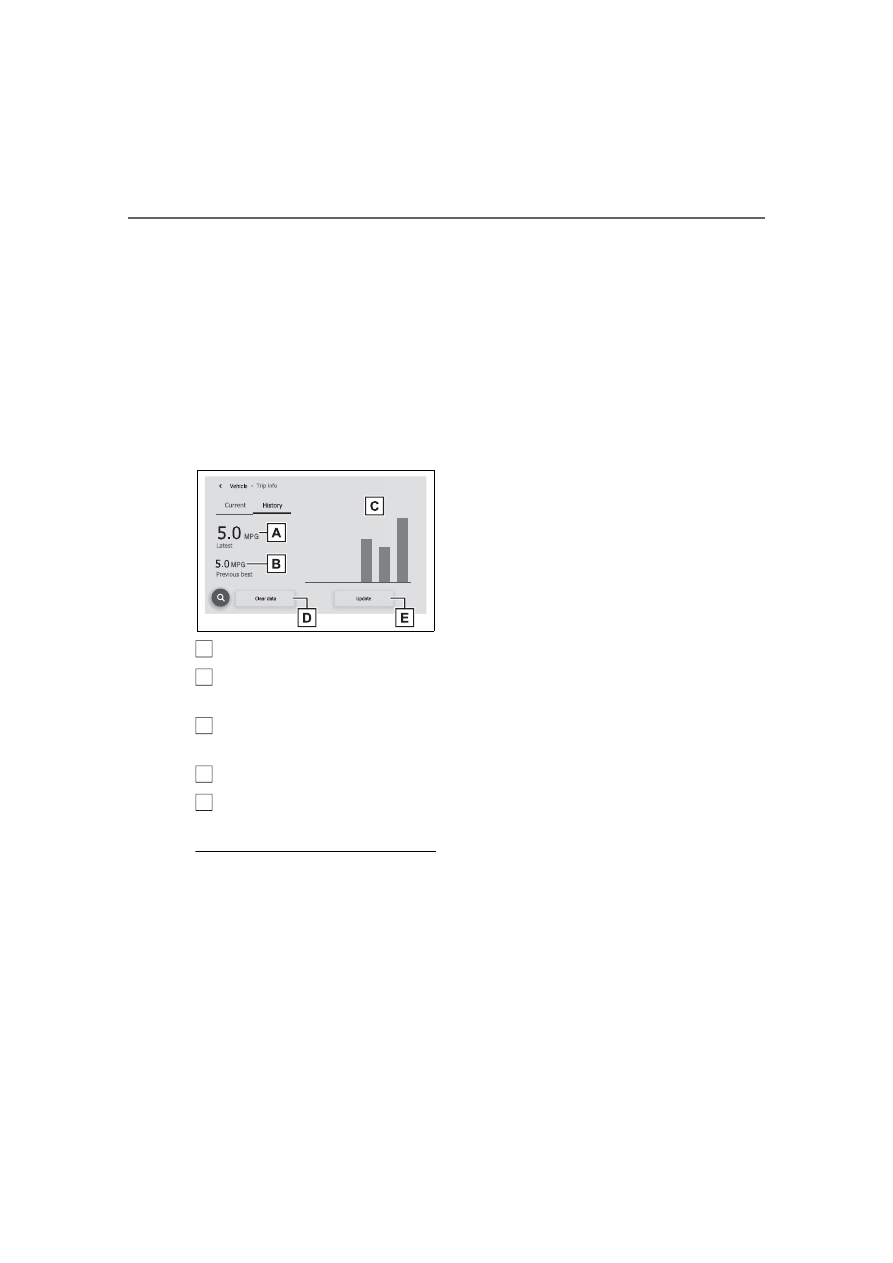

History screen

If a screen other than history
screen is displayed, press “His-
tory”.

Latest fuel consumption

Best recorded fuel consump-
tion

Previous fuel consumption
record

Resetting the history data

Updating the latest fuel con-
sumption data

■

Updating the history data

Update the latest fuel consumption

by pressing “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by pressing “Clear data”.

■

Trip range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption. As

a result, the actual distance that can

be driven may differ from that dis-

played.

217

Before

driving

Before driving

4-1. Key information

Keys ............................

218

4-2. Opening, closing and

locking the doors

Side doors...................

222

Back door....................

227

Smart key system .......

241

4-3. Adjusting the seats

Front seats ..................

247

Rear seats...................

248

Driving position memory

..................................

250

Head restraints............

253

4-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

256

Inside rear view mirror

257

Digital Rear-view Mirror

..................................

258

Outside rear view mirrors

..................................

268

4-5. Opening, closing the win-

dows and moon roof

Power windows ...........

270

Moon roof....................

273

Panoramic moon roof..

276

218

4-1. Key information

4-1.Key information

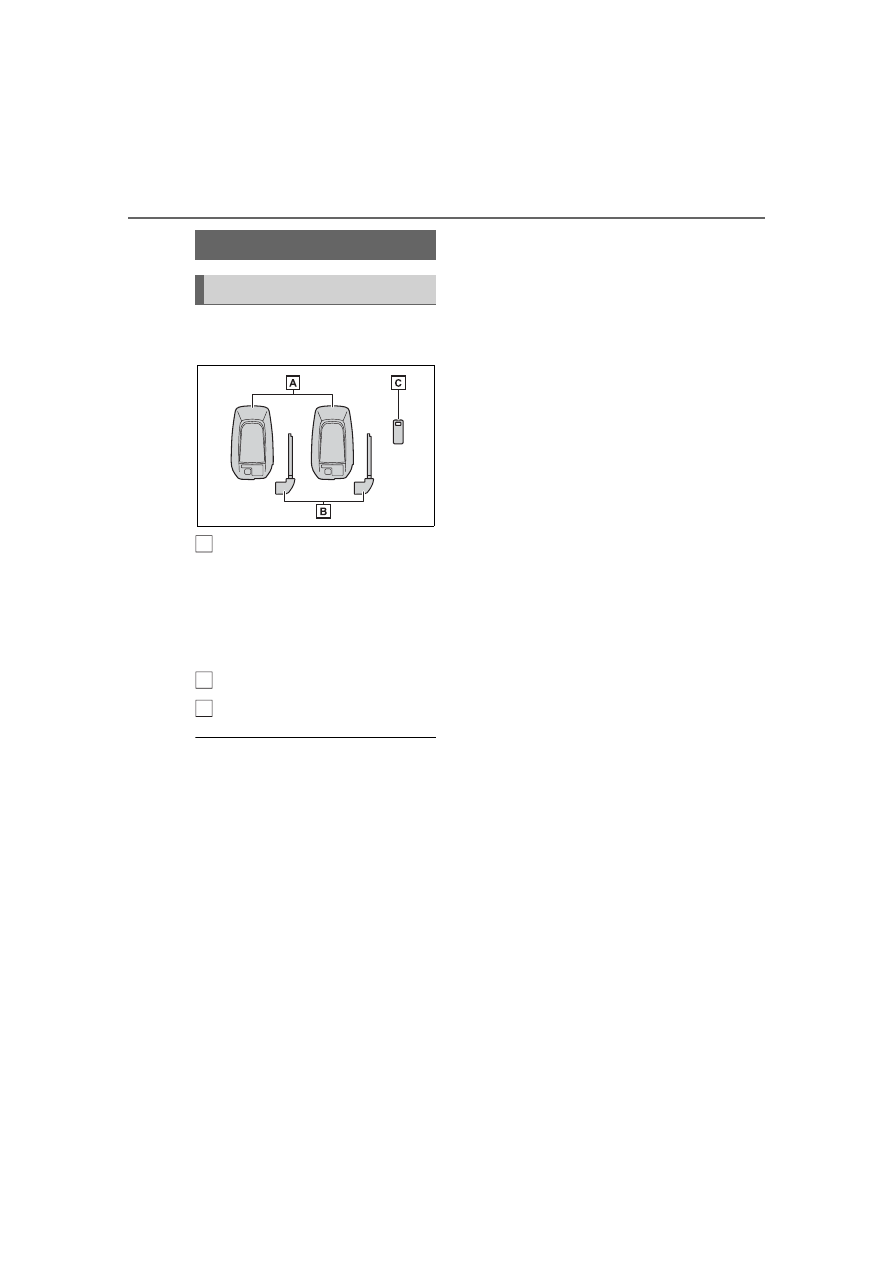

The following keys are provided
with the vehicle.

Electronic keys

• Operating the smart key system

(



P.241)

• Operating the wireless remote

control function (



P.220)

• Operating the Remote Air Condi-

tioning System (



P.431)

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing an electronic key

onto an aircraft, make sure you do

not press any buttons on the elec-

tronic key while inside the aircraft

cabin. If you are carrying an elec-

tronic key in your bag etc., ensure

that the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the electronic key

to emit radio waves that could inter-

fere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be displayed on the

multi-information display when the

hybrid system stops.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.243)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary.

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

You can replace the battery by your-
self (



P.522). However, as there is

a danger that the electronic key may
be damaged, it is recommended
that replacement is carried out by
your Toyota dealer.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

If a message regarding the state

of the electronic key or power

switch mode, etc. is shown

To prevent trapping the electronic

Keys

Key types

219

4-1. Key information

Before

driving

key inside the vehicle, leaving the

vehicle carrying the electronic key

on your person without turning the

power switch to OFF or other pas-

sengers from unintentionally taking

the key out of the vehicle, etc., a

message that prompts the user to

confirm the state of the electronic

key or power switch mode may be

shown on the multi-information dis-

play. In those cases, follow the

instructions on the display immedi-

ately.

■

If “Key Battery Low Replace

Key Battery” is displayed on

the multi-information display

The electronic key has a low bat-

tery. Replace the electronic key bat-

tery. (



P.522)

■

Replacing the battery



P.522

■

Confirmation of the registered

key number

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is displayed on the

multi-information display

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer

to check if an unknown electronic

key (other than those in your pos-

session) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

electronic key.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems



P.567

220

4-1. Key information

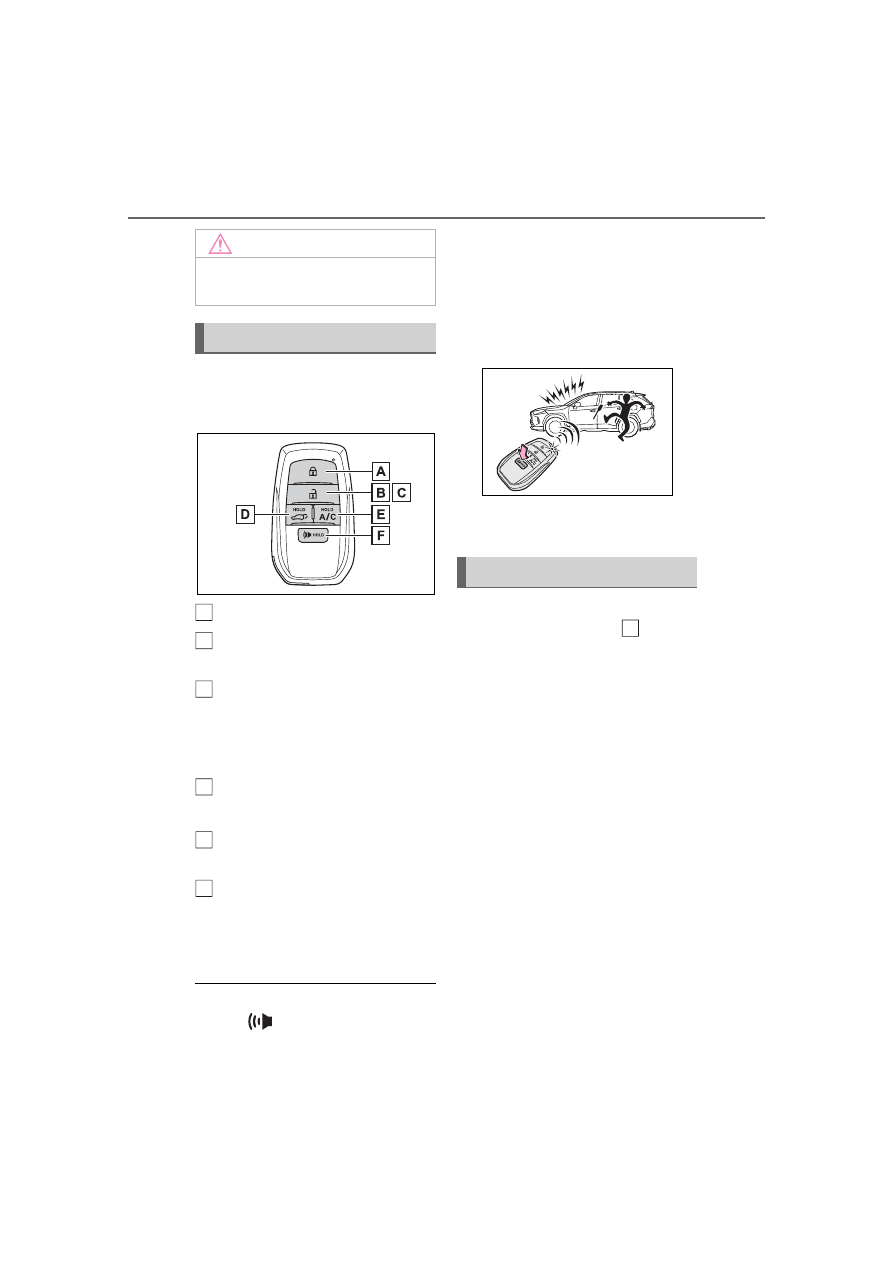

The electronic keys are
equipped with the following
wireless remote control:

Locks all the doors (



P.222)

Unlocks all the doors
(



P.222)

Opens the side windows

and the moon roof

*1, 2

panoramic moon roof

*1, 2

(



P.222)

Opens and closes the power
back door

(



P.231)

Operates Remote Air Condi-
tioning System (

Sounds the alarm (

:These settings must be custom-

ized at your Toyota dealer.

:If equipped

■

Theft deterrent panic mode

When

is pressed for longer

than about 1 second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person
from trying to break into or damage
your vehicle.
To stop the alarm, press any button

on the electronic key.

■

Conditions affecting operation



P.243

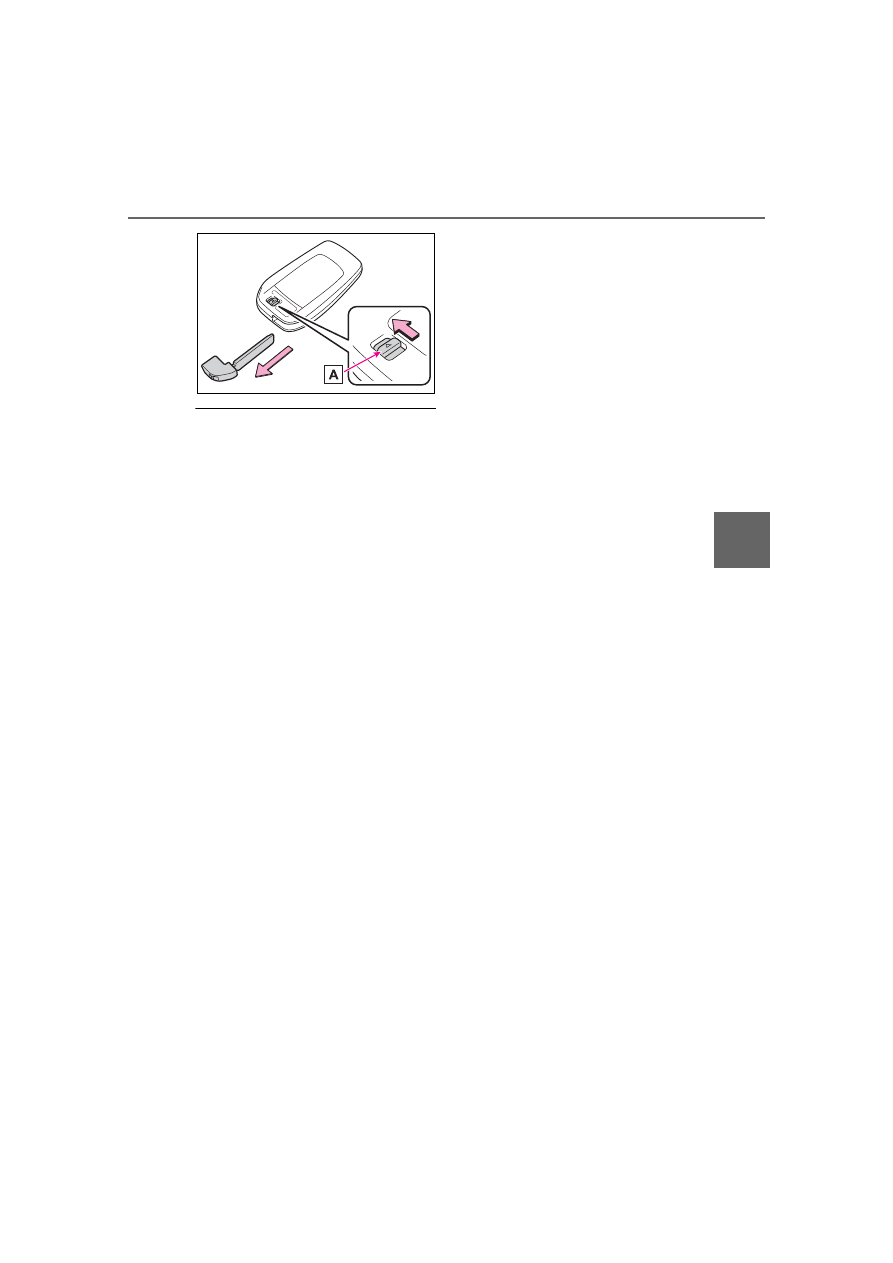

To take out the mechanical key,
slide the release lever

and

take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(



P.567)

NOTICE

■

When an electronic key is lost



P.566

Wireless remote control

Using the mechanical key

221

4-1. Key information

Before

driving

■

When required to leave the

vehicle’s key with a parking

attendant

Lock the glove box as circum-

stances demand. (



P.439)

Remove the mechanical key for

your own use and provide the atten-

dant with the electronic key only.

■

If you lose your mechanical

keys



P.566

■

If a wrong key is used

The key cylinder rotates freely to

isolate inside mechanism.

222

4-2. Opening, closing and locking the doors

4-2.Opening, closing and locking the doors

■

Using the entry function

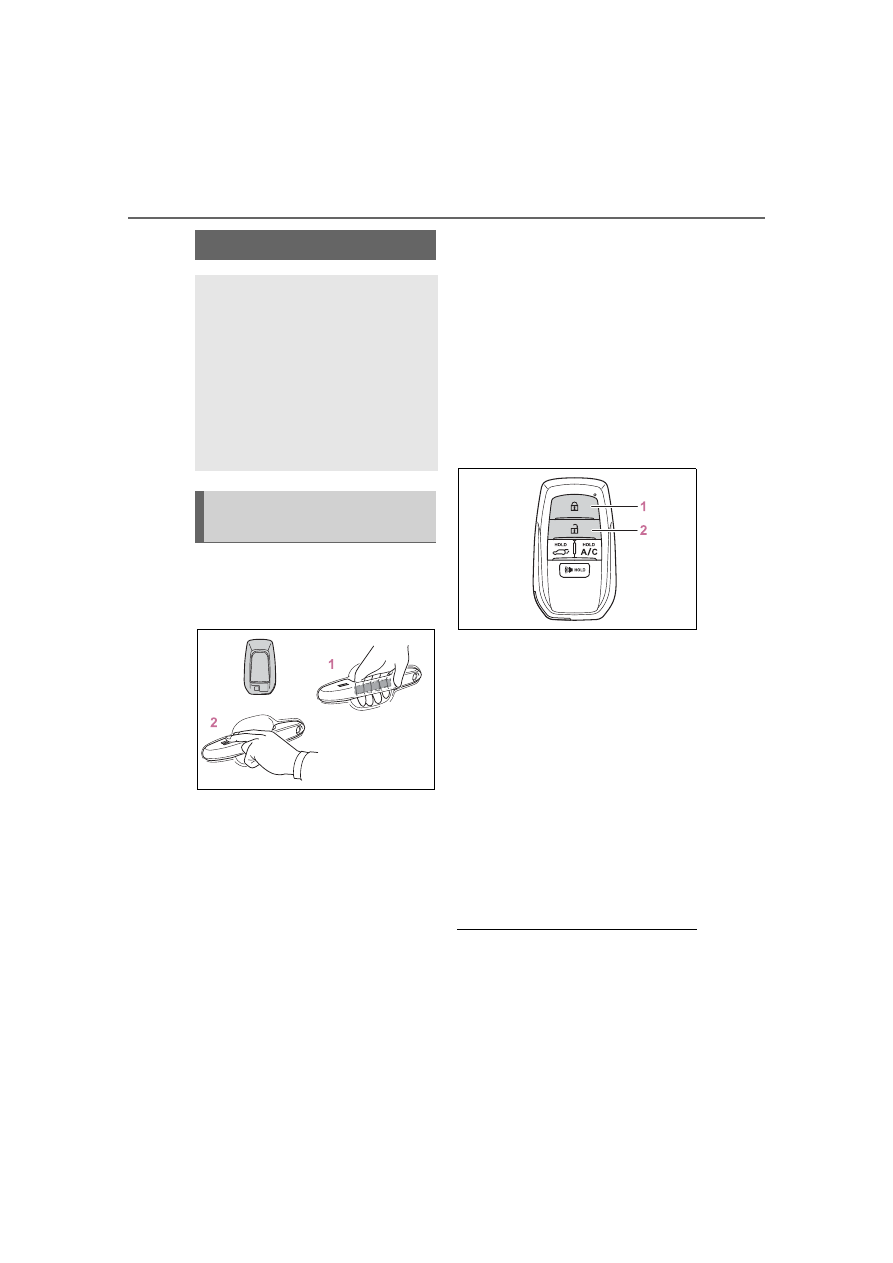

Carry the electronic key to
enable this function.

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors.
Grip the front passenger’s
door handle or rear door han-
dle (some models) to unlock
all the doors

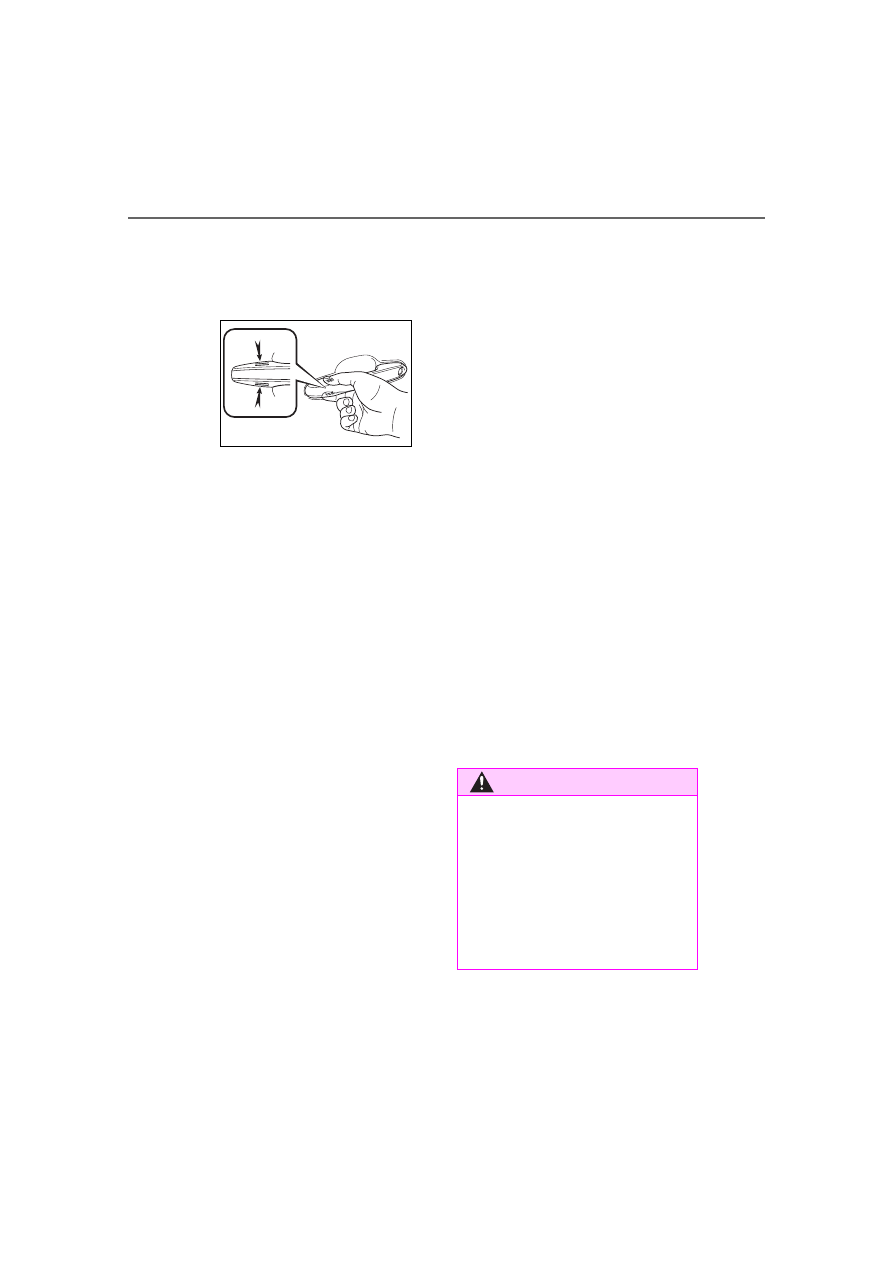

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3

seconds after the doors are locked.

: The door unlock settings can be

changed. (



P.222)

Touch the lock sensor (the
indentation on the upper part
of the door handle) to lock
the doors.

Check that the door is securely
locked.

■

Using the wireless remote
control

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the side
windows and moon roof (if
equipped) or panoramic moon roof
(if equipped).

: This setting must be customized

at your Toyota dealer.

■

Switching the door unlock func-

tion

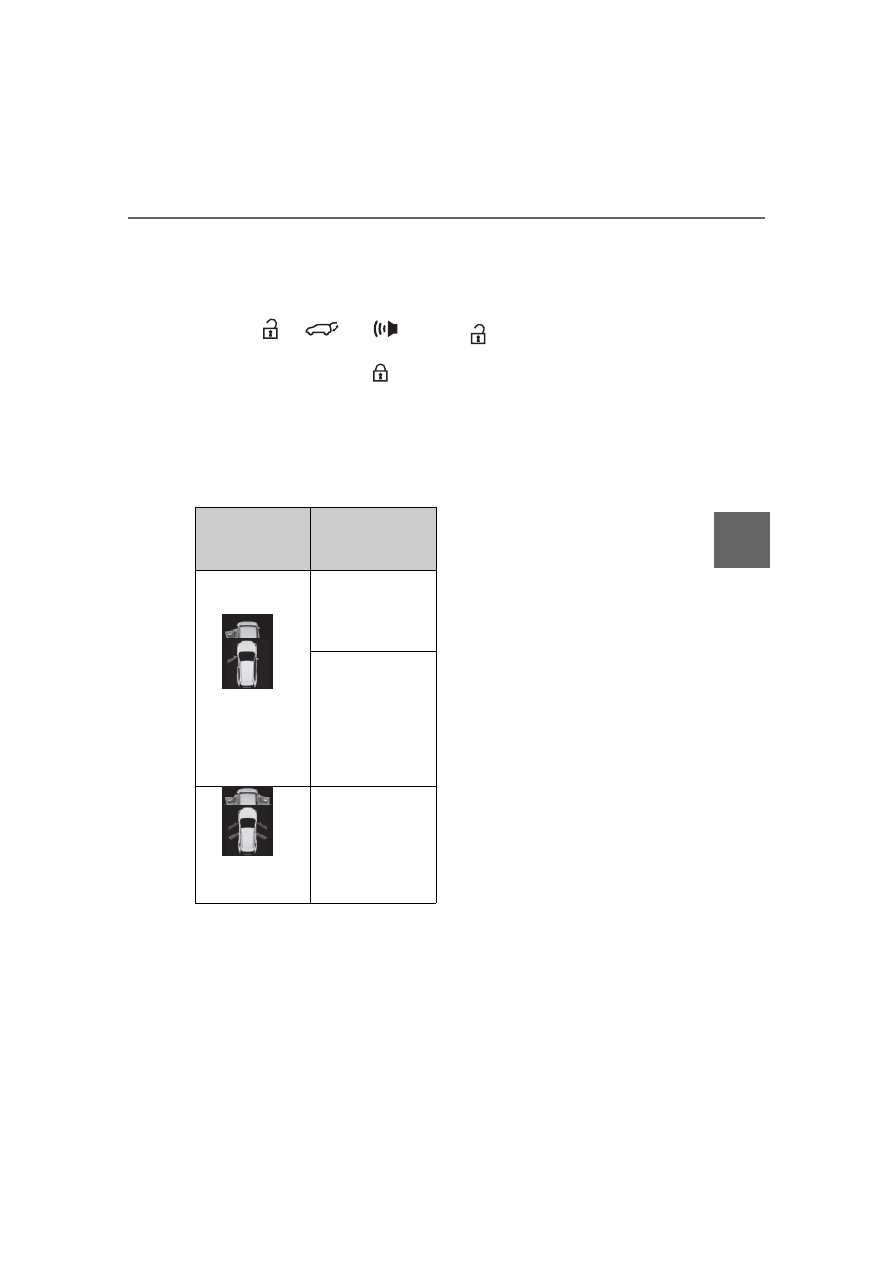

It is possible to set which doors the

entry function unlocks using the

wireless remote control. Perform the

switching operation in the vehicle or

Side doors

The vehicle can be locked
and unlocked using the
entry function, wireless
remote control, door lock
switches or inside lock but-
tons.

Charging port lid and charging
connector will also be locked
and unlocked. (



P.105)

Unlocking and locking the
doors from the outside

223

4-2. Opening, closing and locking the doors

Before

driving

within approximately 3.2 ft. (1 m) of

the vehicle.

Turn the power switch to OFF.

When the indicator light on the
key surface is not on, press and
hold

for

approximately 5 seconds while
pressing and holding

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

:Vehicles with 7-inch multi-infor-

mation display

:Vehicles with 12.3-inch multi-

information display

Vehicles with alarm: To prevent
unintended triggering of the alarm,

unlock the doors using the wireless
remote control and open and close
a door once after the settings have
been changed. (If a door is not
opened within 60 seconds after

is pressed, the doors will be

locked again and the alarm will
automatically be set.)
In a case that the alarm is triggered,
immediately stop the alarm.
(



P.71)

■

Impact detection door lock

release system

In the event that the vehicle is sub-

ject to a strong impact, all the doors

are unlocked. Depending on the

force of the impact or the type of

accident, however, the system may

not operate.

■

Operation signals

Doors: A buzzer sounds and the

emergency flashers flash to indicate

that the doors have been

locked/unlocked. (Locked: Once;

Unlocked: Twice)
Side windows and moon roof (if

equipped) or panoramic moon roof

(if equipped): A buzzer sounds to

indicate that the side windows and

moon roof or panoramic moon roof

are operating.

■

Security feature

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked, the security fea-

ture automatically locks the vehicle

again. (However, depending on the

location of the electronic key, the

key may be detected as being in the

vehicle. In this case, vehicle may be

unlocked.)

■

When the door cannot be

locked by the lock sensor on

the upper part of the door han-

dle

If the door will not lock even when

the topside sensor area is touched,

Multi-informa-

tion dis-

play/Beep

Unlocking func-

tion

Exterior: Beeps

3 times

Holding the
driver’s door han-
dle unlocks only
the driver’s door.

Holding the pas-
senger’s door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

Exterior: Beeps

twice

Holding a door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

224

4-2. Opening, closing and locking the doors

try touching both the topside and

underside sensor areas at the same

time.
When gloves are being worn,

remove the gloves.

■

Door lock buzzer

If an attempt to lock the doors using

the smart key system is made when

a door other than the door you are

locking is open, a buzzer sounds

continuously for 5 seconds. Fully

close all the doors, and lock the

vehicle once more.

■

Setting the alarm (if equipped)

Locking the doors will set the alarm

system. (



P.71)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



P.243

■

If the smart key system or the

wireless remote control does

not operate properly

●

Use the mechanical key to lock

and unlock the doors. (



P.568)

●

Replace the key battery with a

new one if it is depleted. (



P.522)

■

If the 12-volt battery is dis-

charged

The doors cannot be locked and

unlocked using the smart key sys-

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



P.568)

■

Rear seat reminder function

●

In order to remind you not to for-

get luggage, etc. in the rear seat,

when the power switch is turned to

OFF after any of the following con-

ditions are met, a buzzer will

sound and a message will be dis-

played on the multi-information

display for approximately 6 sec-

onds.

• The hybrid system is started

within 10 minutes after opening

and closing a rear door.

• A rear door has been opened and

closed after the hybrid system

was started.

However, if a rear door is opened
and then closed within approxi-
mately 2 seconds, the rear seat
reminder function may not operate.

●

The rear seat reminder function

determines that luggage, etc. has

been placed in a rear seat based

on opening and closing of a rear

door. Therefore, depending on the

situation, the rear seat reminder

function may not operate and you

may still forget luggage, etc. in the

rear seat, or it may operate unnec-

essarily.

●

The rear seat reminder function

can be enabled/disabled.

(



P.599)

■

Customization

Settings (e.g. unlocking function

using a key) can be changed.

(Customizable features:



P.605)

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

could be thrown out of the vehicle,

resulting in death or serious

injury.

●

Ensure that all doors are prop-

erly closed and locked.

Toyota RAV4 Prime (2023 year). Manual in english - page 13
