P.185

■

Customization

Settings (e. g. meter display) can be
changed on the

screen of the

multi-information display. (

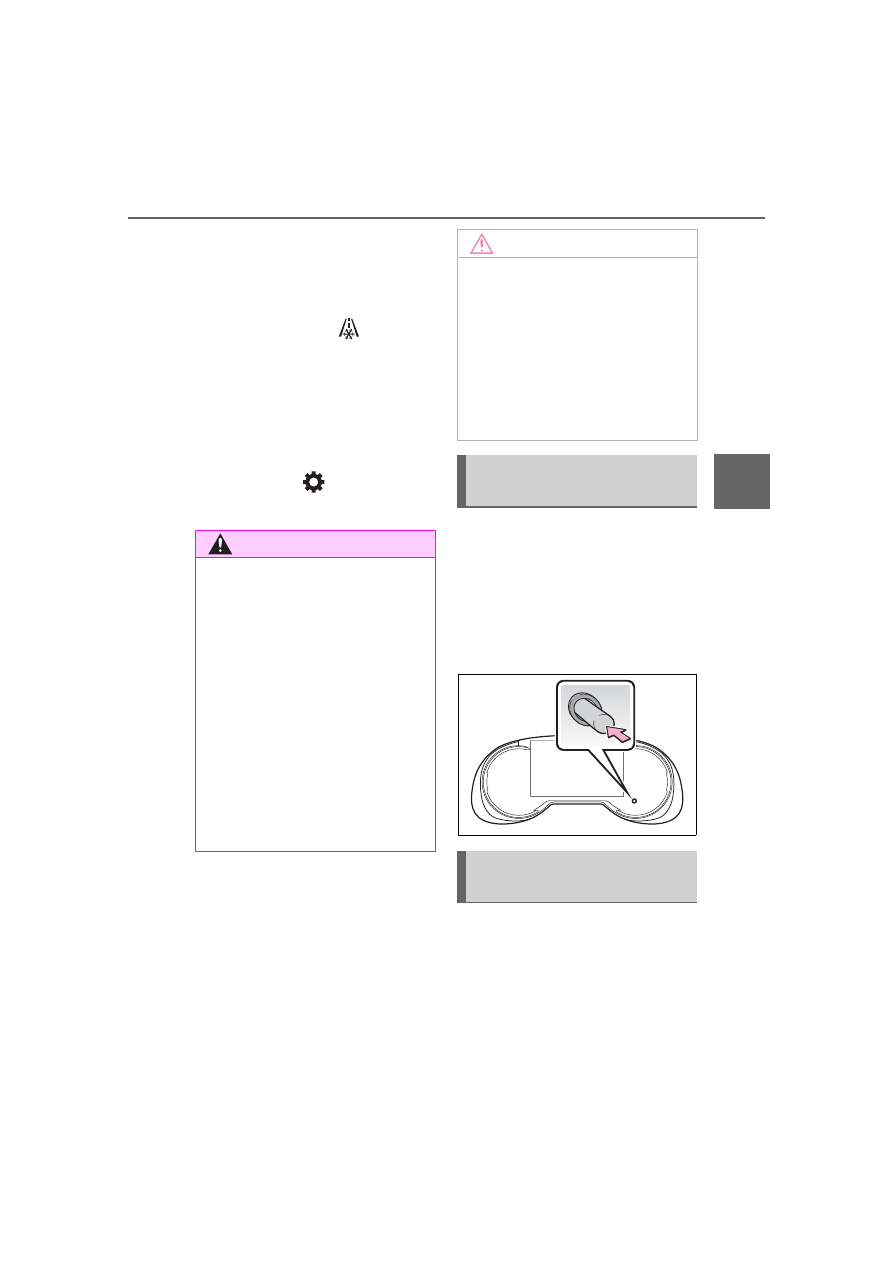

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

“Engine Coolant Temp High Stop

in a Safe Place See Owner’s

Manual” is shown on the multi-

information display. In this case,

immediately stop the vehicle in a

safe place, and check the engine

after it has cooled completely.

(

P.574)

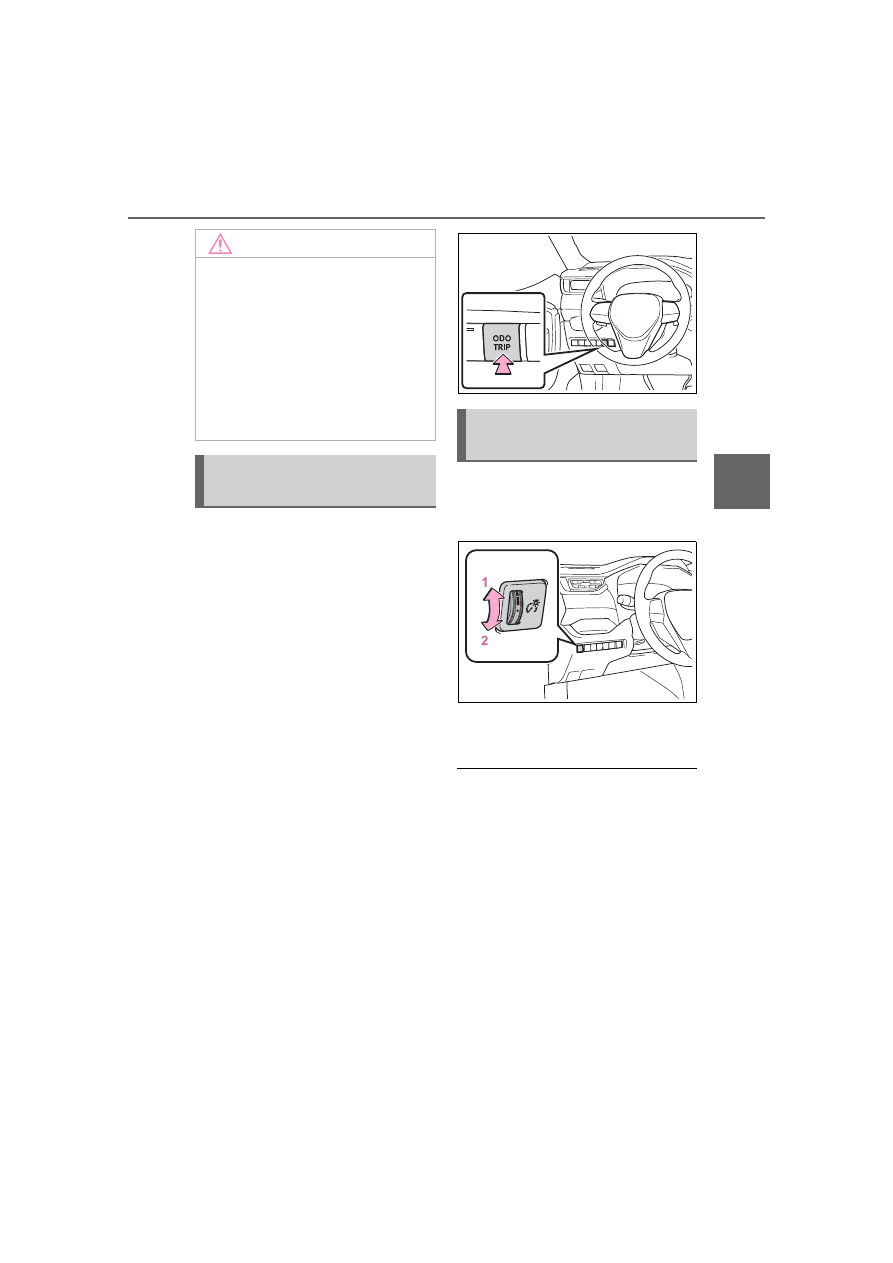

Using the “ODO TRIP”
switch

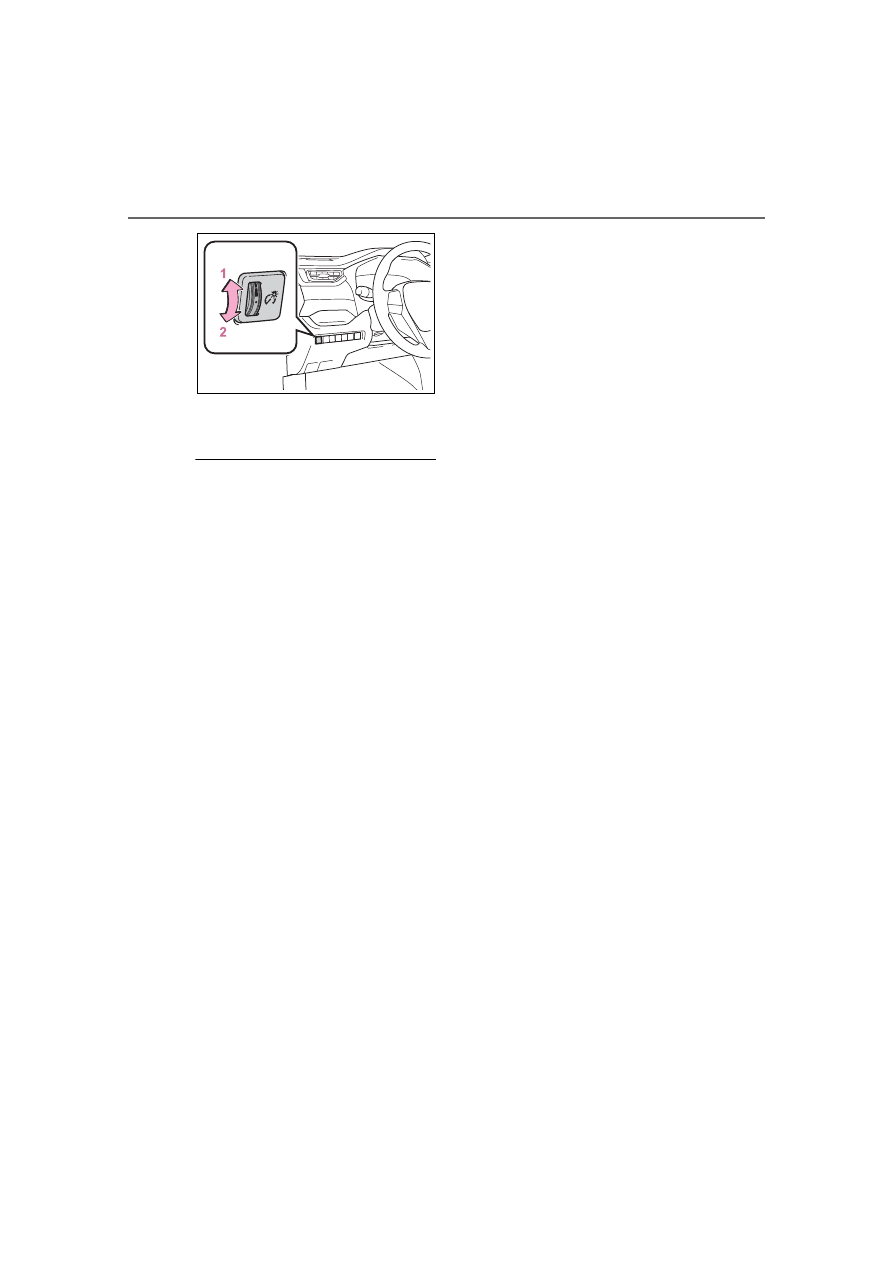

Instrument panel light
control

178

3-1. Instrument cluster

Brighter

Darker

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

179

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Locations of gauges and meters

The meter type can be changed on

of the multi-information dis-

play. (



P.203)



Type 1/Type 2

The units of measure may differ depending on the intended destination of
the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.196)

Displays warning messages if a malfunction occurs (



P.552)

Outside temperature (

P.183)

Analog meter (Type 2 only)

The dial type of analog meter can be changed on

of the multi-informa-

tion display. (



P.203)

Analog speedometer:
Displays the vehicle speed.
Hybrid System Indicator:
Displays the Hybrid System Indicator. (



P.181)

Digital speedometer

Displays the vehicle speed

Shift position and shift range

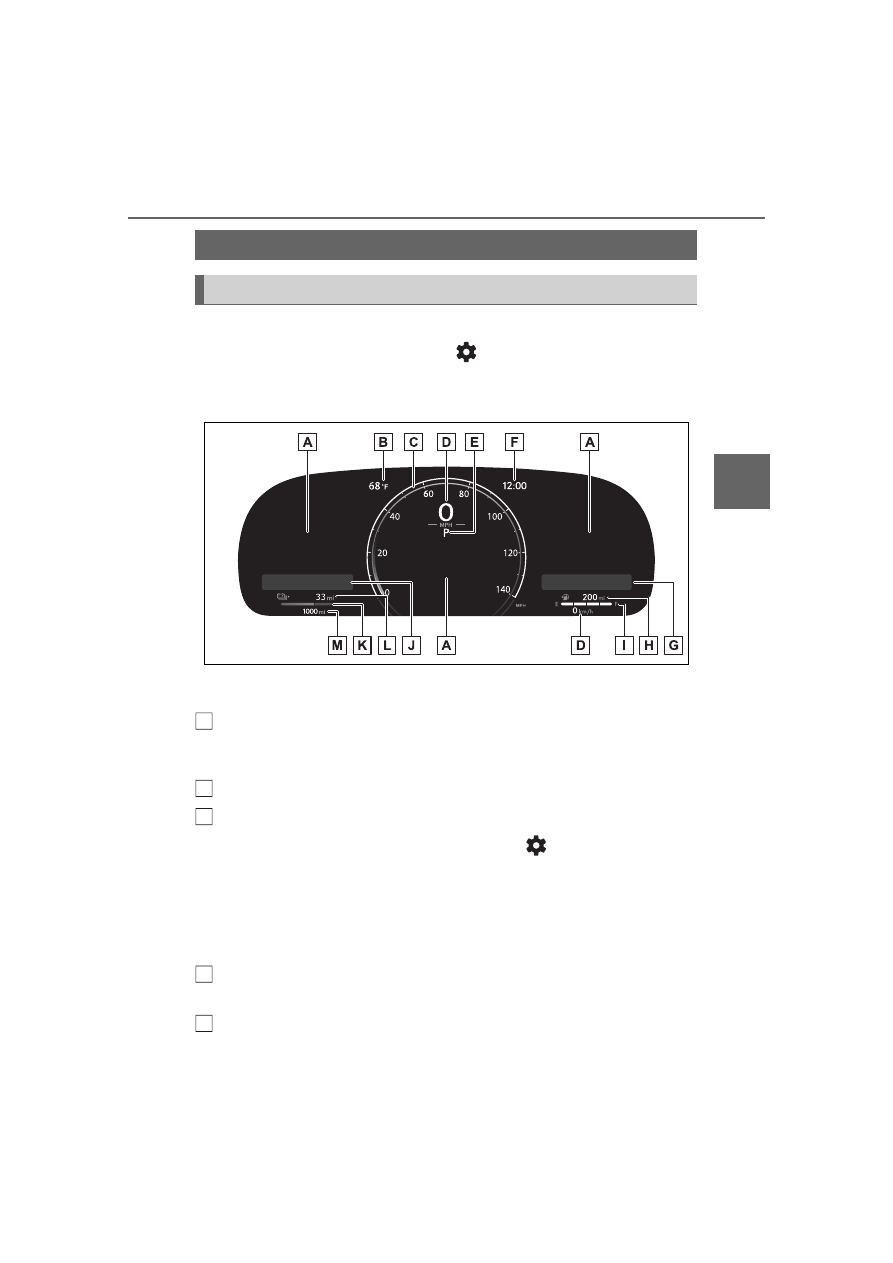

Gauges and meters (with 12.3-inch display)

Meter display

180

3-1. Instrument cluster

Displays the selected shift position or selected shift range (

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock). For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Widget (Audio system-linked display)

Displays the selected audio source or track on the meter. (



P.202)

While list of items for content display area (

P.203) is displayed, widget

will not be displayed.

Distance to empty

Displays driving range with remaining fuel. (

P.182)

Fuel gauge

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank
may not be displayed correctly. Refer to P.182 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Widget (Power Consumption/Fuel Economy)

Displays power consumption/fuel economy information. (

P.199)

While list of items for content display area (

P.203) is displayed, widget

will not be displayed.

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery. (

P.182)

EV driving range

Displays the EV driving range with charge remaining in the hybrid battery
(traction battery).

Odometer and trip meter display (



P.183)

181

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



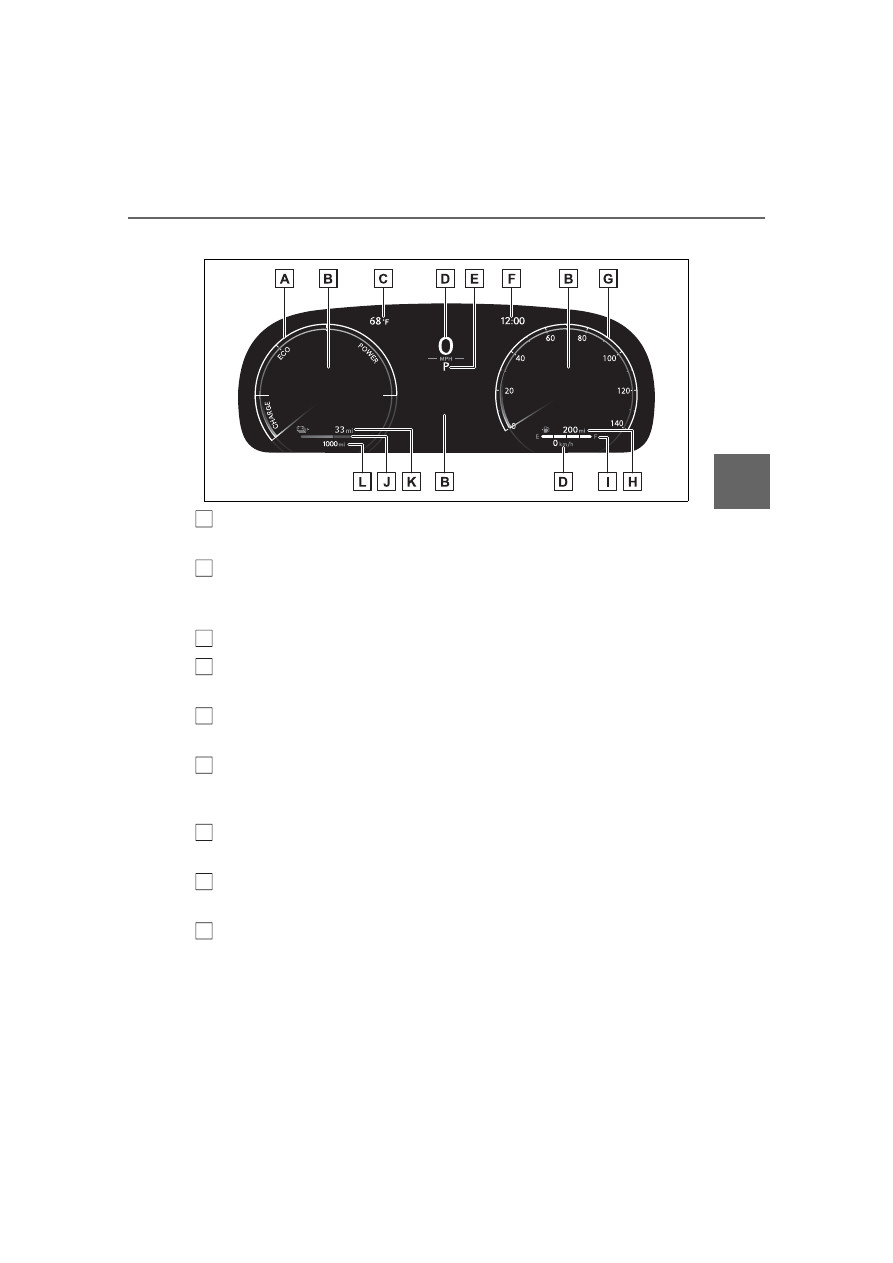

Type 3

Hybrid System Indicator

Displays the Hybrid System Indicator. (



Multi-information display

Presents the driver with a variety of vehicle data (



Displays warning messages if a malfunction occurs (



Outside temperature (

P.183)

Digital speedometer

Displays the vehicle speed

Shift position and shift range

Displays the selected shift position or selected shift range (

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock). For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Analog speedometer

Displays the vehicle speed.

Distance to empty

Displays driving range with remaining fuel. (

Fuel gauge

182

3-1. Instrument cluster

• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery. (

P.182)

EV driving range

Displays the EV driving range with charge remaining in the hybrid battery
(traction battery).

Odometer and trip meter display (



■

The meters and display illumi-

nate when

The power switch is in ON.

■

Engine speed

On hybrid vehicles, engine speed is

precisely controlled in order to help

improve fuel efficiency and reduce

exhaust emissions etc.

There are times when the engine

speed that is displayed may differ

even when vehicle operation and

driving conditions are the same.

■

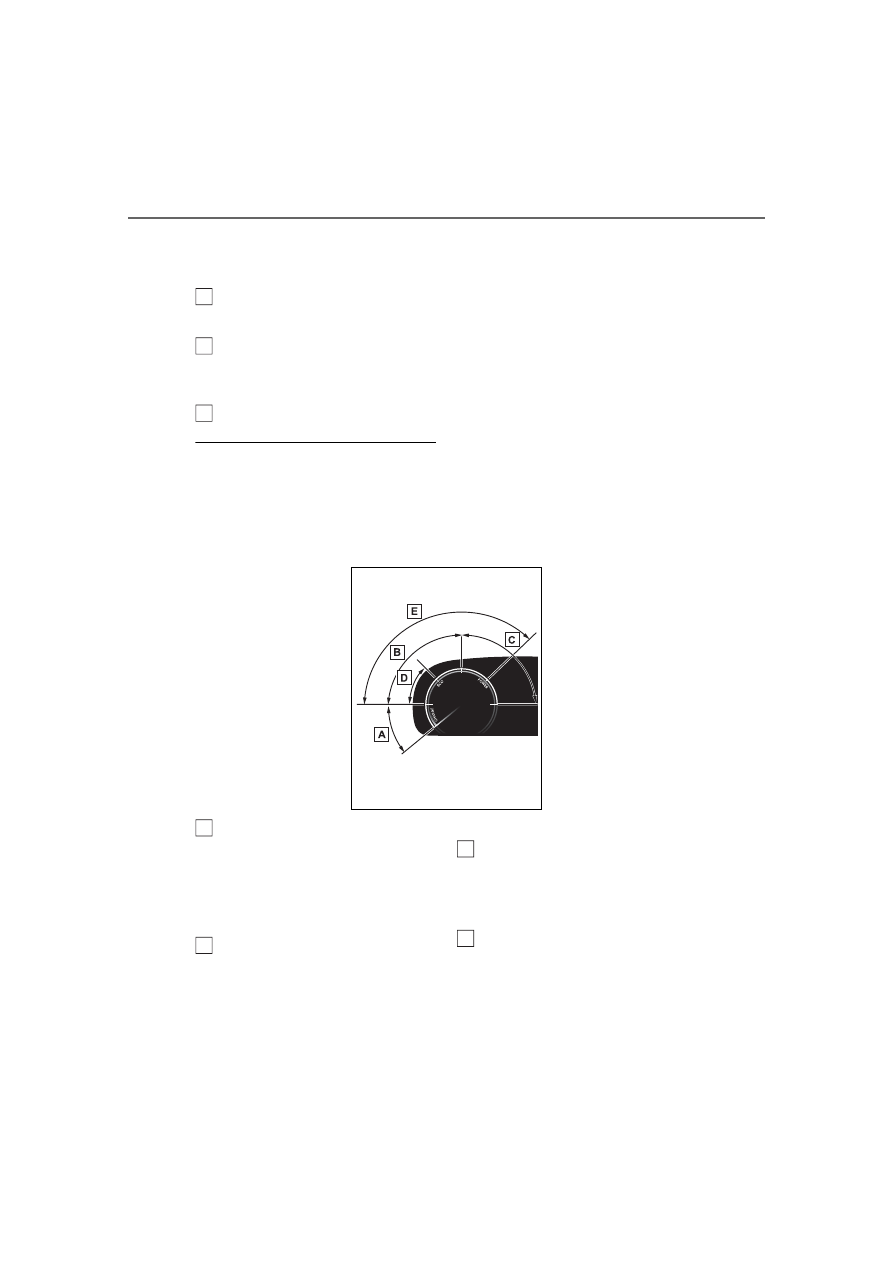

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the bar display within
Eco area, more Eco-friendly driving

can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

Hybrid Eco area (HV mode)

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various

183

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

conditions.

EV driving area (EV mode or
AUTO EV/HV mode)

Shows that the vehicle is driven
using only the electric motor (trac-
tion motor).

: When used in this manual, regen-

eration refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

■

Hybrid System Indicator is dis-

played when

The Hybrid System Indicator is dis-

played in the following situations:

●

The shift position is in D or S.

●

The hybrid system is started.

■

SOC (State of Charge) gauge

Displays the current amount of

charge remaining in the traction bat-

tery.

●

The remaining battery for EV driv-

ing in EV mode is displayed in

green, and the remaining battery

used in HV mode is displayed in

blue.

●

The amount of the remaining bat-

tery displayed decrease as the

vehicle is driven and increase

when the hybrid battery (traction

battery) is charged, electrical

energy is regenerated using the

regenerative braking (

P.80) or

electricity is generated by the gas-

oline engine.

●

If the remaining battery is not dis-

played in green, HV mode is auto-

matically selected and EV mode

cannot be used. To enable EV

driving, charge the hybrid battery

(traction battery). (

P.97)

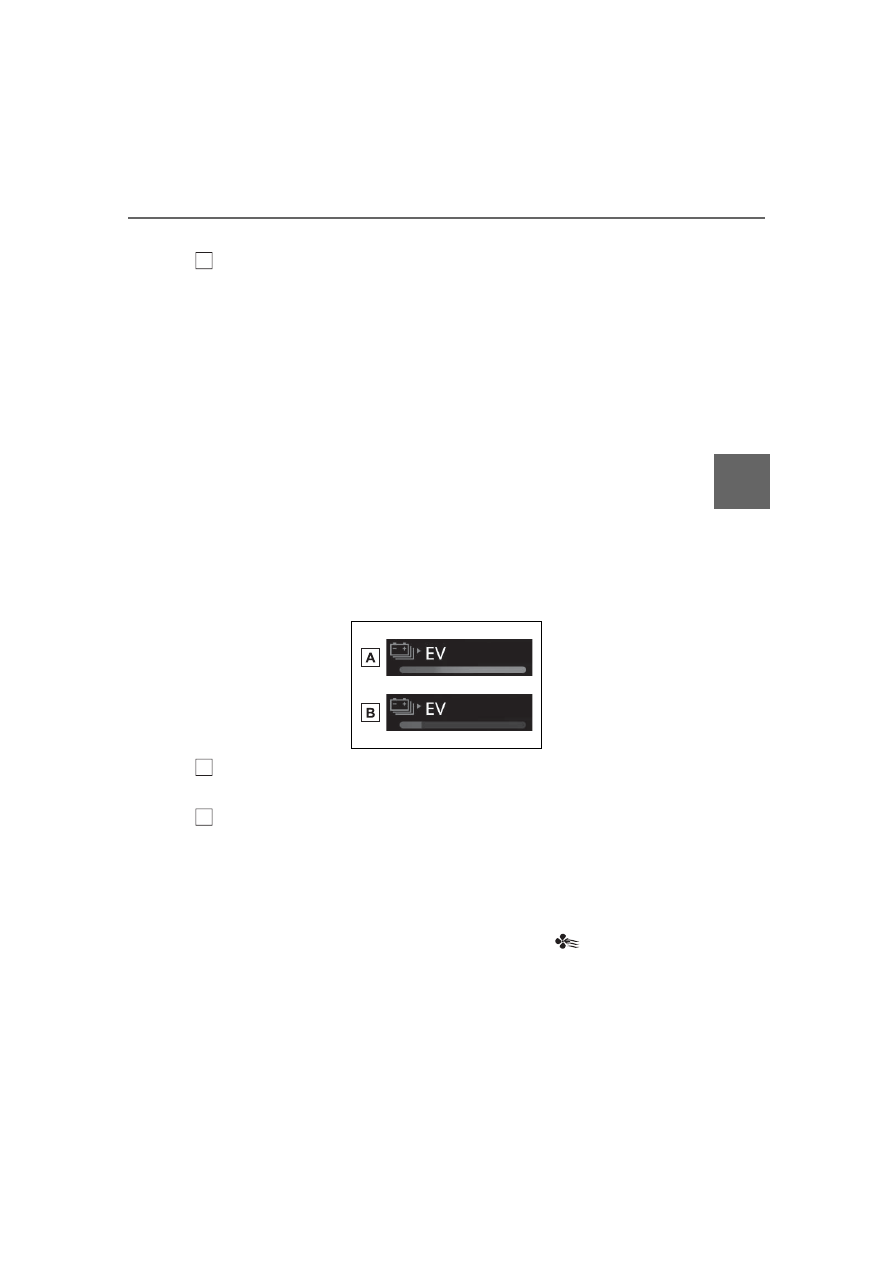

The hybrid battery (traction bat-
tery) is fully charged

The hybrid battery (traction bat-
tery) for EV mode is not remain-
ing

■

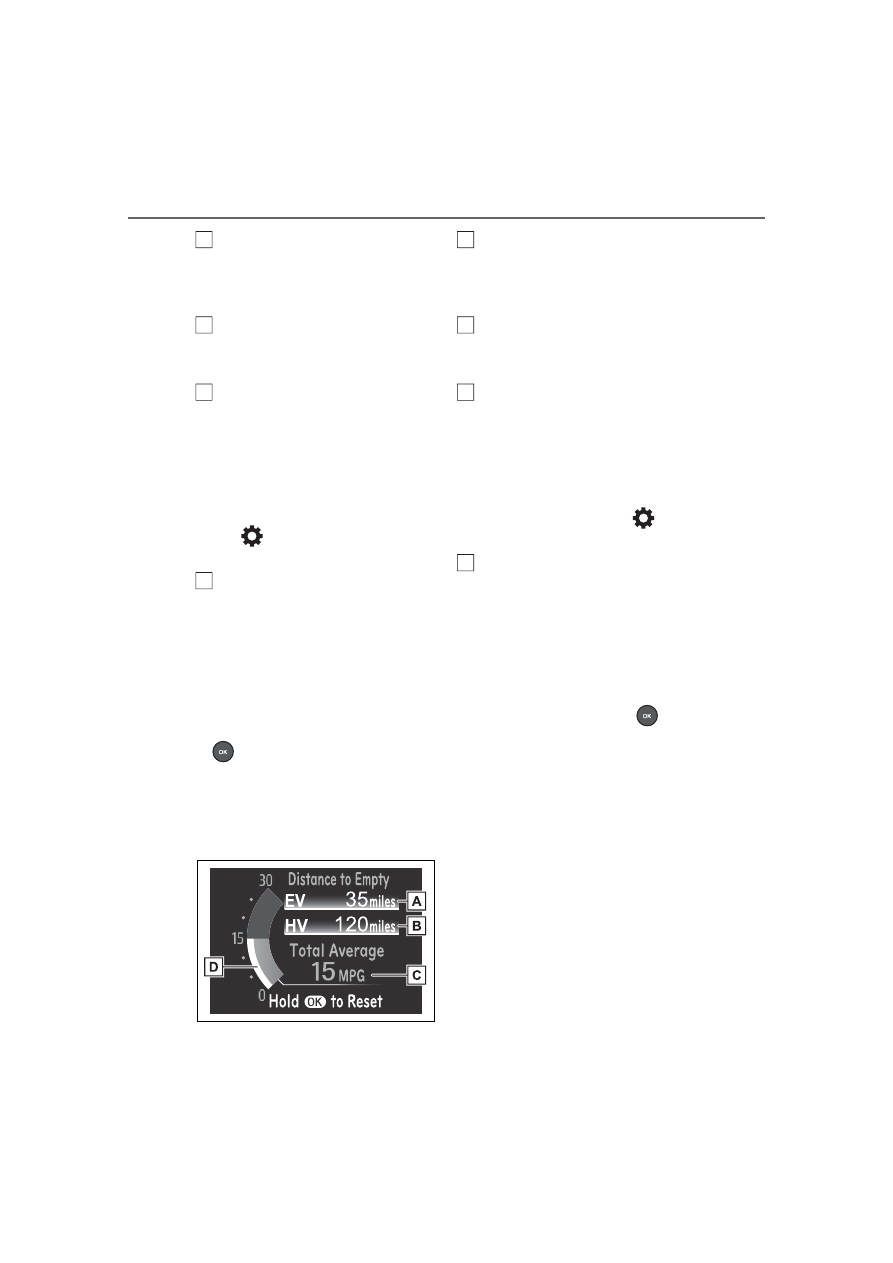

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch off. If

the vehicle is refueled without

turning the power switch off, the

display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated. Refuel immediately.

■

EV driving range

●

When the air conditioning system
is operating,

is displayed next

to the EV driving range and the
EV driving range with the air con-
ditioning system on is displayed.

●

The EV driving range may shorten

184

3-1. Instrument cluster

even when not driving due to

power consumption by the sys-

tem.

●

For details, refer to “EV driving

range” (



P.93)

■

Manually updating the fuel

gauge and possible driving

range

The fuel gauge and the possible

driving range are linked. If the dis-

plays of the fuel gauge and possible

driving range do not update after

adding a small amount of fuel, the

displays can be updated by per-

forming the following procedure.

Stop the vehicle on a level sur-

face.

Press the “ODO TRIP” switch to

change the odometer and trip

meter display to odometer.

Turn the power switch off.

While pressing and holding the

“ODO TRIP” switch, turn the

power switch to ON.

Continue to hold the “ODO TRIP”

switch for approximately 5 sec-

onds, and then release it once

the odometer begins flashing.

Updating is complete once the

odometer flashes for approximately

5 seconds and then the display

returns to normal.

■

Outside temperature display

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 140°F (60°C).

●

When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator

will flash

for approximately 10 seconds,
then stay on.

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display



P.197

■

Free/Open Source Software

Information

This product contains Free/Open

Source Software (FOSS). The

license information and/or the

source code of such FOSS can be

found at the following URL.
https://www.denso.com/global/en/

opensource/meter/toyota/

■

Customization

The gauges and meters can be cus-
tomized on

of the multi-informa-

tion display. (

P.203)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

185

3-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.

■

Changing the display

Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed. When the
trip meter is displayed, pressing
and holding the switch will reset
the trip meter.

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

Brighter

Darker

■

Brightness of the meter lights

(day mode and night mode)

The brightness of the meter lights

can be adjusted individually.
In the following situations, the

meters changes between day mode

and night mode.

●

Day mode: When the tail lights are

off or when the tail lights are on

but the surrounding area is bright

●

Night mode: When the tail lights

are on and the surrounding area is

dark

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

“Engine Coolant Temp High Stop

in a Safe Place See Owner’s

Manual” is shown on the multi-

information display. In this case,

immediately stop the vehicle in a

safe place, and check the engine

after it has cooled completely.

(



P.574)

Odometer and trip meter
display

Instrument panel light
control

186

3-1. Instrument cluster

Following information is dis-
played on the multi-information
display.

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.363)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)

(

P.351)

• Dynamic radar cruise control with

full-speed range (

P.366)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (



P.186)

■

The multi-information display is

displayed when

The power switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode or when

Trail Mode is turned on. (

P.404,

405)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

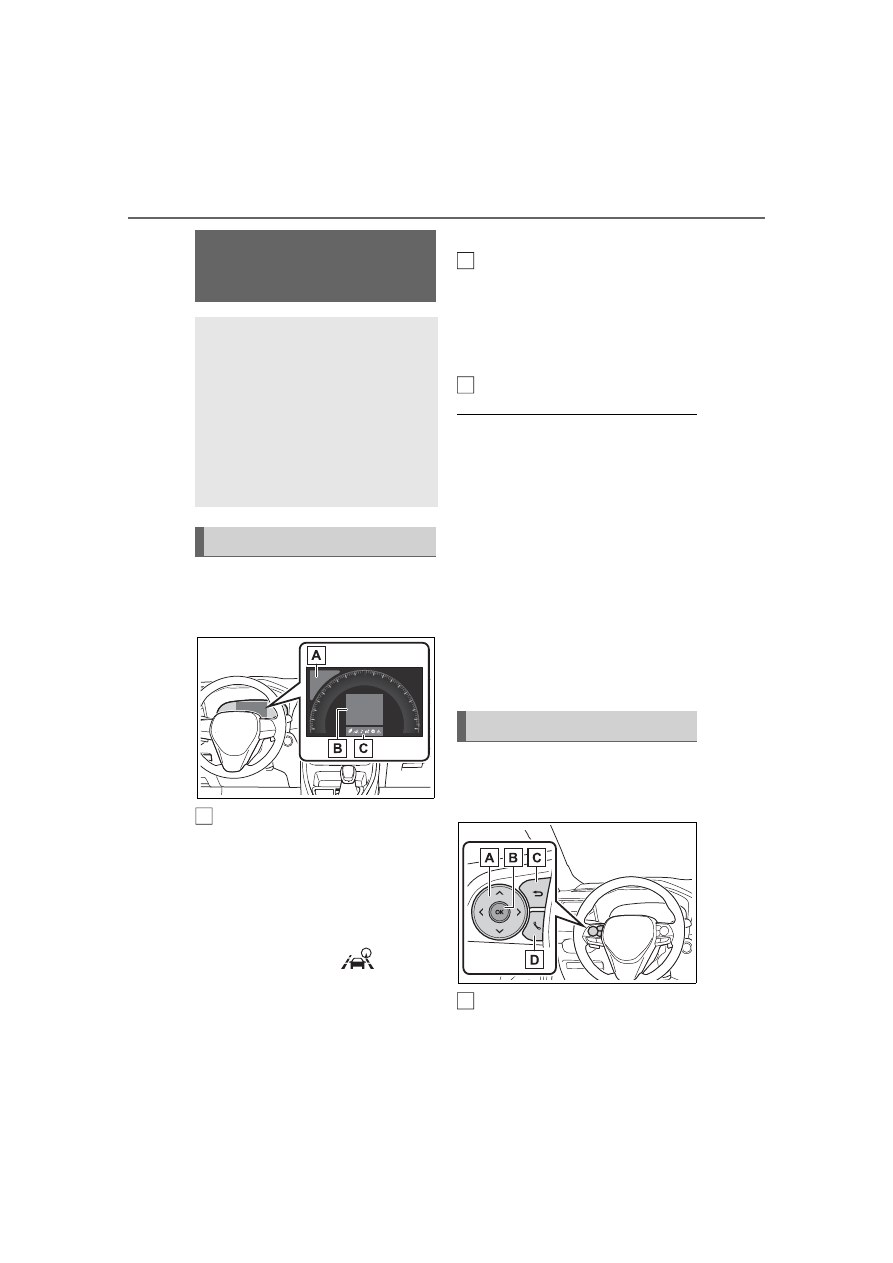

The multi-information display is
operated using the meter control
switches.

Scroll the screen

/switch the

display

/move the cursor

Multi-information dis-

play (with 7-inch dis-

play)

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

Changing the display

187

3-1. Instrument cluster

Vehicle

s information an

d in
dicat

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display (if equipped)
Linked with the hands-free
system, sending or receiving
call is displayed. For details
regarding the hands-free sys-
tem, refer to “MULTIMEDIA
OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Select to display fuel consump-
tion data in various forms.

■

Power Consumption/Fuel
Economy

The display contents are differ-
ent in EV mode or AUTO EV/HV
mode, and HV mode.



EV mode or AUTO EV/HV
mode

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

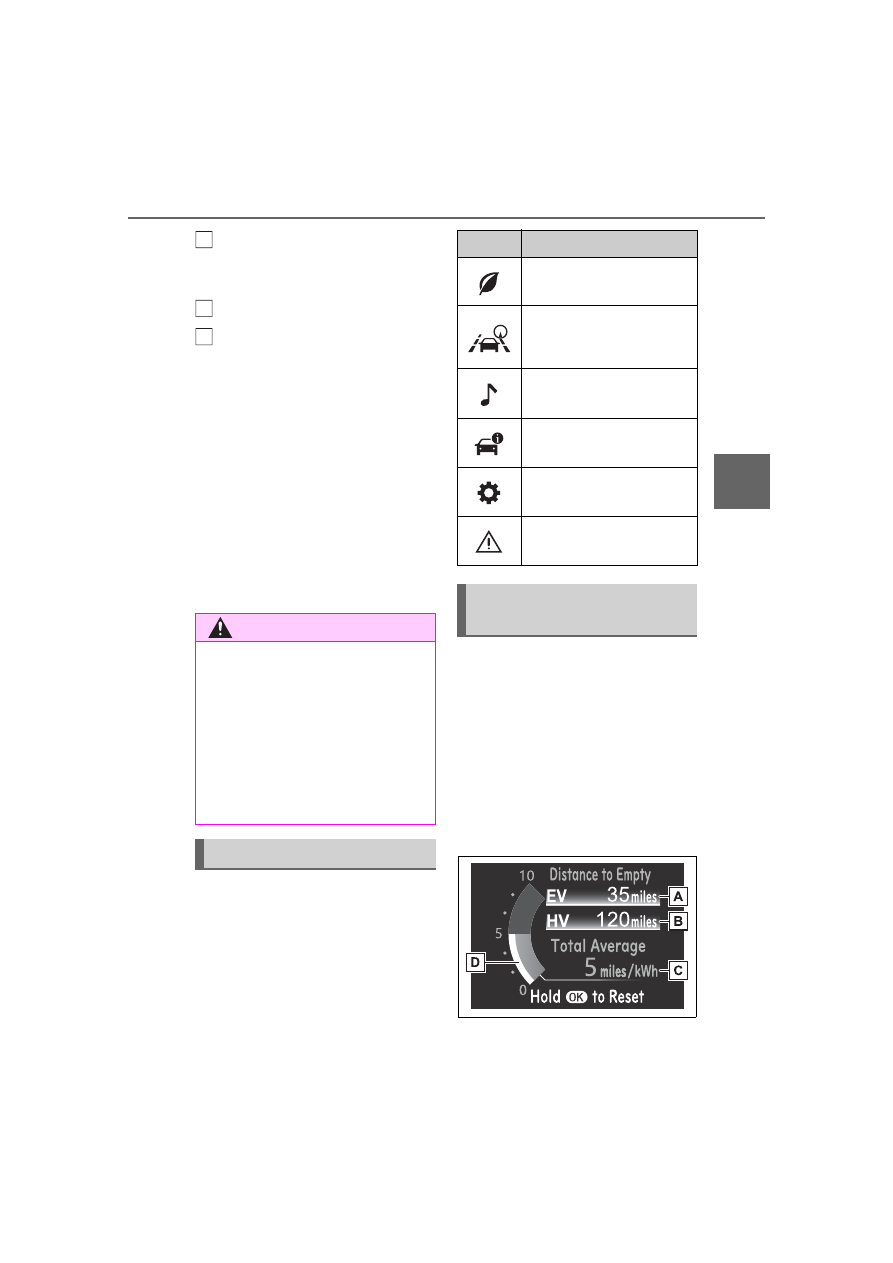

Menu icons

Icon

Display

Driving information dis-
play (

P.186)

Driving support system
information display
(



P.190)

Audio system-linked dis-
play (

P.190)

Vehicle information dis-
play (

P.190)

Settings display
(



Warning message dis-
play (

P.195)

Driving information dis-
play

188

3-1. Instrument cluster

EV driving range

Displays the EV driving range with
charge remaining in the hybrid bat-
tery (traction battery). (



P.93)

Distance to empty

Displays the driving range with
remaining fuel. (



P.189)

Average power consumption

Displays the average power con-
sumption since the function was
reset or the average power con-
sumption after starting.

*1, 2, 3

The average power consumption
selected by “Power Consumption”
on the

screen is displayed.

(

Current power consumption

Displays the instantaneous current
power consumption.

:Use the displayed power con-

sumption as a reference only.

:Average power consumption

since the function was reset can
be reset by pressing and holding

:Average power consumption

after starting is reset each time
the hybrid system stops.



HV mode

EV driving range

Displays the EV driving range with
charge remaining in the hybrid bat-
tery (traction battery). (

P.80)

Distance to empty

Displays the driving range with
remaining fuel. (

P.189)

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed. (



Current fuel economy

Displays the instantaneous current
fuel economy.

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

:Average fuel economy after

starting is reset each time the
hybrid system stops.

■

ECO Accelerator Guid-
ance/“Eco Score”

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

189

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

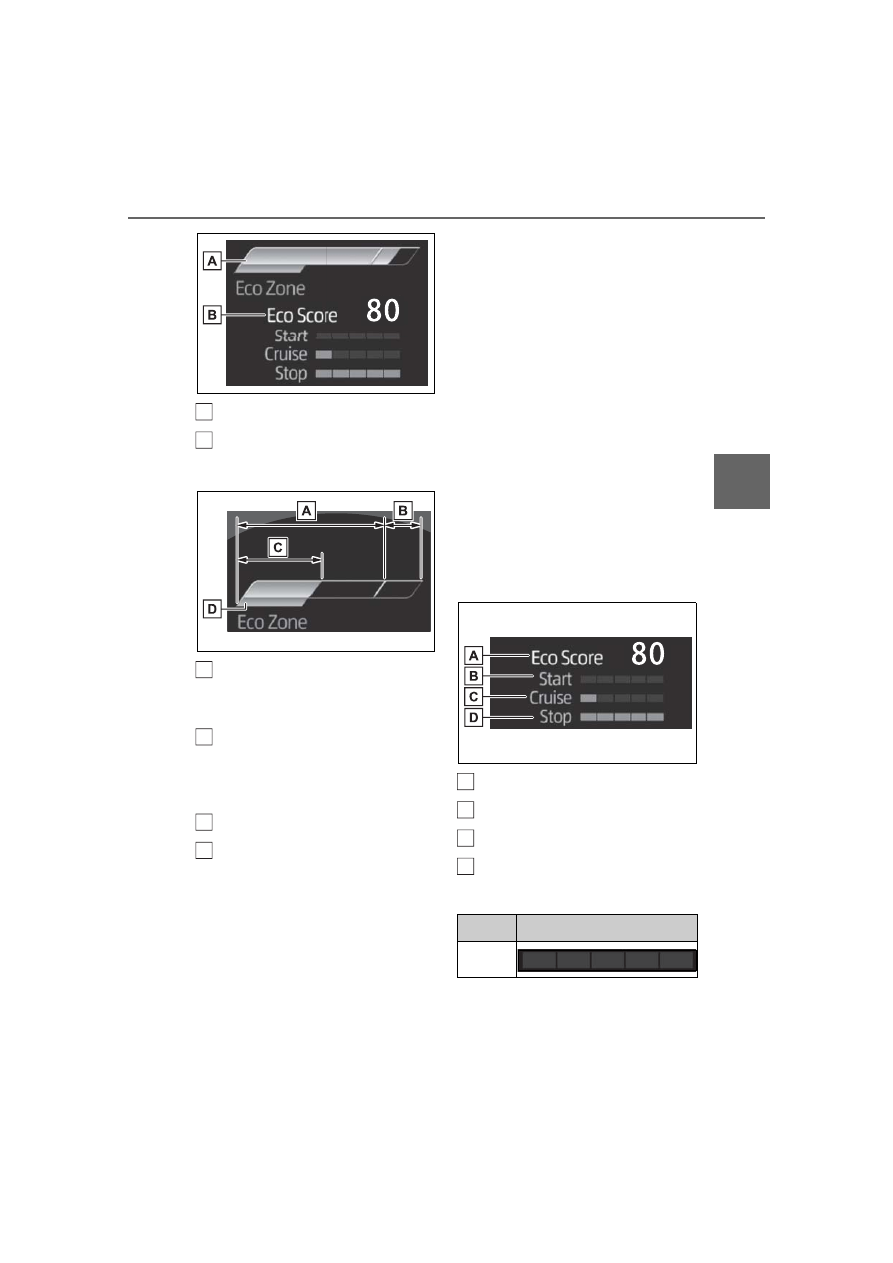

ECO Accelerator Guidance

“Eco Score”



ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-

ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.



“Eco Score”

The driving status for the follow-
ing 3 situations are evaluated in
5 levels: Smooth start-off accel-
eration (“Start”), driving without
sudden acceleration (“Cruise”)
and smooth stopping (“Stop”).
Each time the vehicle is
stopped, a score result is dis-
played out of a perfect score of
100 points.

Score result

“Start”

“Cruise”

“Stop”

How to read the bar display:

Score

Bar display

Unrated

190

3-1. Instrument cluster

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately
19mph (30km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.
When the hybrid system stops, the
current total score result is dis-
played.

: The score result is displayed only

when “Eco Score” is selected for
“Closing Display”. (



■

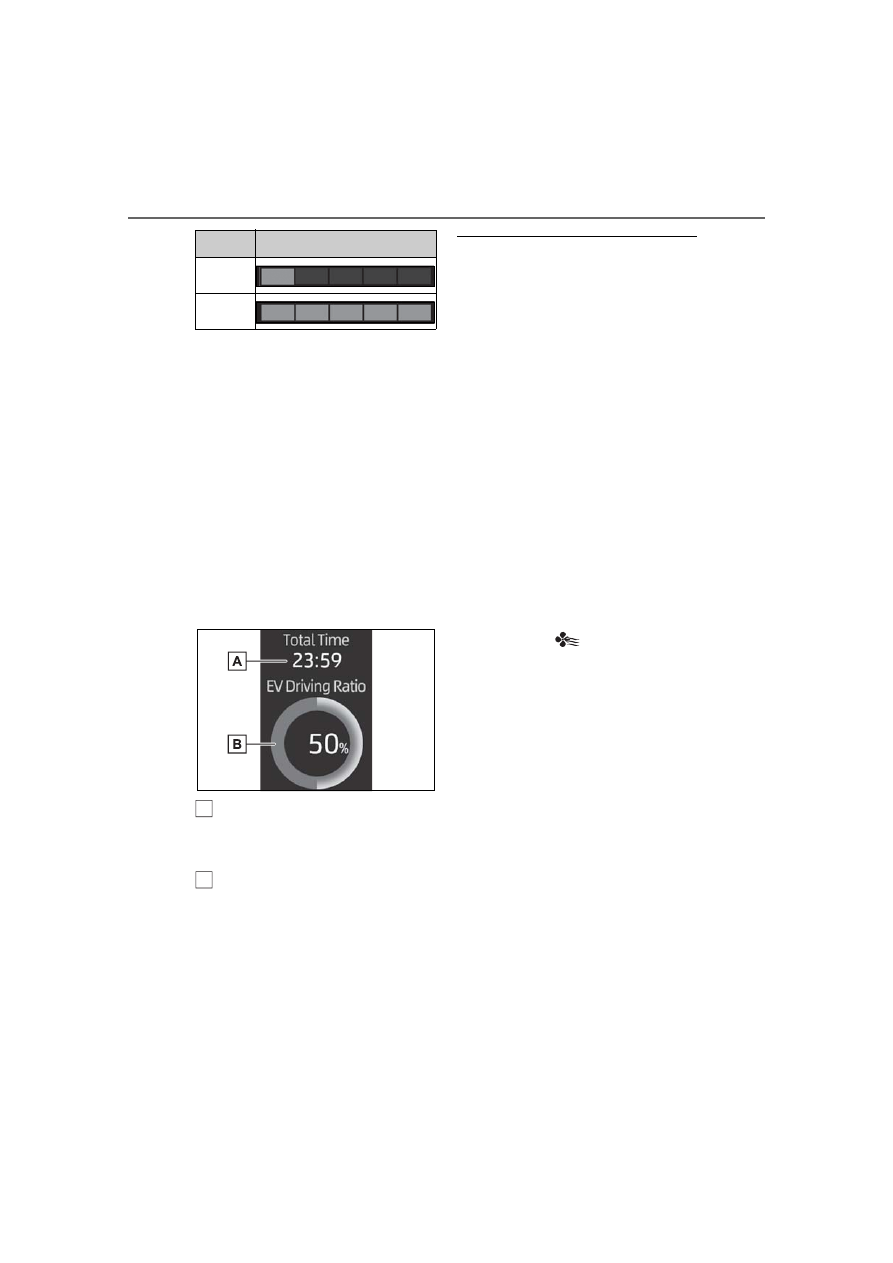

EV Ratio/EV Driving Ratio

Elapsed time after starting

Displays the elapsed time since
hybrid system was started.

EV driving ratio after starting

Displays the percentage of EV driv-
ing since the hybrid system was
started.

: It is reset each time the hybrid

system stops.

■

Electricity consumption

When the unit is set to “MPH”:
Electricity consumption is the con-

sumption rate of the electricity when

EV driving is performed and equiva-

lent to the fuel consumption for the

gasoline vehicles. For this vehicle,

driven distance per kWh of electric-

ity consumed (“miles/kWh”) is dis-

played as electricity consumption on

each screen.
When the unit is set to “km/h”:
Electricity consumption is the con-

sumption rate of the electricity when

EV driving is performed and equiva-

lent to the fuel consumption for the

gasoline vehicles. For this vehicle,

electricity consumed per 100 km

(“kWh/100 km”) is displayed as

electricity consumption on each

screen.

■

EV driving range

●

When the air conditioning system
is operating,

is displayed next

to the EV driving range and the
EV driving range with the air con-
ditioning system on is displayed.

●

The EV driving range may shorten

even when not driving due to

power consumption by the sys-

tem.

●

For details, refer to “EV driving

range” (

P.93)

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch off. If

the vehicle is refueled without

turning the power switch off, the

display may not be updated.

Low

High

Score

Bar display

191

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

■

Driving support system
information display

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(

P.351)



Dynamic radar cruise control
with full-speed range
(

P.366)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display

Select to enable selection of an
audio source or track on the dis-
play.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (
