2-2. Charging

Plug-in

hybri
d

■

If “Charging Stopped Check Charging Source” is shown (2)

Charger has stopped charging

Charging may be canceled by an
interruption of power supply depend-
ing on specifications of a charger.
Refer to the instructions provided
with the charger.



When charging is stopped using
the charger



Charger with charging schedule
function



Charger that is not compatible with
the charging schedule function of
the vehicle

Check if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.

Likely cause

Correction procedure

Charger is not compatible with vehi-
cle

Check if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.

Charger has stopped charging

Likely cause

Correction procedure

163

2-2. Charging

Plug-in

hybri
d

■

If “Charging Stopped High Energy Use See Owner’s Manual”
is shown

■

If “Charging System Malfunction See Owner’s Manual” is
shown

■

If “The Traction Battery Temp is low System put priority on
charging to preserve battery condition” is shown (Alaska and
Canada only)

Likely cause

Correction procedure

Power is being consumed by electri-
cal components of vehicle

Check the following items, and then
carry out charging again.



If the headlights and audio are
turned on, turn them off.



Turn the power switch off.

If charging cannot be carried out,
even after performing the above, the
auxiliary battery may not be suffi-
ciently charged. Operate the hybrid
system for approximately 15 minutes
or more to charge the auxiliary bat-
tery.

Likely cause

Correction procedure

Malfunction occurred in charging
system

Have the vehicle inspected by your
Toyota dealer.

Likely cause

Correction procedure

The Hybrid battery (traction battery)
warming control was operated
(



P.113)

When the hybrid battery (traction
battery) warming control operates,
the charging schedule is not used
and charging is performed.
This is a control to protect the hybrid
battery (traction battery), and not a
malfunction.

165

Vehicle

statu

s information an

d in
dicator

Vehicle status informa-

tion and indicators

3-1. Instrument cluster

Warning lights and indica-

tors ............................

166

Gauges and meters (with 7-

inch display) ..............

173

Gauges and meters (with

12.3-inch display) ......

178

Multi-information display

(with 7-inch display) ..

185

Multi-information display

(with 12.3-inch display)

..................................

196

Head-up display ..........

208

Energy monitor/consump-

tion screen.................

212

169

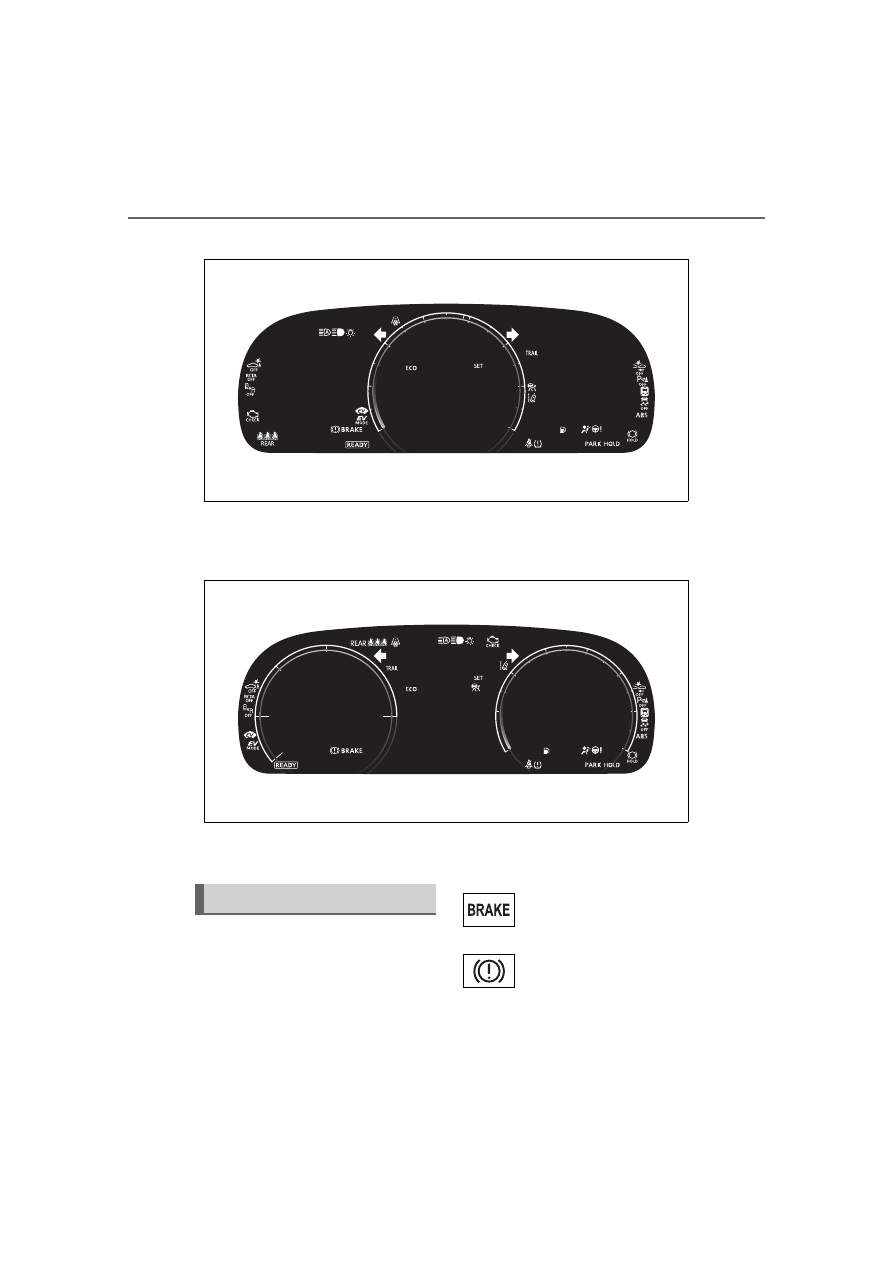

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

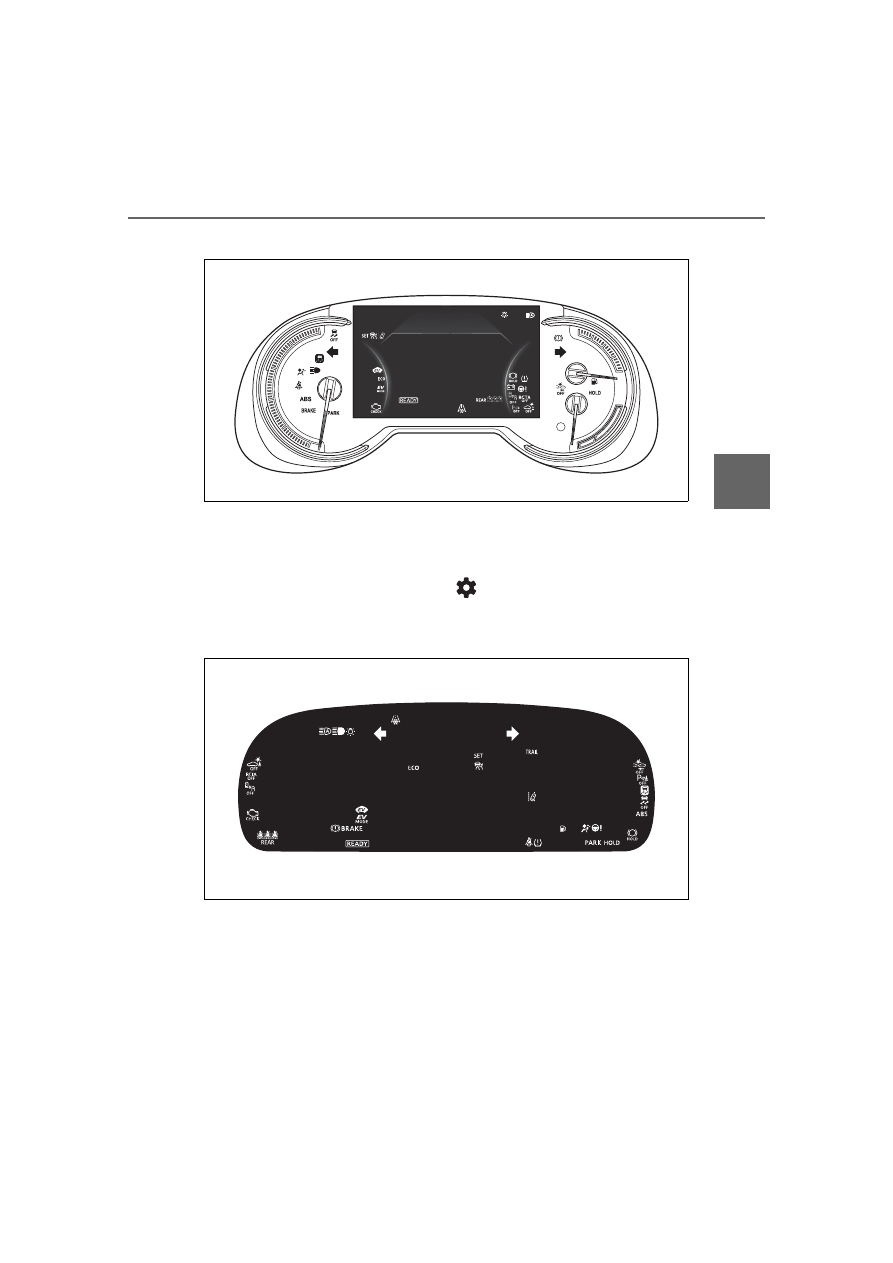

:These lights turn on when the

power switch is turned to ON to

(Yellow)

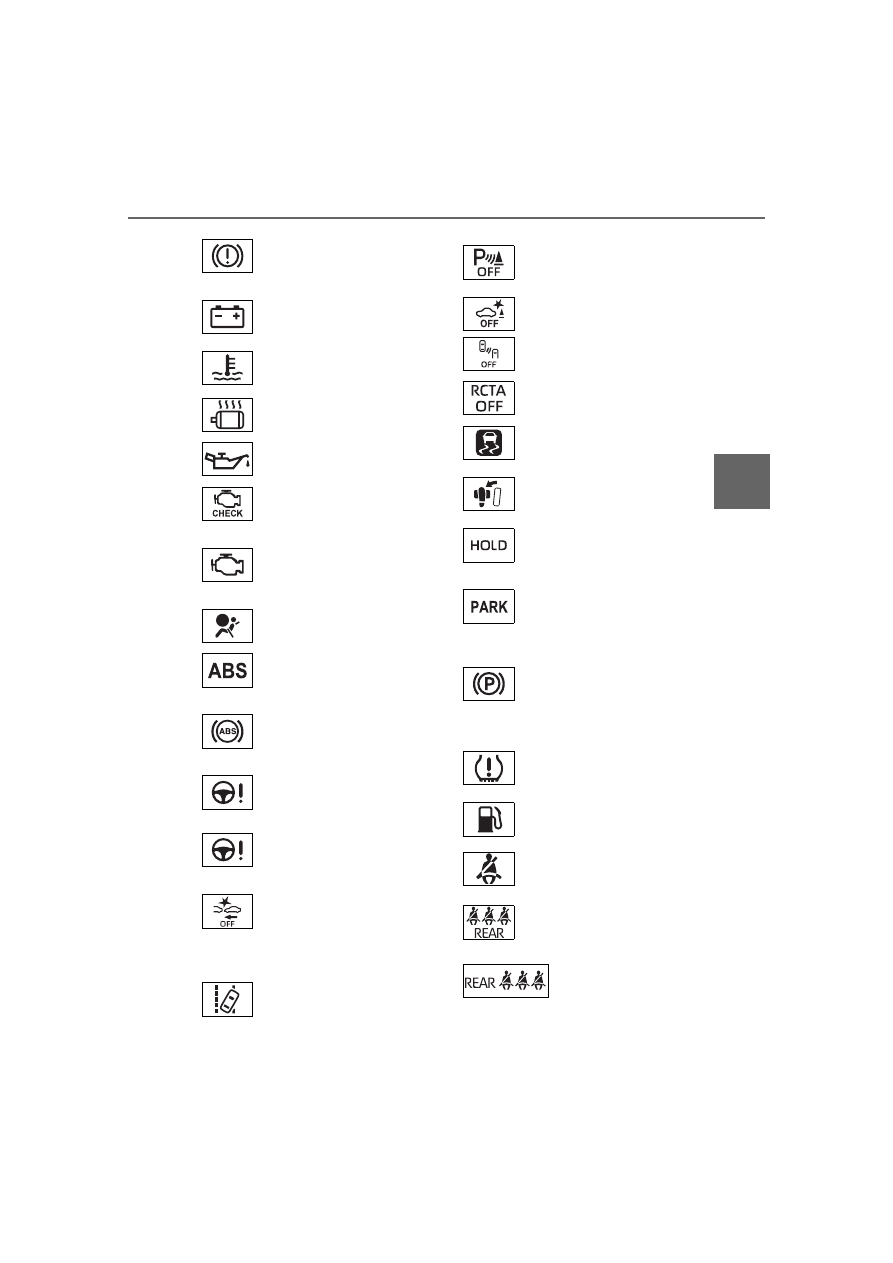

Brake system warning
light

(



P.541)

Charging system warn-
ing light

(



P.541)

High coolant tempera-
ture warning light

(



P.542)

Hybrid system overheat
warning light

(



P.542)

Low engine oil pressure
warning light

(



P.542)

(U.S.A.)

Malfunction indicator
lamp

(



P.542)

(Canada)

Malfunction indicator
lamp

(



P.542)

SRS warning light

(



P.543)

(U.S.A.)

ABS warning light

(



P.543)

(Canada)

ABS warning light

(



P.543)

(Red)

Electric power steering
system warning light

(



P.543)

(Yellow)

Electric power steering
system warning light

(



P.543)

(Flashes

or illumi-

nates)

PCS warning light

(



P.544)

(Orange)

LTA indicator (



P.544)

Intuitive parking assist
OFF indicator

(if

equipped) (



P.544)

PKSB OFF indicator

(if

equipped) (



P.545)

BSM OFF indicator

(



P.545)

RCTA OFF indicator

(



P.545)

Slip indicator light

(



P.546)

Inappropriate pedal oper-
ation warning light

(



P.546)

(Flashes)

Brake hold operated indi-
cator

(



P.546)

(U.S.A.)

(Flashes)

Parking brake indicator
(



P.547)

(Canada)
(Flashes)

Parking brake indicator
(



P.547)

Tire pressure warning
light

(if equipped)

(



P.547)

Low fuel level warning
light (



P.547)

Driver’s and front passen-
ger’s seat belt reminder
light (



P.548)

Rear passengers’ seat
belt

reminder

lights

(



P.548)

Rear passengers’
seat belt reminder
lights (



P.548)

170

3-1. Instrument cluster

indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the

multi-information display with a
message.

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

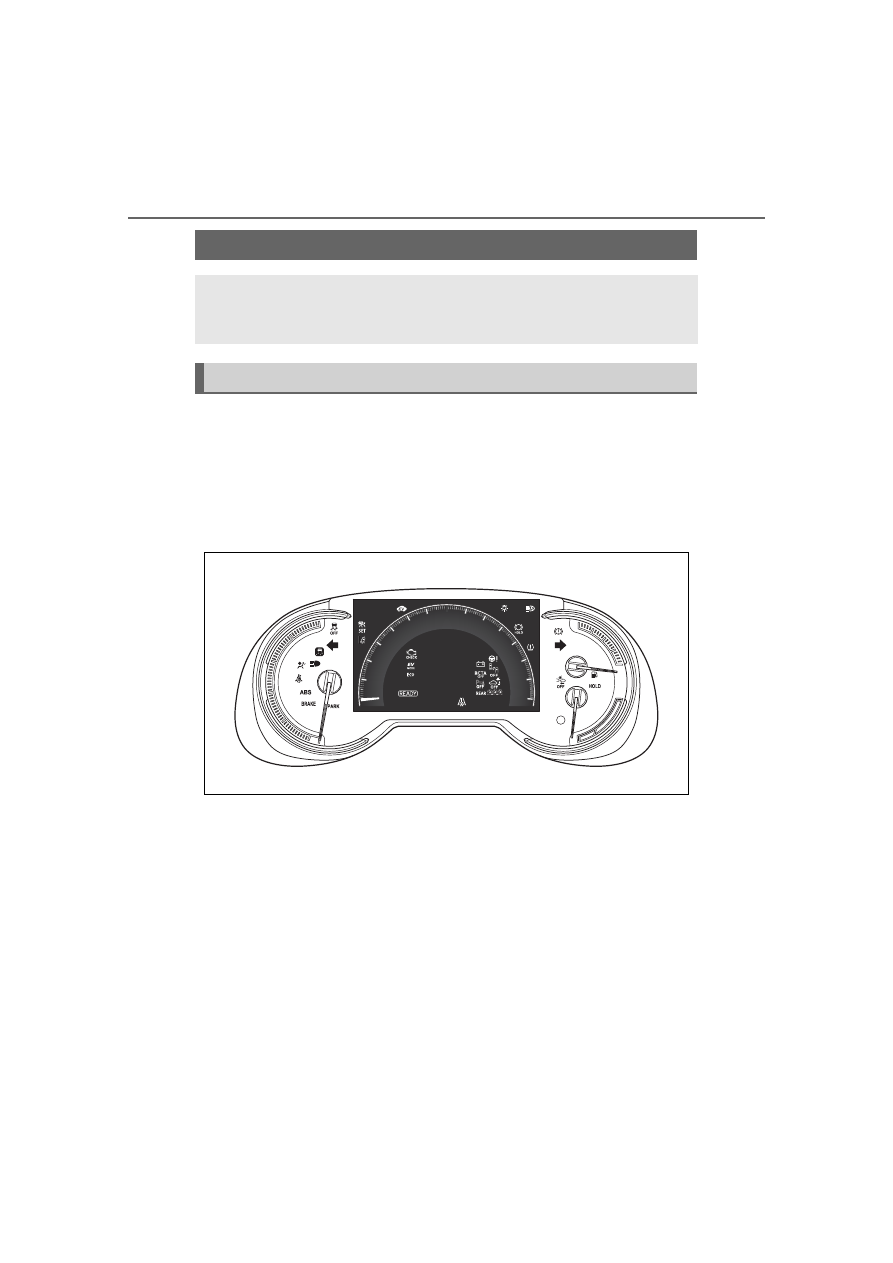

:Vehicles with 12.3-inch display

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

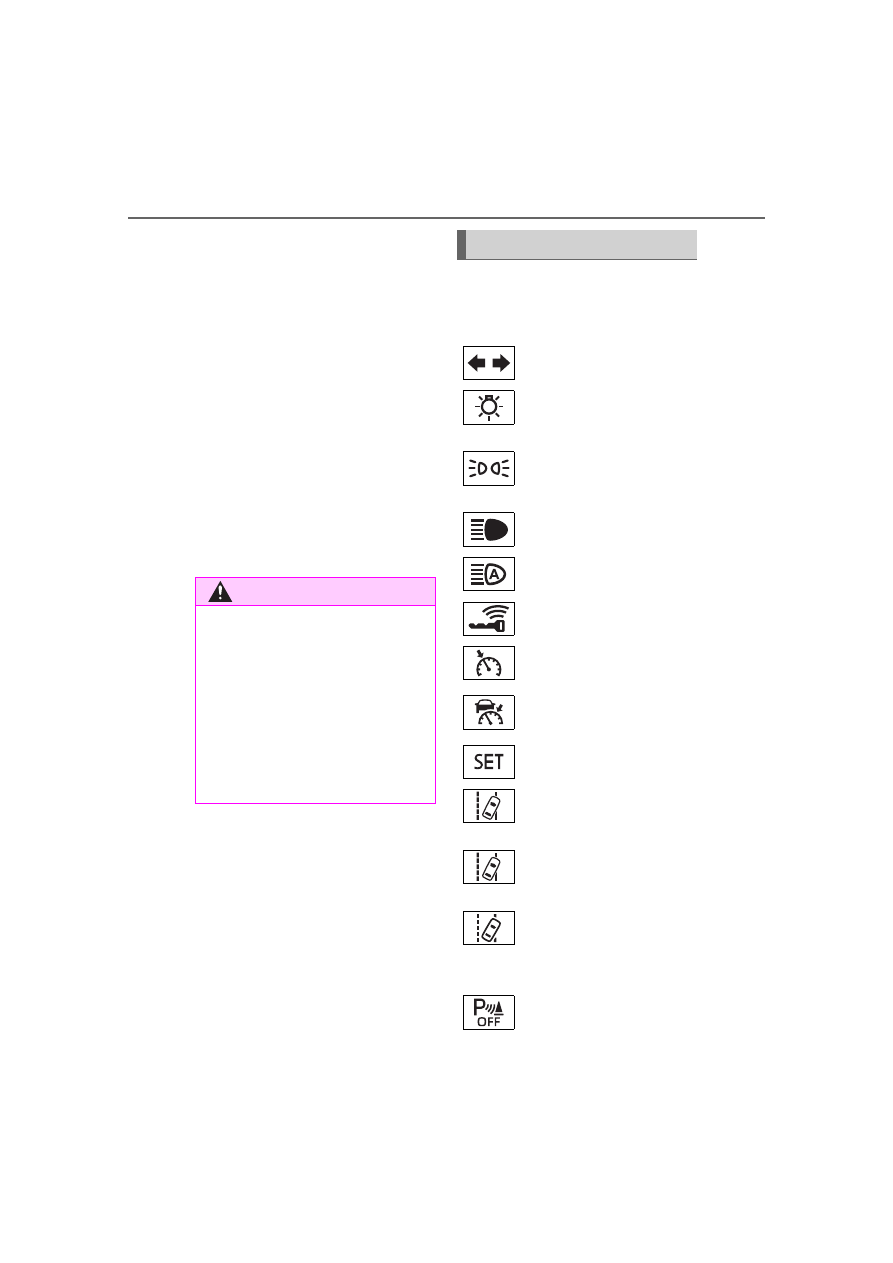

Indicators

Turn signal indicator
(



P.313)

(U.S.A.)

Headlight indicator
(



P.321)

(Canada)

Tail light indicator
(



P.321)

Headlight high beam indi-
cator (



P.323)

Automatic High Beam
indicator (



P.324)

Smart key system indica-
tor

(



P.304)

Cruise control indicator
(



P.366)

Dynamic radar cruise
control indicator
(



P.366)

Cruise control “SET” indi-
cator (



P.366)

(White)

LTA indicator

(



P.357)

(Green)

LTA indicator

(



P.357)

(Orange)

(Flashes)

LTA indicator

(



P.357)

Intuitive parking assist
OFF indicator

*3, 4

(if

equipped) (



P.389)

171

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

:This light illuminates on the

multi-information display with a
message.

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

:The light comes on when the

system is turned off.

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.

PKSB OFF indicator

*3, 5

(if equipped) (



P.397)

(Flashes)

Slip indicator light

(



P.408)

VSC OFF indicator

*3, 5

(



P.408)

PCS warning light

*3, 5

(



P.343)

BSM outside rear view
mirror indicators

*5, 6

(



P.379)

BSM OFF indicator

*3, 5

(



P.379)

RCTA OFF indicator

*3, 5

(



P.379)

Brake hold standby indi-
cator

(



P.318)

Brake hold operated indi-
cator

(



P.318)

Security indicator

(

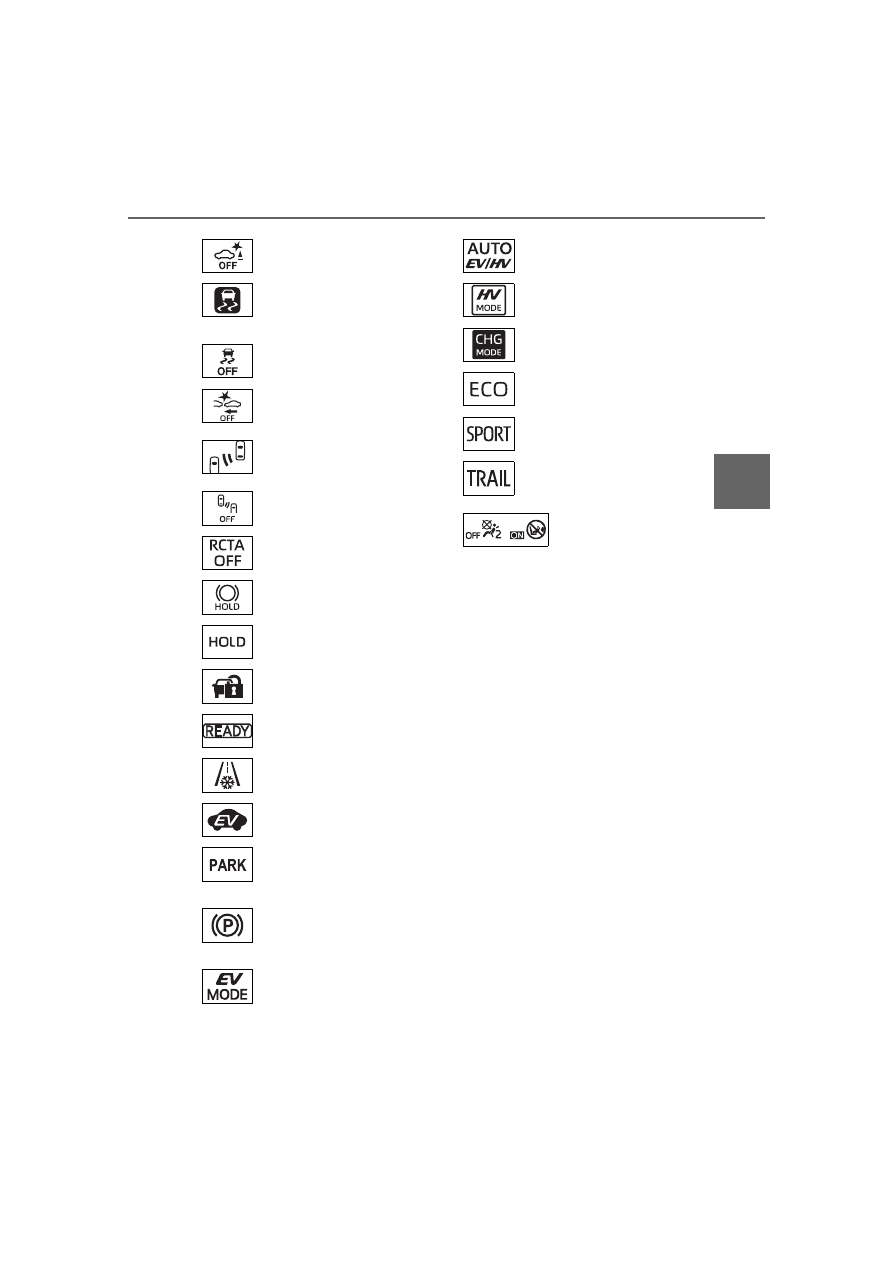

“READY” indicator
(

Low outside temperature
indicator

(

EV indicator (

(U.S.A.)

Parking brake indicator
(



P.314)

(Canada)

Parking brake indicator
(



P.314)

EV drive mode indicator

(



P.76)

AUTO EV/HV mode indi-
cator

(



P.76)

HV drive mode indicator

(



P.76)

Hybrid battery charge
mode indicator

(



P.77)

Eco drive mode indicator
(



P.404)

Sport mode indicator
(



P.404)

Trail Mode indicator
(



P.405)

“AIR BAG ON/OFF”
indicator

*5, 9

(



P.43)

172

3-1. Instrument cluster

:This light illuminates on the out-

side rear view mirrors.

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

:The displayed indicator changes

according to the current plug-in
hybrid system operation mode.

:This light illuminates on the cen-

ter panel.

■

BSM (Blind Spot Monitor) out-

side rear view mirror indicators

In order to confirm operation, the

BSM outside rear view mirror indica-

tors illuminate when the power

switch is turned to ON, or when the

BSM function/RCTA function is

enabled while the power switch is in

ON.
If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror

indicators do not illuminate or do not

turn off, there may be a malfunction

in the system. If this occurs, have

the vehicle inspected by your

Toyota dealer.

173

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

The display of the speedometer can be selected from two types,
analog or digital. (



P.191)

■

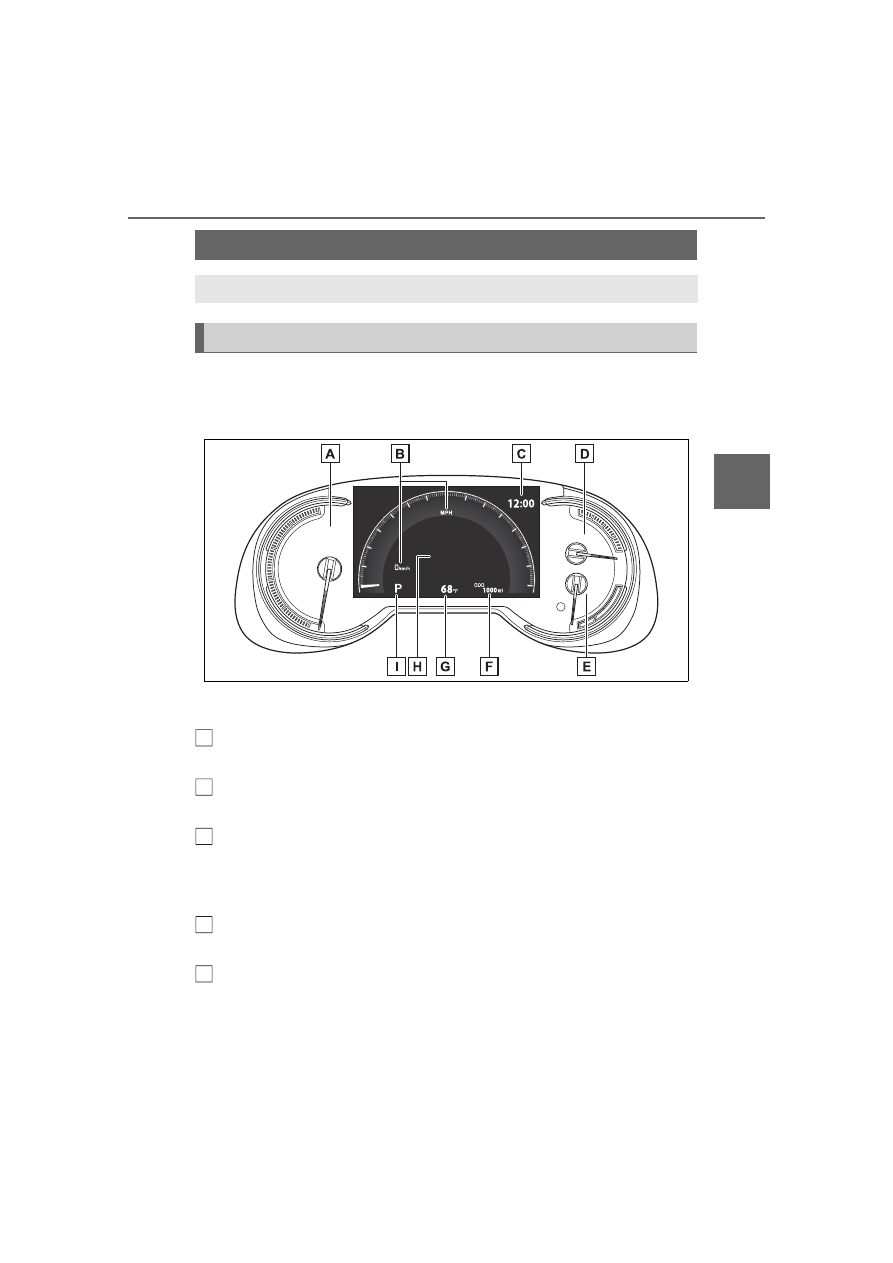

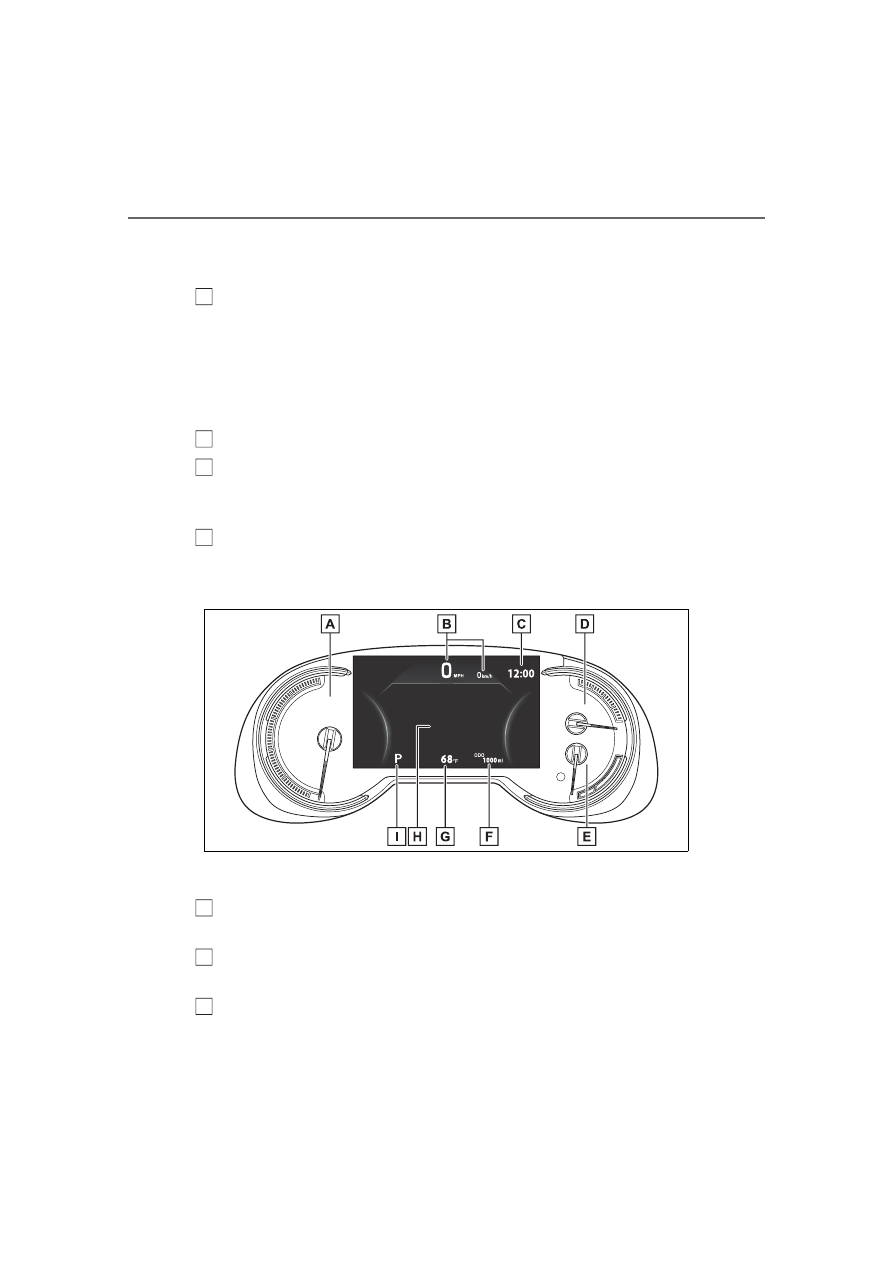

Analog speedometer

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the hybrid system output or regeneration level (



P.175)

Speedometer

Displays the vehicle speed

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.
When the gauge is in the green zone, EV driving is possible. When the

Gauges and meters (with 7-inch display)

The meters display various drive information.

Meter display

174

3-1. Instrument cluster

gauge is in the blue zone, EV driving is no longer possible (in this situation,
the vehicle switches to HV mode). Charge the hybrid battery (traction bat-
tery) to allow EV driving.

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.176)

Multi-information display

Presents the driver with a variety of driving-related data (



P.185)

Displays warning messages if a malfunction occurs (



P.552)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.309)

■

Digital speedometer

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the hybrid system output or regeneration level (



P.175)

Speedometer

Displays the vehicle speed

Clock

Automatically adjusts the time by using the GPS time information (GPS

175

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.
When the gauge is in the green zone, EV driving is possible. When the
gauge is in the blue zone, EV driving is no longer possible (in this situation,
the vehicle switches to HV mode). Charge the hybrid battery (traction bat-
tery) to allow EV driving.

Odometer and trip meter

Outside temperature (



P.176)

Multi-information display

Presents the driver with a variety of driving-related data (



P.185)

Displays warning messages if a malfunction occurs (



P.552)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.309)

■

The meters and display illumi-

nate when

The power switch is in ON.

■

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode or

when Trail Mode is turned on.

(



P.404, 405)

■

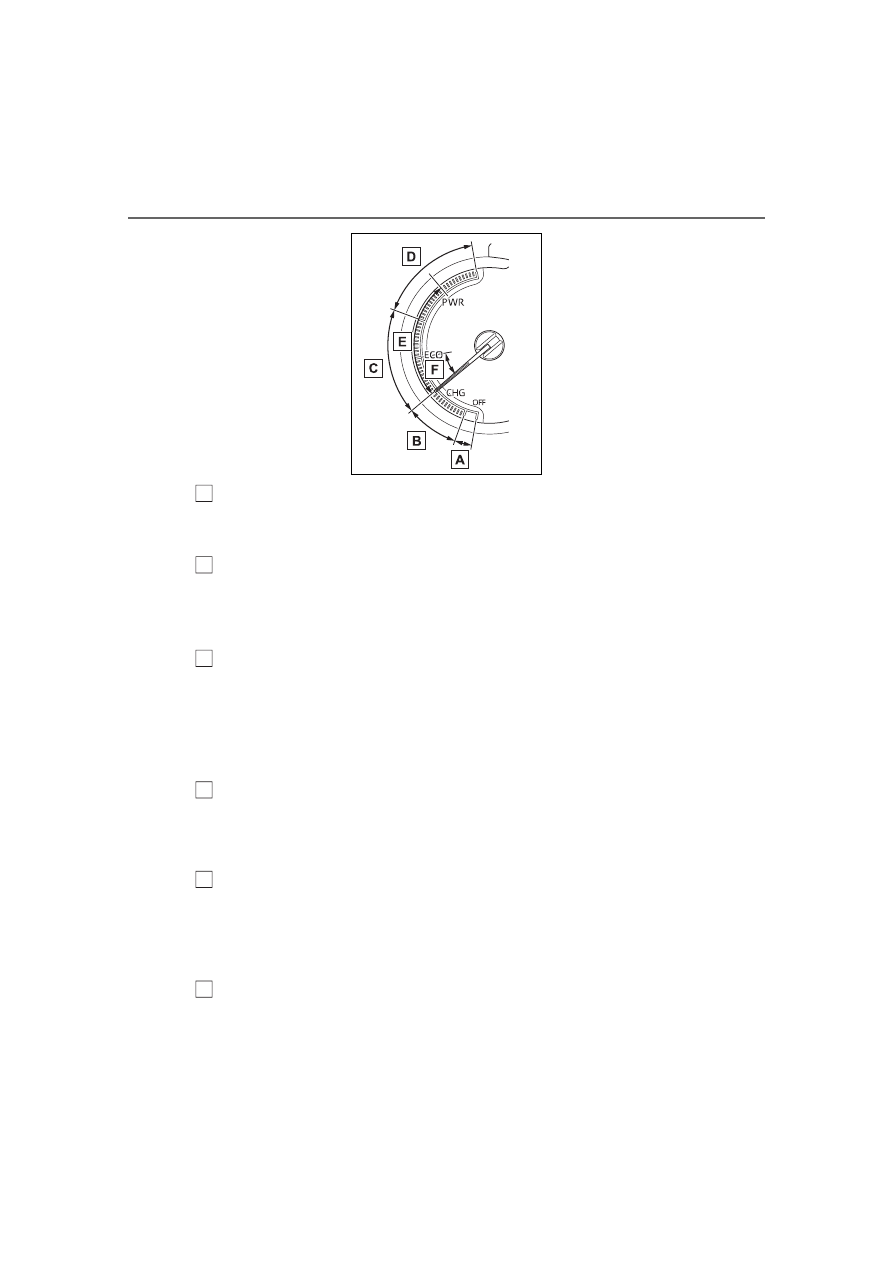

Hybrid System Indicator

The display contents of the Hybrid

System Indicator are different in EV

mode and HV mode.

176

3-1. Instrument cluster

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

status. Regen-

erated energy will be used to charge
the hybrid battery (traction battery).

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

EV driving area (EV mode or
AUTO EV/HV mode)

Shows that the vehicle is driven
using only the electric motor (trac-
tion motor).

Hybrid Eco area (HV mode)

Shows that gasoline engine power
is not being used very often.

The gasoline engine will automati-
cally stop and restart under various
conditions.

: When used in this manual, “regen-

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped (including when

using “My Room Mode”), or driv-

ing at low speeds (less than 12

mph [20 km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

Toyota RAV4 Prime (2023 year). Manual in english - page 10
