2-2. Charging

■

Calendar settings

The current date and time is auto-

matically set using GPS. However, if

the automatic setting of the clock is

turned off on the Multimedia Dis-

play, it is necessary to set the calen-

dar on the multi-information display

(



P.191, 203). For details, refer to

the “MULTIMEDIA OWNER’S MAN-

UAL”.
If the calendar settings check

screen is displayed when an

attempt is made to register a

charging schedule, make sure that

the calendar settings are correctly. If

the calendar is not set correctly, the

charging schedule function will not

operate properly.

When registering the charging
schedule, the following settings
can be changed.

■

Select the charging mode

One of the two following
charging modes can be
selected.



“Start” or “Start at set time”

Starts charging at the set time

*1,

and finishes charging when

fully charged.



“Departure” or “Departure
time”

Starts charging to finish at the
set time.

*3, 4

When this setting is selected,
the air conditioning-linked func-
tion can be used.

:There might be a slight error in

the timing when charging starts
due to the state of the hybrid bat-
tery (traction battery).

:Charging schedule function is

performed in accordance with
the clock. Before registering the
charging schedule, check and
set the clock to the proper time.

:If the system determines that

charging cannot be completed
by the set departure time, it will
start charging. Check the
charging schedule.

:If the outside temperature

changes suddenly or the state of
the power source being used is
changed during charging, the
system may not complete the
charging as estimated.

■

Repeated setting

The periodic charging schedule
can be set by selecting your
desired day of the week. (If no
days are selected, charging is
only carried out once.)

Using the charging

schedule function

Charging can be carried out
at the desired time by regis-
tering the charging sched-
ule. Also, it is possible to
set the charging schedule to
one’s preferences, such as
having charging complete
by a certain departure time
or be carried out at the
same time on certain days.

Settings of the charging
schedule function

129

2-2. Charging

Plug-in

hybri
d

■

Air conditioning-linked set-
ting (“Climate Prep” or “Cli-
mate preparation”)

When the charging mode is set
to “Departure” or “Departure
time”, the vehicle air condition-
ing system (



P.422) can be set

to automatically operate

according to the set time.

By adjusting the cabin temperature
in advance, passengers can enjoy
a pleasant interior immediately after
entering the vehicle.

: Operation starts approximately

20 minutes before the set depar-
ture time.

■

Turning “Charge Now” on
and off

If even one charging schedule is
registered, charging does not
start until the set time, even if
the AC charging cable is con-
nected to the vehicle. To start
charging without changing the
charging schedule setting, turn
“Charge Now” on to temporarily
cancel the charging schedule
and enable charging after con-
necting the AC charging cable.

: If the charging connector is

removed during charging while
the charging schedule is regis-
tered and “Charge Now” is on,
“Charge Now” turns off.

■

Changing “Next Event”

*1, 2

It is possible to temporarily set
the time of the next charging
schedule without changing the

registered repeated setting.

:The “Next Event” refers to the

closest charging schedule from
the current time among the regis-
tered charging schedules.
Charging schedule is performed
based on the “Next Event”.

:“Next Event” can not be changed

on the Multimedia Display.

:When “Next Event” is changed,

the current charging schedule
will be temporarily ignored and
charging will not be carried out
until the time specified by “Next
Event”. (For example, when
“Next Event” is set for 2 days
later, even if items are registered
on the charging schedule,
charging will not be carried out
until the time specified by “Next
Event”.)

The charging schedule can be
registered on the multi-informa-
tion display or Multimedia Dis-
play



7-inch multi-information dis-
play operation (if equipped):



P.131



12.3-inch multi-information
display operation (if
equipped):



P.137



Multimedia Display opera-
tion:



P.143

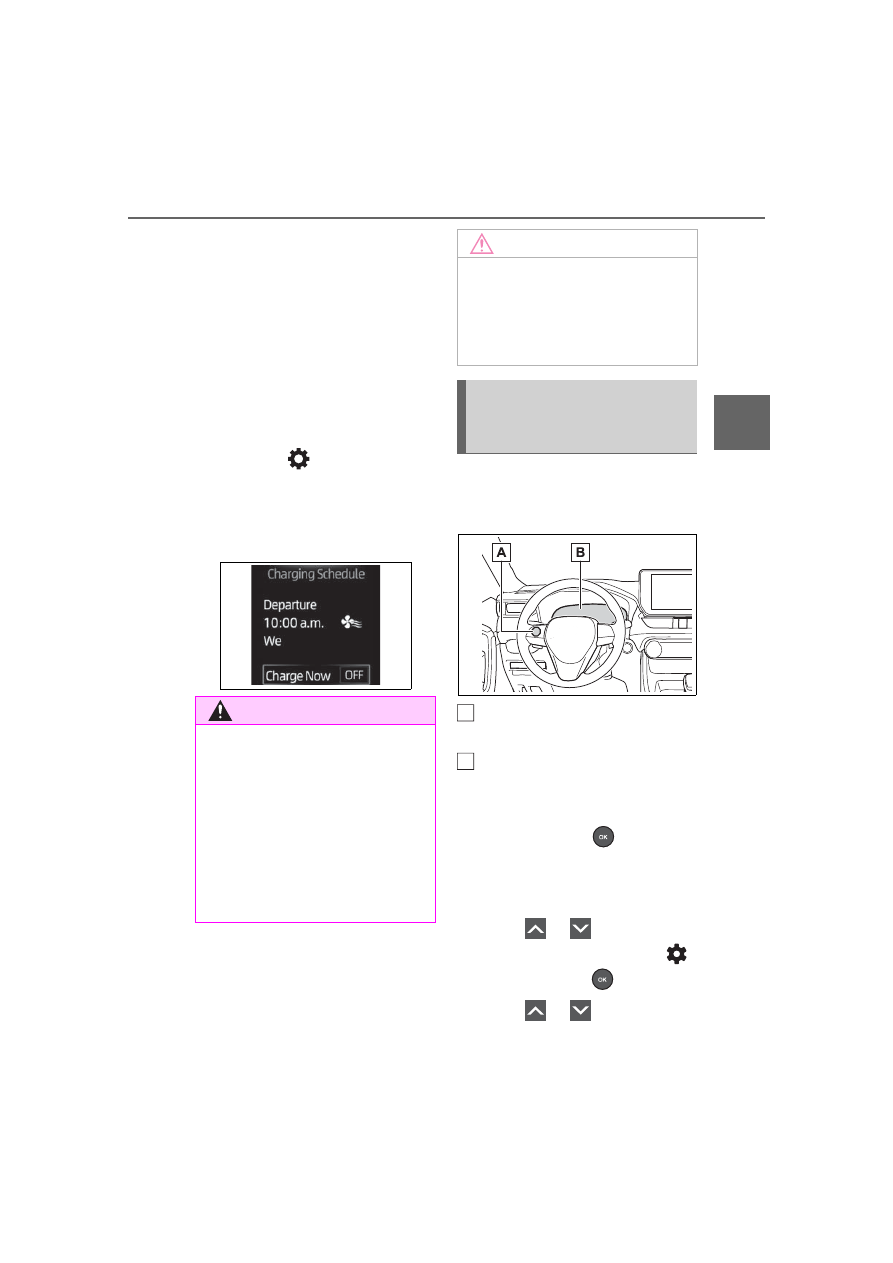

Registering the charging
schedule

130

2-2. Charging

■

Charging schedule

●

The charging schedule cannot be

set while driving.

●

A maximum of 15 charging sched-

ules can be registered.

■

To make sure that the charging

schedule function operates cor-

rectly

Check the following items.

●

The clock is adjusted to the proper

time

●

The calendar is set to the correct

date

●

Check that the power switch is

turned off

●

After registering the charging

schedule, connect the AC

charging cable

The charging start time is deter-

mined based on the charging

schedule at the time that the AC

charging cable was connected.

●

After connecting the AC charging

cable, check that the charging

indicator of the charging port

flashes (



P.98)

●

Do not use an outlet that has a

power cut off function (including a

timer function)

Use an outlet that constantly sup-

plies electricity. For outlets where

the power is cut off due to a timer

function, etc., charging may not be

carried out according to plan if the

power is cut off during the set

time.

●

The automatic adjustment of the

clock by GPS is set to on.

For details regarding setting clock,
refer to the “MULTIMEDIA
OWNER’S MANUAL”.

■

When the AC charging cable

remains connected to the vehi-

cle

Even if multiple consecutive

charging schedules are registered,

the next charge will not be carried

out according to the charging

schedule until the AC charging

cable is removed and reconnected

after charging completes. Also,

when the hybrid battery (traction

battery) is fully charged, charging

according to the charging schedule

will not be carried out.

■

“Climate Prep” or “Climate

preparation”

●

When the air conditioning-linked

setting is turned on, the air condi-

tioning operates until the set

departure time. Therefore, the air

conditioning will consume electric-

ity and charging may not complete

by the set departure time.

●

If the hybrid battery (traction bat-

tery) is fully charged, charging will

not be carried out, even if the

charging schedule is set. How-

ever, if “Climate Prep” or “Climate

preparation” is turned on, the air

conditioning will operate only once

when it nears the time set in

“Departure” or “Departure time”. If

this occurs, the air conditioning

will consume electricity and the

remaining charge of the hybrid

battery (traction battery) when

departing may be decreased.

●

When the doors are unlocked, the

air conditioning system does not

operate.

■

Smartphone-linked operation (if

equipped)

After applying to Toyota Apps, it is

possible to use the smartphone

application to change charging

131

2-2. Charging

Plug-in

hybri
d

schedule settings.
For details about Toyota Apps, refer

to http://www.toyota.com/

connectedservices in the United

States and

http://www.toyota.ca/connected in

Canada.

■

When charging schedules are

ignored

When the following operations are

performed while the charging

schedule is on standby, charging

schedule is temporarily canceled

and charging is started.

●

When the Remote Air Condition-

ing System (



P.431) is operated

●

When turning “My Room Mode”

on (



P.148)

●

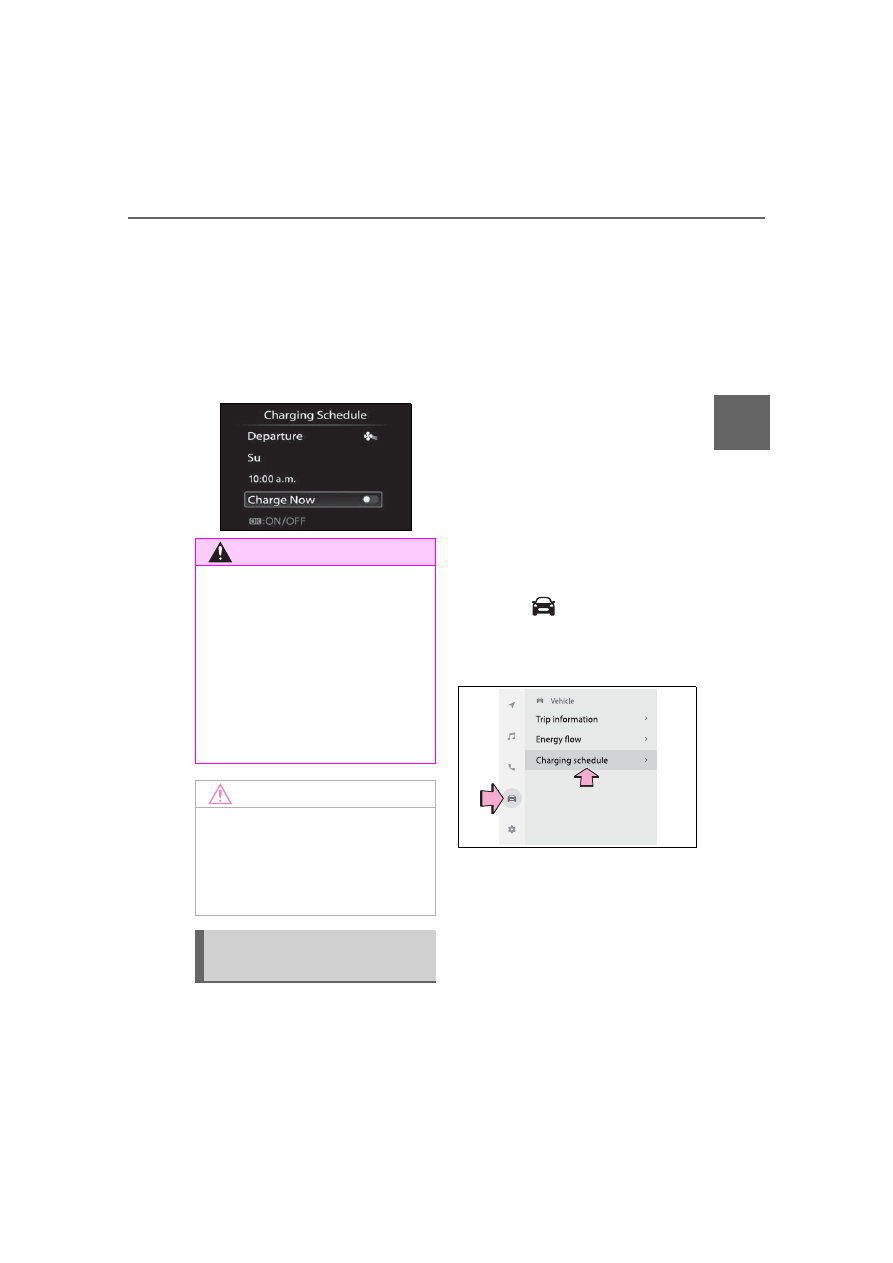

When turning “Charge Now” on

(



P.135, 141, 147)

●

When an operation that temporar-

ily cancels charging using the

charging schedule is performed

(



P.123)

■

Effects of outside temperature

When the charging mode is set to

“Departure” or “Departure time”,

charging schedule may be ignored

due to the outside temperature and

charging may start.

■

“Battery Heater” (



P.113) /

“Battery Cooler” (



P.114)

When charging is carried out using

the charging schedule, the hybrid

battery (traction battery) heating or

cooling function may operate

according to the temperature of the

hybrid battery (traction battery).

●

When the charging mode is set to

“Start” or “Start at set time”, the

function starts at the set charging

start time.

●

“Battery Heater”: When the

charging mode is set to “Depar-

ture” or “Departure time”, the func-

tion starts automatically to

complete heating by the desired

departure time.

●

“Battery Cooler”: When the

charging mode is set to “Depar-

ture” or “Departure time”, cooling

starts approximately 30 minutes

before the charging start time.

However, if there is no time to fin-

ish charging by the charging

schedule, the hybrid battery (trac-

tion battery) cooling time may be

shortened and “Battery Cooler”

may not operate.

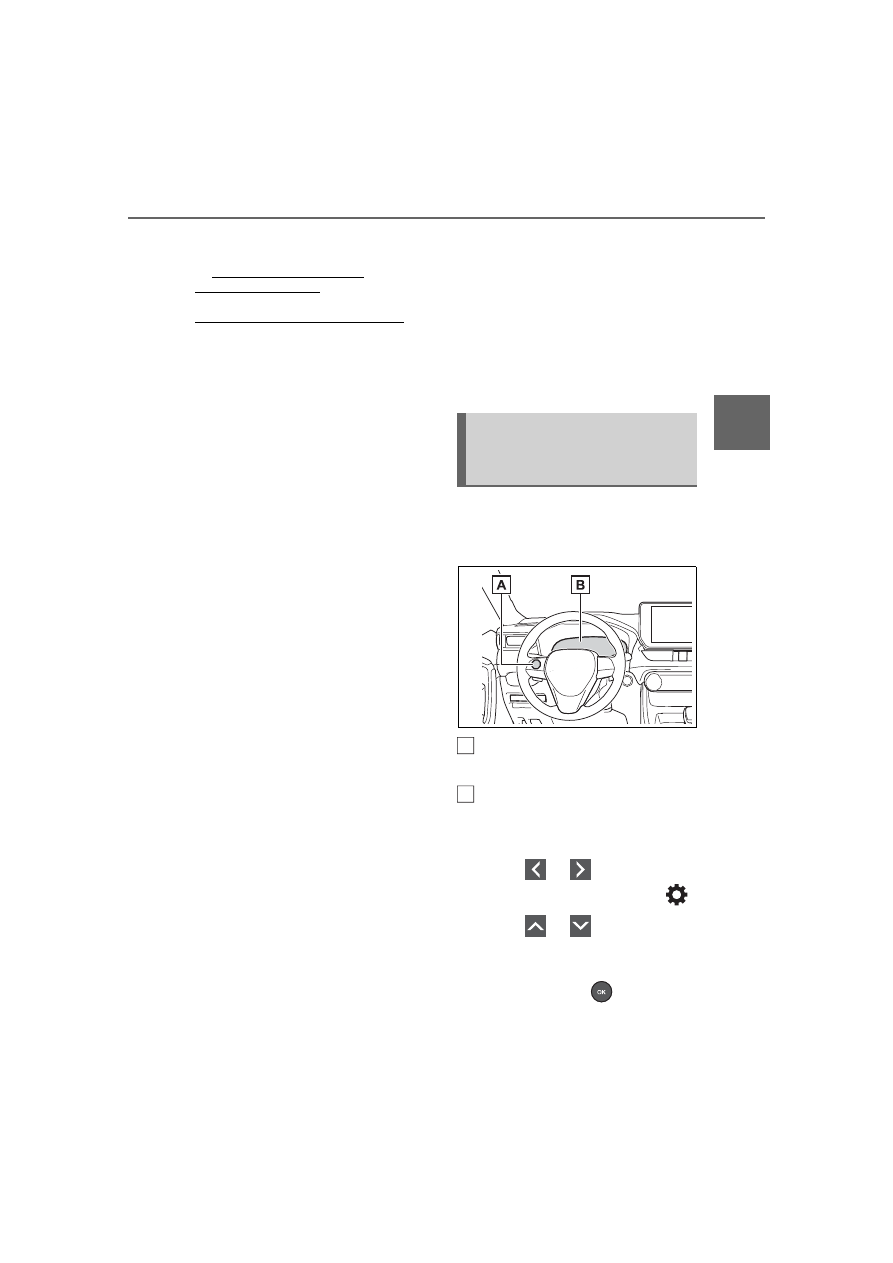

When operating charging
schedule, use the meter control
switches.

Meter control switches
(



P.185)

Multi-information display

■

Registering the charging
schedule

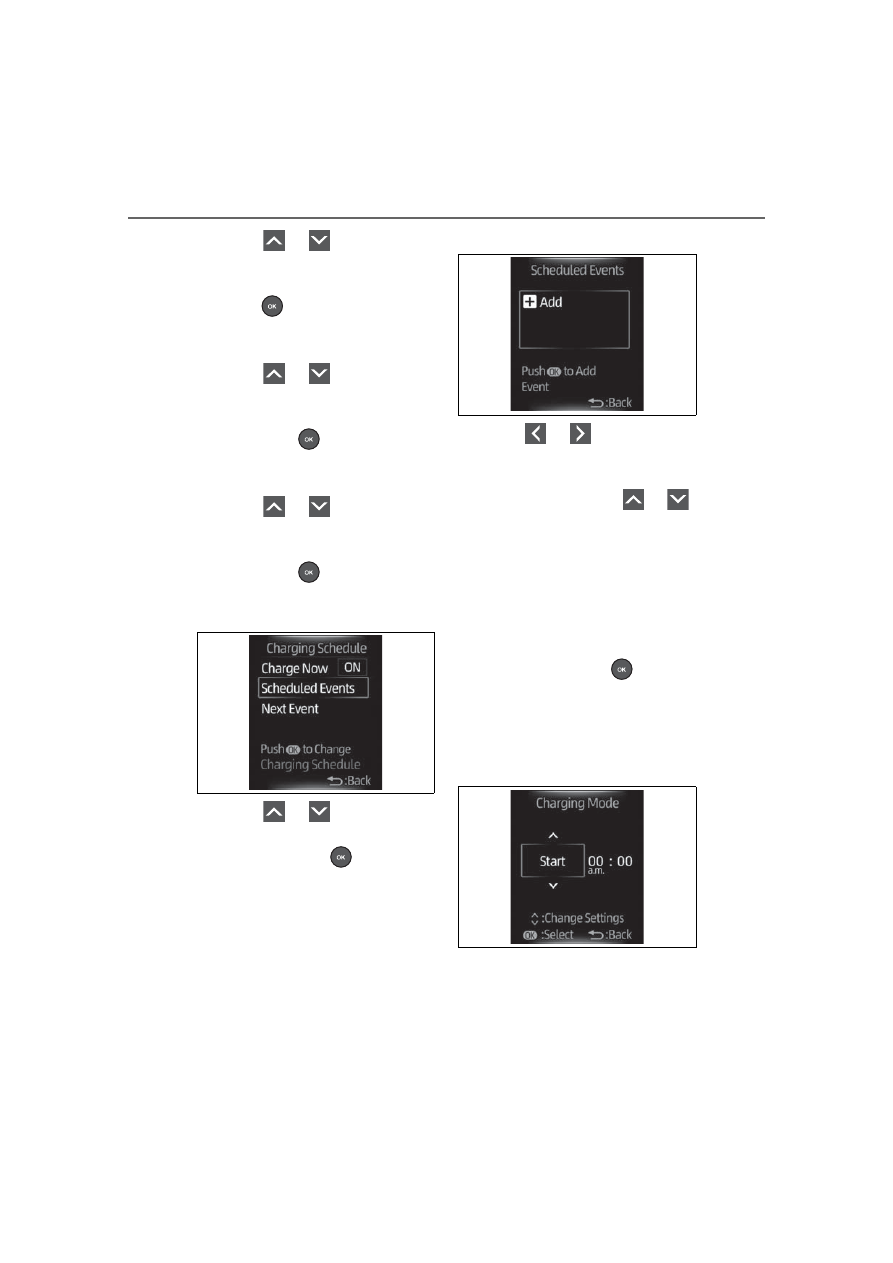

Press

of the meter

control switches to select

Press

of the meter

control switches to select
“Vehicle Settings”, and then
press and hold

Setting operations on 7-
inch multi-information
display (if equipped)

132

2-2. Charging

Press

of the meter

control switches to select
“Charging Settings”, and then
press

The “Charging Settings” screen will

be displayed.

Press

of the meter

control switches to select
“Charging Schedule”, and
then press

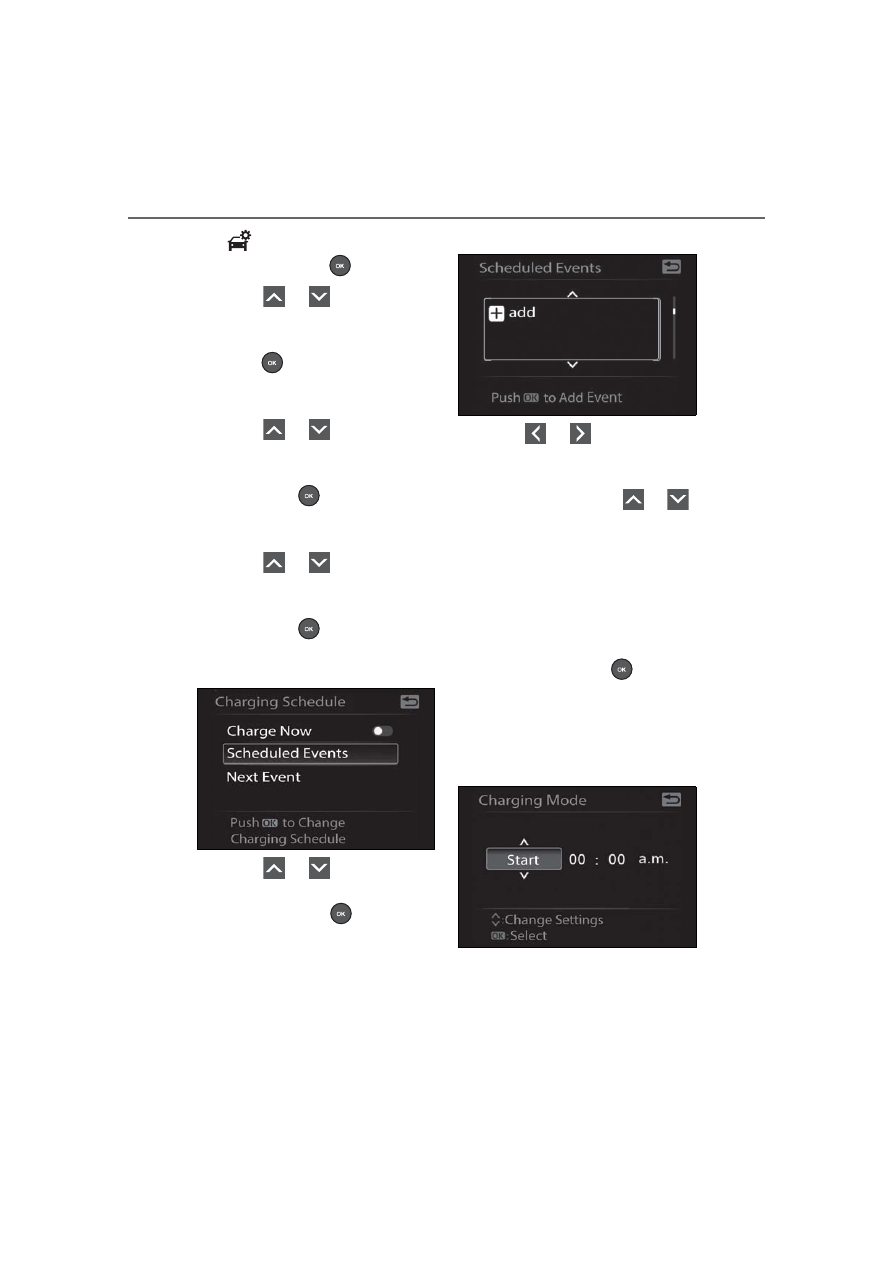

The “Charging Schedule” screen

will be displayed.

Press

of the meter

control switches to select
“Scheduled Events”, and
then press

The “Scheduled Events” screen will

be displayed.

Press

of the meter

control switches to select “+”,
and then press

The “Charging Mode” screen will be

displayed.

Press

of the meter

control switches to select the
item to change with the cur-
sor, and then press

to change the setting.

Set the desired charging mode and

charging start (or departure) time.
When the charging mode is “Start”,

this sets the charging start time.

When it is “Departure”, this sets the

charging end time.
After changing the settings to the
desired settings, press

When the charging mode is set to

“Departure”, the “Climate Prep”

screen is displayed. When the

charging mode is set to “Start”, the

“Repeat” screen (step

) is dis-

played.

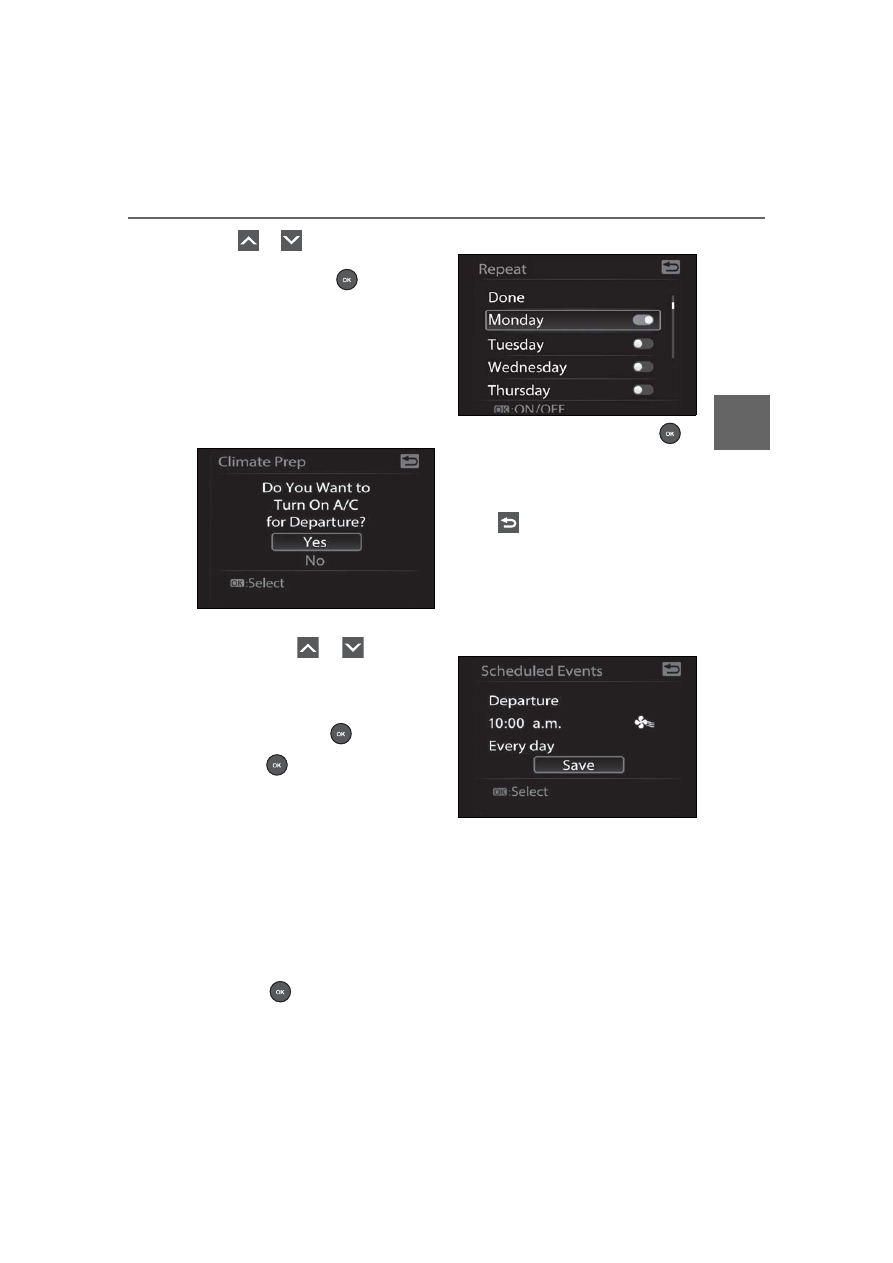

When the charging mode is
set to “Departure”, set the
“Climate Prep” to on or off.

133

2-2. Charging

Plug-in

hybri
d

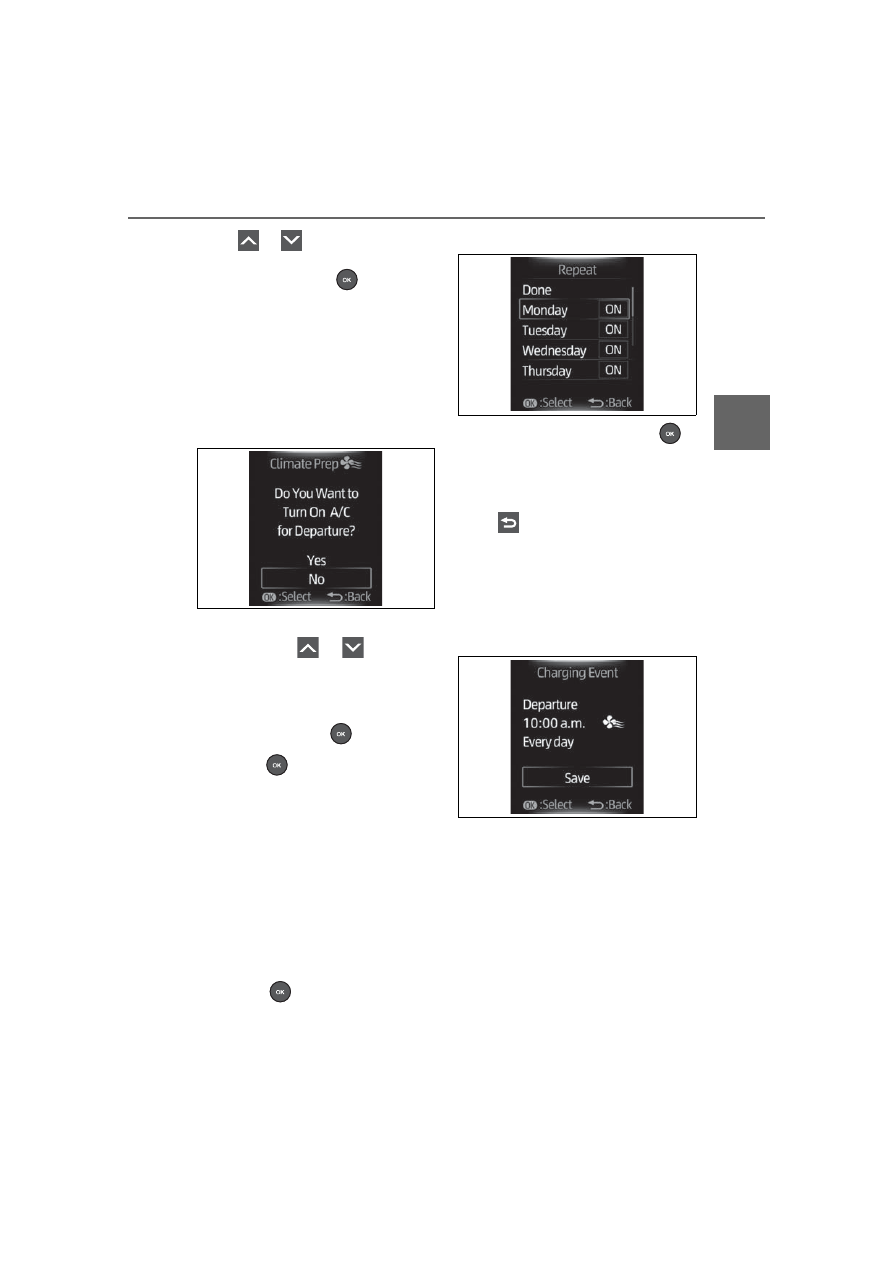

Press

of the meter con-

trol switches and select “Yes” or
“No”, and then press

Select “Yes” to turn on the air con-

ditioning system and select “No” to

turn it off.
The “Repeat” screen will be dis-

played.

: When the charging mode is set to

“Start”, “Climate Prep” screen will
not display.

To activate the repeated set-
ting, press

of the

meter control switches to
select the desired day to acti-
vate for the repeated setting,
and then press

Each time

is pressed, the

repeated setting switches between

on and off.
When set to on, the charging

schedule is repeated on that day. It

is possible to set more than one

day to on.
If no days are set to on, charging is

only carried out once according to

the charging schedule for the next

24 hours.
After changing the settings to the

desired settings, select “Done”, and
then press

A screen where the settings can be

saved will be displayed.

Select “Save” and press

to save the settings.

The settings will be saved.
If you wish to change the settings,
press

and perform the setting

procedure again.
After setting operations are com-

plete, when the AC charging cable

is connected to the vehicle,

charging will be carried out accord-

ing to the charging schedule set-

tings.

■

Switching charging sched-
ules between on and off

The registered charging sched-
ules can be turned on and off.

Perform step

of the

“Registering the charging
schedule” procedure
(



P.131) and display

“Scheduled Events” screen.

A list of the registered charging

134

2-2. Charging

schedule will be displayed.

Press

of the meter

control switches to select the
item to turn ON/OFF, and
then press

Each time

is pressed, the

selected charging schedule

switches between on and off.
When set to off, a charging sched-

ule is ignored and charging accord-

ing to the charging schedule is not

carried out.

■

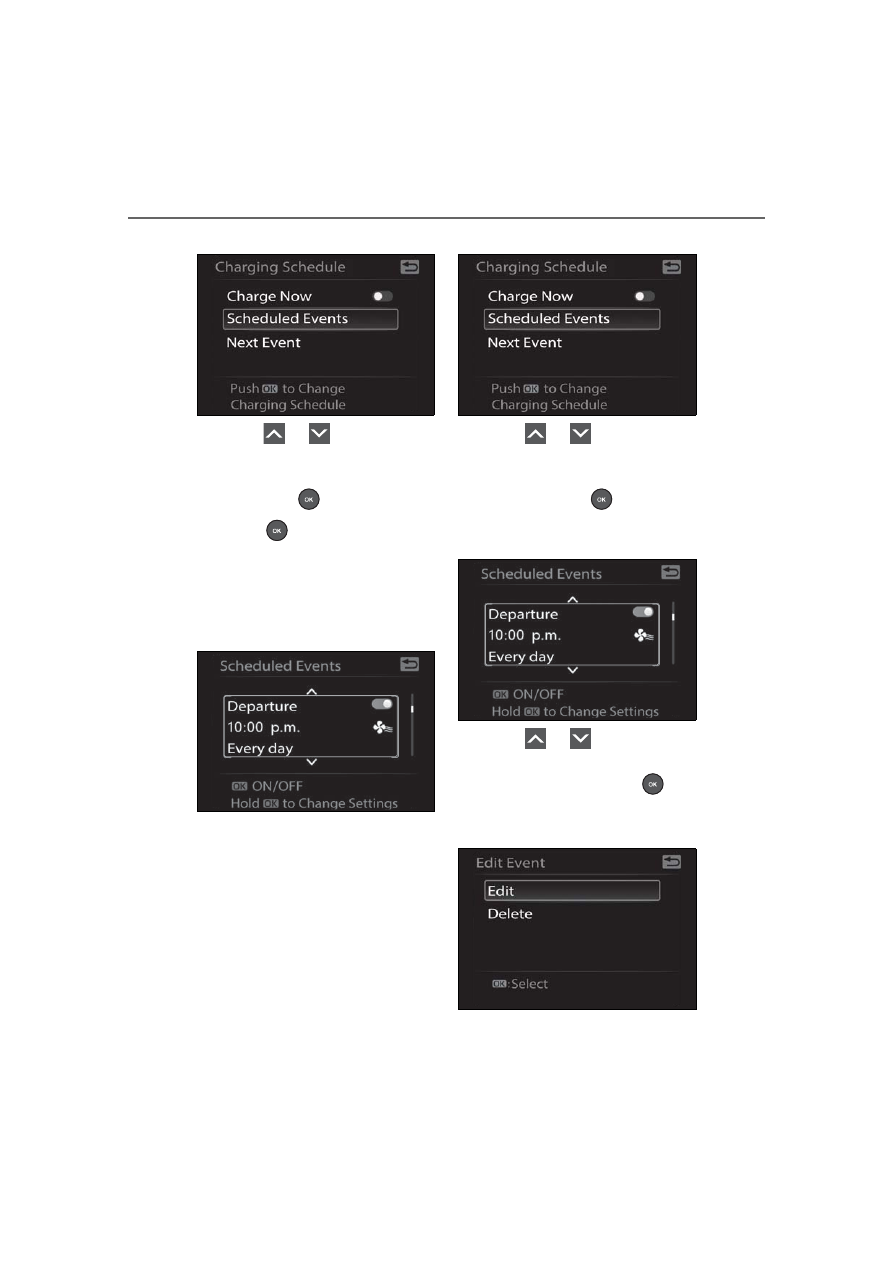

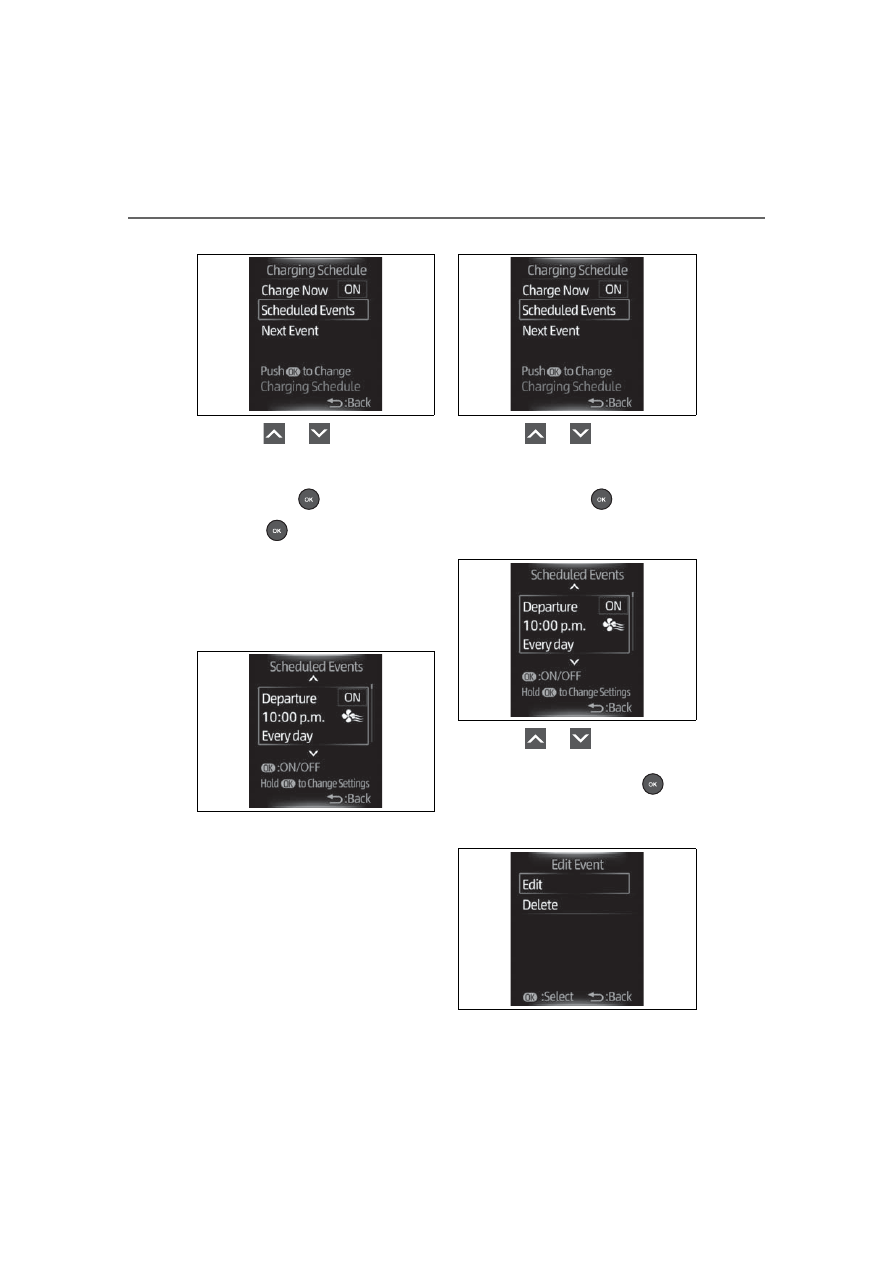

Changing the registered
charging schedules

The registered charging sched-
ules can be modified or deleted.

Perform step

of the

“Registering the charging
schedule” (



P.131) proce-

dure and display “Scheduled
Events” screen.

A list of the registered charging

schedule will be displayed.

Press

of the meter

control switches to select the
item to change, and then
press and hold

The “Edit Event” screen will be dis-

played.

Press

of the meter

control switches to select the
item to operate, press

and perform the necessary
operation.



“Edit”

135

2-2. Charging

Plug-in

hybri
d

Change the desired settings as
described starting from step

the “Registering the charging
schedule” procedure. (



P.131)

Press

to return to the previous

screen.



“Delete”

A deletion confirmation screen will
be displayed.

Press

of the meter con-

trol switches to select “Yes”, and
then press

to delete the

selected charging schedule.
To cancel deletion, select “No” and
then press

Press

to return to the previous

screen.

■

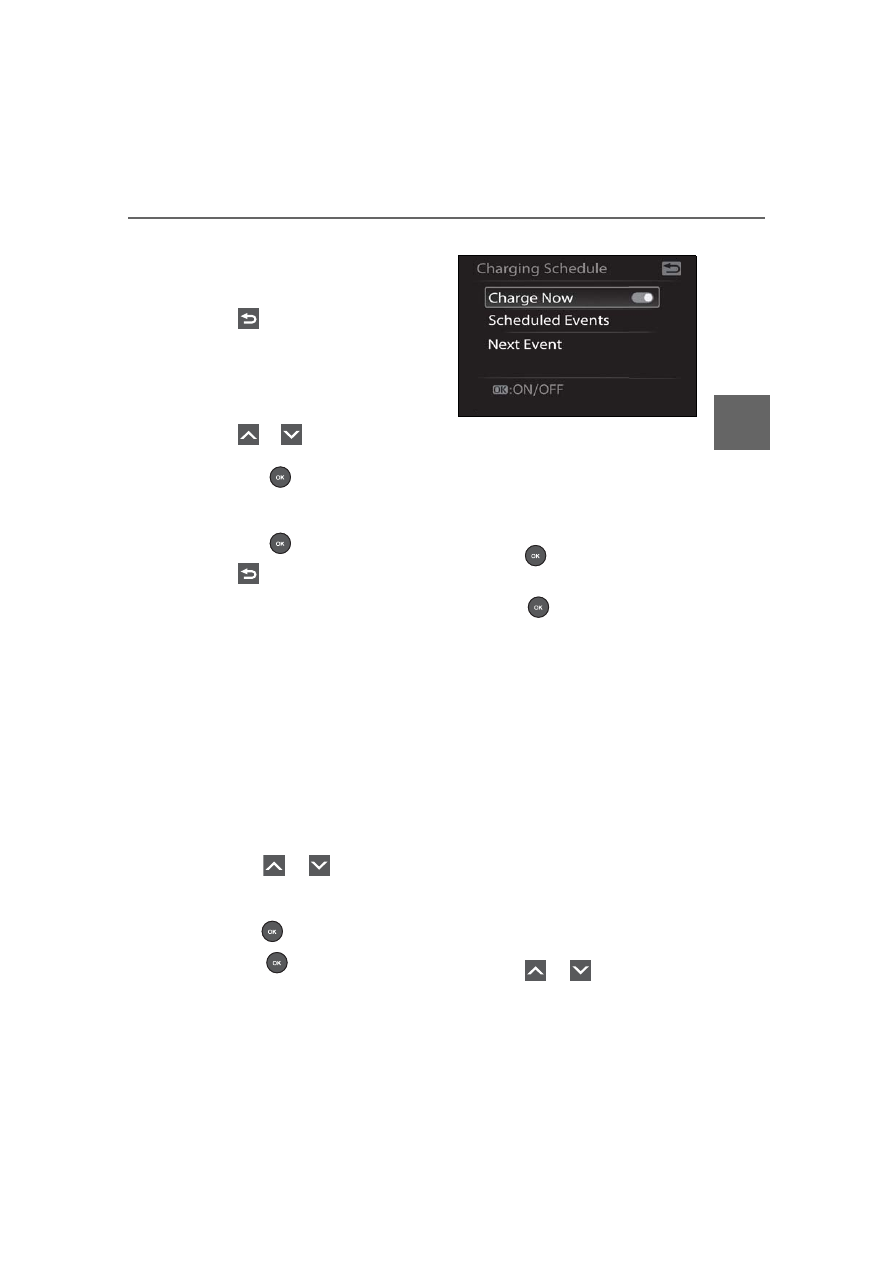

Setting “Charge Now” to on

The “Charge Now” setting can
be changed by performing one
of the two following procedures.



Operation on “Charging
Schedule” screen

Perform step

of the

“Registering the charging
schedule” procedure
(



P.131) and display

“Charging Schedule” screen.

Press

of the meter

control switches to select
“Charge Now”, and then
press

Each time

is pressed, “Charge

Now” switches between on and off.



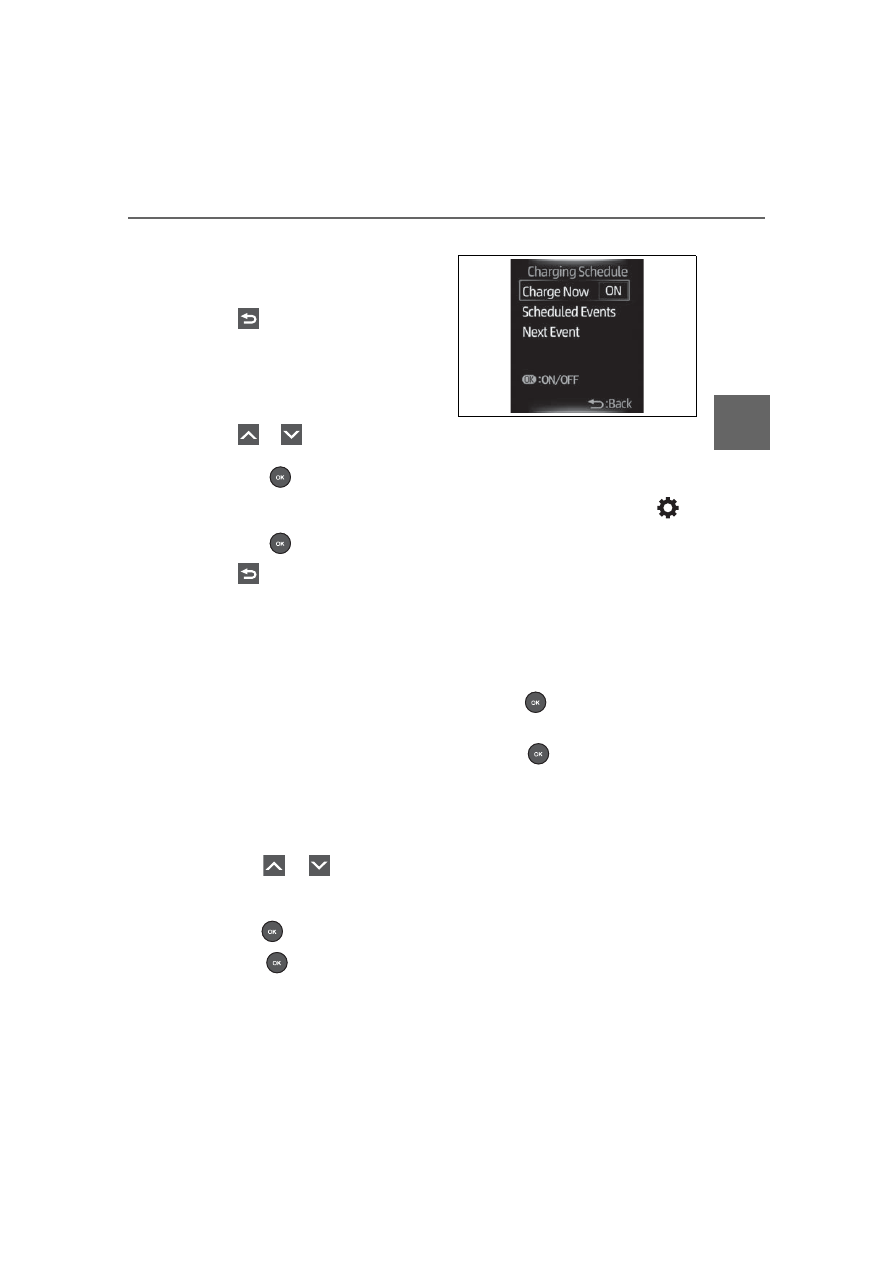

Operation on “Closing Dis-
play” screen

: If “Closing Display” is not set to

“Charging Schedule” on the

screen of the multi-information
display, the “Closing Display” is
not displayed. In this case, check
the settings on the multi-informa-
tion display.

Turn the power switch off.

The “Closing Display” screen is dis-

played on the multi-information dis-

play. (



P.137)

Press

to set “Charge

Now” to on.

Each time

is pressed, “Charge

Now” switches between on and off.

After setting operations are
complete, charging starts when
the AC charging cable is con-
nected. (



P.121)

■

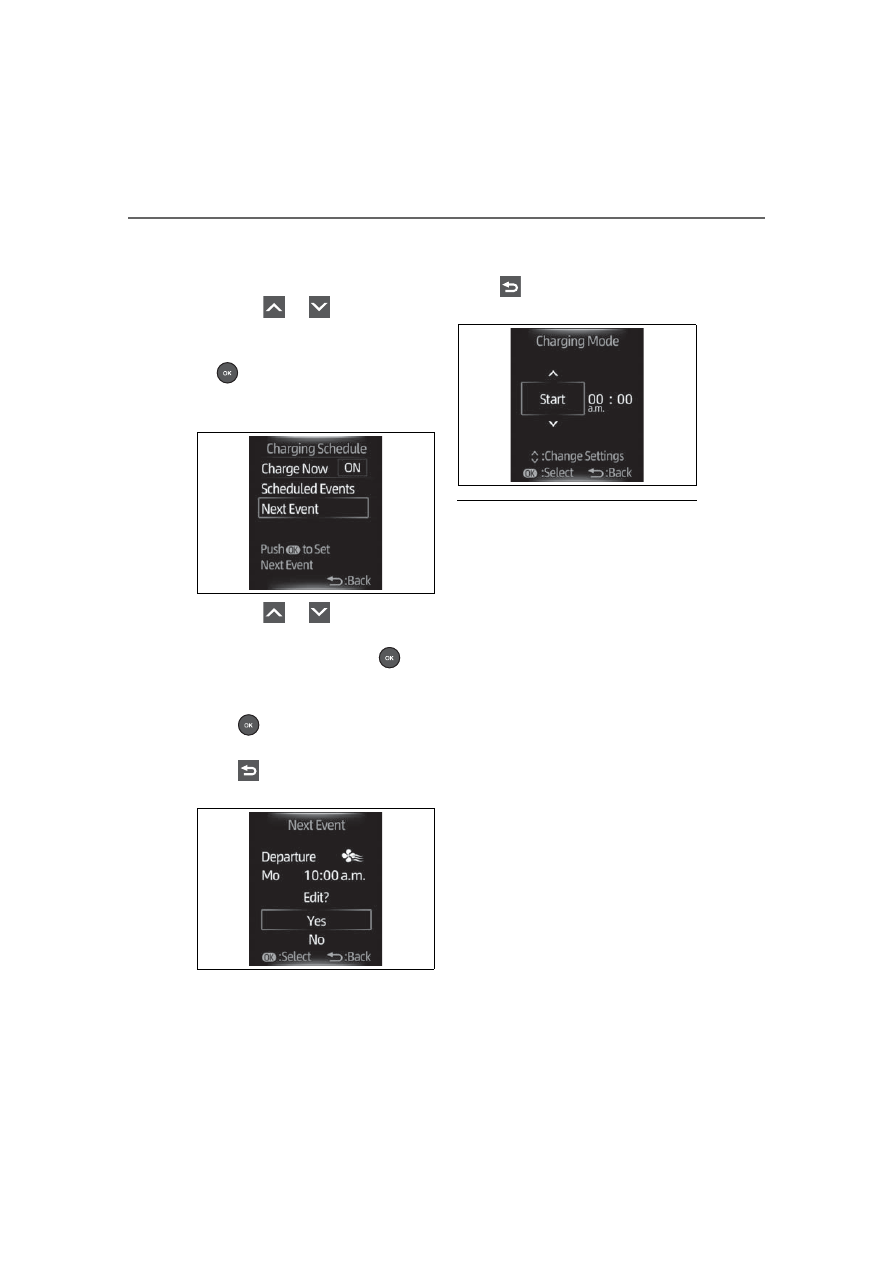

Changing “Next Event”

: When “Charge Now” is set to on

or when using “My Room Mode”
(



P.148) etc., it is not possible to

change the registered “Next
Event”.

Perform step

of the

“Registering the charging

136

2-2. Charging

schedule” procedure
(



P.131) and display

“Charging Schedule” screen.

Press

of the meter

control switches to select
“Next Event”, and then press

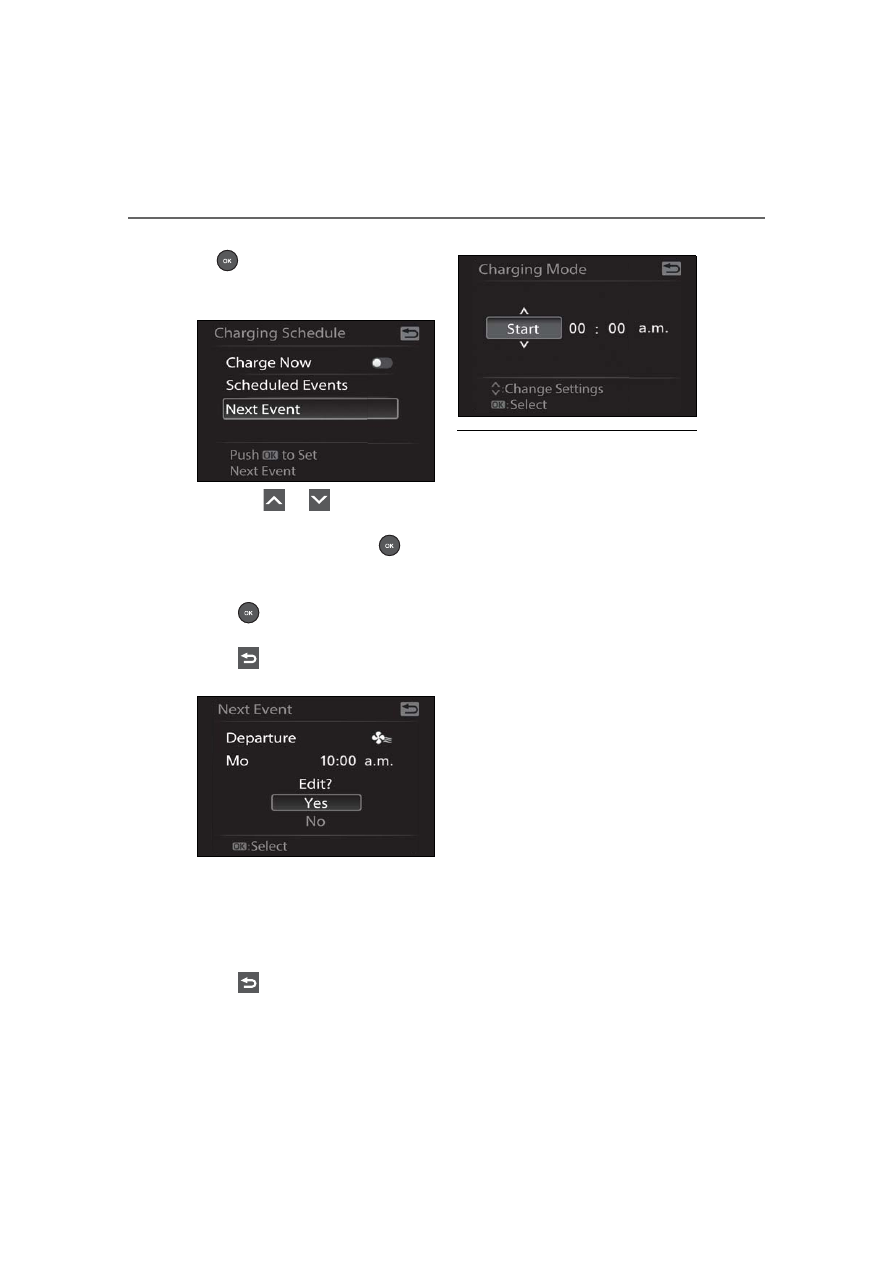

The “Next Event” screen will be dis-

played.

Press

of the meter

control switches to select
“Yes”, and then press

The confirmation message will be

displayed on the screen.

Press

, and the “Charging

Mode” screen will be displayed.

Press

to return to the previous

screen.

Change the desired settings
as described starting from
step

of the “Registering the

charging schedule” proce-
dure. (



P.131)

Press

to return to the previous

screen.

■

When charging schedule set-

ting operations are canceled

When the vehicle is in the following

conditions, charging schedule set-

ting operations are canceled.

●

The power switch is operated

before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority

than that of the charging schedule

setting is shown

■

“Next Event”

After charging completes, the “Next

Event” displayed on the multi-infor-

mation display will not change until

the AC charging cable is removed,

even after charging is performed

according to the “Next Event”

schedule.

■

To return to original setting

after changing “Next Event”

setting

Turning the setting of “Charge Now”

on and then off can return the set-

ting of “Next Event” to its original

setting.

■

When “Next Event” is changed

while charging

●

When the charging mode is

“Departure”, the current charging

is interrupted or continued

137

2-2. Charging

Plug-in

hybri
d

depending on the remaining time

until the charging is completed.

●

When the charging mode is

“Start”, the current charging is

interrupted, the next charging will

start at the set time.

■

When the power switch is

turned off

You can check the next charging
schedule (“Next Event”) on the
“Closing Display” screen

when

“Closing Display” is set to “Charging
Schedule” on

screen of the

multi-information display and the
power switch is turned off.

: The “Closing Display” screen may

not be displayed during charging.

When operating charging
schedule, use the meter control
switches.

Meter control switches
(



P.185)

Multi-information display

■

Registering the charging
schedule

Press and hold

to display

the cursor on the content dis-
play area (center) of the
multi-information display.

Press

of the meter

control switches to select

and then press

Press

of the meter

control switches and select

WARNING

■

Cautions while performing

the setting operation

When performing the setting

operation while the hybrid system

is operated, ensure that the vehi-

cle is parked in a place with ade-

quate ventilation. In a closed area

such as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While performing the setting

operation

When performing the setting

operation while the hybrid system

is stopped, be careful that the 12-

volt battery will not be discharged.

Setting operations on
12.3-inch multi-informa-
tion display (if equipped)

138

2-2. Charging

“

Vehicle Settings”. Then

press and hold

Press

of the meter

control switches to select
“Charging Settings”, and then
press

The “Charging Settings” screen will

be displayed.

Press

of the meter

control switches to select
“Charging Schedule”, and
then press

The “Charging Schedule” screen

will be displayed.

Press

of the meter

control switches to select
“Scheduled Events”, and
then press

The “Scheduled Events” screen will

be displayed.

Press

of the meter

control switches to select “+”,
and then press

The “Charging Mode” screen will be

displayed.

Press

of the meter

control switches to select the
item to change with the cur-
sor, and then press

to change the setting.

Set the desired charging mode and

charging start (or departure) time.
When the charging mode is “Start”,

this sets the charging start time.

When it is “Departure”, this sets the

charging end time.
After changing the settings to the
desired settings, press

When the charging mode is set to

“Departure”, the “Climate Prep”

screen is displayed. When the

charging mode is set to “Start”, the

“Repeat” screen (step

) is dis-

played.

When the charging mode is
set to “Departure”, set the
“Climate Prep” to on or off.

139

2-2. Charging

Plug-in

hybri
d

Press

of the meter con-

trol switches and select “Yes” or
“No”, and then press

Select “Yes” to turn on the air con-

ditioning system and select “No” to

turn it off.
The “Repeat” screen will be dis-

played.

: When the charging mode is set to

“Start”, “Climate Prep” screen will
not display.

To activate the repeated set-

ting, press

of the

meter control switches to
select the desired day to acti-
vate for the repeated setting,
and then press

Each time

is pressed, the

repeated setting switches between

on and off.
When set to on, the charging

schedule is repeated on that day. It

is possible to set more than one

day to on.
If no days are set to on, charging is

only carried out once according to

the charging schedule for the next

24 hours.
After changing the settings to the

desired settings, select “Done”, and
then press

A screen where the settings can be

saved will be displayed.

Select “Save” and press

to save the settings.

The settings will be saved.
If you wish to change the settings,
press

and perform the setting

procedure again.
After setting operations are com-

plete, when the AC charging cable

is connected to the vehicle,

charging will be carried out accord-

ing to the charging schedule set-

tings.

■

Switching charging sched-
ules between on and off

The registered charging sched-
ules can be turned on and off.

Perform step

of the

“Registering the charging
schedule” procedure
(



P.137) and display

“Scheduled Events” screen.

A list of the registered charging

140

2-2. Charging

schedule will be displayed.

Press

of the meter

control switches to select the
item to turn ON/OFF, and
then press

Each time

is pressed, the

selected charging schedule

switches between on and off.
When set to off, a charging sched-

ule is ignored and charging accord-

ing to the charging schedule is not

carried out.

■

Changing the registered
charging schedules

The registered charging sched-
ules can be modified or deleted.

Perform step

of the

“Registering the charging
schedule” (



P.137) proce-

dure and display “Scheduled
Events” screen.

A list of the registered charging

schedule will be displayed.

Press

of the meter

control switches to select the
item to change, and then
press and hold

The “Edit Event” screen will be dis-

played.

Press

of the meter

control switches to select the
item to operate, press

and perform the necessary
operation.



“Edit”

141

2-2. Charging

Plug-in

hybri
d

Change the desired settings as
described starting from step

the “Registering the charging
schedule” procedure. (



P.137)

Press

to return to the previous

screen.



“Delete”

A deletion confirmation screen will
be displayed.

Press

of the meter con-

trol switches to select “Yes”, and
then press

to delete the

selected charging schedule.
To cancel deletion, select “No” and
then press

Press

to return to the previous

screen.

■

Setting “Charge Now” to on

The “Charge Now” setting can
be changed by performing one
of the two following procedures.



Operation on “Charging
Schedule” screen

Perform step

of the

“Registering the charging
schedule” procedure
(



P.137) and display

“Charging Schedule” screen.

Press

of the meter

control switches to select
“Charge Now”, and then
press

Each time

is pressed, “Charge

Now” switches between on and off.



Operation on “Closing Dis-
play” screen

Turn the power switch off.

The “Closing Display” screen is dis-

played on the multi-information dis-

play. (



P.143)

Press

to set “Charge

Now” to on.

Each time

is pressed, “Charge

Now” switches between on and off.

After setting operations are
complete, charging starts when
the AC charging cable is con-
nected. (



P.121)

■

Changing “Next Event”

: When “Charge Now” is set to on

or when using “My Room Mode”
(



P.148) etc., it is not possible to

change the registered “Next
Event”.

Perform step

of the

“Registering the charging
schedule” procedure
(



P.137) and display

“Charging Schedule” screen.

Press

of the meter

control switches to select

142

2-2. Charging

“Next Event”, and then press

The “Next Event” screen will be dis-

played.

Press

of the meter

control switches to select
“Yes”, and then press

The confirmation message will be

displayed on the screen.

Press

, and the “Charging

Mode” screen will be displayed.

Press

to return to the previous

screen.

Change the desired settings
as described starting from
step

of the “Registering the

charging schedule” proce-
dure. (



P.137)

Press

to return to the previous

screen.

■

When charging schedule set-

ting operations are canceled

When the vehicle is in the following

conditions, charging schedule set-

ting operations are canceled.

●

The power switch is operated

before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority

than that of the charging schedule

setting is shown

■

“Next Event”

After charging completes, the “Next

Event” displayed on the multi-infor-

mation display will not change until

the AC charging cable is removed,

even after charging is performed

according to the “Next Event”

schedule.

■

To return to original setting

after changing “Next Event”

setting

Turning the setting of “Charge Now”

on and then off can return the set-

ting of “Next Event” to its original

setting.

■

When “Next Event” is changed

while charging

●

When the charging mode is

“Departure”, the current charging

is interrupted or continued

depending on the remaining time

until the charging is completed.

●

When the charging mode is

“Start”, the current charging is

143

2-2. Charging

Plug-in

hybri
d

interrupted, the next charging will

start at the set time.

■

When the power switch is

turned off

You can check the next charging

schedule (“Next Event”) on the
“Closing Display” screen

: The “Closing Display” screen may

not be displayed during charging.

For details on how to operate the
Multimedia Display, refer to “MUL-
TIMEDIA OWNER’S MANUAL”.

Setting operations related to the
charging schedule are per-
formed on the “Charging sched-
ule” screen.
The illustrations used in the text
may differ from the images that
are actually displayed on the
Multimedia Display.

■

Displaying the “Charging
schedule” screen

Turn the power switch to ON
and display the menu screen.

Check that the “IGNITION ON” is

displayed on the multi-information

display.
When the power switch is in ACC,

charging schedule setting operation

can not be performed.

Select

and “Charging

schedule”, in that order.

The “Charging schedule” screen

will be displayed.

WARNING

■

Cautions while performing

the setting operation

When performing the setting

operation while the hybrid system

is operated, ensure that the vehi-

cle is parked in a place with ade-

quate ventilation. In a closed area

such as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While performing the setting

operation

When performing the setting

operation while the hybrid system

is stopped, be careful that the 12-

volt battery will not be discharged.

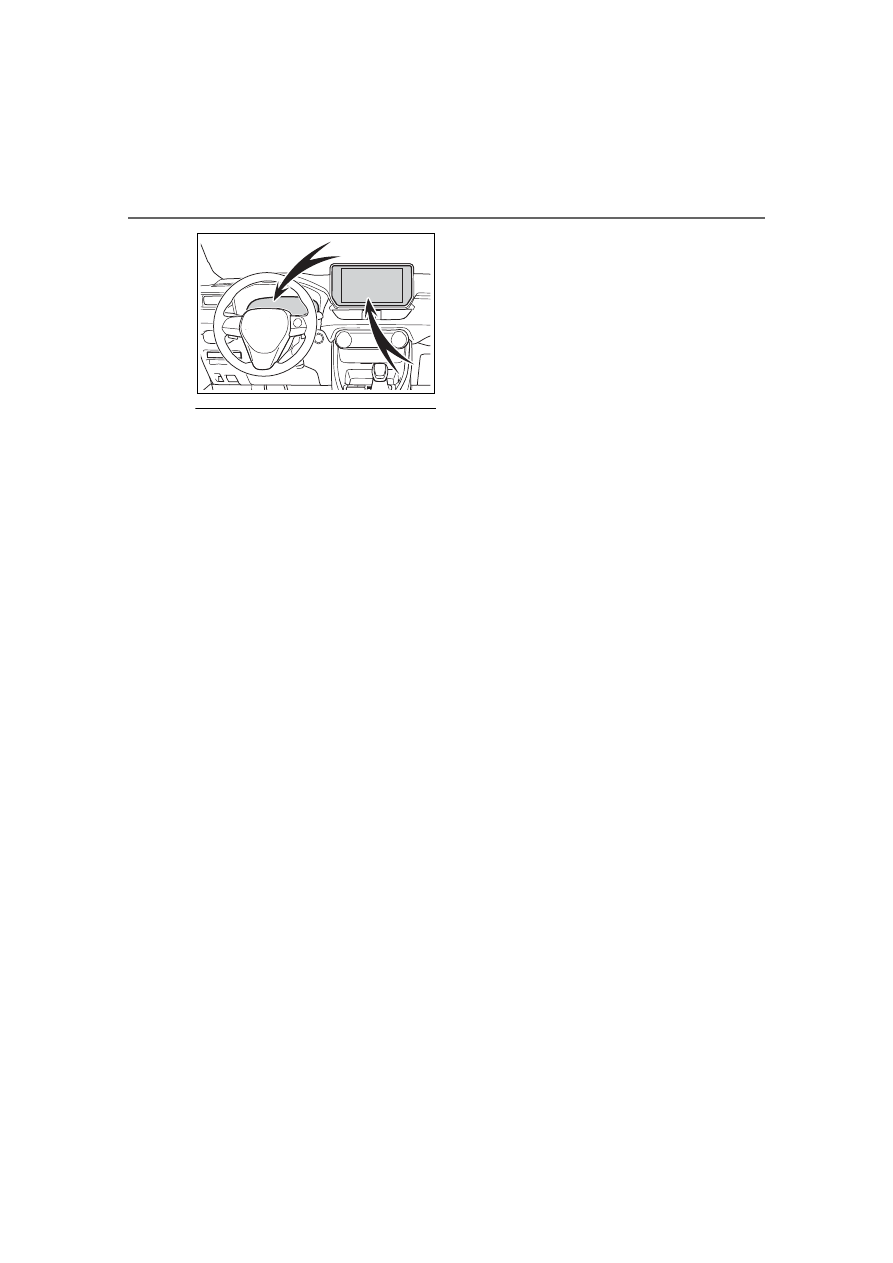

Setting operations on the
Multimedia Display

Toyota RAV4 Prime (2023 year). Manual in english - page 8
