8-1. List of specifications

cle

inf
ormat

For Mexico, Saudi Arabia, Sultanate

of Oman, Bahrain, United Arab Emir-

ates, Qatar, Kuwait: This number is

also stamped on the top left of the

instrument panel.

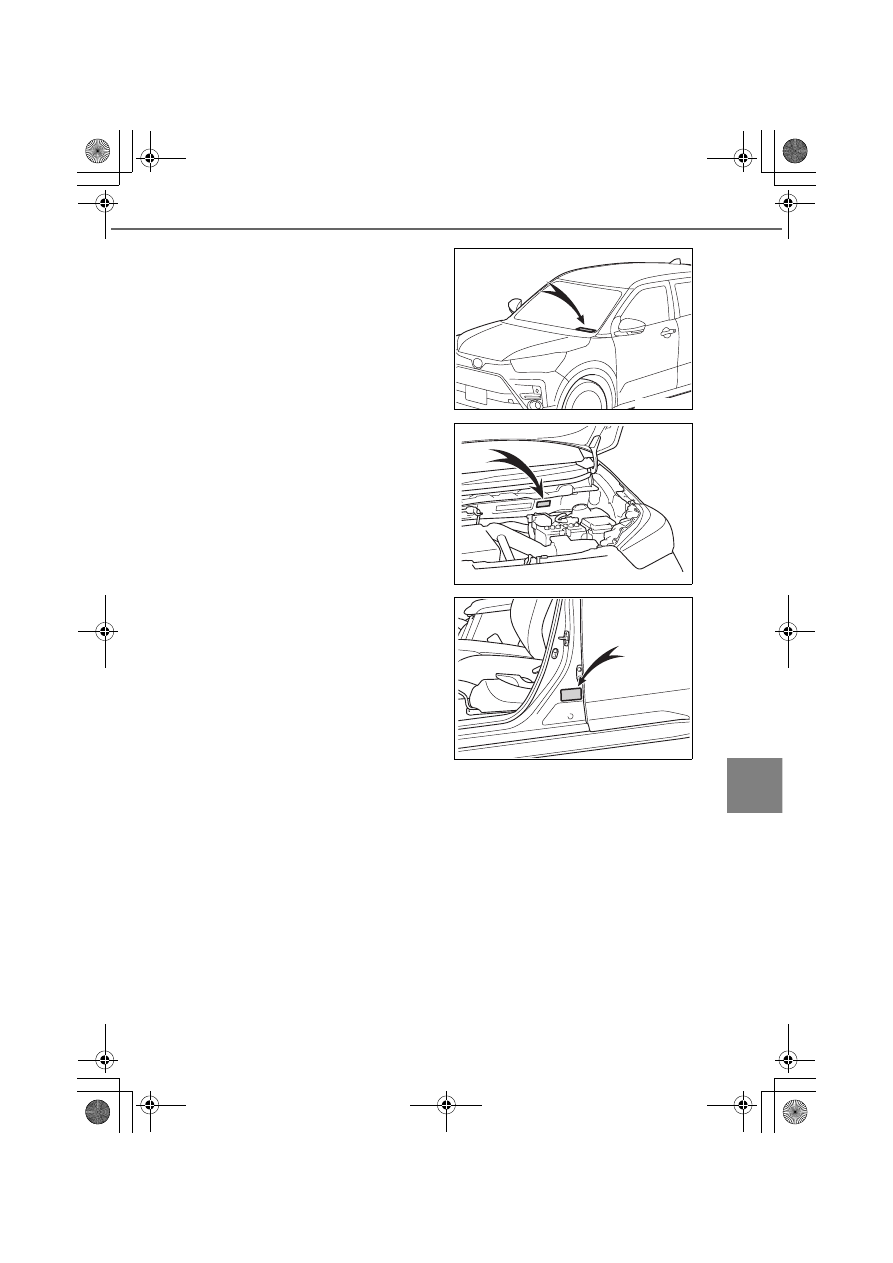

This number is also stamped on the

manufacturer’s plate.

For Saudi Arabia, Sultanate of Oman,

Bahrain, United Arab Emirates,

Qatar, Kuwait: This number is also

on the Certification Regulation plate.

⬛

Year of manufacture and country of origin (Saudi Arabia, Sultanate
of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait)

The year of the manufacture and country of origin are shown on the Certi-

fication Regulation plate.

KBRO810103E

KBRO810104N

KBRO810105E

420

8-1. List of specifications

⬛

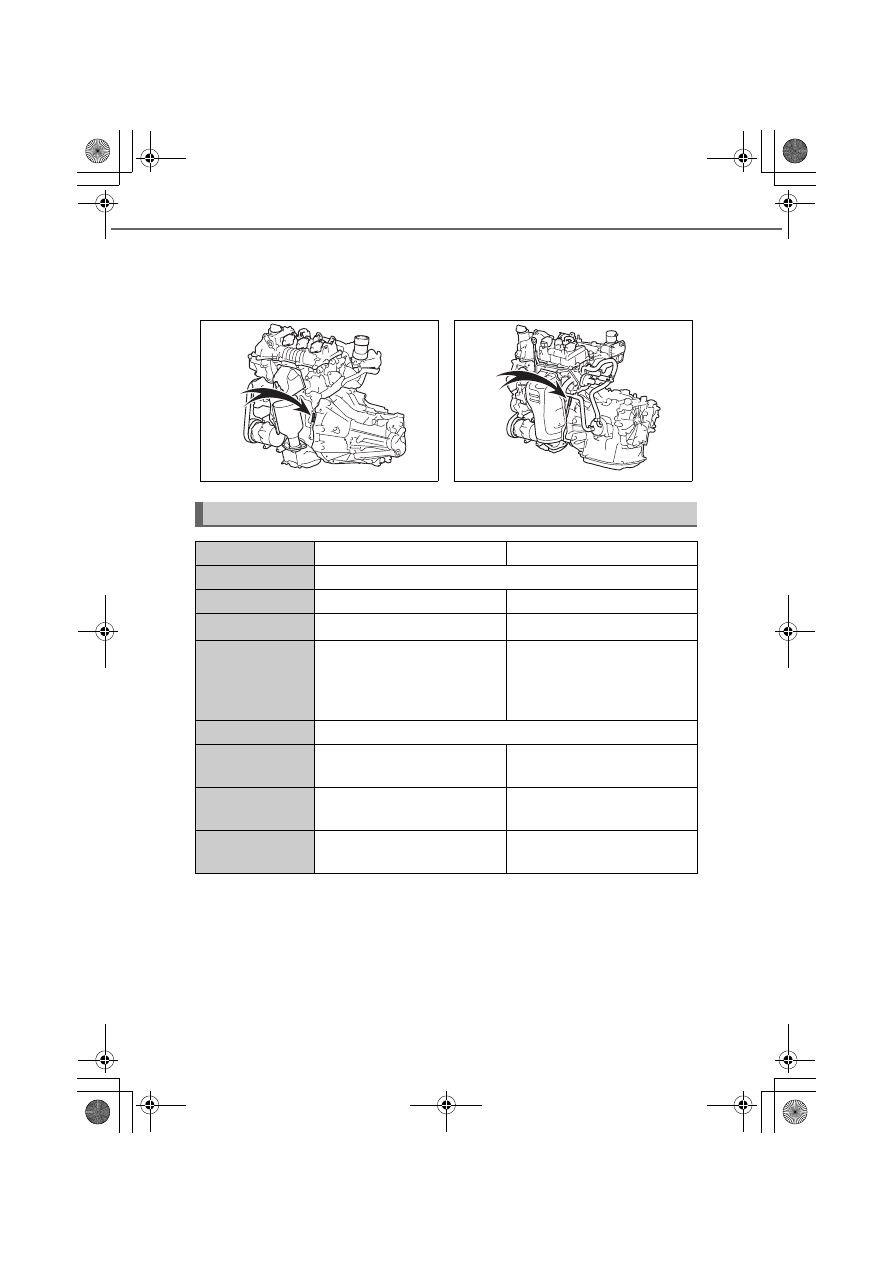

Engine number

The engine number is stamped on the engine block as shown.

▶

WA-VE engine

▶

1KR-VET engine

Engine

For Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait

KBRO810102N

KBRO810103N

Model

WA-VE

1KR-VET

Type

3-cylinder in line, 4-cycle, gasoline

Bore and stroke

73.5 x 94.1mm (2.89 x 3.70 in.) 71.0 x 84.0 mm (2.80 x 3.31 in.)

Displacement

1198 cm

(73.1 cu.in.)

998 cm

(60.9 cu.in.)

Valve clearance

(engine cold)

Automatic adjustment

Intake: 0.145 - 0.235 mm

(0.006 - 0.009 in.)
Exhaust: 0.275 - 0.365 mm

(0.011 - 0.014 in.)

Drive belt tension

Automatic adjustment

Maximum vehicle
speed

160 km/h (99 mph)

175 km/h (108 mph)

Maximum
torque

(NET)

113 N·m (11.5 kgf·m,

83.3 ft·lbf) @4500 rpm

140 N·m (14.3 kgf·m,

103.3 ft·lbf) @2400 - 4000 rpm

Maximum out-
put

(NET)

65 kW (87.1 HP) @6000 rpm

72 kW (96.5 HP) @6000 rpm

421

8-1. List of specifications

cle

inf
ormat

Fuel

Lubrication system (WA-VE engine)

The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.

⬛

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota

approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following

grade and viscosity.

Oil grade:

0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Conserving” or

SP “Resource-Conserving”; or ILSAC GF-6B multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN “Resource-

Conserving”, SN PLUS “Resource-Conserving” or SP “Resource-Conserv-

ing”; or ILSAC GF-6A multigrade engine oil

Fuel type

Unleaded gasoline only

Research Octane Number

90 or higher

Fuel tank capacity (Reference)

36 L (9.5 gal., 7.9 Imp.gal.)

Oil capacity

(Drain and refill - reference*)
With filter
Without filter

3.4 L (3.6 qt., 3.0 Imp.qt.)
3.2 L (3.4 qt., 2.8 Imp.qt.)

422

8-1. List of specifications

Recommended viscosity (SAE):

SAE 0W-16 is filled into your Toyota

vehicle at manufacturing, and the

best choice for good fuel economy

and good starting in cold weather.

Oil viscosity (0W-16 is explained here as an example):

⚫

The 0W in 0W-16 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting

of the engine in cold weather.

⚫

The 16 in 0W-16 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a

higher value) may be better suited if the vehicle is operated at high

speeds, or under extreme load conditions.

How to read oil container labels:

Either or both API registered marks are added to some oil containers to

help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SP” means

the oil quality designation by American

Petroleum Institute (API).
Center portion: “SAE 0W-16” means the

SAE viscosity grade.
Lower portion: “Resource-Conserving”

means that the oil has fuel-saving and

environmental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specifica-

tion Advisory Committee (ILSAC) Certifi-

cation Mark is displayed on the front of

the container.

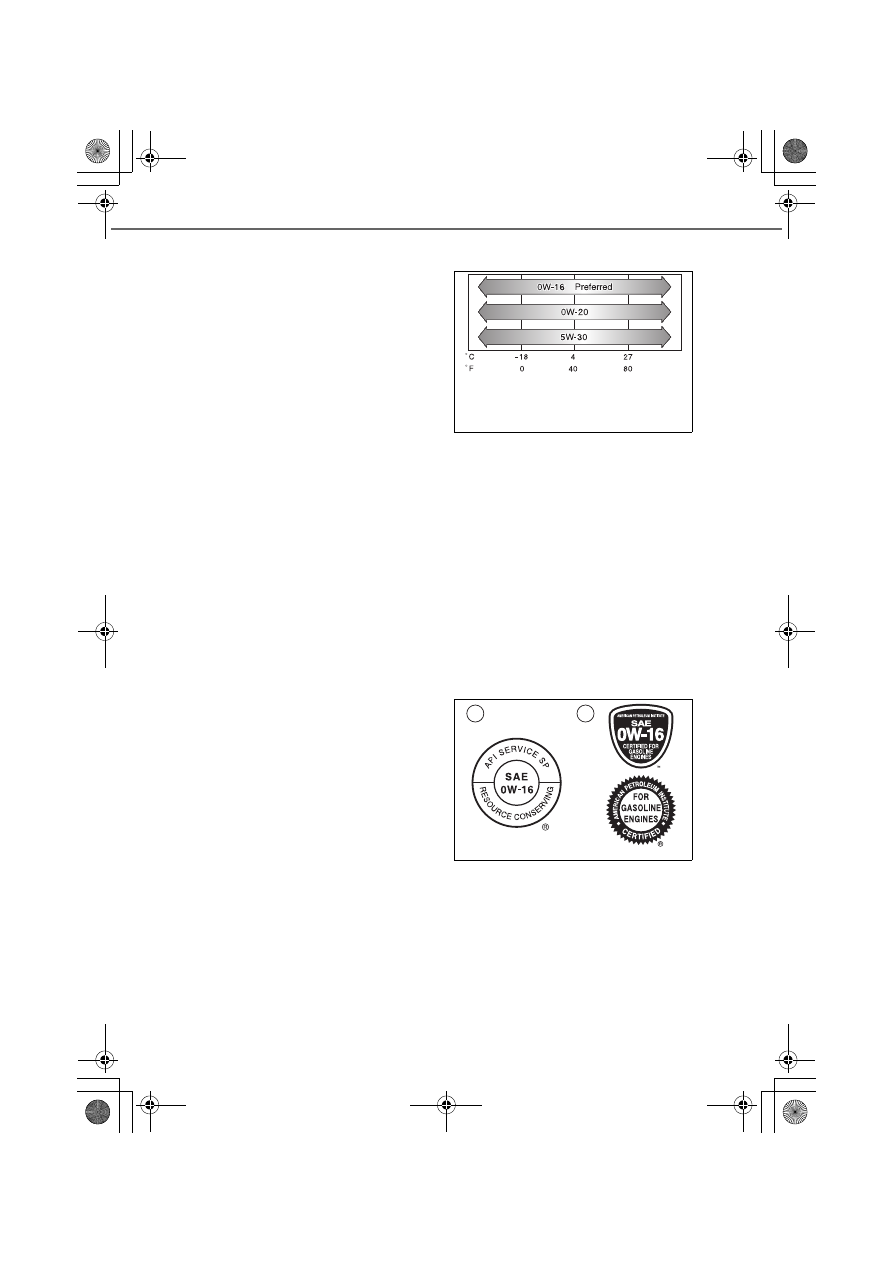

KBRO810105N

Temperature range anticipated before

next oil change.

KBRO810106N

423

8-1. List of specifications

cle

inf
ormat

Lubrication system (1KR-VET engine)

The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.

⬛

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota

approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following

grade and viscosity.

Oil grade:

0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN “Resource-

Conserving”, SN PLUS “Resource-Conserving” or SP “Resource-Conserv-

ing”; or ILSAC GF-6A multigrade engine oil

Oil capacity

(Drain and refill - reference*)
With filter
Without filter

3.1 L (3.3 qt., 2.7 Imp.qt.)
2.9 L (3.1 qt., 2.6 Imp.qt.)

424

8-1. List of specifications

Recommended viscosity (SAE):

SAE 0W-20 is filled into your Toyota

vehicle at manufacturing, and the

best choice for good fuel economy

and good starting in cold weather.

Oil viscosity (0W-20 is explained here as an example):

⚫

The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting

of the engine in cold weather.

⚫

The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a

higher value) may be better suited if the vehicle is operated at high

speeds, or under extreme load conditions.

How to read oil container labels:

Either or both API registered marks are added to some oil containers to

help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SP” means

the oil quality designation by American

Petroleum Institute (API).
Center portion: “SAE 0W-20” means the

SAE viscosity grade.
Lower portion: “Resource-Conserving”

means that the oil has fuel-saving and

environmental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specifica-

tion Advisory Committee (ILSAC) Certifi-

cation Mark is displayed on the front of

the container.

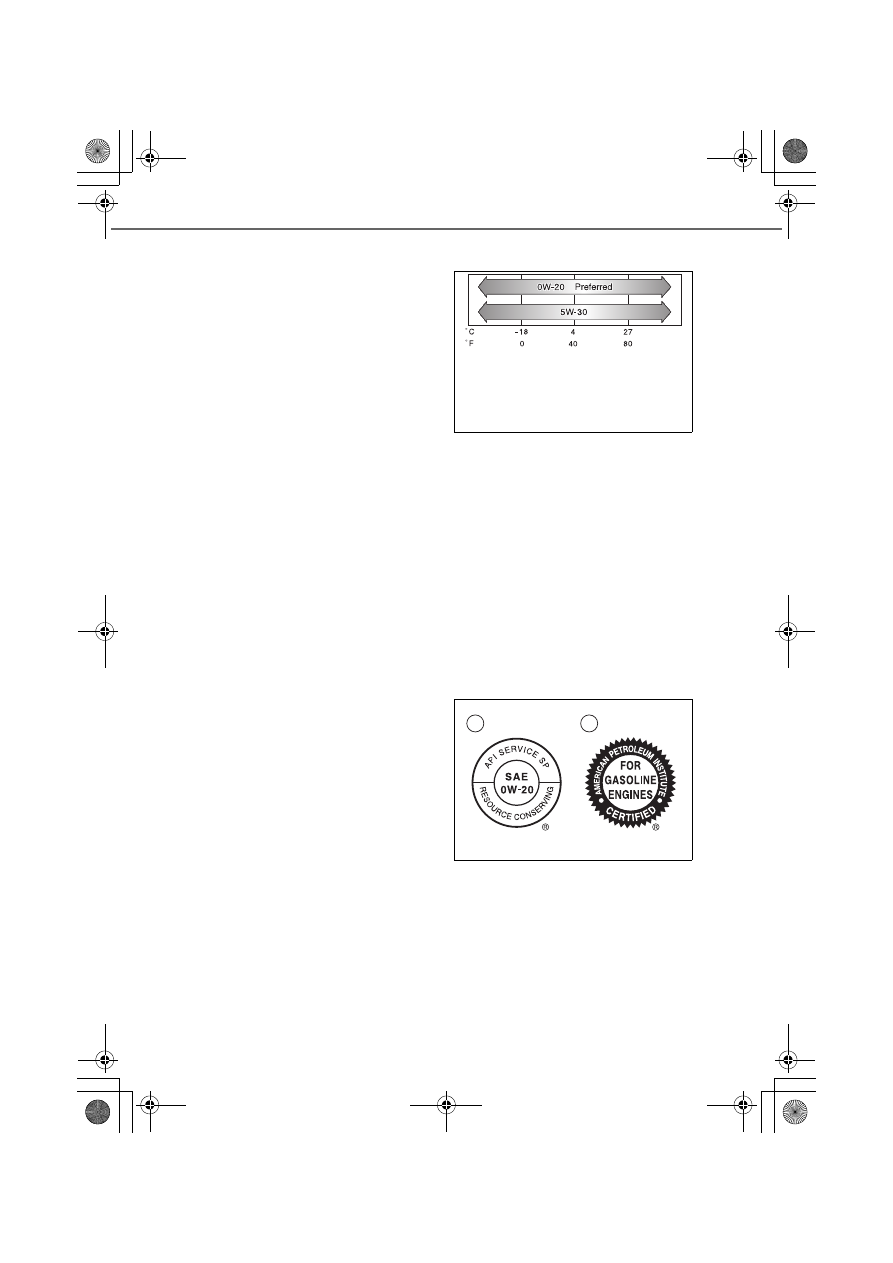

KBRO810107N

Temperature range anticipated before

next oil change.

KBRO810108N

425

8-1. List of specifications

cle

inf
ormat

Cooling system

Except for hot area

For hot area

For vehicles without heater

For vehicles with heater

Ignition system

NOTICE

⬛

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

WA-VE engine

1KR-VET engine

Capacity

(Reference)

▶

Continuously variable trans-

mission

4.1 L (4.3 qt., 3.6 Imp.qt.)*

4.6 L (4.9 qt., 4.0 Imp.qt.)*

4.2 L (4.4 qt., 3.7 Imp.qt.)*

4.7 L (5.0 qt., 4.1 Imp.qt.)*

▶

Manual transmission

3.9 L (4.1 qt., 3.4 Imp.qt.)*

4.5 L (4.8 qt., 4.0 Imp.qt.)*

4.0 L (4.2 qt., 3.5 Imp.qt.)*

4.6 L (4.9 qt., 4.0 Imp.qt.)*

▶

Continuously variable trans-

mission

4.6 L (4.9 qt., 4.0 Imp.qt.)*

4.8 L (5.1 qt., 4.2 Imp.qt.)*

4.7 L (5.0 qt., 4.1 Imp.qt.)*

5.0 L (5.3 qt., 4.4 Imp.qt.)*

▶

Manual transmission

4.4 L (4.6 qt., 3.9 Imp.qt.)*

4.7 L (5.0 qt., 4.1 Imp.qt.)*

4.6 L (4.9 qt., 4.0 Imp.qt.)*

4.8 L (5.1 qt., 4.2 Imp.qt.)*

Coolant type

Use either of the following:

⚫

“Toyota Super Long Life Coolant”

⚫

A similar high-quality ethylene glycol-based non-silicate, non-
amine, non-nitrite, and non-borate coolant with long-life hybrid

organic acid technology

Do not use plain water alone.

Spark plug
Make

▶

WA-VE engine

DENSO FC20HR-Q8

▶

1KR-VET engine

NGK SILKAR7G8G

Gap

0.8 mm (0.031 in.)

426

8-1. List of specifications

Electrical system

Continuously variable transmission

The fluid capacity is a reference quantity. If replacement is necessary, contact
your Toyota dealer.

NOTICE

⬛

Continuously variable transmission fluid type

Using continuously variable transmission fluid other than “TOYOTA GENUINE

CVT FLUID FE” may cause malfunction.

Manual transmission

Battery
Model
Specific gravity

reading at 20°C

(68°F):

34B19L
1.250 - 1.290 Fully charged
1.200 - 1.240 Half charged
1.170 or less Discharged

Charging rates
Quick charge
Slow charge

20 A max.
3 A max.

Fluid capacity*

6.0 L (6.3 qt., 5.3 Imp.qt.)

Fluid type

TOYOTA GENUINE CVT FLUID FE

Gear oil capacity

(Reference)

1.4 L (1.5 qt., 1.2 Imp.qt.)

Gear oil type

Gear oil API GL-4

Recommended

gear oil viscosity

SAE 80W

427

8-1. List of specifications

✽

: If equipped

cle

inf
ormat

Clutch

Brakes

Minimum pedal clearance when depressed with a force of 294 N (30 kgf, 66
lbf) while the engine is running

Parking brake lever travel when pulled up with a force of 196 N (20 kgf, 44 lbf)

Steering

Pedal free play

▶

WA-VE engine

19.0 - 30.0 mm (0.75 - 1.18 in.)

▶

1KR-VET engine

5.9 - 18.3 mm (0.23 - 0.72 in.)

Fluid type

✽

FMVSS No. 116 DOT 3

Pedal clearance*

88 mm (3.5 in.)

Pedal free play

0.5 - 2.0 mm (0.02 - 0.08 in.)

Parking brake lever

travel*

5 - 8 clicks

Fluid type

FMVSS No.116 DOT 3

Free play

Less than 10 mm (0.4 in.)

428

8-1. List of specifications

✽

: If equipped

Tires and wheels

Light bulbs

A :  HB3 halogen bulbs
B :  H11 halogen bulbs
C :  Wedge base bulbs (amber)

D :  Wedge base bulbs (clear)
E :  H16 halogen bulbs
F :  Double end bulbs

Tire size

205/65R16 95H

Tire inflation pres-

sure (Recom-

mended cold tire

inflation pressure)

Front wheels
kPa (kgf/cm

or bar, psi)

Rear wheels
kPa (kgf/cm

or bar, psi)

240 (2.4, 35)

Wheel size

16 x 6J

Wheel nut torque

103 N·m (10.5 kgf·m, 76 ft·lbf)

Tire size

205/60R17 94H

Tire inflation pres-

sure (Recom-

mended cold tire

inflation pressure)

Front wheels
kPa (kgf/cm

or bar, psi)

Rear wheels
kPa (kgf/cm

or bar, psi)

240 (2.4, 35)

Wheel size

17 x 6J

Wheel nut torque

103 N·m (10.5 kgf·m, 76 ft·lbf)

Light Bulbs

Type

Exterior

Headlights

✽

High beam
Low beam

60
55

A
B

Front turn signal lights

✽

Front position lights

✽

Front fog lights

✽

Rear turn signal lights

License plate lights

Back-up lights

Interior

Front personal lights

Rear interior light

Luggage compartment light

429

8-1. List of specifications

cle

inf
ormat

Fuel information

You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 90

(Octane rating 86) or higher for optimum engine performance.

⬛

Use of ethanol blended gasoline in a gasoline engine

Toyota allows the use of ethanol blended gasoline where the ethanol content

is up to 10%. Make sure that the ethanol blended gasoline to be used has a

Research Octane Number that follows the above.

⬛

If your engine knocks

⚫

Consult your Toyota dealer.

⚫

You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.

NOTICE

⬛

Notice on fuel quality

⚫

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

⚫

Do not use gasoline with metallic additives, for example manganese, iron or
lead, otherwise it may cause damage on your engine or emission control

system.

⚫

Do not add aftermarket fuel additives which contain metallic additives.

⚫

Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or fail-

ure.

430

✽

: If equipped

8-2. Customizations

List of customizable features

Your vehicle includes a variety of features that can be customized at

your Toyota dealer as desired.

Some features change their settings in conjunction with other features. Please

contact your Toyota dealer for more details.

Customizable features

⬛

Key-free system

✽

and wireless door lock (

➞

P. 121)

⬛

Key-free system

✽

(

➞

P. 121)

Feature

Initial setting

Customized setting

Operation signal (Emergency flash-

ers)

None

Period of time after a door is

unlocked before it is automatically

locked if not opened

30 seconds

60 seconds

120 seconds

Operation signal (Volume)

Level 5

OFF
Level 1 to 7

Feature

Initial setting

Customized setting

Operation of key-free system

None

Activation of electronic key’s auto

detection function outside the vehi-

cle

None

431

8-2. Customizations

✽

: If equipped

cle

inf
ormat

⬛

Door lock (

➞

P. 136)

⬛

Back door (vehicles with key-free system) (

➞

P. 142)

⬛

BSM

✽

. RCTA

✽

(

➞

P. 211)

⬛

Lights (

➞

P. 198)

Feature

Initial setting

Customized setting

Speed linked door locking function ON

None

Shifting the shift lever to positions

other than P locks all doors
(Shift position linked door locking)

✽

None

Shifting the shift lever to P unlocks

all doors
(Shift position linked door unlock-

ing)

✽

None

Turning the engine switch to “ACC”

or “OFF” unlocks all doors
(Engine switch “OFF” linked auto-

matic door unlocking)

None

Feature

Initial setting

Customized setting

Operation with the switch on the

right side of the back door

Lock only

Lock and unlock

Feature

Initial setting

Customized setting

Brightness of the outside rear view

mirror indicators

Bright

Dark

Feature

Initial setting

Customized setting

Automatic light off system

Engine switch linked Driver’s door linked

Follow me home

✽

(Time elapsed

before headlights automatically turn

off)

30 seconds

60 seconds
90 seconds
120 seconds

Timing of the headlight switch being

turned on and off automatically

Normal

Fast
Slow

432

8-2. Customizations

✽

: If equipped

⬛

Meters (

➞

P. 114)

⬛

Illumination (

➞

P. 263)

⬛

Outside rear view mirrors (vehicles with key-free system) (

➞

P. 157)

If the setting of the unfolding the outside rear view mirrors with automatic mode
is changed to the one linked to engine switch operation

Feature

Initial setting

Customized setting

Sensitivity of switching the instru-

ment panel lights to night mode

-2 to 2

Feature

Initial setting

Customized setting

Period of time after a door is

opened or closed before the lit inte-

rior lights are automatically turned

off

15 seconds

OFF
7.5 seconds
30 seconds

The interior lights turn off automati-

cally

OFF

The interior lights automatically turn

on after the engine switch is turned

to “OFF”

None

The interior lights automatically turn

on when approaching the vehicle

with the electronic key

✽

OFF

Feature

Initial setting

Customized setting

Folding and unfolding the outside

rear view mirrors with the outside

rear view mirror switches

Fold and unfold

when the engine

switch is “ACC” or

“ON”

Fold and unfold

when the engine

switch is “ON”

Unfolding the outside rear view mir-

rors with automatic mode

Unfold the mirrors

linked to key-free

system door unlock-

ing

Unfold the mirrors

linked to engine

switch operation

Unfolding the outside rear view mir-

rors with engine switch operation*

Unfold the mirrors

when the engine

switch is turned to

“ACC” or “ON”

Unfold the mirrors

when the engine

switch is turned to

“ON”

433

8-2. Customizations

cle

inf
ormat

⬛

Windshield wiper (

➞

P. 203)

⬛

Rear wipers and washer (

➞

P. 205)

⬛

Turn signal lever (

➞

P. 196)

Feature

Initial setting

Customized setting

Vehicle speed sensitive intermittent

operation function

OFF

Feature

Initial setting

Customized setting

Reverse wiper function

OFF

Adjusting intermittent operation

time

Normal

Fast
Slow

4-second low speed operation when

starting intermittent operation

OFF

Rear washer link function

OFF

Feature

Initial setting

Customized setting

Operation buzzer

OFF

Function to make the light flash 3

times when the lever is moved half

way

OFF

Time to hold the lever until the

opposite side’s light starts flashing 3

times after moving the lever to the

opposite side to stop the flashing

Level 2

Level 1 to 4

434

✽

: If equipped

8-3. Initial setting

Item that requires initial setting

The following item requires initial setting for proper system opera-

tion after such cases as the battery being reconnected, or mainte-

nance being performed on the vehicle

Item

Feature

Reference

Power windows

⚫

When reconnecting the battery after
charging or replacement

⚫

When replacing fuses

P. 161

Tire pressure warning sys-

tem

✽

⚫

When rotating front and rear tires
which have different tire inflation

pressures

⚫

When changing the tire size

P. 329

Toyota Raize (2023 year). Manual in english - page 26
