7-2. Steps to take in an emergency

✽

: If equipped

WARNING

⬛

When the electric power steering system warning light comes on

When the light comes on yellow, the assist to the power steering is restricted.

When the light comes on red, the assist to the power steering is lost and han-

dling operations of the steering wheel become extremely heavy. When steer-

ing wheel operations are heavier than usual, grip the steering wheel firmly and

operate it using more force than usual.

⬛

If the tire pressure warning light comes on (vehicles with a tire pressure
warning system)

Be sure to observe the following precautions. Failure to do so could cause a

loss of vehicle control and result in death or serious injury.

⚫

Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation
pressure immediately.

⚫

If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire is

flat, change it with the spare tire and have the flat tire repaired by the near-

est Toyota dealer.

⚫

Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.

⬛

If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)

The tire pressure warning system may not activate immediately.

NOTICE

⬛

To ensure the tire pressure warning system

✽

operates properly

Do not install tires with different specifications or makers, as the tire pressure

warning system may not operate properly.

387

7-2. Steps to take in an emergency

✽

: If equipped

When t

roubl
e arises

When warning messages are displayed

✽

If the warning message appears on the TFT color multi-information

display, be calm and take action as specified below.

If the message appears again after troubleshooting, contact your Toyota

dealer.

Messages and warnings

Warning messages

Indicators/

Warning

lights

Warning content/Action to take

“Brake Fluid Low Stop

in a Safe Place. Contact

Your Dealer.”

Low brake fluid level

When the vehicle speeds exceeds approx. 5

km/h (3 mph), the warning buzzer will

sound.

➞

Immediately stop the vehicle in a safe

place and contact your Toyota dealer.

Continuing to drive the vehicle is danger-

ous.

“Brake System Mal-

function Stop in a Safe

Place. Contact Your

Dealer.”

Malfunction in the brake system

➞

Immediately stop the vehicle in a safe

place and contact your Toyota dealer.

Continuing to drive the vehicle is danger-

ous.

“Charging System Mal-

function Stop in a Safe

Place. Contact Your

Dealer.”

Malfunction in the vehicle’s charging sys-

tem

➞

Immediately stop the vehicle in a safe

place and contact your Toyota dealer.

“Oil Pressure Low Stop

in a Safe Place. Contact

Your Dealer.”

Abnormal engine oil pressure

The warning buzzer will sound.

➞

Immediately stop the vehicle in a safe

place and contact your Toyota dealer.

“Engine Coolant Temp

High Stop in a Safe

Place. Contact Your

Dealer.”

(Red)

Abnormally high temperature of engine

coolant

➞

Immediately stop the vehicle in a safe

place and contact your Toyota dealer.

388

7-2. Steps to take in an emergency

✽

: If equipped

“Engine Control Sys-

tem Malfunction Visit

Your Dealer”

Malfunction in the electronic engine control

system
Electronic control throttle error

➞

Have the vehicle inspected at your Toy-

ota dealer immediately.

“Transmission System

Malfunction Visit Your

Dealer”

Malfunction in the electronic automatic

transmission control system

✽

➞

Have the vehicle inspected at your Toy-

ota dealer immediately.

“SRS Airbag Malfunc-

tion Visit Your Dealer”

Malfunction in the SRS airbag system
Malfunction in the seat belt pretensioner &

force limiter system

➞

Have the vehicle inspected at your Toy-

ota dealer immediately.

“ABS System Malfunc-

tion Visit Your Dealer”

Malfunction in the ABS system

➞

Have the vehicle inspected at your Toy-

ota dealer immediately.

“Power Steering Mal-

function Visit Your

Dealer”

(Red)

Malfunction in EPS (Electric Power Steering)

system

The warning buzzer will sound.

➞

Have the vehicle inspected at your Toy-

ota dealer immediately.

“Steering Performance

Is Reduced Steering

Power Low”

(Yellow)

Low battery voltage/Electric power steering

overheating

The warning buzzer will sound.

➞

Steering wheel operation becomes

heavy. Restrain from operating the

steering wheel for a short while. When

about 10 minutes has passed, it will

return to its usual weight.

“Smart Entry & Start

System Malfunction

Visit Your Dealer”

Malfunction in the key-free system

➞

Have the vehicle inspected at your Toy-

ota dealer immediately.

Warning messages

Indicators/

Warning

lights

Warning content/Action to take

389

7-2. Steps to take in an emergency

✽

: If equipped

When t

roubl
e arises

“Sonar Sensor Mal-

function Visit Your

Dealer”

Malfunction of the front corner sensors or

reverse sensors

✽

The warning buzzer will sound.

➞

Have the vehicle inspected at your Toy-

ota dealer.

“Sonar Sensor Func-

tion Stop”

―

Degraded functionality of the front corner

sensors or reverse sensors

✽

The warning buzzer will sound.

➞

Check if the sonar is not covered with

rain, snow, ice, or dirt and remove those

attached.

“VSC System Malfunc-

tion Visit Your Dealer”

Malfunction in the brake assist
Malfunction in the VSC system
Malfunction in the TRC system
Malfunction in the hill-start assist control

system

➞

Have the vehicle inspected at your Toy-

ota dealer.

“BSM Malfunction Visit

Your Dealer”

(Flashing)

Malfunction of the BSM

✽

➞

Have the vehicle inspected at your Toy-

ota dealer.

“BSM Temporary Una-

vailable”

(Flashing)

Degraded BSM function

✽

If you use the function in an extremely hot

or cold environment or if the battery voltage

is lower or higher than the specified level,

the display is turned on.

➞

When the above causes are resolved, the

display will disappear.

If the display persists for a long time,

have the vehicle inspected at your Toy-

ota dealer.

Warning messages

Indicators/

Warning

lights

Warning content/Action to take

390

7-2. Steps to take in an emergency

“BSM Radar Blocked

Temporarily Unavaila-

ble”

(Flashing)

Dirty BSM radar

✽

➞

Check if the bumper sensors are not cov-

ered with rain, snow, ice, or dirt and

remove those attached.

“Check Vehicle Com-

munication Visit Your

Dealer”

Malfunction in the vehicle communication

system

➞

Have the vehicle inspected at your Toy-

ota dealer.

“Brake Override Sys-

tem Malfunction Visit

Your Dealer”

―

Malfunction in the Brake Override System

➞

Have the vehicle inspected at your Toy-

ota dealer.

“Brake & Accelerator

Pressed Simultane-

ously”

―

Brake Override System is activated

➞

Release your foot from the accelerator

pedal.

“Open”

―

At least one of the doors or the hood is not

completely closed

The open doors and/or hood will be dis-

played.
The open door warning buzzer sounds

when at least one of the doors or the hood

of the vehicle is not completely closed and

the vehicle’s speed exceeds approx. 5 km/h

(3 mph).

➞

Close all doors and/or the hood

“Refuel”

Fuel level has become approx. 5.5 L (1.5

gal., 1.2 Imp.gal.) or lower

➞

Refuel the vehicle

“Fasten Seat Belt”

Driver’s or front passenger’s seat belt is not

fastened

The warning buzzer will sound.
It will be displayed when the vehicle speed

exceeds approx. 20 km/h (12 mph).

➞

Wear a seat belt

Warning messages

Indicators/

Warning

lights

Warning content/Action to take

391

7-2. Steps to take in an emergency

✽

: If equipped

When t

roubl
e arises

“Fasten Seat Belt”

Rear seat belt is not fastened

The warning buzzer will sound.
It will be displayed when the vehicle speed

exceeds approx. 20 km/h (12 mph) and the

seat belt is unfastened.

➞

Wear a seat belt

“Release Parking

Brake”

The parking brake is not released

If the vehicle speed exceeds approx. 5 km/h

(3 mph) with the parking brake being

applied, the warning buzzer will sound.

➞

Release the parking brake

“Sonar Sensor in Oper-
ation Pay Attention”

―

Front corner sensors or reverse sensors is
activated

✽

The activated sonar is displayed.
The warning buzzer may sound.

➞

Check the situation around you and drive

accordingly such as stepping on the

brake pedal

“VSC in Operation”

(Flashing)

VSC is activated

➞

Drive with extreme caution

“Turn Lights OFF”

The driver’s door was opened while the

front position lights are turned on

The warning buzzer will sound.

➞

Turn off the front position lights

“Steering Angle Left”

―

The steering wheel is moved to left or right

while the vehicle is stopped

➞

Check the tire direction and move the

vehicle safety

“Steering Angle Right”

“Roads may be Icy”

―

The outside temperature has become

approx. 3°C (37

℉

) or below

➞

Since the road could be frozen, check the

road condition and drive with extreme

caution

Warning messages

Indicators/

Warning

lights

Warning content/Action to take

392

7-2. Steps to take in an emergency

⬛

Warning messages

The displayed warning message in this document may be different from the

actual display depending on the use conditions or vehicle specifications.

⬛

Warning message display

⚫

By pressing the RETURN switch when the engine switch is “ON”, the warning
message will disappear.

⚫

Even when you hide the warning message by pressing the RETURN switch,
the following warning messages will appear in a few seconds.

⦁

Low brake fluid

⦁

Brake system malfunction

⦁

Charging system malfunction

⦁

Low engine oil pressure

⦁

High temperature of engine coolant

⬛

When the “Open” warning message is displayed

To avoid battery discharge, the message will automatically disappear after

approx. 10 minutes with the door open when the engine switch is “ACC” or

“OFF”.

“Oil Deterioration

Warning Oil Mainte-

nance Required Soon”

―

The engine oil replacement is due soon

✽

➞

Have the vehicle inspected at your Toy-

ota dealer.

“Oil Deterioration

Warning Oil Mainte-

nance Required Visit

Your Dealer”

―

The engine oil is deteriorated

✽

➞

Have the vehicle inspected at your Toy-

ota dealer immediately.

Warning messages

Indicators/

Warning

lights

Warning content/Action to take

393

7-2. Steps to take in an emergency

When t

roubl
e arises

Situations requiring immediate action

Take action according to each troubleshooting method and check to see if

the key-free system’s warning message turns off.

Internal

warning

buzzer

External

warning

buzzer

Warning messages

Warning content/Action to take

―

“Key NOT Detected”

You tried to start the engine with-

out the electronic key on hand

➞

Keep the electronic key with

you*

times

times “Key NOT Detected”

When the engine switch was “ACC”

or “ON”, any of the doors were

opened, and the electronic key was

taken outside the vehicle, and then

the door was closed

⦁

The warning buzzer will sound.

➞

Keep the electronic key with you

and get in the vehicle

―

1 time “Key Detected in Vehicle”

With the electronic key left inside

the vehicle, someone tried to lock

the doors using the lock/unlock

switch on the front door or back

door

➞

Take the electronic key from the

vehicle and lock it again

―

1 time “Key Detected in Vehicle”

When the engine switch was “OFF”

and the electronic key was left

inside the vehicle, the door was

opened and closed while all the

doors were locked and any of the

inside lock buttons except the

driver’s door were set to the

unlocked side

➞

Keep the electronic key with you

and lock the doors

394

7-2. Steps to take in an emergency

✽

: If equipped

―

1 time “Key Detected in Vehicle”

When the engine switch was “OFF”

and the electronic key was left

inside the vehicle, you opened the

driver’s door and then tried to close

and lock the door with the door

handle pulled while the inside lock

button was set to the locked side

➞

Take the electronic key from the

vehicle and lock it again

―

“Press Brake Pedal and

Touch Engine Switch with

Key”

You tried to start the engine 2 times

without the electronic key on hand

➞

Keep the electronic key with

you*

―

“Auto Power OFF to Con-

serve Battery”

The engine switch turned “OFF”

automatically

⦁

It will be displayed after 1 hour or
more when the engine switch is

“ACC”. When it is “ON”, it will be

displayed after 20 minutes or

more.

➞

Set the engine speed to a slightly

higher level when you start the

engine next time, and keep the

same speed for approx. 5 min-

utes and charge the battery

times

―

“Key Battery Low Replace

Key Battery”

The engine switch was turned “OFF”

when the electronic key battery was

close to its end of life*

⦁

The warning buzzer will sound.

➞

Replace it with a new battery

(

➞

P. 344)

Internal

warning

buzzer

External

warning

buzzer

Warning messages

Warning content/Action to take

395

7-2. Steps to take in an emergency

When t

roubl
e arises

If the engine does not start even when the electronic key is placed inside the
vehicle, it is possible that the key is running out of battery. (

➞

P. 344)

If the low battery state continues, the message also appears even when the
engine switch is turned to “ACC” or “ON”.

⬛

Warning messages

➞

P. 392

⬛

Warning message display

➞

P. 392

⬛

Warning buzzers

Depending on the situation, you may have difficulty hearing the buzzer

because of the noise outside or audio sound.

―

“Press Engine SW While

Turning Steering Right

and Left”

Unable to unlock the steering

wheel by pressing the engine

switch

➞

Step on the brake pedal and

press the engine switch while

turning the steering wheel right

and left

―

“Shift to P and Turn Power

OFF”

You tried to turn “OFF” the engine

switch while the shift lever is placed

in a position other than P

✽

➞

Set the shift lever to P

―

1 time “Turn Power OFF”

When the engine switch was “ACC”

or “ON”, someone tried to lock the

doors using the lock/unlock switch

on the front or back door

➞

Turn the engine switch to “OFF”

and lock the doors

Internal

warning

buzzer

External

warning

buzzer

Warning messages

Warning content/Action to take

396

7-2. Steps to take in an emergency

If you have a flat tire

Replace the flat tire with the supplied spare tire.
(See P. 327 for more information about tires)

WARNING

⬛

If you have a flat tire

Do not drive with a flat tire.
Even over short distances, the tires and wheels can be irreparably damaged or

cause an accident.

Before lifting the vehicle with a jack

⚫

Move the vehicle to a hard, flat, safe location

⚫

Apply the parking brake

⚫

For continuously variable transmission vehicles, set the shift lever to P

⚫

For vehicles with manual transmission, set the shift lever to R

⚫

Stop the engine

⚫

Turn the emergency flashers on

397

7-2. Steps to take in an emergency

When t

roubl
e arises

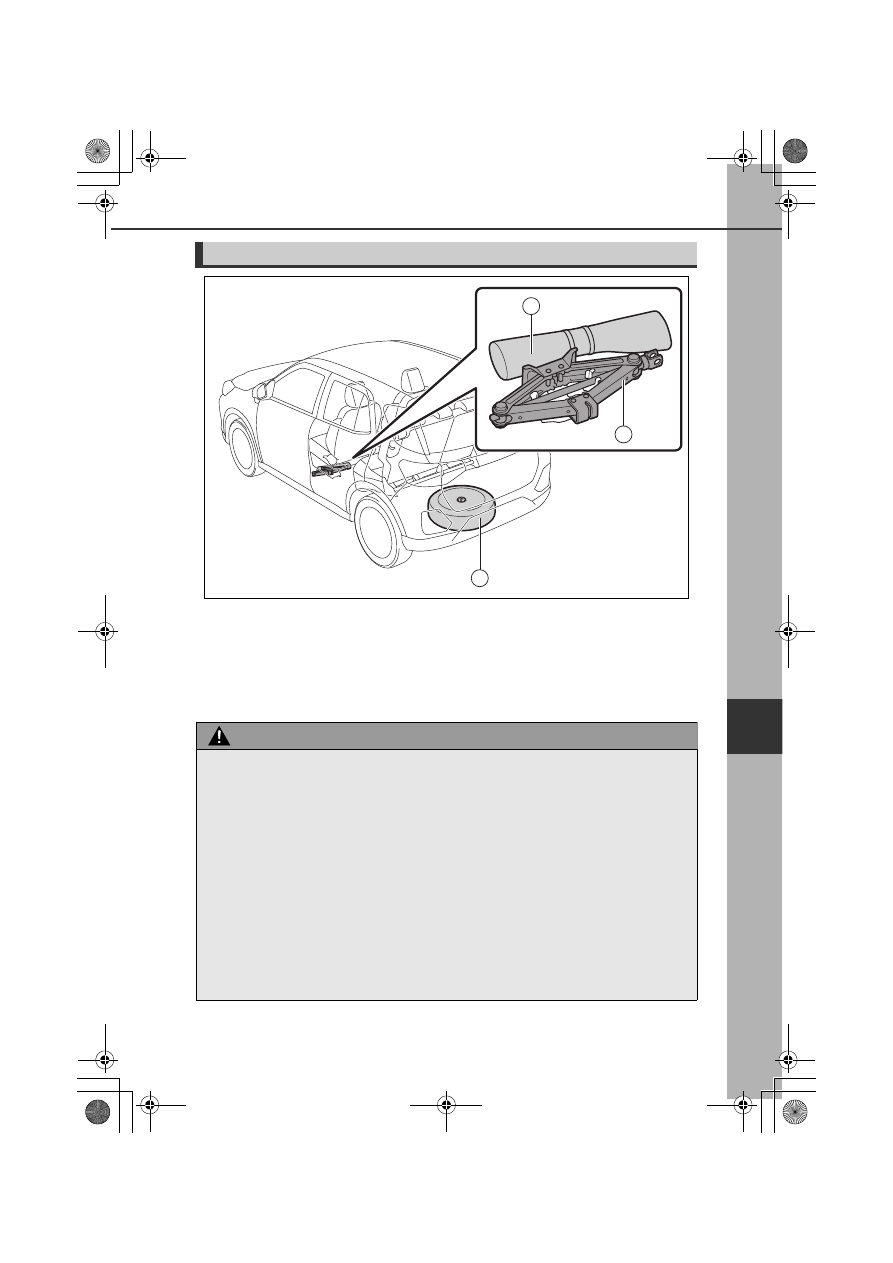

Tools and jack position

Tool bag*

Jack

Spare tire

Jack handle, wheel nut wrench, and towing eyelet

WARNING

⬛

Using the jack

Observe the following precautions.
Improper use of the jack may cause the vehicle to suddenly fall off the jack,

leading to death or serious injury.

⚫

Do not use the jack for any purpose other than replacing tires or installing
and removing tire chains

⚫

The jack provided can be used only for this vehicle. Do not use it on other
vehicles, and do not use other jacks for replacing tires on this vehicle

⚫

The jack should be properly hooked to the jack setting position (between 2
notches)

⚫

Do not put any part of your body under the vehicle while it is supported by
the jack

KBRO620601N

398

7-2. Steps to take in an emergency

WARNING

⚫

Do not start the engine or drive the vehicle while the vehicle is supported by
the jack

⚫

Do not raise the vehicle while someone is inside

⚫

When raising the vehicle, do not put an object on or under the jack

⚫

Do not raise the vehicle to a height greater than that required to replace the
tire

⚫

Use a jack stand if it is necessary to get under the vehicle

⚫

When lowering the vehicle, make sure that there is no-one near the vehicle.
If there are people nearby, warn them vocally before lowering

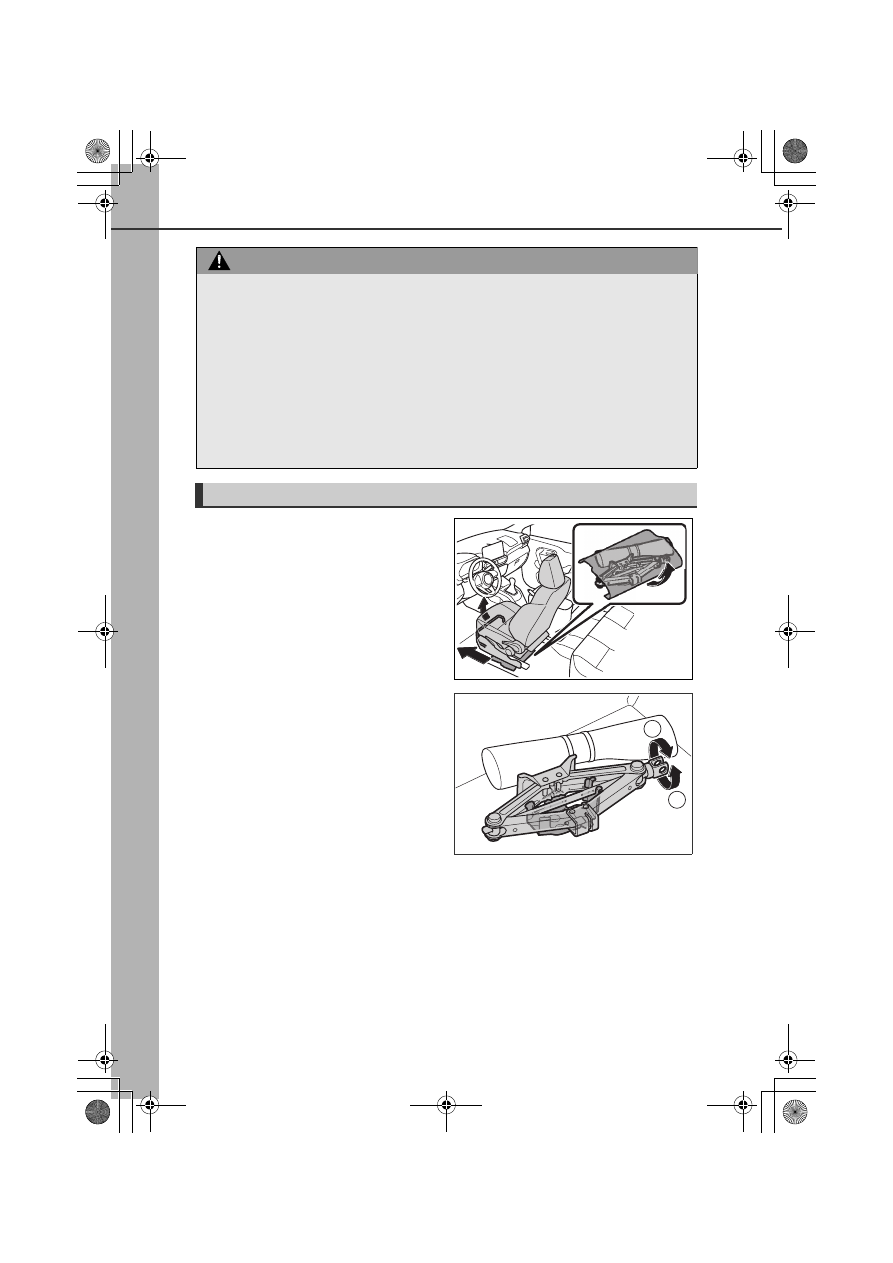

Procedure to take out jacks and tools

Slide the front left seat all the way

forward and partly remove its

cover

Loosen and remove the jack

Tighten

Loosen

Take out the tool bag

KBRO620602E

KBRO620603N

399

7-2. Steps to take in an emergency

When t

roubl
e arises

⬛

Storing the jack

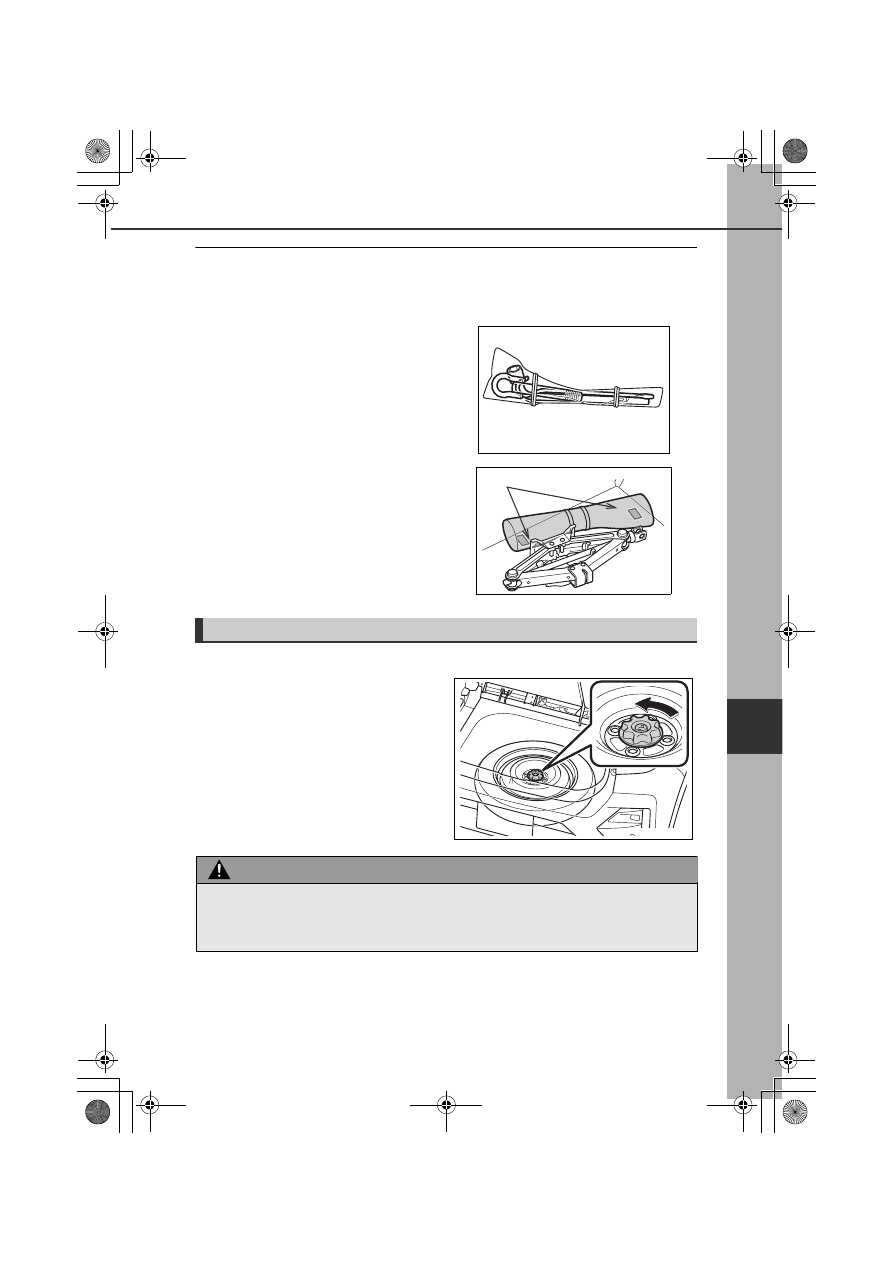

After use, return the jack to its original position and fix it securely.

⬛

Putting the tools back in storage

Place the wheel nut wrench, jack

handle, and towing eyelet in the

tool bag, and secure the bag with

rubber bands, as shown in the

illustration

Fasten the hook and loop strips

on the tool bag to its original posi-

tion on the floor surface, as shown

in the illustration

Procedure to take out the spare tire

Remove the deck board (

➞

P. 271)

Remove the nut and take out the

spare tire

WARNING

⬛

Storing the spare tire

Be careful not to get your fingers or other parts of your body caught between

the vehicle body and the spare tire.

KBRO720417N

KBRO720429N

Hook and loop strips

KBRO720424

400

7-2. Steps to take in an emergency

Replacing flat tires

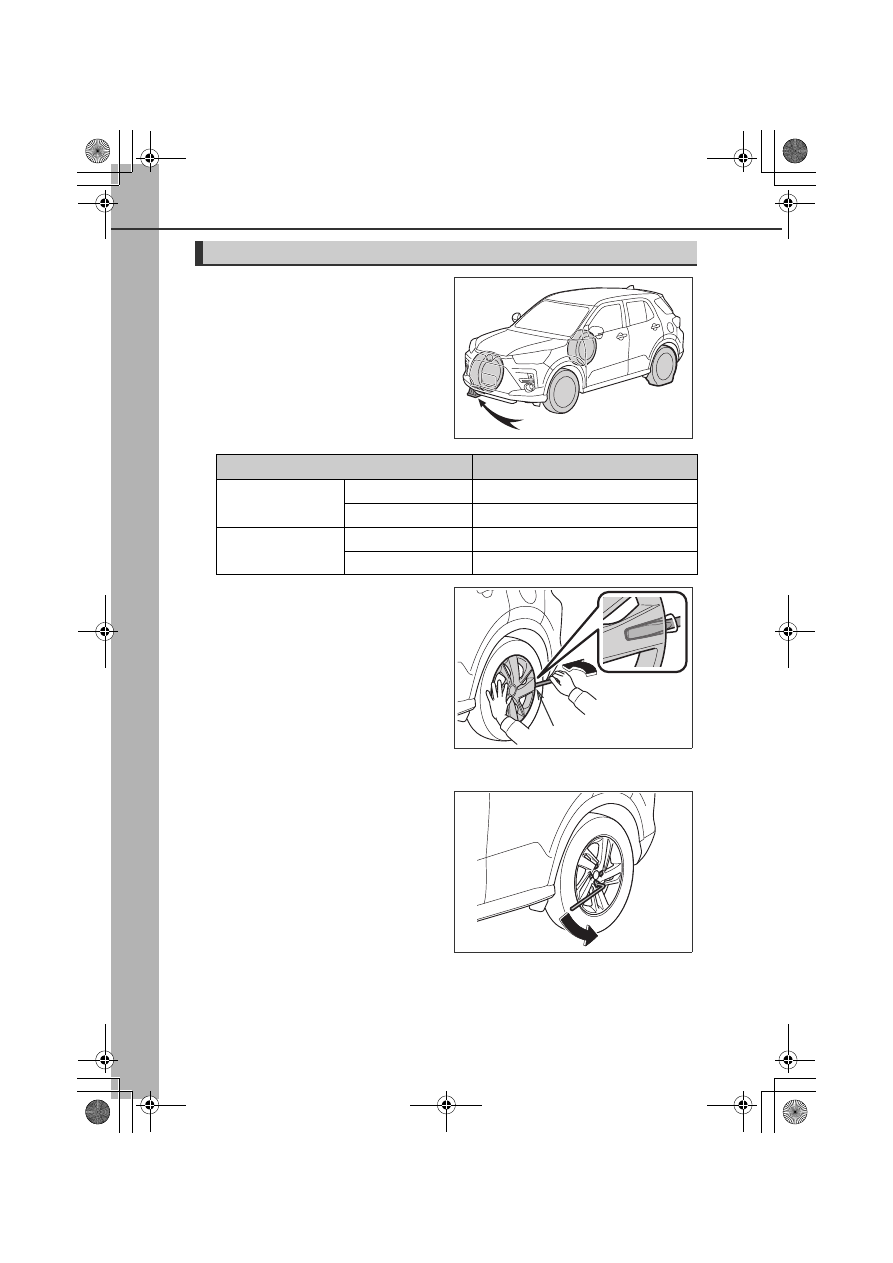

Place wheel chocks on the

wheels

Remove the wheel ornament*

For steel wheels only

⦁

To prevent damage, wrap a cloth etc.

around the tip of the jack handle to

protect it.

⦁

Remove the wheel ornament by

inserting the jack handle into one of

its solid portions (ribs).

⦁

Support the wheel ornament with

one hand to prevent it from flying

off.

Slightly loosen the nut (about 1

turn)

KBRO720416E

Tire to be replaced

Wheel chocks position

Front wheels

Left side

Behind right rear wheel

Right side

Behind left rear wheel

Rear wheels

Left side

In front of right front wheel

Right side

In front of left front wheel

KBRO720417

Rib

KBRO720418N

401

7-2. Steps to take in an emergency

When t

roubl
e arises

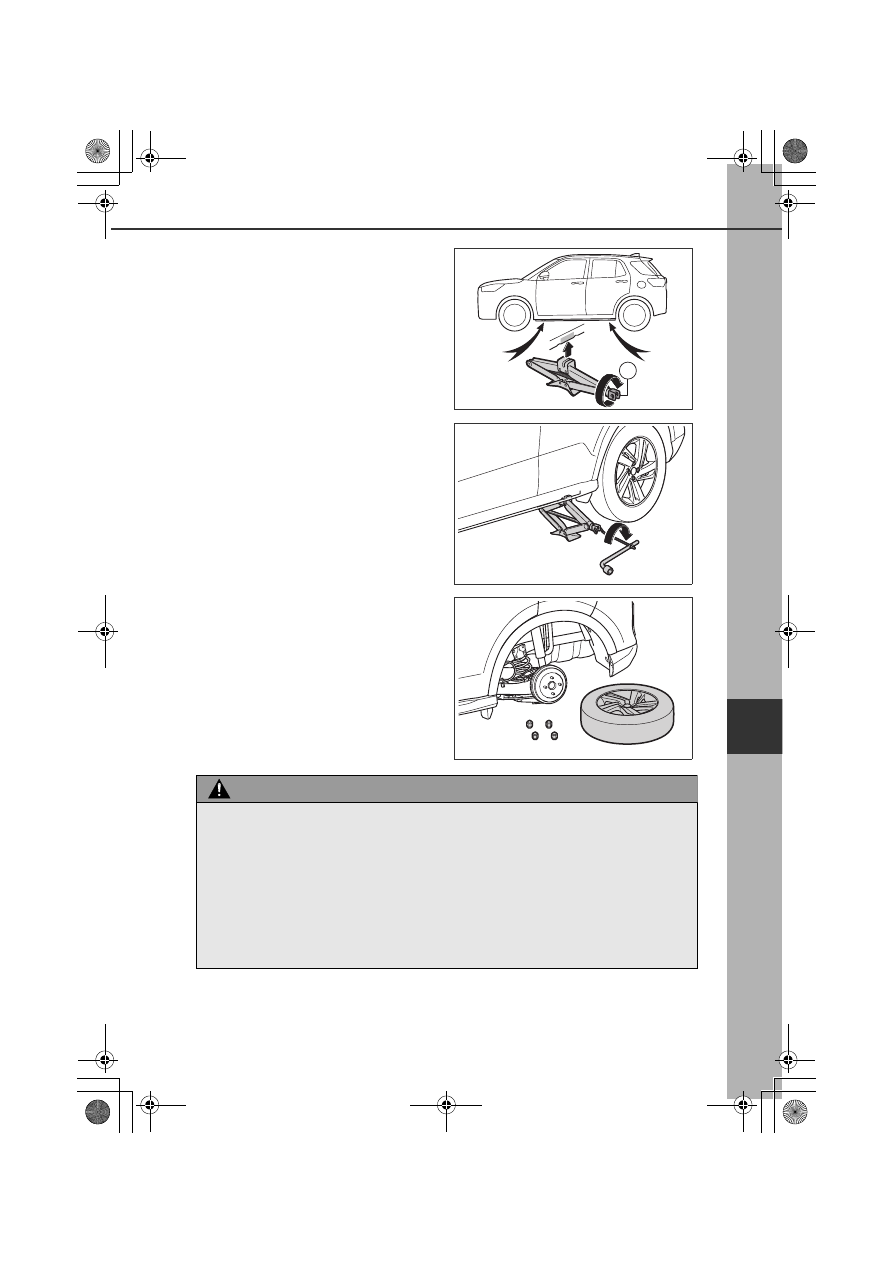

Turn part A of the jack by hand

and hook the jack groove firmly

to the jack set position (between

2 notches)

Raise the vehicle until the tires

are slightly off the ground

Use the jack handle together with the

wheel nut wrench, as shown in the

illustration.

Remove all nuts and remove the

tire

When placing the tire directly on the

ground, make sure the wheel surface

faces up to avoid scratching it.

WARNING

⬛

Replacing a flat tire

⚫

Observe the following precautions.
Failure to do so may result in serious injury:

⦁

Do not touch the disc wheels or the area around the brakes immediately

after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the

brakes will be extremely hot. Touching these areas with hands, feet or

other body parts while changing a tire, etc., may result in burns.

KBRO720409N

KBRO720410N

KBRO720411N

Toyota Raize (2023 year). Manual in english - page 24
