Toyota GR Corolla (2023 year). Manual in english - page 22

353

8-1. Specifications

Vehicle

specificatio

This number is also on the Certi-
fication Label.

■

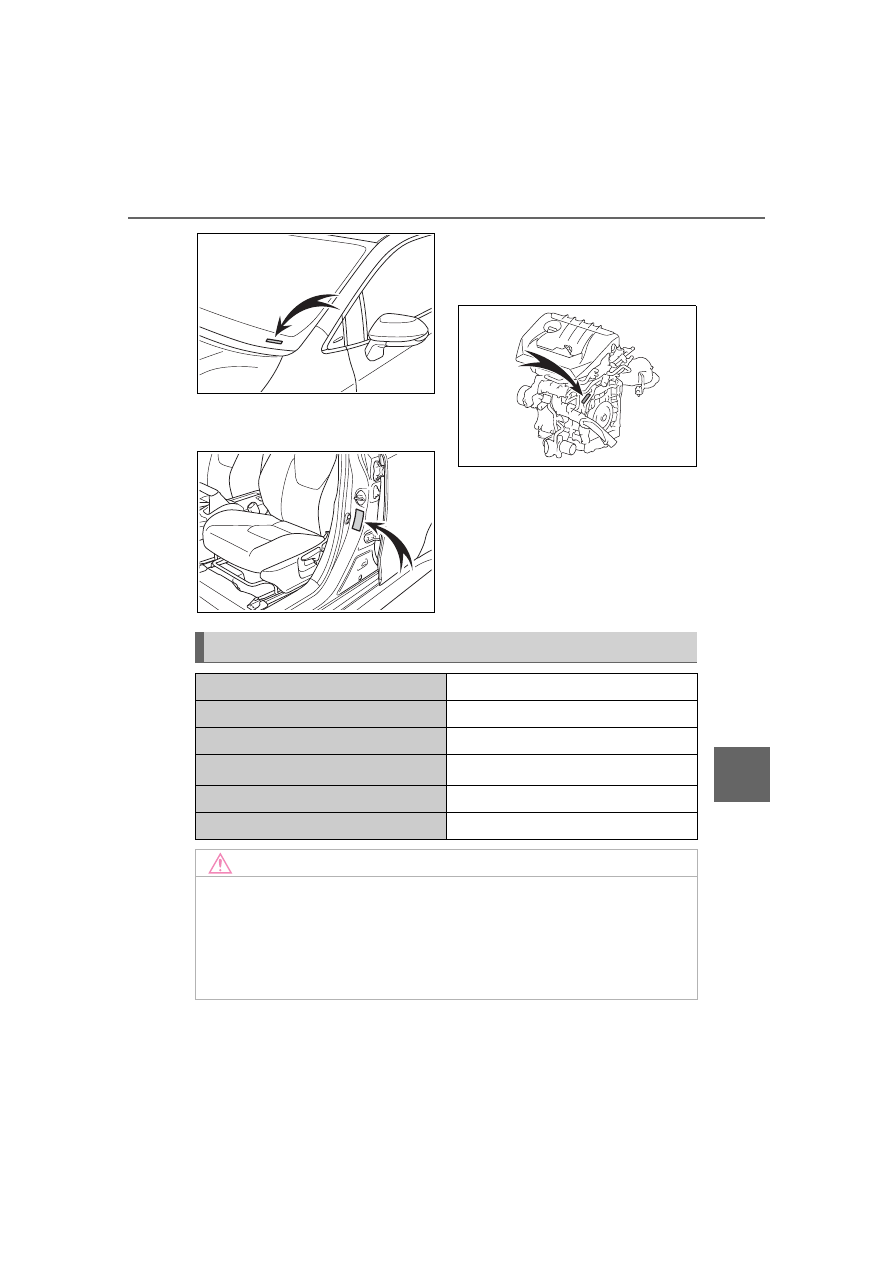

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

G16E-GTS

Type

3-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44



3.53 in. (87.5



89.7 mm)

Displacement

98.7 cu. in. (1618 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

NOTICE

■

Drive belt type

The high strength drive belt is used for the generator side drive belt. When

replacing the drive belt, use Toyota genuine drive belt or equivalent high

strength drivebelt. If the high strength drive belt is not used, durability of

the belt may become less than expected. The high strength drive belt is a

belt with Aramid core which has higher strength compared to usually

available belts with PET or PEN core.

354

8-1. Specifications

■

Oil capacity (Drain and refill
[Reference

])

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. When
actually adding the engine oil,
make sure that the oil level is
between the low level mark and
refill upper limit mark (



P.269).

Warm up and turn off the engine,
wait more than 8 minutes, and
check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6A multi-
grade engine oil
Recommended viscosity:
SAE 0W-20

Outside temperature

SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 20 in 0W-20 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature.

How to read oil container label:
The International Lubricant
Specification Advisory Commit-

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or
higher

Fuel tank capacity
(Reference)

13.2 gal. (50.0 L, 11.0 Imp. gal.)

Lubrication system

With filter

4.5 qt. (4.3 L, 3.7

Imp.qt.)

Without

filter

4.2 qt. (4.0 L, 3.5

Imp.qt.)

355

8-1. Specifications

Vehicle

specificatio

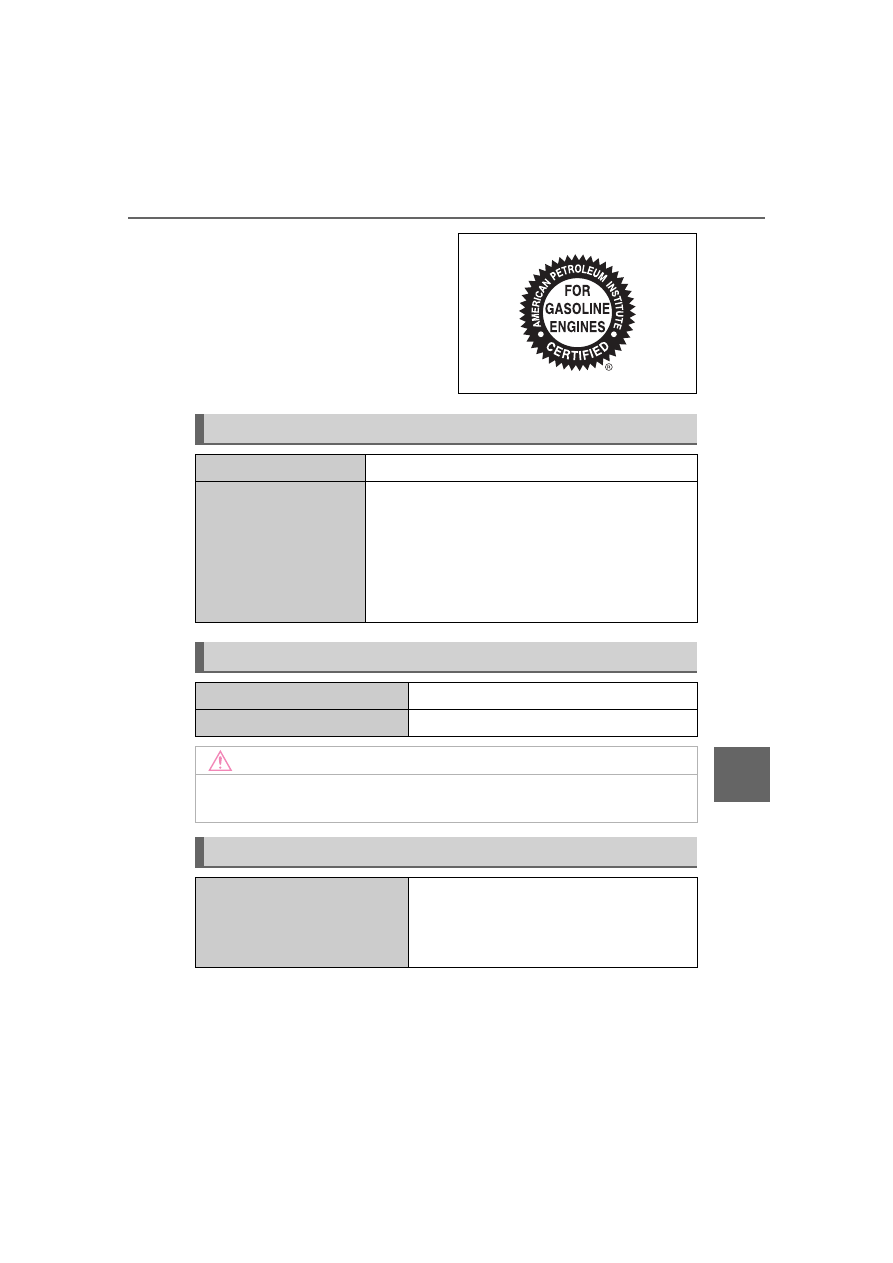

tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.

Cooling system

Capacity (Reference)

5.8 qt. (5.5 L, 4.8 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

NGK DILKAR8U7G

Gap

0.027 in. (0.7 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates

5 A max.

356

8-1. Specifications

: If a fluid type with “TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6”,

FMVSS No.116 DOT4 or SAE J1704LV is not available, fluid type with
TOYOTA GENUINE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or SAE
J1703 may be used with no detriment to brake durability.

Manual transmission

Gear oil capacity (Reference)



With a LSD

2.1 qt. (2.0 L, 1.7 Imp. qt.)



Without a LSD

2.2 qt. (2.1 L, 1.8 Imp. qt.)

Gear oil type

“TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” or equivalent

NOTICE

■

Manual transmission gear oil

●

Please be aware that depending on the particular characteristics of the

gear oil used or the operating conditions, idle sound, shift feeling and/or

fuel efficiency may be different or affected and, in the worst case, dam-

age to the vehicle’s transmission.

Toyota recommends to use “TOYOTA Genuine Manual Transmission

Gear Oil LV GL-4 75W” to achieve optimal performance.

●

Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmis-

sion Gear Oil LV GL-4 75W” at the factory.

Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil

LV GL-4 75W” or an equivalent oil of matching quality that satisfies the

above specifications.

Please contact your Toyota dealer for further details.

Clutch

Pedal free play

0.1



0.6 in. (3



15 mm)

Fluid type

“TOYOTA GENUINE BRAKE FLUID DOT4,
CLASS6”

, FMVSS No.116 DOT4 or SAE

J1704LV

Transfer

Oil capacity

0.48 qt. (0.45 L, 0.40 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

357

8-1. Specifications

Vehicle

specificatio

: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at

the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil”
or an equivalent of matching quality to satisfy the above specification.
Please contact your Toyota dealer.

: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at

the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil”
or an equivalent of matching quality to satisfy the above specification.
Please contact your Toyota dealer.

:Minimum pedal clearance when depressed with a force of 67.4 lbf (300

N, 30.6 kgf) while the engine is running.

:Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,

20.4 kgf)

NOTICE

■

Transfer oil type precaution

Using transfer oil other than the specified oil may cause abnormal noise

or vibration, or damage the transfer of your vehicle.

Differential

Oil capacity

0.5 qt. (0.5 L, 0.4 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent

NOTICE

■

Differential gear oil type precaution

Using differential gear oil other than the specified oil may cause abnormal

noise or vibration, or damage the differential gear of your vehicle.

Brakes

Pedal clearance

5.6 in. (143 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1 mm)

Parking brake lever travel



8 clicks

Fluid type

“TOYOTA GENUINE BRAKE FLUID
DOT4, CLASS6”

, FMVSS No.116 DOT4

or SAE J1704LV

358

8-1. Specifications

:If a fluid type with “TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6”,

FMVSS No.116 DOT4 or SAE J1704LV is not available, fluid type with
TOYOTA GENUINE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or
SAE J1703 may be used with no detriment to brake durability.

A: Wedge base bulbs (clear)

Steering

Free play

Less than 1.2 in. (30 mm)

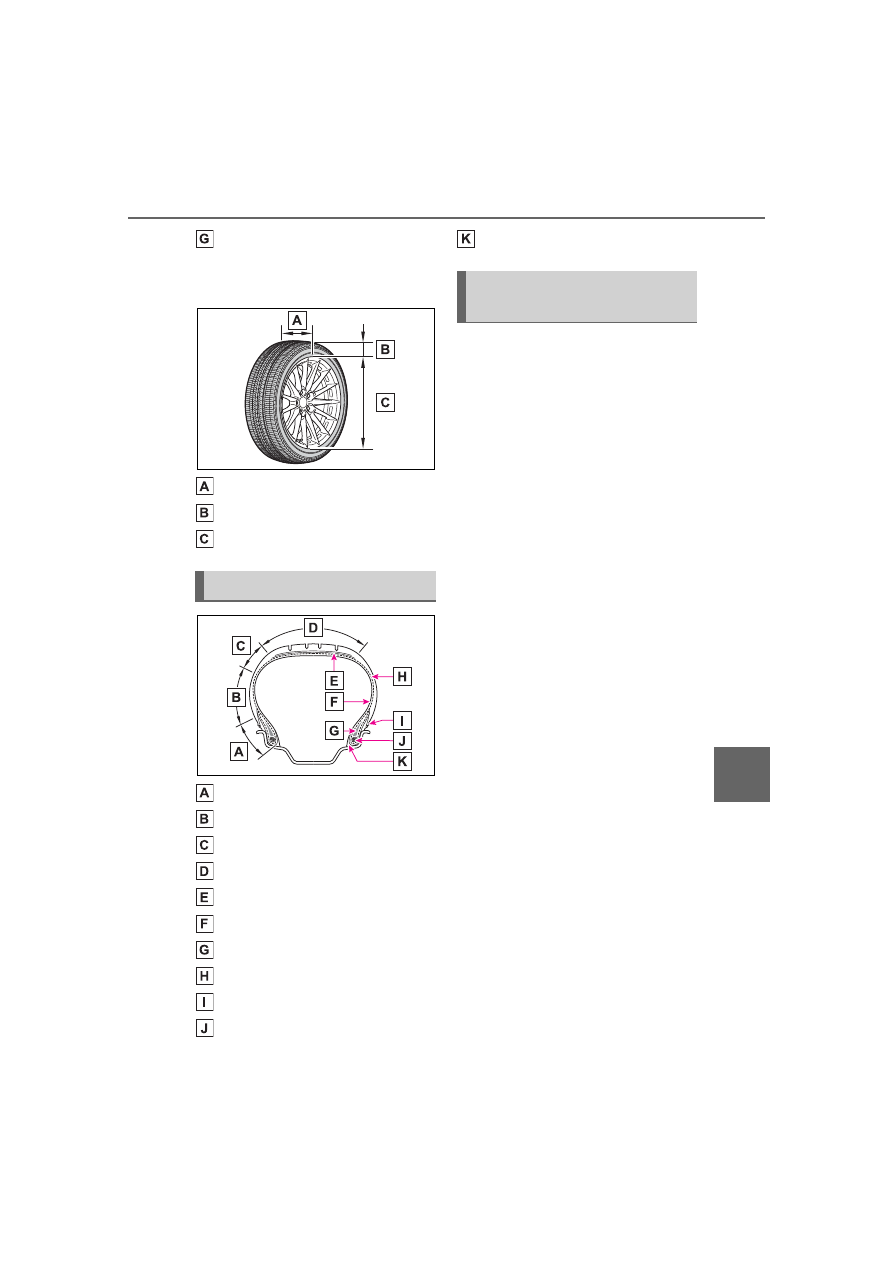

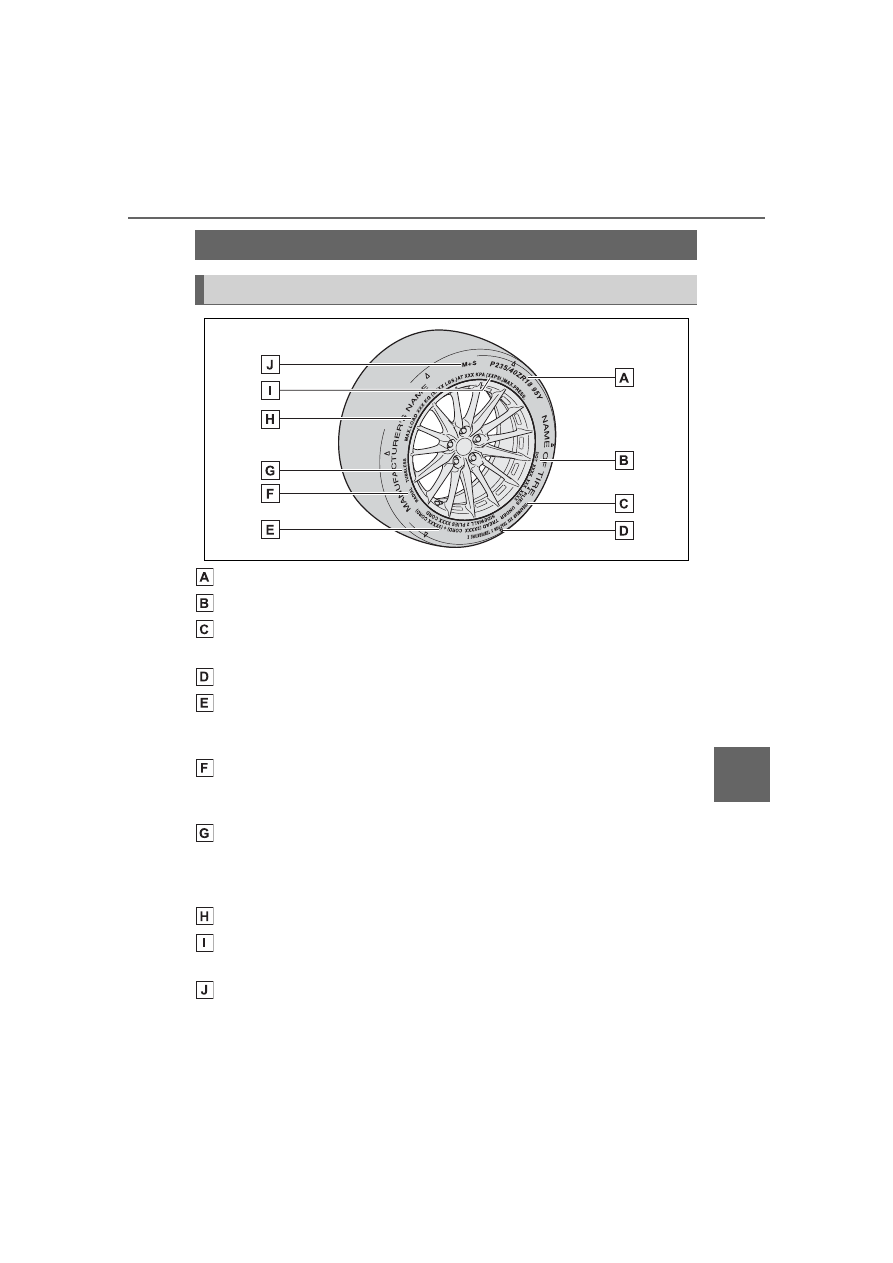

Tires and wheels

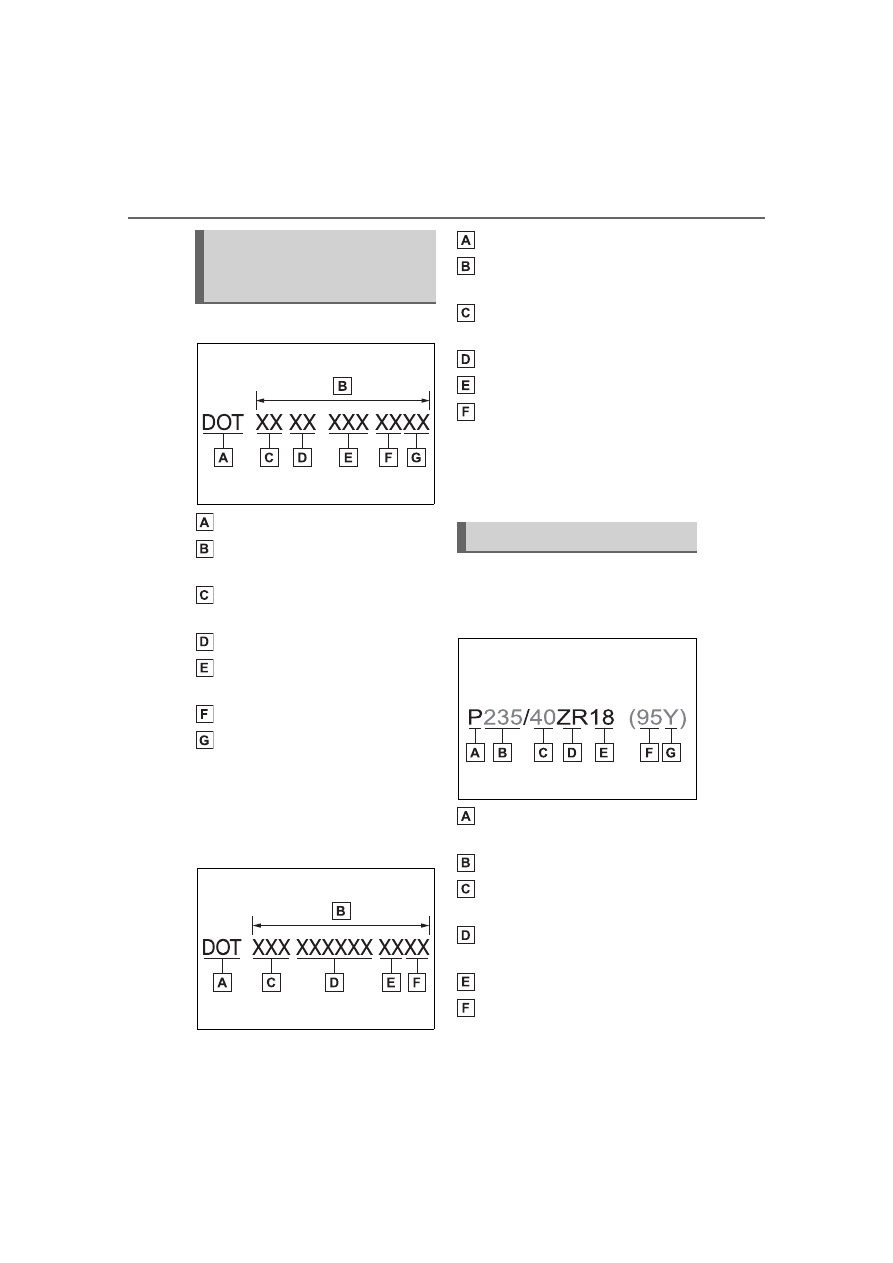

Tire size

235/40ZR18 (95Y)

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front tire

35 psi (240 kPa, 2.4 kgf/cm

or bar)



Rear tire

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Wheel size



8 1/2J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

License plate lights

—

359

8-1. Specifications

Vehicle

specificatio

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid the build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to

15% ethanol.

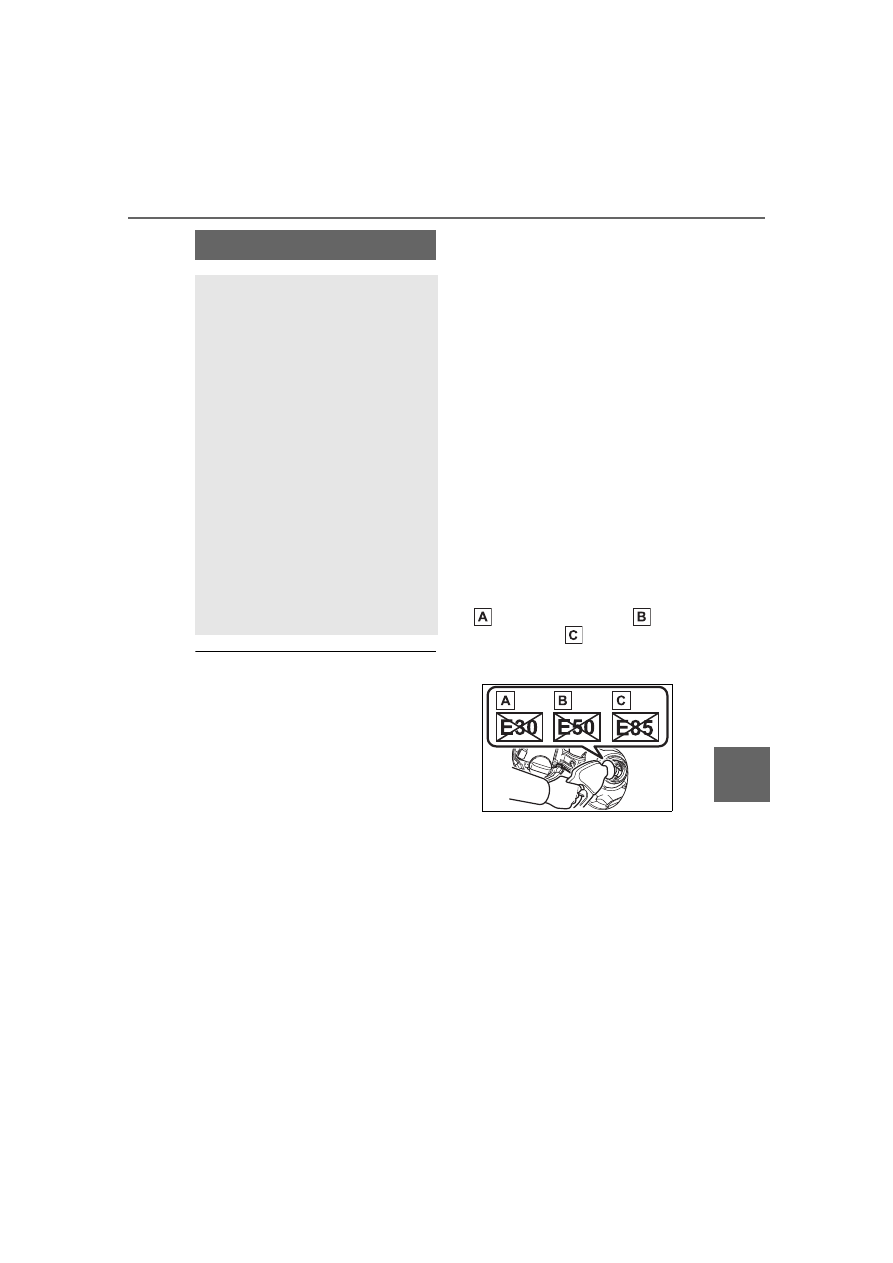

DO NOT use any flex-fuel or gas-

oline that could contain more than

15% ethanol, including from any

pump labeled E30 (30% ethanol
[

]), E50 (50% ethanol [

]), E85

(85% ethanol [

]) (which are only

some examples of fuel containing

more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 93.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the use

Fuel information

You must only use unleaded
gasoline.
Select premium unleaded
gasoline with an octane rat-
ing of 91 (Research Octane
Number 96) or higher
required for optimum
engine performance and
fuel economy.
If the octane rating is less
than 91, damage to the
engine may occur andmay
void the vehicle warranty.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A.

360

8-1. Specifications

of gasoline that contains MMT. If

fuel containing MMT is used, your

emission control system may be

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s

three-way catalytic converters

causing the emission control

system to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

361

8-1. Specifications

Vehicle

specificatio

Tire size (



P.362)

DOT and Tire Identification Number (TIN) (



P.362)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators (



P.277)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.277)

Maximum cold tire inflation pressure (



P.358)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires (



P.278)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.

Tire information

Typical tire symbols

362

8-1. Specifications



Type A

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.



Type B

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio (tire height to
section width)
Tire construction code (R =
Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)

Typical DOT and Tire
Identification Number
(TIN)

Tire size

363

8-1. Specifications

Vehicle

specificatio

Speed symbol (alphabet with
one letter)

■

Tire dimensions

Section width
Tire height
Wheel diameter

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
tion on uniform tire quality grad-
ing.

Your Toyota dealer will help answer
any questions you may have as you
read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable
on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150

Tire section names

Uniform Tire Quality
Grading

364

8-1. Specifications

would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use. Performance may differ
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement
as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

■

Temperature A, B, C

The temperature grades are A

(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of
performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pressure

Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km
under that condition

Maximum inflation pressure

The maximum cold inflated pressure to
which a tire may be inflated, shown on the
sidewall of the tire

365

8-1. Specifications

Vehicle

specificatio

Recommended inflation pres-
sure

Cold tire inflation pressure recommended
by a manufacturer

Accessory weight

The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio and heater, to the extent that
these items are available as fac-
tory-installed equipment (whether installed
or not)

Curb weight

The weight of a motor vehicle with stan-
dard equipment, including the maximum
capacity of fuel, oil and coolant, and if so
equipped, air conditioning and additional
weight optional engine

Maximum loaded vehicle
weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant weight

150 lb. (68 kg) times the number of occu-
pants specified in the second column of
Table 1

that follows

Occupant distribution

Distribution of occupants in a vehicle as
specified in the third column of Table 1

below

Production options weight

The combined weight of installed regular
production options weighing over 5 lb. (2.3
kg) in excess of the standard items which
they replace, not previously considered in
curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated

Tire related term

Meaning

366

8-1. Specifications

Rim diameter (Wheel diame-
ter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation
for a rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity weight (Total
load capacity)

The rated cargo and luggage load plus 150
lb. (68 kg) times the vehicle’s designated
seating capacity

Vehicle maximum load on the
tire

The load on an individual tire that is deter-
mined by distributing to each axle its share
of the maximum loaded vehicle weight,
and dividing by two

Vehicle normal load on the tire

The load on an individual tire that is deter-
mined by distributing to each axle its share
of curb weight, accessory weight, and nor-
mal occupant weight (distributed in accor-
dance with Table 1

below), and dividing by

two

Weather side

The surface area of the rim not covered by
the inflated tire

Bead

The part of the tire that is made of steel
wires, wrapped or reinforced by ply cords
and that is shaped to fit the rim

Bead separation

A breakdown of the bond between compo-
nents in the bead

Bias ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate
angles substantially less than 90 degrees
to the centerline of the tread

Carcass

The tire structure, except tread and side-
wall rubber which, when inflated, bears the
load

Chunking

The breaking away of pieces of the tread
or sidewall

Cord

The strands forming the plies in the tire

Tire related term

Meaning

367

8-1. Specifications

Vehicle

specificatio

Cord separation

The parting of cords from adjacent rubber
compounds

Cracking

Any parting within the tread, sidewall, or
innerliner of the tire extending to cord
material

A pneumatic tire with an inverted flange
tire and rim system in which the rim is
designed with rim flanges pointed radially
inward and the tire is designed to fit on the
underside of the rim in a manner that
encloses the rim flanges inside the air cav-
ity of the tire

Extra load tire

A tire designed to operate at higher loads
and at higher inflation pressures than the
corresponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating
medium within the tire

Innerliner separation

The parting of the innerliner from cord
material in the carcass

Intended outboard sidewall

(a) The sidewall that contains a whitewall,
bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or
(b) The outward facing sidewall of an
asymmetrical tire that has a particular side
that must always face outward when
mounted on a vehicle

Light truck (LT) tire

A tire designated by its manufacturer as
primarily intended for use on lightweight
trucks or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to
carry for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum
permissible inflation pressure for that tire

Tire related term

Meaning

368

8-1. Specifications

Maximum permissible inflation
pressure

The maximum cold inflation pressure to
which a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, side-
wall, or innerliner that extends to cord
material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors
of the sidewalls of an inflated tire, including
elevations due to labeling, decorations, or
protective bands or ribs

Passenger car tire

A tire intended for use on passenger cars,
multipurpose passenger vehicles, and
trucks, that have a gross vehicle weight
rating (GVWR) of 10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between
adjacent plies

Pneumatic tire

A mechanical device made of rubber,
chemicals, fabric and steel or other materi-
als, that, when mounted on an automotive
wheel, provides the traction and contains
the gas or fluid that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substan-
tially 90 degrees to the centerline of the
tread

Reinforced tire

A tire designed to operate at higher loads
and at higher inflation pressures than the
corresponding standard tire

Section width

The linear distance between the exteriors
of the sidewalls of an inflated tire, exclud-
ing elevations due to labeling, decoration,
or protective bands

Sidewall

That portion of a tire between the tread
and bead

Tire related term

Meaning

Content .. 20 21 22 23 ..
