7-2. Steps to take in an emergency

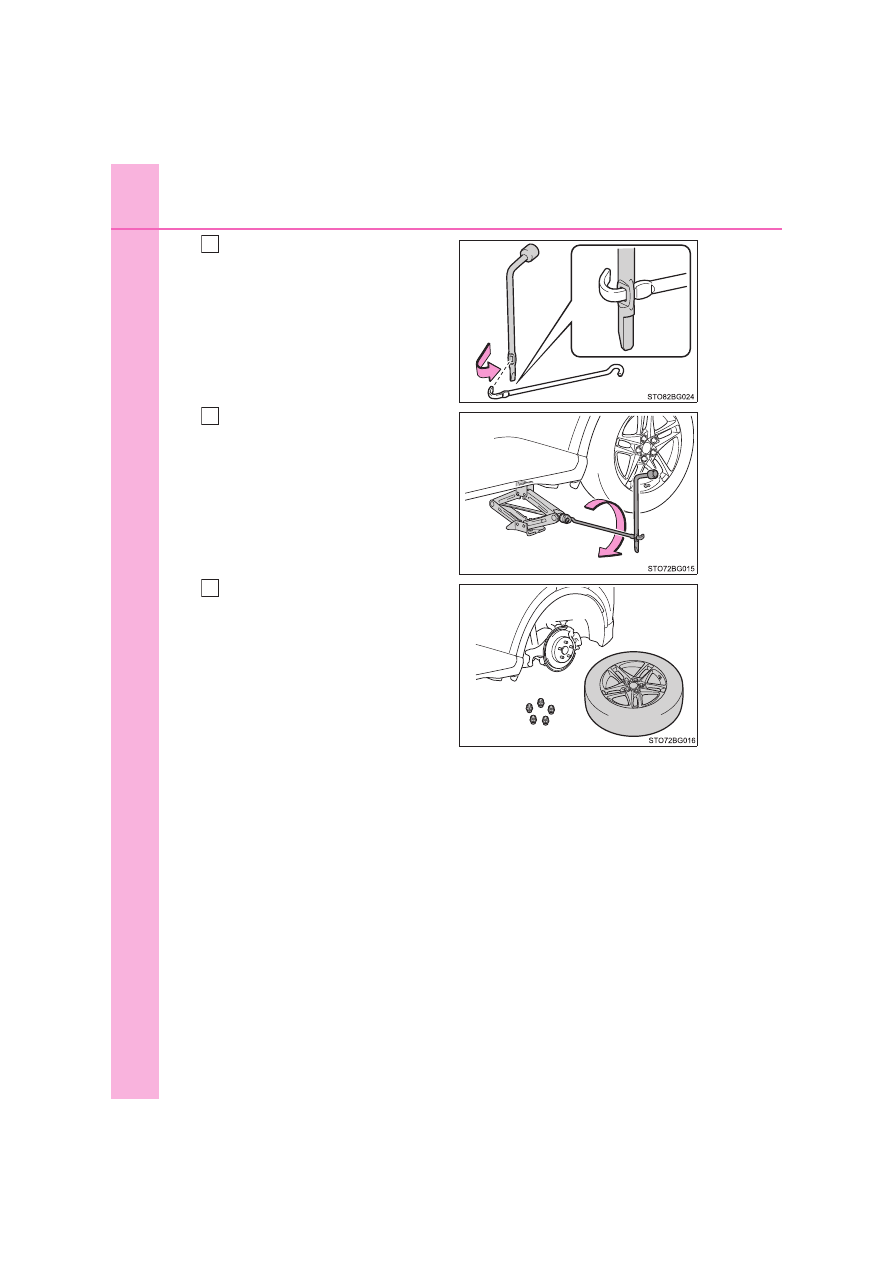

Assemble the jack handle and
the wheel nut wrench as shown
in the illustration.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When  resting  the  tire  on  the
ground,  place  the  tire  so  that  the
wheel  design  faces  up  to  avoid
scratching the wheel surface.

735

7-2. Steps to take in an emergency

hen
trou

e ari

WARNING

■

Replacing a flat tire

●

Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immediately

after the vehicle has been driven.
After the vehicle has been driven, the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc., may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N·m

(10.5 kgf·m, 76 ft·lbf) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off the

wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifically

designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut threads or

bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

• When installing the wheel nuts, be sure to install the wheel nuts with the

tapered ends facing inward.

736

7-2. Steps to take in an emergency

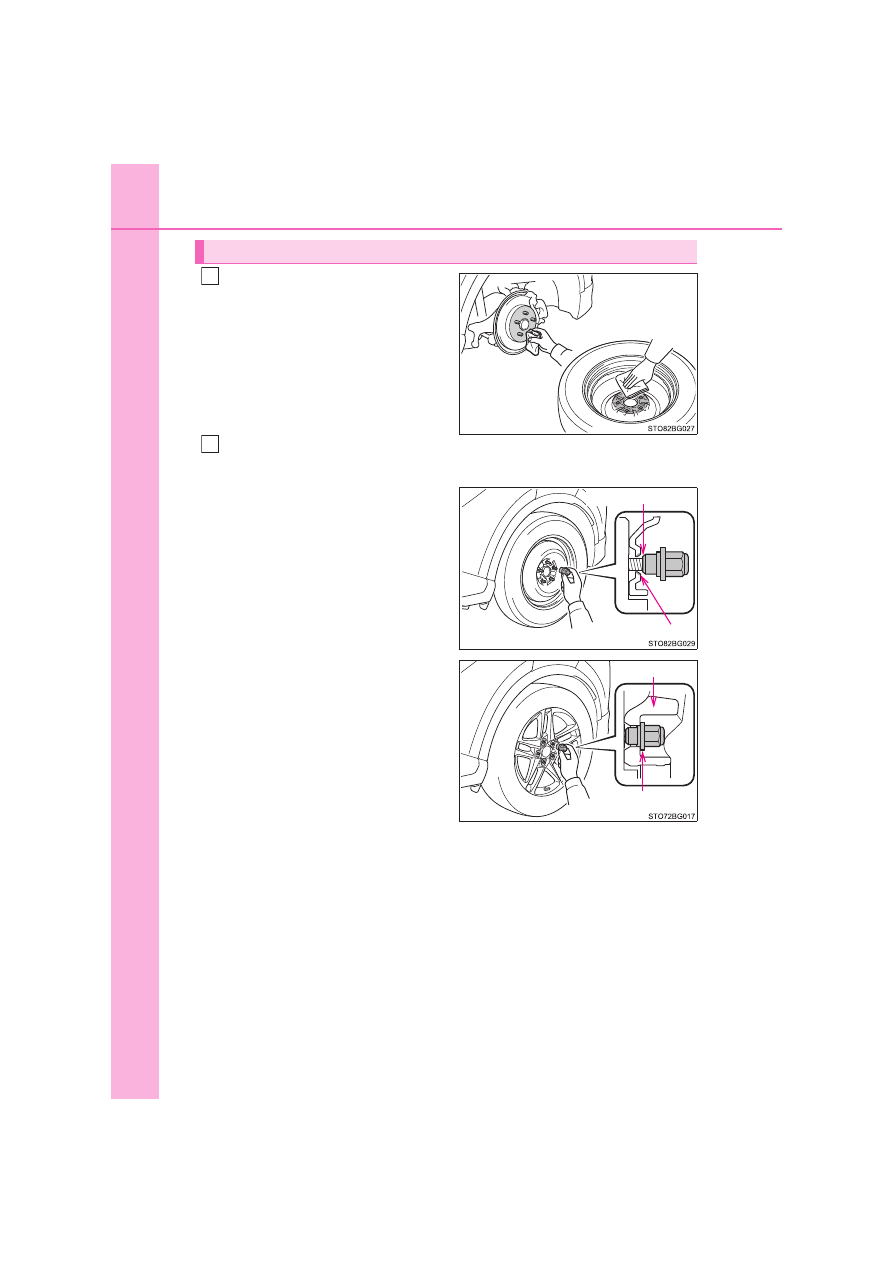

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If  foreign  matter  is  on  the  wheel
contact  surface,  the  wheel  nuts
may  loosen  while  the  vehicle  is  in
motion,  causing  the  tire  to  come
off.

Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.

When  replacing  an  aluminum
wheel  with  a  compact  spare
tire, tighten the wheel nuts until
the  tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.

Installing the spare tire

Tapered portion

Disc wheel seat

Washer

Disc wheel

737

7-2. Steps to take in an emergency

hen
trou

e ari

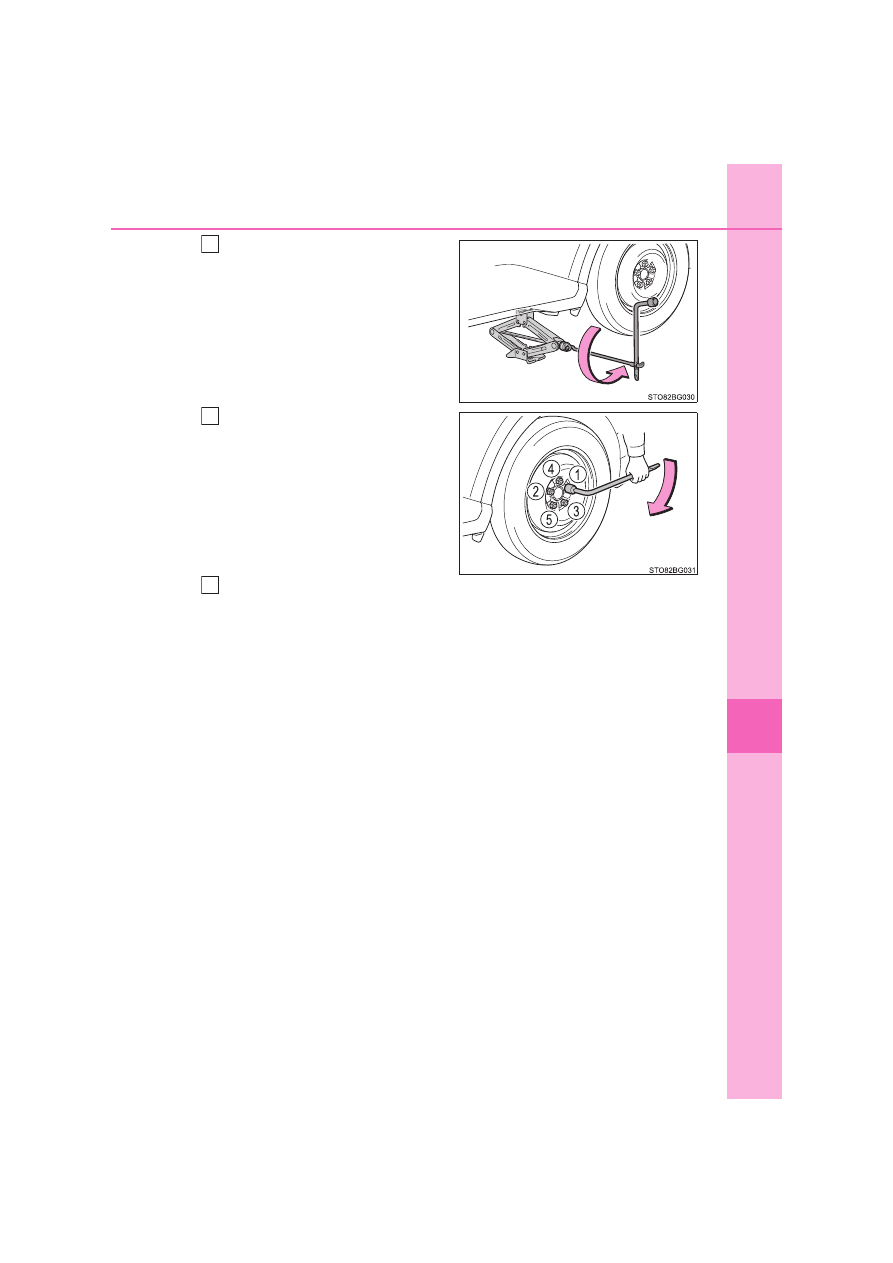

Lower the vehicle.

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.

Tightening torque:

103 N·m (10.5 kgf·m, 76 ft·lbf)

Stow the flat tire, tire jack and all tools.

738

7-2. Steps to take in an emergency

■

The compact spare tire (if equipped)

●

The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.
(



P. 774)

■

When using the compact spare tire (if equipped)

As the compact spare tire is not equipped with a tire pressure warning valve
and transmitter, low inflation pressure of the spare tire will not be indicated by
the tire pressure warning system. Also, if you replace the compact spare tire
after the tire pressure warning light comes on, the light remains on.

■

When the compact spare tire is equipped (if equipped)

The vehicle height may become lower when driving with the compact spare
tire compared to when driving with standard tires.

■

If you have a flat front tire on a road covered with snow or ice (vehicles
with compact spare tire)

Install the compact spare tire on one of the rear wheels of the vehicle. Per-
form the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.

740

7-2. Steps to take in an emergency

WARNING

■

When using the compact spare tire (if equipped)

●

Remember that the spare tire provided is specifically designed for use with
your vehicle. Do not use your spare tire on another vehicle.

●

Do not use more than one compact spare tire simultaneously.

●

Replace the spare tire with a standard tire as soon as possible.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.

■

When the compact spare tire is attached (if equipped)

The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:

: If equipped

■

Speed limit when using the compact spare tire (if equipped)

Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.

• ABS & Brake assist
• VSC
• TRC
• EPS
• Automatic High Beam

• PCS (Pre-Collision System)

• LTA (Lane Tracing Assist)
• Dynamic radar cruise control with

full-speed range

• Cruise control

• BSM (Blind Spot Monitor)

• Toyota parking assist-sensor

• S-IPA (Simple Intelligent Parking

Assist System)

• Rear view monitor system

• Navigation system

741

7-2. Steps to take in an emergency

hen
trou

e ari

NOTICE

■

Be careful when driving over bumps with the compact spare tire
installed on the vehicle. (if equipped)

The vehicle height may become lower when driving with the compact spare
tire, compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.

■

Driving with tire chains and the compact spare tire (if equipped)

Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

■

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer as the tire pressure warning valve and
transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valves and transmitters

When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (



P. 616)

742

7-2. Steps to take in an emergency

If the hybrid system will not start

One of the following may be the cause of the problem:

●

The electronic key may not be functioning properly. (



P. 744)

●

There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. (



P. 124)

●

There may be a malfunction in the immobilizer system. (



P. 129)

●

There may be a malfunction in the steering lock system.

●

The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. How-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. (



P. 743)

One of the following may be the cause of the problem:

●

The 12-volt battery may be discharged. (



P. 747)

●

The 12-volt battery terminal connections may be loose or corroded.
(



P. 604)

Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:

The hybrid system will not start even though the correct starting
procedure is being followed. (



P. 303)

The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

743

7-2. Steps to take in an emergency

hen
trou

e ari

One of the following may be the cause of the problem:

●

The 12-volt battery may be discharged. (



P. 747)

●

One or both of the 12-volt battery terminals may be disconnected.
(



P. 604)

Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer if the problem cannot be repaired, or if repair procedures
are unknown.

When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the power
switch is functioning normally.
Do not use this starting procedure except in cases of emergency.

Set the parking brake.
Shift the shift lever to P.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while
depressing the brake pedal firmly.

Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

The interior lights and headlights do not turn on, or the horn
does not sound.

Emergency start function

1
2
3
4

744

7-2. Steps to take in an emergency

If the electronic key does not operate

properly

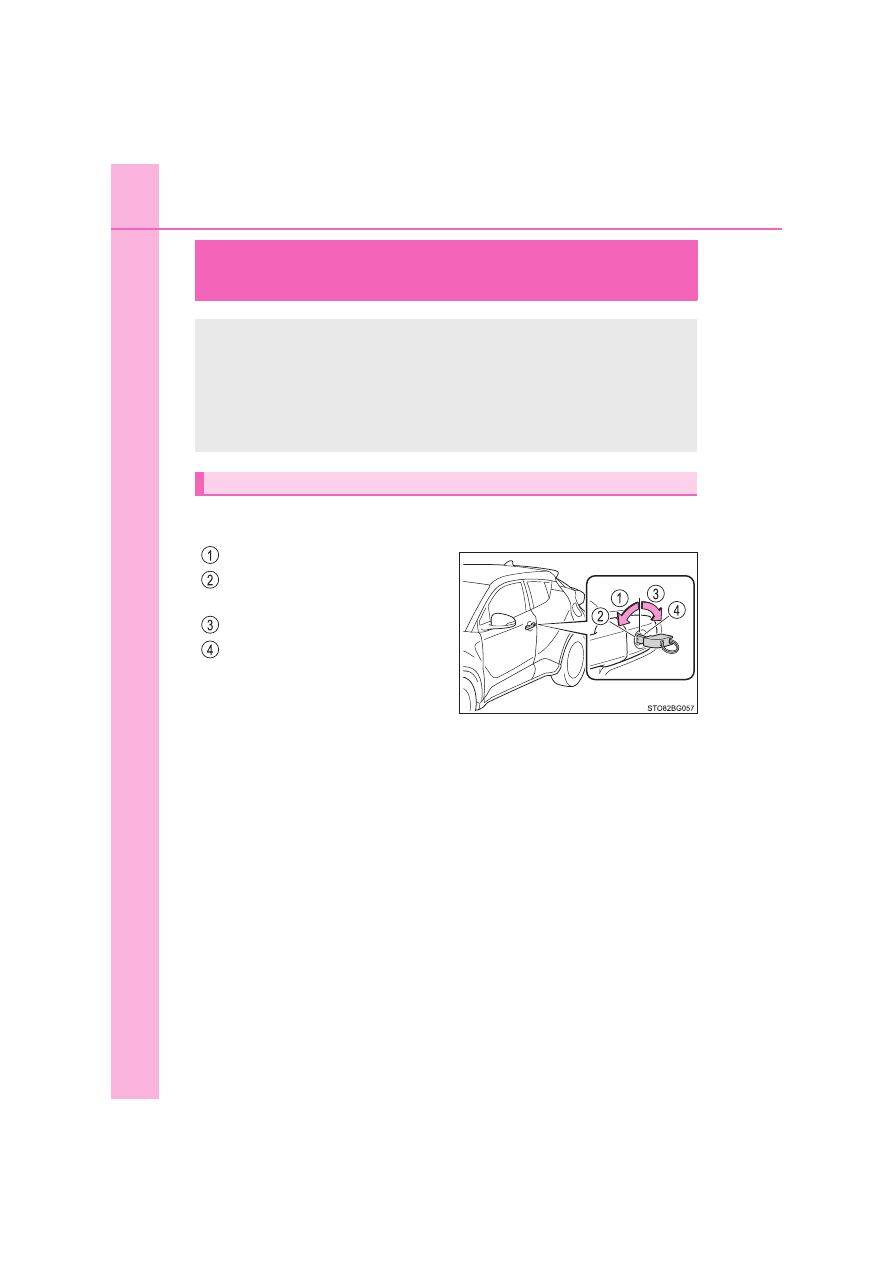

Use the mechanical key (



P. 187) in order to perform the following

operations:

Locks all the doors
Closes the windows (turn and
hold)

Unlocks all the doors
Opens the windows (turn and
hold)

: These settings must be custom-

ized  at  any  authorized  Toyota
retailer  or  Toyota  authorized
repairer,  or  any  reliable  repairer.
(



P. 779)

If communication between the electronic key and vehicle is inter-
rupted (



P. 208) or the electronic key cannot be used because the

battery is depleted, the smart entry & start system and wireless
remote control cannot be used. In such cases, the doors can be
opened and the hybrid system can be started by following the pro-
cedure below.

Locking and unlocking the doors

745

7-2. Steps to take in an emergency

hen
trou

e ari

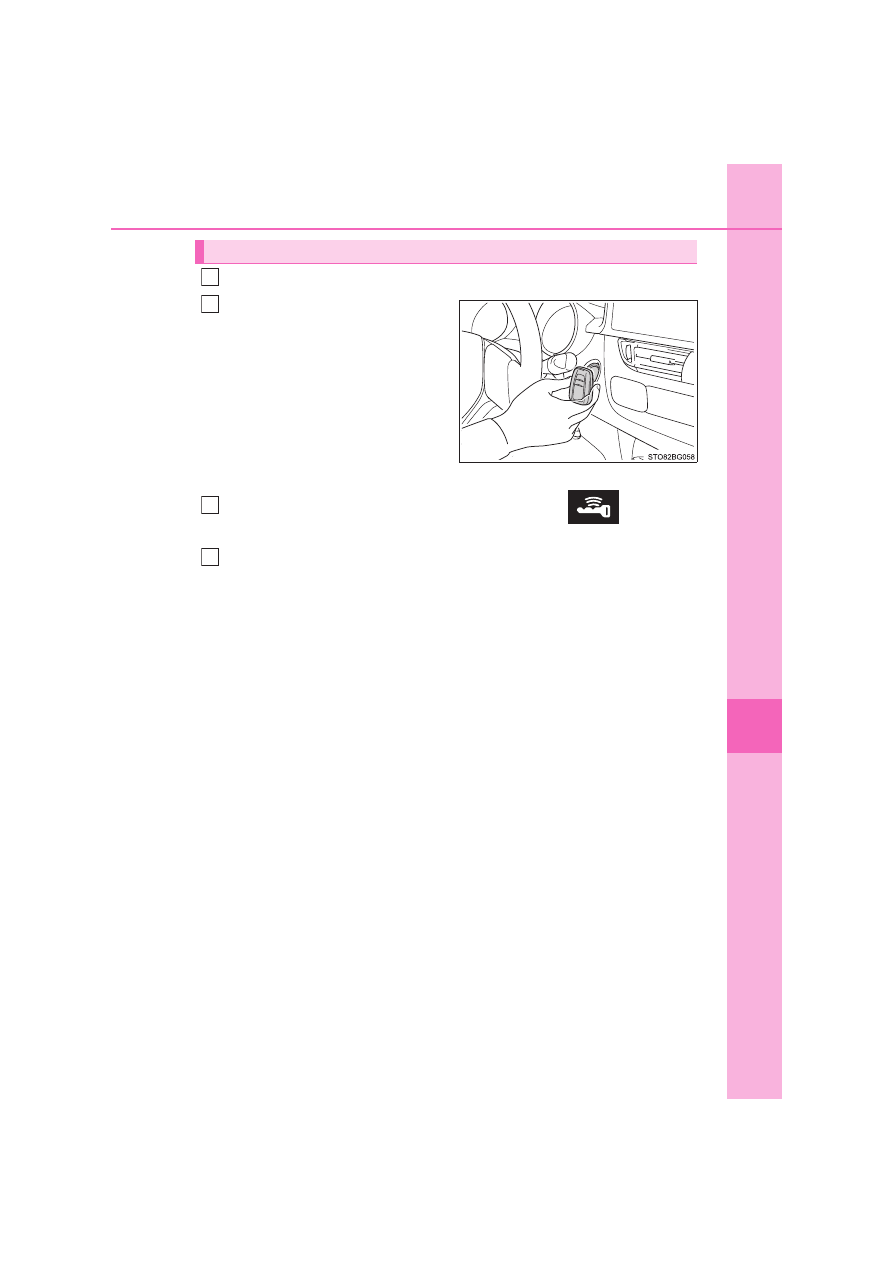

Ensure that the shift lever is in P and depress the brake pedal.

Touch the Toyota emblem side
of the electronic key to the
power switch.

When  the  electronic  key  is
detected, a buzzer sounds and the
power switch will turn to ON mode.
When  the  smart  entry  &  start  sys-
tem is deactivated in customization
setting,  the  power  switch  will  turn
to ACCESSORY mode.

Firmly depress the brake pedal and check that

and mes-

sages are shown on the multi-information display.
Press the power switch.

In the event that the hybrid system still cannot be operated, contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

Starting the hybrid system

1
2

746

7-2. Steps to take in an emergency

■

Stopping the hybrid system

Set the parking brake, shift the shift lever to P and press the power switch as
you normally do when stopping the hybrid system.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(



P. 643)

■

Alarm (if equipped)

Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (



P. 146)

■

Changing power switch modes

Release the brake pedal and press the power switch in step

above. The

hybrid system does not start and modes will be changed each time the switch
is pressed. (



P. 304)

■

When the electronic key does not work properly

●

Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features:



P. 779)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(



P. 207)

WARNING

■

When using the mechanical key and operating the power windows

Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the side
window. Also, do not allow children to operate the mechanical key. It is pos-
sible for children and other passengers to get caught in the power window.

747

7-2. Steps to take in an emergency

hen
trou

e ari

If the 12-volt battery is discharged

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Vehicles with an alarm
(



P. 146):

Confirm that the electronic key
is being carried.

When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and the doors may lock. (



P. 149)

2ZR-FXE engine: Open the hood. (



P. 594)

M20A-FXS engine: Open the
hood. (



P. 594) and fuse box

cover.

M20A-FXS engine: Open the
exclusive jump starting termi-
nal cover.

The following procedures may be used to start the hybrid sys-
tem if the vehicle’s 12-volt battery is discharged.
You can also call any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer or a qualified repair shop.

748

7-2. Steps to take in an emergency

Connect the jumper cables according to the following procedure:



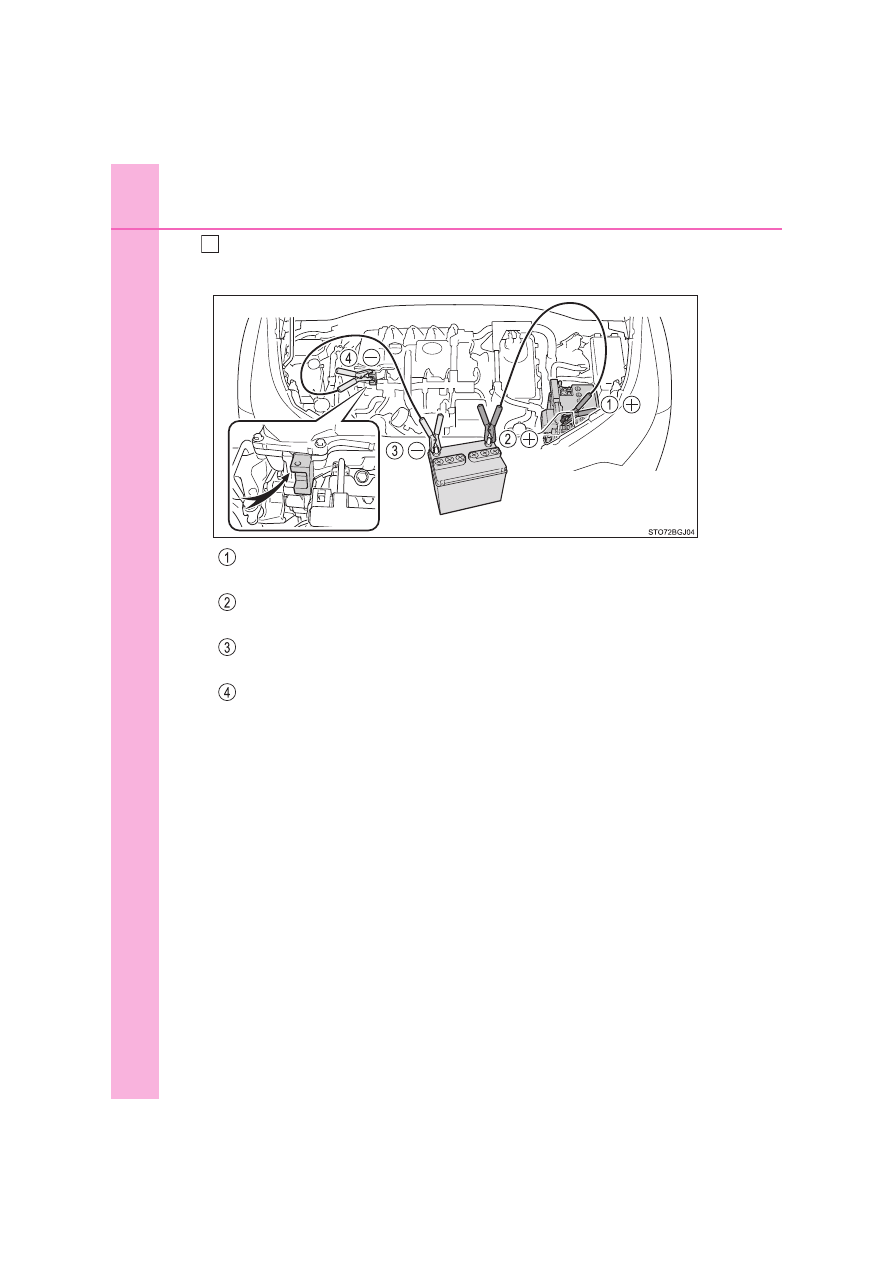

2ZR-FXE engine

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the 12-volt
battery and any moving parts, as shown in the illustration.

749

7-2. Steps to take in an emergency

hen
trou

e ari



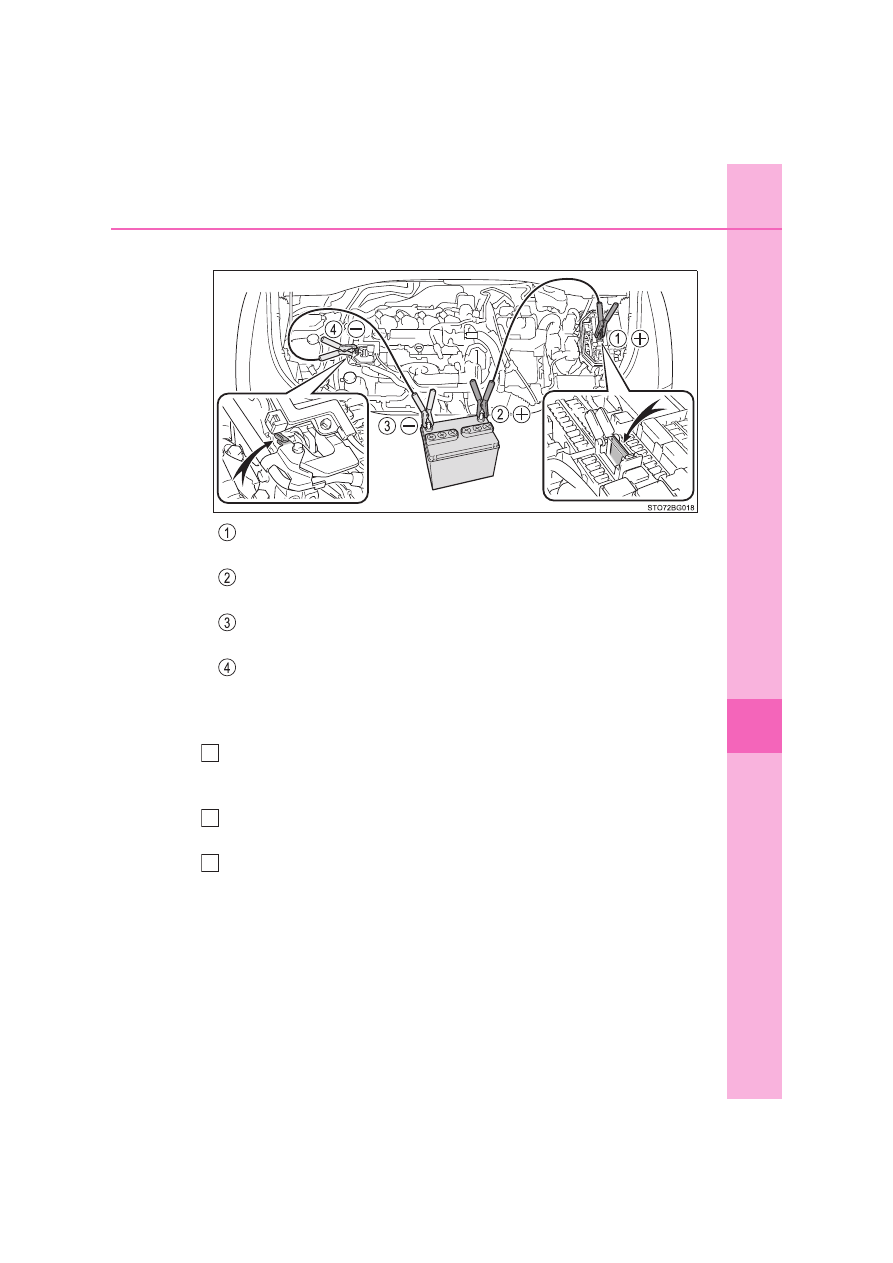

M20A-FXS engine

Connect the positive jumper cable clamp to exclusive jump start-
ing terminal on your vehicle.
Connect the clamp on the other end of the positive cable to posi-
tive (+) battery terminal on the second vehicle.
Connect the negative cable clamp to negative (-) battery terminal
on the second vehicle.
Connect the clamp at the other end of the negative cable to solid,
stationary, unpainted metallic point away from the exclusive jump
starting terminal and any moving parts as shown in the illustra-
tion.

Start the engine of the second vehicle. Increase the engine speed
slightly  and  maintain  at  that  level  for  approximately  5  minutes  to
recharge the 12-volt battery of your vehicle.
Open  and  close  any  of  the  doors  of  your  vehicle  with  the  engine
switch off.
Maintain  the  engine  speed  of  the  second  vehicle  and  start  the
hybrid  system  of  your  vehicle  by  turning  the  power  switch  to  ON
mode.

750

7-2. Steps to take in an emergency

Make sure the “READY” indicator comes on. If the indicator light
does not come on, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Once the hybrid system has started, remove the jumper cables in
the exact reverse order from which they were connected.
For M20A-FXS engine: Close the exclusive jump starting terminal
cover, and reinstall the fuse box cover to its original position.

Once the hybrid system starts, have the vehicle inspected at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

■

Starting the hybrid system when the 12-volt battery is discharged

The hybrid system cannot be started by push-starting.

■

To prevent 12-volt battery discharge

●

Turn off the headlights and the audio system while the hybrid system is off.

●

Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.

■

When the 12-volt battery is removed or discharged

●

Information stored in the ECU is cleared. When the 12-volt battery is
depleted, have the vehicle inspected at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

●

Some systems may require initialization. (



P. 791)

■

When removing the 12-volt battery terminals

When the 12-volt battery terminals are removed, the information stored in the
ECU is cleared. Before removing the 12-volt battery terminals, contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of
certain electrical appliances. If the vehicle is left for a long time, the 12-volt
battery may discharge, and the hybrid system may be unable to start. (The
12-volt battery recharges automatically while the hybrid system is operating.)

Toyota C-HR (2023 year). Manual in english - page 40
