2. Instrument cluster

rum

ent
clu



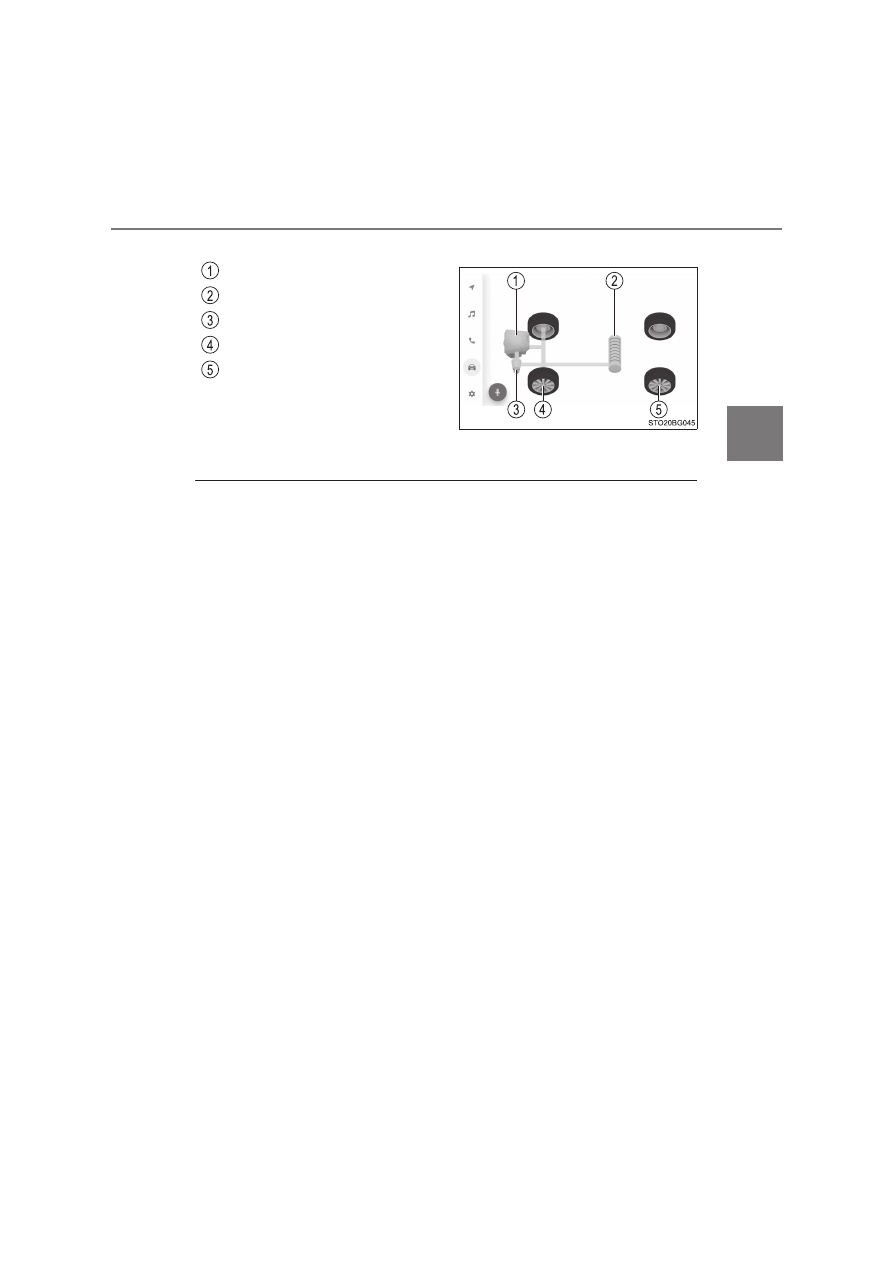

Navigation/multimedia system screen (type B) (if equipped)

Gasoline engine
Hybrid battery (traction battery)
Electric motor (traction motor)
Front tires
Rear tires

The image shows all the arrows as an example. The actual display will
vary depending on conditions.

■

Color of the hybrid battery (traction battery) on the display

It will be green or blue when the hybrid battery (traction battery) is being
charged, and yellow when the hybrid battery (traction battery) is being used.

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift lever is in N, or the remaining
charge amount drops below a certain level. If the remaining charge amount
drops further, the buzzer sounds continuously.

●

When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.

■

Color of the gasoline engine on the multimedia system screen

It will be blue when the engine is warming up, and it will turn to orange when
the warming up is finished.

180

2. Instrument cluster



Navigation/multimedia system screen (vehicles without navigation
system)
Press the “MENU” button.
Select “Info” on the “Menu” screen.

If a screen other than the desired one is displayed, select “Trip information”
or “History” on the screen.



Navigation/multimedia system screen (vehicles with navigation sys-
tem)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If a screen other than the desired one is displayed, select “Trip information”
or “History” on the screen.

■

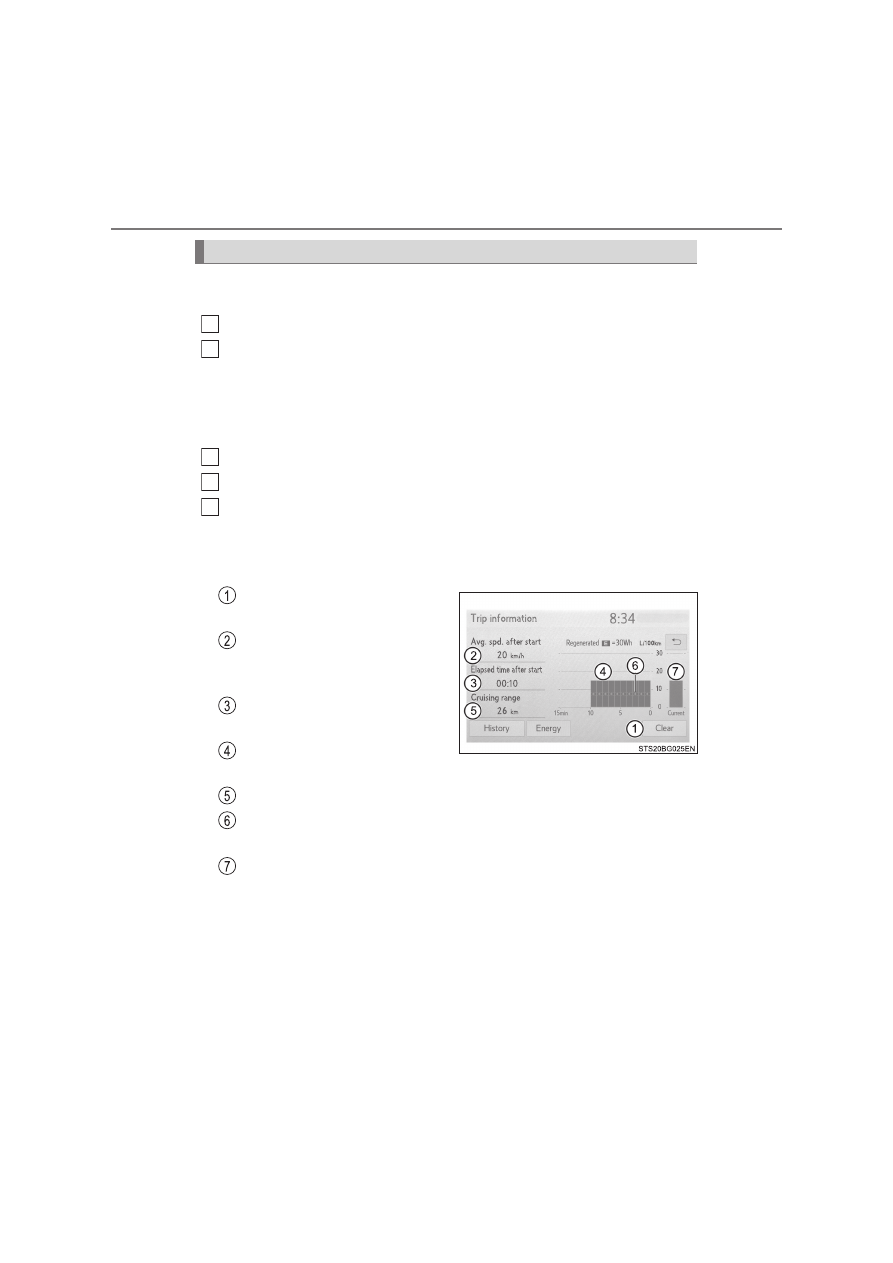

Trip information

Resetting the consumption
data
Average vehicle speed since
the hybrid system was
started
Elapsed time since the hybrid
system was started
Fuel consumption in the past
15 minutes
Cruising range (



P. 181)

Regenerated energy in the past 15 minutes

One symbol indicates 30 Wh. Up to 5 symbols are shown.

Current fuel consumption

Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.

These images are examples only, and may vary slightly from actual condi-
tions.

Fuel consumption (type A) (if equipped)

1
2

1
2
3

181

2. Instrument cluster

rum

ent
clu

■

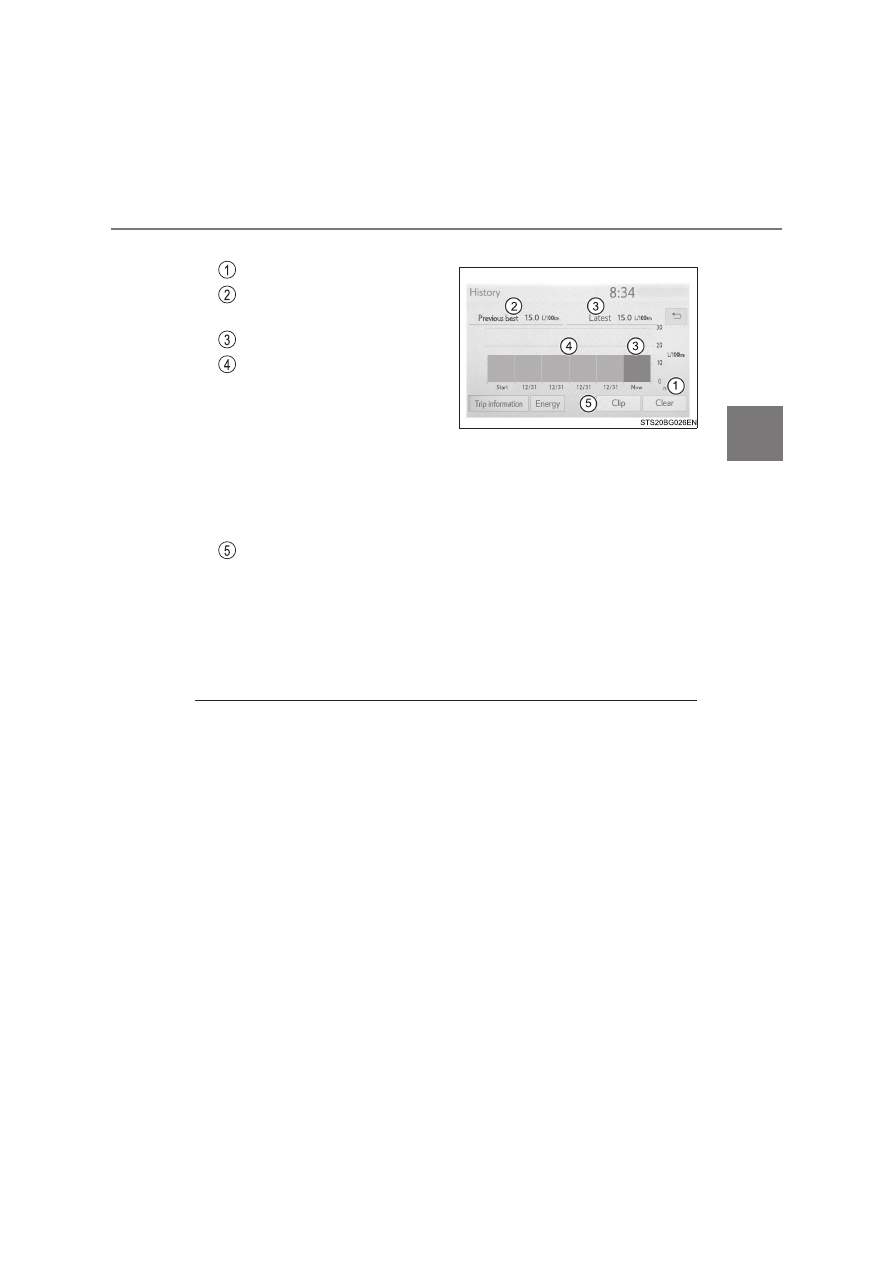

History

Resetting the history data
Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record

Vehicles without navigation sys-
tem:
Displays the daily average fuel
consumption. (Instead of the
date, “Trip 1” through “Trip 5” will
be displayed.)
Vehicles with navigation system:
Displays the daily average fuel consumption.

Updating the latest fuel consumption data

The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last time
updated. Use the displayed average fuel consumption as a refer-
ence.

These images are examples only, and may vary slightly from actual condi-
tions.

■

Updating the history data

Update the latest fuel consumption by selecting “Clip” to measure the current
fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

182

2. Instrument cluster

■

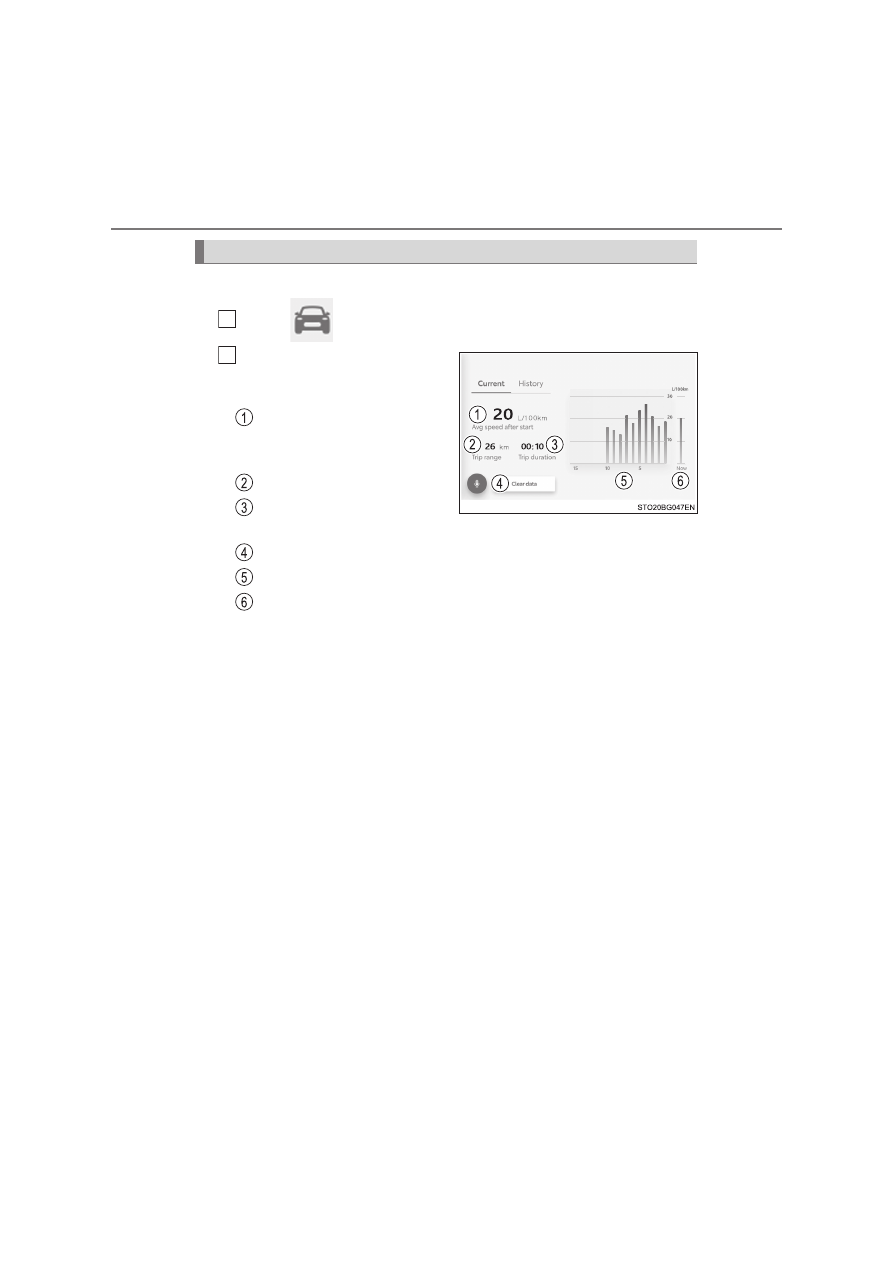

Current fuel consumption screen

Select

on the main menu.

Select “Trip information”

If a screen other than “Current”
is displayed, select “Current”.

Average  vehicle  speed
since  the  hybrid  system
was started.
Trip range
Elapsed  time  since  the
hybrid system was started.
Resetting the history data
Fuel consumption in the past 15 minutes
Current fuel consumption

Use the displayed average fuel consumption as a reference. The
image is an example only, and may vary slightly from actual condi-
tions.

Fuel consumption (type B) (if equipped)

183

2. Instrument cluster

rum

ent
clu

■

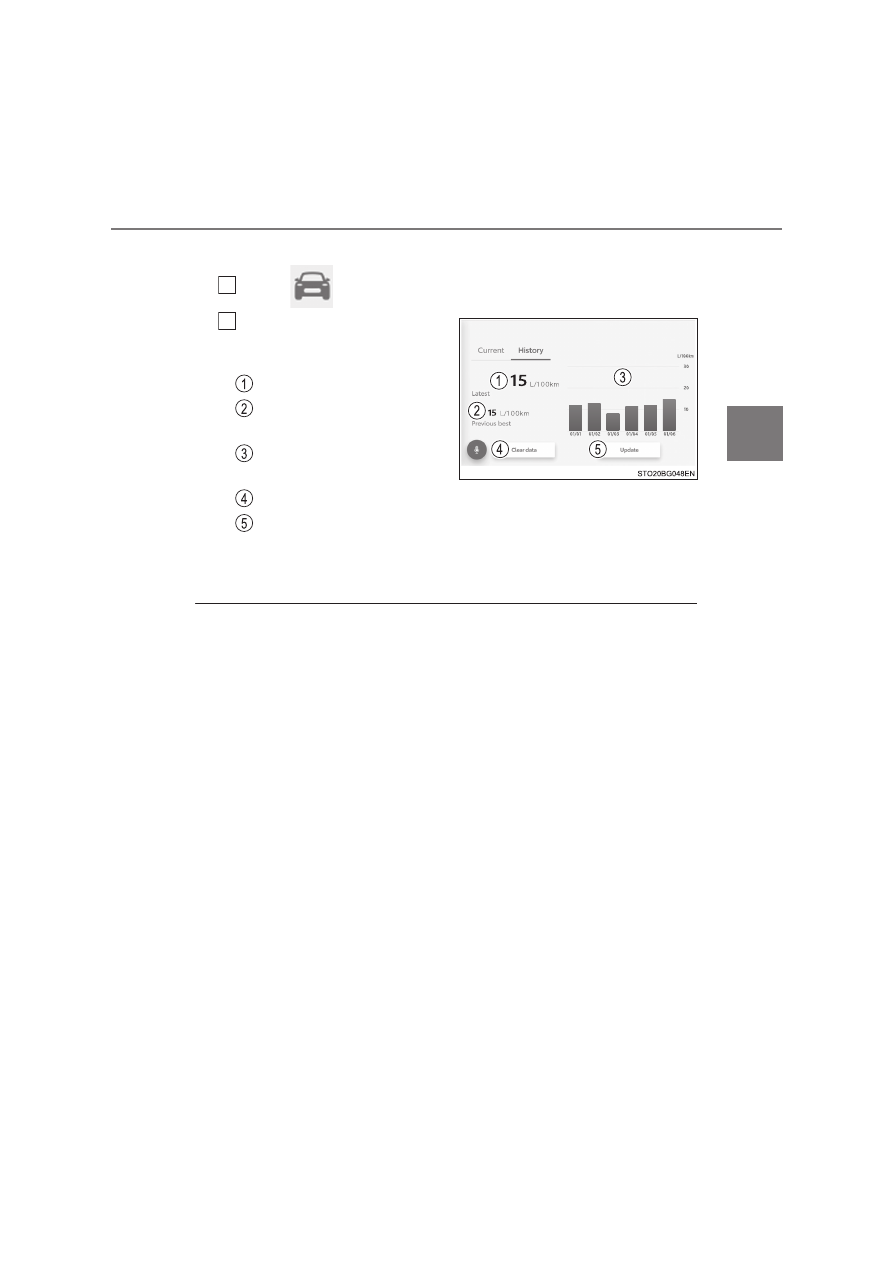

History fuel consumption screen

Select

on the main menu.

Select “Trip information”

If a screen other than “History”
is displayed, select “History”.

Latest fuel consumption
Best recorded fuel con-
sumption
Previous fuel consump-
tion record
Resetting the history data
Updating the latest fuel consumption data

Use the displayed average fuel consumption as a reference. The
image is an example only, and may vary slightly from actual condi-
tions.

■

Updating the history data

Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear data”.

■

Trip range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
As a result, the actual distance that can be driven may differ from that dis-
played.

185

Operation of

each component

3-1. Key information

Keys...................................186

3-2. Opening, closing and

locking the doors

Side doors..........................191
Back door...........................199
Smart entry & start

system .............................205

3-3. Adjusting the seats

Front seats.........................260
Rear seats .........................262
Head restraints ..................264

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ...................268
Inside rear view mirror .......270
Outside rear view

mirrors .............................272

3-5. Opening and closing the

windows

Power windows..................275

186

3-1. Key information

Keys

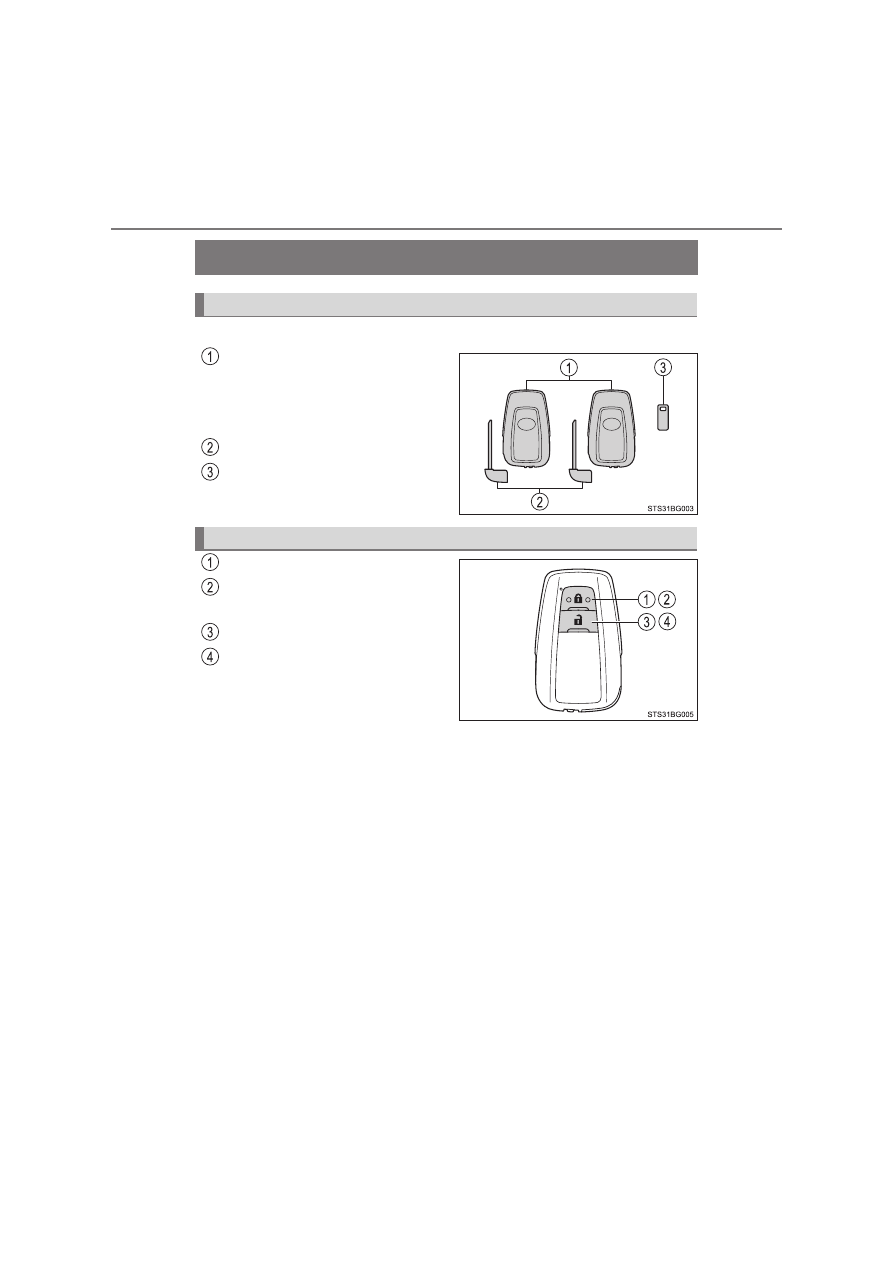

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart entry &

start system (



P. 205)

• Operating the wireless remote

control function

Mechanical keys
Key number plate

Locks all the doors (



P. 192)

Closes the side windows

(



P. 192)

Unlocks all the doors (



P. 192)

Opens the side windows

(



P. 192)

: These settings must be customized at any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

The keys

Wireless remote control

187

3-1. Key information

ati

on
of e
ac

h c
o

pon
ent

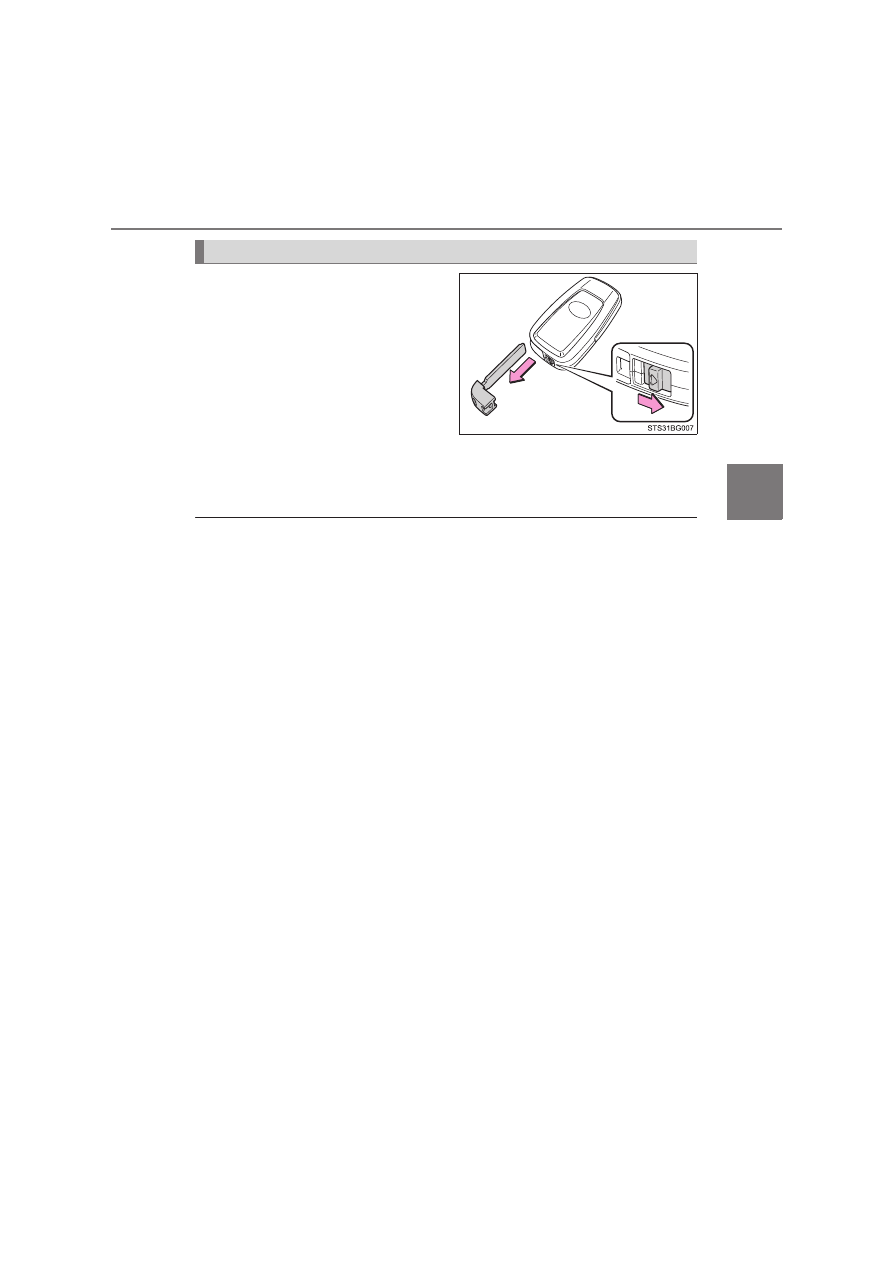

To take out the mechanical key,
slide the release lever and take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (



P. 744)

■

If you lose your mechanical keys

New genuine mechanical keys can be made by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer using another mechani-
cal key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag, etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.

■

Conditions affecting the operation of the smart entry & start system



P. 208

Using the mechanical key

188

3-1. Key information

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin and a message
will be displayed on the multi-information display when the hybrid system
stops.

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (



P. 643)

• The smart entry & start system or the wireless remote control does not

operate.

• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
The battery can be exchanged by the users. (



P. 643) However, as there

may be damage to the key when exchanging, it is recommended to have
the battery exchanged at any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

●

To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

189

3-1. Key information

ati

on
of e
ac

h c
o

pon
ent

■

When the key battery is fully depleted



P. 643

■

Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.

■

If a wrong key is used

On some models, the key cylinder rotates freely to isolate inside mechanism.

■

Customization

Settings (e.g. wireless remote control system) can be changed.
(Customizable features:



P. 779)

■

Certification for the wireless remote control



P. 212

190

3-1. Key information

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks, or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.

●

Do not place the keys near medical electrical equipment such as low-fre-
quency therapy equipment or microwave therapy equipment, and do not
receive medical attention with the keys on your person.

■

Carrying the electronic key on your person

Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart entry & start system malfunction or other key-related
problems

Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

■

When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer immediately with all remaining electronic keys that
were provided with your vehicle.

191

3-2. Opening, closing and locking the doors

ati

on
of e
ac

h c
o

pon
ent

Side doors

◆

Entry function (vehicles with a smart entry & start system
equipped with entry function)

Carry the electronic key to enable this function.

Grip the front door handle to
unlock all the doors.

Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.

Touch the lock sensor (the
indentation on the surface of
the front door handle) to lock
all the doors.

Check that the door is securely locked.

: The door unlock settings can be changed. (



P. 196)

Unlocking and locking the doors from the outside

192

3-2. Opening, closing and locking the doors

◆

Wireless remote control

Locks all the doors

Check that the door is securely
locked.
Press and hold to close the side
windows.

Unlocks all the doors

Press and hold to open the side
windows.

: These settings must be customized at any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

■

Operation signals

Doors:
The emergency flashers flash to indicate that the doors have been locked/
unlocked using the entry function or wireless remote control. (Locked: Once;
Unlocked: Twice)
Windows:
A buzzer sounds to indicate that the windows are operating.

193

3-2. Opening, closing and locking the doors

ati

on
of e
ac

h c
o

pon
ent

■

Security feature

If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicles with an entry function)

■

Door lock buzzer

If an attempt to lock the doors using the entry function or wireless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, and lock the
doors again.

■

Setting the alarm (if equipped)

Lock the doors will set the alarm system. (



P. 146)

■

If the smart entry & start system or the wireless remote control does not
operate properly

●

Use the mechanical key to lock and unlock the doors. (



P. 744)

●

Replace the key battery with a new one if it is depleted. (



P. 643)

Use your palm to touch the lock sensor.

194

3-2. Opening, closing and locking the doors

◆

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Locking and unlocking the doors from the inside

195

3-2. Opening, closing and locking the doors

ati

on
of e
ac

h c
o

pon
ent

Move the inside lock button to the lock position.
Close the door while pulling the door handle.

The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

Locking the front doors from the outside without a key

Rear door child-protector lock

1
2

Content .. 8 9 10 11 ..
