5-4. Using the driving support systems

5

Dr

iv

ing

becomes far, it may no longer be

able to be detected. Depending on

shape or condition of a parked

vehicle, the detection range may

become short or the vehicle may

not be detected.

●

Objects other than parked vehi-

cles, such as columns, walls, etc.,

may not be detected. Also, if they

are detected, they may cause the

target parking space to be mis-

aligned.

■

Situations in which white park-

ing space lines may not be rec-

ognized properly

●

In situations such as the following,

parking space lines on the road

surface may not be detected:

• When the parking space does not

use white lines (parking space

boundaries are marked with rope,

blocks, etc.)

• When the parking space lines are

faded or dirty, making them

unclear

• When the road surface is bright,

such as concrete, and the contrast

between it and the white parking

space lines is small

• When the parking space lines are

any color other than yellow or

white

• When the area surrounding the

parking space is dark, such as at

night, in an underground parking

lot, parking garage, etc.

• When it is raining or has rained

and the road surface is wet and

reflective or there are puddles

• When the sun is shining directly

into a camera, such as in the early

morning or evening

• When the parking space is cov-

ered with snow or de-icing agent

• When there marks from repairs or

other marks on the road surface,

or there is a traffic bollard, or other

object on the road surface

• When the color or brightness of

the road surface is uneven

• When a camera has been

splashed by hot or cold water and

the lens has fogged up

• When the appearance of the park-

ing space is affected by the

shadow of the vehicle or trees

• When a camera lens is dirty or

covered with water droplets

●

In situations such as the following,

the target parking space may not

be recognized correctly:

• When there marks from repairs or

other marks on the road surface,

or there is a parking block, traffic

bollard, or other object on the road

surface

• When it is raining or has rained

and the road surface is wet and

reflective or there are puddles

• When the area around the vehicle

is dark or backlit

• When the color or brightness of

the road surface is uneven

• When the parking space is on a

slope

• When there are diagonal lines

(access aisle) near the parking

space

• When the appearance of the park-

ing space is affected by the

shadow of a parked vehicle (such

as shadows from the grille, side

step, etc.)

• When accessories which obstruct

the view of the camera are

installed

• When the parking space lines are

faded or dirty, making them

unclear

• When the appearance of the park-

ing space is affected by the

shadow of the vehicle or trees

■

Sensor detection information



P.313

■

Objects which the sensor may

not be properly detected



P.314

■

Situations in which the sensor

may not operate properly



P.314

354

5-4. Using the driving support systems

■

Situations in which parking

assistance may not operate

even if there is no possibility of

a collision



P.315

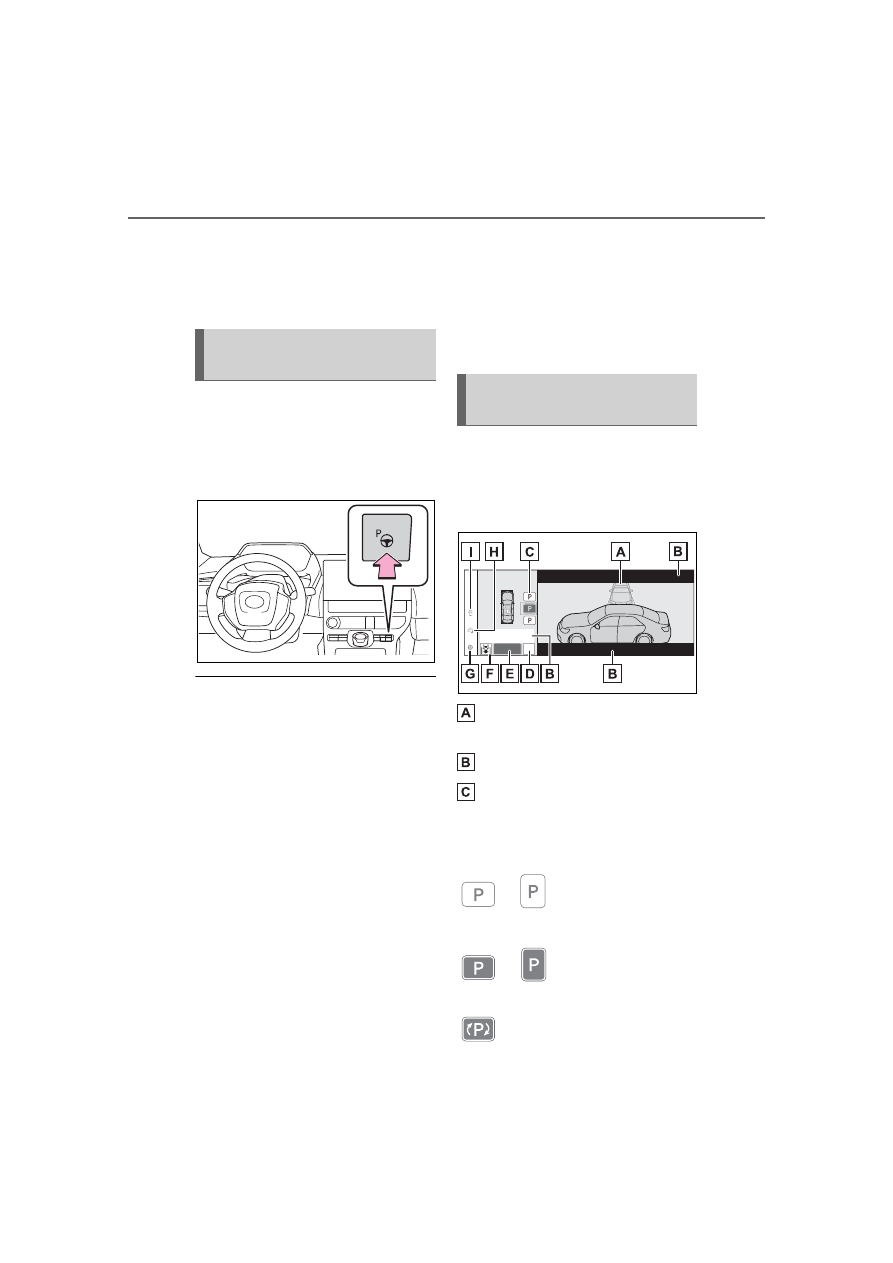

Press the Advanced Park main
switch.

If the switch is pressed while assis-
tance is being performed, the assis-
tance will be canceled.

■

Operating conditions of the

Advanced Park

Assistance will begin when all of the

following conditions are met:

●

The brake pedal is depressed

●

The vehicle is stopped

●

The driver’s seat belt is fastened

●

The steering wheel is not being

operated

●

The accelerator pedal is not

depressed

●

All of the doors are closed

●

The outside rear view mirrors are

not folded

●

The parking brake is not engaged

●

The dynamic radar cruise control

are not operating

●

ABS, VSC, TRAC, PCS and

PKSB are not operating

●

The vehicle is not on a steep

slope

●

The VSC and TRAC are not

turned off

If assistance cannot be started,
check the message displayed on
the multimedia display (



P.380)

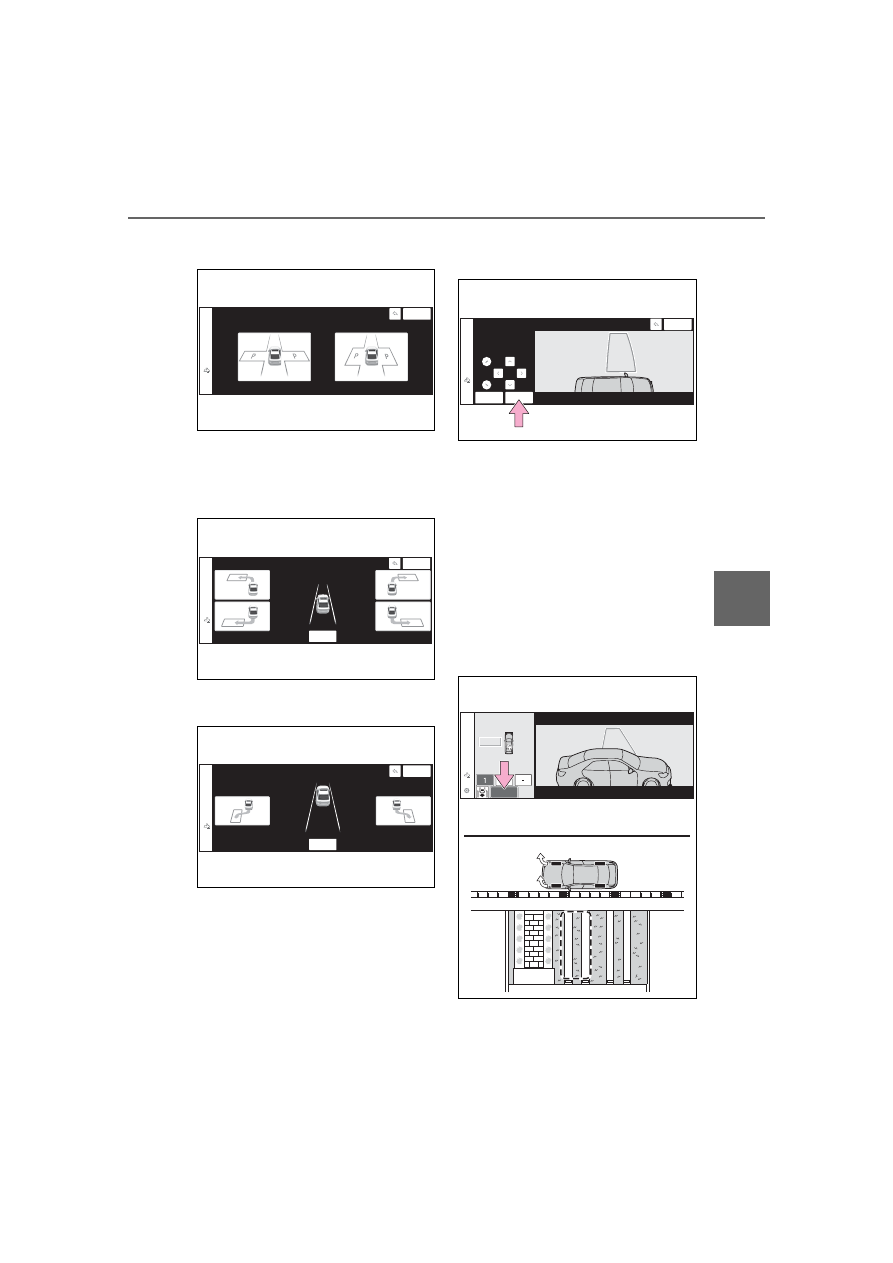

Guidance screens are displayed
on the multimedia display.



Guidance screen (When
assistance starts)

Target parking space box
(blue)

Advice display

Parking type change button

If multiple switches are displayed,
depending on the condition of the
switch its function differs as follows.

 or

: Change the target to

another parking space.

 or

 Change the target to

another parking space.

: Select to change to the par-

Turning the Advanced
Park on/off

Advanced Park guidance
screens

355

5-4. Using the driving support systems

5

Dr

iv

ing

allel parking function

: Change the perpendicular

parking (forward/reverse) function

“MODE” button

Select to change between the
memory function and the perpen-
dicular parking (forward/reverse)
function and parallel parking func-
tion. (



P.368)

“Start” button

Select to start parking assistance.

Perpendicular parking direc-
tion change button

Select to change between the park-
ing (forward) function and parking
(reverse) function

: Change the perpendicular

parking (forward) function

: Change the perpendicular

parking (reverse) function

Customize setting button

Select to display the Advanced
Park setting screen. (



P.379)

Registration button

Select to begin registering a park-
ing space.

Remote control function start
button

Select to start parking assistance
operation on the smartphone dis-
play.



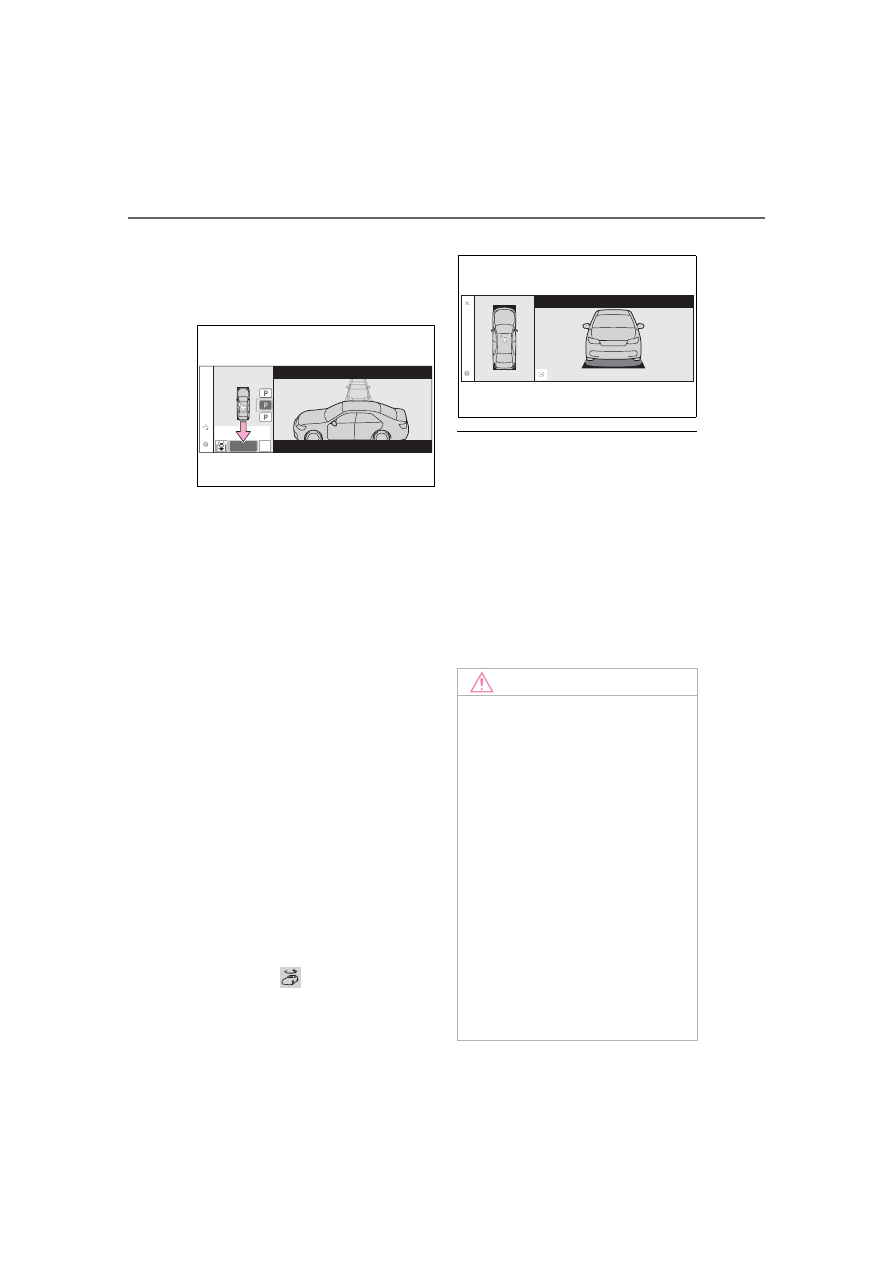

Guidance screen (When
reversing)

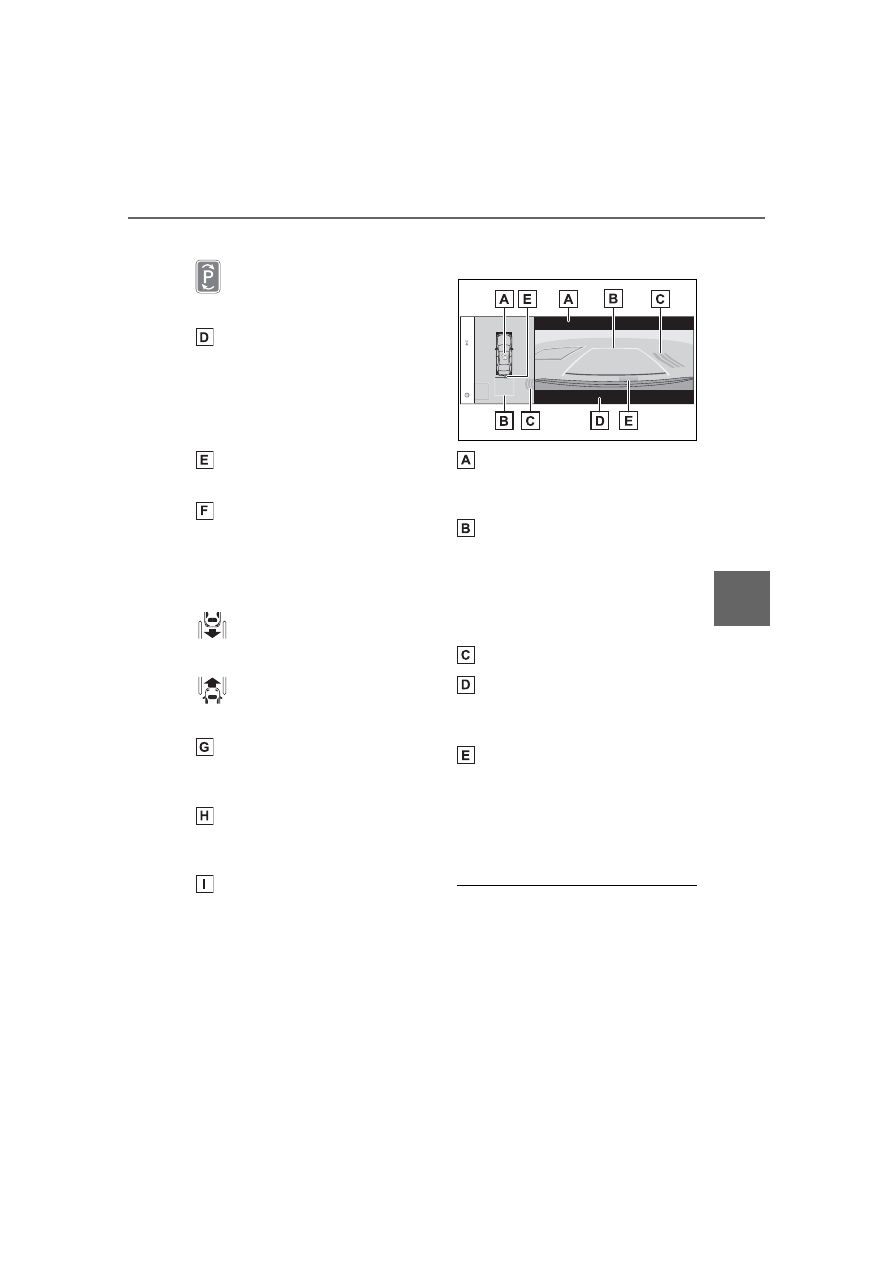

Operation icon

Displayed when the Advanced Park
is operating.

Guide lines (yellow and red)

Display points from the center of
the edge of the front or rear bumper
to the target stopping position (yel-
low)

*

 and approximately 1 ft. (0.3

m) (red) from the vehicle.

Moving object warning icon

Emergency support brake
control operation display

“BRAKE!” is displayed.

Intuitive parking assist-sen-
sor display



P.312

*

: When the target stop position is

8.2 ft. (2.5 m) or more, the hori-
zontal line (yellow) will be hidden.

■

Intuitive parking assist-sensor

pop-up display

Regardless of whether the intuitive

parking assist-sensor is off or on

(



P.312), if an object is detected by

the intuitive parking assist-sensor

when the Advanced Park is operat-

ing, the intuitive parking assist-sen-

sor pop up display will automatically

356

5-4. Using the driving support systems

be displayed over the guidance dis-

play.

■

Brake control operation when

Advanced Park is operating

While the Advanced Park is operat-

ing, if the system determines that

the possibility of collision with

detected moving or stationary object

is high, the EV system output

restriction control and brake control

will operate.
If brake control operates, Advanced

Park operation will be suspended

and a message will be displayed on

the multi-information display.

■

Buzzer

Depending on surrounding sounds

or sounds from other systems, it

may be difficult to hear the buzzer of

this system.

■

If a black screen is displayed on

the multimedia display when

the Advanced Park is operating

The system is being affected by

radio waves or may be malfunction-

ing. If a radio antenna is installed

near a camera, move it to a location

as far from the cameras as possible.

If a radio antenna is not installed

near a camera, and the screen does

not return to normal after turning the

power switch off and then starting

the EV system again, have the vehi-

cle inspected by your Toyota dealer.

■

Function description

The perpendicular parking (for-
ward/reverse) function can be
used if the target parking space
can be detected when the vehi-
cle is stopped close and perpen-
dicular to the center of the

parking space. Also, depending
on the condition of the parking
space, etc., if it is necessary to
change the direction of travel of
the vehicle, the shift position can
be changed by assistance con-
trol.

■

Parking using the perpen-
dicular parking (for-
ward/reverse) function

1

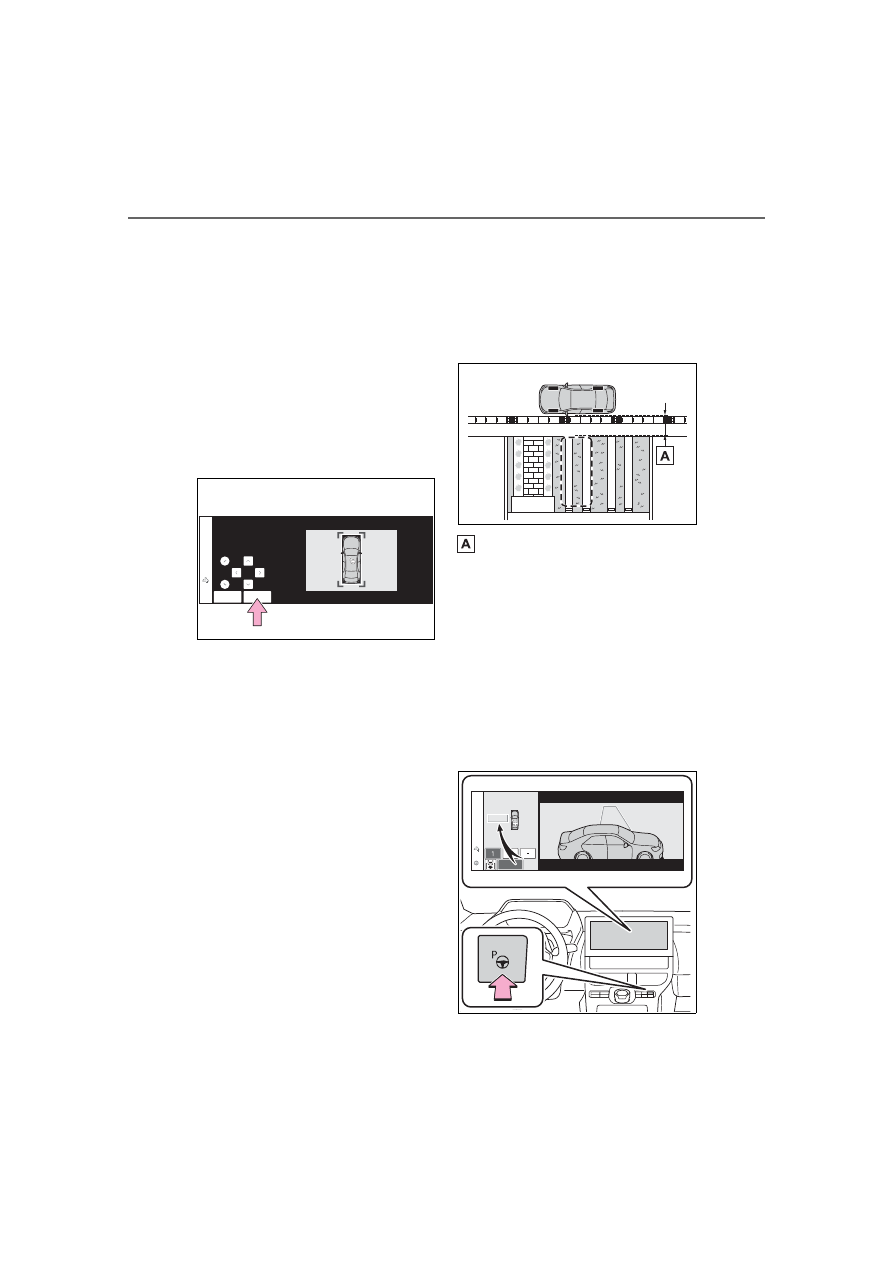

Stop the vehicle at a position
close and perpendicular to
the center of the target park-
ing space.



If there are parking space
lines

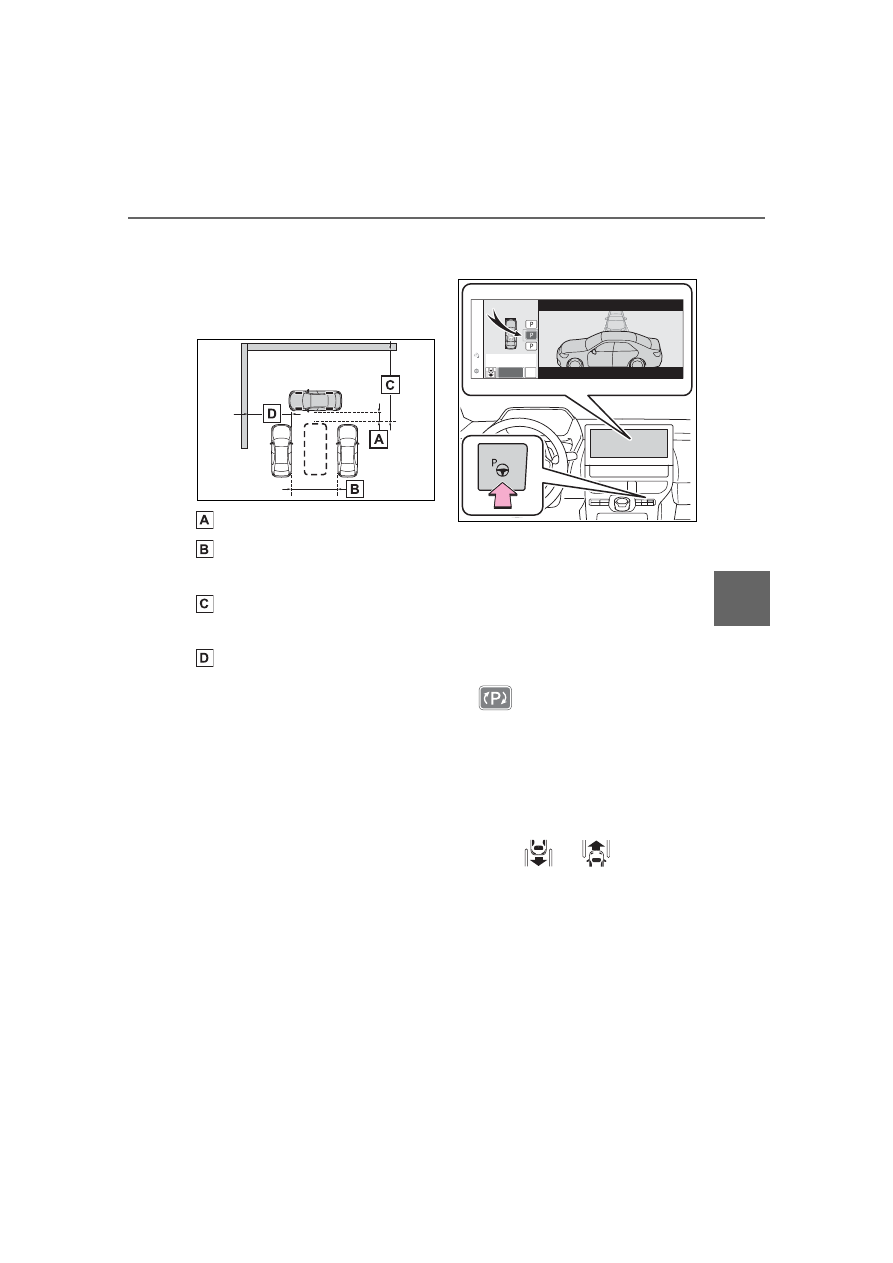

Approximately 3.3 ft. (1 m)

*

Approximately 8.2 ft. (2.5 m)

*

Approximately 19.7 ft. (6 m)
or more

*

Approximately 18.0 ft. (5.5 m)
or more

*

The system can operate even if
there is a parking space line on only
one side of the target parking
space.

*

: This is a reference measurement

for detection of a parking space.

Advanced Park Perpen-
dicular parking (for-
ward/reverse) function

357

5-4. Using the driving support systems

5

Dr

iv

ing

Depending on the surrounding
environment, detection may not
be possible.



If there is an adjacent parked
vehicle

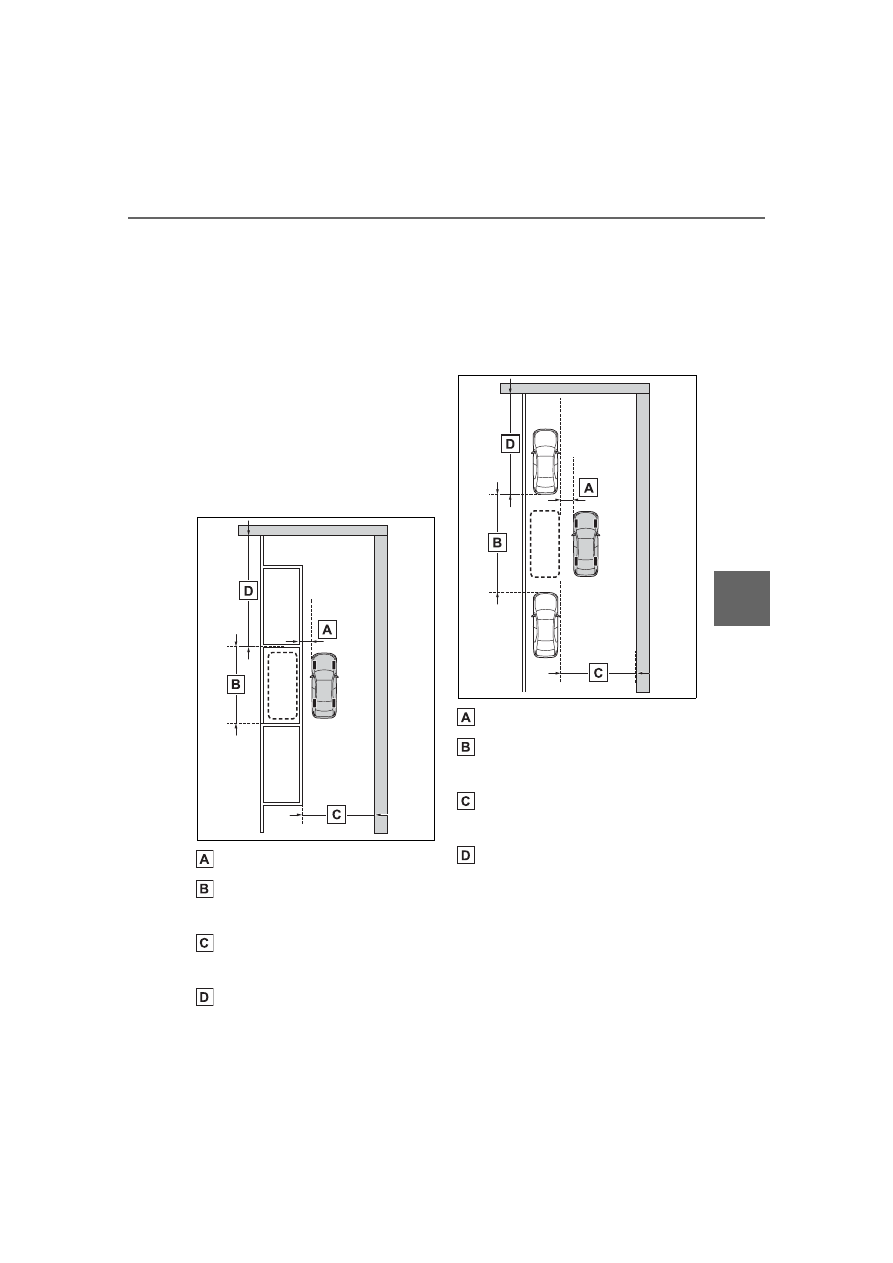

Approximately 3.3 ft. (1 m)

*

Approximately 9.8 ft. (3 m) or
more

*

Approximately 19.7 ft. (6 m)
or more

*

Approximately 18.0 ft. (5.5 m)
or more

*

The system can operate even if
there is a vehicle on only one side
of the target parking space.

*

: This is a reference measurement

for detection of a parking space.
Depending on the surrounding
environment, detection may not
be possible.

2

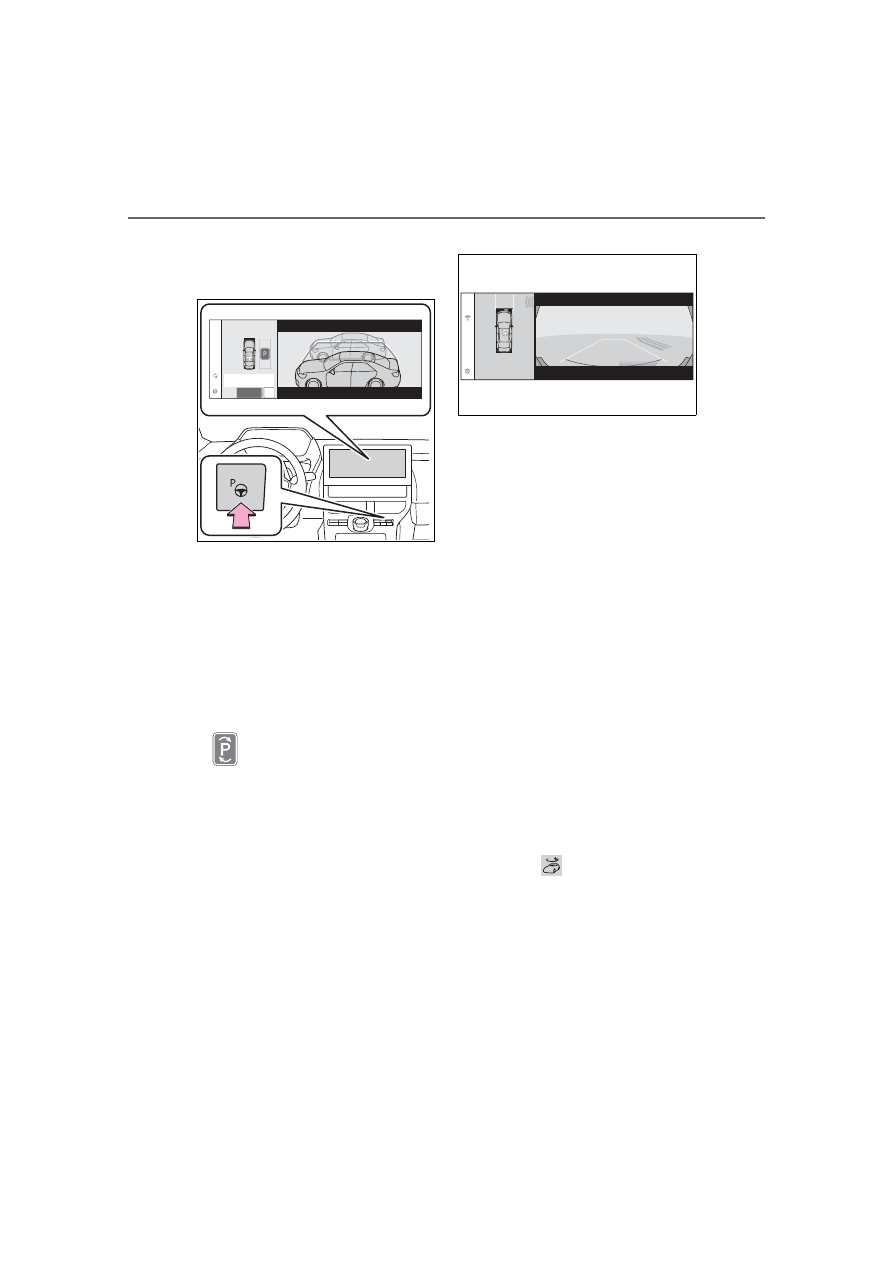

Press the Advanced Park
main switch and check that a
possible parking space is dis-

played on the multimedia dis-
play.



If a space which your vehicle
can be parked is detected, a
target parking space box will
be displayed.



If it is possible to parallel park
in the space, select the park-
ing space, and then select

 to change to the paral-

lel parking function.



If it is possible to change the
direction which a parking
space is entered, select the
parking space, and then

select

 or

 change

the direction.



Depending on the surround-
ing environment, it may not be
possible to use this function.
According to the information
displayed on the multimedia
display, use the function on
another parking space.

358

5-4. Using the driving support systems

3

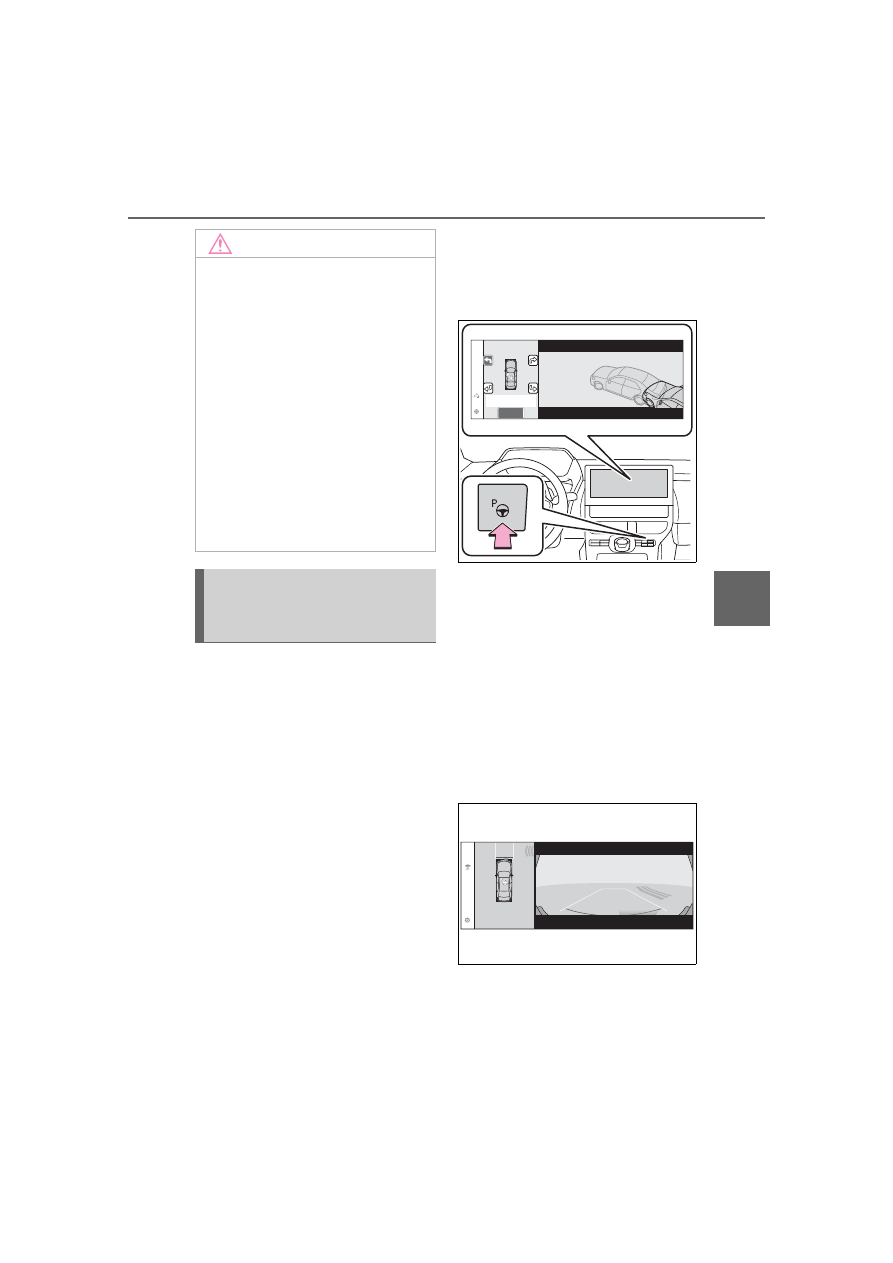

Select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

tance will begin operating.



When the brake pedal is
released, “Moving Forward...”,
“Backing Up...” will be dis-
played and the vehicle will
begin moving for-
ward/reverse.



To cancel assistance, press
the Advanced Park main
switch.

If assistance is canceled,
“Advanced Park Cancelled” will be
displayed.

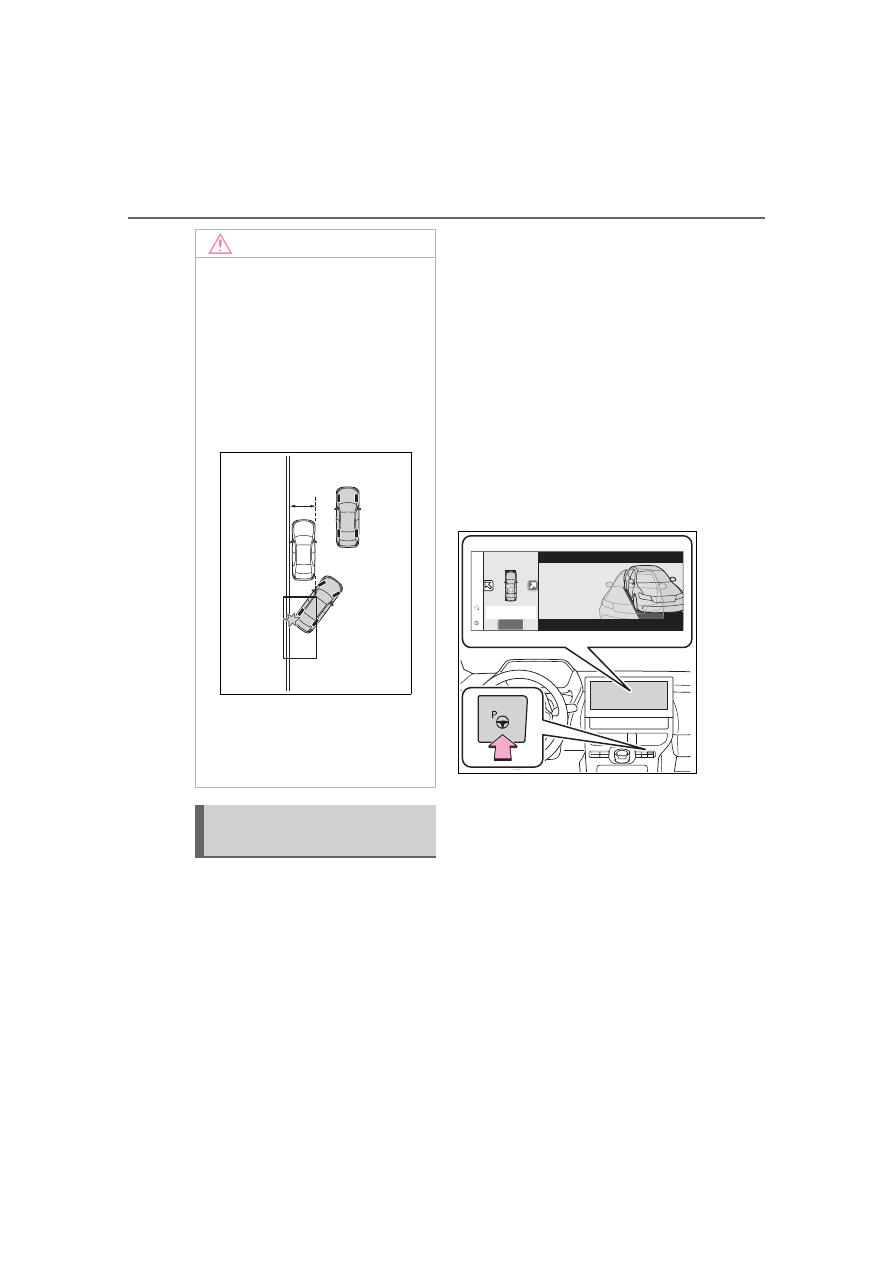

If you feel that the vehicle is
approaching close to a surround-
ing vehicle, object, person, or gut-
ter:



P.358

4

Perform operations as indi-
cated by the advice displays
until the vehicle stops in the
target parking space.

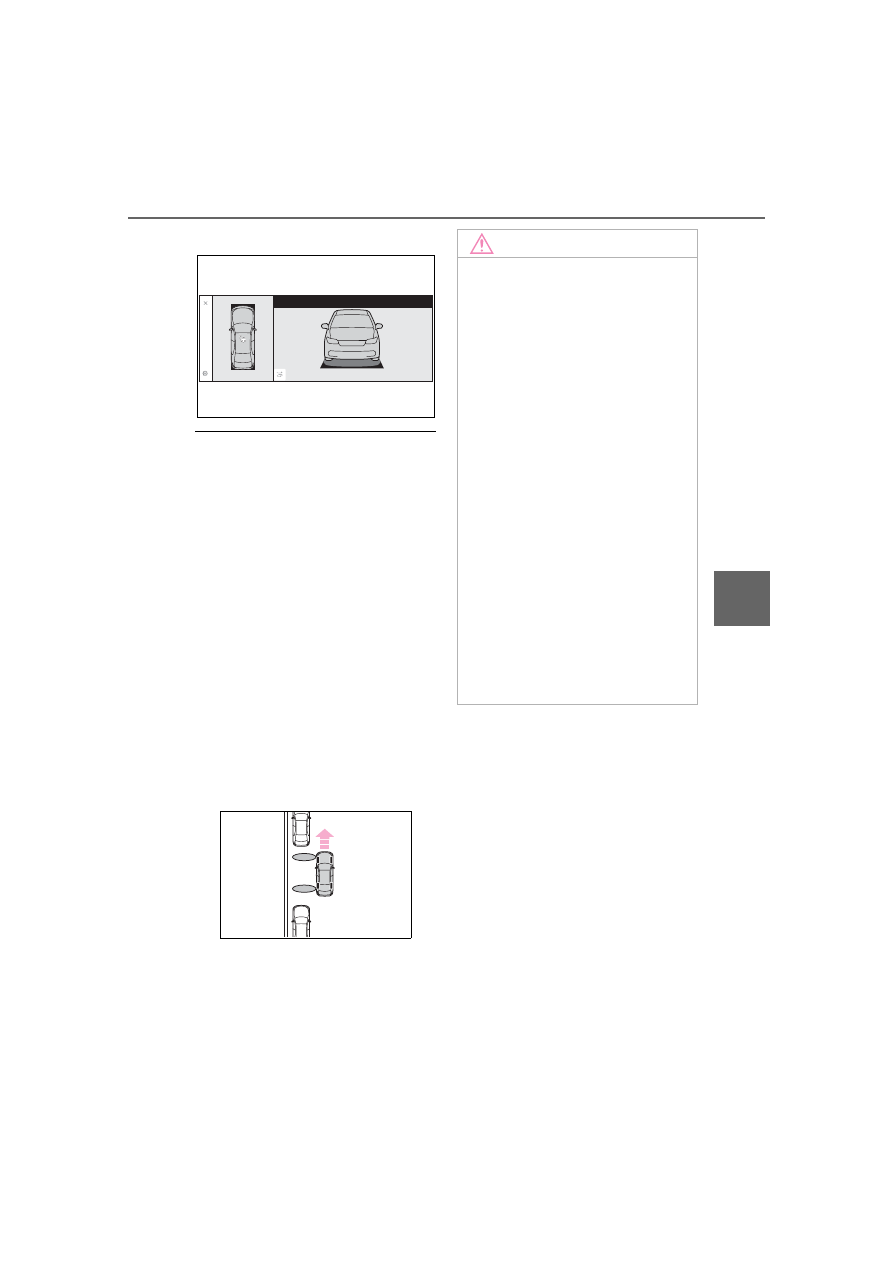

When the vehicle stops, “Advanced

Park Finished” will be displayed

and parking assistance will end.

If you select

 on the multimedia

display, the vehicle displayed on
the parking assist completion

screen will rotate.

■

If you feel that the vehicle is

approaching close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

position to change the direction of

travel of the vehicle. At this time,

assist will be suspended. However,

if the “Start” button is selected,

assist will resume and the vehicle

will move in the direction corre-

sponding to the selected shift posi-

tion.

NOTICE

■

When using the perpendicu-

lar parking (forward/reverse)

function

●

Make sure that there are no

obstructions within the yellow

guide lines and between the

vehicle and target parking spot.

If there are any obstructions

between the vehicle and the tar-

get parking space, or between

the yellow guide lines, cancel

the function.

●

As the target parking space will

not be able to be set correctly if

the surface of the parking space

is on a slope or has differences

in height, the vehicle may stray

from the target parking space or

be slanted. Therefore, do not

use the function for this kind of

parking spot.

359

5-4. Using the driving support systems

5

Dr

iv

ing

■

Function description

When exiting from a perpendic-
ular parking space, if the system
determines that exit is possible
the perpendicular exiting (for-
ward/reverse) function can be
used. Also, depending on the
surrounding environment, if it is
necessary to change the direc-
tion of travel of the vehicle, the
shift position can be changed by
assistance control.

■

Perpendicular exiting (for-
ward/reverse) function

1

With the brake pedal
depressed and P shift posi-
tion selected, press the
Advanced Park main switch

and check that the exit direc-
tion selection screen is dis-
played on the multimedia
display.

2

Select an arrow on the multi-
media display to select the
direction you wish to exit.

If the turn signal lever is operated,

only exit to the left or right can be

selected.

3

Depress the brake pedal and
select “Start” button.

If you feel that the vehicle is

approaching close to a surround-

ing vehicle, object, person, or gut-

ter:



P.360

A buzzer will sound, an operation

message will be displayed on the

multi information display, and assis-

tance will begin operating. To can-

NOTICE

●

When parking in a narrow park-

ing space, the vehicle may

closely approach an adjacent

parked vehicle. If a collision

seems likely, depress the brake

pedal to stop the vehicle.

●

If a detected parked vehicle is

narrow or parked extremely

close to the curb, the position at

which assistance will park the

vehicle will also be close to the

curb. If it seems likely the vehi-

cle will collide with something or

drive off of the road, depress

the brake pedal to stop the vehi-

cle, and then press the Advance

Park main switch to disable the

system.

Advanced Park perpen-
dicular exiting (for-
ward/reverse) function

360

5-4. Using the driving support systems

cel assistance, press the Advanced

Park main switch. If assistance is

canceled, “Advanced Park Can-

celled” will be displayed.

4

Perform operations as indi-
cated by the advice displays
until the vehicle is in a posi-
tion where exit is possible.

If the steering wheel is not oper-

ated, the vehicle will stop at the exit

position. Assistance can be ended

by depressing the accelerator pedal

or brake pedal. When the vehicle

reaches a position where exit is

possible, “You can exit by moving

the steering wheel” will be dis-

played. If the steering wheel is

operated, “Advanced Park Fin-

ished” will be displayed and assis-

tance will end. Grip the steering

wheel and drive forward.

■

If you feel that the vehicle is

approaching close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

position to change the direction of

travel of the vehicle.

At this time, assist will be sus-

pended. However, if the “Start” but-

ton is selected, assist will resume

and the vehicle will move in the

direction corresponding to the

selected shift position.

■

Perpendicular exiting (for-

ward/reverse) function

Do not use exiting (for-

ward/reverse) function in any situa-

tion other than when exciting a

parallel parking spot. If assistance is

started unintentionally, depress the

brake pedal and stop the vehicle,

then press the Advanced Park main

switch to cancel assistance.

■

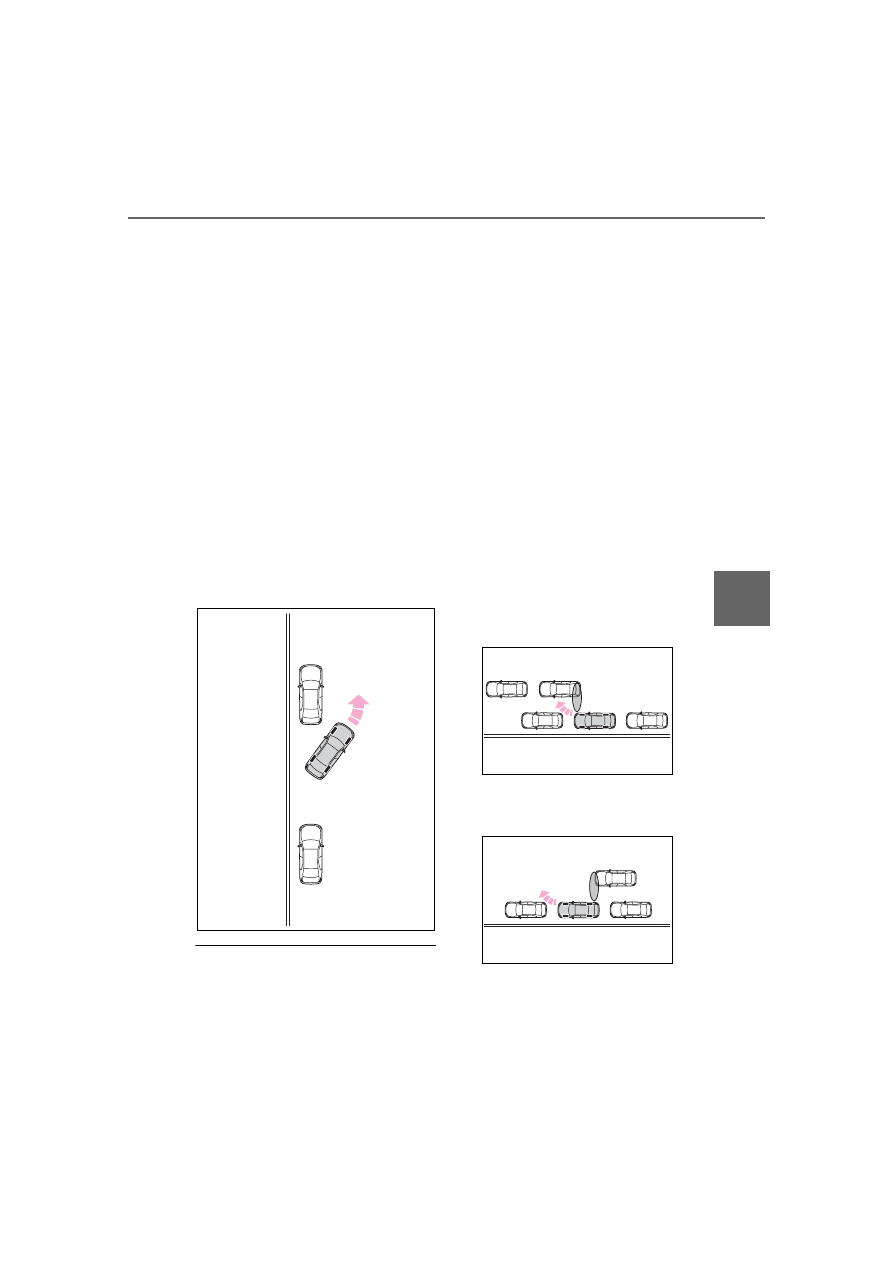

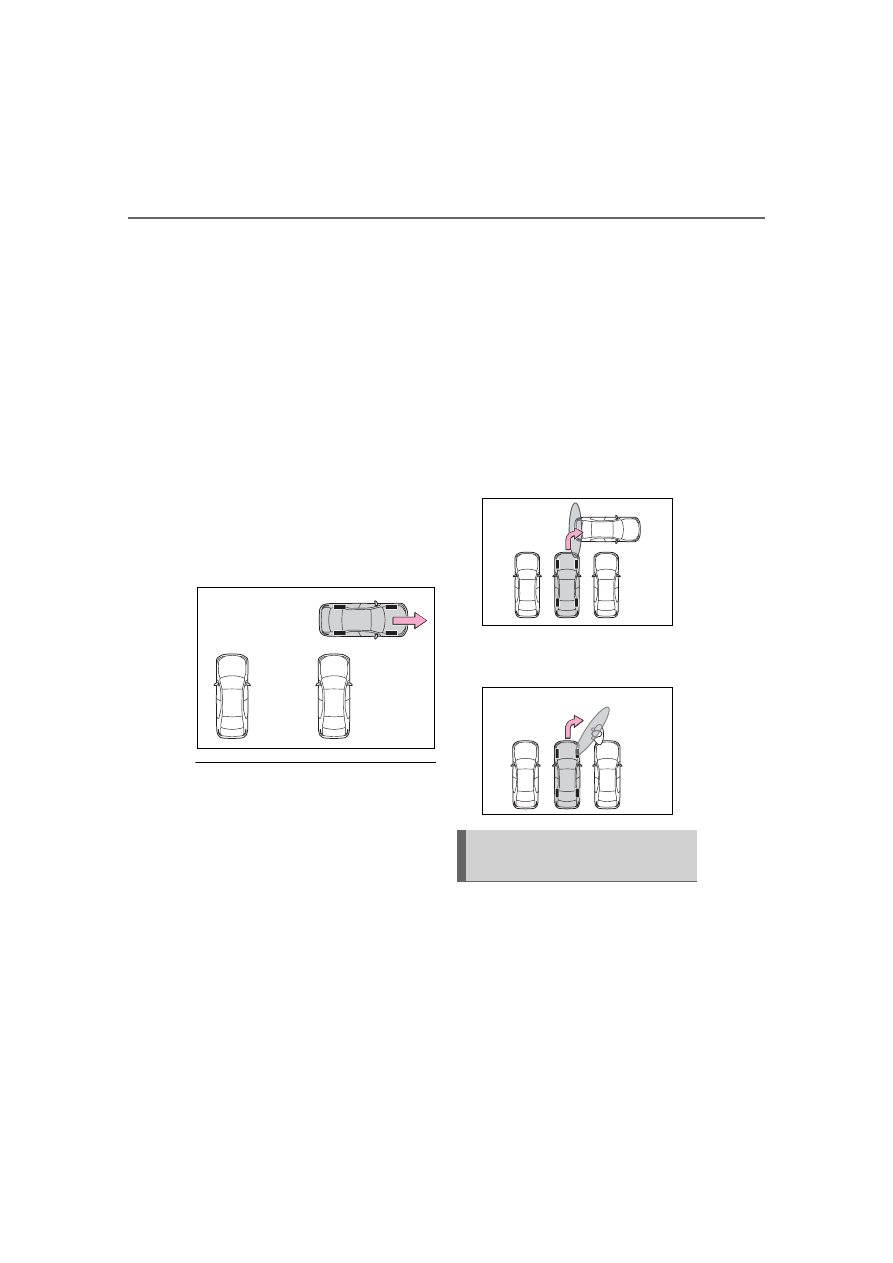

Situations in which the perpen-

dicular exiting (forward /

reverse) function will not oper-

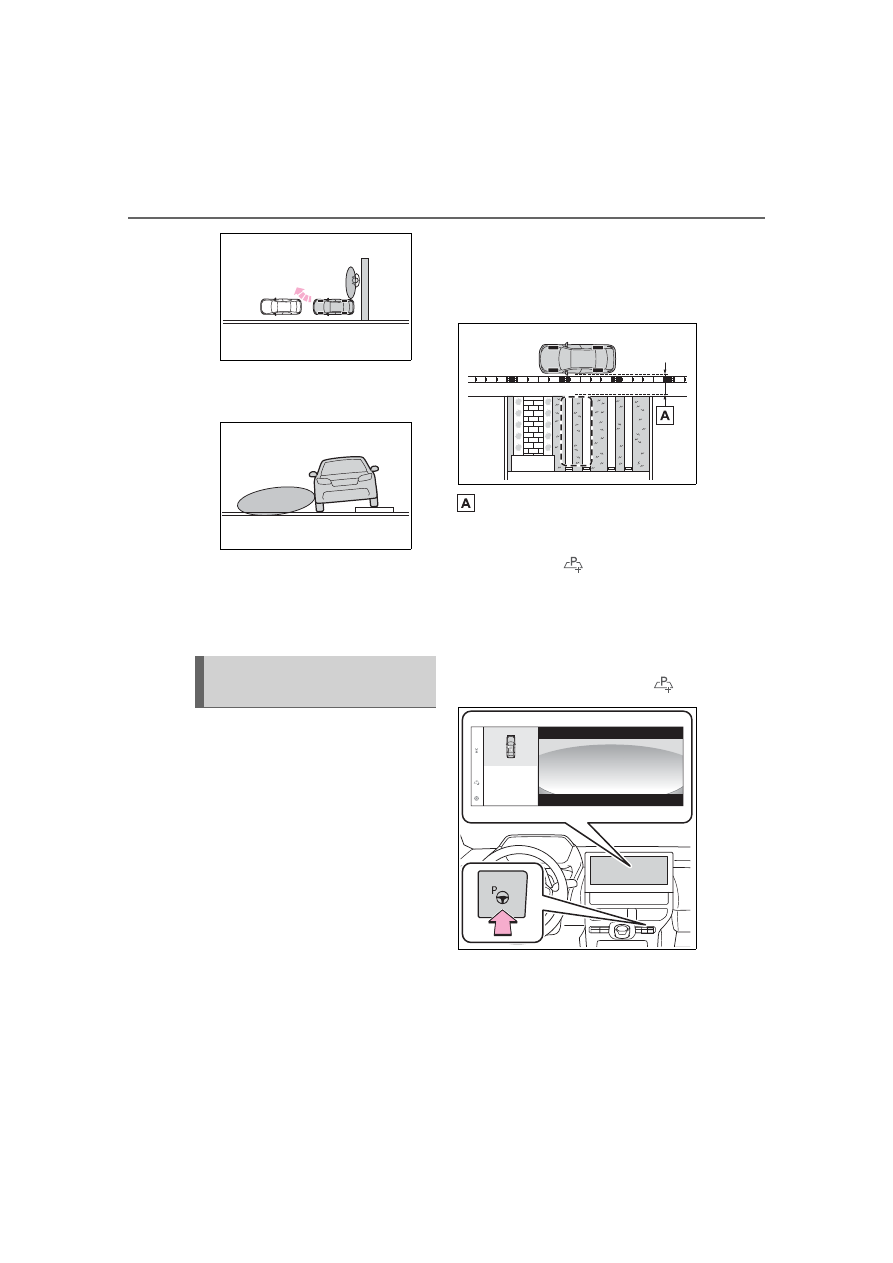

ate

Situations in which the perpendicu-

lar exiting (forward/reverse) function

will not operate.

●

When a vehicle which is waiting to

park is in the exit direction

●

When a wall, column, or person is

detected as near a front or rear

center or corner sensor

■

Function description

The parallel parking function can
be used if the target parking
space can be detected when the
vehicle is stopped close and
aligned with the center of the
parking space. Also, depending

Advanced Park Parallel
parking function

361

5-4. Using the driving support systems

5

Dr

iv

ing

on the condition of the parking
space, etc., if it is necessary to
change the direction of travel of
the vehicle, the shift position can
be changed by assistance con-
trol.

■

Parking using the parallel
parking function

1

Stop the vehicle with it
aligned near the center of the
target parking space.



If there are parking space
lines

Approximately 3.3 ft. (1 m)

*

Approximately 16.4 to 19.7 ft.
(5 to 6 m)

*

Approximately 14.8 ft. (4.5 m)
or more

*

Approximately 26.2 ft. (8 m)
or more

*

*

: This is a reference measurement

for detection of a parking space.
Depending on the surrounding
environment, detection may not
be possible.



If there is an adjacent parked
vehicle

Approximately 3.3 ft. (1 m)

*

Approximately 23.0 ft. (7 m)
or more

*

Approximately 14.8 ft. (4.5 m)
or more

*

Approximately 26.2 ft. (8 m)
or more

*

*

: This is a reference measurement

for detection of a parking space.
Depending on the surrounding
environment, detection may not
be possible.

2

Press the Advanced Park
main switch and check that a

362

5-4. Using the driving support systems

possible parking space is dis-
played on the multimedia dis-
play.



If a space which your vehicle
can be parked is detected, a
target parking space box will
be displayed.



If it is possible to perpendicu-
lar parking (forward/reverse)
in the space, select the park-
ing space, and then select

 to change to the perpen-

dicular parking (for-
ward/reverse) function.



Depending on the surround-
ing environment, it may not be
possible to use this function.
According to the information
displayed on the multimedia
display, use the function on
another parking space.

3

Select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

tance will begin operating.



When the brake pedal is
released, “Moving Forward...”
will be displayed and the vehi-
cle will begin moving forward.



To cancel assistance, press
the Advanced Park main
switch.

If assistance is canceled,
“Advanced Park Cancelled” will be
displayed.
If you feel that the vehicle is
approaching close to a surround-
ing vehicle, object, person, or gut-
ter:



P.363

4

Perform operations as indi-
cated by the advice displays
until the vehicle stops in the
target parking space.

When the vehicle stops, “Advanced

Park Finished” will be displayed

and parking assistance will end.

If you select

 on the multimedia

display, the vehicle displayed on
the parking assist completion

363

5-4. Using the driving support systems

5

Dr

iv

ing

screen will rotate.

■

If you feel that the vehicle is

approaching close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

position to change the direction of

travel of the vehicle.

At this time, assist will be sus-

pended. However, if the “Start” but-

ton is selected, assist will resume

and the vehicle will move in the

direction corresponding to the

selected shift position.

■

If “No available parking space”

is displayed

Even if the vehicle is stopped paral-

lel to a parking space, an adjacent

parked vehicle may not be detected.

In this case, if the vehicle is moved

to a position that a parked vehicle

can be detected, assistance can be

started.

NOTICE

■

When using the parallel park-

ing function

●

Make sure that there are no

obstructions within the yellow

guide lines and between the

vehicle and target parking spot.

If any obstructions are detected

within the yellow guide lines or

between the vehicle and the tar-

get parking space, the parallel

parking function will be can-

celled.

●

As the target parking space will

not be able to be set correctly if

the surface of the parking space

is on a slope or has differences

in height, the vehicle may stray

from the target parking space or

be slanted. Therefore, do not

use the parallel parking func-

tion for this kind of parking spot.

●

When parking in a narrow park-

ing space, the vehicle may

closely approach an adjacent

parked vehicle. if a collision

seems likely, depress the brake

pedal to stop the vehicle.

364

5-4. Using the driving support systems

■

Function description

When exiting from a parallel
parking space, if the system
determines that exit is possible
the parallel exiting function can
be used. Also, depending on the
surrounding environment, if it is
necessary to change the direc-

tion of travel of the vehicle, the
shift position can be changed by
assistance control.

■

Leaving a parking space
using the parallel exiting
function

1

With the brake pedal
depressed and P shift posi-
tion selected, press the
Advanced Park main switch
and check that the exit direc-
tion selection screen is dis-
played on the multimedia
display.

2

Select an arrow on the multi-
media display to select the
direction you wish to exit.

If the turn signal lever is operated,

only exit to the left or right can be

selected.

3

Depress the brake pedal and
select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

tance will begin operating.
To cancel assistance, press the

Advanced Park main switch.

NOTICE

●

If an adjacent parked vehicle is

narrow or parked extremely

close to the curb, the position at

which assistance will park the

vehicle will also be close to the

curb. If it seems likely the vehi-

cle will collide with the curb or

drive off of the road, depress

the brake pedal to stop the vehi-

cle, and then press the

Advanced Park main switch to

disable the system.

●

If there is a wall or other barrier

on the inner side of the parking

space, the vehicle may stop at a

position slightly outside of the

set target parking space.

Advanced Park Parallel
exiting function

365

5-4. Using the driving support systems

5

Dr

iv

ing

If assistance is canceled,

“Advanced Park Cancelled” will be

displayed.
If you feel that the vehicle is

approaching close to a surround-

ing vehicle, object, person, or gut-

ter:



P.365

4

Perform operations as indi-
cated by the advice displays
until the vehicle is in a posi-
tion where exit is possible.

If the steering wheel is not oper-

ated, the vehicle will stop at the exit

position. When the vehicle reaches

a position where exit is possible,

“You can exit by moving the steer-

ing wheel” will be displayed. If the

steering wheel is operated,

“Advanced Park Finished” will be

displayed and assistance will end.

Grip the steering wheel and drive

forward.

■

If you feel that the vehicle is

approaching close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

position to change the direction of

travel of the vehicle.

At this time, assist will be sus-

pended. However, if the “Start” but-

ton is selected, assist will resume

and the vehicle will move in the

direction corresponding to the

selected shift position.

■

Parallel exiting function

Do not use parallel exiting function

in any situation other than when

exiting a parallel parking spot. If

assistance is started unintention-

ally, depress the brake pedal and

stop the vehicle, then press the

Advanced Park main switch to can-

cel assistance.

■

Situations in which the parallel

exiting function will not operate

In situations such as the following,

the parallel exiting function will not

operate:

●

When vehicles waiting at a traffic

signal in the exit direction

●

When a vehicle is stopped in the

area behind where the vehicle will

exit

●

When a wall, column, or person is

detected as near a front or rear

side sensor

366

5-4. Using the driving support systems

●

When the vehicle has been

parked on a curb and a side sen-

sor detects the road surface

●

When a vehicle is not parked in

front of the vehicle

●

When there is excessive space

between the front of the vehicle

and a parked vehicle

■

Function description

The memory function can be
used to park in a previously reg-
istered parking space, even if
there are no parking space lines
or adjacent parked vehicles.
Up to 3 parking spaces can be
registered.

■

Registering a parking space

1

Stop the vehicle with it
aligned near the center of the
target parking space.

Approximately 3.3 ft. (1 m)

2

Press the main switch and
then select

If the Advanced Park main switch is
pressed at a parking space without
parking lines or any adjacent
parked vehicles, “No available
parking space” may be displayed.
Continuously select and hold

.

3

Select perpendicular parking
(forward/reverse) function or
parallel parking function.

Only parking spaces for which

Advanced Park Memory
function

367

5-4. Using the driving support systems

5

Dr

iv

ing

assist can be performed are dis-

played.

4

Select the parking direction.

When perpendicular parking (for-

ward/reverse) was selected in step

3

When parallel parking was selected

in step

3

5

Using the arrow buttons,
adjust the position of the
parking space to be regis-

tered, and then select “OK”
button.

6

Select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

tance will begin operating.
When the brake pedal is released,

“Moving Forward...” will be dis-

played and the vehicle will begin

moving forward.
If you feel that the vehicle is

approaching close to a surround-

ing vehicle, object, person, or gut-

ter:



P.369

7

Perform operations as indi-
cated by the advice displays

368

5-4. Using the driving support systems

until the vehicle stops in the
target parking space.

8

Check the position that the
vehicle has stopped. If nec-
essary, adjust the position of
the parking spot to be regis-
tered using the arrow but-
tons, and then select
“Registration” button.

“Registration Completed” will be

displayed on the multimedia dis-

play.



Register the parking space
only if there are no obstruc-
tions within the area shown by
the thick lines.



The amount that the position
of the parking spot to be reg-
istered can be adjusted is lim-
ited.

■

When parking in a parking
space registered to the
memory function

1

Stop the vehicle with it
aligned near the center of the
target parking space.

Approximately 3.3 ft. (1 m)

2

Press the Advanced Park
main switch and check that a
possible parking space is dis-
played on the multimedia dis-
play.

If the “MODE” button is displayed,

the button can be touched to

change between the memory func-

tion, perpendicular parking (for-

ward/reverse) function and parallel

parking function.
