4-3. Operating the lights and wipers

riv

ing

■

Customization

Some functions can be customized.

(



P.457)

NOTICE

■

When the washer fluid tank is
empty

Do not operate the switch continually

as the washer fluid pump may over-
heat.

■

When a nozzle becomes blocked

In this case, contact any authorized

Toyota retailer or Toyota authorized

repairer, or any reliable repairer.
Do not try to clear it with a pin or other

object. The nozzle will be damaged.

210

4-4. Refueling

4-4.Refueling



Turn the engine switch off and
ensure that all the doors and
windows are closed.



Confirm the type of fuel.

■

Fuel types



P.456

■

Fuel tank opening for unleaded

gasoline

To help prevent incorrect fueling, your

vehicle has a fuel tank opening that only

accommodates the special nozzle on
unleaded fuel pumps.

Opening the fuel tank

cap

Perform the following steps to
open the fuel tank cap:

Before refueling the vehicle

WARNING

■

When refueling the vehicle

Observe the following precautions
while refueling the vehicle. Failure to

do so may result in death or serious

injury.

●

After exiting the vehicle and before

opening the fuel door, touch an
unpainted metal surface to dis-

charge any static electricity. It is

important to discharge static elec-
tricity before refueling because

sparks resulting from static electric-

ity can cause fuel vapors to ignite
while refueling.

●

Always hold the grips on the fuel

tank cap and turn it slowly to

remove it.
A whooshing sound may be heard

when the fuel tank cap is loosened.

Wait until the sound cannot be
heard before fully removing the

cap. In hot weather, pressurized

fuel may spray out the filler neck
and cause injury.

●

Do not allow anyone that has not
discharged static electricity from

their body to come close to an open

fuel tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are
harmful if inhaled.

●

Do not smoke while refueling the
vehicle.

Doing so may cause the fuel to

ignite and cause a fire.

●

Do not return to the vehicle or touch

any person or object that is stati-
cally charged.

This may cause static electricity to

build up, resulting in a possible igni-
tion hazard.

■

When refueling

Observe the following precautions to

prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into

the fuel filler neck.

●

Stop filling the tank after the fuel

nozzle automatically clicks off.

●

Do not top off the fuel tank.

211

4-4. Refueling

riv

ing

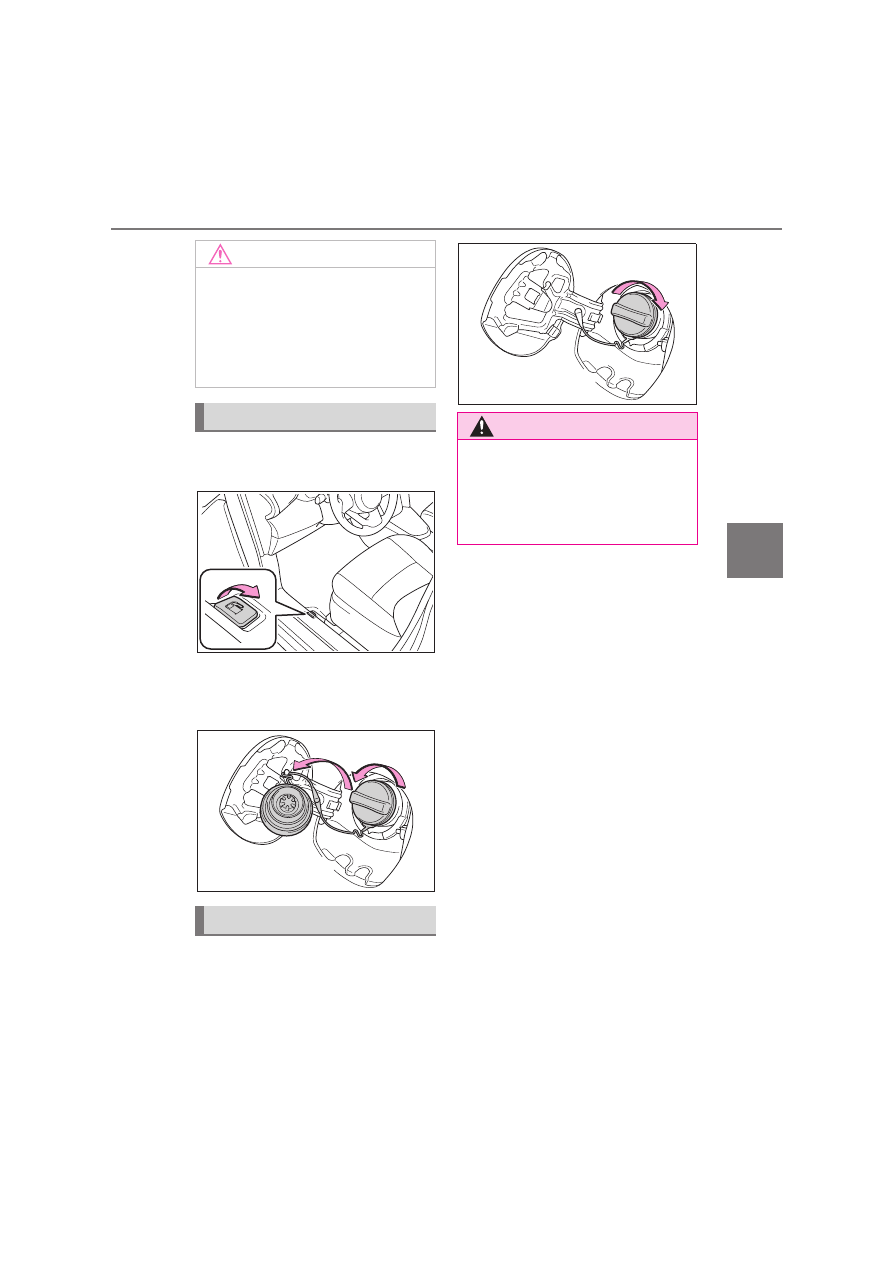

Pull up the opener to open the
fuel filler door.

Turn the fuel tank cap slowly
and remove it, then hang it on
the back of the fuel filler door.

After refueling, turn the fuel tank
cap until you hear a click. Once the
cap is released, it will turn slightly in
the opposite direction.

NOTICE

■

Refueling

Do not spill fuel during refueling.
Doing so may damage the vehicle,

such as causing the emission control

system to operate abnormally or dam-
aging fuel system components or the

vehicle’s painted surface.

Opening the fuel tank cap

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine
Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or

other incident which may result in
death or serious injury.

212

4-5. Using the driving support systems

4-5.Using the driving support systems

: If equipped

■

PCS (Pre-Collision System)



P.217

■

LTA (Lane Tracing Assist)



P.228

■

AHS (Adaptive High-beam
System) (if equipped)



P.197

■

AHB (Automatic High Beam)
(if equipped)



P.201

■

RSA (Road Sign Assist)



P.263

■

Dynamic radar cruise control
with full-speed range (if
equipped)



P.238

■

Dynamic radar cruise control
(if equipped)



P.250

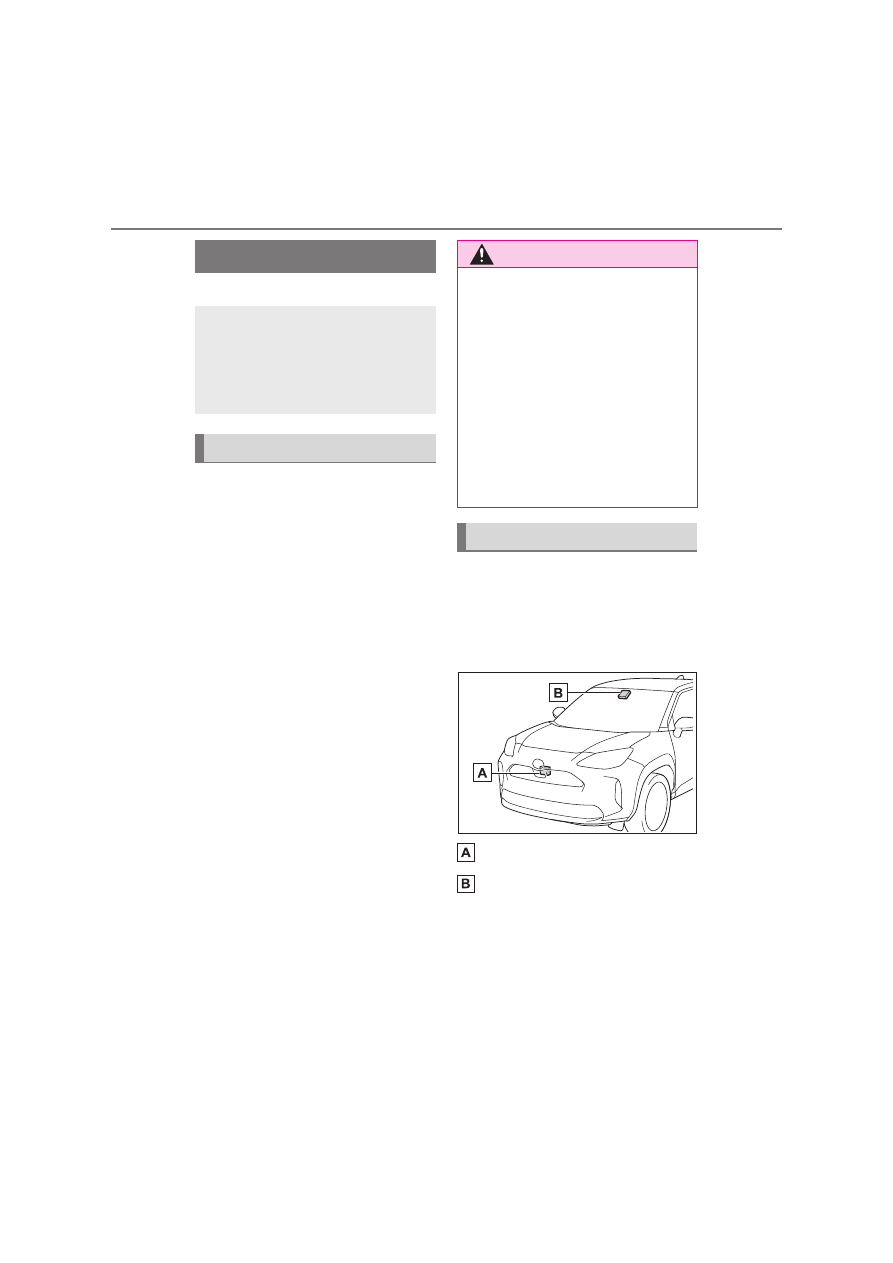

Two types of sensors, located
behind the front grille and wind-
shield, detect information neces-
sary to operate the drive assist
systems.

Radar sensor

Front camera

Toyota Safety Sense

The Toyota Safety Sense con-
sists of the following drive
assist systems and contrib-
utes to a safe and comfortable
driving experience:

Driving assist system

WARNING

■

Toyota Safety Sense

The Toyota Safety Sense is designed
to operate under the assumption that

the driver will drive safely, and is

designed to help reduce the impact to
the occupants and the vehicle in the

case of a collision or assist the driver

in normal driving conditions.
As there is a limit to the degree of rec-

ognition accuracy and control perfor-

mance that this system can provide,
do not overly rely on this system. The

driver is always responsible for paying

attention to the vehicle’s surroundings
and driving safely.

Sensors

213

4-5. Using the driving support systems

riv

ing

WARNING

■

To avoid malfunction of the radar

sensor

Observe the following precautions.

Otherwise, the radar sensor may not

operate properly, possibly leading to
an accident resulting in death or seri-

ous injury.

●

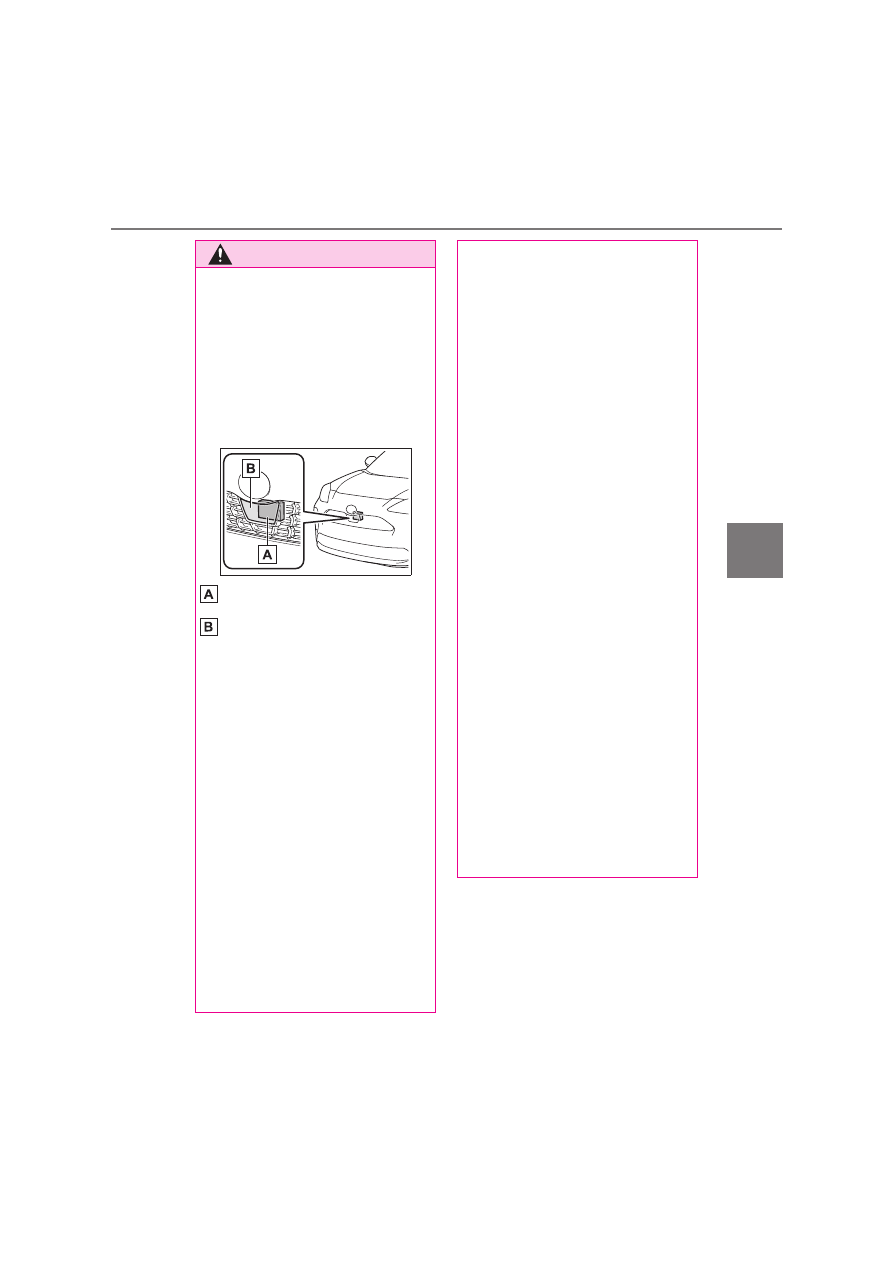

Keep the radar sensor and the

radar sensor cover clean at all

times.

Radar sensor

Radar sensor cover

If the front of the radar sensor or the
front or back of the radar sensor
cover is dirty or covered with water
droplets, snow, etc., clean it.
Clean the radar sensor and radar
sensor cover with a soft cloth to avoid
damaging them.

●

Do not attach accessories, stickers

(including transparent stickers) or
other items to the radar sensor,

radar sensor cover or surrounding

area.

●

Do not subject the radar sensor or

its surrounding area to a strong
impact.

If the radar sensor, front grille, or

front bumper has been subjected to
a strong impact, have the vehicle

inspected by any authorized Toyota

retailer or Toyota authorized
repairer, or any reliable repairer.

●

Do not disassemble the radar sen-

sor.

●

Do not modify or paint the radar

sensor or radar sensor cover.

●

In the following cases, the radar

sensor must be recalibrated. Con-

tact any authorized Toyota retailer
or Toyota authorized repairer, or

any reliable repairer for details.

• When the radar sensor or front

grille are removed and installed, or

replaced

• When the front bumper is replaced

■

To avoid malfunction of the front

camera

Observe the following precautions.

Otherwise, the front camera may not

operate properly, possibly leading to
an accident resulting in death or seri-

ous injury.

●

Keep the windshield clean at all

times.

• If the windshield is dirty or covered

with an oily film, water droplets,

snow, etc., clean the windshield.

• If a glass coating agent is applied to

the windshield, it will still be neces-
sary to use the windshield wipers to

remove water droplets, etc., from

the area of the windshield in front of
the front camera.

• If the inner side of the windshield

where the front camera is installed

is dirty, contact any authorized

Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

214

4-5. Using the driving support systems

WARNING

●

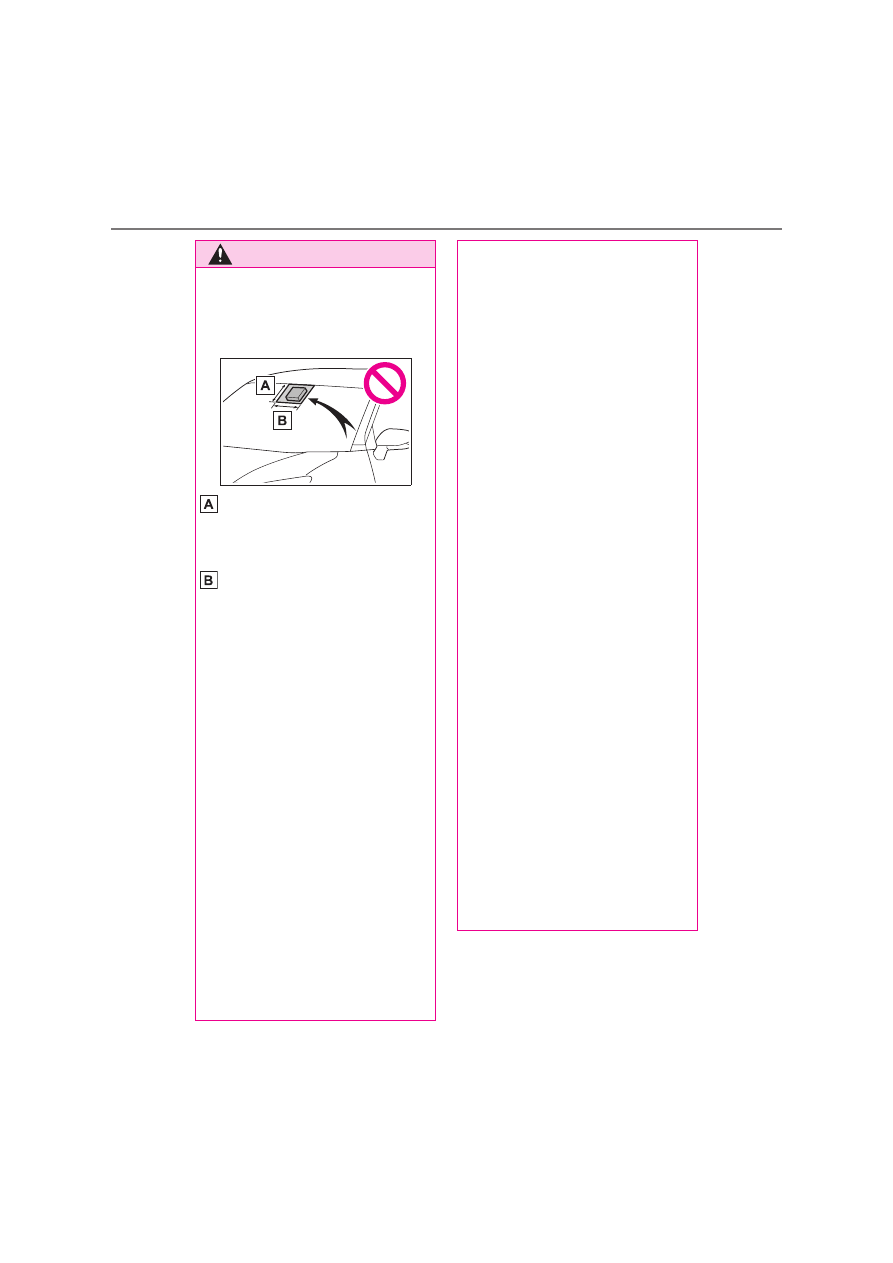

Do not attach objects, such as

stickers, transparent stickers, etc.,
to the outer side of the windshield in

front of the front camera (shaded

area in the illustration).

From the top of the windshield to

approximately 1 cm (0.4 in.) below
the bottom of the front camera

Approximately 20 cm (7.9 in.)

(Approximately 10 cm [4.0 in.] to
the right and left from the center of
the front camera)

●

If the part of the windshield in front
of the front camera is fogged up or

covered with condensation or ice,

use the windshield defogger to
remove the fog, condensation or

ice. (



P.313, 318)

●

If water droplets cannot be properly

removed from the area of the wind-

shield in front of the front camera by
the windshield wipers, replace the

wiper insert or wiper blade.

●

Do not attach window tint to the

windshield.

●

Replace the windshield if it is dam-

aged or cracked.

After replacing the windshield, the
front camera must be recalibrated.

Contact any authorized Toyota

retailer or Toyota authorized
repairer, or any reliable repairer for

details.

●

Do not allow liquids to contact the

front camera.

●

Do not allow bright lights to shine

into the front camera.

●

Do not dirty or damage the front

camera.

When cleaning the inside of the
windshield, do not allow glass

cleaner to contact the lens of the

front camera. Also, do not touch the
lens.

If the lens is dirty or damaged, con-

tact any authorized Toyota retailer
or Toyota authorized repairer, or

any reliable repairer.

●

Do not subject the front camera to a

strong impact.

●

Do not change the installation posi-

tion or direction of the front camera

or remove it.

●

Do not disassemble the front cam-

era.

●

Do not modify any components of

the vehicle around the front camera
(inside rear view mirror, etc.) or ceil-

ing.

●

Do not attach any accessories to

the hood, front grille or front bumper

that may obstruct the front camera.
Contact any authorized Toyota

retailer or Toyota authorized

repairer, or any reliable repairer for
details.

●

If a surfboard or other long object is
to be mounted on the roof, make

sure that it will not obstruct the front

camera.

●

Do not modify the headlights or

other lights.

215

4-5. Using the driving support systems

riv

ing

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in the sys-
tem.

●

In the following situations, perform the actions specified in the table. When the nor-
mal operating conditions are detected, the message will disappear and the system

will become operational.

If the message does not disappear, contact any authorized Toyota retailer or Toyota

authorized repairer, or any reliable repairer.

●

In the following situations, if the situation has changed (or the vehicle has been
driven for some time) and the normal operating conditions are detected, the mes-

sage will disappear and the system will become operational.

Situation

Actions

When the area around a camera is cov-
ered with dirt, moisture (fogged up, cov-
ered with condensation, ice, etc.), or
other foreign matter

Using the wiper and A/C function,
remove the dirt and other attached mat-
ter. (



P.313, 318).

When the temperature around the front
camera is outside of the operational
range, such as when the vehicle is in the
sun or in an extremely cold environment

If the front camera is hot, such as after
the vehicle had been parked in the sun,
use the air conditioning system to
decrease the temperature around the
front camera.

If a sunshade was used when the vehicle
was parked, depending on its type, the
sunlight reflected from the surface of the
sunshade may cause the temperature of
the front camera to become excessively
high.

If the front camera is cold, such after the
vehicle is parked in an extremely cold
environment, use the air conditioning
system to increase the temperature
around the front camera.

The area in front of the front camera is
obstructed, such as when the hood is
open or a sticker is attached to the part of
the windshield in front of the front cam-
era.

Close the hood, remove the sticker, etc.,
to clear the obstruction.

When “Pre-Collision System Radar In
Self Calibration Unavailable See
Owner’s Manual” is displayed.

Check whether there is attached materi-
als on the radar sensor and radar sensor
cover, and if there is, remove it.

216

4-5. Using the driving support systems

If the message does not disappear, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.

• When the temperature around the radar sensor is outside of the operational range,

such as when the vehicle is in the sun or in an extremely cold environment

• When the front camera cannot detect objects in front of the vehicle, such as when

driving in the dark, snow, or fog, or when bright lights are shining into the front

camera

• Depending on the conditions in the vicinity of the vehicle, the radar may judge the

surrounding environment can not be properly recognized. In that case, “Pre-Colli-

sion System Unavailable See Owner’s Manual” is displayed.

■

Certifications for the Toyota Safety Sense



P.588

217

4-5. Using the driving support systems

riv

ing

: If equipped

The system can detect the following (The detectable objects differs
depending on the function.):

The countries and areas for each region listed in the table are current as of
September 2021. However, depending on when the vehicle was sold, the
countries and areas of each region may be different. Contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer
for details.

PCS (Pre-Collision System)

The pre-collision system uses a radar sensor and front camera to
detect objects (



P.217) in front of the vehicle. When the system

determines that the possibility of a frontal collision with an object is
high, a warning operates to urge the driver to take evasive action
and the potential brake pressure is increased to help the driver
avoid the collision. If the system determines that the possibility of a
frontal collision with an object is extremely high, the brakes are
automatically applied to help avoid the collision or help reduce the
impact of the collision.

The pre-collision system can be disabled/enabled and the warning timing
can be changed. (



P.221)

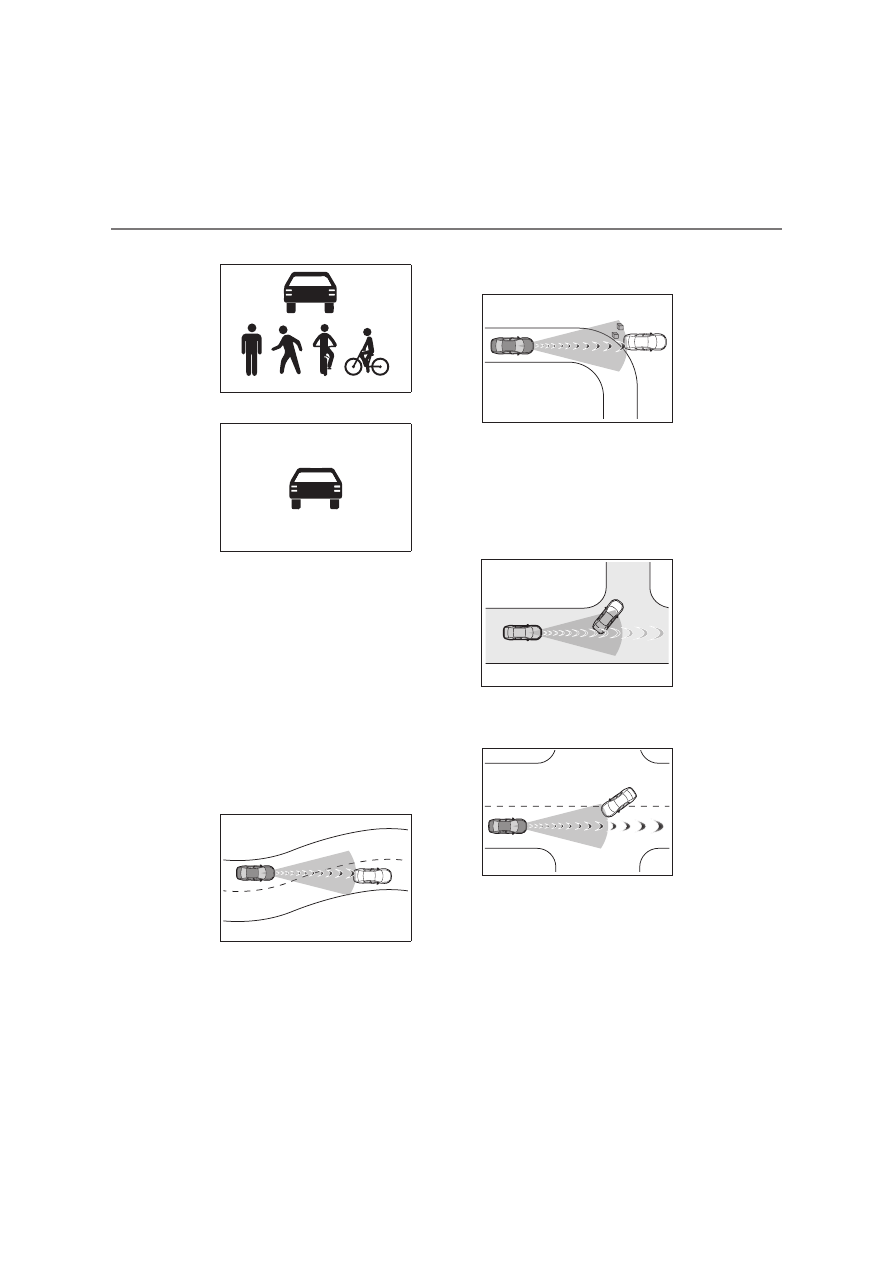

Detectable objects and function availability

Regions

Detectable objects

Function availability

Countries/areas



Vehicles



Bicyclists



Pedestrians

The pre-collision warn-
ing, pre-collision brake
assist, pre-collision brak-
ing, emergency steering
assist and intersection
right/left turn assistance
are available

Except for Azerbai-
jan, Colombia, Ecua-
dor and Georgia

The pre-collision warn-
ing, pre-collision brake
assist and pre-collision
braking are available

Colombia and Ecua-
dor

Vehicles

Azerbaijan and Geor-
gia

218

4-5. Using the driving support systems

■

Pre-collision warning

When the system determines that
the possibility of a frontal collision is
high, a buzzer will sound and a
warning message will be displayed
on the multi-information display to
urge the driver to take evasive
action.

“BRAKE!”

■

Pre-collision brake assist

When the system determines that
the possibility of a frontal collision is
high, the system applies greater
braking force in relation to how
strongly the brake pedal is
depressed.

■

Pre-collision braking

If the system determines that the
possibility of a frontal collision is
extremely high, the brakes are
automatically applied to help avoid
the collision or reduce the impact of
the collision.

■

Emergency steering assist (for
region A)

If the system determines that the

possibility of a collision with a
pedestrian is high and that there is
sufficient space for the vehicle to be
steered into within its lane, and the
driver has begun evasive maneuver
or steering, emergency steering
assist will assist the steering move-
ments to help enhance the vehicle
stability and for lane departure pre-
vention. During operation, the indi-
cator will illuminate in green.

■

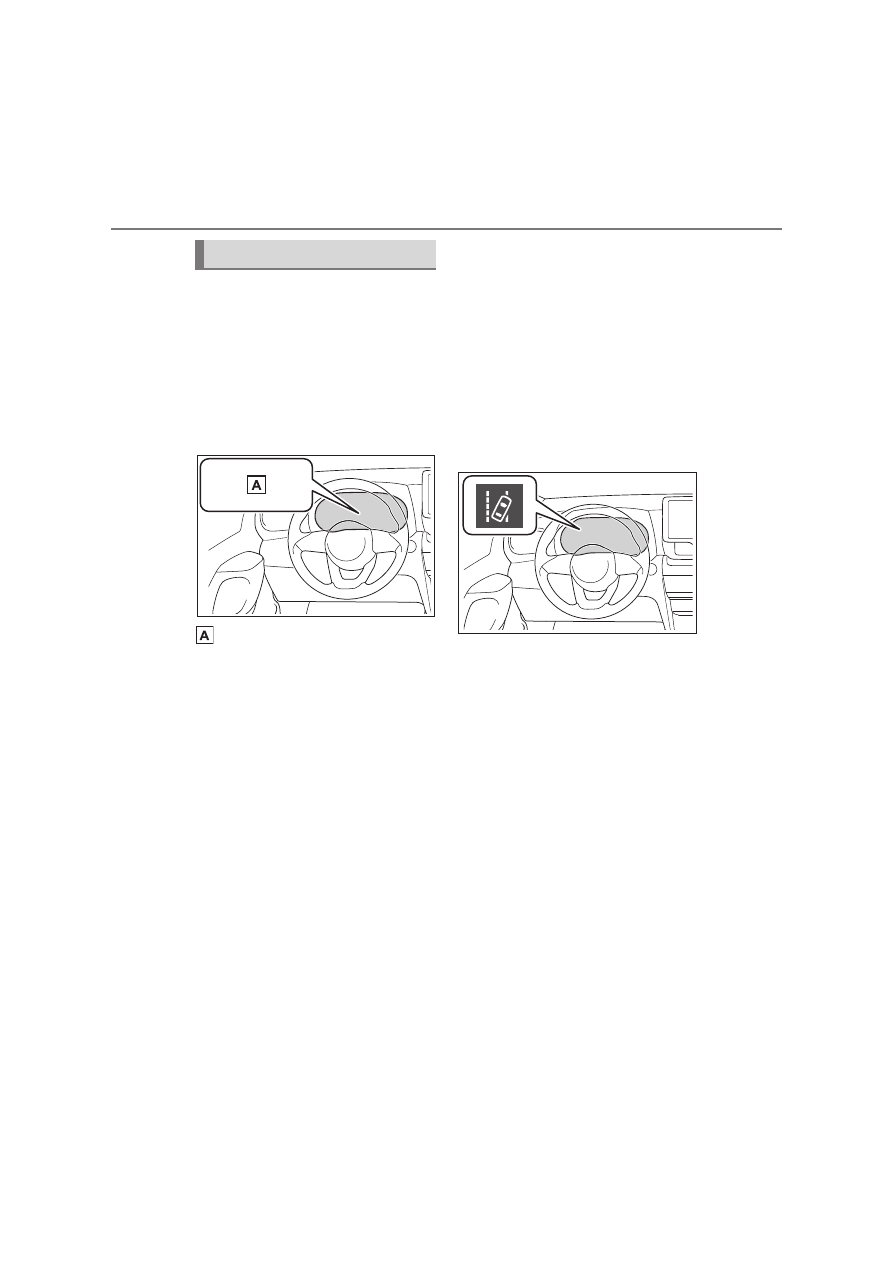

Intersection right/left turn
assistance (for region A)

If the system determines that there
is a high possibility of a collision in
the following situations, it will assist
with Pre-collision warning and, if
necessary Pre-collision braking.
Depending on the configuration of
the intersection, it may not be pos-
sible to support.



When you turn right/left at an
intersection and cross the path of
an oncoming vehicle

System functions

219

4-5. Using the driving support systems

riv

ing



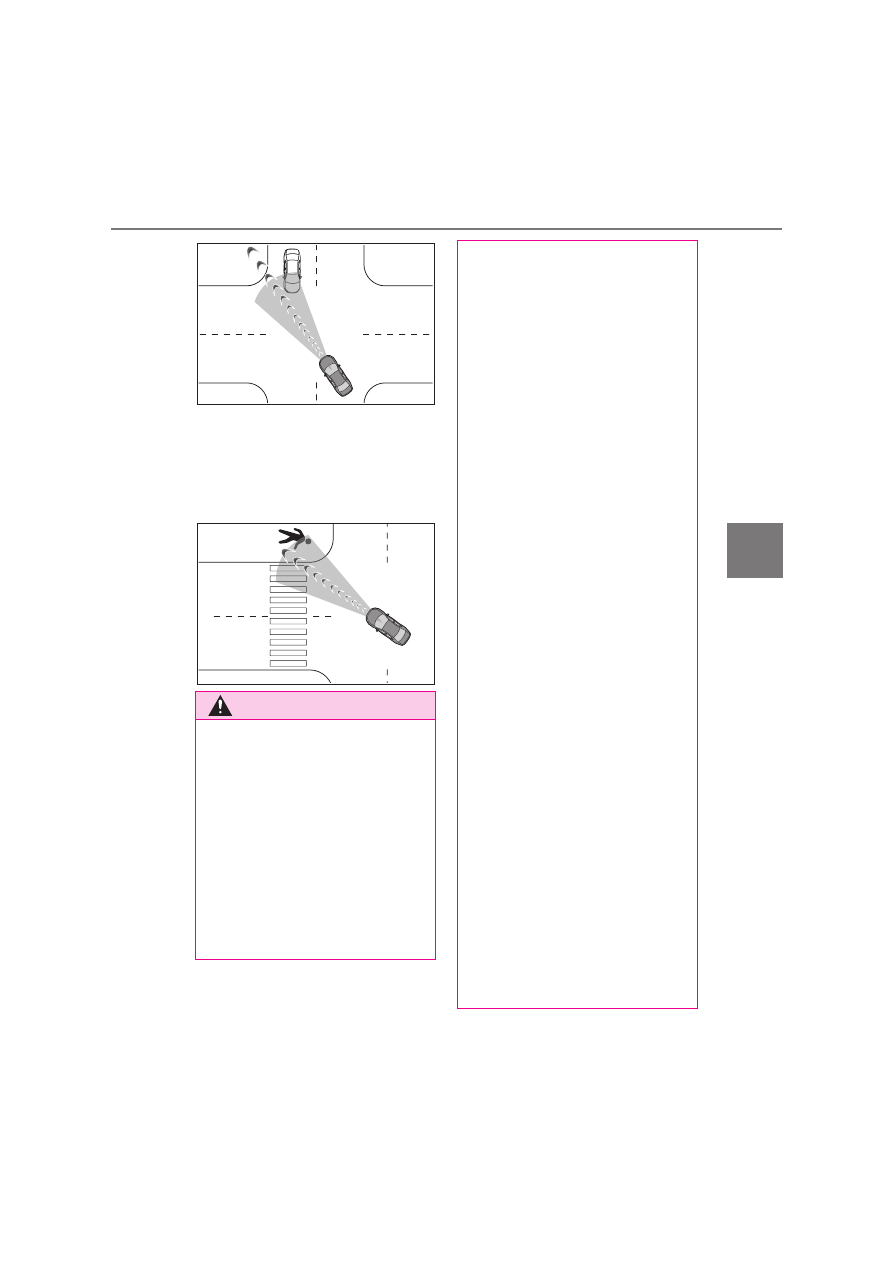

When you turn right/left, pedes-
trian is detected in the forward
direction and estimated to enter
your vehicle’s path (bicyclists are
not detected.)

WARNING

■

Limitations of the pre-collision

system

●

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-
roundings.

Do not use the pre-collision system

instead of normal braking opera-
tions under any circumstances.

This system will not prevent colli-

sions or lessen collision damage or
injury in every situation. Do not

overly rely on this system. Failure to

do so may lead to an accident,
resulting in death or serious injury.

●

Although this system is designed to

help avoid a collision or help reduce

the impact of the collision, its effec-
tiveness may change according to

various conditions, therefore the

system may not always be able to
achieve the same level of perfor-

mance.

Read the following conditions care-
fully. Do not overly rely on this sys-

tem and always drive carefully.

• Conditions under which the system

may operate even if there is no pos-

sibility of a collision:



P.224

• Conditions under which the system

may not operate properly:



P.225

●

Do not attempt to test the operation

of the pre-collision system yourself.
Depending on the objects used for

testing (dummies, cardboard

objects imitating detectable objects,
etc.), the system may not operate

properly, possibly leading to an

accident.

■

Pre-collision braking

●

When the pre-collision braking
function is operating, a large

amount of braking force will be

applied.

●

If the vehicle is stopped by the

operation of the pre-collision brak-
ing function, the pre-collision brak-

ing function operation will be

canceled after approximately 2 sec-
onds. Depress the brake pedal as

necessary.

●

The pre-collision braking function

may not operate if certain opera-

tions are performed by the driver. If
the accelerator pedal is being

depressed strongly or the steering

wheel is being turned, the system
may determine that the driver is tak-

ing evasive action and possibly pre-

vent the pre-collision braking
function from operating.

220

4-5. Using the driving support systems

WARNING

●

In some situations, while the pre-

collision braking function is operat-
ing, operation of the function may

be canceled if the accelerator pedal

is depressed strongly or the steer-
ing wheel is turned and the system

determines that the driver is taking

evasive action.

●

If the brake pedal is being

depressed, the system may deter-
mine that the driver is taking eva-

sive action and possibly delay the

operation timing of the pre-collision
braking function.

■

Emergency steering assist (for
region A)

●

As emergency steering assist oper-

ation will be canceled when the sys-
tem determines that lane departure

prevention function has been com-

pleted.

●

Emergency steering assist may not

operate or may be cancel in the fol-
lowing cases as the system may

determine the driver is taking

actions.

• If the accelerator pedal is being

depressed strongly, the steering
wheel is being operated sharply,

the brake pedal is being depressed

or the turn signal lever is being
operated. In this case, the system

may determine that the driver is tak-

ing evasive action and the emer-
gency steering assist may not

operate.

• In some situations, while the emer-

gency steering assist is operating,

operation of the function may be
canceled if the accelerator pedal is

depressed strongly, the steering

wheel is operated sharply or the
brake pedal is being depressed and

the system determines that the

driver is taking evasive action.

• When the emergency steering

assist is operating, if the steering

wheel is held firmly or is operated in
the opposite direction to that which

the system is generating torque, the

function may be canceled.

■

When to disable the pre-colli-

sion system

In the following situations, disable the

system, as it may not operate prop-

erly, possibly leading to an accident
resulting in death or serious injury:

●

When the vehicle is being towed

●

When your vehicle is towing

another vehicle

●

When transporting the vehicle via

truck, boat, train or similar means of
transportation

●

When the vehicle is raised on a lift
with the engine running and the

tires are allowed to rotate freely

●

When inspecting the vehicle using

a drum tester such as a chassis

dynamometer or speedometer tes-
ter, or when using an on vehicle

wheel balancer

●

When a strong impact is applied to

the front bumper or front grille, due

to an accident or other reasons

●

If the vehicle cannot be driven in a

stable manner, such as when the
vehicle has been in an accident or

is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When tires of a size other than
specified are installed

●

When tire chains are installed

221

4-5. Using the driving support systems

riv

ing

■

Enabling/disabling the pre-col-
lision system

The pre-collision system can be

enabled/disabled on

(



P.457)

of the multi-information display.

The system is automatically enabled
each time the engine switch is turned to
ON.

If the system is disabled, the PCS
warning light will turn on and a
message will be displayed on the
multi-information display.

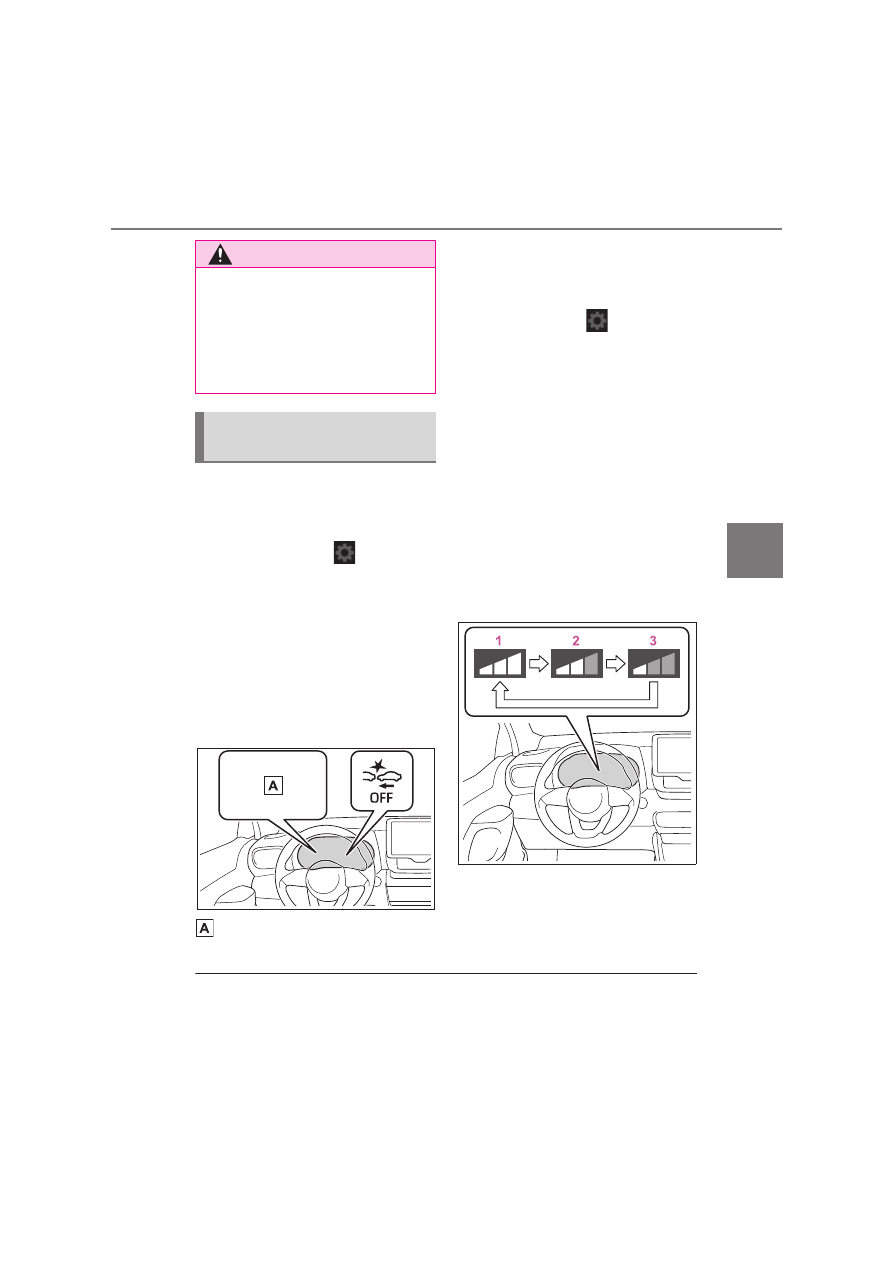

“Pre-Collision System OFF”

■

Changing the pre-collision
warning timing

The pre-collision warning timing

can be changed on

(



P.457) of

the multi-information display.

The warning timing setting is retained
when the engine switch is turned off.
However, if the pre-collision system is
disabled and re-enabled, the operation
timing will return to the default setting
(middle).

For region A: If the pre-collision warn-
ing timing is changed, emergency
steering assist timing will also be
changed accordingly.

If late is selected, emergency steering
assist would not operate in case of an
emergency.

Early

Middle

This is the default setting.

Late

■

Operational conditions for each pre-collision function

The pre-collision system is enabled and the system determines that the possibility of

a frontal collision with a detected object is high.

WARNING

●

When a compact spare tire or an

emergency tire puncture repair kit is
used

●

If equipment (snow plow, etc.) that
may obstruct the radar sensor or

front camera is temporarily installed

to the vehicle

Changing settings of the
pre-collision system

222

4-5. Using the driving support systems

The system may not operate in the following situations:
• If a battery terminal has been disconnected and reconnected and then the vehicle

has not been driven for a certain amount of time

• If the shift lever is in R
• When the VSC OFF indicator is illuminated (only the pre-collision warning function

will be operational)

The operation speeds and operation cancellation for each function is listed below.

●

Pre-collision warning

●

Pre-collision brake assist

●

Pre-collision braking

If either of the following occur while the pre-collision braking function is operating, it

will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 10 to 180 km/h (7

to 110 mph)

Approx. 10 to 180 km/h (7

to 110 mph)

For region A and B: Bicy-

clists and pedestrians

Approx. 10 to 80 km/h (7 to

50 mph)

Approx. 10 to 80 km/h (7 to

50 mph)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 30 to 180 km/h

(20 to 110 mph)

Approx. 30 to 180 km/h (20

to 110 mph)

For region A and B: Bicy-

clists and pedestrians

Approx. 30 to 80 km/h (20

to 50 mph)

Approx. 30 to 80 km/h (20

to 50 mph)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 10 to 180 km/h (7

to 110 mph)

Approx. 10 to 180 km/h (7

to 110 mph)

For region A and B: Bicy-

clists and pedestrians

Approx. 10 to 80 km/h (7 to

50 mph)

Approx. 10 to 80 km/h (7 to

50 mph)

223

4-5. Using the driving support systems

riv

ing

●

Emergency steering assist (for region A)

When the turn signal lights are flashing, emergency steering assist will not operate in
case of an emergency.

If any of the following occur while the emergency steering assist function is operat-
ing, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.
• The brake pedal is depressed.

●

Intersection right/left turn assistance (pre-collision warning) (for region A)

When the turn signal lights are not flashing, support for turning left or right at an inter-
section which targets oncoming vehicles does not work.

●

Intersection right/left turn assistance (pre-collision braking) (for region A)

When the turn signal lights are not flashing, support for turning left or right at an inter-
section which targets oncoming vehicles does not work.

■

Object detection function

The system detects objects based on

their size, profile, motion, etc. However,

an object may not be detected depend-
ing on the surrounding brightness and

the motion, posture, and angle of the

detected object, preventing the system
from operating properly. (



P.225)

The illustration shows an image of

detectable objects.

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Pedestrians

Approx. 40 to 80 km/h (25

to 50 mph)

Approx. 40 to 80 km/h (25

to 50 mph)

Detectable

objects

Vehicle speed

Oncoming vehicle

speed

Relative speed

between your vehicle

and object

Vehicles

Approx. 10 to 25 km/h

(7 to 15 mph)

Approx. 30 to 55 km/h

(20 to 35 mph)

Approx. 40 to 80 km/h

(25 to 50 mph)

Pedestrians

Approx. 10 to 25 km/h

(7 to 15 mph)

Approx. 10 to 25 km/h

(7 to 15 mph)

Detectable

objects

Vehicle speed

Oncoming vehicle

speed

Relative speed

between your vehicle

and object

Vehicles

Approx. 15 to 25 km/h

(10 to 15 mph)

Approx. 30 to 45 km/h

(20 to 28 mph)

Approx. 45 to 70 km/h

(28 to 43 mph)

Pedestrians

Approx. 10 to 25 km/h

(7 to 15 mph)

Approx. 10 to 25 km/h

(7 to 15 mph)

224

4-5. Using the driving support systems



Region A and B



Region C

■

Conditions under which the system

may operate even if there is no pos-

sibility of a collision

●

In some situations such as the follow-

ing, the system may determine that
there is a possibility of a frontal colli-

sion and operate.

• When passing a detectable object,

etc.

• When changing lanes while overtak-

ing a detectable object, etc.

• When approaching a detectable

object in an adjacent lane or on the

roadside, such as when changing the
course of travel or driving on a wind-

ing road

• When rapidly closing on a detectable

object, etc.

• When approaching objects on the

roadside, such as detectable objects,

guardrails, utility poles, trees, or walls

• When there is a detectable object or

other object by the roadside at the

entrance of a curve

• When there are patterns or paint in

front of your vehicle that may be mis-

taken for a detectable object

• When the front of your vehicle is hit by

water, snow, dust, etc.

• When overtaking a detectable object

that is changing lanes or making a

right/left turn

• When passing a detectable object in

an oncoming lane that is stopped to

make a right/left turn

• When a detectable object approaches

very close and then stops before
entering the path of your vehicle

• If the front of your vehicle is raised or

lowered, such as when on an uneven
or undulating road surface

• When driving on a road surrounded by

a structure, such as in a tunnel or on
an iron bridge

• When there is a metal object (man-

Content .. 11 12 13 14 ..
