Toyota Yaris Cross (2022 year). Manual in english

2-1. Instrument cluster

For details regarding the hands-free
system, refer to the “Navigation and
multimedia system Owner’s manual”.

■

Display items



Fuel economy



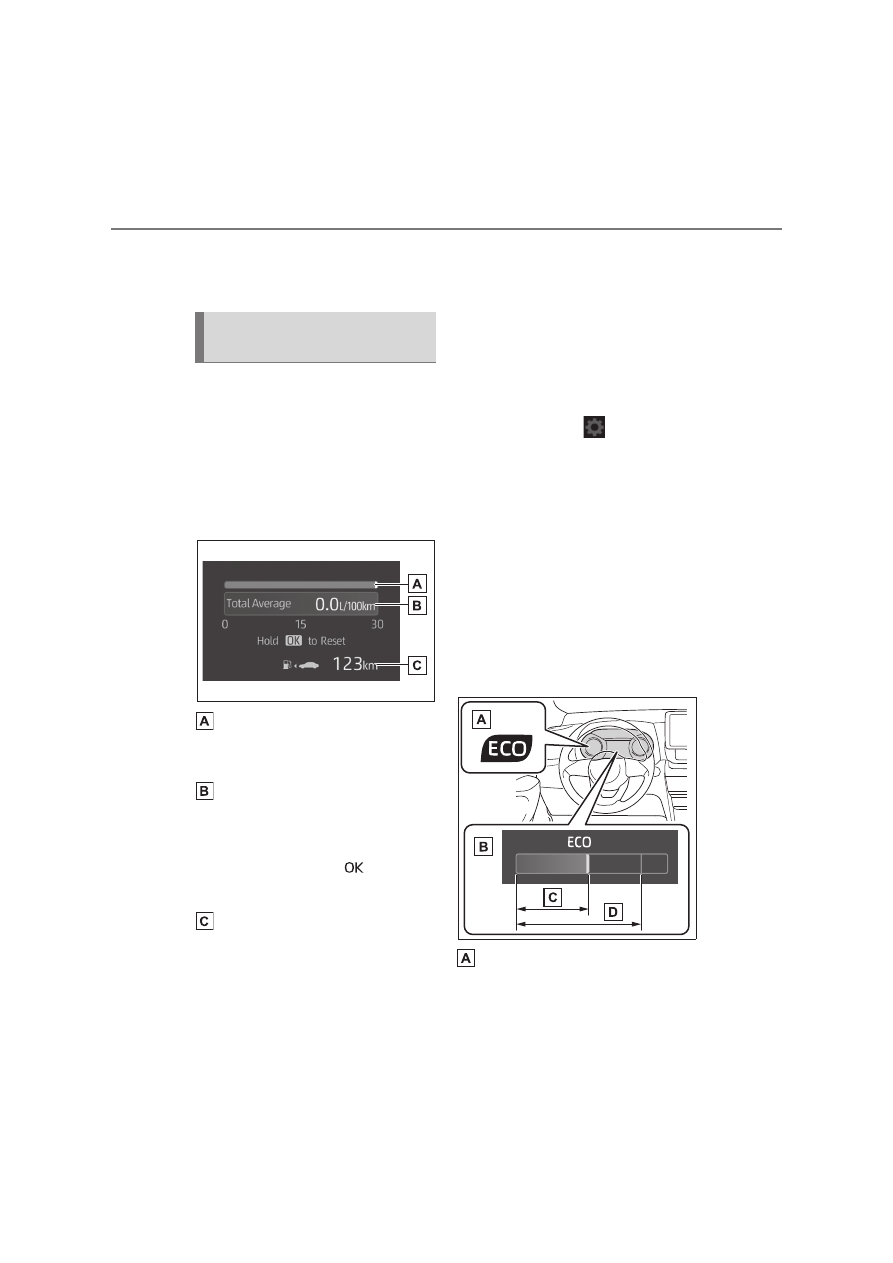

Eco Driving Indicator/Driving
range (if equipped)

■

Fuel economy

Use the displayed values as a refer-
ence only.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Average fuel economy (after

reset)

To reset the average fuel economy dis-

play, press and hold the

meter

control switch.

Driving range

Displays driving range with remaining
fuel.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be

driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.

The average fuel economy display

can be changed in

. (



P.98)



Average fuel economy (after
start)

Displays the average fuel consumption
since engine start.



Average fuel economy (after
refuel)

Displays the average fuel consumption
since the vehicle was refueled.

■

Eco Driving Indicator/Driving
range (if equipped)



Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration

Content of driving informa-
tion

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators

exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.

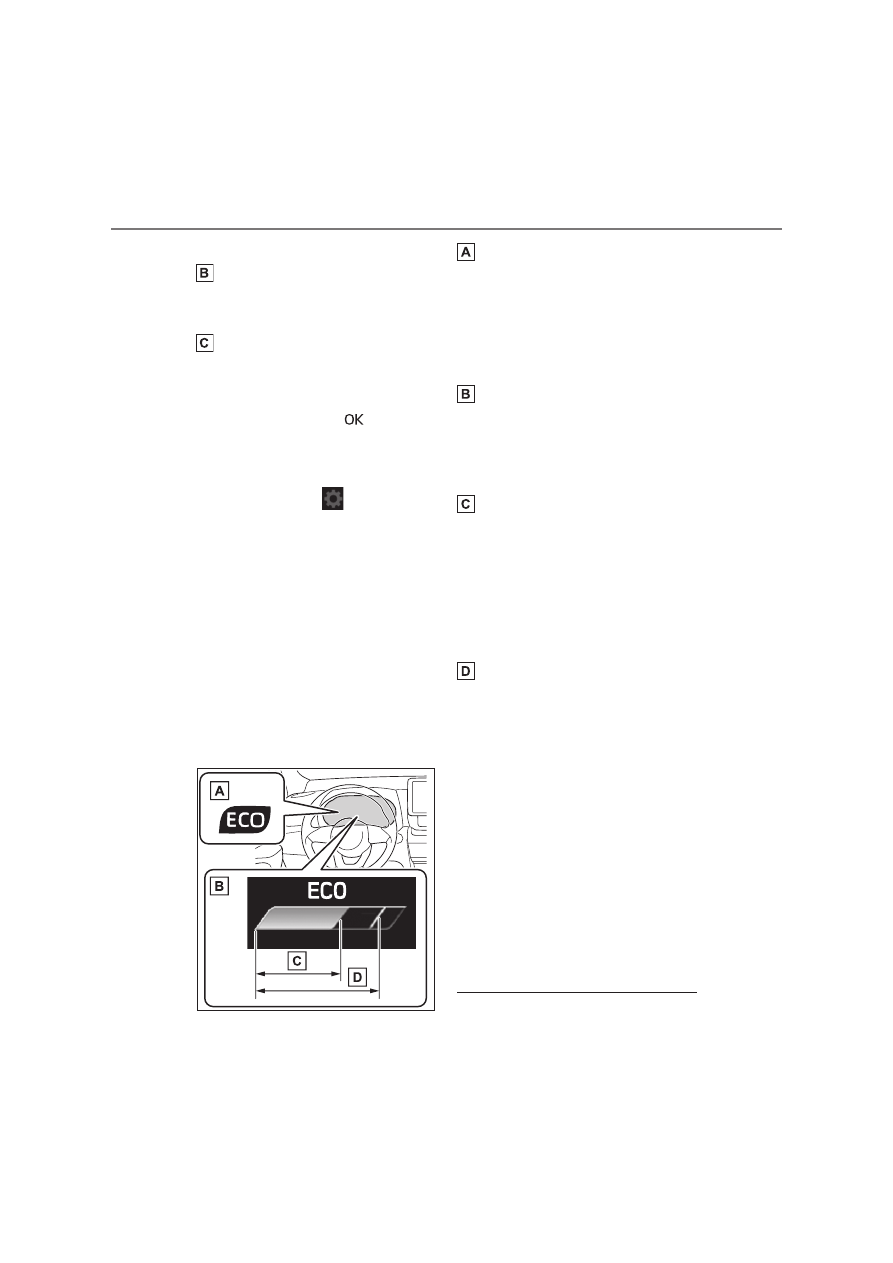

Eco Driving Indicator Zone Dis-

play

Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.

Eco driving ratio based on

acceleration

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco
Driving Indicator Zone Display will illu-
minate.
At this time, the Eco Driving Indicator
Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remaining
fuel. Use the displayed values as a ref-
erence only.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.

■

Eco Driving Indicator (if equipped)

Eco Driving Indicator will not operate

under the following conditions:

●

The shift lever is in any position other
than D.

●

A paddle shift switch is operated.

●

The driving mode is set to power
mode.

●

The vehicle speed is approximately
130 km/h (80 mph) or higher.

■

Driving support system infor-
mation

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.228)



Dynamic radar cruise control
with full-speed range (if
equipped) (



P.238)



Dynamic radar cruise control (if
equipped) (



P.250)

■

Navigation system-linked dis-
play (if equipped)

Select to display the following navi-
gation system-linked information:



Route guidance to destination (if
equipped)



Compass display (heading-up
display)

Select to enable selection of an
audio source or track on the meter
using the meter control switches.

This menu icon can be set to be dis-

played/not displayed in

Driving support system
information display

Audio system-linked dis-
play (if equipped)

2-1. Instrument cluster

■

Drive information

2 items that are selected using the
“Drive Info. Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info. Type”
setting (since the system was
started or between resets). (



P.98)

Use the displayed information as a ref-
erence only.

Following items will be displayed.



“Trip”

• “Average Speed”: Displays the aver-

age vehicle speed since engine start

• “Distance”: Displays the distance

driven since engine start

• “Total Time”: Displays the elapsed

time since engine start

: These items are reset each time the

engine stops.



“Total”

• “Average Speed”: Displays the aver-

age vehicle speed since the display
was reset

• “Distance”: Displays the distance

driven since the display was reset

• “Total Time”: Displays the elapsed

time since the display was reset

: To reset, display the desired item and

press and hold the

meter control

switch.

■

Tire inflation pressure

Displays inflation pressure of each

tire.

■

Meter display settings that can
be changed



Clock setting (vehicles without
navigation/multimedia system)



P.87



Language

Select to change the language dis-
played.



Units

Select to change the units of measure
displayed.



Eco Driving Indicator Light (if
equipped)

Select to enable/disable the Eco Driv-
ing Indicator Light.



• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. (



P.96)



(if equipped)

Select to display/not display the audio
system linked display.



Vehicle information display

Settings display

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators

of the drive information display to any of
the following: average vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up dis-
plays for each relevant system.



Multi-information display off

Select to turn the multi-information dis-
play off.

To turn the multi-information display on
again, press any of the following meter
control switches



Default setting

Select to reset the meter display set-
tings to the default setting.

■

Vehicle functions and settings
that can be changed



P.457

■

Suspension of the settings display

●

Some settings cannot be changed

while driving. When changing set-
tings, park the vehicle in a safe place.

●

If a warning message is displayed,
operation of the settings display will

be suspended.



Stop & Start system operation
time (after start)/status notifica-
tion

Displays the current amount of time the
engine has been stopped by the opera-
tion of the Stop & Start system.
Also shows the status of the Stop &
Start system with a pop-up display.
(



P.270)



Stop & Start system settings

The length of time of the Stop & Start
system will operate when the “A/C”
switch of the air conditioning system is

on can be set to 2 different levels in

of the multi-information display.
(



P.270)

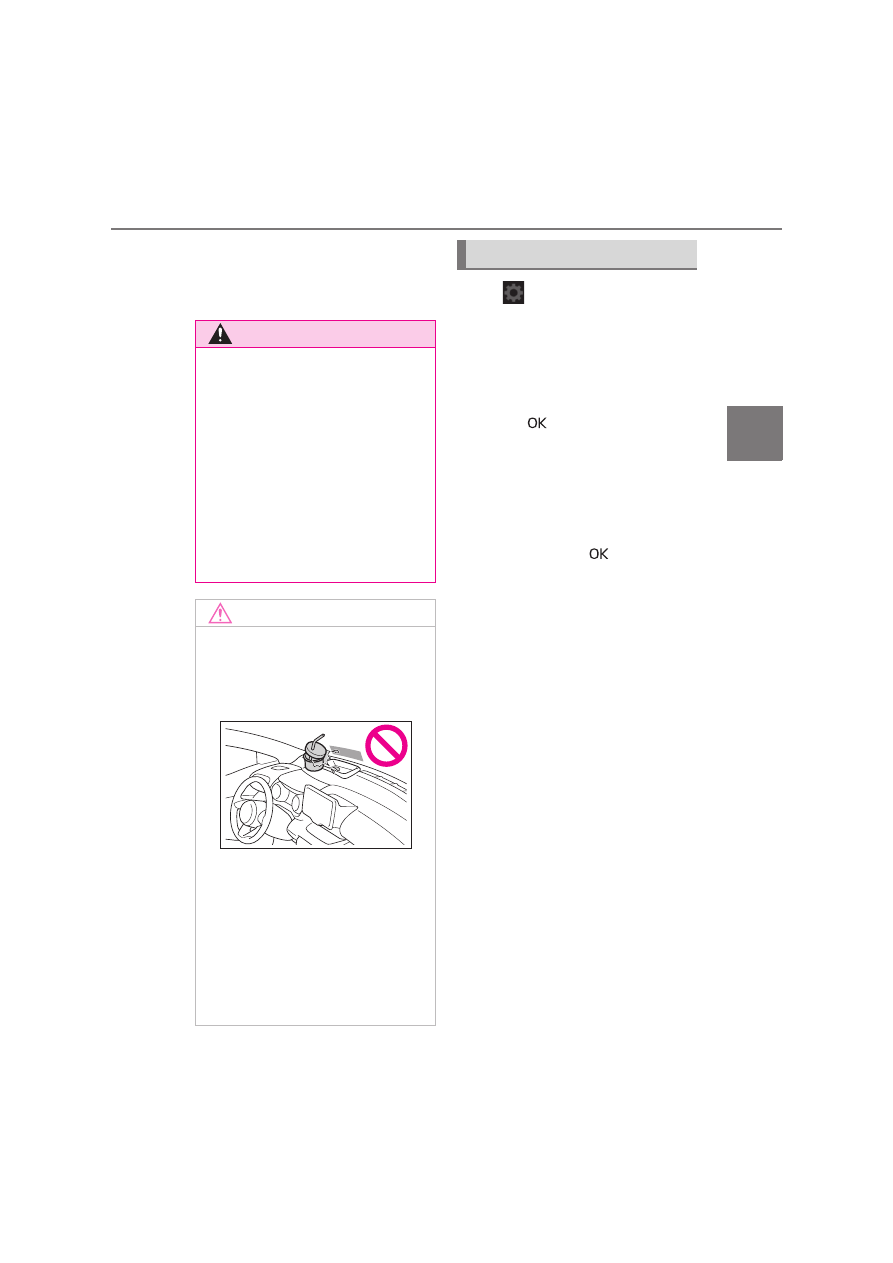

WARNING

■

Cautions during setting up the
display

If the engine is running when chang-

ing the display settings, ensure that
the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases
including harmful carbon monoxide

(CO) may collect and enter the vehi-

cle. This may lead to death or a seri-
ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure
that the engine is running while set-

ting up the display features.

Stop & Start system infor-
mation (if equipped)

100

2-1. Instrument cluster

■

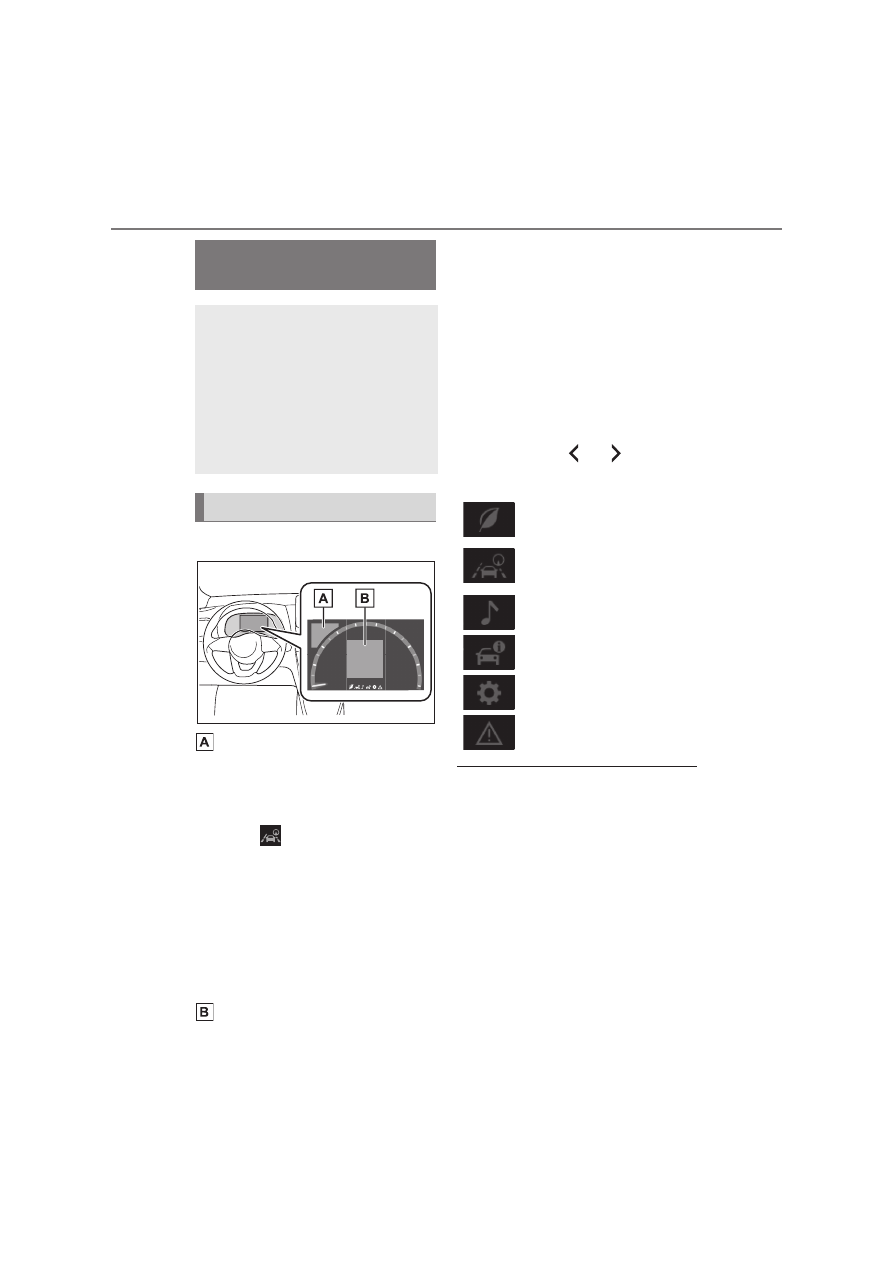

Display

Driving support system status

display area

Displays an image when the following
systems are operating and a menu icon

other than

is selected:

• LTA (Lane Tracing Assist) (if

equipped) (



P.228)

• Dynamic radar cruise control with full-

speed range (if equipped) (



P.238)

• Dynamic radar cruise control (if

equipped) (



P.250)

• RSA (Road Sign Assist) (if equipped)

(



P.263)

Content display area

By selecting menu icons on the multi-
information display, a variety of driving-
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.

■

Menu icons

The menu icons will be displayed

by pressing the

meter

control switch.

■

When the drive mode is changed

The speed meter display changes color

in accordance to the drive mode
selected. (



P.299)

■

Liquid crystal display

Small spots or light spots may appear

on the display. This phenomenon is
characteristic of liquid crystal displays,

and there is no problem continuing to

use the display.

Multi-information display

(7-inch display)

The multi-information display
is used to display fuel effi-
ciency related information and
various types of drivingrelated
information. The multi-informa-
tion display can also be used
to change the display settings
and other settings.

Display and menu icons

Driving information display
(



P.101)

Driving support system infor-
mation display (if equipped)
(



P.103)

Audio system-linked display
(if equipped) (



P.103)

Vehicle information display
(



P.103)

Settings display (



P.104)

Warning message display
(



P.413)

101

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators

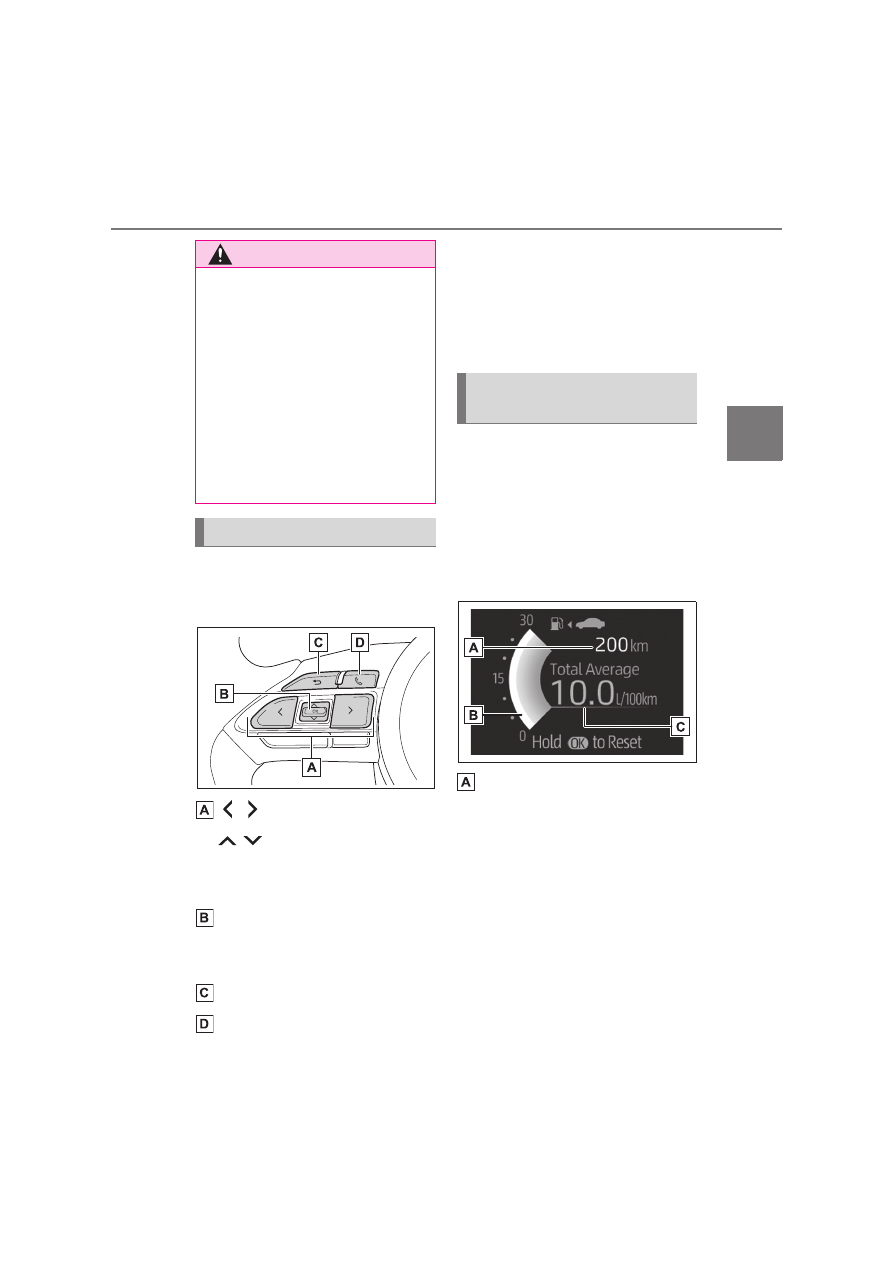

The multi-information display is
operated using the meter control
switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen
and move the cursor up/down

Press: Enter/Set

Press and hold: Reset/Display
customizable items

Return to the previous screen

Call sending/receiving and his-

tory display

Linked with the hands-free system,
sending or receiving call is displayed.
For details regarding the hands-free
system, refer to the “Navigation and
multimedia system Owner’s manual”.

■

Display items



Fuel economy



Eco Driving Indicator/Driving
range (if equipped)

■

Fuel economy

Use the displayed values as a refer-
ence only.

Driving range

Displays driving range with remaining
fuel.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-

WARNING

■

Caution for use while driving

●

When operating the multi-informa-
tion display while driving, pay extra

attention to the safety of the area

around the vehicle.

●

Do not look continuously at the

multi-information display while driv-
ing as you may fail to see pedestri-

ans, objects on the road, etc.,

ahead of the vehicle.

■

The information display at low

temperatures



P.92

Changing the meter display

Content of driving informa-
tion

102

2-1. Instrument cluster

play may not be updated.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Average fuel economy (after

reset)

To reset the average fuel economy dis-

play, press and hold the

meter

control switch.

The average fuel economy display

can be changed in

. (



P.104)



Average fuel economy (after
start)

Displays the average fuel consumption
since engine start.



Average fuel economy (after
refuel)

Displays the average fuel consumption
since the vehicle was refueled.

■

Eco Driving Indicator/Driving
range (if equipped)



Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.

Eco Driving Indicator Zone Dis-

play

Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.

Eco driving ratio based on

acceleration

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco
Driving Indicator Zone Display will illu-
minate.
At this time, the Eco Driving Indicator
Light will turn off.

Zone of Eco driving



Driving range

■

Eco Driving Indicator (if equipped)

Eco Driving Indicator will not operate

103

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators

under the following conditions:

●

The shift lever is in any position other

than D.

●

A paddle shift switch is operated.

●

The driving mode is set to power

mode.

●

The vehicle speed is approximately

130 km/h (80 mph) or higher.

■

Driving support system infor-
mation

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.228)



Dynamic radar cruise control
with full-speed range (if
equipped) (



P.238)



Dynamic radar cruise control (if
equipped) (



P.250)

■

Navigation system-linked dis-
play (if equipped)

Select to display the following navi-
gation system-linked information:



Route guidance to destination (if
equipped)



Compass display (heading-up
display)

Select to enable selection of an
audio source or track on the meter
using the meter control switches.

This menu icon can be set to be dis-

played/not displayed in

■

Drive information



P.104)

Use the displayed information as a ref-
erence only.

Following items will be displayed.



“Trip”

• “Average Speed”: Displays the aver-

age vehicle speed since engine start

• “Distance”: Displays the distance

driven since engine start

• “Total Time”: Displays the elapsed

time since engine start

: These items are reset each time the

engine stops.



“Total”

• “Average Speed”: Displays the aver-

age vehicle speed since the display
was reset

• “Distance”: Displays the distance

driven since the display was reset

• “Total Time”: Displays the elapsed

time since the display was reset

: To reset, display the desired item and

Driving support system
information display

Audio system-linked dis-
play (if equipped)

Vehicle information display

104

2-1. Instrument cluster

press and hold the

meter control

switch.

■

Tire inflation pressure

Displays inflation pressure of each
tire.

■

Meter display settings that can
be changed



Clock setting (vehicles without
navigation/multimedia system)



P.93



Language

Select to change the language dis-
played.



Units

Select to change the units of measure
displayed.



Meter Type

The speed meter display method can
be changed.



Eco Driving Indicator Light (if
equipped)

Select to enable/disable the Eco Driv-
ing Indicator Light.



• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. (



P.101)



(if equipped)

Select to display/not display the audio
system linked display.



Select to change the displayed content
of the following:
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
the following: average vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up dis-
plays for each relevant system.



Multi-information display off

Select to turn the multi-information dis-
play off.

To turn the multi-information display on
again, press any of the following meter
control switches



Default setting

Select to reset the meter display set-
tings to the default setting.

■

Vehicle functions and settings
that can be changed



P.457

■

Suspension of the settings display

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe place.

●

If a warning message is displayed,

operation of the settings display will
be suspended.

Settings display

105

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators



Stop & Start system operation
time (after start)/status notifica-
tion

Displays the current amount of time the
engine has been stopped by the opera-
tion of the Stop & Start system.
Also shows the status of the Stop &
Start system with a pop-up display.
(



P.270)



Stop & Start system settings

The length of time of the Stop & Start
system will operate when the “A/C”
switch of the air conditioning system is

on can be set to 2 different levels in

of the multi-information display.
(



P.270)

WARNING

■

Cautions during setting up the

display

If the engine is running when chang-

ing the display settings, ensure that

the vehicle is parked in a place with
adequate ventilation. In a closed area

such as a garage, exhaust gases

including harmful carbon monoxide
(CO) may collect and enter the vehi-

cle. This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure
that the engine is running while set-

ting up the display features.

Stop & Start system infor-
mation (if equipped)

106

2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from the
image that is actually displayed by the head-up display.

Driving support system status (if equipped)/navigation system-linked

display area (if equipped) (



P.108)

Shift position display (Multidrive)/Gear Shift Indicator (manual transmis-

sion)/RSA (Road Sign Assist) display area (if equipped) (



P.179, 185,

263)

Vehicle speed display

Tachometer/Eco Driving Indicator (if equipped)/Outside temperature dis-

play area (



P.109)

■

Head-up display will operate when

The engine switch is in ON.

■

When using the head-up display

The head-up display may seem dark or

hard to see when viewed through sun-
glasses, especially polarized sun-

glasses. Adjust the brightness of the

head-up display or remove your sun-
glasses.

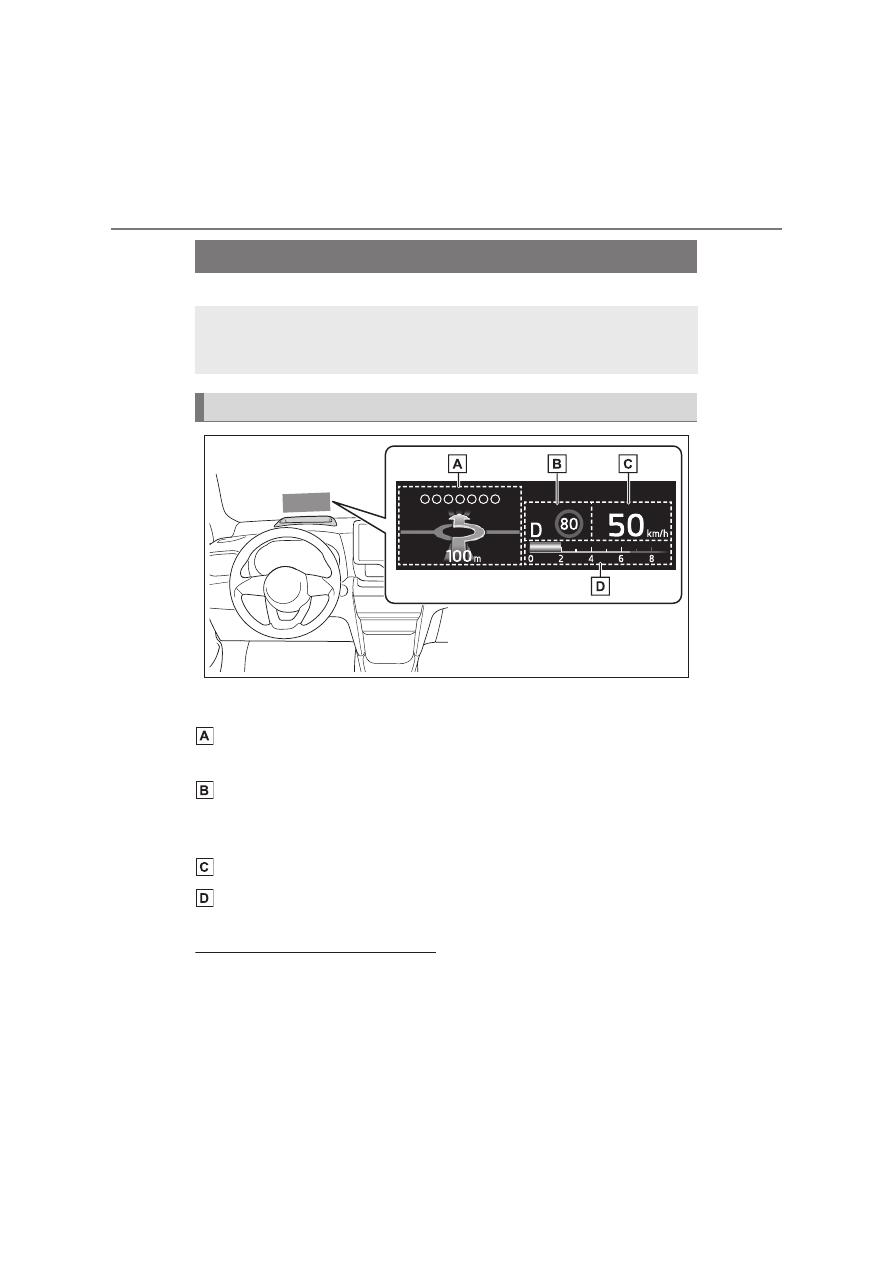

Head-up display

The head-up display projects a variety of driving-related information
and the operating state of the driving support systems on the wind-
shield.

System components

107

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators

■

Street name display (vehicles with
navigation system)

Only street names which are included in

the map data will be displayed.

Select

on the multi-information

display (



P.457) and then “HUD

Main”.

■

Enabling/disabling the head-
up display

Press the

meter control switch

to enable/disable the head-up dis-
play.

■

Changing the head-up display
settings

Press and hold the

meter con-

trol switch to change the following
settings:



Brightness and vertical position
of the head-up display

Select to adjust the brightness or verti-
cal position of the head-up display.



Display content

Select to change the display between
the following:
• No content
• Eco Driving Indicator (if equipped)
• Tachometer



Select to enable/disable the fol-
lowing items:

• Route guidance to destination (if

equipped)

• Driving support system display (if

equipped)

• Compass (heading-up display) (if

equipped)

• Audio system operation status (if

equipped)

WARNING

■

When using the head-up display

●

Check that the position and bright-

ness of the head-up display image
does not interfere with safe driving.

Incorrect adjustment of the image’s

position or brightness may obstruct
the driver’s view and lead to an

accident, resulting in death or seri-

ous injury.

●

Do not continuously look at the

head-up display while driving as
you may fail to see pedestrians,

objects on the road, etc., ahead of

the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the
head-up display projector. If the

projector gets wet, electrical mal-
functions may result.

●

Do not place anything on or put
stickers onto the head-up display

projector.

Doing so could interrupt head-up
display indications.

●

Do not touch the inside of the head-
up display projector or thrust sharp

edges or the like into the projector.

Doing so could cause mechanical
malfunctions.

Using the head-up display

108

2-1. Instrument cluster



Display angle

Select to adjust the angle of the head-
up display.

■

Enabling/disabling of the head-up
display

If the head-up display is disabled, it will

remain disabled when the engine switch
is turned off then back to ON.

■

Display brightness

The brightness of the head-up display

can be adjusted on

of the multi-

information display. Also, it is automati-
cally adjusted according to the ambient
brightness.

■

Driving support system status
display

Displays the operational status of
the following systems:



Dynamic radar cruise control
with full-speed range (if
equipped) (



P.238)



Dynamic radar cruise control (if
equipped) (



P.250)



LTA (Lane Tracing Assist) (if
equipped) (



P.228)

Details of content displayed on the
head-up display may differ from that
displayed on the multi-information dis-
play. For details, refer to the explana-
tion of each system.

■

Navigation system-linked dis-
play area (if equipped)

Displays the following items which
are linked to the navigation system:



Street name



Route guidance to destination (if
equipped)



Compass (heading-up display)

Pop-up displays for the following
systems will be displayed when
necessary:

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the operat-

WARNING

■

Caution for changing settings of

the head-up display

If the engine is running when chang-
ing the display settings, ensure that

the vehicle is parked in a place with

adequate ventilation. In a closed area
such as a garage, exhaust gases

including harmful carbon monoxide

(CO) may collect and enter the vehi-
cle. This may lead to death or a seri-

ous health hazard.

NOTICE

■

When changing the settings of

the head-up display

To prevent battery discharge, ensure
that the engine is running while

changing the settings of the head-up

display.

Driving support system sta-
tus/navigation system-
linked display area

Pop-up display

109

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators

ing state of a relevant system.



PCS (Pre-Collision System) (if
equipped) (



P.217)



LTA (Lane Tracing Assist) (if
equipped) (



P.228)



PKSB (Parking Support Brake)
(if equipped) (



P.289)



Brake Override System
(



P.160)



Drive-Start Control (if equipped)
(



P.165)

Details of content displayed on the
head-up display may differ from that
displayed on the multi-information dis-
play. For details, refer to the explana-
tion of each system.

■

icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display. (



P.413)

■

Warning message

Some warning messages are dis-
played when necessary, according
to certain conditions.

Details of content displayed on the
head-up display may differ from that
displayed on the multi-information dis-
play.

■

Audio system operation status
(if equipped)

Displayed when an audio remote
control switch on the steering wheel
is operated.

■

Hands-free system status (if
equipped)

Displayed when the hands-free

system is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a

current display may no longer be dis-

played. In this case, the display will
return after the pop-up display disap-

pears.

■

Tachometer

Displays the engine speed in revo-
lutions per minute.

■

Eco Driving Indicator (if
equipped)

Eco Driving Indicator Zone Dis-

play

Eco driving ratio based on

acceleration

Zone of Eco driving

Displayed content is the same as that
displayed on the multi-information dis-
play (Eco Driving Indicator). For details,
refer to P.96, 102.

■

Outside temperature display

Displayed when the engine switch

Tachometer/Eco Driving
Indicator (if equipped)/Out-
side temperature display

110

2-1. Instrument cluster

is turned to ON or when the low
outside temperature indicator is
flashing.

■

Outside temperature display

●

When the ambient temperature is

approximately 3°C (37°F) or lower, the
low outside temperature indicator will

flash for approximately 10 seconds

and the outside temperature display
will turn off. In this case, the display

will be displayed again when the out-

side temperature becomes approxi-
mately 5°C (41°F) or higher.

●

In the following situations, the correct
outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low

speeds (less than 25 km/h [16 mph])

• When the outside temperature has

changed suddenly (at the

entrance/exit of a garage, tunnel, etc.)

●

When “--” is displayed, the system

may be malfunctioning. Take your

vehicle to any authorized Toyota
retailer or Toyota authorized repairer,

or any reliable repairer.

: If equipped

■

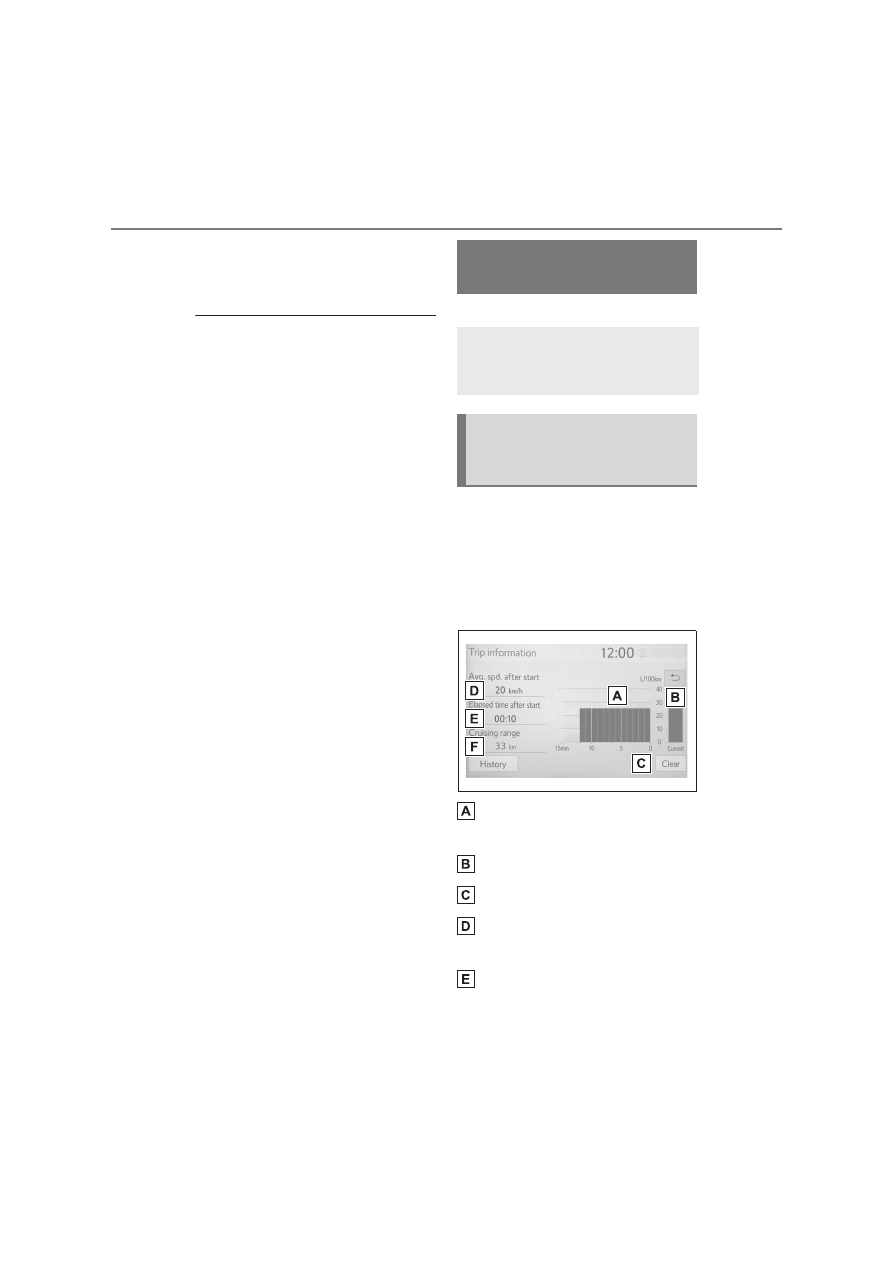

Trip information

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Trip information”

is displayed, select “Trip information”.

Fuel consumption in the past 15

minutes

Current fuel consumption

Resetting the consumption data

Average vehicle speed since the

engine was started.

Elapsed time since the engine

was started.

Fuel consumption infor-
mation

Fuel consumption information
can be displayed on the multi-
media system screen.

Consumption (vehicles with
7-inch/8-inch display multi-
media system)

111

2-1. Instrument cluster

Vehi

cle s
tatus

informati

on and indi

cators

Cruising range

Average fuel consumption for the
past 15 minutes is divided by color
into past averages and averages
attained since the engine switch
was last turned to ON. Use the dis-
played average fuel consumption
as a reference.

The image is an example only, and may
vary slightly from actual conditions.

■

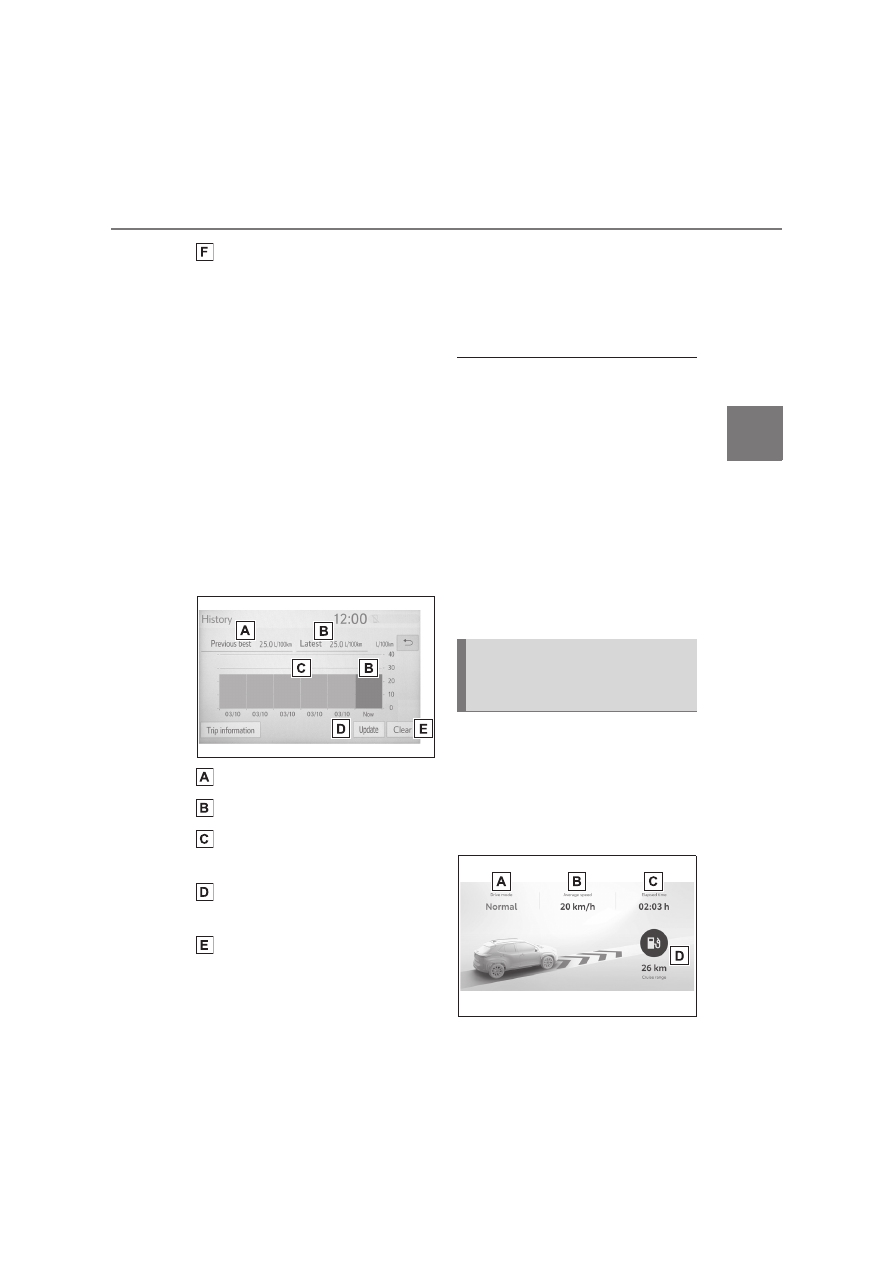

History

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption

record

Updating the latest fuel con-

sumption data

Resetting the history data

The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-

sumption since the last updated.
Use the displayed average fuel
consumption as a reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the cur-
rent fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum dis-

tance that can be driven with the quan-

tity of fuel remaining.
This distance is computed based on

your average fuel consumption.

As a result, the actual distance that can
be driven may differ from that displayed.

■

Drive information

Press the “HOME” button.

Select “Vehicle” on the “Home”
screen.

If a screen other than “Drive informa-
tion” is displayed, select “Drive info”.

Consumption (vehicles with
9-inch display multimedia
system)

Toyota Yaris Cross (2022 year). Manual in english - page 6
