Toyota Highlander Hybrid (2022 year). Manual in english - page 7

109

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



HUD (Head-up display) (if

equipped) (



P.112)

Press

to enable/disable the

head-up display.
• HUD (Head-up display) on/off
Select to enable/disable the
head-up display.

Press and hold

to change the

settings of the following items:
• “HUD Brightness/Position”
Select to adjust the brightness/posi-
tion of the head-up display.
• “HUD Driving Support”
Select to change the displayed
head-up display driving support
item.
• “HUD Rotation”
Select to adjust the angle of the
head-up display.



RSA (Road Sign Assist) (if

equipped) (



P.283)

Press

to enable/disable the

Road Sign Assist.
• RSA (Road Sign Assist) on/off
Select to enable/disable the Road
Sign Assist.

Press and hold

to change the

settings of the following items:
• “Notification Method”
Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and no-entry sign.
• “Notification Level”
Select to change each notification
level used to notify the driver when

the system recognizes a speed limit
sign.

■

Vehicle settings

Press and hold

to change

the settings of the following
items:



PBD (Power Back Door)

(



P.135)

• “System Settings”
Select to enable/disable the power
back door system.

• “Kick Sensor”

Select to enable/disable the kick
sensor.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

: Vehicles with a hands free power

back door



“TPWS” (Tire Pressure Warn-
ing System) (



P.424)

• “Set Pressure” (tire pressure

warning system initialization)

Select to initialize the tire pressure
warning system.
• “Change Wheel” (register tire

pressure warning system sensor
ID codes)

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(



P.133)

110

2-1. Instrument cluster

Select to enable/disable the rear
seat reminder.



“Scheduled Maintenance”
(



P.405)

Select to reset the scheduled main-
tenance information (maintenance
required message and distance
until maintenance necessary) after
all maintenance is performed.

■

Meter settings

Press and hold

to change

the settings of the following
items:



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



EV indicator (



P.217)

Select to enable/disable the EV
indicator.



Speedometer display (digital
speed)

Select to enable/disable the speed-
ometer display.



Gadget content

Select to turn the display of a gad-
get.



Fuel economy type

Select to change the average fuel
consumption display and an item to
be displayed as gadget.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Displays a blank screen.



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed



P.528

■

Background color of the indica-

tor/shift position display area

The background color of the indica-

tor/shift position display area is

changed according to the driving

mode as follows (



P.319):

●

Eco drive mode: Blue

●

Sport mode: Red

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

■

Pop-up displays

Depending on the pop-up display,

the currently displayed item in the

message display area may be tem-

porarily not displayed. The item will

be displayed after the pop-up dis-

play is no longer displayed.

111

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.474)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, if the headlight switch is in

the “AUTO” position, a sugges-
tion message will be displayed
asking if you wish to turn the
headlights off.
To turn the headlights off, select
“Yes”.

If the driver's door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Some functions can be customized.

(



P.528)

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display
(

)

Suggestion function

112

2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from
the image that is actually displayed by the head-up display.

Shift position display (



P.219)

Speed limit/RSA (Road Sign Assist) display area

Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A.

only)

• RSA (Road Sign Assist) display (if equipped) (



P.283)

Vehicle speed display area
Hybrid System Indicator/Tachometer/Outside temperature
(



P.115)

Navigation system-linked display area (if equipped) (



P.115)

Displays the following items, which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

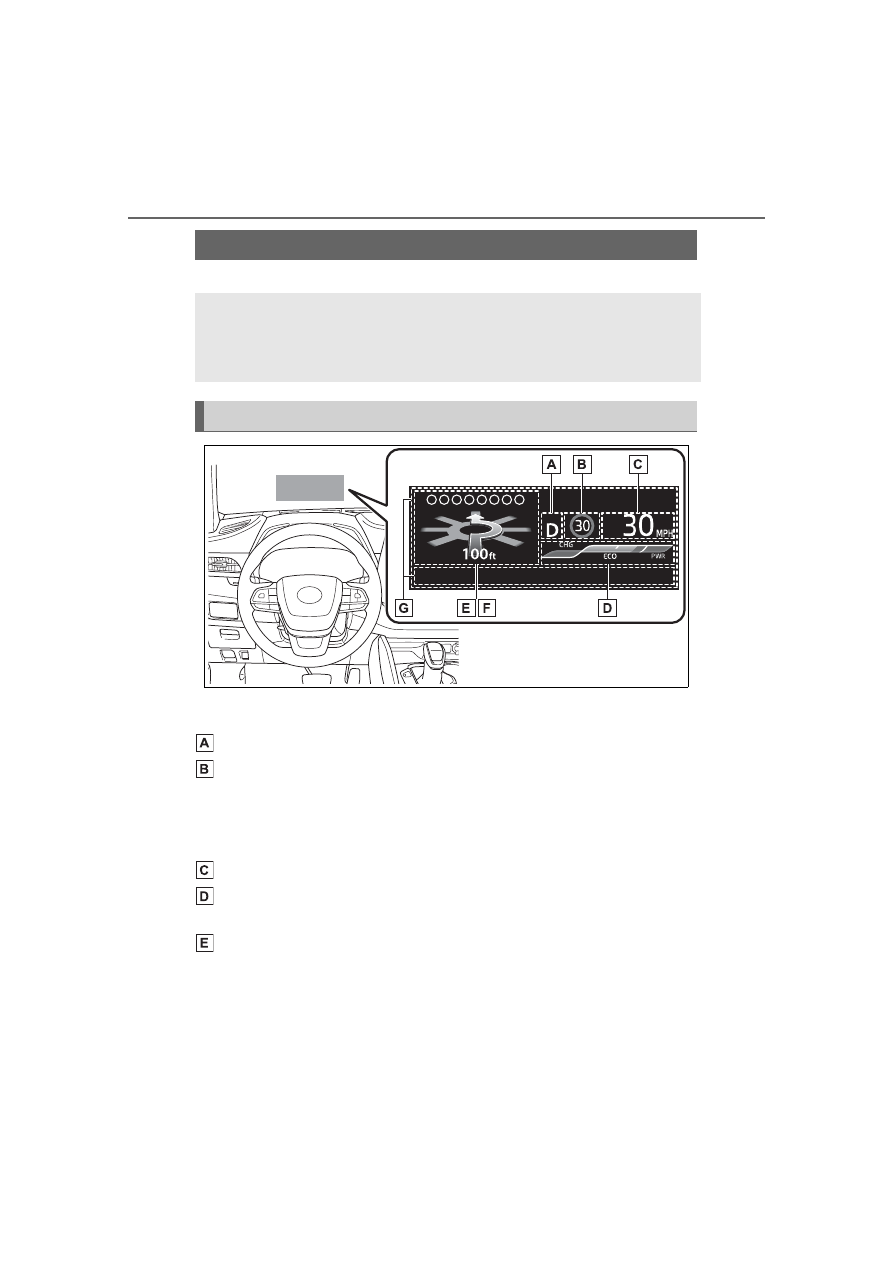

Head-up display

The head-up display is linked to the meters and navigation
system (if equipped) and projects a variety of information in
front of the driver, such as the current vehicle speed and route
guidance to a set destination.

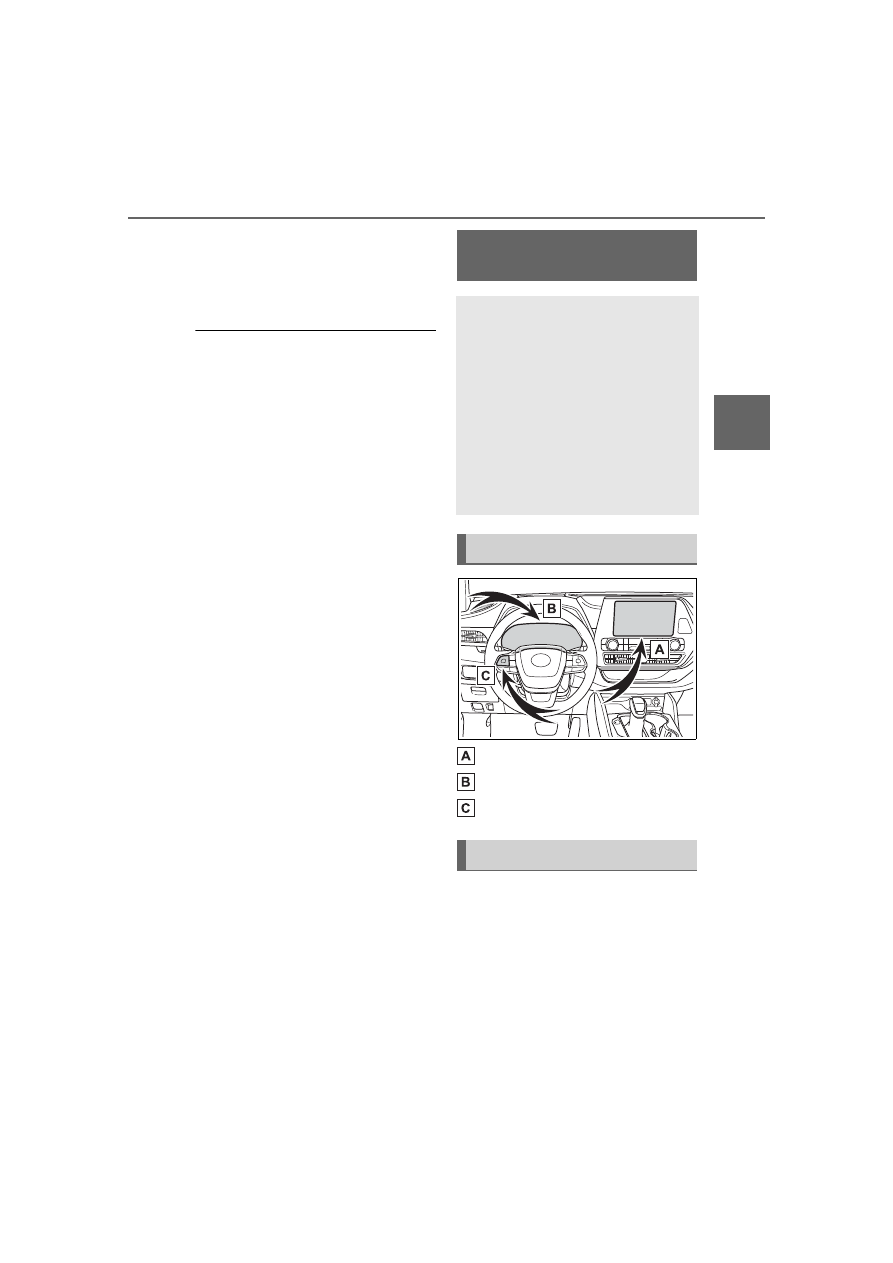

System components

113

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Driving assist system status display area (



P.116)

Message display area (



P.116)

The following pop-up displays will be displayed in certain situations:
• Warning/message
• Hands-free system status
• Audio system operation status

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Outside temperature display

If the outside temperature becomes

approximately 37°F (3°C) or lower,

the low outside temperature indica-

tor will flash for 10 seconds then the

low outside temperature indicator

and outside temperature display will

turn off. The low outside tempera-

ture indicator will operate again if

the outside temperature becomes

approximately 41°F (5°C) or more

and then decreases to 37°F (3°C) or

lower.

WARNING

■

Before using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

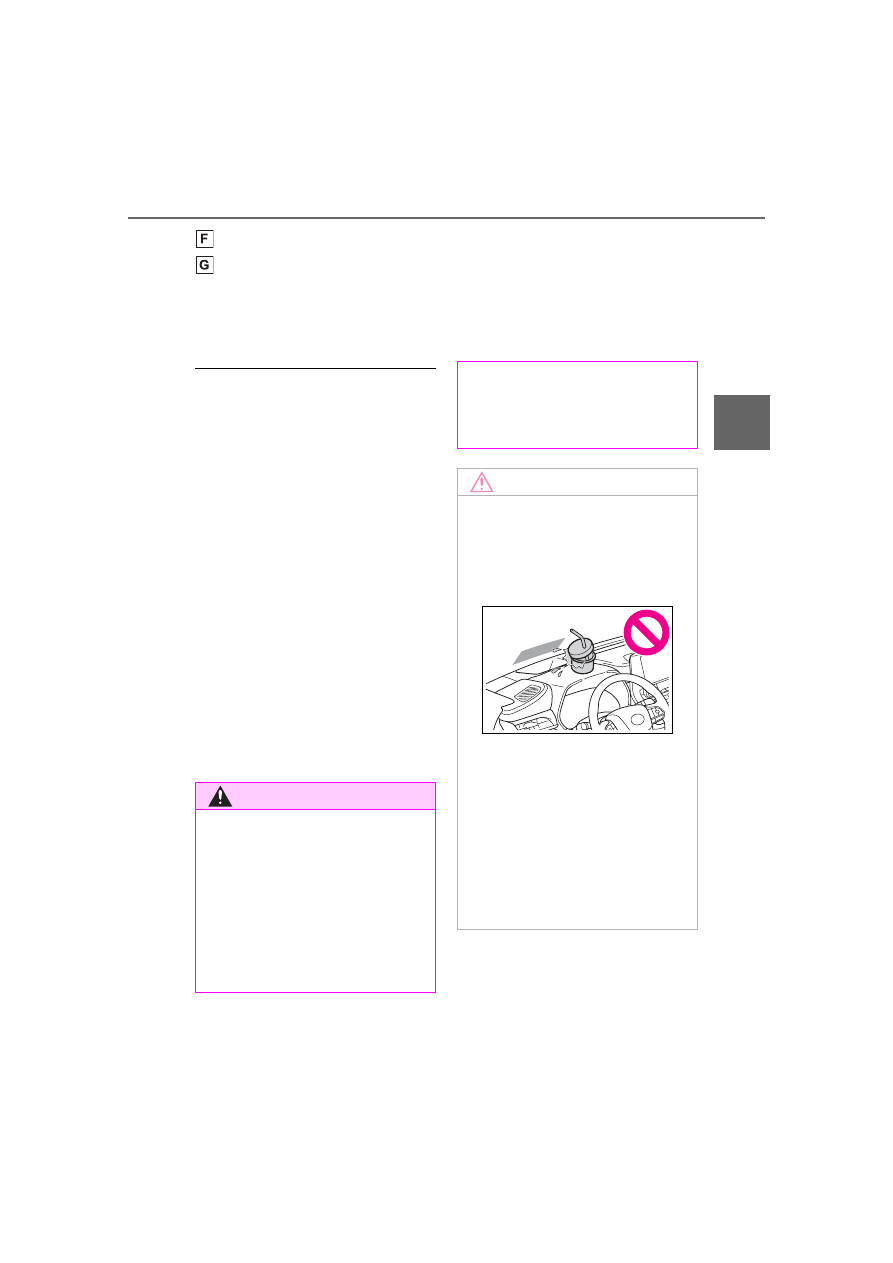

NOTICE

■

To prevent damage to compo-

nents

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector. Doing so could

interrupt head-up display indica-

tions.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector. Doing so

could cause mechanical mal-

functions.

114

2-1. Instrument cluster

■

Changing settings of the
head-up display

Select

on the multi-informa-

tion display (



P.528) and then

■

Enabling/disabling the
head-up display

Press

to enable/disable the

head-up display.

■

Changing the head-up dis-
play settings

Press and hold

to display the

following settings.



“HUD Brightness/Position”

Select to adjust the brightness and
vertical position of the head-up dis-
play.



“HUD Driving Support”

• Tachometer Settings
Blank/Hybrid System/Tachometer
Select to change the display to
blank (no display)/Hybrid System
Indicator/tachometer.
Select to enable/disable the follow-
ing items:
• Navigation (if equipped)
• Driving Assist
• Compass (if equipped)
• Audio



“HUD Rotation”

Select to adjust the angle of the
head-up display.

Press the

switch to

adjust the angle of the head-up dis-
play.

■

Enabling/disabling of the

head-up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

of the

multi-information display. Also, it is

automatically adjusted according to

the ambient brightness.

■

Automatic adjustment of the

head-up display position (vehi-

cles with driving position mem-

ory)

A desired head-up display position

can be entered to memory and

recalled automatically by the driving

position memory system. (



P.159)

■

When the 12-volt battery is dis-

connected

The customize settings of the

head-up display will be reset.

■

Customization

Some functions can be customized.

(



P.528)

Using the head-up display

WARNING

■

Caution for changing settings

of the head-up display

As the hybrid system needs to be

operating while changing the set-

tings of the head-up display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

115

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Hybrid System Indicator

Charge area
Hybrid Eco area
Eco area
Power area

Displayed content is the same as
that displayed on the meter (Hybrid
System Indicator). For details, refer
to P.90.

■

Tachometer

Displays the engine speed in
revolutions per minute.

■

Outside temperature

Displayed in the following situa-
tions:



When the power switch is
turned to ON (Displayed for

approximately 10 seconds)



When the low outside tem-
perature indicator is flashing

Displayed content is the same
as that displayed on the
multi-information display. For
details, refer to the explanation
of the outside temperature dis-
play on the multi-information
display. (



P.90)

Displays the following naviga-
tion system linked items:
(Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.)

■

Route guidance to destina-
tion

Displayed when the navigation
system is performing route guid-
ance. When approaching an
intersection, an arrow indicating
the suggested direction of travel
will be displayed.

■

Street name

Depending on the situation, the
names of the streets of an
approaching intersection will be
displayed.

■

Compass (heading-up dis-
play)

Displays the direction of travel.

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while the

changing the settings of the

head-up display.

Hybrid System Indica-
tor/Tachometer/Outside
temperature

Navigation system-linked
display area (if equipped)

116

2-1. Instrument cluster

■

Street name display (vehicles

with a navigation system)

Depending on the situation, such as

when no information is available in

map data, etc., the street names of

an intersection may not be dis-

played.

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.260)



Dynamic radar cruise control
with full-speed range
(



P.271)



PCS (Pre-Collision System)
(



P.249)



Parking Support Brake func-
tion (for static objects) (if
equipped) (



P.315)



Intuitive parking assist (if
equipped) (



P.292)



Drive-Start Control (



P.191)



Brake Override System
(



P.191)

Displayed content is the same as
that displayed on the multi-informa-
tion display. For details, refer to the
explanations of each system.

Displays the following
multi-information display linked
icons and a message:

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display. (



P.474)

: Information icon

Displayed when a sugges-
tion/advice pop-up display is dis-
played on the multi-information
display. (



P.101, 111)

Depending on the situation, the
following will be displayed:

■

Warning/Message

Depending on the situation, a
warning message or other mes-
sage will be displayed.



Warning messages

Certain warning messages can be
displayed.



Pop-up displays

When the driving assist system
operates, some of the information
displayed on the multi-information
display will be displayed on the
head-up display as a pop-up dis-
play.

■

Hands-free system status

Displayed when the hands-free
system is operated.
(Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.)

■

Audio system operation
status

Displayed when the audio sys-

Driving assist system sta-
tus display area

icons

Message display area

117

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

tem is operated.
(Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.)

■

Pop-up displays

Depending on the pop-up display,

the currently displayed item in the

message display area may be tem-

porarily not displayed. The item will

be displayed after the pop-up dis-

play is no longer displayed.

Audio system screen
Multi-information display
Meter control switches

■

Audio system screen



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Energy monitor/con-

sumption screen

The state of the hybrid sys-
tem can be viewed on the
multi-information display
and audio system display.

Vehicles with a 12.3-inch
display: The energy monitor
or consumption screen can
be displayed and operated
on the Toyota multi-opera-
tion touch.

System components

Energy monitor

118

2-1. Instrument cluster

If a screen other than “Energy Mon-

itor” is displayed, select “Energy”.



Audio Plus (vehicles with
Data Communication Mod-
ule) or Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Energy Mon-

itor” is displayed, select “Energy”.



12.3-inch display

Select

Toyota multi-oper-

ation touch (



P.338).

Select “Energy”.

The screen position can also be

changed by select a desired infor-

mation in full screen.

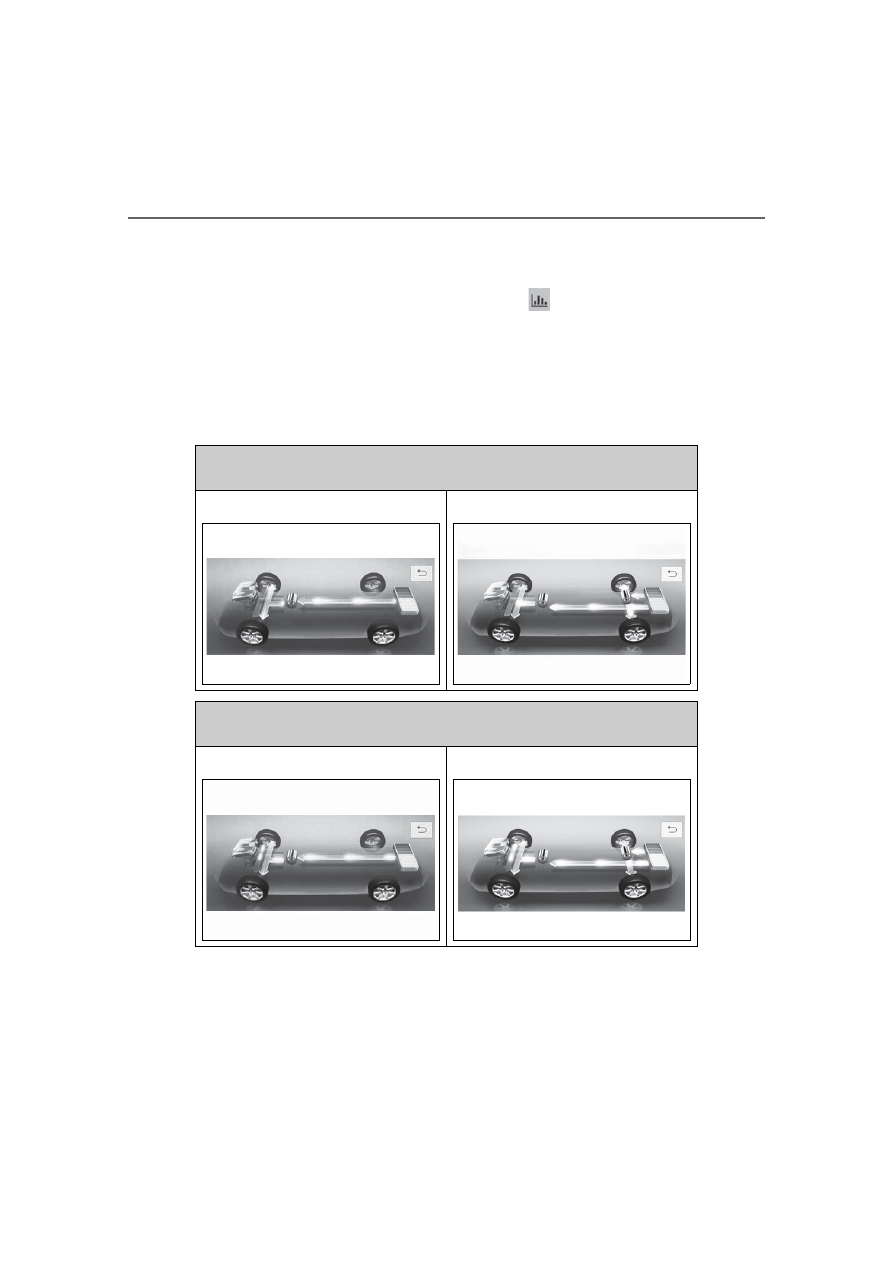

When the vehicle is powered by the electric motor (traction motor) (Exam-
ple: 8-inch display)

2WD/AWD models

AWD models only

When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor) (Example: 8-inch display)

2WD/AWD models

AWD models only

119

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

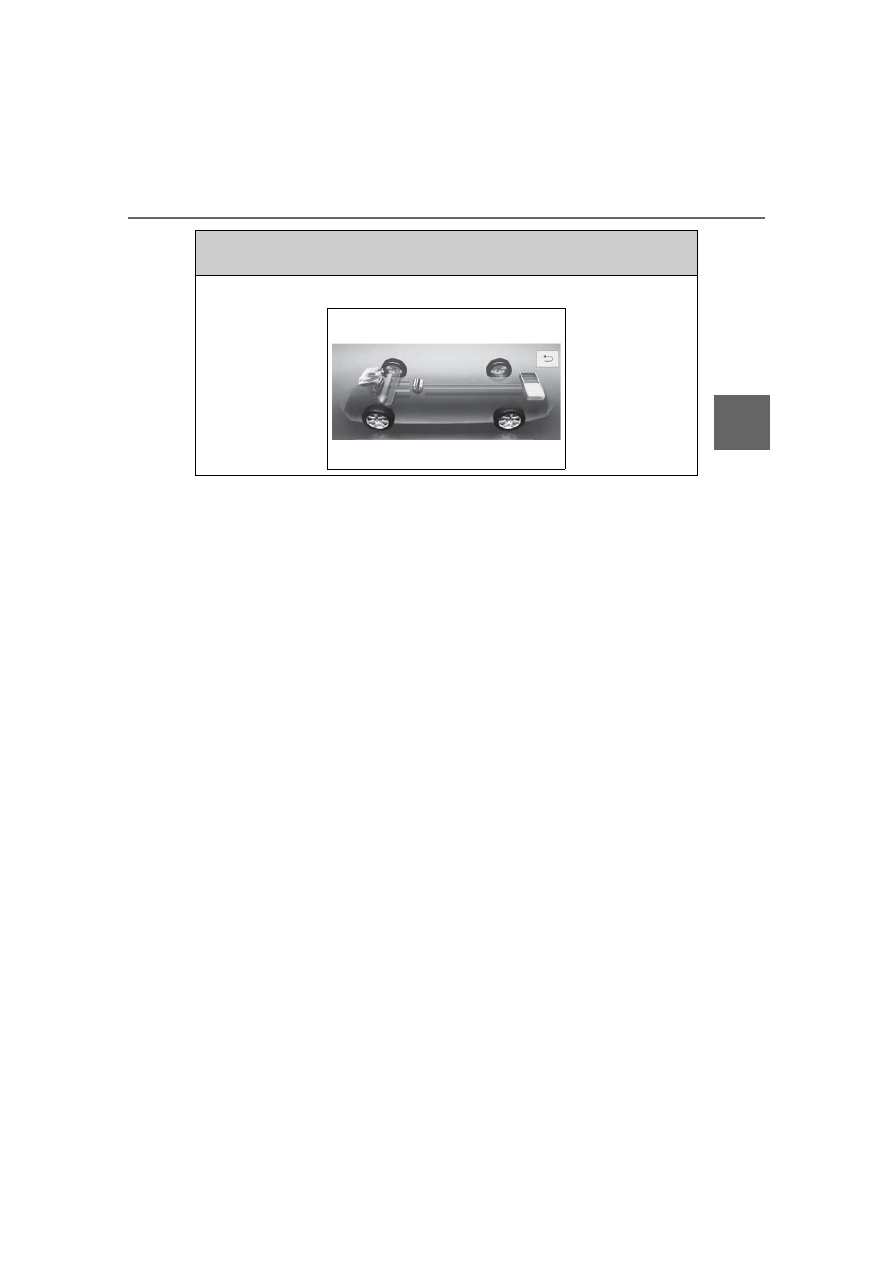

When the vehicle is powered by the gasoline engine (Example: 8-inch dis-
play)

2WD/AWD models

120

2-1. Instrument cluster

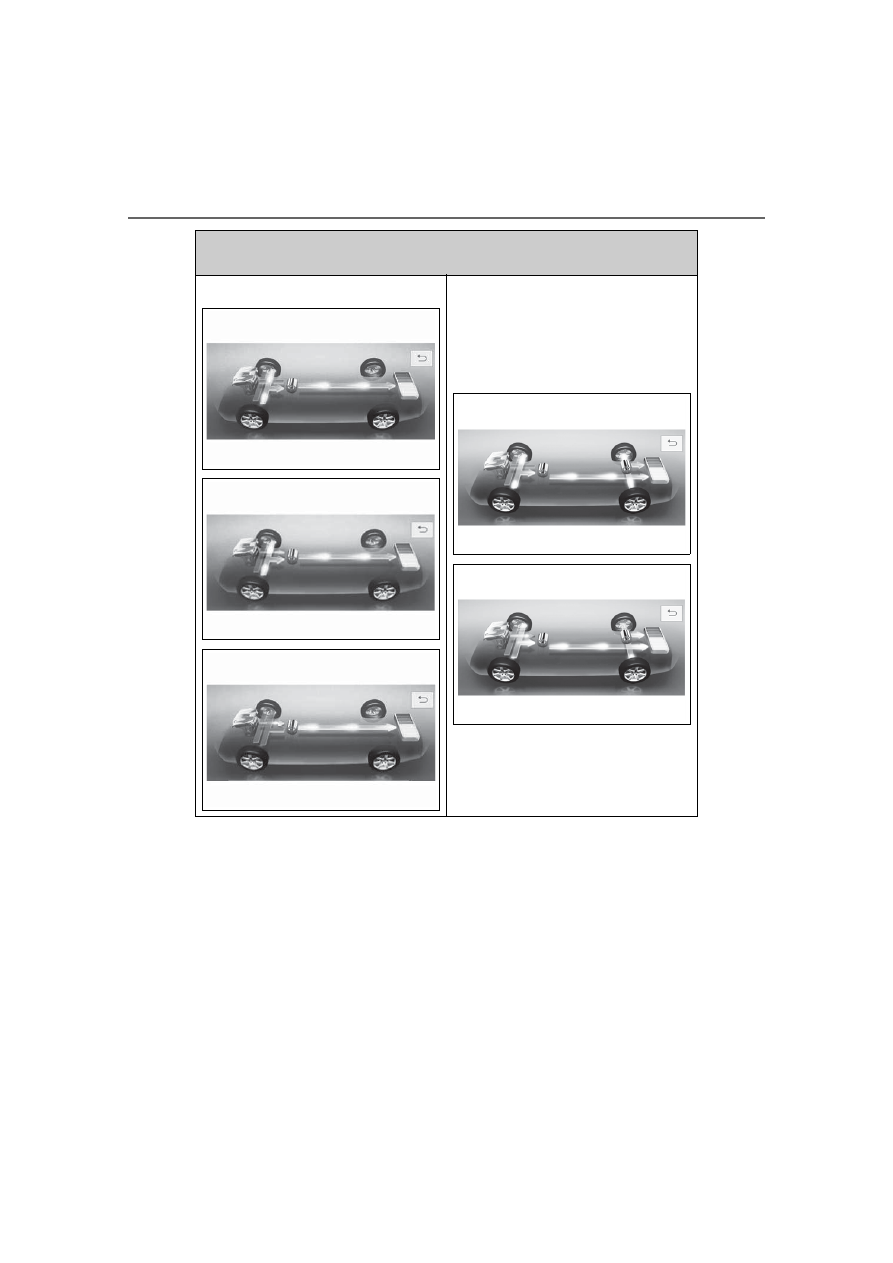

When the vehicle is charging the hybrid battery (traction battery) (Example:
8-inch display)

2WD/AWD models

AWD models only

121

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

These images are examples only,
and may vary slightly from actual
conditions.



Hybrid battery (traction bat-
tery) status (Example: 8-inch
display)

Low
High

These images are examples only,
and may vary slightly from actual
conditions.

■

Multi-information display



4.2-inch display

Press

of the meter

control switch to select

Press

of the meter

control switch to select the
energy monitor display.



7-inch display

Press

of the meter

control switch to select

Press

of the meter

control switch to select the
energy monitor display.

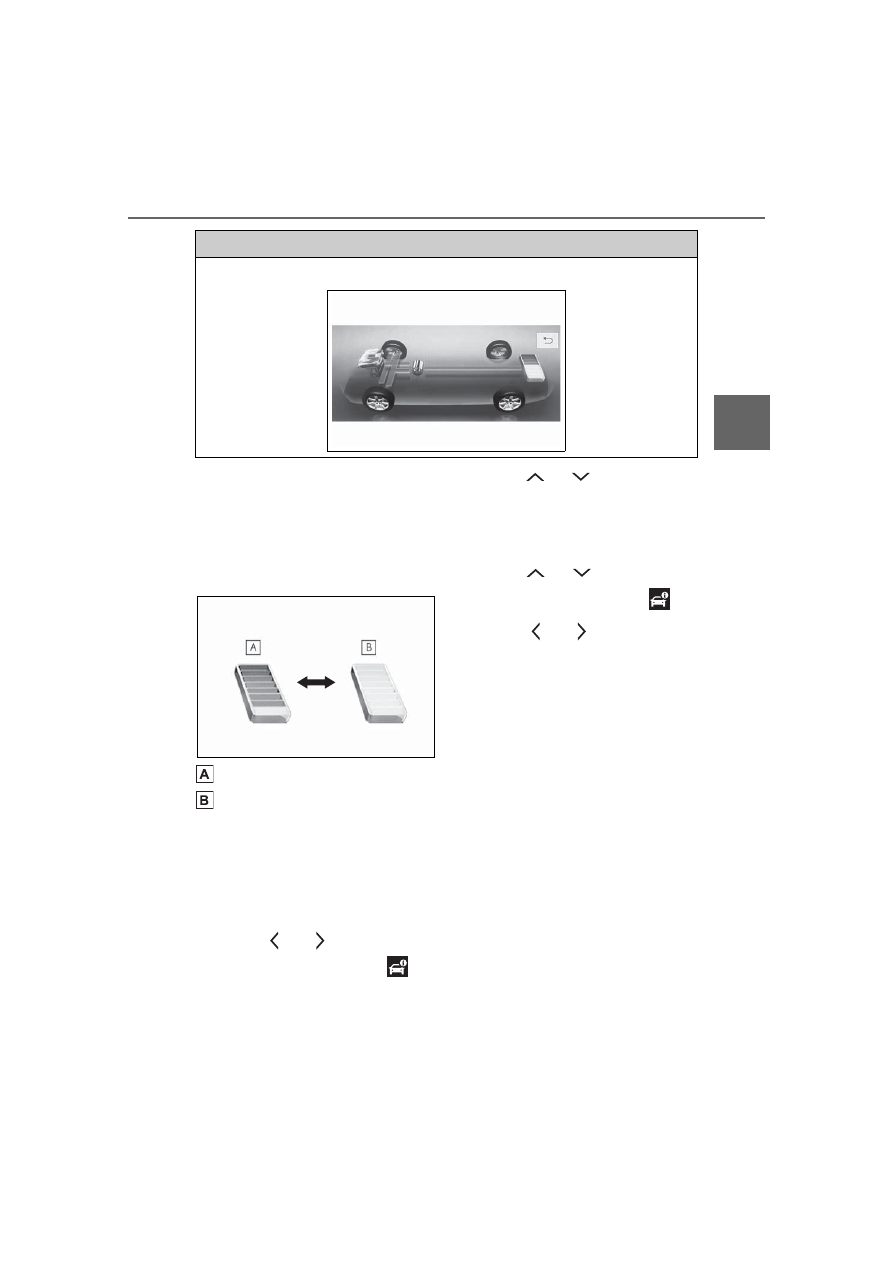

When there is no energy flow (Example: 8-inch display)

2WD/AWD models

122

2-1. Instrument cluster

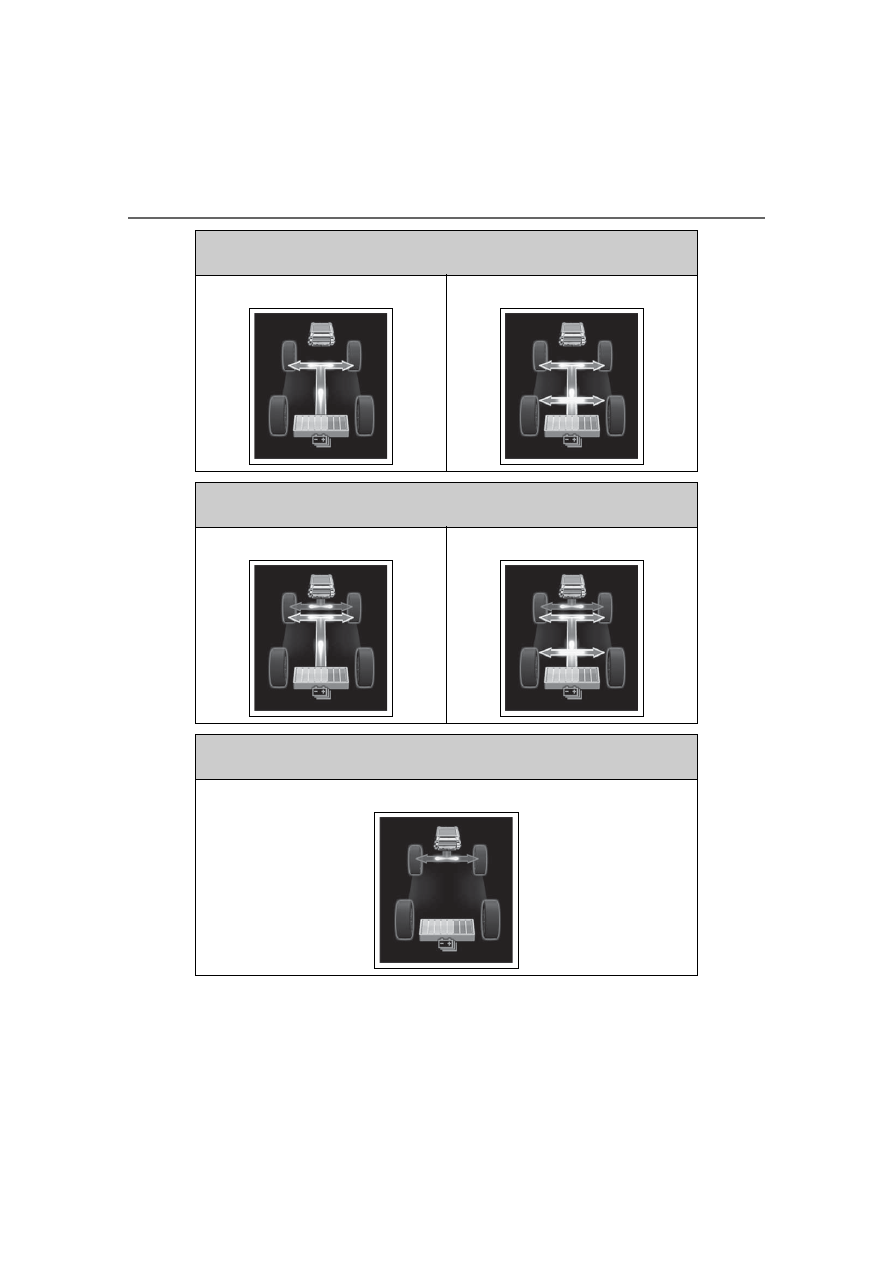

When the vehicle is powered by the electric motor (traction motor) (Exam-
ple: 7-inch display)

2WD/AWD models

AWD models only

When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor) (Example: 7-inch display)

2WD/AWD models

AWD models only

When the vehicle is powered by the gasoline engine (Example: 7-inch dis-
play)

2WD/AWD models

123

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

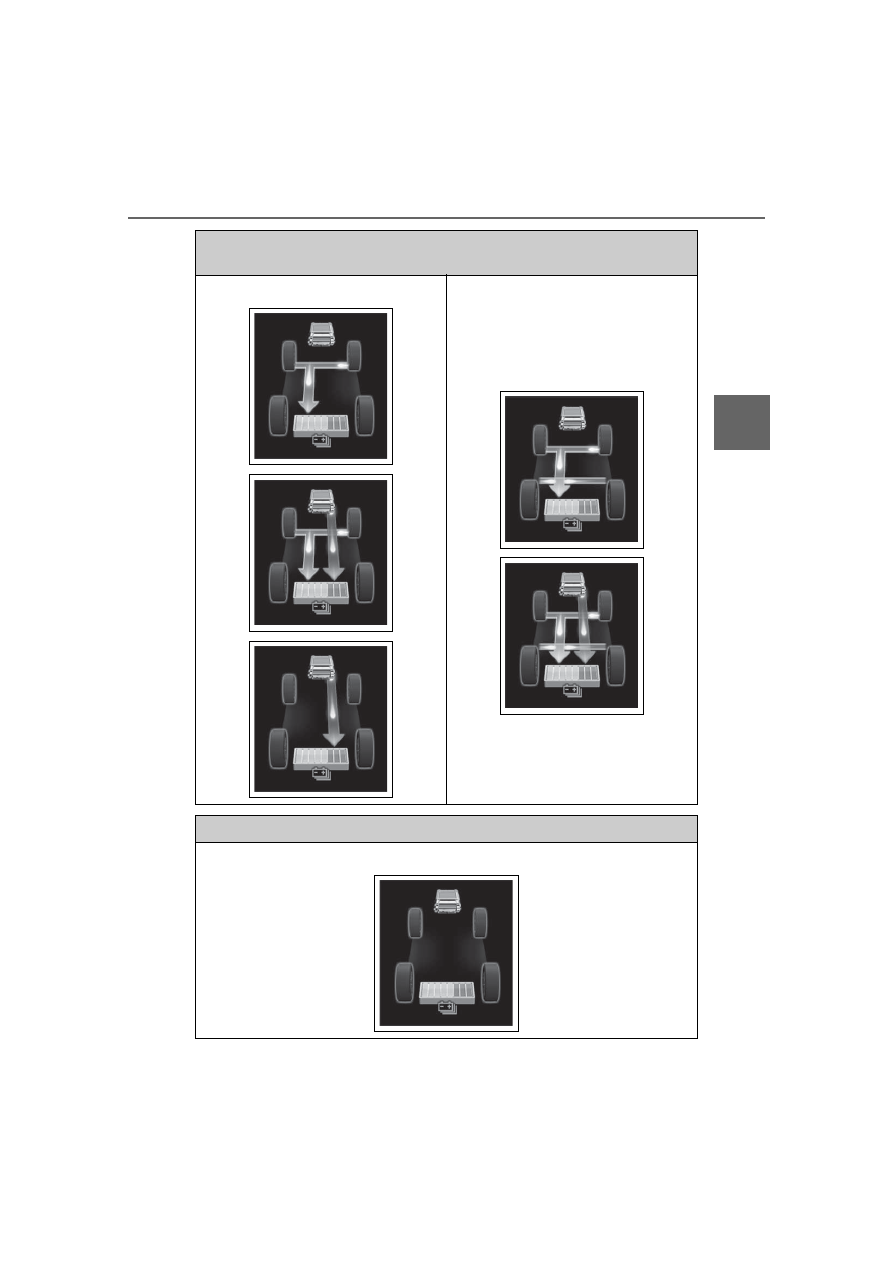

When the vehicle is charging the hybrid battery (traction battery) (Example:
7-inch display)

2WD/AWD models

AWD models only

When there is no energy flow (Example: 7-inch display)

2WD/AWD models

124

2-1. Instrument cluster

These images are examples only, and may vary slightly from actual condi-
tions.



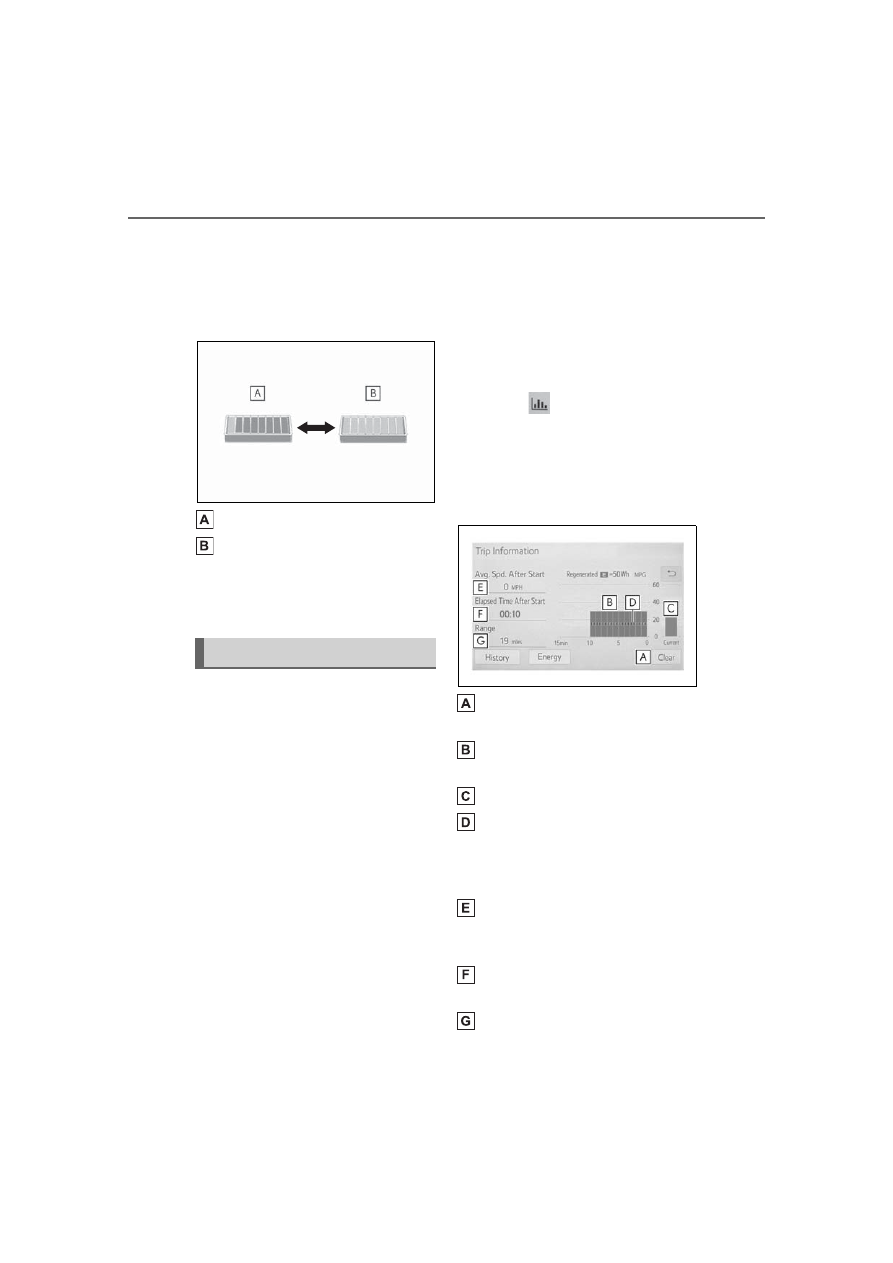

Hybrid battery (traction bat-
tery) status (Example: 7-inch
display)

Low
High

These images are examples only,
and may vary slightly from actual
conditions.

■

Trip information



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Trip Informa-

tion” is displayed, select “Trip Infor-

mation”.



Audio Plus (vehicles with
Data Communication Mod-
ule) or Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Trip Informa-

tion” is displayed, select “Trip Infor-

mation”.



12.3-inch display

Select

Toyota multi-oper-

ation touch (



P.338).

Select “TripInfo.”.

The screen position can also be

changed by select a desired infor-

mation in full screen.

Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes

One symbol indicates 50 Wh. Up to
5 symbols are shown.

Average vehicle speed since
the hybrid system was
started.
Elapsed time since the hybrid
system was started.
Cruising range

Consumption

Content .. 5 6 7 8 ..
