2-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

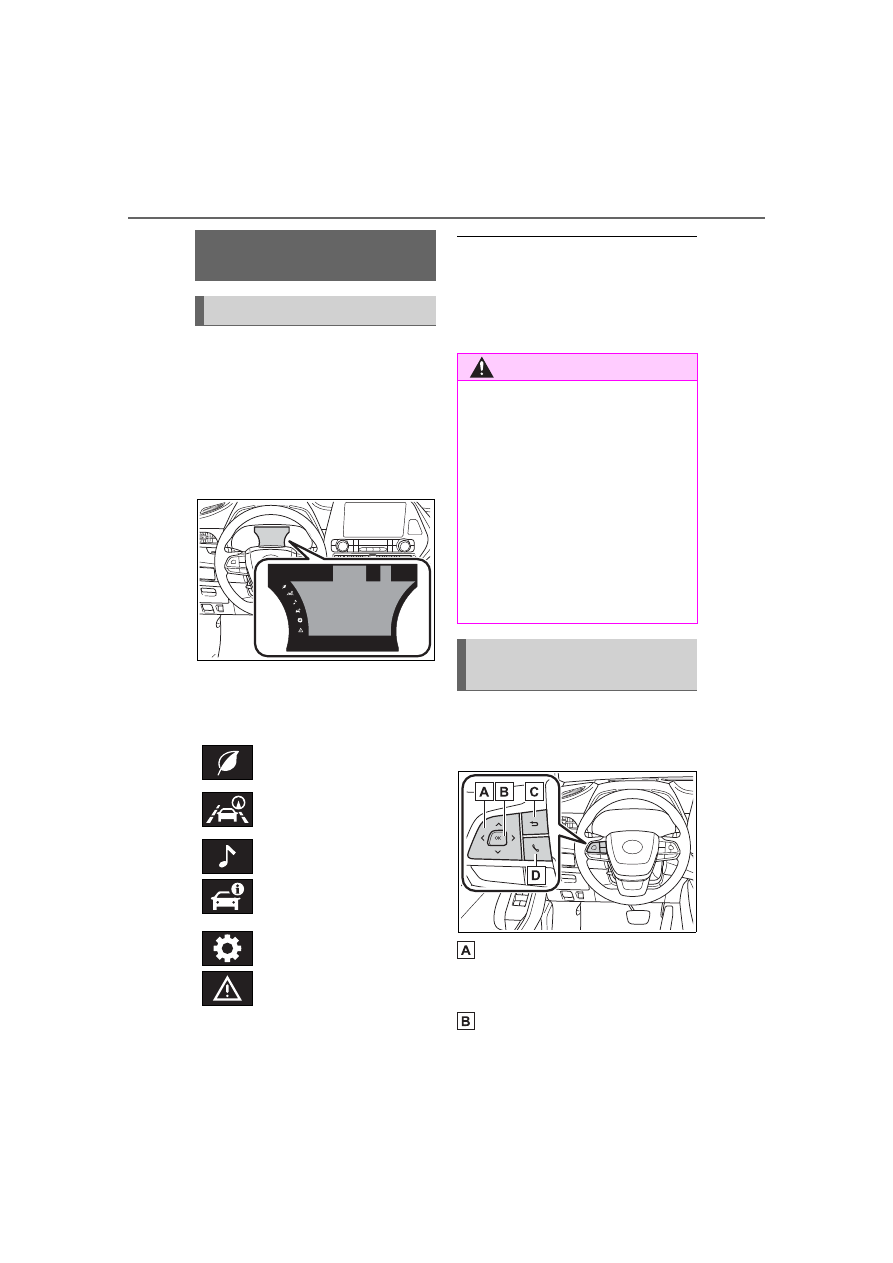

The multi-information display is
operated using the meter control
switches.

Scroll screens

, change the

displayed content

and move

the cursor
Press: Enter/Set

Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

■

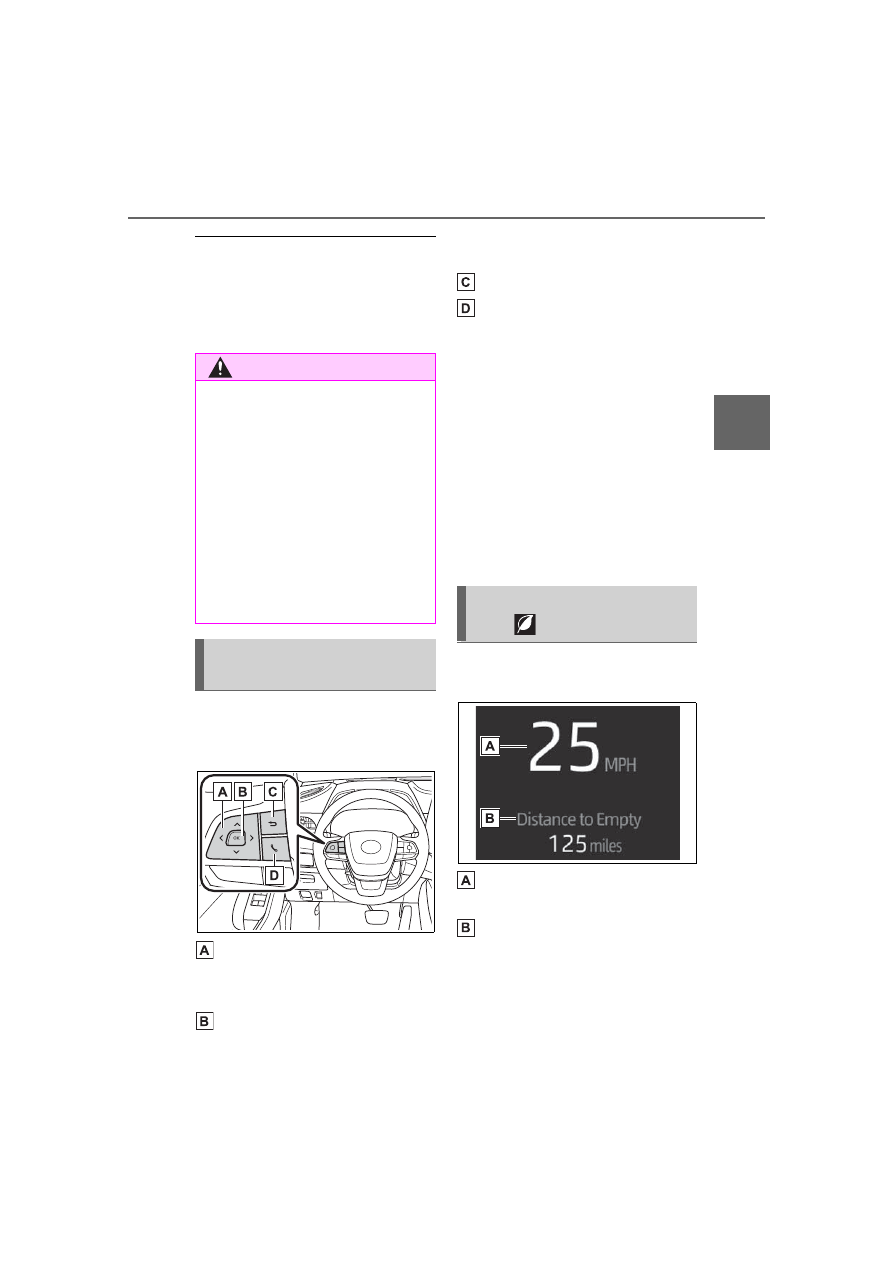

Speedometer display/Driv-
ing range

Speedometer display

Displays the vehicle speed.

Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.91

Changing the meter dis-
play

Driving information dis-
play (

)

2-1. Instrument cluster

As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch off,
the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

■

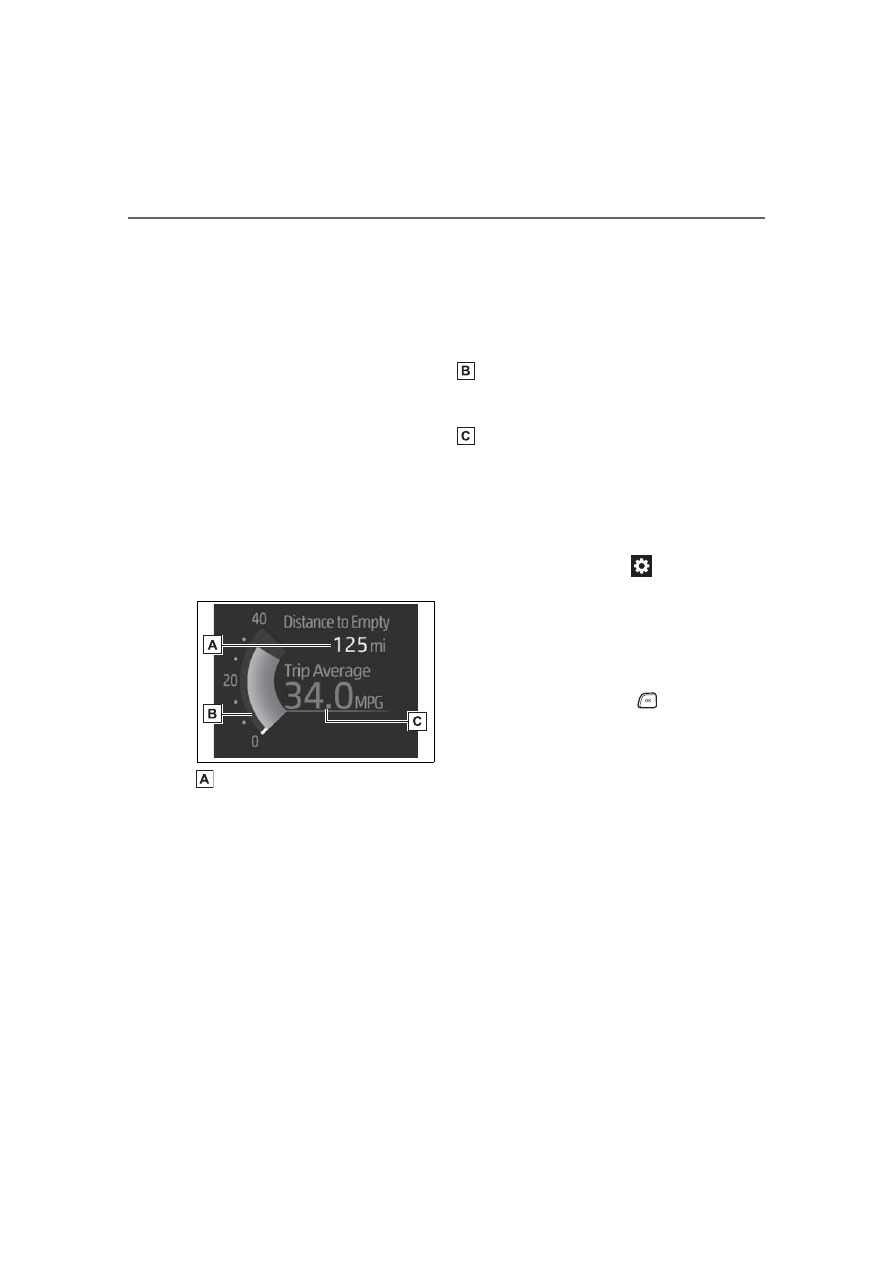

Fuel economy

Use the displayed values as a ref-
erence only.

Driving range

Displays driving range with remain-
ing fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch off,

the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

Current fuel economy

Displays the instantaneous current
fuel Economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy dis-
play can be changed in

(



P.97)

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

:Average fuel economy after

starting is reset each time the
engine stops.

■

ECO Accelerator Guid-
ance/Eco score

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

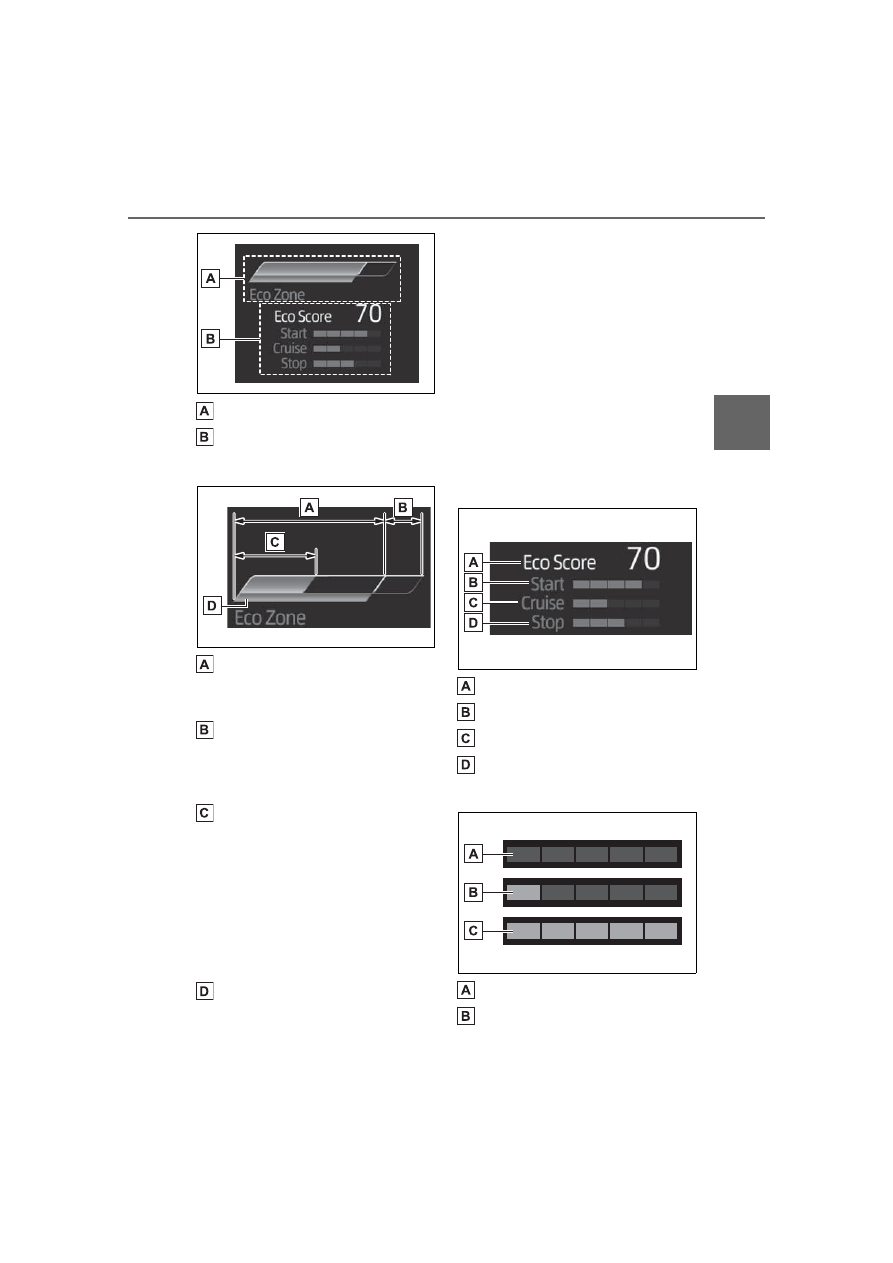

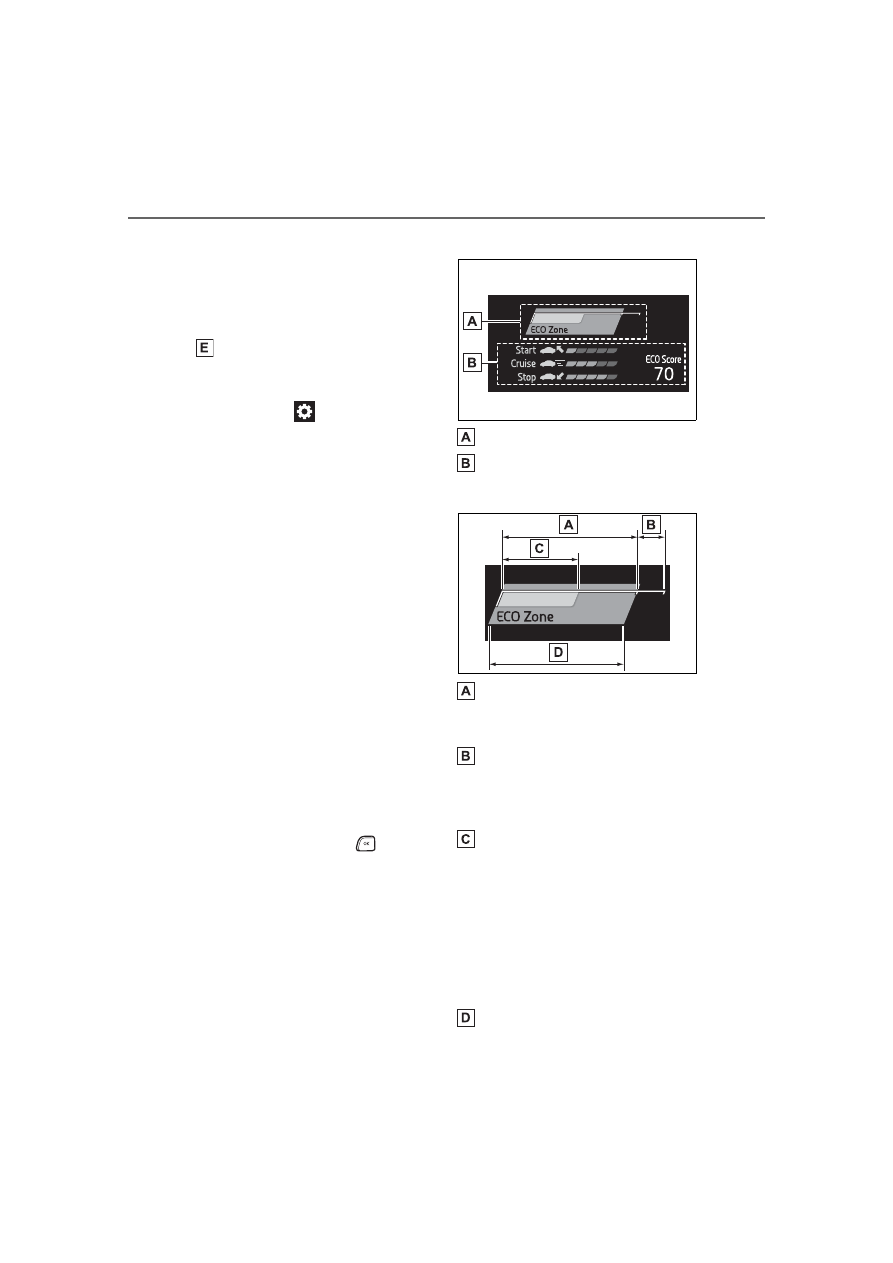

ECO Accelerator Guidance
Eco score



ECO Accelerator Guidance

Eco area

Indicates that the vehicle is being
driven in an Eco-friendly manner.

Power area

Indicates that the Eco-friendly driv-
ing range is being exceeded
(during full power driving, etc.)

Current accelerator pedal
operation

Displayed as a green bar when
within the Eco area.
Eco-friendly acceleration can be
achieved by keeping the accelera-
tor pedal operation display within
the range indicated by the blue bar.
(



P.191)

Zone of Eco acceleration

Displayed as a blue bar, and rep-
resents an estimated suitable

accelerator pedal operation range
for the current driving conditions,
such as starting off or cruising.
This display changes according to
situation, such as when starting off
or cruising.



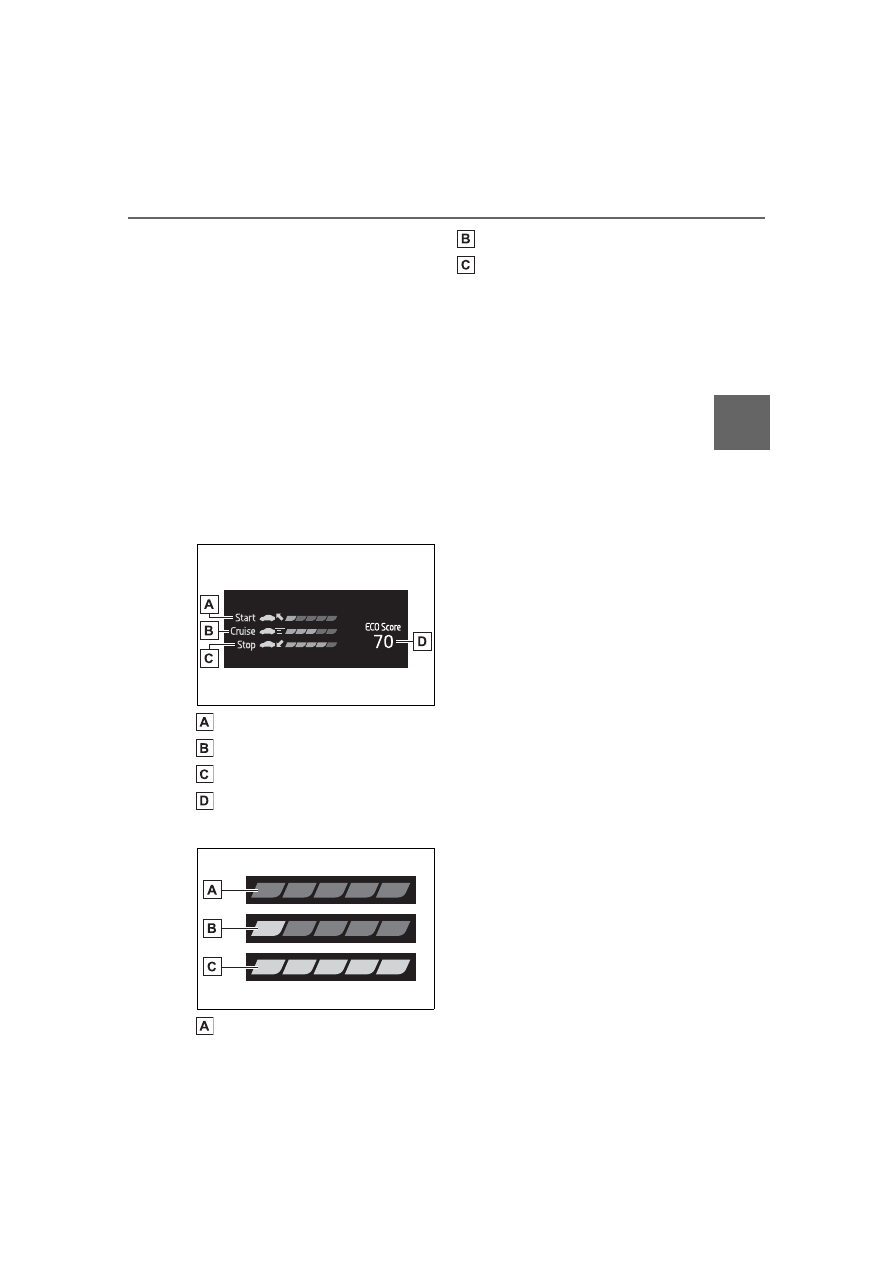

Eco score

The following 3 Eco driving meth-
ods are evaluated in 5 levels:
Smooth start-off acceleration, driv-
ing without sudden acceleration,
and smooth stopping. When the
vehicle is stopped, an Eco score
out of 100 points will be displayed.

Score result
Eco start status
Eco cruise status
Eco stop status

How to read the bar display

Not yet evaluated
Low

2-1. Instrument cluster

High

• After the hybrid system is started,

the Eco score will not be dis-
played until the vehicle speed
exceeds approximately 12 mph
(20 km/h).

• The Eco score will be reset each

time the hybrid system is started.

• When the hybrid system is

stopped, the total score of the
current trip will be displayed.

■

The ECO Accelerator Guid-

ance/Eco score will not operate

when

The ECO Accelerator Guidance/Eco

score will not operate in the follow-

ing situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.260)



RSA (Road Sign Assist) (if
equipped) (



P.283)



Dynamic radar cruise control
with full-speed range
(



P.271)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Drive information

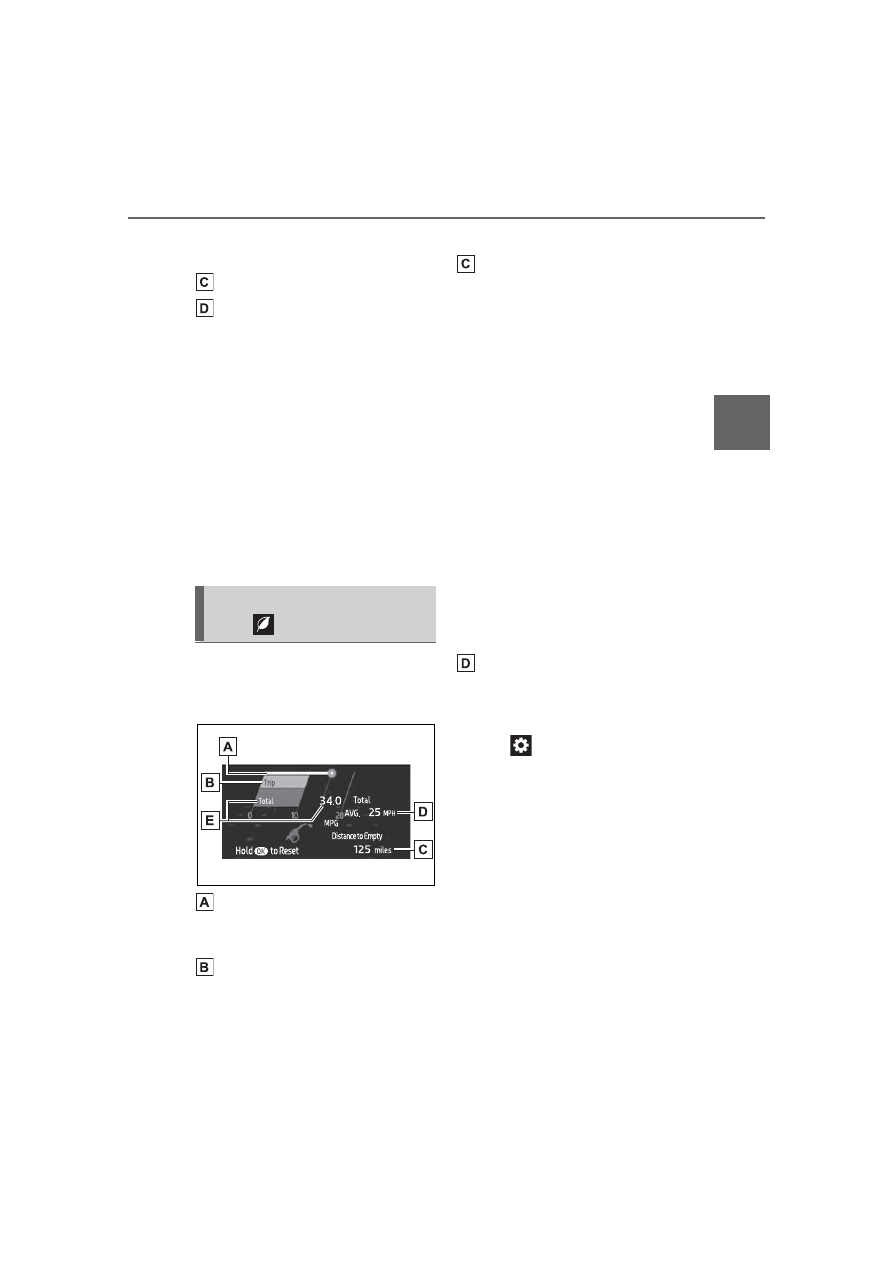

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.97)

Use the displayed information
as a reference only.
Following items will be dis-
played.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
hybrid system start

• “Distance”: Displays the distance

driven since hybrid system start

• “Total Time”: Displays the elapsed

time since hybrid system start

: These items are reset each time

Driving support system
information display (

)

Audio system-linked dis-
play (

)

Vehicle information dis-
play (

)

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

the engine stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the elapsed

time since the display was reset

: To reset, display the desired item

and press and hold

■

Energy monitor



P.117

■

Tire pressure



P.424

■

AWD Control (if equipped)

The illustration used is intended as
an example, and may differ from the
image that is actually displayed on
the multi-information display.

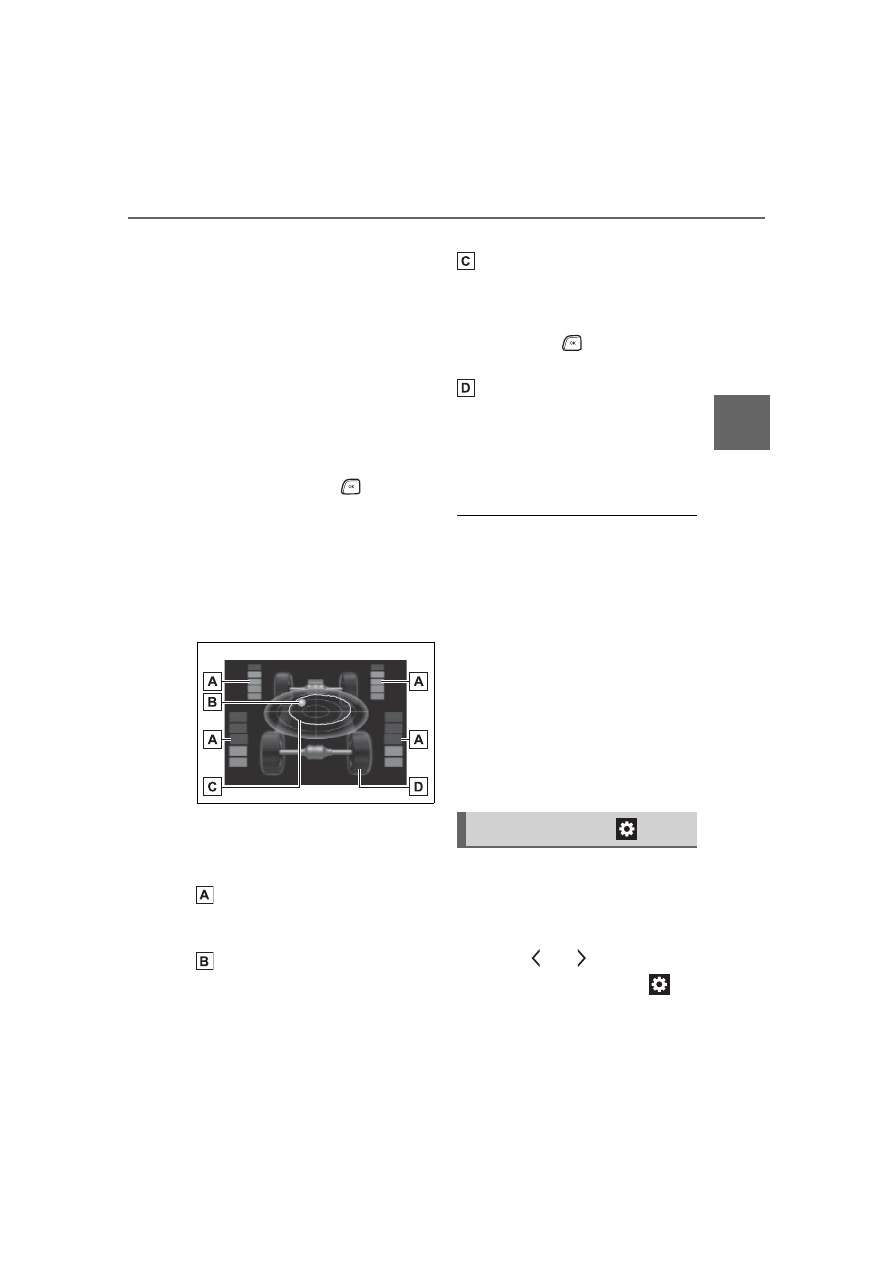

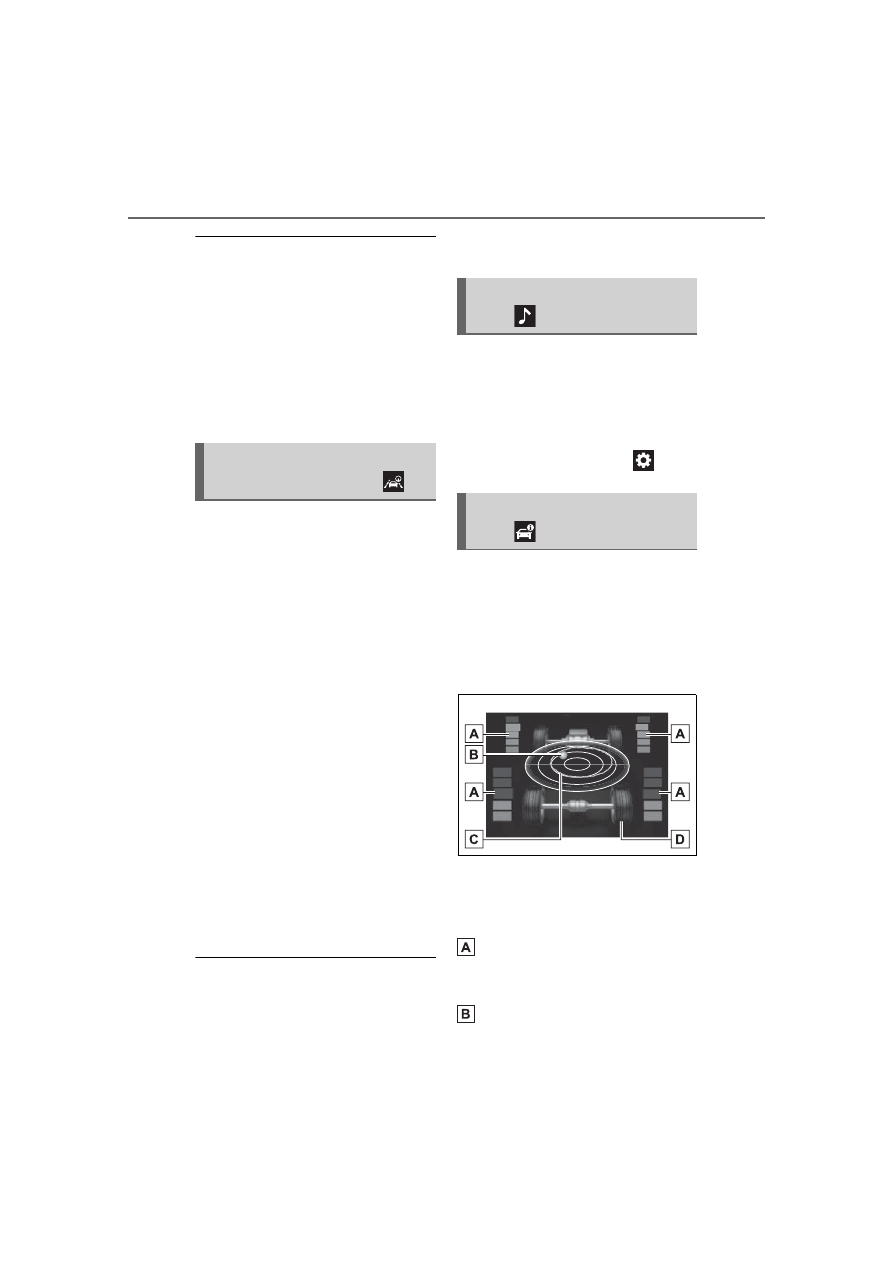

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the

ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.
Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

■

Tire pressure

• It may take a few minutes to dis-

play the tire inflation pressure

after the power switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

• “---” may be displayed if the tire

position information cannot be

determined due to unfavorable

radio wave conditions.

• Tire inflation pressure changes

with temperature. The displayed

values may also be different from

the values measured using a tire

pressure gauge.

■

Changing settings

Use the meter control switches
on the steering wheel to change
settings.

Press

of the meter

control switch to select

Settings display (

)

2-1. Instrument cluster

Press

of the meter

control switch to select the
desired item to be custom-
ized.

Press or press and hold

The available settings will differ
depending on if

is pressed or

pressed and held. Follow the

instructions on the display.

■

Setting items



LTA (Lane Tracing Assist)

(



P.260)

Press and hold

to change the

settings of the following items:
• “Lane Center”
Select to enable/disable the lane
centering function.
• “Sensitivity”
Select to set the warning sensitivity.
• “Sway Warning”
Select to enable/disable the vehicle
sway warning.
• “Sway Sensitivity”
Select to set the vehicle sway warn-
ing sensitivity.



PCS (Pre-Collision Sys-

tem) (



P.249)

Press

to enable/disable the

pre-collision system.
• PCS (Pre-Collision System)

on/off

Select to enable/disable the
pre-collision system.

Press and hold

to change the

settings of the following item:

• “Sensitivity”
Select to change the pre-collision
warning timing.



DRCC (Dynamic Radar

Cruise Control with full-speed
range) (



P.271)

Press and hold

to change the

settings of the following items:
• “Curve Speed Reduction”

(



P.278)

Select to set the curve speed
reduction function strength.



BSM (Blind Spot Monitor)

(



P.286)

Press

to enable/disable the

Blind Spot Monitor function.
• BSM (Blind Spot Monitor) on/off
Select to enable/disable the Blind
Spot Monitor function.

Press and hold

to change the

settings of the following items:
• “Brightness”
Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.286)

• “Sensitivity”
Select to change the alert timing for
an approaching vehicle.



RCTA (Rear Cross Traffic

Alert) (



P.301)

Press

to enable/disable the

Rear Cross Traffic Alert function.
• RCTA (Rear Cross Traffic Alert)

on/off

Select to enable/disable the Rear

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Cross Traffic Alert function.

Press and hold

to change the

settings of the following item:
• “Volume”
Select to change the volume of the
RCTA buzzer.



RSA (Road Sign Assist) (if

equipped) (



P.283)

Press

to enable/disable the

Road Sign Assist.
• RSA (Road Sign Assist) on/off
Select to enable/disable the Road
Sign Assist.

Press and hold

to change the

settings of the following items:
• “Notification Method”
Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and no-entry sign.
• “Notification Level”
Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle settings

Press and hold

to change

the settings of the following
items:



PBD (Power Back Door)

(



P.135)

• “System Settings”
Select to enable/disable the power
back door system.
• “Opening Adjustment”

Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.



“TPWS” (Tire Pressure Warn-
ing System) (



P.424)

• “Set Pressure” (tire pressure

warning system initialization)

Select to initialize the tire pressure
warning system.
• “Change Wheel” (register tire

pressure warning system sensor
ID codes)

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(



P.133)

Select to enable/disable the rear
seat reminder.



“Scheduled Maintenance”
(



P.405)

Select to reset the scheduled main-
tenance information (maintenance
required message and distance
until maintenance necessary) after
all maintenance is performed.

■

Meter settings

Press and hold

to change

the settings of the following
items:



Language

Select to change the language dis-
played.



Units

100

2-1. Instrument cluster

Select to change the units of mea-
sure displayed.



EV indicator (



P.217)

Select to enable/disable the EV
indicator.



Select to change the displayed con-
tent of the following:
• Hybrid system indicator
Select to display/not display the
Eco Accelerator Guidance. (



P.90)

• Fuel economy display
Select to change the average fuel
consumption display between after
start/after reset. (



P.94)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Display contents
Select to display/not display the
AWD control (if equipped) and
energy monitor. (



P.97, 117)

• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Trip Summary

Select to turn the display of a trip
summary display.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Displays a blank screen.



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed



P.528

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

■

Pop-up displays

Depending on the pop-up display,

the currently displayed item in the

message display area may be tem-

porarily not displayed. The item will

be displayed after the pop-up dis-

play is no longer displayed.

101

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.474)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, if the headlight switch is in

the “AUTO” position, a sugges-
tion message will be displayed
asking if you wish to turn the
headlights off.
To turn the headlights off, select
“Yes”.

If the driver's door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

Some functions can be customized.

(



P.528)

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display
(

)

Suggestion function

102

2-1. Instrument cluster

■

Display

The multi-information display
presents the driver with a variety
of driving-related information.
Warning or suggestion/advice
pop-up displays are also dis-
played in certain situations.

■

Menu icons

Select a menu icon to display its
content.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is
operated using the meter control
switches.

Scroll screens

, change the

displayed content

and move

the cursor
Press: Enter/Set

Multi-information dis-

play (7-inch display)

Display and menu icons

Driving information display
(



P.103)

Driving support system
information display
(



P.106)

Audio system-linked dis-
play (



P.106)

Vehicle information dis-
play (



P.106)

Settings display (



P.107)

Warning message display
(



P.111)

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.91

Changing the meter dis-
play

103

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Current fuel consumption

Displays the instantaneous current
fuel consumption.

Average fuel economy (after
start)

Displays the average fuel con-
sumption since hybrid system

start.

Driving range

Displays the driving range with
remaining fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch off,
the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

Gadget

The following items can be dis-
played by changing the settings for
gadget content and fuel economy
type on

. (



P.107)

• Other
Blank: No item
• Average vehicle speed
After start: Displays average vehi-
cle speed since hybrid system start
After reset: Displays average vehi-
cle speed since the display was
reset

• Distance
After start: Displays the distance
driven since vehicle start.
After reset: Displays the distance
driven since the display was reset

Driving information dis-
play (

)

104

2-1. Instrument cluster

• Elapsed time
After start: Displays elapsed time
since hybrid system start
After reset: Displays elapsed time
since the display was reset

Average fuel economy

Displayed item (listed below) can
be changed on the fuel economy
type screen of

. (



P.107)



Total (after reset)

Displays the average fuel con-
sumption since the display was
reset.

*1, 3



Tank (after refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch off,
the display may not be updated.

:Use the displayed fuel consump-

tion as a reference only.

:The default setting is no display.

:This display can be reset by

pressing and holding

while it

is displayed.

■

ECO Accelerator Guid-
ance/Eco score

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving

status.

ECO Accelerator Guidance
Eco score



ECO Accelerator Guidance

Eco area

Indicates that the vehicle is being
driven in an Eco-friendly manner.

Power area

Indicates that the Eco-friendly driv-
ing range is being exceeded
(during full power driving, etc.)

Current accelerator pedal
operation

Displayed as a green bar when
within the Eco area.
Eco-friendly acceleration can be
achieved by keeping the accelera-
tor pedal operation display within
the range indicated by the blue bar.
(



P.191)

Zone of Eco acceleration

105

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Displayed as a blue bar, and rep-
resents an estimated suitable
accelerator pedal operation range
for the current driving conditions,
such as starting off or cruising.
This display changes according to
situation, such as when starting off
or cruising.



Eco score

Eco start status
Eco cruise status
Eco stop status
Score result

How to read the bar display

Not yet evaluated

Low
High

• After the hybrid system is started,

the Eco score will not be dis-
played until the vehicle speed
exceeds approximately 12 mph
(20 km/h).

• The Eco score will be reset each

time the hybrid system is started.

• When the hybrid system is

stopped, the total score of the
current trip will be displayed.

■

Speedometer display (digi-
tal speed)/Driving range



Speedometer display (digital
speed)



P.110



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch off,
the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

106

2-1. Instrument cluster

■

The ECO Accelerator Guid-

ance/Eco score will not operate

when

The ECO Accelerator Guidance/Eco

score will not operate in the follow-

ing situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.260)



RSA (Road Sign Assist) (if
equipped) (



P.283)



Dynamic radar cruise control
with full-speed range
(



P.271)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (head-
ing-up display)

■

Route guidance to destination

display

When the route guidance to destina-

tion display is enabled on the

head-up display, it will not be dis-

played on the multi-information dis-

play. (



P.114)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Energy monitor



P.117

■

Tire pressure



P.424

■

AWD Control (if equipped)

The illustration used is intended as
an example, and may differ from the
image that is actually displayed on
the multi-information display.

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Driving support system
information display (

)

Audio system-linked dis-
play (

)

Vehicle information dis-
play (

)

107

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.
Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

■

Safety system status

Enable/Disable the following
systems:



PCS (Pre-Collision system)
(



P.249)



Intuitive parking assist (if
equipped) (



P.292)



BSM (Blind Spot Monitor)
(



P.286)



RCTA (Rear Cross Traffic
Alert) (



P.301)

■

Tire pressure

• It may take a few minutes to dis-

play the tire inflation pressure

after the power switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

• “---” may be displayed if the tire

position information cannot be

determined due to unfavorable

radio wave conditions.

• Tire inflation pressure changes

with temperature. The displayed

values may also be different from

the values measured using a tire

pressure gauge.

■

Changing settings

Use the meter control switches
on the steering wheel to change
settings.

Press

of the meter

control switch to select

Press

of the meter

control switch to select the
desired item to be custom-
ized.

Press or press and hold

The available settings will differ
depending on if

is pressed or

pressed and held. Follow the

instructions on the display.

■

Setting items



LTA (Lane Tracing Assist)

(



P.260)

Press and hold

to change the

Settings display (

)

108

2-1. Instrument cluster

Select to set the vehicle sway warn-
ing sensitivity.



PCS (Pre-Collision Sys-

tem) (



P.249)

Press

to enable/disable the

pre-collision system.
• PCS (Pre-Collision System)

on/off

Select to enable/disable the
pre-collision system.

Press and hold

to change the

settings of the following item:
• “Sensitivity”
Select to change the pre-collision
warning timing.



DRCC (Dynamic Radar

Cruise Control with full-speed
range) (



P.271)

Press and hold

to change the

settings of the following items:
• “Curve Speed Reduction”

(



P.278)

Select to set the curve speed
reduction function strength.



BSM (Blind Spot Monitor)

(



P.286)

Press

to enable/disable the

Blind Spot Monitor function.
• BSM (Blind Spot Monitor) on/off
Select to enable/disable the Blind
Spot Monitor function.

Press and hold

to change the

settings of the following items:
• “Brightness”
Select to switch the brightness of

the outside rear view mirror indica-
tors. (



P.286)

• “Sensitivity”
Select to change the alert timing for
an approaching vehicle.



Intuitive parking assist (if

equipped) (



P.292)

Press

to enable/disable the

Intuitive parking assist.
• Intuitive parking assist on/off
Select to enable/disable the Intui-
tive parking assist.

Press and hold

to change the

settings of the following item:
• “Volume”
Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.



RCTA (Rear Cross Traffic

Alert) (



P.301)

Press

to enable/disable the

Rear Cross Traffic Alert function.
• RCTA (Rear Cross Traffic Alert)

on/off

Select to enable/disable the Rear
Cross Traffic Alert function.

Press and hold

to change the

settings of the following item:
• “Volume”
Select to change the volume of the
RCTA buzzer.



PKSB (Parking Support

Brake) (if equipped) (



P.308)

Press

to enable/disable the

Parking Support Brake function.

Toyota Highlander Hybrid (2022 year). Manual in english - page 6
