P.459)

●

Carefully inspect the ground

under the vehicle. If you find

that liquid has leaked onto the

ground, the fuel system may

have been damaged. Leave the

vehicle as soon as possible.

■

Hybrid battery (traction bat-

tery)

●

Never resell, hand over or mod-

ify the hybrid battery. To prevent

accidents, hybrid batteries that

have been removed from a dis-

posed vehicle are collected

through your Toyota dealer. Do

not dispose of the battery your-

self.

Unless the battery is properly col-

lected, the following may occur,

resulting in death or serious

injury:
• The hybrid battery may be ille-

gally disposed of or dumped,

and it is hazardous to the envi-

ronment or someone may touch

a high voltage part, resulting in

an electric shock.

• The hybrid battery is intended to

be used exclusively with your

hybrid vehicle. If the hybrid bat-

tery is used outside of your

vehicle or modified in any way,

accidents such as electric

shock, heat generation, smoke

generation, an explosion and

electrolyte leakage may occur.

When reselling or handing over

your vehicle, the possibility of an

accident is extremely high

because the person receiving the

vehicle may not be aware of these

dangers.

●

If your vehicle is disposed of

without the hybrid battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the hybrid bat-

tery must be disposed of by

your Toyota dealer or a qualified

service shop. If the hybrid bat-

tery is not disposed of properly,

it may cause electric shock that

can result in death or serious

injury.

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vents

Do not carry large amounts of

water such as water cooler bottles

in the vehicle. If water spills onto

the hybrid battery (traction bat-

tery), the battery may be dam-

aged. Have the vehicle inspected

by your Toyota dealer.

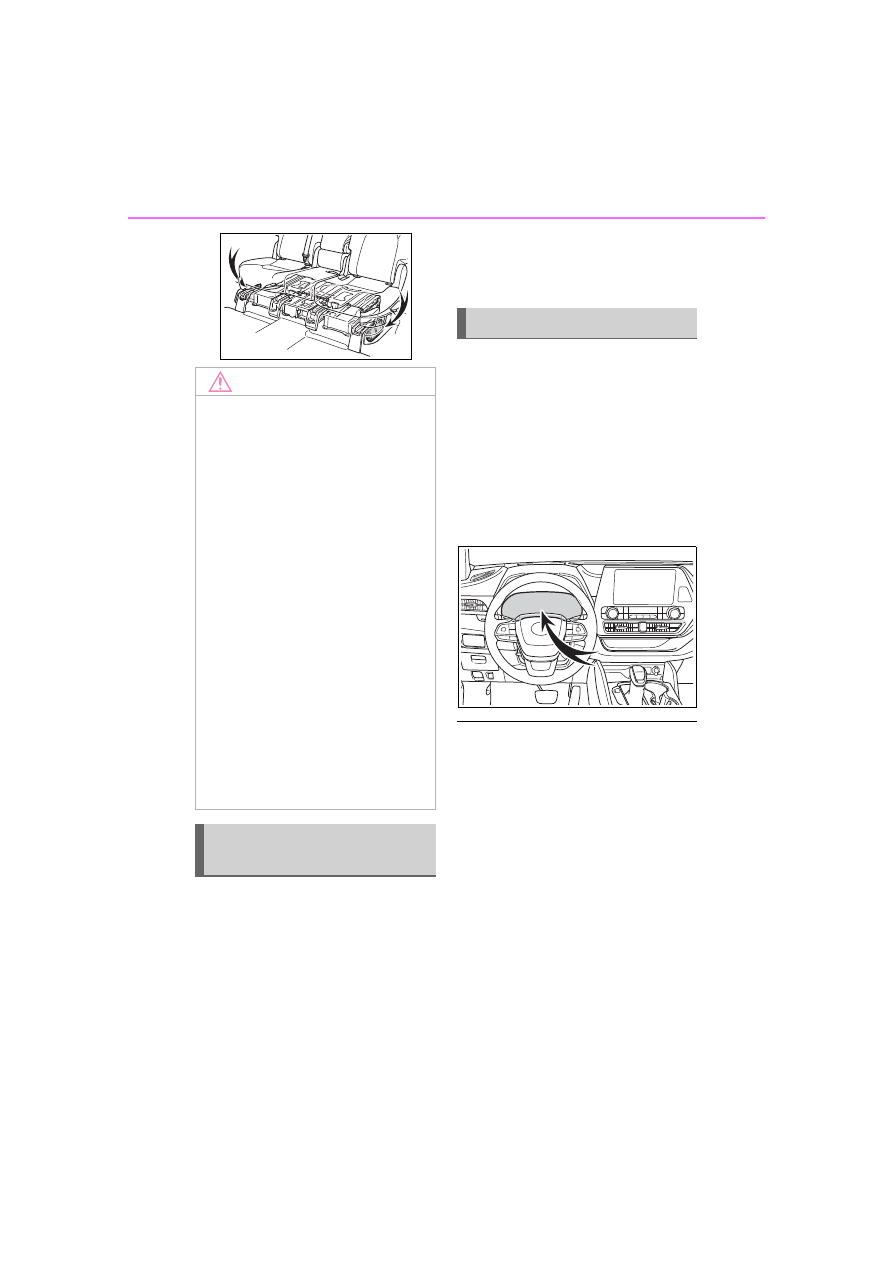

Hybrid battery (traction
battery) air intake vent

1-4. Hybrid system

When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,

your vehicle will not restart. To
restart the hybrid system, con-
tact your Toyota dealer.

A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.
If a warning message is shown
on the multi-information display,
read the message and follow the
instructions. (

P.474)

■

If a warning light comes on, a

warning message is displayed,

or the 12-volt battery is discon-

nected

The hybrid system may not start. In

this case, try to start the system

again. If the “READY” indicator does

not come on, contact your Toyota

dealer.

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vent

●

Do not place objects that will

block the air intake vents. The

hybrid battery (traction battery)

may become limited and be

damaged.

●

Clean the air intake vents regu-

larly to prevent the hybrid bat-

tery (traction battery) to be

limited.

●

Do not allow liquid or foreign

material to enter the air intake

vent as this may cause a short

circuit and damage the hybrid

battery (traction battery).

●

A filter is installed to the air

intake vent. When the filter

remains noticeably dirty even

after cleaning the air intake

vent, filter cleaning or replace-

ment is recommended. Refer to

P.439for details on how to clean

the filters.

Emergency shut off sys-
tem

Hybrid warning message

1-5. Theft deterrent system

For safety and secu

rity

1-5.Theft deterrent system

The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a mainte-

nance-free type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key registered to the

security system (key with a built-in

transponder chip) of another vehi-

cle

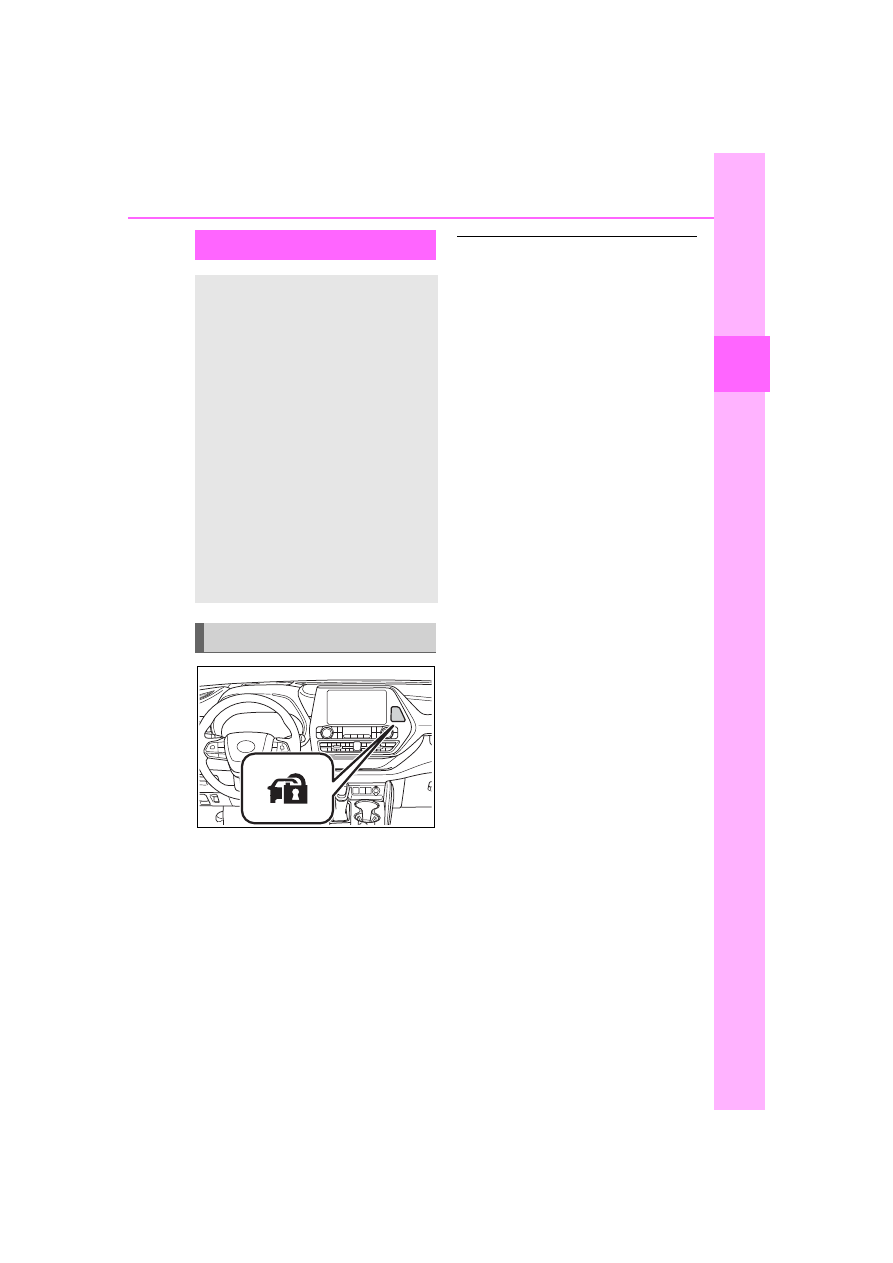

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

1-5. Theft deterrent system

For safety and secu

rity

: If equipped

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows, moon roof (if
equipped) and panoramic
moon roof (if equipped) are
closed before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors. The system

will be set automatically after 30
seconds.

The security indicator changes from
being on to flashing when the sys-
tem is set.

■

Canceling or stopping

Do one of the following to deac-
tivate or stop the alarms:



Unlock the doors.



Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a mainte-

nance-free type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

A person inside the vehicle opens

a door or hood, or unlocks the

vehicle.

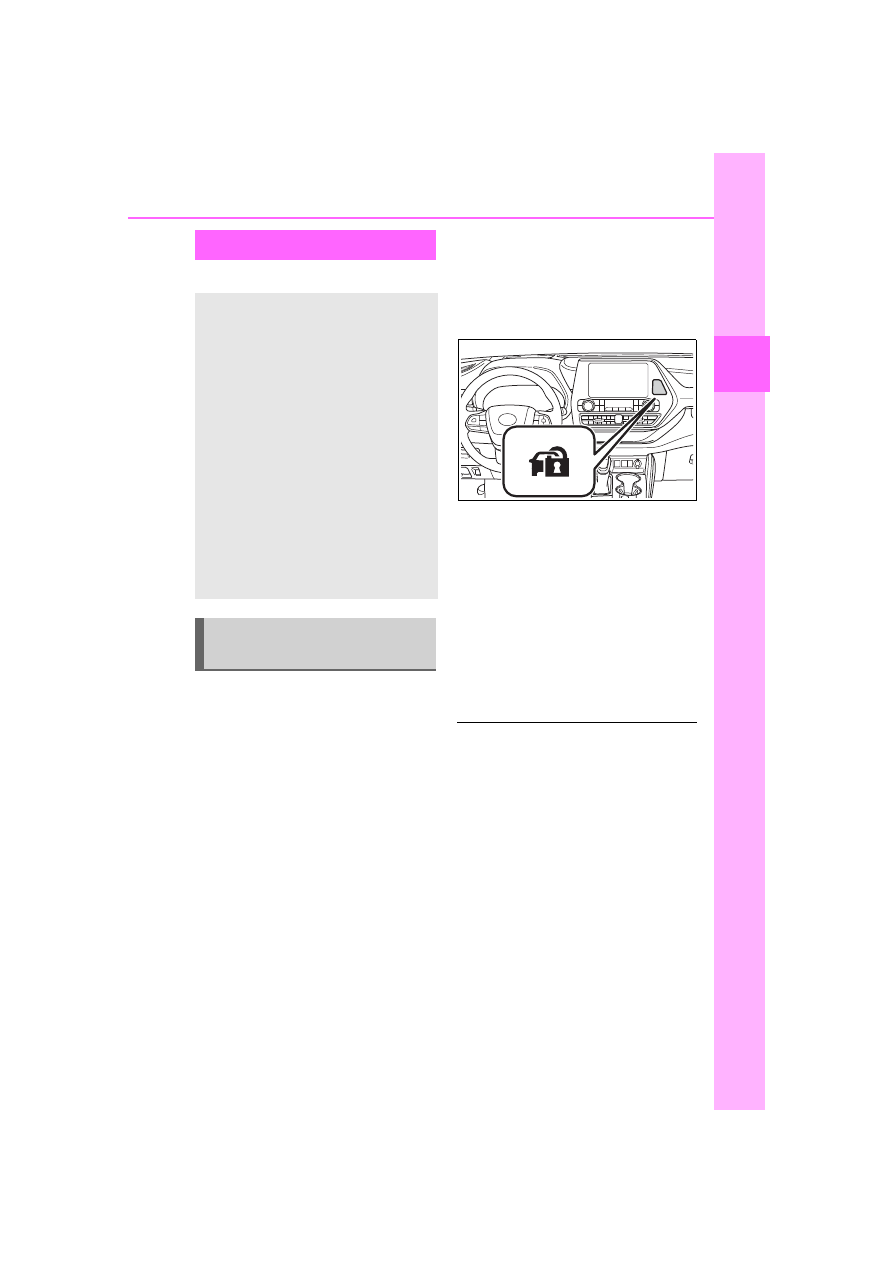

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door is unlocked or
opened in any way other
than using the entry func-
tion, wireless remote control
or mechanical key. (The
doors will lock again auto-
matically.)



The hood is opened.

Setting/canceling/stop-
ping the alarm system

1-5. Theft deterrent system

●

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (



P.499)

■

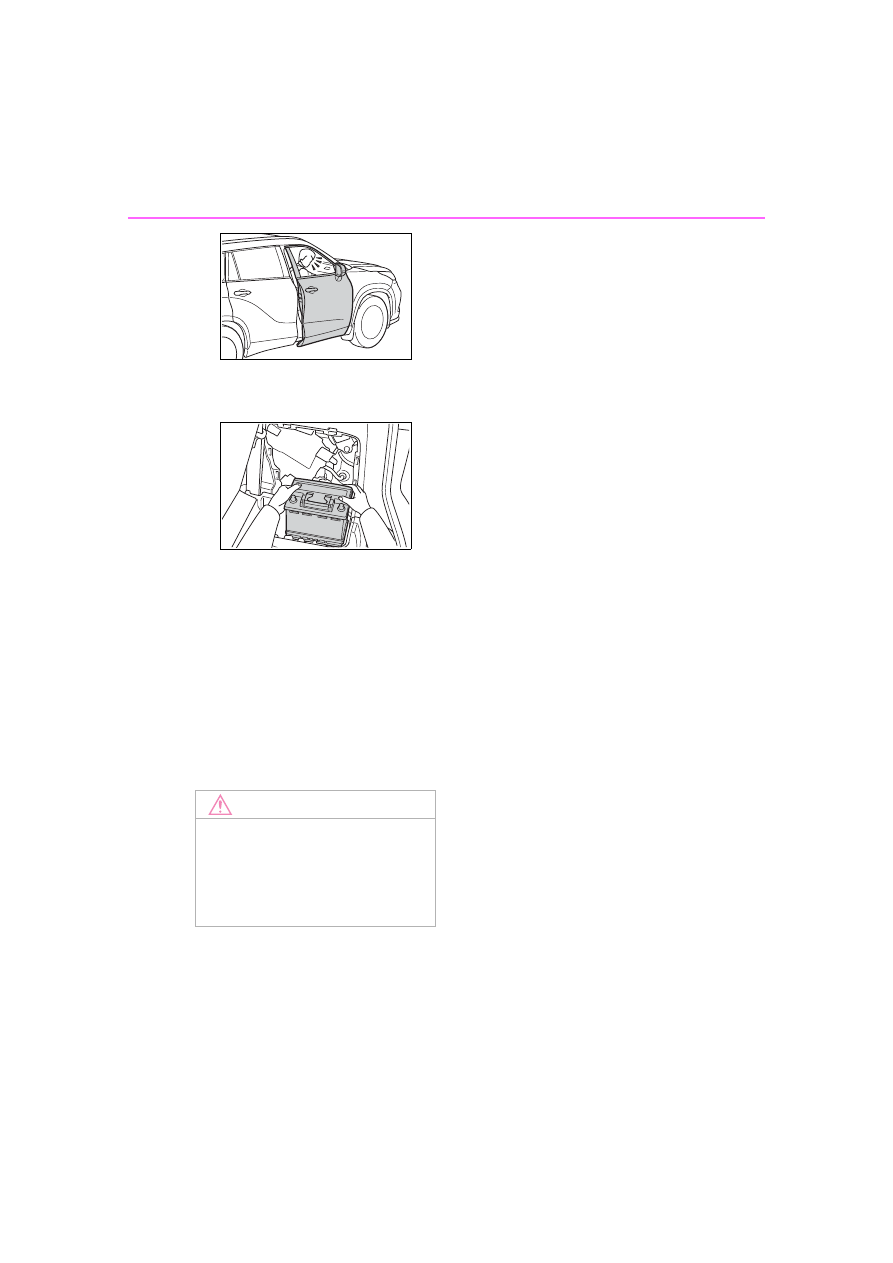

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

12-volt battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

2-1. Instrument cluster

Vehicle

statu

s information an

d in

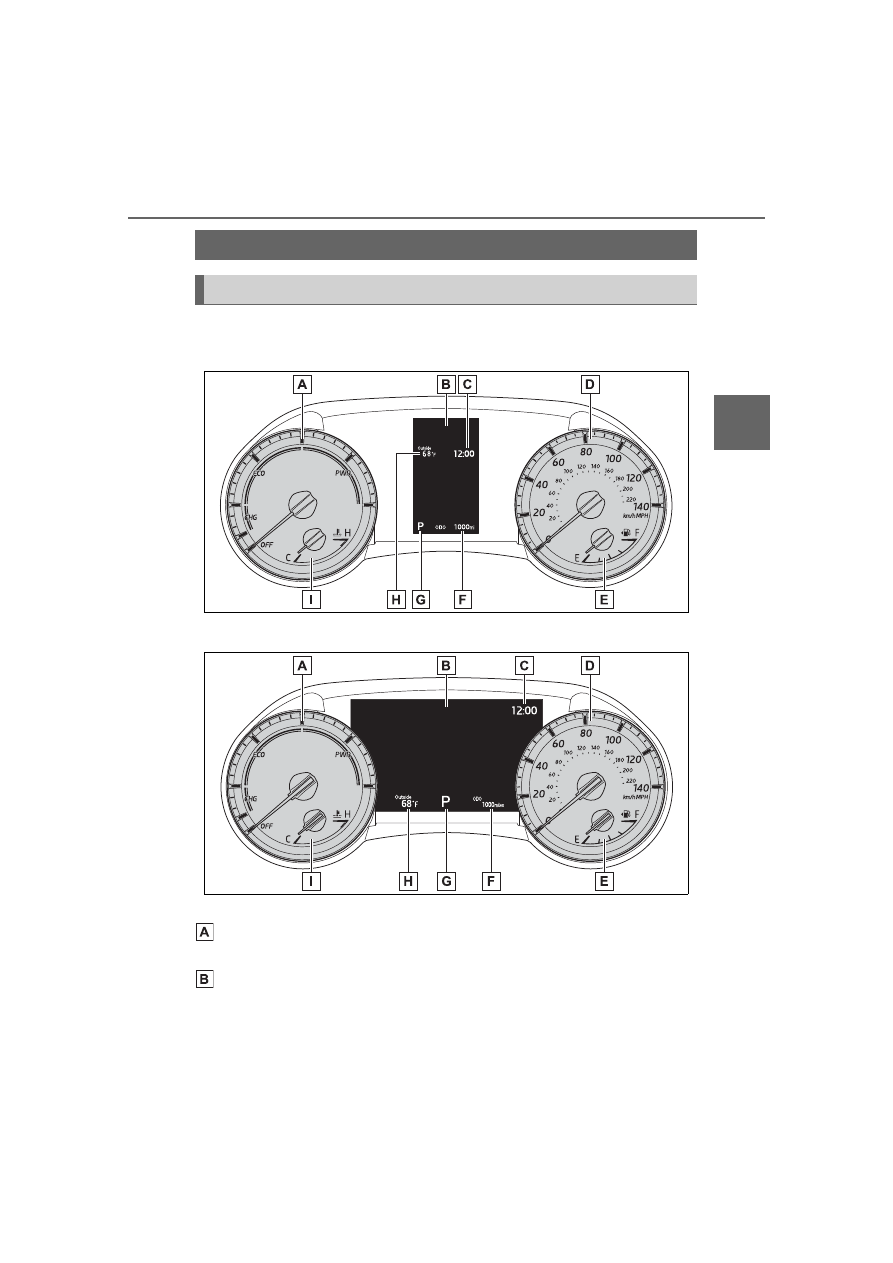

dicator



7-inch display

The units used on the meters and some indicators may differ
depending on the target region.

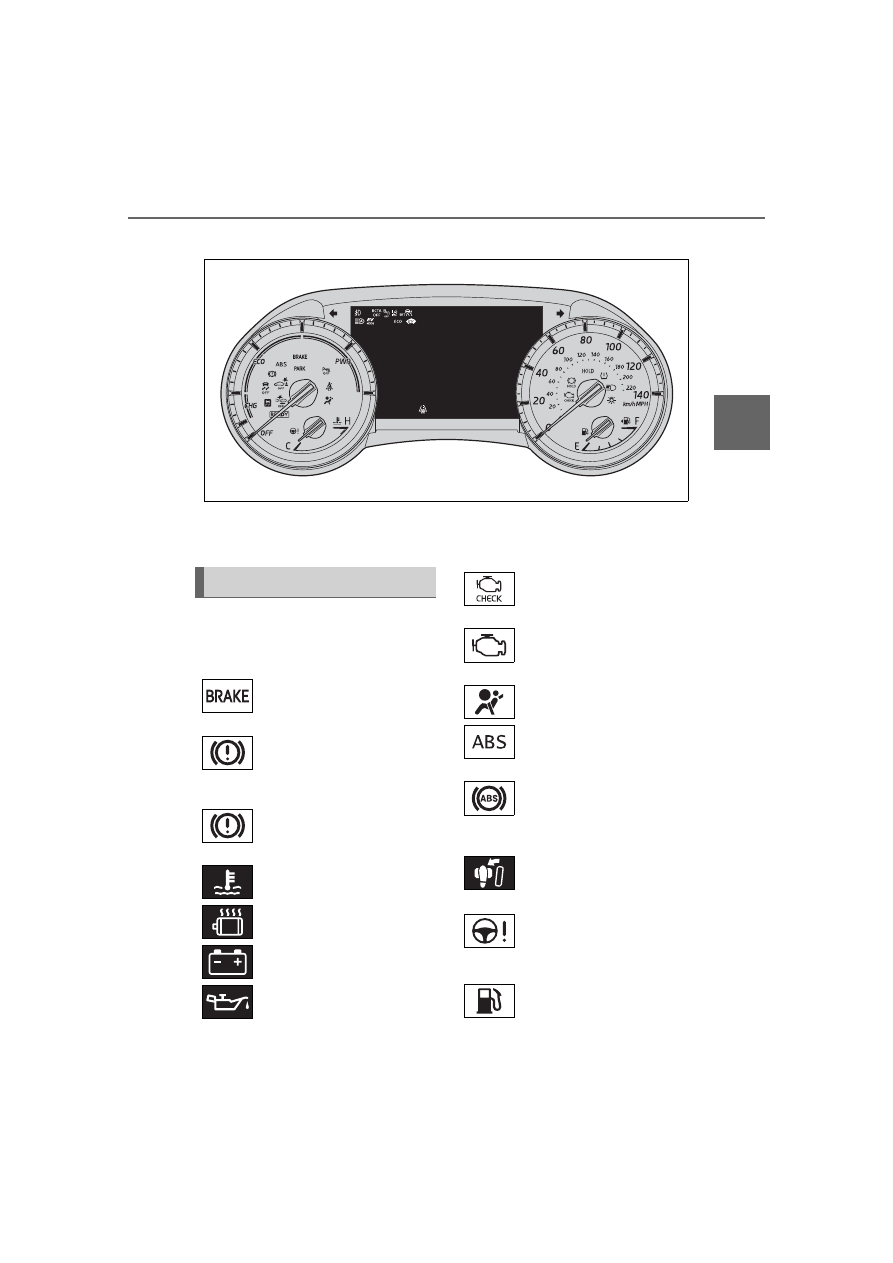

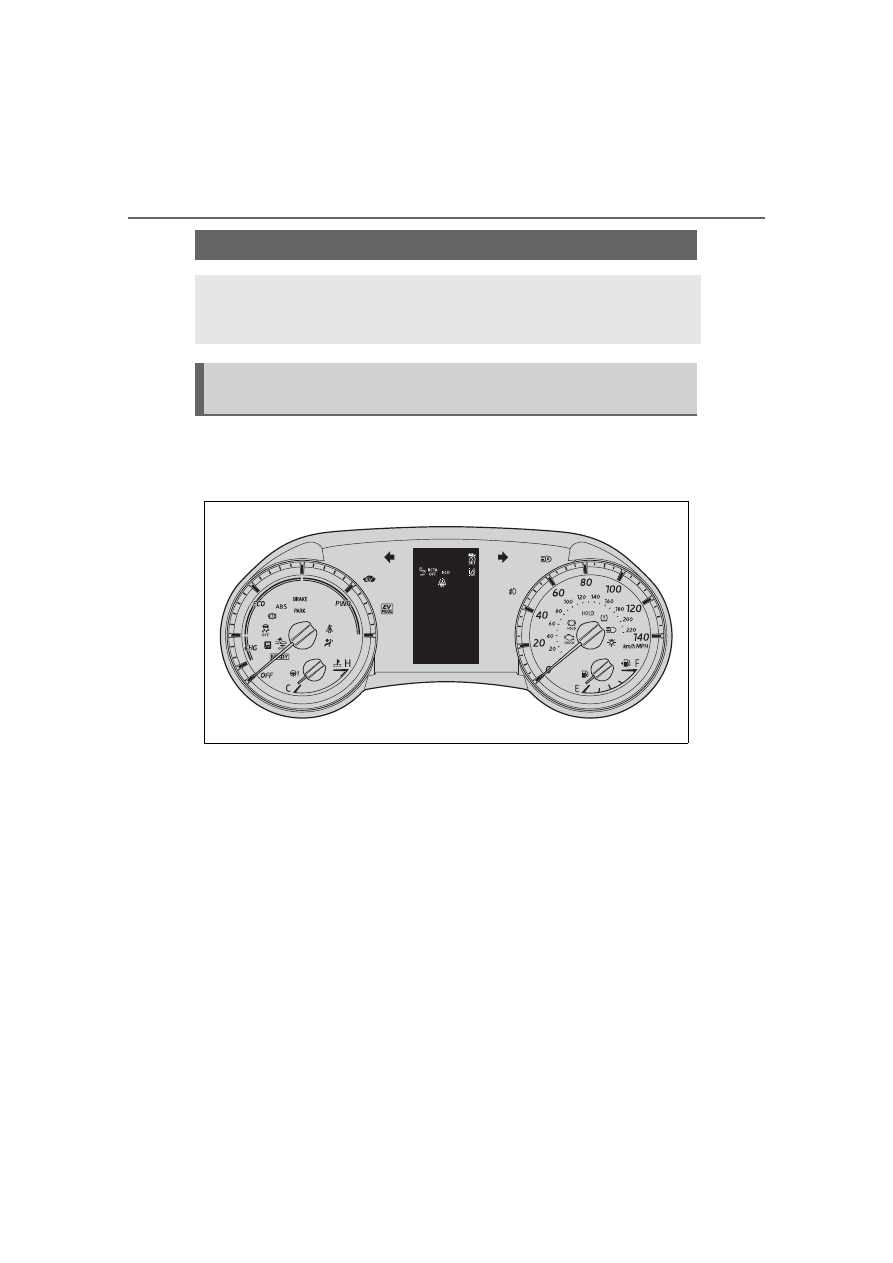

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warning
light

(



(red)

(Canada)

Brake system warning
light

(



(yellow)

Brake system warning
light

(



High coolant temperature
warning light

(

Hybrid system overheat
warning light

(

Charging system warning
light

(



Low engine oil pressure
warning light

(

(U.S.A.)

Malfunction indicator
lamp

(



(Canada)

Malfunction indicator
lamp

(



SRS warning light

(



(U.S.A.)

ABS warning light

(



(Canada)

ABS warning light

(



Brake Override System
warning light/Drive-Start
Control warning light

(



(red/yel-

low)

Electric power steering
system warning light
(



P.467)

Low fuel level warning
light

(



P.467)

2-1. Instrument cluster

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,

or after a few seconds. There
may be a malfunction in a sys-
tem if a light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the

multi-information display.

:This light comes on when the

system is turned off.

:7-inch display only

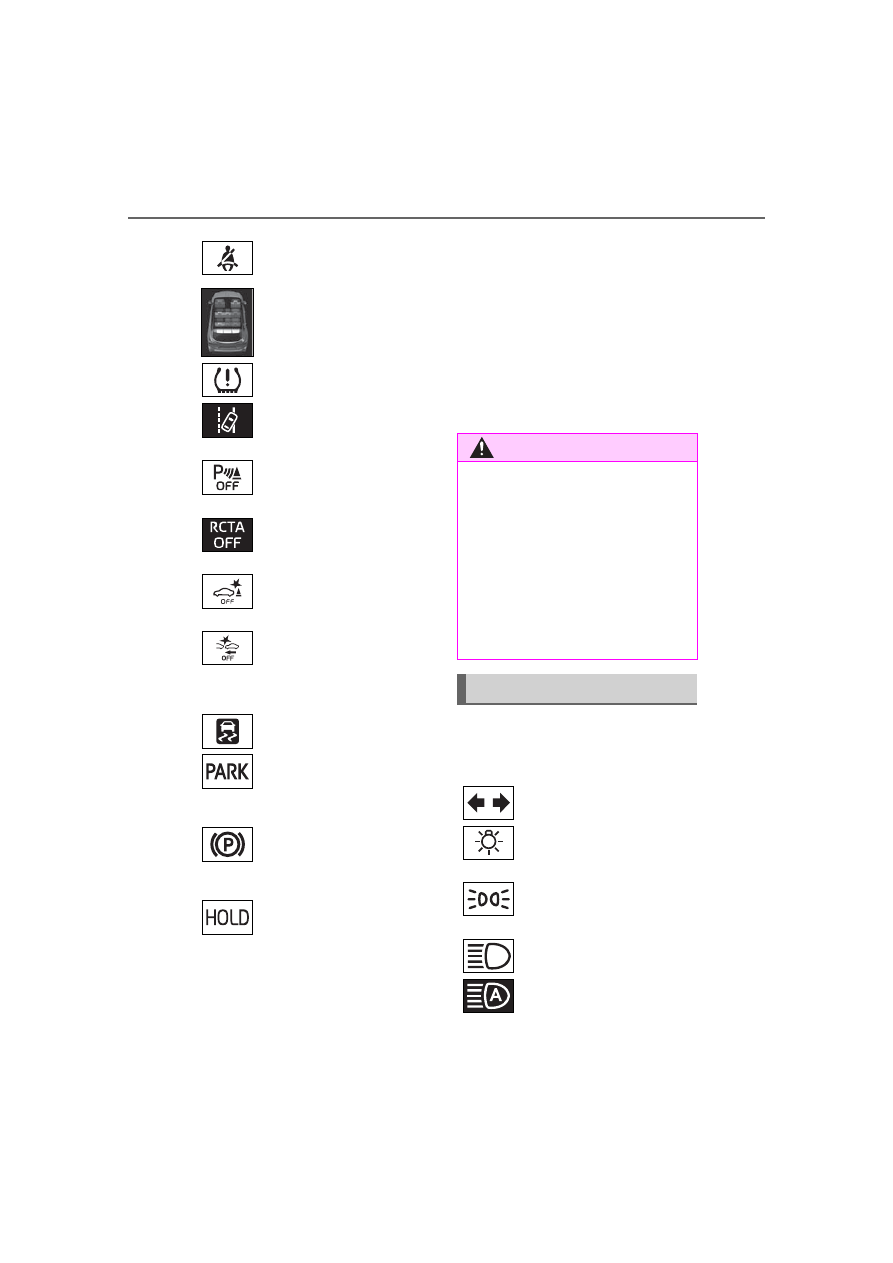

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

Driver’s and front passen-
ger’s seat belt reminder
light (

P.467)

Rear passengers’ seat
belt reminder light

(



P.468)

Tire pressure warning
light

(



P.468)

(orange)

LTA indicator

(

P.468)

(flashes)

Intuitive parking assist
OFF indicator

*1, 3, 4

(if

equipped) (

P.469)

(flashes)

RCTA OFF indicator

*2, 3

(



P.469)

(flashes)

PKSB OFF indicator

*1, 3, 4

(if equipped) (



P.469)

(flashes or

illumi-

nates)

PCS warning light

(



P.470)

Slip indicator

(



P.470)

(flashes)

(U.S.A.)

Parking brake indicator

(



P.471)

(flashes)

(Canada)

Parking brake indicator

(



P.471)

(flashes)

Brake hold operated indi-
cator

(

P.471)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning

lights not come on when you start

the hybrid system, this could

mean that these systems are not

available to help protect you in an

accident, which could result in

death or serious injury. Have the

vehicle inspected by your Toyota

dealer immediately if this occurs.

Indicators

Turn signal indicator
(



P.222)

(U.S.A.)

Headlight indicator
(



P.229)

(Canada)

Tail light indicator
(



P.229)

Headlight high beam indi-
cator (

P.231)

Automatic High Beam indi-
cator

(

P.232)

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



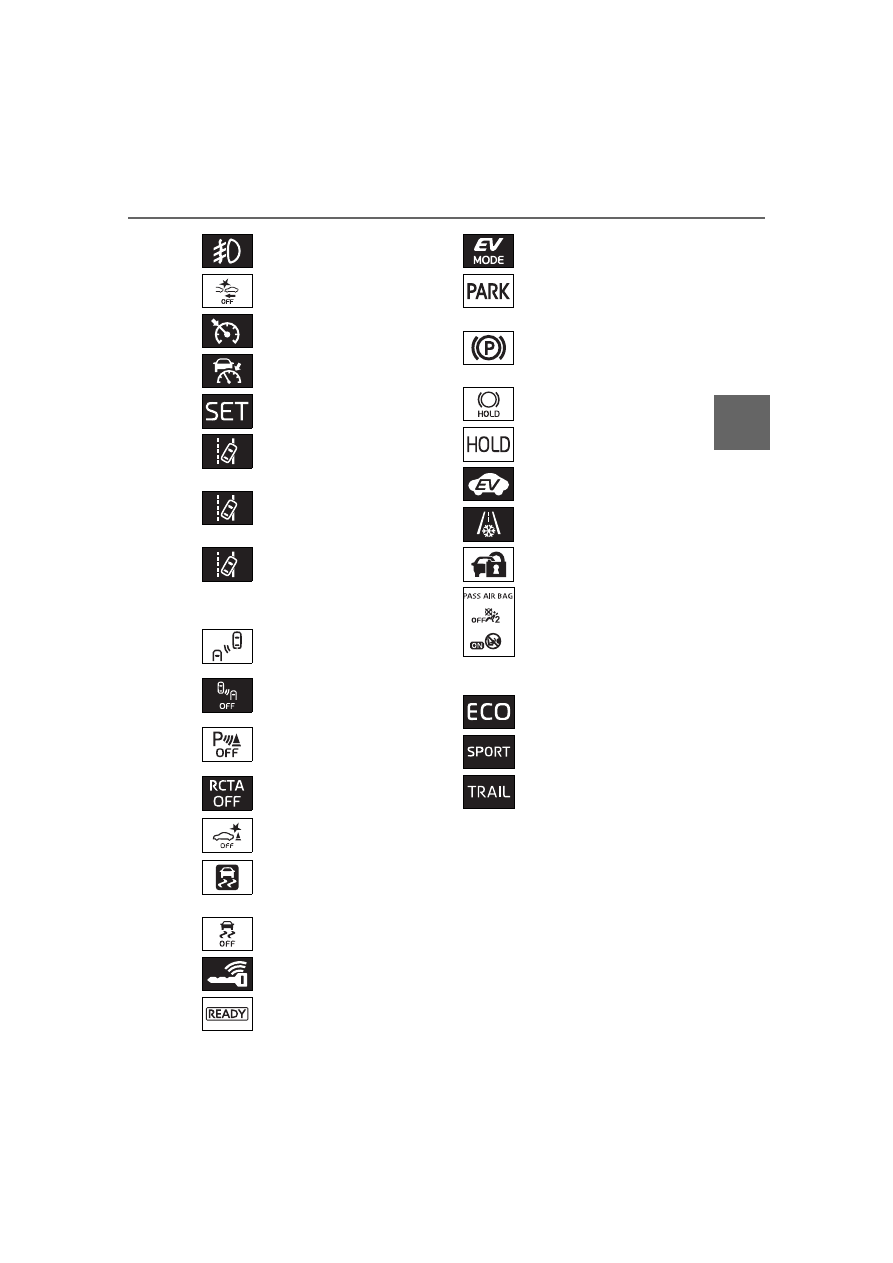

Drive mode indicators

:7-inch display only: This light illu-

minates on the multi-information
display.

:This light illuminates on the

multi-information display.

:This light comes on when the

system is turned off.

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn

Front fog light indicator

(

P.235)

PCS warning light

*3, 4

(

P.252)

Cruise control indicator

(

P.279)

Dynamic radar cruise con-
trol indicator

(

P.271)

Cruise control “SET” indi-
cator

(



P.271)

(white)

LTA indicator

(



P.266)

(green)

LTA indicator

(



P.249,

266)

(orange)
(flashes)

LTA indicator

(



P.266)

BSM outside rear view
mirror indicators

*5, 6

(

P.286, 301)

BSM OFF indicator

*2, 3

(

P.286)

Intuitive parking assist
OFF indicator

*3, 4, 9

(if

equipped) (



P.293)

RCTA OFF indicator

*2, 3

(

P.301)

PKSB OFF indicator

*3, 4,

(if equipped) (

P.309)

(flashes)

Slip indicator

(

P.323)

VSC OFF indicator

*3, 4

(

P.324)

Smart key system indica-
tor

(

“READY” indicator
(

EV drive mode indicator

(



P.217)

(U.S.A.)

Parking brake indicator

(



P.223)

(Canada)

Parking brake indicator

(



P.223)

Brake hold standby indica-
tor

(



P.226)

Brake hold operated indi-
cator

(

P.226)

EV indicator

(



P.72)

Low outside temperature
indicator

*2, 7

(

P.89)

Security indicator

(



P.79, 81)

“PASS AIR BAG ON/OFF”
indicator

*4, 8

(

P.43)

Eco drive mode indicator

(



P.319)

Sport mode indicator

(



P.319)

Trail Mode indicator

(if

equipped) (

P.320)

2-1. Instrument cluster

off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if a light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

:In order to confirm operation, the

BSM outside rear view mirror
indicators illuminate in the follow-
ing situations:



When the BSM function is
enabled on

of the

multi-information display, the
power switch is turned to ON.



When the power switch is in
ON, the BSM function is
enabled on

of the

multi-information display.

If the system is functioning cor-
rectly, the BSM outside rear
view mirror indicators will turn
off after a few seconds. If the
BSM outside rear view mirror
indicators do not illuminate or do
not turn off, there may be a mal-
function in the system. If this
occurs, have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the out-

side rear view mirrors.

:When the outside temperature is

approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.

:This light illuminates on the cen-

ter panel.

:7-inch display only

2-1. Instrument cluster

Clock (

P.92)

Speedometer
Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter display (



P.91)

Shift position display (

P.219)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient
temperature is 37°F (3°C) or lower.

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The power switch is in ON.

■

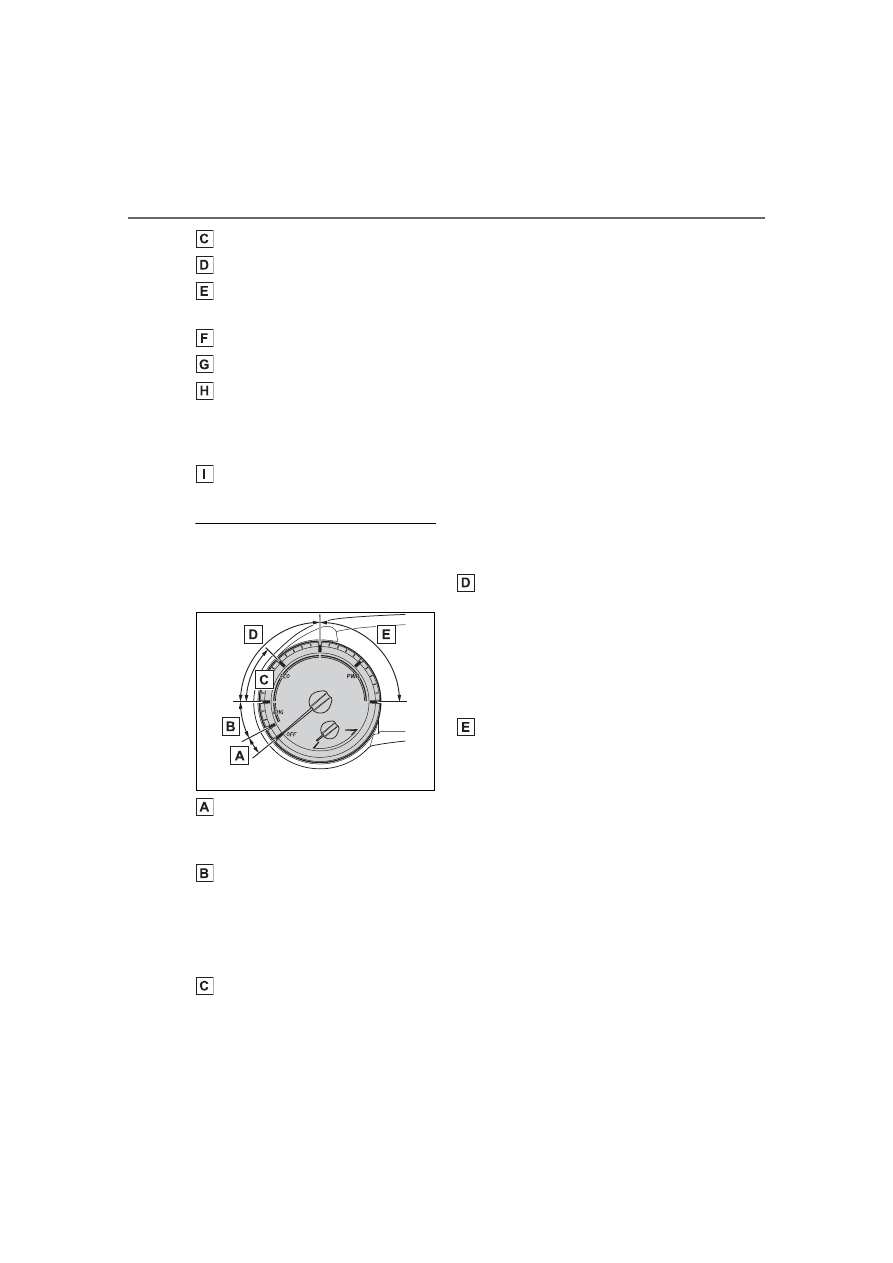

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.

The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within the Eco area, more
Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

: When used in this manual, regen-

eration refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

■

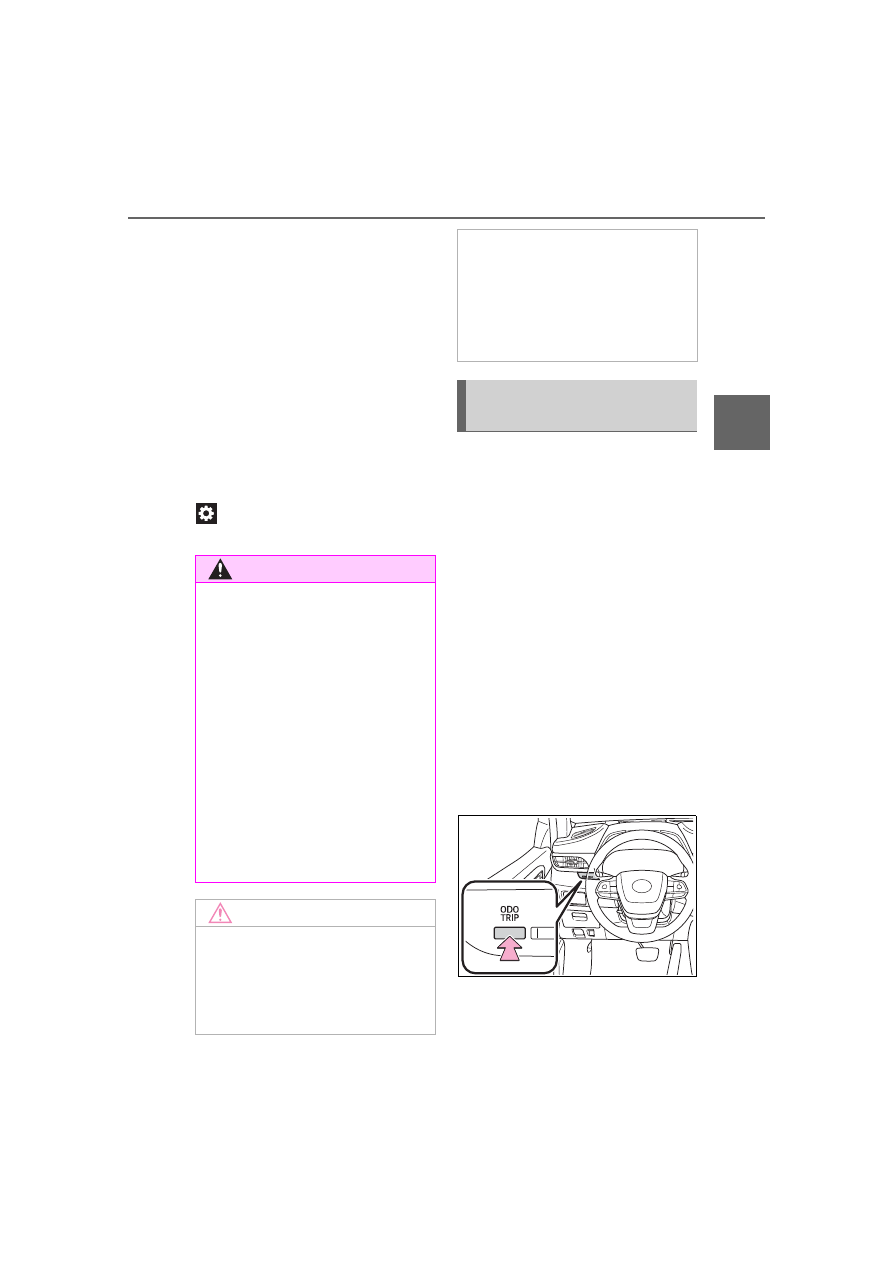

Customization

The meters can be customized on

of the multi-information display.

(
