5-1. Using the air conditioning system

5-1.Using the air conditioning system

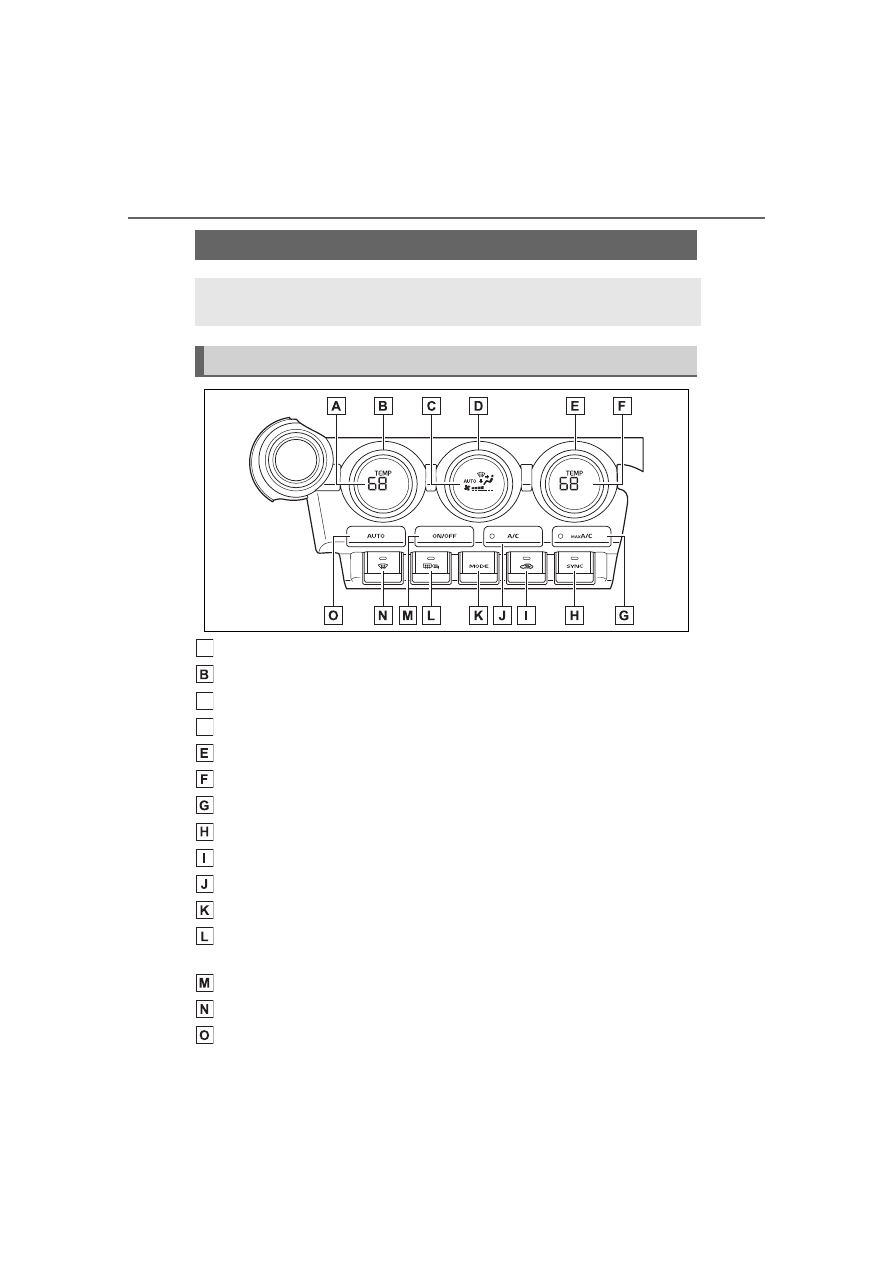

Left-hand side temperature setting display
Left-hand side temperature control switch
Climate control mode display
Fan speed control switch
Right-hand side temperature control switch
Right-hand side temperature setting display
“MAX A/C” switch
“SYNC” switch
Outside/recirculated air mode switch
“A/C” switch
Airflow mode control switch
Rear window defogger and outside rear view mirror defoggers
switch
“ON/OFF” switch
Windshield defogger switch
Automatic mode switch

Automatic air conditioning system

Air outlets are automatically selected and fan speed is auto-
matically adjusted according to the set temperature setting.

Air conditioning controls

A

C
D

271

5-1. Using the air conditioning system

5

Interior

 featur

es

■

Adjusting the temperature
setting

To adjust the temperature set-
ting, turn the temperature con-
trol switch clockwise (warm) or
counterclockwise (cool).

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.
The air conditioning system
switches between individual and
synchronized modes each time
“SYNC” switch is pressed.
Synchronized modes (indicator on):
The left-hand side temperature
control switch can be used to adjust
the temperature for the driver’s and
front passenger’s side. At this time,
operate the right-hand side tem-
perature control switch to enter
individual mode.
Individual modes (indicator off):
The temperature for the driver’s
and front passenger’s side can be
adjusted separately.

■

Setting the fan speed

To adjust the fan speed, turn the
fan speed control switch clock-
wise (increase) or counterclock-
wise (decrease).

Pressing the “ON/OFF” switch to
turns off the fan.

■

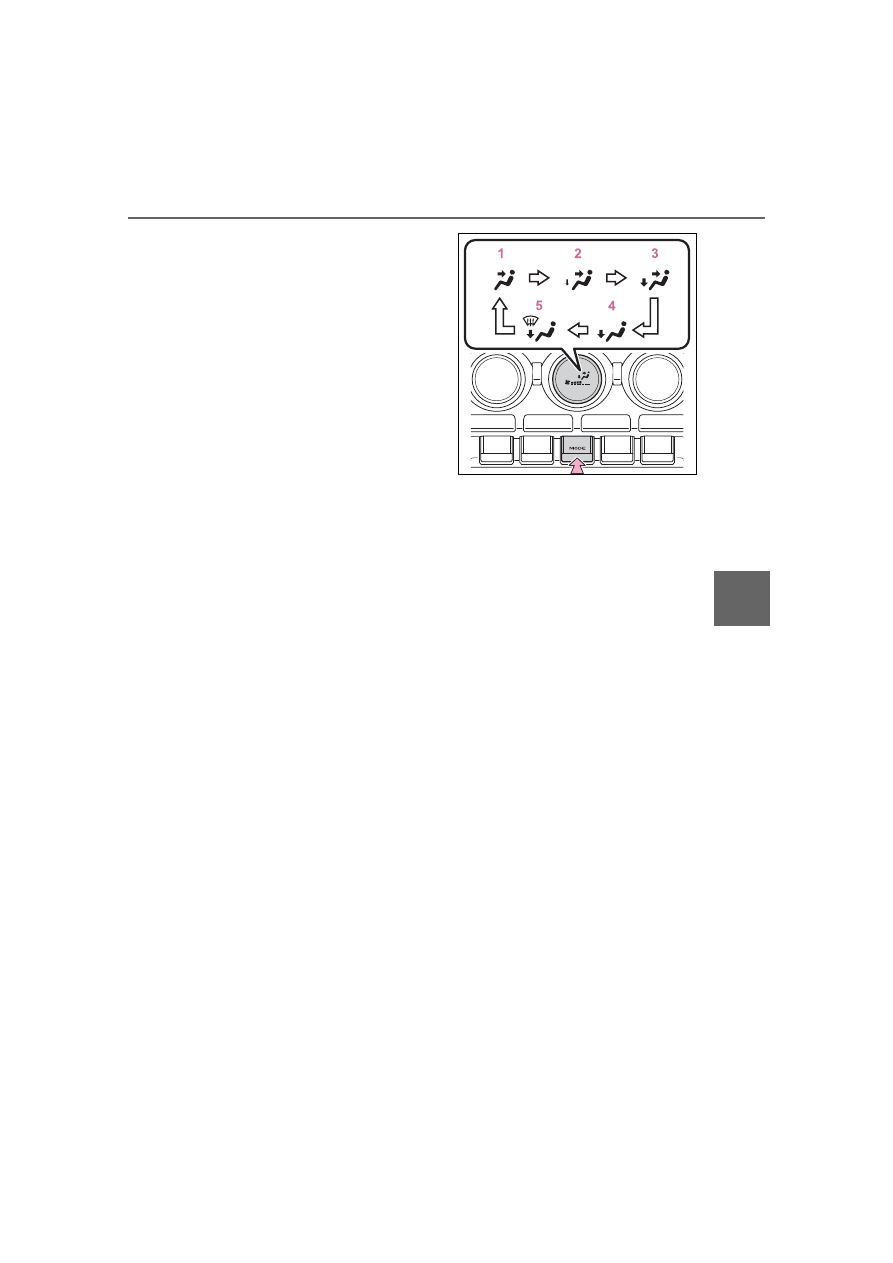

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Upper body

2

Upper body and slightly to
the feet

3

Upper body and feet

4

Feet

5

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

272

5-1. Using the air conditioning system

■

Fast cooling function

Press the “MAX A/C” switch.

When the switch is turned on, the
air conditioning will turn on, the
temperature will be set to LO, the
fan speed will be set to MAX, the air
outlets will be set to upper body,
and the air mode will change to
recirculated air mode automatically.
To turn off fast cooling function and
return the previous setting, press
the “MAX A/C” switch again.

■

Suspend function

Press the “ON/OFF” switch.

While the air conditioning system is
being used, when the “ON/OFF”
switch is pressed, the air condition-
ing system will stop and the tem-
perature setting display, etc. will
turn off.
If the “ON/OFF” switch is pushed
and turned on, the air conditioning
system will operate in the operating
state it was in when turned off.
However, if the fast cooling function
was operating when the air condi-
tioning system was turned off, it will
operate in the operating state it was
in before the fast cooling function
was turned on.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used.
(Changes automatically)

To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window, and to remove
raindrops, dew and frost from
the outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch.

The defoggers will automatically
turn off after approximately 15 min-
utes.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” on will dehu-

midify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows

may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

273

5-1. Using the air conditioning system

5

Interior

 featur

es

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When the engine switch is

changed to the OFF or ACC posi-

tion from ON, the air inlet mode

will automatically change to the

outside air mode regardless of

whether it is the auto mode or

manual mode.

■

Air conditioning filter



P.327

■

Air conditioning system refrig-

erant

●

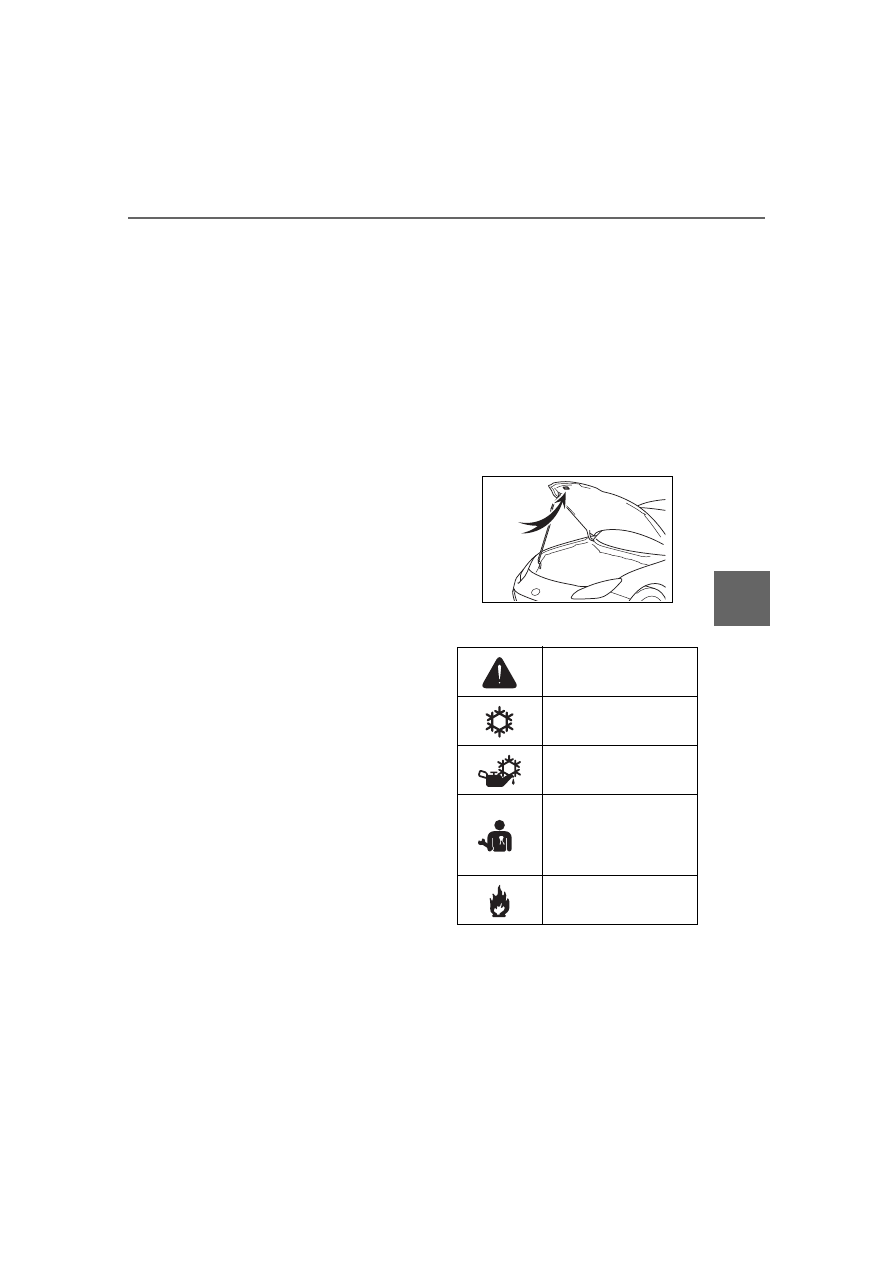

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

When continuous operation is

set

During continuous operation, the

defogger stops operating for 2 min-

utes after every 15 minutes of con-

tinual operation. Even during the 2

minutes that operation stops, the

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

274

5-1. Using the air conditioning system

operating light remains illuminated.

The rear window defogger will con-

tinue to operate in this cycle until it

is turned off.

■

Customization

Some functions can be customized.

(



P.400)

1

Press the automatic mode
switch.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “ON/OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch pressed.

■

Location of air outlets

The air outlets and air volume
changes according to the
selected air flow mode.

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the outside rear view

mirror surfaces, as they can

become very hot and burn you.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

Using automatic mode

Air outlet layout and oper-
ations

275

5-1. Using the air conditioning system

5

Interior

 featur

es

■

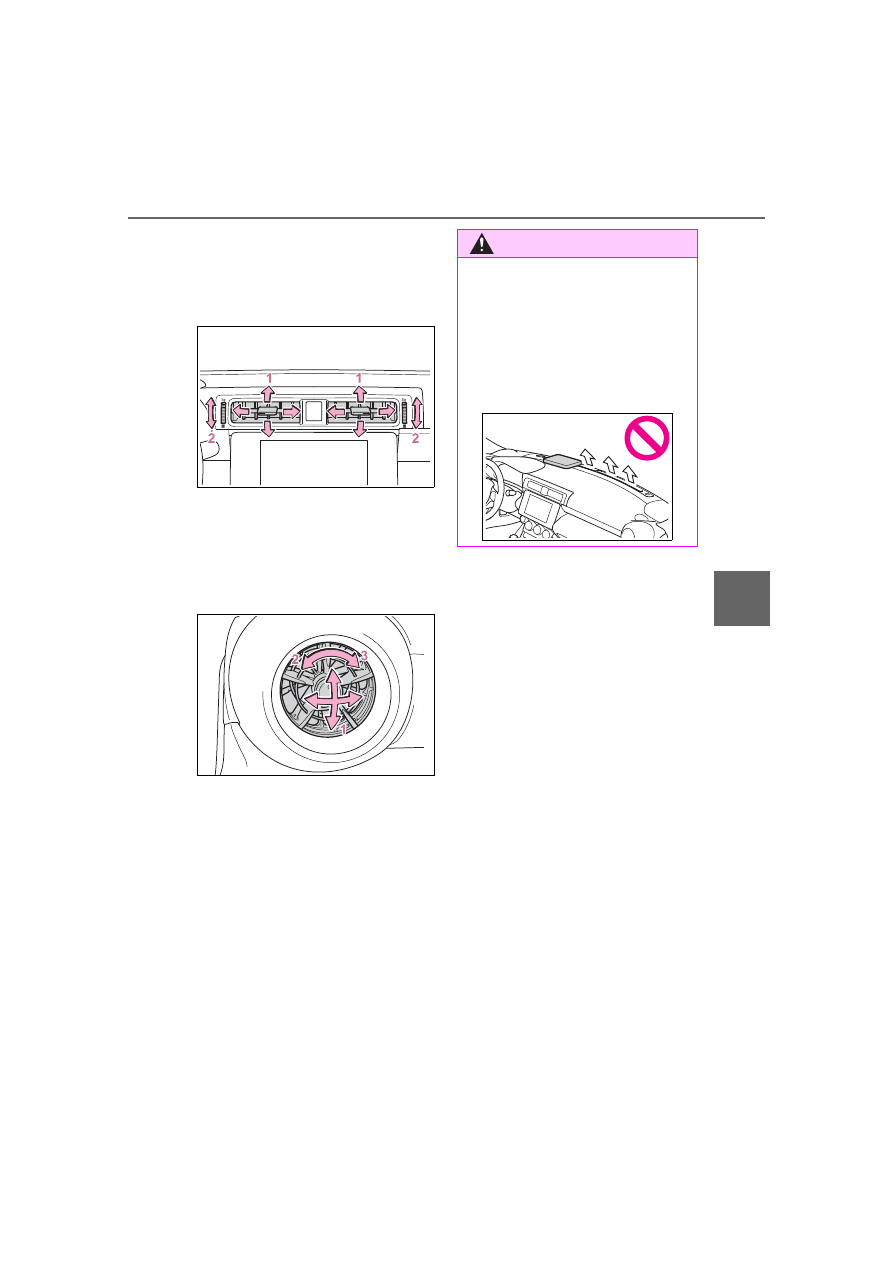

Adjusting the position of
and opening and closing
the air outlets



Center

1

Direct air flow to the left or
right, up or down

2

Turn the knob to open or
close the vent



Side

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

WARNING

■

To prevent the windshield

defogger from operating

improperly

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

276

5-1. Using the air conditioning system

*

: If equipped

■

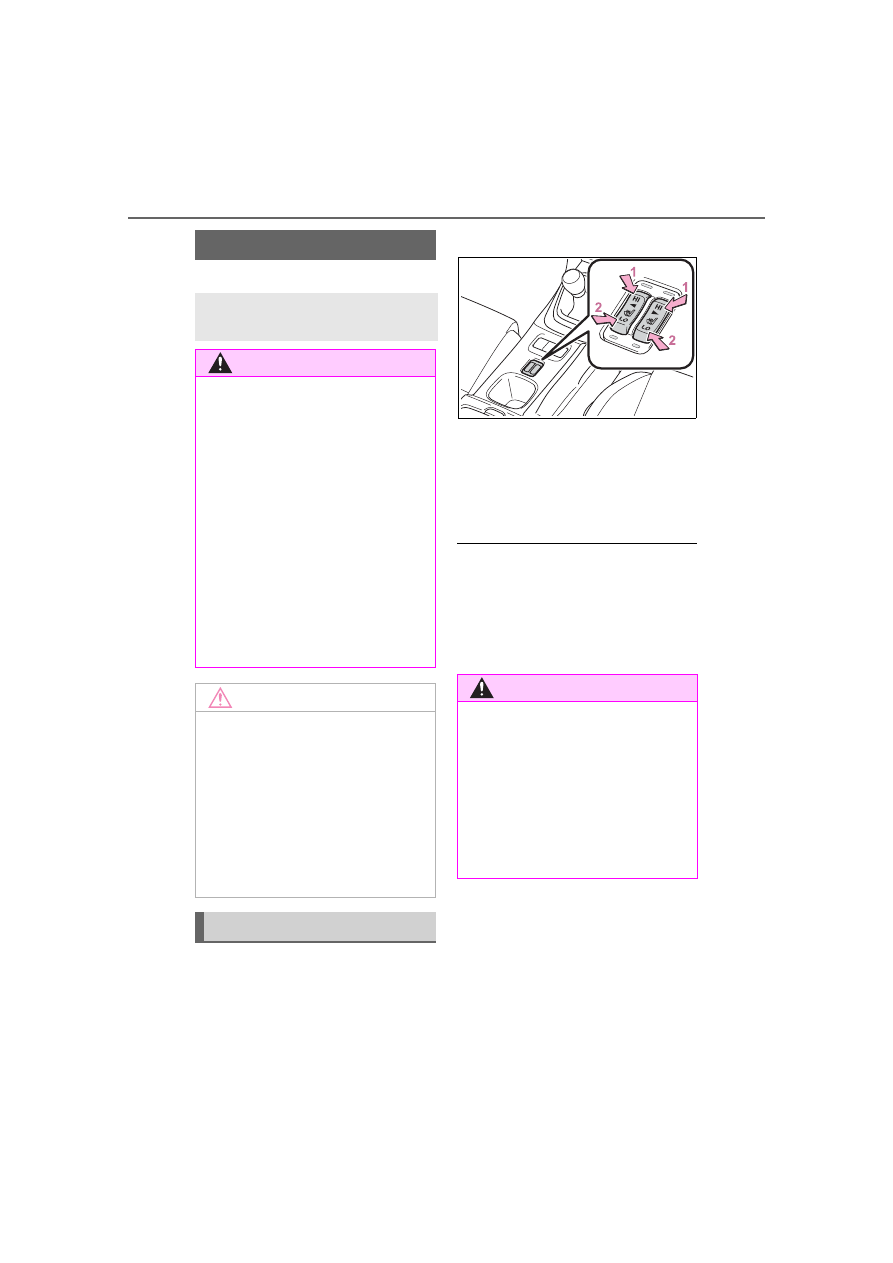

Seat heaters

Press the switch to warm the
seats.

The indicator light comes on when

a seat heater is turned on.

1

Rapid heating

2

Normal heating

When not in use, put the switch in
the neutral position. The indicator
will turn off.

■

The seat heaters can be used

when

The engine switch is in ON.

■

When not in use

Turn the seat heater off. The indica-

tor light goes off.

Seat heaters

*

Warm up the seat uphol-
stery.

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the seats when the

heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

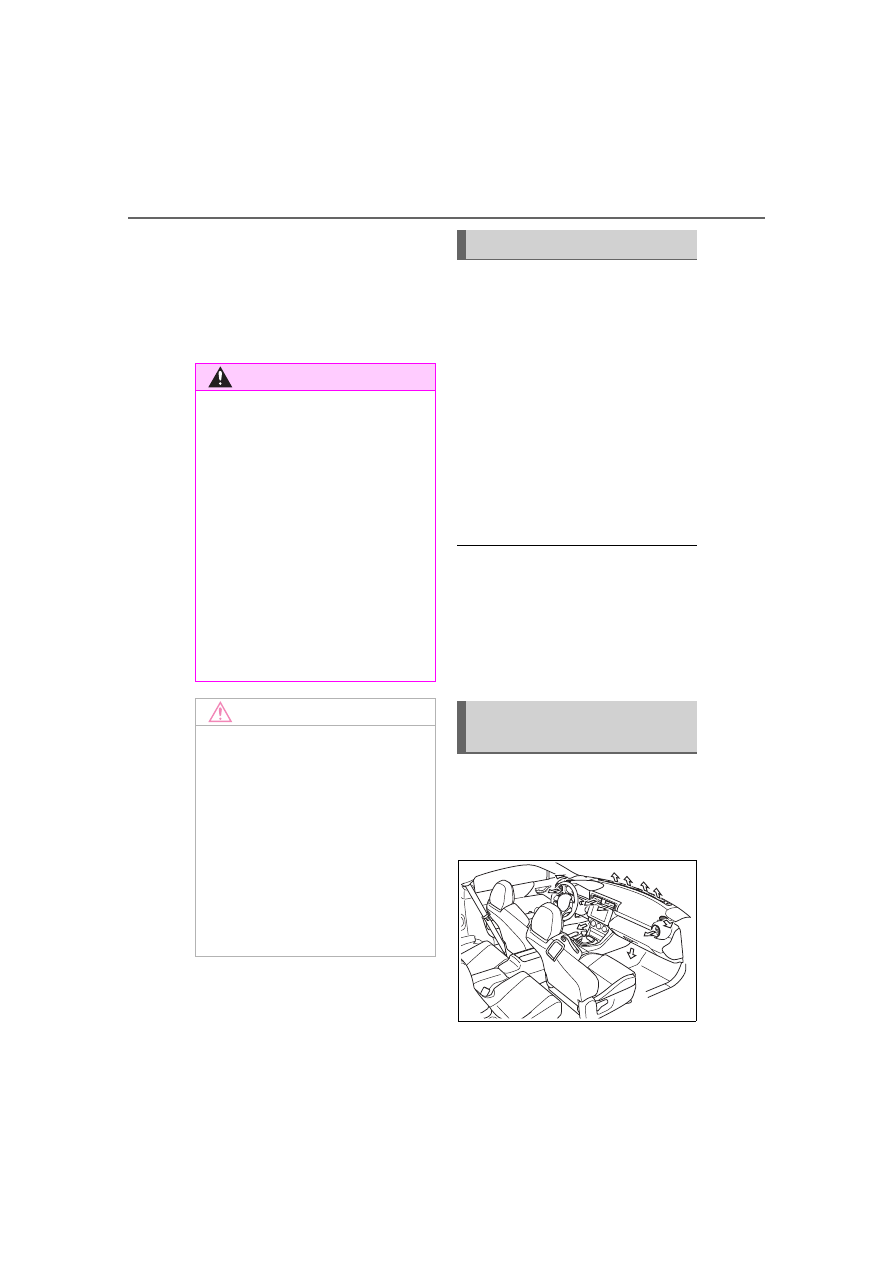

Operation instructions

WARNING

■

To prevent overheating and

minor burn injuries

Observe the following precautions

when using the seat heaters.

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

277

5-2. Using the interior lights

5

Interior

 featur

es

5-2.Using the interior lights

Interior lights (



P.277)

Door courtesy lights (if equipped)
Engine switch light

Turns the light on/off

Turns the door position on/off

1

On

2

Off

■

Illuminated entry system

When the door position is on, the

lights will automatically turn on/off

according to the presence of an

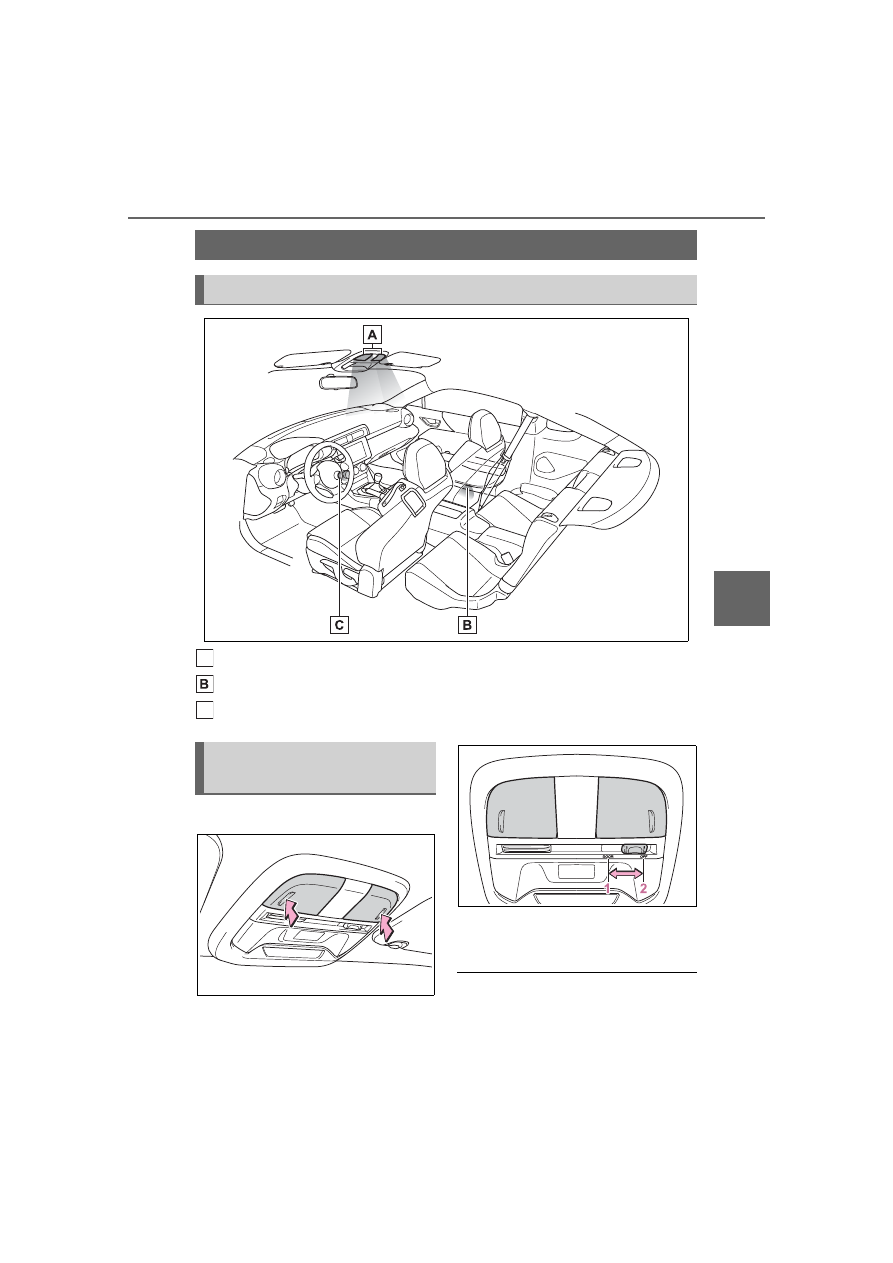

Interior lights list

Location of the interior lights

A

C

Operating the interior
lights

278

5-2. Using the interior lights

electronic key, locking/unlocking

and opening/closing of the doors,

and the engine switch mode.

■

To prevent the battery from

being discharged

When the door position is on, if the

engine switch is turned off with a

door not fully closed and the interior

lights remain illuminated, they will

automatically be turned off after

approximately 20 minutes. How-

ever, if a light lens has been pushed

to illuminate the interior light, it will

not turn off automatically.

■

Customization

Some functions can be customized.

(



P.400)

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer

than necessary when the engine

is not running.

279

5-3. Using the storage features

5

Interior

 featur

es

5-3.Using the storage features

Bottle holders (



P.280)

Glove box (



P.279)

Cup holders/Auxiliary boxes (if equipped) (



P.281)

Console box (



P.280)

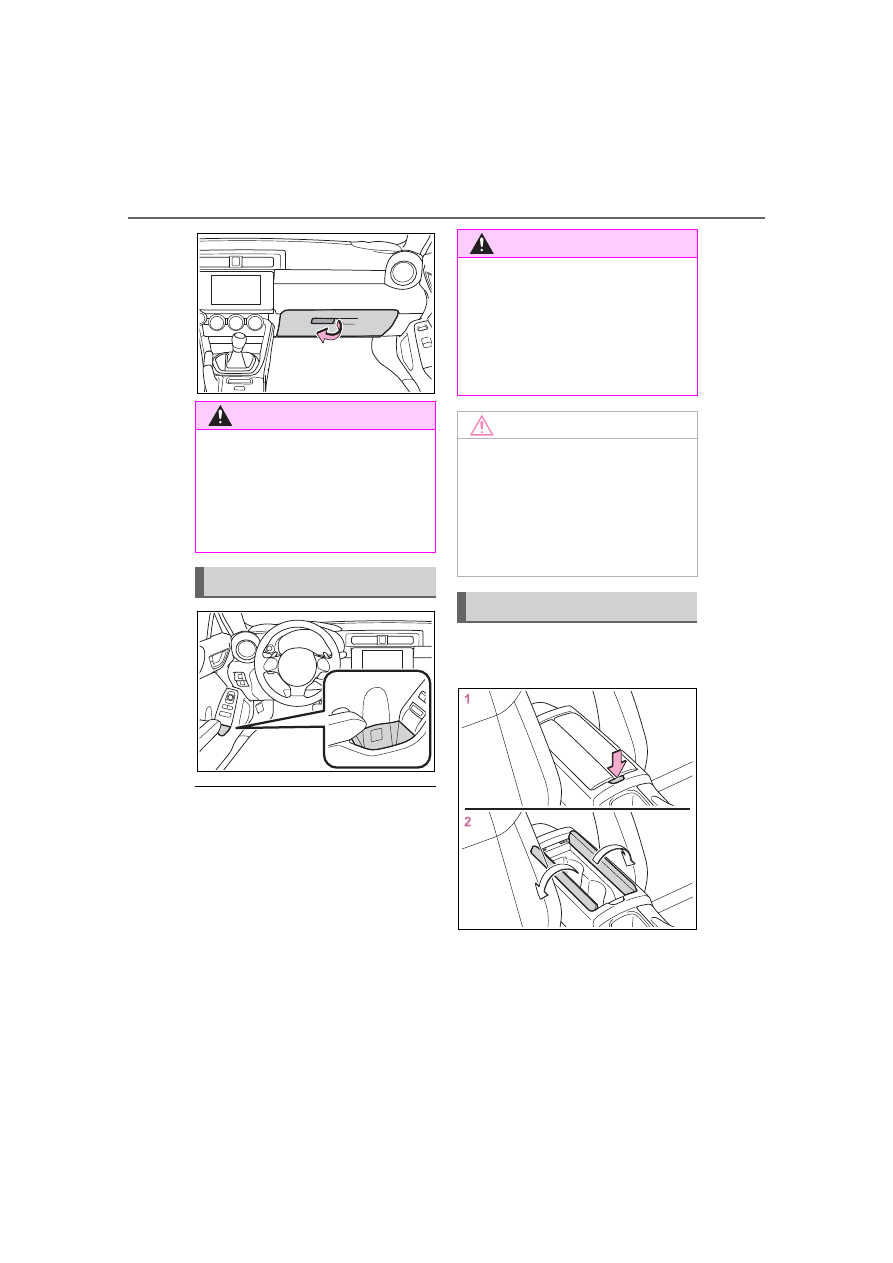

Pull up the lever to open the
glove box.

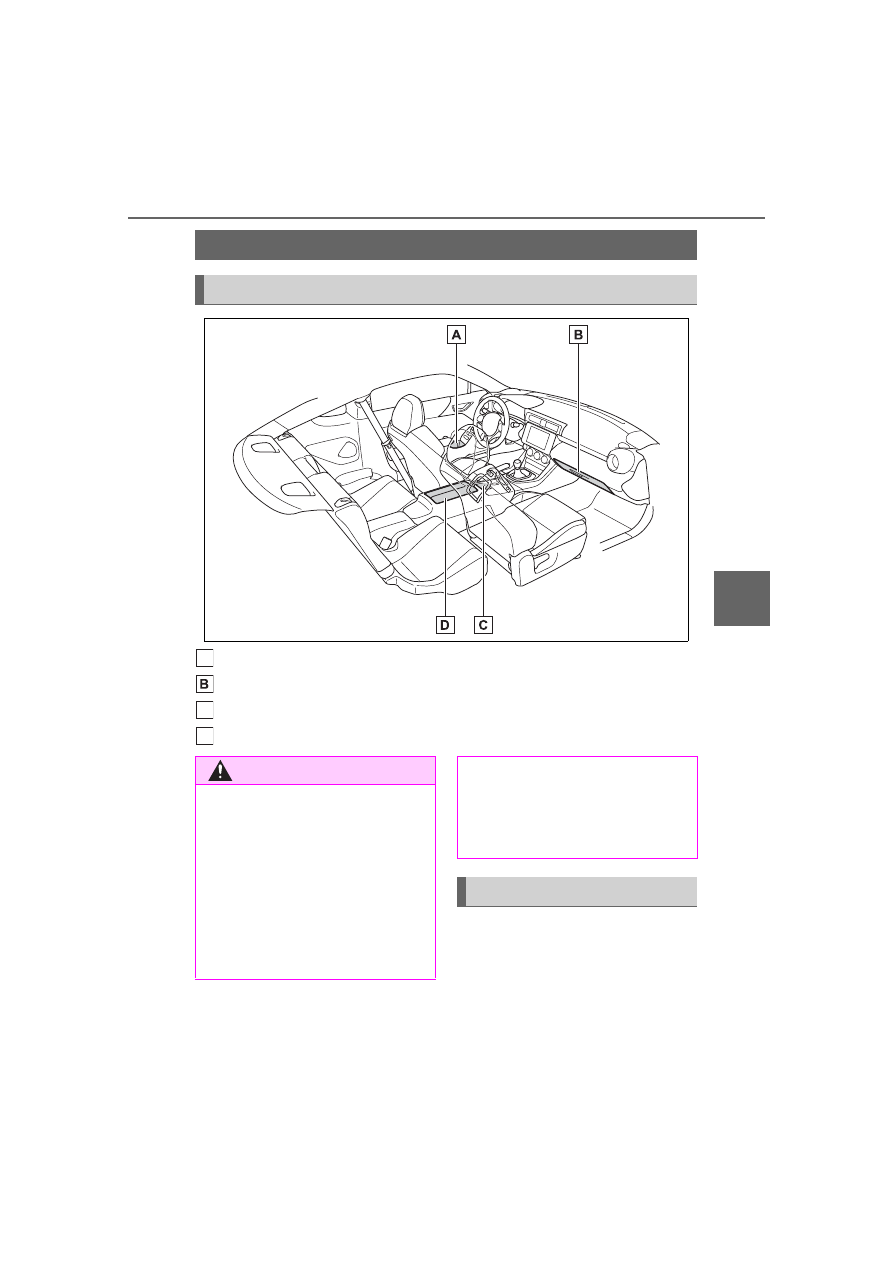

List of storage features

Location of the storage features

A

C

D

WARNING

■

Items that should not be left

in the storage spaces

Do not leave glasses, lighters or

spray cans in the storage spaces,

as this may cause the following

when cabin temperature becomes

high:

●

Glasses may be deformed by

heat or cracked if they come

into contact with other stored

items.

●

Lighters or spray cans may

explode. If they come into con-

tact with other stored items, the

lighter may catch fire or the

spray can may release gas,

causing a fire hazard.

Glove box

280

5-3. Using the storage features

■

Bottle holders

●

When storing a bottle, close the

cap.

●

The bottle may not be stored

depending on its size or shape.

■

Opening the lid

Push the button

■

Closing the lid

Push the lid toward the center

If one side is pushed, the opposite
side will move simultaneously.

WARNING

■

Caution while driving

Keep the glove box closed. In the

event of sudden braking or sud-

den swerving, an accident may

occur due to an occupant being

struck by the open glove box or

the items stored inside.

Bottle holders

WARNING

■

Items unsuitable for the bottle

holders

Do not place anything other than

a bottle in the bottle holders.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury.

NOTICE

■

Items unsuitable for the bottle

holder

Put the cap on before stowing a

bottle. Do not place open bottles

in the bottle holders, or glasses

and paper cups containing liquid.

The contents may spill and

glasses may break.

Console box

281

5-3. Using the storage features

5

Interior

 featur

es



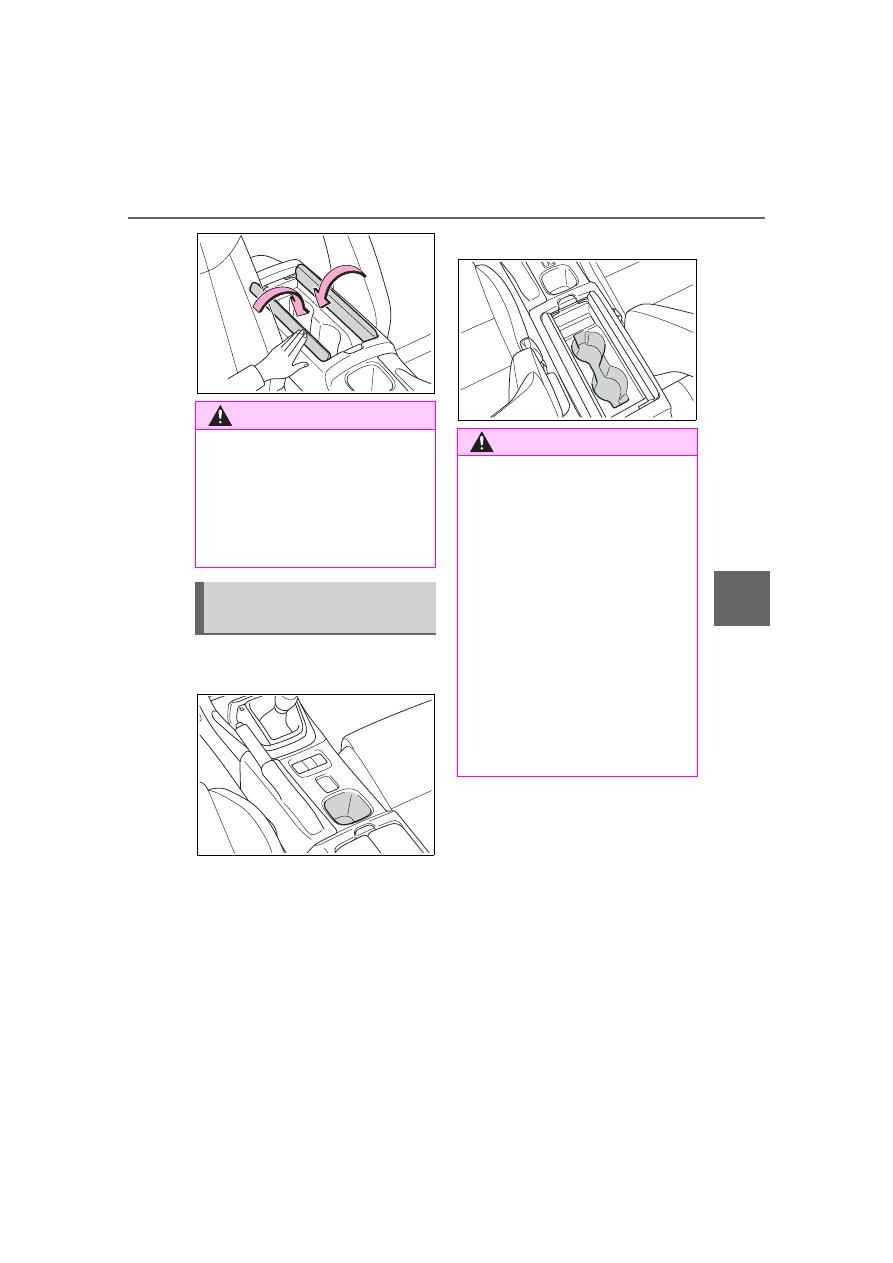

Center console (vehicles with
an automatic transmission)



Console box

WARNING

■

When the console box is not

in use

Keep the console box closed

when it is not being used.

If left open, in the event of sudden

braking, etc., stowed items may

fly out, possibly leading to an

accident.

Cup holders/Auxiliary
boxes (if equipped)

WARNING

■

Caution while driving

If possible, cover hot drinks to

prevent burns.

Observe the following precautions

when putting items. Failure to do

so may cause items to be thrown

out in the event of sudden braking

or steering. In these cases, the

items may interfere with pedal

operation or cause driver distrac-

tion, resulting in an accident.

●

Do not store items that can eas-

ily shift or roll out.

●

Do not stack items higher than

the edge.

●

Do not put items that may pro-

trude over the edge.

282

5-3. Using the storage features

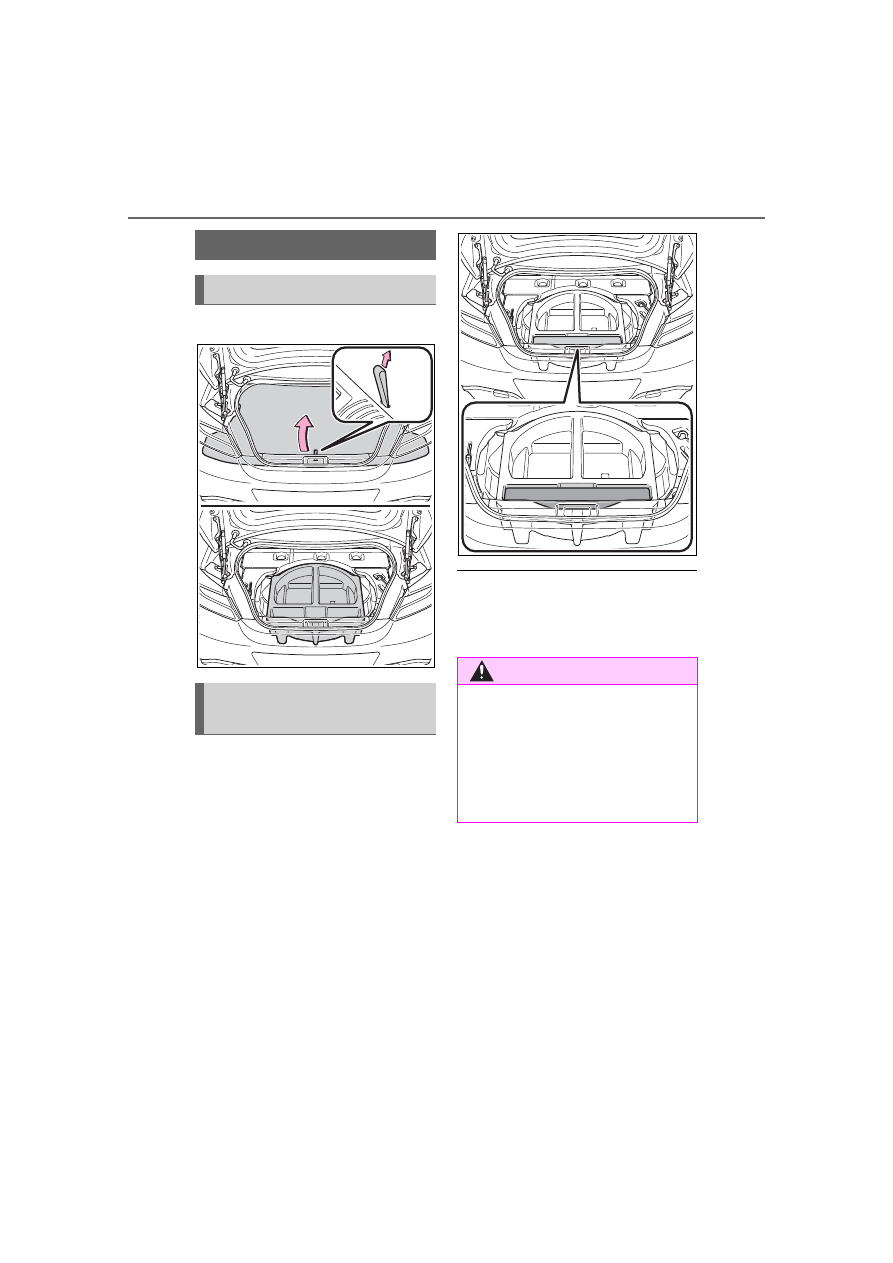

Lift the luggage mat.

The warning reflector can be
stored.

■

Warning reflector storage box

Depending on the size and shape of

the warning reflector case, it may

not be able to be stored.

Trunk features

Auxiliary box

Warning reflector storage
box

WARNING

■

When storing a warning

reflector

Make sure that the warning reflec-

tor is stored securely.

Failure to do so may cause it jump

out of position in the event of sud-

den braking, etc., causing an acci-

dent.

283

5-4. Using the other interior features

5

Interior

 featur

es

5-4.Using the other interior features

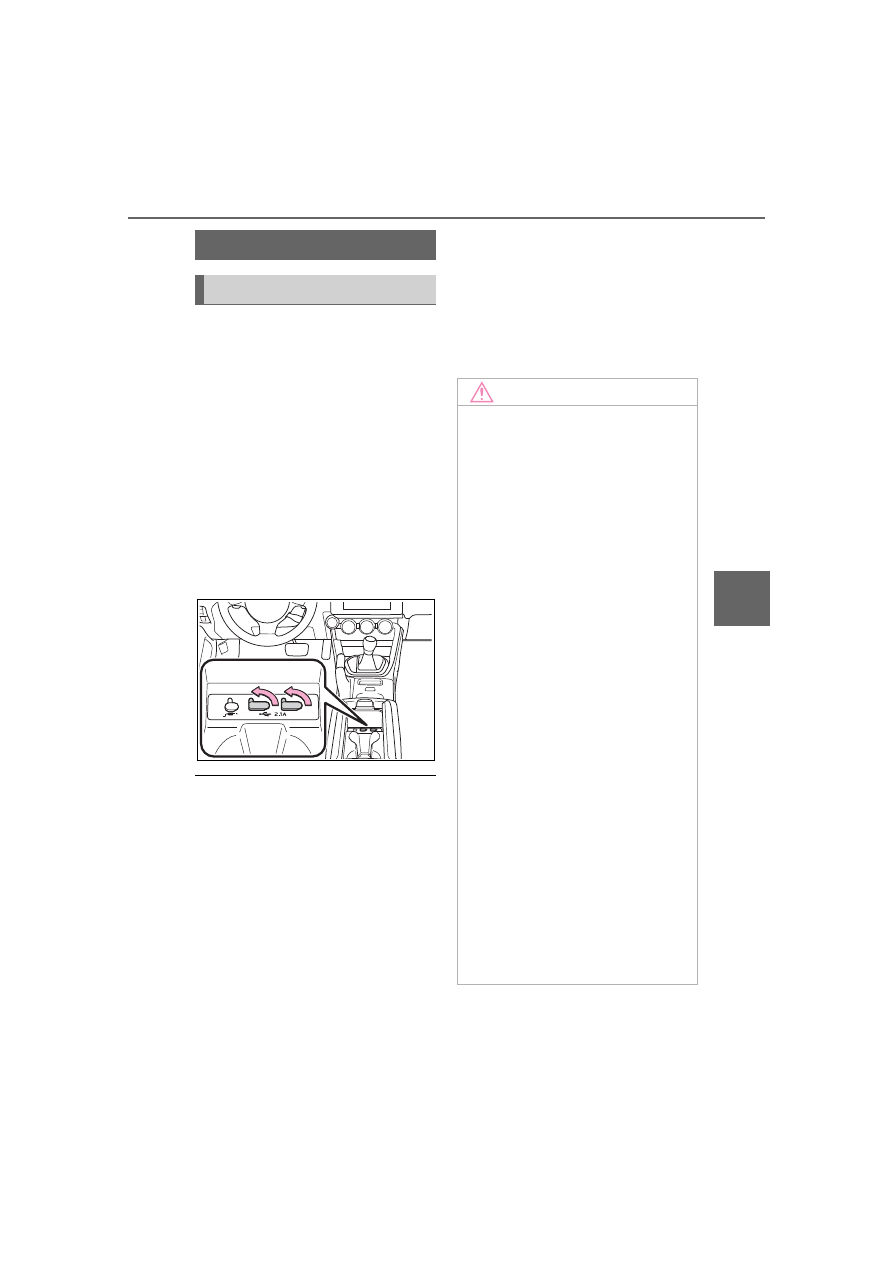

Use the USB terminal to use or
charge an electronic device.
The USB charging ports can be
used to supply 2.1 A of electric-
ity at 5 V to external devices.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

Using the USB charging
ports

Open the console box lid.

■

The USB charging ports can be

used when

The engine switch is in ACC or ON.

■

Situations in which the USB

charging ports may not operate

correctly

●

If a device which consumes more

than 2.1 A at 5 V is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

■

About connected external

device

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

Other interior features

USB charging ports

NOTICE

■

To prevent damage to the

USB charging ports

●

Do not insert foreign objects into

the ports.

●

Do not spill water or other liq-

uids into the ports.

●

When the USB charging ports

are not in use, close the lids. If a

foreign object or liquid enters a

port may cause a short circuit.

●

Do not apply excessive force to

or impact the USB charging

ports.

●

Do not disassemble or modify

the USB charging ports.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent battery discharge

Do not use the USB charging

ports for a long period of time with

the engine stopped.

284

5-4. Using the other interior features

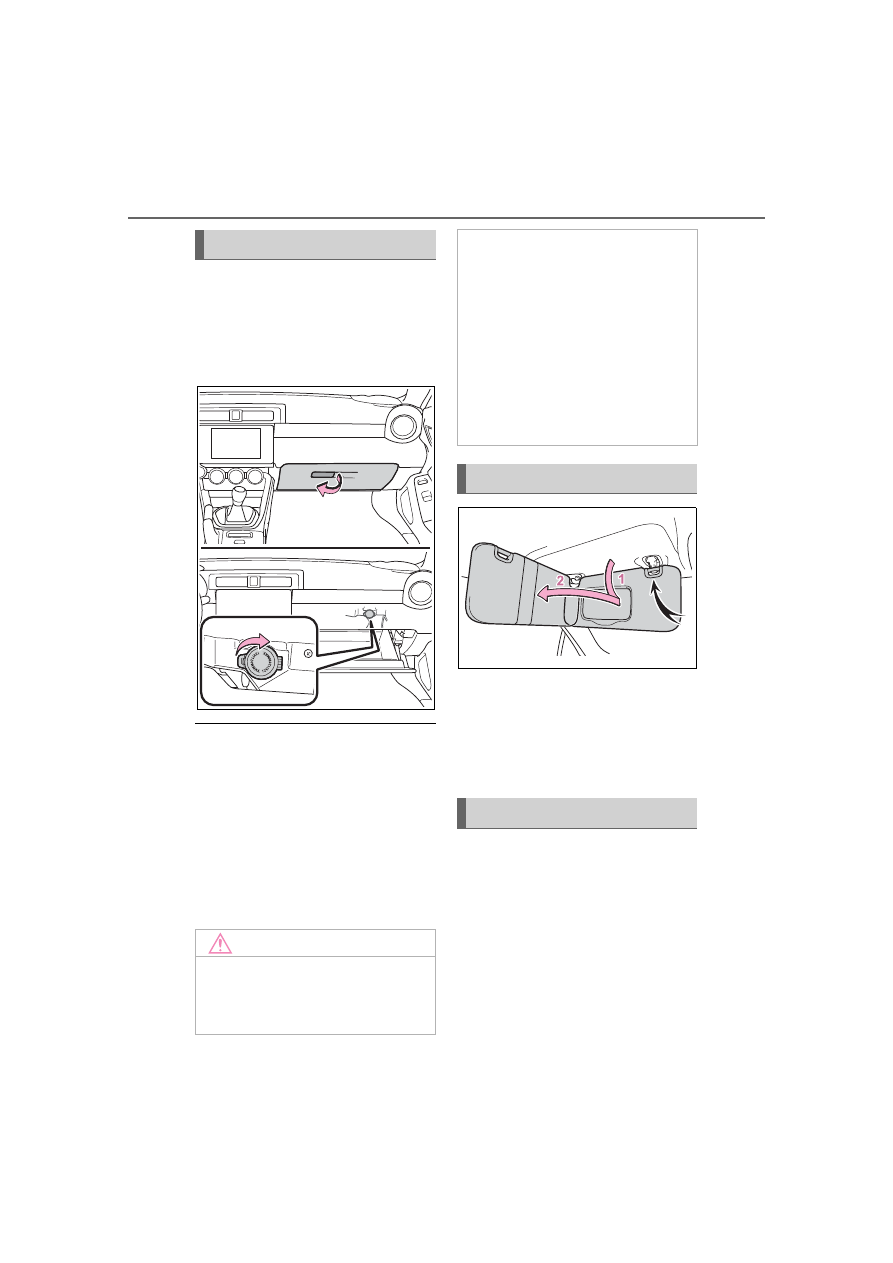

The power outlet can be used
for 12 V accessories that run on
10 A or less.
Open the glove box lid and open
the lid.

■

The power outlet can be used

when

The engine switch is in ACC or ON.

■

When turning the engine switch

off

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the engine switch may not be turned

off normally.

1

To set the visor in the forward
position, flip it down.

2

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

Open the cover to use.

The vanity light turns on. (if
equipped)

Power outlet

NOTICE

■

To prevent the fuse from

being blown

Do not use an accessory that

uses more than 12 V 10 A.

■

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent the battery from

being discharged

Do not use the power outlet lon-

ger than necessary when the

engine is not running.

Sun visors

Vanity mirrors
