Toyota Mirai (2022 year). Manual in english

371

6-4. Using the other interior features

Interior

featur

: If equipped

■

HomeLink

programming pro-

cedure

The programming procedures can

also be found at the following URL.

Website: www.homelink.com/toyota

For support, contact customer sup-

port at the following.
Help Line: 1-800-355-3515

The HomeLink

wireless control

system in your vehicle has 3
buttons which can be pro-
grammed to operate 3 different
devices. Refer to the program-
ming methods on the following
pages to determine the method
which is appropriate for the
device.

WARNING

■

When the rear sunshade is

being extended or retracted

Do not place fingers or other

objects in the shade mechanism

or in the opening as injury may

result.

NOTICE

■

To ensure normal operation

of the rear sunshade

Observe the following precau-

tions:

●

Do not place excessive load on

the motor or other components.

●

Do not place objects where they

may hinder opening and closing

operations.

●

Do not attach items to the rear

sunshade.

●

Keep the opening clean and

clear of obstructions.

●

Do not operate the rear sun-

shade continuously for long

periods of time.

Garage door opener

The garage door opener can
be programmed using the
HomeLink

to operate

garage doors, gates, entry
doors, door locks, home
lighting systems, security
systems, and other devices.

System components

372

6-4. Using the other interior features



Vehicles with auto anti-glare
inside rear view mirror

HomeLink

indicator light

Garage door operation indi-
cators

HomeLink

icon

Illuminates while HomeLink

operating.

Buttons



Vehicles with Digital Rearview
Mirror

HomeLink

logo

Appears while HomeLink

is oper-

ating. When the menu button
(



P.144) is pressed, the logo dis-

appears even while the HomeLink

is operating.

Garage door operation indi-
cators

HomeLink

indicator light

Illuminates above each button
selected.

Buttons

■

Codes stored in the Home-
Link

memory

●

The registered codes are not

erased even if the 12-volt battery

cable is disconnected.

●

If learning failed when registering
a different code to a HomeLink

button that already has a code

registered to it, the already regis-

tered code will not be erased.

■

Certification



P.553

WARNING

■

When programming a garage

door or other remote control

device

The garage door or other device

may operate, so ensure people

and objects are out of danger to

prevent potential harm.

■

Conforming to federal safety

standards

Do not use the HomeLink

com-

patible transceiver with any

garage door opener or device that

lacks safety stop and reverse fea-

tures as required by federal safety

standards.
This includes any garage door

that cannot detect an interfering

object. A door or device without

these features increases the risk

of death or serious injury.

■

When operating or program-
ming HomeLink

Never allow a child to operate or
play with the HomeLink

buttons.

373

6-4. Using the other interior features

Interior

featur

■

Before programming Home-
Link



During programming, it is pos-
sible that garage doors,
gates, or other devices may
operate. For this reason,
make sure that people and
objects are clear of the
garage door or other devices
to prevent injury or other
potential harm.



It is recommended that a new
battery be placed in the
remote control transmitter for
more accurate programming.



Garage door opener motors
manufactured after 1995 may
be equipped with rolling code
protection. If this is the case,
you may need a stepladder or
other sturdy, safe device to
reach the “Learn” or “Smart”
button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be per-

formed within 60 seconds, oth-
erwise the indicator light will
stop flashing and programming
will not be successfully com-
pleted.

Press and release the Home-
Link

button you want to pro-

gram and check that the

HomeLink

indicator light

flashes (orange).

Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the
HomeLink

buttons.

Keep the HomeLink

indicator light

in view while programming.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rearview
Mirror

Program a device.

Programming the Home-
Link

374

6-4. Using the other interior features



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rearview
Mirror



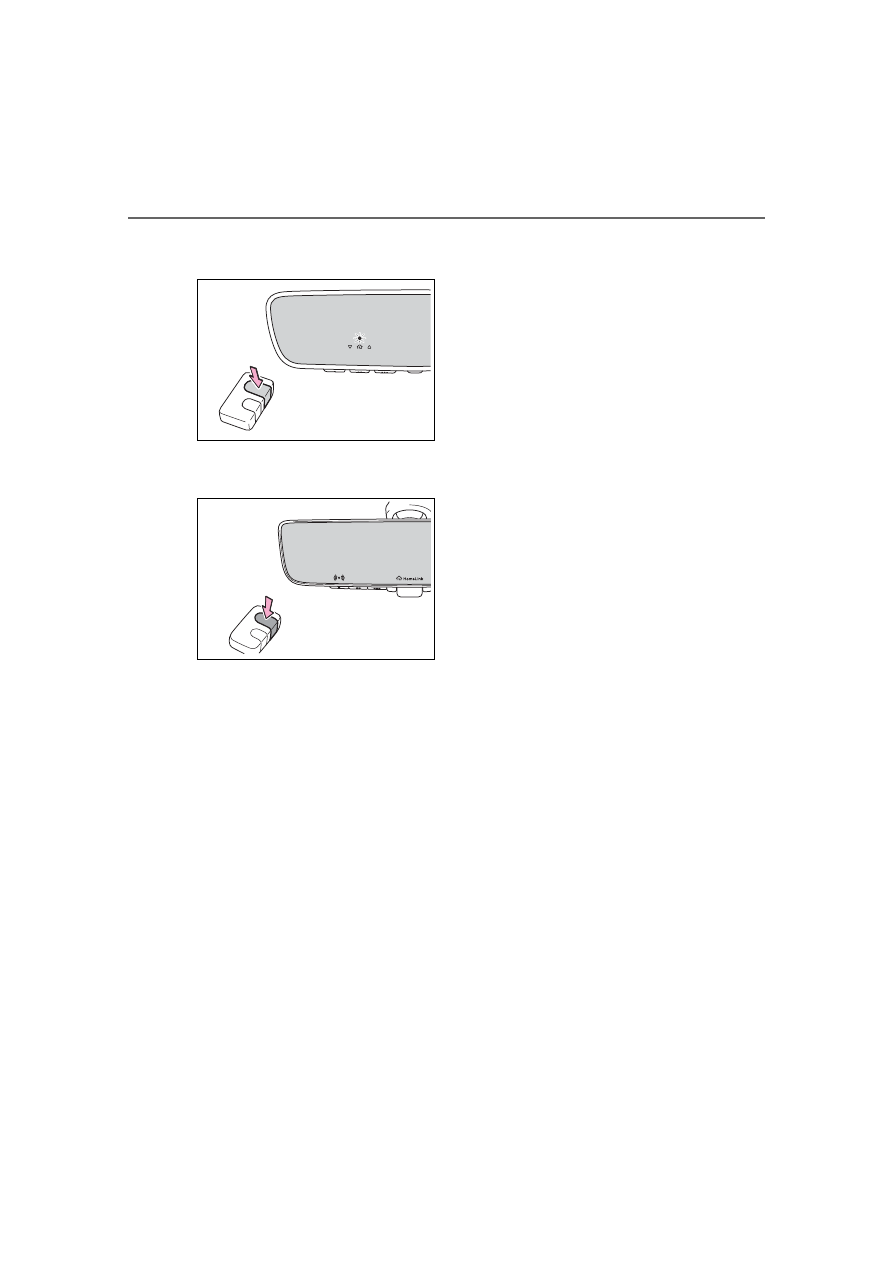

Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the remote control
transmitter button until the Home-
Link

indicator light changes from

slowly flashing orange to rapidly
flashing green (rolling code) or con-
tinuously lit green (fixed code), then
release the button.



Programming an entry gate
(for U.S.A. owners)/Program-
ming a device in the Cana-
dian market

Press and release the remote con-
trol transmitter button at 2 second
intervals, repeatedly, until the
HomeLink

indicator light changes

from slowly flashing (orange) to
rapidly flashing (green) (rolling
code) or continuously lit (green)
(fixed code).

Test the HomeLink

opera-

tion by pressing the newly
programmed button and
observing the indicator light:



HomeLink

indicator light illu-

minates: Programming of a
fixed code device has com-
pleted. The garage door or
other device should operate
when a HomeLink

button is

pressed and released.



HomeLink

indicator light

flashes rapidly: The garage
door opener motor or other
device is equipped with a roll-
ing code. To complete pro-
gramming, firmly press and
hold the HomeLink

button

for 2 seconds then release it.



If the garage door or other
device does not operate, pro-
ceed to “Programming a roll-
ing code system”.

Repeat the steps above to
program another device for
any of the remaining Home-
Link

buttons.

■

Programming a rolling code
system

Two or more people may be
necessary to complete rolling
code programming.

375

6-4. Using the other interior features

Interior

featur

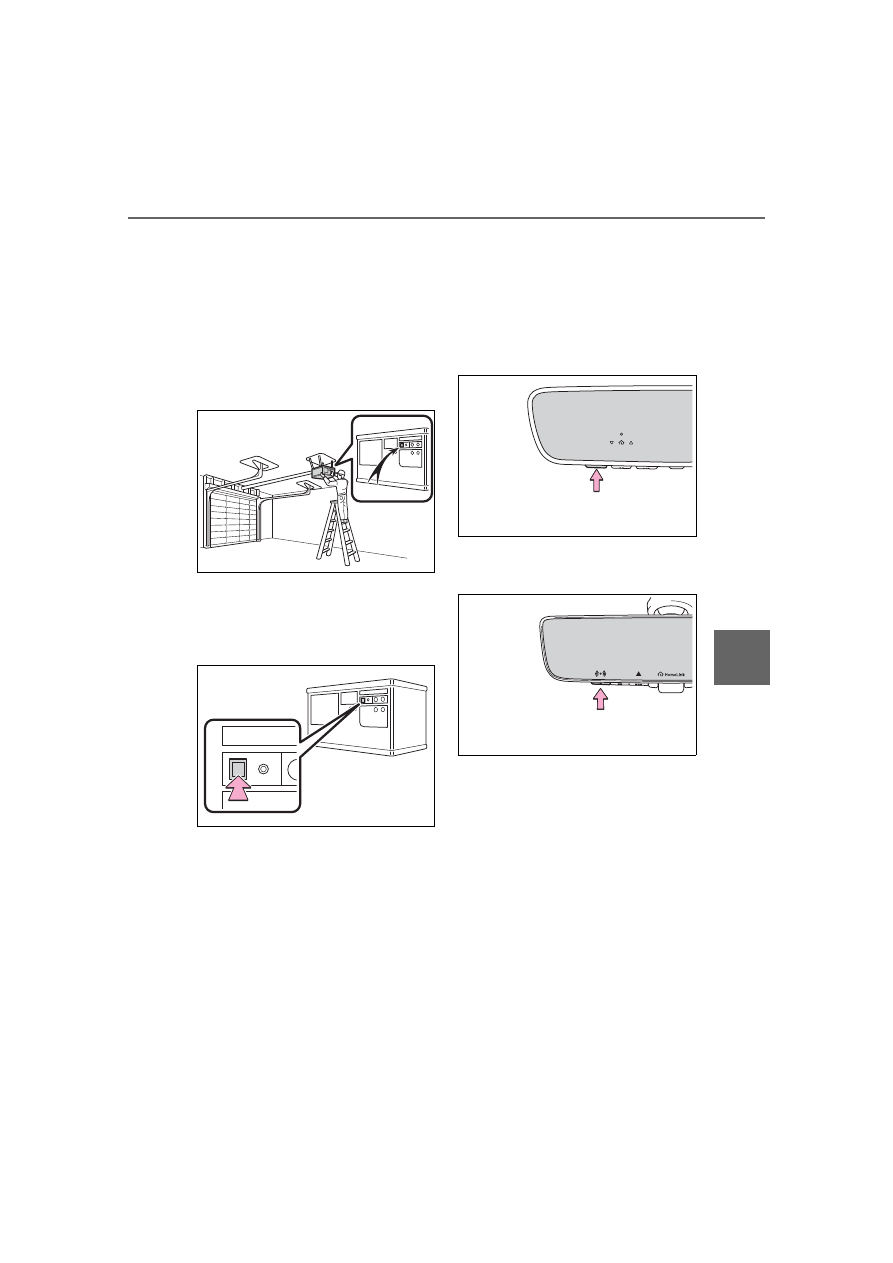

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found

where the hanging antenna wire is

attached to the unit. The name and

color of the button may vary by

manufacturer. Refer to the owner’s

manual supplied with the garage

door opener motor for details.

Press and release the
“Learn” or “Smart” button.

Perform

within 30 seconds after

performing

Press and hold the desired
HomeLink

button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence
(press/hold/release) up to 3
times to complete program-
ming.
If the garage door opener
motor operates when the

HomeLink

button is

pressed, the garage door
opener motor recognizes the
HomeLink

signal.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rearview
Mirror

■

Enabling 2-way communi-
cation with a garage door
(only available for compati-
ble devices)

When enabled, 2-way communi-
cation allows you to check the
status of the opening and clos-
ing of a garage door through
indicators in your vehicle.
2-way communication is only
available if the garage door
opener motor used is a compati-
ble device. (To check device

376

6-4. Using the other interior features

compatibility, refer to
www.homelink.com.)

Within 5 seconds after pro-
gramming the garage door
opener has been completed,
if the garage door opener
motor is trained to Home-
Link

, both garage door

operation indicators will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

If the indicators do not flash, per-

form

and

within the first 10

presses of the HomeLink

button

after programming has been com-

pleted.

Press a programmed Home-
Link

button to operate a

garage door.

Within 1 minute of pressing
the HomeLink

button, after

the garage door operation
has stopped, press the
“Learn” or “Smart” button on
the garage door opener
motor. Within 5 seconds of
the establishment of 2-way
communication with the
garage door opener, both
garage door operation indica-
tors in the vehicle will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

■

Reprogramming a single
HomeLink

button

When the following procedure is
performed, buttons which
already have devices registered
to them can be overwritten:

Press and hold the desired
HomeLink

button.

When the HomeLink

indica-

tor starts flashing orange,
release the HomeLink

but-

ton and perform “Program-
ming HomeLink

”

(it takes

20 seconds for the Home-
Link

indicator to start flash-

ing).

■

Before programming

●

Install a new battery in the trans-

mitter.

●

The battery side of the transmitter

must be pointed away from the
HomeLink

buttons.

Press the appropriate Home-
Link

button. The HomeLink

indicator light should turn on.
The status of the opening and
closing of a garage door is
shown by the indicators.

Operating HomeLink

377

6-4. Using the other interior features

Interior

featur



Vehicles with auto anti-glare
inside rear view mirror

Opening

Closing



Vehicles with Digital Rearview
Mirror

Opening

Closing

This function is only available if the
garage door opener motor used is a
compatible device. (To check
device compatibility, refer to
www.homelink.com.)

The indicators can operate
within approximately 820 ft. (250
m) of the garage door. However,
if there are obstructions
between the garage door and
the vehicle, such as houses and
trees, feedback signals from the
garage door may not be
received.

To recall the previous door oper-
ation status, press and release
either HomeLink

buttons

and

(vehicles

with auto anti-glare inside rear
view mirror),

and

(vehicles

with Digital Rearview Mirror),
simultaneously. The last
recorded status will be dis-
played for 3 seconds.

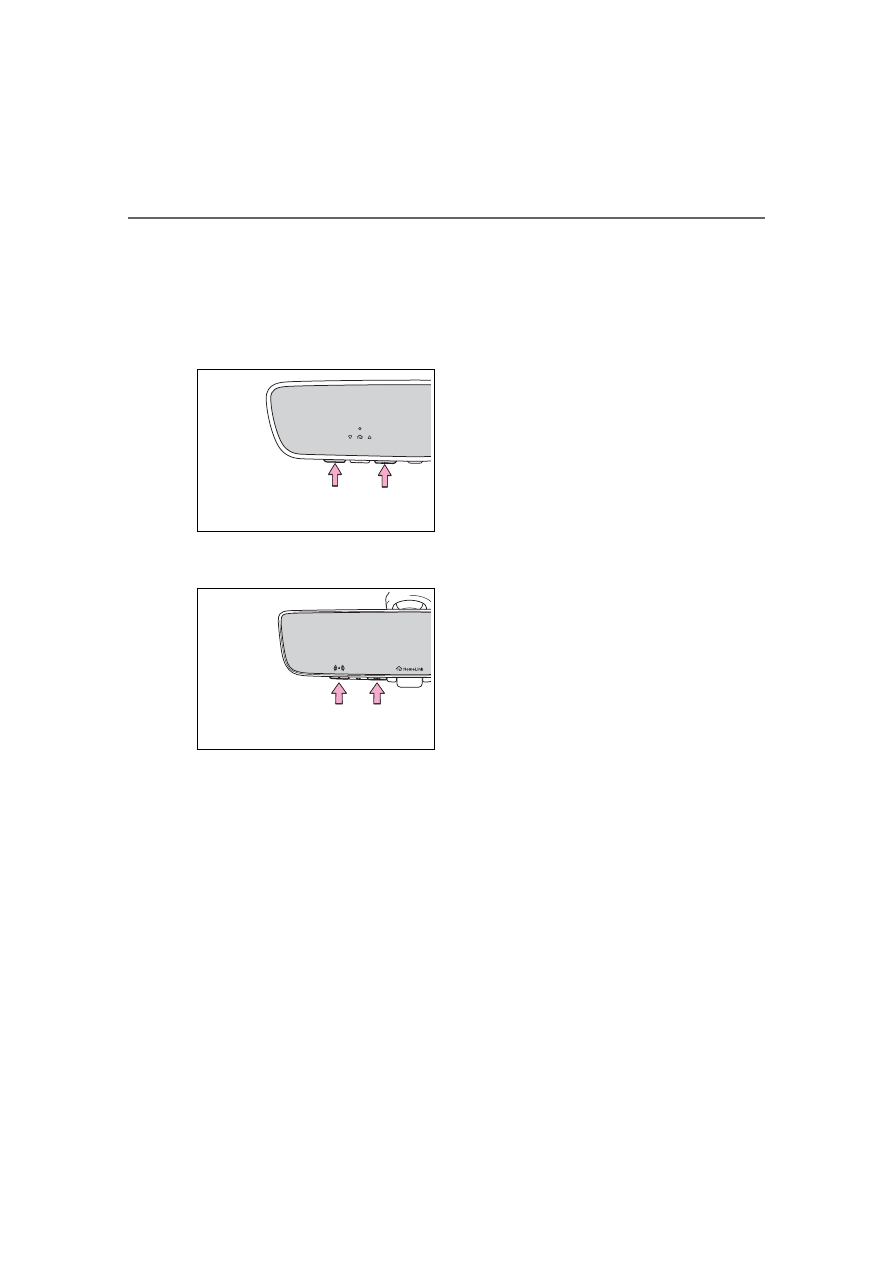

Press and hold the 2 outside
buttons for 10 seconds until the
HomeLink

indicator light

changes from continuously lit
(orange) to rapidly flashing

Color

Status

Orange (flash-

ing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback sig-

nals cannot be

received

Erasing the entire Home-
Link

memory (all three

codes)

Color

Status

379

Maintena

nce
a

nd ca

Maintenance and care

7-1. Maintenance and care

Cleaning and protecting the

vehicle exterior ..........

380

Cleaning and protecting the

vehicle interior ...........

384

7-2. Maintenance

Maintenance requirements

..................................

387

General maintenance..

388

7-3. Do-it-yourself mainte-

nance

Do-it-yourself service pre-

cautions.....................

391

Hood ...........................

393

Positioning a floor jack

393

Fuel cell unit compartment

..................................

395

12-volt battery .............

400

Tires ............................

403

Replacing the tire ........

411

Tire inflation pressure..

415

Wheels ........................

417

Air conditioning filter....

419

Cleaning the traction battery

air intake vents and filters

..................................

420

Electronic key battery..

423

Checking and replacing

fuses..........................

425

Headlight aim ..............

428

Light bulbs...................

429

380

7-1. Maintenance and care

7-1.Maintenance and care



Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.



Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.



For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.



Wipe away any water.



Wax the vehicle when the
waterproof coating deterio-
rates.

If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.

■

Self-restoring coat

The vehicle body has a self-restor-

ing coating that is resistant to small

surface scratches caused in a car

wash etc.

●

The coating lasts for 5 to 8 years

from when the vehicle is delivered

from the plant.

●

The restoration time differs

depending on the depth of the

scratch and outside temperature.

The restoration time may become

shorter when the coating is

warmed by applying warm water.

●

Deep scratches caused by keys,

coins, etc. cannot be restored.

●

Do not use wax that contains

abrasives.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors
Start washing from the front of the
vehicle. Extend the mirrors before
driving.

●

Brushes used in automatic car

washes may scratch the vehicle

surface, parts (wheel, etc.) and

harm your vehicle’s paint.

●

When it is necessary to set the

power switch to ACC with the shift

position held in N, refer to P.181.

■

High pressure car washes

●

As water may enter the cabin, do

not bring the nozzle tip near the

gaps around the doors or perime-

ter of the windows, or spray these

areas continuously.

●

Turn the power switch off.

■

When using a car wash

If the door handle becomes wet

while the electronic key is within the

effective range, the door may lock

and unlock repeatedly. In that case,

follow the following correction pro-

cedures to wash the vehicle:

●

Place the key in a position 6 ft. (2

m) or more separate from the

vehicle while the vehicle is being

washed. (Take care to ensure that

the key is not stolen.)

●

Set the electronic key to battery-

saving mode to disable the Smart

key system. (



P.131)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by

using a neutral detergent.

●

Wash detergent off with water

Cleaning and protect-

ing the vehicle exte-

rior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Cleaning instructions

381

7-1. Maintenance and care

Maintena

nce
a

nd ca

immediately after use.

●

To protect the paint from damage,

make sure to observe the follow-

ing precautions.

• Do not use acidic, alkaline or

abrasive detergent

• Do not use hard brushes

• Do not use detergent on the

wheels when they are hot, such

as after driving or parking in hot

weather

■

Brake pads and calipers

Rust may form if the vehicle is

parked with wet brake pads or disc

rotors, causing them to stick. Before

parking the vehicle after it is

washed, drive slowly and apply the

brakes several times to dry the

parts.

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-

repellent coating

●

The following precautions can

extend the effectiveness of the

water-repellent coating.

• Remove any dirt, etc. from the

front side windows regularly.

• Do not allow dirt and dust to accu-

mulate on the windows for a long

period.

Clean the windows with a soft,

damp cloth as soon as possible.

• Do not use wax or glass cleaners

that contain abrasives when

cleaning the windows.

• Do not use any metallic objects to

remove condensation build up.

●

When the water-repellent perfor-

mance has become insufficient,

the coating can be repaired. Con-

tact your Toyota dealer.

■

Plated portions

If dirt cannot be removed, clean the

parts as follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neu-

tral detergent and water to clean

the dirt off.

●

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

●

To remove oily deposits, use alco-

hol wet wipes or a similar product.

■

Roof film (vehicles with elec-

tronic sunshade)

●

Dirt like bird droppings and oil

should be cleaned off with a neu-

tral detergent immediately.

●

When something was attached on

the film and its mark remains. The

small mark can be recovered by

dryer heating.

●

Do not apply any films on the film.

●

Do not use wax that contains

abrasives.

●

In case of the film repair, please

request at your Toyota dealer.

WARNING

■

When washing the vehicle

Do not apply water to the inside of

the fuel cell unit compartment.

Doing so may cause the electrical

components, etc. to catch fire.

382

7-1. Maintenance and care

WARNING

■

When cleaning the windshield

Set the wiper switch to off.

If the wiper switch is in “AUTO”,

the wipers may operate unexpect-

edly in the following situations,

and may result in hands being

caught or other serious injuries

and cause damage to the wiper

blades.

Off

AUTO

●

When the upper part of the

windshield where the raindrop

sensor is located is touched by

hand

●

When a wet rag or similar is

held close to the raindrop sen-

sor

●

If something bumps against the

windshield

●

If you directly touch the raindrop

sensor body or if something

bumps into the raindrop sensor

■

Precaution regarding the

front bumper

If the paint of the front bumper is

chipped or scratched, the Toyota

Safety Sense 2.5 + may not func-

tion correctly. If this occurs, con-

sult your Toyota dealer.

■

Precaution regarding the rear

bumper

If the paint of the rear bumper is

chipped or scratched, the follow-

ing systems may not function cor-

rectly. If this occurs, consult your

Toyota dealer.

●

BSM

●

RCTA

●

PKSB

NOTICE

■

To prevent paint deteriora-

tion and corrosion on the

body and components (alumi-

num wheels, etc.)

●

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

●

If the paint is chipped or

scratched, have it repaired

immediately.

●

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

383

7-1. Maintenance and care

Maintena

nce
a

nd ca

NOTICE

■

Cleaning the exterior lights

●

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

●

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

■

When washing the car

Do not remove the vehicle recep-

tacle cap and directly pour water

over the vehicle receptacle. If

water enters the vehicle recepta-

cle, damage may occur.

■

When using an automatic car

wash

Set the wiper switch to the off

position.

If the wiper switch is in “AUTO”,

the wipers may operate and the

wiper blades may be damaged.

■

When using a high pressure

car wash

●

When washing the vehicle, do

not spray the camera or its sur-

rounding area directly with a

high pressure washer. Shock

applied from high pressure

water may cause the device to

not operate normally.

●

Do not spray water directly on

the radar sensor which is

equipped behind the emblem.

Otherwise it may cause the

device to be damaged.

●

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), connectors or

the following parts. The parts

may be damaged if they come

into contact with high-pressure

water.

• Fuel cell stack

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

●

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicle body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged.

Also, do not continuously hold the
nozzle in the same place.

●

Do not spray the lower part of

the windshield continuously.

If water enters the air conditioning
system intake located near the
lower part of the windshield, the
air conditioning system may not
operate correctly.

●

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

384

7-1. Maintenance and care



Remove dirt and dust using a
vacuum cleaner. Wipe dirty
surfaces with a cloth damp-
ened with lukewarm water.



If dirt cannot be removed,
wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.
Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

■

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

■

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

■

When cleaning the carpeted

portions of the glove box, con-

sole box, etc.

If a strong adhesive tape is used,

there is a possibility that the surface

of the carpet could be damaged.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Protecting the vehicle
interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in

the vehicle, such as on the floor,

in the traction battery air vents,

and in the trunk. (



P.88)

Doing so may cause the traction

battery, electrical components,

etc. to malfunction or catch fire.

●

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet. (



P.34)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

■

Cleaning the interior (espe-

cially instrument panel)

Do not use polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Areas other than the seats and

steering wheel: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

• Seats: Alkaline or acidic solu-

tions, such as thinner, benzene,

and alcohol

385

7-1. Maintenance and care

Maintena

nce
a

nd ca



Remove dirt using a water-
dampened soft cloth or syn-
thetic chamois.



Wipe the surface with a dry,
soft cloth to remove any
remaining moisture.

■

Cleaning the areas with satin-

finish metal accents

The metal areas use a layer of real

metal for the surface. It is necessary

to clean them regularly. If dirty areas

are left uncleaned for long periods

of time, they may be difficult to

clean.



Remove dirt and dust using a
vacuum cleaner.



Wipe off any excess dirt and
dust with a soft cloth damp-
ened with diluted detergent.

Use a diluted water solution of
approximately 5% neutral wool

NOTICE

• Steering wheel: Organic sub-

stances, such as thinner, and

cleaner that contains alcohol

●

Do not use polish wax or polish

cleaner. The instrument panel’s

or other interior part’s painted

surface may be damaged.

■

Preventing damage to leather

surfaces

Observe the following precautions

to avoid damage to and deteriora-

tion of leather surfaces:

●

Remove any dust or dirt from

leather surfaces immediately.

●

Do not expose the vehicle to

direct sunlight for extended peri-

ods of time. Park the vehicle in

the shade, especially during

summer.

●

Do not place items made of

vinyl, plastic, or containing wax

on the upholstery, as they may

stick to the leather surface if the

vehicle interior heats up signifi-

cantly.

■

Water on the floor

Do not wash the vehicle floor with

water.

Vehicle systems such as the

audio system may be damaged if

water comes into contact with

electrical components such as the

audio system above or under the

floor of the vehicle. Water may

also cause the body to rust.

■

When cleaning the inside of

the windshield

Do not allow glass cleaner to con-

tact the lens. Also, do not touch

the lens. (



P.207)

■

Cleaning the inside of the rear

window

●

Do not use glass cleaner to

clean the rear window, as this

may cause damage to the rear

window defogger heater wires

or antenna. Use a cloth damp-

ened with lukewarm water to

gently wipe the window clean.

Wipe the window in strokes run-

ning parallel to the heater wires

or antenna.

●

Be careful not to scratch or

damage the heater wires or

antenna.

Cleaning the areas with
satin-finish metal accents

Cleaning the leather areas

386

7-1. Maintenance and care

detergent.



Wring out any excess water
from the cloth and thoroughly
wipe off all remaining traces
of detergent.



Wipe the surface with a dry,
soft cloth to remove any
remaining moisture. Allow the
leather to dry in a shaded and
ventilated area.

■

Caring for leather areas

Toyota recommends cleaning the

interior of the vehicle at least twice a

year to maintain the quality of the

vehicle’s interior.



Remove dirt and dust using a
vacuum cleaner.



Wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.



Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

Cleaning the synthetic
leather areas

Toyota Mirai (2022 year). Manual in english - page 23
