5-3. Connectivity settings

Check that the following
screen is displayed.

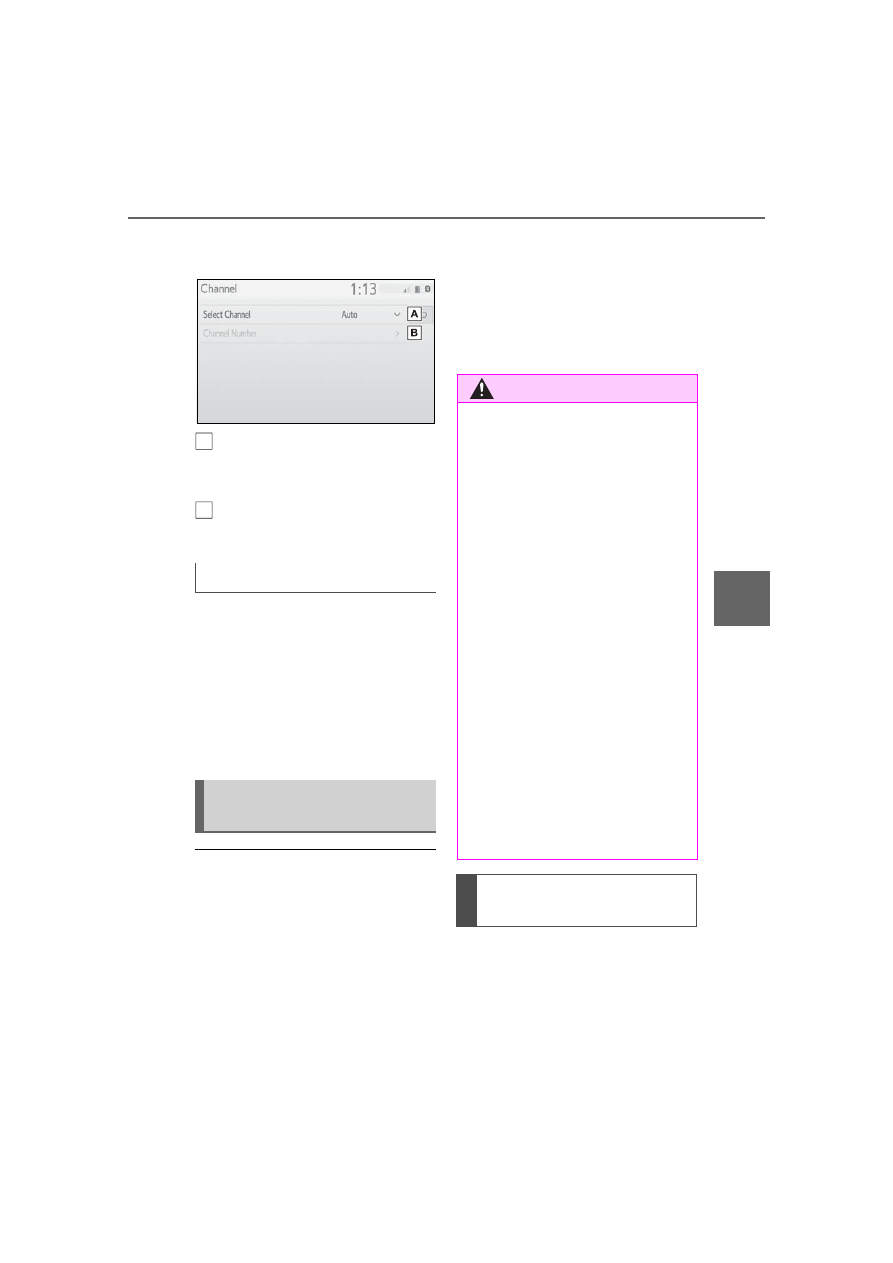

Select to change the chan-
nel selection to auto-
matic/manual.

When “Manual” is selected,
select to change the channel.

Set “Select Channel” to
“Manual”.

Select “Channel Number”.

Enter the desired channel
number and select “OK”.



Channels 1 through 11 can be
selected.

●

If a connected device is taken out
of the Wi-Fi

connection area, the

connection will be severed.

●

If the vehicle is driven out of the

cellular communication coverage

area, connecting to the internet
via the Wi-Fi

Hotspot will not be

possible.

●

If a Bluetooth

device is used

while a device is connected using

the Wi-Fi

Hotspot function, the

communication speed may

decrease.

●

If the vehicle is near a radio

antenna, radio station or other

source of strong radio waves and

electrical noise, communication

may be slow or impossible.

The condition of Wi-Fi

connec-

tion appears on the right upper
side of the screen. (



P.374)

Changing the channel

Wi-Fi

function operating

hints

WARNING

●

Use Wi-Fi

devices only when

safe and legal to do so.

●

Your audio unit is fitted with
Wi-Fi

antennas. People with

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should maintain a reasonable

distance between themselves
and the Wi-Fi

antennas.

The radio waves may affect the

operation of such devices.

●

Before using Wi-Fi

devices,

users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization therapy-

pacemakers or implantable car-

dioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Conditions displayed with
Wi-Fi

icon

402

5-3. Connectivity settings



Communication standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (2.4GHz)



Security
WPA™
WPA2™

• WPA™ and WPA2™ are trade-

marks of Wi-Fi Alliance

Specifications

403

5-4. Apple CarPlay/Android Auto

Audio

5-4.Apple CarPlay/Android Auto

: This function is not made avail-

able in some countries or areas.

Enable Siri on the device to
be connected.

Connect the device to the
USB port. (



P.418)

Select “Always Enable” or
“Enable Once”.



If “Do not enable” is selected,
an Apple CarPlay connection
will not be established. In this
case, the device can be oper-
ated as a normal Apple
device, such as an iPod.
Apple CarPlay will remain off
until “Apple CarPlay” of “Pro-
jection Settings” on the gen-
eral settings screen is turned
on. (



P.410)



Depending on the device con-
nected, it may take approxi-
mately 3 to 6 seconds before
the system returns to previous
screen.



The screen may change to
step

depending on the sys-

tem.

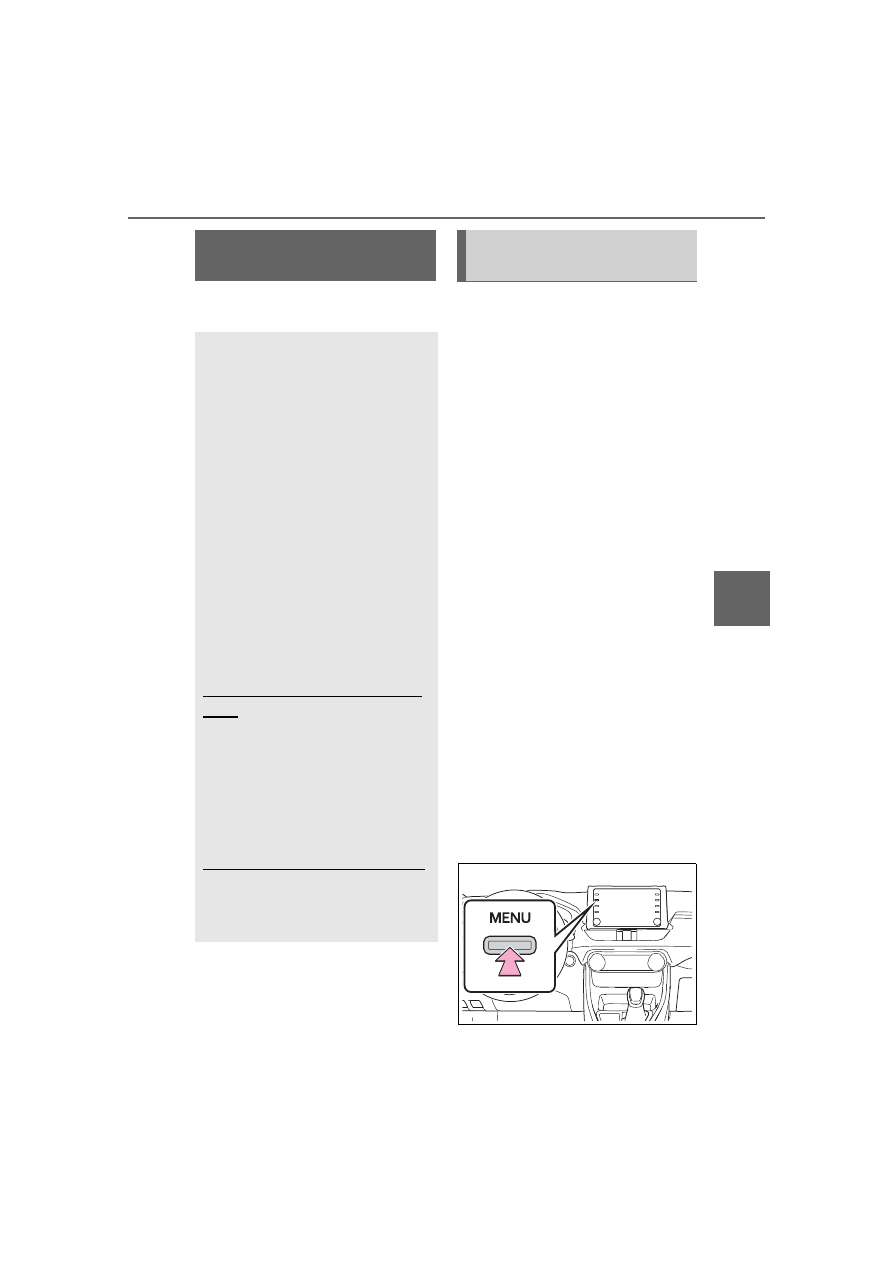

Press the “MENU” button.

Apple Car-

Play

/Android Auto™

Apple CarPlay/Android Auto
allows some applications,
such as Map, Phone, and
Music, to be used on the
system.
When an Apple Car-
Play/Android Auto connec-
tion is established, Apple
CarPlay/Android Auto com-
patible applications will be
displayed on the system
display.



Compatible device

Apple iPhone (iOS Ver. 9.3 or
later) that supports Apple Car-
Play.

For details, refer to

https://www.apple.com/ios/car
play/.
Android™ devices with
Android OS ver 5.0 or higher
which support Android Auto
and have the Android Auto
application installed.

For

details, refer to
https://www.android.com/auto/
.

: Some devices may not operate

with this system.

Establishing an Apple
CarPlay connection

404

5-4. Apple CarPlay/Android Auto

Select “Apple CarPlay”.

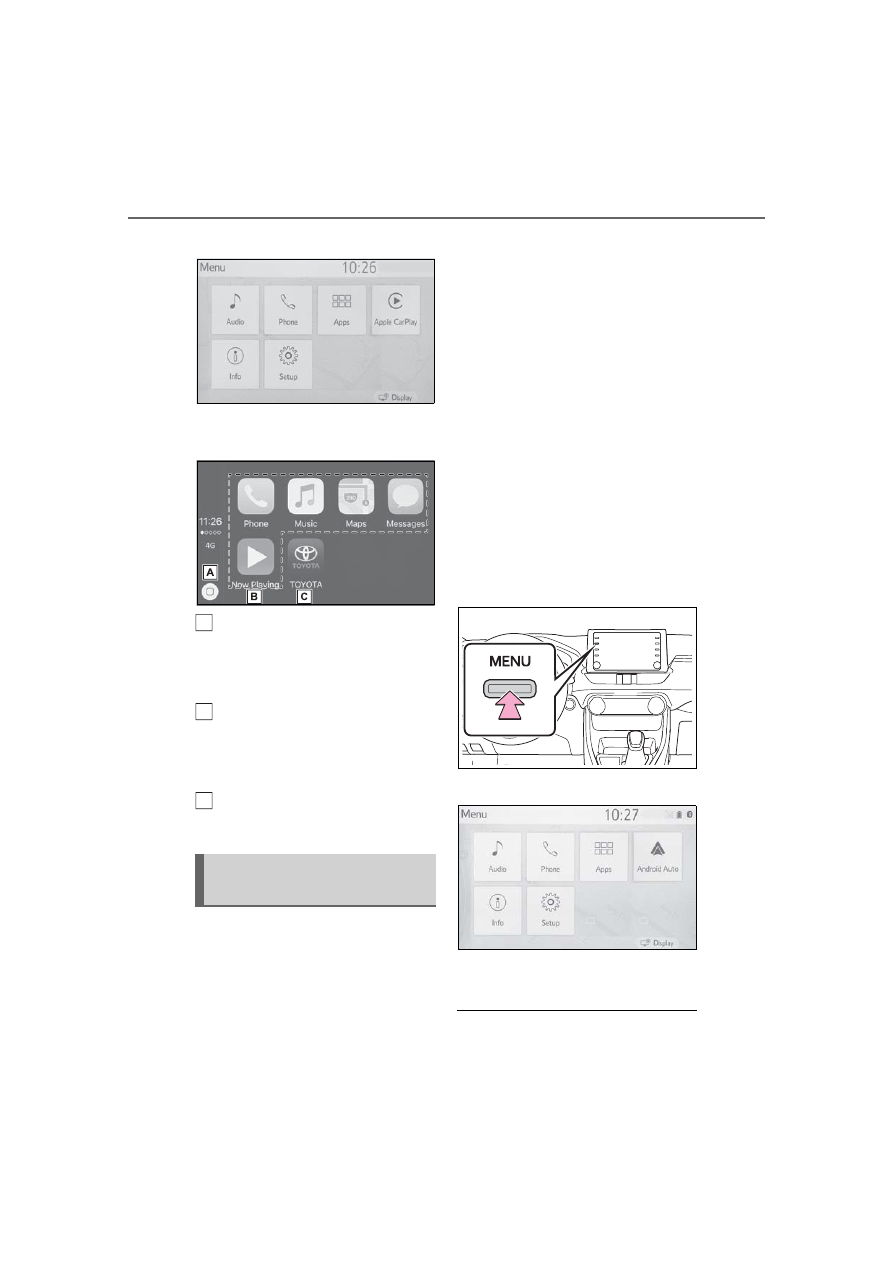

Check that home screen of
Apple CarPlay is displayed.

Select to display the home
screen of Apple CarPlay.
Select and hold to activate
Siri.

Select to start the application.
User can use any iPhone
application supported by
Apple CarPlay.

Select to display the system
screen.

Check that the Android Auto
application is installed to the
device to be connected.

Connect the device to the
USB port. (



P.418)

Select “On” to enable the
function.



“Off”: Select to not enable
Android Auto. Android Auto
will remain off until “Android
Auto” of “Projection Settings”
on the general settings screen
is turned on. (



P.410)



Depending on the device con-
nected, it may take approxi-
mately 3 to 6 seconds before
the system returns to previous
screen.



The screen may change to
step

depending on the sys-

tem.

Press the “MENU” button.

Select “Android Auto”.

Check that home screen of
Android Auto is displayed.

●

When an Apple CarPlay/Android

Establishing an Android
Auto connection

405

5-4. Apple CarPlay/Android Auto

Audio

Auto connection is established,

the function of some system but-

tons will change.

●

When an Apple CarPlay/Android

Auto connection is established,

some system functions, such as

the following, will be replaced by

similar Apple CarPlay/Android

Auto functions or will become

unavailable:

• iPod (Audio Playback)

• USB audio/USB video
• Bluetooth

audio

• Bluetooth

phone (Apple CarPlay

only)

• Toyota Apps

: This function is not made avail-

able in some countries or areas.

●

When an Apple CarPlay/Android

Auto connection is established,

voice command system

(Siri/Google Assistant) and map

application voice guidance volume

can be changed by selecting

“Voice Volume” on the voice set-

tings screen. It cannot be changed

by “POWER VOLUME” knob on

Audio control panel. (



P.414)

●

Apple CarPlay/Android Auto is an

application developed by Apple

Inc/Google LLC. Its functions and

services may be terminated or

changed without notice depending

on the connected device’s opera-

tion system, hardware and soft-

ware, or due to changes in Apple

CarPlay/Android Auto specifica-

tions.

●

For a list of the apps supported by

Apple CarPlay or Android Auto,

refer to their respective website.

●

While using these functions, vehi-

cle and user information, such as

location and vehicle speed, will be

shared with the respective appli-

cation publisher and the cellular

service provider.

●

By downloading and using each

application, you agree to their

●

Data for these functions is trans-

mitted using the internet and may

incur charges. For information

about data transmission fees,

contact your cellular service pro-

vider.

●

Depending on the application, cer-

tain functions, such as music play-

back, may be restricted.

●

As the applications for each func-

tion are provided by a third-party,

they may be subject to change or

discontinuation without notice. For

details, refer to the website of the

function.

●

If the USB cable is disconnected,

operation of Apple Car-

Play/Android Auto will end. At this

time, sound output will stop and

change to the system screen.

■

Certification

●

Use of the Apple CarPlay logo

means that a vehicle user inter-

face meets Apple performance

standards. Apple is not responsi-

ble for the operation of this vehicle

or its compliance with safety and

regulatory standards. Please note

that the use of this product with

iPhone or iPod may affect wire-

less performance.

●

Apple CarPlay is a trademark of

Apple Inc.

406

5-4. Apple CarPlay/Android Auto

●

Android and Android Auto are

trademarks of Google LLC.

If you are experiencing difficulties with Apple CarPlay/Android Auto,
check the following table.

WARNING

●

Do not connect iPhone or oper-

ate the controls while driving.

NOTICE

●

Do not leave your smartphone

in the vehicle. In particular, high

temperatures inside the vehicle

may damage the smartphone.

●

Do not push down on or apply

unnecessary pressure to the

smartphone while it is con-

nected as this may damage the

smartphone or its terminal.

●

Do not insert foreign objects into

the port as this may damage the

smartphone or its terminal.

Troubleshooting

407

5-4. Apple CarPlay/Android Auto

Audio

Symptom

Solution

An Apple Car-
Play/Android Auto con-
nection cannot be
established.

Check if the device supports Apple Car-
Play/Android Auto.
Check if Apple CarPlay/Android Auto is
enabled on the connected device.
Check that the Android Auto application is
installed to the device to be connected.
For details, refer to
https://www.apple.com/ios/carplay/,
https://www.android.com/auto/.
For available countries or areas for Apple Car-
Play, refer to https://www.apple.com/ios/
feature-availability/# apple carplay.

Check if “Apple CarPlay”/“Android Auto” of
“Projection Settings” on the general settings
screen is set to on. (



P.410)

Check if the USB cable being used is securely
connected to the device and USB port.
Try connecting the smartphone directly to the
USB port in the vehicle, without using the hub.
For Apple CarPlay: Check if the Lightning cable
being used is certified by Apple and check if Siri
is enabled.

After checking all of the above, try to establish
an Apple CarPlay/Android Auto connection.
(



P.403)

When an Apple Car-
Play/Android Auto con-
nection is established and
a video is being played,
the video is not displayed,
but audio is output
through the system.

As the system is not designed to play video
through Apple CarPlay/Android Auto, this is not
a malfunction.

Although an Apple Car-
Play/Android Auto con-
nection is established,
audio is not output
through the system.

The system may muted or the volume may be
low. Increase the system volume.

408

5-4. Apple CarPlay/Android Auto

The Apple Car-
Play/Android Auto screen
has flickers and/or audio
from Apple Car-
Play/Android Auto has
noise.

Check if the USB cable being used to connect
the device to the system is damaged.
To check if the USB cable is damaged inter-
nally, connect the device to another system,
such as a PC, and check if the device is recog-
nized by the connected system. (The device
should begin charging when connected.)

After checking all of the above, try to establish
an Apple CarPlay/Android Auto connection.
(



P.403)

The map display of the
Apple CarPlay Maps app
cannot be enlarged or
contracted with pinch
multi-touch gestures.

As the Apple CarPlay Maps app is not compati-
ble with pinch multi-touch gestures, this is not a
malfunction.

During Apple CarPlay
music application (Apple
Music, Spotify, etc.) play-
back, if the iPhone is
operated to start and play
audio from an application
that is not compatible with
Apple CarPlay

and the

onboard device volume is
changed, the audio of the
incompatible application
stops and the system
resumes playback of the
original music application.

This operation is performed according to the
specification of the onboard device, this is not a
malfunction.

After interrupt audio (such
as navigation route guid-
ance) is played from an
application that is not
compatible with Apple
CarPlay while the onboard
device is playing audio
(FM/AM, etc.), the system
does not resume playback
of the original audio
(FM/AM, etc.).

This operation is performed according to the
specification of the onboard device, this is not a
malfunction. Manually change the audio source
by yourself. Or, do not use applications that are
not compatible with Apple CarPlay.

Due to

some navigation applications are compatible
from iOS 12, update to the latest iOS and appli-
cation versions.

Symptom

Solution

409

5-4. Apple CarPlay/Android Auto

Audio

: Applications not compatible with Apple CarPlay are applications installed

on the iPhone that are not displayed on the Apple CarPlay screen appli-
cation list. (such as visual voicemail)

When using Apple Car-
Play, route guidance
arrows and turn by turn
navigation are not dis-
played on the multi-infor-
mation display and
system display. When
using Android Auto, turn
by turn navigation is not
displayed on the multi-
information display and
system display.

This is not a malfunction as display of these
items is not possible with this function.

When using Android Auto,
hands-free call audio can-
not be heard from the
vehicle’s speakers.

Disconnect the phone from the USB cable and
check if hands-free call audio can be heard
using the hands-free system.

Connect the phone to the system using Android
Auto, turn up the volume on the system and
check if hands-free call audio can be heard.
Check if other sounds can be heard from the
vehicle’s speakers.

Symptom

Solution

410

5-5. Other settings

5-5.Other settings

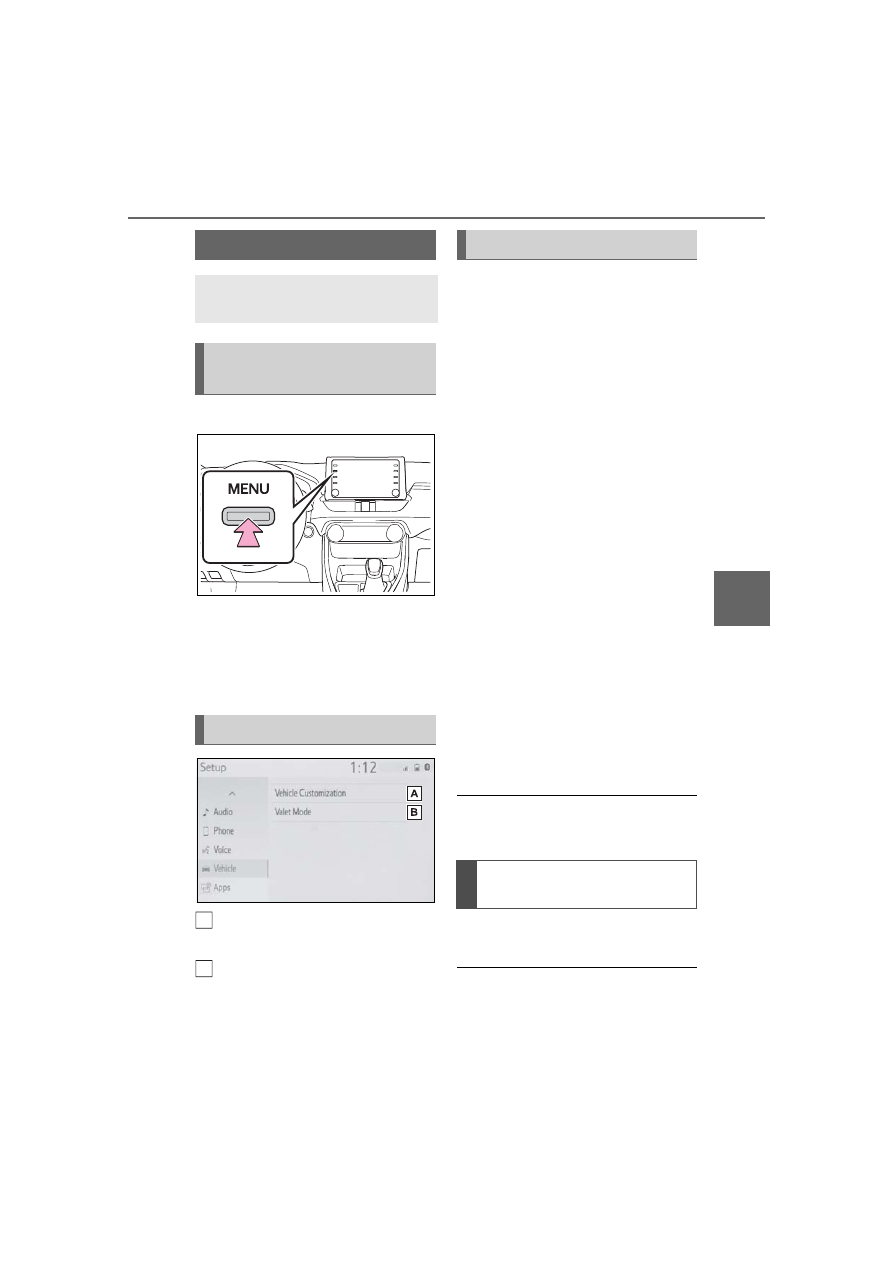

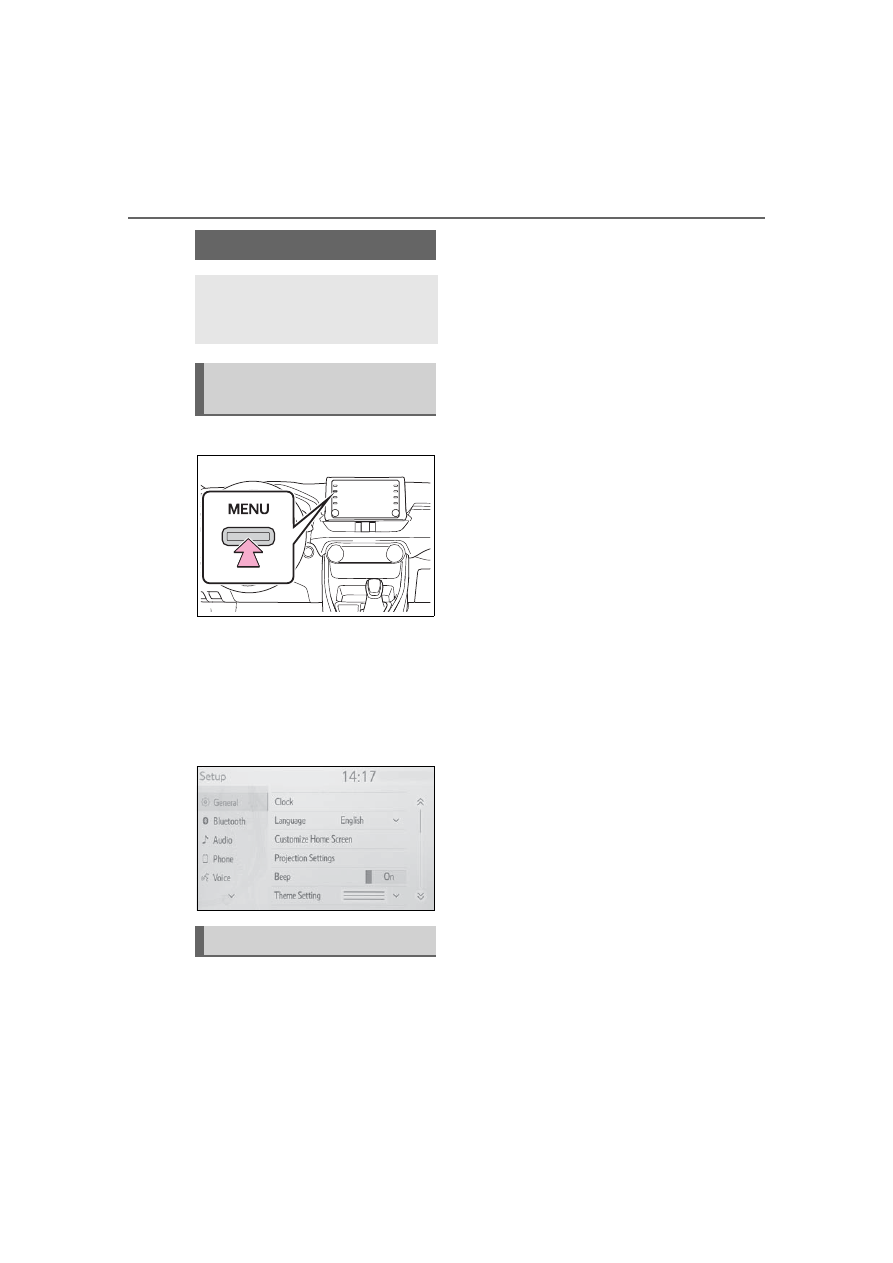

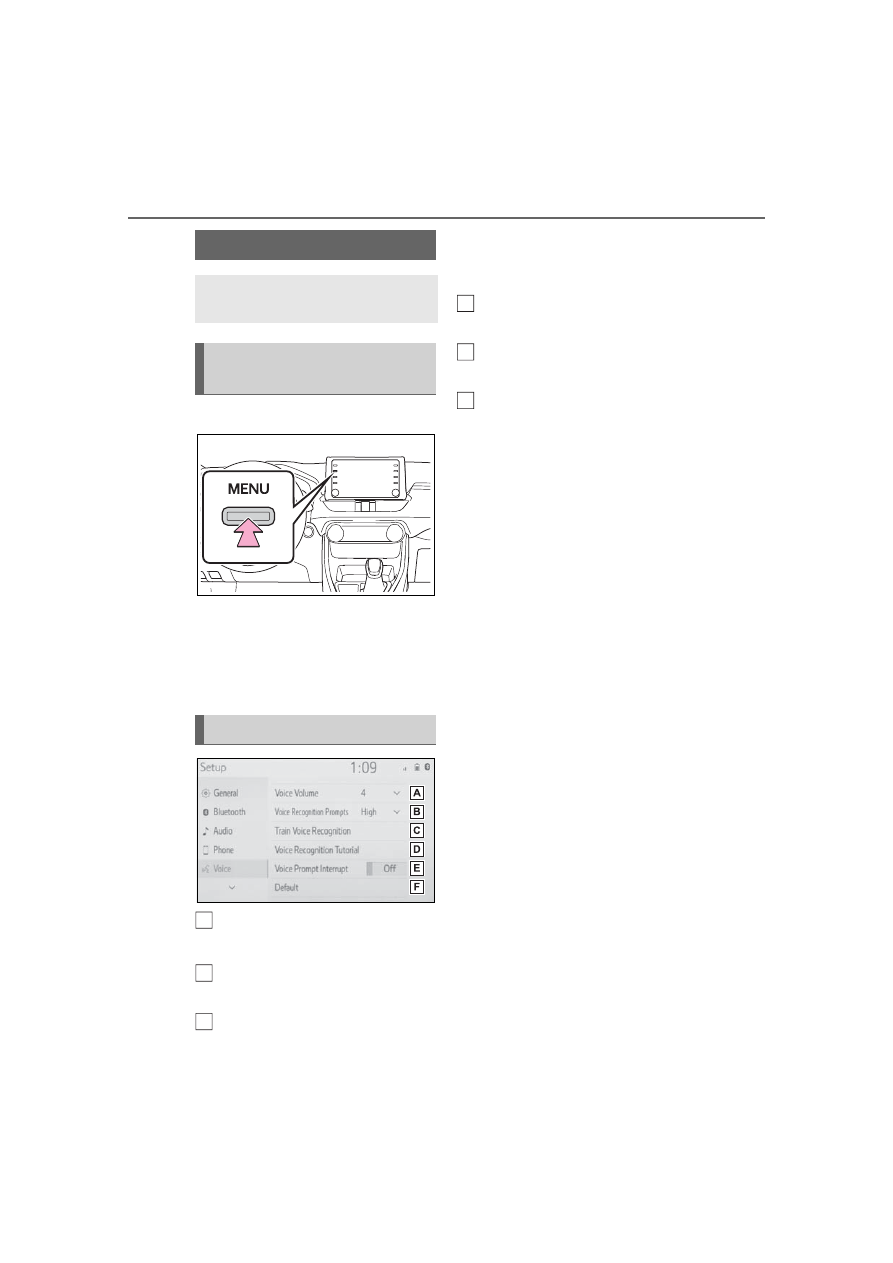

Press the “MENU” button.

Select “Setup”.



If the general settings screen
is not displayed, select “Gen-
eral”.

Select the desired items to
be set.



“Clock”

Select to change the time zone and
select “On” or “Off” for daylight sav-
ing time, automatic adjustment of

the clock, etc. (



P.411)



“Language”

Select to change the language. The
language setting of Apple Car-
Play/Android Auto can only be
changed on the connected device.



“Customize Home Screen”

Select to change the display infor-
mation/area on the home screen
and the home screen layout.
(



P.380)



“Projection Settings”

Select to set automatic Apple Car-
Play/Android Auto connection
establishment on/off. (



P.412)



“Beep”

Select to turn the beep sound
on/off.



“Theme Setting”

Select to change the screen theme
setting.



“Units of Measurement”

Select to change the unit of mea-
sure for distance/fuel consumption.



“Keyboard Layout”

Select to change the keyboard lay-
out.



“Delete Keyboard History”

Select to delete the keyboard his-
tory.



“Memorize Keyboard History”

Select to set the memorize key-
board history on/off.



“Animation”

Select to turn the animations on/off.



“Driver Setting”

General settings

Settings are available for
clock, operation sounds,
etc.

Displaying the general
settings screen

General settings screen

411

5-5. Other settings

Audio

Select to change the driver set-
tings. (



P.412)



“Delete Personal Data”

Select to delete personal data.
(



P.413)



“Software Update”

Select to update software versions.
For details, contact your Toyota
dealer.



“Software Update Setting”

Select to set software update set-
ting. (



P.413)



“Gracenote Database
Update”

Select to update Gracenote

data-

base versions. For details, contact
your Toyota dealer.



“Software Information”

Select to display the software infor-
mation. Notices related to third
party software used in this product
are enlisted. (This includes instruc-
tions for obtaining such software,
where applicable.)



“SW Sensitivity Level”

Select to change the capacitive
touch screen button sensitivity to 1
(low), 2 (medium), or 3 (high).

:This function is not made avail-

able in some countries or areas.

:Vehicles equipped with DCM

Display the general settings
screen. (



P.410)

Select “Clock”.

Select the desired items to
be set.

Select to change the time
zone. (



P.411)

Select to set daylight saving
time on/off.

Select to set automatic
adjustment of the clock by
GPS on/off.

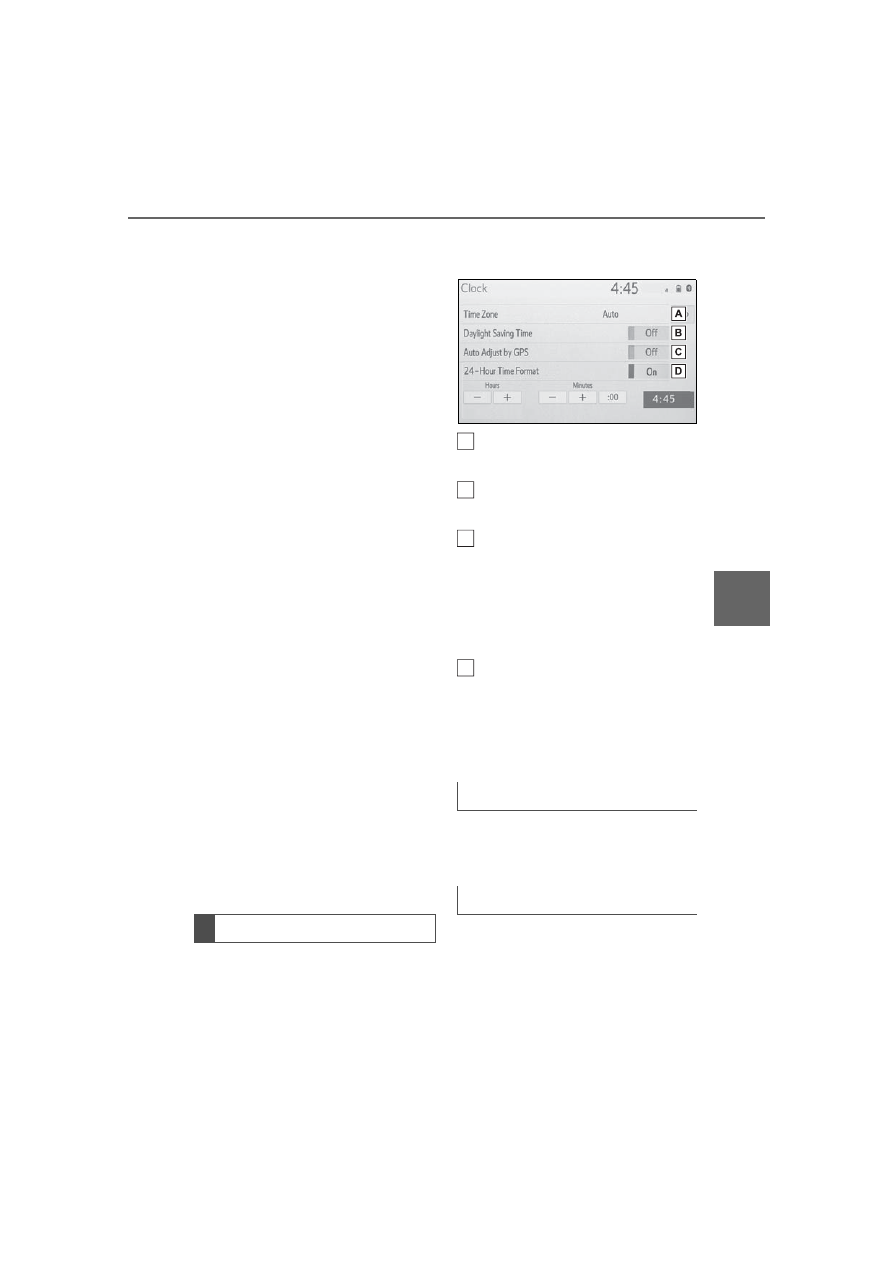

When set to off, the clock can
be manually adjusted.
(



P.411)

Select to set the 24 hour time
format on/off.
When set to off, the clock is
displayed in 12 hour time for-
mat.

Select “Time Zone”.

Select the desired time zone.

When “Auto Adjust by GPS” is
turned off, the clock can be
manually adjusted.

Select “Auto Adjust by GPS”
to set to off.

Clock settings

Setting the time zone

Manual clock setting

412

5-5. Other settings

Adjust the clock manually.

Select “+” to set the time for-
ward one hour and “-” to set
the time back one hour.

Select “+” to set the time for-
ward one minute and “-” to
set the time back one minute.

Select to round to the nearest
hour.
e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00

: This function is not made avail-

able in some countries or areas.

Display the general settings
screen. (



P.410)

Select “Projection Settings”.

Select the desired items to
be set.

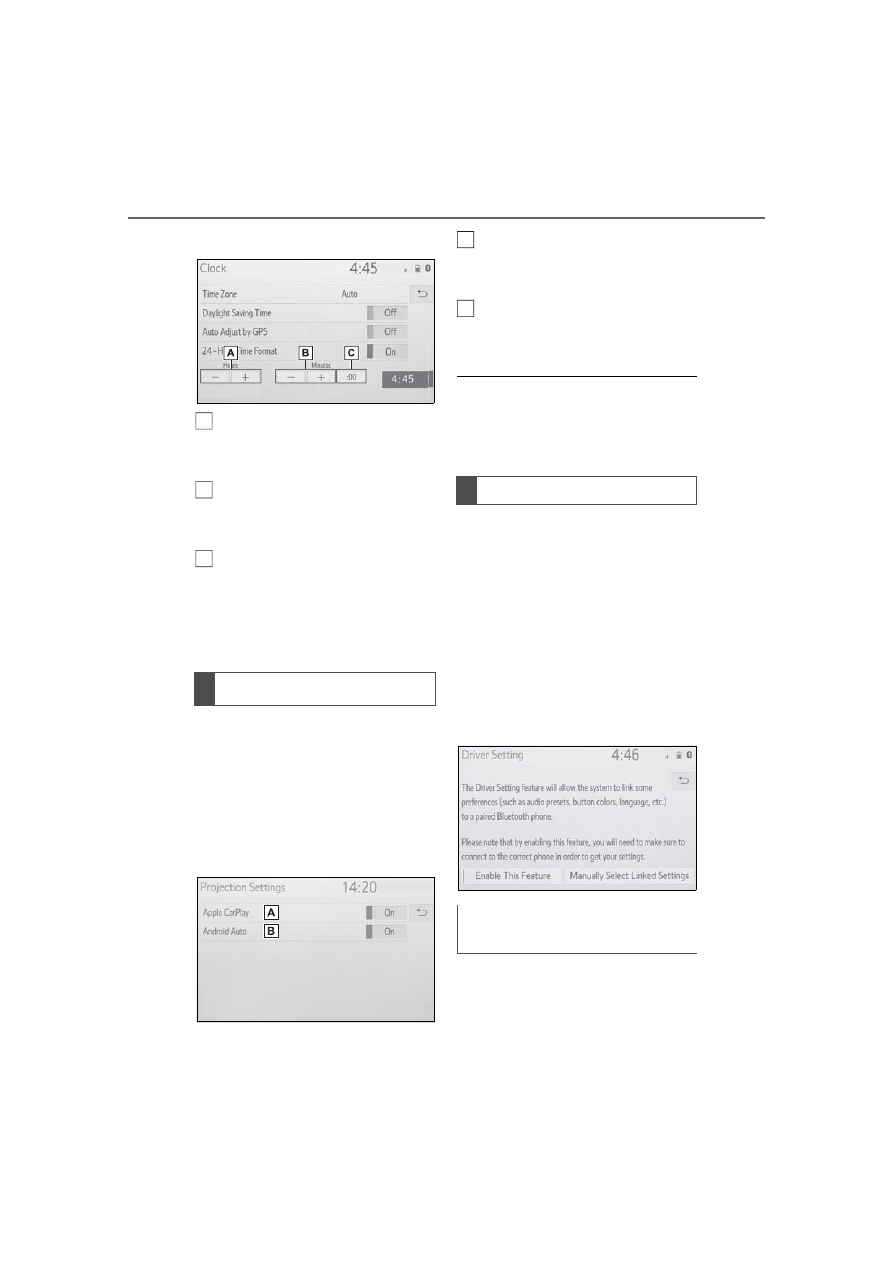

Select to turn Apple CarPlay
connection establishment
on/off.

Select to turn Android Auto
connection establishment
on/off.

●

When the settings are changed

with a device connected to the

system via USB, disconnect the

device and connect it again to

enable the settings.

The driver settings feature will
allow the system to link some
preferences (such as audio pre-
sets, screen theme, language,
etc.) to a paired Bluetooth

phone.

Display the general settings
screen. (



P.410)

Select “Driver Setting”.

Select “Enable This Feature”.

Select “Manually Select
Linked Settings”.

Projection settings

Driver settings

Manually select linked set-
tings

413

5-5. Other settings

Audio

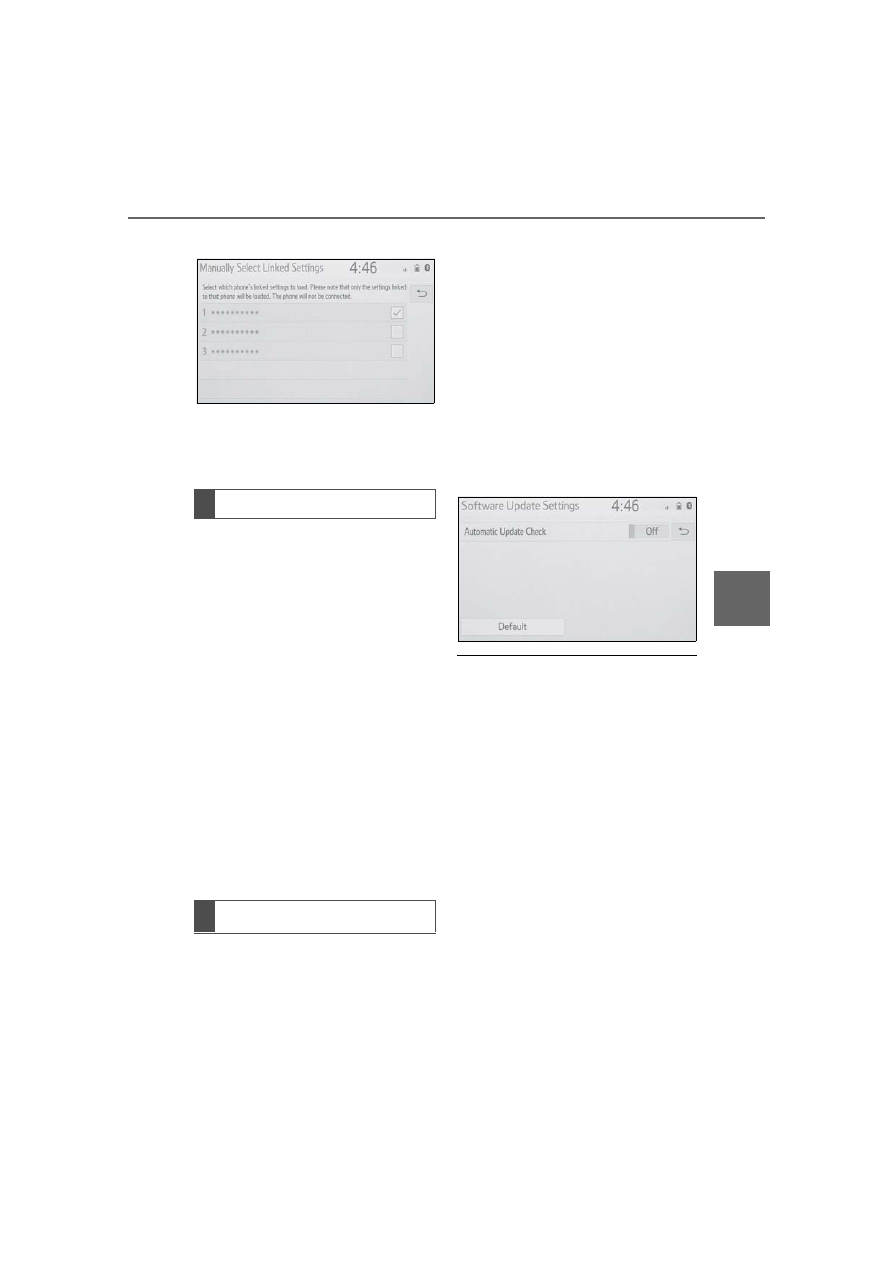

Select the desired phone.



After a few seconds, loaded
screen automatically switches
to the home screen.

Registered or changed per-
sonal settings will be deleted or
returned to their default condi-
tions.

Display the general settings
screen. (



P.410)

Select “Delete Personal
Data”.

Select “Delete”.

Select “Yes” when the confir-
mation screen appears.

Examples of settings that can be

returned to their default conditions:



Audio settings



Phone settings

etc.

: Vehicles equipped with DCM

only. This function is not made
available in some countries or
areas.

When the automatic update

check function is enabled, if a
software update is available
from the Cloud, a message will
be displayed.

Display the general settings
screen. (



P.410)

Select “Software Update Set-
ting”.

Select “Automatic Update
Check” to enable/disable the
automatic update check func-
tion.

●

When software update information

is displayed, contact your Toyota

dealer.

Deleting personal data

Software update settings

414

5-5. Other settings

Press the “MENU” button.

Select “Setup”.

Select “Voice”.

Select the desired items to
be set.

Select to adjust the volume of
voice guidance.

Select to set the voice recog-
nition prompts.

Select to train voice recogni-

tion.
The voice command system
adapts the user accent.

Select to start the voice rec-
ognition tutorial.

Select to set the voice
prompt interrupt on/off.

Select to reset all setup
items.

: When an Apple CarPlay/Android

Auto connection is established,
voice command system
(Siri/Google Assistant) and map
application voice guidance vol-
ume can be changed.

Voice settings

Voice volume, etc. can be
set.

Displaying the voice set-
tings screen

Voice settings screen

415

5-5. Other settings

Audio

Press the “MENU” button.

Select “Setup”.

Select “Vehicle”.

Select the desired items to
be set.

Select to set vehicle customi-
zation. (



P.684)

Select to set valet mode.
(



P.415)

The security system can be set
to on by entering a security code
(4-digit number).
When set to on, the system will
become inoperative once the
electrical power source is dis-
connected until the security
code is entered.

Display the vehicle settings
screen. (



P.415)

Select “Valet Mode”.

Enter the 4-digit personal
code and select “OK”.

Enter the same 4-digit per-
sonal code again and select
“OK”.



The system will request that
you input the security code
again to confirm that you
remember it correctly.



When valet mode activates,
the system stops and a secu-
rity code (4-digit number)
standby screen is displayed.

●

If the 4-digit personal code is for-
