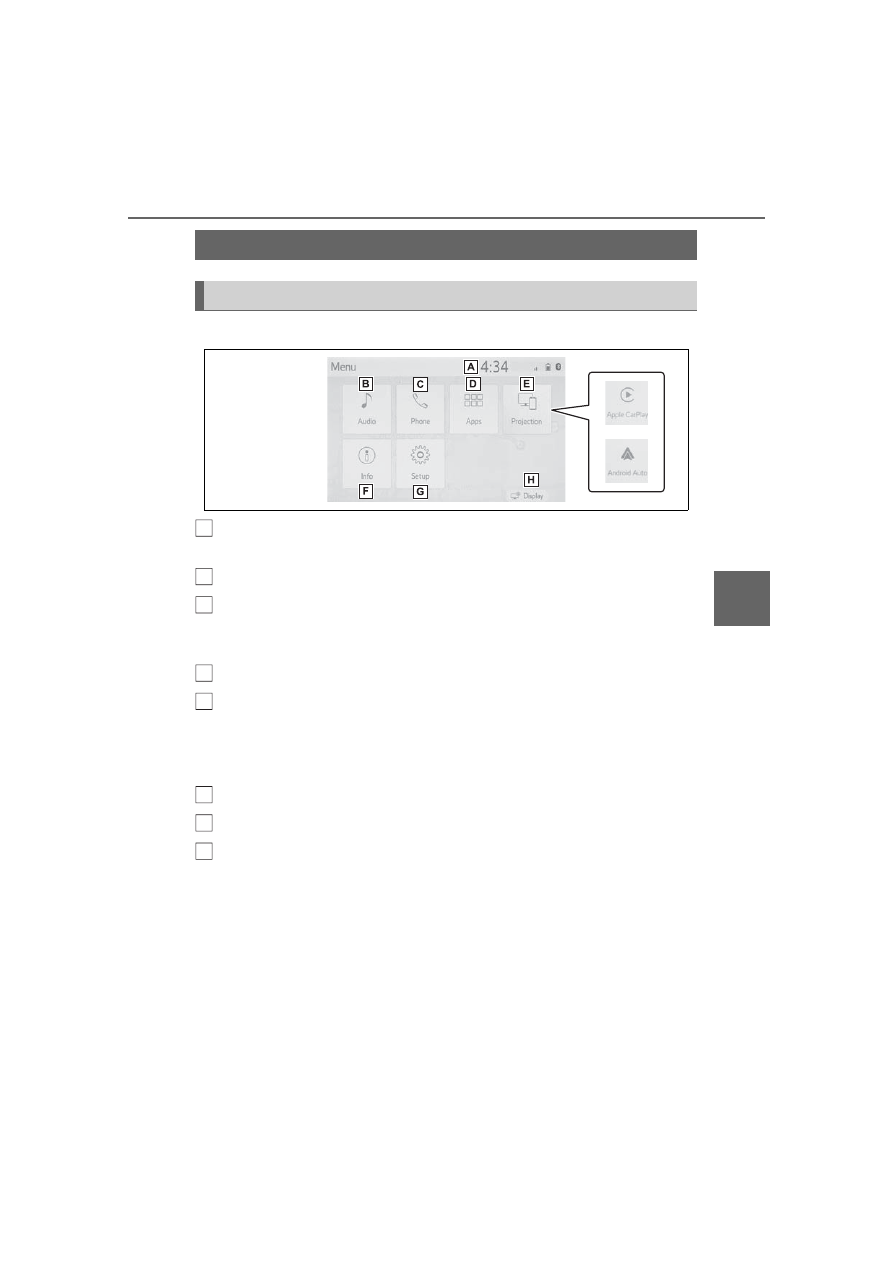

When an Apple CarPlay/Android Auto connection is established
and this button displays “Apple CarPlay”/“Android Auto”, select to
display the home screen of Apple CarPlay/Android Auto.

(



P.403)

Select to display the fuel consumption screen. (



P.99)

Select to display the “Setup” screen. (



P.376)

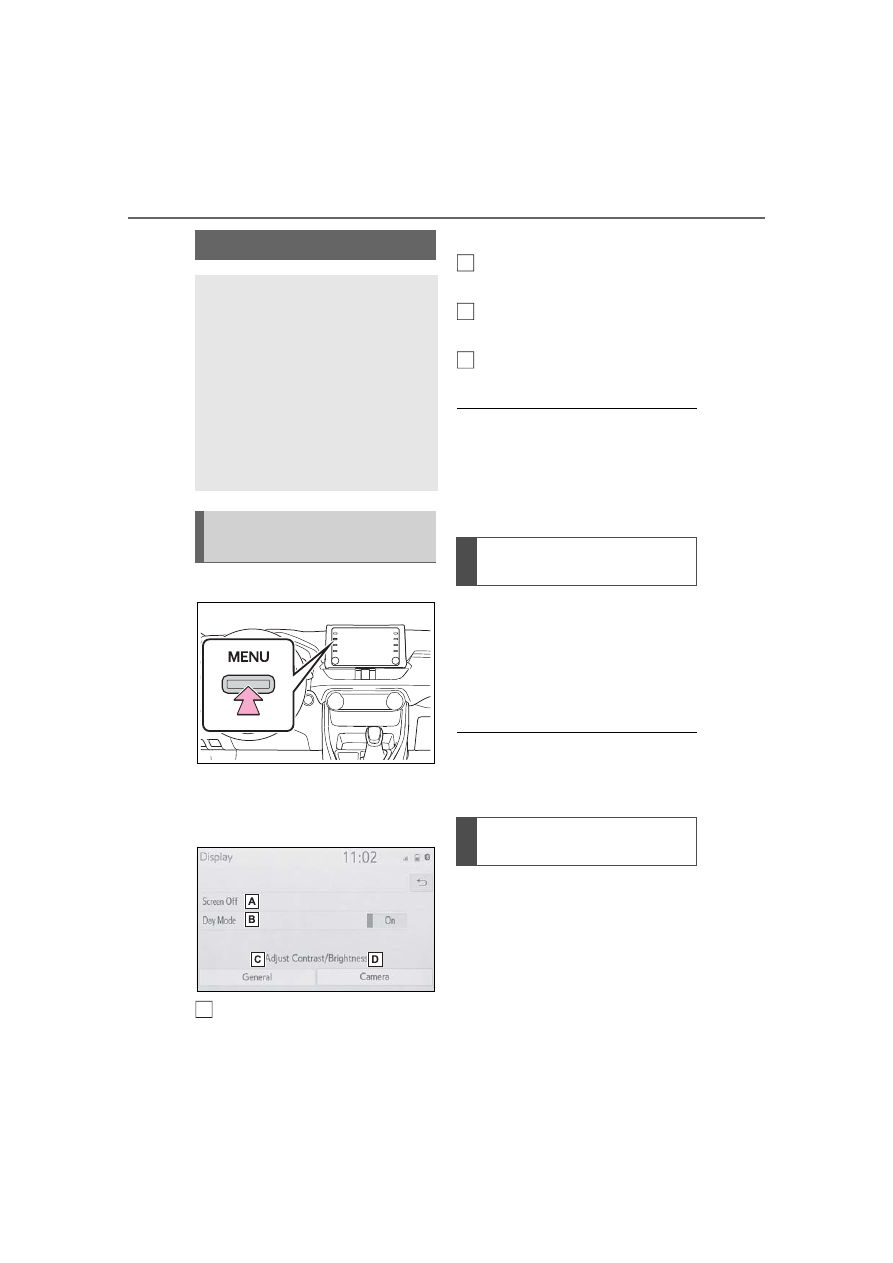

Select to adjust the contrast, brightness, etc. of the display.
(



P.384)

:This function is not made available in some countries or areas.

:When an Apple CarPlay/Android Auto connection is established, this

function will be unavailable.

Menu screen

Menu screen operation

374

5-1. Basic function

Indicate during data commu-
nication performed via Data
Communication Module
(DCM)

The reception level of Data
Communication Module
(DCM) display

(



P.374)

The reception level of the
connected phone display
(



P.374)

Remaining battery charge
display (



P.375)

Bluetooth

phone connection

condition display (



P.375)

Wi-Fi

connection condition

display

*1, 2

(



P.398)

:Vehicles equipped with DCM

:This function is not made avail-

able in some countries or areas.

●

The number of status icons that

can be displayed differs depend-

ing on the displayed screen.

The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,

is displayed.

“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth

phone you have.



While connected with cellular
phone

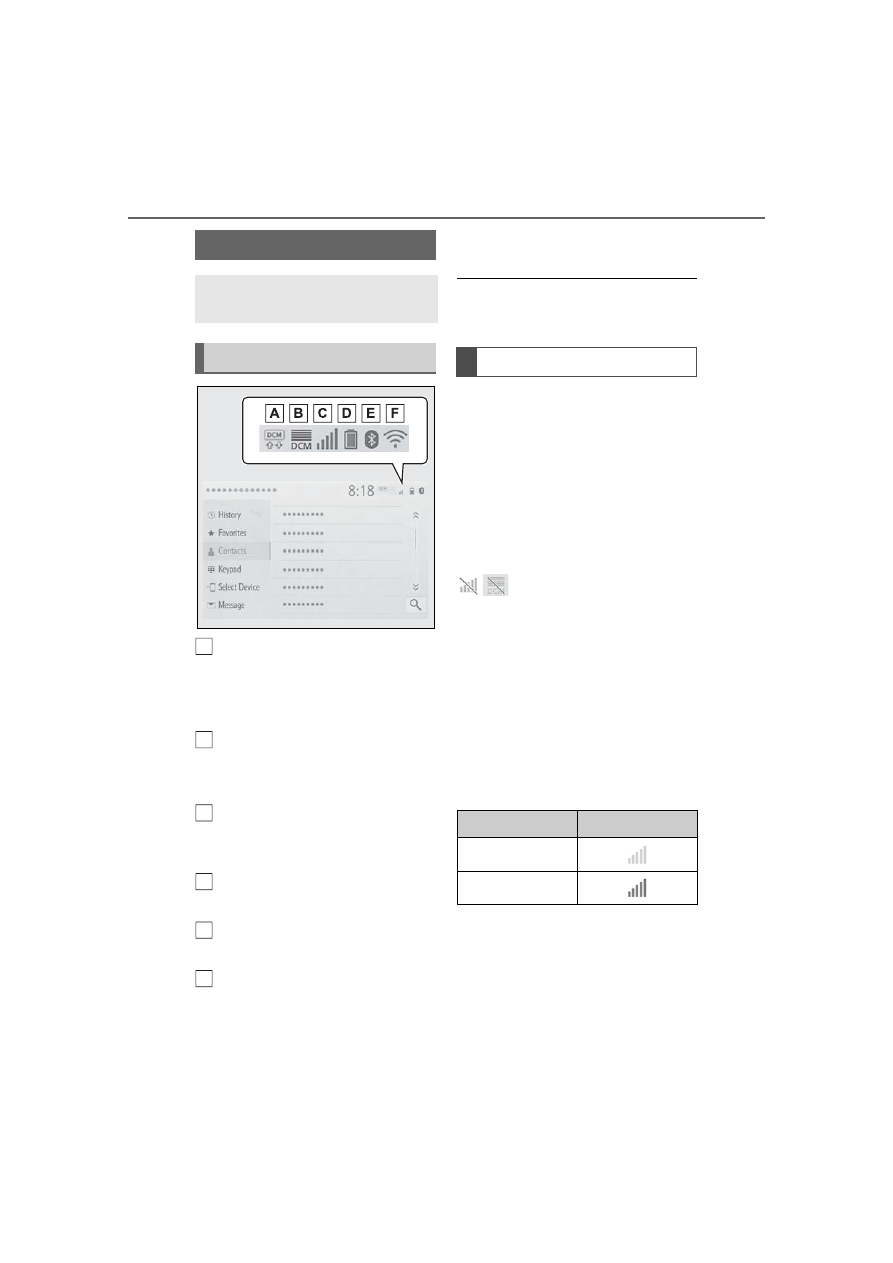

Status icon

Status icons are displayed
at the top of the screen.

Status icon explanation

Reception level display

Reception Level

Indicators

Poor

Excellent

375

5-1. Basic function

Audio



While using Data Communi-
cation Module (DCM)



While using Wi-Fi

Hotspot

●

When Wi-Fi

Hotspot is off, no

item is displayed.

The amount displayed does not
always correspond with the
amount displayed on the
Bluetooth

device.

The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth

device connected.

This system does not have a
charging function.

An antenna for the Bluetooth

connection is built into the
instrument panel.

The condition of the Bluetooth

connection may deteriorate and
the system may not function
when a Bluetooth

phone is

used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.

Leave the Bluetooth

phone in a

place where the condition of the
Bluetooth

connection is good.

Reception Level

Indicators

Poor

Excellent

Reception Level

Indicators

No connection

Connected

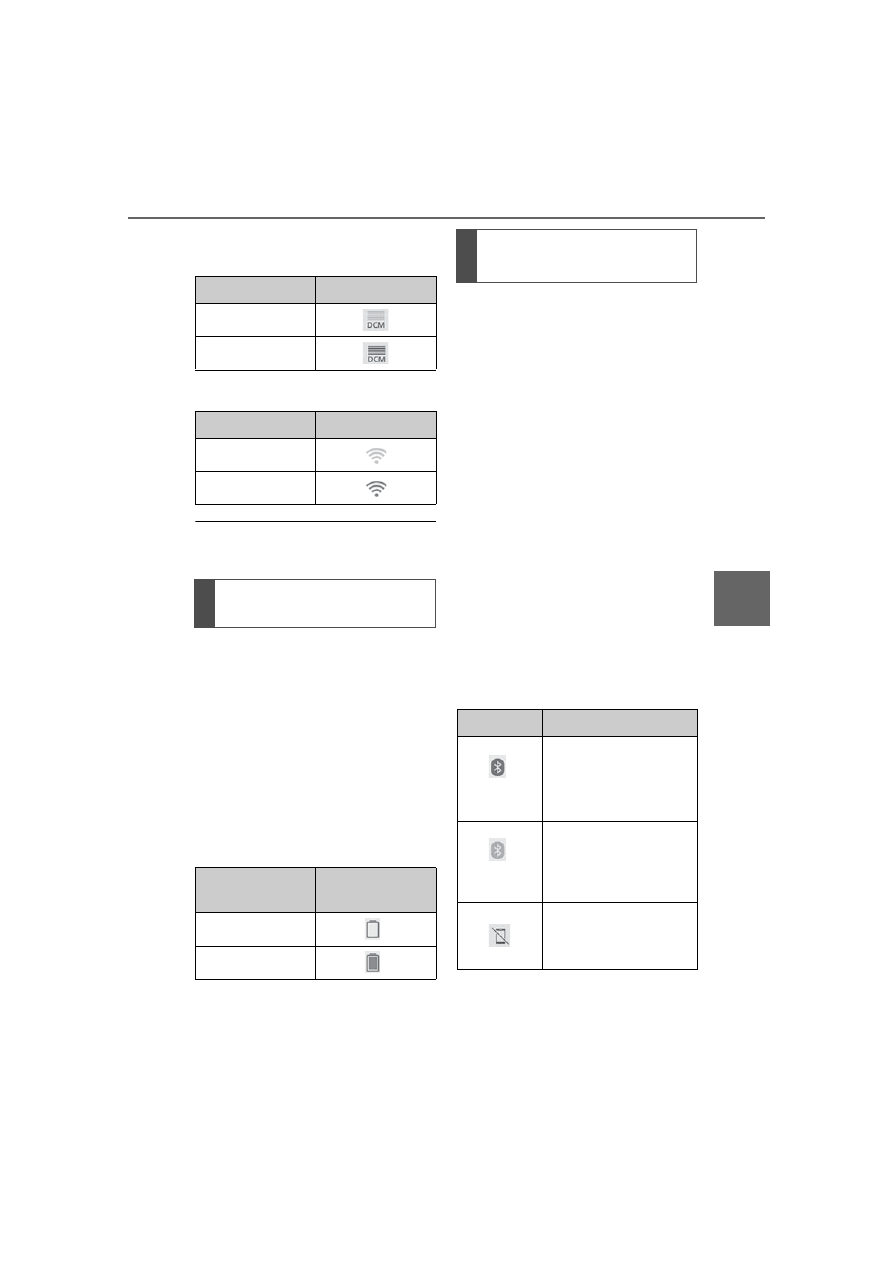

Remaining battery charge
display

Remaining

charge

Indicators

Empty

Full

Bluetooth

connection

condition display

Indicators

Conditions

(Blue)

Indicates that the con-
dition of the
Bluetooth

connection

is good.

(Gray)

While in this condition,
sound quality during
phone calls may dete-
riorate.

Indicates that the cel-
lular phone is not con-
nected via Bluetooth

376

5-1. Basic function

Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.

Select to change the selected
language, operation sound
settings, etc. (



P.410)

Select to set Bluetooth

device and Bluetooth

sys-

tem settings. (



P.390)

Select to set audio settings.
(



P.440)

Select to set the phone
sound, contacts, message
settings, etc. (



P.479)

Select to set the voice set-
tings. (



P.414)

Select to set vehicle informa-
tion. (



P.415)

Select to set Wi-Fi

connec-

tion settings.

*1, 2

(



P.399)

Select to set Toyota Apps
settings.

(



P.506)

:Vehicles equipped with DCM

:This function is not made avail-

able in some countries or areas.

“Setup” screen

377

5-2. Basic information before operation

5-2.Basic information before operation

After a few seconds, the caution
screen will be displayed.
After about 5 seconds or select-
ing “Continue”, the caution
screen automatically switches to
the next screen.

When system response is
extremely slow, the system can
be restarted.

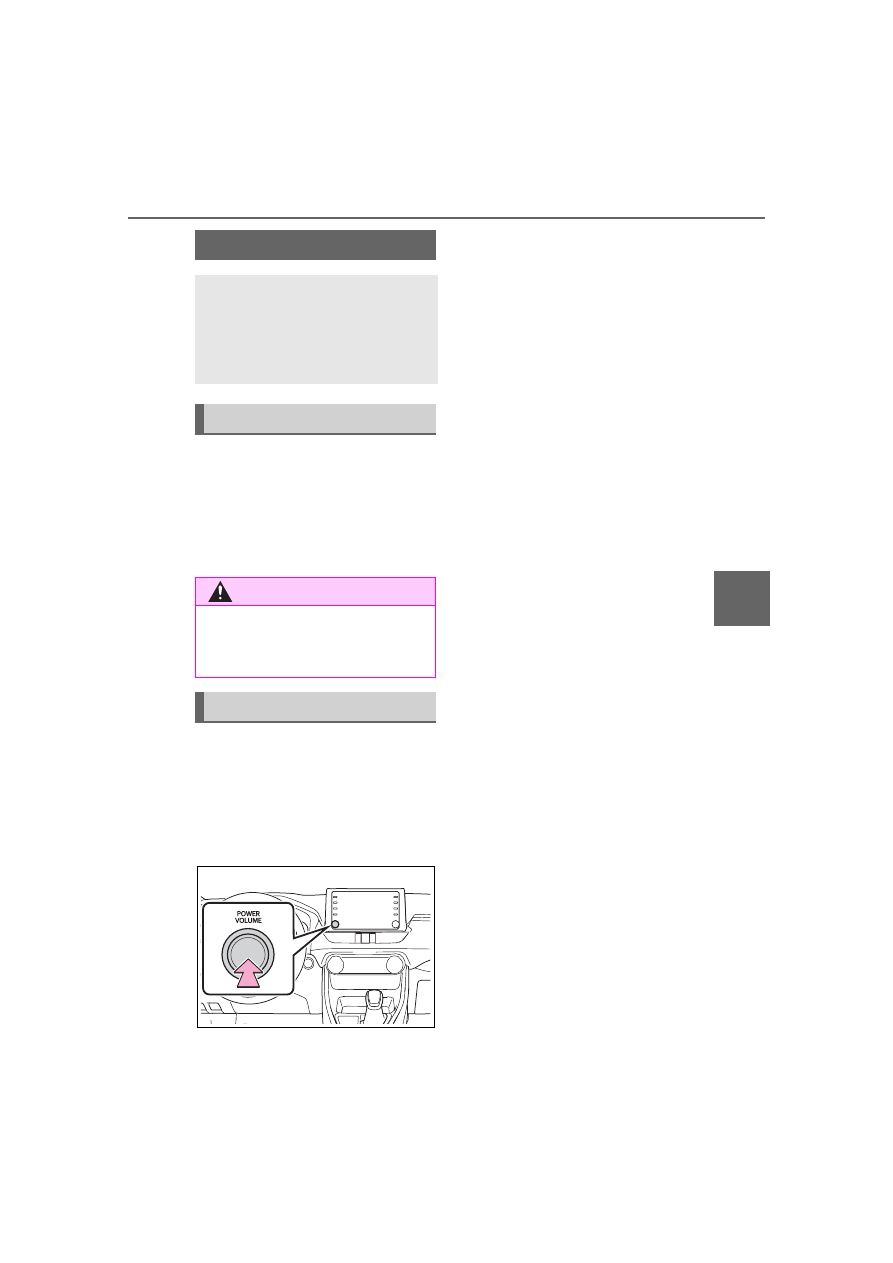

Press and hold the “POWER
VOLUME” knob for 3 sec-
onds or more.

Initial screen

When the engine switch is
turned to ACC or ON, the
initial screen will be dis-
played and the system will
begin operating.

Caution screen

WARNING

●

When the vehicle is stopped

with the engine running, always

apply the parking brake for

safety.

Restarting the system

378

5-2. Basic information before operation

Operations are performed by touching the touch screen directly with
your finger.

:The above operations may not be performed on all screens.

:The Apple CarPlay Maps application is not compatible with pinch multi-

touch gestures.

Touch screen

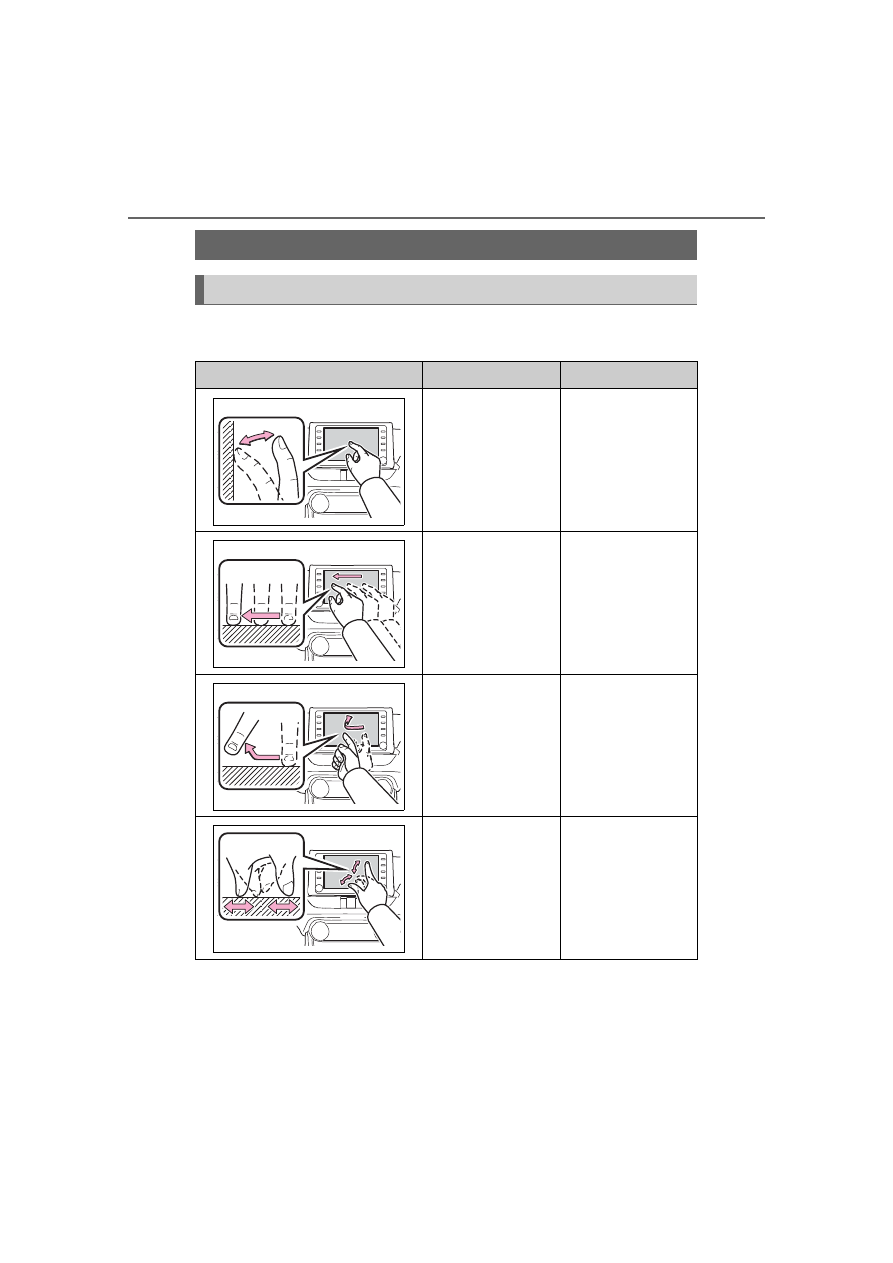

Touch screen gestures

Operation method

Outline

Main use



Touch

Quickly touch and
release once.



Selecting an item
on the screen



Drag

Touch the screen
with your finger,
and move the
screen to the
desired position.



Scrolling the lists



Flick

Quickly move the
screen by flicking
with your finger.



Scrolling the main
screen page



Pinch in/Pinch
out

Slide fingers toward
each other or apart
on the screen.



Changing the
scale of the
map

379

5-2. Basic information before operation

●

Flick operations may not be performed smoothly at high altitudes.

●

If the system does not respond to

touching a screen button, move

your finger away from the screen

and then touch it again.

●

Dimmed screen buttons cannot be

operated.

●

The displayed image may become

darker and moving images may

be slightly distorted when the

screen is cold.

●

In extremely cold conditions, the

screen may not be displayed and

the data input by a user may be

deleted. Also, the screen buttons

may be harder than usual to

depress.

●

When you look at the screen

through polarized material such as

polarized sunglasses, the screen

may be dark and hard to see. If

so, look at the screen from differ-

ent angles, adjust the screen set-

tings on the display settings

screen or take off your sun-

glasses.

●

When

is displayed on the

screen, select

to return to the

previous screen.

The operable areas of the
capacitive touch screen buttons
use capacitive touch sensors
and may not operate properly in
the following situations:



If the screen is dirty or wet



If a source of strong electro-
magnetic waves is brought
near the screen



If a glove is worn during oper-
ation



If the screen is touched by a
fingernail



If a stylus is used to operate
the buttons



If your palm touches the oper-
able area of another button
during operation



If a button is touched quickly



If the operable part of a
capacitive touch screen but-
ton is touched by or covered

Touch screen operation

This system is operated
mainly by the buttons on
the screen. (Referred to as
screen buttons in this man-
ual.)
When a screen button is
touched, a beep sounds. (To
set the beep sound:



P.410)

NOTICE

●

To prevent damaging the

screen, lightly touch the screen

buttons with your finger.

●

Do not use objects other than

your finger to touch the screen.

●

Wipe off fingerprints using a

glass cleaning cloth. Do not use

chemical cleaners to clean the

screen, as they may damage

the touch screen.

Capacitive touch screen
buttons

380

5-2. Basic information before operation

with a metal object, such as
the following, it may not oper-
ate properly:

• Magnetic isolation cards
• Metallic foil, such as the inner

packaging of a cigarette box

• Metallic wallets or bags
• Coins
• Discs, such as a CD or DVD



If the operable part of a
capacitive touch screen but-
ton is wiped, it may operate
unintentionally.



If the capacitive touch screen
button is being touched when
the engine switch is changed
to ACC or ON, the button may
not operate properly. In this
case, remove anything touch-
ing the button, turn the engine
switch to OFF and then turn it
to ACC or ON, or restart the
system by press and hold the
“POWER VOLUME” knob for
3 seconds or more.

●

Capacitive touch screen button

sensor sensitivity can be adjusted.

(



P.410)

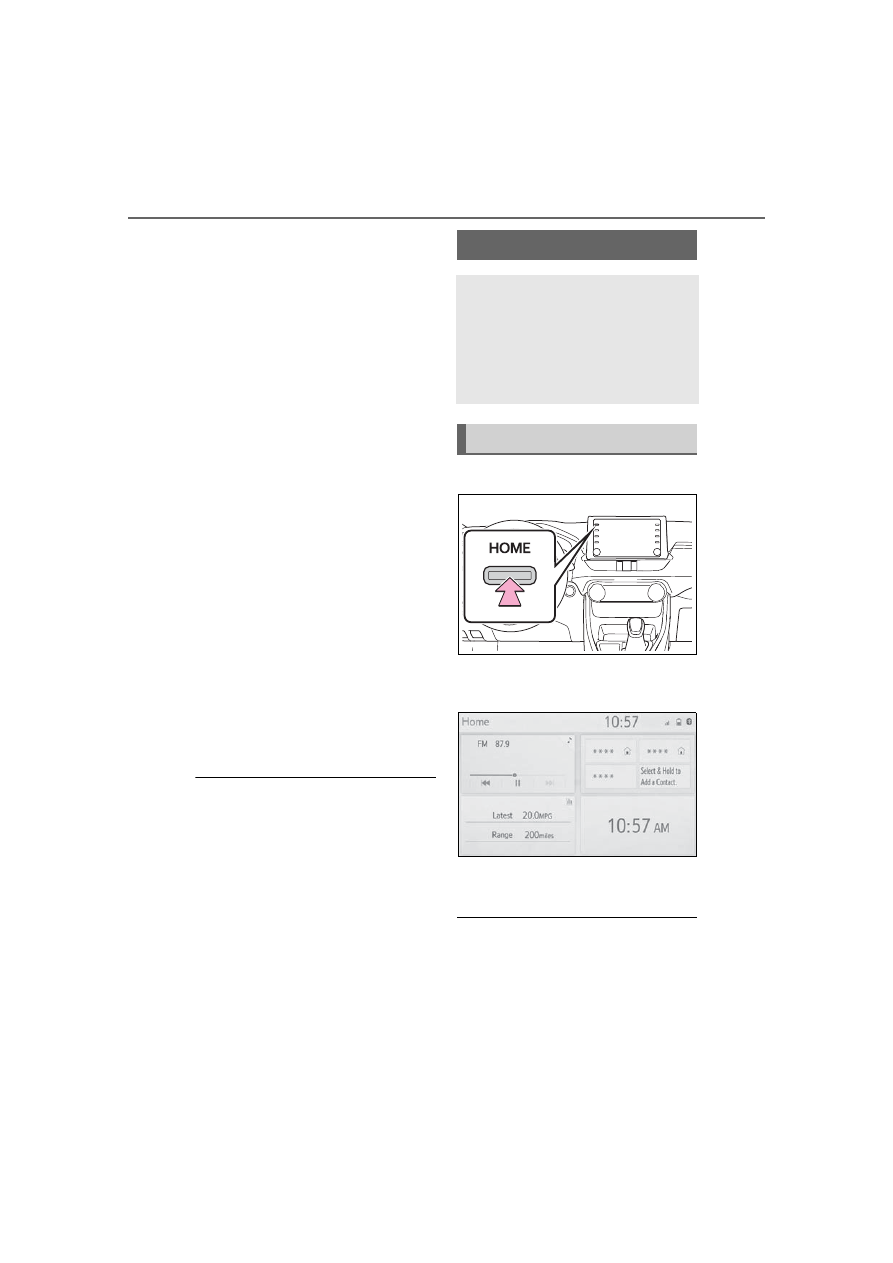

Press the “HOME” button.

Check that the home screen
is displayed.



Selecting a screen will display
it full screen.

●

The display information and area

on the home screen can be cus-

tomized.

●

The home screen can be set to

several types of split layouts

Home screen

On the home screen, multi-
ple screens, such as the
audio/visual system screen,
hands-free screen and clock
screen, can be displayed
simultaneously.

Home screen operation

381

5-2. Basic information before operation

Audio

The display information/area on
the home screen and the home
screen layout can be changed.

Press the “MENU” button.

Select “Setup”.



If the general settings screen
is not displayed, select “Gen-
eral”.

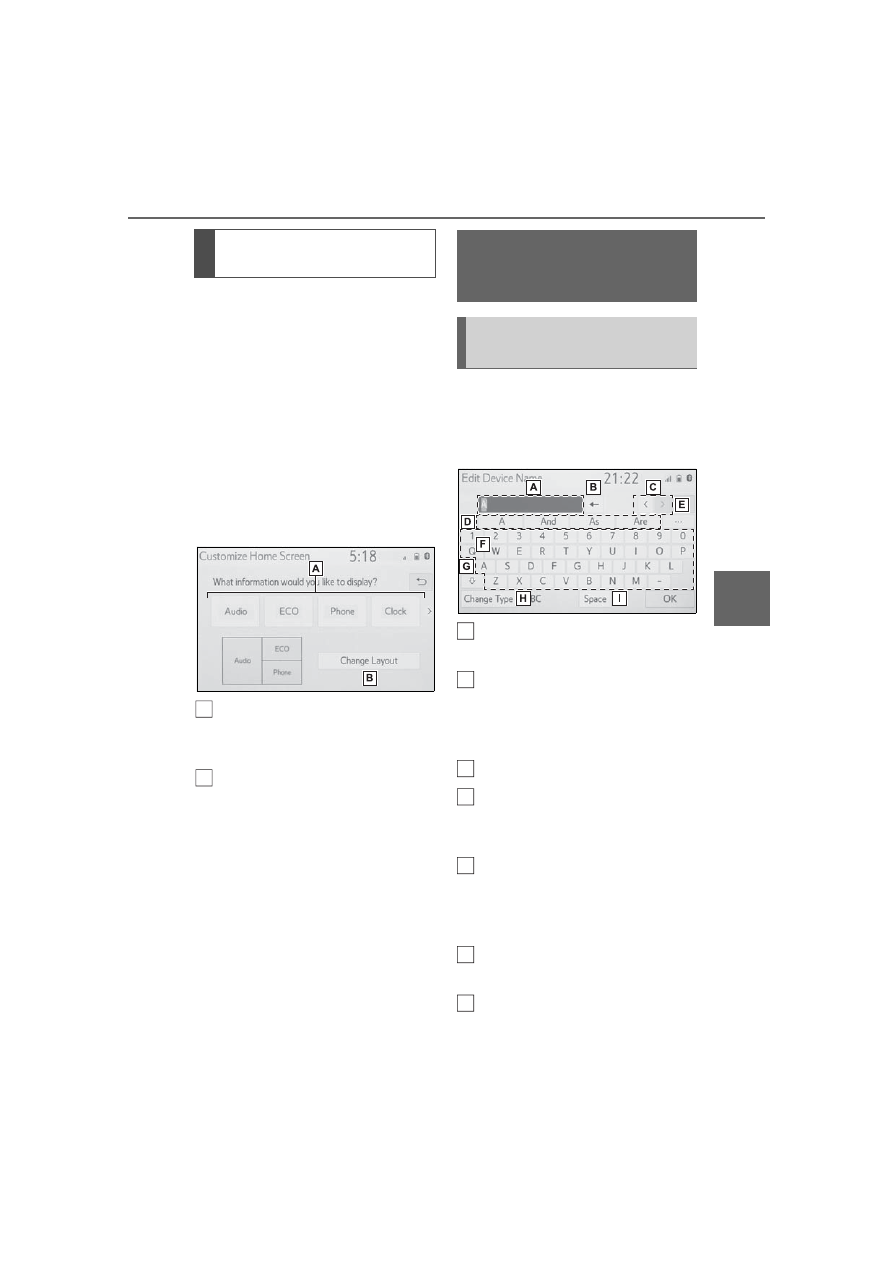

Select “Customize Home
Screen”.

Select the items to be set.

Select to change the display
information and area on the
home screen.

Select to change the home
screen layout.

When searching by a name or
entering data, letters and num-
bers can be entered via the
screen.

Text field. Entered charac-
ter(s) will be displayed.

Select to erase one charac-
ter.
Select and hold to continue
erasing characters.

Select to move the cursor.

Select to choose predictive
text candidate for entered
text. (



P.382)

Select to display a list of pre-
dictive text candidates when
there is more than one.
(



P.382)

Select to enter desired char-
acters.

Select to enter characters in
lower case or in upper case.

Customizing the home
screen

Entering letters and

numbers/list screen

operation

Entering letters and num-
bers

382

5-2. Basic information before operation

Select to change character
types. (



P.382)

Select to make a space on
cursor.

●

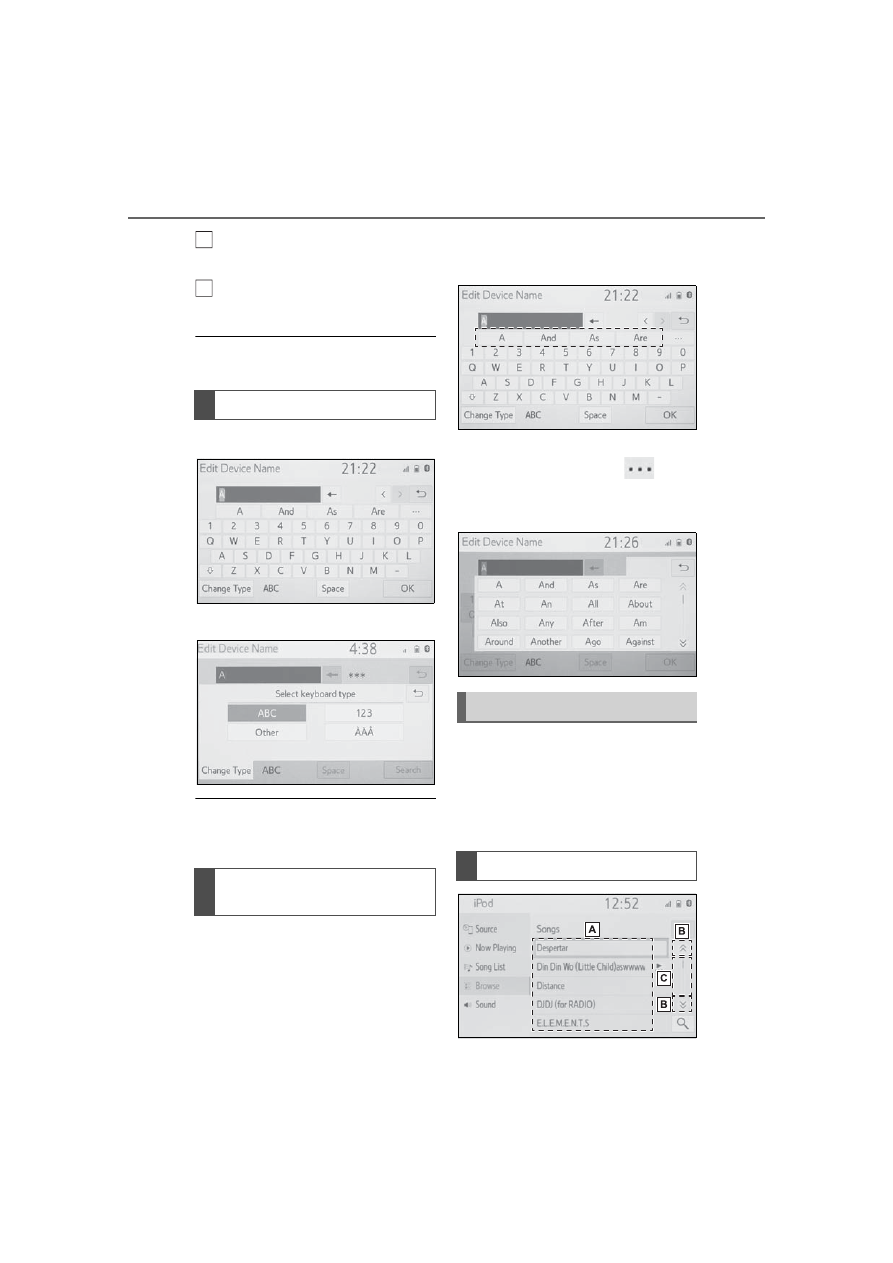

Keyboard layout can be changed.

(



P.410)

Select “Change Type”.

Select the desired character.

●

Depending on the screen being

displayed, it may not be possible

to change keyboard characters.

When text is input, the system
predicts the text that may com-
plete the currently unconfirmed
text and displays predictive
replacement candidates that
match the beginning of the text.

Input text.

Select the desired candidate.



To select a candidate that is
not displayed, select

, and

then select the desired predic-
tive replacement candidate.

The list screen may be dis-
played after entering characters.
When a list is displayed, use the
appropriate screen button to
scroll through the list.

Changing character type

Displaying predictive text
candidates

List screen

Scrolling list screen

383

5-2. Basic information before operation

Audio

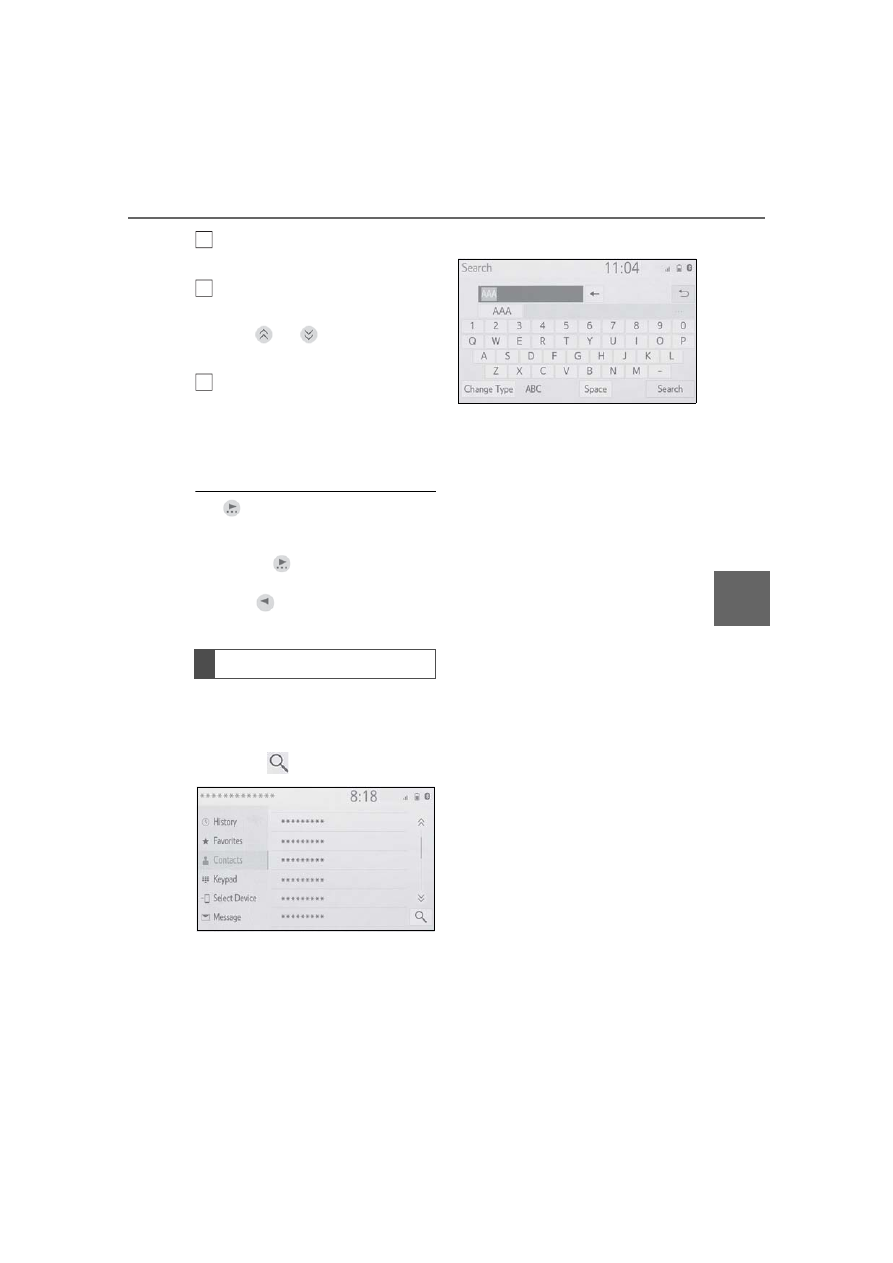

To scroll up/down the list,
flick the list up/down.

Select to skip to the next or
previous page. Select and
hold

to scroll

through the displayed list.

Indicates the position of the
displayed entries in the entire
list.
To scroll up/down pages,
drag the bar.

●

appears to the right of an

item name, the complete name is

too long to display.

• Select to

scroll to the end of

the name.

• Select

to move to the begin-

ning of the name.

Items are displayed in the list
with the most similar results of
the search at the top.

Select

Input text.

Select “Search”.

The list is displayed.

Searching a list

384

5-2. Basic information before operation

Press the “MENU” button.

Select “Display”.

Select the desired items to
be set.

Select to turn the screen off.
To turn it on, press any but-

ton.

Select to turn day mode
on/off. (



P.384)

Select to adjust the screen
display. (



P.384)

Select to adjust the camera
display.

●

When the screen is viewed

through polarized sunglasses, a

rainbow pattern may appear on

the screen due to optical charac-

teristics of the screen. If this is dis-

turbing, please operate the screen

without polarized sunglasses.

Depending on the position of the
headlight switch, the screen
changes to day or night mode.
This feature is available when
the headlight is switched on.

Select “Day Mode”.

●

If the screen is set to day mode

with the headlight switch turned

on, this condition is memorized

even with the engine turned off.

The contrast and brightness of
the screen can be adjusted
according to the brightness of
your surroundings.

Select “General” or “Cam-
era”.

Select the desired item.

Screen adjustment

The contrast and brightness
of the screen display and
the image of the camera dis-
play can be adjusted. The
screen can also be turned
off, and/or changed to either
day or night mode.
(For information regarding
audio/visual screen adjust-
ment:



P.419)

Displaying the screen
adjustment screen

Changing between day
and night mode

Adjusting the con-
trast/brightness

Content .. 21 22 23 24 ..
