5-2. Basic information before operation

Audio



“Display (General)” screen
only: Select “<” or “>” to select
the desired display.

• “Contrast”
“+”: Select to strengthen the con-
trast of the screen.
“-”: Select to weaken the contrast of
the screen.
• “Brightness”
“+”: Select to brighten the screen.
“-”: Select to darken the screen.

Linking multi-informa-

tion display and the

system

The following functions of
the system are linked with
the multi-information dis-
play in the instrument clus-
ter:



Audio



Phone

etc.
These functions can be
operated using meter con-
trol switches on the steering
wheel. (



P.89)

: When an Apple CarPlay con-

nection is established, this
function will be unavailable.

386

5-3. Connectivity settings

5-3.Connectivity settings

■

Registering from the sys-
tem

Turn the Bluetooth

connec-

tion setting of your cellular
phone on.



This function is not available
when Bluetooth

connection

setting of your cellular phone
is set to off.

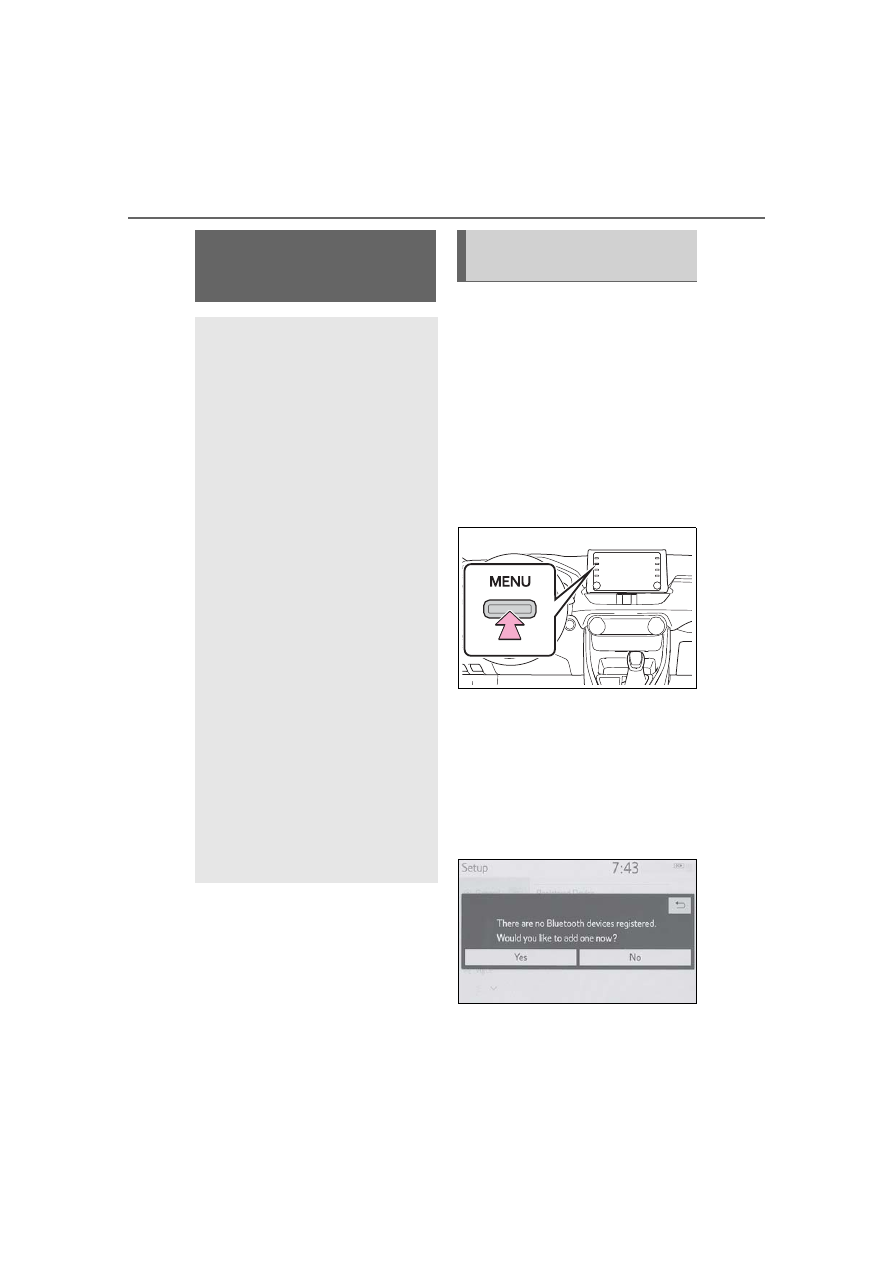

Press the “MENU” button.

Select “Phone”.



Operations up to this point
can also be performed by
pressing the “PHONE” button
on the instrument panel.

Select “Yes” to register a
phone.

Registering/Connect-

ing a Bluetooth

device

To use the hands-free sys-
tem, it is necessary to regis-
ter a Bluetooth

phone with

the system.
Once the phone has been
registered, it is possible to
use the hands-free system.
This operation cannot be
performed while driving.
When an Apple CarPlay
connection is established,
Bluetooth

functions of the

system will become unavail-
able and any connected
Bluetooth

devices will be

disconnected.
When connecting to
Android Auto, a Bluetooth

connection will be made
automatically.
When an Android Auto con-
nection is established,
some Bluetooth

functions

other than hands-free sys-
tem cannot be used.

Registering a Bluetooth

phone for the first time

387

5-3. Connectivity settings

Audio

Select the desired Bluetooth

device.



If the desired Bluetooth

phone is not on the list, select
“If you cannot find...” and fol-
low the guidance on the
screen. (



P.388)

device using your Bluetooth

device.



For details about operating
the Bluetooth

device, see

the manual that comes with it.



A PIN code is not required for
SSP (Secure Simple Pairing)
compatible Bluetooth

devices. Depending on the
type of Bluetooth

device

being connected, a message
confirming registration may
be displayed on the
Bluetooth

device’s screen.

Respond and operate the
Bluetooth

device according

to the confirmation message.

Check that the following
screen is displayed, indicat-
ing pairing was successful (a
Bluetooth

link has been

established but registration is
not yet complete).



The system is connecting to
the registered device.



At this stage, the Bluetooth

functions are not yet avail-
able.

Check that “Connected” is
displayed and registration is
complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

If a cellular phone does not oper-

ate properly after being con-

388

5-3. Connectivity settings

nected, turn the cellular phone off

and on and then connect it again.

■

Registering from phone

Select “If you cannot find...”.

Select “Register from
Phone”.

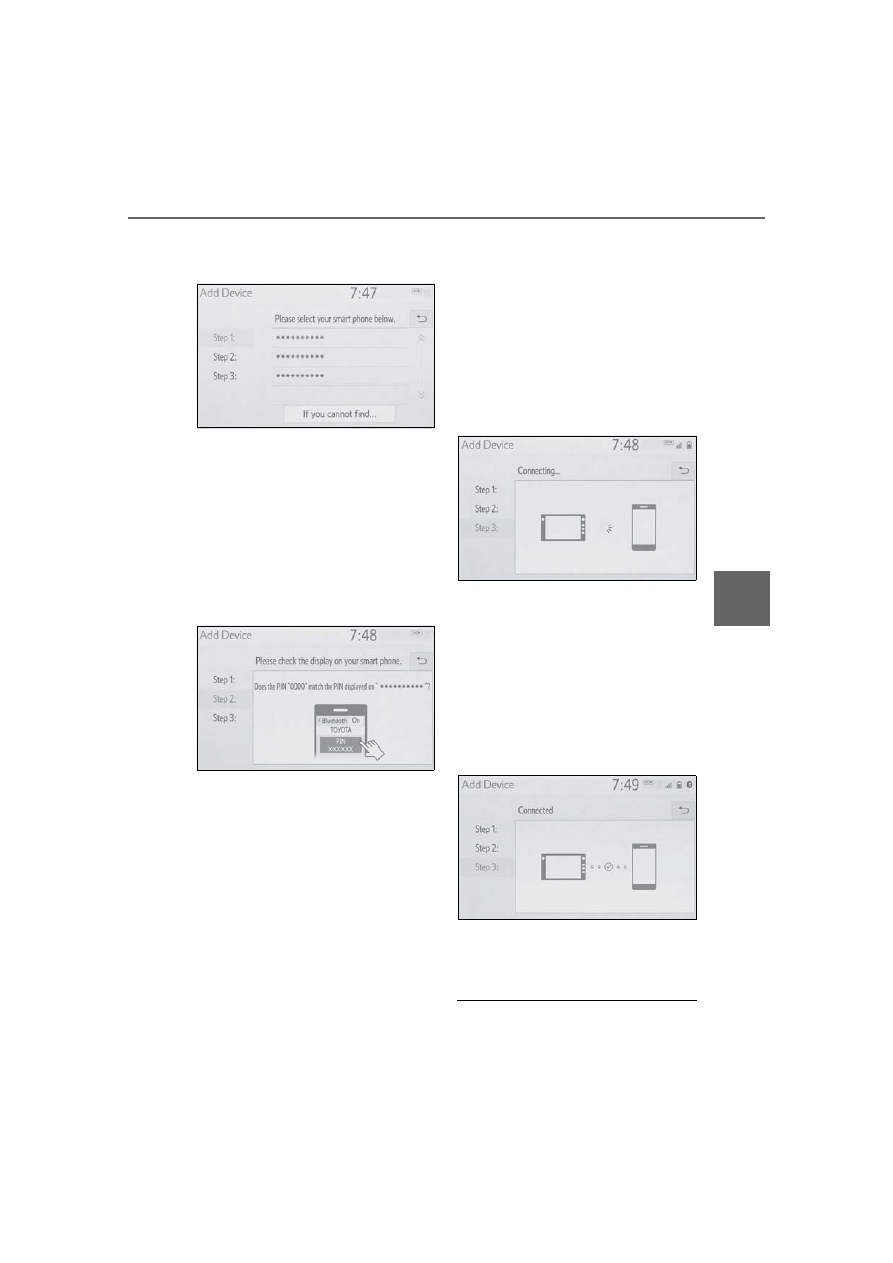

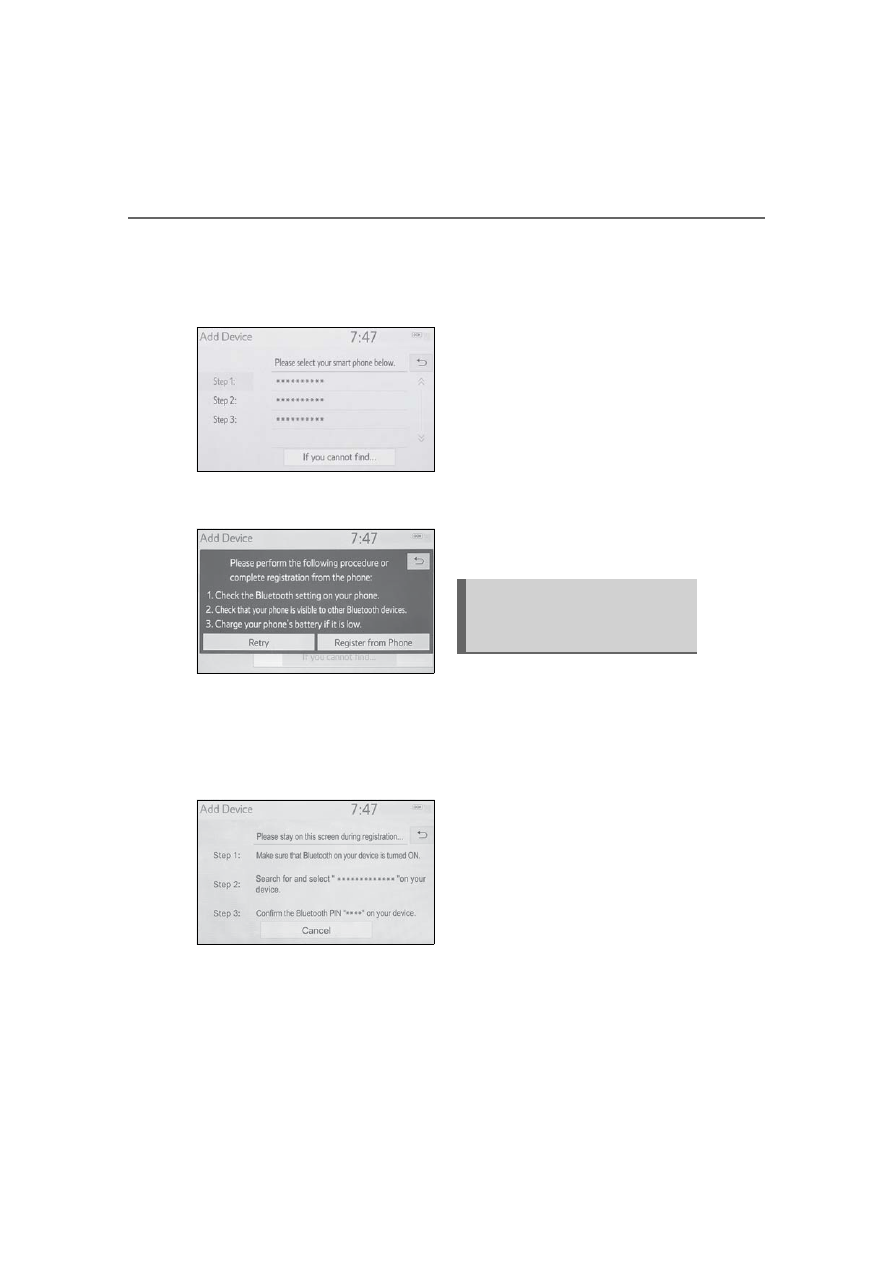

Check that the following
screen is displayed, and reg-
ister the Bluetooth

device

using your Bluetooth

device.



For details about operating
the Bluetooth

device, see

the manual that comes with it.



A PIN code is not required for

SSP (Secure Simple Pairing)
compatible Bluetooth

devices. Depending on the
type of Bluetooth

device

being connected, a message
confirming registration may
be displayed on the
Bluetooth

device’s screen.

Respond and operate the
Bluetooth

device according

to the confirmation message.

Follow the steps in “Register-
ing a Bluetooth

phone for

the first time” from step

(



P.386)

To use the Bluetooth

audio, it

is necessary to register an audio
player with the system.
Once the player has been regis-
tered, it is possible to use the
Bluetooth

audio.

This operation cannot be per-
formed while driving.
For details about registering a
Bluetooth

device:



P.393

Turn the Bluetooth

connec-

tion setting of your audio
player on.



This function is not available
when the Bluetooth

connec-

tion setting of your audio

Registering a Bluetooth

audio player for the first
time

389

5-3. Connectivity settings

Audio

player is set to off.

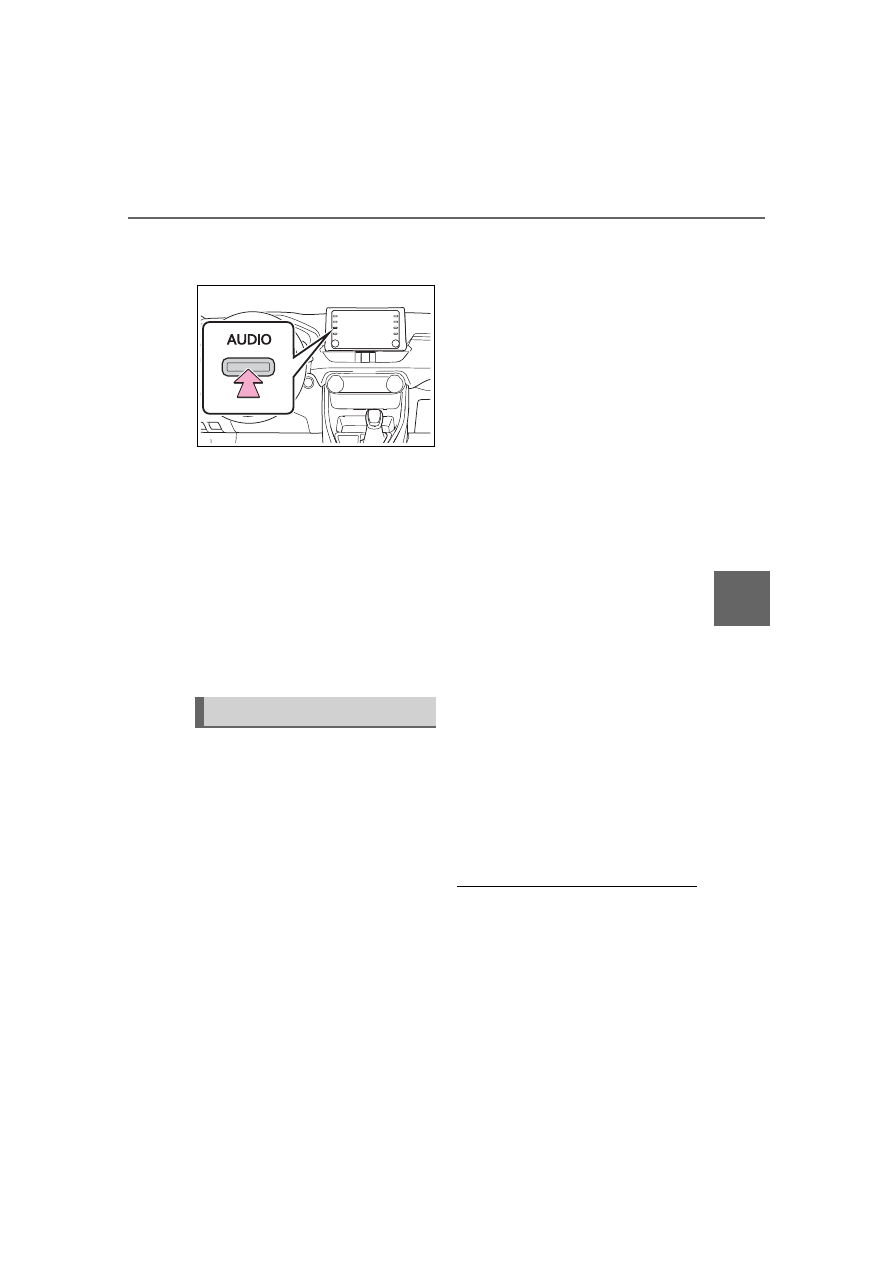

Press the “AUDIO” button.

Select “Source” on the audio
screen or press “AUDIO” but-
ton again.

Select “Bluetooth”.

Select “Yes” to register an
audio player.

Follow the steps in “Register-
ing a Bluetooth

phone for

the first time” from step

(



P.386)

This system supports the follow-
ing services.

■

Bluetooth

Core Specifica-

tion



Ver. 2.0 or higher (Recom-
mended: Ver. 4.2 or higher)

■

Profiles



HFP (Hands Free Profile) Ver.
1.0 (Recommended: Ver. 1.7)

• This is a profile to allow hands-

free phone calls using a cellular
phone. It has outgoing and
incoming call functions.



OPP (Object Push Profile)
Ver. 1.1 (Recommended: Ver.
1.2)

• This is a profile to transfer con-

tacts data.



PBAP (Phone Book Access
Profile) Ver. 1.0 (Recom-
mended: Ver. 1.2)

• This is a profile to transfer phone-

book data.



MAP (Message Access Pro-
file) Ver. 1.0 (Recommended:
Ver. 1.2)

• This is a profile to use phone

message functions.



SPP (Serial Port Profile) Rec-
ommended: Ver. 1.2

• This is a profile to use the Toyota

audio multimedia function.



A2DP (Advanced Audio Dis-
tribution Profile) Ver. 1.0
(Recommended: Ver. 1.3)

• This is a profile to transmit stereo

audio or high quality sound to the
audio/visual system.



AVRCP (Audio/Video Remote
Control Profile) Ver. 1.0 (Rec-
ommended: Ver. 1.6)

• This is a profile to allow remote

control the A/V equipment.

●

This system is not guaranteed to
operate with all Bluetooth

devices.

●

If your cellular phone does not

support HFP, registering the
Bluetooth

phone or using OPP,

PBAP, MAP or SPP profiles indi-

vidually will not be possible.

Profiles

390

5-3. Connectivity settings

●

If the connected Bluetooth

device version is older than rec-

ommended or incompatible, the
Bluetooth

device function may

not work properly.

●

Refer to http://www.toyota.com/

audio-multimedia in the United

States,

http://www.toyota.ca/connected in

Canada, and

https://www.toyotapr.com/servicio

sconectados in Puerto Rico, to
find approved Bluetooth

phones

for this system.

●

Certification

Bluetooth is a registered trademark

of Bluetooth SIG, Inc.

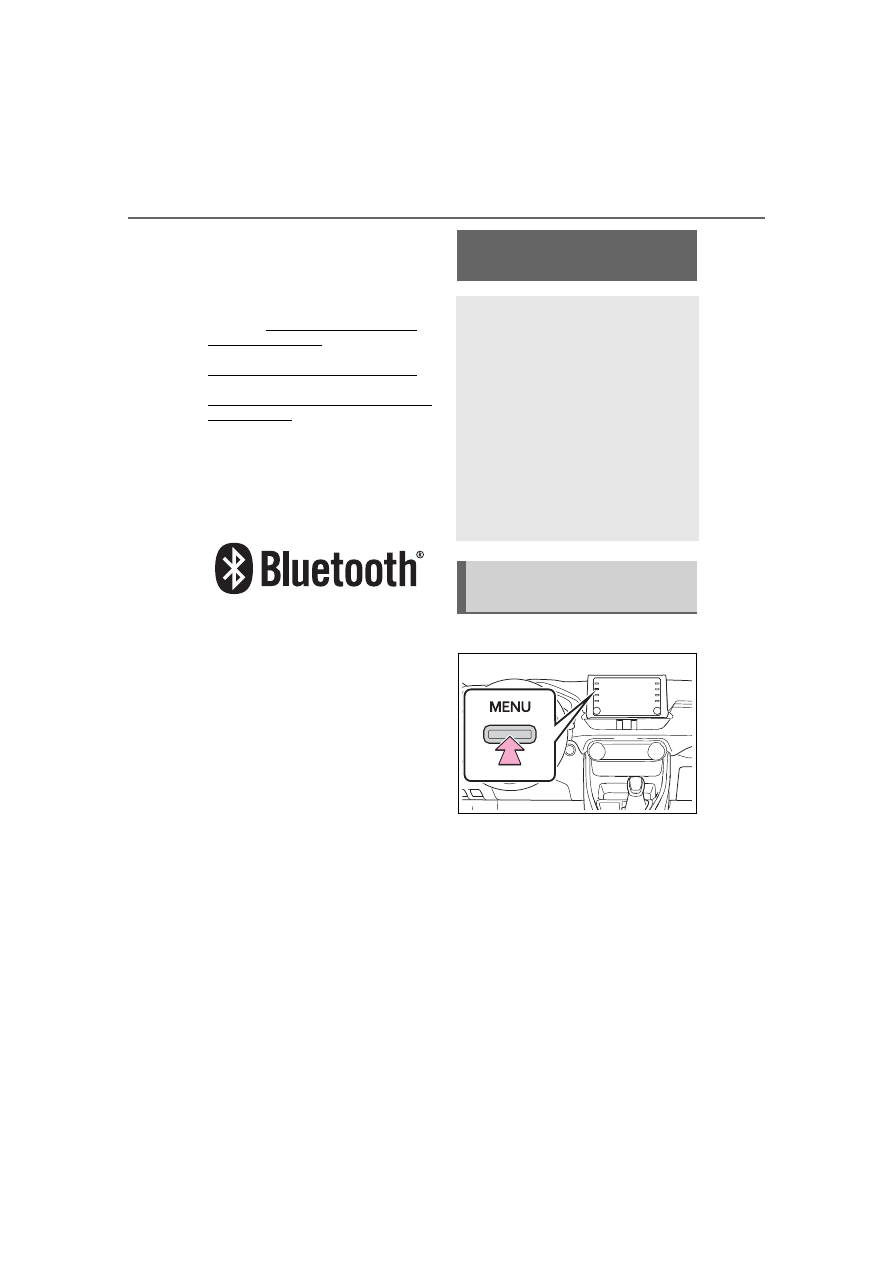

Press the “MENU” button.

Select “Setup”.

Select “Bluetooth”.

Setting Bluetooth

details

When an Apple CarPlay
connection is established,
this function will be unavail-
able.

When an Android Auto con-
nection is established,
some functions will be
unavailable.

: This function is not made avail-

able in some countries or
areas.

Displaying the Bluetooth

setup screen

391

5-3. Connectivity settings

Audio

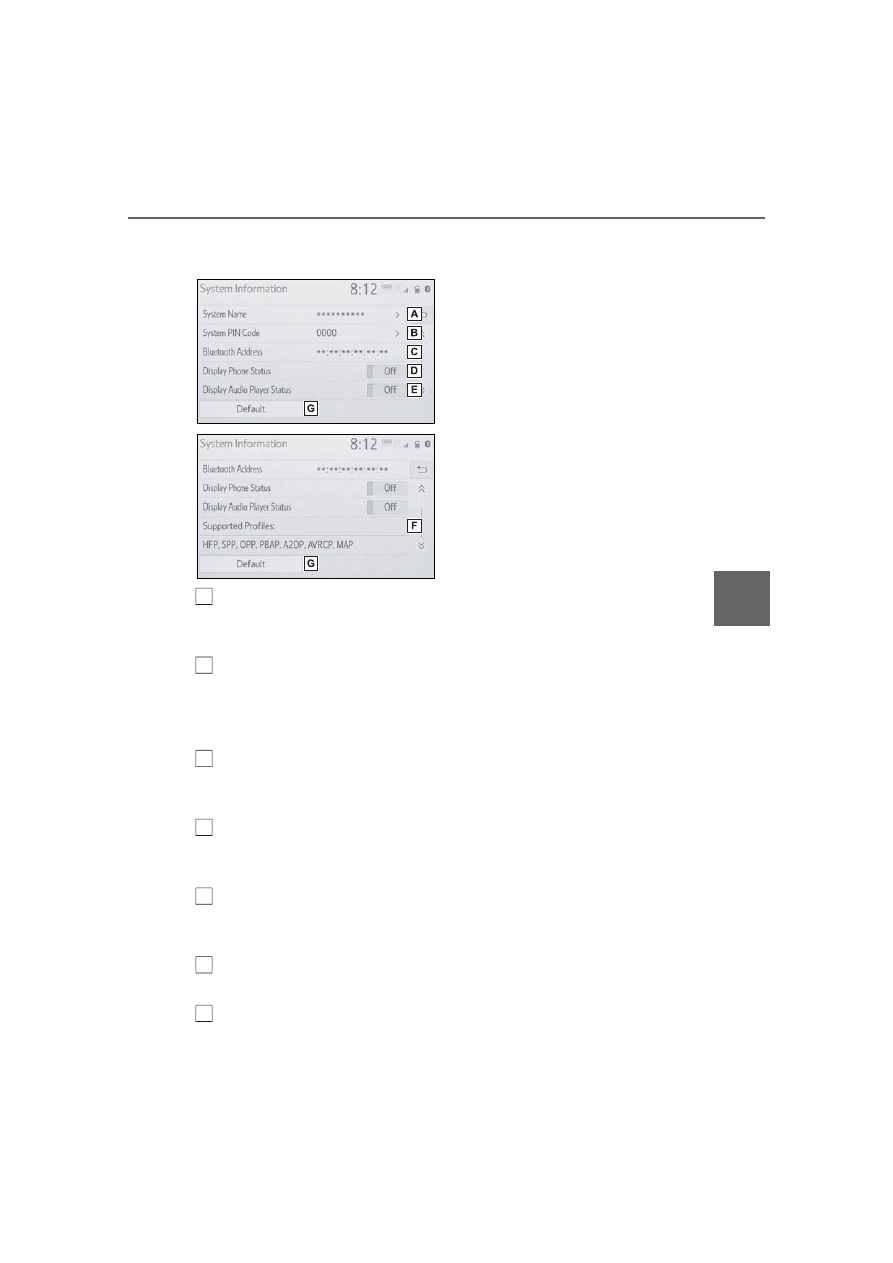

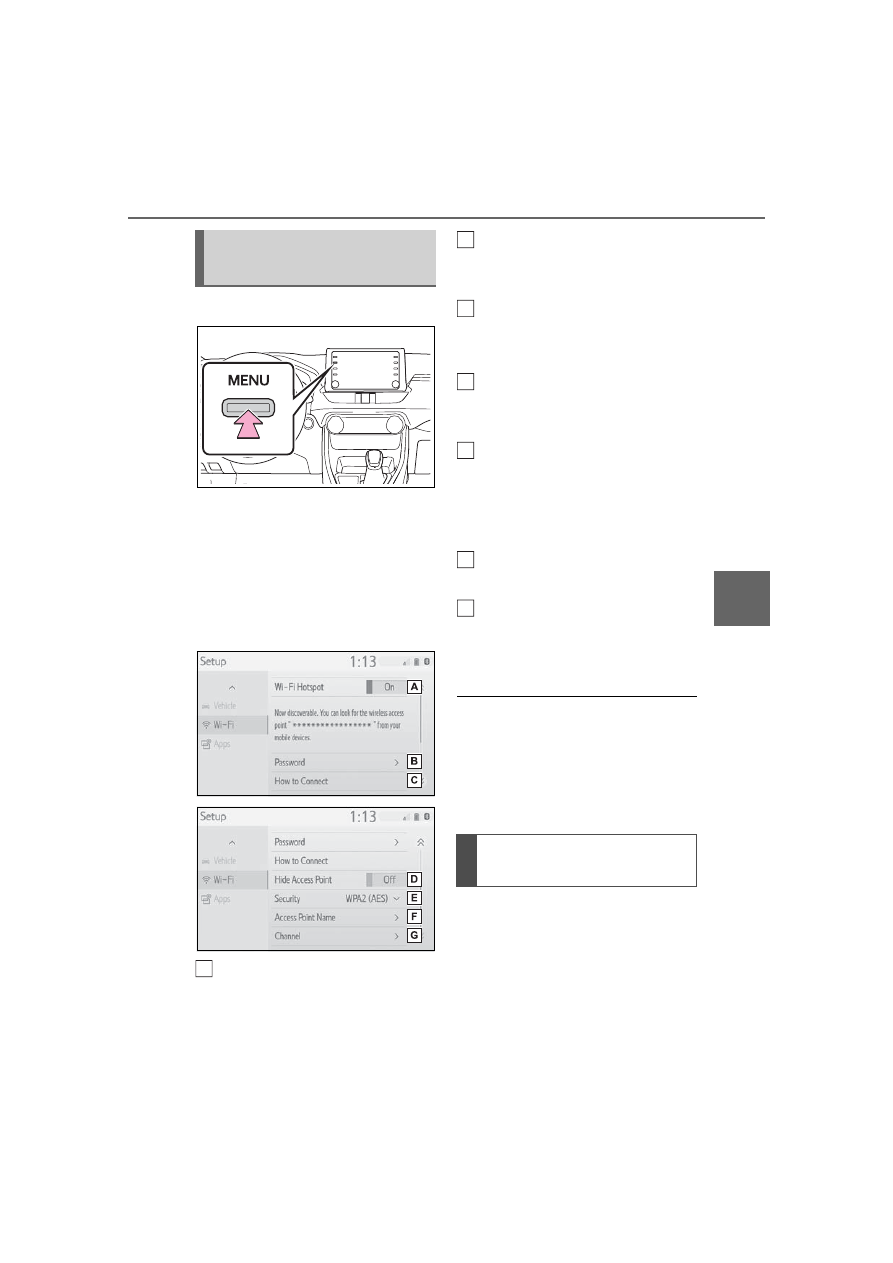

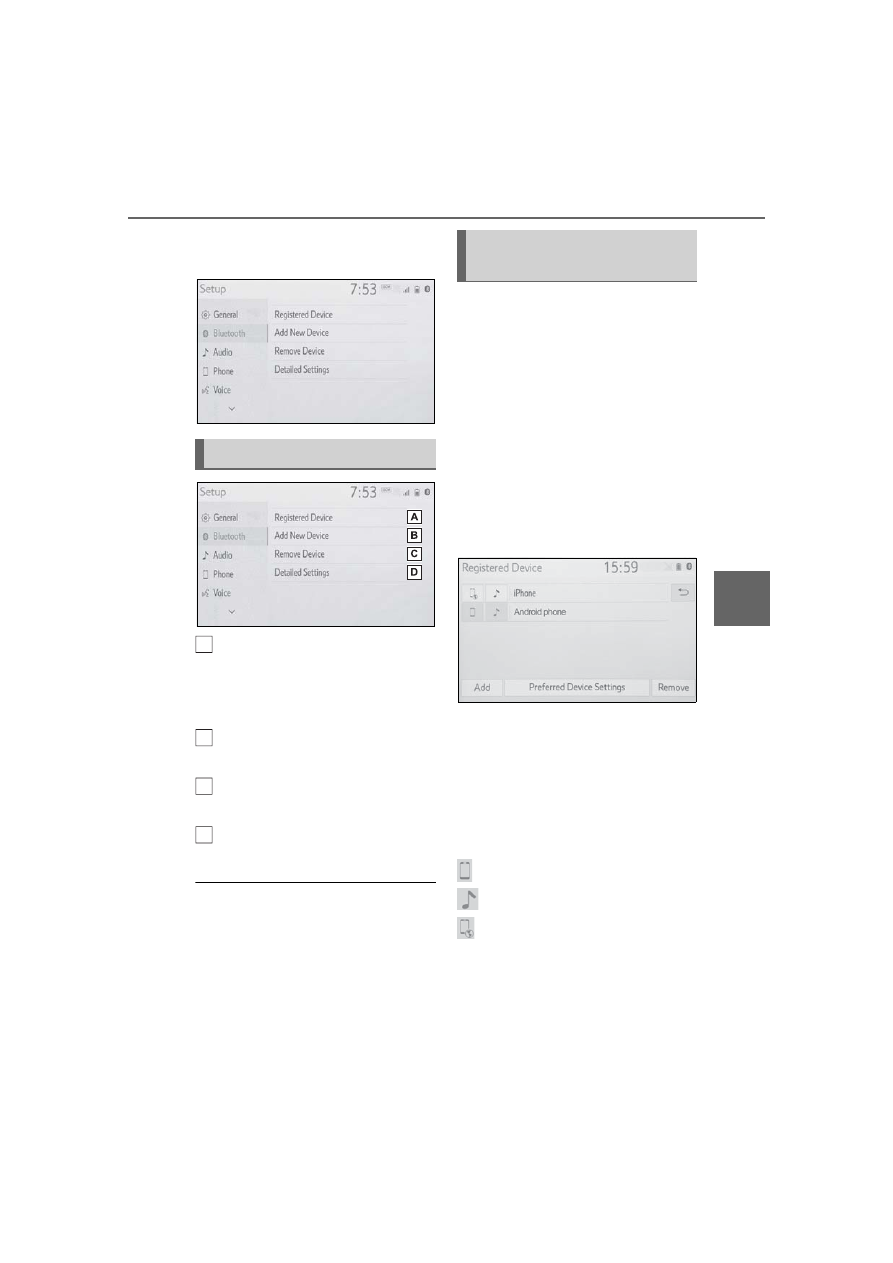

Select the desired item to be
set.

Connecting a Bluetooth

device and editing the
Bluetooth

device informa-

tion (



P.391, 394)

Registering a Bluetooth

device (



P.393)

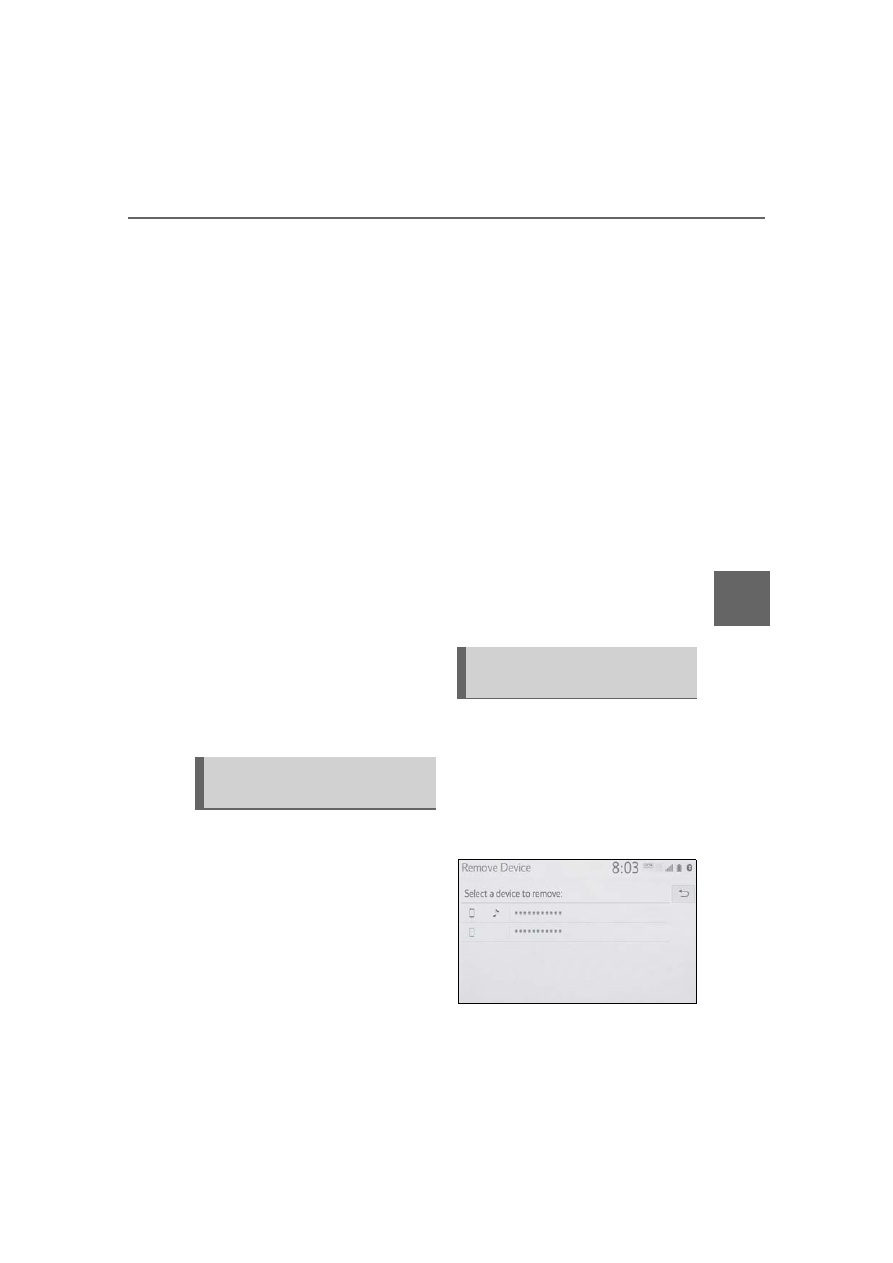

Deleting a Bluetooth

device

(



P.393)

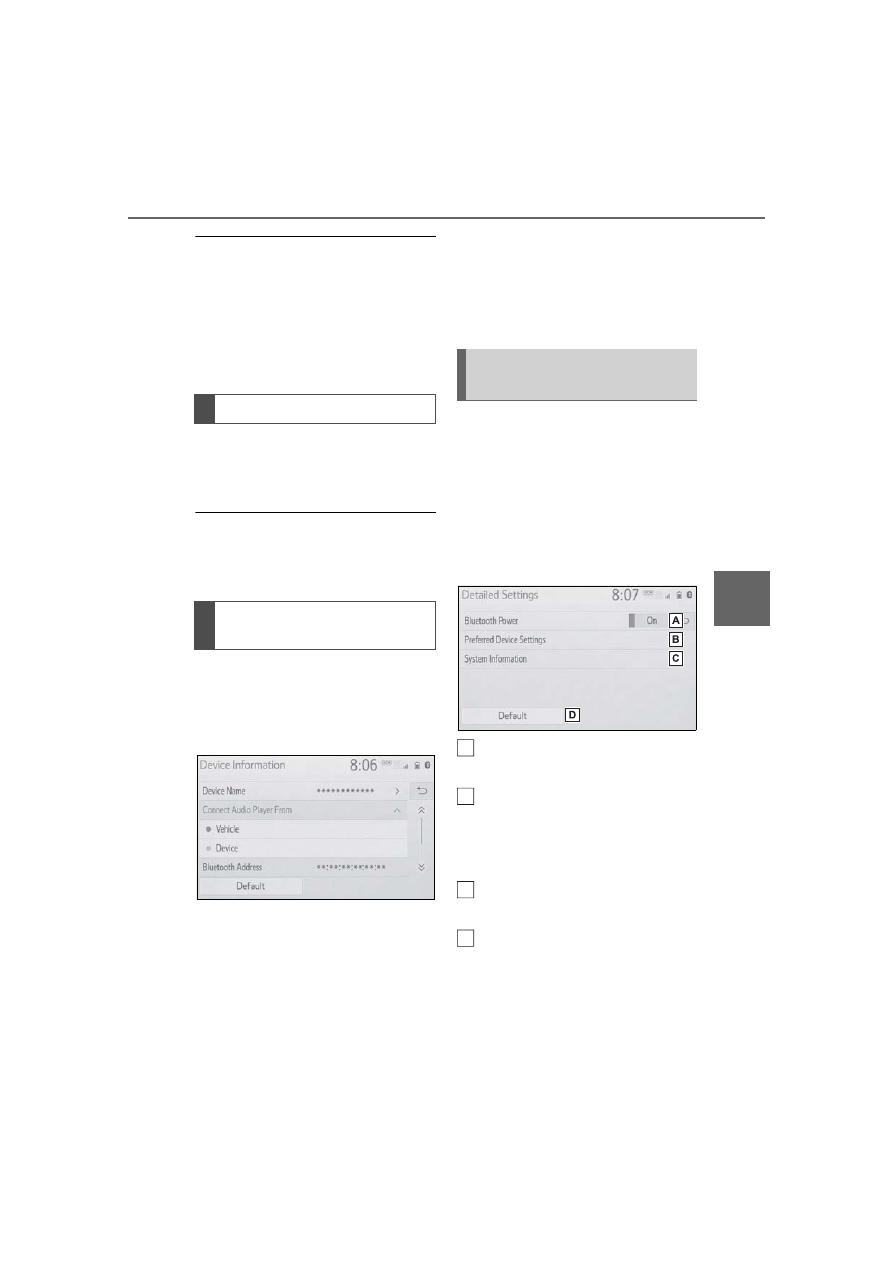

Setting the Bluetooth

sys-

tem (



P.395)

●

When an Apple CarPlay connec-

tion is established, this function

will be unavailable.

●

When an Android Auto connection

is established, some functions will

be unavailable.

Up to 5 Bluetooth

devices

(Phones (HFP) and audio play-
ers (AVP)) can be registered.

If more than 1 Bluetooth

device

has been registered, select
which device to connect to.

Display the Bluetooth

set-

tings screen. (



P.390)

Select “Registered Device”.

Select the device to be con-
nected.

“Add”: Registering a Bluetooth

device. (



P.393)

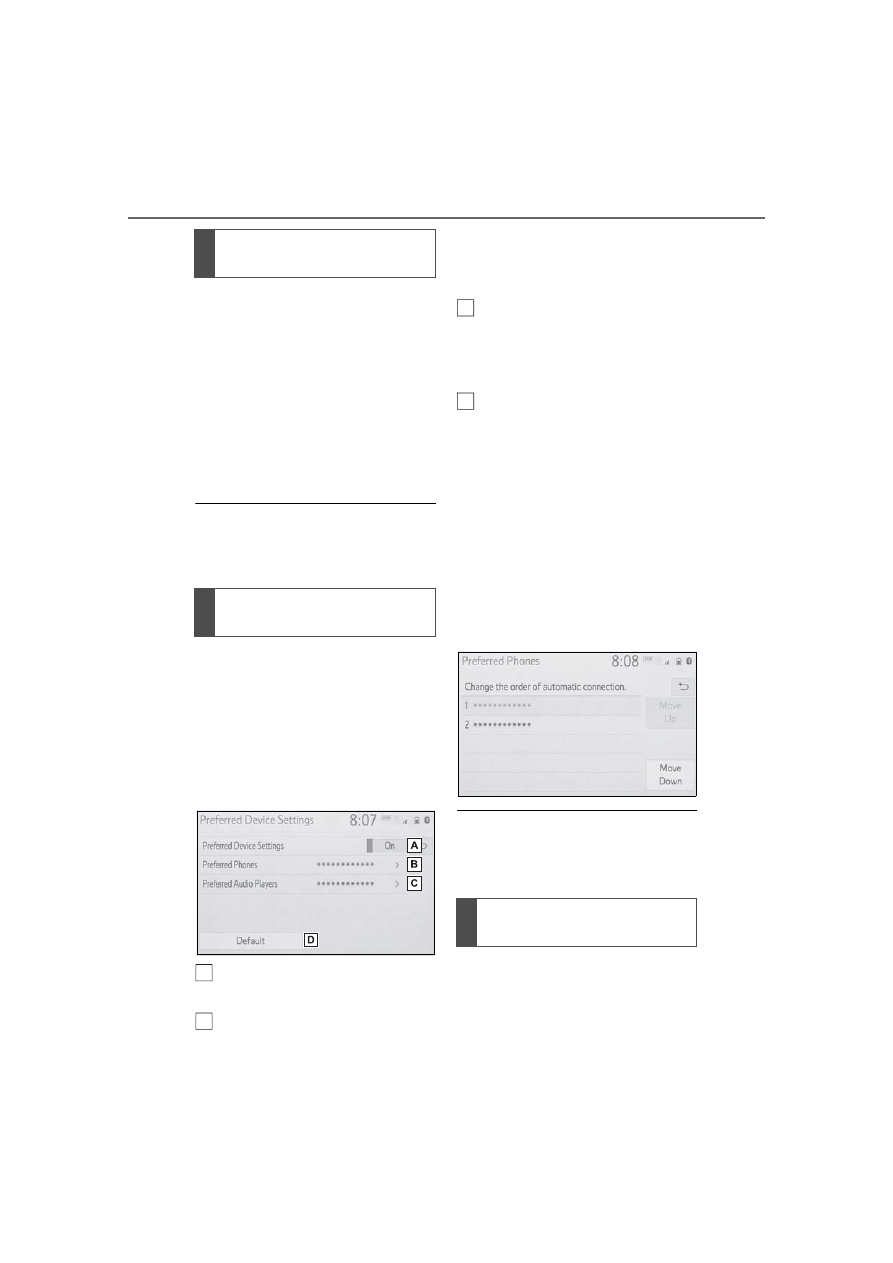

“Preferred Device Settings”: Select

to change the automatic connection
priority of the registered Bluetooth

devices. (



P.396)

“Remove”: Deleting a Bluetooth

device. (



P.393)

: Phone

: Audio player

: Phone/Toyota Apps Services



The profile icon for a currently
connected device will be dis-
played in color.



Selecting a profile icon which

Bluetooth

setup screen

Connecting a Bluetooth

device

392

5-3. Connectivity settings

is not currently connected will
switch the connection to the
function.



If the desired Bluetooth

device is not on the list, select
“Add New Device” to register
the device. (



P.393)

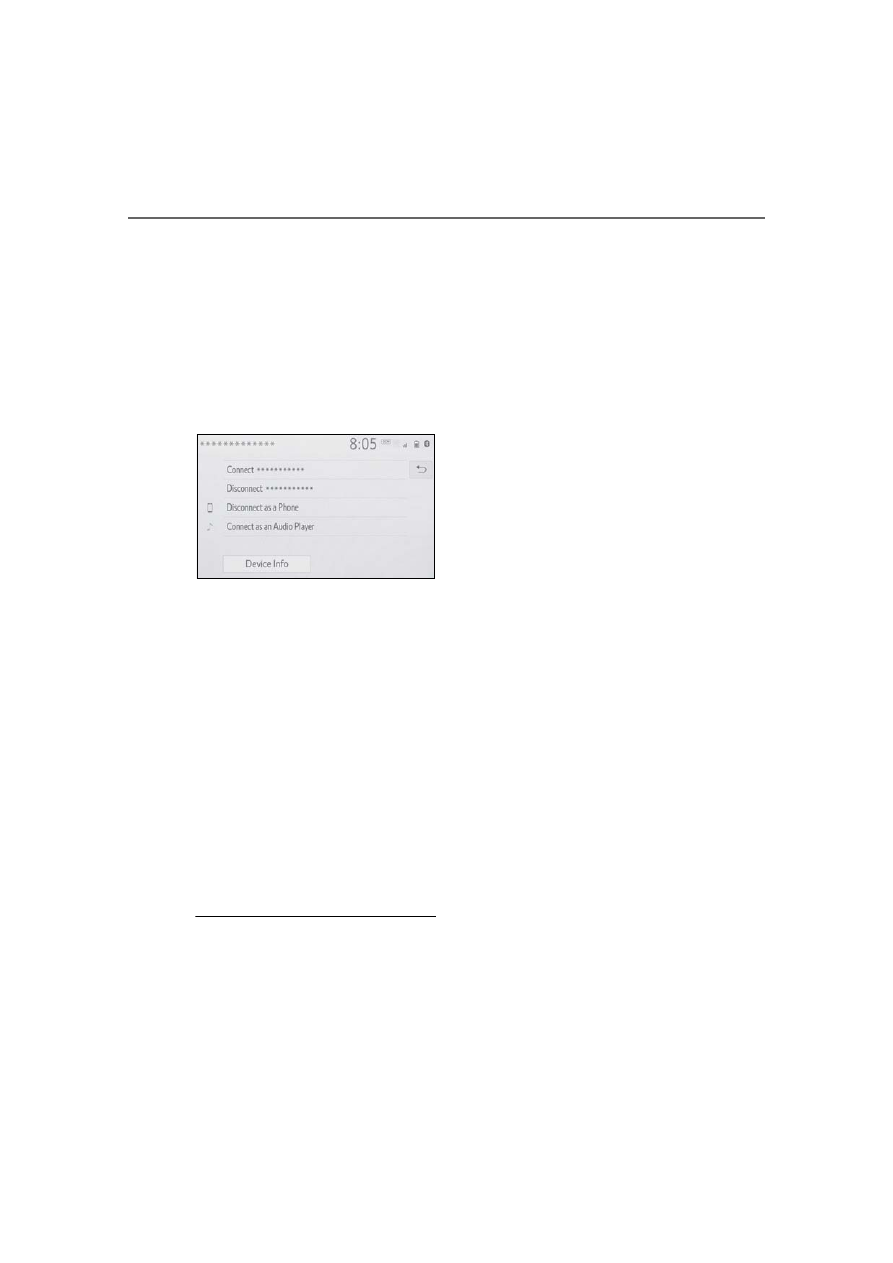

Select the desired connec-
tion.



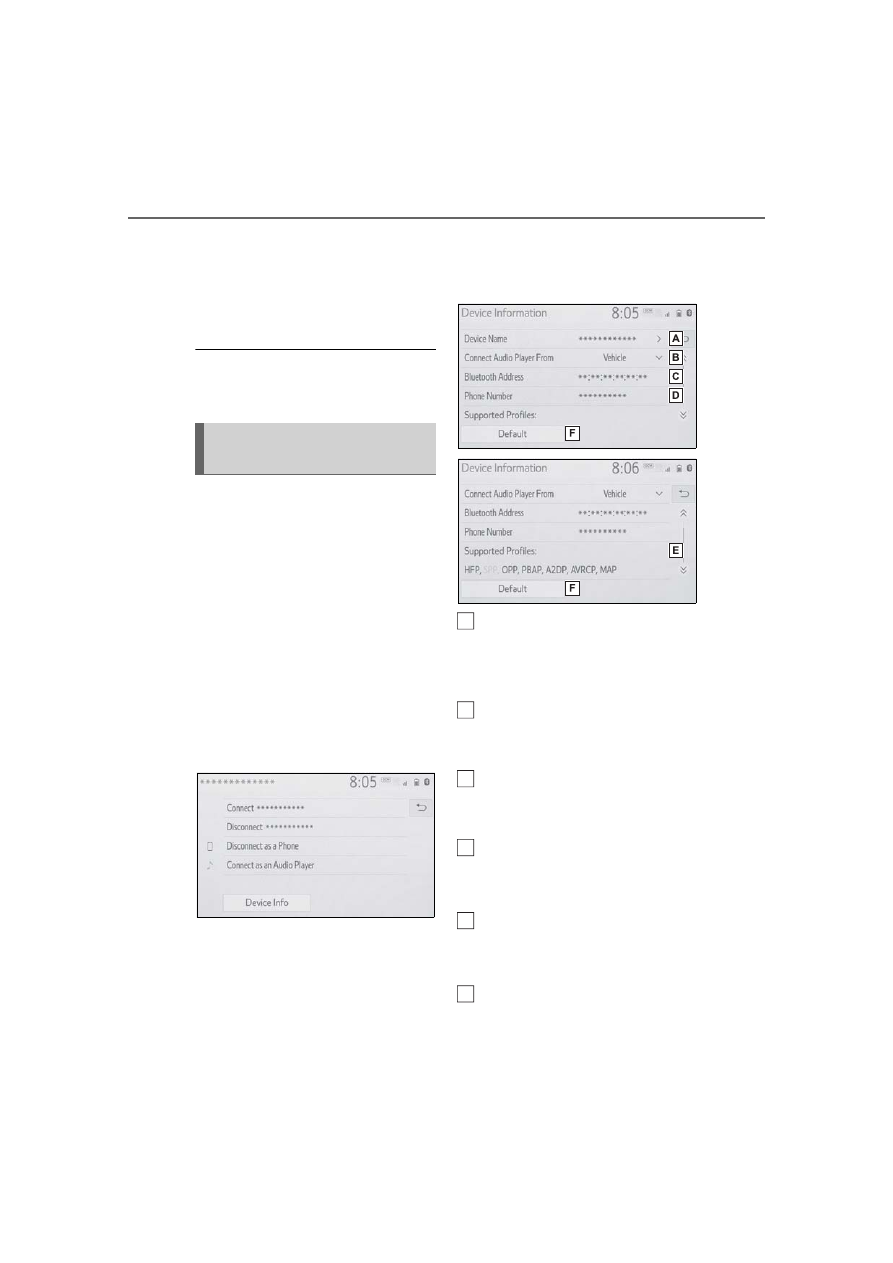

“Device Info”: Select to con-
firm and change the
Bluetooth

device informa-

tion. (



P.394)



When another Bluetooth

device is connected



To disconnect the Bluetooth

device, select “Yes”.

Check that a confirmation
screen is displayed when the
connection is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

It may take time if the device con-

nection is carried out during
Bluetooth

audio playback.

●

Depending on the type of
Bluetooth

device being con-

nected, it may be necessary to

perform additional steps on the

device.

●

When disconnecting a Bluetooth

device, it is recommended to dis-

connect using the system.

■

Connecting a Bluetooth

device in a different way
(from phone top screen)



P.465

■

Connecting a Bluetooth

device in a different way
(from phone setup screen)



P.479

■

Connecting a Bluetooth

device in a different way
(from Bluetooth

audio

screen)



P.436

■

Auto connection mode

To turn auto connection mode
on, set “Bluetooth Power” to on.
(



P.395) Leave the Bluetooth

device in a location where the
connection can be established.



When the engine switch is in
ACC or ON, the system
searches for a nearby regis-
tered device.



The system will connect with
the registered device that was
last connected, if it is nearby.
When automatic connection
priority is set to on and there
is more than one registered
Bluetooth

phone available,

the system will automatically
connect to the Bluetooth

393

5-3. Connectivity settings

Audio

phone with the highest prior-
ity. (



P.395)

■

Connecting manually

When the auto connection has
failed or “Bluetooth Power” is
turned off, it is necessary to con-
nect the Bluetooth

device man-

ually.

Display the Bluetooth

set-

tings screen. (



P.390)

Follow the steps in “Connect-
ing a Bluetooth

device” from

step

. (



P.391)

■

Reconnecting the
Bluetooth

phone

If a Bluetooth

phone is discon-

nected due to poor reception
from the Bluetooth

network

when the engine switch is in
ACC or ON, the system auto-
matically reconnects the
Bluetooth

phone.

Up to 5 Bluetooth

devices can

be registered.

Bluetooth

compatible phones

(HFP) and audio players (AVP)
can be registered simultane-
ously.
This operation cannot be per-
formed while driving.

Display the Bluetooth

set-

tings screen. (



P.390)

Select “Add New Device”.



When another Bluetooth

device is connected



To disconnect the Bluetooth

device, select “Yes”.



When 5 Bluetooth

devices

have already been registered



A registered device needs to
be replaced. Select “Yes”,
and select the device to be
replaced.

Follow the steps in “Register-
ing a Bluetooth

phone for

the first time” from step

(



P.386)

This operation cannot be per-
formed while driving.

Display the Bluetooth

set-

tings screen. (



P.390)

Select “Remove Device”.

Select the desired device.

Registering a Bluetooth

device

Deleting a Bluetooth

device

394

5-3. Connectivity settings

Select “Yes” when the confir-
mation screen appears.

Check that a confirmation
screen is displayed when the
operation is complete.

●

When deleting a Bluetooth

phone, the contact data will be

deleted at the same time.

The Bluetooth

device’s infor-

mation can be displayed on the
screen. The displayed informa-
tion can be edited.
This operation cannot be per-
formed while driving.

Display the Bluetooth

set-

tings screen. (



P.390)

Select “Registered Device”.

Select the desired device to
be edited.

Select “Device Info”.

Confirm and change the
Bluetooth

device informa-

tion.

The name of the Bluetooth

device is displayed. It can be
changed to a desired name.
(



P.395)

Select to set the Bluetooth

audio player connection
method. (



P.395)

Device address is unique to
the device and cannot be
changed.

Phone number is unique to
the Bluetooth

phone and

cannot be changed.

Compatibility profile is unique
to the Bluetooth

device and

cannot be changed.

Select to reset all setup
items.

Editing the Bluetooth

device information

395

5-3. Connectivity settings

Audio

●

If 2 Bluetooth

devices have been

registered with the same device

name, the devices can be distin-

guished referring to the device’s

address.

●

Depending on the type of
Bluetooth

phone, some informa-

tion may not be displayed.

Select “Device Name”.

Enter the name and select
“OK”.

●

Even if the device name is

changed, the name registered in
your Bluetooth

device does not

change.

Select “Connect Audio Player
From”.

Select the desired connec-
tion method.

“Vehicle”: Select to connect the

audio player from the vehicle’s

audio/visual system.
“Device”: Select to connect the

vehicle’s audio/visual system from

the audio player.



Depending on the audio

player, the “Vehicle” or
“Device” connection method
may be best. As such, refer to
the manual that comes with
the audio player.

The Bluetooth

settings can be

confirmed and changed.

Display the Bluetooth

set-

tings screen. (



P.390)

Select “Detailed Settings”.

Select the desired item to be
set.

Select to set Bluetooth

con-

nection on/off. (



P.396)

Select to change the auto-
matic connection priority of
the registered Bluetooth

devices. (



P.396)

Select to edit the system
information. (



P.396)

Select to reset all setup
items.

Changing a device name

Setting audio player con-
nection method

“Detailed Settings”
screen

396

5-3. Connectivity settings

Select “Bluetooth Power”.

When “Bluetooth Power” is on:
The Bluetooth

device is auto-

matically connected when the
engine switch is in ACC or ON.
When “Bluetooth Power” is off:
The Bluetooth

device is dis-

connected, and the system will
not connect to it next time.

●

While driving, the auto connection

state can be changed from off to

on, but cannot be changed from

on to off.

The automatic connection prior-
ity of the registered Bluetooth

devices can be changed.

Select “Preferred Device Set-
tings”.

Select the desired item to be
set.

Select to set automatic con-
nection priority on/off.

Select to change the auto-

matic connection priority of
the registered Bluetooth

phones. (



P.396)

Select to change the auto-
matic connection priority of
the registered Bluetooth

audio players. (



P.396)

Select to reset all setup
items.

■

Changing Bluetooth

device automatic connec-
tion priority

Select “Preferred Phones” or
“Preferred Audio Players”.

Select the desired Bluetooth

device and select “Move Up”
or “Move Down” to change
the preferred order.

●

A newly registered Bluetooth

device will automatically be given

the highest automatic connection

priority.

Select “System Information”.

Changing “Bluetooth
Power”

Setting automatic connec-
tion priority

Editing the system infor-
mation

397

5-3. Connectivity settings

Audio

Select the desired item to be
set.

Displays system name. Can
be changed to a desired
name. (



P.397)

PIN code used when the
Bluetooth

device was regis-

tered. Can be changed to a
desired code. (



P.397)

Device address is unique to
the device and cannot be
changed.

Select to set the connection
status display of the phone
on/off.

Select to set the connection
status display of the audio
player on/off.

Compatibility profile of the
system

Select to reset all setup
items.

■

Editing the system name

Select “System Name”.

Enter a name and select
“OK”.

■

Editing the PIN code

Select “System PIN Code”.

Enter a PIN code and select
“OK”.

398

5-3. Connectivity settings

: Vehicles equipped with DCM

only. This function is not made
available in some countries or
areas.

Enable the Wi-Fi

Hotspot

function. (



P.399)

Disable the “Hide Access
Point” function. (



P.399)

Search for the vehicle access
point using the device you
wish to connect.



For details about operating
the device, refer to the docu-
mentation which came with it.

Operate the device to con-
nect it to the vehicle access
point.



To check the vehicle access
point password, check “Pass-
word”. (



P.399)

●

Hints for connecting to the vehicle
via Wi-Fi

can be displayed.

(



P.399)

Enable the Wi-Fi

Hotspot

function. (



P.399)

Enable the “Hide Access
Point” function. (



P.399)

Enter the access point name
(SSID) into the device you
wish to connect and connect
it.



To check the vehicle access
point password, check “Pass-
word”. (



P.399)



The security settings on the
device must be the same as
that displayed for “Security”.
(



P.399)



For details about operating
the device, refer to the docu-
mentation which came with it.

Wi-Fi

Hotspot

By connecting a device to
the vehicle via Wi-Fi

, it can

access the internet through
the DCM.



To use this function, a
Wi-Fi

Hotspot service sub-

scription from AT&T is
required. Connect your
device to the in-vehicle
access point (see instruc-
tions below), or contact your
Toyota dealer for details.

Connecting a device to
the in-vehicle access
point

Searching for and con-
necting a device to the
vehicle access point

Connecting a device to the
in-vehicle access point
using the access point
name (SSID)

399

5-3. Connectivity settings

Audio

Press the “MENU” button.

Select “Setup”.

Select “Wi-Fi

”.

: Wi-Fi

is a registered trademark

of Wi-Fi Alliance

Select the desired item to be
set.

Select to enable/disable the
Wi-Fi

Hotspot function.

(



P.399)

Select to check/change the
access point password.
(



P.400)

Select to display hints for
connecting to the vehicle via
Wi-Fi

Select to make the access
point searchable/unsearch-
able.

Select to check/change the
security protocol of the
access point (for authentica-
tion and encryption).
(



P.400)

Select to change the access
point name (SSID). (



P.400)

Select to change the Wi-Fi

connection channel (within
the 2.4GHz frequency band).
(



P.400)

●

If any settings have been

changed, it will be necessary to
reset the Wi-Fi

system to com-

plete the changes. To reset the
Wi-Fi

system, select “Yes” on the

pop-up displayed after changing

the settings.

When the Wi-Fi

Hotspot func-

tion is enabled, the system
checks for a valid Hotspot ser-
vice subscription.
If a Hotspot service subscription
has not been started, connect
your device to the in-vehicle

Changing the Wi-Fi

set-

tings

Enabling/disabling the
Wi-Fi

Hotspot function

400

5-3. Connectivity settings

access point to start your sub-
scription. A trial subscription
may be available.
Contact your Toyota dealer for
details about the Toyota Apps.

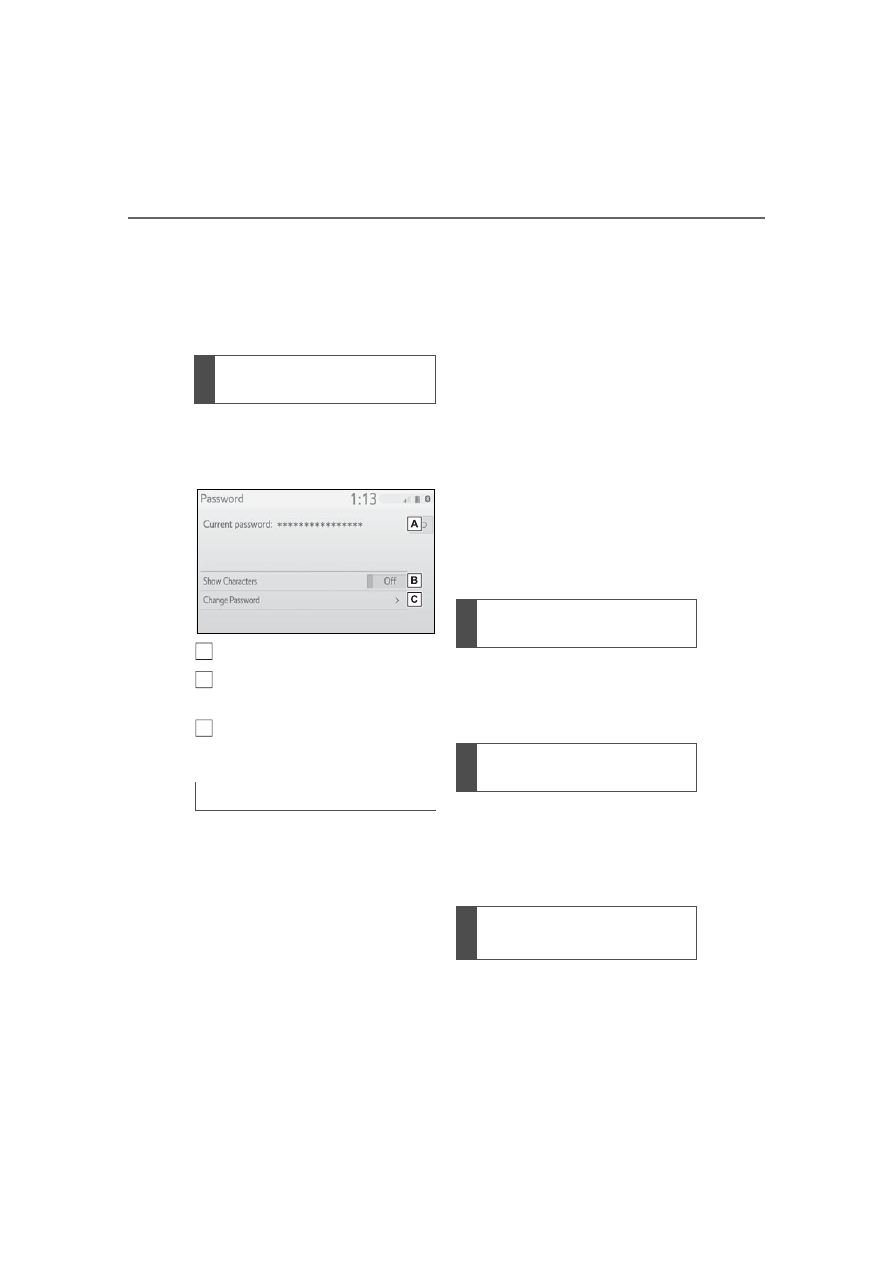

Select “Password”.

Check that the following
screen is displayed.

Displays the password

Select to display/hide the
entered password.

Select to change the pass-
word.

Select “Change Password”.

Enter the desired password
and select “OK”.



When setting/changing a
password, observe the follow-
ing guidelines to help prevent
the password from being
cracked by a third party:

• Use an 8-character or longer

password consisting of letters

and numbers. (Non-ASCII char-
acters will not be recognized by
the system.)

• Change the password regularly.
• If you write the password down,

do not leave it somewhere where
it would be visible.

• Do not use the same password

for vehicle Wi-Fi

Hotspot as

other accounts already protected
by a password.

• Avoid using easy to identify

words, such as your vehicle’s
model name or license plate
number, simple dictionary words,
or words with simple obfuscation,
such as c@t (for cat), as your
password.

Select “Security”.

Select the desired security
protocol.

Select “Access Point Name”.

Enter the desired access
point name (SSID) and select
“OK”.

Select “Channel”.

Checking/changing the
password

Changing the password

Changing the security pro-
tocol

Changing the access point
name (SSID)

Selecting a Wi-Fi

connec-

tion channel

Toyota RAV4 (2022 year). Manual in english - page 24
