5-3. Connectivity settings

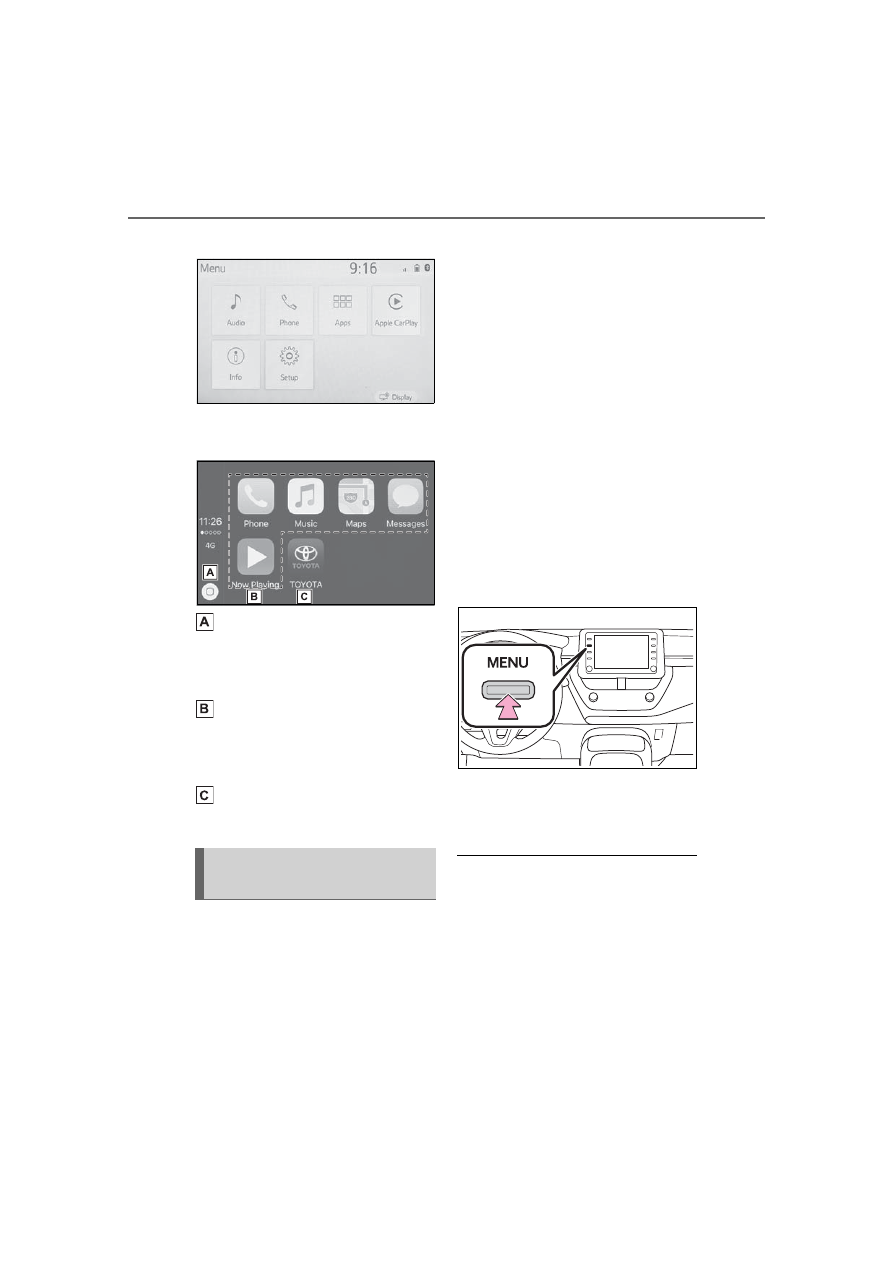

Select the “Apple CarPlay”.

Check that home screen of
Apple CarPlay is displayed.

Select to display the home
screen of Apple CarPlay.
Touch and hold to activate
Siri.
Select to start the application.
User can use any iPhone
application supported by
Apple CarPlay.
Select to display the system
screen.

Check that the Android Auto
application is installed to the
device to be connected.

Connect the device to the
USB port. (



P.303)

Select “On” to enable the
function.



“Off”: Select to not enable
Android Auto. Android Auto
will remain off until “Android
Auto” of “Projection Settings”
on the general settings screen
is turned on.



Depending on the device con-
nected, it may take approxi-
mately 3 to 6 seconds before
the system returns to previous
screen.



The screen may change to
“step

” depending on the

system.

Press the “MENU” button.

Select “Android Auto”.

Check that home screen of
Android Auto is displayed.

●

When an Apple CarPlay/Android

Auto connection is established,

the function of some system but-

tons will change.

●

When an Apple CarPlay/Android

Auto connection is established,

some system functions, such as

the following, will be replaced by

similar Apple CarPlay/Android

Auto functions or will become

unavailable:

Establishing an Android
Auto connection

289

5-3. Connectivity settings

• iPod (Audio Playback)

• USB audio/USB video
• Bluetooth

audio

• Bluetooth

phone (Apple CarPlay

only)

• Toyota apps

●

When an Apple CarPlay/Android

Auto connection is established,

voice command system (Siri/Goo-

gle Assistant) and map application

voice guidance volume can be

changed by selecting “Voice Vol-

ume” on the voice settings screen.

It cannot be changed by “POWER

VOLUME” knob on Audio control

panel.(



P.298)

●

Apple CarPlay/Android Auto is an

application developed by Apple

Inc/Google LLC. Its functions and

services may be terminated or

changed without notice depending

on the connected device’s opera-

tion system, hardware and soft-

ware, or due to changes in Apple

CarPlay/Android Auto specifica-

tions.

●

For a list of the apps supported by

Apple CarPlay or Android Auto,

refer to their respective website.

●

While using these functions, vehi-

cle and user information, such as

location and vehicle speed, will be

shared with the respective appli-

cation publisher and the cellular

service provider.

●

By downloading and using each

application, you agree to their

●

Data for these functions is trans-

mitted using the internet and may

incur charges.

For information about data trans-

mission fees, contact your cellular

service provider.

●

Depending on the application, cer-

tain functions, such as music play-

back, may be restricted.

●

As the applications for each func-

tion are provided by a third-party,

they may be subject to change or

discontinuation without notice.

For details, refer to the website of

the function.

●

If the USB cable is disconnected,

operation of Apple Car-

Play/Android Auto will end.

At this time, sound output will stop

and change to the system screen.

●

Use of the Apple CarPlay logo

means that a vehicle user inter-

face meets Apple performance

standards. Apple is not responsi-

ble for the operation of this vehicle

or its compliance with safety and

regulatory standards. Please note

that the use of this product with

iPhone or iPod may affect wire-

less performance.

●

Apple CarPlay is a trademark of

Apple Inc.

●

Android and Android Auto are

trademarks of Google LLC.

WARNING

Do not connect iPhone or operate

the controls while driving.

290

5-3. Connectivity settings

If you are experiencing difficulties with Apple CarPlay/Android Auto,
check the following table.

NOTICE

●

Do not leave your iPhone in the

vehicle. In particular, high tem-

peratures inside the vehicle

may damage the iPhone.

●

Do not push down on or apply

unnecessary pressure to the

iPhone while it is connected as

this may damage the iPhone or

its terminal.

●

Do not insert foreign objects into

the port as this may damage the

iPhone or its terminal.

Troubleshooting

Symptom

Solution

An Apple Car-
Play/Android Auto con-
nection cannot be
established.

Check if the device supports Apple Car-
Play/Android Auto.
Check if Apple CarPlay/Android Auto is
enabled on the connected device.
Check if that the Android Auto application is
installed to the device to be connected.
For details, refer to
Apple CarPlay: https://www.apple.com/ios/
carplay/.
Android Auto: https://www.android.com/auto/.

Check if “Apple CarPlay”/“Android Auto” of
“Projection Settings” on the general settings
screen is set to on. (



P.294)

Check if the USB cable being used is securely
connected to the device and USB port.
Check that the device is connected directly to
the USB port of the system and not connected
to a USB hub.
For Apple CarPlay: Check if the Lightning cable
being used is certified by Apple. Check if Siri is
enabled.

After checking all of the above, try to establish
an Apple CarPlay/Android Auto connection.
(



P.287, 288)

291

5-3. Connectivity settings

Audio

When an Apple Car-
Play/Android Auto con-
nection is established and
a video is being played,
the video is not displayed,
but audio is output
through the system.

As the system is not designed to play video
through Apple CarPlay/Android Auto, this is not
a malfunction.

Although an Apple Car-
Play/Android Auto con-
nection is established,
audio is not output
through the system.

The system may muted or the volume may be
low. Increase the system volume.

The Apple Car-
Play/Android Auto screen
has artifacts and/or audio
from Apple Car-
Play/Android Auto has
noise.

Check if the USB cable being used to connect
the device to the system is damaged.
To check if the USB cable is damaged inter-
nally, connect the device to another system,
such as a PC, and check if the device is recog-
nized by the connected system. (The device
should begin charging when connected.)

After checking all of the above, try to establish
an Apple CarPlay/Android Auto connection.
(



P.287, 288)

The map display of the
Apple CarPlay Maps app
cannot be enlarged or
contracted with pinch
multi-touch gestures.

As the Apple CarPlay Maps app is not compati-
ble with pinch multi-touch gestures, this is not a
malfunction.

Symptom

Solution

292

5-3. Connectivity settings

During Apple CarPlay
music application (Apple
Music, Spotify, etc.) play-
back, if the iPhone is
operated to start and play
audio from an application
that is not compatible with
Apple CarPlay* and the
onboard device volume is
changed, the audio of the
incompatible application
stops and the system
resumes playback of the
original music application.

This operation is performed according to the
specification of the onboard device, this is not a
malfunction.

After interrupt audio (such
as navigation route guid-
ance) is played from an
application that is not
compatible with Apple
CarPlay while the onboard
device is playing audio,
the system does not
resume playback of the
original audio.

This operation is performed according to the
specification of the onboard device, this is not a
malfunction.
Manually change the audio source by yourself.
Or, do not use applications that are not compat-
ible with Apple CarPlay.

Due to some naviga-

tion applications are compatible from iOS 12,
update to the latest iOS and application ver-
sions.

When using Apple Car-
Play, route guidance
arrows and turn by turn
navigation are not dis-
played on the multi-infor-
mation display and
system display.
When using Android Auto,
turn by turn navigation is
not displayed on the
multi-information display
and system display.

This is not a malfunction as display of these
items is not possible with this function.

Symptom

Solution

293

5-3. Connectivity settings

Audio

: Applications not compatible with Apple CarPlay are applications installed

on the iPhone that are not displayed on the Apple CarPlay screen appli-
cation list. (such as visual voicemail)

When using Android Auto,
hands-free call audio can-
not be heard from the
vehicle’s speakers.

Disconnect the phone from the USB cable and
check if hands-free call audio can be heard
using the hands-free system.

Connect the phone to the system using Android
Auto, turn up the volume on the system and
check if hands-free call audio can be heard.
Check if other sounds can be heard from the
vehicle’s speakers.

Symptom

Solution

294

5-4. Other settings

5-4.Other settings

Press the “MENU” button.

Select “Setup”.



If the general settings screen
is not displayed, select “Gen-
eral”.

Select the desired items to
be set.



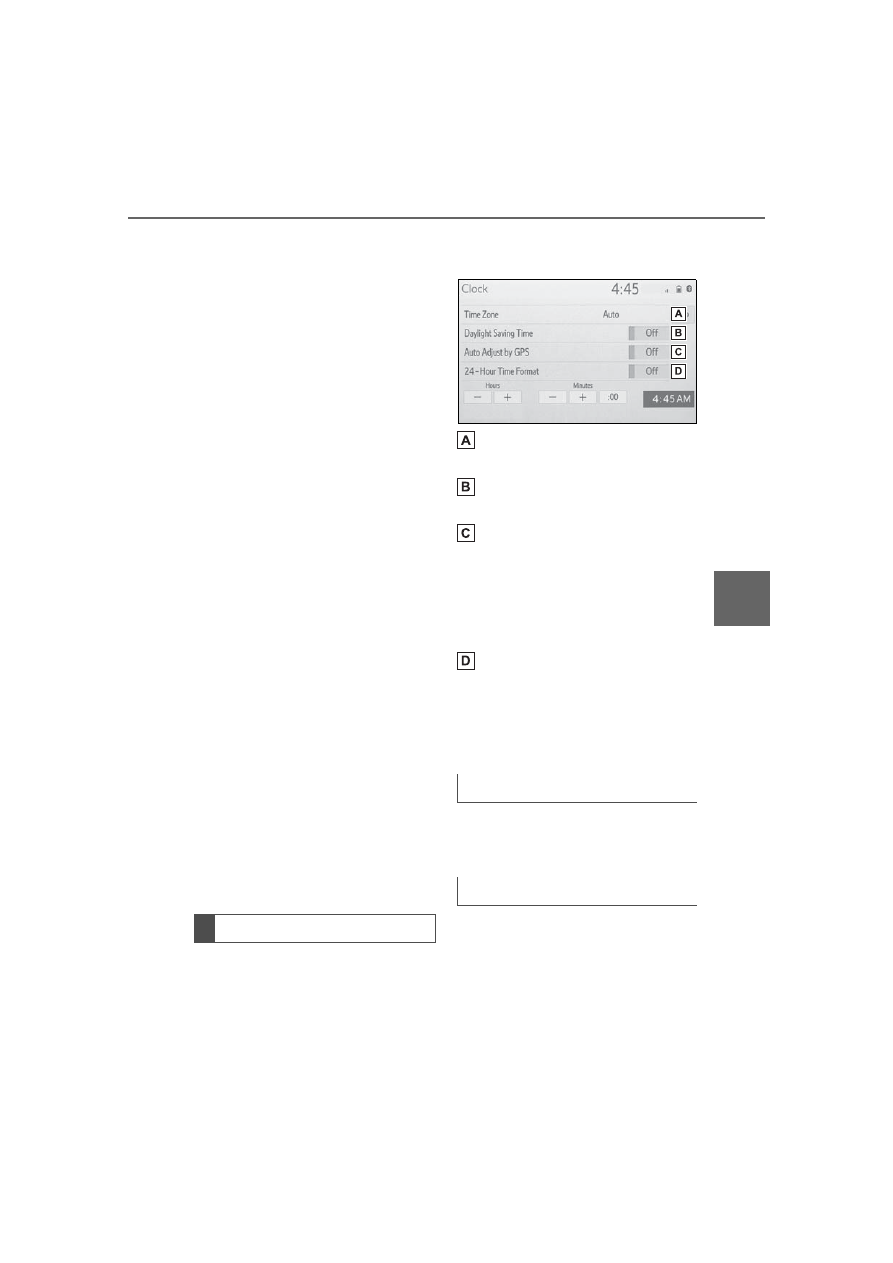

“Clock”

Select to change the time zone and
select “On” or “Off” for daylight sav-
ing time, automatic adjustment of

the clock, etc. (



P.295)



“Language”

Select to change the language. The
language setting of Apple Car-
Play/Android Auto can only be
changed on the connected device.



“Customize Home Screen”

Select to change the display infor-
mation/area on the home screen
and the home screen layout.
(



P.264)



“Theme Setting”

Select to change the screen theme
setting.



“Beep”

Select to turn the beep sound
on/off.



“Units of Measurement”

Select to change the unit of mea-
sure for distance/fuel consumption.



“Keyboard Layout”

Select to change the keyboard lay-
out.



“Delete Keyboard History”

Select to delete the keyboard his-
tory.



“Memorize Keyboard History”

Select to set the memorize key-
board history on/off.



“Animation”

Select to turn the animations on/off.



“Projection Settings”

Select to set automatic Apple Car-
Play/Android Auto connection
establishment on/off. (



P.296)



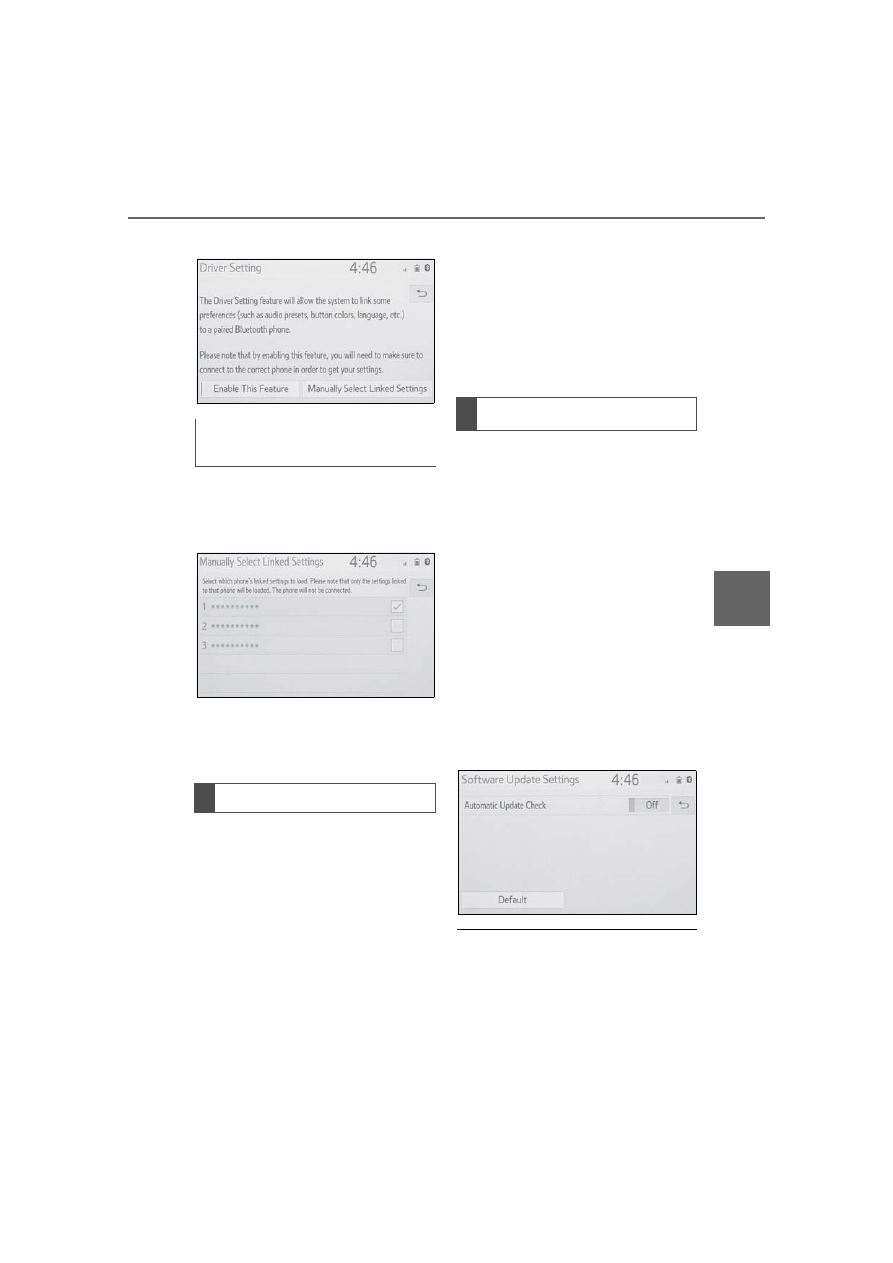

“Driver Setting”

General settings

Settings are available for
clock, operation sounds,
etc.

Displaying the general
settings screen

General settings screen

295

5-4. Other settings

Audio

Select to change the driver set-
tings. (



P.296)



“Delete Personal Data”

Select to delete personal data.
(



P.297)



“Software Update”

Select to update software versions.
For details, contact your Toyota
dealer.



“Software Update Setting”

Select to set software update set-
ting. (



P.297)



“Gracenote Database
Update”

Select to update Gracenote

data-

base versions. For details, contact
your Toyota dealer.



“Software Information”

Select to display the software infor-
mation. Notices related to third
party software used in this product
are enlisted. (This includes instruc-
tions for obtaining such software,
where applicable.)



“SW Sensitivity Level”

Select to change the capacitive
touch screen button sensitivity to 1
(low), 2 (medium), or 3 (high).

:This function is not made avail-

able in some countries or areas.

:If equipped

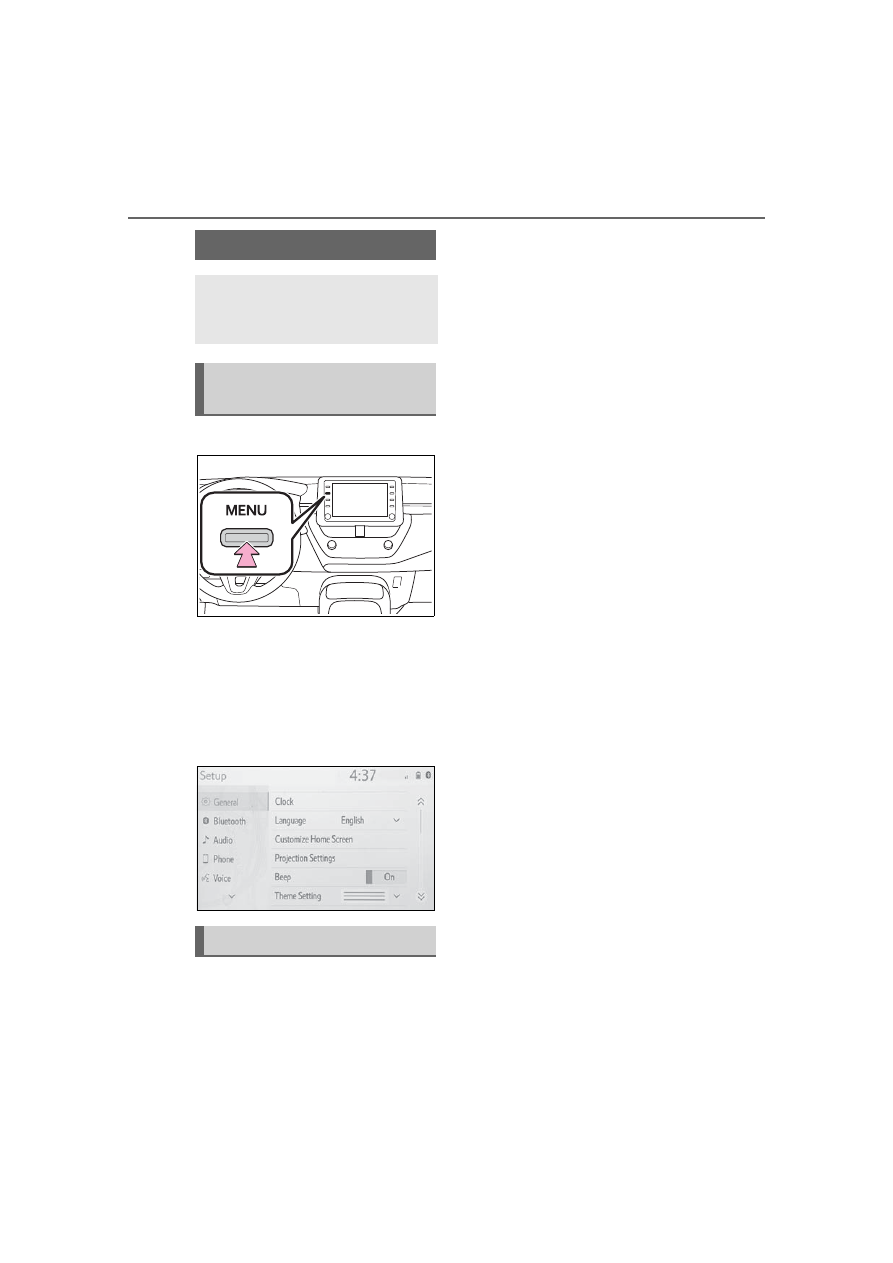

Display the general settings
screen. (



P.294)

Select “Clock”.

Select the desired items to
be set.

Select to change the time
zone. (



P.295)

Select to set daylight saving
time on/off.
Select to set automatic
adjustment of the clock by
GPS on/off.
When set to off, the clock can
be manually adjusted.
(



P.295)

Select to set the 24 hour time
format on/off.
When set to off, the clock is
displayed in 12 hour time for-
mat.

Select “Time Zone”.

Select the desired time zone.

When “Auto Adjust by GPS” is
turned off, the clock can be
manually adjusted.

Select “Auto Adjust by GPS”
to set to off.

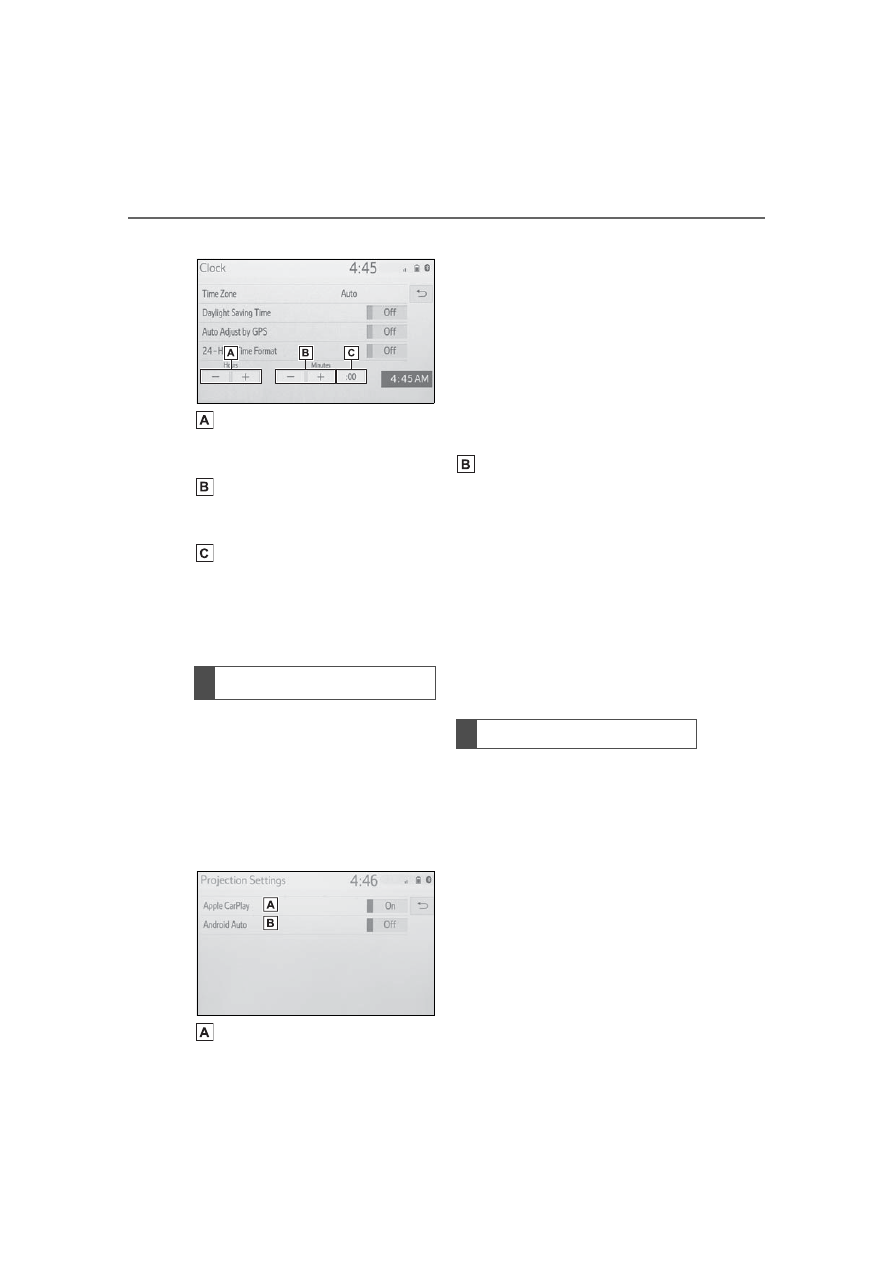

Clock settings

Setting the time zone

Manual clock setting

296

5-4. Other settings

Adjust the clock manually.

Select “+” to set the time for-
ward one hour and “-” to set
the time back one hour.
Select “+” to set the time for-
ward one minute and “-” to
set the time back one minute.
Select to round to the nearest
hour.
e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00

: This function is not made avail-

able in some countries or areas.

Display the general settings
screen. (



P.294)

Select “Projection Settings”.

Select the desired items to
be set.

Select to turn Apple CarPlay

connection establishment
on/off when a compatible
iPhone is connected to the
system via USB. (



P.287)

Depending on the system,
this setting cannot be
changed when a device is
connected to the system via
USB. Disconnect the device
before attempting to change
the setting.
Select to turn Android Auto
connection establishment
on/off when a compatible
device is connected to the
system via USB. (



P.288)

Depending on the system,
this setting cannot be
changed when a device is
connected to the system via
USB. Disconnect the device
before attempting to change
the setting.

The driver settings feature will
allow the system to link some
preferences (such as audio pre-
sets, screen theme, language,
etc.) to a paired Bluetooth

phone.

Display the general settings
screen. (



P.294)

Select “Driver Setting”.

Projection settings

Driver settings

297

5-4. Other settings

Audio

Select “Enable This Feature”.

Select “Manually Select
Linked Settings”.

Select the desired phone.



After a few seconds, loaded
screen automatically switches
to the home screen.

Registered or changed per-
sonal settings will be deleted or
returned to their default condi-
tions.

Display the general settings
screen. (



P.294)

Select “Delete Personal
Data”.

Select “Delete”.

Select “Yes” when the confir-
mation screen appears.

Examples of settings that can be

returned to their default conditions:



Audio settings



Phone settings

etc.

: This function is not made avail-

able in some countries or areas.

When the automatic update
check function is enabled, if a
software update is available
from the Toyota response cen-
ter, a message will be displayed.

Display the general settings
screen. (



P.294)

Select “Software Update Set-
ting”.

Select “Automatic Update
Check” to enable/disable the
automatic update check func-
tion.

●

When software update information

is displayed, contact your Toyota

dealer.

Manually select linked set-
tings

Deleting personal data

Software update settings

298

5-4. Other settings

Press the “MENU” button.

Select “Setup”.

Select “Voice”.

Select the desired items to
be set.

Select to adjust the volume of
voice guidance.
Select to set the voice recog-
nition prompts.
Select to train voice recogni-
tion.

The voice command system
adapts the user accent.
Select to start the voice rec-
ognition tutorial.
Select to set the voice
prompt interrupt on/off.
Select to reset all setup
items.

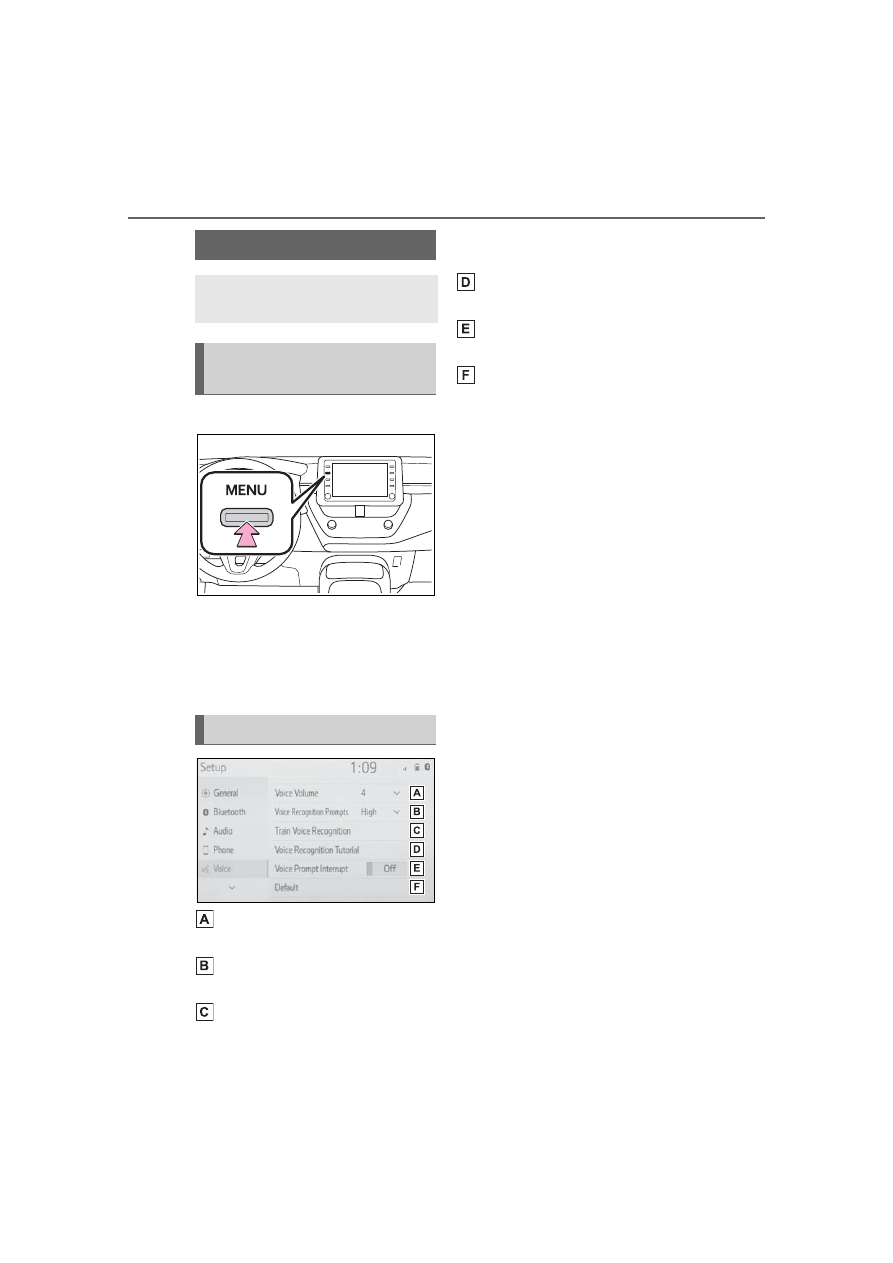

Voice settings

Voice volume, etc. can be
set.

Displaying the voice set-
tings screen

Voice settings screen

299

5-4. Other settings

Audio

Press the “MENU” button.

Select “Setup”.

Select “Vehicle”.

Select the desired items to
be set.

Select to set vehicle customi-
zation. (



P.535)

Select to set valet mode.
(



P.299)

The security system can be set
to on by entering a security code
(4-digit number).
When set to on, the system will
become inoperative once the
electrical power source is dis-
connected until the security
code is entered.

Display the vehicle settings
screen. (



P.299)

Select “Valet Mode”.

Enter the 4-digit personal
code and select “OK”.

Enter the same 4-digit per-
sonal code again and select
“OK”.



The system will request that
you input the security code
again to confirm that you
remember it correctly.



When valet mode activates,
the system stops and a secu-
rity code (4-digit number)
standby screen is displayed.

●

If the 4-digit personal code is for-

gotten, please contact your Toyota

dealer.

Enter the 4-digit personal
code and select “OK”.

●

If an incorrect security code

(4-digit number) is entered 6

times, the system will not accept

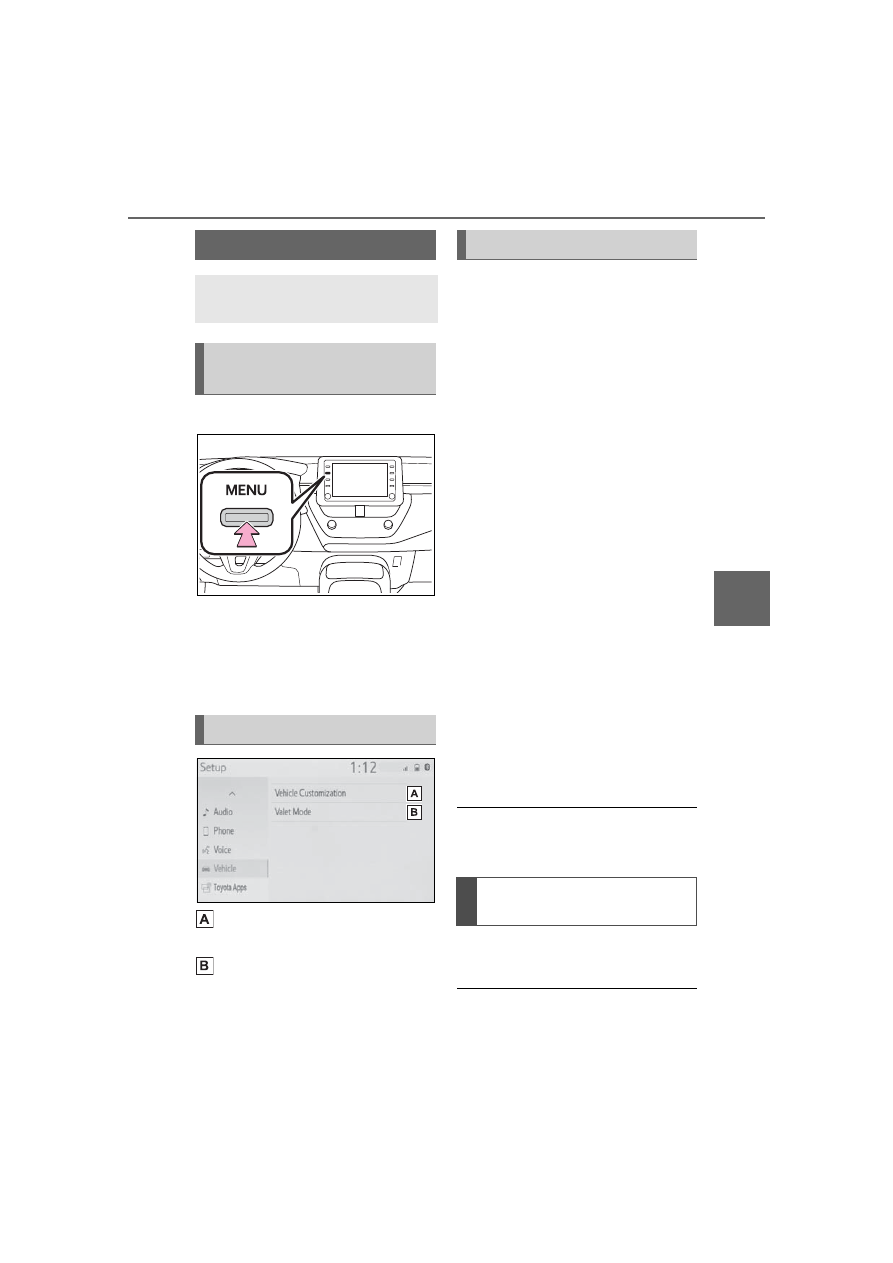

Vehicle settings

Settings are available for
vehicle customization, etc.

Displaying the vehicle
settings screen

Vehicle settings screen

Setting the valet mode

If the valet mode has been
activated

300

5-4. Other settings

another security code (4-digit

number) for 10 minutes.

301

5-5. Using the audio/visual system

Audio

5-5.Using the audio/visual system

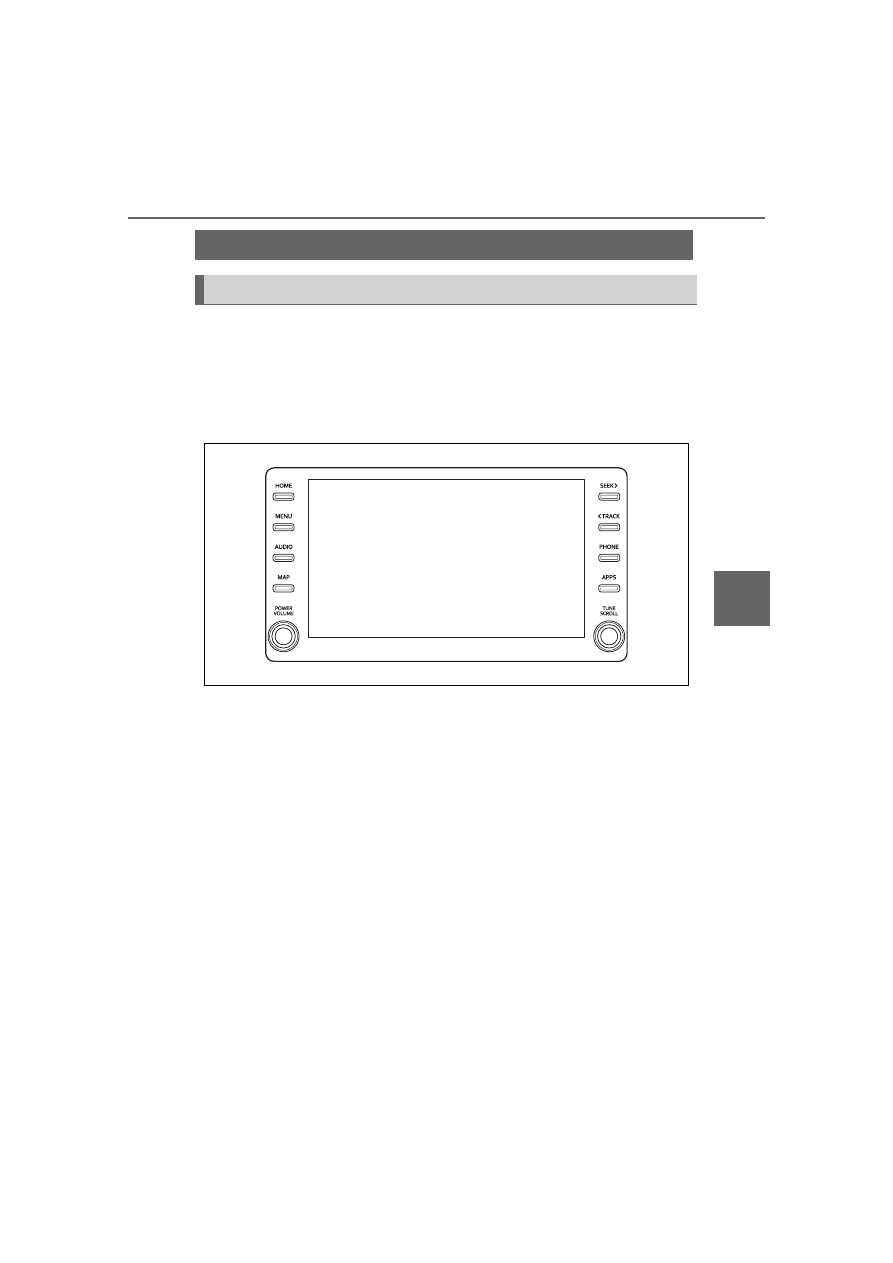

The audio control screen can be reached by the following methods:



From the “AUDIO” button

Press the “AUDIO” button.



From the “MENU” button

Press the “MENU” button, then select “Audio”.

• Using the radio (



P.306)

• Playing a USB memory (



P.312)

• Playing an iPod/iPhone (Apple CarPlay

) (



P.314)

• Using the Android Auto

(



P.317)

• Playing a Bluetooth

device (



P.318)

• Using the steering wheel audio switches (



P.322)

• Audio system settings (



P.324)

: This function is not made available in some countries or areas.

Quick reference

Functional overview

302

5-5. Using the audio/visual system

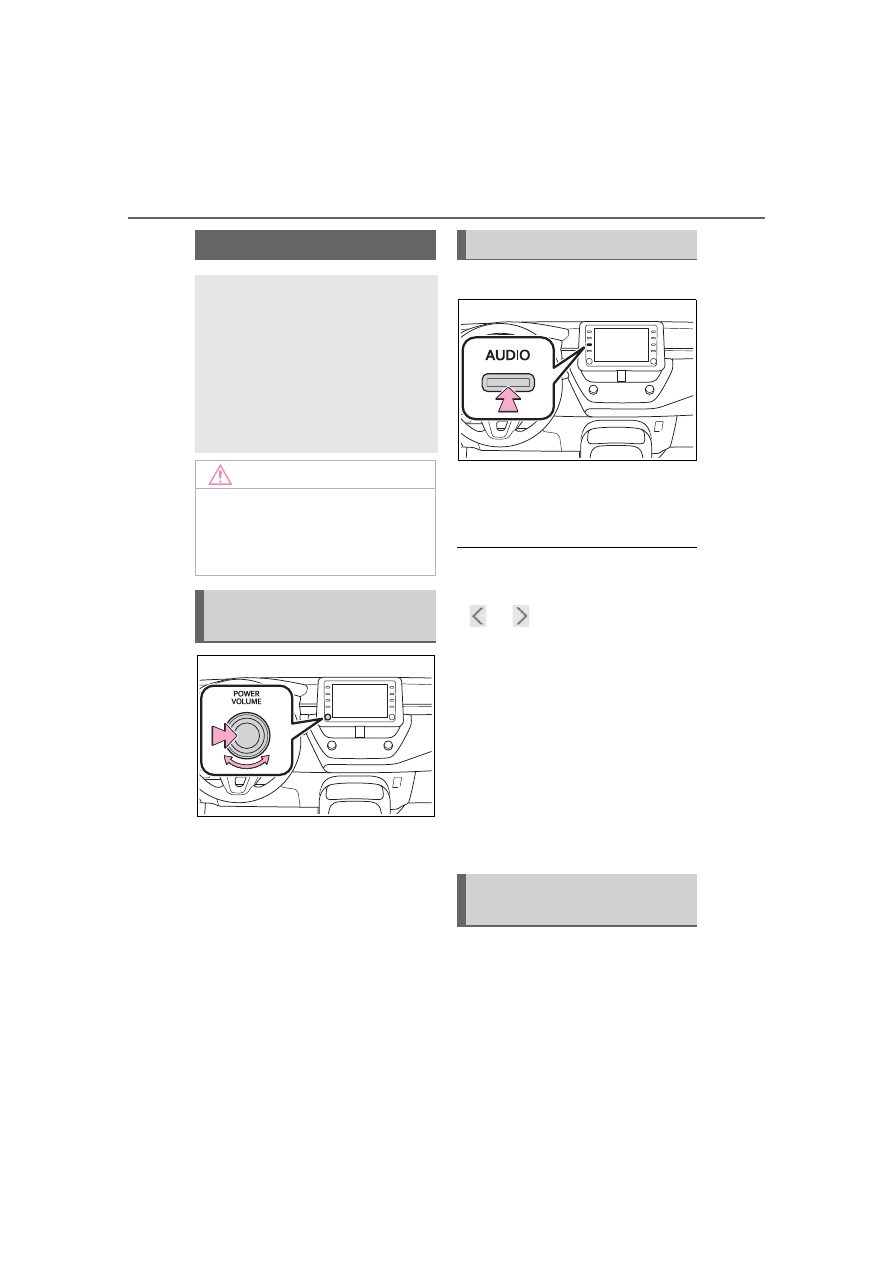

“POWER VOLUME” knob:
Press to turn the audio/visual
system on and off. The system
turns on in the last mode used.
Turn this knob to adjust the vol-
ume.

Press the “AUDIO” button.

Select “Source” or press
“AUDIO” button again.

Select the desired source.

●

Dimmed screen buttons cannot be

operated.

●

When there are two pages, select

to change the page.

●

When an Apple CarPlay/Android

Auto connection is established,

some system functions, such as

the following, will be replaced by

similar Apple CarPlay/Android

Auto function or will become
unavailable

• iPod (Audio Playback)

• USB audio/USB video
• Bluetooth

audio

• Toyota apps

: This function is not made avail-

able in some countries or areas.

Display the audio source
selection screen. (



P.302)

Select “Reorder”.

Some basics

This section describes
some of the basic features
of the audio/visual system.
Some information may not
pertain to your system.

Your audio/visual system
works when the engine
switch is in ACC or ON.

NOTICE

To prevent the battery from being

discharged, do not leave the

audio/visual system on longer

than necessary when the engine

is not running.

Turning the system on
and off

Selecting an audio source

Reordering the audio
source

303

5-5. Using the audio/visual system

Audio

Select the desired audio
source then

to reor-

der.

Select “OK”.

Connect a device.



Turn on the power of the
device if it is not turned on.

●

If a USB hub is plugged-in, two

devices can be connected at a

time.

●

Even if a USB hub is used to con-

nect more than two USB devices,

only the first two connected

devices will be recognized.

●

If a USB hub that has more than

two ports is connected to the USB

port, devices connected to the

USB hub may not charge or be

operable, as the supply of current

may be insufficient.

Display the audio control
screen. (



P.302)

Select “Sound”.

Select the desired item to be
set.

Select to set the tre-
ble/mid/bass. (



P.303)

Select to set the fader/bal-
ance. (



P.304)

Select to set the Automatic
Sound Levelizer. (



P.304)

■

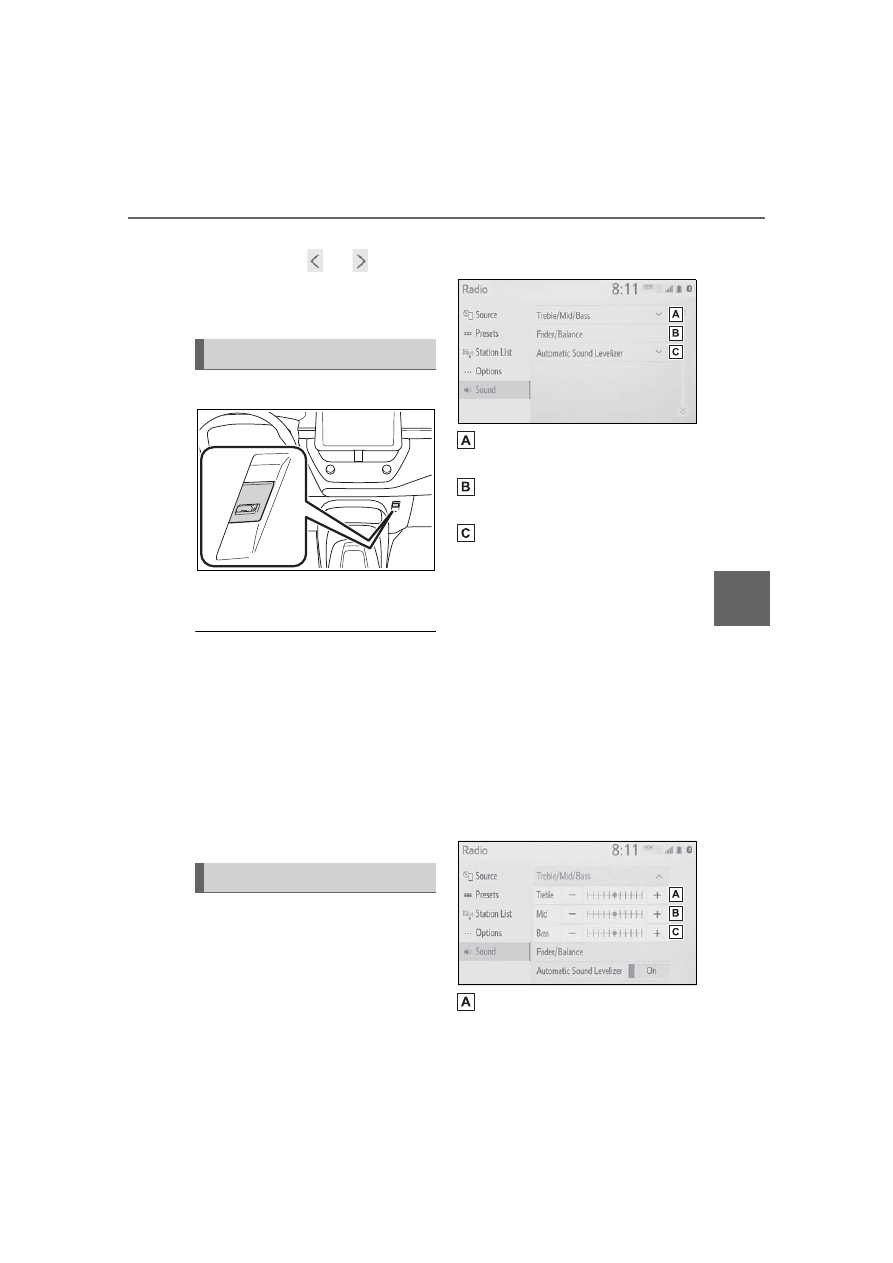

Treble/Mid/Bass

How good an audio program
sounds is largely determined by
the mix of the treble, mid and
bass levels. In fact, different
kinds of music and vocal pro-
grams usually sound better with
different mixes of treble, mid
and bass.

Select “Treble/Mid/Bass”.

Select the desired screen
button.

Select “+” or “-” to adjust
high-pitched tones.

USB port

Sound settings

Content .. 16 17 18 19 ..
