5-1. Basic function

(



P.261, 302)

When an Apple CarPlay/Android Auto connection is established,
press to display the Maps app screen.

*1, 2

Press to display the audio/visual system screen. (



P.301, 302)

Press to display the “Menu” screen. (



P.257)

Press to display the home screen. (



P.264)

:For details about Apple CarPlay/Android Auto:



P.287

:This function is not made available in some countries or areas.

:When an Apple CarPlay/Android Auto connection is established, this

function will be unavailable.

●

The screen shots in this document

and the actual screens of the sys-

tem differ depending on whether

the functions and/or a contract

existed.

WARNING

●

For safety, the driver should not

operate the system while

he/she is driving. Insufficient

attention to the road and traffic

may cause an accident.

257

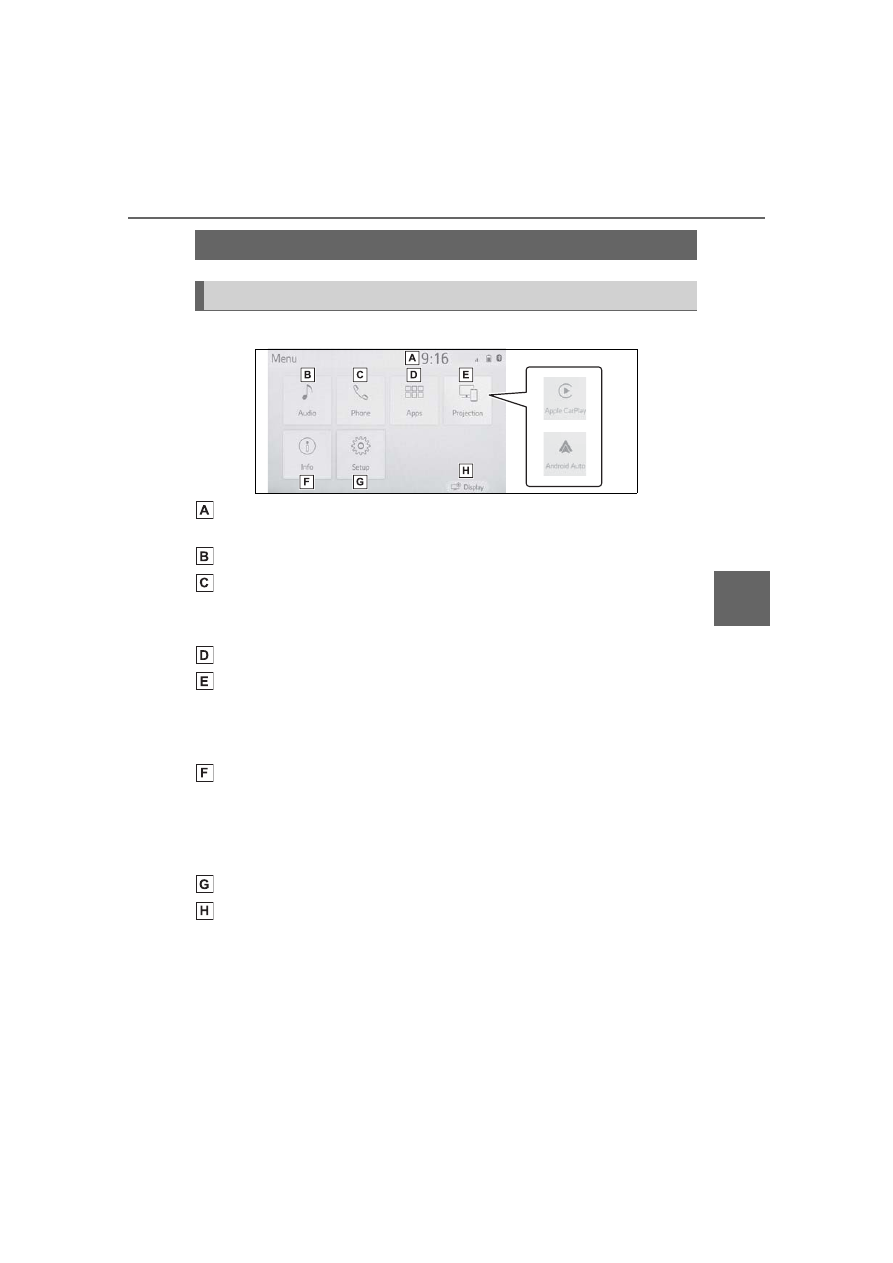

5-1. Basic function

Audio

Press the “MENU” button to display the “Menu” screen.

Displays the clock. Select to display the clock settings screen.
(



P.295)

Select to display the audio control screen. (



P.301)

Select to display the hands-free operation screen. (



P.346)

When an Apple CarPlay connection is established, select to dis-
play the Phone app screen.

Select to display the application screen.

*1, 2

(



P.383)

When an Apple CarPlay/Android Auto connection is established
and this button displays “Apple CarPlay”/“Android Auto”, select to
display the home screen of Apple CarPlay/Android Auto.

(



P.287)

Vehicles without DCM: Select to display the fuel consumption
screen. (



P.93)

Vehicles with DCM: Select to display the information screen.
Select “ECO” to display the fuel consumption screen. (



P.93)

The “Vehicle Alert History” shown on the information screen.

Select to display the “Setup” screen. (



P.260)

Select to adjust the contrast, brightness, etc. of the display.
(



P.268)

:This function is not made available in some countries or areas.

:When an Apple CarPlay/Android Auto connection is established, this

function will be unavailable.

Menu screen

Menu screen operation

258

5-1. Basic function

Indicate during data commu-
nication performed via Data
Communication Module
(DCM)

The reception level of Data
Communication Module
(DCM) display

(



P.258)

The reception level of the
connected phone display
(



P.258)

Remaining battery charge
display (



P.259)

Bluetooth

phone connection

condition display (



P.259)

Wi-Fi

connection condition

display

*1, 2

(



P.282)

:Vehicles with DCM

:This function is not made avail-

able in some countries or areas.

●

The number of status icons that

can be displayed differs depend-

ing on the displayed screen.

The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,

is displayed.

“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth

phone you have.



While connected with cellular
phone

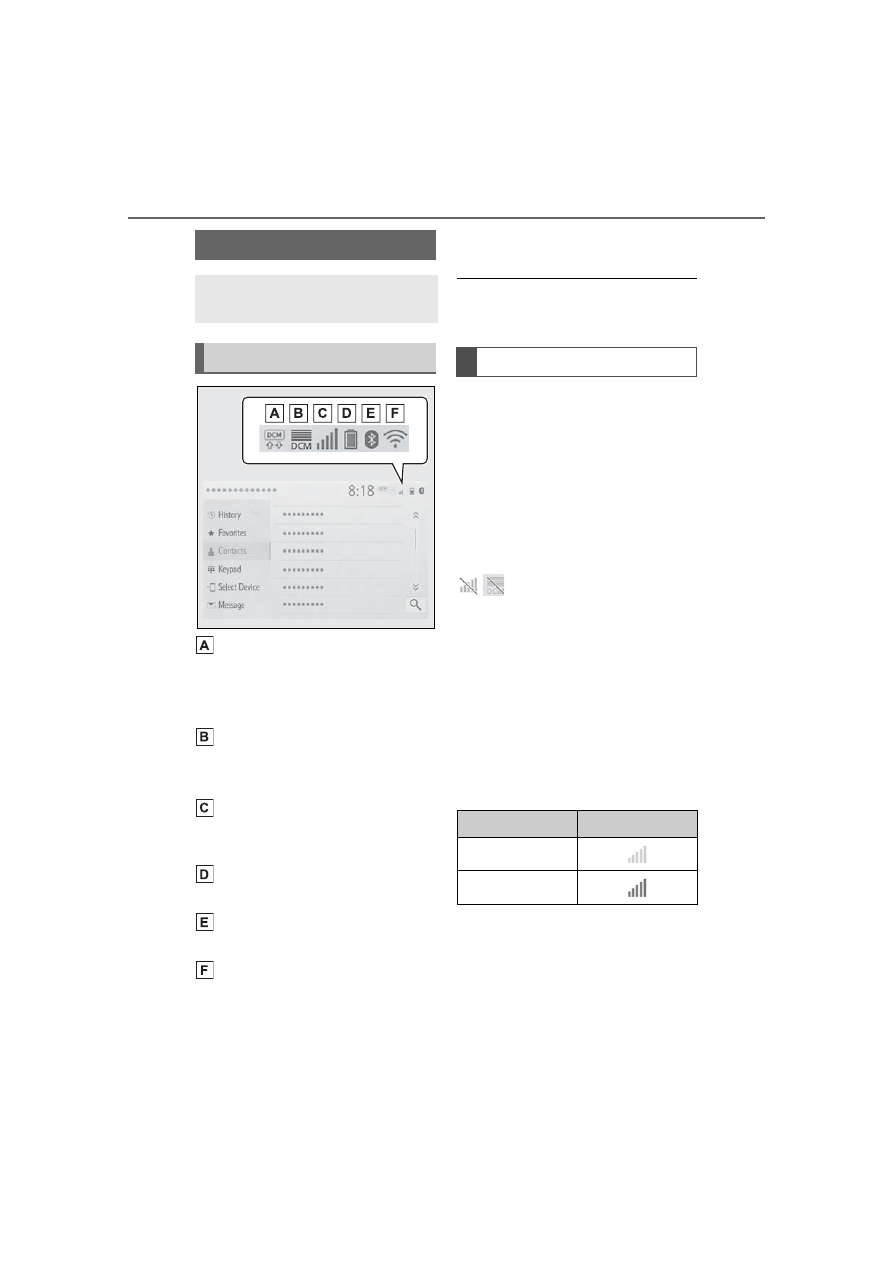

Status icon

Status icons are displayed
at the top of the screen.

Status icon explanation

Reception level display

Level

Indicators

Poor

Excellent

259

5-1. Basic function

Audio



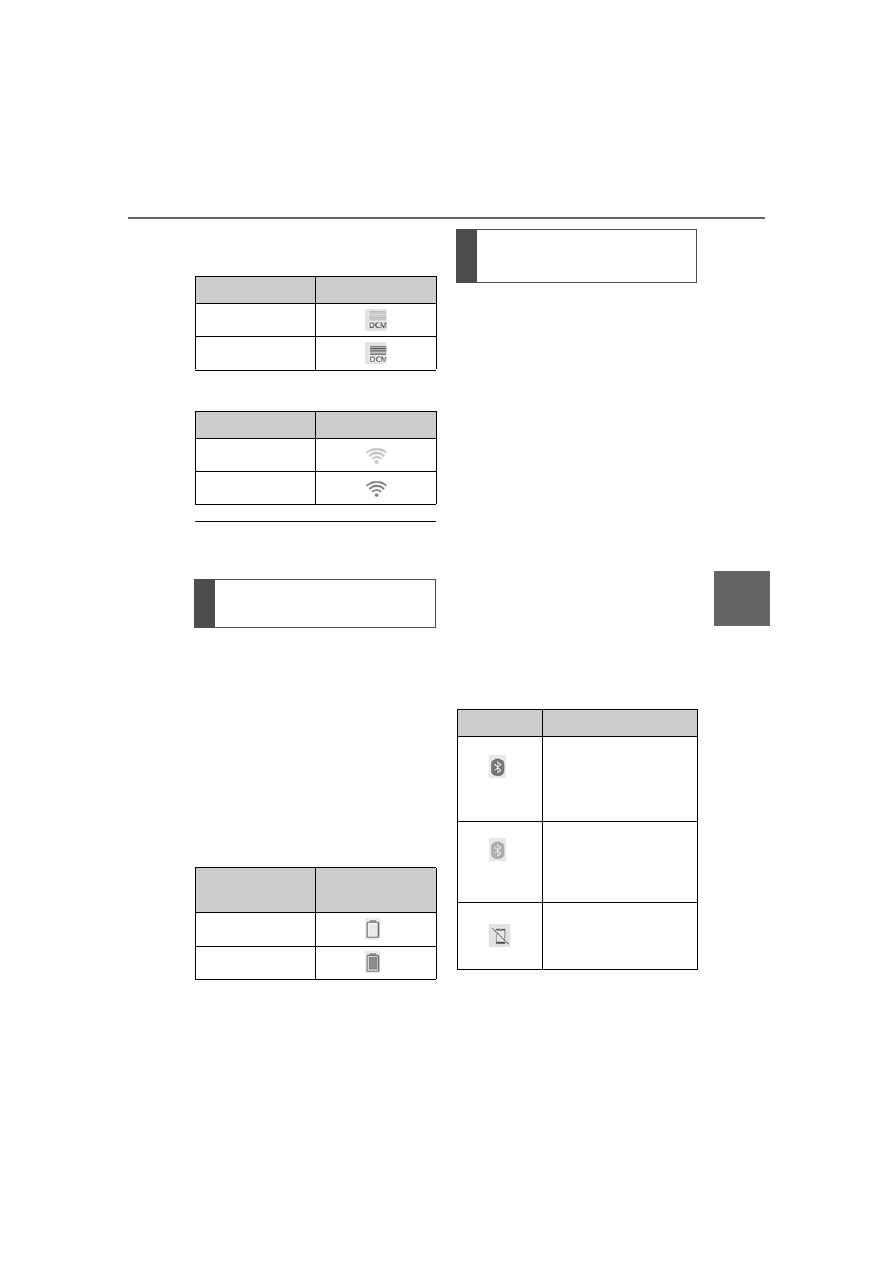

While using Data Communi-
cation Module (DCM)



While using Wi-Fi

Hotspot

●

When Wi-Fi

Hotspot is off, no

item is displayed.

The amount displayed does not
always correspond with the
amount displayed on the Blue-
tooth

device.

The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth

device connected.

This system does not have a
charging function.

An antenna for the Bluetooth

connection is built into the
instrument panel.

The condition of the Bluetooth

connection may deteriorate and
the system may not function
when a Bluetooth

phone is

used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.

Leave the Bluetooth

phone in a

place where the condition of the
Bluetooth

connection is good.

Level

Indicators

Poor

Excellent

Level

Indicators

No connection

Connected

Remaining battery charge
display

Remaining

charge

Indicators

Empty

Full

Bluetooth

connection

condition display

Indicators

Conditions

(Blue)

Indicates that the con-
dition of the Blue-
tooth

connection is

good.

(Gray)

While in this condition,
sound quality during
phone calls may dete-
riorate.

Indicates that the cel-
lular phone is not con-
nected via Bluetooth

260

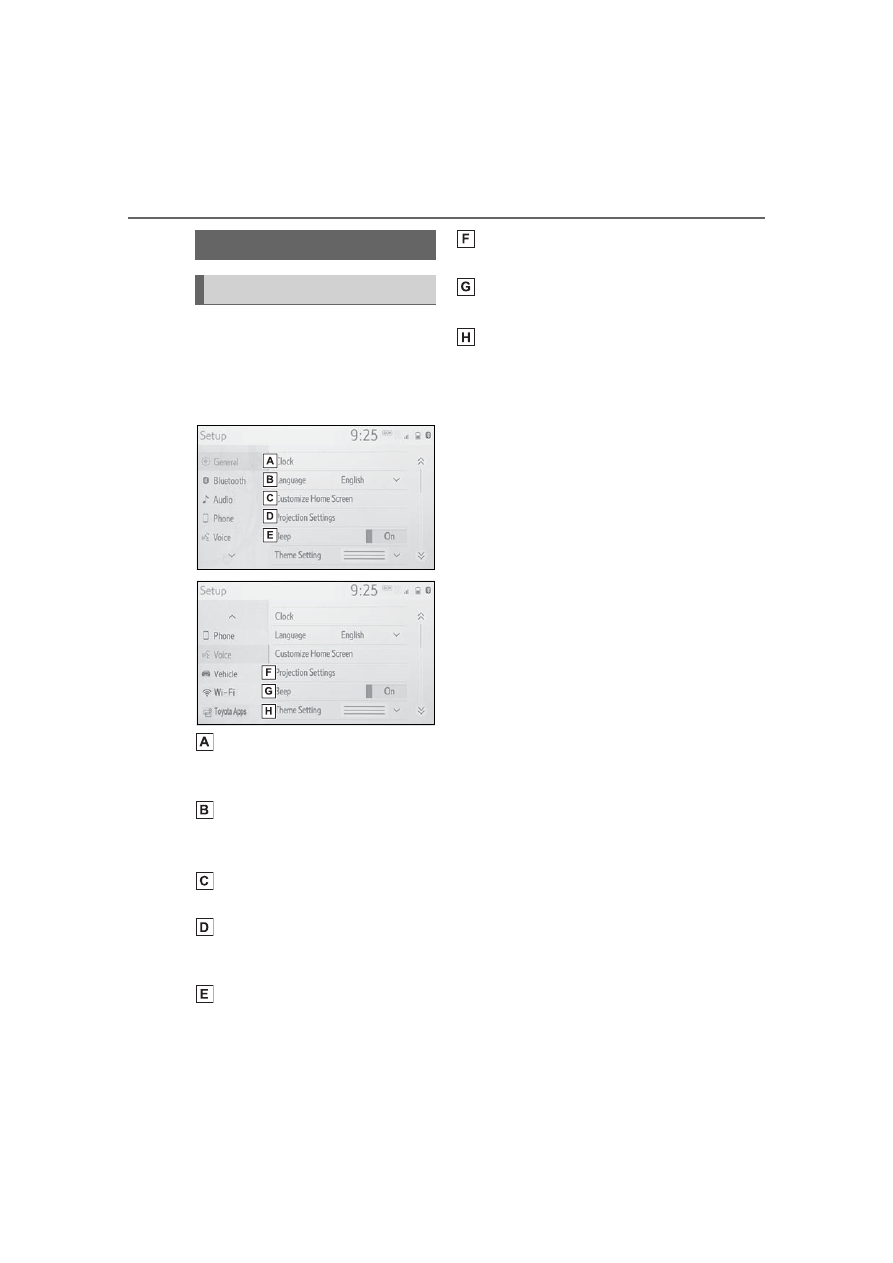

5-1. Basic function

Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.

Select to change the selected
language, operation sound
settings, etc. (



P.294)

Select to set Bluetooth

device and Bluetooth

sys-

tem settings. (



P.275)

Select to set audio settings.
(



P.324)

Select to set the phone
sound, contacts, message
settings, etc. (



P.362)

Select to set the voice set-
tings. (



P.298)

Select to set vehicle informa-
tion. (



P.299)

Select to set Wi-Fi

connec-

tion settings.

*1, 2

(



P.283)

Select to set Toyota apps set-
tings.

(



P.387)

:Vehicles with DCM

:This function is not made avail-

able in some countries or areas.

“Setup” screen

261

5-2. Basic information before operation

5-2.Basic information before operation

After a few seconds, the caution
screen will be displayed.
After about 5 seconds or select-
ing “Continue”, the caution
screen automatically switches to
the next screen.

When system response is
extremely slow, the system can
be restarted.

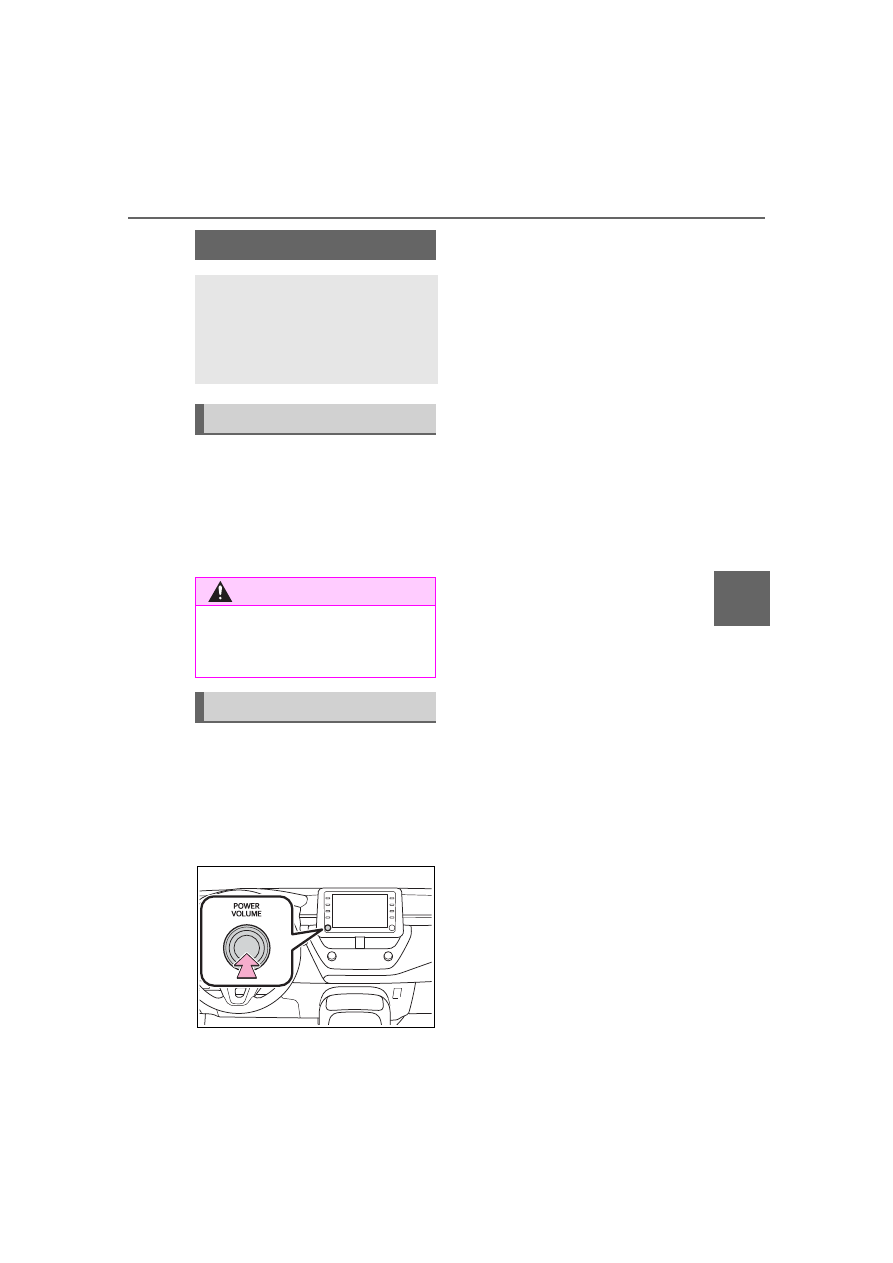

Press and hold the “POWER
VOLUME” knob for 3 sec-
onds or more.

Initial screen

When the engine switch is
turned to ACC or ON, the
initial screen will be dis-
played and the system will
begin operating.

Caution screen

WARNING

●

When the vehicle is stopped

with the engine running, always

apply the parking brake for

safety.

Restarting the system

262

5-2. Basic information before operation

Operations are performed by touching the touch screen directly with
your finger.

: The above operations may not be performed on all screens.

●

Flick operations may not be per-

formed smoothly at high altitudes.

This system is operated mainly
by the buttons on the screen.
(Referred to as screen buttons
in this manual.)

When a screen button is
touched, a beep sounds. (To set
the beep sound:



P.294)

●

If the system does not respond to

touching a screen button, move

your finger away from the screen

and then touch it again.

●

Dimmed screen buttons cannot be

operated.

Touch screen

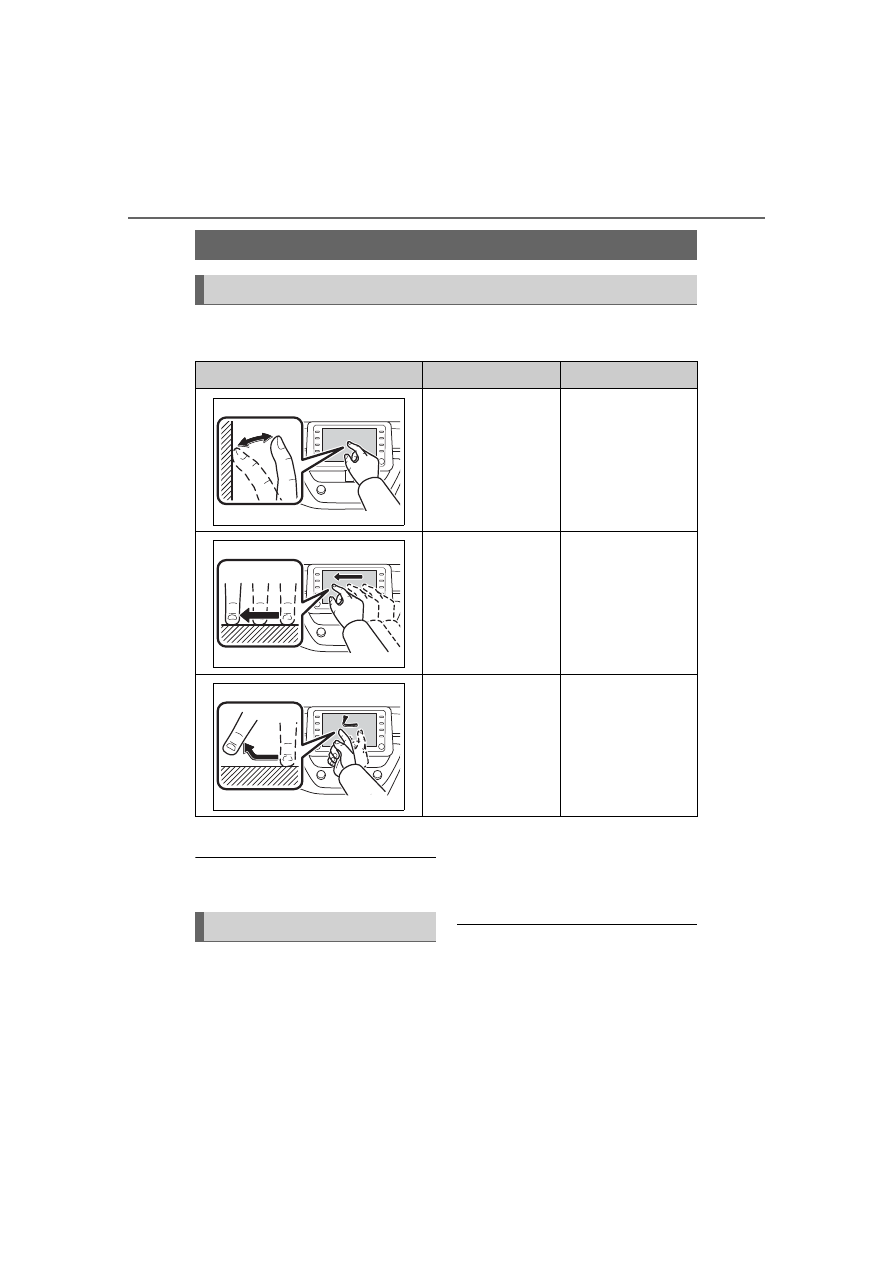

Touch screen gestures

Operation method

Outline

Main use



Touch

Quickly touch and
release once.



Selecting an item
on the screen



Drag

Touch the screen
with your finger,
and move the
screen to the
desired position.



Scrolling the lists



Flick

Quickly move the
screen by flicking
with your finger.



Scrolling the main
screen page

Touch screen operation

263

5-2. Basic information before operation

●

The displayed image may become

darker and moving images may

be slightly distorted when the

screen is cold.

●

In extremely cold conditions, the

screen may not be displayed and

the data input by a user may be

deleted. Also, the screen buttons

may be harder than usual to

depress.

●

When you look at the screen

through polarized material such as

polarized sunglasses, the screen

may be dark and hard to see. If

so, look at the screen from differ-

ent angles, adjust the screen set-

tings on the display settings

screen or take off your sun-

glasses.

●

When

is displayed on the

screen, select

to return to

the previous screen.

The operable areas of the
capacitive touch screen buttons
use capacitive touch sensors
and may not operate properly in
the following situations:



If the screen is dirty or wet



If a source of strong electro-

magnetic waves is brought
near the screen



If a glove is worn during oper-
ation



If the screen is touched by a
fingernail



If a stylus is used to operate
the buttons



If your palm touches the oper-
able area of another button
during operation



If a button is touched quickly



If the operable part of a
capacitive touch screen but-
ton is touched by or covered
with a metal object, such as
the following, it may not oper-
ate properly:

• Magnetic isolation cards
• Metallic foil, such as the inner

packaging of a cigarette box

• Metallic wallets or bags
• Coins
• Discs, such as a CD or DVD



If the operable part of a
capacitive touch screen but-
ton is wiped, it may operate
unintentionally.



If the capacitive touch screen
button is being touched when
the engine switch is changed
to ACC or ON, the button may
not operate properly. In this
case, remove anything touch-
ing the button, turn the engine
switch off and then turn it to
ACC or ON, or restart the sys-

NOTICE

●

To prevent damaging the

screen, lightly touch the screen

buttons with your finger.

●

Do not use objects other than

your finger to touch the screen.

●

Wipe off fingerprints using a

glass cleaning cloth. Do not use

chemical cleaners to clean the

screen, as they may damage

the touch screen.

Capacitive touch screen
buttons

264

5-2. Basic information before operation

tem by press and hold the
“POWER VOLUME” knob for
3 seconds or more.

●

Capacitive touch screen button

sensor sensitivity can be adjusted.

(



P.294)

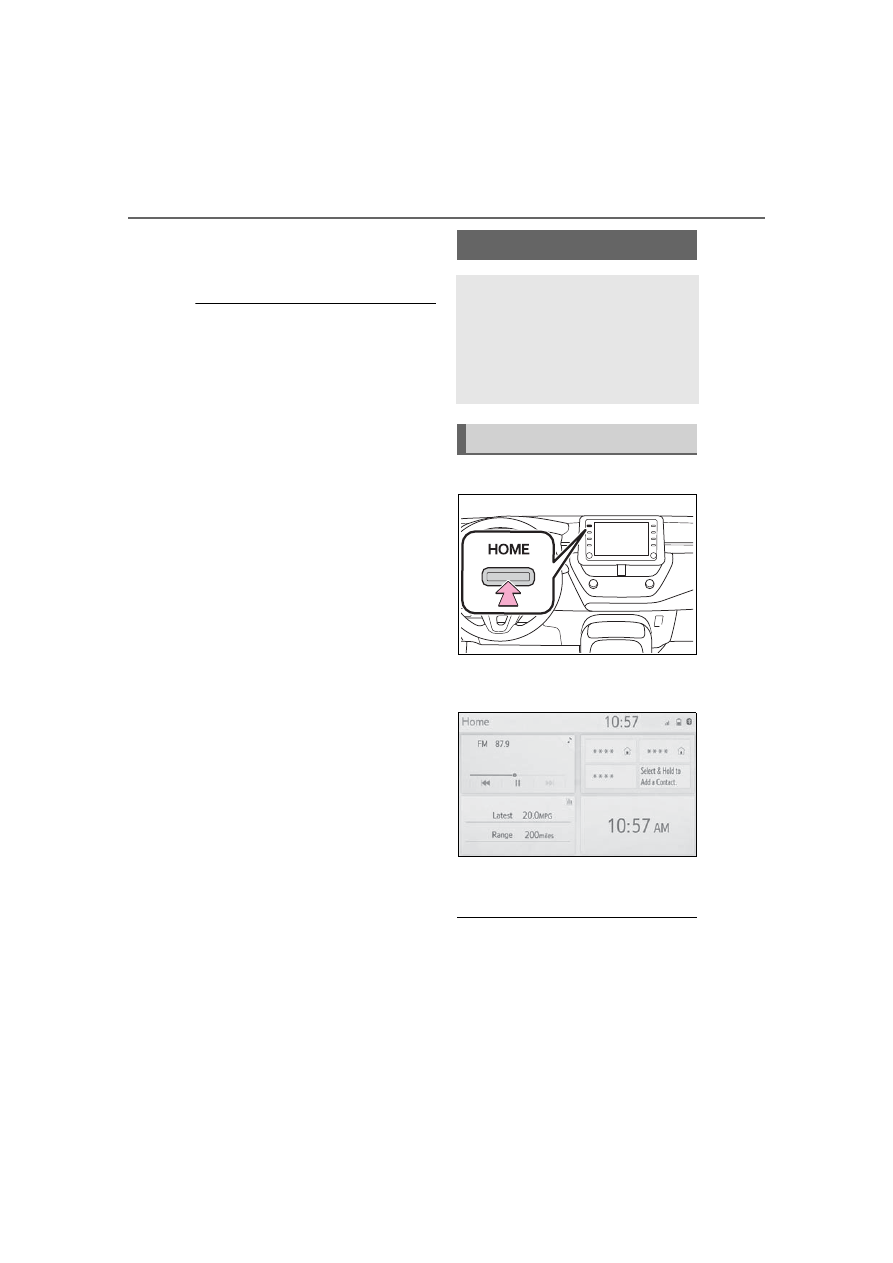

Press the “HOME” button.

Check that the home screen
is displayed.



Selecting a screen will display
it full screen.

●

The display information and area

on the home screen can be cus-

tomize.

●

The home screen can be set to

several types of split layouts

Home screen

On the home screen, multi-
ple screens, such as the
audio/visual system screen,
hands-free screen and clock
screen, can be displayed
simultaneously.

Home screen operation

265

5-2. Basic information before operation

Audio

The display information/area on
the home screen and the home
screen layout can be changed.

Press the “MENU” button.

Select “Setup”.



If the general settings screen
is not displayed, select “Gen-
eral”.

Select “Customize Home
Screen”.

Select the items to be set.

Select to change the display
information and area on the
home screen.
Select to change the home
screen layout.

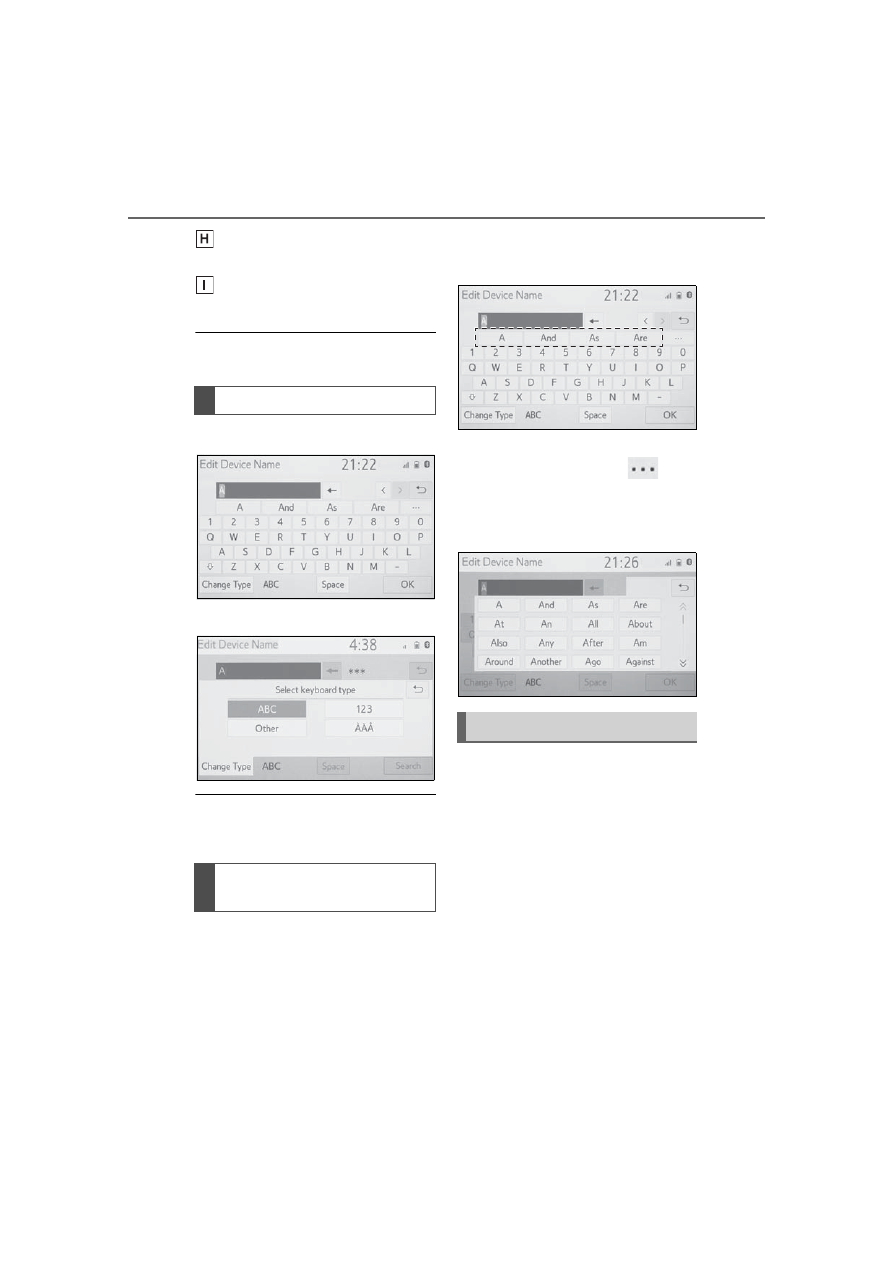

When searching by a name or
entering data, letters and num-
bers can be entered via the
screen.

Text field. Entered charac-
ter(s) will be displayed.
Select to erase one charac-
ter.
Select and hold to continue
erasing characters.
Select to move the cursor.
Select to choose predictive
text candidate for entered
text. (



P.266)

Select to display a list of pre-
dictive text candidates when
there is more than one.
(



P.266)

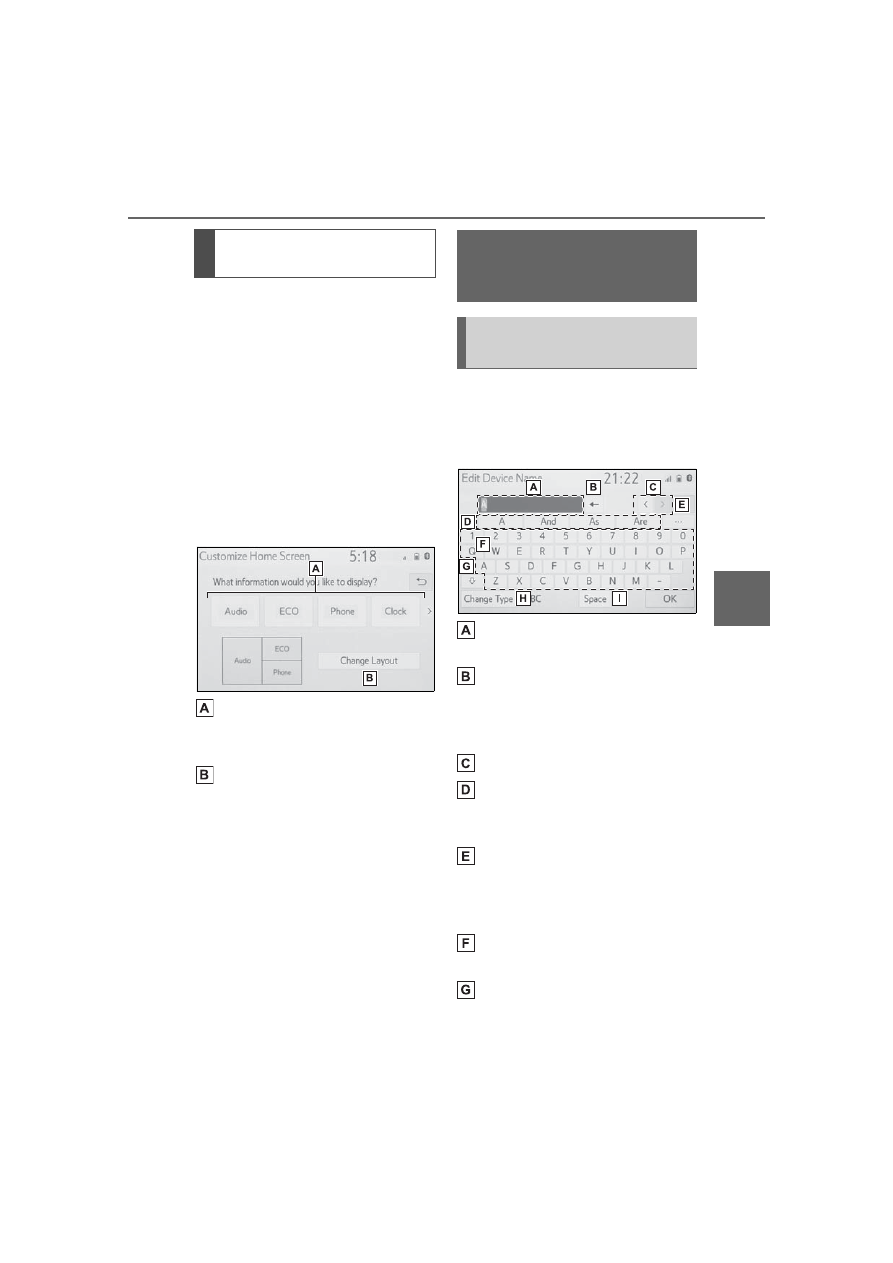

Select to enter desired char-
acters.
Select to enter characters in
lower case or in upper case.

Customizing the home
screen

Entering letters and

numbers/list screen

operation

Entering letters and num-
bers

266

5-2. Basic information before operation

Select to change character
types. (



P.266)

Select to make a space on
cursor.

●

Keyboard layout can be changed.

(



P.294)

Select “Change Type”.

Select the desired character.

●

Depending on the screen being

displayed, it may not possible to

change keyboard characters.

When text is input, the system
predicts the text that may com-
plete the currently unconfirmed
text and displays predictive
replacement candidates that
match the beginning of the text.

Input text.

Select the desired candidate.



To select a candidate that is
not displayed, select

and then select the desired
predictive replacement candi-
date.

The list screen may be dis-
played after entering characters.
When a list is displayed, use the
appropriate screen button to
scroll through the list.

Changing character type

Displaying predictive text
candidates

List screen

267

5-2. Basic information before operation

Audio

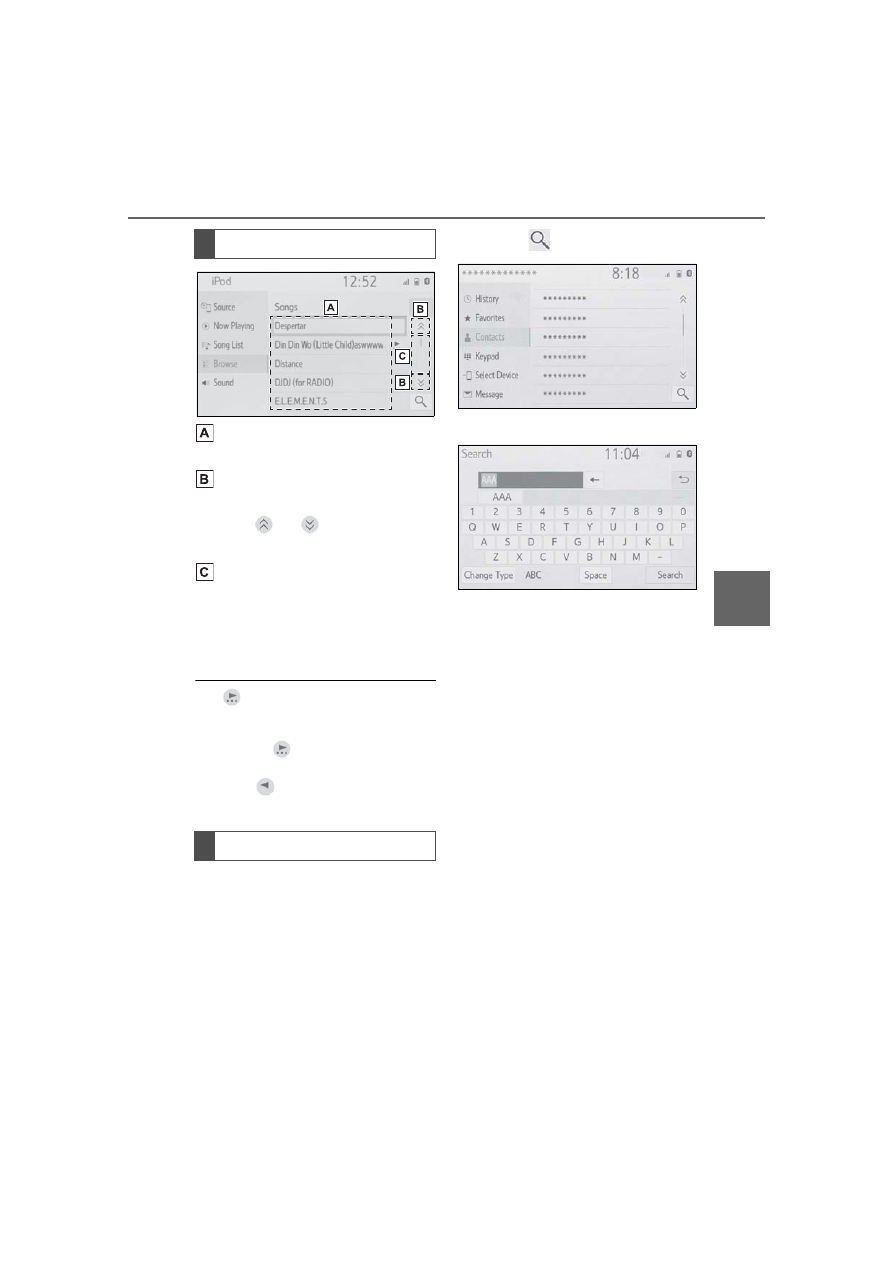

To scroll up/down the list,
flick the list up/down.
Select to skip to the next or
previous page. Select and
hold

to scroll

through the displayed list.
Indicates the position of the
displayed entries in the entire
list.
To scroll up/down pages,
drag the bar.

●

appears to the right of an

item name, the complete name is

too long to display.

• Select to

scroll to the end of

the name.

• Select

to move to the begin-

ning of the name.

Items are displayed in the list
with the most similar results of
the search at the top.

Select

Input text.

Select “Search”.

The list is displayed.

Scrolling list screen

Searching a list

268

5-2. Basic information before operation

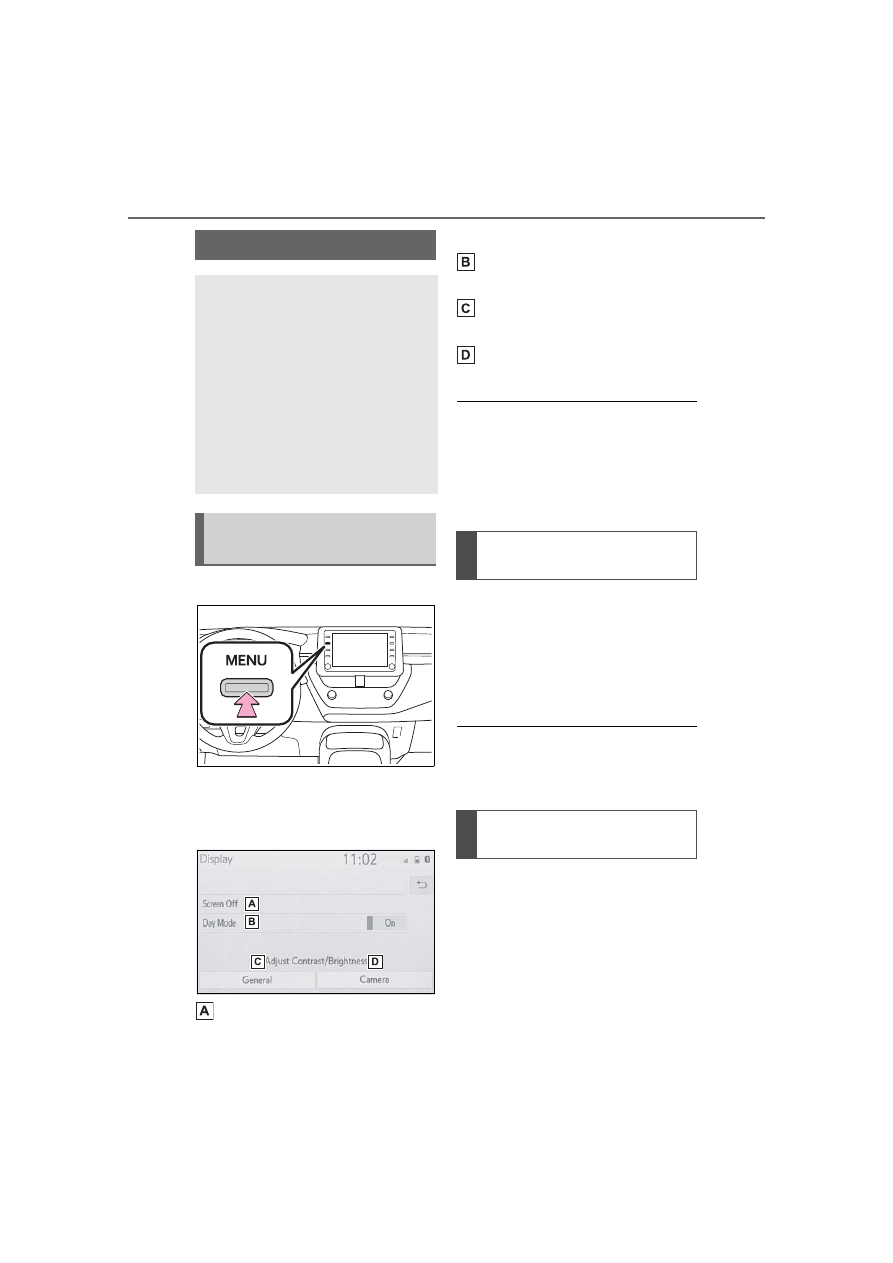

Press the “MENU” button.

Select “Display”.

Select the desired items to
be set.

Select to turn the screen off.
To turn it on, press any but-

ton.
Select to turn day mode
on/off. (



P.268)

Select to adjust the screen
display. (



P.268)

Select to adjust the camera
display.

●

When the screen is viewed

through polarized sunglasses, a

rainbow pattern may appear on

the screen due to optical charac-

teristics of the screen. If this is dis-

turbing, please operate the screen

without polarized sunglasses.

Depending on the position of the
headlight switch, the screen
changes to day or night mode.
This feature is available when
the headlight is switched on.

Select “Day Mode”.

●

If the screen is set to day mode

with the headlight switch turned

on, this condition is memorized

even with the engine turned off.

The contrast and brightness of
the screen can be adjusted
according to the brightness of
your surroundings.

Select “General” or “Cam-
era”.

Select the desired item.



“Display (General)” screen

Screen adjustment

The contrast and brightness
of the screen display and
the image of the camera dis-
play can be adjusted. The
screen can also be turned
off, and/or changed to either
day or night mode.

(For information regarding
audio/visual screen adjust-
ment:



P.304)

Displaying the screen
adjustment screen

Changing between day
and night mode

Adjusting the con-
trast/brightness

269

5-2. Basic information before operation

Audio

only: Select “<” or “>” to select
the desired display.

• “Contrast”
“+”: Select to strengthen the con-
trast of the screen.
“-”: Select to weaken the contrast of
the screen.
• “Brightness”
“+”: Select to brighten the screen.
“-”: Select to darken the screen.

Linking multi-informa-

tion display and the

system

The following functions of
the system are linked with
the multi-information dis-
play in the instrument clus-
ter:



Audio



Phone

etc.

These functions can be
operated using multi-infor-
mation display control
switches on the steering
wheel. (



P.83)

: When an Apple CarPlay con-

nection is established, this
function will be unavailable.

270

5-3. Connectivity settings

5-3.Connectivity settings

■

Registering from the sys-
tem

Turn the Bluetooth

connec-

tion setting of your cellular
phone on.



This function is not available
when Bluetooth

connection

setting of your cellular phone
is set to off.

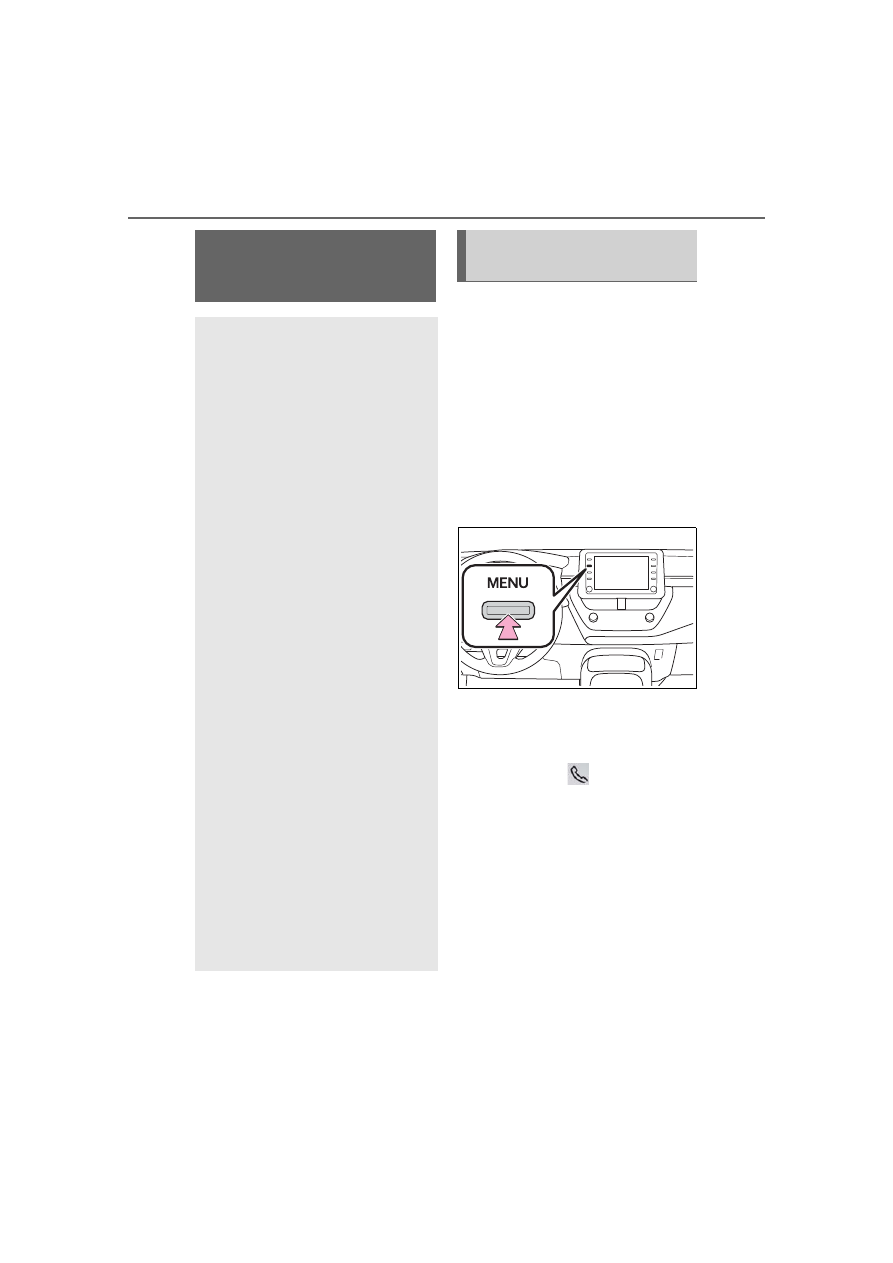

Press the “MENU” button.

Select “Phone”.



Operations up to this point
can also be performed by
pressing the

switch on the

steering wheel or the
“PHONE” button on the instru-
ment panel.

Registering/Connect-

ing a Bluetooth

device

To use the hands-free sys-
tem, it is necessary to regis-
ter a Bluetooth

phone with

the system.

Once the phone has been
registered, it is possible to
use the hands-free system.

This operation cannot be
performed while driving.

When an Apple CarPlay
connection is established,
Bluetooth

functions of the

system will become unavail-
able and any connected
Bluetooth

devices will be

disconnected.

When connecting to
Android Auto, a Bluetooth

connection will be made
automatically.

When an Android Auto con-
nection is established,
some Bluetooth

functions

other than hands-free sys-
tem cannot be used.

: This function is not made avail-

able in some countries or
areas.

Registering a Bluetooth

phone for the first time

271

5-3. Connectivity settings

Audio

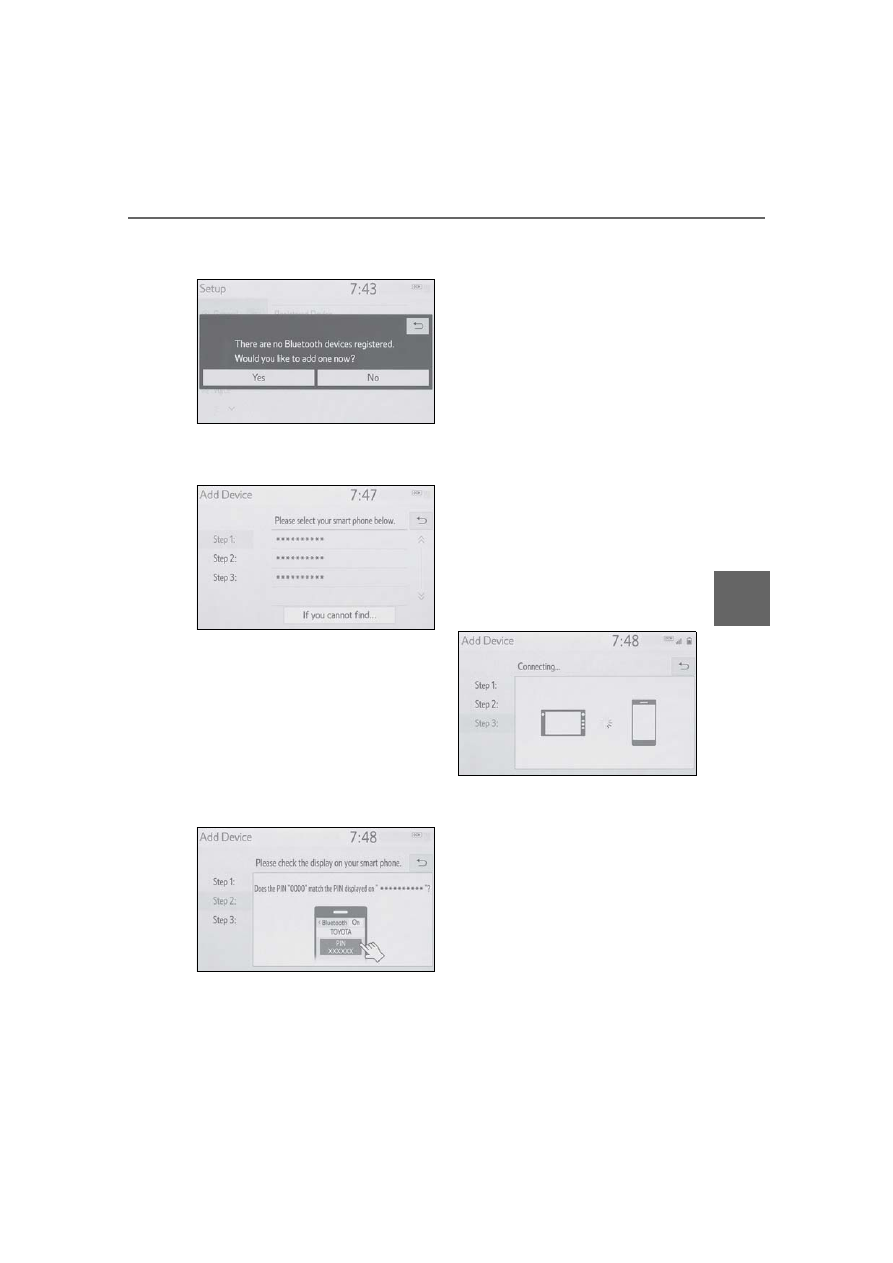

Select “Yes” to register a
phone.

Select the desired Bluetooth

device.



If the desired Bluetooth

phone is not on the list, select
“If you cannot find...” and fol-
low the guidance on the
screen. (



P.272)

device using your Blue-
tooth

device.



For details about operating
the Bluetooth

device, see

the manual that comes with it.



A PIN code is not required for
SSP (Secure Simple Pairing)
compatible Bluetooth

devices. Depending on the
type of Bluetooth

device

being connected, a message
confirming registration may
be displayed on the Blue-
tooth

device’s screen.

Respond and operate the
Bluetooth

device according

to the confirmation message.

Check that the following
screen is displayed, indicat-
ing pairing was successful (a
Bluetooth

link has been

established but registration is
not yet complete).



The system is connecting to
the registered device.



At this stage, the Bluetooth

functions are not yet avail-
able.

Content .. 14 15 16 17 ..
