4-5. Using the driving support systems

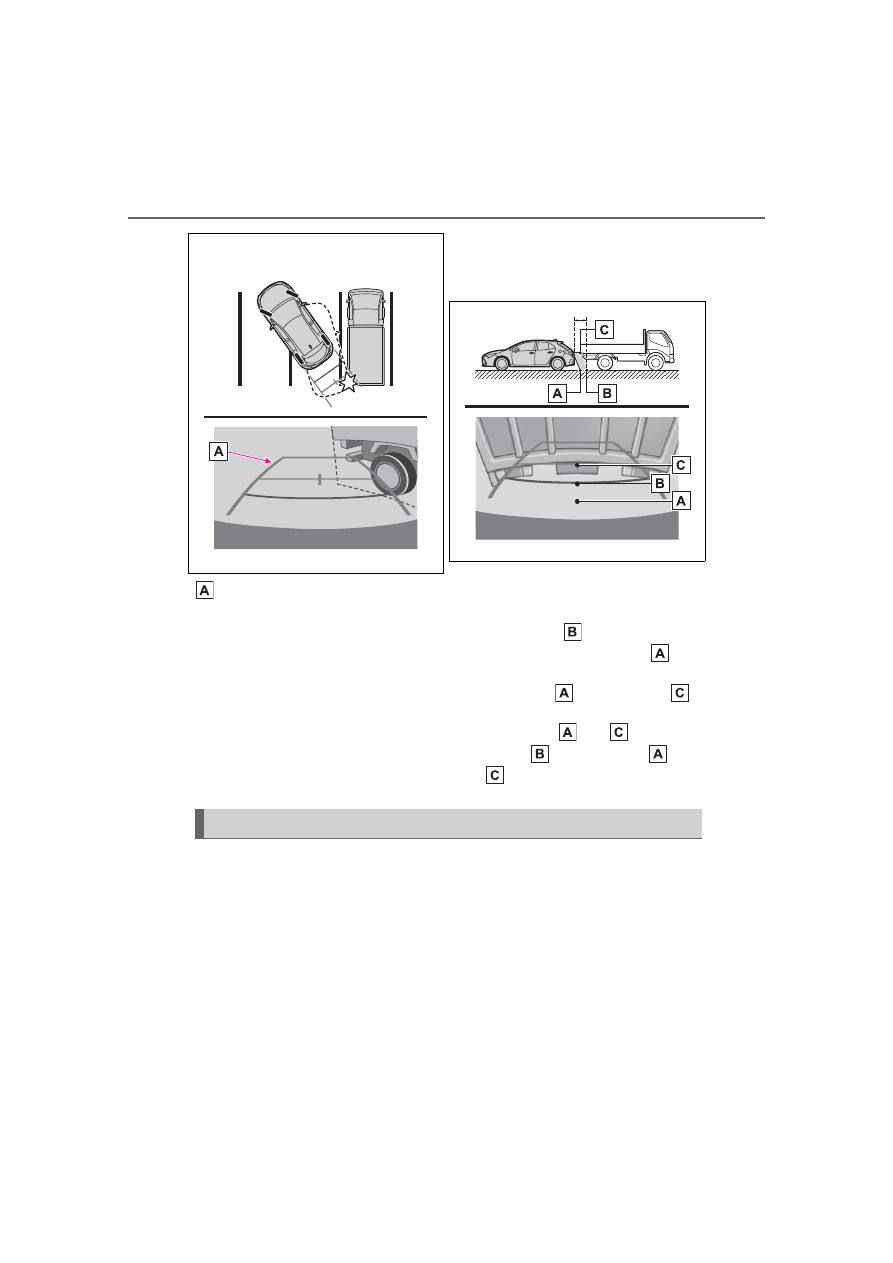

Vehicle width guide lines

Visually check the surroundings
and the area behind the vehicle. In
the case shown below, the truck
appears to be outside of the vehicle
width guide lines and the vehicle
does not look as if it hits the truck.
However, the rear body of the truck
may actually cross over the vehicle
width guide lines. In reality if you
back up as guided by the vehicle

width guide lines, the vehicle may
hit the truck.



Distance guide lines

Visually check the surroundings
and the area behind the vehicle. On
the screen, it appears that a truck is
parking at point

. However, in

reality if you back up to point

you will hit the truck. On the screen,
it appears that

is closest and

is farthest away. However, in reality,
the distance to

and

is the

same, and

is farther than

and

■

If you notice any symptoms

If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.

Things you should know

241

4-5. Using the driving support systems

ing

Symptom

Likely cause

Solution

The image is difficult to
see



The vehicle is in a dark
area



The temperature
around the lens is
either high or low



The outside tempera-
ture is low



There are water drop-
lets on the camera



It is raining or humid



Foreign matter (mud
etc.) is adhering to the
camera



Sunlight or headlights
are shining directly
into the camera



The vehicle is under
fluorescent lights,
sodium lights, mer-
cury lights etc.

If this happens due to
these causes, it does
not indicate a malfunc-
tion. Back up while visu-
ally checking the
vehicle’s surroundings.
(Use the monitor again
once conditions have
been improved.) The
procedure for adjusting
the picture quality of the
rear view monitor sys-
tem is the same as the
procedure for adjusting
the screen. (



P.268)

The image is blurry

Dirt or foreign matter
(such as water droplets,
snow, mud etc.) is
adhering to the camera.

Flush the camera with a
large quantity of water
and wipe the camera
lens clean with a soft
and wet cloth.

The image is out of
alignment

The camera or sur-
rounding area has
received a strong
impact.

Have the vehicle
inspected by your Toy-
ota dealer.

The fixed guide lines
are very far out of
alignment

The camera position is
out of alignment.

Have the vehicle
inspected by your Toy-
ota dealer.



The vehicle is tilted
(there is a heavy load
on the vehicle, tire
pressure is low due to
a tire puncture, etc.)



The vehicle is used on
an incline.

If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings.

242

4-5. Using the driving support systems

WARNING

■

When using the rear view

monitor system

The rear view monitor system is a

supplemental device intended to

assist the driver when backing up.

When backing up, be sure to visu-

ally check all around the vehicle

both directly and using the mirrors

before proceeding. Observe the

following precautions to avoid an

accident that could result in death

or serious injuries.

●

Never depend on the rear view

monitor system entirely when

backing up. The image and the

position of the guide lines dis-

played on the screen may differ

from the actual state. Use cau-

tion, just as you would when

backing up any vehicle.

●

Be sure to back up slowly,

depressing the brake pedal to

control vehicle speed.

●

The instructions given are only

guide lines. When and how

much to turn the steering wheel

will vary according to traffic con-

ditions, road surface condi-

tions, vehicle condition, etc.

when parking. It is necessary to

be fully aware of this before

using the rear view monitor sys-

tem.

●

When parking, be sure to check

that the parking space will

accommodate your vehicle

before maneuvering into it.

●

Do not use the rear view moni-

tor system in the following

cases:

• On icy or slick road surfaces, or

in snow

• When using tire chains or emer-

gency tires

• When the back door is not

closed completely

• On roads that are not flat or

straight, such as curves or

slopes

●

In low temperatures, the screen

may darken or the image may

become faint. The image could

distort when the vehicle is mov-

ing, or you may become unable

to see the image on the screen.

Be sure to visually check all

around the vehicle both directly

and using the mirrors before

proceeding.

●

If the tire sizes are changed, the

position of the fixed guide lines

displayed on the screen may

change.

●

The camera uses a special lens.

The distances between objects

and pedestrians that appear in

the image displayed on the

screen will differ from the actual

distances. (



P.238)

NOTICE

■

How to use the camera

●

The rear view monitor system

may not operate properly in the

following cases.

• If the back of the vehicle is hit,

the position and mounting angle

of the camera may change.

• As the camera has a water

proof construction, do not

detach, disassemble or modify

it. This may cause incorrect

operation.

243

4-5. Using the driving support systems

ing

: If equipped

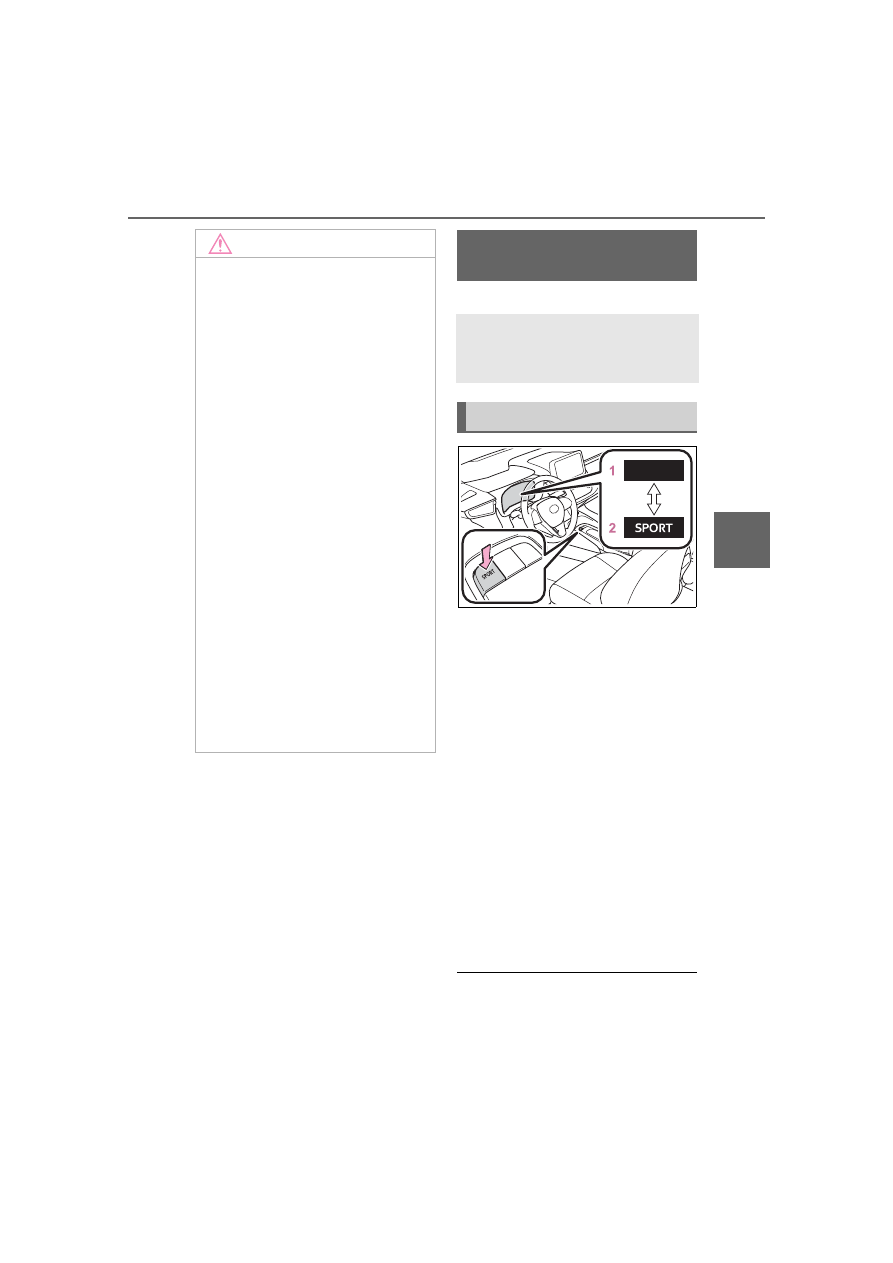

Each time the switch is pressed, the
system changes between sport
mode and normal mode.

Normal mode

Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for normal
driving.

Sport mode

Controls the transmission and
engine to provide quick, powerful
acceleration. This mode also
changes the steering feel, making it
suitable for when agile driving
response is desired, such as when
driving on roads with many curves.
When the sport mode is selected,
sport mode indicator comes on.

■

Automatic deactivation of sport

mode

If the engine switch is turned off

after driving in sport mode, the drive

NOTICE

• When cleaning the camera lens,

flush the camera with a large

quantity of water and wipe it

with a soft and wet cloth.

Strongly rubbing the camera

lens may cause the camera lens

to be scratched and unable to

transmit a clear image.

• Do not allow organic solvent,

car wax, window cleaner or

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

• If the temperature changes rap-

idly, such as when hot water is

poured on the vehicle in cold

weather, the system may not

operate normally.

• When washing the vehicle, do

not apply intensive bursts of

water to the camera or camera

area. Doing so may result in the

camera malfunctioning.

●

Do not expose the camera to

strong impact as this could

cause a malfunction. If this hap-

pens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

Driving mode select

switch

The driving modes can be
selected to suit driving con-
dition.

Selecting a drive mode

245

4-5. Using the driving support systems

ing

■

Enhanced VSC (Enhanced
Vehicle Stability Control)

Provides cooperative control of
the ABS, TRAC, VSC and EPS.
Helps to maintain directional
stability when swerving on slip-
pery road surfaces by con-
trolling steering performance.

■

Secondary Collision Brake

When the airbag sensor detects
a collision, the brakes and stop
lights are automatically con-
trolled to reduce the vehicle
speed and that helps reduce the
possibility of further damage
due to a secondary collision.

■

TRAC (Traction Control)

Helps to maintain drive power
and prevent the drive wheels
from spinning when starting the
vehicle or accelerating on slip-
pery roads

■

Active Cornering Assist
(ACA)

Helps to prevent the vehicle
from drifting to the outer side by
performing inner wheel brake
control when attempting to
accelerate while turning

■

Hill-start assist control

Helps to reduce the backward
movement of the vehicle when
starting on an uphill

■

EPS (Electric Power Steer-
ing)

Employs an electric motor to
reduce the amount of effort

needed to turn the steering
wheel.

■

When the TRAC/VSC systems

are operating

The slip indicator light will flash

while the TRAC/VSC systems are

operating.

■

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt

or snow, the TRAC system may

reduce power from the engine to the
wheels. Pressing

to turn the

system off may make it easier for

you to rock the vehicle in order to

free it.
To turn the TRAC system off, quickly
press and release

The “Traction Control Turned OFF”
will be shown on the multi-informa-
tion display.

Press

again to turn the system

back on.

■

Turning off both TRAC and VSC

systems

To turn the TRAC and VSC systems
off, press and hold

for more

246

4-5. Using the driving support systems

than 3 seconds while the vehicle is

stopped.
The VSC OFF indicator light will
come on and the “Traction Control
Turned OFF” will be shown on the
multi-information display.

Press

again to turn the system

back on.

: PCS will also be disabled (only

Pre-Collision warning is avail-
able). The PCS warning light will
come on and a message will be
displayed on the multi-information
display. (



P.181)

■

When the message is dis-

played on the multi-information

display showing that TRAC has
been disabled even if

has

not been pressed

TRAC is temporary deactivated. If

the information continues to show,

contact your Toyota dealer.

■

Operating conditions of

hill-start assist control

When the following four conditions

are met, the hill-start assist control

will operate:

●

Vehicles with a continuously vari-

able transmission: The shift lever

is in a position other than P or N

(when starting off forward/back-

ward on an upward incline).

●

Vehicles with a manual transmis-

sion: The shift lever is in a position

other than R when starting off for-

ward on an upward incline, or the

shift lever is in R when starting off

backward on an upward incline.

●

The vehicle is stopped

●

The accelerator pedal is not

depressed

●

The parking brake is not engaged

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

Vehicles with a continuously vari-

able transmission: The shift lever

is shifted to P or N.

●

Vehicles with a manual transmis-

sion: The shift lever is shifted to R

when starting off forward on an

upward incline, or the shift lever is

shifted to other than R when start-

ing off backward on an upward

incline.

●

The accelerator pedal is

depressed

●

The parking brake is engaged

●

2 seconds at maximum elapsed

after the brake pedal is released

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

TRAC and hill-start assist con-

trol systems

●

A sound may be heard from the

engine compartment when the

brake pedal is depressed repeat-

edly, when the engine is started or

just after the vehicle begins to

move. This sound does not indi-

cate that a malfunction has

occurred in any of these systems.

●

Any of the following conditions

may occur when the above sys-

tems are operating. None of these

indicates that a malfunction has

occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

• The brake pedal may pulsate

slightly after the ABS is activated.

• The brake pedal may move down

slightly after the ABS is activated.

■

Active Cornering Assist opera-

tion sounds and vibrations

When the Active Cornering Assist is

operated, operation sounds and

vibrations may be generated from

247

4-5. Using the driving support systems

ing

the brake system, but this is not a

malfunction.

■

EPS operation sound

When the steering wheel is oper-

ated, a motor sound (whirring

sound) may be heard. This does not

indicate a malfunction.

■

Automatic reactivation of TRAC

and VSC systems

After turning the TRAC and VSC

systems off, the systems will be

automatically re-enabled in the fol-

lowing situations:

●

When the engine switch is turned

off

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases

If both the TRAC and VSC sys-

tems are turned off, automatic

re-enabling will not occur when

vehicle speed increases.

■

Operating conditions of Active

Cornering Assist

The system operates when the fol-

lowing occurs.

●

TRAC/VSC can operate

●

The driver is attempting to accel-

erate while turning

●

The system detects that the vehi-

cle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the engine

off. The EPS system should return

to normal within 10 minutes.

■

Secondary Collision Brake

operating conditions

The vehicle speed is approximately

6 mph (10 km/h) or more and the

airbag sensor detects a collision.

(The Secondary Collision Brake will

not operate when the vehicle speed

is below approximately 6 mph [10

km/h].)

■

Secondary Collision Brake

automatic cancellation

The Secondary Collision Brake is

automatically canceled in the follow-

ing situations:

●

The vehicle speed drops below

approximately 6 mph (10 km/h)

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the

road

248

4-5. Using the driving support systems

WARNING

●

When driving over roads with

potholes or uneven surfaces

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Active Cornering Assist does

not operate effectively when

●

Do not overly rely on Active

Cornering Assist. Active Corner-

ing Assist may not operate

effectively when accelerating

down slopes or driving on slip-

pery road surfaces.

●

When Active Cornering Assist

frequently operates, Active Cor-

nering Assist may temporarily

stop operating to ensure proper

operation of the brakes, TRAC

and VSC.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

●

Unlike the parking brake,

hill-start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the TRAC/VSC is acti-

vated

The slip indicator light flashes.

Always drive carefully. Reckless

driving may cause an accident.

Exercise particular care when the

indicator light flashes.

■

When the TRAC/VSC systems

are turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC systems off

unless necessary.

■

Secondary Collision Brake

Do not overly rely on the Second-

ary Collision Brake. This system

is designed to help reduce the

possibility of further damage due

to a secondary collision, however,

that effect changes according to

various conditions. Overly relying

on the system may result in death

or serious injury.

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.
The ABS, TRAC and VSC sys-

tems will not function correctly if

different tires are installed on the

vehicle.

Contact your Toyota dealer for fur-

ther information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

249

4-6. Driving tips

ing

4-6.Driving tips



Use fluids that are appropriate
to the prevailing outside tem-
peratures.

• Engine oil
• Engine coolant
• Washer fluid



Have a service technician
inspect the condition of the
battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the front
tires.

Ensure that all tires are the same
size and brand, and that chains
match the size of the tires.

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Pre-winter preparations

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the size specified.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system. (if equipped)

●

Do not use LDA (Lane Depar-

ture Alert with steering control)

system. (if equipped)

NOTICE

■

Repairing or replacing snow

tires

Request repairs or replacement of

snow tires from Toyota dealers or

legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

250

4-6. Driving tips

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that
is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, vehicle’s roof,
chassis, around the tires or on
the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.



Park the vehicle and shift the
shift lever to P (continuously

variable transmission), or 1 or
R (manual transmission)
without setting the parking
brake. The parking brake may
freeze up, preventing it from
being released. If the vehicle
is parked without setting the
parking brake, make sure to
block the wheels.
Failure to do so may be dan-
gerous because it may cause
the vehicle to move unexpect-
edly, possibly leading to an
accident.



Vehicles with a continuously
variable transmission: If the
vehicle is parked without set-
ting the parking brake, con-
firm that the shift lever cannot
be moved out of P

: The shift lever will be locked if it is

attempted to be shifted from P to
any other position without
depressing the brake pedal. If the
shift lever can be shifted from P,
there may be a problem with the
shift lock system. Have the vehi-
cle inspected by your Toyota
dealer immediately.

Use the correct tire chain size
when mounting the tire chains.
Chain size is regulated for each
tire size.

Before driving the vehicle

When driving the vehicle

When parking the vehicle

Selecting tire chains

251

4-6. Driving tips

ing

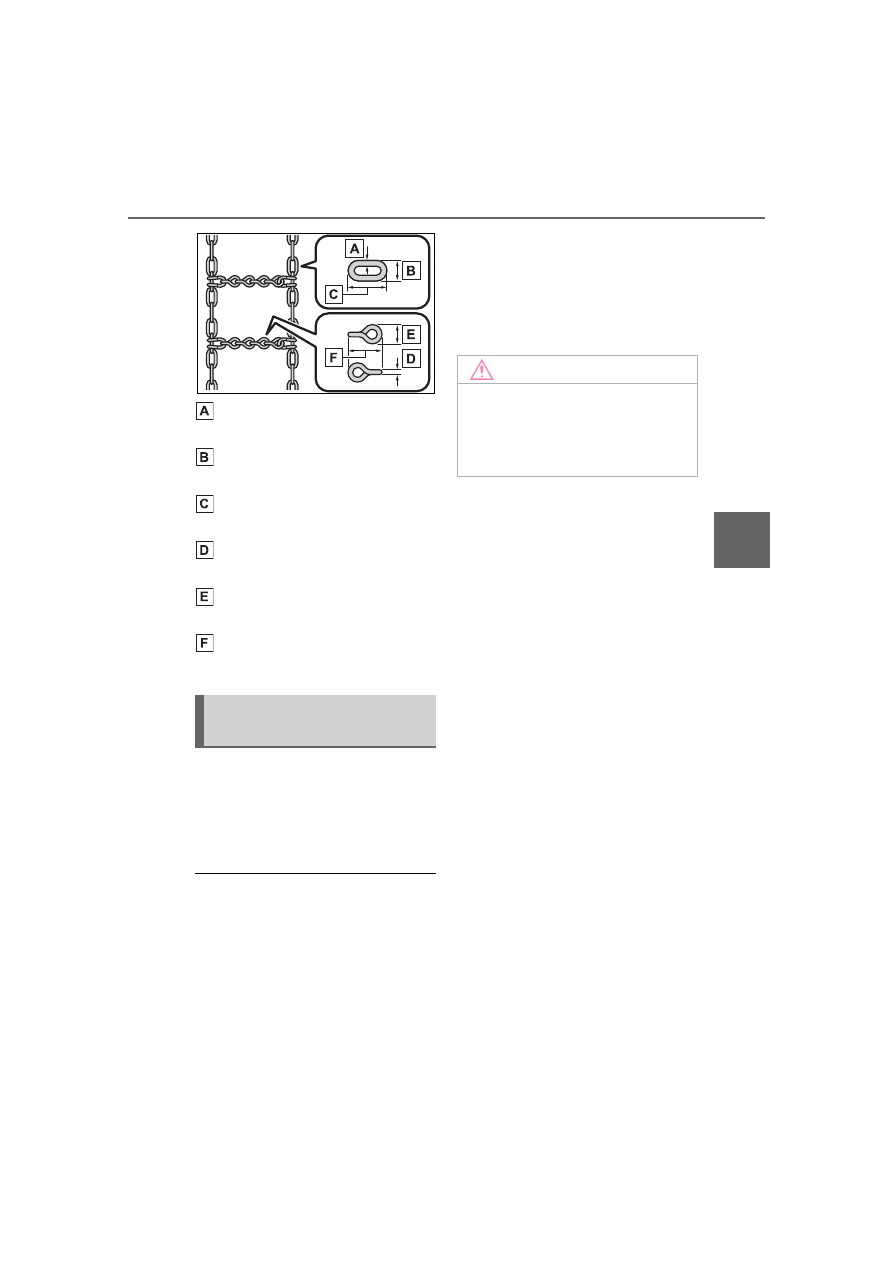

Side chain (0.12 in. [3 mm] in
diameter)
Side chain (0.39 in. [10 mm]
in width)
Side chain (1.18 in. [30 mm]
in length)
Cross chain (0.16 in. [4 mm]
in diameter)
Cross chain (0.55 in. [14 mm]
in width)
Cross chain (0.98 in. [25 mm]
in length)

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

●

Install tire chains on the front tires

only. Do not install tire chains on

the rear tires.

●

Install tire chains on the front tires

as tightly as possible. Retighten

chains after driving 1/4



1/2 mile

(0.5



1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

Regulations on the use of
tire chains

NOTICE

■

Fitting tire chains

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

253

Audio

Audio

5-1. Basic function

Buttons overview.........

255

Menu screen ...............

257

Status icon ..................

258

“Setup” screen ............

260

5-2. Basic information before

operation

Initial screen................

261

Touch screen...............

262

Home screen...............

264

Entering letters and num-

bers/list screen operation

..................................

265

Screen adjustment ......

268

Linking multi-information

display and the system

..................................

269

5-3. Connectivity settings

Registering/Connecting a

Bluetooth

device .....

270

Setting Bluetooth

details

..................................

275

Wi-Fi

Hotspot ............

282

Apple CarPlay/

Android Auto..............

287

5-4. Other settings

General settings..........

294

Voice settings..............

298

Vehicle settings ...........

299

5-5. Using the audio/visual

system

Quick reference...........

301

Some basics................

302

5-6. Radio operation

AM/FM/SiriusXM

Satellite

Radio .........................

306

Internet radio ...............

311

5-7. Media operation

USB memory...............

312

iPod/iPhone (Apple Car-

Play) ..........................

314

Android Auto................

317

Bluetooth

audio .........

318

5-8. Audio/visual remote con-

trols

Steering switches ........

322

5-9. Audio settings

Setup...........................

324

5-10.Tips for operating the

audio/visual system

Operating information..

325

5-11.Voice command system

operation

Voice command system

..................................

337

Command list ..............

340

5-12.Mobile Assistant opera-

tion

Mobile Assistant ..........

344

254

5-13.Phone operation

(Hands-free system for
cellular phones)

Quick reference...........

346

Some basics ...............

347

Placing a call using the

Bluetooth

hands-free sys-

tem ............................

351

Receiving a call using the

Bluetooth

hands-free sys-

tem ............................

354

Talking on the Bluetooth

hands-free system.....

355

Bluetooth

phone message

function......................

357

5-14.Phone settings

Setup...........................

362

5-15.What to do if... (Blue-

tooth

)

Troubleshooting ..........

372

5-16.Connected Services Over-

view

Functional overview ....

376

Type A: Function achieved

by using a smart phone or
DCM..........................

377

Type B: Function achieved

by using DCM and the sys-
tem ............................

380

Type C: Function achieved

by using DCM............

381

Type D: Function achieved

by using DCM and a
smartphone ...............

382

5-17.Connected Services

Operation

Toyota apps.................

383

5-18.Toyota apps settings

Setup...........................

387

255

5-1. Basic function

Audio

5-1.Basic function

: If equipped



Audio Plus/Premium Audio

Owners of this system should refer to the “NAVIGATION AND MUL-
TIMEDIA SYSTEM OWNER’S MANUAL”.

By touching the screen with your finger, you can control the
selected functions. (



P.262, 262)

Press to seek up or down for a radio station or to access a
desired track/file. (



P.306, 312, 314, 318)

Press to access the Bluetooth

hands-free system. (



P.346)

When an Apple CarPlay connection is established, press to dis-
play the Phone app screen.

*1, 2

Press to display the Toyota apps screen.

*2, 3

(



P.383)

Turn to change the radio station or skip to the next or previous
track/file. (



P.306, 312, 314, 318)

Press to turn the audio/visual system on and off, and turn it to
adjust the volume. Press and hold to restart the system.

Buttons overview

Operations of each part

Toyota Corolla Hatchback (2022 year). Manual in english - page 15
