Toyota Mirai (2021 year). Manual in english - part 7

398

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

■

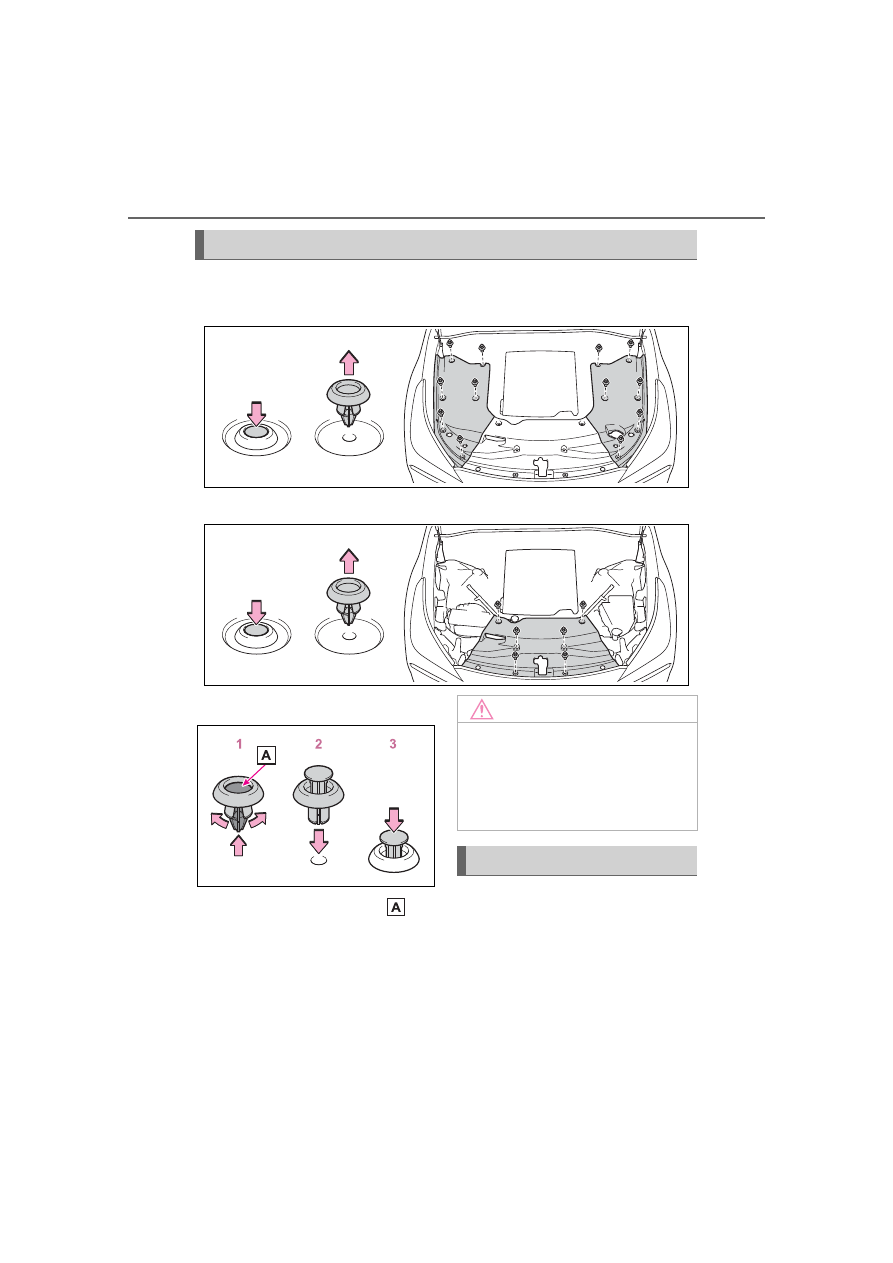

Removing the fuel cell unit compartment cover



Outside



Front

■

Installing the clips

1

Push up center portion

2

Insert

3

Press

■

Removing the fuel cell
stack cover

Remove the fuel cell stack
cover.

Fuel cell unit compartment cover

NOTICE

■

Checking the fuel cell unit

compartment cover after

installation

Make sure that the cover is

securely installed in its original

position.

Fuel cell stack cover

399

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

■

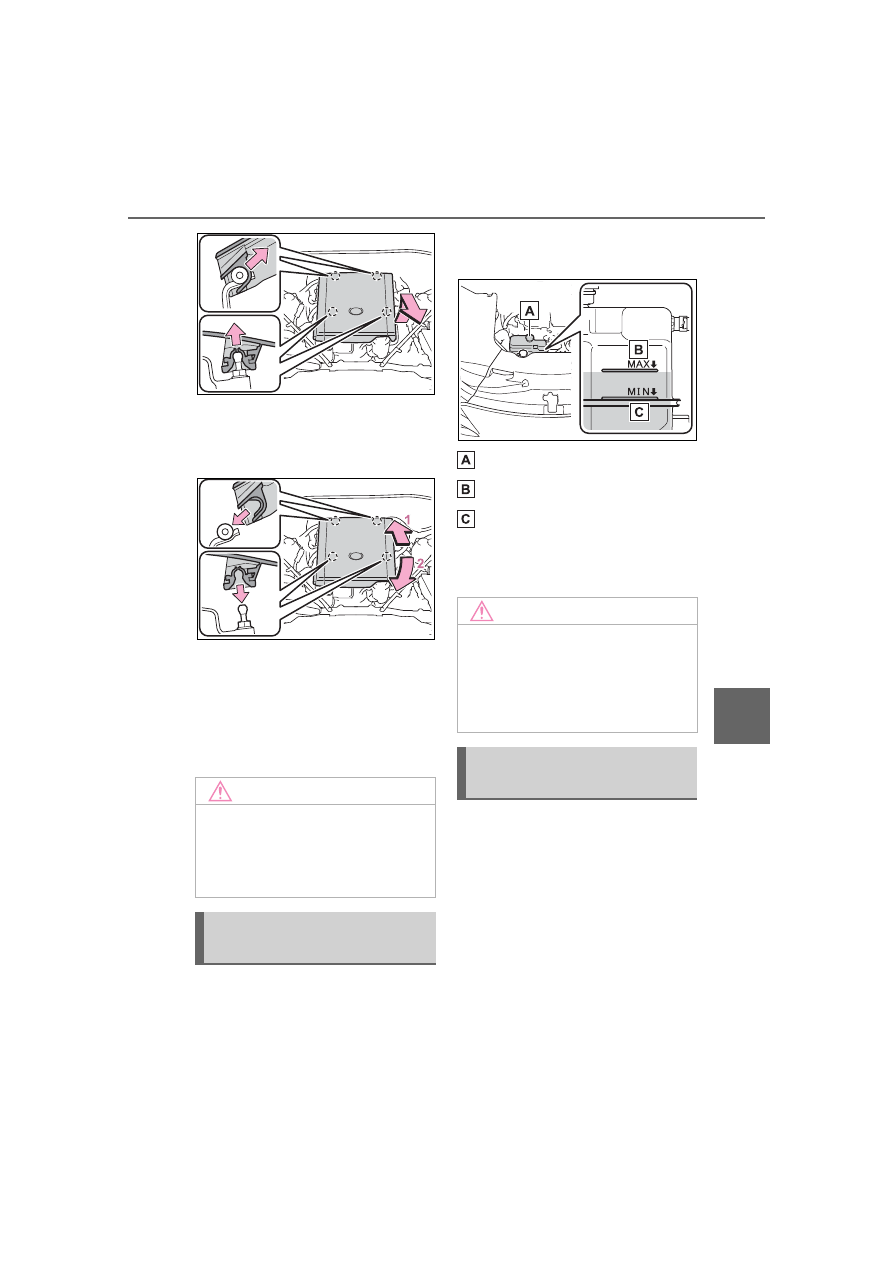

Installing the fuel cell stack
cover

Install the fuel cell stack cover.

1

Attach the hooks on the rear
side of the fuel cell stack
cover.

2

Insert the front side of the
fuel cell stack cover on the
pins.

The coolant level is satisfactory
if it is between the “MAX” and
“MIN” lines on the reservoir

when the fuel cell system is
cold.

Fuel cell stack reservoir cap

“MAX” line

“MIN” line

If the level is on or below the “MIN”
line, add coolant up to the “MAX”
line. (



P.478)

The coolant level is satisfactory
if it is between the “MAX” and
“MIN” lines on the reservoir
when the fuel cell system is
cold.

NOTICE

■

Checking the fuel cell stack

cover after installation

Make sure that the cover is

securely installed in its original

position.

Checking the fuel cell
stack coolant

NOTICE

■

Fuel cell stack coolant

An exclusive coolant for the fuel

cell system is filled in the fuel cell

stack coolant reservoir. Do not

use any substitute. It may dam-

age your vehicle.

Checking the inverter
coolant

400

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

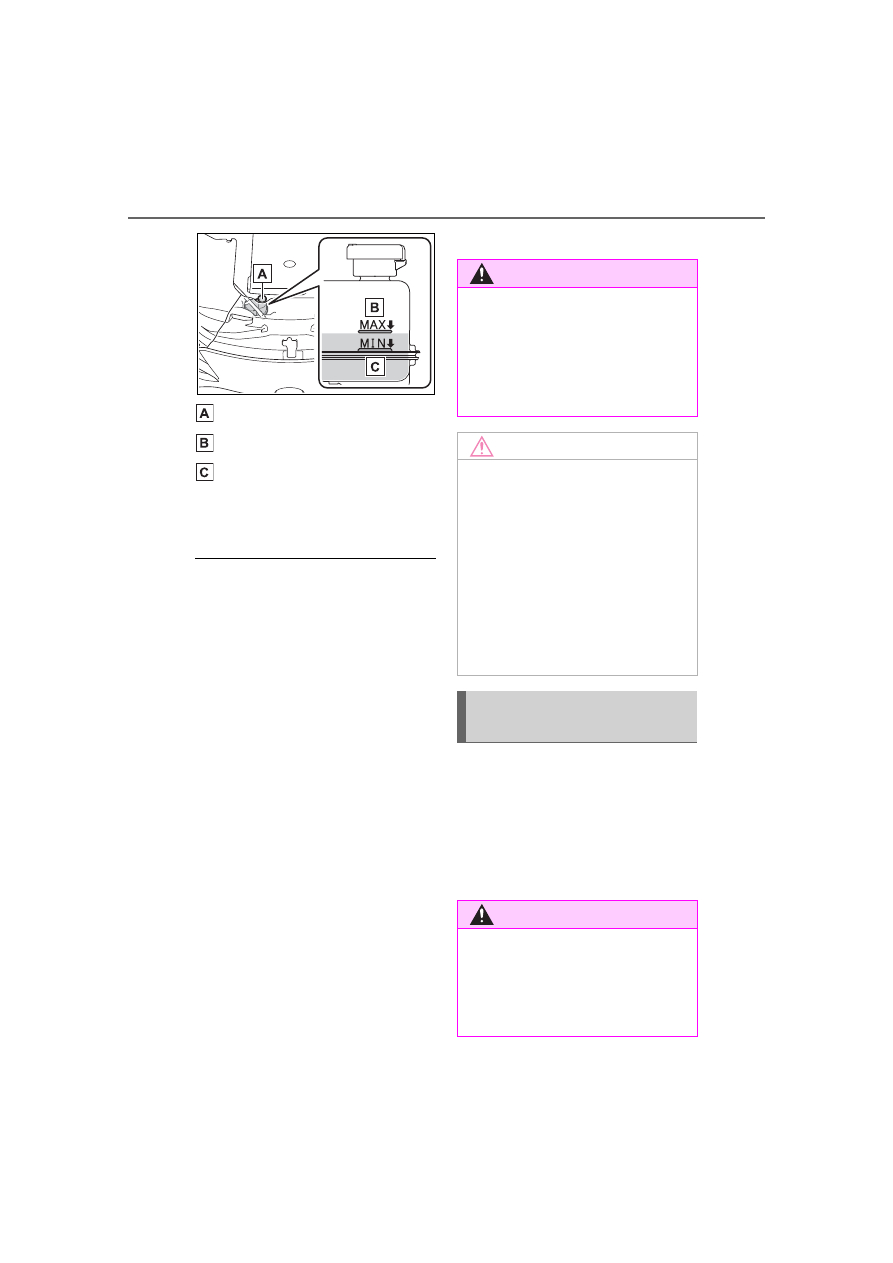

Inverter coolant reservoir cap

“MAX” line

“MIN” line

If the level is on or below the “MIN”
line, add coolant up to the “MAX”
line. (



P.478)

■

Inverter coolant selection

Only use “Toyota Super Long Life

Coolant” or a similar high quality

ethylene glycol based non-silicate,

non-amine, non-nitrite, and non-

borate coolant with long-life hybrid

organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is

a mixture of 50% coolant and 50%

deionized water. (Minimum tem-

perature: -31°F [-35°C])
Canada:
“Toyota Super Long Life Coolant” is

a mixture of 55% coolant and 45%

deionized water. (Minimum tem-

perature: -44°F [-42°C])
For more details about coolant, con-

tact your Toyota dealer.

■

If the inverter coolant drops

within a short time of replenish-

ing

Visually check the radiators, hoses,

inverter coolant reservoir cap, drain

cock and water pump.

If you cannot find a leak, have your

Toyota dealer test the cap and

check for leaks in the cooling sys-

tem.

Check the radiator and con-
denser and clear away any for-
eign objects. If either of the
above parts is extremely dirty or
you are not sure of their condi-
tion, have your vehicle
inspected by your Toyota dealer.

WARNING

■

When the cell system is hot

Do not remove the coolant reser-

voir caps. (



P.481)

The cooling system may be under

pressure and may spray hot cool-

ant if the cap is removed, causing

serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct

mixture of water and antifreeze

must be used to provide proper

lubrication, corrosion protection

and cooling. Be sure to read the

antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to

prevent it from damaging parts or

paint.

Checking the radiator and
condenser

WARNING

■

When the fuel cell system is

hot

Do not touch the radiator or con-

denser as they may be hot and

cause serious injuries, such as

burns.

401

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

■

Checking fluid level

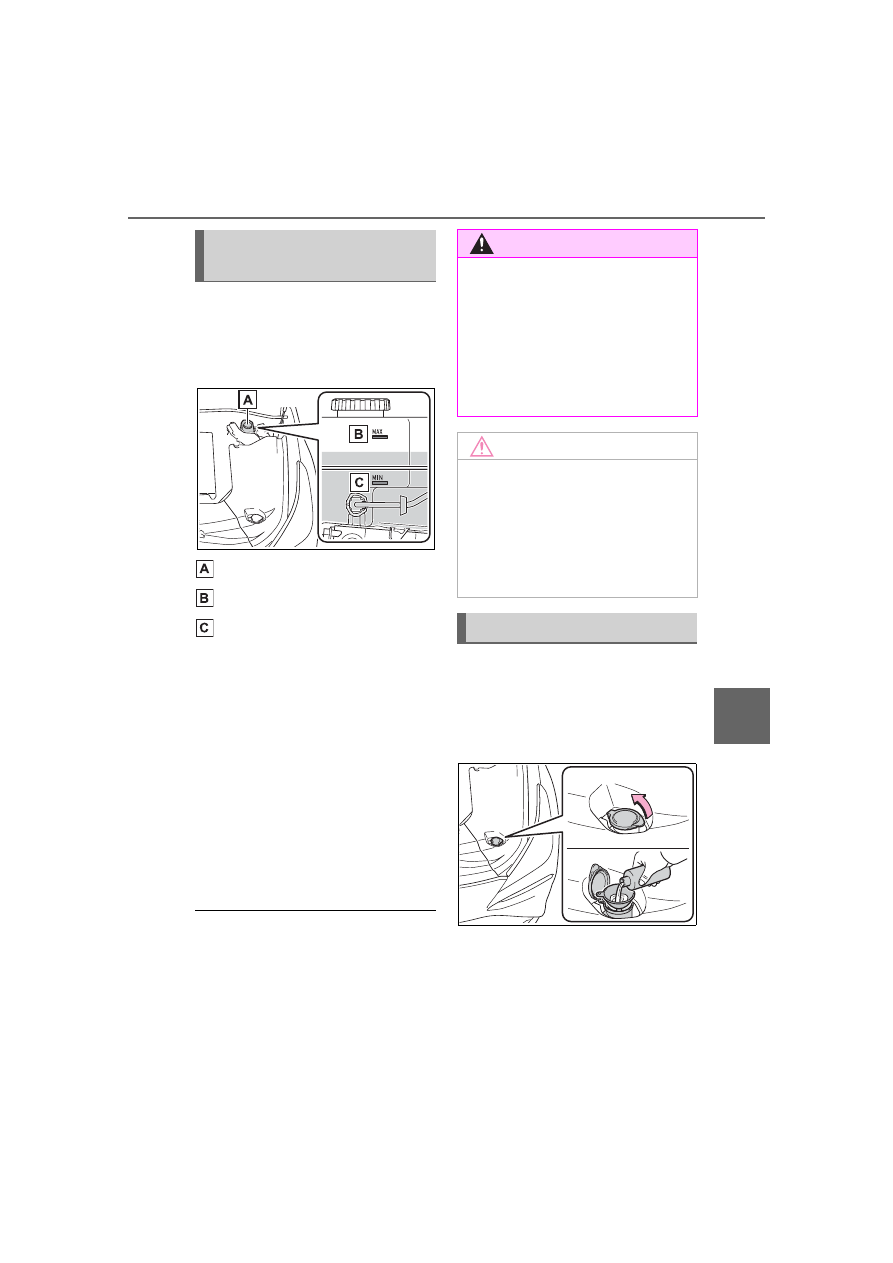

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

Brake fluid reservoir cap

“MAX” line

“MIN” line

■

Adding fluid

Make sure to check the fluid
type and prepare the necessary
item.



Fluid type

FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
FMVSS No.116 DOT 4 or SAE
J1704 brake fluid



Item

Clean funnel

■

Brake fluid can absorb moisture

from the air

Excess moisture in the brake fluid

can cause a dangerous loss of brak-

ing efficiency. Use only newly

opened brake fluid.

If any washer does not work or
the warning message appears
on the multi-information display,
the washer tank may be empty.
Add washer fluid.

Checking and adding the
brake fluid

WARNING

■

When filling the reservoir

Take care as brake fluid can harm

your hands and eyes and damage

painted surfaces.

If fluid gets on your hands or in

your eyes, flush the affected area

with clean water immediately.
If you still experience discomfort,

see a doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level

to go down slightly as the brake

pads wear out or when the fluid

level in the accumulator is high.

If the reservoir needs frequent

refilling, there may be a serious

problem.

Adding the washer fluid

402

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

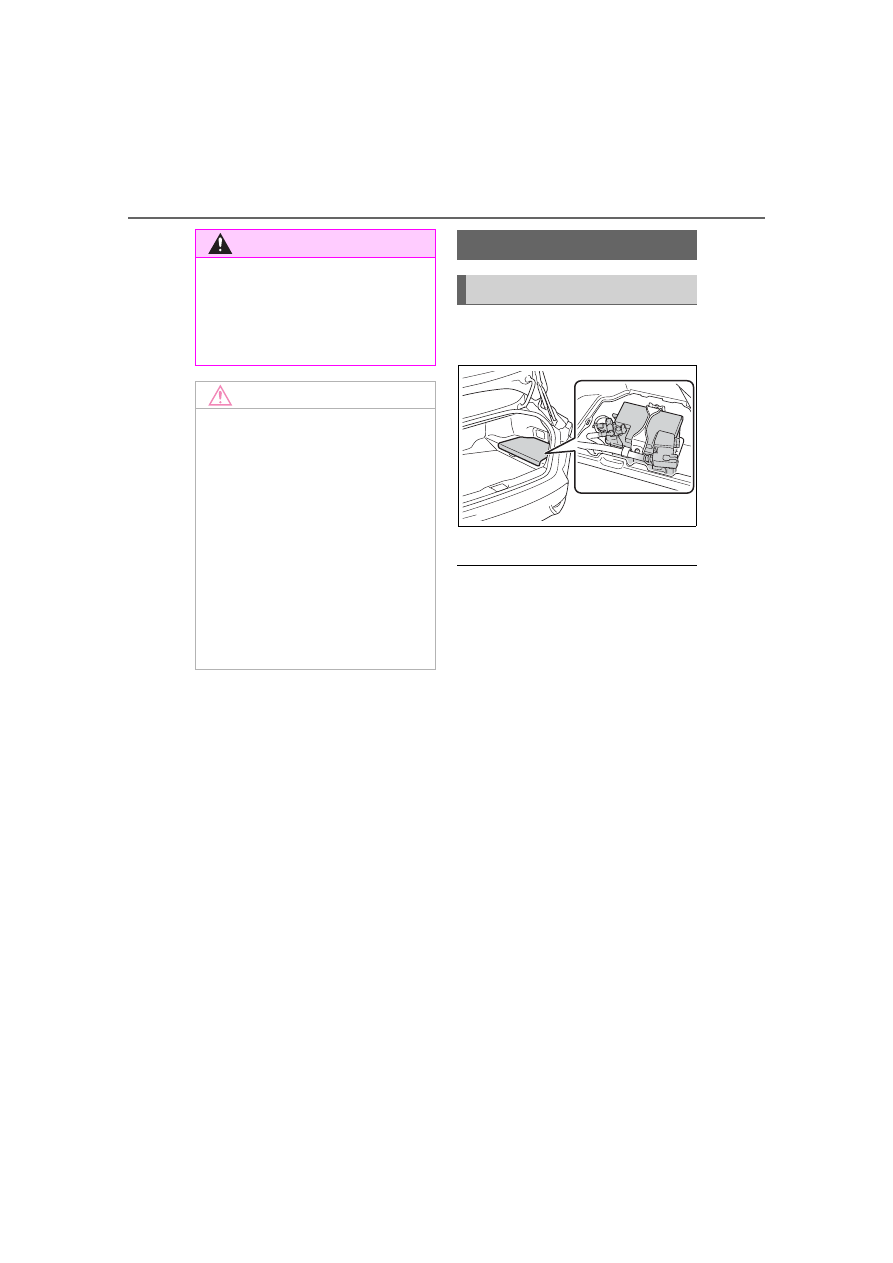

The 12-volt battery is located in
the right-hand side of the trunk.

Remove the luggage mat:



P.354

■

Before recharging

When recharging, the 12-volt bat-

tery produces hydrogen gas which

is flammable and explosive. There-

fore, observe the following precau-

tions before recharging:

●

If recharging with the 12-volt bat-

tery installed on the vehicle, be

sure to disconnect the ground

cable.

●

Make sure the charger is off when

connecting and disconnecting the

charger cables to the 12-volt bat-

tery.

■

After recharging/reconnecting

the 12-volt battery

●

Unlocking the doors using the

smart key system may not be pos-

sible immediately after reconnect-

ing the 12-volt battery. If this

happens, use the wireless remote

control or the mechanical key to

lock/unlock the doors.

●

Start the fuel cell system with the

power switch in ACC. The fuel cell

system may not start with the

power switch turned off. However,

the fuel cell system will operate

normally from the second attempt.

WARNING

■

When adding washer fluid

Do not add washer fluid when the

fuel cell system is hot or operating

as washer fluid contains alcohol

and may catch fire if spilled on the

fuel cell system, etc.

NOTICE

■

Do not use any fluid other

than washer fluid

Do not use soapy water or anti-

freeze instead of washer fluid.

Doing so may cause streaking on

the vehicle’s painted surfaces, as

well as damaging the pump lead-

ing to problems of the washer

fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as

necessary.

Refer to the freezing tempera-

tures listed on the label of the

washer fluid bottle.

12-volt battery

Location

403

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

●

The power switch mode is

recorded by the vehicle. If the 12-

volt battery is reconnected, the

vehicle will return the power

switch mode to the status it was in

before the 12-volt battery was dis-

connected. Make sure to turn off

the power switch before discon-

necting the 12-volt battery. Take

extra care when connecting the

12-volt battery if the power switch

mode prior to discharge is

unknown.

●

When the 12-volt battery is recon-

nected, start the fuel cell system,

depress the brake pedal, and con-

firm that it is possible to shift into

each shift position.

If the system will not start even after

multiple attempts, contact your Toy-

ota dealer.

WARNING

■

Chemicals in the 12-volt bat-

tery

The 12-volt battery contains poi-

sonous and corrosive sulfuric acid

and may produce hydrogen gas

which is flammable and explosive.

To reduce the risk of death or seri-

ous injury, take the following pre-

cautions while working on or near

the 12-volt battery:

●

Do not cause sparks by touch-

ing the 12-volt battery terminals

with tools.

●

Do not smoke or light a match

near the 12-volt battery.

●

Avoid contact with eyes, skin

and clothes.

●

Never inhale or swallow electro-

lyte.

●

Wear protective safety glasses

when working near the 12-volt

battery.

●

Keep children away from the

12-volt battery.

■

Where to safely charge the

12-volt battery

Always charge the 12-volt battery

in an open area. Do not charge

the 12-volt battery in a garage or

closed room where there is insuf-

ficient ventilation.

■

Emergency measures regard-

ing electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean

water for at least 15 minutes

and get immediate medical

attention. If possible, continue

to apply water with a sponge or

cloth while traveling to the near-

est medical facility.

●

If electrolyte gets on your skin

Wash the affected area thor-

oughly. If you feel pain or burn-

ing, get medical attention

immediately.

●

If electrolyte gets on your

clothes

It can soak through clothing on

to your skin. Immediately take

off the clothing and follow the

procedure above if necessary.

●

If you accidentally swallow elec-

trolyte

Drink a large quantity of water

or milk. Get emergency medical

attention immediately.

■

When replacing the 12-volt

battery

Use a 12-volt battery designed for

this vehicle. Failure to do so may

cause gas (hydrogen) to enter the

passenger compartment, causing

a fire or explosion.
For replacement of the 12-volt

battery, contact your Toyota

dealer.

404

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

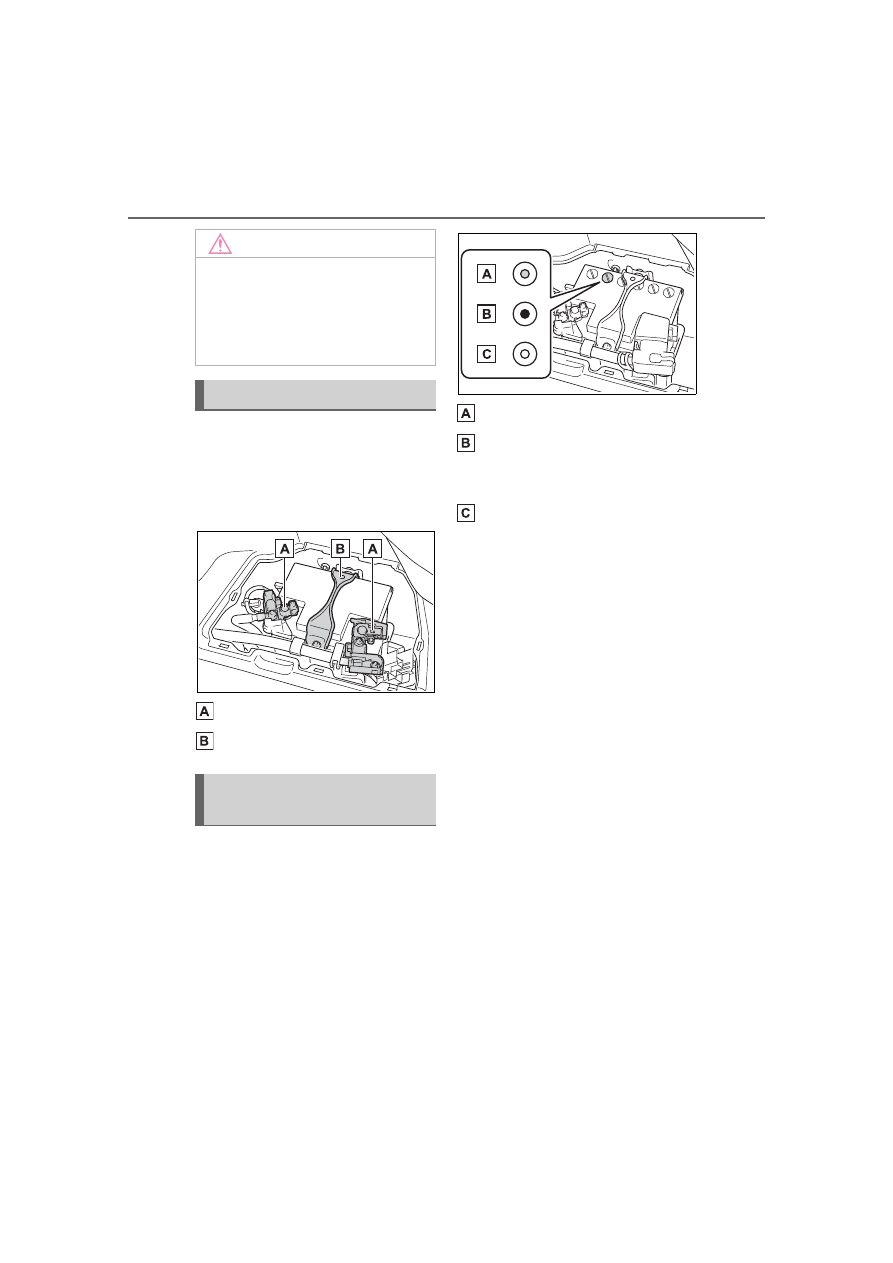

Make sure that the 12-volt bat-
tery terminals are not corroded
and that there are no loose con-
nections, cracks, or loose
clamps.

Terminals

Hold-down clamp

Check the 12-volt battery condi-
tion by indicator color.

Blue: Good condition

Red: Charging is necessary.
Have the vehicle inspected
by your Toyota dealer.

Clear: Replacement is nec-
essary.
Have the 12-volt battery
checked by your Toyota
dealer.

NOTICE

■

When recharging the 12-volt

battery

Never recharge the 12-volt bat-

tery while the fuel cell system is

operating. Also, be sure all acces-

sories are turned off.

Exterior

Checking the 12-volt bat-
tery condition

405

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

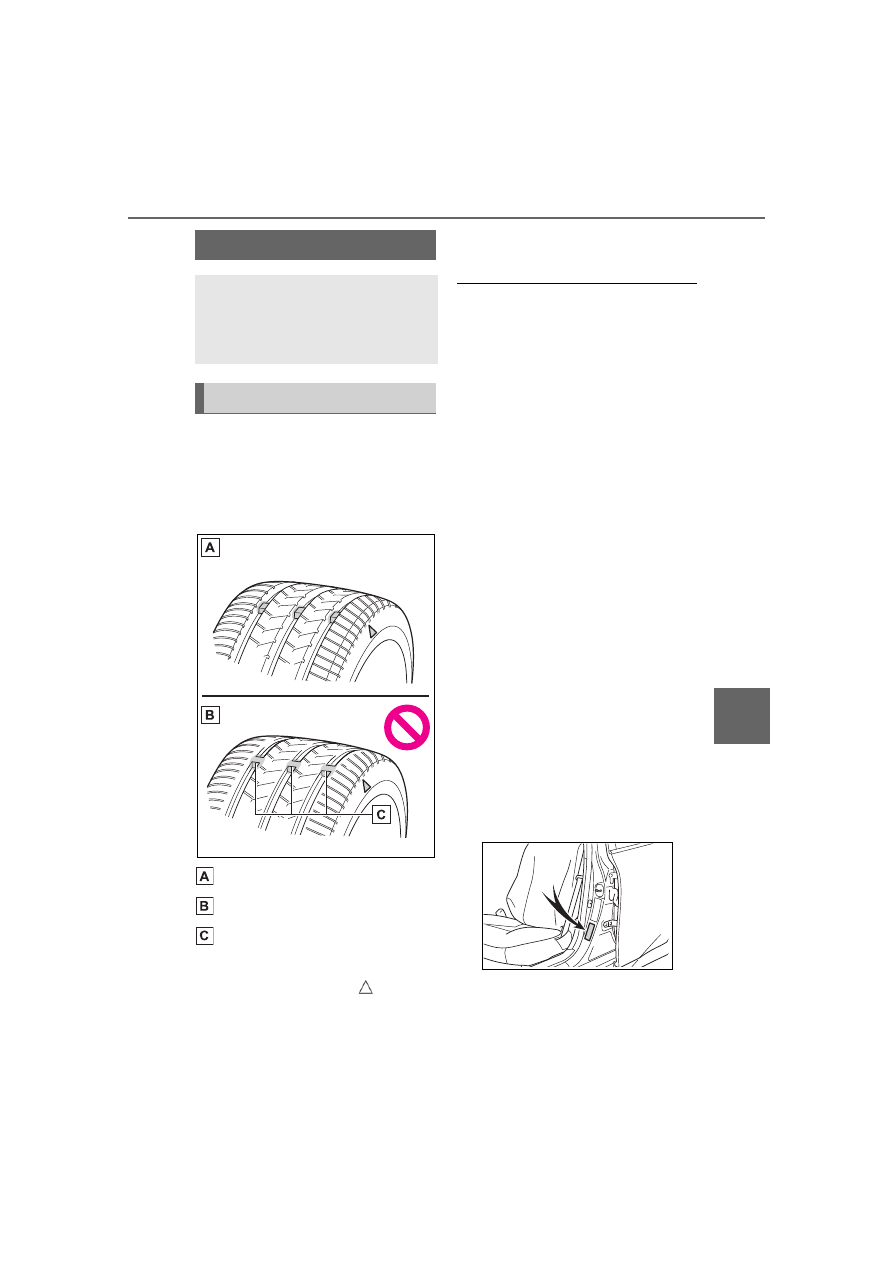

Check if the treadwear indica-
tors are showing on the tires.
Also check the tires for uneven
wear, such as excessive wear
on one side of the tread.

New tread

Worn tread

Treadwear indicator

The location of treadwear indicators
is shown by a “TWI” or “

” mark,

etc., molded into the sidewall of
each tire.

Replace the tires if the treadwear
indicators are showing on a tire.

■

When to replace your vehicle’s

tires

Tires should be replaced if:

●

The treadwear indicators are

showing on a tire.

●

You have tire damage such as

cuts, splits, cracks deep enough

to expose the fabric, and bulges

indicating internal damage

●

A tire goes flat repeatedly or can-

not be properly repaired due to the

size or location of a cut or other

damage

If you are not sure, consult with your

Toyota dealer.

■

Tire life

Any tire over 6 years old must be

checked by a qualified technician

even if it has seldom or never been

used or damage is not obvious.

■

Maximum load of tire

Check that the maximum load of the

replacement tire is greater than 1/2

of the Gross Axle Weight Ratings

(GAWR) of either the front axle or

the rear axle, whichever is greater.

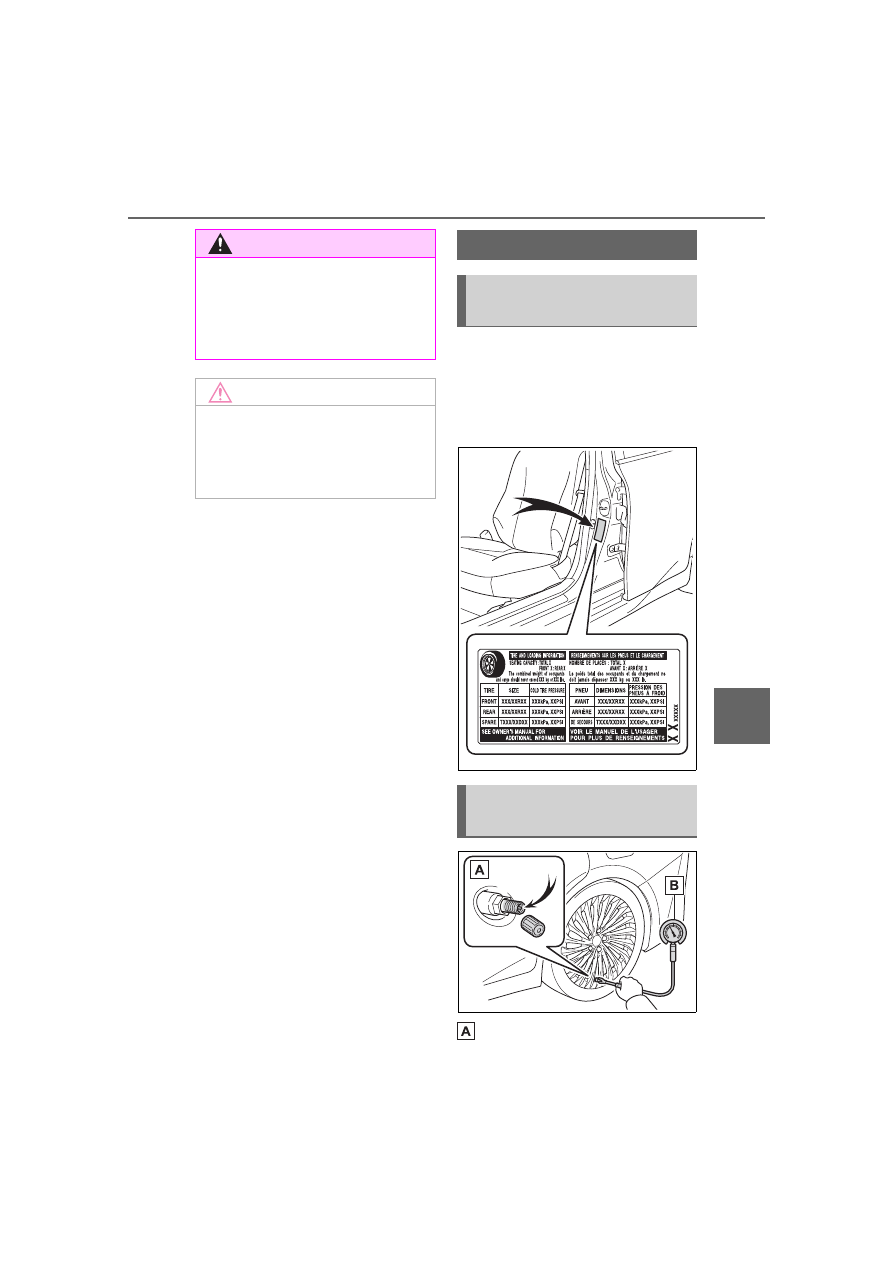

For the GAWR, see the Certification

Label.

For the maximum load of the tire,

see the load limit at maximum cold

tire inflation pressure mentioned on

the sidewall of the tire. (



P.490)

■

Tire types

●

Summer tires

Summer tires are high-speed perfor-

Tires

Replace or rotate tires in
accordance with mainte-
nance schedules and tread-
wear.

Checking tires

406

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

mance tires best suited to highway
driving under dry conditions. Since
summer tires do not have the same
traction performance as snow tires,
summer tires are inadequate for
driving on snow-covered or icy
roads. For driving on snow-covered
roads or icy roads, the use of snow
tires is recommended. When install-
ing snow tires, be sure to replace all
four tires.

●

All season tires

All season tires are designed to pro-
vide better traction in snow and to
be adequate for driving in most win-
ter conditions as well as for use
year-round. All season tires, how-
ever, do not have adequate traction
performance compared with snow
tires in heavy or loose snow. Also,
all season tires fall short in accelera-
tion and handling performance com-
pared with summer tires in highway
driving.

●

Snow tires

For driving on snow-covered roads
or icy roads, we recommend using
snow tires. If you need snow tires,
select tires of the same size, con-
struction and load capacity as the
originally installed tires. Since your
vehicle has radial tires as original
equipment, make sure your snow
tires also have radial construction.
Do not install studded tires without
first checking local regulations for
possible restrictions. Snow tires
should be installed on all wheels.
(



P.321)

■

If the tread on snow tires wears

down below 0.16 in. (4 mm)

The effectiveness of the tires as

snow tires is lost.

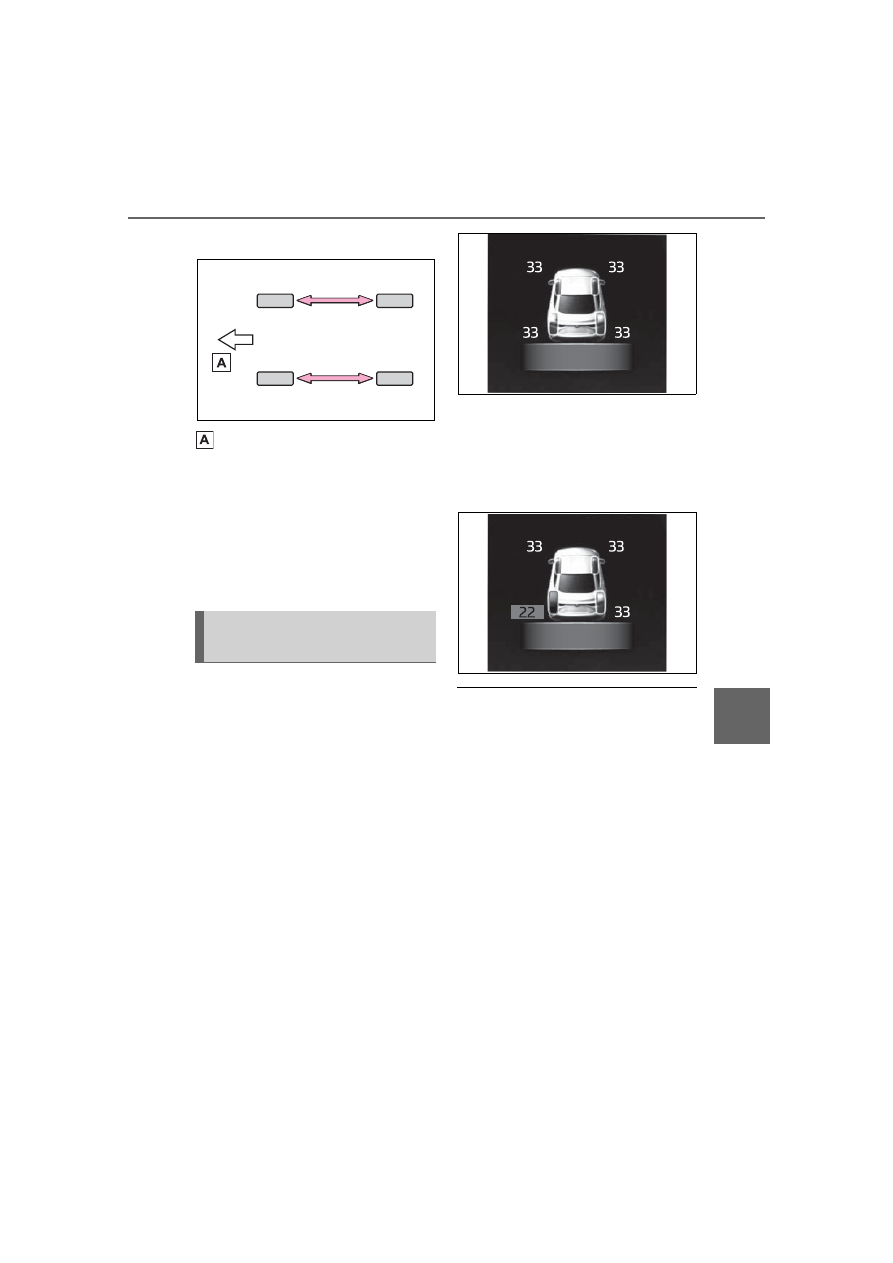

Rotate the tires in the order

WARNING

■

When inspecting or replacing

tires

Observe the following precautions

to prevent accidents.

Failure to do so may cause dam-

age to parts of the drive train as

well as dangerous handling char-

acteristics, which may lead to an

accident resulting in death or seri-

ous injury.

●

Do not mix tires of different

makes, models or tread pat-

terns.

Also, do not mix tires of remark-

ably different treadwear.

●

Do not use tire sizes other than

those recommended by Toyota.

●

Do not mix differently con-

structed tires (radial, bias-belted

or bias-ply tires).

●

Do not mix summer, all season

and snow tires.

●

Do not use tires that have been

used on another vehicle.

Do not use tires if you do not

know how they were used previ-

ously.

NOTICE

■

Driving on rough roads

Take particular care when driving

on roads with loose surfaces or

potholes.

These conditions may cause

losses in tire inflation pressure,

reducing the cushioning ability of

the tires. In addition, driving on

rough roads may cause damage

to the tires themselves, as well as

the vehicle’s wheels and body.

Tire rotation

407

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

shown.

Front

To equalize tire wear and extend
tire life, Toyota recommends that
tire rotation is carried out at the
same interval as tire inspection.
Do not fail to initialize the tire pres-
sure warning system after tire rota-
tion.

Your vehicle is equipped with a
tire pressure warning system
that uses tire pressure warning
valves and transmitters to detect
low tire inflation pressure before
serious problems arise.



The tire pressure detected by
the tire pressure warning sys-
tem can be displayed on the
multi-information display.
(



P.105)



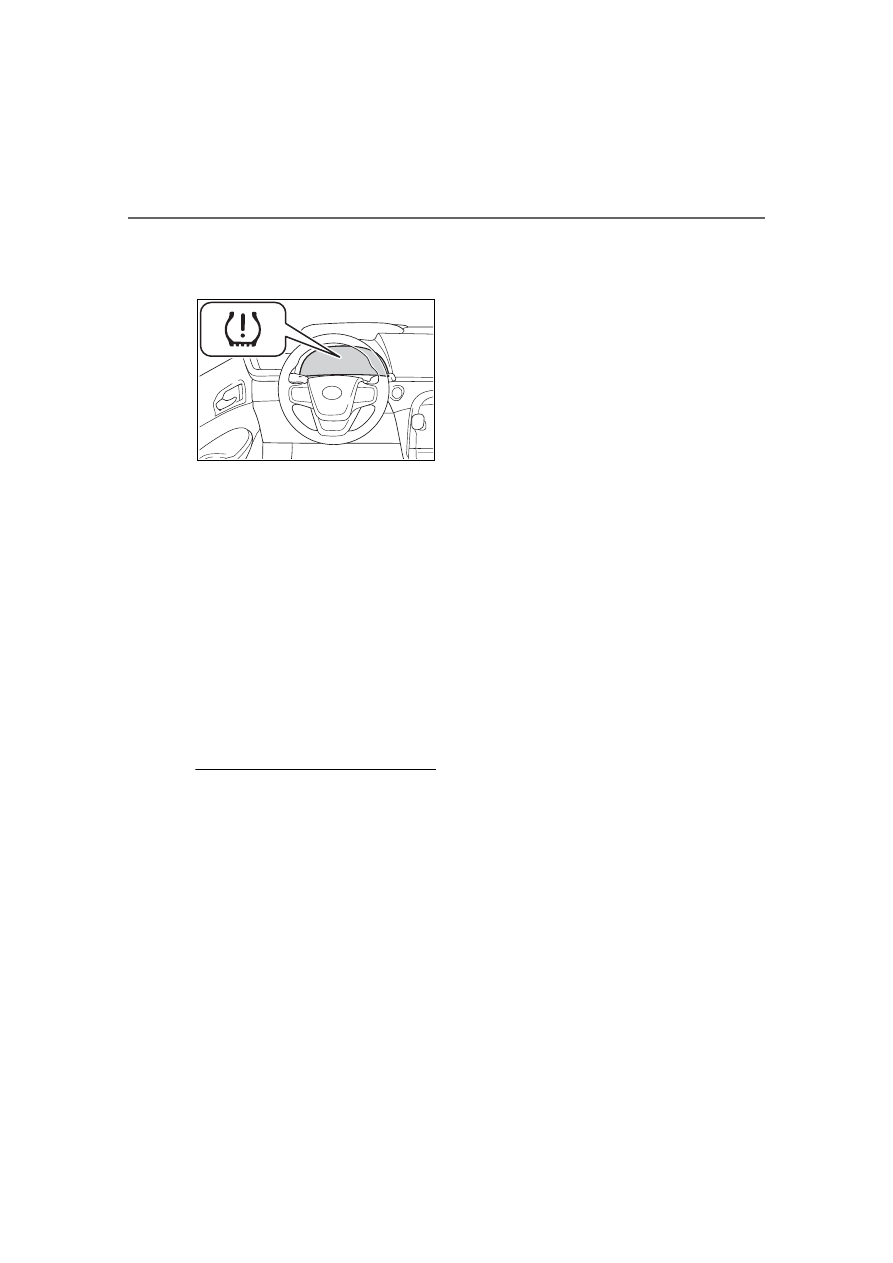

If the tire pressure drops
below a predetermined level,
the driver is warned by a
screen display and a warning
light. (



P.449)

■

Routine tire inflation pressure

checks

The tire pressure warning system

does not replace routine tire inflation

pressure checks. Make sure to

check tire inflation pressure as part

of your routine of daily vehicle

checks.

■

Tire inflation pressure

●

It may take a few minutes to dis-

play the tire inflation pressure

after the power switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

●

Tire inflation pressure changes

with temperature. The displayed

values may also be different from

the values measured using a tire

pressure gauge.

Tire pressure warning
system

408

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

■

Situations in which the tire

pressure warning system may

not operate properly

●

In the following cases, the tire

pressure warning system may not

operate properly.

• If non-genuine Toyota wheels are

used.

• If a tire has been replaced with a

tire that is not an OE (Original

Equipment) tire.

• If a tire has been replaced with a

tire that is not of the specified size.

• If tire chains, etc. are installed.

• If a window tint that affects the

radio wave signals is installed.

• If there is a lot of snow or ice on

the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is

much higher than the specified

level.

• If wheels not equipped with tire

pressure warning valves and

transmitter are used.

• If the ID code on the tire pressure

warning valves and transmitters is

not registered in the tire pressure

warning computer.

●

Performance may be affected in

the following situations.

• When driving near a TV tower,

electric power plant, gas station,

radio station, large display, airport

or other facility that generates

strong radio waves or electrical

noise

• When carrying a portable radio,

cellular phone, cordless phone or

other wireless communication

device

If tire position information is not cor-

rectly displayed due to the radio

wave conditions, the display may be

corrected by changing the location

of the vehicle as the radio wave

conditions may change.

●

When the vehicle is stopped, the

time taken for the warning to start

or turn off may be longer.

●

When the inflation pressure of a

tire drops rapidly, for example

when a tire has burst, the warning

may not operate.

■

Warning performance of the tire

pressure warning system

The warning of the tire pressure

warning system will change in

accordance the conditions under

which it was initialized. For this rea-

son, the system may give a warning

even if the tire pressure does not

reach a low enough level, or if the

pressure is higher than the pressure

that was adjusted to when the sys-

tem was initialized.

■

Tire pressure warning system

certification



P.557

When replacing the tires or
wheels, the tire pressure warn-
ing valves and transmitters must
be installed to the wheels which
will be installed to the vehicle.
When new tire pressure warning
valves and transmitters are
installed, new ID codes must be
registered in the tire pressure
warning computer and the tire
pressure warning system must
be initialized. (



P.411)

■

Replacing tires and wheels

If the ID codes of the tire pressure

warning valves and transmitters are

not registered, the tire pressure

warning system will not work prop-

erly. In this case, after driving for

about 10 minutes, the tire pressure

warning light will blink for approxi-

mately 1 minute and then illuminate

to indicate a system malfunction.

Installing tire pressure
warning valves and trans-
mitters

409

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

■

The tire pressure warning
system must be initialized
in the following circum-
stances:



When the tire inflation pres-
sure is changed such as
when changing traveling
speed or load weight.



When the tire inflation pres-
sure is changed such as
when the tire size is changed.



When rotating the tires.



After performing the transmit-
ter ID code registration proce-
dure. (



P.411)

When the tire pressure warning
system is initialized, the current
tire inflation pressure is set as
the benchmark pressure.

■

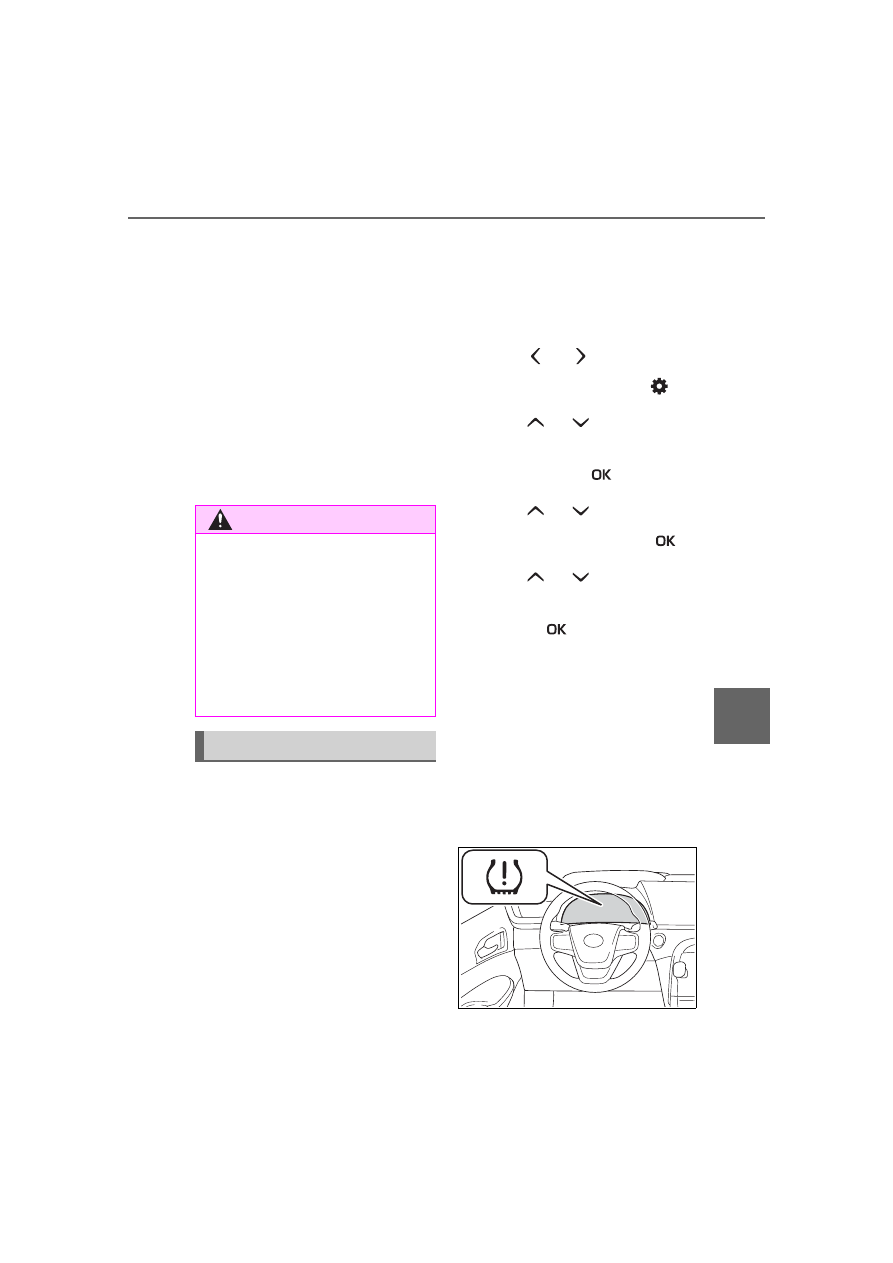

How to initialize the tire
pressure warning system

1

Park the vehicle in a safe
place, turn the power switch
off and wait 20 minutes or
more.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Start the fuel cell system.

4

Press

 or

 of the meter

control switch to select

.

5

Press

 or

 to select

“Vehicle Settings” and then
press and hold

.

6

Press

 or

 to select

“TPWS” and then press

.

7

Press

 or

 to select “Set

Pressure”. Then press and
hold

 until the tire pressure

warning light starts blinking.

A message is displayed on the

multi-information display. Also, “--”

is displayed for inflation pressure of

NOTICE

■

Repairing or replacing tires,

wheels, tire pressure warn-

ing valves, transmitters and

tire valve caps

●

When removing or fitting the

wheels, tires or the tire pressure

warning valves and transmit-

ters, contact your Toyota dealer

as the tire pressure warning

valves and transmitters may be

damaged if not handled cor-

rectly.

●

Make sure to install the tire

valve caps. If the tire valve caps

are not installed, water could

enter the tire pressure warning

valves, corrode the valve, and

cause sticking and air leaks.

●

When replacing tire valve caps,

do not use tire valve caps other

than those specified. The cap

may become stuck.

Initializing the tire pres-
sure warning system

410

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

each tire on the multi-information

display while the tire pressure

warning system determines the

position.

8

Drive at approximately 25
mph (40 km/h) or more for
approximately 10 to 30 min-
utes.

When initialization is complete, the

inflation pressure of each tire will be

displayed on the multi-information

display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, initialization can be com-

pleted by driving for a long time.

However, if initialization does not

complete after driving for 1 hour or

more, park the vehicle in a safe

place for approximately 20 minutes

and then drive the vehicle again.

■

When initializing

●

Initialization is performed while

driving at a vehicle speed of

approximately 25 mph (40 km/h)

or more.

●

Make sure to carry out initializa-

tion after adjusting the tire inflation

pressure. Also, make sure the

tires are cold before carrying out

initialization or tire inflation pres-

sure adjustment.

●

The tire pressure warning system

can be initialized by yourself, but

depending on the driving condi-

tions and driving environment, ini-

tialization may take some time to

complete.

■

The initialization operation

●

If you have accidentally turned the

power switch off during initializa-

tion, it is not necessary to manu-

ally restart the initialization again,

as initialization will restart auto-

matically the next time the power

switch is turned to ON.

●

If you accidentally perform initial-

ization when initialization is not

necessary, adjust the tire inflation

pressure to the specified level

when the tires are cold, and con-

duct initialization again.

●

While the position of each tire is

being determined and the inflation

pressures are not being displayed

on the multi-information display, if

the inflation pressure of a tire

drops, the tire pressure warning

light will come on.

■

If the tire pressure warning sys-

tem is not initialized properly

●

In the following situations, initial-

ization may take longer than usual

to be completed or may not be

possible. Normally, initialization

completes within approximately

30 minutes.

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles

If initialization does not complete

after driving for 1 hour or more, park

the vehicle in a safe place for

approximately 20 minutes and then

drive the vehicle again.

●

If the vehicle is reversed during

initialization, the data up to that

point is reset, so perform the ini-

tialization procedure again from

the beginning.

●

In the following situations, initial-

411

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

ization will not be started or was

not completed properly and the

system will not operate properly.

Perform the initialization proce-

dure again.

• If, when attempting to start initial-

ization, the tire pressure warning

light does not blink 3 times.

• If, when the vehicle has been

driven for about 20 minutes after

performing initialization, the tire

pressure warning light blinks for

approximately 1 minute and then

illuminates.

If initialization cannot be completed

after performing the above proce-

dure, contact your Toyota dealer.

Every tire pressure warning
valve and transmitter has a
unique ID code. When replacing
a tire pressure warning valve
and transmitter, it is necessary
to register the ID codes.
When registering the ID codes,
perform the following procedure.

1

When registering the ID
codes, perform the following
procedure.Park the vehicle in
a safe place and turn the
power switch off, wait for

approximately 15 minutes or
more and perform the proce-
dure.

2

Start the fuel cell system.
(



P.172)

3

Press

 or

 of the meter

control switch to select

.

4

Press

 or

 to select

“Vehicle Settings” and then
press and hold

.

5

Press

 or

 to select

“TPWS” and then press

.

6

Press

 or

 to select

“Change Wheel”. Then press
and hold

 until the tire

pressure warning light blinks
slowly 3 times.

Then a message will be displayed

on the multi-information display.
When registration is being per-

formed, the tire pressure warning

light will blink for approximately 1

minute then illuminate and “--” will

be displayed for the inflation pres-

sure of each tire on the multi-infor-

mation display.

WARNING

■

When initializing the tire pres-

sure warning system

Do not initialize the tire pressure

warning system without first

adjusting the tire inflation pres-

sure to the specified level. Other-

wise, the tire pressure warning

light may not come on even if the

tire inflation pressure is low, or it

may come on when the tire infla-

tion pressure is actually normal.

Registering ID codes

412

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Drive at 25 mph (40 km/h) or
more for approximately 10 to
30 minutes.

Registration is complete when the

tire pressure warning light turns off

and the inflation pressure of each

tire is displayed on the multi-infor-

mation display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, registration can be com-

pleted by driving for a long time.

However, if registration does not

complete after driving for 1 hour or

more, perform the procedure again

from the beginning.

8

Initialize the tire pressure
warning system. (



P.409)

■

When registering ID codes

●

ID code registration is performed

while driving at a vehicle speed of

approximately 25 mph (40 km/h)

or more.

●

Before performing ID code regis-

tration, make sure that no wheels

with tire pressure warning valve

and transmitters installed are near

the vehicle.

●

Make sure to initialize the tire

pressure warning system after

registering the ID codes. If the

system is initialized before regis-

tering the ID codes, the initialized

values will be invalid.

●

ID codes can be registered by

yourself, but depending on the

driving conditions and driving

environment, registration may

take some time to complete.

■

Canceling ID code registration

●

To cancel ID code registration

after it has been started, turn the

power switch off before driving the

vehicle.

If the vehicle is driven after ID

code registration is started, to

cancel registration, perform the ID

code registration start procedure

again and turn the power switch

off before driving.

●

If ID code registration has been

canceled, the tire pressure warn-

ing light will blink for approxi-

mately 1 minute when the power

switch is turned to ON and then

illuminate. The tire pressure warn-

ing system will be operational

when the tire pressure warning

light turns off.

●

If the warning light does not turn

off even after several minutes

have elapsed, ID code registration

may not have been canceled cor-

rectly. To cancel registration, per-

form the ID code registration start

procedure again and then turn the

power switch off before driving.

■

If ID codes are not registered

properly

●

In the following situations, ID code

registration may take longer than

usual to be completed or may not

be possible. Normally, registration

completes within approximately

30 minutes.

• Vehicle is not parked for approxi-

mately 20 minutes or more before

driving

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valves

and transmitters of your vehicle

over those of other vehicles

• Wheel with tire pressure warning

valve and transmitter installed is

inside or near the vehicle

If registration does not complete
after driving for 1 hour or more, per-
form the ID code registration proce-
dure again from the beginning.

●

If the vehicle is reversed during

registration, the data up to that

point is reset, so perform the reg-

istration procedure again from the

413

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

beginning.

●

In the following situations, ID code

registration will not be started or

was not completed properly and

the system will not operate prop-

erly. Perform the ID code registra-

tion procedure again.

• If, when attempting to start ID

code registration, the tire pressure

warning light does not blink slowly

3 times.

• If, when the vehicle has been

driven for about 20 minutes after

performing ID code registration,

the tire pressure warning light

blinks for approximately 1 minute

and then illuminates.

●

If ID code registration cannot be

completed after performing the

above procedure, contact your

Toyota dealer.



Stop the vehicle in a safe
place on a hard, flat surface.



Set the parking brake.



Shift the shift position to P.



Stop the fuel cell system.

■

Jack and tools

As your vehicle is not installed spare

tire, the following tools for replacing

a tire are not included with your

vehicle. They can be purchased at

your Toyota dealer.

●

Wheel nut wrench

●

Jack

●

Jack handle

Replacing the tire

When raising your vehicle
with a jack, position the jack
correctly.
Improper placement may
damage your vehicle or
cause injury.
If necessary tire replace-
ment seems difficult to per-
form, contact your Toyota
dealer.

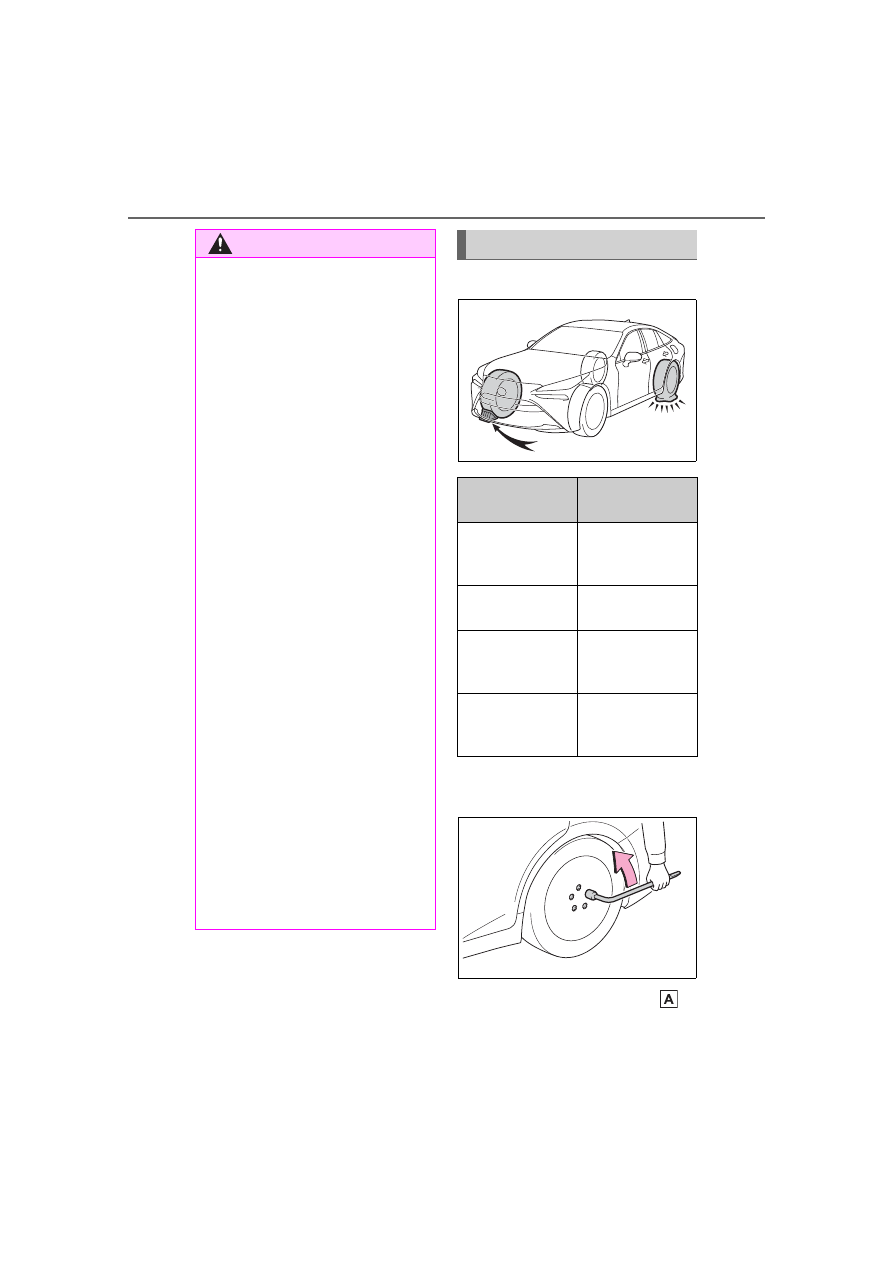

Before jacking up the
vehicle

414

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

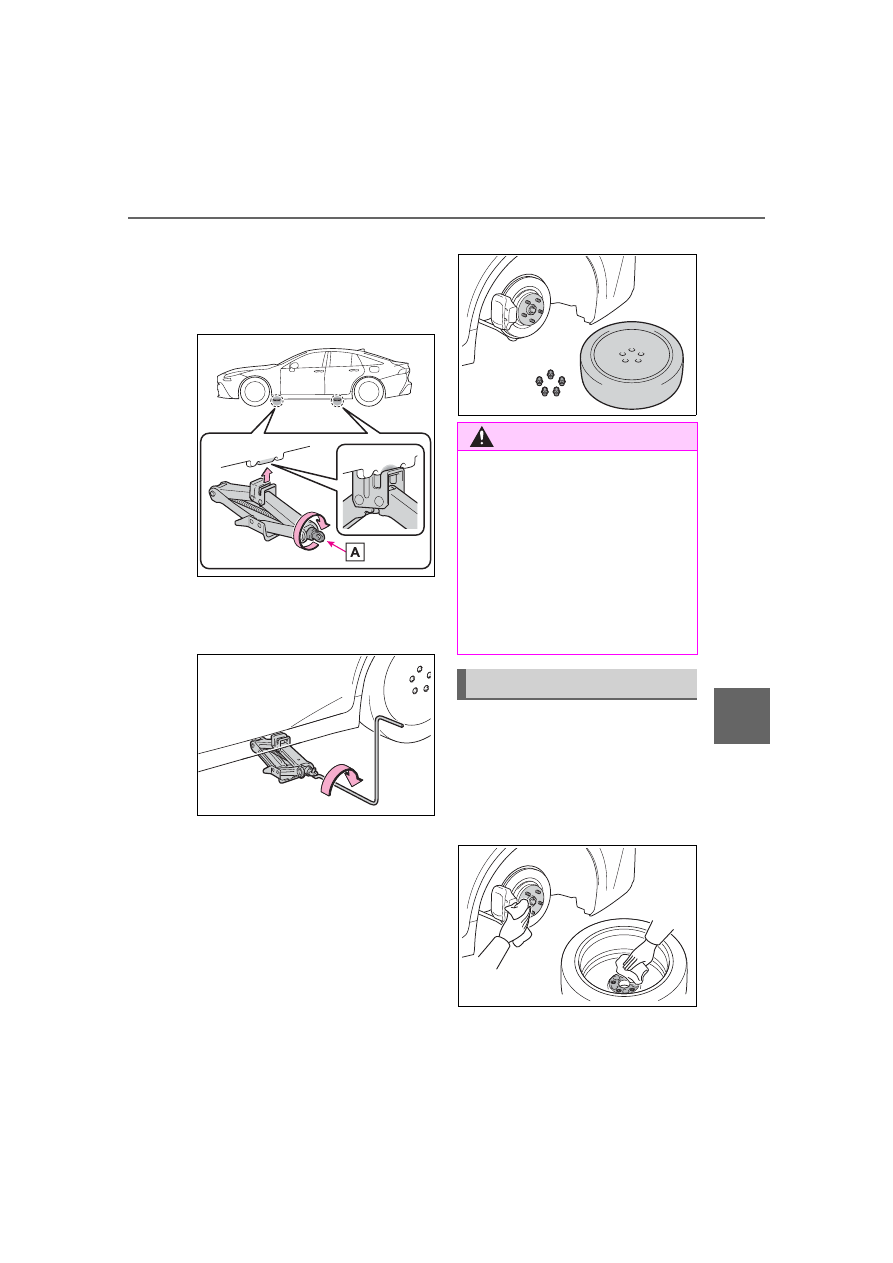

1

Chock the tires.

2

Slightly loosen the wheel
nuts (one turn).

3

Turn the tire jack portion
by hand until the notch of the

WARNING

■

Using the tire jack

Observe the following precau-

tions.

Improper use of the tire jack may

cause the vehicle to suddenly fall

off the jack, leading to death or

serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

Do not use other tire jacks for

replacing tires on this vehicle.

●

Put the jack properly in its jack

point.

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the fuel cell system

or drive the vehicle while the

vehicle is supported by the jack.

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

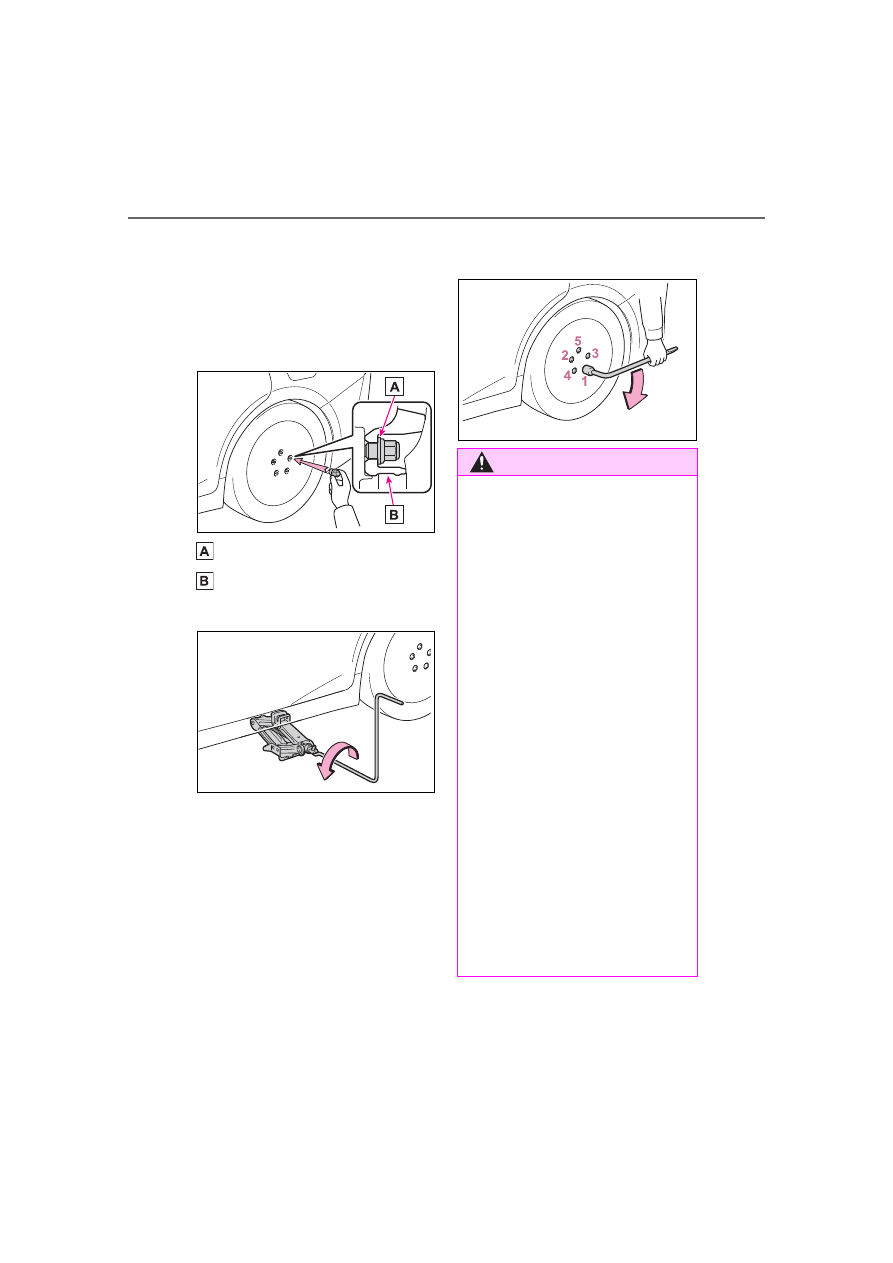

Removing a tire

Tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

415

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

jack is in contact with the jack
point.

The jack point guides are located

under the rocker panel. They indi-

cate the jack point positions.

4

Raise the vehicle until the tire
is slightly raised off the
ground.

5

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

WARNING

■

Replacing a tire

Do not touch the disc wheels or

the area around the brakes imme-

diately after the vehicle has been

driven.
After the vehicle has been driven

the disc wheels and the area

around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc. may result in burns.

Installing the tire

416

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

2

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

Turn the wheel nuts until the wash-

ers come into contact with the disc

wheel.

Washer

Disc wheel

3

Lower the vehicle.

4

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.
Tightening torque:

103 ft•lbf (140 N•m, 14.3
kgf•m)

WARNING

■

When installing the tire

Failure to follow these precau-

tions could cause the wheel nuts

to loosen and the tire to fall off,

resulting in death or serious injury.

●

Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. In addition, the

oil or grease can cause the

wheel nuts to loosen and the

wheel may fall off, causing a

serious accident. Remove any

oil or grease from the wheel

bolts or wheel nuts.

●

Have the wheel nuts tightened

with a torque wrench to 103

ft•lbf (140 N•m, 14.3 kgf•m) as

soon as possible after changing

wheels.

●

Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

●

When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

417

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.488)

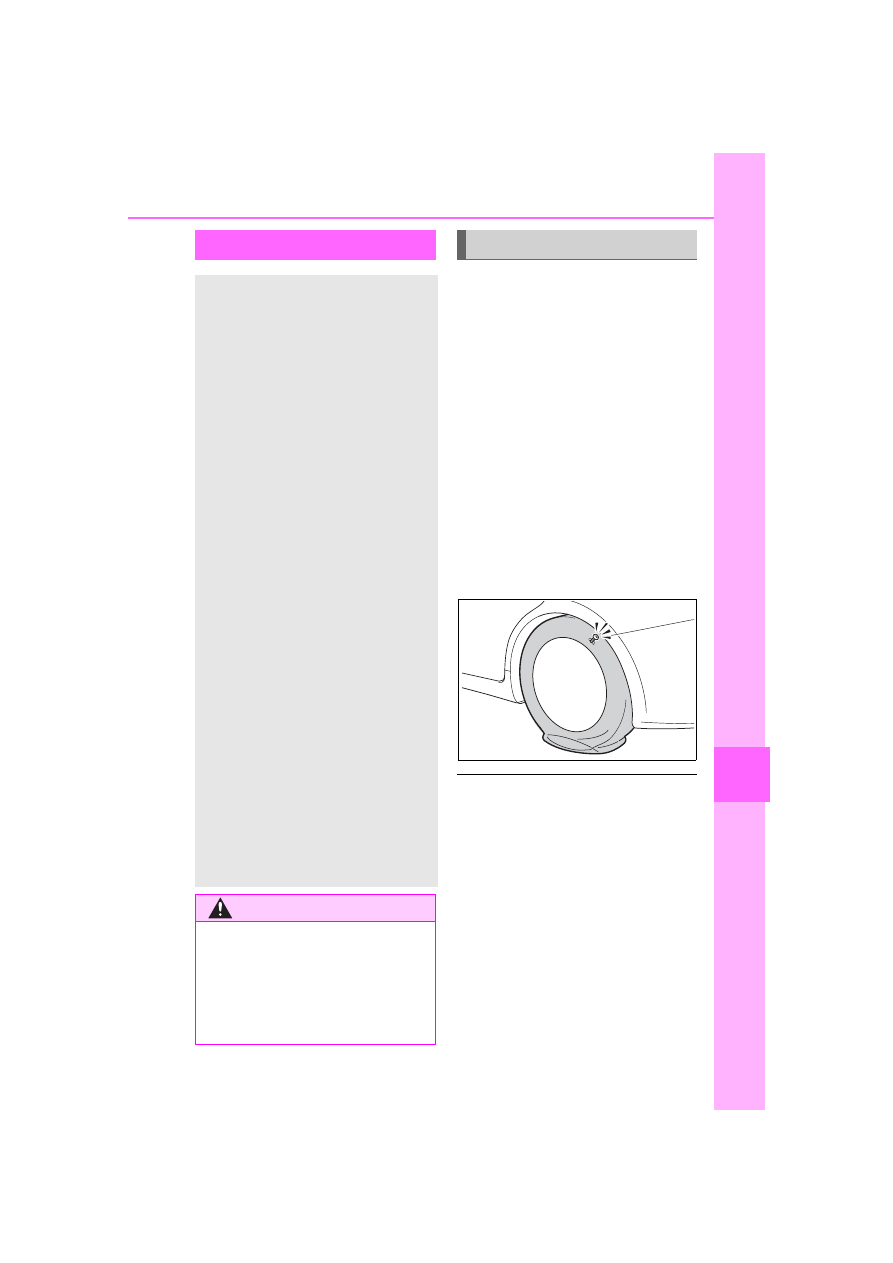

Tire valve

WARNING

●

If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

NOTICE

■

Repairing or replacing tires,

wheels, tire pressure warn-

ing valves, transmitters and

tire valve caps



P.408

Tire inflation pressure

Checking the specified
tire inflation pressure

Inspection and adjust-
ment procedure

418

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

Tire pressure gauge

1

Remove the tire valve cap.

2

Press the tip of the tire pres-
sure gauge onto the tire
valve.

3

Read the pressure using the
gauge gradations.

4

If the tire inflation pressure is
not at the recommended
level, adjust the pressure.
If you add too much air, press
the center of the valve to
deflate.

5

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

6

Put the tire valve cap back
on.

■

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month. Do not forget to

check the spare.

■

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor

handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

■

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight

should be placed so that the vehi-

cle is balanced.

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

419

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

*

.

Replacement wheels are avail-
able at your Toyota dealer.

*

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, the tire pressure warning

valves and transmitters must be

installed. (



P.408)

WARNING

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

420

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en



Use only Toyota wheel nuts
and wheel nut wrenches
designed for use with your
aluminum wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire.

Doing so may result in an acci-

dent, causing death or serious

injury.

■

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts. Oil and

grease may cause the wheel nuts

to be excessively tightened, lead-

ing to bolt or disc wheel damage.

In addition, the oil or grease can

cause the wheel nuts to loosen

and the wheel may fall off, caus-

ing an accident and resulting in

death or serious injury. Remove

any oil or grease from the wheel

bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels. Doing so could cause the

tire to leak air during driving, pos-

sibly causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

421

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

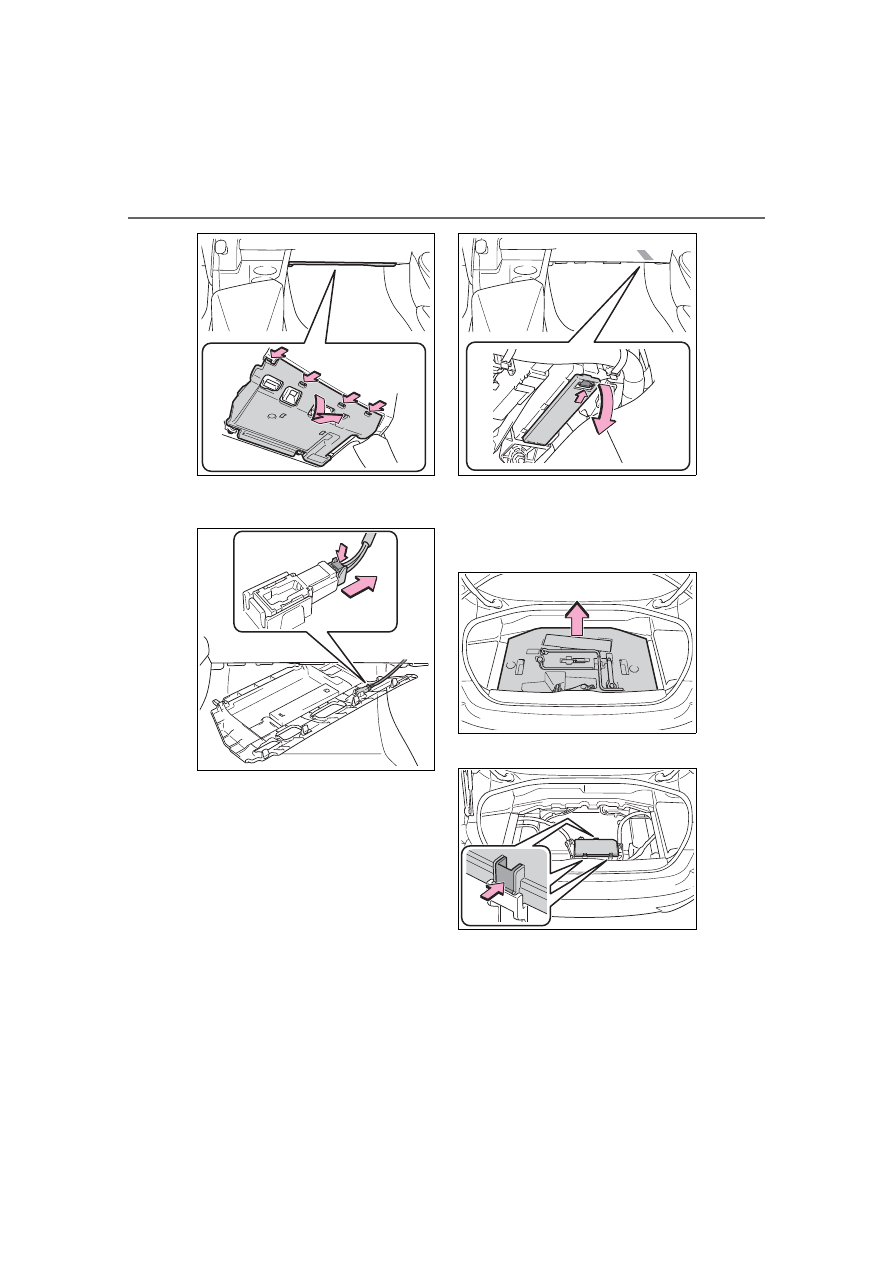

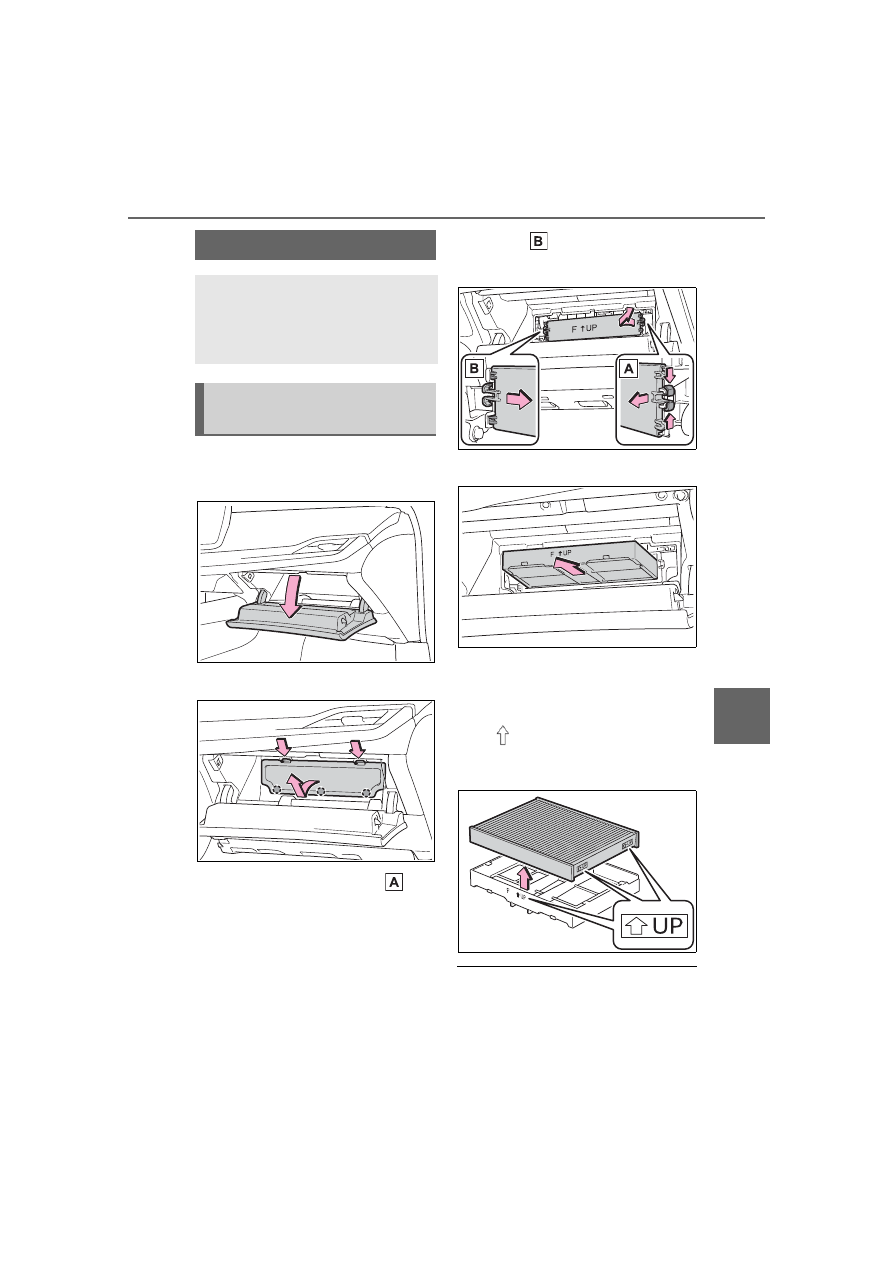

1

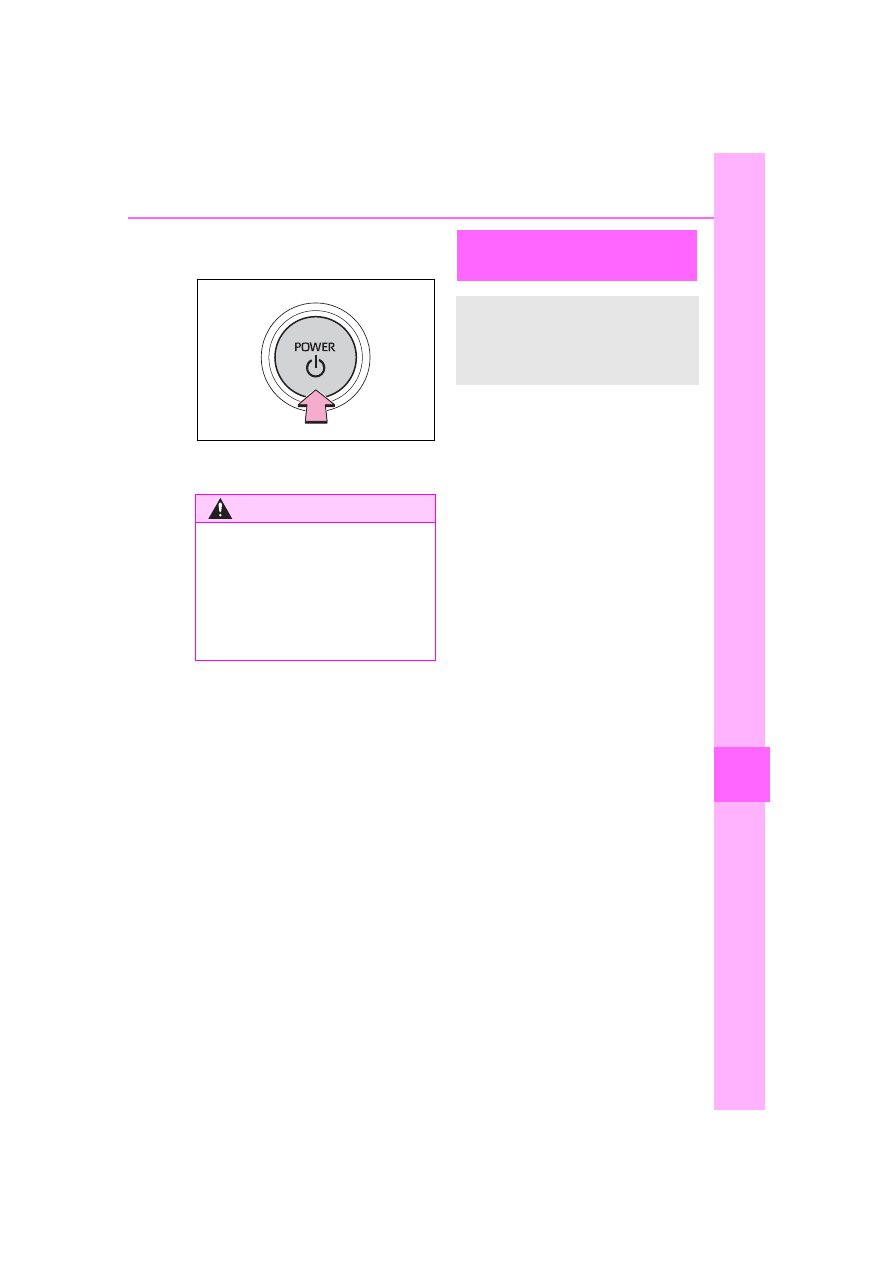

Turn the power switch off.

2

Open the glove box.

3

Remove the panel.

4

Unlock the filter cover ( ),
pull the filter cover out of the

claws ( ), and remove the
filter cover.

5

Remove the filter case.

6

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter and the filter case should be
pointing up.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removing the air condi-
tioning filter

422

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

■

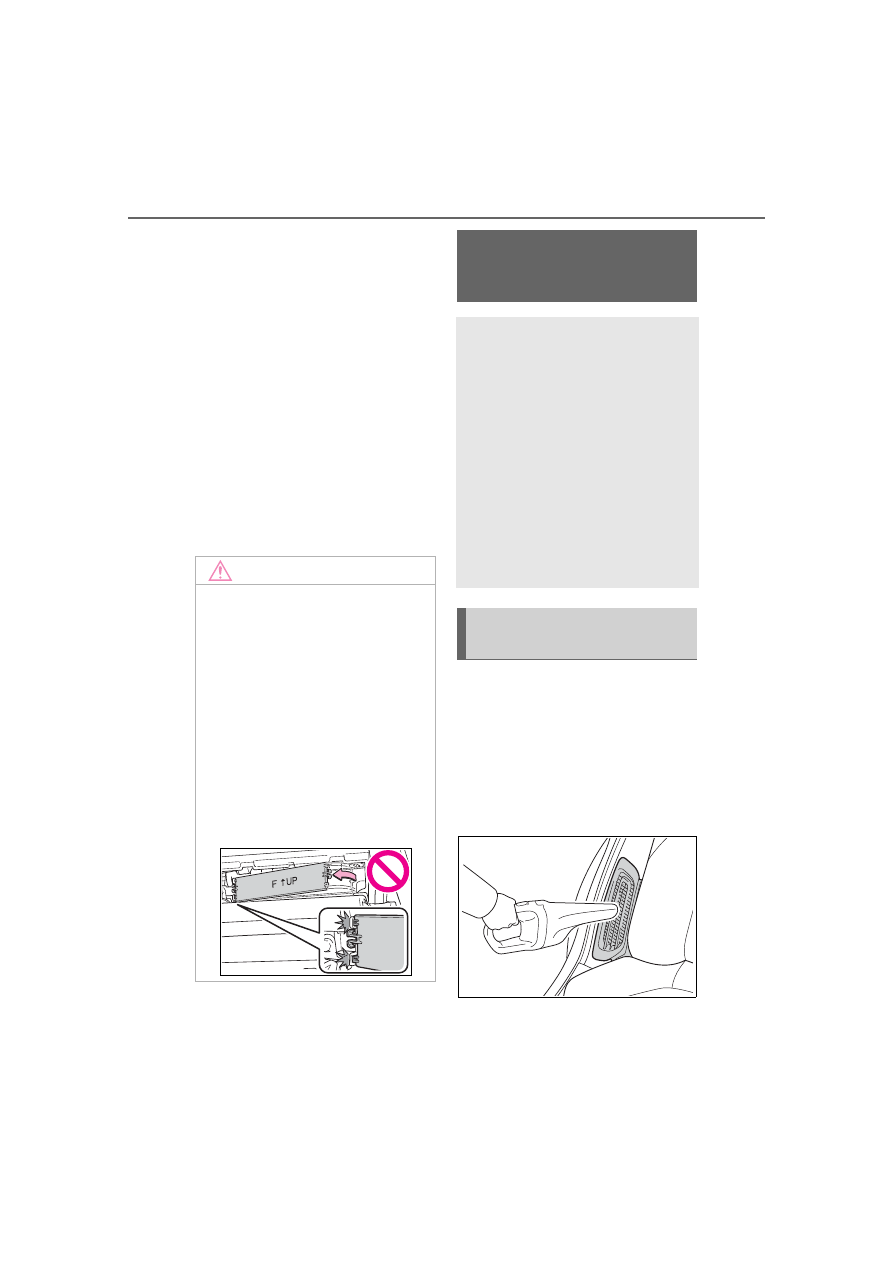

Air conditioning filter with

deodorizing function

When fragrances are placed in your

vehicle, the deodorizing effect may

become significantly weakened in a

short period.

When an air conditioning odor

comes out continuously, replace the

air conditioning filter.

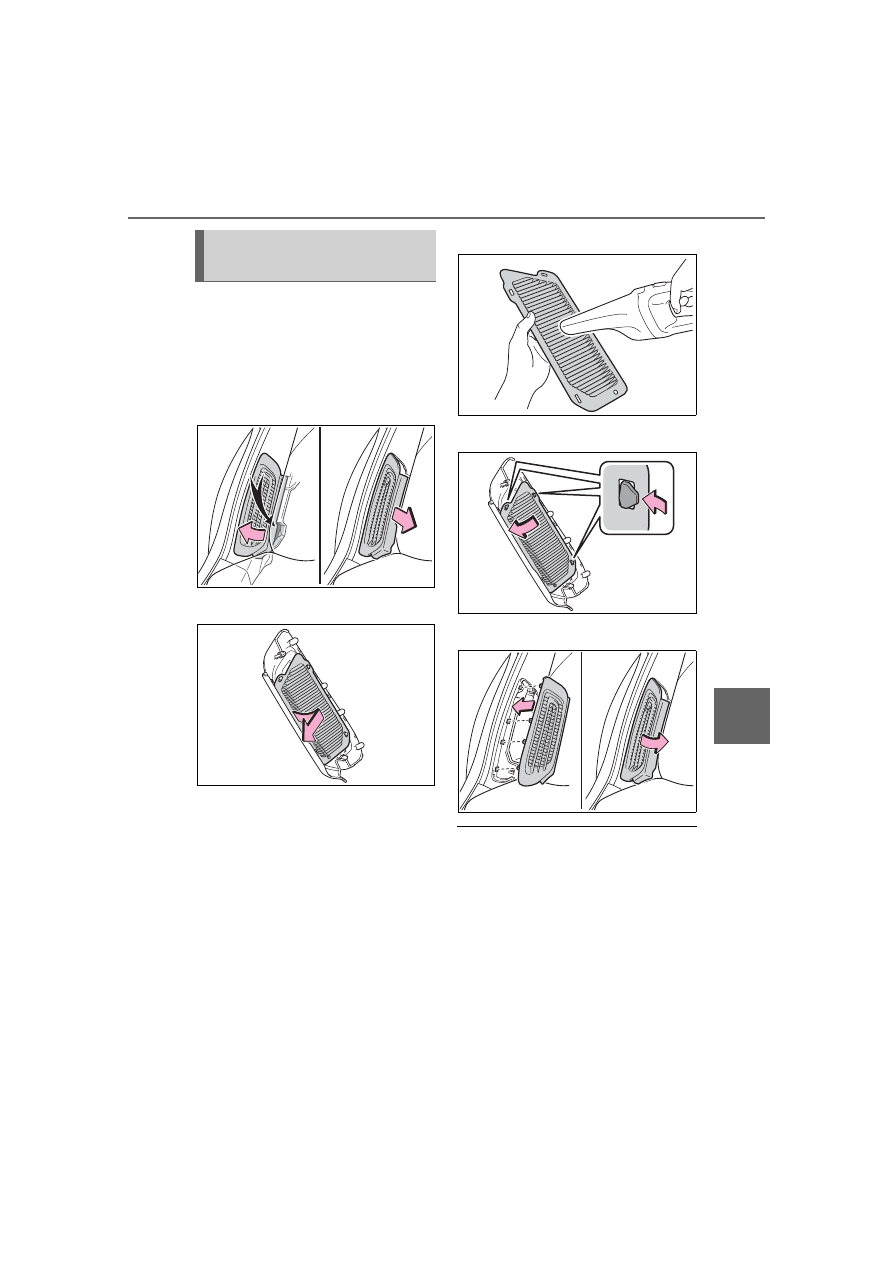

Remove the dust from the air
intake vents with a vacuum
cleaner etc.

Make sure to only use a vacuum to
suck out dust and clogs. Attempting
to blow out dust and clogs using an
airgun etc. may push it into the air
intake vents. (



P.424)

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

■

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

Cleaning the traction

battery air intake

vents and filters

To prevent the fuel economy
from being affected, visually
inspect the traction battery
air intake vents periodically
for dust and clogs. If it is
dusty or clogged or if
“Maintenance Required for
Traction Battery Cooling
Parts See Owner’s Manual”
is shown on the multi-infor-
mation display, clean the air
intake vents using the fol-
lowing procedures:

Cleaning the air intake
vents

423

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

If dust and clogs cannot be com-
pletely removed with the air
intake vent cover installed,
remove the cover and clean the
filter.

1

Remove the grill.

2

Remove the filter.

3

Remove any dust and clogs
from the filter using a vacuum
cleaner, etc.

Make sure to also remove dust and

clogs from the inner side of the air

intake vent grille.
If the filter is damaged, have it

replaced by your Toyota dealer.

4

Reinstall the filter to the grill.

5

Install the grill.

■

Scheduled maintenance of the

air intake vent is necessary

when

In some situations such as when the

vehicle is used frequently or in

heavy traffic or dusty areas, the air

intake vent may need to be cleaned

more regularly. For details, refer to

the “Warranty and Service Guide”,

“Owner’s Manual Supplement” or

“Scheduled Maintenance”.

If dust and clogs cannot
be completely removed

424

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

■

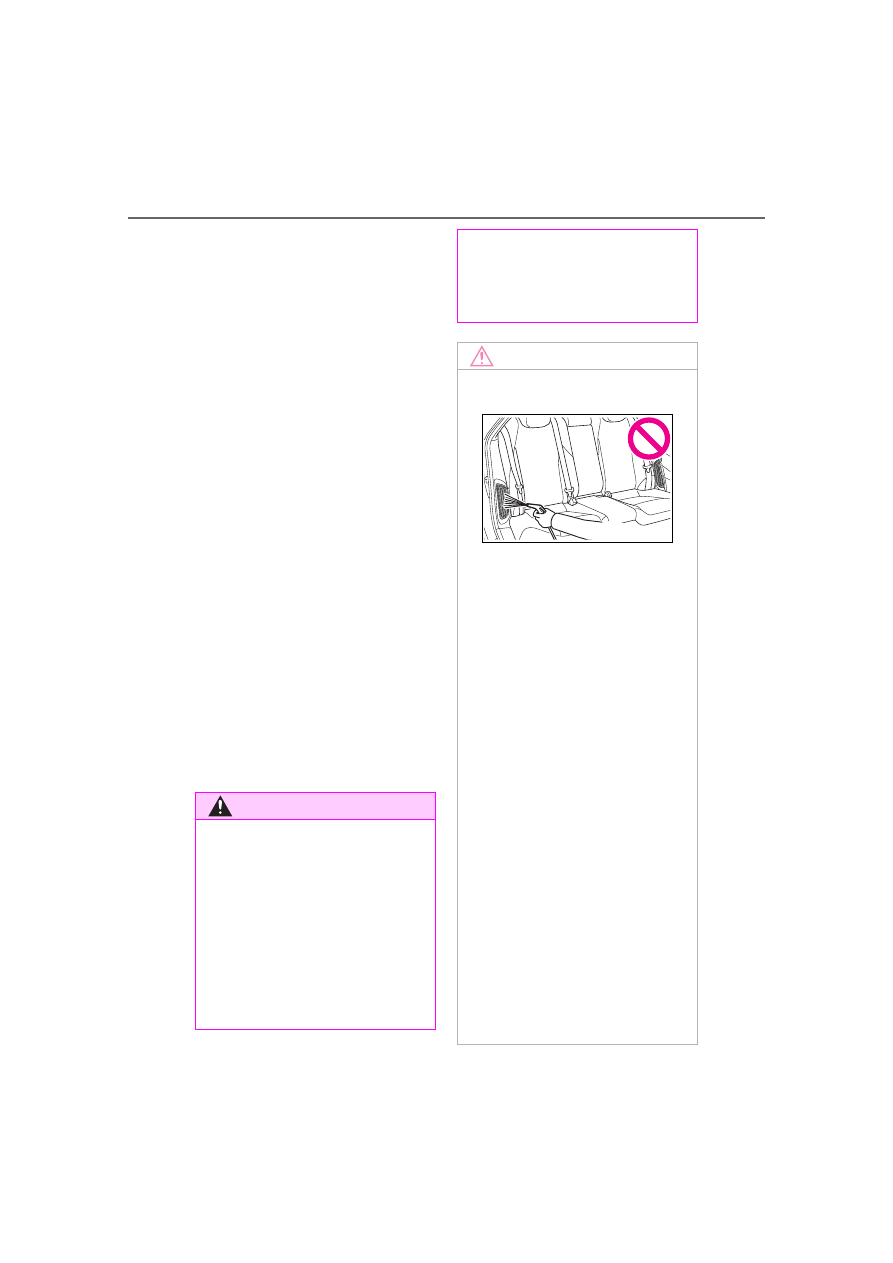

Cleaning the air intake vents

●

Dust in the air intake vents may

interfere with the cooling of the

traction battery. If charging/dis-

charging of the traction battery

becomes limited, the distance that

the vehicle can be driven using

the electric motor may be reduced

and the fuel economy may be

reduced. Inspect and clean the air

intake vents periodically.

●

Improper handling of the air intake

vent covers and filters may result

in damage to them. If you have

any concerns about cleaning the

filter, contact your Toyota dealer.

■

If “Maintenance Required for

Traction Battery Cooling Parts

See Owner’s Manual” is shown

on the multi-information display

●

If this warning message is shown

on the multi-information display,

remove the air intake vent covers

and clean the filters. (



P.455)

●

After cleaning the air intake vents,

start the fuel cell system and

check that the warning message

is no longer shown.

It may take approximately 20 min-

utes after the fuel cell system is

started until the warning message

disappears. If the warning message

does not disappear, have the vehi-

cle inspected by your Toyota dealer.

WARNING

■

When cleaning the air intake

vents

●

Do not use water or other liq-

uids to clean the air intake

vents. If water is applied to the

traction battery or other compo-

nents, a malfunction or fire may

occur.

●

Before cleaning the air intake

vents, make sure to turn the

power switch off to stop the fuel

cell system.

■

When removing the air intake

vent covers

Do not touch the service plug

located near the air intake vents.

(



P.78)

NOTICE

■

When cleaning the air intake

vents

When cleaning the air intake

vents, make sure to only use a

vacuum to suck out dust and

clogs. If a compressed air blow

gun, etc. is used to blow out dust

and clogs, the dust or clogs may

be pushed into the air intake

vents, which may affect the per-

formance of the traction battery

and cause a malfunction.

■

To prevent damage to the

vehicle

●

Do not allow water or foreign

matter to enter the air intake

vent when the cover is

removed.

●

Carefully handle the removed

filter so that it will not be dam-

aged. If the filter is damaged,

have it replaced with a new filter

by your Toyota dealer.

●

Make sure to reinstall the filter

and cover to their original posi-

tions after cleaning.

●

Do not install anything to the air

intake vent other than the exclu-

sive filter for this vehicle or use

the vehicle without the filter

installed.

425

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to local laws.

NOTICE

■

If “Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual” is

shown on the multi-informa-

tion display

If the vehicle is continuously

driven with the warning message

(indicating that charging/discharg-

ing of the traction battery may

become limited) displayed, the

traction battery may malfunction.

If the warning message is dis-

played, clean the air intake vents

immediately.

Electronic key battery

Replace the battery with a
new one if it is depleted.
As the key may be damaged
if the following procedure is
not performed properly, it is
recommended that key bat-
tery replacement be per-
formed by your Toyota
dealer.

Items to prepare

426

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

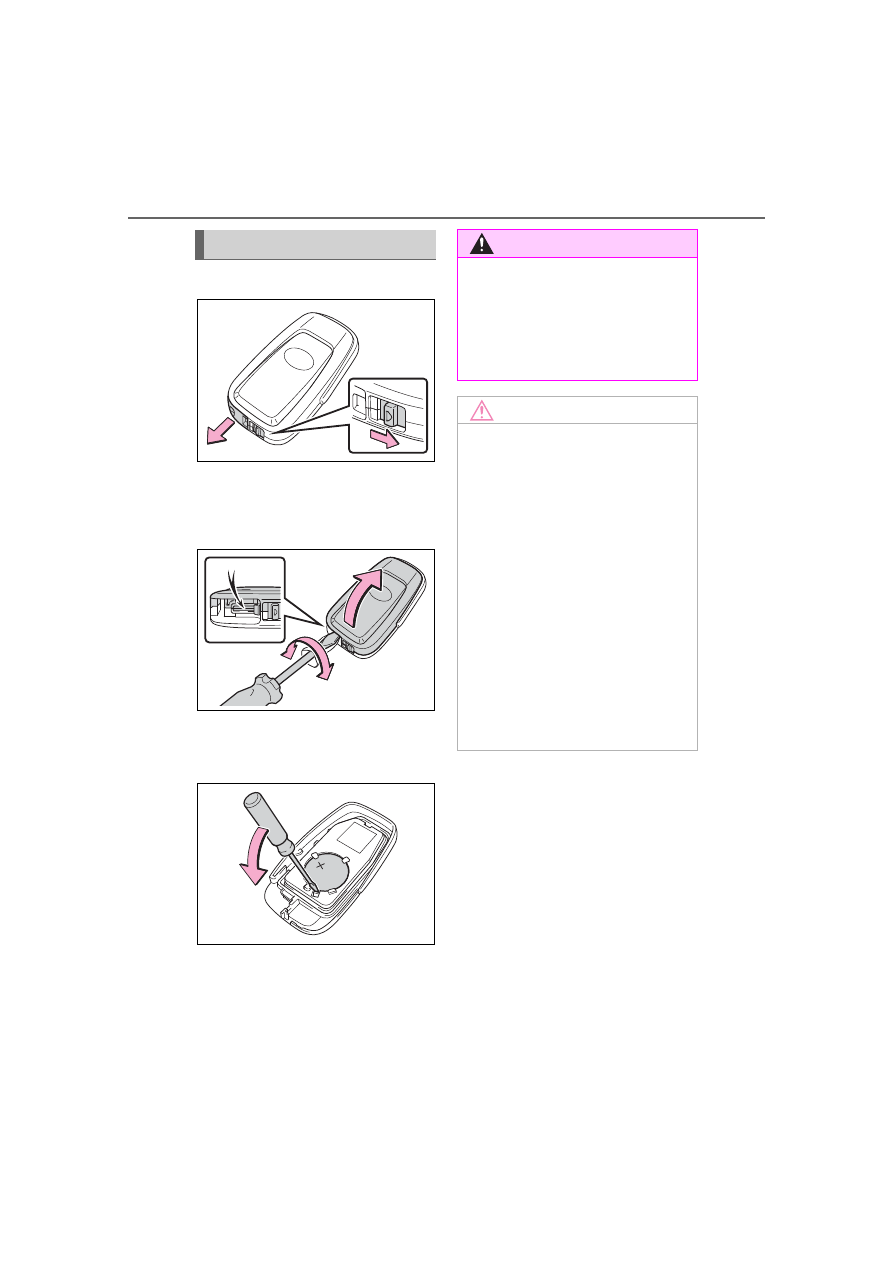

1

Take out the mechanical key.

2

Remove the cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a tape.

3

Remove the depleted battery.

Insert a new battery with the “+” ter-

minal facing up.

Replacing the battery

WARNING

■

Removed battery and other

parts

These parts are small and if swal-

lowed by a child, they can cause

choking. Keep away from chil-

dren. Failure to do so could result

in death or serious injury.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

427

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

1

Turn the power switch off.

2

Open the fuse box cover.



Fuel cell unit compartment:
type A fuse box

Push the tabs in and lift the lid off.



Fuel cell unit compartment:
type B fuse box

Remove the fuel cell unit compart-
ment cover (



P.398) and push the

tabs in and lift the lid off.



Driver’s side instrument panel

Push the tab in and remove the lid.
Make sure to push the tab in during
removal or installation.



Passenger’ side instrument
panel

Remove the cover.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

428

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

Remove the footwell lights connec-
tor.

Remove the lid.
Make sure to push the claw when
removing/installing the lid.



Trunk

Remove the luggage mat, and then
remove the luggage under tray.
(



P.354)

Push the tab in and lift the lid off.

3

Remove the fuse with the
pullout tool.
Only type A fuse can be

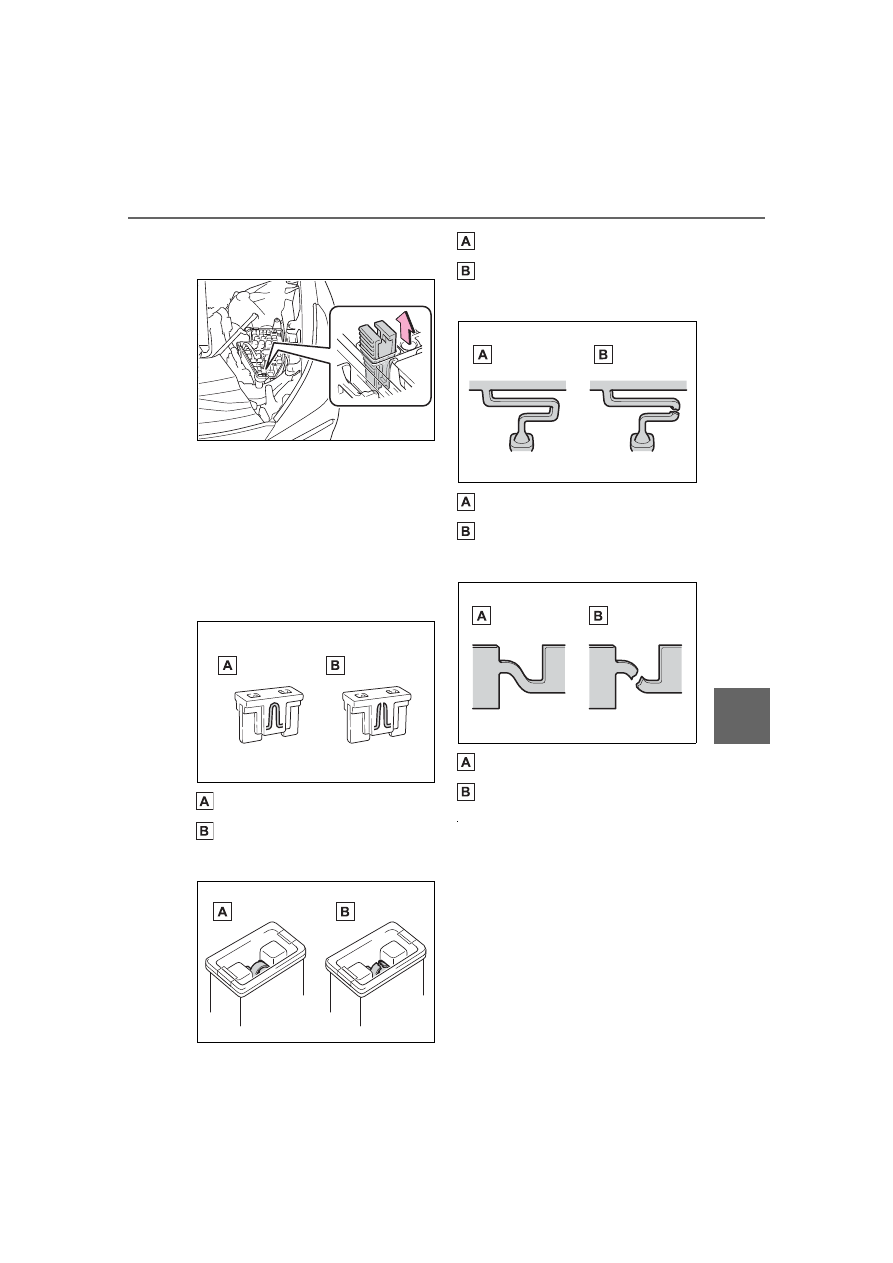

429

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

removed using the pullout
tool.

4

Check if the fuse is blown.

Type A and B:

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.
Type C and D:

Contact your Toyota dealer.



Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse



Type D

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

430

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

tecting the wiring harness from

damage.

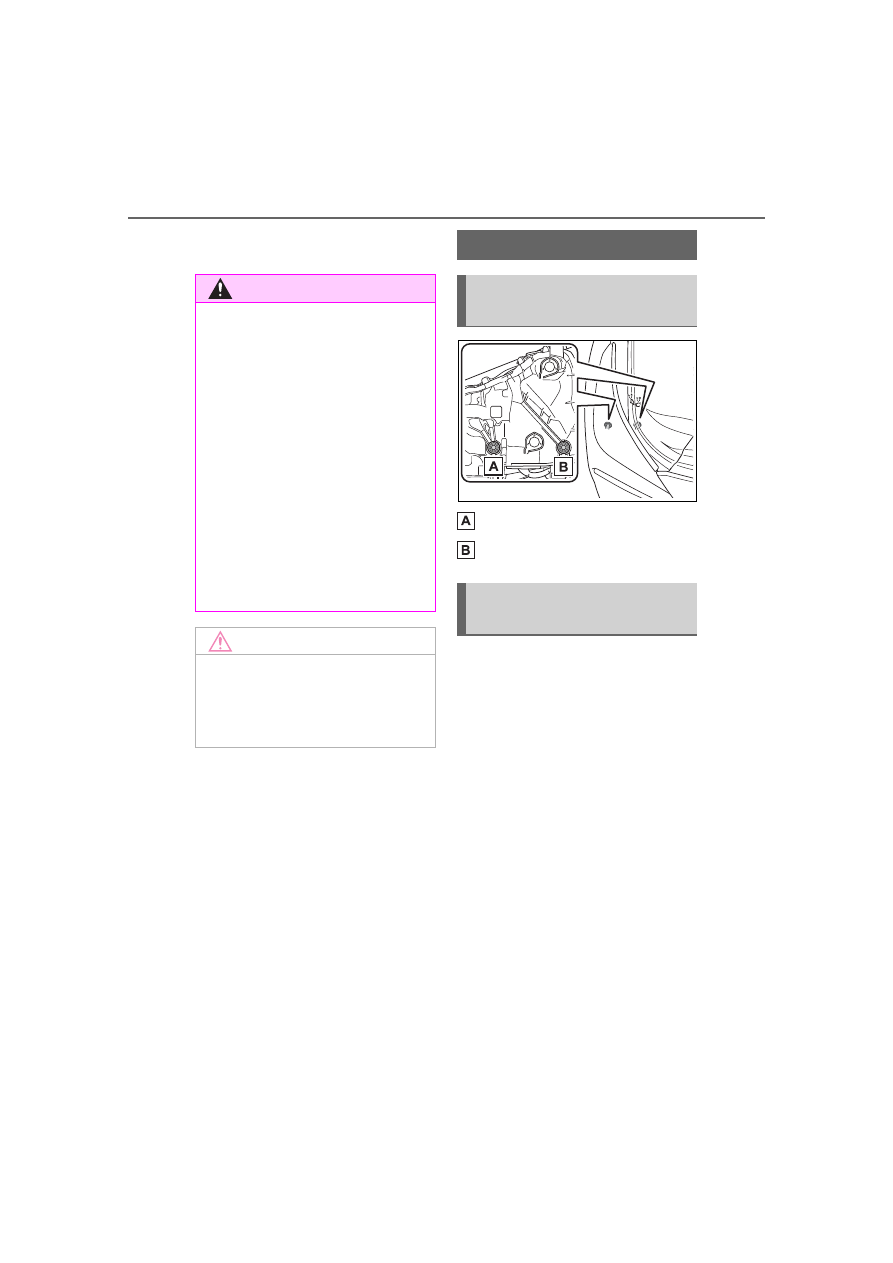

Adjustment bolt A

Adjustment bolt B



Make sure the vehicle has a
full tank of fuel and the area
around the headlight is not
deformed.



Park the vehicle on level
ground.



Make sure the tire inflation
pressure is at the specified
level.



Have someone sit in the
driver’s seat.



Bounce the vehicle several
times.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

Headlight aim

Vertical movement adjust-
ing bolts

Before checking the head-
light aim

431

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

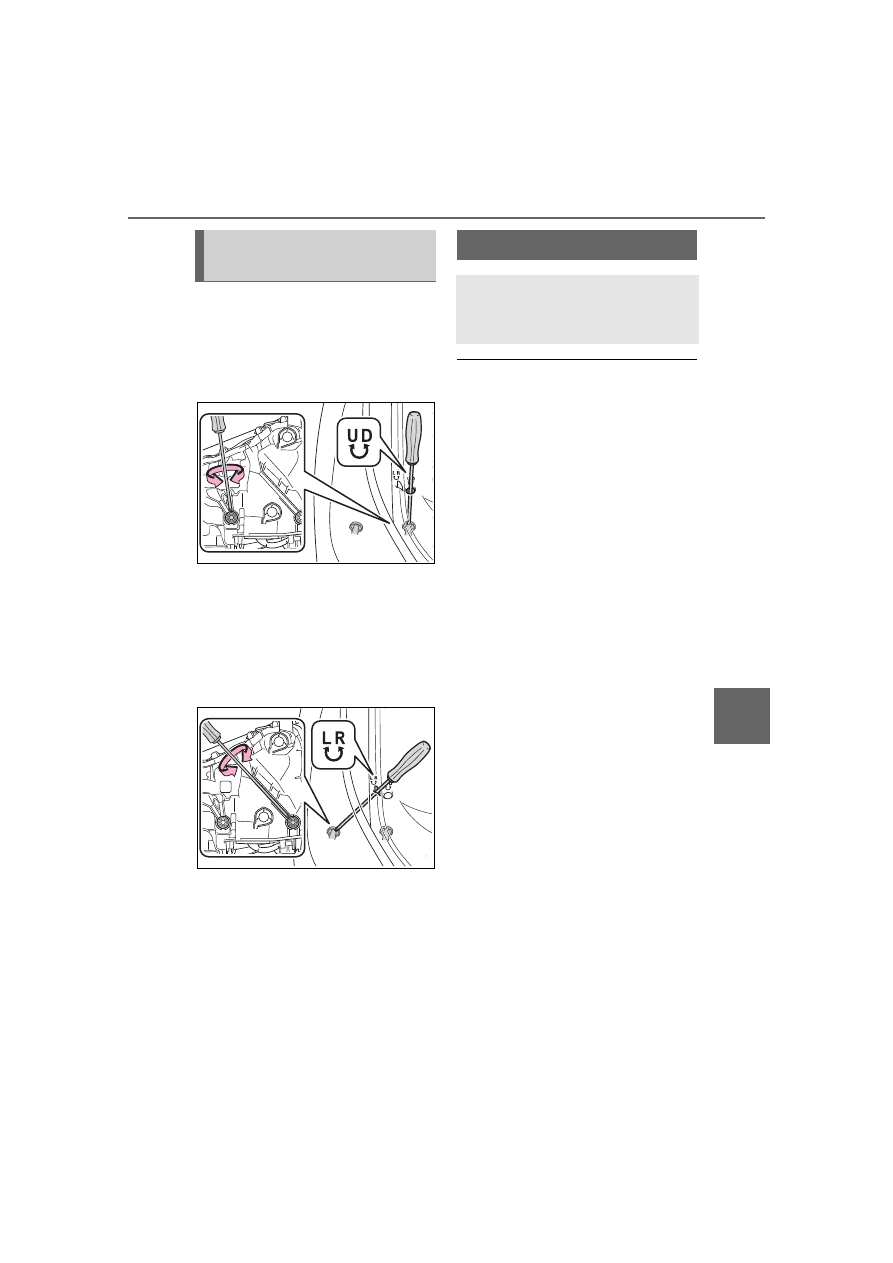

1

Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direc-
tion and the number of turns.

2

Turn bolt B the same number
of turns and in the same
direction as step

1

.

If the headlight cannot be adjusted

using this procedure, take the vehi-

cle to your Toyota dealer to adjust

the headlight aim.

■

LED Lights

The lights consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the headlight lens

does not indicate a malfunction.

Contact your Toyota dealer for more

information in the following situa-

tions:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the

headlight.

Adjusting the headlight
aim

Light bulbs

If any lights burn out, have it
replaced by your Toyota
dealer.

432

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

433

Owners Manual_USA_M62102_en

8

8

Whe

n tr

ouble

 a

rises

When trouble arises

8-1. Essential information

Emergency flashers ....

434

If your vehicle has to be

stopped in an emergency

..................................

434

If the vehicle is trapped in

rising water................

435

8-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

437

If you think something is

wrong ........................

441

If a warning light turns on or

a warning buzzer sounds

..................................

443

If a warning message is dis-

played........................

453

If you have a flat tire....

457

If the fuel cell system will not

start ...........................

468

If you lose your keys ...

469

If the fuel door cannot be

opened ......................

470

If the electronic key does

not operate properly ..

470

If the 12-volt battery is dis-

charged .....................

473

If your vehicle overheats

..................................

478

If the vehicle becomes stuck

..................................

482

434

8-1. Essential information

Owners Manual_USA_M62102_en

8-1.Essential information

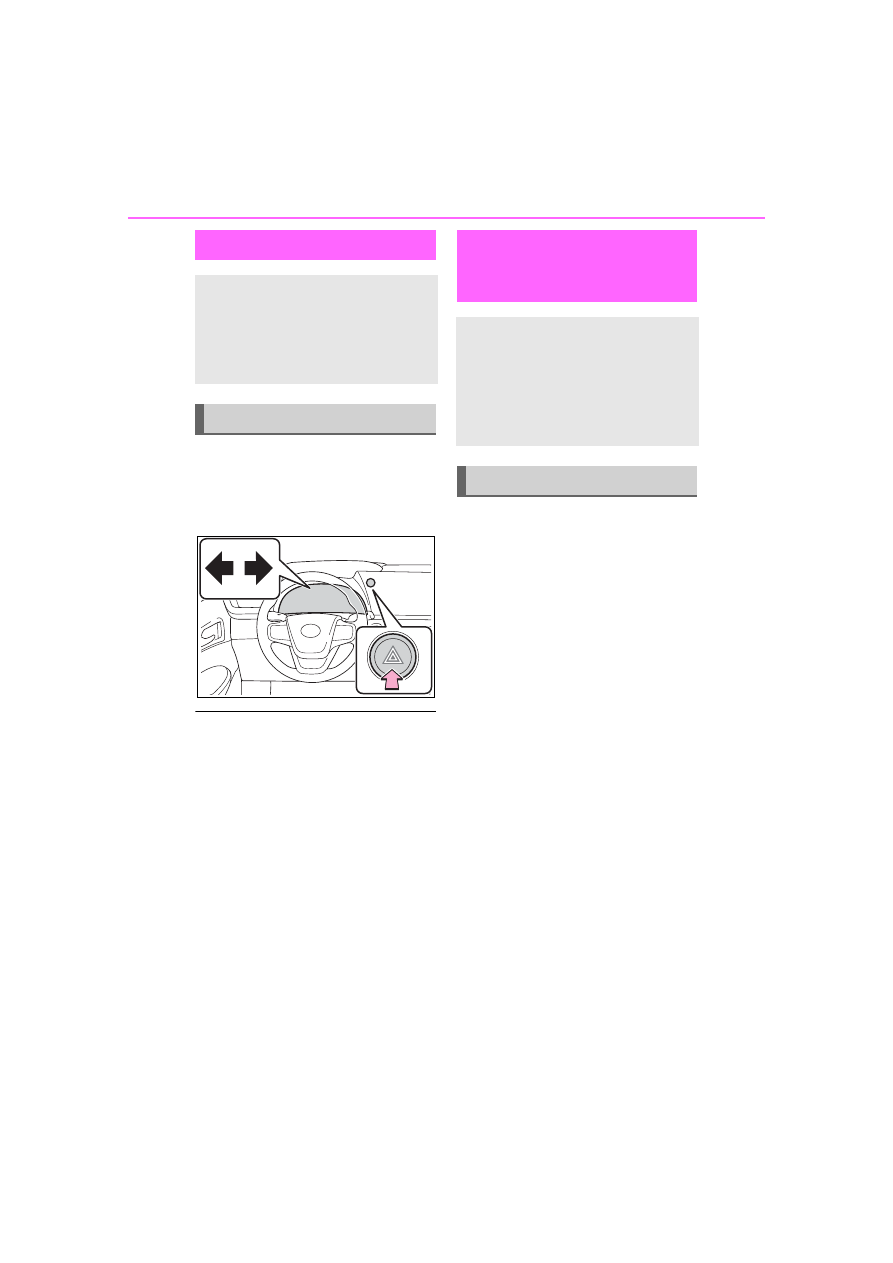

Press the switch to flash all of
the turn signal lights.

To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the fuel

cell system is not operating (while

the “READY” indicator is not illu-

minated), the 12-volt battery may

discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice.

(The emergency flashers may not

turn on automatically depending

on the force of the impact and

conditions of the collision.)

1

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

2

Shift the shift position to N.



If the shift position is shifted to
N

3

After slowing down, stop the
vehicle in a safe place by the
road.

4

Stop the fuel cell system.



If the shift position cannot be
shifted to N

3

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

4

To stop the fuel cell system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to
a breakdown, etc.

Operating instructions

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehicle
using the following proce-
dure:

Stopping the vehicle

435

8-1. Essential information

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

briefly 3 times or more in suc-
cession.

5

Stop the vehicle in a safe
place by the road.



Remove the seat belt first.



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and exit
the vehicle through the win-
dow.



If the window can not be
opened using the power win-
dow switch, remain calm, wait
until the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle, and then open the door
and exit the vehicle.

WARNING

■

If the fuel cell system has to

be turned off while driving

Power assist for the steering

wheel will be lost, making the

steering wheel heavier to turn.

Decelerate as much as possible

before turning off the fuel cell sys-

tem.

If the vehicle is

trapped in rising water

In the event the vehicle is
submerged in water, remain
calm and perform the fol-
lowing.

436

8-1. Essential information

Owners Manual_USA_M62102_en

WARNING

■

Using an emergency hammer

*



for emergency escape

The front side windows and rear

side windows, as well as the rear

window can be shattered with an
emergency hammer

*

 used for

emergency escape.
However, an emergency hammer

cannot shatter the windshield as it

is laminated glass.

*

: Contact your Toyota dealer or

aftermarket accessory manu-
facturer for further information
about an emergency hammer.

■

Escaping the vehicle from the

window

There are cases where escaping

the vehicle from the window is not

possible due to seating position,

passenger body type, etc.

When using an emergency ham-

mer, consider your seat location

and the size of the window open-

ing to ensure that the opening is

accessible and large enough to

escape.

437

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

8-2.Steps to take in an emergency

If your vehicle needs

to be towed

If towing is necessary, we
recommend having your
vehicle towed by your Toy-
ota dealer or commercial
towing service, using a
wheel-lift type truck or flat-
bed truck.

Use a safety chain system
for all towing, and abide by
all state/provincial and local
laws.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

When towing the vehicle

Be sure to transport the vehicle

with all four wheels raised off the

ground. If the vehicle is towed

with the tires contacting the

ground, the drivetrain and related

parts may be damaged, an acci-

dent may occur due to a change

in direction of the vehicle or elec-

tricity generated by the operation

of the motor may cause a fire to

occur depending on the nature of

the damage or malfunction.

■

While towing

●

When towing using cables or

chains, avoid sudden starts, etc.

which place excessive stress on

the towing eyelets, cables or

chains. The towing eyelets,

cables or chains may become

damaged, broken debris may hit

people, and cause serious dam-

age.

●

Do not perform any of the fol-

lowing as doing so may cause

the parking lock mechanism to

engage, locking the rear wheels

and possibly leading to an acci-

dent resulting in death or seri-

ous injury:

• Unfasten the driver’s seat belt

and open the driver’s door.

438

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

In the following situations, it is
not possible to be towed by

another vehicle using cables or
chains, as the rear wheels may
be locked due to the parking
lock. Contact your Toyota dealer
or commercial towing service.



There is a malfunction in the
shift control system. (



P.453)



There is a malfunction in the
immobilizer system. (



P.69)



There is a malfunction in the
smart key system. (



P.470)



The 12-volt battery is dis-
charged. (



P.473)

The following may indicate a
problem with your transmission.
Contact your Toyota dealer or
commercial towing service
before towing.



The fuel cell system warning
message is shown on the
multi-information display and
the vehicle does not move.



The vehicle makes an abnor-
mal sound.

WARNING

• Turn the power switch off.

■

Installing towing eyelets to

the vehicle

Make sure that towing eyelets are

installed securely.

If not securely installed, towing

eyelets may come loose during

towing.

NOTICE

■

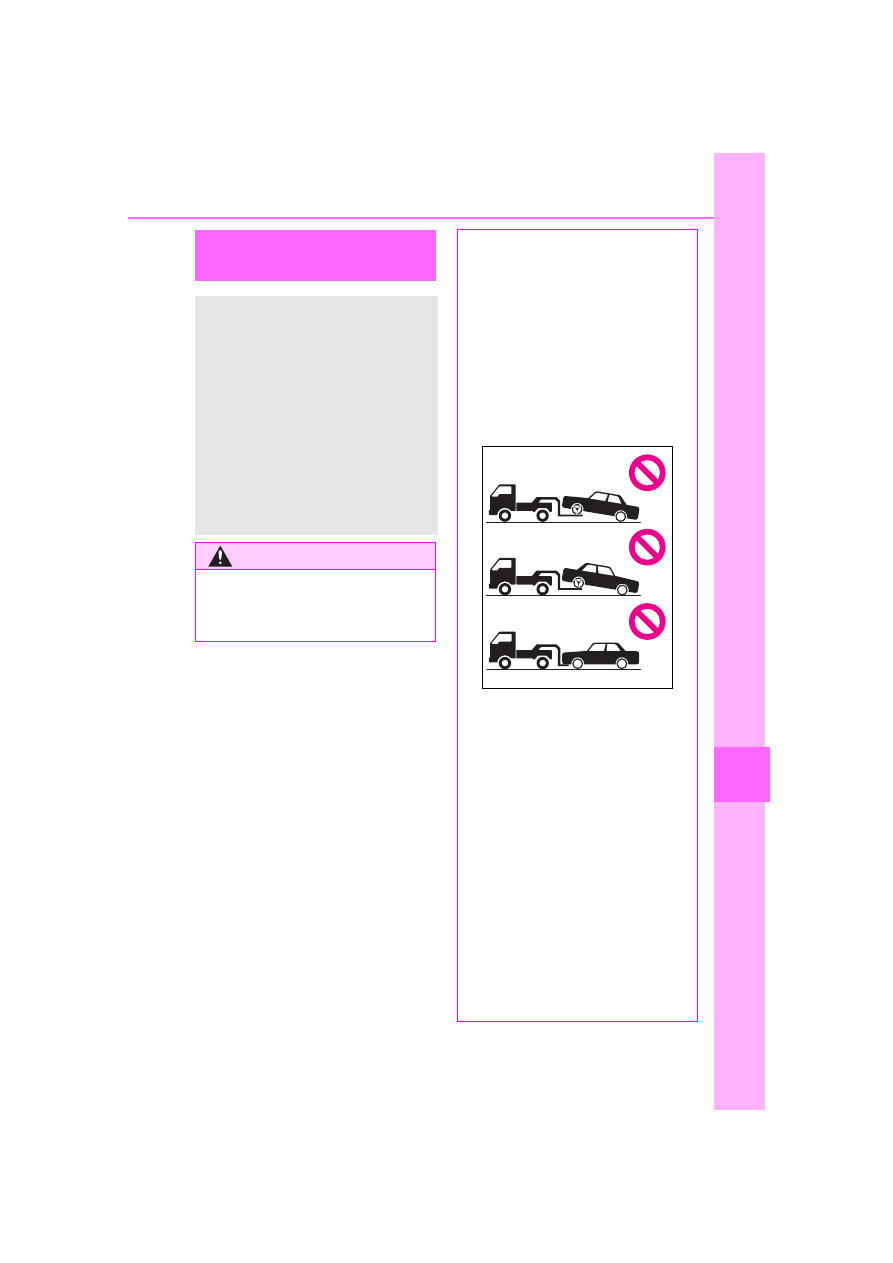

To prevent damage to the

vehicle when towing using a

wheel-lift type truck

●

Do not tow the vehicle from the

rear when the power switch is

off. The steering lock mecha-

nism is not strong enough to

hold the front wheels straight.

●

When raising the vehicle,

ensure adequate ground clear-

ance for towing at the opposite

end of the raised vehicle. With-

out adequate clearance, the

vehicle could be damaged while

being towed.

■

To prevent damage to the

vehicle when towing with a

sling-type truck

Do not tow with a sling-type truck,

either from the front or rear.

■

To prevent damage to the

vehicle during emergency

towing

Do not secure cables or chains to

the suspension components.

Situations when it is not
possible to be towed by
another vehicle

Situations when it is nec-
essary to contact dealers
before towing

439

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises



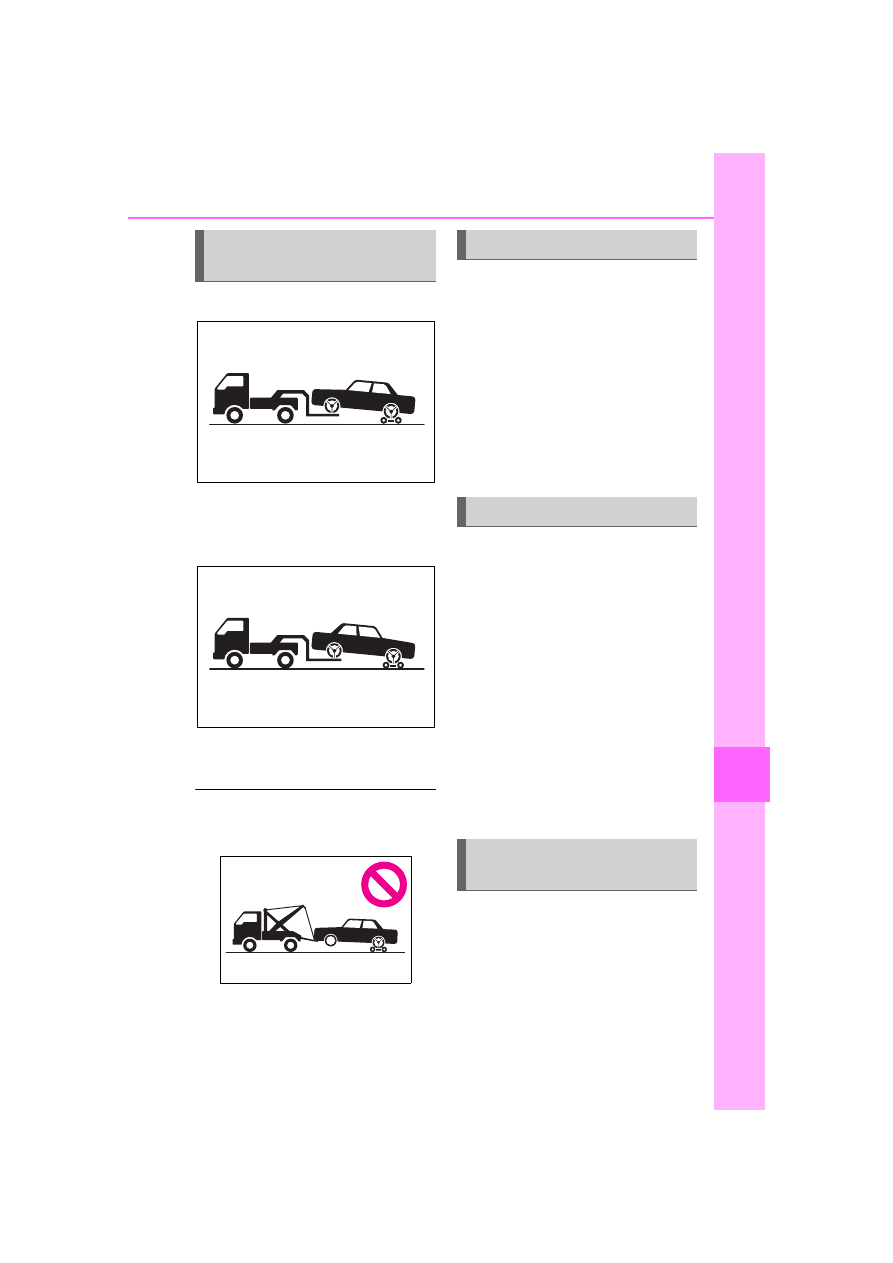

From the front

Use a towing dolly under the
rear wheels.



From the rear

Use a towing dolly under the
front wheels.

■

Towing with a sling-type truck

Do not tow with a sling-type truck to

prevent body damage.

When using a flat-bed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner’s manual of the flat-bed
truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the power switch off.

If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using
cables or chains secured to the
emergency towing eyelets. This
should only be attempted on
hard surfaced roads for short
distances at under 18 mph (30
km/h).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.

To have your vehicle towed by
another vehicle, the towing eye-
let must be installed to your
vehicle. Install the towing eyelet
using the following procedure.

Towing with a wheel-lift
type truck

Using a flatbed truck

Emergency towing

Emergency towing proce-
dure

440

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

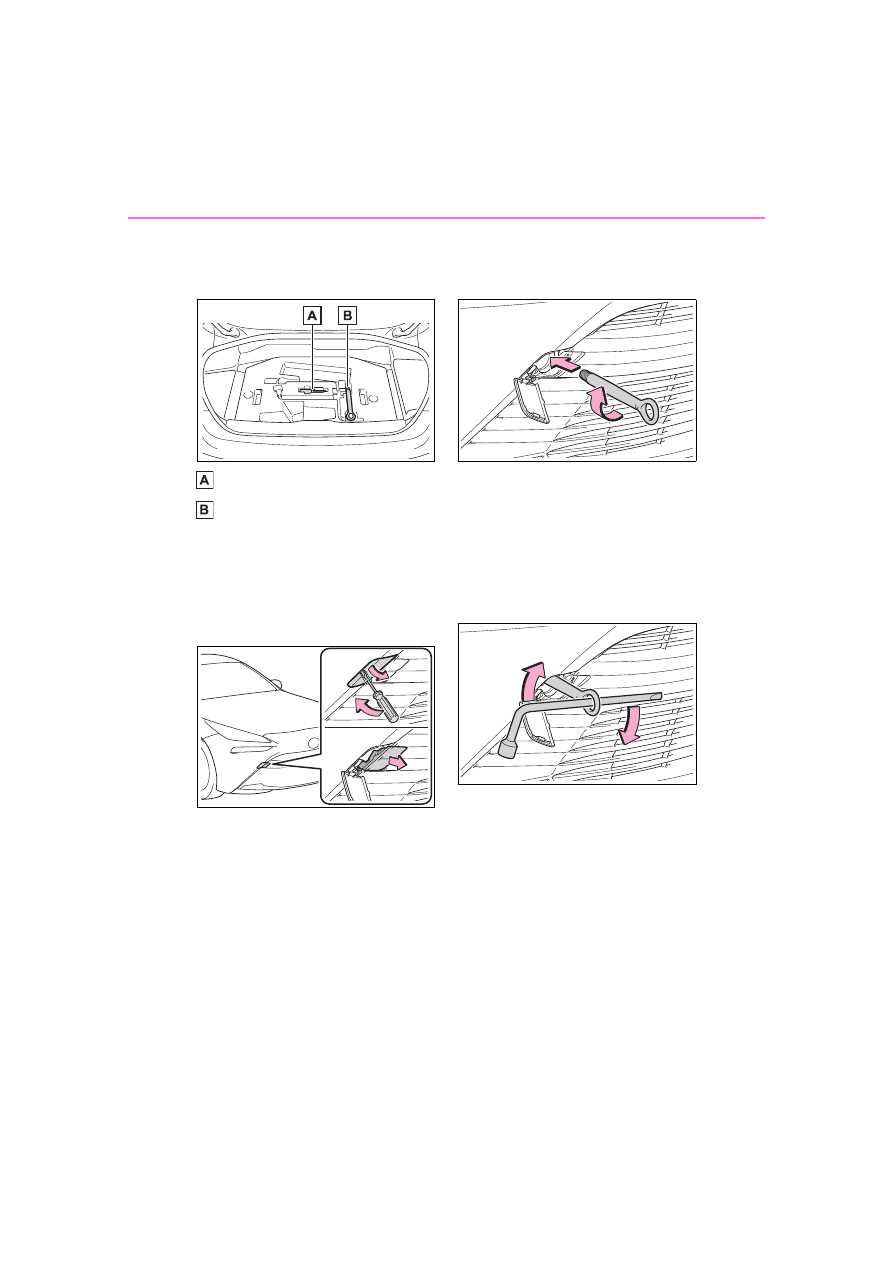

1

Take out the phillips-head
screwdriver and towing eye-
let.

Phillips-head screwdriver

Towing eyelet

2

Remove the eyelet cover
using a flathead screwdriver.

To protect the bodywork, place a

rag between the screwdriver and

the vehicle body as shown in the

illustration.

3

Insert the towing eyelet into
the hole and tighten partially
by hand.

4

Tighten down the towing eye-
let securely using a phillips-
head screwdriver, wheel nut
wrench

*

 or hard metal bar.

*

: Wheel nut wrench is not installed

in your vehicle, can be purchased
at your Toyota dealer.

5

Securely attach cables or
chains to the towing eyelet.

Take care not to damage the vehi-

cle body.

6

Enter the vehicle being towed
and start the fuel cell system.

If the fuel cell system does not

start, turn the power switch to ON.

7

Shift the shift position to N
and release the parking
brake.

Turn automatic mode off. (



P.185)

441

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

■

While towing

If the fuel cell system is off, the

power assist for the brakes and

steering will not function, making

steering and braking more difficult.

■

Wheel nut wrench

Wheel nut wrench can be pur-

chased at your Toyota dealer.

■

Before transporting or towing in

frozen areas

Operate the water release function.

Otherwise, the fuel cell system may

freeze and the vehicle may not be

able to be started. (



P.190)



Fluid leaks under the vehicle.
(Water dripping from the air
conditioning after use is nor-
mal.)



Flat-looking tires or uneven
tire wear



The high coolant temperature
gauge needle continually
points higher than normal.



Hydrogen gas leakage noises
can be heard. (



P.84)



Excessive tire squeal when
cornering



Strange noises related to the
suspension system



Other noises related to the
fuel cell system



Stumbling or running roughly



Appreciable loss of power



Vehicle pulls heavily to one

If you think something

is wrong

If you notice any of the fol-
lowing symptoms, your
vehicle probably needs
adjustment or repair. Con-
tact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

442

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

side when braking



Vehicle pulls heavily to one
side when driving on a level
road



Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor

443

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

■

Hydrogen leak warning light (warning buzzer)

■

Brake system warning light (warning buzzer)

■

Brake system warning light (warning buzzer)

If a warning light turns on or a warning buzzer

sounds

Calmly perform the following actions if any of the warning
lights comes on or flashes. If a light comes on or flashes, but
then goes off, this does not necessarily indicate a malfunc-
tion in the system. However, if this continues to occur, have
the vehicle inspected by your Toyota dealer.

Actions to the warning lights or warning buzzers

Warning light

Details/Actions

When a hydrogen gas leak is detected, a buzzer sounds, a
light comes on, and a warning message is displayed on the
multi-information display.



P.87

Warning light

Details/Actions

(U.S.A.)

or

(Red)

(Canada)

Indicates that:



The brake fluid level is low; or



The brake system is malfunctioning



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.

Indicates that the brake pads are worn out (only the right-
side pads can be detected)



Have the vehicle inspected by your Toyota dealer.

Warning light

Details/Actions

(Yellow)

Indicates a malfunction in:



The regenerative braking system;



The electronically controlled brake system; or



The parking brake system



Have the vehicle inspected by your Toyota dealer
immediately.

444

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

■

High coolant temperature warning light

*

*

: This light illuminates on the multi-information display.

■

Fuel cell system overheat warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display.

■

Charging system warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display.

■

SRS warning light

Warning light

Details/Actions

(Red)

Indicates that the coolant temperature is too high



Immediately stop the vehicle in a safe place.
Handling method (



P.478)

Warning light

Details/Actions

Indicates the fuel cell system has overheated



Stop the vehicle in a safe place.
Handling method (



P.478)

Warning light

Details/Actions

Indicates a malfunction in the vehicle’s charging system



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.

Warning light

Details/Actions

Indicates a malfunction in:



The SRS airbag system;



The front passenger occupant classification system; or



The seat belt pretensioner system



Have the vehicle inspected by your Toyota dealer
immediately.

445

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

■

Pop Up Hood warning light

■

ABS warning light

■

Electric power steering system warning light (warning
buzzer)

Warning light

Details/Actions

Indicates that the Pop Up Hood system has operated



The Pop Up Hood system cannot be reused once it
has operated. Have it replaced by your Toyota dealer.

Indicates a malfunction in the Pop Up Hood system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

(U.S.A.)

or

(Canada)

Indicates a malfunction in:



The ABS; or



The brake assist system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

(Red)

or

(Yellow)

Indicates a malfunction in the EPS (Electric Power Steer-
ing) system



Have the vehicle inspected by your Toyota dealer
immediately.

446

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

■

PCS warning light

■

LTA indicator

*

 (warning buzzer)

*

: This light illuminates on the multi-information display.

■

Intuitive parking assist OFF indicator (warning buzzer)

Warning light

Details/Actions

(Flashes or illu-

minates)

When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-Colli-
sion System).



Have the vehicle inspected by your Toyota dealer
immediately.

When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporarily
unavailable, corrective action may be necessary.



Follow the instructions displayed on the multi-infor-
mation display. (



P.210, 453)

If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.



P.317

Warning light

Details/Actions

(Orange)

Indicates a malfunction in the LTA (Lane Tracing Assist)



Follow the instructions displayed on the multi-infor-
mation display. (



P.233)

Warning light

Details/Actions

(Flashes)

(If equipped)

Indicates a malfunction in the intuitive parking assist func-
tion



Have the vehicle inspected by your Toyota dealer
immediately.

Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.



Follow the instructions displayed on the multi-infor-
mation display. (



P.256)

447

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

■

PKSB OFF indicator (warning buzzer)

■

RCTA OFF indicator (warning buzzer)

■

RCD OFF indicator

*

 (warning buzzer)

*

: This light illuminates on the multi-information display.

Warning light

Details/Actions

(Flashes)

(If equipped)

When a buzzer sounds:
Indicates a malfunction in the PKSB (Parking Support
Brake) system



Have the vehicle inspected by your Toyota dealer
immediately.

When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.



Follow the instructions displayed on the multi-infor-
mation display. (



P.277)

Warning light

Details/Actions

(Flashes)

(If equipped)

Indicates a malfunction in the RCTA (Rear Cross Traffic
Alert) function



Have the vehicle inspected by your Toyota dealer
immediately.

Indicates that the rear bumper around the radar sensor is
covered with dirt, etc. (



P.250)



Follow the instructions displayed on the multi-infor-
mation display. (



P.264)

Warning light

Details/Actions

(Flashes)

(If equipped)

When a buzzer sounds:
Indicates a malfunction in the RCD (Rear Camera Detec-
tion) function



Have the vehicle inspected by your Toyota dealer
immediately.

When a buzzer does not sound:
Indicates that the function temporarily cannot be used due
to the camera being dirty, etc.



Follow the instructions displayed on the multi-infor-
mation display. (



P.271)

448

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

■

Slip indicator light

■

Brake Override System/Drive-Start Control warning light

*



(warning buzzer)

*

: This light illuminates on the multi-information display.

■

Brake hold operated indicator (warning buzzer)

Warning light

Details/Actions

Indicates a malfunction in:



The VSC system;



The TRAC system; or



The hill-start assist control system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

When a buzzer sounds:
Indicates a malfunction in:



The Brake Override System



The Drive-Start Control



Have the vehicle inspected by your Toyota dealer
immediately.

Indicates that the shift position was changed and Drive-
Start Control was operated while depressing the accelerator
pedal.



Momentarily release the accelerator pedal.

When a buzzer does not sound:
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override System
is operating.



Release the accelerator pedal and depress the brake
pedal.

Warning light

Details/Actions

(Flashes)

Indicates a malfunction in the brake hold system



Have the vehicle inspected by your Toyota dealer
immediately.

449

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

■

Parking brake indicator (warning buzzer)

■

Tire pressure warning light

■

Low fuel level warning light

*

*

: This light illuminates on the multi-information display.

Warning light

Details/Actions

(Flashes)

(U.S.A.)

or

(Flashes)
(Canada)

Indicates a malfunction in the parking brake system



Have the vehicle inspected by your Toyota dealer
immediately.

Warning light

Details/Actions

When the light comes on after blinking for approximately 1
minute:
Malfunction in the tire pressure warning system



Have the system checked by your Toyota dealer.

When the light comes on:
Low tire inflation pressure such as



Natural causes



Flat tire



Immediately stop the vehicle in a safe place.
Handling method (



P.451)

Warning light

Details/Actions

Indicated the remain fuel is approximately 12% or less



Refuel the vehicle.

450

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

■

Driver’s and front passenger’s seat belt reminder light (warn-
ing buzzer)

*

*

: Driver’s seat belt warning buzzer:

The driver’s seat belt warning buzzer sounds to alert the driver that his or
her seat belt is not fastened. Once the power switch is turned to ON, the
buzzer sounds. If the seat belt is still unfastened, the buzzer sounds inter-
mittently for a certain period of time after the vehicle reaches a certain
speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front
passenger that his or her seat belt is not fastened. If the seat belt is
unfastened, the buzzer sounds intermittently for a certain period of time
after the vehicle reaches a certain speed.

■

Rear passengers’ seat belt reminder lights

*1

 (warning

buzzer)

*2

*1

:This light illuminates on the multi-information display.

*2

:Rear passengers’ seat belt warning buzzer:

The rear passengers’ seat belt warning buzzer sounds to alert the rear
passenger that his or her seat belt is not fastened. If the seat belt is
unfastened, the buzzer sounds intermittently for a certain period of time,
after the seat belt is fastened and unfastened and the vehicle reaches a
certain speed.

■

Warning buzzer

In some cases, the buzzer may not

be heard due to being in a noisy

location or audio sound.

■

Front passenger detection sen-

sor, seat belt reminder and

warning buzzer

●

If luggage is placed on the front

passenger seat, the front passen-

ger detection sensor may cause

the warning light to flash and the

warning buzzer to sound even if a

Warning light

Details/Actions

Warns the driver and/or front passenger to fasten their seat
belts



Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.

Warning light

Details/Actions

Warns the rear passengers to fasten their seat belts



Fasten the seat belt.

451

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

passenger is not sitting in the

seat.

●

If a cushion is placed on the seat,

the sensor may not detect a pas-

senger, and the warning light may

not operate properly.

■

SRS warning light

This warning light system monitors

the airbag sensor assembly, front

impact sensors, side impact sensors

(front door), side impact sensors

(front), side impact sensors (rear),

driver’s seat position sensor,

driver’s seat belt buckle switch, front

passenger occupant classification

system (ECU and sensors), “AIR-

BAG ON” indicator light, “AIRBAG

OFF” indicator light, front passen-

ger’s seat belt buckle switch, seat

belt pretensioners, airbags, inter-

connecting wiring and power

sources. (



P.34)

■

Electric power steering system

warning light (warning buzzer)

When the 12-volt battery charge

becomes insufficient or the voltage

temporarily drops, the electric power

steering system warning light may

come on and the warning buzzer

may sound.

■

When the tire pressure warning

light comes on

Inspect the tires to check if a tire is

punctured.
If a tire is punctured:



P.457

If none of the tires are punctured:

Turn the power switch off then turn it

to ON. Check if the tire pressure

warning light comes on or blinks.



If the tire pressure warning light

blinks for approximately 1 minute

then stays on

There may be a malfunction in the

tire pressure warning system. Have

the vehicle inspected by your Toyota

dealer immediately.



If the tire pressure warning light

comes on

1

After the temperature of the tires

has lowered sufficiently, check

the inflation pressure of each tire

and adjust them to the specified

level.

2

If the warning light does not turn

off even after several minutes

have elapsed, check that the

inflation pressure of each tire is

at the specified level and perform

initialization. (



P.409)

■

The tire pressure warning light

may come on due to natural

causes

The tire pressure warning light may

come on due to natural causes such

as natural air leaks and tire inflation

pressure changes caused by tem-

perature. In this case, adjusting the

tire inflation pressure will turn off the

warning light (after a few minutes).

■

Conditions that the tire pres-

sure warning system may not

function properly



P.408

WARNING

■

If both the ABS and the brake

system warning lights remain

on

Stop your vehicle in a safe place

immediately and contact your Toy-

ota dealer.

The vehicle will become

extremely unstable during brak-

ing, and the ABS system may fail,

which could cause an accident

resulting in death or serious injury.

452

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

WARNING

■

When the electric power

steering system warning light

comes on

When the light comes on yellow,

the assist to the power steering is

restricted. When the light comes

on red, the assist to the power

steering is lost and handling oper-

ations of the steering wheel

become extremely heavy.

When steering wheel operations

are heavier than usual, grip the

steering wheel firmly and operate

it using more force than usual.

■

If the tire pressure warning

light comes on

Be sure to observe the following

precautions.

Failure to do so could cause a

loss of vehicle control and result

in death or serious injury.

●

Check and adjust the tire infla-

tion pressure immediately.

●

If the tire pressure warning light

comes on even after tire infla-

tion pressure adjustment, it is

probable that you have a flat

tire. Have the flat tire replaced

by the nearest Toyota dealer.

●

Avoid abrupt maneuvering and

braking.

If the vehicle tires deteriorate,

you could lose control of the

steering wheel or the brakes.

■

If a blowout or sudden air

leakage should occur

The tire pressure warning system

may not activate immediately.

■

Maintenance of the tires

Each tire, including the spare (if

provided), should be checked

monthly when cold and inflated to

the inflation pressure recom-

mended by the vehicle manufac-

turer on the vehicle placard or tire

inflation pressure label (tire and

load information label). (If your

vehicle has tires of a different size

than the size indicated on the

vehicle placard or tire inflation

pressure label [tire and load infor-

mation label], you should deter-

mine the proper tire inflation

pressure for those tires.)

As an added safety feature, your

vehicle has been equipped with a

tire pressure monitoring system

(TPMS-tire pressure warning sys-

tem) that illuminates a low tire

pressure telltale (tire pressure

warning light) when one or more

of your tires is significantly under-

inflated. Accordingly, when the

low tire pressure telltale (tire pres-

sure warning light) illuminates,

you should stop and check your

tires as soon as possible, and

inflate them to the proper pres-

sure. Driving on a significantly

under-inflated tire causes the tire

to overheat and can lead to tire

failure. Under-inflation also

reduces fuel efficiency and tire

tread life, and may affect the vehi-

cle’s handling and stopping ability.

Please note that the TPMS (tire

pressure warning system) is not a

substitute for proper tire mainte-

nance, and it is the driver’s

responsibility to maintain correct

tire pressure, even if under-infla-

tion has not reached the level to

trigger illumination of the TPMS

low tire pressure telltale (tire pres-

sure warning light).

453

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

■

Warning messages

The warning messages explained

below may differ from the actual

messages according to operation

conditions and vehicle specifica-

tions.

■

Warning buzzer

A buzzer may sound when a mes-

sage is displayed.
In some cases, the buzzer may not

be heard due to being in a noisy

location or audio sound.

WARNING

Your vehicle has also been

equipped with a TPMS (tire pres-

sure warning system) malfunc-

tion indicator to indicate when the

system is not operating properly.

The TPMS (tire pressure warning

system) malfunction indicator is

combined with the low tire pres-

sure telltale (tire pressure warning

light). When the system detects a

malfunction, the telltale will flash

for approximately one minute and

then remain continuously illumi-

nated. This sequence will con-

tinue upon subsequent vehicle

start-ups as long as the malfunc-

tion exists. When the malfunction

indicator is illuminated, the sys-

tem may not be able to detect or

signal low tire pressure as

intended.

TPMS (tire pressure warning sys-

tem) malfunctions may occur for a

variety of reasons, including the

installation of replacement or

alternate tires or wheels on the

vehicle that prevent the TPMS

(tire pressure warning system)

from functioning properly. Always

check the TPMS (tire pressure

warning system) malfunction tell-

tale after replacing one or more

tires or wheels on your vehicle to

ensure that the replacement or

alternate tires and wheels allow

the TPMS (tire pressure warning

system) to continue to function

properly.

NOTICE

■

To ensure the tire pressure

warning system operates

properly

Do not install tires with different

specifications or makers, as the

tire pressure warning system may

not operate properly.

If a warning message

is displayed

The multi-information dis-
play shows warnings for
system malfunctions and
incorrectly performed oper-
ations, and messages that
indicate a need for mainte-
nance. When a message is
displayed, perform the
appropriate corrective
action for the message.

If a warning message is dis-
played again after the
appropriate actions have
been performed, contact
your Toyota dealer.

Additionally, if a warning
light comes on or flashes at
the same time that a warn-
ing message is displayed,
take the appropriate correc-
tive action for the warning
light. (



P.443)

454

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

■

If “FCV System Stopped Steer-

ing Power Low” is displayed

This message is displayed if the fuel

cell system is stopped while driving.
When steering wheel operations are

heavier than usual, grip the steering

wheel firmly and operate it using

more force than usual.

■

If “FCV System High Temp. FCV

Power Reduced” or “FCV

Power Reduced Due to Exces-

sive Acceleration” is displayed

1

Lower the speed while check the

safety, and run the vehicle like

this for several minutes.

2

If the message goes off, the vehi-

cle can be driven as is, since it

temporarily overheated.

This message may be displayed

when driving under severe operat-

ing conditions. (For example, when

driving up a long steep hill.)

■

If “FCV Power Significantly

Reduced” is displayed

The output power of the fuel cell

system is greatly restrained. If it is

displayed frequently, contact your

Toyota dealer.

■

If “Stop Vehicle in a Safe Place

Push P Switch” is displayed

There may be a malfunction in the

fuel cell system or the shift position

may be shifted to N for a long time.

Immediately stop the vehicle and

contact your Toyota dealer.

■

If “Shift is in N Release Acceler-

ator Before Shifting” is dis-

played

The accelerator pedal has been

depressed when the shift position is

in N.
Release the accelerator pedal and

shift the shift position to D or R.

■

If “Press brake when vehicle is

stopped FCV system may over-

heat” is displayed

The message may be displayed

when the accelerator pedal is

depressed to hold the vehicle while

the vehicle is stopped on an incline,

etc. The fuel cell system may over-

heat. Release the accelerator pedal

and depress the brake pedal.

■

If “Auto Power OFF to Conserve

Battery” is displayed

Power was turned off due to the

automatic power off function. Next

time when starting the fuel cell sys-

tem, operate the fuel cell system for

approximately 5 minutes to

recharge the 12-volt battery.

■

If “Headlight System Malfunc-

tion Visit Your Dealer” is dis-

played

The following systems may be mal-

functioning. Have the vehicle

inspected by your Toyota dealer

immediately.

●

The LED headlight system

●

The automatic headlight leveling

system (if equipped)

●

AHB (Automatic High Beam)

■

If “Radar Cruise Control

Unavailable See Owner’s Man-

ual” is displayed

The dynamic radar cruise control

with full-speed range system is sus-

pended temporarily or until the prob-

lem shown in the message is

resolved. (Causes and coping meth-

ods:



P.210)

■

If “Radar Cruise Control

Unavailable” is displayed

The dynamic radar cruise control

with full-speed range system cannot

be used temporarily. Use the system

when it becomes available again.

■

If a message that indicates the

malfunction of front camera is

displayed

The following systems may be sus-

pended until the problem shown in

the message is resolved. (



P.210,

443)

●

PCS (Pre-Collision system)

455

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

●

LTA (Lane Tracing Assist)

●

Automatic High Beam

●

RSA (Road Sign Assist) (if

equipped)

●

Dynamic radar cruise control with

full-speed range

■

If a message that indicates the

malfunction of radar sensor is

displayed

The following systems may be sus-

pended until the problem shown in

the message is resolved. (



P.210,

443)

●

PCS (Pre-Collision system)

●

LTA (Lane Tracing Assist)

●

Dynamic radar cruise control with

full-speed range

■

If “Shift System Malfunction

Shifting Unavailable Drive to a

Safe Place and Stop” or “Shift

System Malfunction Driving

Unavailable” is displayed

There is a malfunction in the shift

control system. Have the vehicle

inspected by your Toyota dealer

immediately.

■

If a message that indicates the

need for the shift lever opera-

tion is displayed

To prevent the shift lever from being

operated incorrectly or the vehicle

from moving unexpectedly, a mes-

sage that requires shifting the shift

position may be displayed on the

multi-information display. In that

case, follow the instruction of the

message and shift the shift position.

■

If a message that indicates the

need for visiting your Toyota

dealer is displayed

The system or part shown on the

multi-information display is malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer immediately.

■

If a message that indicates the

need for referring to Owner’s

Manual is displayed

●

If any of the following messages

are shown on the multi-informa-

tion display, it may indicate a mal-

function. Have the vehicle

inspected by your Toyota dealer

immediately.

• “Smart Key System Malfunction

See Owner’s Manual”

• “P Switch Malfunction Apply Park-

ing Brake Securely When Parking

See Owner’s Manual”

• “Shift System Malfunction Apply

Parking Brake Securely When

Parking See Owner’s Manual”

• “Shift System Unavailable Apply

Parking Brake Securely When

Parking See Owner’s Manual”

• “Shift System Malfunction See

Owner’s Manual”

• “Shift System Malfunction Stop in

a Safe Place See Owner’s Man-

ual”

• “Battery Low Shifting Unavailable

See Owner’s Manual”

• “FCV system malfunction”

• “Traction battery system malfunc-

tion”

• “Accelerator System Malfunction”

●

If any of the following messages

are shown on the multi-informa-

tion display, it may indicate a mal-

function. Immediately stop the

vehicle and contact your Toyota

dealer.

• “Braking Power Low Stop in a

Safe Place See Owner’s Manual”

• “FCV System Shutdown Due to

Hydrogen Leakage Stop in a Safe

Place See Owner’s Manual”

●

If “FCV system stopped” is shown

on the multi-information display,

the vehicle may have run out of

fuel. Stop the vehicle in a safe

place and, if the fuel level is low,

refuel the vehicle. (



P.80)

●

If “Low Auxiliary Battery See

Owner’s Manual” is shown,

• When the display goes off after

several seconds (displays for

456

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

about 6 seconds): Maintain the

fuel cell system operation for more

than 15 minutes and charge the

12-volt battery.

• When the display does not go off:

Start up the fuel cell system using

the procedures:



P.473

●

If “Maintenance Required for Trac-

tion Battery Cooling Parts See

Owner’s Manual” is shown, the fil-

ters may be clogged, the air intake

vents may be blocked, or there

may be a gap in the duct. There-

fore, perform the following correc-

tion procedure.

• If the air intake vents and filters of

the traction battery are dirty, per-

form the procedure on P.422to

clean them.

• If the warning message is shown

when the air intake vents and fil-

ters of the traction battery are not

dirty, have the vehicle inspected

by your Toyota dealer.

■

If “Ion Filter Maintenance

Required Visit Your Dealer” is

displayed

Ion filter replacement is necessary.

Contact your Toyota dealer.

NOTICE

■

If “Low Auxiliary Battery See

Owner’s Manual” is displayed

frequently

The 12-volt battery may have

deteriorated. As the battery may

discharge in this state when left

unattended, have the battery

inspected by your Toyota dealer.

■

If “Maintenance Required For

Traction Battery At Your

Dealer” is displayed

This message indicates that the

traction battery may require

inspection or replacement. Have

the vehicle inspected by your Toy-

ota dealer immediately.

Do not continue driving the vehi-

cle, as the fuel cell system may

become not able to be started

again.

457

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises



Stop the vehicle in a safe
place on a hard, flat surface.



Set the parking brake.



Shift the shift position to P.



Stop the fuel cell system.



Turn on the emergency flash-
ers. (



P.434)



Check the degree of the tire
damage.

Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and make emergency repair
with the repair kit impossible.

■

A flat tire that cannot be

repaired with the emergency

tire puncture repair kit

In the following cases, the tire can-

not be repaired with the emergency

tire puncture repair kit. Contact your

Toyota dealer.

●

When the tire is damaged due to

driving without sufficient air pres-

sure

●

When there are any cracks or

damage at any location on the

tire, such as on the side wall,

except the tread

●

When the tire is visibly separated

from the wheel

If you have a flat tire

Your vehicle is not equipped
with a spare tire, but instead
is equipped with an emer-
gency tire puncture repair
kit.

A puncture caused by a nail
or screw passing through
the tire tread can be
repaired temporarily using
the emergency tire puncture
repair kit. (The kit contains a
bottle of sealant. The seal-
ant can be used only once
to temporarily repair one
tire without removing the
nail or screw from the tire.)
Depending on the damage,
this kit cannot be used to
repair the tire. (



P.457)

After temporarily repairing
the tire with the kit, have the
tire repaired or replaced by
your Toyota dealer. Repairs
conducted using the emer-
gency tire puncture repair
kit are only a temporary
measure. Have the tire
repaired and replaced as
soon as possible.

WARNING

■

If you have a flat tire

Do not continue driving with a flat

tire.

Driving even a short distance with

a flat tire can damage the tire and

the wheel beyond repair, which

could result in an accident.

Before repairing the tire

458

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

●

When the cut or damage to the

tread is 0.16 in. (4 mm) long or

more

●

When the wheel is damaged

●

When two or more tires have been

punctured

●

When more than 2 sharp objects

such as nails or screws have

passed through the tread on a sin-

gle tire

●

When the sealant has expired

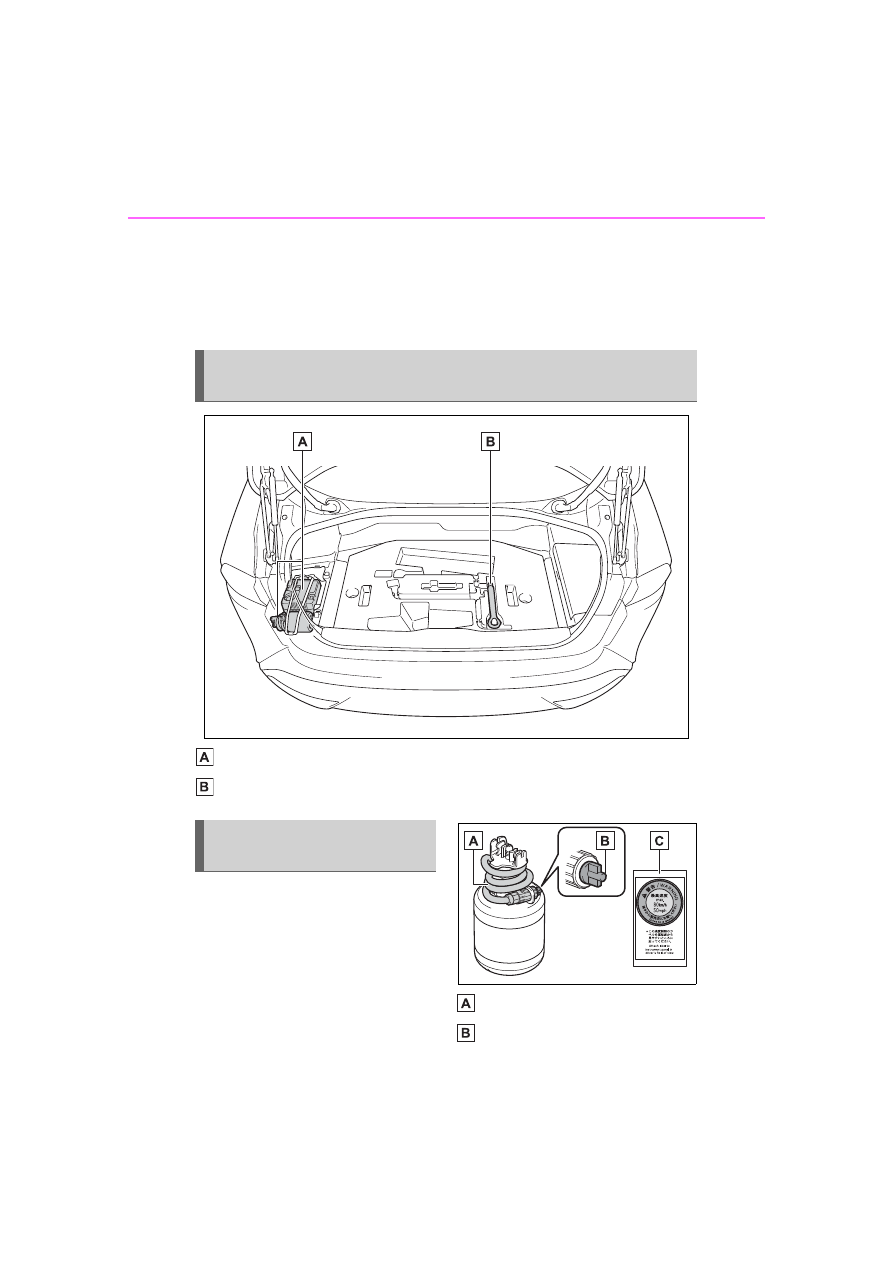

Emergency tire puncture repair kit

Towing eyelet



Bottle

Hose

Air release cap

Location of the emergency tire puncture repair kit and
tools

Emergency tire puncture
repair kit components

459

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

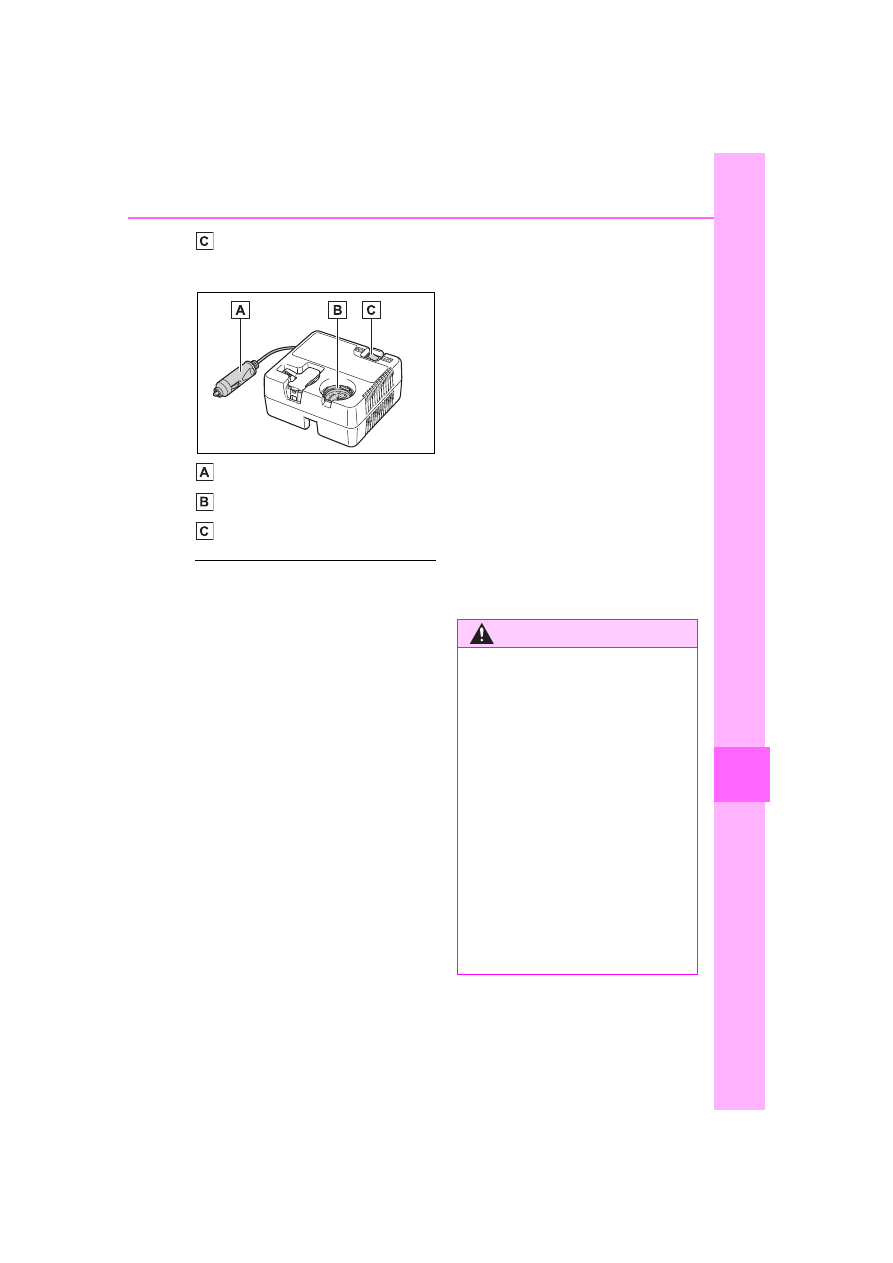

Sticker



Compressor

Power plug

Air pressure gauge

Compressor switch

■

Note for checking the emer-

gency tire puncture repair kit

Check the sealant expiry date occa-

sionally.

The expiry date is shown on the bot-

tle. Do not use sealant whose expiry

date has already passed. Other-

wise, repairs conducted using the

emergency tire puncture repair kit

may not be performed properly.

■

Emergency tire puncture repair

kit

●

The emergency tire puncture

repair kit is for filling the car tire

with air.

●

The sealant has a limited life

span. The expiry date is marked

on the bottle. The sealant should

be replaced before the expiry

date. Contact your Toyota dealer

for replacement.

●

The sealant stored in the emer-

gency tire puncture repair kit can

be used only once to temporarily

repair a single tire. If the sealant

has been used and needs to be

replaced, purchase a new bottle at

your Toyota dealer. The compres-

sor is reusable.

●

The sealant can be used when the

outside temperature is from -22°F

(-30°C) to 140°F (60°C).

●

The kit is exclusively designed for

size and type of tires originally

installed on your vehicle. Do not

use it for tires that a different size

than the original ones, or for any

other purposes.

●

If the sealant gets on your clothes,

it may stain.

●

If the sealant adheres to a wheel

or the surface of the vehicle body,

the stain may not be removable if

it is not cleaned at once. Immedi-

ately wipe away the sealant with a

wet cloth.

●

During operation of the repair kit,

a loud operation noise is pro-

duced. This does not indicate a

malfunction.

●

Do not use to check or to adjust

the tire pressure.

WARNING

■

Caution while driving

●

Store the repair kit in the lug-

gage compartment.

Injuries may result in the event

of an accident or sudden brak-

ing.

●

The repair kit is exclusively only

for your vehicle.

Do not use repair kit on other

vehicles, which could lead to an

accident causing death or seri-

ous injury.

●

Do not use repair kit for tires

that are different size than the

original ones, or for any other

purpose. If the tires have not

been completely repaired, it

could lead to an accident caus-

ing death or serious injury.

460

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

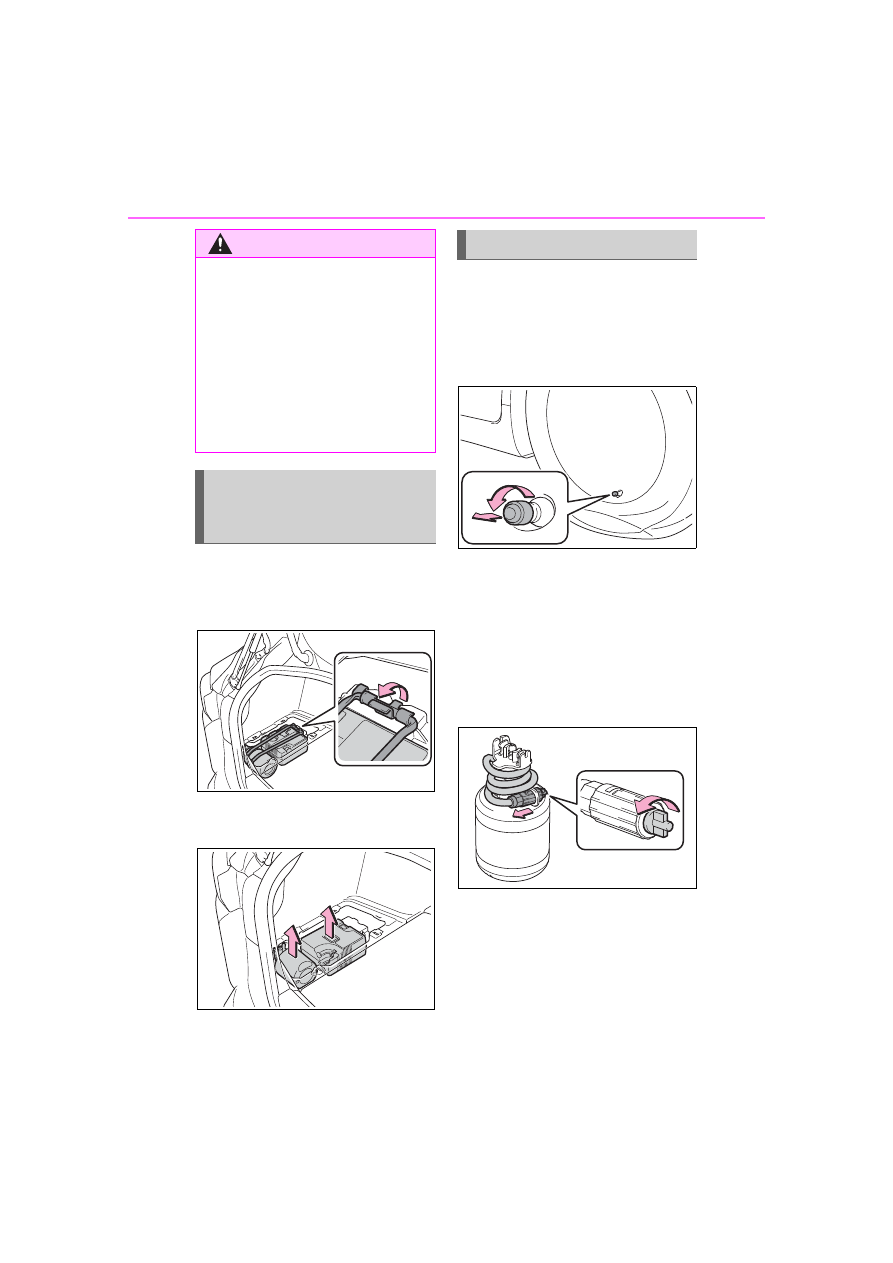

1

Remove the luggage mat.
(



P.354)

2

Remove the band.

3

Take out the emergency tire
puncture repair kit. (



P.458)

1

Take out the repair kit from
the plastic bag.

2

Remove the valve cap from
the valve of the punctured
tire.

3

Extend the hose. Remove
the air release cap from the
hose.

Attach the sticker enclosed with the

bottle on the specified locations.

(See step

10

.)

You will use the air release cap

again. Therefore keep it in a safe

place.

4

Connect the hose to the
valve.

Screw the end of the hose clock-

WARNING

■

Precautions for use of the

sealant

●

Ingesting the sealant is hazard-

ous to your health. If you ingest

sealant, consume as much

water as possible, and then

immediately consult a doctor.

●

If sealant gets in eyes or

adheres to skin, immediately

wash it off with water. If discom-

fort persists, consult a doctor.

Taking out the emer-
gency tire puncture repair
kit

Emergency repair method

461

8-2. Steps to take in an emergency

Owners Manual_USA_M62102_en

8

Whe

n tr

ouble

 a

rises

wise as far as possible.

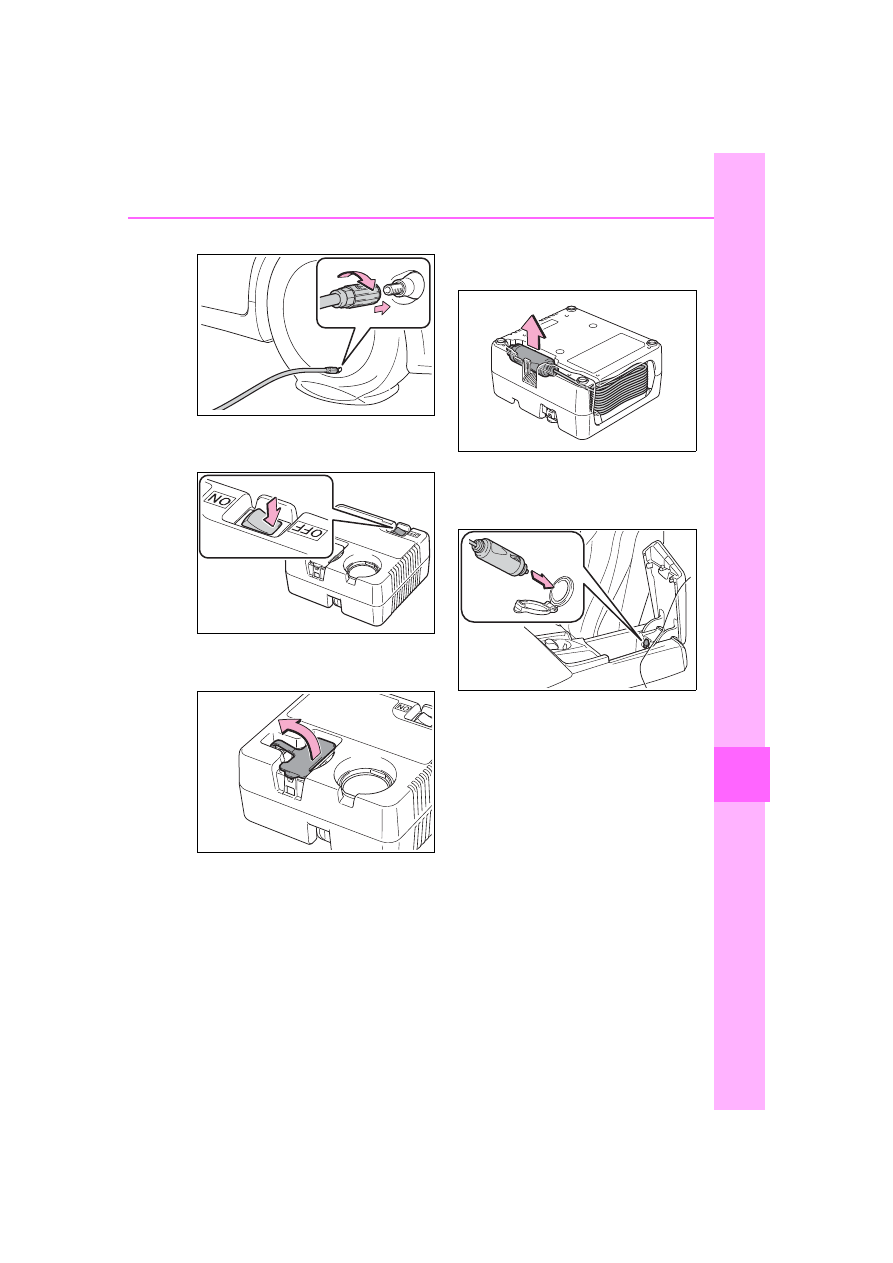

5

Make sure that the compres-
sor switch is off.

6

Lift the rubber stopper on the
compressor.

7

Remove the power plug from
the compressor.

8

Connect the power plug to
the power outlet socket.
(



P.364)

9

Connect the bottle to the
compressor.

As shown in the illustration, insert

the bottle securely into the com-

pressor until the upper side of the

mark on the bottle is aligned with
