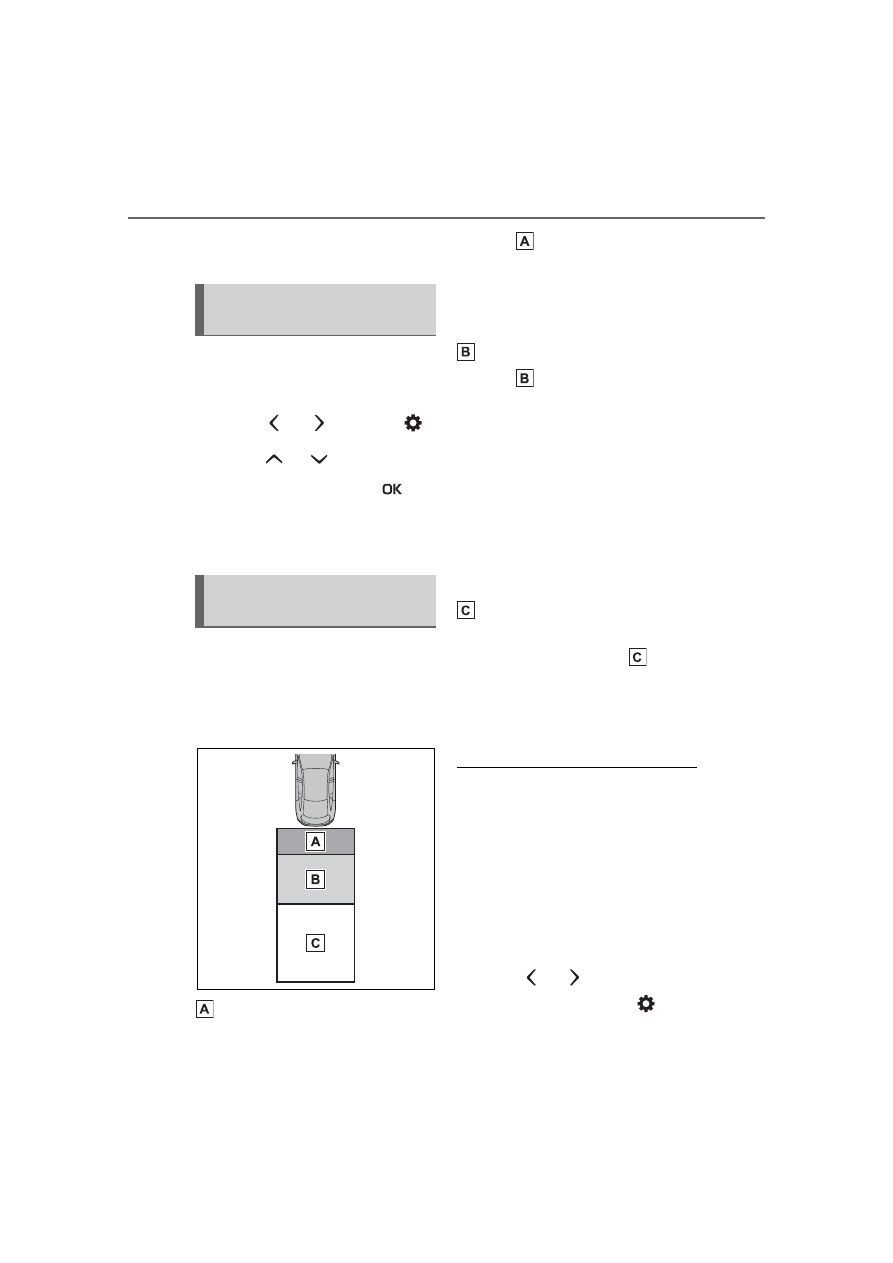

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

RCD function will be enabled auto-
matically.)

Use the meter control switches
to enable/disable the RCD func-
tion. (



P.100)

1

Press

 or

 to select

.

2

Press

 or

 to select

“RCD” and then press

.

When the RCD function is disabled,

the RCD OFF indicator (



P.95) illu-

minates.

If the rear camera detection
function detects a pedestrian in
the detection area, the buzzer
and pedestrian detection will
operate as follows:

If a pedestrian is detected in

area
Buzzer: Sounds repeatedly
Pedestrian detection icon:
Blinks 3 times and then stays
on

If a pedestrian is detected in
area
Buzzer (When the vehicle is
stationary): Sounds 3 times
Buzzer (When the vehicle is
backing up, when a pedes-
trian approaches the rear of
the vehicle): Sounds repeat-
edly
Pedestrian detection icon:
Blinks 3 times and then stays
on

If the system determines that
your vehicle may collide with
a pedestrian in area
Buzzer: Sounds repeatedly
Pedestrian detection icon:
Blinks 3 times and then stays
on

■

The rear camera detection func-

tion is operational when

●

The power switch is in ON.

●

RCD function is on.

●

The shift position is in R.

■

Setting the buzzer volume

The buzzer volume can be adjusted

on the multi-information display.
Use the meter control switches to

change settings. (



P.100)

1

Press

 or

 of the meter

control switch to select

.

Turning the RCD function
on/off

When a pedestrian is
detected

271

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

2

Press

 or

 of the meter

control switch to select “RCD”
and then press and hold

.

3

Press

 to select the volume.

Each time the switch is pressed, the
volume level will change between 1,
2, and 3.

■

If “Rear Camera Detection

Unavailable Remove the Dirt of

Rear Camera” is displayed on

the multi-information display

The rear camera lens may be dirty

or covered with snow or ice. In such

cases, if it is removed from the rear

camera lens, the system should

return to normal. (It may be neces-

sary to drive the vehicle for some

time before the system returns to

normal.)

■

If “Rear Camera Detection

Unavailable” is displayed on

the multi-information display

●

If this message is displayed after

the 12-volt battery has been dis-

connected and reconnected, fully

turn the steering wheel to the left

and then the right on level ground.

●

If this message is displayed only

when the R shift position is

selected, the rear camera lens

may be dirty. Clean the rear cam-

era lens.

■

Situations in which the system

may not operate properly

●

Some pedestrians, such as the

following, may not be detected by

the rear camera detection func-

tion, preventing the function from

operating properly:

• Pedestrians who are bending for-

ward or squatting

• Pedestrians who are lying down

• Pedestrians who are running

• Pedestrians who suddenly enter

the detection area

• People riding a bicycle, skate-

board, or other light vehicle

• Pedestrians wearing oversized

clothing such as a rain coat, long

skirt, etc., making their silhouette

obscure

• Pedestrians whose body is par-

tially hidden by an object, such as

a cart or umbrella

• Pedestrians which are obscured

by darkness, such as at night

●

In some situations, such as the

following, pedestrians may not be

detected by the rear camera

detection function, preventing the

function from operating properly:

• When backing up in inclement

weather (rain, snow, fog, etc.)

• When the rear camera is

obscured (dirt, snow, ice, etc., are

attached) or scratched

• When a very bright light, such as

the sun, or the headlights of

another vehicle, shines directly

into the rear camera

• When backing up in a place where

the surrounding brightness

changes suddenly, such as at the

entrance or exit of a garage or

underground parking lot

• When backing up in a dim envi-

ronment such as during dusk or in

an underground parking lot

• When the camera position and

direction are deviated

• When a towing hook is attached

• When water droplets are flowing

on the camera lens

• When the vehicle height is

extremely changed (nose up,

nose down).

• When tire chains or an emergency

tire puncture repair kit is used

■

Situations in which the system

may operate unexpectedly

●

Even though there are no pedes-

trians in the detection area, some

objects, such as the following,

may be detected, possibly caus-

ing the rear camera detection

function to operate.

• Three dimensional objects, such

as a pole, traffic cone, fence, or

parked vehicle

• Moving objects, such as a car or

272

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

motorcycle

• Objects moving toward your vehi-

cle when backing up, such as

flags or puddles (or airborne mat-

ter, such as smoke, steam, rain, or

snow)

• Cobblestone or gravel roads, tram

rails, road repairs, white lines,

pedestrian crossings or fallen

leaves on the road

• Metal covers (gratings), such as

those used for drainage ditches

• Objects reflected in a puddle or on

a wet road surface

• Shadows on the road

●

In some situations, such as the

following, the rear camera detec-

tion function may operate even

though there are no pedestrians in

the detection area.

• When backing up toward the road-

side or a bump on the road

• When backing up toward an

incline/decline

• If the rear of the vehicle is raised

or lowered due to the carried load

• If a bumper protector, such as an

additional trim strip, is installed to

the rear bumper

• If the orientation of the rear cam-

era has been changed

• If a towing eyelet is installed to the

rear of the vehicle

• When water is flowing over the

rear camera lens

• When the rear camera is

obscured (dirt, snow, ice, etc., are

attached) or scratched

• If there is a flashing light in the

detection area, such as the emer-

gency flashers of another vehicle

• When a tire chains or an emer-

gency tire puncture repair kit is

used

●

Situations in which the rear cam-

era detection function may be diffi-

cult to notice

• The buzzer may be difficult to hear

if the surrounding area is noisy,

the volume of the audio system

volume is high, the air condition-

ing system is being used, etc.

• If the temperature in the cabin is

extremely high or low, the audio

system screen may not operate

correctly.

273

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

*

: If equipped

■

Parking Support Brake
function (static objects)



P.278

■

Parking Support Brake
function (rear-crossing
vehicles)



P.280

■

Parking Support Brake
function (rear pedestrians)



P.282

PKSB (Parking Sup-

port Brake)

*

The Parking Support Brake
system consists of the fol-
lowing functions that oper-
ate when driving at a low
speed or backing up, such
as when parking. When the
system determines that the
probability of a collision
with a detected object or
pedestrian is high, a warn-
ing operates to urge the
driver to take evasive
action. If the system deter-
mines that the possibility of
a collision with a detected
object or pedestrian is
extremely high, the brakes
are automatically applied to
help avoid the collision or
help reduce the impact of
the collision.

PKSB (Parking Support
Brake) system

WARNING

■

Cautions regarding the use of

the system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.
Always drive while checking the

safety of the surroundings of the

vehicle.
Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.
The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Additionally,

even if the system has stopped

the vehicle, it is necessary to

depress the brake pedal imme-

diately as brake control will be

canceled after approximately 2

seconds.

●

It is extremely dangerous to

check the system operations by

intentionally driving the vehicle

into the direction of a wall, etc.

Never attempt such actions.

274

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

The Parking Support Brake can
be enabled/disabled on the
multi-information display. All of
the Parking Support Brake func-
tions (static objects, rear-cross-
ing vehicles, and rear
pedestrians) are enabled/dis-
abled simultaneously.
Use the meter control switches
to enable/disable the parking
support brake. (



P.100)

1

Press

 or

 to select

.

2

Press

 or

 to select

“

 PKSB” and then press

.

When the Parking Support Brake is

disabled, the PKSB OFF indicator

(



P.95) illuminates.

To re-enable the system when it
was disabled, select

 on the

multi-information display, select
“

 PKSB” and then On. If dis-

abled using this method, the sys-
tem will not be re-enabled by
turning the power switch off and
then to ON.

If the fuel cell system output restric-
tion control or brake control oper-
ates, a buzzer will sound and a

WARNING

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller

●

When loading the vehicle onto a

boat, truck or other transport

vessel

●

If the suspension has been

modified or tires of a size other

than specified are installed

●

If the front of the vehicle is

raised or lowered due to the

carried load

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow

●

When using automatic car

washing devices

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When a tire chains, compact

spare tire or an emergency tire

puncture repair kit is used

Enabling/Disabling the
Parking Support Brake

Display and buzzer for
fuel cell system output
restriction control and
brake control

275

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

message will be displayed on the
multi-information display and head-
up display (if equipped), multimedia
display, to alert the driver.
Depending on the situation, fuel cell
system output restriction control will
operate to either limit acceleration
or restrict output as much as possi-
ble.



Fuel cell system output
restriction control is operating
(acceleration restriction)

Acceleration greater than a certain
amount is restricted by the system.
Multimedia display: No warning dis-
played
Multi-information display: “Object
Detected Acceleration Reduced”
Head-up display (if equipped): No
warning displayed
PKSB OFF indicator: Not illumi-
nated
Buzzer: Does not sound



Fuel cell system output
restriction control is operating
(output restricted as much as
possible)

The system has determined that
stronger-than-normal brake opera-
tion is necessary.
Multimedia display: “BRAKE!”
Multi-information display: “BRAKE!”
Head-up display (if equipped):
“BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Brake control is operating

The system determined that emer-
gency braking is necessary.
Multimedia display: “BRAKE!”
Multi-information display: “BRAKE!”
Head-up display (if equipped):
“BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Vehicle stopped by system
operation

The vehicle has been stopped by
brake control operation.
Multimedia display: “Press Brake
Pedal”
Multi-information display: “Switch to
Brake” (If the accelerator pedal is
not depressed, “Brake” will be dis-
played.)
Head-up display (if equipped):
“Switch to Brake” (If the accelerator
pedal is not depressed, “Press
Brake Pedal” will be displayed.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

If the Parking Support Brake
determines that a collision with a
detected object or pedestrian is
possible, the fuel cell system
output will be restricted to
restrain any increase in the vehi-
cle speed. (Fuel cell system out-
put restriction control: See figure
2.)
Additionally, if the accelerator
pedal continues to be

System overview

276

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

depressed, the brakes will be
applied automatically to reduce
the vehicle speed. (Brake con-
trol: See figure 3.)



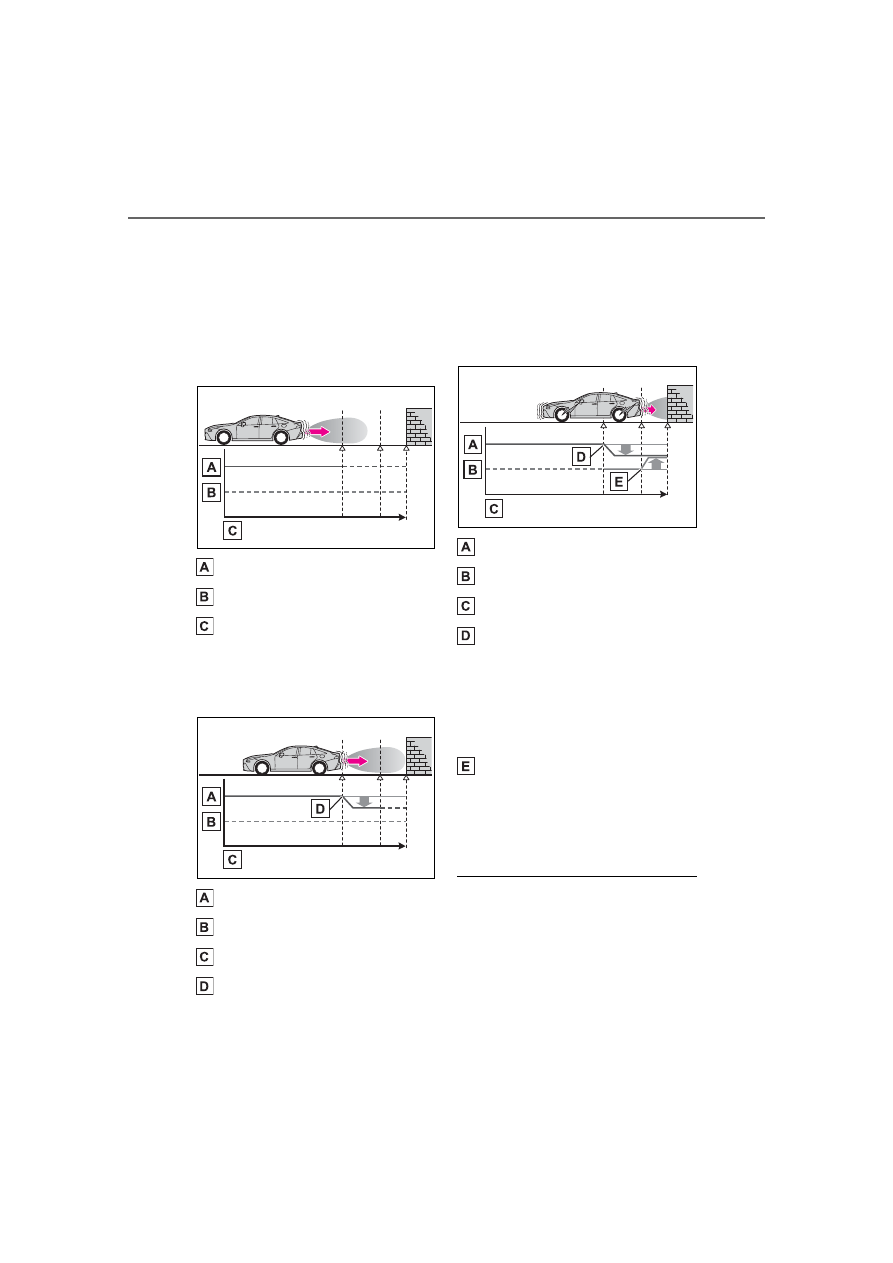

Figure 1 When the PKSB
(Parking Support Brake) is not
operating

Fuel cell system output

Braking force

Time



Figure 2 When fuel cell sys-
tem output restriction control
operates

Fuel cell system output

Braking force

Time

Fuel cell system output
restriction control begins
operating (System deter-

mines that possibility of colli-
sion with detected object is
high)



Figure 3 When fuel cell sys-
tem output restriction control
and brake control operates

Fuel cell system output

Braking force

Time

Fuel cell system output
restriction control begins
operating (System deter-
mines that possibility of colli-
sion with detected object is
high)

Brake control begins operat-
ing (System determines that
possibility of collision with
detected object is extremely
high)

■

If the Parking Support Brake

has operated

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate. If the Parking Sup-

port Brake operates unnecessarily,

brake control can be canceled by

depressing the brake pedal or wait-

277

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

ing for approximately 2 seconds for

it to automatically be canceled.

Then, the vehicle can be operated

by depressing the accelerator pedal.

■

Re-enabling the Parking Sup-

port Brake

To re-enable the Parking Support

Brake when it has been disabled

due to operation of the Parking Sup-

port Brake, either enable the system

again (



P.274), or turn the power

switch off and then back to ON.
Additionally, if any of the following

conditions are met, the system will

be re-enabled automatically and the

PKSB OFF indicator will turn off:

●

The P shift position is selected

●

The object is no longer detected in

the traveling direction of the vehi-

cle

●

The traveling direction of the vehi-
cle changes

*

*

: Except when the Parking Support

Brake function (rear pedestrians)
operated.

■

If “PKSB Unavailable” is dis-

played on the multi-information

display and the PKSB OFF indi-

cator is on

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate.

●

A sensor may be covered with

water drops, ice, snow, dirt, etc.

Remove the water drops, ice,

snow, dirt, etc., from the sensor to

return the system to normal.

Also, due to ice forming on a sen-

sor at low temperatures, a warn-

ing message may be displayed or

the sensor may not be able to

detect an object. Once the ice

melts, the system will return to

normal.

●

If this message is displayed only

when the R shift position is

selected, the rear camera lens

may be dirty. Clean the camera

lens. If this message is displayed

when the shift position is any posi-

tion other than R, a sensor on the

front or rear bumper may be dirty.

Clean the sensors and their sur-

rounding area on the bumpers.

●

If this message continues to be

displayed even after cleaning the

sensor, or is displayed even

though the sensor is clean, have

the vehicle inspected by your Toy-

ota dealer.

■

If a 12-volt battery terminal has

been disconnected and recon-

nected

The system needs to be initialized.

To initialize the system, drive the

vehicle straight ahead for 5 seconds

or more at a speed of approximately

22 mph (35 km/h) or more.

278

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

*

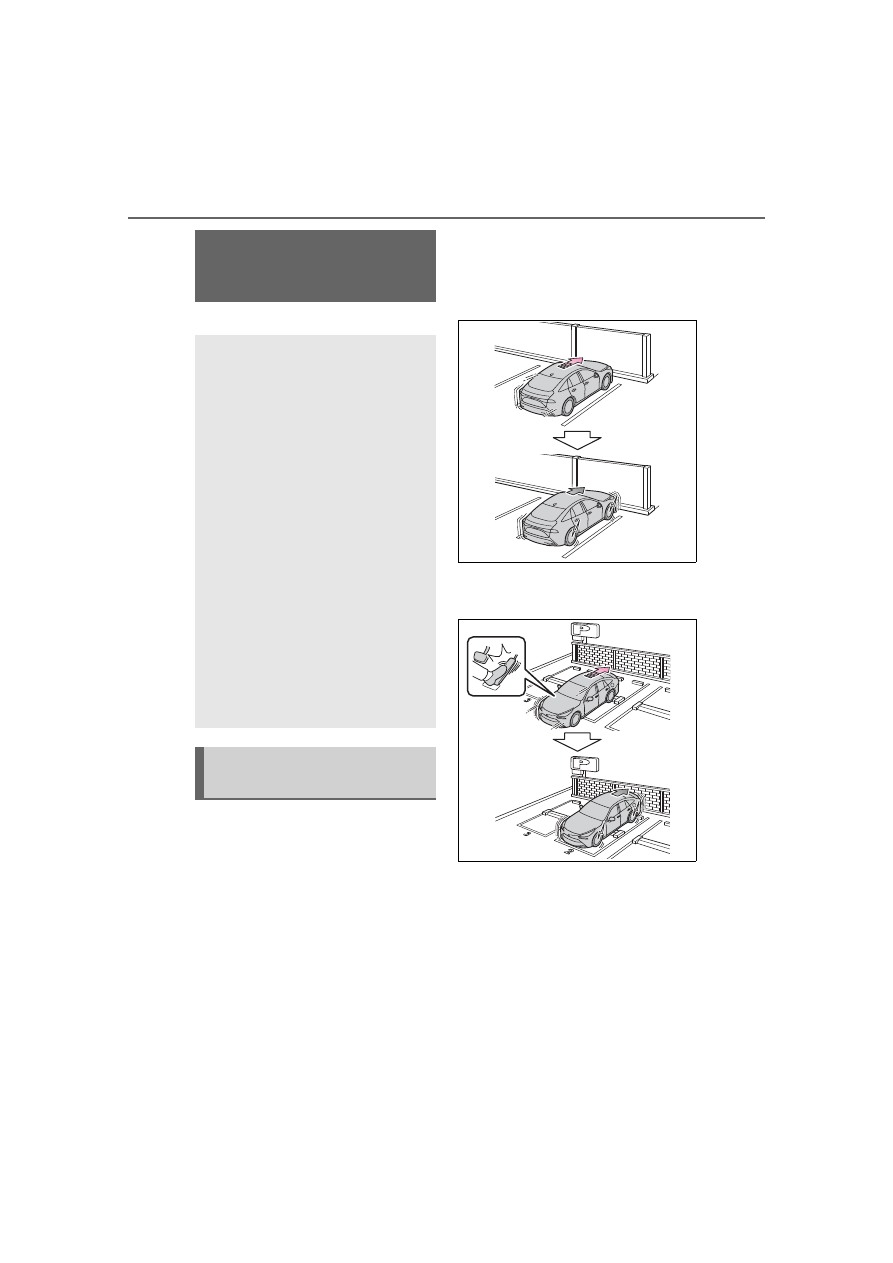

: If equipped

This function will operate in situ-
ations such as the following if an
object is detected in the travel-
ing direction of the vehicle.

■

When traveling at a low
speed and the brake pedal
is not depressed, or is
depressed late

■

When the accelerator pedal
is depressed excessively

Parking Support Brake

function (static

objects)

*

If the sensors detect a static
object, such as a wall, in the
traveling direction of the
vehicle and the system
determines that a collision
may occur due to the vehi-
cle suddenly moving for-
ward due to an accidental
accelerator pedal operation,
the vehicle moving the
unintended direction due to
the wrong shift position
being selected, or while
parking or traveling at low
speeds, the system will
operate to lessen the impact
with the detected static
object and reduce the
resulting damage.

Examples of function
operation

279

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

When the vehicle moves in
the unintended direction
due to the wrong shift posi-
tion being selected



P.254

■

The Parking Support Brake

function (static object) will

operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.95, 447) and

all of the following conditions are

met:

●

Fuel cell system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• There is a static object in the trav-

eling direction of the vehicle and

approximately 6 to 13 ft. (2 to 4 m)

away.

• The Parking Support Brake deter-

mines that a stronger-than-nor-

mal brake operation is necessary

to avoid a collision.

●

Brake control

• Fuel cell system output restriction

control is operating.

• The Parking Support Brake deter-

mines that an immediate brake

operation is necessary to avoid a

collision.

■

The Parking Support Brake

function (static objects) will

stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Fuel cell system output restriction

control

• The Parking Support Brake is dis-

abled.

• The system determines that the

collision has become avoidable

with normal brake operation.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

Types of sensors

WARNING

■

To ensure the system can

operate properly



P.255

■

If the Parking Support Brake

function (static objects) oper-

ates unnecessarily, such as

at a railroad crossing



P.276

■

Notes when washing the vehi-

cle



P.255

280

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

■

Detection range of the Parking

Support Brake function (static

objects)

The detection range of the Parking

Support Brake function (static

objects) differs from the detection

range of the intuitive parking assist.

(



P.259) Therefore, even if the intu-

itive parking assist detects an object

and provides a warning, the Parking

Support Brake function (static

objects) may not start operating.

■

Situations in which the system

may not operate properly



P.257

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.257

*

: If equipped

This function will operate in situ-
ations such as the following if a
vehicle is detected in the travel-
ing direction of the vehicle.

■

When reversing, a vehicle is
approaching and the brake
pedal is not depressed, or
is depressed late

Parking Support Brake

function (rear-crossing

vehicles)

*

If a rear radar sensor
detects a vehicle approach-
ing from the right or left at
the rear of the vehicle and
the system determines that
the possibility of a collision
is high, this function will
perform brake control to
reduce the likelihood of an
impact with the approach-
ing vehicle.

Examples of function
operation

281

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing



P.250

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.95, 447) and

all of the following conditions are

met:

●

Fuel cell system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• Vehicles are approaching from the

right or left at the rear of the vehi-

cle at a traveling speed of approx-

imately 5 mph (8 km/h) or more.

• The shift position is in R.

• The Parking Support Brake deter-

mines that a stronger than normal

brake operation is necessary to

avoid a collision with an approach-

ing vehicle.

●

Brake control

• Fuel cell system output restriction

control is operating.

• The Parking Support Brake deter-

mines that an emergency brake

operation is necessary to avoid a

collision with an approaching vehi-

cle.

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Fuel cell system output restriction

control

• The Parking Support Brake is dis-

abled.

• The collision becomes avoidable

with normal brake operation.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

■

Detection area of the Parking

Support Brake function (rear-

crossing vehicles)

The detection area of the Parking

Support Brake function (rear-cross-

ing vehicles) differs from the detec-

tion area of the RCTA function

(



P.265). Therefore, even if the

RCTA function detects a vehicle and

provides an alert, the Parking Sup-

port Brake function (rear-crossing

vehicles) may not start operating.

■

Situations in which the system

may not operate properly



P.266

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.267

Types of sensors

WARNING

■

To ensure the system can

operate properly



P.250

282

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

*

: If equipped

When a pedestrian is detected
behind the vehicle while backing
up, the brake pedal is not
depressed or is depressed late.

Displays a message to urge the
driver to take evasive action
when a pedestrian is detected in
the detection area behind the
vehicle. (A message will also be
displayed on the multi-informa-
tion display and head-up display
[if equipped].)

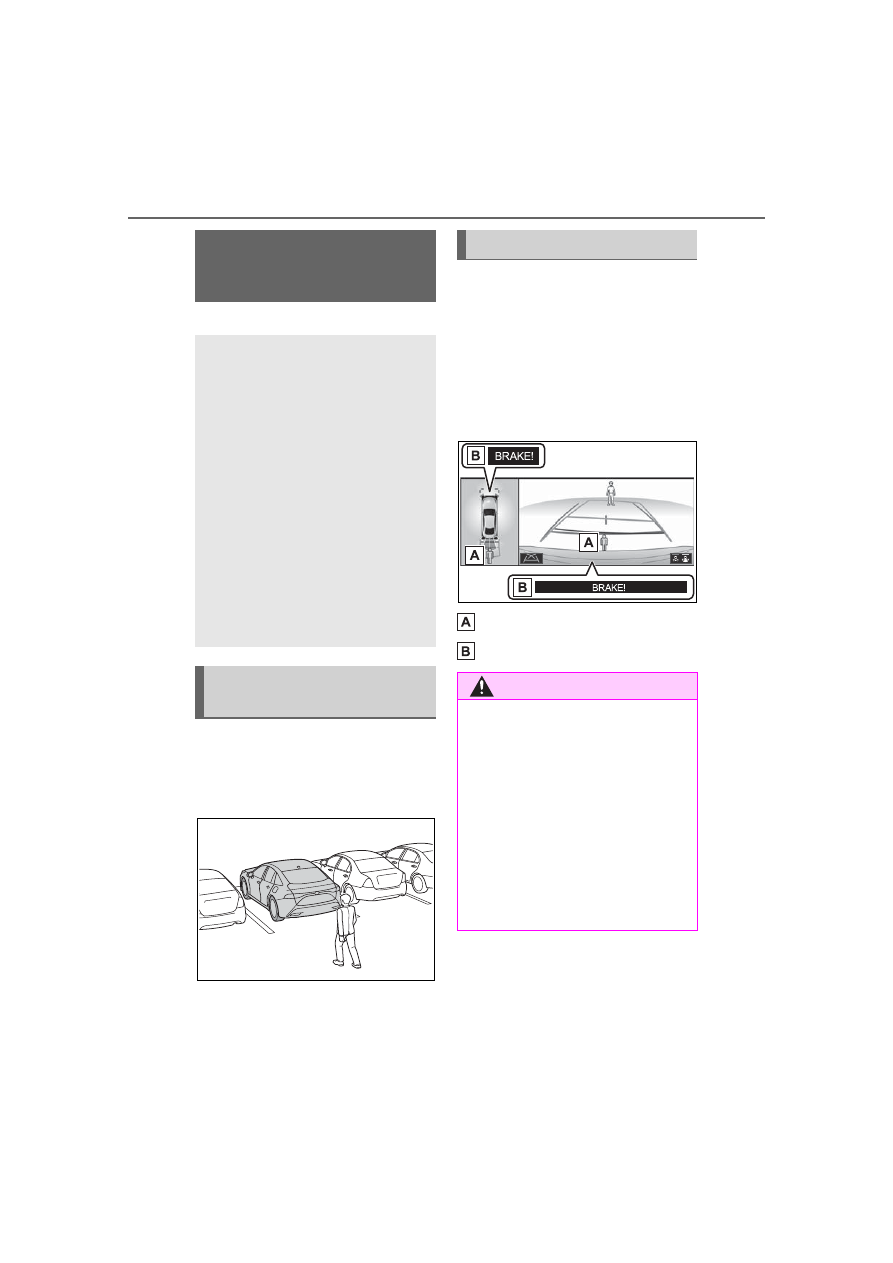

Pedestrian detection icon

Brake reminder

Parking Support Brake

function (rear pedes-

trians)

*

If the rear camera sensor
detects a pedestrian behind
the vehicle while backing
up and the system deter-
mines that the possibility of
colliding with the detected
pedestrian is high, a buzzer
will sound. If the system
determines that the possi-
bility of colliding with the
detected pedestrian is
extremely high, the brakes
will be applied automati-
cally to help reduce the
impact of the collision.

Examples of system oper-
ation

Multimedia display

WARNING

■

If the Parking Support Brake

function (rear pedestrians)

operates unnecessarily

Depress the brake pedal immedi-

ately after the Parking Support

Brake function (rear pedestrians)

operates. (Operation of the func-

tion is canceled by depressing the

brake pedal.)

■

Correct use of the Parking

Support Brake function (rear

pedestrians)



P.269

283

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

Parking Support Brake func-

tion (rear pedestrians) will oper-

ate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.95, 447) and

all of the following conditions are

met:

●

Fuel cell system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is 9 mph (15

km/h) or less.

• The shift position is in R.

• The rear camera sensor detects a

pedestrian behind the vehicle

while backing up and the system

determines that the possibility of

colliding with the detected pedes-

trian is high.

●

Brake control

• Fuel cell system output restriction

control is operating.

• The Parking Support Brake deter-

mines that an emergency brake

operation is necessary to avoid a

collision with a pedestrians.

■

The Parking Support Brake

function (rear pedestrians) will

stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Fuel cell system output restriction

control

• The Parking Support Brake is dis-

abled.

• The collision becomes avoidable

with normal brake operation.

• The pedestrian is no longer

detected behind your vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• The pedestrian is no longer

detected behind your vehicle.

■

Re-enabling the Parking Sup-

port Brake function (rear pedes-

trians)



P.277

■

Detection area of the Parking

Support Brake function (rear

pedestrians)

The detection area of the Parking

Support Brake function (rear pedes-

trians) differs from the detection

area of the RCD function (



P.270).

Therefore, even if the RCD function

detects a pedestrian and provides

an alert, the Parking Support Brake

function (rear pedestrians) may not

start operating.

■

Situations in which the system

may not operate properly



P.271

■

Situations in which the system

may operate unexpectedly



P.271

NOTICE

■

If “Parking Support Brake

Unavailable Remove the Dirt

of Rear Camera” is displayed

on the multi-information dis-

play and the PKSB OFF indi-

cator is flashing

If this message is displayed

immediately after the power

switch is changed to ON, operate

the vehicle carefully, paying atten-

tion to your surroundings.

284

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

*

: If equipped

■

Function description

The Advanced Park assists in
backing into or parallel parking
in a spot selected on the multi-
media display, or departing from
a parking space, by delivering
operation guidance through dis-
plays and buzzer operation, as
well as changing the shift posi-
tion, operating the steering
wheel, accelerator pedal, and
brake pedal.
Additionally, the panoramic view
monitor can display the area in
front, behind, and from above
the vehicle, helping confirm the
condition of the area around the
vehicle. For details on the pan-
oramic view monitor refer to the
“NAVIGATION AND MULTIME-
DIA SYSTEM OWNER’S MAN-
UAL”.
Depending on the condition of
the road surface or the vehicle,
the distance between the vehi-
cle and a parking space, etc., it
may not be possible to assist in
parking in the target space.

Toyota Teammate

Advanced Park

*

Advanced Park

WARNING

■

When using the Advanced

Park

●

Do not overly rely on the

Advanced Park. As with a nor-

mal vehicle, take care to

observe your surroundings

while the vehicle is moving.

●

Always pay attention to the

vehicle’s surroundings while

operating.

●

The Advanced Park supports

the driver when parking and

leaving a parking space. While

checking the safety of the area

around the vehicle, make sure

to depress the brake pedal as

necessary to slow or stop the

vehicle.

●

As low objects (curb stones,

parking blocks, etc.) may not be

detected, make sure to check

the safety of the area around

your vehicle and depress the

brake pedal to stop the vehicle if

it may collide with an object.

●

While the Advanced Park is

operating, if it is likely that your

vehicle will collide with a nearby

vehicle, parking block, object, or

person, depress the brake

pedal to stop the vehicle and

press the advance park main

switch to disable.

●

Never use only the multimedia

display to view the area behind

the vehicle. The image dis-

played may differ than the

actual situation. Using only the

screen when backing up may

lead to an accident, such as a

collision with another vehicle.

When backing up, make sure to

look directly or use the mirrors

to check the safety of the area

around your vehicle, especially

behind the vehicle.

285

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

Perpendicular parking func-
tion

Assistance is provided from the
position the vehicle is stopped
near the target parking space
until the vehicle is in the parking
space. (



P.290)

■

Parallel parking function

Assistance is provided from the
position the vehicle is stopped
near the target parking space
until the vehicle is in the parking
space. (



P.292)

■

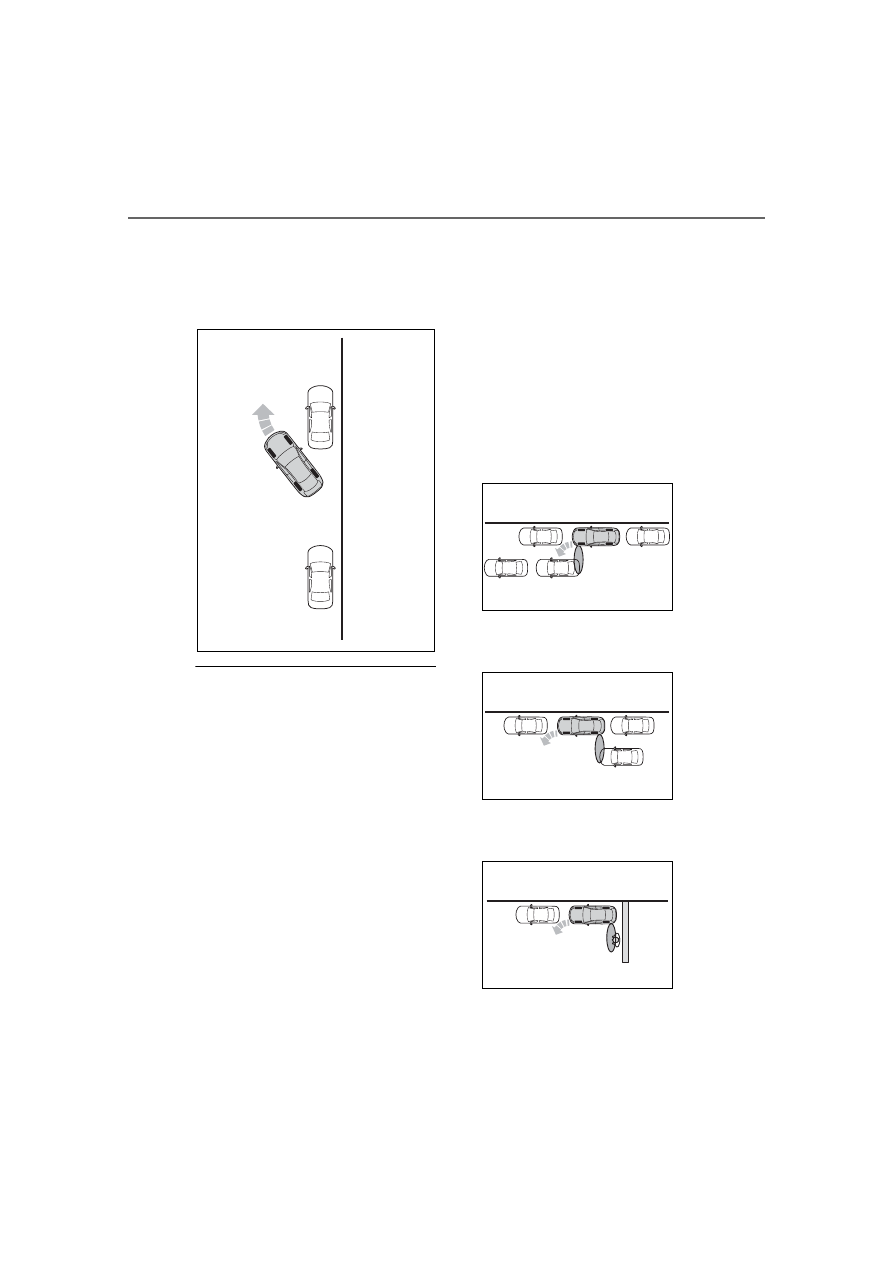

Parallel parking departure
function

Assistance is provided from the
parked position until the vehicle
is in a position where you can
easily depart from the parking
space. (



P.295)

■

Memory function

Assistance is provided until the
vehicle is guided into a previ-
ously registered parking space.
(



P.297)

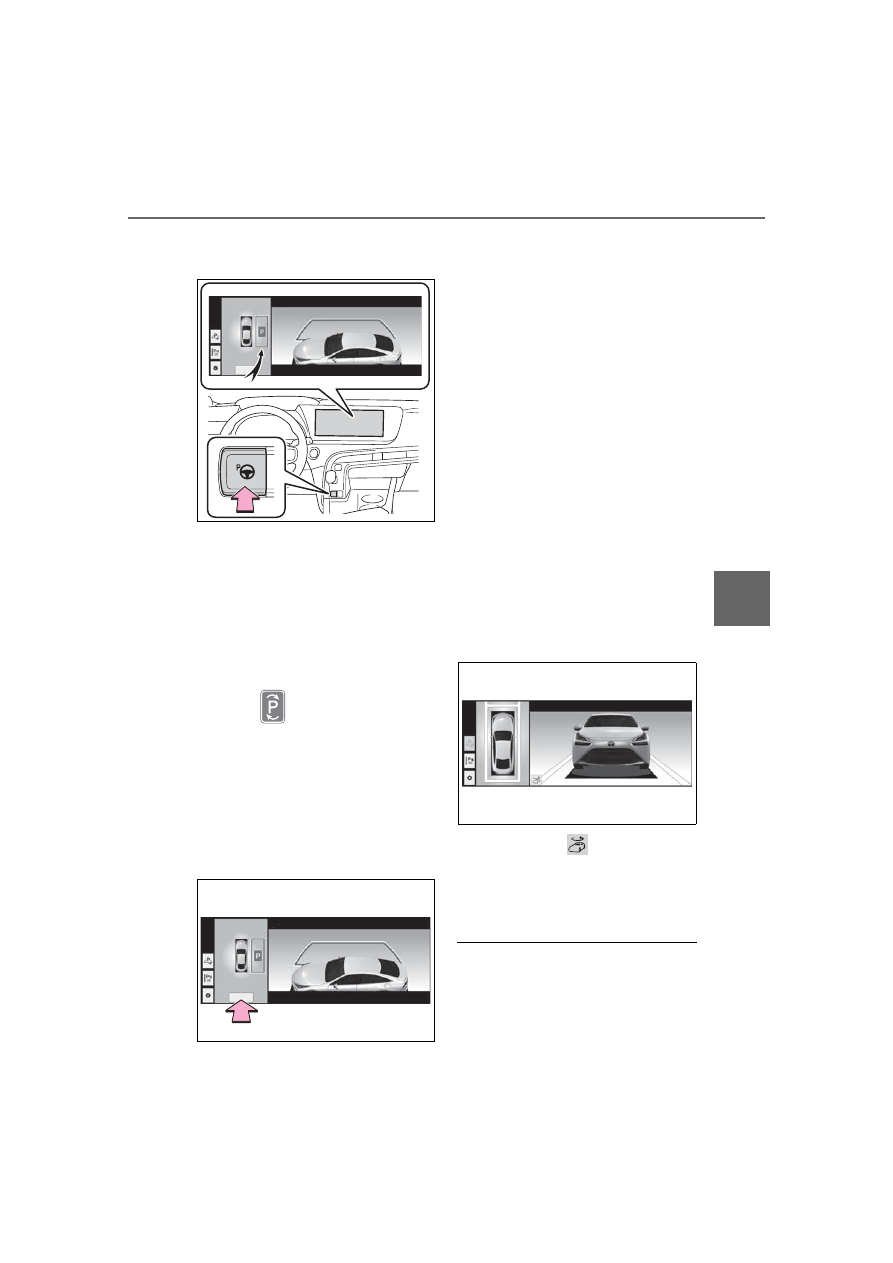

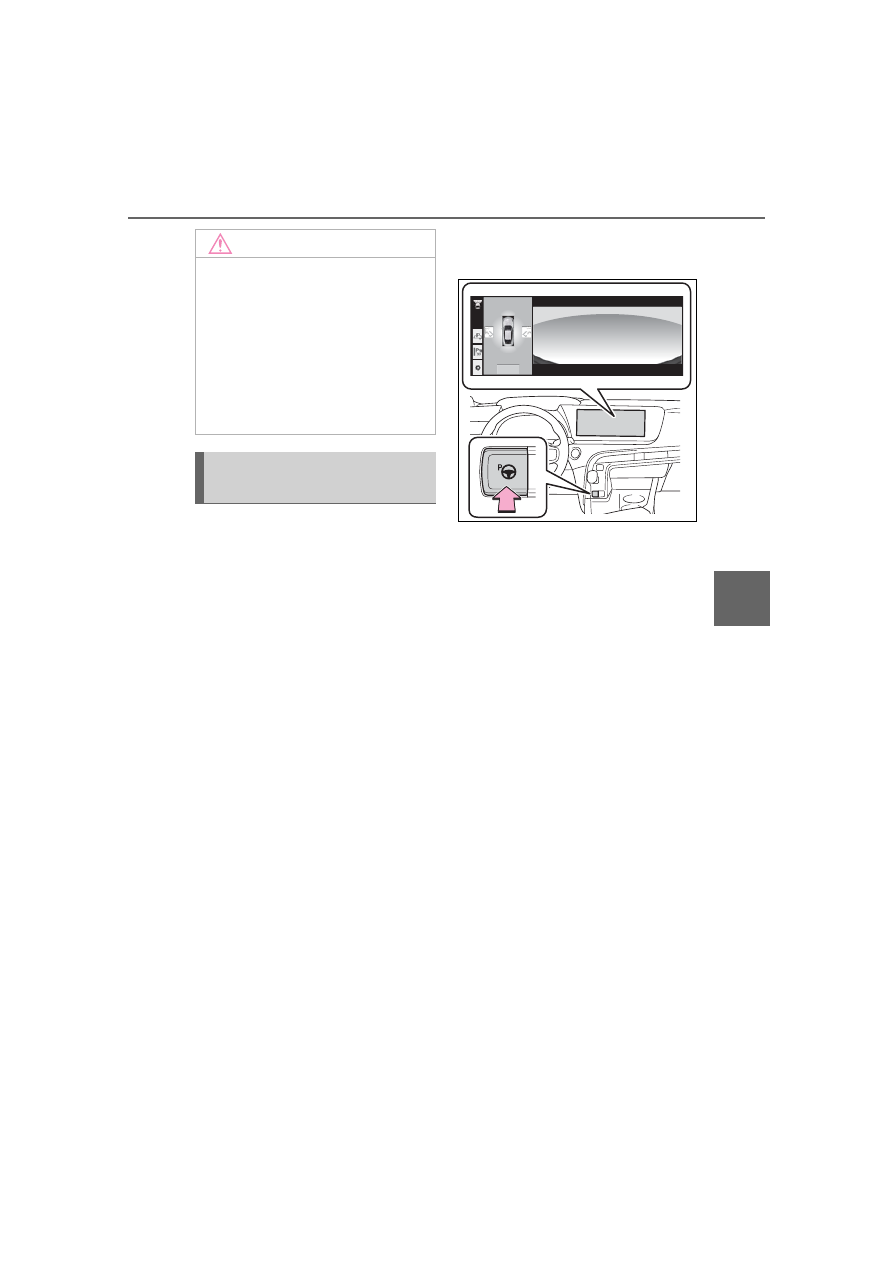

Press the Advanced Park main
switch.

If the switch is pressed while assis-
tance is being performed, the assis-
tance will be canceled.

WARNING

●

As the steering wheel will turn

while this Advanced Park is

operating, pay attention to the

following.

• Be careful so that a necktie,

scarf, or arm does not get

caught. Keep your upper body

away from the steering wheel.

Also, keep children away from

the steering wheel.

• Long fingernails may be caught

and when the steering wheel is

rotating, leading to injury.

• In an emergency, depress the

brake pedal to stop the vehicle,

and then press the Advanced

Park main switch to disable.

●

When parking, make sure that

the vehicle can be parked in the

target parking space before

beginning operation.

●

The Advanced Park may be

canceled and the vehicle may

start moving when the following

occurs. As this may lead to an

accident, be sure to immedi-

ately step on the brakes when

this occurs.

• When the driver’s door has

been opened while the parking

assist is operating

• When Advanced Park instruc-

tions are not performed within a

certain amount of time while the

parking assist is operating

• When the brake pedal is

depressed and the vehicle is

stopped for a certain amount of

time while the parking assist is

operating

• When a malfunction in the

Advanced Park occurs while the

parking assist is operating

Advanced Park functions

Turning the Advanced
Park on/off

286

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

■

Operating conditions

Assistance will begin when all of the

following conditions are met:

●

The brake pedal is depressed

●

The vehicle is stopped

●

The driver’s seat belt is fastened

●

The steering wheel is not being

operated

●

The accelerator pedal is not

depressed

●

All of the doors and the trunk are

closed

●

The outside rear view mirrors are

not folded

●

The parking brake is not engaged

●

The dynamic radar cruise control

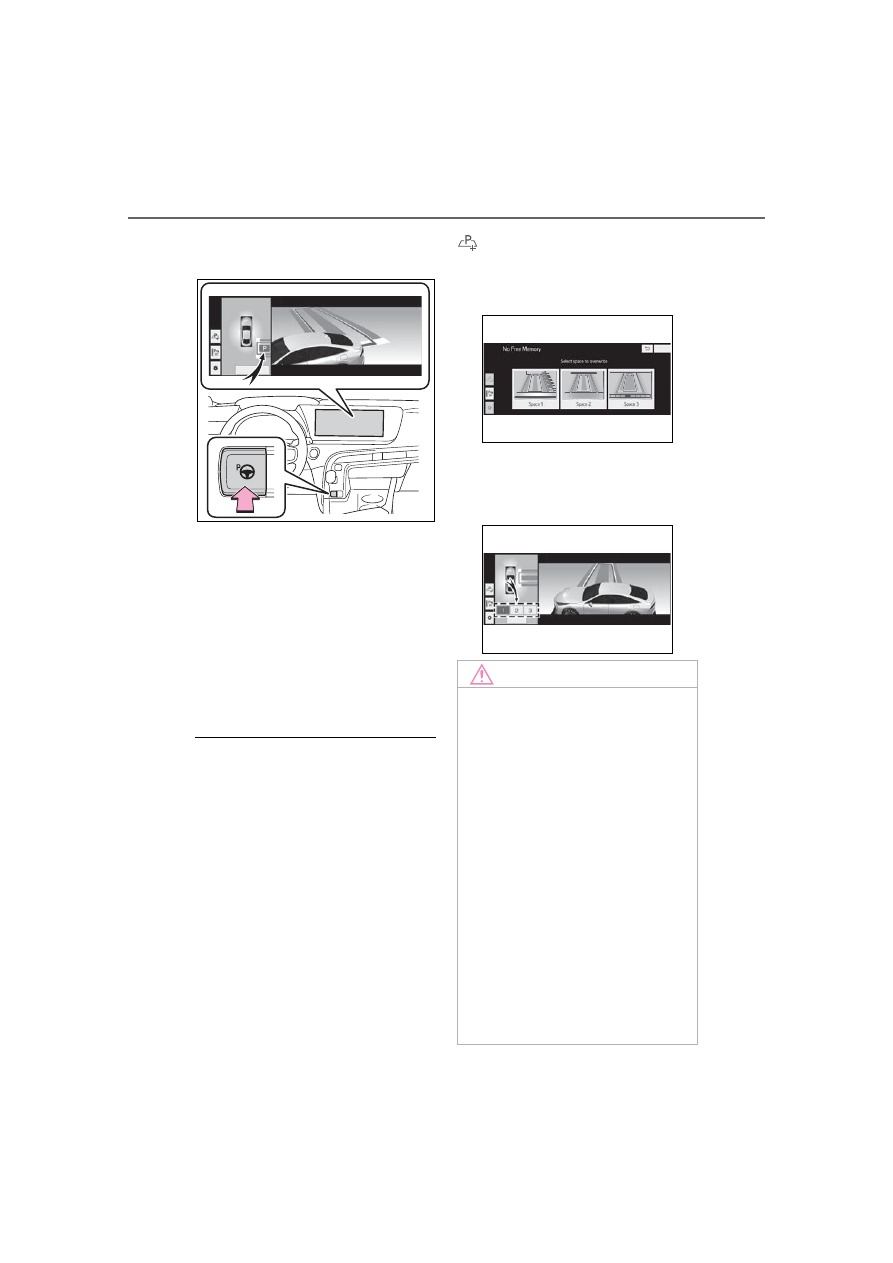

with full-speed range is not oper-

ating

●

ABS, VSC, TRAC, PCS and

PKSB are not operating

●

Not on a steep slope

●

Advanced Park is on

●

The VSC and TRAC are not

turned off

Check the multimedia display for
messages when the assist cannot
be started. (



P.302)

WARNING

■

To ensure correct operation

of the Advanced Park

●

Do not use Advanced Park in

situations such as the following:

• When in areas other than com-

mon parking spaces

• When the surface of the parking

space is sand or gravel and is

not clearly defined with parking

space box

• When the parking space is not

level, such as when on a slope

or has differences in height

• When the road surface is fro-

zen, slick, or covered with snow

• When it is extremely hot and the

asphalt is melting

• When there is an object

between your vehicle and the

target parking spot or within the

target parking spot (within the

displayed blue box)

• When in high pedestrian or

vehicle traffic areas

• When the parking space is not

suitable (too narrow or too short

for your vehicle)

• When images are unclear due

to dirt or snow attached to the

camera lens, light being shined

into the camera or shadows

• When tire chains is installed to

the vehicle

• When the trunk is not com-

pletely closed

• When an arm is held outside of

a window

287

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

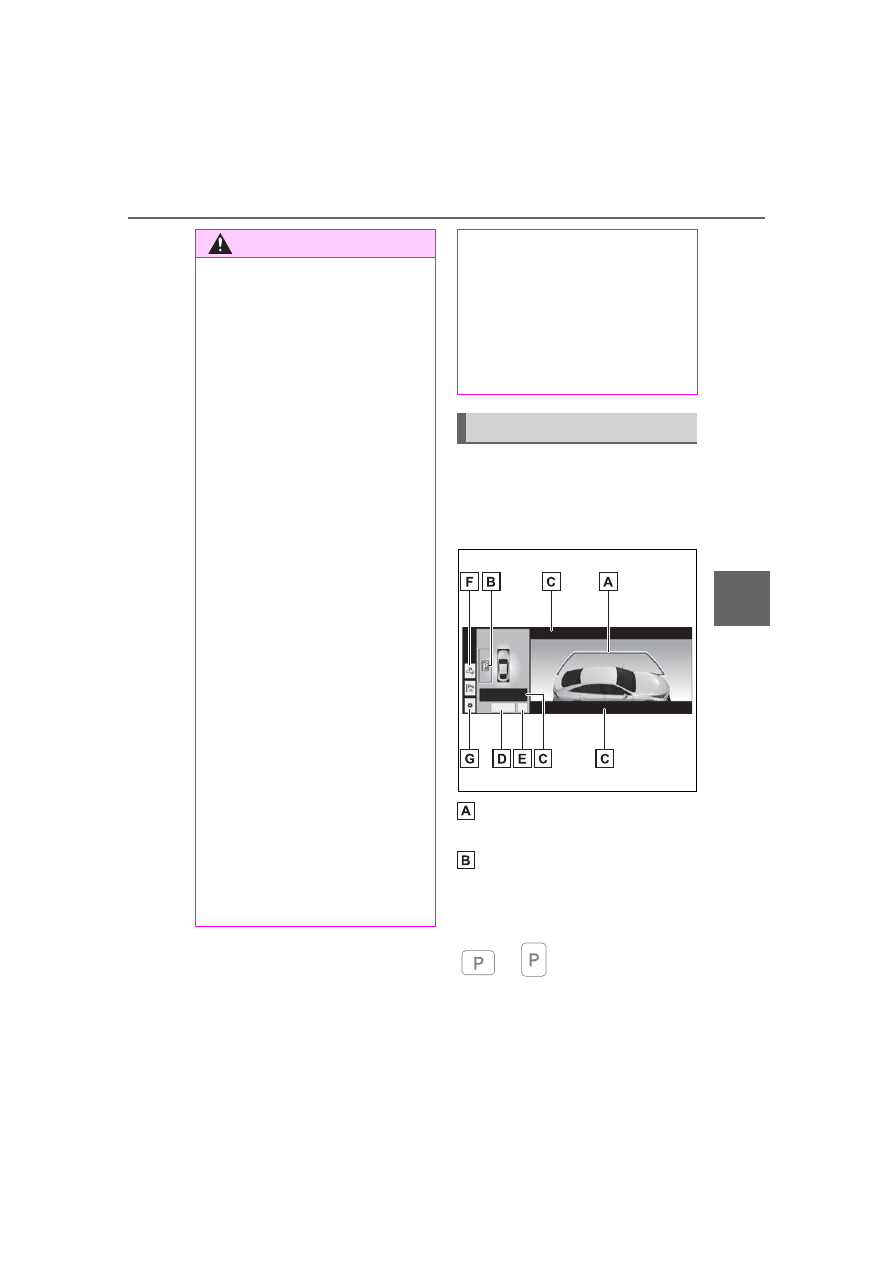

Guidance screens are displayed
on the multimedia display.



Guidance screen (When
assistance starts)

Target parking space box
(blue)

Parking type change button

If multiple buttons are displayed,
depending on the color of the but-
ton, its function differs as follows.

 or

: Change to another

possible parking space.

WARNING

●

Make sure to use only standard

sized tires, such as those that

were installed to the vehicle

when it was shipped from the

factory. Otherwise, the

Advanced Park may not operate

properly. Also, when the tires

have been replaced, the dis-

played position of the lines or

box displayed on the screen

may become incorrect. When

replacing the tires, contact your

Toyota dealer.

●

As Advanced Park is designed

to assist in parking the vehicle

in a set parking space, depend-

ing on the condition of the road

surface or the vehicle, the dis-

tance between the vehicle and a

parking space, etc., it may not

be possible to detect a parking

space or may not be able to pro-

vide assistance to the point the

vehicle is fully parked.

●

In situations such as the follow-

ing, it may not be possible for

the Advanced Park to provide

assistance to the selected park-

ing spot:

• When the tires are extremely

worn or the tire inflation pres-

sure is low

• When carrying a heavy load

• When the vehicle is tilted due to

the carried load

• When a heater is installed in the

surface of the parking space

(road surface freeze prevention

heater)

• When the wheels are mis-

aligned, such after a wheels has

been subjected to a strong

impact

If the vehicle deviates greatly from
the set parking space in any situa-
tion other than the above, have
the vehicle inspected by your Toy-
ota dealer.

Guidance screens

288

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

 or

: Parking Space that

was selected.

: Select to change to the par-

allel parking function

: Select to change to the per-

pendicular parking function

Advice display

“Start” button

Select to start parking assistance.

“MODE” button

Select to change between the
memory function and the perpen-
dicular parking function/parallel
parking function. (



P.299)

Registration button

Select to begin registering a park-
ing space.

Customize setting button

Select to display the Advanced
Park setting screen.



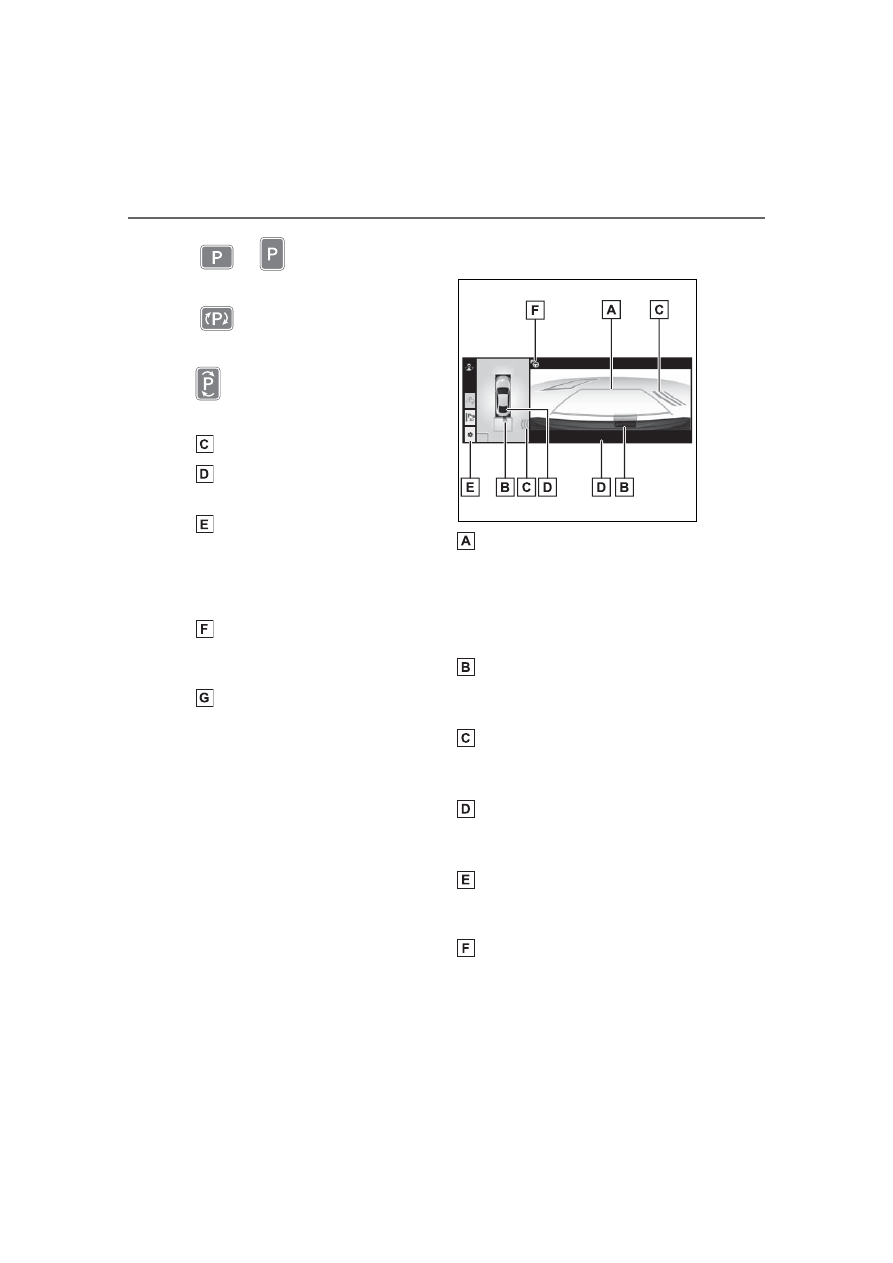

Guidance screen (When
reversing)

Guide lines (yellow and red)

Display points from the center of
the edge of the front or rear bumper
to the target stopping position (yel-
low)

*

 and approximately 1 ft. (0.3

m) (red) from the vehicle.

Intuitive parking assist dis-
play



P.254

RCTA (Rear Cross Traffic
Alert)/RCTA icon



P.265

Brake control operation dis-
play

“BRAKE!” is displayed.

Customize setting button

Select to display the Advanced
Park setting screen.

Operation icon

Displayed when the Advanced Park
is operating.

*

: When the distance to the target

stopping position is more than 8.2

289

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

ft. (2.5 m), the line will be dis-
played 8.2 ft. (2.5 m) in front of
the vehicle.

■

Intuitive parking assist pop-up

display

Regardless of whether the intuitive

parking assist is off or on (



P.255),

if an object is detected by the intui-

tive parking assist when the

Advanced Park is operating, the

intuitive parking assist pop up dis-

play will automatically be displayed

over the guidance display.

■

Brake control operation when

Advanced Park is operating

While the Advanced Park is operat-

ing, if it is determines that the possi-

bility of collision with detected

moving or stationary object is high,

the fuel cell system output restric-

tion control and brake control will

operate.

●

If brake control operates,

Advanced Park operation will be

suspended and a message will be

displayed on the multi-information

display.

●

If Advanced Park operation is sus-

pended 3 times by brake control

operation, the Advanced Park will

be disabled.

In situations such as the follow-
ing, Advanced Park operation
will be canceled or suspended.



Assistance will be canceled
when:



The Advanced Park main
switch is pushed



The shift position is changed
to P



The parking brake is engaged



A door or the trunk is opened



The driver’s seat belt is unfas-
tened



The outside rear view mirrors
are folded



The TRAC or VSC is turned
off



The TRAC, VSC or ABS oper-
ates



The power switch is pushed



The Advanced Park deter-
mines assistance cannot be
continued in the current park-
ing environment



The Advanced Park malfunc-
tions

If assistance has been can-
celed, a message will be dis-
played on the multimedia
display. (



P.307) Firmly hold

the steering wheel and depress
the brake pedal to stop the vehi-
cle. As Advanced Park opera-
tion has been canceled, begin
the operation again or continue
parking manually, using the
steering wheel.



Assistance will be suspended
when:



The steering wheel is oper-
ated



The accelerator pedal is
depressed



The shift position is changed
to other than P

Advanced Park cancel-
ation/suspension

290

5-5. Using the driving support systems

Owners Manual_USA_M62102_en



Brake control operates



The PCS (Pre-Collision Sys-
tem) has operates

■

Function description

The perpendicular parking func-
tion can be used if the target
parking space can be detected
when the vehicle is stopped
close and perpendicularly to the
center of the parking space.
Also, depending on the condi-
tion of the parking space, etc., if
it is necessary to change the
direction of travel of the vehicle,
the shift position can be
changed by assistance control.

■

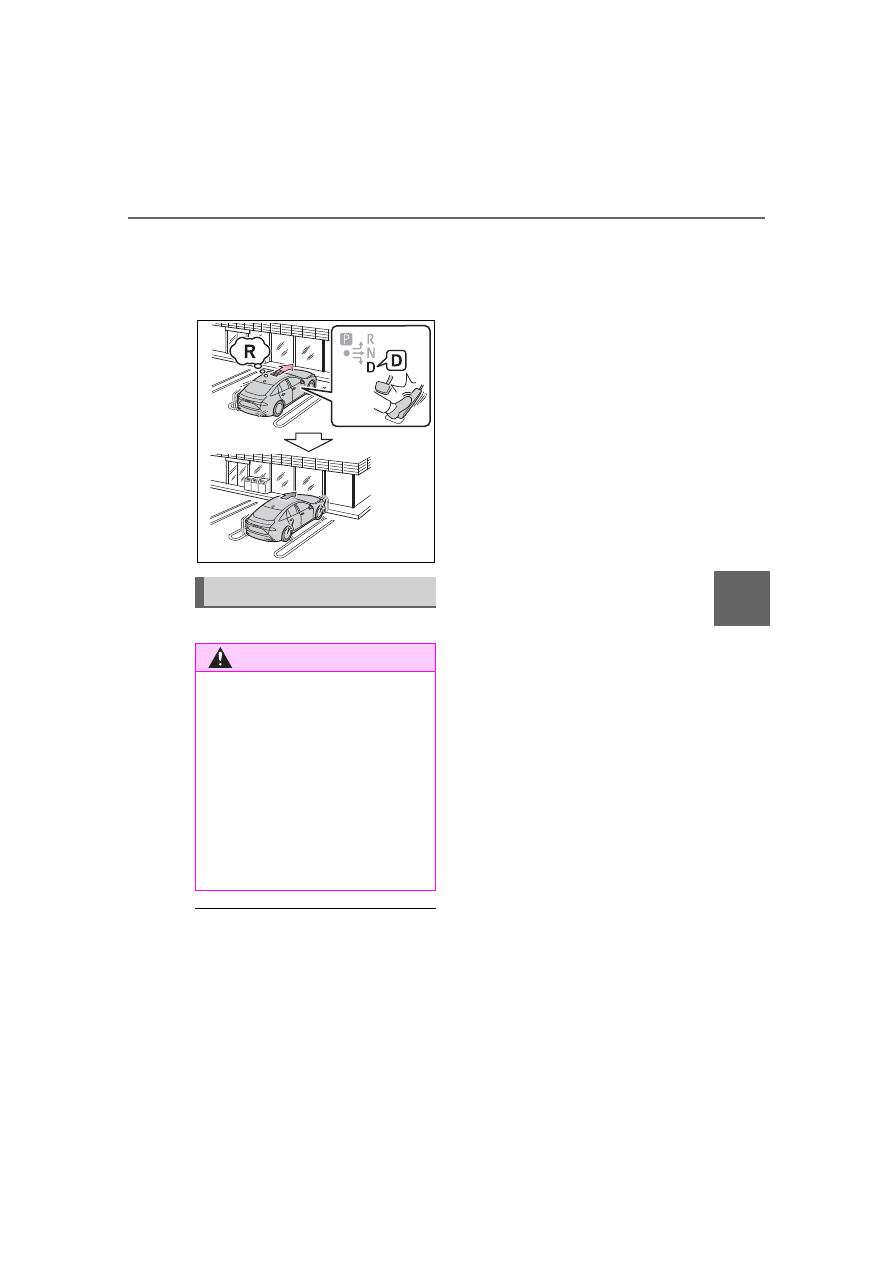

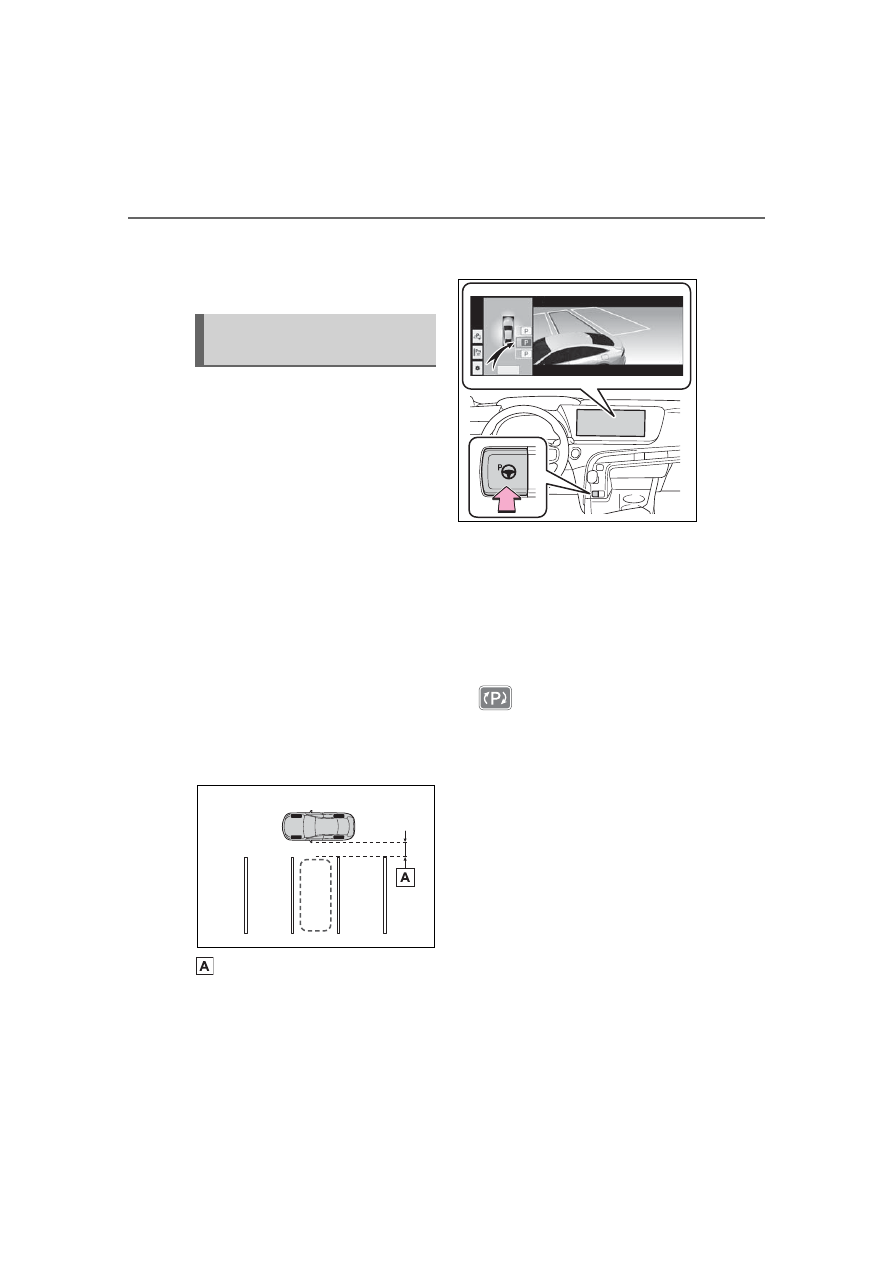

Parking using the perpen-
dicular parking function

1

Stop the vehicle at a position
close and perpendicular to
the center of the target park-
ing space.

3.3 ft. (1 m)

2

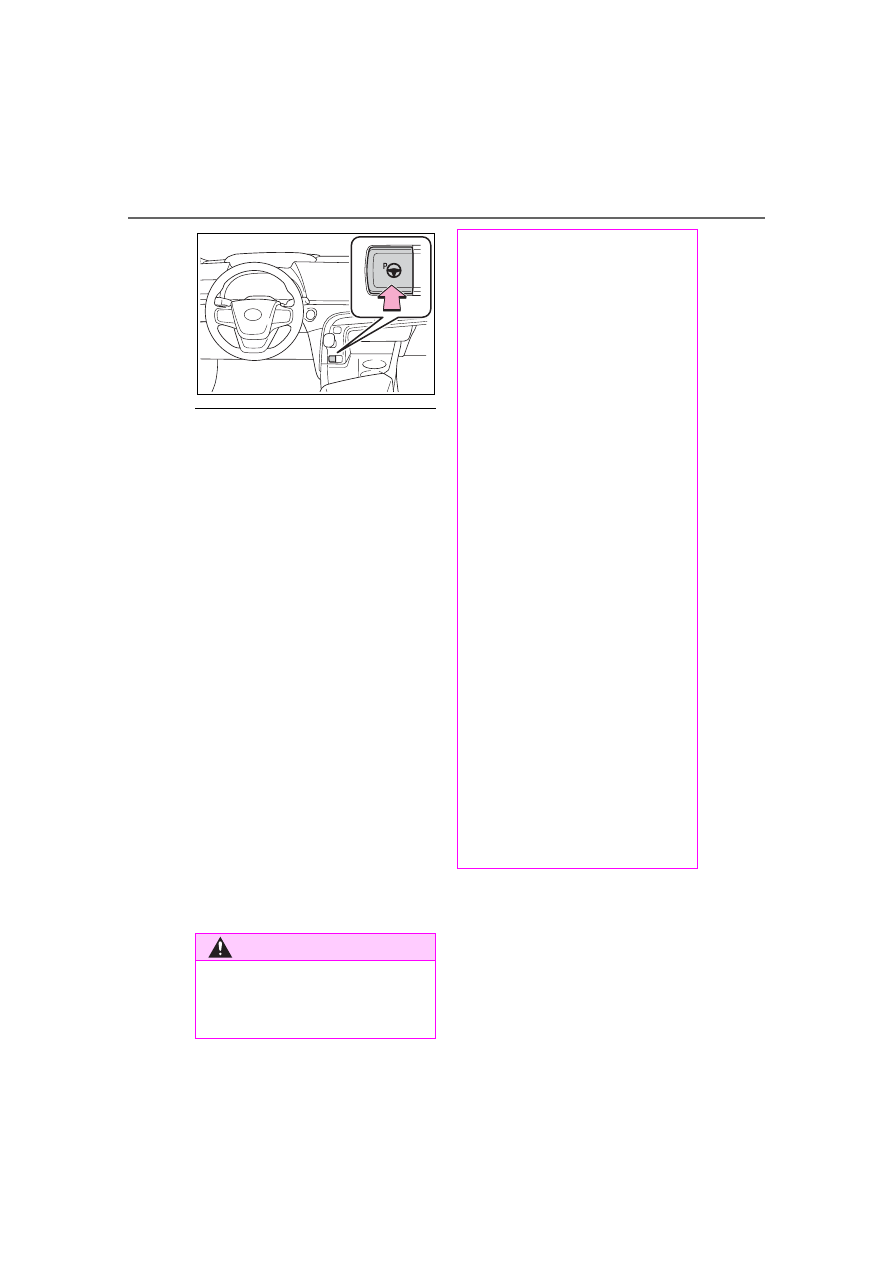

Press the Advanced Park
main switch and check that a
possible parking space is dis-

played on the multimedia dis-
play.



If a space which your vehicle
can be parked is detected, a
target parking space box will
be displayed.



If it is possible to parallel park
in the space, select the park-
ing space, and then select

 to change to the paral-

lel parking function.



Depending on the surround-
ing environment, it may not be
possible to use this function.
According to the information
displayed on the multimedia
display, use the function on
another parking space.

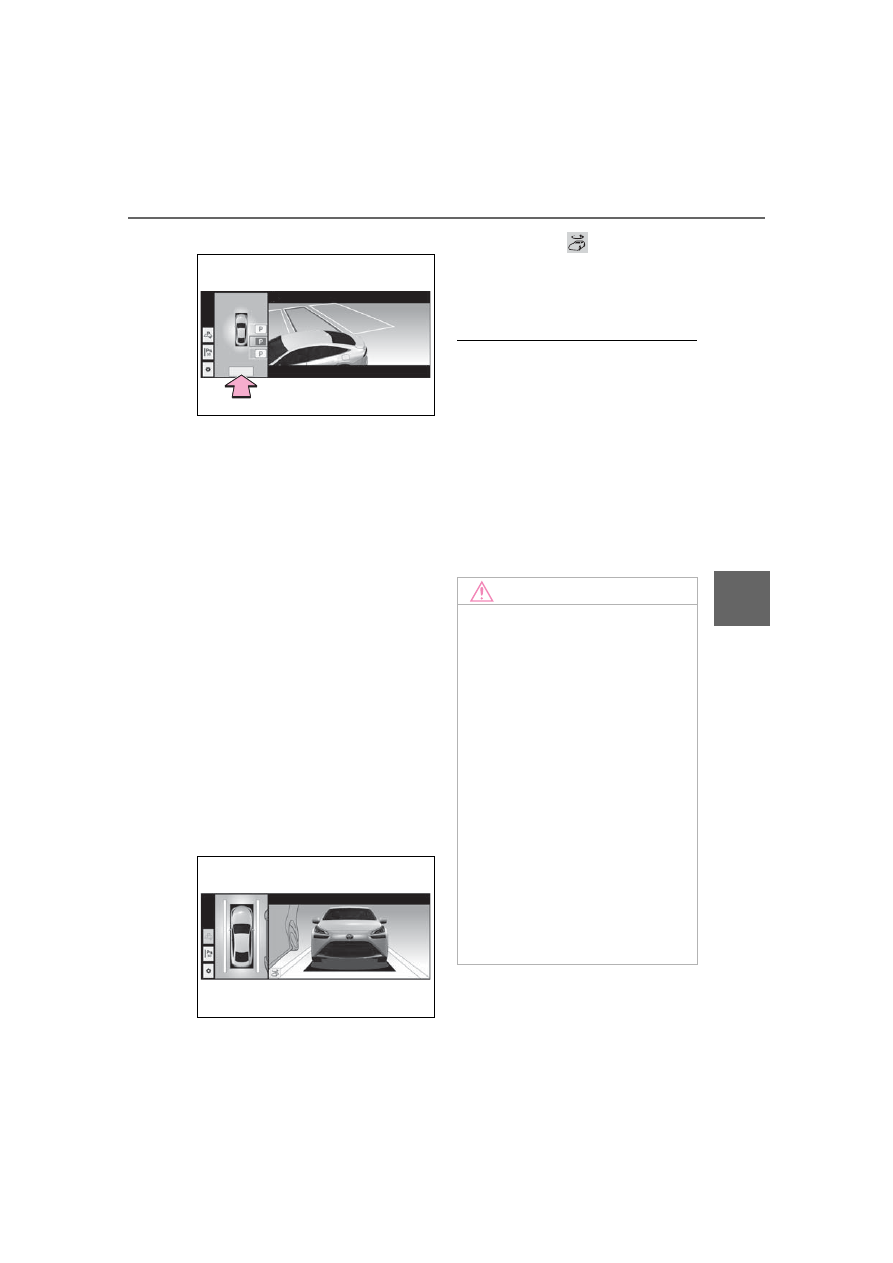

3

Select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

Perpendicular parking
function

291

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

tance will begin operating.



When the brake pedal is
released, “Moving Forward...”
will be displayed and the vehi-
cle will begin moving forward.



To cancel assistance, press
the Advanced Park main
switch.

If assistance is canceled,
“Advanced Park Canceled” will be
displayed.
If it seems that the vehicle is
approaching too close to a sur-
rounding vehicle, object, person, or
gutter:



P.291

4

Perform operations as indi-
cated by the advice displays
until the vehicle stops in the
target parking space.

When the vehicle stops, “Advanced

Park Finished” will be displayed

and parking assistance will end.



If you select

 on the multi-

media display, the vehicle dis-
played on the parking assist
completion screen will rotate.

■

If it seems that the vehicle is

approaching too close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

position to change the direction of

travel of the vehicle. At this time,

assist will be suspended. However,

if the “Start” button is selected,

assist will resume and the vehicle

will move in the direction corre-

sponding to the selected shift posi-

tion.

NOTICE

■

When using the perpendicu-

lar parking function

●

Make sure that there are no

obstructions within the yellow

guide lines and between the

vehicle and target parking spot.

If there are any obstructions

between the vehicle and the tar-

get parking space, or between

the yellow guide lines, cancel

the perpendicular parking func-

tion.

●

As the target parking space will

not be able to be set correctly if

the surface of the parking space

is on a slope or has differences

in height, the vehicle may stray

from the target parking space or

be slanted. Therefore, do not

use the perpendicular parking

function for this kind of parking

spot.

292

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

■

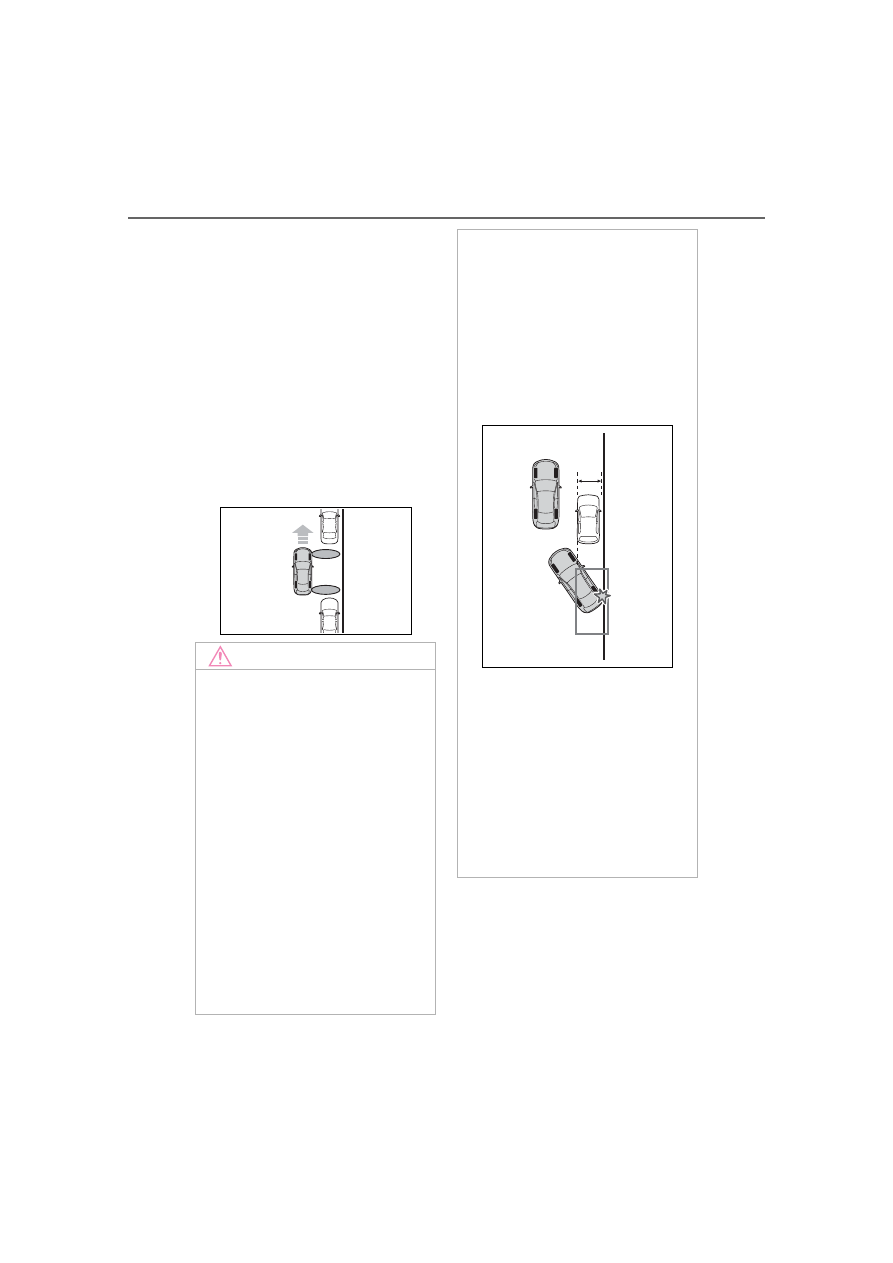

Function description

The parallel parking function can
be used if the target parking
space can be detected when the
vehicle is stopped close and
aligned with the center of the
parking space. Also, depending
on the condition of the parking
space, etc., if it is necessary to
change the direction of travel of
the vehicle, the shift position can
be changed by assistance con-
trol.

■

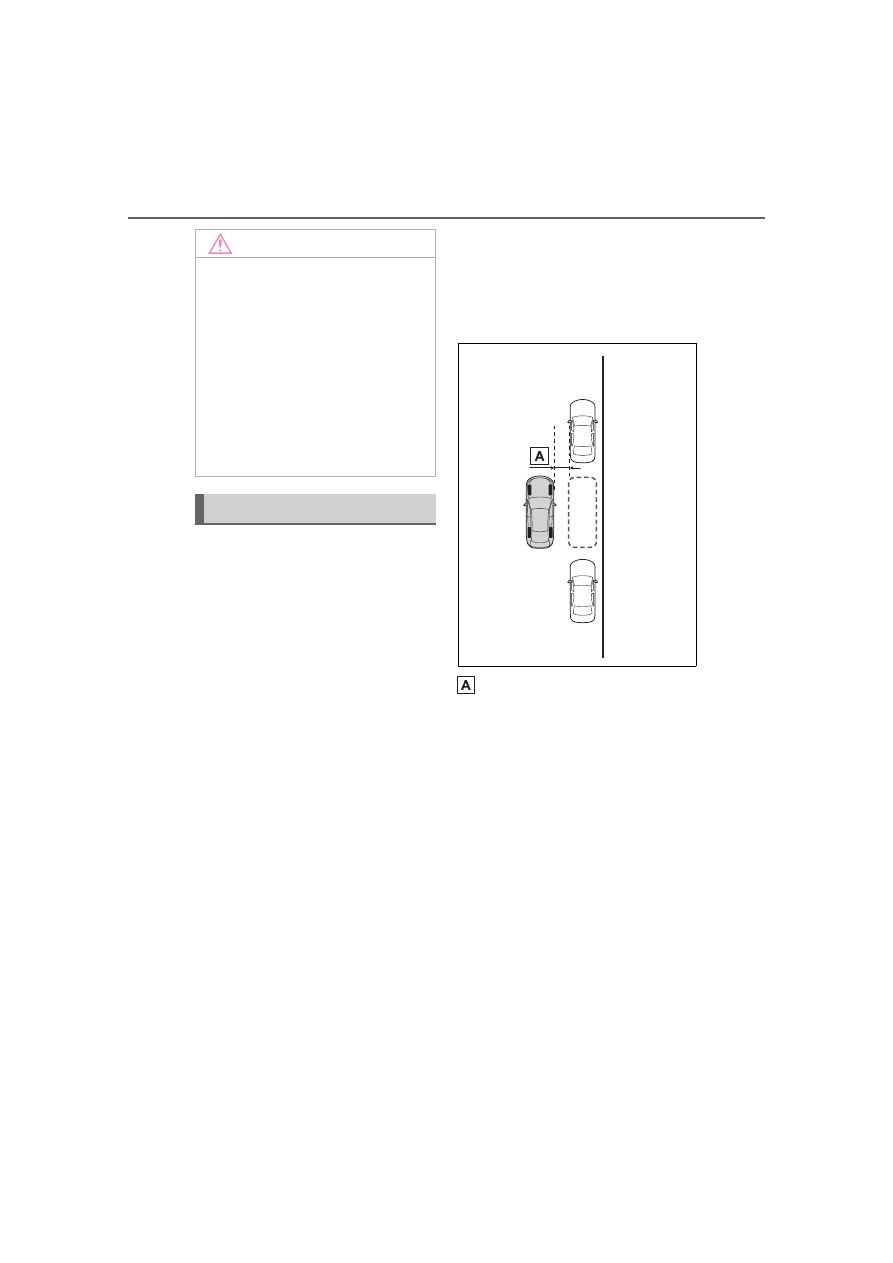

Parking using the parallel
parking function

1

Stop the vehicle with it
aligned near the center of the
target parking space.

3.3 ft. (1 m)

2

Press the Advanced Park
main switch and check that a
possible parking space is dis-

NOTICE

●

When parking in a narrow park-

ing space, the vehicle may

closely approach an adjacent

parked vehicle. If a collision

seems likely, depress the brake

pedal to stop the vehicle.

●

Depending on the surrounding

conditions, such as the position

of other parked vehicles, the

vehicle may stray from the tar-

get parking space or be slanted.

Manually realign the vehicle in

the parking space as necessary.

Parallel parking function

293

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

played on the multimedia dis-
play.



If a space which your vehicle
can be parked is detected, a
target parking space box will
be displayed.



If it is possible to perpendicu-
lar park in the space, select
the parking space, and then

select

 to change to the

perpendicular parking func-
tion.

3

Select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

tance will begin operating.



When the brake pedal is
released, “Moving Forward...”
will be displayed and the vehi-
cle will begin moving forward.



To cancel assistance, press
the Advanced Park main
switch.

If assistance is canceled,
“Advanced Park Canceled” will be
displayed.
If it seems that the vehicle is
approaching too close to a sur-
rounding vehicle, object, person, or
gutter:



P.293

4

Perform operations as indi-
cated by the advice displays
until the vehicle stops in the
target parking space.

When the vehicle stops, “Advanced

Park Finished” will be displayed

and parking assistance will end.



If you select

 on the multi-

media display, the vehicle dis-
played on the parking assist
completion screen will rotate.

■

If it seems that the vehicle is

approaching too close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

294

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

position to change the direction of

travel of the vehicle. At this time,

assist will be suspended. However,

if the “Start” button is selected,

assist will resume and the vehicle

will move in the direction corre-

sponding to the selected shift posi-

tion.

■

If “No available parking space”

is displayed

Even if the vehicle is stopped paral-

lel to a parking space, an adjacent

parked vehicle may not be detected.

In this case, if the vehicle is moved

to a position that a parked vehicle

can be detected, assistance can be

started.

NOTICE

■

When using the parallel park-

ing function

●

Make sure that there are no

obstructions within the yellow

guide lines and between the

vehicle and target parking spot.

If any obstructions are detected

within the yellow guide lines or

between the vehicle and the tar-

get parking space, the parallel

parking function will be can-

celed or suspended.

●

As the target parking space

cannot be set correctly if the

surface of the parking space is

on a slope or has differences in

height, the vehicle may stray

from the target parking space or

be slanted. Therefore, do not

use the parallel parking func-

tion for this kind of parking spot.

●

If an adjacent parked vehicle is

narrow or parked extremely

close to the curb, the position at

which assistance will park the

vehicle will also be close to the

curb. If it seems likely the vehi-

cle will collide with the curb or

drive off of the road, depress

the brake pedal to stop the vehi-

cle, and then press the

Advanced Park main switch to

disable.

●

If there is a wall or other barrier

on the inner side of the parking

space, the vehicle may stop at a

position slightly outside of the

set target parking space.

●

Depending on the surrounding

conditions, such as the position

of other parked vehicles, the

vehicle may stray from the tar-

get parking space or be slanted.

Manually realign the vehicle in

the parking space as necessary.

295

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

Function description

When departing from a parallel
parking spot, by selecting the
direction you wish to depart, the
parallel parking departure func-
tion will provide assistance,
through shift position changes,
steering wheel, brake pedal,
and accelerator pedal opera-
tions, to guide the vehicle to a
position which you can depart
from the parking space.

■

Leaving a parking space
using the parallel parking
departure function

1

With the brake pedal
depressed and P shift posi-
tion selected, press the
Advanced Park main switch
and check that the departure
direction selection screen is

displayed on the multimedia
display.

2

Select the direction you wish
to depart by operating the
turn signal lever (



P.183).

The departure direction can also be

selected by selecting an arrow on

the multimedia display.

3

Depress the brake pedal and
select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

tance will begin operating.
To cancel assistance, press the

Advanced Park main switch.
If assistance is canceled,

“Advanced Park Canceled” will be

displayed.
If it seems that the vehicle is

approaching too close to a sur-

rounding vehicle, object, person, or

gutter:



P.296

4

Perform operations as indi-
cated by the advice displays
until the vehicle is in a posi-
tion which you can depart
from the parking space.

When the vehicle stops at a posi-

NOTICE

●

Assistance will guide the vehicle

to a position which matches the

adjacent parked vehicle even if

there is an obstruction, differ-

ence in height, or curbstone in

the parking space. If it seems

likely the vehicle will collide with

anything, depress the brake

pedal to stop the vehicle, and

then press the Advanced Park

main switch to disable.

Parallel parking depar-
ture function

296

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

tion where departure is possible,

depress the brake pedal or acceler-

ator pedal. “Advanced Park Fin-

ished” will be displayed and

assistance will end. Grip the steer-

ing wheel and drive forward.

■

If it seems that the vehicle is

approaching too close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

position to change the direction of

travel of the vehicle. At this time,

assist will be suspended. However,

if the “Start” button is selected,

assist will resume and the vehicle

will move in the direction corre-

sponding to the selected shift posi-

tion.

■

Parallel parking departure func-

tion

●

While assistance is operating, if

the driver determines that the

vehicle can depart from the park-

ing space and operates the steer-

ing wheel, assistance will be end

at that position.

●

Do not use parallel parking depar-

ture function in any situation other

than when departing a parallel

parking spot. If assistance is

started unintentionally, depress

the brake pedal and stop the vehi-

cle, then press the Advanced Park

main switch to cancel assistance.

■

Situations in which the parallel

parking departure function will

not operate

In situations such as the following,

the parallel parking departure func-

tion will not operate:

●

When vehicles waiting at a traffic

signal in the departure direction

●

When a vehicle is stopped in the

area behind where the vehicle will

depart

●

When a wall, column, or person is

detected near a front or rear side

sensor

●

When the vehicle has been

parked on a curb and a side sen-

sor detects the road surface

297

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

●

When a vehicle is not parked in

front of the vehicle

●

When there is excessive space

between the front of the vehicle

and a parked vehicle

■

Function description

The memory function can be
used to park in a previously reg-
istered parking space, even if
there are no parking space box
or adjacent parked vehicles.
Up to 3 parking spaces can be
registered.

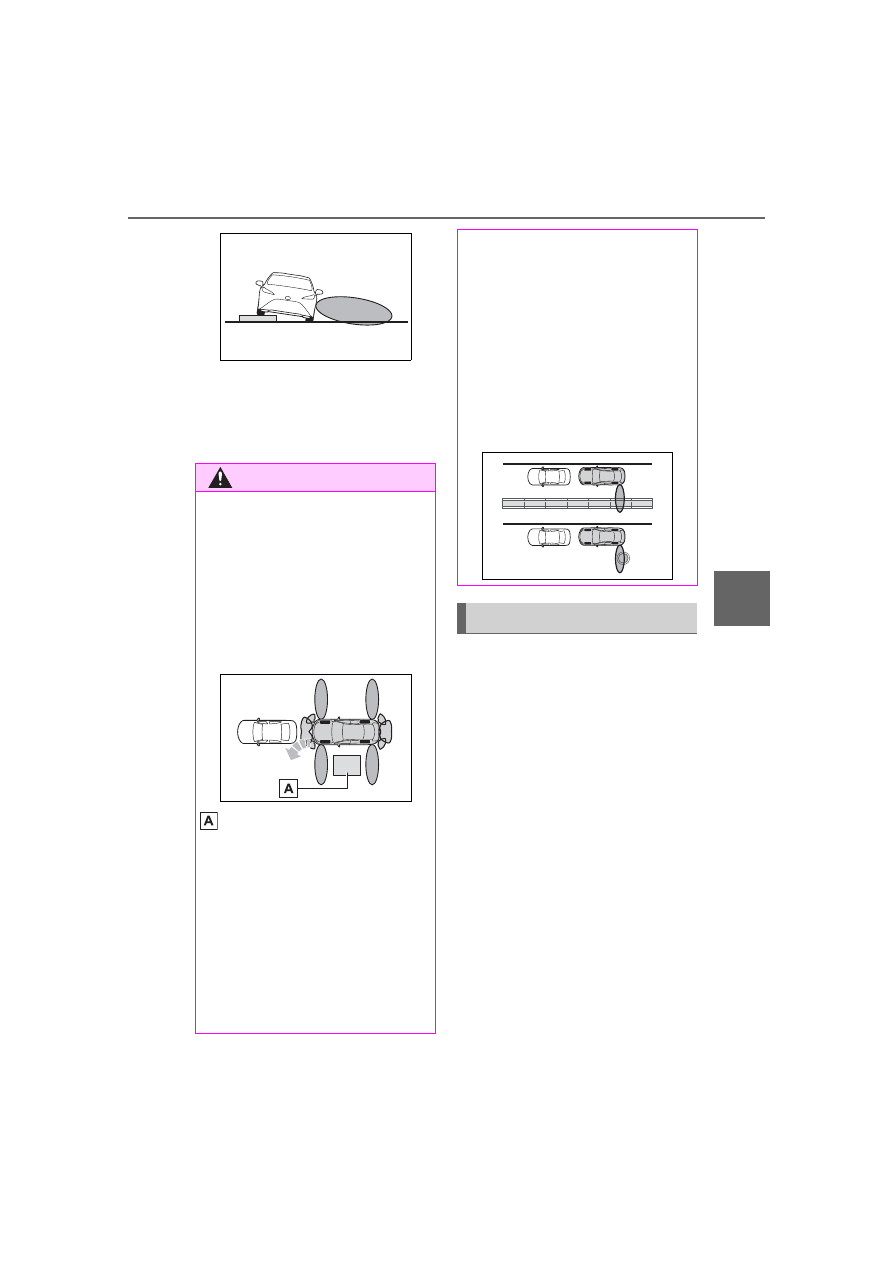

WARNING

■

Parallel parking departure

function

In the following situation, be sure

to drive carefully as the side sen-

sors may not be able to correctly

detect obstructions, possibly lead-

ing to an accident.

●

When an object is in an area

outside of the detection range of

the side sensors

Obstruction

●

The sensors may not be able to

detect certain objects, such as

the following:

• Thin objects such as wire,

fences, rope, etc.

• Cotton, snow and other materi-

als that absorb sound waves

• Sharply-angled objects

• Low objects

• Tall objects with upper sections

that protrude outward

• Moving objects such as people

or animals

People may also not be detected
depending on the type of clothing
they are wearing. Always check
the area around the vehicle visu-
ally.

●

When there is a hole or deep rut

in the departure direction

Memory function

298

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

■

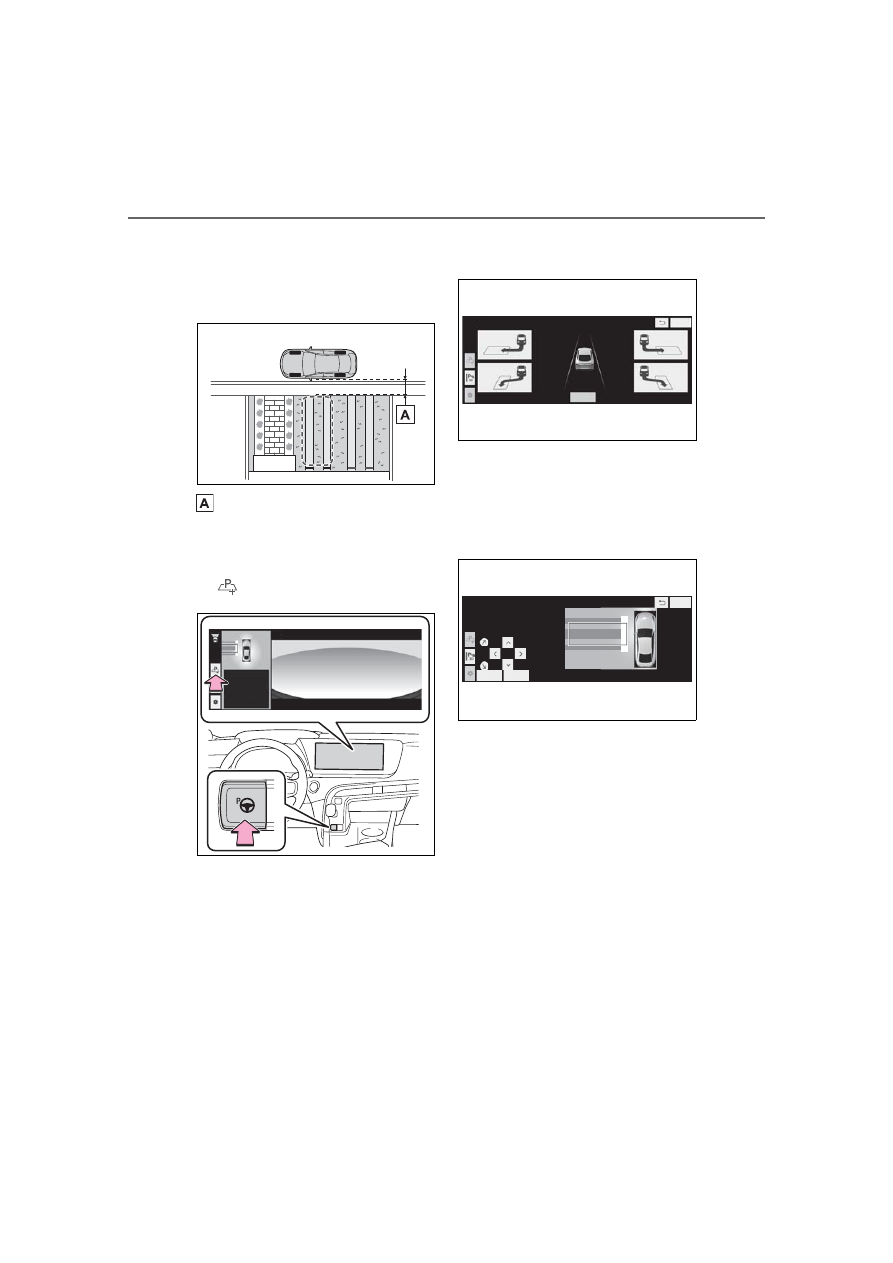

Registering a parking space

1

Stop the vehicle at a position
perpendicular to the center of
the target parking space.

3.3 ft. (1 m)

2

Press the Advanced Park
main switch and then select

.

3

Select the parking position
and direction of the space.

4

Using the arrow buttons,
adjust the position of the
parking space to be regis-
tered, and then select “OK”
button.

5

Select “Start” button.

A buzzer will sound, an operation

message will be displayed on the

multi-information display, and assis-

tance will begin operating.
If it seems that the vehicle is

approaching too close to a sur-

rounding vehicle, object, person, or

299

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

gutter:



P.300



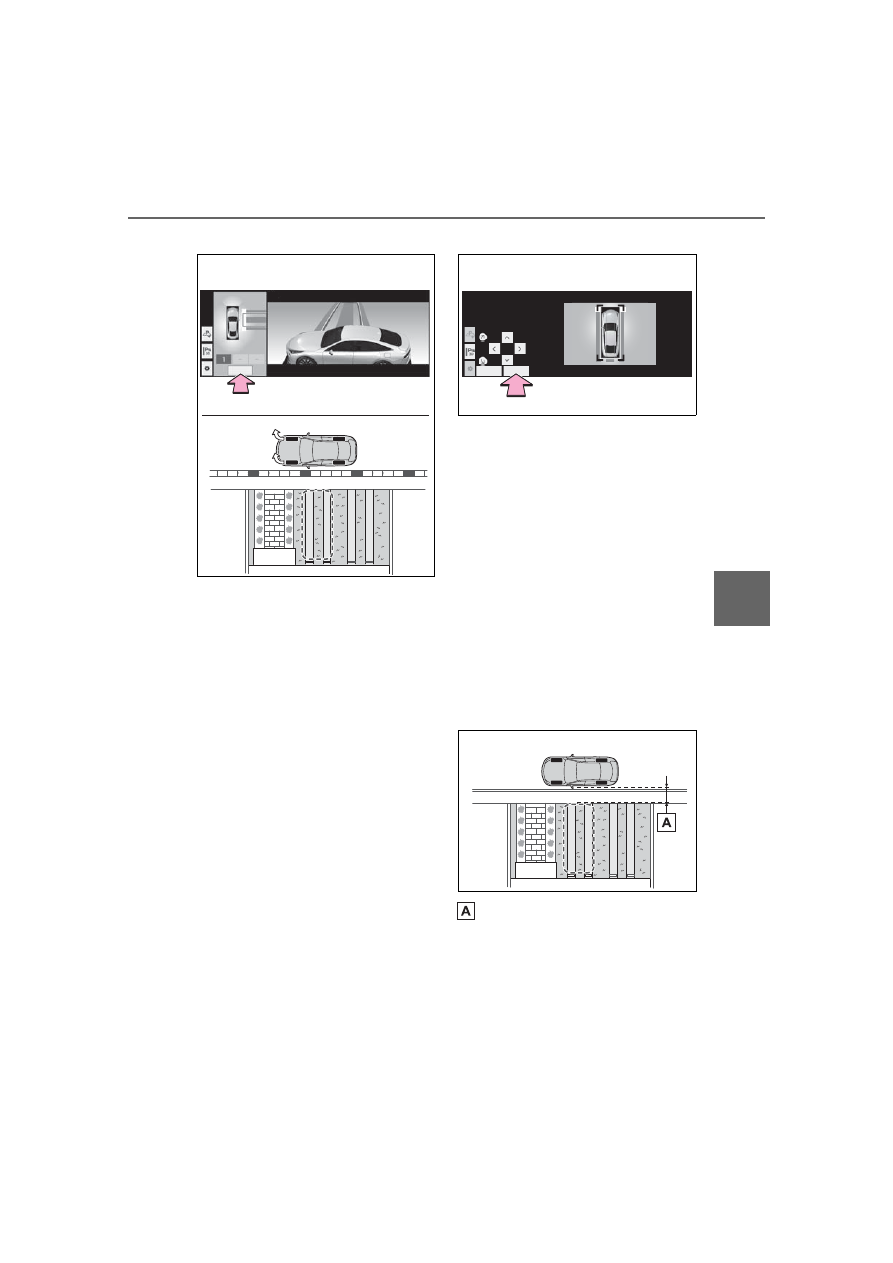

When the brake pedal is
released, “Moving Forward...”
will be displayed and the vehi-
cle will begin moving forward.

6

Perform operations as indi-
cated by the advice displays
until the vehicle stops in the
target parking space.

7

Check the position that the
vehicle has stopped. If nec-
essary, adjust the position of
the parking spot to be regis-
tered using the arrow but-
tons, and then select
“Registration” button.

“Registration Completed” will be

displayed on the multimedia dis-

play.



Register the parking space
only if there are no obstruc-
tions within the area shown by
the thick lines.



The amount that the position
of the parking spot to be reg-
istered can be adjusted is lim-
ited.

■

When parking in a parking
space registered to the
memory function

1

Stop the vehicle at a position
perpendicular to the center of
the target parking space.

3.3 ft. (1 m)

2

Press the Advanced Park
main switch and check that a
possible parking space is dis-

300

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

played on the multimedia dis-
play.

3

If the “MODE” button is dis-
played, select it to change to
the memory function.

4

Select the desired parking
space, and then select “Start”
button.

Perform the procedure for the
perpendicular parking function
from step

3

. (



P.290)

■

If it seems that the vehicle is

approaching too close to a sur-

rounding vehicle, object, per-

son, or gutter

Depress the brake pedal to stop the

vehicle and then change the shift

position to change the direction of

travel of the vehicle. At this time,

assist will be suspended. However,

if the “Start” button is selected,

assist will resume and the vehicle

will move in the direction corre-

sponding to the selected shift posi-

tion.

■

When overwriting a registered

parking space

If the maximum number of parking
spaces have been registered and

 is selected, a registered parking

space can be selected and then
overwritten with a new parking
space.

■

When multiple parking spaces

are registered

Select the desired parking space,

and then select “Start” button.

NOTICE

■

When using the memory

function

●

The memory function is a func-

tion which provides assistance

in parking in a previously regis-

tered parking space. If the con-

dition of the road surface,

vehicle, or surrounding area dif-

fers from when registration was

performed, the parking space

may not be able to be detected

correctly or assistance may not

be provided to the point that the

vehicle is fully parked.

●

Do not register a parking space

in situations such as the follow-

ing, as the set parking space

may not be able to be registered

or assistance may not be possi-

ble later.

• When a camera lens is dirty

301

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

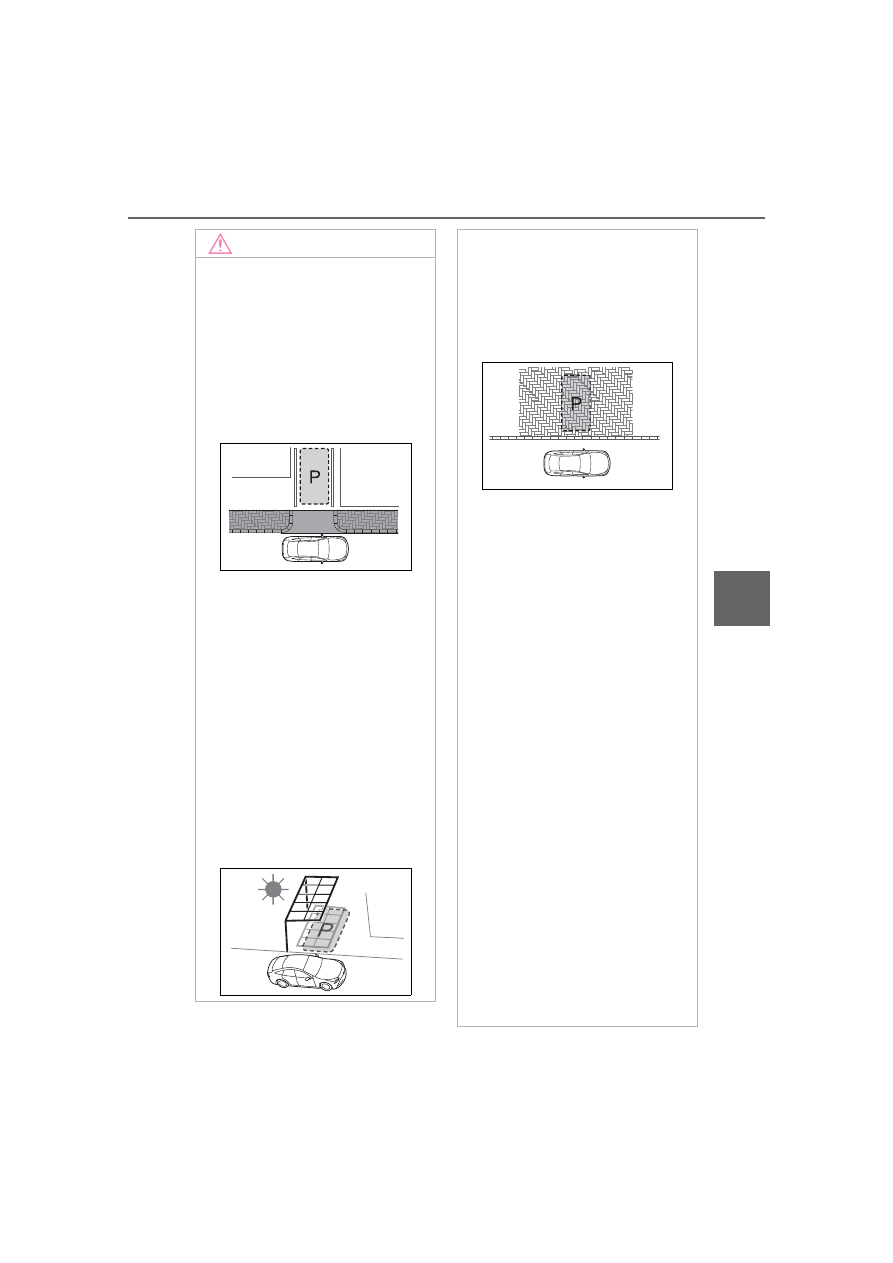

NOTICE

• When it is raining or snowing

• During night (if the surrounding

area is not sufficiently illumi-

nated)

●

In situations such as the follow-

ing, it may not be possible to

register a parking space.

• When there is a sidewalk in

front of the parking space

• When there is insufficient space

between the road and parking

space

• When the road surface around

the parking space does not

have any differences the

Advanced Park can recognize

●

If a parking space has been reg-

istered in situations such as the

following, assistance may not

be able to started later or assis-

tance to the registered position

may not be possible.

• When shadows are cast on the

parking space (there is a carport

over the parking space, etc.)

• When there are leaves, gar-

bage, or other objects which will

likely move, in the parking

space

• When the road surface around

the parking space has the same

repeating pattern (brick, etc.)

●

In situations such as the follow-

ing, it may not be possible for

the Advanced Park to provide

assistance to a registered park-

ing spot:

• When shadows are cast on the

parking space

• When an object is detected in

the registered parking space

• When a pedestrian or passing

vehicle is detected during assis-

tance

• When the position the vehicle is

stopped when assistance is

started differs from the position

when registration was per-

formed

• When the registered parking

space cannot be reached due to

the existence of parking blocks,

etc.

• When the road surface around

the parking space has changed

(road surface has degraded or

been resurfaced)

• When the sunlight conditions

differ from when registration

was performed (due to weather

or time of day)

302

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

The following messages will be
displayed on the multimedia dis-
play in the following cases when
the Advanced Park cannot oper-

ate, or operation is canceled or
suspended. Perform the appro-
priate corrective action accord-
ing to the message displayed.

■

When the Advanced Park
cannot operate

NOTICE

• When a bright light is shined on

the parking space

• When a light is temporarily

shined on the parking space

(lights of another vehicle, secu-

rity light, etc.)

• When a camera lens is dirty or

covered with water droplets

If assistance is ended during reg-

istration, perform registration

again.

●

When registering a parking

space to the memory function, if

the road surface cannot be

detected “No available parking

space to register” will be dis-

played.

●

When using the memory func-

tion, make sure to stop immedi-

ately in front of the stop

position. Otherwise the parking

space may not be able to be

detected correctly and assis-

tance may not be provided to

the point that the vehicle is fully

parked.

●

Do not use the memory function

if a camera has been subjected

to a strong impact or images of

the panoramic view monitor are

misaligned.

●

If a camera has been replaced,

as the installation angle of the

camera will have changed, it will

be necessary to register parking

spaces of the memory function.

Displayed messages

Message

Condition/Correc-

tive Action

“Advanced
Park malfunc-
tion. Visit your
dealer.”

The Advanced
Park may be mal-
functioning



Turn the power

switch off and
then start the fuel
cell system again.
If the message is
displayed again,
have the vehicle
inspected by your
Toyota dealer.

“Parking brake
is applied”

The Advanced
Park main switch
was pressed with
the parking brake
engaged



Release the

parking brake and
then press the
Advanced Park
main switch again.

“Remove dirt
from camera”

A camera lens is
covered with ice,
snow, mud, etc.
(Camera being
displayed on the
multimedia dis-
play)



Remove the ice,

snow, mud, etc.

303

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

“Advanced
Park unavail-
able”

The Advanced
Park temporarily
cannot be used



Wait for a while

before attempting
to use the
Advanced Park.

“Side mirrors
are retracted”

The Advanced
Park main switch
was pressed with
the outside rear
view mirrors
folded



Extend the out-

side rear view mir-
rors and then
press the
Advanced Park
main switch again.

“Door is open”
“Trunk is open”

The Advanced
Park main switch
was pressed with
a door or the trunk
open



Close the door

or trunk and then
press the
Advanced Park
main switch again.

Message

Condition/Correc-

tive Action

“Seatbelt is
unfastened”

The Advanced
Park main switch
was pressed with
the driver’s seat
belt unfastened



Fasten the

driver’s seat belt
and then press
the Advanced
Park main switch
again.

“Brake pedal is
not pressed”

The Advanced
Park main switch
was pressed while
the brake pedal
was not
depressed



Press the

Advanced Park
main switch with
the brake pedal
depressed.

“Vehicle not
stopped”

The Advanced
Park main switch
was pressed while
the vehicle was
moving



Press the

Advanced Park
main switch with
the vehicle
stopped.

Message

Condition/Correc-

tive Action

304

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

“Steering wheel
was operated
manually”

The Advanced
Park main switch
was pressed while
the steering wheel
was being oper-
ated



Press the

Advanced Park
main switch while
resting your hands
on the steering
wheel without
applying any
force.

“Accelerator
pedal was
pressed”

The Advanced
Park main switch
was pressed while
the accelerator
pedal was
depressed



Press the

Advanced Park
main switch with
the accelerator
pedal released.

“Shift position
was changed
manually”

The shift position
was changed and
the Advanced
Park could not
begin operating



Change the

shift position back
to the previous
position and then
press the
Advanced Park
main switch to
turn on.

Message

Condition/Correc-

tive Action

“Operation
timed out”

A certain amount
of time has
elapsed since the
Advanced Park
main switch was
pressed



Press the

Advanced Park
main switch again
to turn on.

“Advanced
Park switch
pushed”

The Advanced
Park main switch
was pressed and
was turned off



Press the

Advanced Park
main switch again
to turn on.

“Unavailable.
Steep slope.”

The Advanced
Park main switch
was pressed while
on a steep slope



As it is danger-

ous to use
Advanced Park on
a steep slope,
move the vehicle
to a level area
before using it.

Message

Condition/Correc-

tive Action

305

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

“No available
parking space”

The Advanced
Park main switch
was pressed in a
location where a
parking space
cannot be
detected



Assistance can-

not be performed
when a parking
space cannot be
detected. Move
the vehicle to a
location where a
parking space or
parking lines can
be detected
before using the
Advanced Park.

“Unavailable.
Road too nar-
row.”
“Unavailable.
Road ahead
too narrow.”

The Advanced
Park main switch
was pressed at a
narrow parking
space



Assistance can-

not be performed
for narrow park-
ing spaces. Move
the vehicle to a
wider parking
space before
using the
Advanced Park-
ing.

Message

Condition/Correc-

tive Action

“Unavailable in
current condi-
tion”

The Advanced
Park main switch
was pressed in a
location where
cannot be used



Move the vehi-

cle to a location
where a parking
space or parking
lines can be
detected before
using the
Advanced Park.

“Narrow park-
ing space”

The Advanced
Park main switch
was pressed at a
parking space that
is too narrow for
the vehicle



Assistance can-

not be performed
when a parking
space cannot be
detected. Move
the vehicle to a
location where a
parking space or
parking lines can
be detected
before using the
Advanced Park.

Message

Condition/Correc-

tive Action

306

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

“Not enough
space to exit”

The Advanced
Park main switch
was pressed to
depart from a par-
allel parking
space when the
space in front of
and behind the
vehicle is small



Departure

assistance can-
not be performed
when the space in
front of and
behind your vehi-
cle is small.
Check the safety
of the area around
your vehicle and
depart from the
parking space
manually.

Message

Condition/Correc-

tive Action

“Unavailable.
Obstacle
nearby.”

The Advanced
Park main switch
was pressed to
depart from a par-
allel parking
space when an
object is detected
near the side of
the vehicle



Departure

assistance can-
not be performed
when an object is
detected near the
side of the vehi-
cle. Check the
safety of the area
around your vehi-
cle and depart
from the parking
space manually.

Message

Condition/Correc-

tive Action

307

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

When operation has been
canceled

Message

Condition/Cor-

rective Action

“Door is open”

A door was
opened while
assistance was
being performed



Close the door

and then operate
the Advanced
Park again.

“Seatbelt is
unfastened”

The driver’s seat
belt was unfas-
tened while
assistance was
being performed



Fasten the

driver’s seat belt
and then operate
the Advance
Park again.

“Parking brake is
applied”

The parking
brake was
engaged while
assistance was
being performed



Release the

parking brake
and then operate
the Advance
Park again.

“Unavailable.
Obstacle
nearby.”

An object
entered the trav-
eling direction of
the vehicle



Move the

object or use the
Advanced Park
in a location free
of obstructions

“Advanced Park
malfunction.
Press brake
pedal.”

The Advanced
Park may be
malfunctioning



Depress the

brake pedal and
stop the vehicle
in a safe loca-
tion.

“Cannot control
speed”

The Advanced
Park was oper-
ated on a slope
or location with
differences in
height and the
vehicle speed
can no longer be
controlled



Use the

Advanced Park
in a level loca-
tion.

“Operation timed
out”

A certain amount
of time has
elapsed since
assistance
began



Perform the

operation again
from the begin-
ning.

Message

Condition/Cor-

rective Action

308

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

■

When operation has been
suspended

“Side mirrors are
retracted”

The outside rear
view mirrors
were folded
while assistance
was being per-
formed



Extend the

outside rear view
mirrors and then
select “Start” but-
ton to start assis-
tance again.

“Press brake
pedal firmly”

The assist can-
not be canceled
if the brake is not
firmly depressed.



Continue step-

ping on the
brake more than
the usual time.

Message

Condition/Cor-

rective Action

Message

Condition/Cor-

rective Action

“Steering wheel
was operated
manually”

Force was
applied to the
steering wheel
while assistance
was being per-
formed



Stop the vehi-

cle and select
“Start” button
while resting
your hands on
the steering
wheel without
applying any
force to start
assistance
again.

“Accelerator
pedal was
pressed”

The accelerator
pedal was
depressed while
assistance was
being performed



Release the

accelerator
pedal and then
select “Start” but-
ton to start assis-
tance again.

“Shift position
was changed
manually”

A shift position
was selected
when assistance
was being per-
formed



Select “Start”

button to start
assistance
again.

309

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

When a parking space can-
not be registered

■

If a black screen is displayed on

the multimedia display when

the Advanced Park is operating

The multimedia system or

Advanced Park is being affected by

radio waves or may be malfunction-

ing. If a radio antenna is installed

near a camera, move it to a location

as far from the cameras as possible.

If a radio antenna is not installed

near a camera, and the screen does

not return to normal after turning the

power switch off and then starting

the fuel cell system again, have the

vehicle inspected by your Toyota

dealer.

For details on the following,
refer to “Panoramic view moni-
tor” of “Peripheral monitoring
system” in the “NAVIGATION
AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.



Displayable range of the
screens



Cameras



Differences between dis-
played images and the actual
road



Differences between dis-
played images and the actual
objects

■

Situations in which white
parking space box may not
be recognized properly

In situations such as the follow-
ing, parking space box on the
road surface may not be
detected:



When the parking space does
not use white lines (parking
space boundaries are marked
with rope, blocks, etc.)



When the parking space box
are faded or dirty, making
them unclear



When the road surface is
bright, such as concrete, and
the contrast between it and
the white parking space box is
small



When the parking space box
are any color other than yel-
low or white



When the area surrounding
the parking space is dark,
such as at night, in an under-
ground parking lot, parking
garage, etc.



When it is raining or has
rained and the road surface is
wet and reflective or there are

Message

Condition/Cor-

rective Action

“No available
parking space to
register”

 was selected

at a parking
space that can-
not be detected



Operate the

Advanced Park
at a parking
space where the
road surface can
be recognized

Precautions for use

310

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

puddles



When the sun is shining
directly into a camera, such
as in the early morning or
evening



When the parking space is
covered with snow or de-icing
agent



When there marks from
repairs or other marks on the
road surface, or there is a traf-
fic bollard, or other object on
the road surface



When the color or brightness
of the road surface is uneven



When a camera has been
splashed by hot or cold water
and the lens has fogged up



When the appearance of the
parking space is affected by
the shadow of the vehicle or
trees



When a camera lens is dirty
or covered with water droplets

In situations such as the follow-
ing, the target parking space
may not be recognized cor-
rectly:



When there marks from
repairs or other marks on the
road surface, or there is a
parking block, traffic bollard,
or other object on the road
surface



When it is raining or has
rained and the road surface is
wet and reflective or there are

puddles



When the color or brightness
of the road surface is uneven



When the parking space is on
a slope



When the appearance of the
parking space is affected by
the shadow of a parked vehi-
cle or trees (such as shadows
from the grille, side step, etc.,
of a parked vehicle)



When the parking space box
are faded or dirty, making
them unclear



When the appearance of the
parking space is affected by
the shadow of the vehicle or
trees

■

Cameras and sensors

Cameras and sensors are used
to detect parked vehicles, mak-
ing it easier to identify parking
spaces.



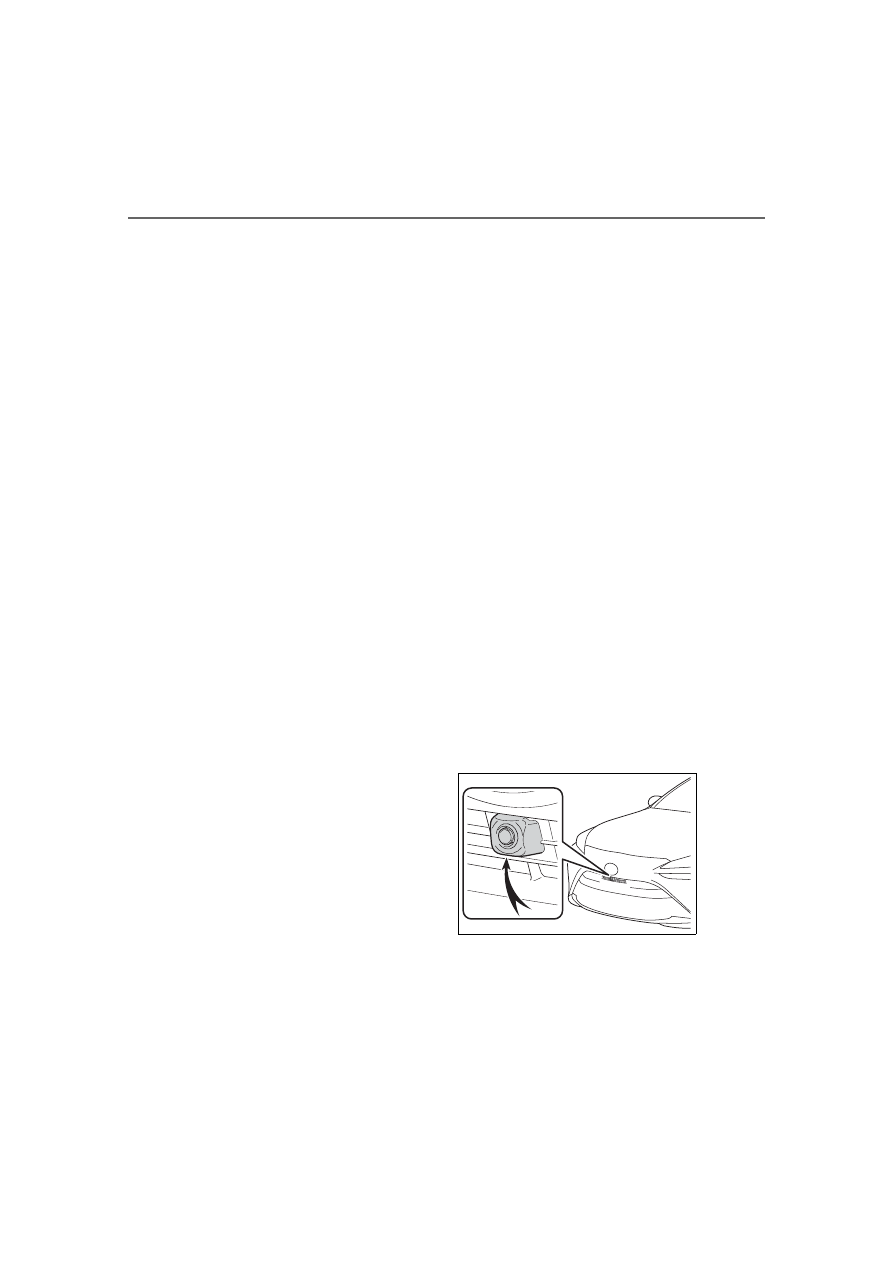

Front camera

311

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing



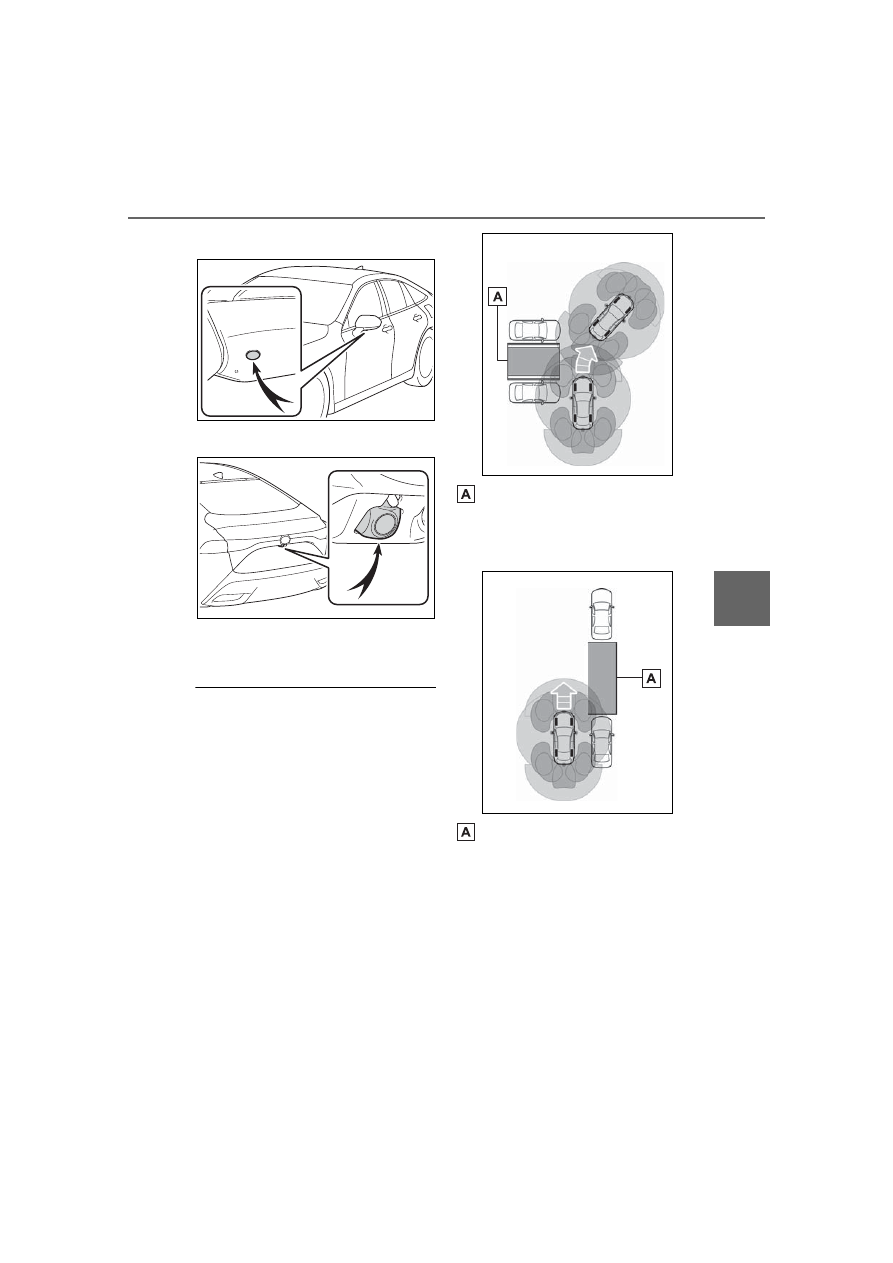

Side cameras



Rear camera



Sensors



P.254

■

Camera images

As special cameras are used, the

colors in displayed images may dif-

fer from the actual color.

■

Detection range of the sensors

●

Detection range of the sensors

when using the perpendicular

parking function

Target parking space position

●

Detection range of the sensors

when using the parallel parking

and departure functions

Target parking space position

●

If a parked vehicle is behind the

target parking space and the dis-

tance between it and the vehicle

becomes far, it may no longer be

able to be detected. Depending on

shape or condition of a parked

vehicle, the detection range may

become short or the vehicle may

not be detected.

●

Objects other than parked vehi-

cles, such as columns, walls, etc.,

may not be detected. Also, if they

312

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

are detected, they may cause the

target parking space to be mis-

aligned.

Select

 on the multimedia

display, and then select
“Advanced Park”.

■

Speed Profile

The vehicle speed for when
parking assistance is performed
can be set.

This setting cannot be changed for
when registering a parking space to
the memory function.

WARNING

■

To ensure the Advanced Park

can operate properly



P.255

In addition, please refer to the

“Panoramic view monitor” of

“Peripheral monitoring system” in

the “NAVIGATION AND MULTI-

MEDIA SYSTEM OWNER’S

MANUAL”.

■

When the sensors do not

operate properly

●

In situations such as the follow-

ing, the sensors may not oper-

ate correctly, possibly leading to

an accident. Proceed carefully.

• When a sensor is frozen.

(Thawing the area will resolve

this problem.) In especially cold

weather, if a sensor is frozen

the screen may show an abnor-

mal display, or parked vehicles

may not be detected.

• When the vehicle is tilted at a

steep angle

• When it is extremely hot or cold

• When driving on rough, sloped,

or gravel roads, or grass

• When ultrasonic waves are

being produced near the vehicle

due to vehicle horns, motorcy-

cle engines, air brakes of large

vehicles, or the sensors of

another vehicle

• When it is raining or a sensor is

splashed by water

• When the area around the vehi-

cle is dark or backlit

• When a fender pole or radio

antenna has been installed to

the vehicle

• When a sensor is extremely

close to a parked vehicle

• When there is a parked vehicle

next to the target parking space,

if the displayed target parking

space is far from the actual tar-

get parking space, a sensor

may be misaligned. Have the

vehicle inspected by your Toy-

ota dealer.

• Do not install any accessories

near the detection area of the

sensors.

●

The Advanced Park will guide

the vehicle to appropriate posi-

tions for changing the direction

of travel, however, if you feel

that the vehicle is approaching

too close to an adjacent parked

vehicle at any time, depress the

brake pedal and change the

shift position. However, if this is

performed, the number of turns

necessary may increase, and

the vehicle may be parked at an

angle.

Changing the settings

313

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

Obstacle Detection Range

The distance from which obsta-
cles will be avoided while park-
ing assistance is being
performed can be set.

■

Preferred Parking Method

The preferred parking direction
displayed when at a parking
space which perpendicular or
parallel parking is possible can
be set.

■

Parking Path Adjustment

The course for when parking
assistance is operating can be
adjusted inward or outward.

If the tires are worn, the path of
vehicle may be offset from the cen-
ter of the parking space. In this
case, use this setting to adjust the
parking course.

■

Road Width Adjustment

The width of the area in which
the vehicle moves when using
parking assistance can be set.

■

Clear Registered Parking
Space

Parking space information regis-
tered to the memory function
can be deleted.

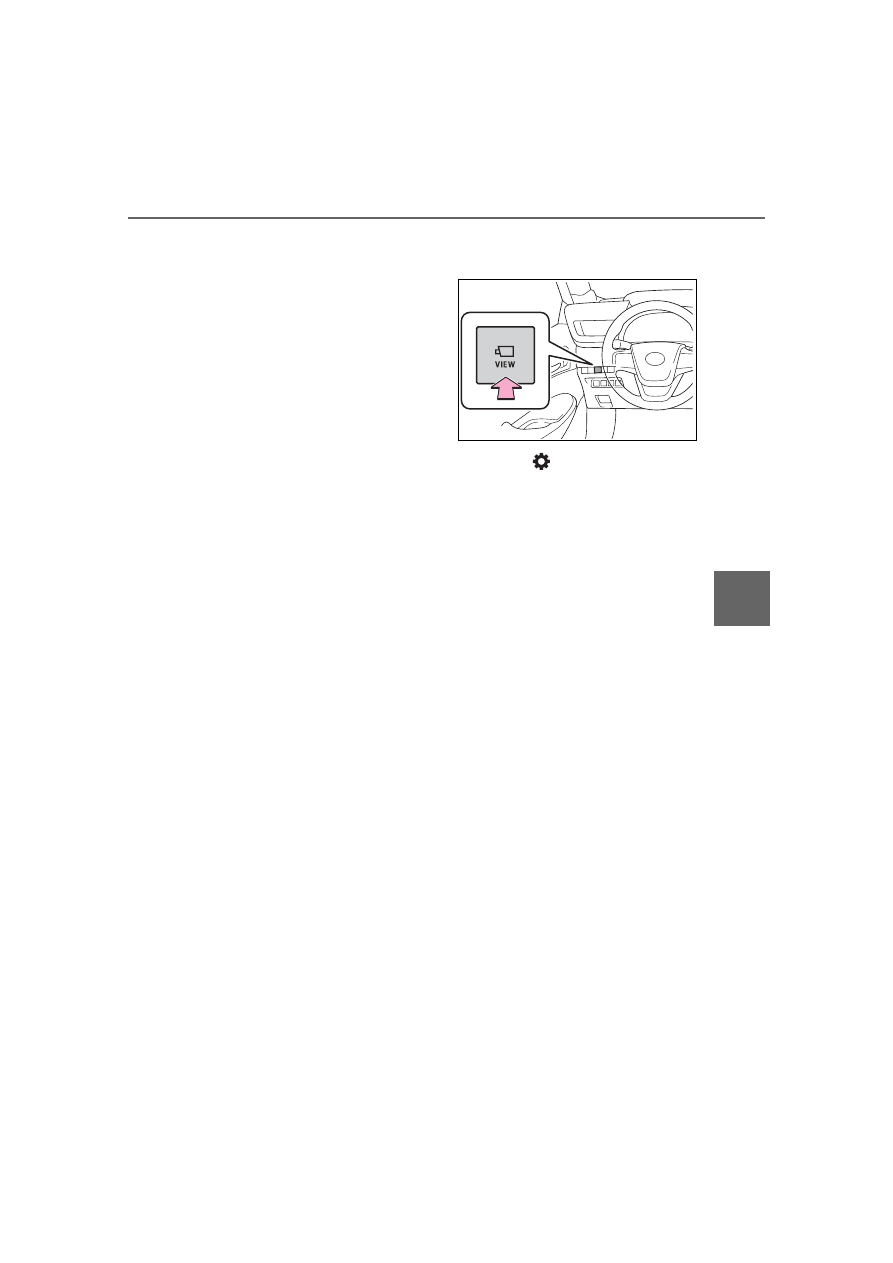

1

With the Advanced Park off,
press the camera switch.

2

Select

 on the multimedia

display, and then select
“Advanced Park”.

3

If “Clear Registered Parking
Space” is selected, the park-
ing spaces registered to the
memory function can be
deleted.

314

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

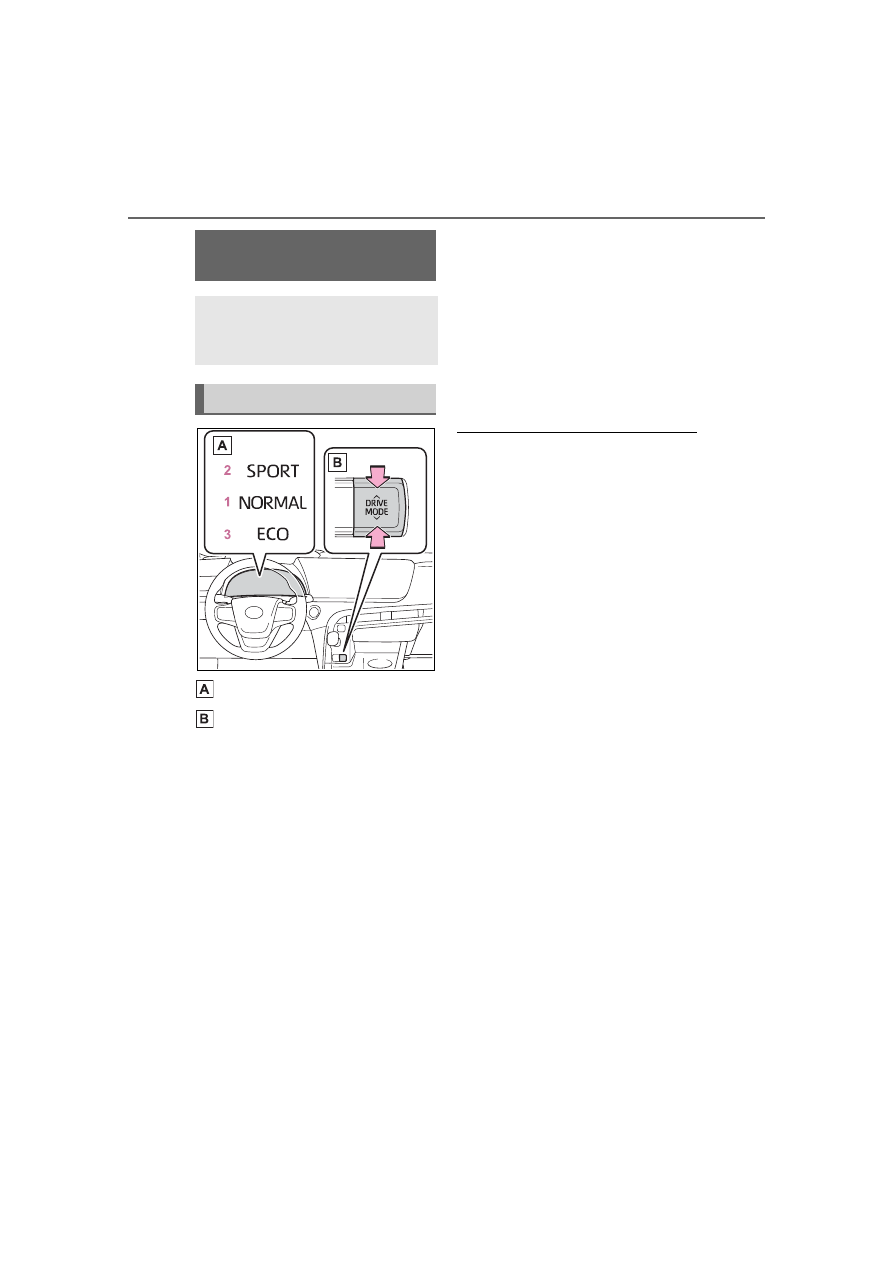

Multi-information display

Driving mode select switch

Driving mode changes if the switch
is pressed.

1

Normal mode

Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for normal
driving.

2

Sport mode

Controls the transmission and fuel
cell system to provide quick, power-
ful acceleration. Making it suitable
for when agile driving response is
desired, such as when driving on
roads with many curves.
When the sport mode is selected,
sport mode indicator comes on.

3

Eco drive mode

Helps the driver accelerate in an
eco friendly manner and improve
fuel economy through moderate
throttle characteristics and by con-
trolling the operation of the air con-
ditioning system (heating/ cooling).
When the Eco drive mode is
selected, Eco drive mode indicator
comes on.

■

Operation of the air condition-

ing system in Eco drive mode

Eco drive mode controls the heat-

ing/ cooling operations and fan

speed of the air conditioning system

to enhance fuel efficiency. To

improve air conditioning perfor-

mance, perform the following opera-

tions:

●

Turn off eco air conditioning mode

(



P.328)

●

Adjust the fan speed (



P.328)

●

Turn off Eco drive mode

■

Automatic deactivation of sport

mode

If the power switch is turned off after

driving in sport mode, the drive

mode will be changed to normal

mode.

Driving mode select

switch

The driving modes can be
selected to suit driving con-
dition.

Selecting a drive mode

315

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

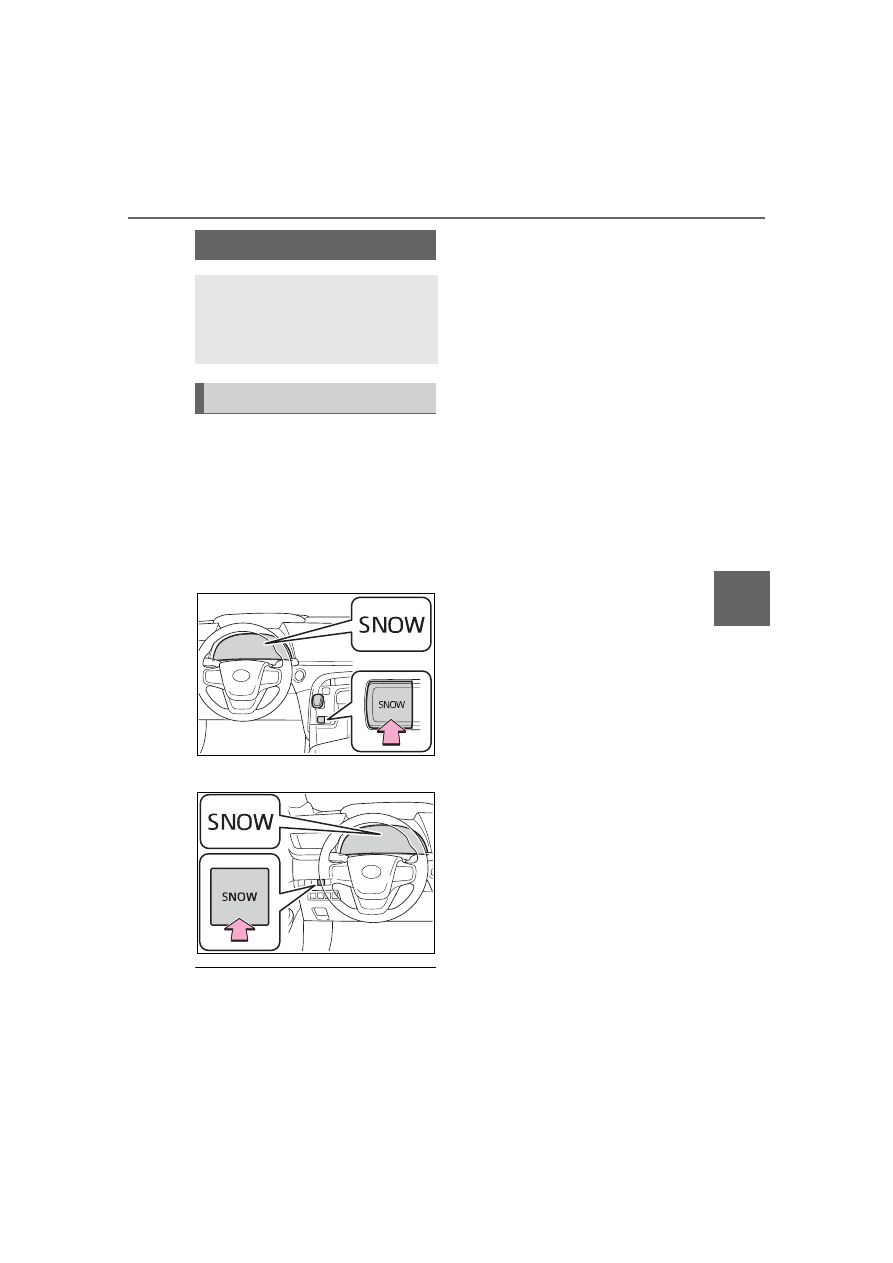

Press the snow mode switch

When the switch is pressed, snow
mode turns on and the snow mode
indicator illuminates on the multi-
information display. When the
switch is pressed again, the snow
mode indicator turns off.



Type A



Type B

■

Snow mode automatic deactiva-

tion

Snow mode is automatically deacti-

vated if the power switch is turned

off after driving in snow mode.

Snow mode

Snow mode can be selected
to suit the conditions when
driving on slippery road sur-
faces, such as on snow.

System operation

316

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

■

ECB (Electronically Con-
trolled Brake System)

The electronically controlled
system generates braking force
corresponding to the brake
operation

■

ABS (Anti-lock Brake Sys-
tem)

Helps to prevent wheel lock
when the brakes are applied
suddenly, or if the brakes are
applied while driving on a slip-
pery road surface

■

Brake assist

Generates an increased level of
braking force after the brake
pedal is depressed when the
system detects a panic stop sit-
uation

■

VSC (Vehicle Stability Con-
trol)

Helps the driver to control skid-
ding when swerving suddenly or
turning on slippery road sur-
faces.

■

TRAC (Traction Control)

Helps to maintain drive power
and prevent the drive wheels
from spinning when starting the
vehicle or accelerating on slip-
pery roads

■

Active Cornering Assist
(ACA)

Helps to prevent the vehicle
from drifting to the outer side by
performing inner wheel brake
control when attempting to
accelerate while turning

■

Hill-start assist control

Helps to reduce the backward
movement of the vehicle when
starting on an uphill

■

EPS (Electric Power Steer-
ing)

Employs an electric motor to
reduce the amount of effort
needed to turn the steering
wheel.

■

VDIM (Vehicle Dynamics
Integrated Management)

Provides integrated control of
the ABS, brake assist, TRAC,
VSC, hill-start assist control and
EPS systems
Helps to maintain vehicle stabil-
ity when swerving on slippery

Driving assist systems

To keep driving safety and
performance, the following
systems operate automati-
cally in response to various
driving situations. Be
aware, however, that these
systems are supplementary
and should not be relied
upon too heavily when oper-
ating the vehicle.

Summary of the driving
assist systems

317

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

road surfaces by controlling the
brakes, fuel cell system output,
steering assist.

■

The Secondary Collision
Brake

When the SRS airbag sensor
detects a collision and the sys-
tem operates, the brakes and
brake lights are automatically
controlled to reduce the vehicle
speed and help reduce the pos-
sibility of further damage due to
a secondary collision.

■

When the TRAC/VSC/ABS sys-

tems are operating

The slip indicator light will flash

while the TRAC/VSC/ABS systems

are operating.

■

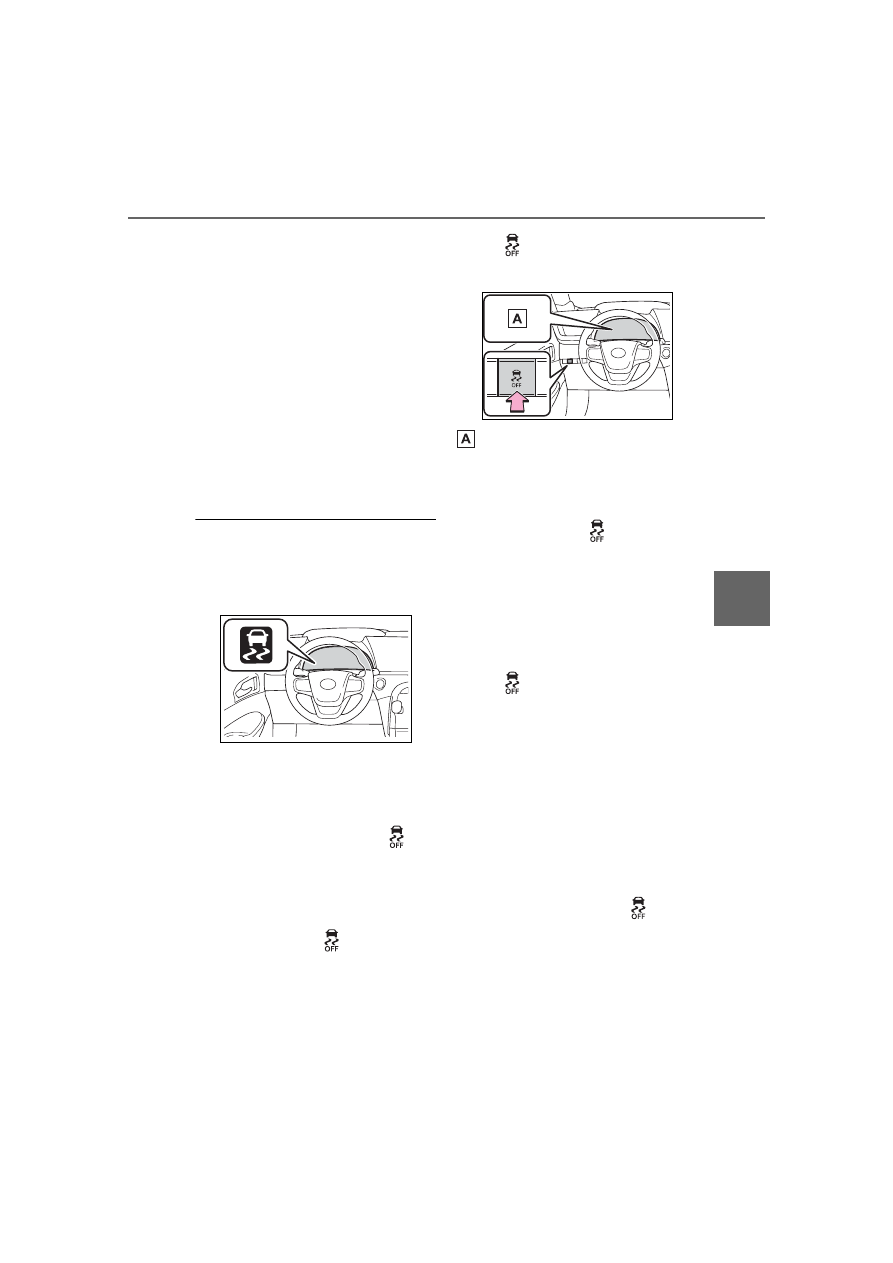

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt
or snow, the TRAC system may
reduce power from the fuel cell sys-
tem to the wheels. Pressing

 to

turn the system off may make it eas-
ier for you to rock the vehicle in
order to free it.
To turn the TRAC system off, quickly
press and release

.

The “Traction Control Turned OFF”
will be shown on the multi-informa-
tion display.

Press

 again to turn the system

back on.

“Traction Control Turned OFF”

■

Turning off both TRAC and VSC

systems

To turn the TRAC and VSC systems
off, press and hold

 for more

than 3 seconds while the vehicle is
stopped.
The VSC OFF indicator light will
come on and the “Traction Control
Turned OFF” will be shown on the
multi-information display.

*

Press

 again to turn the system

back on.

*

: PCS will also be disabled (only

Pre-Collision warning is avail-
able). The PCS warning light will
come on and a message will be
displayed on the multi-information
display. (



P.222, 446)

■

When the message is dis-
played on the multi-information
display showing that TRAC has
been disabled even if

 has

not been pressed

TRAC is temporary deactivated. If

the information continues to show,

contact your Toyota dealer.

318

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

■

Operating conditions of hill-

start assist control

When the following five conditions

are met, the hill-start assist control

will operate:

●

The shift position is in a position

other than P or N (when stating off

forward/backward on an upward

incline)

●

The vehicle is stopped

●

The accelerator pedal is not

depressed

●

The parking brake is not engaged

●

Power switch is turned to ON

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

Shift the shift position to P or N

●

The accelerator pedal is

depressed

●

The parking brake is engaged

●

2 seconds at maximum elapsed

after the brake pedal is released

●

Power switch is turned to OFF

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

TRAC and hill-start assist con-

trol systems

●

A sound may be heard from the

fuel cell unit compartment when

the brake pedal is depressed

repeatedly, when the fuel cell sys-

tem is started or just after the vehi-

cle begins to move. This sound

does not indicate that a malfunc-

tion has occurred in any of these

systems.

●

Any of the following conditions

may occur when the above sys-

tems are operating. None of these

indicates that a malfunction has

occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

• The brake pedal may pulsate

slightly after the ABS is activated.

• The brake pedal may move down

slightly after the ABS is activated.

■

ECB operating sound

ECB operating sound may be heard

in the following cases, but it does

not indicate that a malfunction has

occurred.

●

Operating sound heard from the

fuel cell unit compartment when

the brake pedal is operated.

●

Motor sound of the brake system

heard from the front part of the

vehicle when the driver’s door is

opened.

●

Operating sound heard from the

fuel cell unit compartment when

one or two minutes passed after

the stop of the fuel cell system.

■

Active Cornering Assist opera-

tion sounds and vibrations

When the Active Cornering Assist is

operated, operation sounds and

vibrations may be generated from

the brake system, but this is not a

malfunction.

■

EPS operation sound

When the steering wheel is oper-

ated, a motor sound (whirring

sound) may be heard. This does not

indicate a malfunction.

■

Automatic reactivation of TRAC

and VSC systems

After turning the TRAC and VSC

systems off, the systems will be

automatically re-enabled in the fol-

lowing situations:

●

When the power switch is turned

off

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases

If both the TRAC and VSC sys-

tems are turned off, automatic re-

enabling will not occur when vehi-

cle speed increases.

319

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

5

Dr

iv

ing

■

Operating conditions of Active

Cornering Assist

The system operates when the fol-

lowing occurs.

●

TRAC/VSC can operate

●

The driver is attempting to accel-

erate while turning

●

The system detects that the vehi-

cle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the fuel

cell system off. The EPS system

should return to normal within 10

minutes.

■

Secondary Collision Brake

operating conditions

The system operates when the SRS

airbag sensor detects a collision

while the vehicle is in motion. How-

ever, the system does not operate in

any of the following situations.

●

When driving at a low speed

●

Components are damaged

■

Secondary Collision Brake

automatic cancelation

The system is automatically can-

celed in any of the following situa-

tions.

●

The vehicle speed has decreased

to a certain speed

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the

road

●

When driving over roads with

potholes or uneven surfaces

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Active Cornering Assist does

not operate effectively when

●

Do not overly rely on Active

Cornering Assist. Active Corner-

ing Assist may not operate

effectively when accelerating

down slopes or driving on slip-

pery road surfaces.

320

5-5. Using the driving support systems

Owners Manual_USA_M62102_en

WARNING

●

When Active Cornering Assist

frequently operates, Active Cor-

nering Assist may temporarily

stop operating to ensure proper

operation of the brakes, TRAC

and VSC.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

●

Unlike the parking brake, hill-

start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the TRAC/ABS/VSC is

activated

The slip indicator light flashes.

Always drive carefully. Reckless

driving may cause an accident.

Exercise particular care when the

indicator light flashes.

■

When the TRAC/VSC systems

are turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC systems off

unless necessary.

■

Secondary Collision Brake

Do not rely solely upon the Sec-

ondary Collision Brake. This sys-

tem is designed to help reduce

the possibility of further damage

due to a secondary collision, how-

ever, that effect changes accord-

ing to various conditions. Overly

relying on the system may result

in death or serious injury.

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.
The ABS, TRAC and VSC sys-

tems will not function correctly if

different tires are installed on the

vehicle.

Contact your Toyota dealer for fur-

ther information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

321

5-6. Driving tips

Owners Manual_USA_M62102_en

5

Dr

iv

ing

5-6.Driving tips



Use washer fluid that is
appropriate to the prevailing
outside temperatures.



Have a service technician
inspect the condition of the
12-volt battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the rear
tires.

Ensure that all tires are the speci-
fied size and brand, and that chains
match the size of the tires.

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Preparation for winter

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the specified size.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden regenerative

braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system.

NOTICE

■

Repairing or replacing snow

tires

Request repairs or replacement of

snow tires from Toyota dealers or

legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

Before driving the vehicle

322

5-6. Driving tips

Owners Manual_USA_M62102_en

is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, vehicle’s roof,
chassis, around the tires or on
the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.

Park the vehicle and shift the
shift position to P without setting
the parking brake. The parking
brake may freeze up, preventing
it from being released. If the
vehicle is parked without setting
the parking brake, make sure to
block the wheels.

Failure to do so may be danger-
ous because it may cause the
vehicle to move unexpectedly,
possibly leading to an accident.

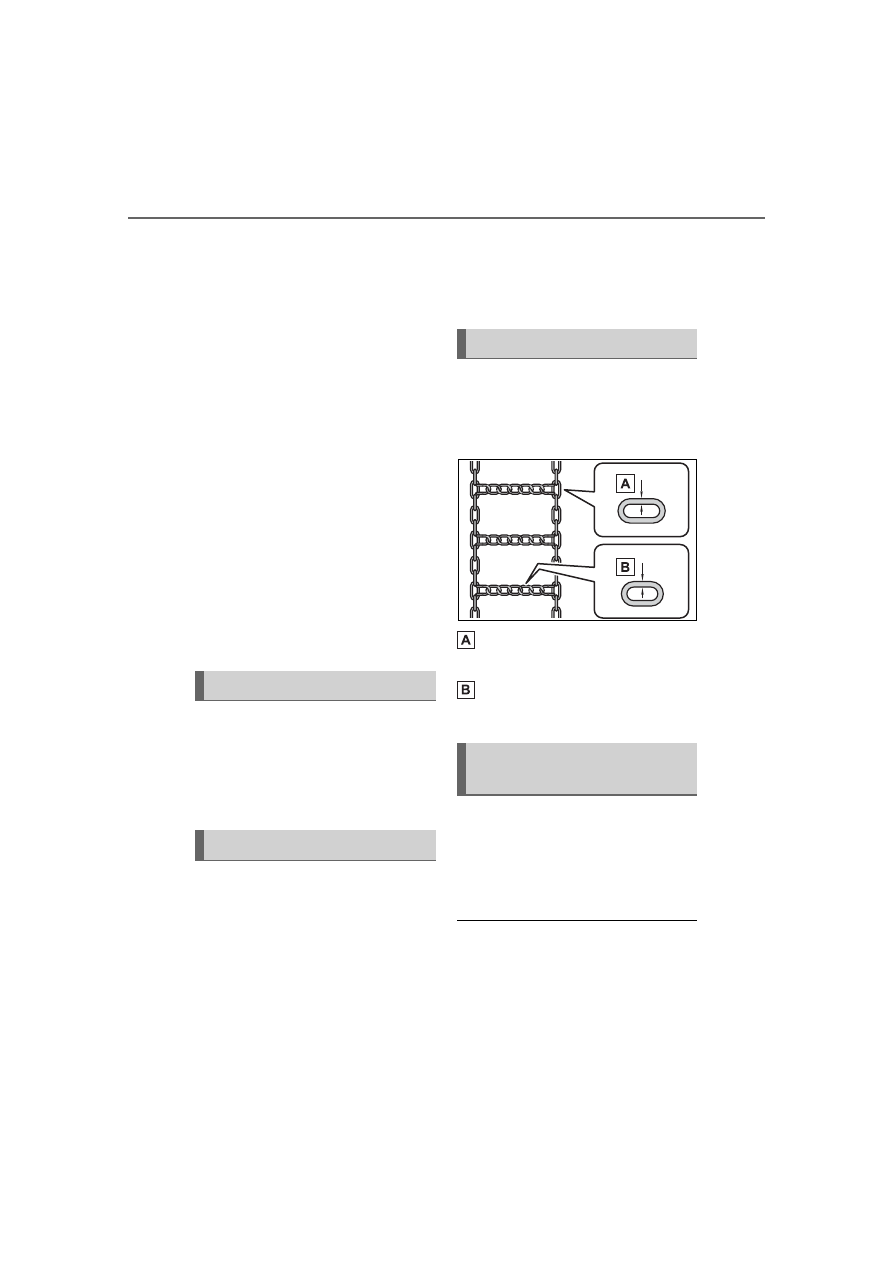

Use the correct tire chain size
when mounting the tire chains.
Chain size is regulated for each
tire size.

Side chain (0.12 in. [3 mm] in
diameter)

Cross chain (0.16 in. [4 mm]
in diameter)

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

When driving the vehicle

When parking the vehicle

Selecting tire chains

Regulations on the use of
tire chains

323

5-6. Driving tips

Owners Manual_USA_M62102_en

5

Dr

iv

ing

●

Install tire chains on the rear tires.

Do not install tire chains on the

front tires.

●

Install tire chains on the rear tires

as tightly as possible. Retighten

chains after driving 1/4



1/2 mile

(0.5



1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

To enable the windshield wipers
to be lifted when heavy snow or
icy conditions are expected,
change the rest position of the
windshield wipers from the
retracted position below the
hood to the service position
using the wiper lever. (



P.201)

NOTICE

■

Fitting tire chains

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

Windshield wipers

324

5-6. Driving tips

Owners Manual_USA_M62102_en

325

Owners Manual_USA_M62102_en

6

6

Interior

 featur

es

Interior features

6-1. Using the air conditioning

system and defogger

ALL AUTO control .......

326

Automatic air conditioning

system (vehicles with 8-
inch display) ..............

327

Automatic air conditioning

system (vehicles with 12.3-
inch display) ..............

334

Rear automatic air condi-

tioning system ...........

343

Heated steering wheel/seat

heaters/seat ventilators

..................................

344

6-2. Using the interior lights

Interior lights list ..........

348

6-3. Using the storage features

List of storage features

351

Trunk features .............

354

6-4. Using the other interior

features

Toyota multi-operation touch

(vehicle with the 12.3-inch
display)......................

355

Electronic sunshade....

357

Other interior features .

358

Garage door opener....

373

326

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6-1.Using the air conditioning system and defogger

*

: If equipped

Select the

 of the Toyota

Multi-Operation Touch, display
the Seat/Steering Climate
Screen and select

.

The indicator on the ALL AUTO
control screen illuminates, and the
automatic air conditioning system,
seat heaters and ventilators, and
heated steering wheel operate in
automatic mode.
If any of the system is operated
manually, the indicator turns off.
However, all other functions con-
tinue to operate in automatic mode.

■

Automatic air conditioning
system (



P.334)

The temperature can be

adjusted independently for each
seat.

■

Seat heaters (if equipped)
and ventilators (if
equipped) (



P.344)

Heating or ventilation is auto-
matically selected according to
the set temperature of the air
conditioning system, the out-
side temperature, etc.

■

Heated steering wheel (if
equipped) (



P.344)

Heated steering wheel operates
automatically according to the
set temperature of the air condi-
tioning system, the outside tem-
perature, etc.

■

Passenger detection functions

When a passenger is detected in

the front passenger seat, the seat

heater and ventilator will operate

automatically.

■

Seat heater (if equipped)/venti-

lator operation (if equipped)

When automatic mode is selected

using the seat heater/ventilator

switch, passenger detection is not

performed.

■

Rear seat heater operation

(vehicles with 3-ZONE climate

control)

The rear seat heaters are not con-

trolled by the ALL AUTO control.

ALL AUTO control

*

The seat heaters, seat venti-
lators and heated steering
wheel (if equipped) are each
automatically controlled
according to the set tem-
perature of the air condi-
tioning system, the outside
and cabin temperature, etc.
ALL AUTO control allows a
comfortable condition to be
maintained without adjust-
ing each system.

Turning on ALL AUTO
control

Operation of each system

327

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

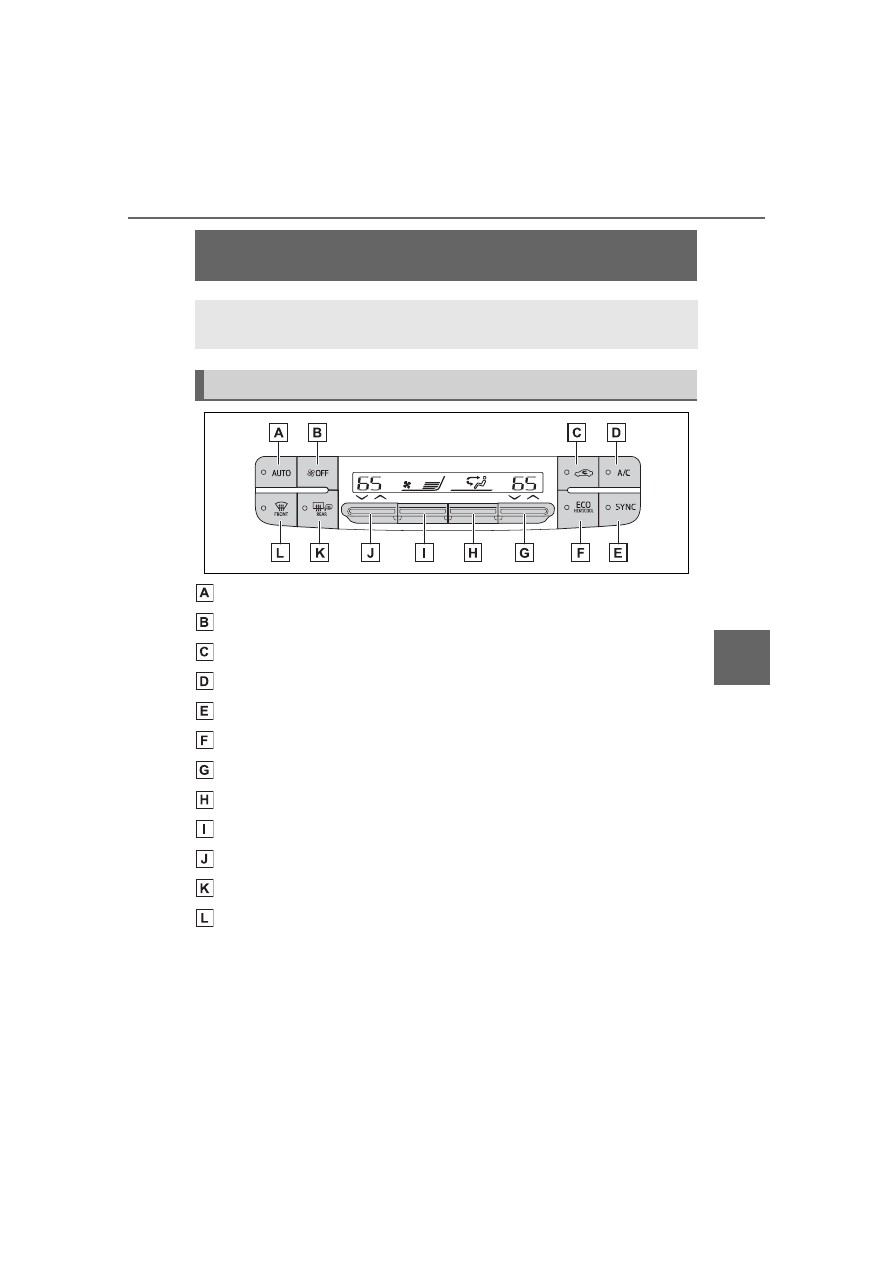

Automatic mode switch

“OFF” switch

Outside/recirculated air mode

“A/C” switch

“SYNC” switch

Eco air conditioning mode switch

Right-hand side temperature control knob

Airflow mode control knob

Fan speed control knob

Left-hand side temperature control knob

Rear window and outside rear view mirror defoggers switch

Windshield defogger switch

■

Adjusting the temperature
setting

Operate the temperature con-
trol knob upwards to increase
the temperature and downwards

to decrease the temperature.

If the “A/C” switch is not pressed,
the system will blow ambient tem-
perature air or heated air.

Automatic air conditioning system (vehicles with

8-inch display)

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

328

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

■

Setting the fan speed

Press the fan speed increase
switch to increase the fan speed
and the fan speed decrease
switch to decrease the fan
speed.

Press the “OFF” switch to turn the
fan off.

■

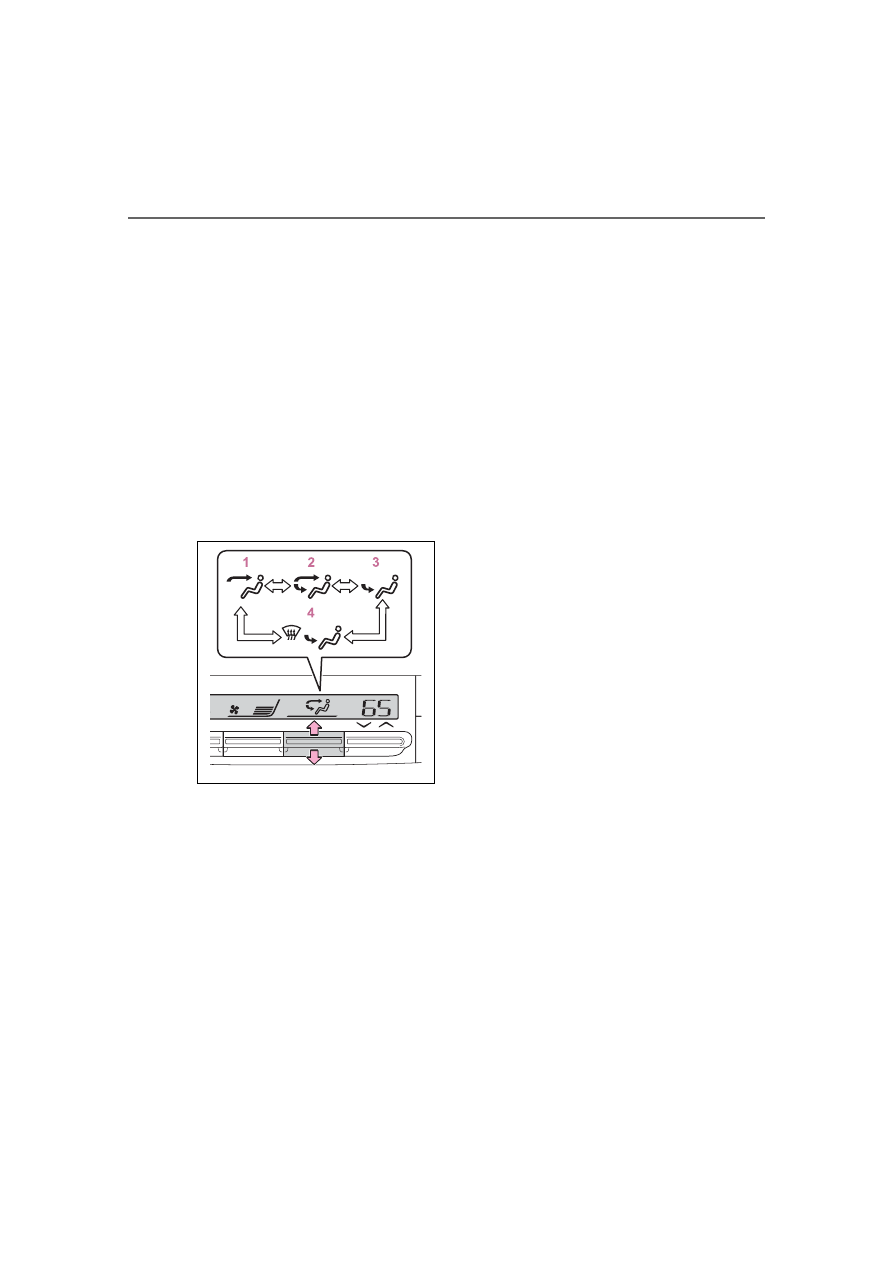

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Air flows to the upper body.

2

Air flows to the upper body
and feet.

3

Air flows to the feet.

4

Air flows to the feet and the
windshield defogger oper-
ates.

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated

air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan
speed, etc.
Press the eco air conditioning
mode switch.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.

329

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch.

The defoggers will automatically
turn off after 15 minutes.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally.

This may also reduce fuel con-

sumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside/recirculated air mode

switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the cooling and

dehumidification function on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn the cooling and dehu-

midification function off, the win-

dows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Fuel cell system and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

330

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.314)

• Turn off Eco air conditioning mode

●

When the driving mode is set to

Eco drive mode, the Eco air condi-

tioning mode will be turned on

automatically. Even in this case,

the Eco air conditioning mode can

be turned off by pressing the Eco

air conditioning mode switch.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

In order to suppress odors that

occur when the air conditioning

system starts, the air flow mode

may change to blow air to the feet

or air may stop blowing for a short

period of time immediately after

the air conditioning system is

started in automatic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.421

■

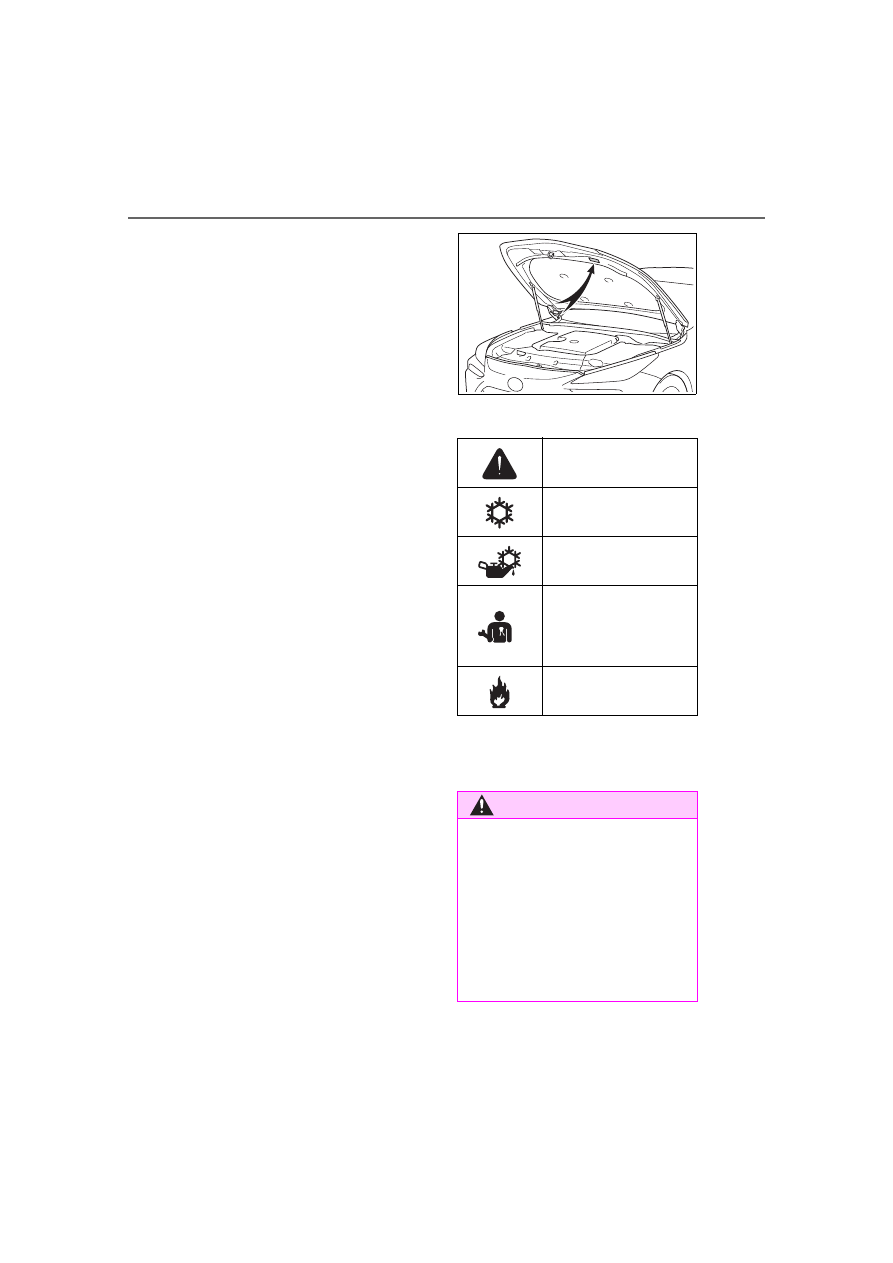

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Customization

Some functions can be customized.

(Customizable features:



P.509)

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

331

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

1

Press the “AUTO” switch.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.

Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

To turn on the “SYNC” mode,
press the “SYNC” switch.

The driver’s side temperature con-
trol knob can be used to adjust the
temperature for the driver’s and
passenger’s side. To enter individ-
ual mode, operate the passenger’s
side temperature control knob or
press the “SYNC” switch again.
When the “SYNC” mode is on, the
indicator illuminates on the “SYNC”
switch.

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the switch to turn the sys-
tem on/off.

The indicator comes on when the
system is on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes.

WARNING

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the fuel cell system is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

Using automatic mode

Adjusting the temperature
for driver and passenger
seats simultaneously
(“SYNC” mode)

Windshield wiper de-icer
(if equipped)

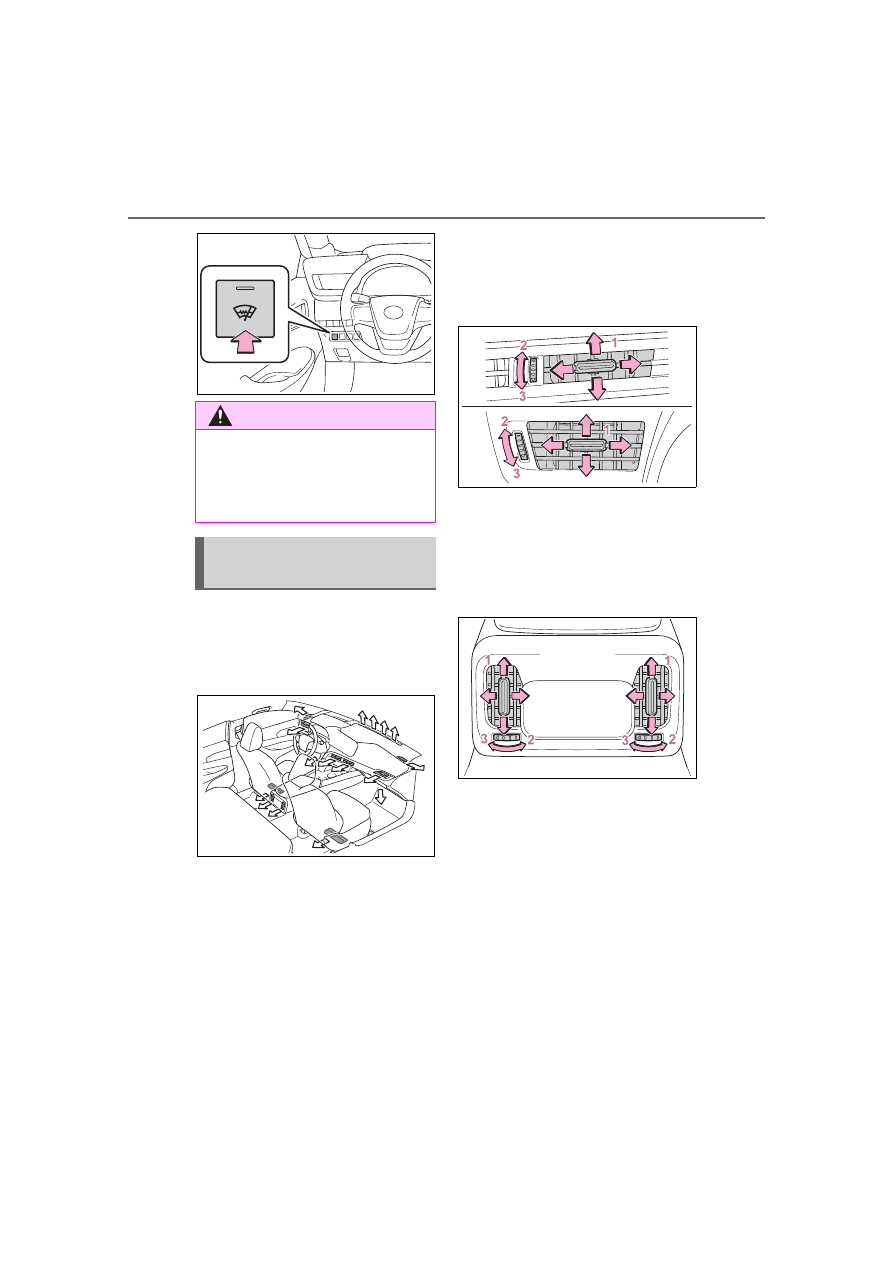

332

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

■

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent



Rear

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

WARNING

■

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper deicer is on.

Air outlet layout and oper-
ations

333

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

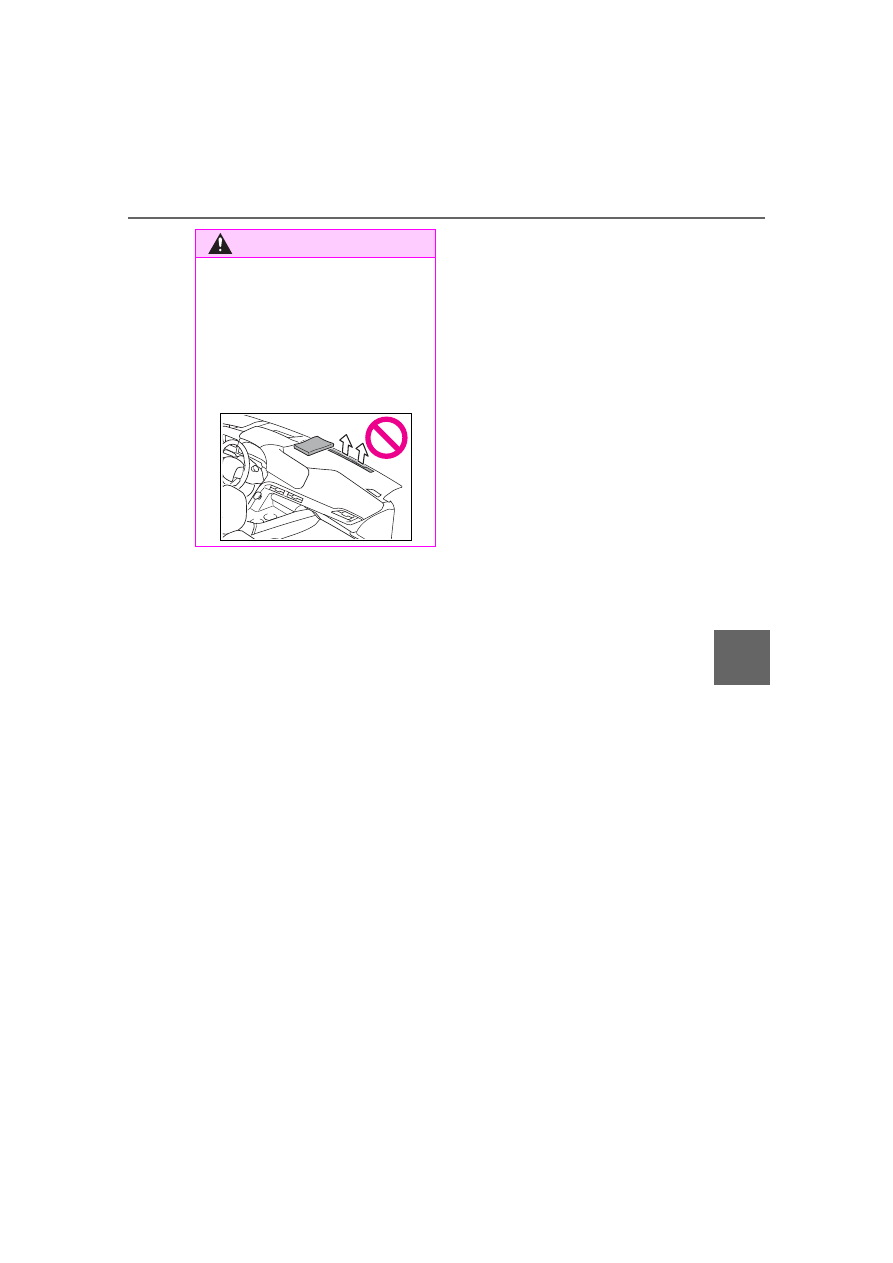

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.
