6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

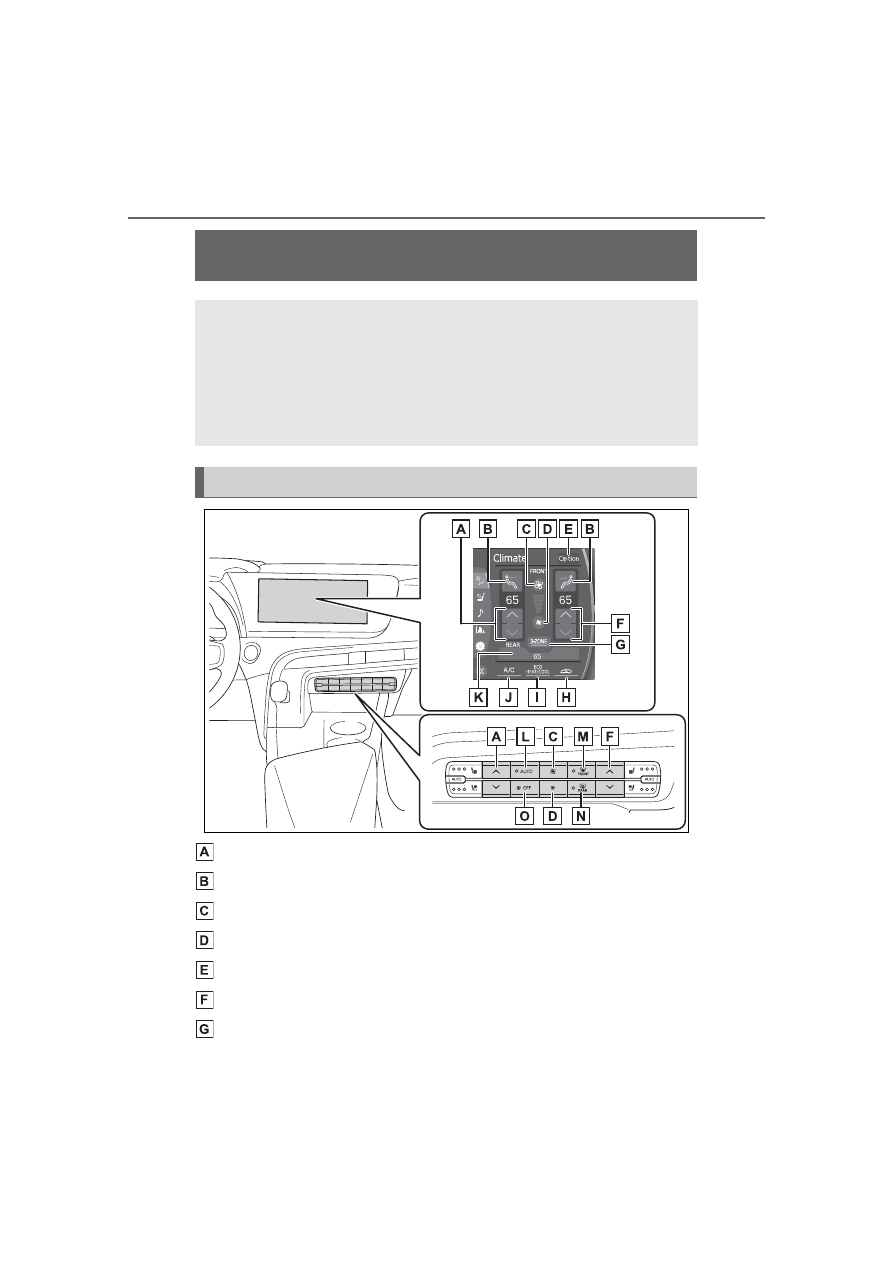

Left-hand side temperature control switches

Airflow mode control switch

Fan speed increase switch

Fan speed decrease switch

“Option” switch

Right-hand side temperature control switches

“SYNC” or “3-ZONE” switch

Automatic air conditioning system (vehicles with

12.3-inch display)

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

The air conditioning system can be operated using the air
conditioning control panel and air conditioning control
screen on the Toyota multi-operation touch.

For details about Toyota multi-operation touch, refer to P.355.

Air conditioning controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

335

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

Outside/recirculated air mode switch

Eco air conditioning mode switch

“A/C” switch

Rear air conditioning control screen select switch

Automatic mode switch

Windshield defogger switch

Rear window and outside rear view mirror defoggers switch

“OFF” switch

Adjusting the temperature
setting

Press

 of the temperature

control switches on the air con-
ditioning control panel or select

 of the temperature control

switches on the air conditioning
control screen to increases the
temperature.

Press

 of the temperature

control switches on the air con-
ditioning control panel or select

 of the temperature control

switches on the air conditioning
control screen to decreases the
temperature.

If the switch is pressed and held or
selected and held, the temperature
will continuously change.
If the indicator on the “A/C” switch
does not illuminate, the system will
blow ambient temperature air or

heated air.

Setting the fan speed

Press the fan speed increase
switch on the air conditioning
control panel or select the fan
speed increase switch on the air
conditioning control screen to
increase the fan speed.
Press the fan speed decrease
switch on the air conditioning
control panel or select the fan
speed decrease switch on the
air conditioning control screen to
decrease the fan speed.

Press the “OFF” switch on the air
conditioning control panel to turn
the fan off.

Change the airflow mode

Select the airflow mode control
switch on the air conditioning
control screen.

The airflow mode changes each
time the switch is selected.

: Air flows to the upper body

: Air flows to the upper body

-------------------------------------------------------------------------------------------------------------------------------------------------------------

336

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

and feet

: Air flows to the feet

: Air flows to the feet and the

windshield defogger operates

Switching between outside
air and recirculated air
modes

Select the outside/recirculated
air mode switch on the air condi-
tioning control screen.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is
selected.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

Set cooling and dehumidifi-
cation function

Select the “A/C” switch on the
air conditioning control screen.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan
speed, etc.
Select the eco air conditioning
mode switch on the air condi-
tioning control screen.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch on the air conditioning
control panel.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch on the air conditioning
control panel.

The defoggers will automatically
turn off after 15 minutes.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view

-------------------------------------------------------------------------------------------------------------------------------------------------------------

337

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

mirror defoggers switch.

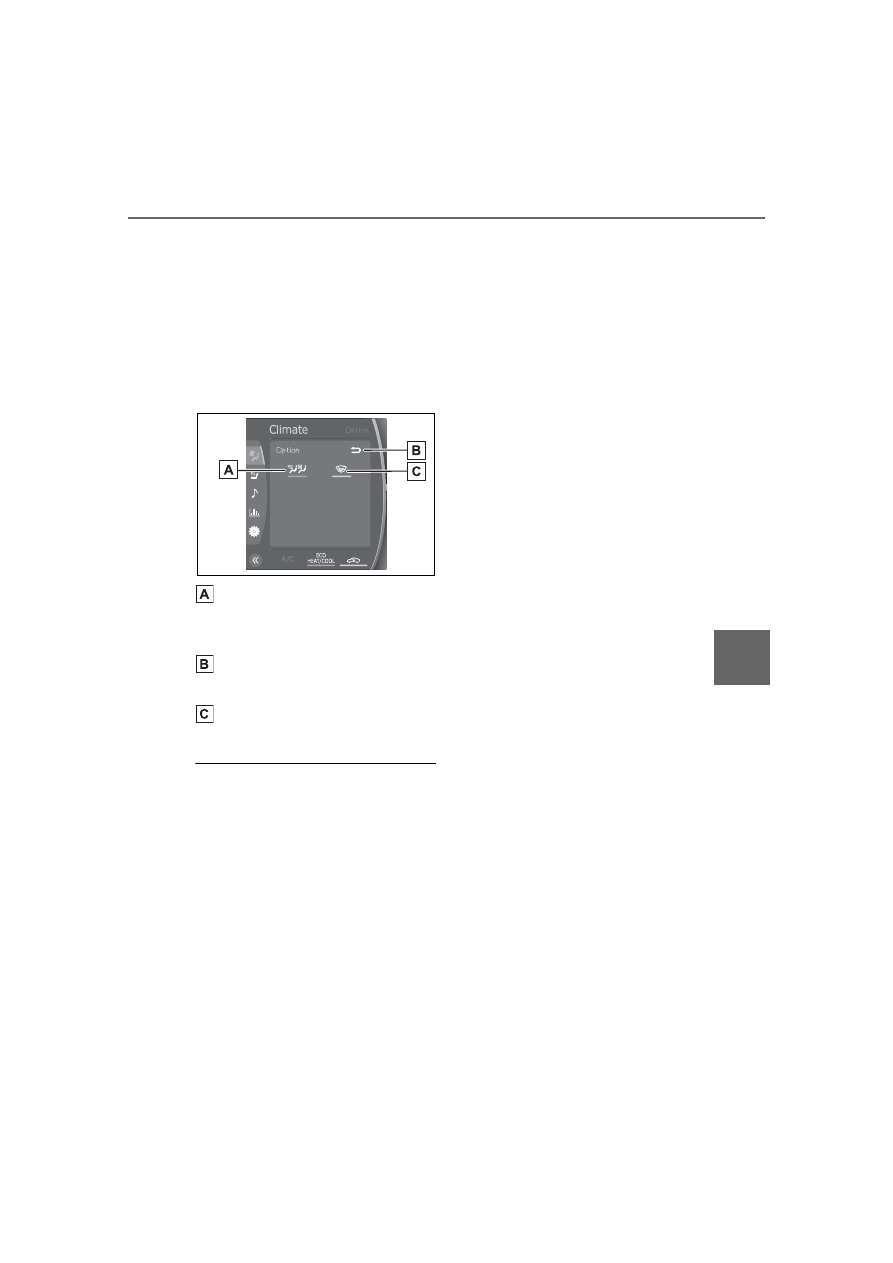

Option control screen

Select the “Option” switch to dis-
play the option control screen.

The functions can be switched on
and off.
When the function is on, the indica-
tor illuminates on the screen.

Front seat concentrated air-
flow mode (S-FLOW)
(

P.340)

Select to display the previous
screen.

Windshield wiper de-icer (if
equipped) (

P.340)

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally.

This may also reduce fuel con-

sumption.

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

It is possible to switch to outside

air mode at any time by selecting

the outside/recirculated air mode

switch.

Fogging up of the windows

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the cooling and

dehumidification function on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

If you turn the cooling and dehu-

midification function off, the win-

dows may fog up more easily.

The windows may fog up if the

recirculated air mode is used.

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

Outside/recirculated air mode

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is selected.

Operation of the air condition-

ing system in Eco drive mode

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Fuel cell system and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

-------------------------------------------------------------------------------------------------------------------------------------------------------------

338

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (

P.314)

• Turn off Eco air conditioning mode

When the driving mode is set to

Eco drive mode, the Eco air condi-

tioning mode will be turned on

automatically. Even in this case,

the Eco air conditioning mode can

be turned off by selecting the Eco

air conditioning mode switch.

When cleaning the air condi-

tioning control panel

Touch switches may respond when

cleaning. Turn the power switch to

OFF before proceeding with clean-

ing.

Ventilation and air conditioning

odors

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

In order to suppress odors that

occur when the air conditioning

system starts, the air flow mode

may change to blow air to the feet

or air may stop blowing for a short

period of time immediately after

the air conditioning system is

started in automatic mode.

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

Air conditioning filter

P.421

Air conditioning system refrig-

erant

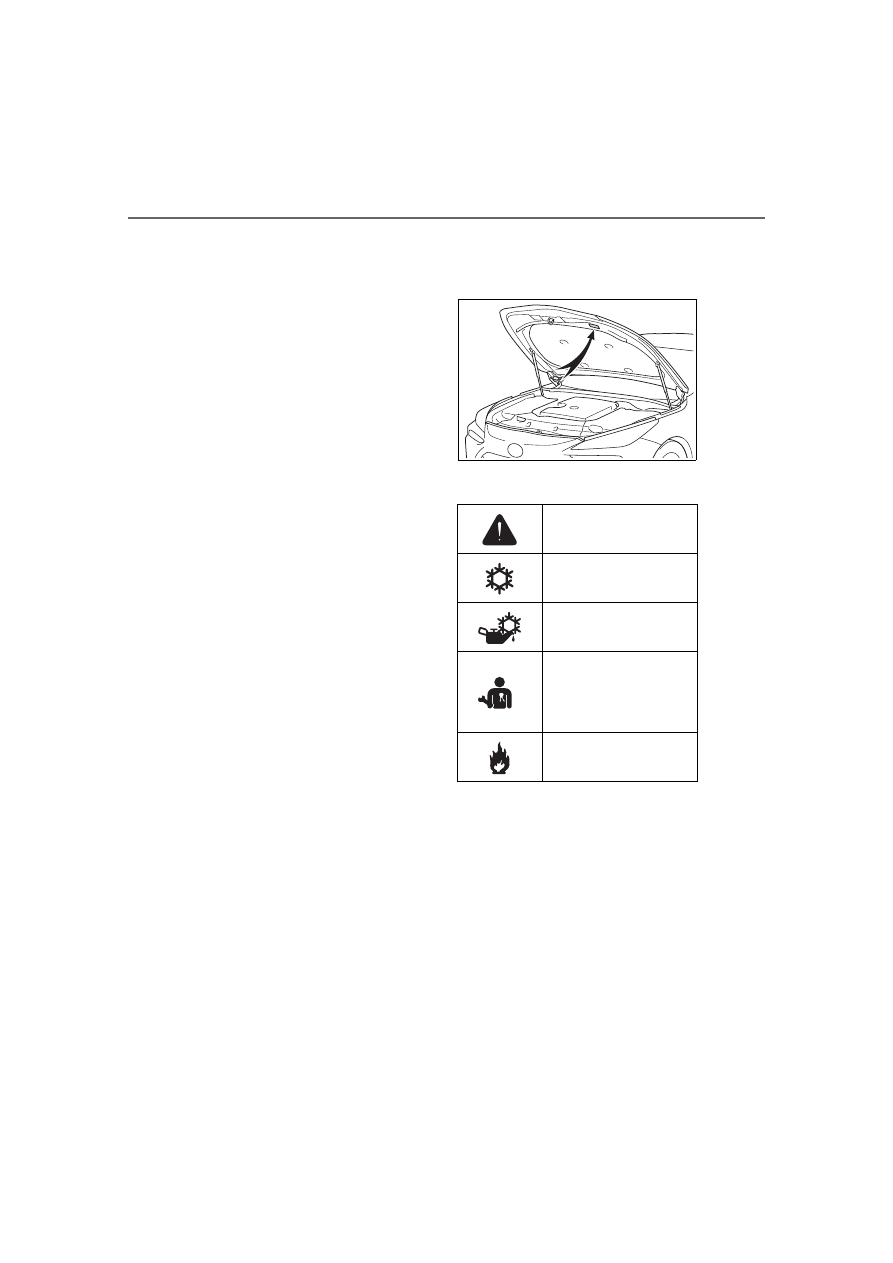

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

The meaning of each symbol on

the label are as follows:

Customization

Some functions can be customized.

(Customizable features:

P.509)

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

-------------------------------------------------------------------------------------------------------------------------------------------------------------

339

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

1

Press the “AUTO” switch on
the air conditioning control
panel.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch on the air
conditioning control panel.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

Vehicles with DUAL-ZONE
climate control

To turn on the “SYNC” mode,
select the “SYNC” switch on the
air conditioning control screen.

The driver’s side temperature con-
trol switches can be used to adjust
the temperature for the driver’s and
passenger’s side. To enter individ-
ual mode, operate the passenger’s
side temperature control switches
or select the “SYNC” switch again.
When the “SYNC” mode is on, the
indicator illuminates on the “SYNC”
switch.

Vehicles with 3-ZONE cli-
mate control

To turn on the “3-ZONE” mode,
select the “3-ZONE” switch on
the air conditioning control
screen.

The driver’s side temperature con-
trol switches can be used to adjust
the temperature for the driver’s and
passenger’s side. To enter individ-
ual mode, operate the passenger’s
side temperature control switches

WARNING

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the fuel cell system is off.

Using automatic mode

Adjusting the temperature
for driver and passenger
seats simultaneously
(“SYNC” mode)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

340

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

or select the “3-ZONE” switch
again.
When the “3-ZONE” mode is on,
the indicator illuminates on the “3-
ZONE” switch.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seats. When the front pas-
senger seat is not occupied, air-
flow may switch to only the
driver’s seat. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.

No passengers are detected
in the rear seats

The windshield defogger is
not operating

While operating,

 illuminates.

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to all
seats can be switched via switch
operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Select

 on the option control

screen of the air conditioning
control screen and switch the
airflow.

Indicator illuminated: Airflow
to the front seats only

Indicator off: Airflow to the all
seats

Operation of automatic airflow

control

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the fuel cell system is

started and at other times depend-

ing on the outside temperature.

After the fuel cell system is

started, if passengers move

around inside or enter/exit the

vehicle, the system cannot accu-

rately detect the presence of pas-

sengers and automatic airflow

control will not operate.

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

To return to automatic airflow

control

1

With the indicator off, turn the

power switch to OFF.

2

After 60 minutes or more elapse,

turn the power switch to ON.

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.

Front seat concentrated
airflow mode (S-FLOW)

Windshield wiper de-icer
(if equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

341

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

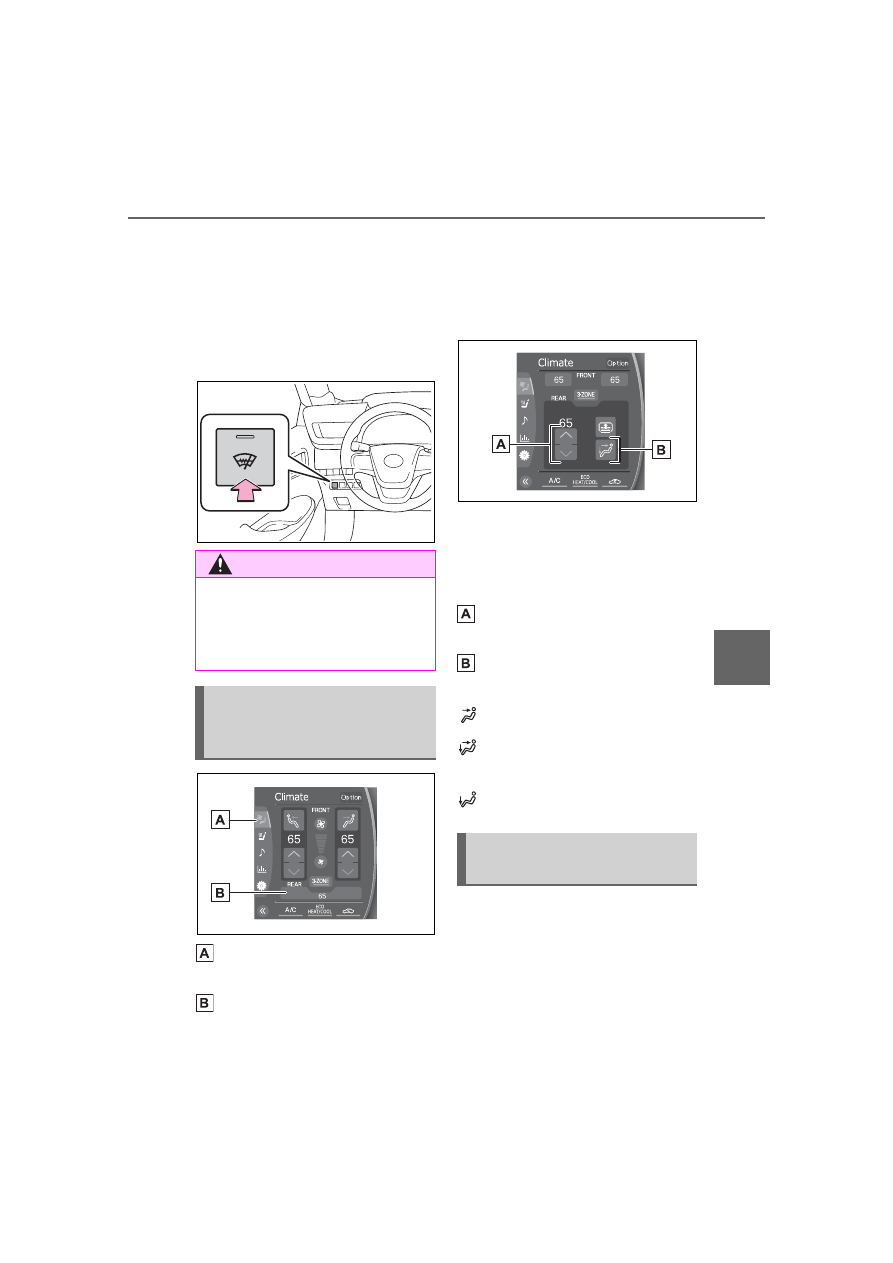

Press the switch to turn the sys-
tem on/off.

The indicator comes on when the
system is on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes.

Air conditioner operation
screen select switch

Rear air conditioning control
screen select switch

Select the air conditioner opera-
tion screen with the Toyota
multi-operation touch, and then
select the rear air conditioner
operation screen.

If you do not operate for more than
20 seconds after switching to the
rear air conditioner operation
screen, it will return to the front air
conditioner operation screen.

Adjust the rear seat tempera-
ture setting

Adjust the rear seat airflow
mode setting

: Air flows to the upper body

: Air flows to the upper body and

feet

: Air flows to the feet

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

WARNING

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper deicer is on.

Rear air conditioning con-
trol screen (Vehicles with
3-ZONE climate control)

Air outlet layout and oper-
ations

-------------------------------------------------------------------------------------------------------------------------------------------------------------

342

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

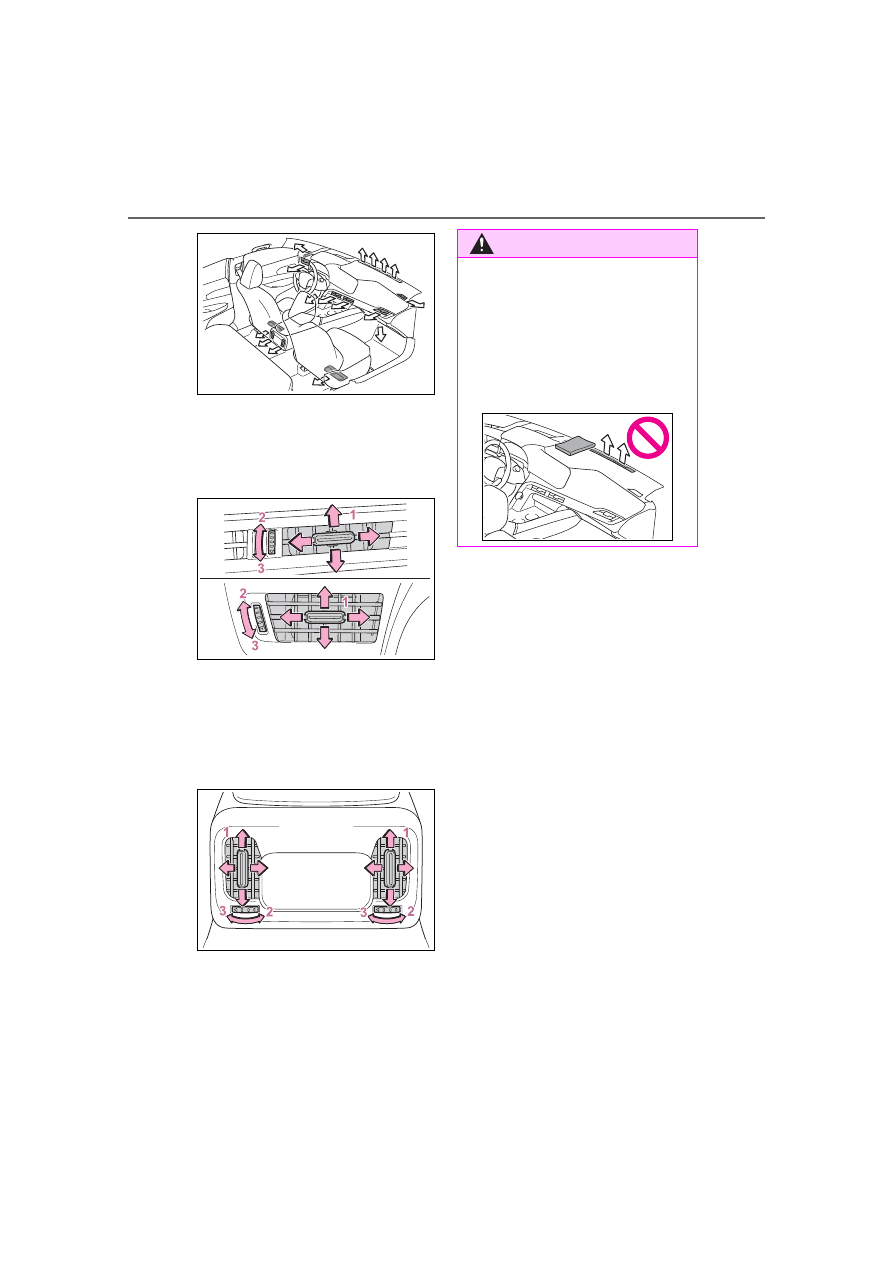

Adjusting the air flow direc-
tion and opening/closing
the air outlets

Front

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

Rear

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

WARNING

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

343

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

*

: If equipped

Rear control panel

Operate the ON/OFF switch for
the rear control panel, and when
the rear control panel is turned
ON, the rear A/C cannot be
operated.
When the front seat A/C is OFF,
the rear A/C cannot be turned
ON independently.

Rear control panel ON/OFF

switch.

Rear seat Airflow mode con-
trol switch

Rear seat temperature con-
trol switch

The temperature setting of the
rear seats can be adjusted using
the following methods:

When the “3-ZONE” indicator
is off: Adjust the driver’s seat
temperature.

Adjust the temperature setting
of rear seat using the Toyota
multi-operation touch (rear air
conditioning control screen)
or rear control panel.

Location of air outlets

The air outlets and air volume
changes according to the
selected air flow mode.

: Air flows to the upper body

: Air flows to the upper body

and feet

: Air flows to the feet

Rear automatic air

conditioning system

*

The air outlets and fan
speed are automatically
adjusted according to the
temperature setting.

Rear air conditioning con-
trol

Adjusting the temperature
setting of the rear seats

Air outlet layout and oper-
ations

-------------------------------------------------------------------------------------------------------------------------------------------------------------

344

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

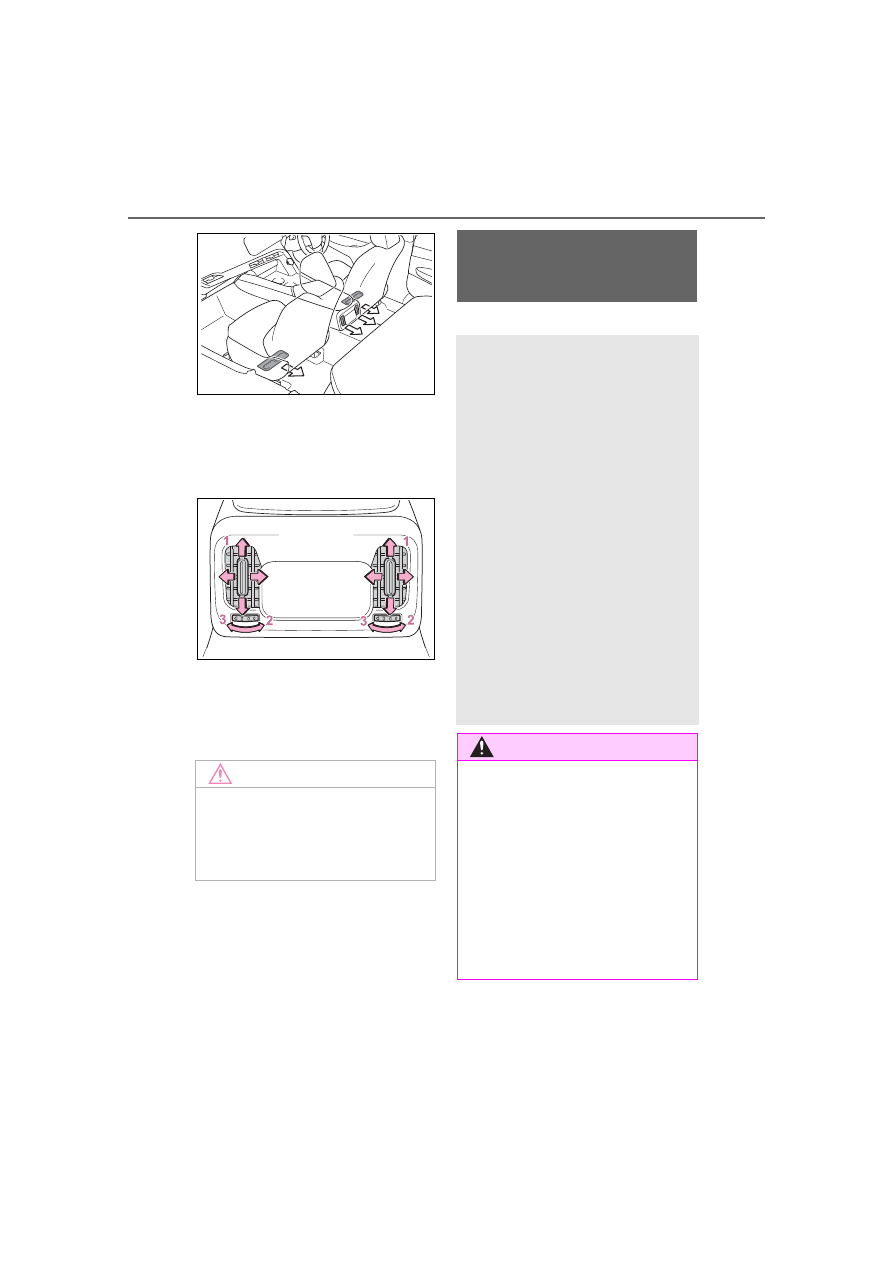

Adjusting the position of
and opening and closing
the air outlets

Rear

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

*

: If equipped

NOTICE

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the fuel cell system is off.

Heated steering

wheel

*

/seat heat-

ers

*

/seat ventilators

*

Heated steering wheel

Warms up the grip of the
steering wheel

Front seat heaters/Rear
seat heaters

Warm up the seat upholstery

Front seat ventilators/Rear
seat ventilators

Maintain good ventilation by
pulling air through the seat
upholstery

It can be operated using the
front air conditioner control
panel and the Toyota multi-
operation touch, as well as
the rear control panel (if
equipped).

WARNING

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

Babies, small children, the

elderly, the sick and the physi-

cally challenged

Persons with sensitive skin

Persons who are fatigued

-------------------------------------------------------------------------------------------------------------------------------------------------------------

345

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

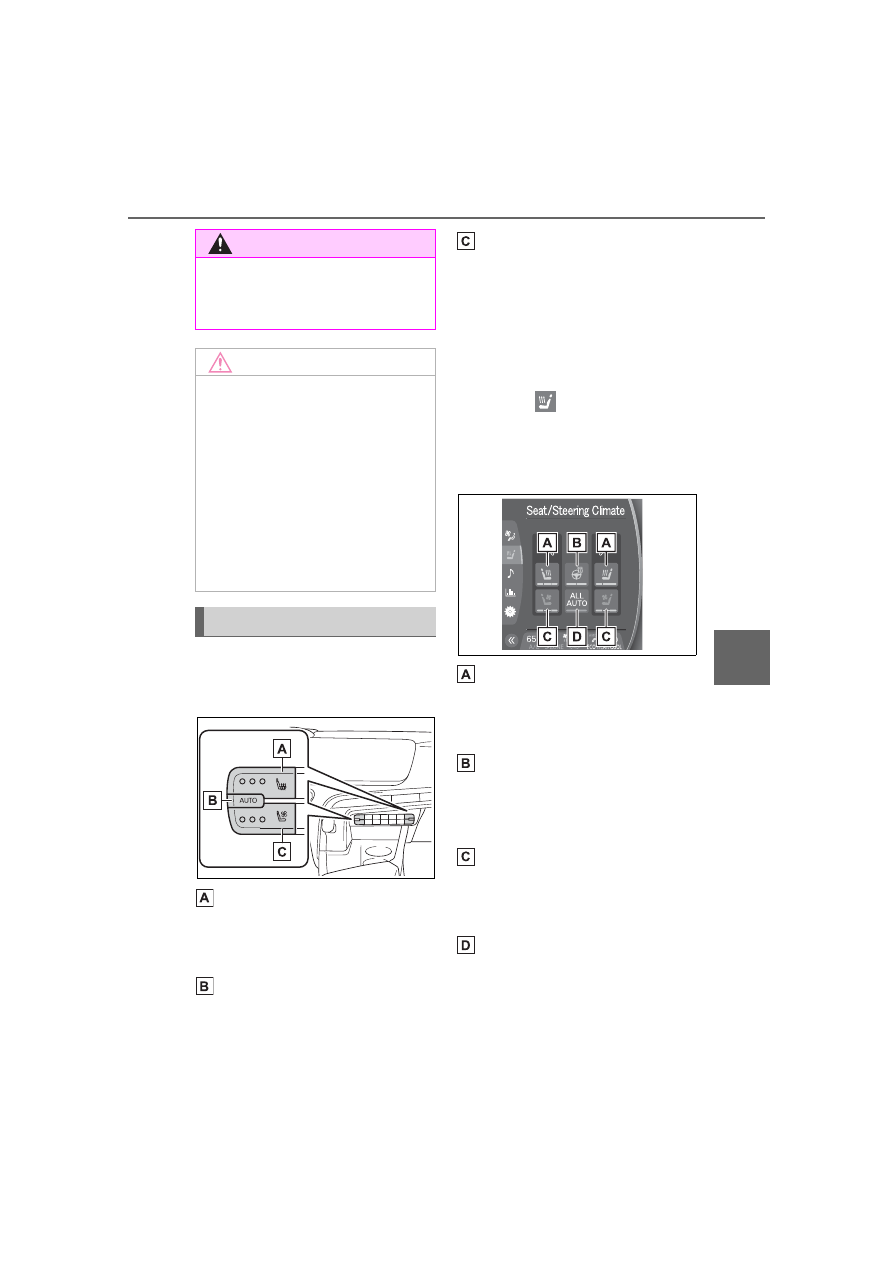

Front (air conditioning con-
trol panel: vehicle with a
12.3-inch display)

Adjust the front seat heater
temperature level

The seat heater can be adjusted in
3 levels. (Low, Mid or Hi)

Seat heater/seat ventilator
auto mode Indicator

Adjust the front seat ventila-
tor fan speed level

The seat ventilator can be adjusted
in 3 levels. (Low, Mid or Hi)

Toyota multi-operation
touch (Vehicle with a 12.3-
inch display)

Select the

 displayed on the

Toyota multi-operation touch
and the Seat/Steering Climate
screen is displayed.

Adjust the seat heater tem-
perature level

The seat heater can be adjusted in
3 levels. (Low, Mid or Hi)

Adjust the heated steering
wheel temperature level

*

The heated steering wheel can be
adjusted in 2 levels. (Low or Hi)

Adjust the seat ventilator fan
speed level

The seat ventilator can be adjusted
in 3 levels. (Low, Mid or Hi)

ALL AUTO control switch

When the ALL AUTO control is on,
the indicator illuminates on the
screen. (

P.326)

WARNING

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

To prevent damage to the

seat heaters and seat ventila-

tors

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

To prevent 12-volt battery dis-

charge

Do not use the functions when the

fuel cell system is off.

Operating instructions

-------------------------------------------------------------------------------------------------------------------------------------------------------------

346

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

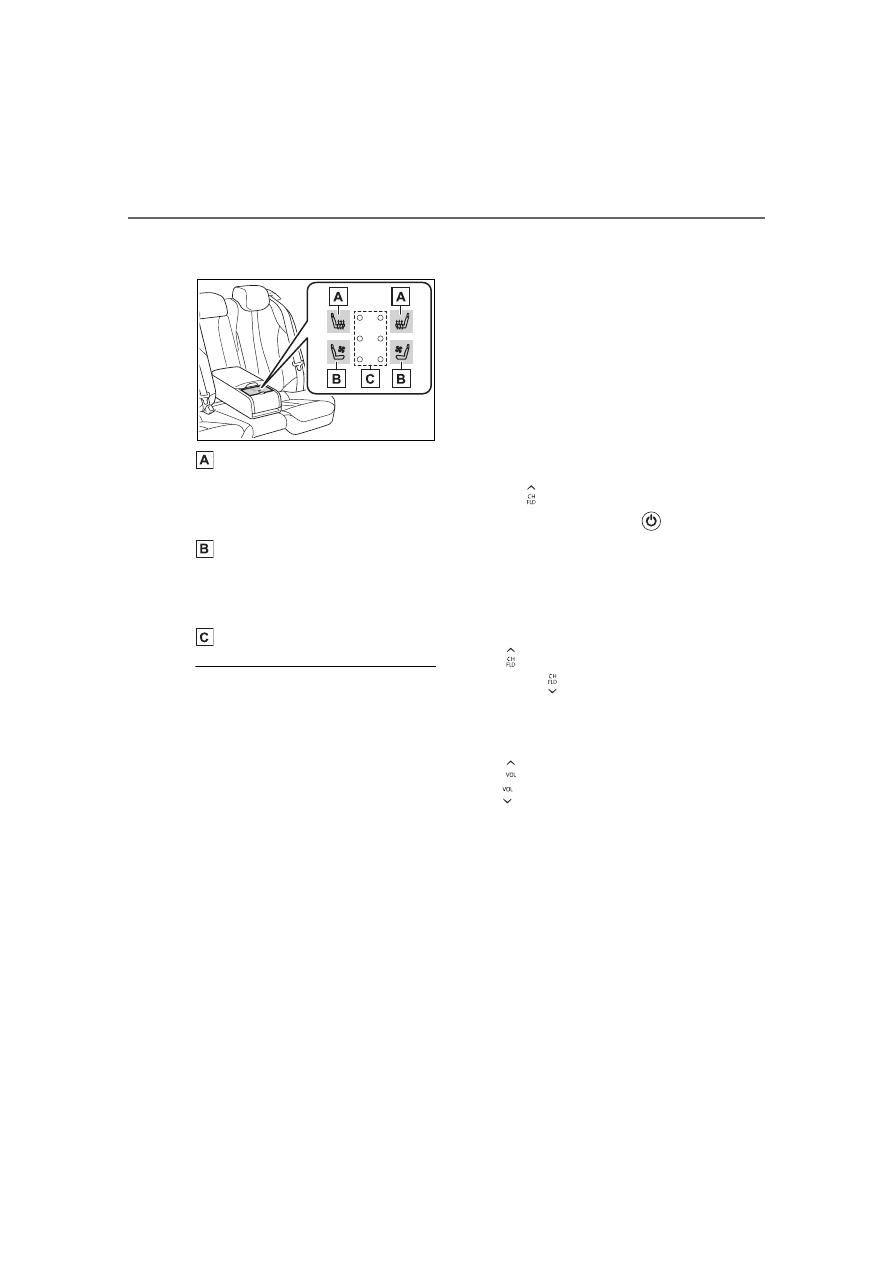

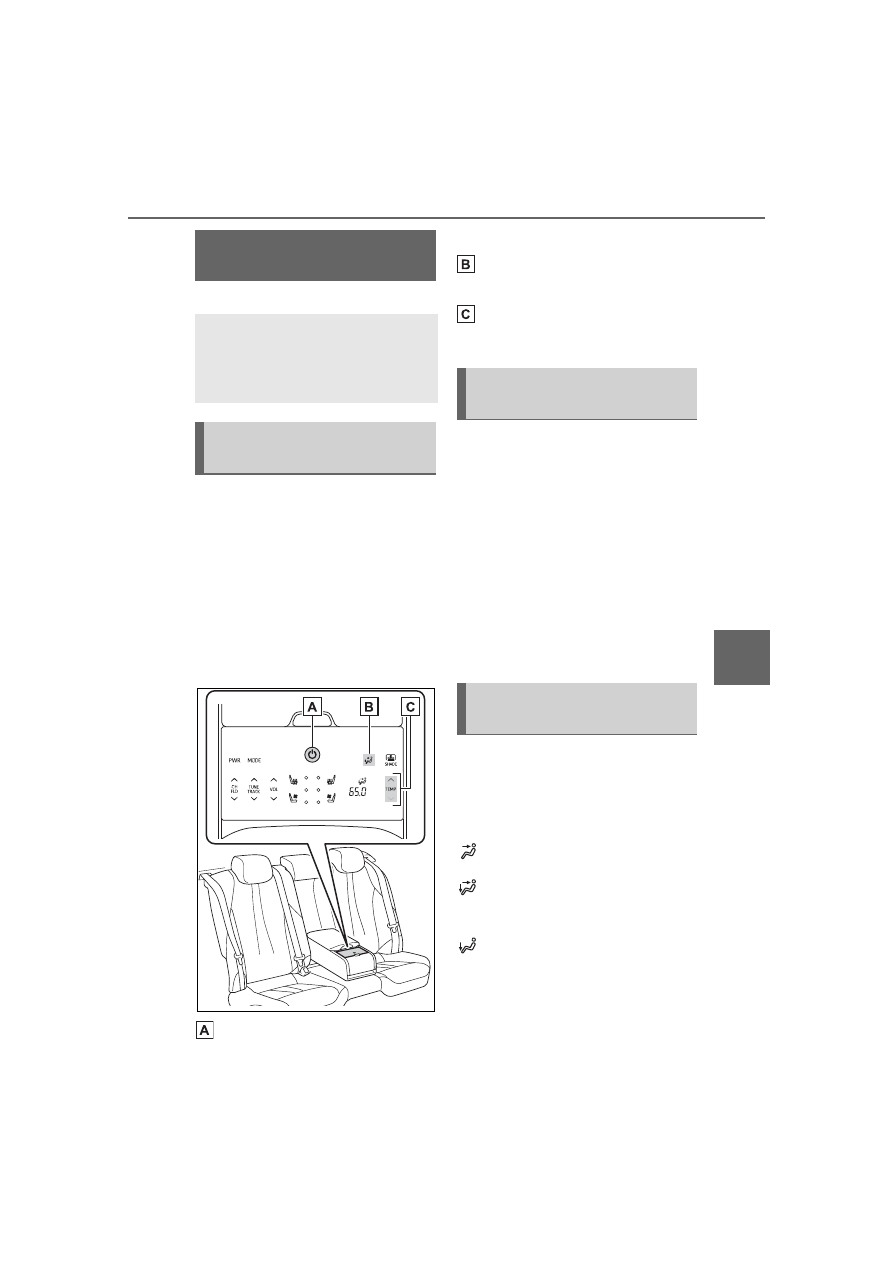

Rear control panel (if
equipped)

Adjust the rear seat heater
temperature level

The seat heater can be adjusted in
3 levels. (Low, Mid or Hi)

Adjust the rear right side seat
ventilator fan speed level

The seat ventilator can be adjusted
in 3 levels. (Low, Mid or Hi)

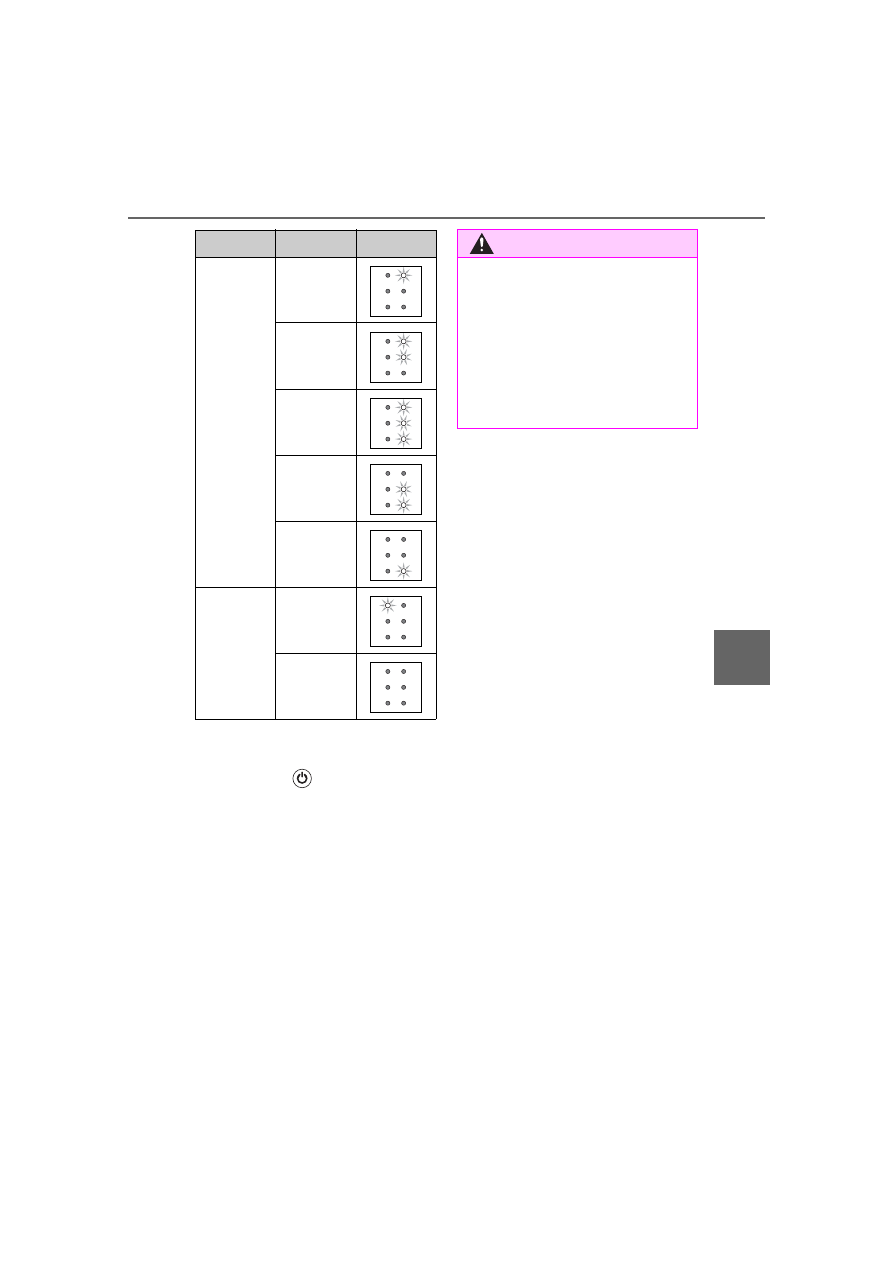

Indicators

The heated steering wheel, seat

heaters and seat ventilators can

be used when

The power switch is in ON.

Air conditioning system-linked

control mode

When the seat ventilator fan speed

level is Hi, the seat ventilator fan

speed becomes higher according to

the fan speed of the air conditioning

system.

When the air conditioning sys-

tem is operating in S-FLOW

mode

If a passenger is not detected in the

passenger seat, the seat ventilator

and seat heater of the passenger’s

seat will be turned off if on.

(

P.340)

Change settings for the rear

control panel

The following settings can be

changed.
• Reaction time after touching the

button.

• Turn button operation sounds

ON/OFF

1

Stop the vehicle in a safe place

and stop the fuel cell system.

2

Press the power switch 1 time

with brake pedal released and

switch the mode to ACC.

The setting cannot be changed

when the power switch is ON.

3

Press

 for 10 seconds or

more while pressing the

 but-

ton.

4

Release the button after the

buzzer sounds.

5

Select customizable item

Change the reaction time for button

operations:

When

 is pressed it becomes

faster, when

 is pressed it

becomes slower.
Change the button operation

sounds ON/OFF

When

 is pressed it turns ON,

when

 is pressed it turns OFF.

6

When changes are complete, the

indicators for the seat

heater/seat ventilator turns on as

shown in the following table.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

347

6-1. Using the air conditioning system and defogger

Owners Manual_USA_M62102_en

6

Interior

 featur

es

7

Settings are complete with any of

the following.

• Operate the

 button and turn

OFF the rear control panel.

• Press the power switch.
• Do not operate the power switch

for approximately 10 seconds.

Customization

Some functions can be customized.

(

P.509)

Function

Settings

Indicator

Reaction
Time

Fast

A little fast

Normal

A little
slow

Slow

Operation
sounds

ON

OFF

WARNING

To prevent overheating and

minor burn injuries

Observe the following precautions

when using the seat heaters.

Do not cover the seat with a

blanket or cushion when using

the seat heater.

Do not use seat heater more

than necessary.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

348

6-2. Using the interior lights

Owners Manual_USA_M62102_en

6-2.Using the interior lights

Door trim ornament lights (

P.349) (if equipped)

Rear personal lights (

P.349)

Inside door handle lights (

P.349) (if equipped)

Front personal lights (

P.349)

Shift lever lights (if equipped)

Interior lights (

P.349)

Outer foot lights (if equipped)

Front footwell lights (if equipped)

Instrument panel ornament lights (

P.349) (if equipped)

Cup holder lights (

P.349)

Rear footwell lights (if equipped)

Door courtesy lights

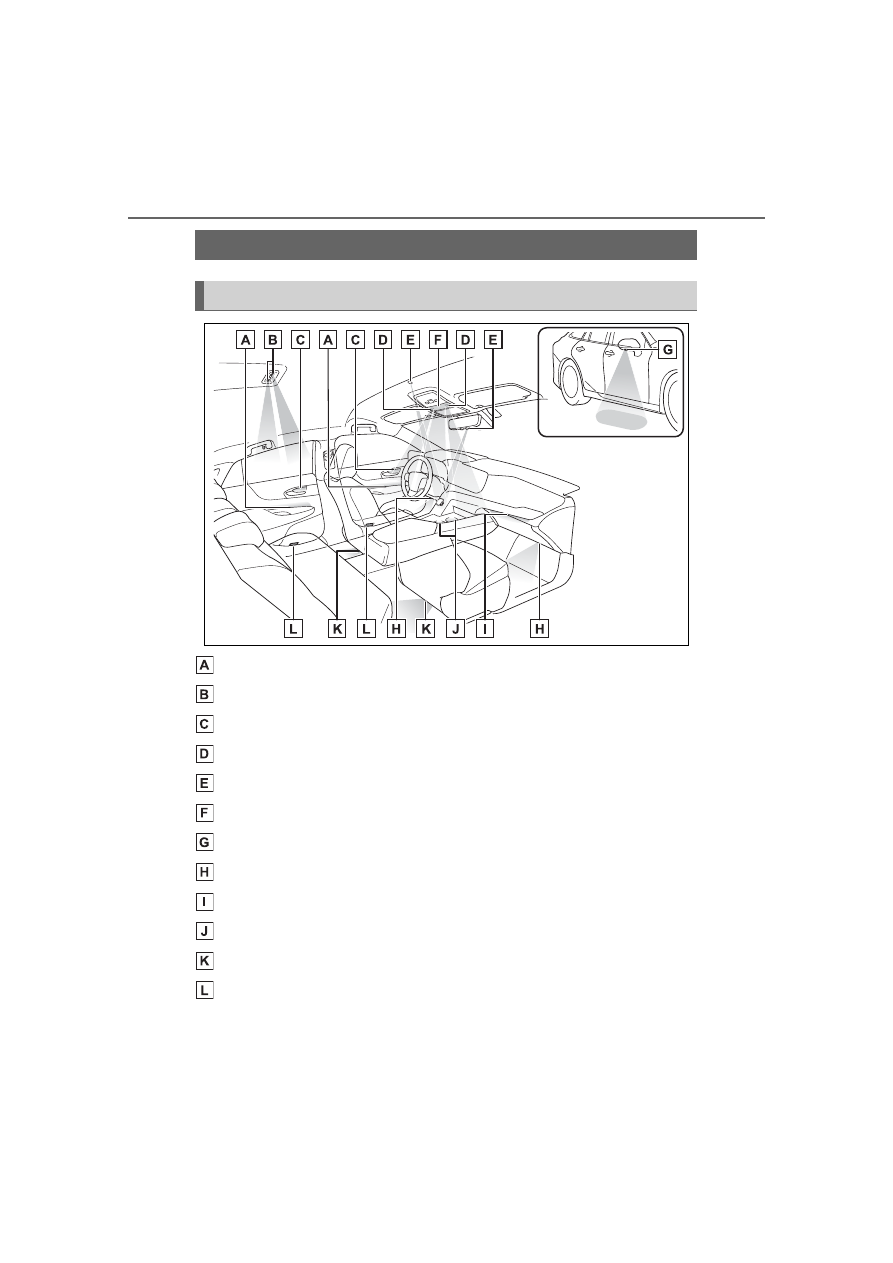

Interior lights list

Location of the interior lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

349

6-2. Using the interior lights

Owners Manual_USA_M62102_en

6

Interior

 featur

es

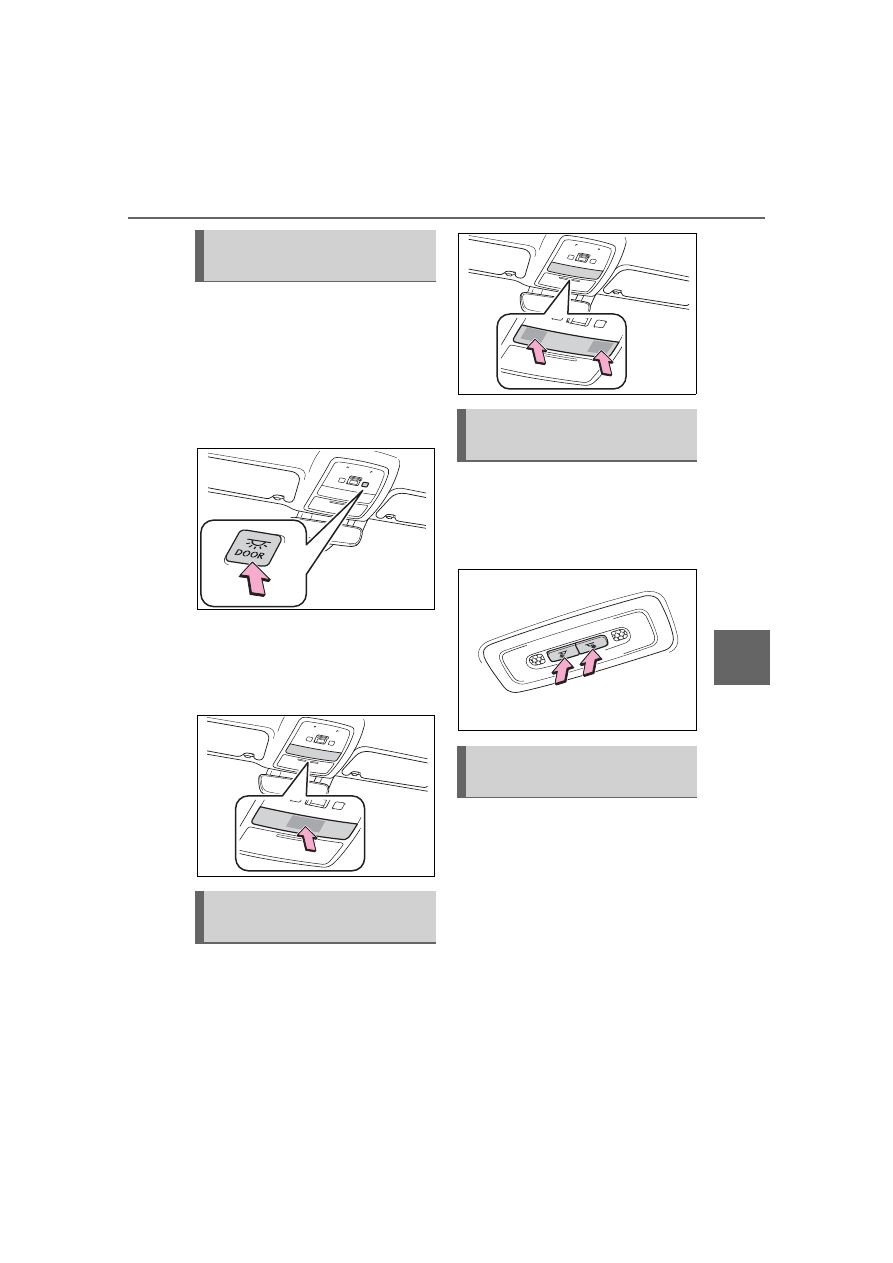

Turning the door position
on

Press the door-linked interior
light switch

The lights are turned on and off
according to whether the doors are
opened/closed.

Turning the lights on/off

Touch the light

The rear personal lights turn on/off
along with the interior lights.

Turning the lights on/off

Touch the light

Turning the lights on/off

Press the switch

The rear personal lights turn on/off
along with the interior lights.

Using the Toyota multi-operation
touch (

P.355), one of 8 colors

of following lights can be
selected. However, it cannot be
changed individually.

Inside door handle lights

Door trim ornament lights

Cup holder lights

Instrument panel ornament
lights

Operating the interior
lights

Operating the front per-
sonal lights

Operating the rear per-
sonal lights

Changing the illumina-
tion color (if equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

350

6-2. Using the interior lights

Owners Manual_USA_M62102_en

1

Select

.

2

Select “Illumination Color”.

3

Select the desired color.

Illuminated entry system

The lights automatically turn on/off

according to the power switch

mode, the presence of the elec-

tronic key, whether the doors are

locked/unlocked, and whether the

doors are open/closed.

To prevent the 12-volt battery

from being discharged

If the interior lights remain on when

the power switch is turned off, the

lights will go off automatically after

20 minutes.

When interior light or front per-

sonal lights do not respond as

normal

When water, dirt, etc., have

adhered to the lens surface

When operated with a wet hand

When wearing gloves, etc.

The interior lights may turn on

automatically when

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the interior lights will

turn on automatically.
The interior lights will turn off auto-

matically after approximately 20min-

utes.
The interior lights can be turned off

manually. However, in order to help

prevent further collisions, it is rec-

ommended that they be left on until

safety can be ensured.
(The interior lights may not turn on

automatically depending on the

force of the impact and conditions of

the collision.)

Customization

Some functions can be customized.

(

P.500)

NOTICE

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the fuel cell

system is off.

Removing light lenses

Never remove the lens for the

interior light and front personal

lights. Otherwise, the lights will be

damaged. If a lens needs to be

removed, contact your Toyota

dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

351

6-3. Using the storage features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

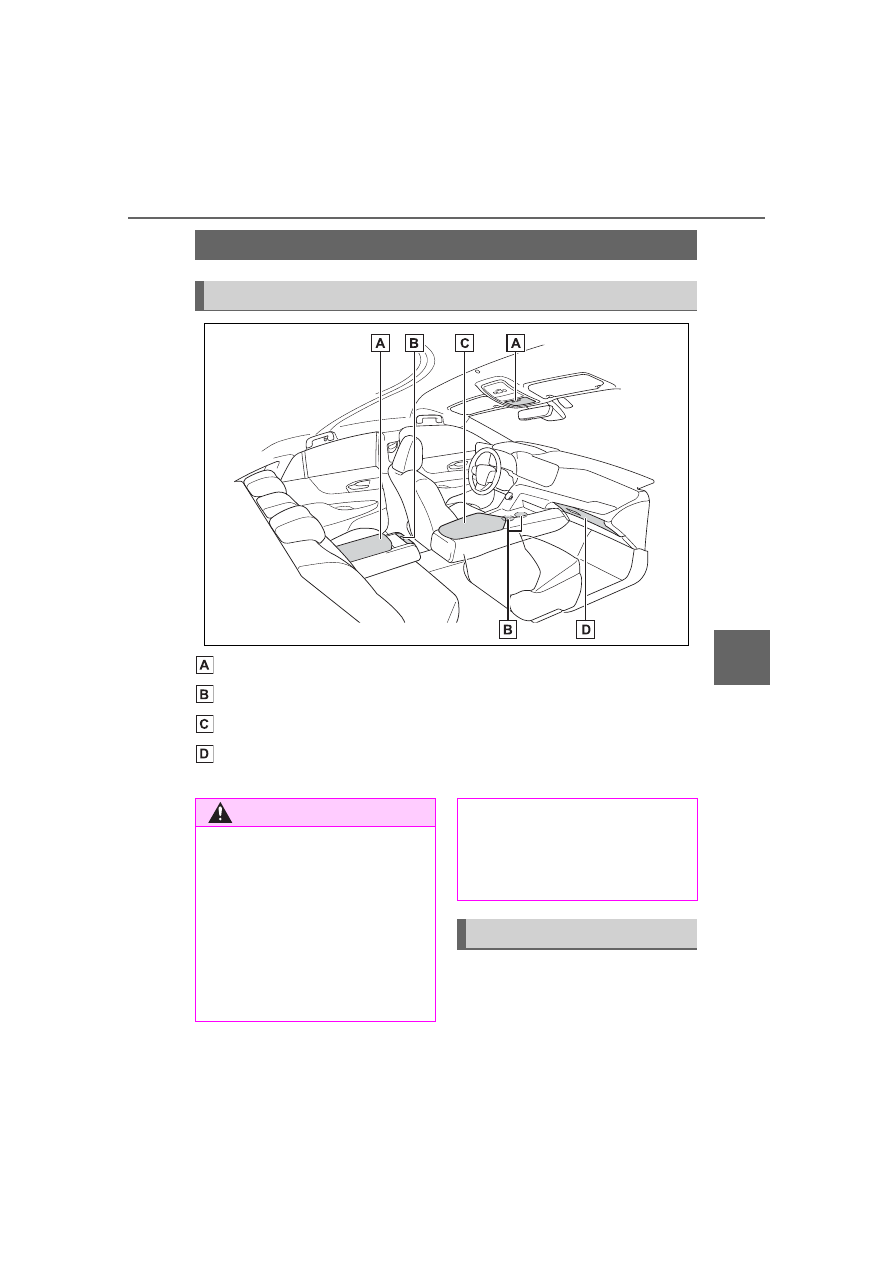

6-3.Using the storage features

Auxiliary boxes

*

 (

P.353)

Cup holders (

P.352)

Console box (

P.353)

Glove box (

P.351)

*

: If equipped

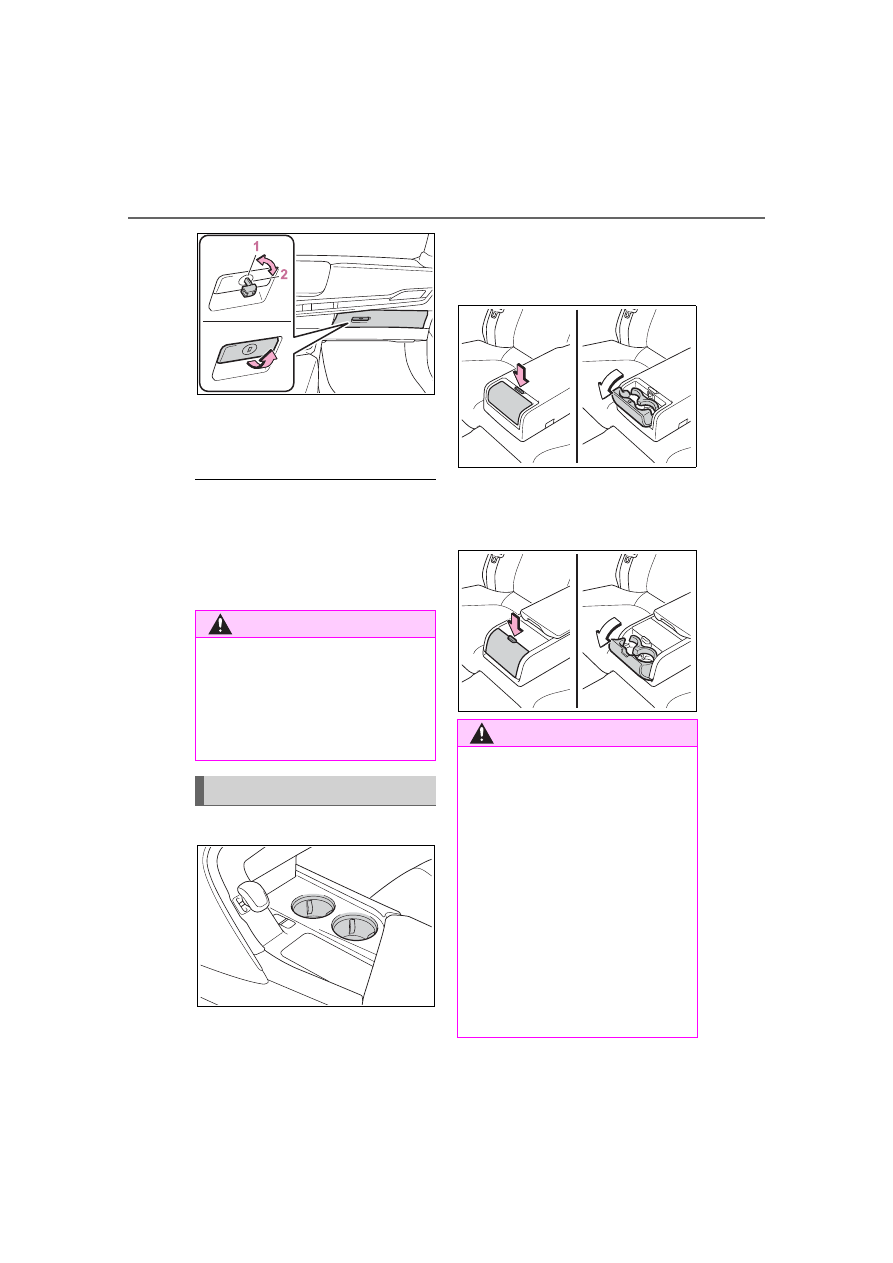

Pull up the lever to open.

List of storage features

Location of the storage features

WARNING

Items that should not be left

in the storage spaces

Do not leave glasses, lighters or

spray cans in the storage spaces,

as this may cause the following

when cabin temperature becomes

high:

Glasses may be deformed by

heat or cracked if they come

into contact with other stored

items.

Lighters or spray cans may

explode. If they come into con-

tact with other stored items, the

lighter may catch fire or the

spray can may release gas,

causing a fire hazard.

Glove box

-------------------------------------------------------------------------------------------------------------------------------------------------------------

352

6-3. Using the storage features

Owners Manual_USA_M62102_en

1

Unlock with the mechanical
key

2

Lock with the mechanical key

Glove box light

The glove box light turns on when

the tail lights are on.

Trunk opener main switch

The trunk opener main switch is

located in the glove box. (

P.128)

Front

Rear (vehicles without rear
seat heater)

Press in and release the button.

Rear (vehicles with rear seat
heater)

Press in and release the button.

WARNING

Caution while driving

Keep the glove box closed. In the

event of sudden braking or sud-

den swerving, an accident may

occur due to an occupant being

struck by the open glove box or

the items stored inside.

Cup holders

WARNING

Items unsuitable for the cup

holder

Do not place anything other than

cups or beverage cans in the cup

holders.

Inappropriate items must not be

stored in the cup holders even if

the lid is closed.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury. If possible, cover hot

drinks to prevent burns.

When not in use

Keep the cup holders closed.

Injuries may result in the event of

an accident or sudden braking.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

353

6-3. Using the storage features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

Press a button to open the con-
sole box.

Overhead (vehicles without
electronic sunshade)

Push in and release the auxiliary
box.

This box is useful for temporarily
storing the small items.

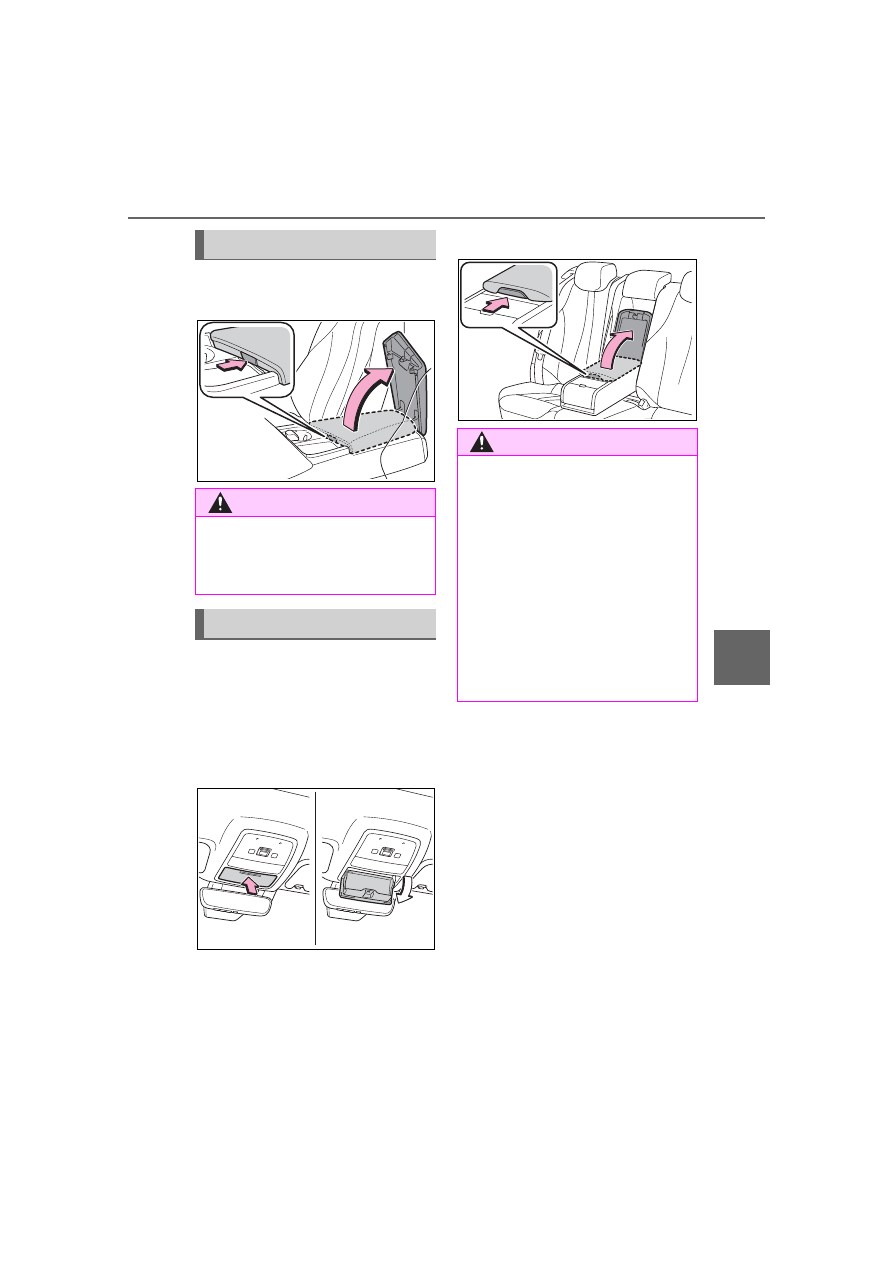

Rear seat (vehicles with rear
seat heater)

Pull the armrest down then push
the knob and lift the lid to open

it.

Console box

WARNING

Caution while driving

Keep the console box closed.

Injuries may result in the event of

an accident or sudden braking.

Auxiliary boxes

WARNING

Caution while driving

Do not leave the auxiliary box

open while driving.

Items may fall out and cause

death or serious injury in case of

an accident or sudden stop.

Items unsuitable for storing

(overhead)

Do not store items heavier than

0.4 lb. (0.2 kg).

Doing so may cause the auxiliary

box to open and the items inside

may fall out, resulting in an acci-

dent.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

354

6-3. Using the storage features

Owners Manual_USA_M62102_en

Side covers

Lift the side covers and remove
it.

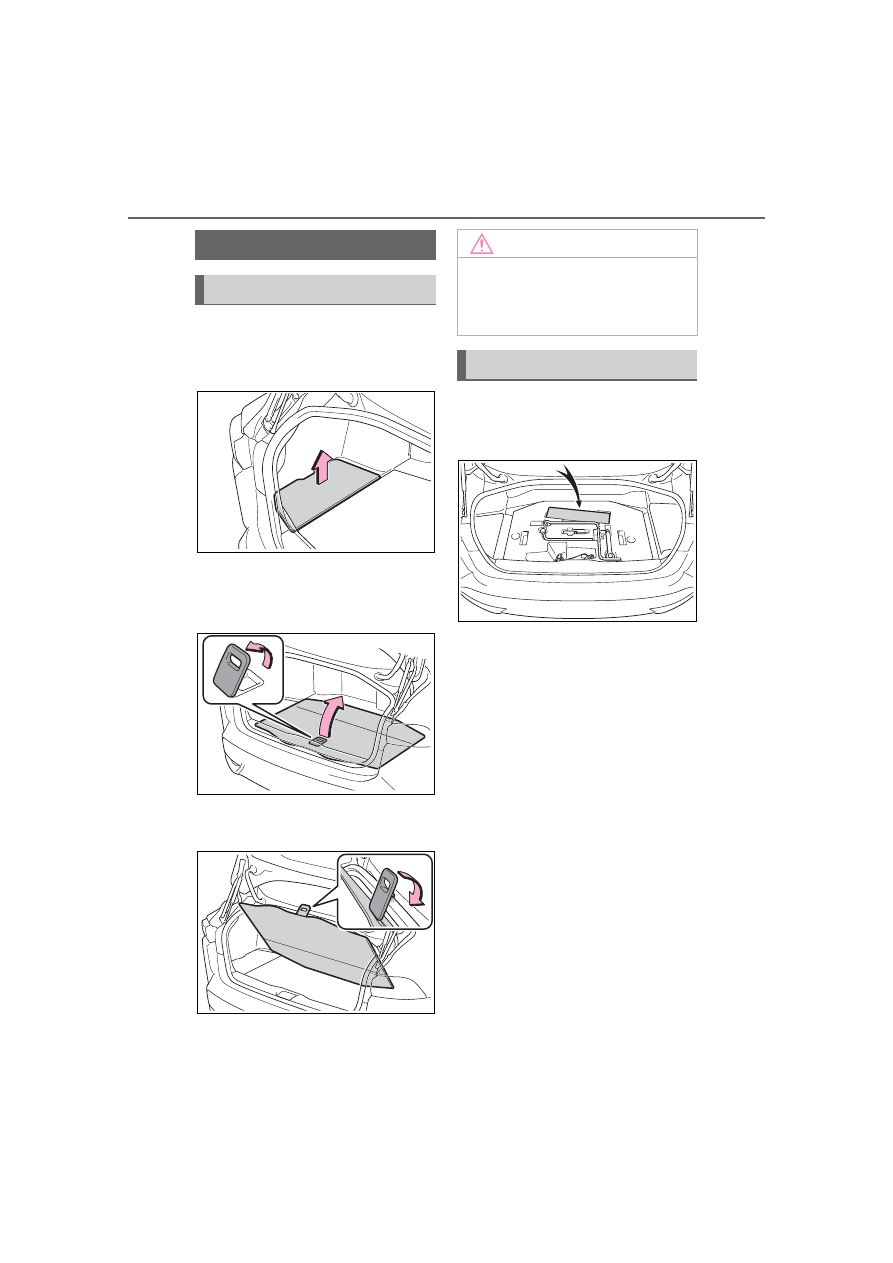

Luggage mat

1

Pull the strap upwards and lift
up the luggage mat.

2

Lift the luggage mat until it
engages with the hook.

The warning reflector can be
stowed underneath the luggage
mat.

Trunk features

Luggage mats

NOTICE

To prevent damage to the

hook for the luggage mat

Do not hang a grocery bag or any

other object from the hook.

Warning reflector

-------------------------------------------------------------------------------------------------------------------------------------------------------------

355

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

6-4.Using the other interior features

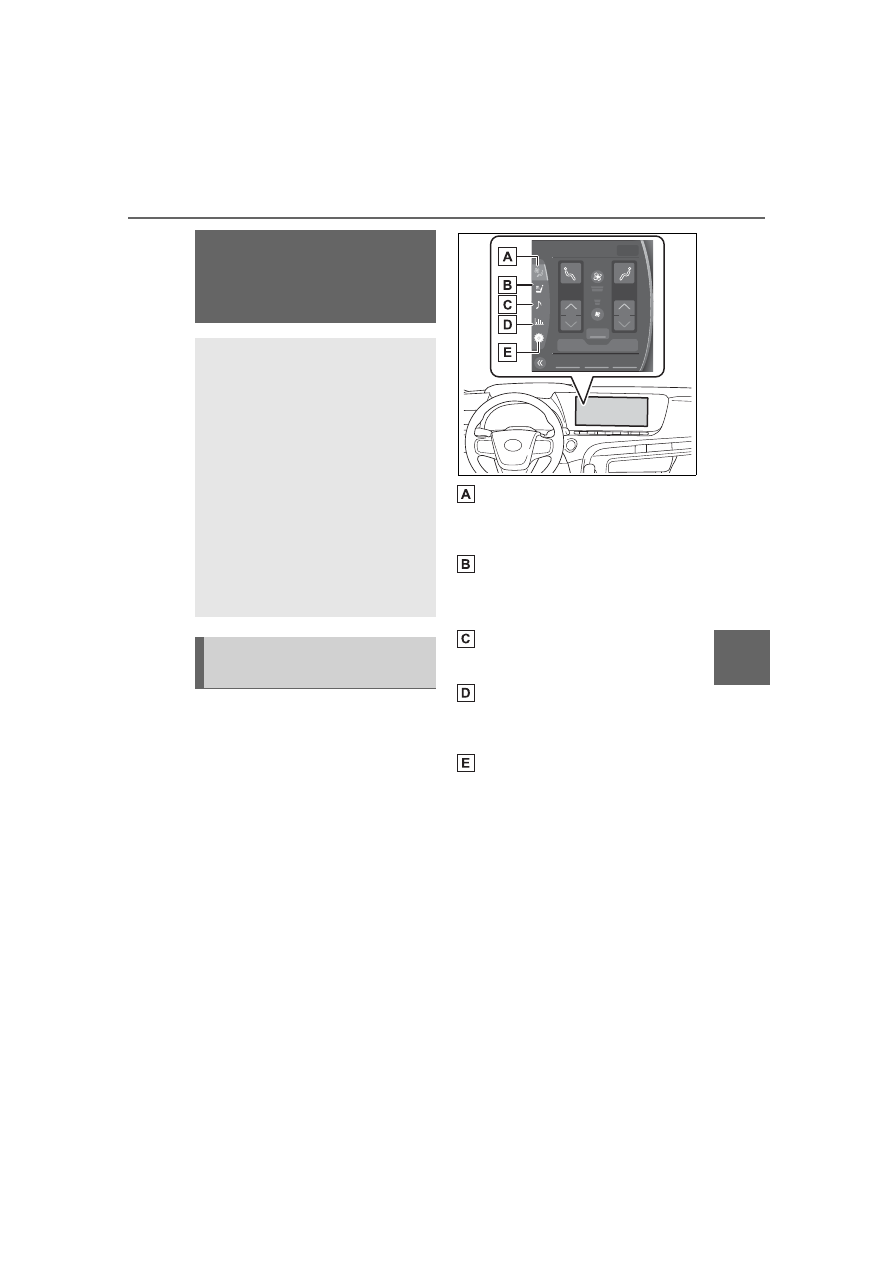

The following functions can be
displayed and operated on the
side display.

Operate a button to change the dis-
played function screen.
The displayed function can be
changed by performing an up or
down flick operation on the side dis-
play.

Select to display the air con-
ditioning control screen.
(

P.334)

Select to display the seat
heater/ventilation control
screen, etc.

*1

 (

P.345)

Select to display the audio
control screen.

*2

Select to display the energy
monitor/fuel consumption
screen, etc. (

P.113)

Select to display the settings
screen and software informa-
tion. (

P.356)

*1

:If equipped

*2

:Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Toyota multi-opera-

tion touch (vehicle

with the 12.3-inch dis-

play)

The Toyota multi-operation
touch allows screens, such
as the air conditioning con-
trol screen and the naviga-
tion screen, to be displayed
and operated simultane-
ously.

For details about the opera-
tion of the Toyota multi-
operation touch, refer to
“NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S
MANUAL”.

Toyota multi-operation
touch overview

-------------------------------------------------------------------------------------------------------------------------------------------------------------

356

6-4. Using the other interior features

Owners Manual_USA_M62102_en

Moving screens on the Toy-
ota multi-operation touch

Selecting

 or

 to change its

displayed position of the side
display to the left or right side of
the screen.
The screen position can also be
changed by perform a left or
right flick operation on a screen.

Displaying a screen in full
screen

Selecting

 or

 on the

energy monitor/consumption
screen or vehicle information
screen will display that screen in
full screen.
Select

 or

 to return to the

split-screen display.

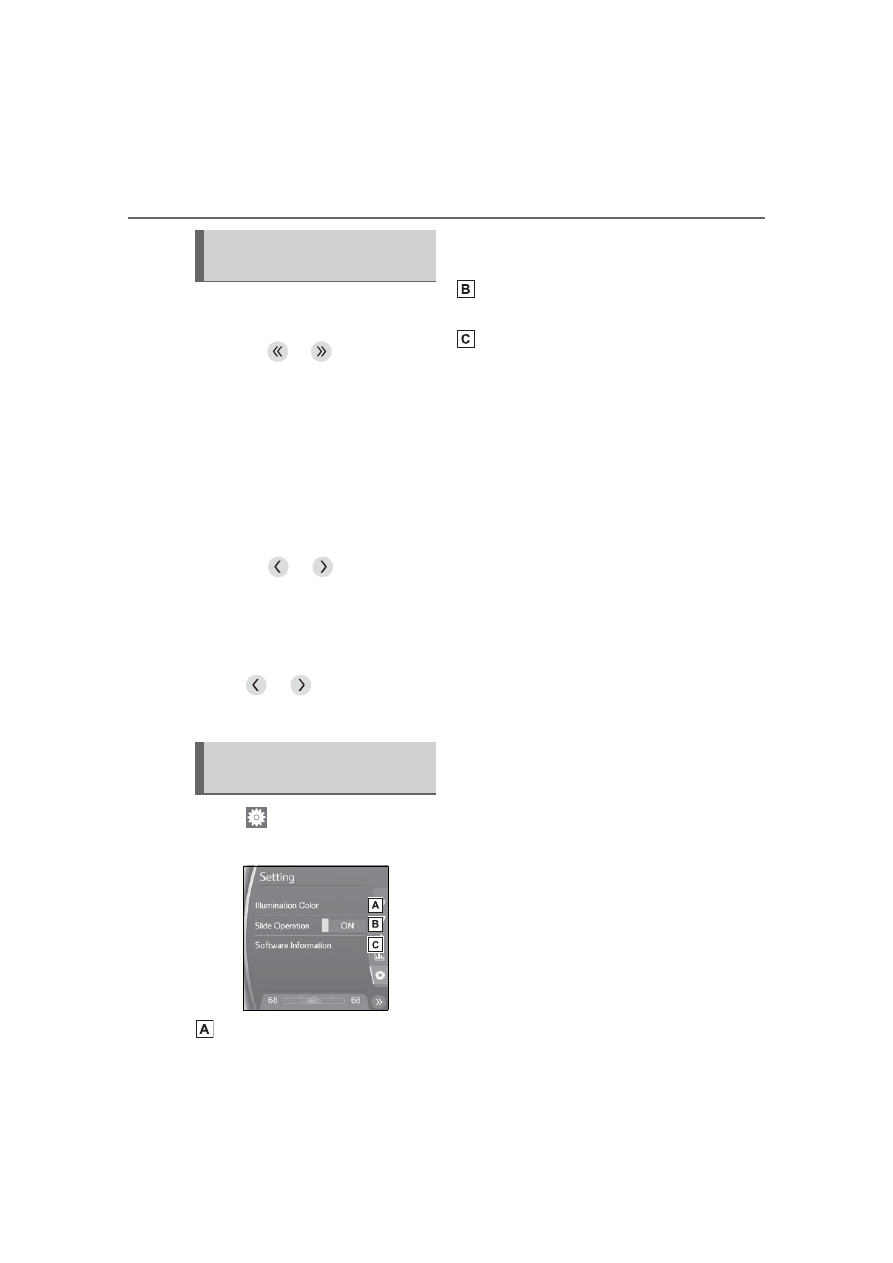

Select

 on the side display to

display the setting screen.

Select to change the interior

illumination light color.

*



(

P.349)

Select to turn flick operation
on the side display on/off.

Display the software informa-
tion.

*

: If equipped

Software license

Toyota multi-operation
touch operation

Settings and software
information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

357

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

*

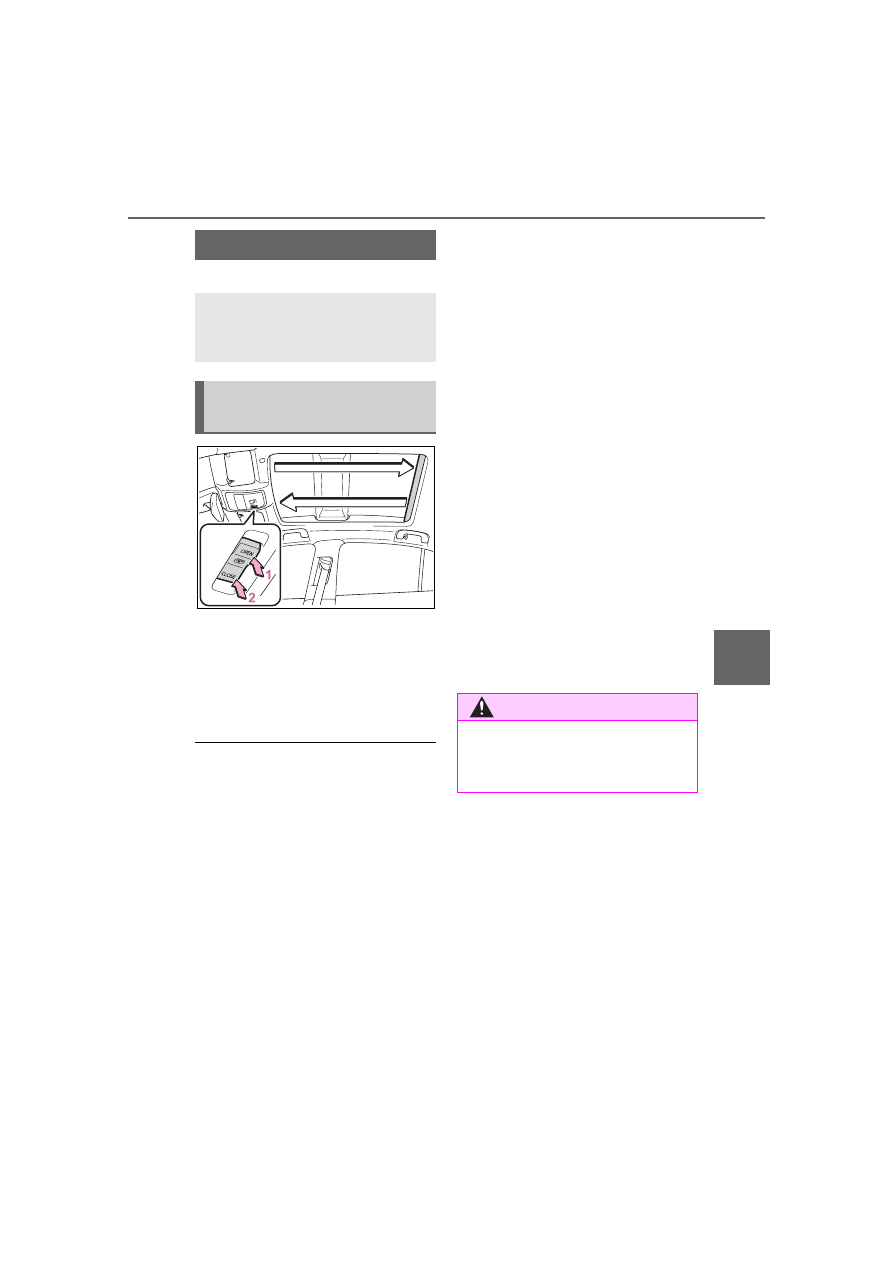

: If equipped

1

Open

*

2

Close

*

*

: To stop the electronic sunshade

partway, lightly press the either
end of the switch.

The electronic sunshade can be

operated when

The power switch is in ON.

Jam protection function for the

electronic sunshade

If an object becomes jammed

between the electronic sunshade

and the sunshade frame while the

electronic sunshade is closing, the

electronic sunshade movement is

stopped and the electronic sun-

shade is opened slightly.

When the jam protection function

has operated, even if the

“CLOSE” side of the switch is

pressed again, the electronic sun-

shade will not move in the close

direction until the reverse opera-

tion has stopped completely.

The electronic sunshade may

operate in reverse if the electronic

sunshade is subject to an impact

due to the surroundings or the

driving conditions.

When the electronic sunshade

does not close normally

Perform the following initialization

procedure.

1

Turn the power switch to ON.

2

Press and hold the “CLOSE”

side of the switch.

It closes until it is near the fully

closed position and then stops. After

that, it operates in the opening

direction then closes to the fully

closed position.
If the switch is released at the incor-

rect time, the procedure will have to

be performed again from the begin-

ning.
If the automatic opening and closing

function does not work normally

even after performing the operations

above, have the vehicle inspected

by your Toyota dealer.

Electronic sunshade

*

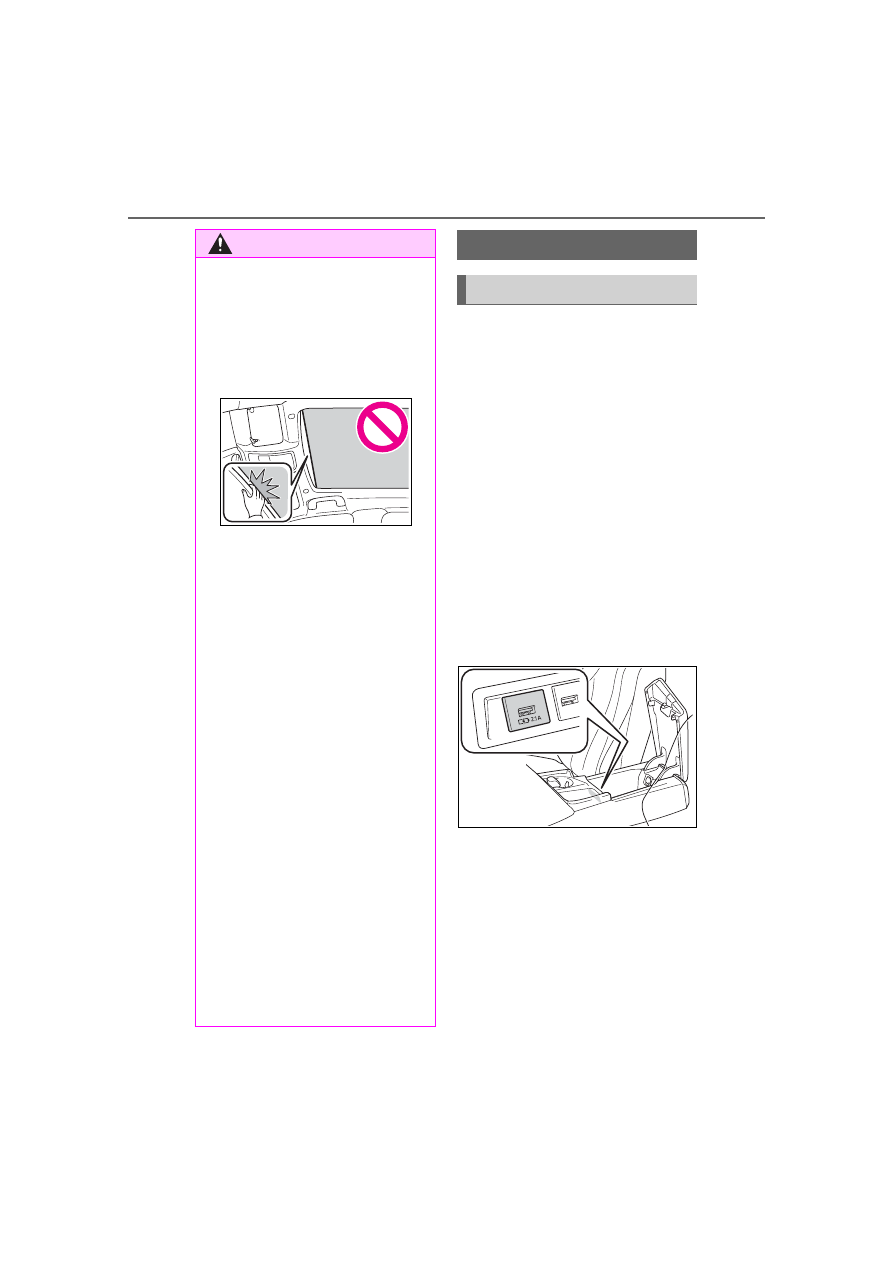

Use the overhead switches
to operate the electronic
sunshade.

Operating the electronic
sunshade

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

358

6-4. Using the other interior features

Owners Manual_USA_M62102_en

The USB charging ports are
used to supply 2.1 A of electric-
ity at 5 V to external devices.
The USB charging ports are for
charging only. They are not
designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

Using the USB charging
ports

In the console box

Open the console box.

Rear of the console box

Open the lid.

WARNING

Opening and closing the elec-

tronic sunshade

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when the elec-

tronic sunshade is being oper-

ated.

Do not let a child operate the

electronic sunshade. Closing

the electronic sunshade on

someone can cause death or

serious injury.

Jam protection function

Never use any part of your body

to intentionally activate the jam

protection function.

The jam protection function may

not work if something gets

caught just before the electronic

sunshade is fully closed. Also,

the jam protection function is

not designed to operate while

the switch is being pressed.

Take care so that your fingers,

etc., do not get caught.

To prevent burns or injuries

Do not touch the area between

the underside of the panoramic

moon roof and the electronic sun-

shade. Your hand may get caught

and you could injure yourself.

Also, if the vehicle is left in direct

sunlight for a long time, the under-

side of the panoramic moon roof

could become very hot and could

cause burns.

Other interior features

USB charging ports

-------------------------------------------------------------------------------------------------------------------------------------------------------------

359

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

The USB charging ports can be

used when

The power switch is in ACC or ON.

Situations in which the USB

charging ports may not operate

correctly

If a device which consumes more

than 2.1 A at 5 V is connected

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

If the connected external device is

turned off (depending on device)

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

About connected external

devices

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

A portable device can be
charged by just placing Qi stan-
dard wireless charge compatible
portable devices according to
the Wireless Power Consortium,
such as smartphones and
mobile batteries, etc., on the
charge area.
This function cannot be used
with portable devices that are
larger than the charging area.
Also, depending on the portable
device, it may not operate as
normal. Please read the opera-
tion manual for portable devices
to be used.

NOTICE

To prevent damage to the

USB charging ports

Do not insert foreign objects into

the ports.

Do not spill water or other liq-

uids into the ports.

When the USB charging ports

are not in use, close the lids. If a

foreign object or liquid enters a

port may cause a short circuit.

Do not apply excessive force to

or impact the USB charging

ports.

Do not disassemble or modify

the USB charging ports.

To prevent damage to exter-

nal devices

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

To prevent 12-volt battery dis-

charge

Do not use the USB charging

ports for a long period of time with

the fuel cell system stopped.

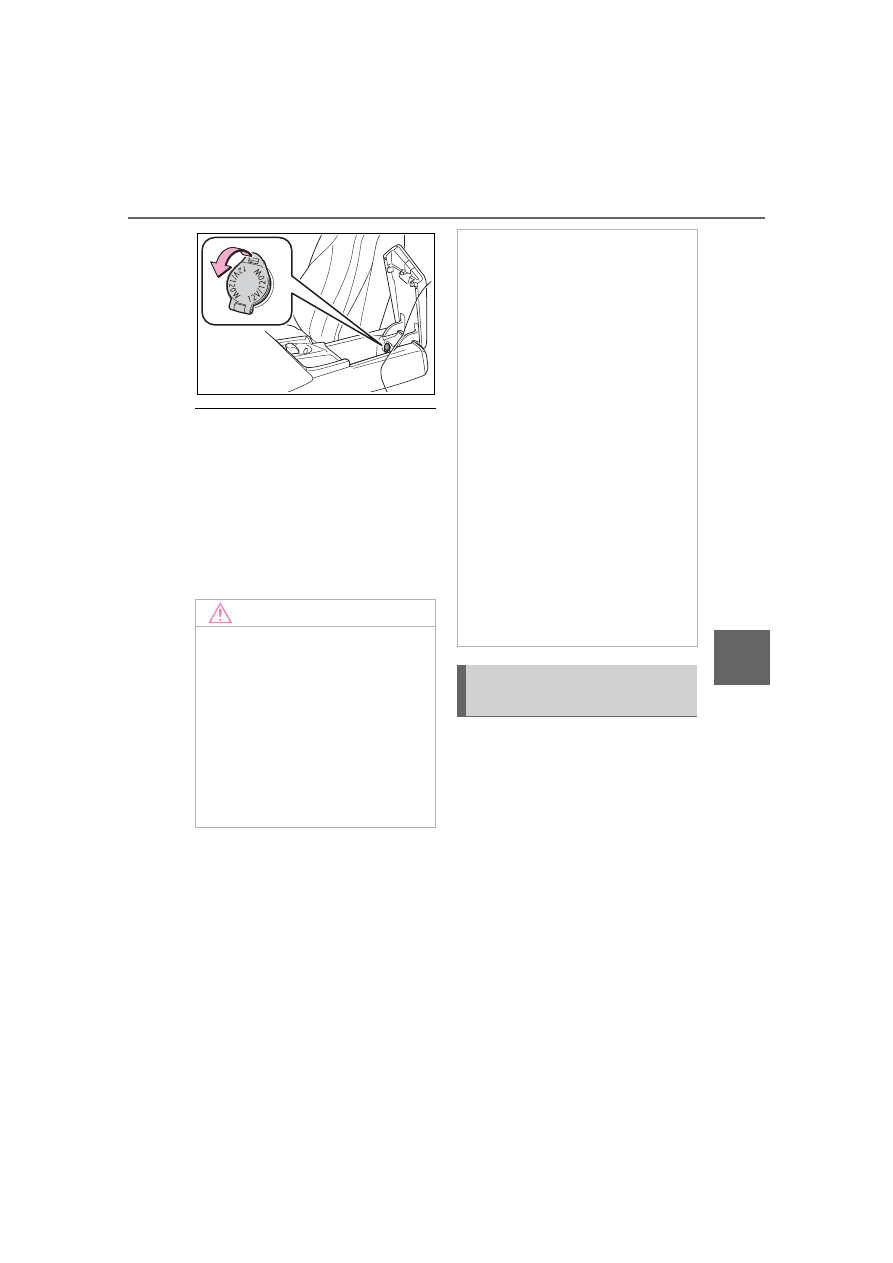

Wireless charger (if
equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

360

6-4. Using the other interior features

Owners Manual_USA_M62102_en

The “Qi” symbol

The “Qi” symbol is a trademark
of the Wireless Power Consor-
tium.

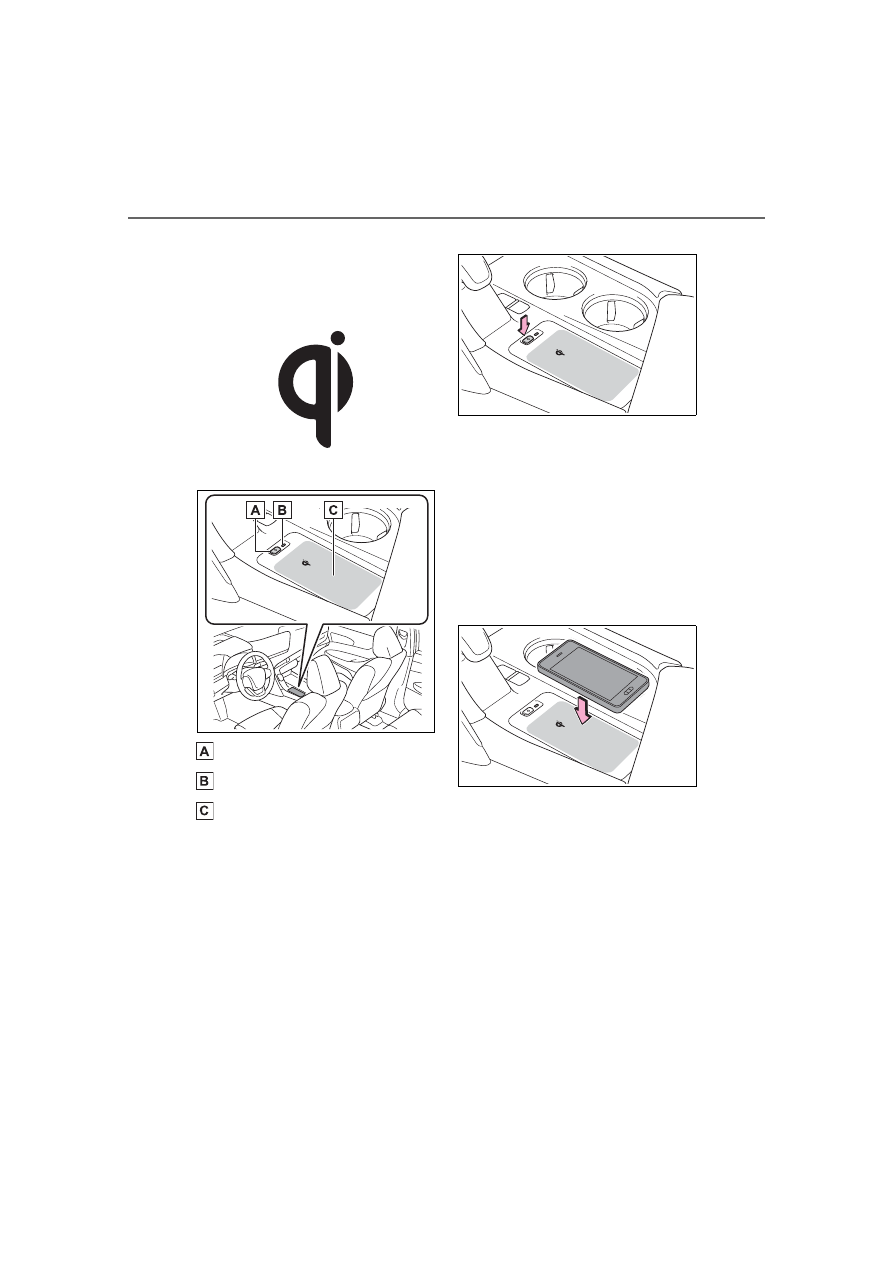

Name for all parts

Power supply switch

Operation indicator light

Charge area

Using the wireless charger

1

Press the power supply
switch of the wireless char-
ger.

Switches on and off with each

press of the power supply switch.
When turned on, the operation indi-

cator light (green) comes on.
Even with the fuel cell system off,

the on/off state of the power supply

switch is memorized.

2

Place the charging side of
the portable device down.

When charging, the operation indi-

cator light (orange) comes on.
If charging is not occurring, try plac-

ing the portable device as close to

the center of the charging area as

possible.
When charging is complete, the

operation indicator light (green)

comes on.

Recharging function

When charging is complete
and after a fixed time in the
charge suspension state,
charging restarts.

When the portable device is
moved, charging is stopped
for a moment and then it
restarts.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

361

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

Lighting conditions of oper-
ation indicator light

*

: Depending on the portable

device, there are cases where the
operation indicator light will con-
tinue being lit up orange even
after the charging is complete.

When the operation indicator
light flashes

When an error occurs, the opera-
tion indicator light flashes an
orange color.
Handle the error based on the fol-
lowing tables.
• Flashing repeatedly once every

second (Orange)

• Repeatedly flashes 3 times con-

tinuously (Orange)

• Repeatedly flashes 4 times con-

tinuously (Orange)

The wireless charger can be

operated when

The power switch is in ACC or ON.

Usable portable devices

Qi standard wireless charge stan-

dard can be used on compatible

devices. However, not all Qi stan-

dard devices and compatibility are

guaranteed.

Starting with mobile phones and

smartphones, it is aimed for low

power electrically supplied porta-

ble devices of no more than 5W.

When covers and accessories

are attached to portable devices

Do not charge in situations where

Operation

indicator

light

Conditions

Turning off

When the Wireless
charger power supply
is off

Green
(comes
on)

On Standby (charging
possible state)

When charging is com-
plete

*

Orange
(comes
on)

When placing the por-
table device on the
charging area (detect-
ing the portable device)

Charging

Suspected

causes

Handling method

Vehicle to char-
ger communica-
tion failure.

Contact your
Toyota dealer.

Suspected

causes

Handling method

A foreign sub-
stance is
between the por-
table device and
charge area.

Remove the for-
eign substance
from between
portable device
and the charge
area.

The portable
device is out of
sync due to the
device being
shifted from the
center of the
charge area.

Place the porta-
ble device near
the center of the
charge area.

Suspected

causes

Handling method

Temperature ris-
ing within the
wireless charger.

Stop charging at
once and start
charging again
after a while.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

362

6-4. Using the other interior features

Owners Manual_USA_M62102_en

cover and accessories not able to

handle Qi are attached to the porta-

ble device. Depending on the type

of cover and accessory, it may not

be possible to charge. When

charging is not performed even with

the portable device placed on the

charge area, remove the cover and

accessories.

While charging, noise enters

the AM radio

Turn off the wireless charger and

confirm that the noise has

decreased. If the noise decreases,

continuously pushing the power

supply switch of the wireless char-

ger for 2 seconds, the frequency of

the charger can be changed and the

noise can be reduced. Also, on that

occasion, the operation indicator

light will flash orange 2 times.

Important points of the wire-

less charger

If the electronic key cannot be

detected within the vehicle inte-

rior, charging cannot be done.

When the door is opened and

closed, charging may be tempo-

rarily suspended.

When charging, the wireless

charging device and portable

device will get warmer, however

this is not a malfunction.

When a portable device gets

warm while charging, charging

may stop due to the protection

function on the portable device

side. In this case, when the tem-

perature of the portable device

drops significantly, charge again.

Operation sounds

When the power supply is turned

on, while searching for the portable

device a sound will be produced,

however this is not a malfunction.

Certification

P.554

WARNING

Caution while driving

When charging a portable device,

for safety reasons, the driver

should not operate the main part

of the portable device while driv-

ing.

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy-pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger. The opera-

tions of the wireless charger may

have an affect on medical

devices.

To prevent damage or burns

Observe the following precau-

tions.

Failure to do so may result in a

possibility of equipment failure

and damage, catch fire, burns due

to overheat.

Do not insert any metallic

objects between the charging

area and the portable device

while charging

Do not attach stickers, metallic

objects, etc., to the charger area

or portable device

Do not cover with cloth, etc.,

and charge

Do not charge portable devices

other than designated

Do not attempt to dismantle for

disassembly or modifications

Do not hit or apply a strong

force

-------------------------------------------------------------------------------------------------------------------------------------------------------------

363

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

Pull the armrest down for use.

NOTICE

Conditions in which the func-

tion may not operate cor-

rectly

In the following conditions, it may

not operate correctly

The portable device is fully

charged

There is foreign matter between

the charge area and portable

device

The temperature of the portable

device gets higher from

charging

The charging surface of the por-

table device is facing up

The placement of the portable

device is out of alignment with

the charge area

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other

facility that generates strong

radio waves or electrical noise

When the portable device is in

contact with, or is covered by

the following metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alu-

minum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

When other wireless keys (that

emit radio waves) are being

used nearby

In addition, excluding the above-
mentioned, when the charger
does not perform normally or the
operation display lamp is flashing
continuously, it is considered that
the wireless charger is malfunc-
tioning. Contact authorized Toyota
dealer.

To prevent failure or damage

to data

Do not bring magnetic cards,

such as credit cards, or mag-

netic recording media, etc.,

close to the charger while

charging, otherwise, data may

disappear under the influence of

magnetism. Also, do not bring

precision instruments such as

wrist watches, etc., close to the

charger, as such objects may

break.

Do not leave portable devices in

the cabin. The temperature

inside the cabin may become

high, when under the sun, and

cause damage to the device.

To prevent 12-volt battery dis-

charge

When the fuel cell system is

stopped, do not use the wireless

charger for a long time.

Armrest

-------------------------------------------------------------------------------------------------------------------------------------------------------------

364

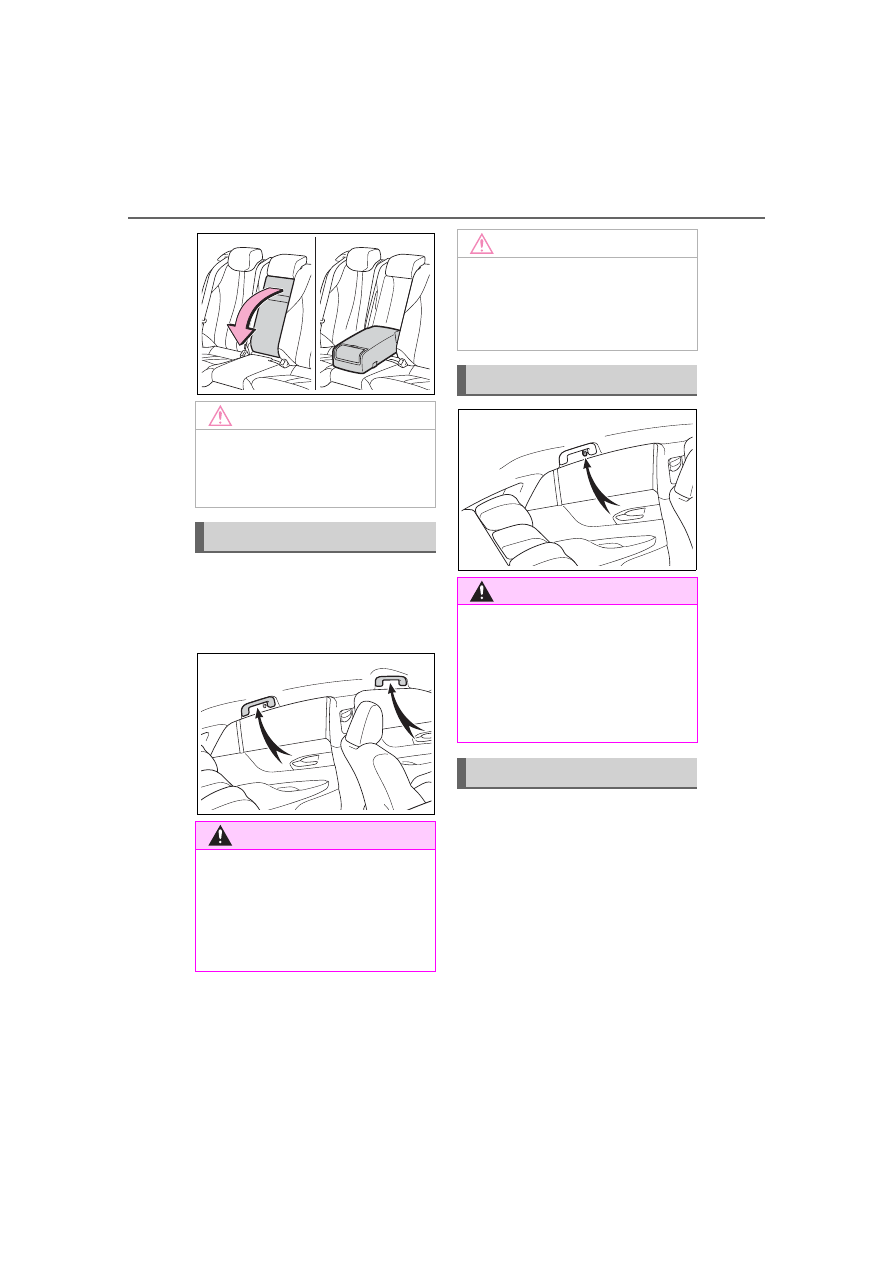

6-4. Using the other interior features

Owners Manual_USA_M62102_en

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

The power outlet can be used
for 12 V accessories that run on
less than 10 A.
Open the console box and open
the lid.

NOTICE

To prevent damage to the

armrest

Do not place too much strain on

the armrest.

Assist grips

WARNING

Assist grip

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

Doing so could damage the assist

grip, or could cause you to injure

yourself by falling over.

NOTICE

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Coat hooks

WARNING

Items that must not be hung

on the hook

Do not hang a coat hanger or

other hard or sharp object on the

hook. If the SRS curtain shield air-

bags deploy, these items may

become projectiles that cause

death or serious injury.

Power outlet (12 VDC)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

365

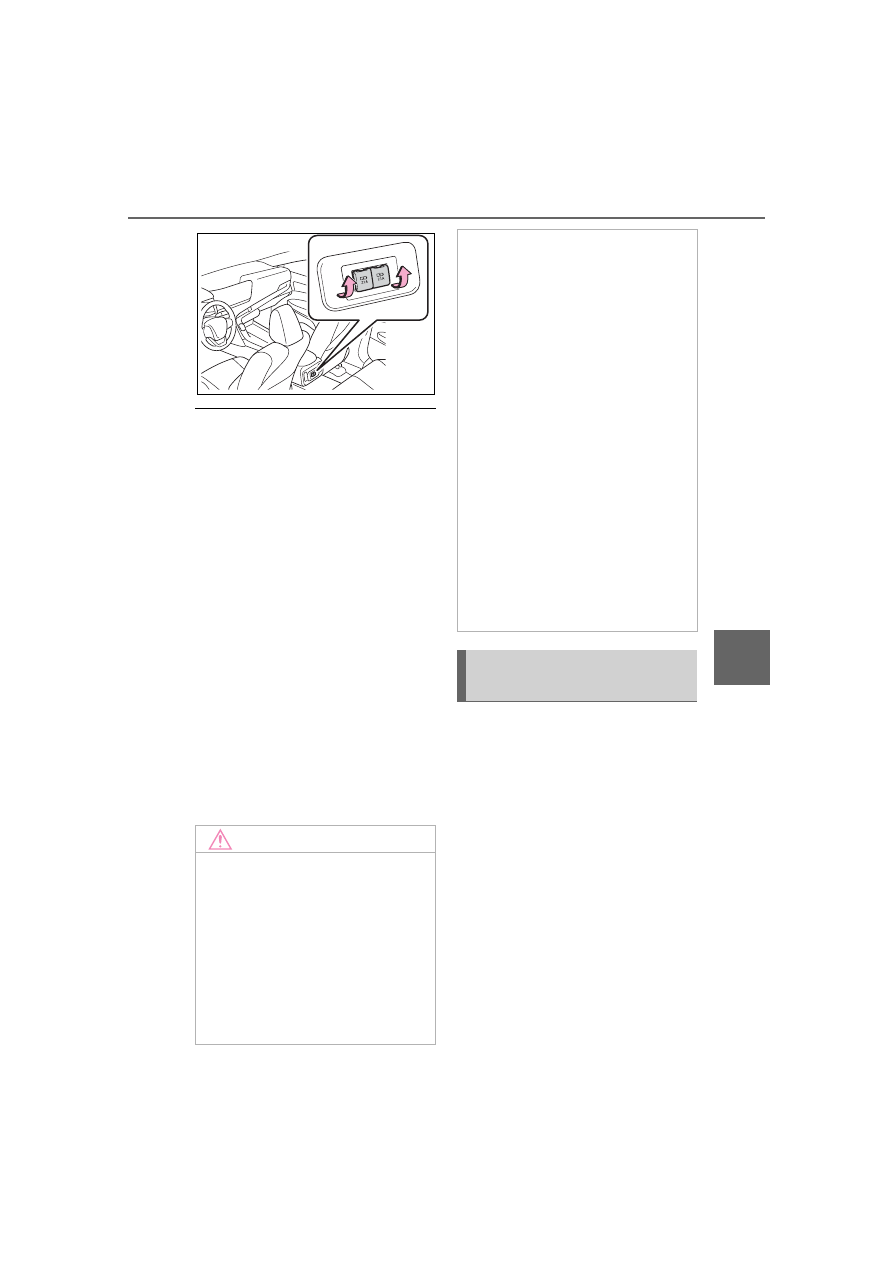

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

The power outlet can be used

when

The power switch is in ACC or ON.

When stopping the fuel cell sys-

tem

Disconnect electrical devices with

charging functions, such as mobile

battery packs. If such devices are

left connected, the fuel cell system

may not stop normally.

Please use as a power supply
for electronic devices that use
less than 120 VAC (power con-
sumption of 1500 W).

Using the power outlets

Rear of the console box

Open the lid.

NOTICE

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

To prevent the fuse from

being blown

Do not use an accessory that

uses more than 12 V 10 A.

To prevent incorrect opera-

tion of the vehicle

When turning the power switch

off, make sure to disconnect

accessories designed for

charging, such as portable char-

gers, power banks, etc., from the

power outlet.
If such an accessory is left con-

nected, the following may occur:

The doors cannot be locked

using the smart key system or

wireless remote control.

The opening screen will be dis-

played on the multi-information

display.

The interior lights, instrument

panel lights, etc., will illuminate.

To prevent 12-volt battery dis-

charge

Do not use the power outlet lon-

ger than necessary when the fuel

cell system is off.

Power outlets (120 VAC)
(if equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

366

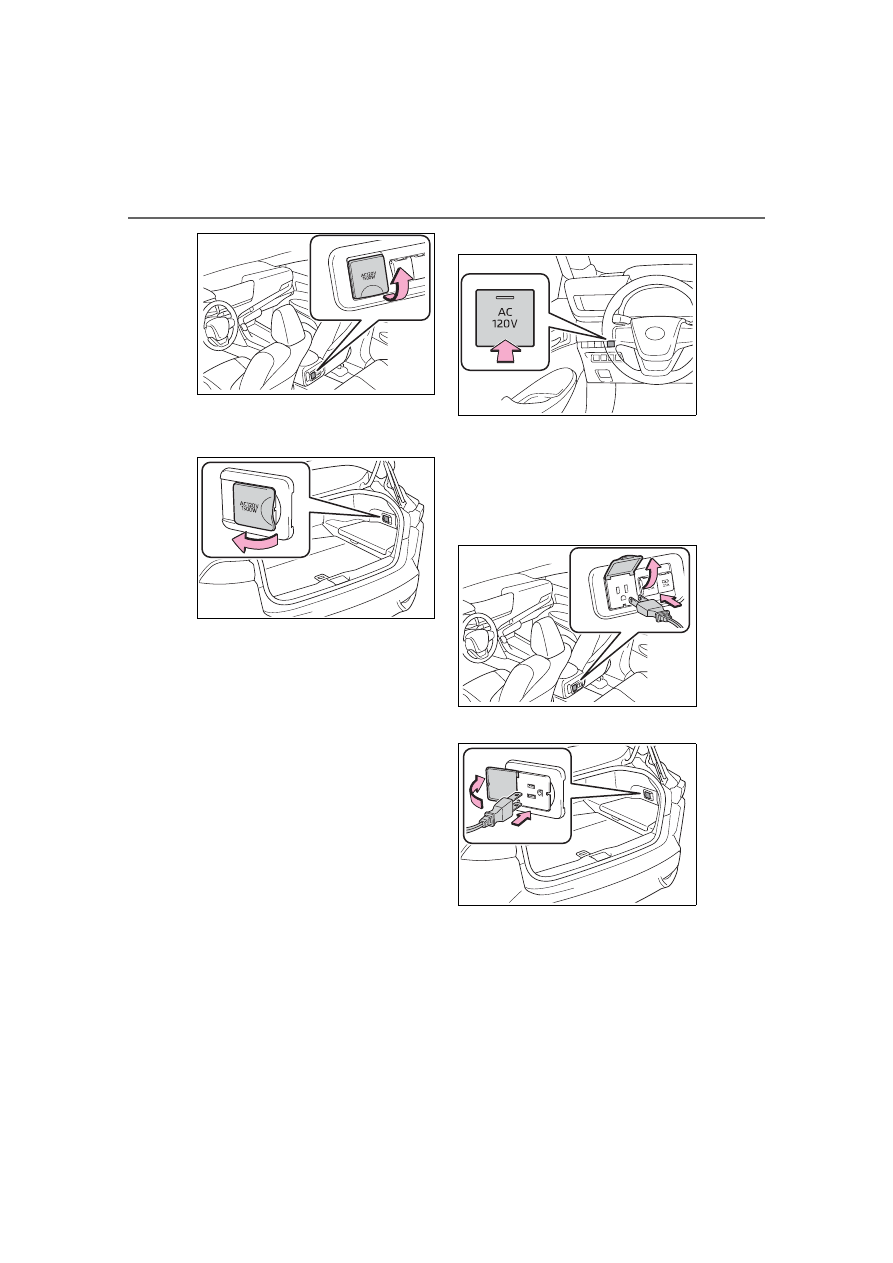

6-4. Using the other interior features

Owners Manual_USA_M62102_en

In the trunk

Open the lid.

When turning the power
outlets on

1

Check that the parking brake
is engaged, securely depress
the brake pedal and press
the power switch.

2

Check that the READY indi-
cator is illuminated, and
press the AC120V switch.

The power outlets can be used

when the indicator on the AC120V

switch is illuminated.
The power outlets are turned off/on

each time the AC120V switch is

pressed.

When connecting a device

Open the lid, and fully and
securely insert the plug of the
device into the power outlet.

Rear of the console box

In the trunk

When turning the power
outlets off

1

Turn the connected devices
off.

2

Press the AC120V switch to
turn the power outlets off.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

367

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

3

Disconnect each plug from
the power outlets.

4

Close the lid of each power
outlet.

The power outlet can be used

when

The READY indicator is illuminated.

Electronic devices that can be

connected to the power outlets

Use electronic devices in which the

total power consumption of all

devices connected to the 120 VAC

power outlets is less than 1500 W.

Depending on the device being

used, the current flow may become

high and the electric power for a

moment may exceed the regulated

capacity. If the regulated capacity is

exceeded by the electronic devices

being used, the protection function

of the power outlet may operate and

power outlet may not be able to be

used, but this is not a malfunction.

However, observe the following pre-

cautions:

Depending on the devices used, it

may cause interference with TV

and radio broadcasts.

Observe the precautions that are

stated in the instruction manuals

for each of the electronic devices.

It is assumed that many typical

general electronic devices will not

be used within the vehicle. The

following problems may occur

when using electronic devices

within the vehicle.

• Electronic device malfunction due

to vibrations while driving.

• Electronic device malfunction or

poor operations due to tempera-
ture changes

*

 within the vehicle.

• The installation is unstable and

may not operate normally as the

compartment within the vehicle is

not flat.

*

: Depending on the weather, sea-

son, usage environment, etc., the
vehicle compartment may
undergo extreme high or low tem-
peratures.

Power Outlet

The power outlet is a device in

order to use electronic devices

within the vehicle.

While a power outlet is being

used, a cooling fan sound may be

heard from near a rear seat. This

does not indicate a malfunction.

Devices which may not operate

correctly

The following 120 VAC devices may

not operate properly even if their

power consumption is less than

1500 W:

Devices with high initial peak watt-

age

Measuring devices that process

precise data

Devices that require an extremely

stable power supply

Devices that require a constant

power supply from the power out-

let, such as a device with a timer.

When the power supply func-

tion cannot be used

If the AC120V switch is pressed but

the switch indicator does not illumi-

nate, the protection circuit may have

operated.
In this case, perform the appropriate

procedures as follows.

Disconnect the plug of each

device from the power outlets,

check that the total power con-

sumption of all devices to be con-

nected to the power outlets is less

than 1500 W, reconnect the

devices and then press the

AC120V switch again.

Disconnect the plug of each

device from the power outlets,

check that the devices are not

malfunctioning, reconnect the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

368

6-4. Using the other interior features

Owners Manual_USA_M62102_en

devices and then press the

AC120V switch again.

Check the charge of the traction

battery (

P.111). If the charge is

low, shift the shift position to P,

allow the fuel cell system to oper-

ate to charge the traction battery,

and then press the AC120V

switch again.

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked under the

sun, move the vehicle to a shaded

area, use the air conditioning sys-

tem to sufficiently cool the interior,

and then press the AC120V

switch again.

When it is particularly cold, the

power outlets may not be able to

be used, to protect the traction

battery. In that case, drive the

vehicle and use the power outlets

after the traction battery has

warmed up.

When the fuel door is open, close

the door and press the AC120V

switch again.

If the power outlets cannot be used

even after performing the appropri-

ate procedures above, have the

vehicle inspected by your Toyota

dealer.

If any electrical device has mal-

functioned, park the vehicle in a

safe location and turn the AC

inverter off.

If the protection function activates

and power is cut, perform the fol-

lowing procedure.

1

Stop the vehicle in a safe place

and set the parking brake.

2

Ensure that the shift position is in

P or N.

3

Check that the power consumed

by the electrical devices is within

1500 W and any device has not

malfunctioned.

4

Press the AC 120 V switch.

If the inside of the vehicle is hot,
open the windows to lower the tem-

perature and turn the switch back on
once the inside of the vehicle
reaches a normal temperature. If
following the procedure above does
not restore power, have the vehicle
inspected at your Toyota dealer.

WARNING

For safe use

Observe the following precau-

tions.
Failure to do so may lead to an

accident, resulting in death or

serious injury.

Do not use devices such as the

following when driving:

• Devices which cannot be prop-

erly secured within the vehicle.

• Devices which may distract the

driver and be a hindrance to

safe driving, such as a TV, DVD

player, etc.

• Unsecured devices which gen-

erate heat, such as a toaster,

microwave, electric heater, elec-

tric kettle, coffee maker, etc., as

they may cause burns or a fire

in the case of sudden braking or

an accident.

• Devices which may fall under

the pedals and prevent the

brake pedal from being

depressed.

Do not use devices which pro-

duce steam while the windows

are closed. Doing so may cause

the windows to fog up, reducing

visibility and making it difficult to

drive safely. Also, the steam

may damage or negatively

affect other devices. If the

device must be used, stop the

vehicle and open the windows

before use.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

369

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

WARNING

Do not use damaged electronic

devices. The power supply

function may not be able to be

used.

Do not disconnect the plug of a

device while your hands are wet

or insert a pin or other object

into the power outlet. Also, if a

liquid or snow is on the power

outlet, dry the outlet before

using it.

Do not attempt to modify, disas-

semble or repair a power outlet.

For information on repairs, con-

tact your Toyota dealer.

Do not let children touch the

power outlets.

Keep the power outlets free of

dust and foreign matter. Also,

regularly clean the power outlet.

If the plug of a device fits

loosely in a power outlet, even

though it is fully inserted,

replace the power outlet. For

information on replacement,

contact your Toyota dealer.

Using the power outlets while

parked or stopped

Observe the following precau-

tions.
Failure to do so may lead to an

accident, possibly resulting in

death or serious injury.

Make sure to engage the park-

ing brake and shift the shift posi-

tion to P.

Do not leave the vehicle unat-

tended while the READY indica-

tor is illuminated and a device is

connected to a power outlet.

Do not place luggage or get

near the vicinity of the tailpipe.

Make sure that the hood is

closed. Do not put your head or

hands anywhere inside the fuel

cell unit room, as the cooling

fans may operate suddenly. If

too close, hands and clothing

(especially a tie, scarf, etc.) may

get caught in a fan.

Do not stop the vehicle near

objects which burn easily.

Install and use appropriately

related devices to make air sup-

ply and exhaust ventilation pos-

sible in places where ventilation

is bad, such as within garages,

and places where the vehicle is

surrounded (places where snow

accumulates).

Do not use in places where ven-

tilation is bad, such as within

garages where there are no air

supply and exhaust ventilation

devices, and places where the

vehicle is surrounded (places

where snow accumulates, etc.).

Do not use the power outlets if

the vehicle has a vehicle cover

installed.

Do not sleep in the vehicle while

using devices such as an elec-

tric heater.

Devices to be connected

Read the instruction manual

included with the electronic

device being used and observe

the precautions that are stated

regarding the product.

Do not use when the power plug

or electronic device are dam-

aged.

Malfunctions or poor operations

may occur when the outside

temperatures are particularly

high or low.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

370

6-4. Using the other interior features

Owners Manual_USA_M62102_en

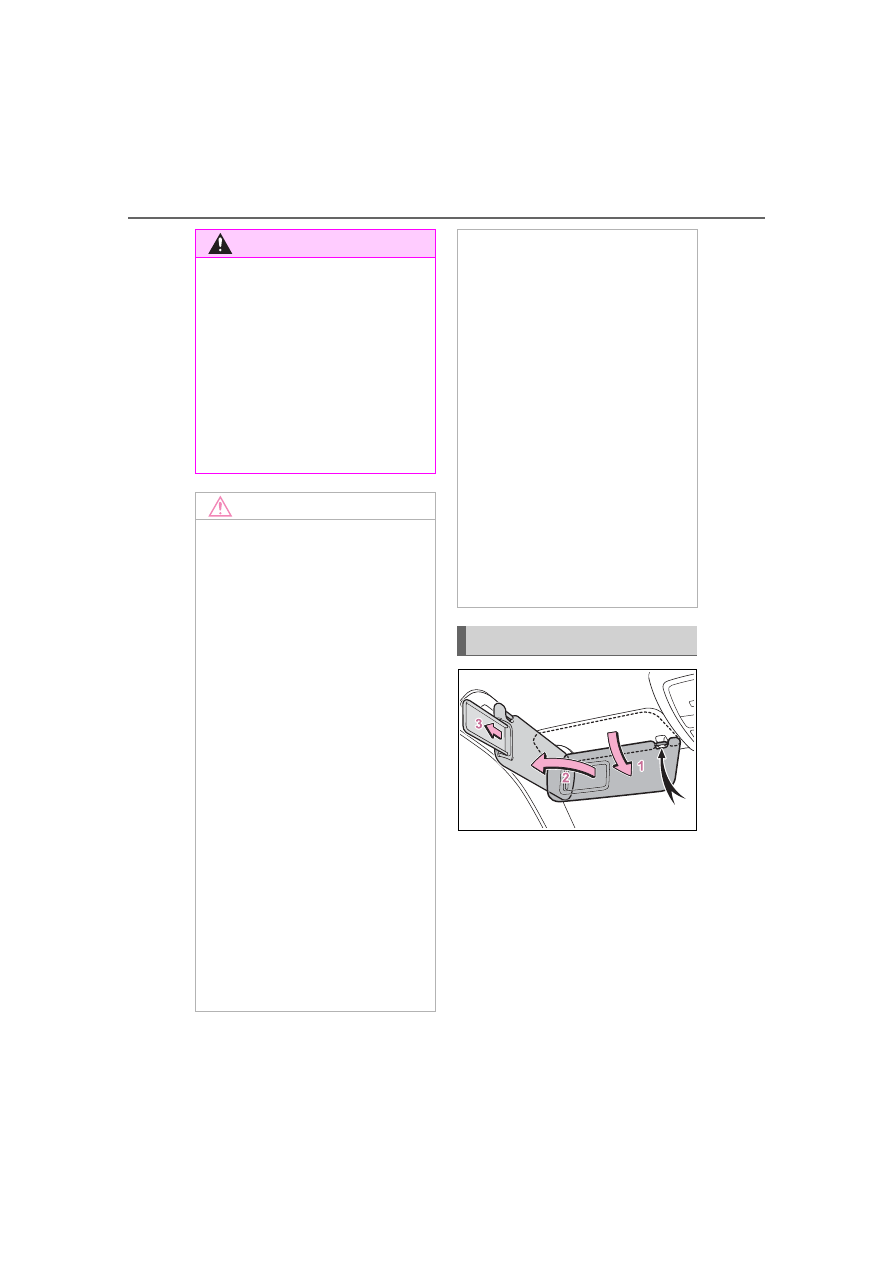

1

To set the visor in the forward
position, flip it down.

2

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

3

To use the side extender,
place the visor in the side
position, then slide it back-
ward.

WARNING

Normal operations may not be

possible for electronic devices

that require level installation.

Excluding electronic devices

with waterproof specifications,

do not use in places where it

can be covered by rain or water,

or places with lots of humidity.

Do not use medical equipment

as the power supply function

may temporarily stop depending

the conditions of the vehicle.

NOTICE

Observe the following precau-

tions.
Failure to do so may lead to the

power outlets not operating cor-

rectly or damage to the vehicle or

a connected device.

To avoid short circuit or mal-

function

Do not set a device which gen-

erates heat near the interior

components or on a seat. Heat

may cause these parts to melt

or burn.

Do not use devices which are

sensitive to vibration or heat in

the vehicle.

These devices may malfunction

due to vibration while driving or

heat while the vehicle is parked

in the sun.

When not using a power outlet,

make sure to close the cover. If

foreign matter or a liquid enters

the power outlet, it may cause a

malfunction or short circuit.

Do not use a multi-point outlet

adapter as doing so may over-

load the power outlet.

Immediately stop using if there

is an unusual amount of heat

being felt from the power outlet.

When the ambient tempera-

ture is high

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked under the

sun, move the vehicle to a shaded

area, use the air conditioning sys-

tem to sufficiently cool the interior,

and then press the AC120V

switch again.

When the ambient tempera-

ture is low

When it is particularly cold, the

power outlets may not be able to

be used, to protect the traction

battery. In that case, drive the

vehicle and use the power outlets

after the traction battery has

warmed up.

Sun visors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

371

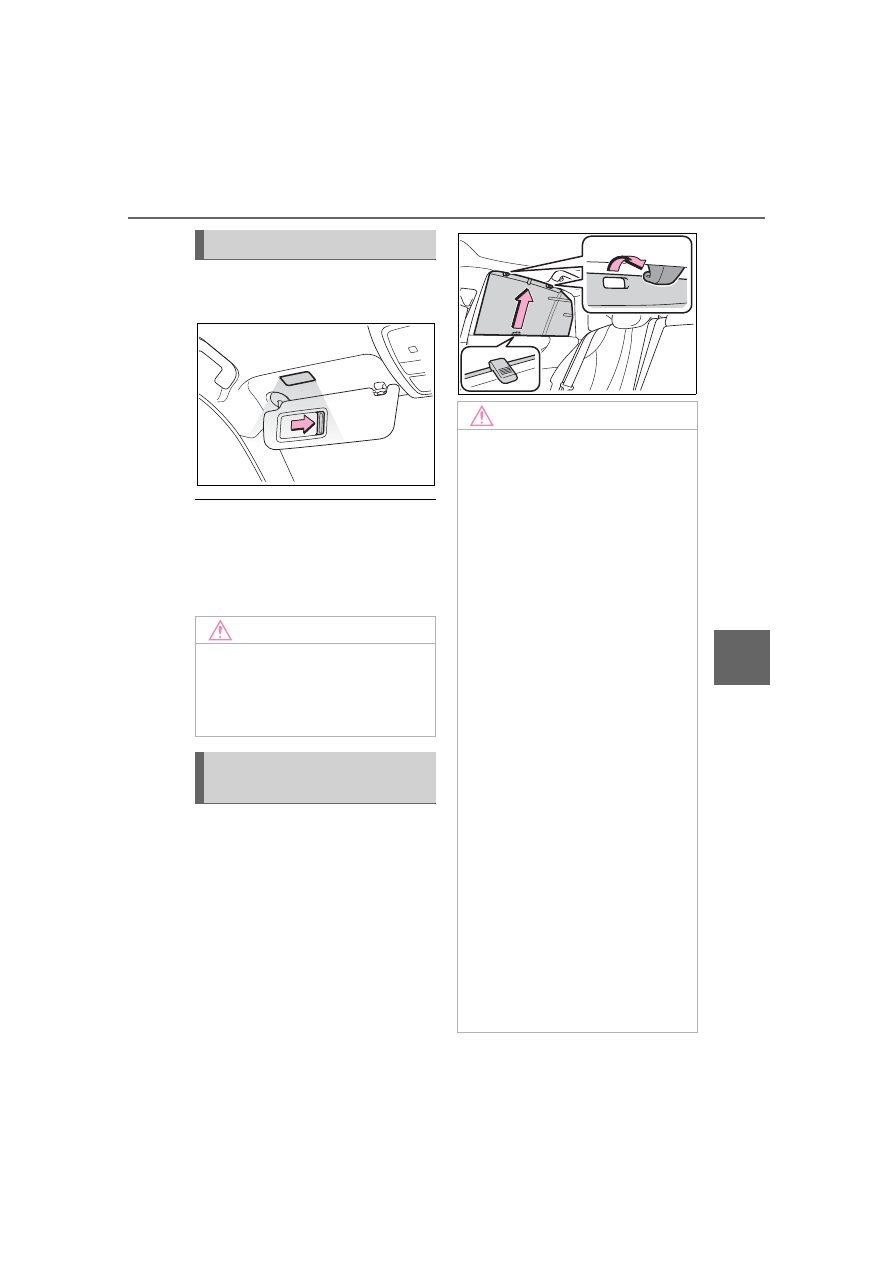

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

Slide the cover to open.

The vanity light turns on.

To prevent 12-volt battery dis-

charge

If the vanity lights remain on when

the power switch is turned off, the

lights will go off automatically after

20 minutes.

Pull up the tab of the sunshade
and hook the shade on using
the anchors.

To retract the sunshade, unhook
the sunshade and retract it slowly.

Vanity mirrors

NOTICE

To prevent the 12-volt battery

from being discharged

Do not leave the vanity lights on

for extended periods while the

fuel cell system is off.

Rear door sunshades (if
equipped)

NOTICE

To ensure normal operation

of the sunshades

Observe the following precau-

tions:

Do not place anything where it

may hinder the opening/closing

of the rear door sunshades.

Do not attach items to the rear

door sunshades.

Do not apply excessive load to

the rear door sunshades while

they are hanging from the

hooks.

Do not operate the rear door

sunshade while the rear door is

opening/closing.

Do not store the rear door sun-

shade in a tilted position. If

stored in a tilted position, the

rear door sunshade screen may

become creased.

To prevent damage to the rear

door sunshade

Observe the following precau-

tions:

Do not use the rear door sun-

shade when either hook is

detached. When the rear door is

opened/closed, the rear door

sunshade may be damaged.

Do not pull on the screen while

the hooks are attached. The

screen may be damaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

372

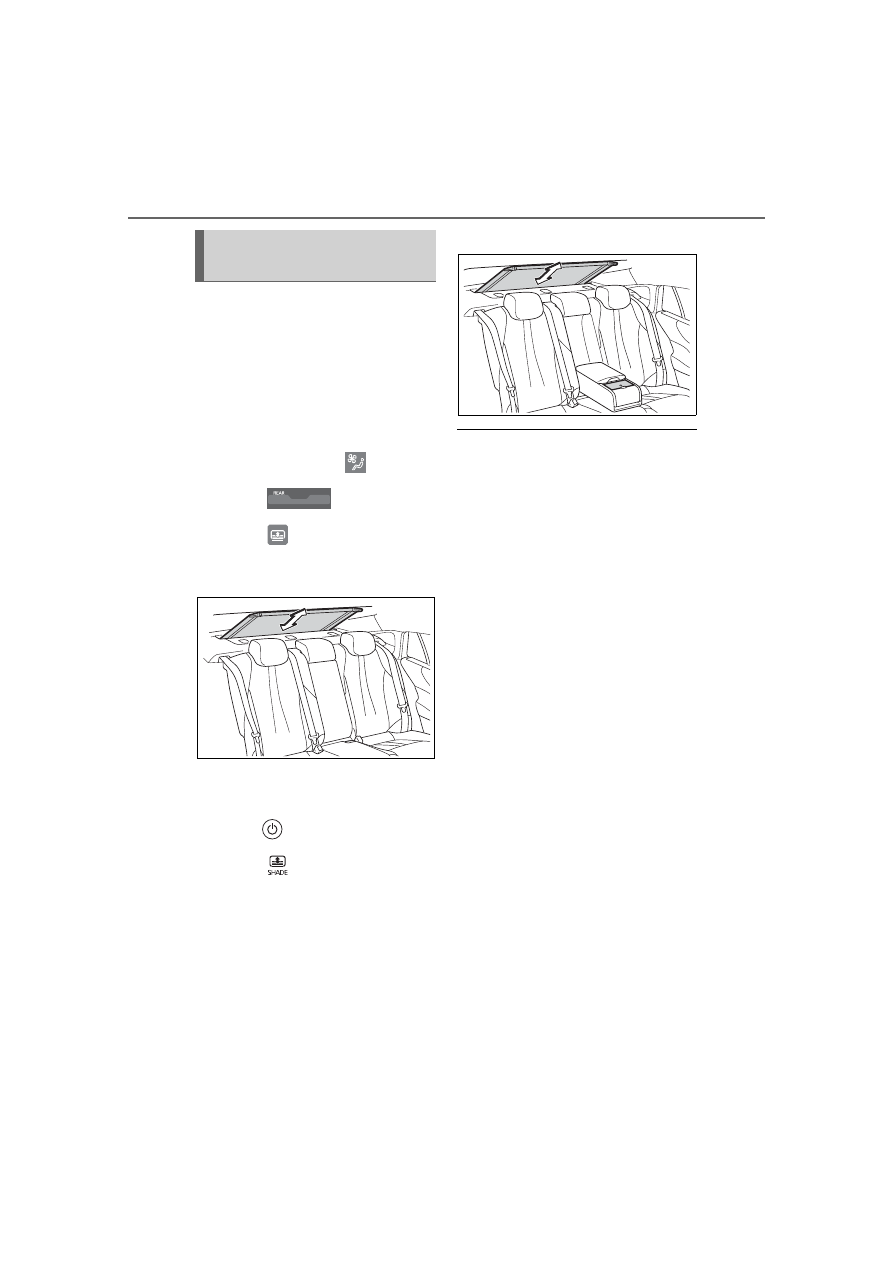

6-4. Using the other interior features

Owners Manual_USA_M62102_en

The rear sunshade can be
extended and retracted using
the Toyota multi-operation touch
(

P.355) or rear control panel

(

P.343).

From front seat

1

Using the Toyota multi-opera-
tion touch, select

.

2

Select

.

3

Select

.

The rear sunshade will be extended

or retracted.

From rear seat

1

Using the rear control panel,
press

.

2

Select

.

The rear sunshade will be extended

or retracted.

The rear sunshade can be used

when

The power switch is in ON.

Operating the rear sunshade

after turning the fuel cell sys-

tem off

The rear sunshade can be operated

for a while even after the power

switch is switched to ACC or turned

off.

Reverse operation feature

To ensure adequate rear visibility,

the rear sunshade automatically

lowers when the shift position is

shifted to R.
However, the rear sunshade is

raised again if any of the following

occurs:

The button is touched again.

The shift position is shifted to P.

The shift position is shifted out of

P and R, and the vehicle reaches

a speed of 9 mph (15 km/h).

If the fuel cell system is turned off

when the rear sunshade has been

lowered due to the reverse opera-

tion feature, it will not be raised

even when the fuel cell system is

turned on again and the vehicle

reaches a speed of 9 mph (15

km/h). To raise the sunshade again,

touch the button.

Customization

Some functions can be customized.

(

P.500)

Rear sunshade (if
equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

373

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

*

: If equipped

The HomeLink

®

 wireless control

system in your vehicle has 3
buttons which can be pro-
grammed to operate 3 different
devices. Refer to the program-
ming methods on the following
pages to determine the method
which is appropriate for the
device.

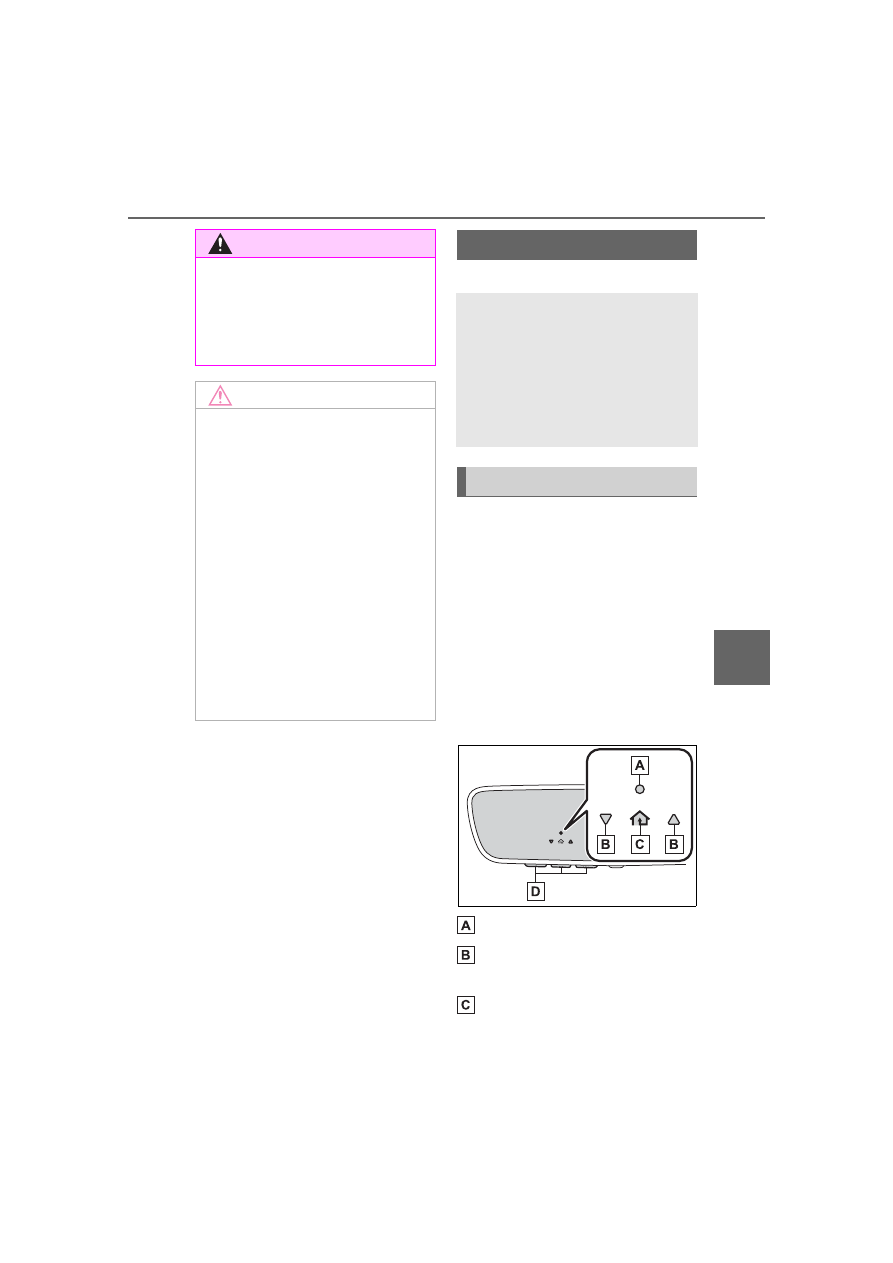

Vehicles with auto anti-glare
inside rear view mirror

HomeLink

®

 indicator light

Garage door operation indi-
cators

HomeLink

®

 icon

Illuminates while HomeLink

®

 is

WARNING

When the rear sunshade is

being extended or retracted

Do not place fingers or other

objects in the shade mechanism

or in the opening as injury may

result.

NOTICE

To ensure normal operation

of the rear sunshade

Observe the following precau-

tions:

Do not place excessive load on

the motor or other components.

Do not place objects where they

may hinder opening and closing

operations.

Do not attach items to the rear

sunshade.

Keep the opening clean and

clear of obstructions.

Do not operate the rear sun-

shade continuously for long

periods of time.

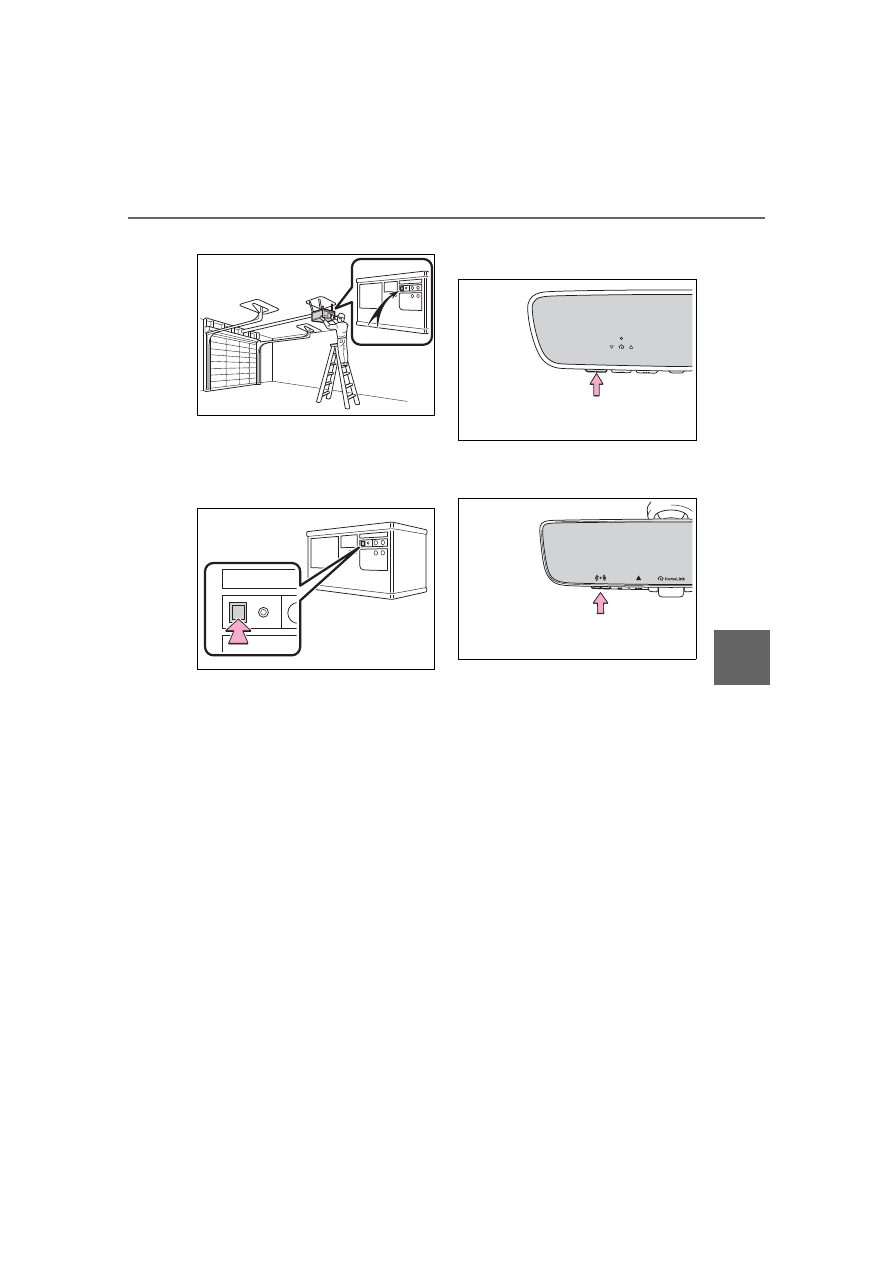

Garage door opener

*

The garage door opener can
be programmed using the
HomeLink

®

 to operate

garage doors, gates, entry
doors, door locks, home
lighting systems, security
systems, and other devices.

System components

-------------------------------------------------------------------------------------------------------------------------------------------------------------

374

6-4. Using the other interior features

Owners Manual_USA_M62102_en

operating.

Buttons

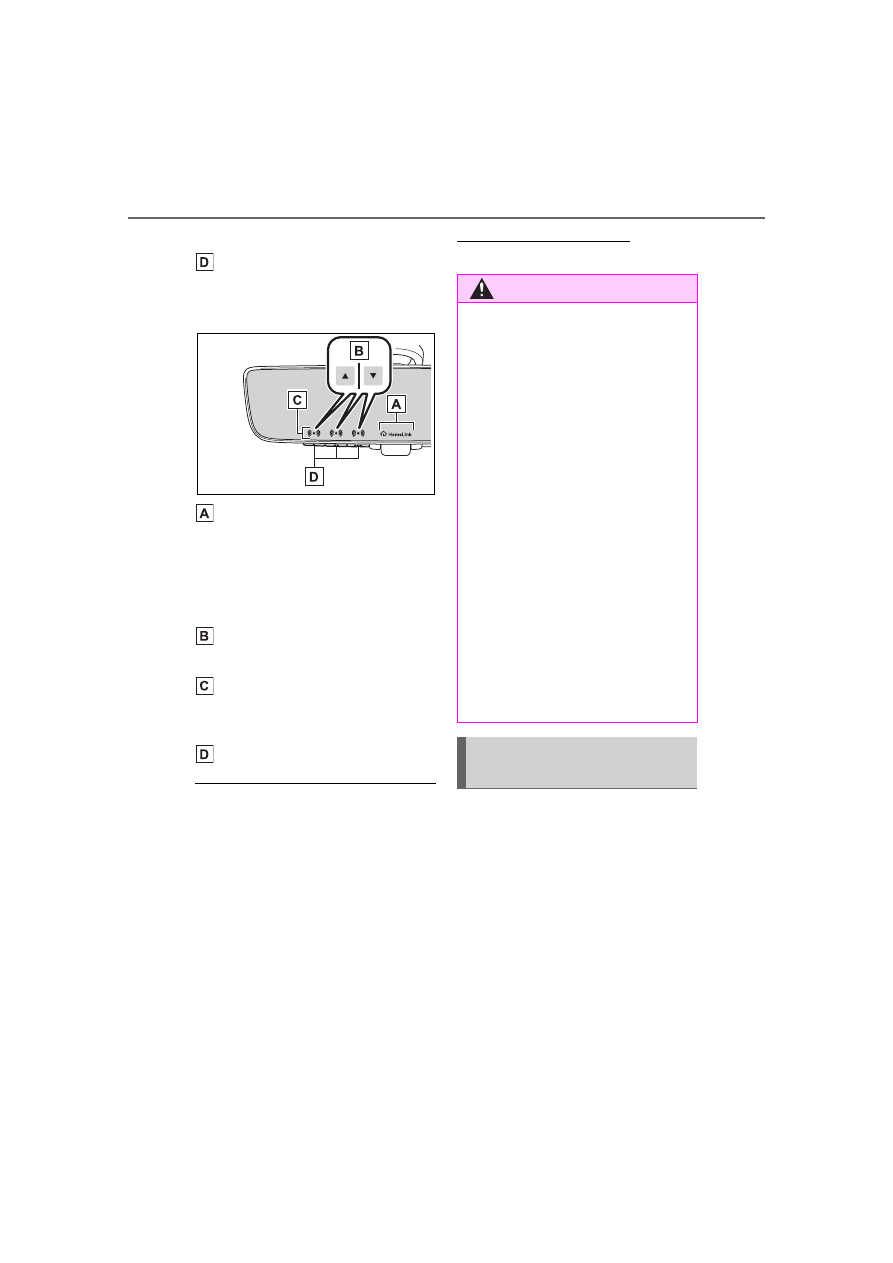

Vehicles with Digital Rearview
Mirror

HomeLink

®

 logo

Appears while HomeLink

®

 is oper-

ating. When the menu button
(

P.144) is pressed, the logo dis-

appears even while the HomeLink

®



is operating.

Garage door operation indi-
cators

HomeLink

®

 indicator light

Illuminates above each button
selected.

Buttons

Codes stored in the Home-

Link

®

 memory

The registered codes are not

erased even if the 12-volt battery

cable is disconnected.

If learning failed when registering

a different code to a HomeLink

®



button that already has a code

registered to it, the already regis-

tered code will not be erased.

Certification

P.557

When support is necessary

Visit on the web at

www.homelink.com/toyota or

call 1-800-355-3515.

Before programming Home-
Link

®

During programming, it is pos-
sible that garage doors,
gates, or other devices may
operate. For this reason,
make sure that people and
objects are clear of the
garage door or other devices
to prevent injury or other
potential harm.

WARNING

When programming a garage

door or other remote control

device

The garage door or other device

may operate, so ensure people

and objects are out of danger to

prevent potential harm.

Conforming to federal safety

standards

Do not use the HomeLink

®

 com-

patible transceiver with any

garage door opener or device that

lacks safety stop and reverse fea-

tures as required by federal safety

standards.
This includes any garage door

that cannot detect an interfering

object. A door or device without

these features increases the risk

of death or serious injury.

When operating or program-

ming HomeLink

®

Never allow a child to operate or

play with the HomeLink

®

 buttons.

Programming the Home-
Link

®

-------------------------------------------------------------------------------------------------------------------------------------------------------------

375

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

It is recommended that a new
battery be placed in the
remote control transmitter for
more accurate programming.

Garage door opener motors
manufactured after 1995 may
be equipped with rolling code
protection. If this is the case,
you may need a stepladder or
other sturdy, safe device to
reach the “Learn” or “Smart”
button on the garage door
opener motor.

Programming HomeLink

®

Steps

1

 through

3

 must be per-

formed within 60 seconds, oth-
erwise the indicator light will
stop flashing and programming
will not be successfully com-
pleted.

1

Press and release the Home-
Link

®

 button you want to pro-

gram and check that the
HomeLink

®

 indicator light

flashes (orange).

2

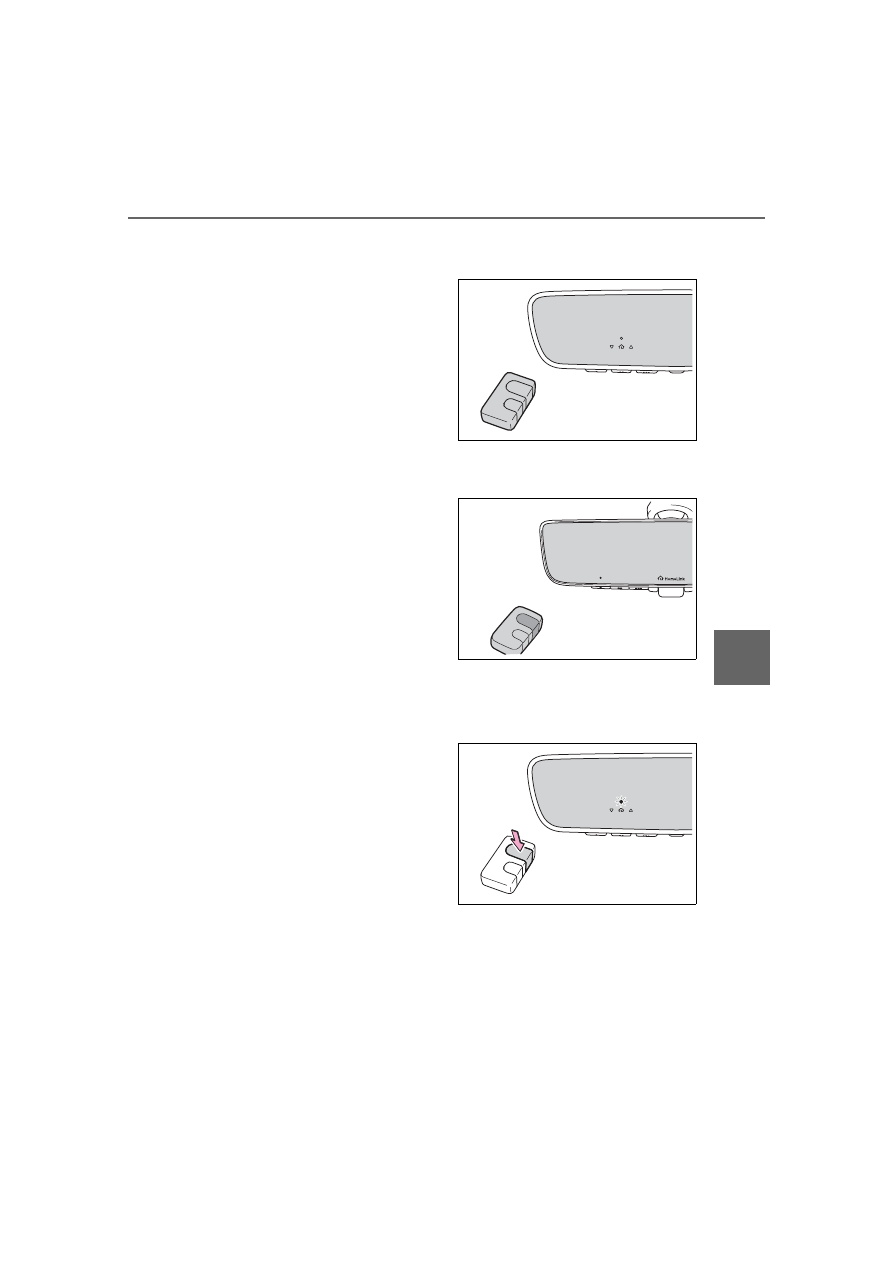

Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the
HomeLink

®

 buttons.

Keep the HomeLink

®

 indicator light

in view while programming.

Vehicles with auto anti-glare
inside rear view mirror

Vehicles with Digital Rearview
Mirror

3

Program a device.

Vehicles with auto anti-glare
inside rear view mirror

-------------------------------------------------------------------------------------------------------------------------------------------------------------

376

6-4. Using the other interior features

Owners Manual_USA_M62102_en

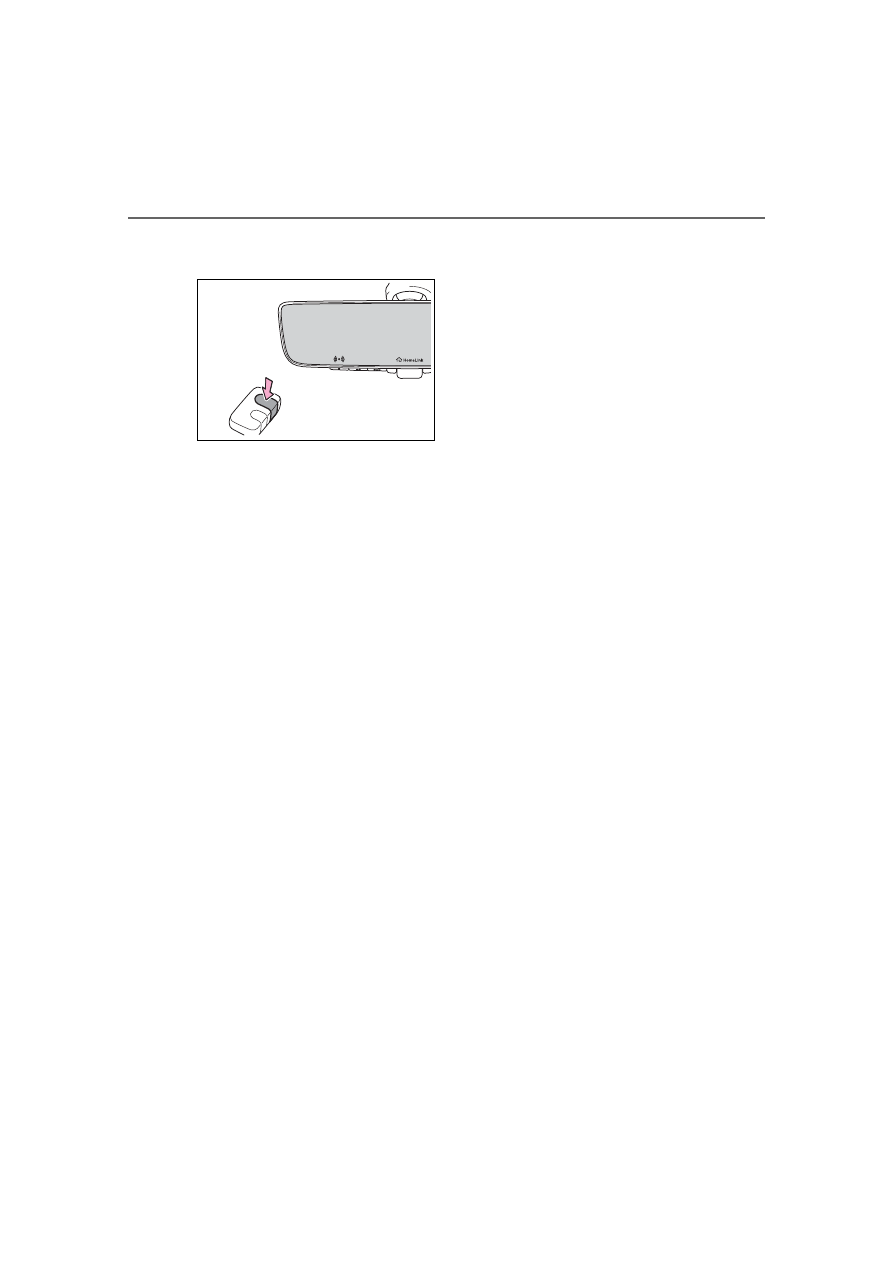

Vehicles with Digital Rearview
Mirror

Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the remote control
transmitter button until the Home-
Link

®

 indicator light changes from

slowly flashing orange to rapidly
flashing green (rolling code) or con-
tinuously lit green (fixed code), then
release the button.

Programming an entry gate
(for U.S.A. owners)/Program-
ming a device in the Cana-
dian market

Press and release the remote con-
trol transmitter button at 2 second
intervals, repeatedly, until the
HomeLink

®

 indicator light changes

from slowly flashing (orange) to
rapidly flashing (green) (rolling
code) or continuously lit (green)
(fixed code).

4

Test the HomeLink

®

 opera-

tion by pressing the newly
programmed button and
observing the indicator light:

HomeLink

®

 indicator light illu-

minates: Programming of a
fixed code device has com-

pleted. The garage door or
other device should operate
when a HomeLink

®

 button is

pressed and released.

HomeLink

®

 indicator light

flashes rapidly: The garage
door opener motor or other
device is equipped with a roll-
ing code. To complete pro-
gramming, firmly press and
hold the HomeLink

®

 button

for 2 seconds then release it.

If the garage door or other
device does not operate, pro-
ceed to “Programming a roll-
ing code system”.

5

Repeat the steps above to
program another device for
any of the remaining Home-
Link

®

 buttons.

Programming a rolling code
system

Two or more people may be
necessary to complete rolling
code programming.

1

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found

where the hanging antenna wire is

attached to the unit. The name and

color of the button may vary by

manufacturer. Refer to the owner’s

manual supplied with the garage

-------------------------------------------------------------------------------------------------------------------------------------------------------------

377

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

door opener motor for details.

2

Press and release the
“Learn” or “Smart” button.

Perform

3

 within 30 seconds after

performing

2

.

3

Press and hold the desired
HomeLink

®

 button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence
(press/hold/release) up to 3
times to complete program-
ming.
If the garage door opener
motor operates when the
HomeLink

®

 button is

pressed, the garage door
opener motor recognizes the
HomeLink

®

 signal.

Vehicles with auto anti-glare
inside rear view mirror

Vehicles with Digital Rearview
Mirror

Enabling 2-way communi-
cation with a garage door
(only available for compati-
ble devices)

When enabled, 2-way communi-
cation allows you to check the
status of the opening and clos-
ing of a garage door through
indicators in your vehicle.
2-way communication is only
available if the garage door
opener motor used is a compati-
ble device. (To check device
compatibility, refer to
www.homelink.com.)

1

Within 5 seconds after pro-
gramming the garage door
opener has been completed,

-------------------------------------------------------------------------------------------------------------------------------------------------------------

378

6-4. Using the other interior features

Owners Manual_USA_M62102_en

if the garage door opener
motor is trained to Home-
Link

®

, both garage door

operation indicators will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

If the indicators do not flash, per-

form

2

 and

3

 within the first 10

presses of the HomeLink

®

 button

after programming has been com-

pleted.

2

Press a programmed Home-
Link

®

 button to operate a

garage door.

3

Within 1 minute of pressing
the HomeLink

®

 button, after

the garage door operation
has stopped, press the
“Learn” or “Smart” button on
the garage door opener
motor. Within 5 seconds of
the establishment of 2-way
communication with the
garage door opener, both
garage door operation indica-
tors in the vehicle will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

Reprogramming a single
HomeLink

®

 button

When the following procedure is
performed, buttons which
already have devices registered

to them can be overwritten:

1

Press and hold the desired
HomeLink

®

 button.

2

When the HomeLink

®

 indica-

tor starts flashing orange,
release the HomeLink

®

 but-

ton and perform “Program-
ming HomeLink

®

”

1

 (it takes

20 seconds for the Home-
Link

®

 indicator to start flash-

ing).

Before programming

Install a new battery in the trans-

mitter.

The battery side of the transmitter

must be pointed away from the

HomeLink

®

 buttons.

Press the appropriate Home-
Link

®

 button. The HomeLink

®



indicator light should turn on.

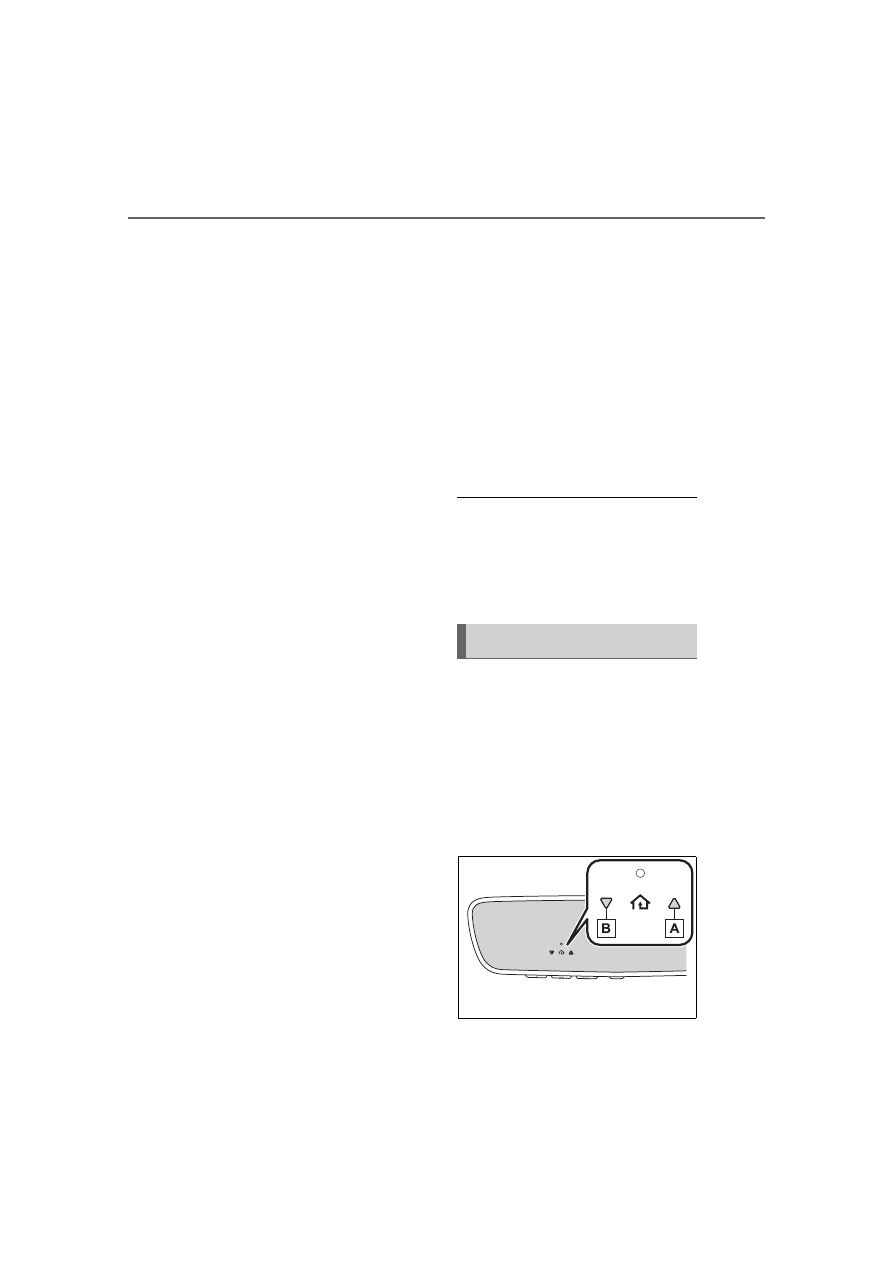

The status of the opening and
closing of a garage door is
shown by the indicators.

Vehicles with auto anti-glare
inside rear view mirror

Operating HomeLink

®

-------------------------------------------------------------------------------------------------------------------------------------------------------------

379

6-4. Using the other interior features

Owners Manual_USA_M62102_en

6

Interior

 featur

es

Opening

Closing

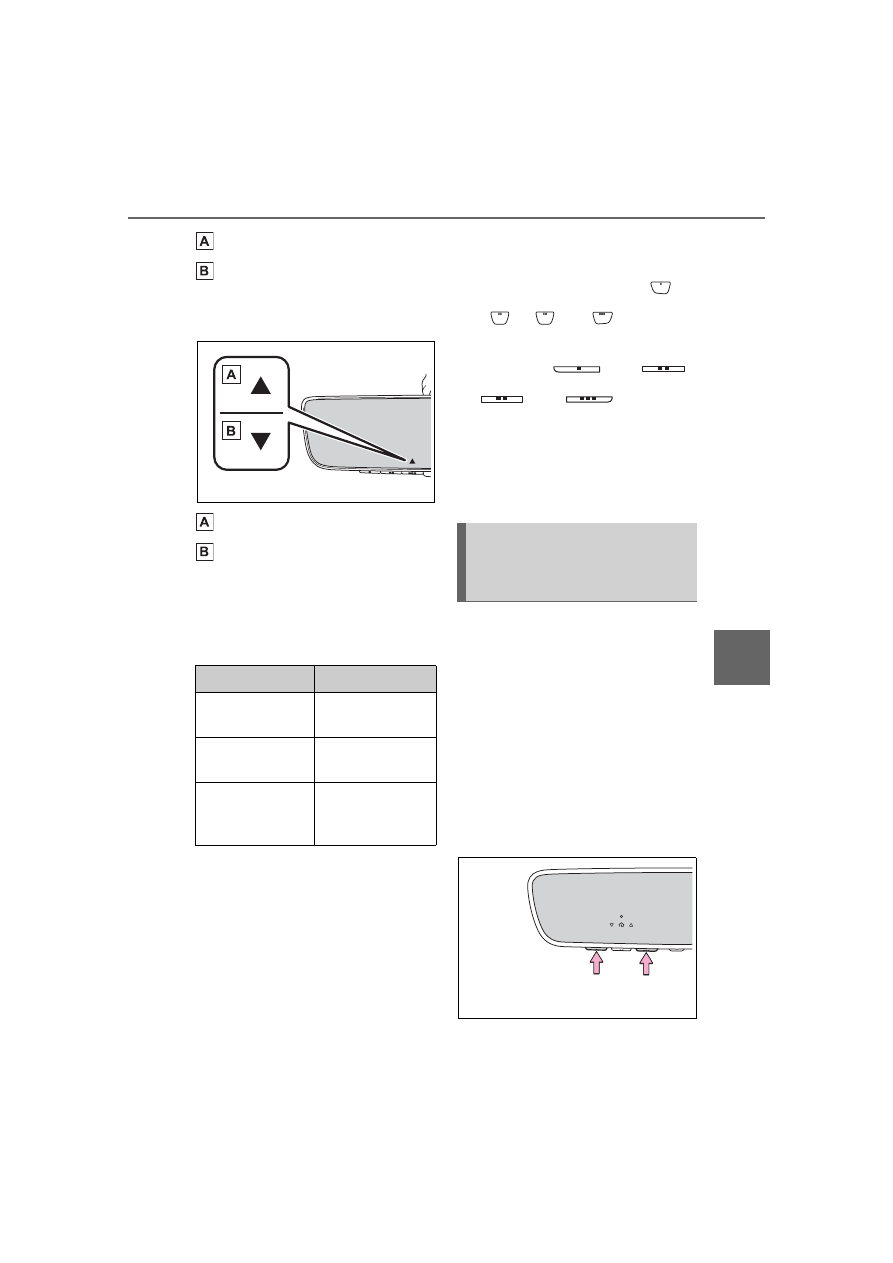

Vehicles with Digital Rearview
Mirror

Opening

Closing

This function is only available if the
garage door opener motor used is a
compatible device. (To check
device compatibility, refer to
www.homelink.com.)

The indicators can operate
within approximately 820 ft. (250
m) of the garage door. However,
if there are obstructions
between the garage door and
the vehicle, such as houses and
trees, feedback signals from the
garage door may not be
received.

To recall the previous door oper-
ation status, press and release
either HomeLink

®

 buttons



and

 or

 and

 (vehicles

with auto anti-glare inside rear
view mirror),

 and



or

 and

 (vehicles

with Digital Rearview Mirror),
simultaneously. The last
recorded status will be dis-
played for 3 seconds.

Press and hold the 2 outside
buttons for 10 seconds until the
HomeLink

®

 indicator light

changes from continuously lit
(orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink

®

 memory.

Vehicles with auto anti-glare
inside rear view mirror

Color

Status

Orange (flash-

ing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback sig-

nals cannot be

received

Erasing the entire Home-
Link

®

 memory (all three

codes)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

380

6-4. Using the other interior features

Owners Manual_USA_M62102_en

Vehicles with Digital Rearview
Mirror

-------------------------------------------------------------------------------------------------------------------------------------------------------------

381

Owners Manual_USA_M62102_en

7

7

Maintena

nce
 a

nd ca

re

Maintenance and care

7-1. Maintenance and care

Cleaning and protecting the

vehicle exterior ..........

382

Cleaning and protecting the

vehicle interior ...........

386

7-2. Maintenance

Maintenance requirements

..................................

389

General maintenance..

390

7-3. Do-it-yourself mainte-

nance

Do-it-yourself service pre-

cautions.....................

393

Hood ...........................

395

Positioning a floor jack

395

Fuel cell unit compartment

..................................

397

12-volt battery .............

402

Tires ............................

405

Replacing the tire ........

413

Tire inflation pressure..

417

Wheels ........................

419

Air conditioning filter....

421

Cleaning the traction battery

air intake vents and filters

..................................

422

Electronic key battery..

425

Checking and replacing

fuses..........................

427

Headlight aim ..............

430

Light bulbs...................

431

-------------------------------------------------------------------------------------------------------------------------------------------------------------

382

7-1. Maintenance and care

Owners Manual_USA_M62102_en

7-1.Maintenance and care

Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.

Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.

For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.

Wipe away any water.

Wax the vehicle when the
waterproof coating deterio-
rates.

If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.

Self-restoring coat

The vehicle body has a self-restor-

ing coating that is resistant to small

surface scratches caused in a car

wash etc.

The coating lasts for 5 to 8 years

from when the vehicle is delivered

from the plant.

The restoration time differs

depending on the depth of the

scratch and outside temperature.

The restoration time may become

shorter when the coating is

warmed by applying warm water.

Deep scratches caused by keys,

coins, etc. cannot be restored.

Do not use wax that contains

abrasives.

Automatic car washes

Before washing the vehicle:

• Fold the mirrors
Start washing from the front of the
vehicle. Extend the mirrors before
driving.

Brushes used in automatic car

washes may scratch the vehicle

surface, parts (wheel, etc.) and

harm your vehicle’s paint.

When it is necessary to set the

power switch to ACC with the shift

position held in N, refer to P.181.

High pressure car washes

As water may enter the cabin, do

not bring the nozzle tip near the

gaps around the doors or perime-

ter of the windows, or spray these

areas continuously.

Turn the power switch off.

Wheels and wheel ornaments

If the door handle becomes wet

while the electronic key is within the

effective range, the door may lock

and unlock repeatedly. In that case,

follow the following correction pro-

cedures to wash the vehicle:

Place the key in a position 6 ft. (2

m) or more separate from the

vehicle while the vehicle is being

washed. (Take care to ensure that

the key is not stolen.)

Set the electronic key to battery-

saving mode to disable the Smart

key system. (

P.131)

Aluminum wheels

Remove any dirt immediately by

using a neutral detergent.

Wash detergent off with water

Cleaning and protect-

ing the vehicle exte-

rior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Cleaning instructions

-------------------------------------------------------------------------------------------------------------------------------------------------------------

383

7-1. Maintenance and care

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

immediately after use.

To protect the paint from damage,

make sure to observe the follow-

ing precautions.

• Do not use acidic, alkaline or

abrasive detergent

• Do not use hard brushes

• Do not use detergent on the

wheels when they are hot, such

as after driving or parking in hot

weather

Bumpers

Do not scrub with abrasive cleaners.

Front side windows water-

repellent coating

The following precautions can

extend the effectiveness of the

water-repellent coating.

• Remove any dirt, etc. from the

front side windows regularly.

• Do not allow dirt and dust to accu-

mulate on the windows for a long

period.

Clean the windows with a soft,

damp cloth as soon as possible.

• Do not use wax or glass cleaners

that contain abrasives when

cleaning the windows.

• Do not use any metallic objects to

remove condensation build up.

When the water-repellent perfor-

mance has become insufficient,

the coating can be repaired. Con-

tact your Toyota dealer.

Plated portions

If dirt cannot be removed, clean the

parts as follows:

Use a soft cloth dampened with an

approximately 5% solution of neu-

tral detergent and water to clean

the dirt off.

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

To remove oily deposits, use alco-

hol wet wipes or a similar product.

Roof film (vehicles with elec-

tronic sunshade)

Dirt like bird droppings and oil

should be cleaned off with a neu-

tral detergent immediately.

When something was attached on

the film and its mark remains. The

small mark can be recovered by

dryer heating.

Do not apply any films on the film.

Do not use wax that contains

abrasives.

In case of the film repair, please

request at your Toyota dealer.

WARNING

When washing the vehicle

Do not apply water to the inside of

the fuel cell unit compartment.

Doing so may cause the electrical

components, etc. to catch fire.

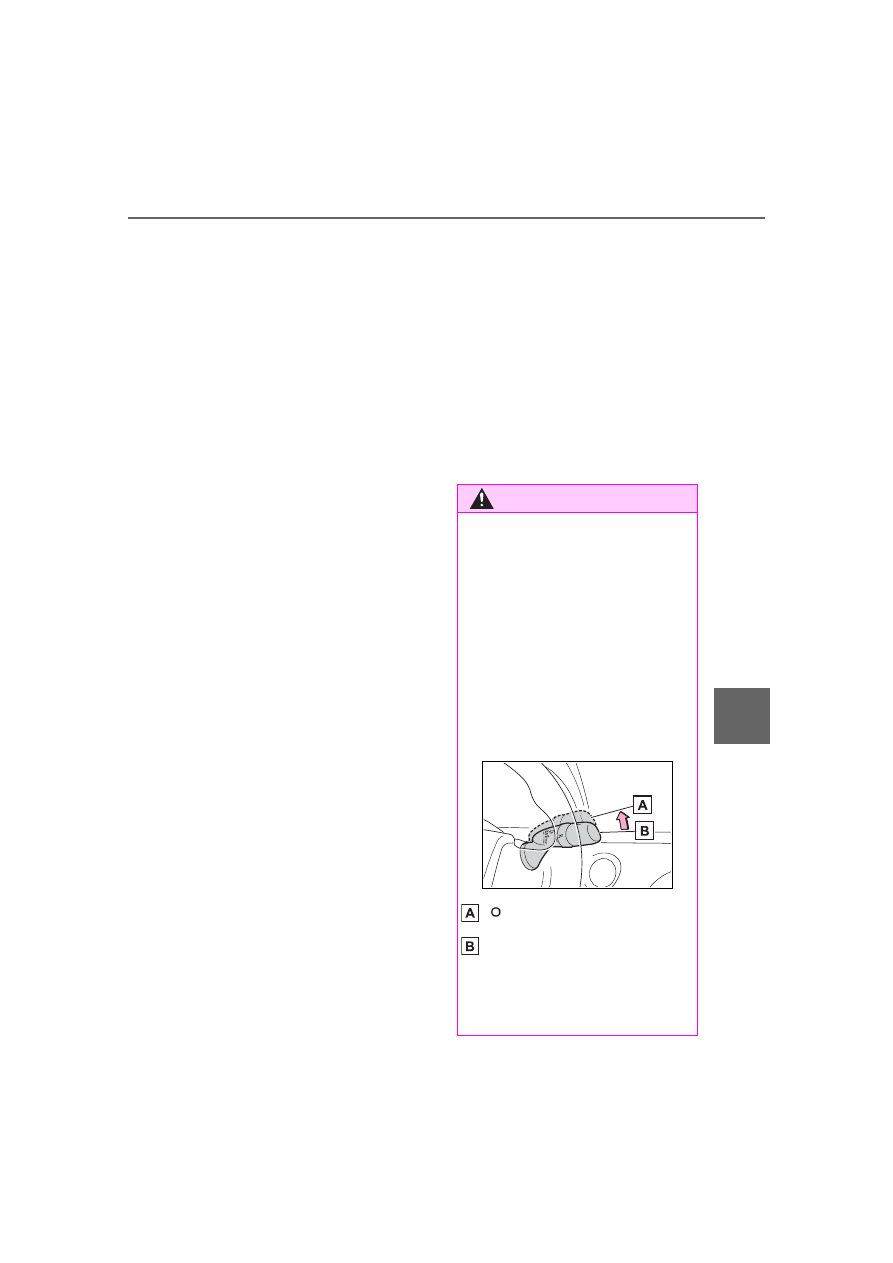

When cleaning the windshield

Set the wiper switch to off.

If the wiper switch is in “AUTO”,

the wipers may operate unexpect-

edly in the following situations,

and may result in hands being

caught or other serious injuries

and cause damage to the wiper

blades.

 Off

AUTO

When the upper part of the

windshield where the raindrop

sensor is located is touched by

hand

-------------------------------------------------------------------------------------------------------------------------------------------------------------

384

7-1. Maintenance and care

Owners Manual_USA_M62102_en

WARNING

When a wet rag or similar is

held close to the raindrop sen-

sor

If something bumps against the

windshield

If you directly touch the raindrop

sensor body or if something

bumps into the raindrop sensor

Precaution regarding the

front bumper

If the paint of the front bumper is

chipped or scratched, the Toyota

Safety Sense 2.5 + may not func-

tion correctly. If this occurs, con-

sult your Toyota dealer.

Precaution regarding the rear

bumper

If the paint of the rear bumper is

chipped or scratched, the follow-

ing systems may not function cor-

rectly. If this occurs, consult your

Toyota dealer.

BSM

RCTA

PKSB

NOTICE

To prevent paint deteriora-

tion and corrosion on the

body and components (alumi-

num wheels, etc.)

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

If the paint is chipped or

scratched, have it repaired

immediately.

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

Cleaning the exterior lights

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

When washing the car

Do not remove the vehicle recep-

tacle cap and directly pour water

over the vehicle receptacle. If

water enters the vehicle recepta-

cle, damage may occur.

When using an automatic car

wash

Set the wiper switch to the off

position.

If the wiper switch is in “AUTO”,

the wipers may operate and the

wiper blades may be damaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

385

7-1. Maintenance and care

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

NOTICE

When using a high pressure

car wash

When washing the vehicle, do

not spray the camera or its sur-

rounding area directly with a

high pressure washer. Shock

applied from high pressure

water may cause the device to

not operate normally.

Do not spray water directly on

the radar sensor which is

equipped behind the emblem.

Otherwise it may cause the

device to be damaged.

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), connectors or

the following parts. The parts

may be damaged if they come

into contact with high-pressure

water.

• Fuel cell stack

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicle body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged.

Also, do not continuously hold the
nozzle in the same place.

Do not spray the lower part of

the windshield continuously.

If water enters the air conditioning
system intake located near the
lower part of the windshield, the
air conditioning system may not
operate correctly.

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

386

7-1. Maintenance and care

Owners Manual_USA_M62102_en

Remove dirt and dust using a
vacuum cleaner. Wipe dirty
surfaces with a cloth damp-
ened with lukewarm water.

If dirt cannot be removed,
wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.
Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

When cleaning the carpeted

portions of the glove box, con-

sole box, etc.

If a strong adhesive tape is used,

there is a possibility that the surface

of the carpet could be damaged.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Protecting the vehicle
interior

WARNING

Water in the vehicle

Do not splash or spill liquid in

the vehicle, such as on the floor,

in the traction battery air vents,

and in the trunk. (

P.87)

Doing so may cause the traction

battery, electrical components,

etc. to malfunction or catch fire.

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet.

(

P.34)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

Cleaning the interior (espe-

cially instrument panel)

Do not use polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

NOTICE

Cleaning detergents

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Areas other than the seats and

steering wheel: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

• Seats: Alkaline or acidic solu-

tions, such as thinner, benzene,

and alcohol

-------------------------------------------------------------------------------------------------------------------------------------------------------------

387

7-1. Maintenance and care

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

Remove dirt using a water-
dampened soft cloth or syn-
thetic chamois.

Wipe the surface with a dry,
soft cloth to remove any
remaining moisture.

Cleaning the areas with satin-

finish metal accents

The metal areas use a layer of real

metal for the surface. It is necessary

to clean them regularly. If dirty areas

are left uncleaned for long periods

of time, they may be difficult to

clean.

Remove dirt and dust using a
vacuum cleaner.

Wipe off any excess dirt and
dust with a soft cloth damp-
ened with diluted detergent.

Use a diluted water solution of
approximately 5% neutral wool

NOTICE

• Steering wheel: Organic sub-

stances, such as thinner, and

cleaner that contains alcohol

Do not use polish wax or polish

cleaner. The instrument panel’s

or other interior part’s painted

surface may be damaged.

Preventing damage to leather

surfaces

Observe the following precautions

to avoid damage to and deteriora-

tion of leather surfaces:

Remove any dust or dirt from

leather surfaces immediately.

Do not expose the vehicle to

direct sunlight for extended peri-

ods of time. Park the vehicle in

the shade, especially during

summer.

Do not place items made of

vinyl, plastic, or containing wax

on the upholstery, as they may

stick to the leather surface if the

vehicle interior heats up signifi-

cantly.

Water on the floor

Do not wash the vehicle floor with

water.

Vehicle systems such as the

audio system may be damaged if

water comes into contact with

electrical components such as the

audio system above or under the

floor of the vehicle. Water may

also cause the body to rust.

When cleaning the inside of

the windshield

Do not allow glass cleaner to con-

tact the lens. Also, do not touch

the lens. (

P.207)

Cleaning the inside of the rear

window

Do not use glass cleaner to

clean the rear window, as this

may cause damage to the rear

window defogger heater wires

or antenna. Use a cloth damp-

ened with lukewarm water to

gently wipe the window clean.

Wipe the window in strokes run-

ning parallel to the heater wires

or antenna.

Be careful not to scratch or

damage the heater wires or

antenna.

Cleaning the areas with
satin-finish metal accents

Cleaning the leather areas

-------------------------------------------------------------------------------------------------------------------------------------------------------------

388

7-1. Maintenance and care

Owners Manual_USA_M62102_en

detergent.

Wring out any excess water
from the cloth and thoroughly
wipe off all remaining traces
of detergent.

Wipe the surface with a dry,
soft cloth to remove any
remaining moisture. Allow the
leather to dry in a shaded and
ventilated area.

Caring for leather areas

Toyota recommends cleaning the

interior of the vehicle at least twice a

year to maintain the quality of the

vehicle’s interior.

Remove dirt and dust using a
vacuum cleaner.

Wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.

Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

Cleaning the synthetic
leather areas

-------------------------------------------------------------------------------------------------------------------------------------------------------------

389

7-2. Maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

7-2.Maintenance

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

Allow inspection and repairs to

be performed by a Toyota

dealer

Toyota technicians are well-

trained specialists and are kept up

to date with the latest service

information. They are well

informed about the operation of all

systems on your vehicle.

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be
performed on a daily basis. This
can be done by yourself or by a
Toyota dealer.

Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.

For details about maintenance
items and schedules, refer to the
“Warranty and Service Guide”,
“Owner’s Manual Supplement” or
“Scheduled Maintenance”.

You can perform some mainte-
nance procedures by yourself.
Please be aware that do-it-your-

Maintenance require-

ments

To ensure safe and econom-
ical driving, day-to-day care
and regular maintenance
are essential. It is the
owner’s responsibility to
perform regular checks.
Toyota recommends the
maintenance below.

WARNING

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

Handling of the 12-volt bat-

tery

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

12-volt battery posts, terminals

and related accessories con-

tain lead and lead compounds

which are known to cause brain

damage. Wash your hands after

handling. (

P.402)

General maintenance

Scheduled maintenance

Do-it-yourself mainte-
nance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

390

7-2. Maintenance

Owners Manual_USA_M62102_en

self maintenance may affect
warranty coverage.

The use of Toyota repair manuals is
recommended.
For details about warranty cover-
age, refer to the separate “Owner’s
Guide”, “Warranty and Service
Guide”, “Owner’s Manual Supple-
ment” or “Warranty Booklet”.

General maintenance

Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
“Warranty and Service
Guide” or “Owner’s Manual
Supplement”. It is recom-
mended that any problem
you notice should be
brought to the attention of
your Toyota dealer or quali-
fied service shop for advice.

WARNING

If the fuel cell system is oper-

ating

Turn the fuel cell system off and

ensure that there is adequate

ventilation before performing

maintenance checks.

Fuel cell unit compart-
ment

Items

Check points

Brake fluid

Is the brake fluid at
the correct level?
(

P.401)

Coolant

Is the coolant at
the correct level?
(

P.399)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

391

7-2. Maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

Radiator/con-
denser

The radiator and
condenser should
be free from for-
eign objects.
(

P.400)

Washer fluid

Is there sufficient
washer fluid?
(

P.401)

Trunk

Items

Check points

12-volt battery

Check the connec-
tions. (

P.402)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should
move smoothly
(without uneven
pedal effort or
catching).

Transmission
“Park” mecha-
nism

• When parked on

a slope and the
shift position is in
P, is the vehicle
securely
stopped?

Items

Check points

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have
appropriate
clearance from
the floor?

• Does the brake

pedal have the
correct amount
of free play?

Brakes

• The vehicle

should not pull to
one side when
the brakes are
applied.

• The brakes

should work
effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get
too close to the
floor when the
brakes are
applied.

Head
restraints

• Do the head

restraints move
smoothly and
lock securely?

Indica-
tors/buzzers

• Do the indica-

tors and buzzers
function prop-
erly?

Lights

• Do all the lights

come on?

Items

Check points

-------------------------------------------------------------------------------------------------------------------------------------------------------------

392

7-2. Maintenance

Owners Manual_USA_M62102_en

Parking brake

• Does the park-

ing brake oper-
ate normally?

• When parked on

a slope and the
parking brake is
on, is the vehicle
securely
stopped?

Seat belts

• Do the seat belts

operate
smoothly?

• The seat belts

should not be
damaged.

Seats

• Do the seat con-

trols operate
properly?

Steering wheel

• Does the steer-

ing wheel rotate
smoothly?

• Does the steer-

ing wheel have
the correct
amount of free
play?

• There should not

be any strange
sounds coming
from the steer-
ing wheel.

Items

Check points

Vehicle exterior

Items

Check points

Doors/trunk

• Do the

doors/trunk oper-
ate smoothly?

Hood

• Does the hood

lock system work
properly?

Fluid leaks

• There should not

be any signs of
fluid leakage
after the vehicle
has been parked.

Tires

• Is the tire infla-

tion pressure
correct?

• The tires should

not be damaged
or excessively
worn.

• Have the tires

been rotated
according to the
maintenance
schedule?

• The wheel nuts

should not be
loose.

Windshield
wipers

• The wiper blades

should not show
any signs of
cracking, split-
ting, wear, con-
tamination or
deformation.

• The wiper blades

should clear the
windshield with-
out streaking or
skipping.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

393

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

7-3.Do-it-yourself maintenance

Do-it-yourself service

precautions

If you perform maintenance
by yourself, be sure to fol-
low the correct procedure
as given in these sections.

Maintenance

Items

Parts and tools

12-volt battery
condition
(

P.402)

• Grease
• Conventional

wrench (for ter-
minal clamp
bolts)

Brake fluid
level (

P.401)

• FMVSS No.116

DOT 3 or SAE
J1703 brake fluid
FMVSS No.116
DOT 4 or SAE
J1704 brake fluid

• Rag or paper

towel

• Funnel (used

only for adding
brake fluid)

Inverter cool-
ant level
(

P.399)

• “Toyota Super

Long Life Cool-
ant” or a similar
high quality eth-
ylene glycol-
based non-sili-
cate, non-amine,
non-nitrite and
non-borate cool-
ant with long-life
hybrid organic
acid technology
For the U.S.A.:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 50% cool-
ant and 50%
deionized water.
For Canada:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 55% cool-
ant and 45%
deionized water.

• Funnel (used

only for adding
coolant)

Fuses
(

P.427)

• Fuse with same

amperage rating
as original

Headlight aim
(

P.523)

• Phillips-head

screwdriver

Radiator and
condenser
(

P.400)

Items

Parts and tools

-------------------------------------------------------------------------------------------------------------------------------------------------------------

394

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

Tire inflation
pressure
(

P.417)

• Tire pressure

gauge

• Compressed air

source

Washer fluid
(

P.401)

• Water or washer

fluid containing
antifreeze (for
winter use)

• Funnel (used

only for adding
water or washer
fluid)

WARNING

The fuel cell unit compartment

contains many mechanisms and

fluids that may move suddenly,

become hot, or become electri-

cally energized. To avoid death or

serious injury, observe the follow-

ing precautions.

When working on the fuel cell

unit compartment

Be careful not to touch the high-

voltage parts or hydrogen-

related parts.

Make sure that the “READY”

indicator is off.

Keep hands, clothing and tools

away from the moving fan.

Be careful not to touch the

motor, inverter, radiator, etc.

right after driving as they may

be hot. Coolant and other fluids

may also be hot.

Do not leave anything that may

burn easily, such as paper and

rags, in the fuel cell unit com-

partment.

Items

Parts and tools

Do not smoke, cause sparks or

expose an open flame to the 12-

volt battery. 12-volt battery

fumes are flammable.

Be extremely cautious when

working on the 12-volt battery. It

contains poisonous and corro-

sive sulfuric acid.

Take care because brake fluid

can harm your hands or eyes

and damage painted surfaces. If

fluid gets on your hands or in

your eyes, flush the affected

area with clean water immedi-

ately.

If you still experience discom-

fort, consult a doctor.

Never touch, disassemble,

remove or replace the high-volt-

age parts, cables and their con-

nectors. It can cause severe

burns or electric shock that may

result in death or serious injury.

When working near the elec-

tric cooling fan or radiator

grille

Be sure the power switch is off.

With the power switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. (

P.400)

Safety glasses

Wear safety glasses to prevent

flying or falling material, fluid

spray, etc. from getting in your

eyes.

NOTICE

If you remove the air cleaner

filter

Driving with the air cleaner filter

removed may cause excessive

motor wear due to dirt in the air.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

395

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

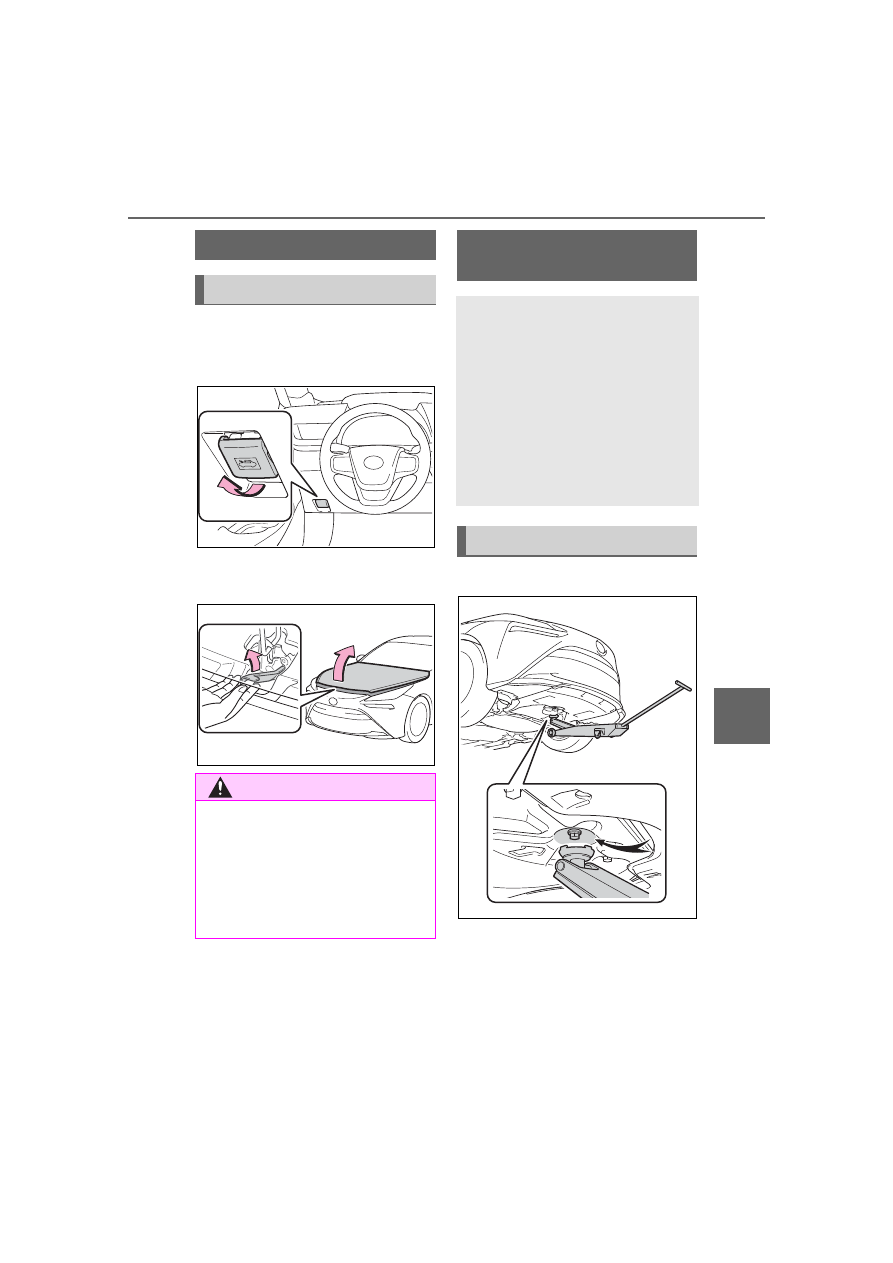

1

Pull the hood lock release
lever.

The hood will pop up slightly.

2

Pull up the auxiliary catch
lever and lift the hood.

Front

Hood

Opening the hood

WARNING

Pre-driving check

Check that the hood is fully closed

and locked.

If the hood is not locked properly,

it may open while the vehicle is in

motion and cause an accident,

which may result in death or seri-

ous injury.

Positioning a floor

jack

When using a floor jack, fol-
low the instructions in the
manual provided with the
jack and perform the opera-
tion safely.
When raising your vehicle
with a floor jack, position
the jack correctly. Improper
placement may damage
your vehicle or cause injury.

Location of the jack point

-------------------------------------------------------------------------------------------------------------------------------------------------------------

396

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

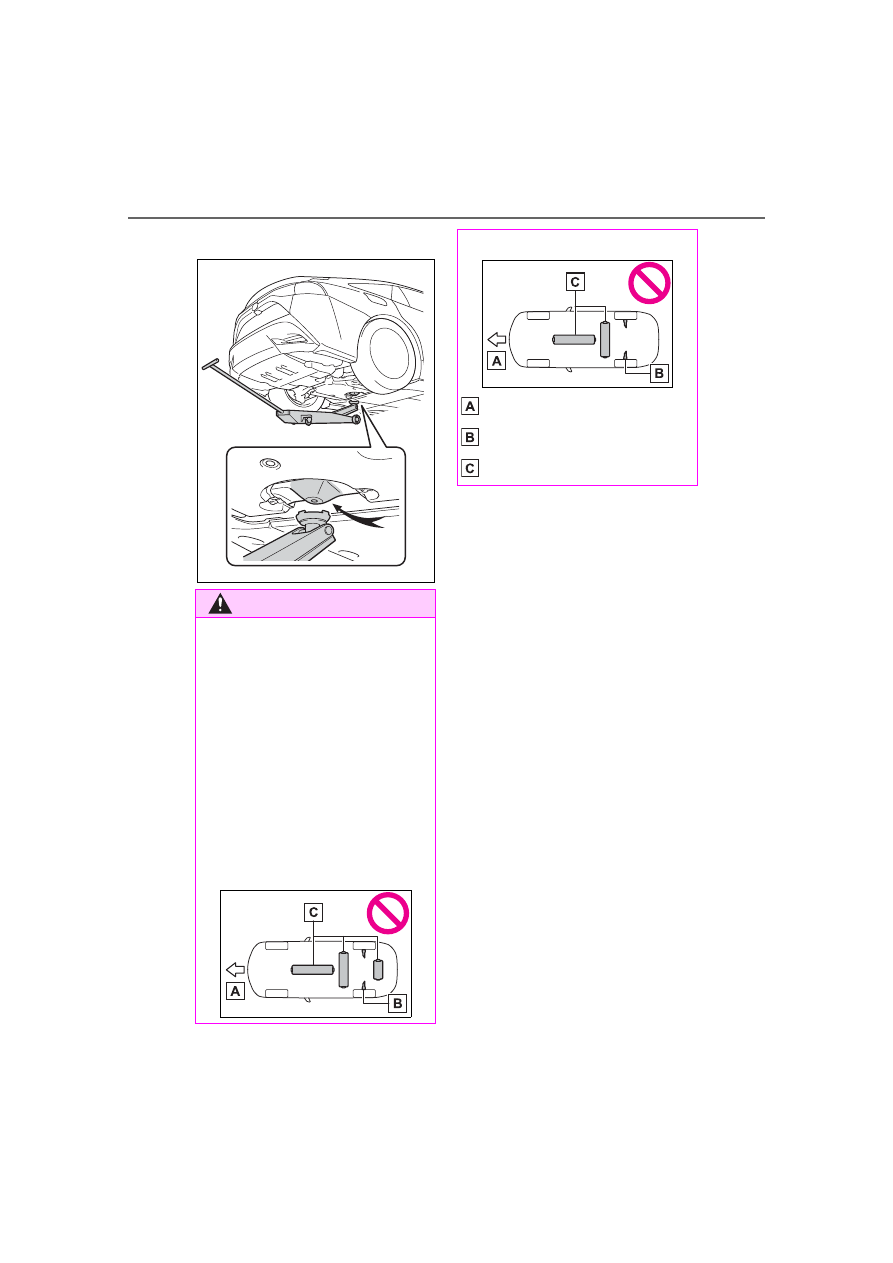

Rear

WARNING

When raising your vehicle

Make sure to observe the follow-

ing precautions to reduce the pos-

sibility of death or serious injury:

Make sure to set the floor jack

properly at the jack point.

Raising the vehicle with an
improperly positioned floor jack
will damage the vehicle and may
cause the vehicle to fall off the
floor jack.

Do not jack up on the hydrogen

tanks nor the rear suspension.

Type A

Type B

Front

Suspension

Hydrogen tanks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

397

7-3. Do-it-yourself maintenance

Owners Manual_USA_M62102_en

7

Maintena

nce
 a

nd ca

re

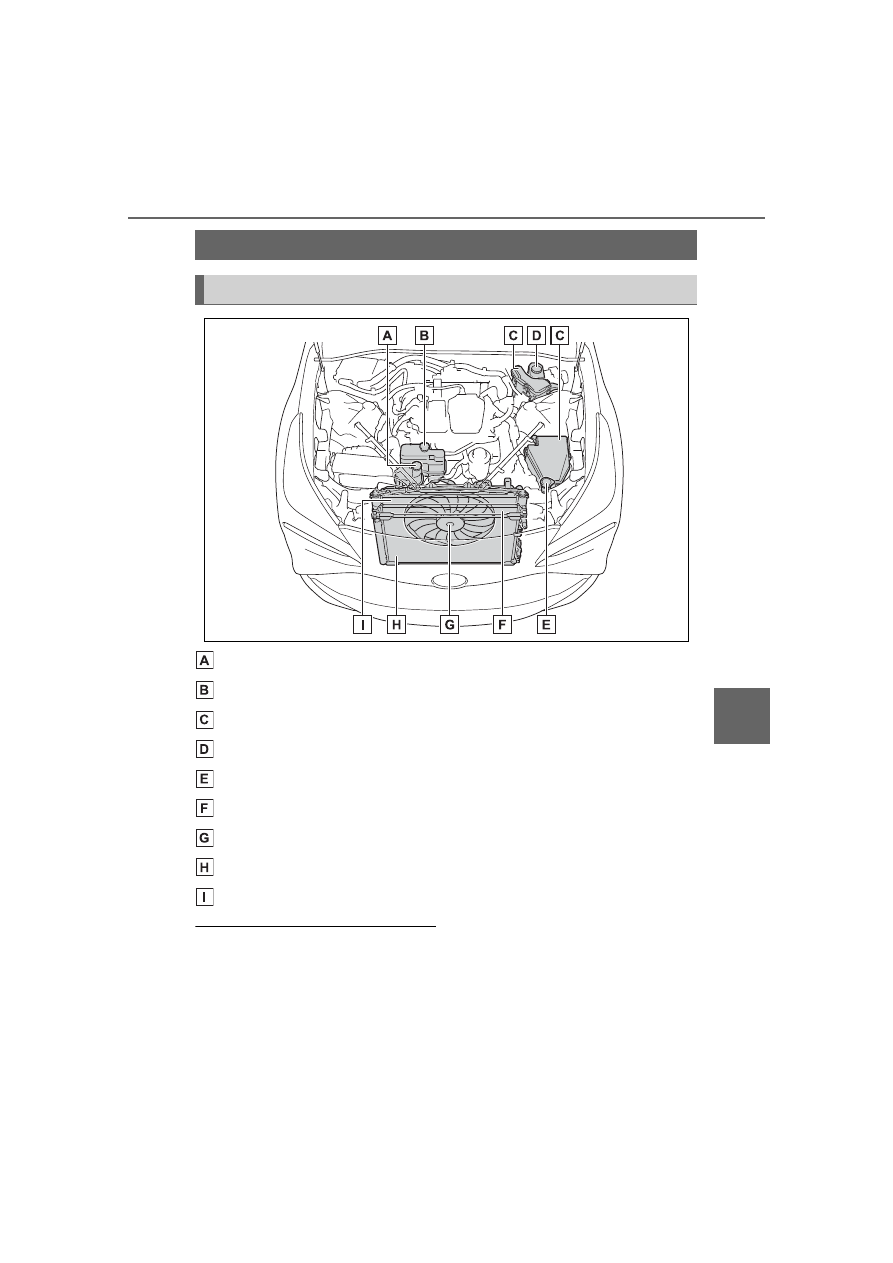

Inverter coolant reservoir (

P.400)

Fuel cell stack coolant reservoir (

P.400)

Fuse boxes (

P.427)

Brake fluid reservoir (

P.401)

Washer fluid tank (

P.401)

Inverter coolant radiator (

P.400)

Electric cooling fan

Condenser (

P.400)

Fuel cell stack coolant radiator (

P.400)

12-volt battery

P.402

Fuel cell unit compartment

Components

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
