5-6. Radio operation

5

Audio

COROLLA_U

5-6.Radio operation

*

: If equipped

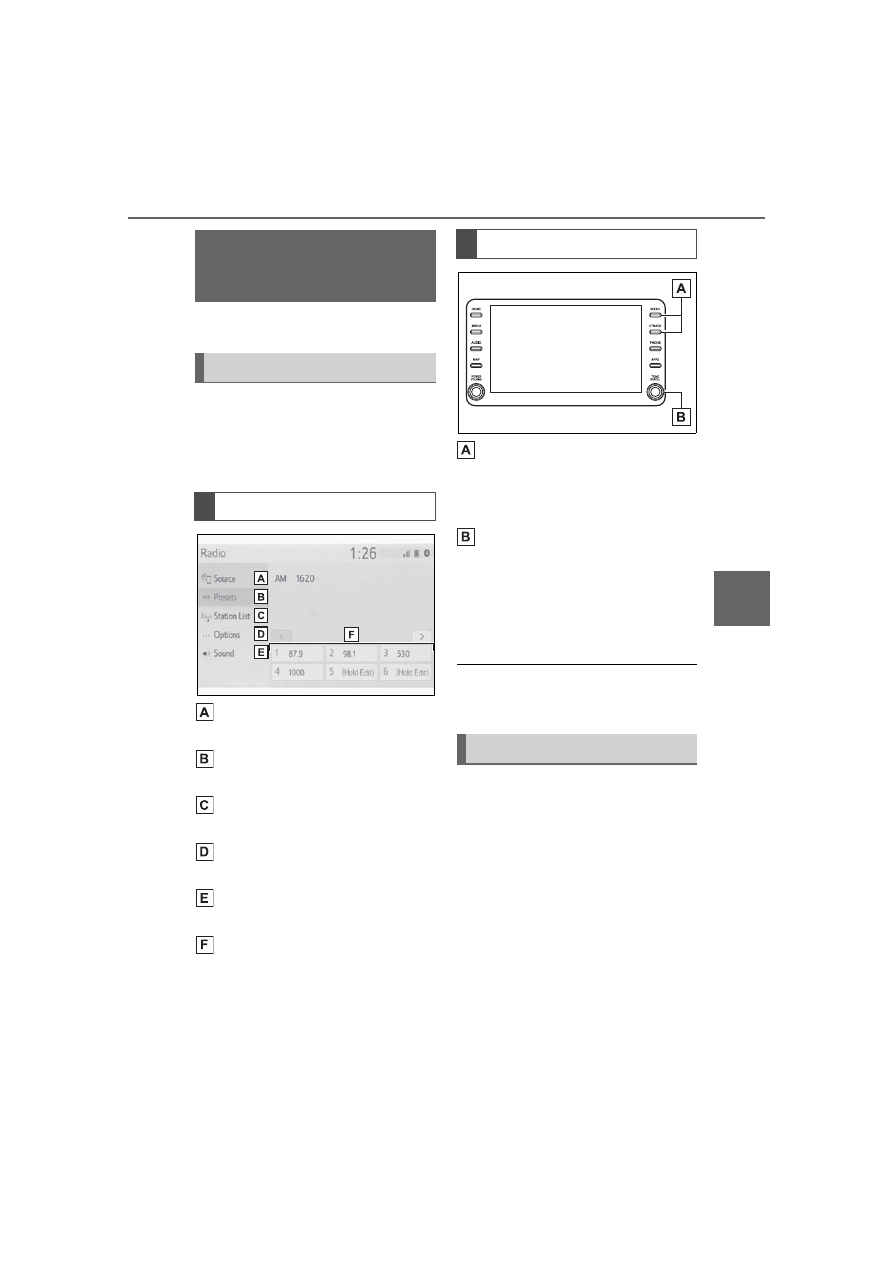

The radio operation screen can
be reached by the following
methods:



P.329

Select to display the audio
source selection screen.
Select to display the preset
stations screen. (



P.333)

Select to display a list of
receivable stations. (



P.334)

Select to display the radio
options screen. (



P.334)

Select to display the sound
setting screen. (



P.330)

Select to tune to preset sta-
tions/channels. (



P.333)

Press to seek for stations in
the relevant program type.
Press and hold for continu-
ous seek.
Turn to step up/down fre-
quencies.
Turn to move up/down the
station. Also, the knob can be
used to enter selections on
the list screens by pressing it.

The radio automatically changes to

stereo reception when a stereo

broadcast is received.

Radio mode has a mix preset
function, which can store up to
36 stations (6 stations per page
x 6 pages) from any of the AM,
FM or SXM bands.

1

Tune in the desired station.

AM radio/FM radio/Siri-

usXM

®

 Satellite

Radio(SXM)

*

Overview

Control screen

Control panel

Presetting a station

334

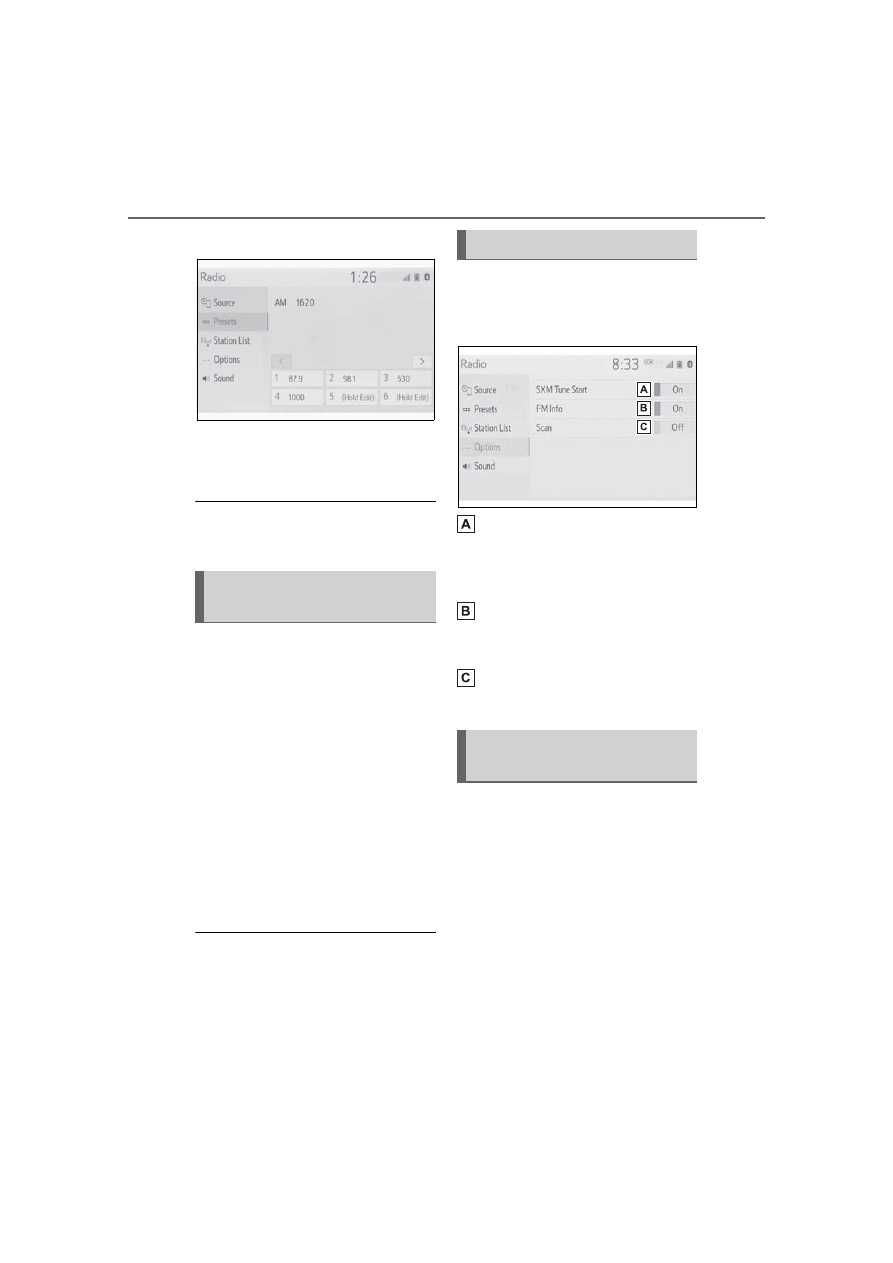

5-6. Radio operation

COROLLA_U

2

Select and hold “(Hold Edit)”.



To change the preset station
to a different one, select and
hold the preset station.

The number of preset radio stations

displayed on the screen can be

changed. (



P.351)

1

Select “Station List”.

2

Select “AM”, “FM” or “SXM”.

Select the desired program genre

when the genre selection screen is

displayed.

3

Select the desired station.

■

Refreshing the station list

1

Select “Refresh”.

“Cancel Refresh”: Select to can-
cel the refresh.
“Source”: Select to change to
another audio source while
refreshing.

●

The audio/visual system sound is

muted during refresh operation.

●

In some situations, it may take

some time to update the station

list.

1

Select “Options”.

2

Select the desired item to be
set.

When “SXM Tune Start” is
turned on, the current song is
played from the beginning
when you select the channel.
Analog FM only: Select to
display RBDS text mes-
sages.
Select to scan for receivable
stations.

This audio/visual system is
equipped with Radio Broadcast
Data Systems (RBDS). RBDS
mode allows text messages to
be received from radio stations
that utilize RBDS transmitters.
When RBDS is on, the radio can
do the following functions.
• Only selecting stations of a

particular program type

• Displaying messages from

radio stations

Selecting a station from
the list

Radio options

Radio Broadcast Data
System

335

5-6. Radio operation

5

Audio

COROLLA_U

• Searching for a stronger sig-

nal station

RBDS features are available
only when listening to an FM
station that broadcasts RBDS
information and the “FM Info”
function is on. (



P.334)

All SiriusXM services, including
satellite radio and data services,
plus streaming services, require
a subscription, sold separately
or as a package by Sirius XM
Radio Inc. (or in Canada, Sirius
XM Canada Inc.), after any trial
subscription which may be
included with your vehicle pur-
chase or lease. To subscribe
after your trial subscription, call
1-877-447-0011 (U.S.A.) or
1-877-438-9677 (Canada).

■

Important information
about your subscription

Your SiriusXM services will
automatically stop at the end of
your trial unless you decide to
subscribe. If you decide to con-
tinue service, the paid subscrip-
tion plan you choose will
automatically renew and you will
be charged the rate in effect at
that time and according to your
chosen payment method. Fees
and taxes apply. You may can-
cel at any time by calling
1-866-635-2349. See SiriusXM

Customer Agreement for com-
plete terms at www.siri-
usxm.com (U.S.A.) or
www.siriusxm.ca (Canada). All
fees and programming subject
to change. Traffic information
not available in all markets.

●

About SiriusXM Services

• Most in-car trials today include

SiriusXM’s best package — All

Access. It includes every channel

available on your radio, plus

streaming.

●

SiriusXM All Access Subscription

• Listen everywhere with All

Access. You get every channel

available in your ride, plus you can

listen on the app and online — so

you can enjoy the best SiriusXM

has to offer, anywhere life takes

you. It’s the only package that

gives you all of our premium pro-

gramming, including Howard

How to subscribe to Siri-
usXM Radio Services

NOTICE

●

It is prohibited to copy, decom-

pile, disassemble, reverse engi-

neer, hack, manipulate, or

otherwise make available any

technology or software incorpo-

rated in receivers compatible

with the SiriusXM Satellite

Radio System or that support

the SiriusXM website, the

streaming service or any of its

content. Furthermore, the
AMBE

®

 voice compression soft-

ware included in this product is

protected by intellectual prop-

erty rights including patent

rights, copyrights, and trade

secrets of Digital Voice Sys-

tems, Inc.

●

Note: this applies to SiriusXM

Satellite Radio receivers only

and not SiriusXM Ready

devices.

336

5-6. Radio operation

COROLLA_U

Stern, every NFL, MLB

®

 and NBA

game, every NASCAR

®

 race,

NHL

®

 games, 24/7 talk channels

dedicated to the biggest leagues,

and more. You get all kinds of

commercial-free music, including

artist-dedicated channels and

more, plus sports, news, talk and

entertainment.

●

Radio operation

• Look for the Sirius, XM, SiriusXM,

Band, SAT, AUX, Radio or Source

button and you’re in. If you can’t

hear us, it’s easy to get started:

U.S.A.:

Locate your Radio ID by turning to

Channel 0. If you don’t see your

number there, go to siri-

usxm.com/activationhelp to find it.

Visit siriusxm.com/refresh or call

1-855-MYREFRESH (697-3373)

to send a refresh signal to your

radio.

Canada:

Locate your Radio ID by turning to

Channel 0.

Visit siriusxm.ca/refresh to send a

refresh signal to your radio or call

1-888-539-7474 for service.

Each SiriusXM tuner is identified
with a unique radio ID. The radio
ID is required when activating
an SiriusXM service or when
reporting a problem.



If “Ch 000” is selected using
the “TUNE SCROLL” knob,
the ID code, which is 8 alpha-
numeric characters, will be
displayed. If another channel
is selected, the ID code will no
longer be displayed. The
channel (000) alternates
between displaying the radio
ID and the specific radio
code.

When problems occur with the SiriusXM tuner, a message will
appear on the screen. Referring to the table below to identify the
problem, take the suggested corrective action.

Displaying the radio ID

Refer to the table below to identify the problem and take
the suggested corrective action

Message

Explanation

“Check
Antenna”

The SiriusXM antenna is not connected. Check whether the
SiriusXM antenna cable is attached securely. Contact your
Toyota dealer for assistance.

A short circuit occurs in the antenna or the surrounding
antenna cable. Contact your Toyota dealer for assistance.

“No Signal”

The SiriusXM signal is too weak at the current location. Wait
until your vehicle reaches a location with a stronger signal.

337

5-6. Radio operation

5

Audio

COROLLA_U

“Chan
Unavailable”

The channel you selected is not broadcasting any program-
ming. Select another channel.

“Ch Unsub-
scribed”

The channel you selected is no longer available. Wait for
about 2 seconds until the radio returns to the previous chan-
nel or “Ch 001”. If it does not change automatically, select
another channel.

Message

Explanation

338

5-6. Radio operation

COROLLA_U

●

Other applications can be acti-

vated while listening to internet

radio.

●

Some parts of applications can be

adjusted using the switches on the

steering wheel.

●

For additional information, refer to

https://www.toyota.com/

audio-multimedia or call

1-800-331-4331 in the United

States,

https://www.toyota.ca/connected

or call

1-888-869-6828 in Canada, and

http://www.toyotapr.com/

audio-multimedia or call

1-877-855-8377 in Puerto Rico.

1

Display the audio source
selection screen. (



P.329)

2

Select the desired application
screen button.



The internet radio application
screen is displayed.



Perform operations accord-
ing to the displayed applica-
tion screen.



For the instrument panel
operation method:



P.329



If a compatible phone is

already registered, it will be
connected automatically.

Internet radio

One of Toyota apps Connect
features is the ability to lis-
ten to internet radio. In
order to use this service, a
compatible phone and the
system needs to be set up.
For details:



P.409

Listening to internet radio

339

5-7. Media operation

5

Audio

COROLLA_U

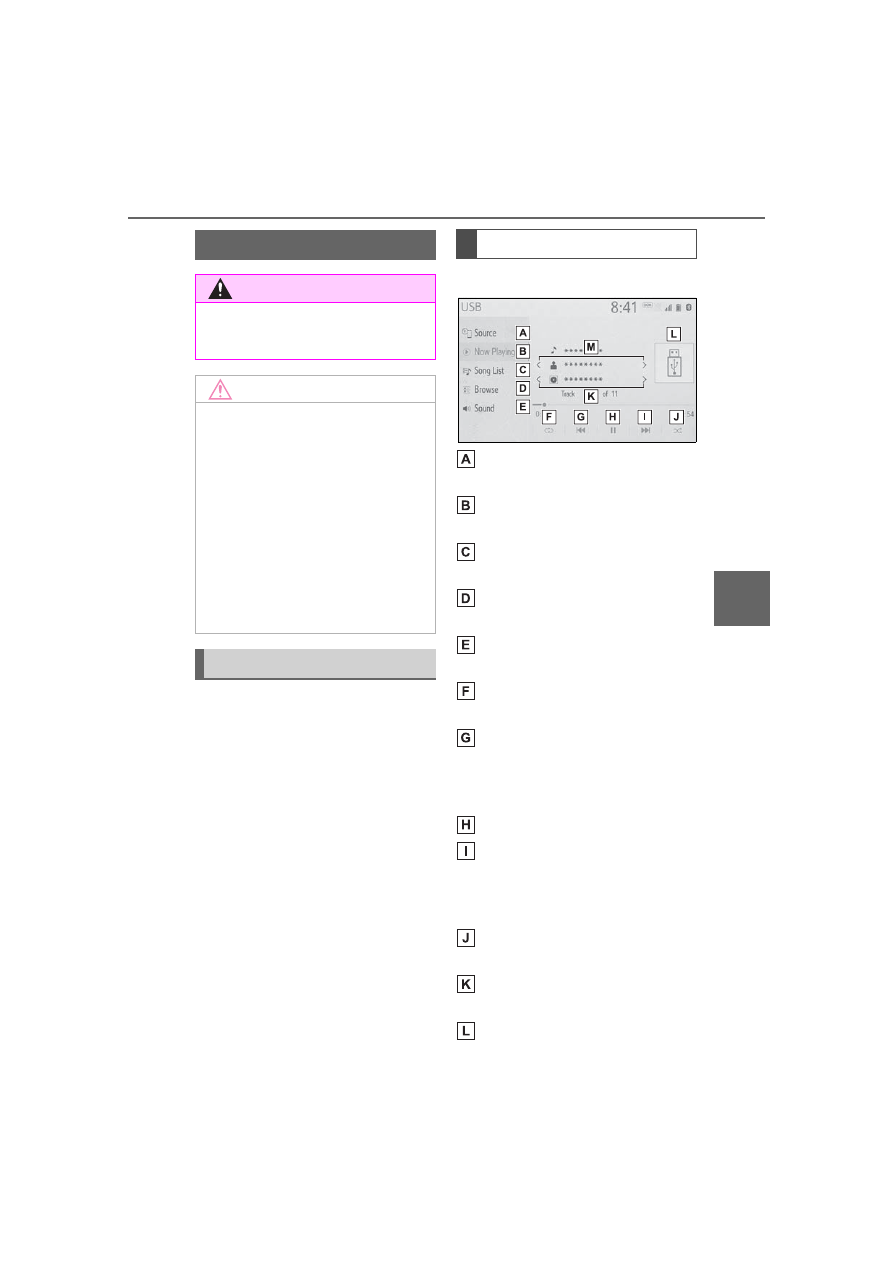

5-7.Media operation

The USB memory operation
screen can be reached by the
following methods:



P.329

Connecting a USB memory
(



P.330)

When an Apple CarPlay/Android
Auto connection is established,
this function will be unavailable

*

.

*

: This function is not made avail-

able in some countries or areas.



USB audio

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the sound
setting screen. (



P.330)

Select to set repeat playback.
(



P.340)

Select to change the
file/track.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the
file/track.
Select and hold to fast for-
ward.
Select to set random play-
back. (



P.341)

Select to change the
folder/album.
Displays cover art

USB memory

WARNING

Do not operate the player’s con-

trols or connect the USB memory

while driving.

NOTICE

●

Do not leave your portable

player in the car. In particular,

high temperatures inside the

vehicle may damage the porta-

ble player.

●

Do not push down on or apply

unnecessary pressure to the

portable player while it is con-

nected as this may damage the

portable player or its terminal.

●

Do not insert foreign objects into

the port as this may damage the

portable player or its terminal.

Overview

Control screen

340

5-7. Media operation

COROLLA_U

Select to change the artist.



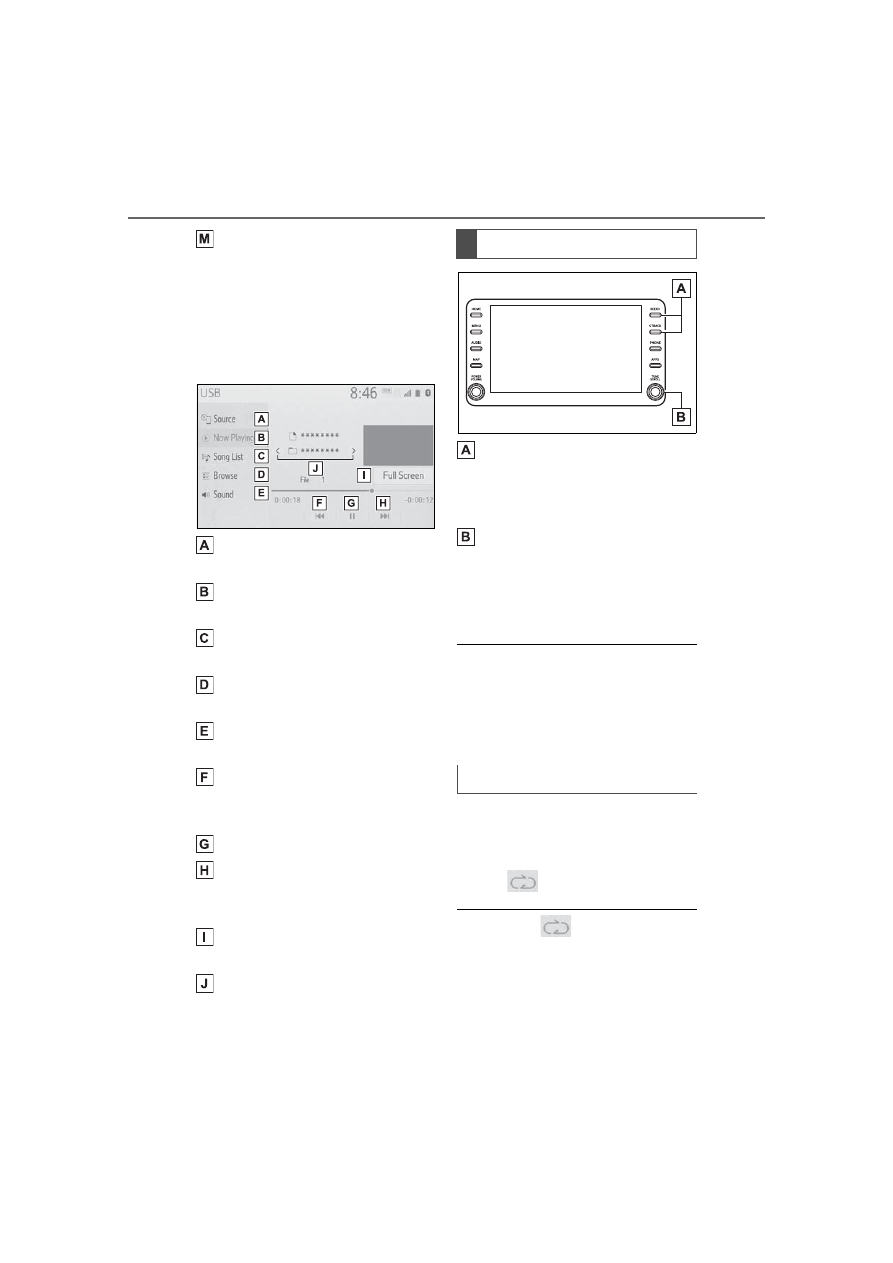

USB video

1

Select “Browse”.

2

Select “Videos”.

3

Select the desired folder and
file.

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the sound
setting screen. (



P.330)

Select to change the file.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the file.
Select and hold to fast for-
ward.
Select to display a full screen
image.
Select to change the folder.

Press to change the
file/track.
Press and hold to fast for-
ward/rewind.
Turn to change the file/track.
Turn to move up/down the
list. Also, the knob can be
used to enter selections on
the list screens by pressing it.

●

While the vehicle is being driven,

this function can only output

sound.

●

If tag information exists, the

file/folder names will be changed

to track/album names.

The file/track or folder/album
currently being listened to can
be repeated.

Select

.

●

Each time

 is selected, the

mode changes as follows:



When random playback is off

File/track repeat



 folder/album

repeat



 off



When random playback is on

File/track repeat



 off

Control panel

Repeating

341

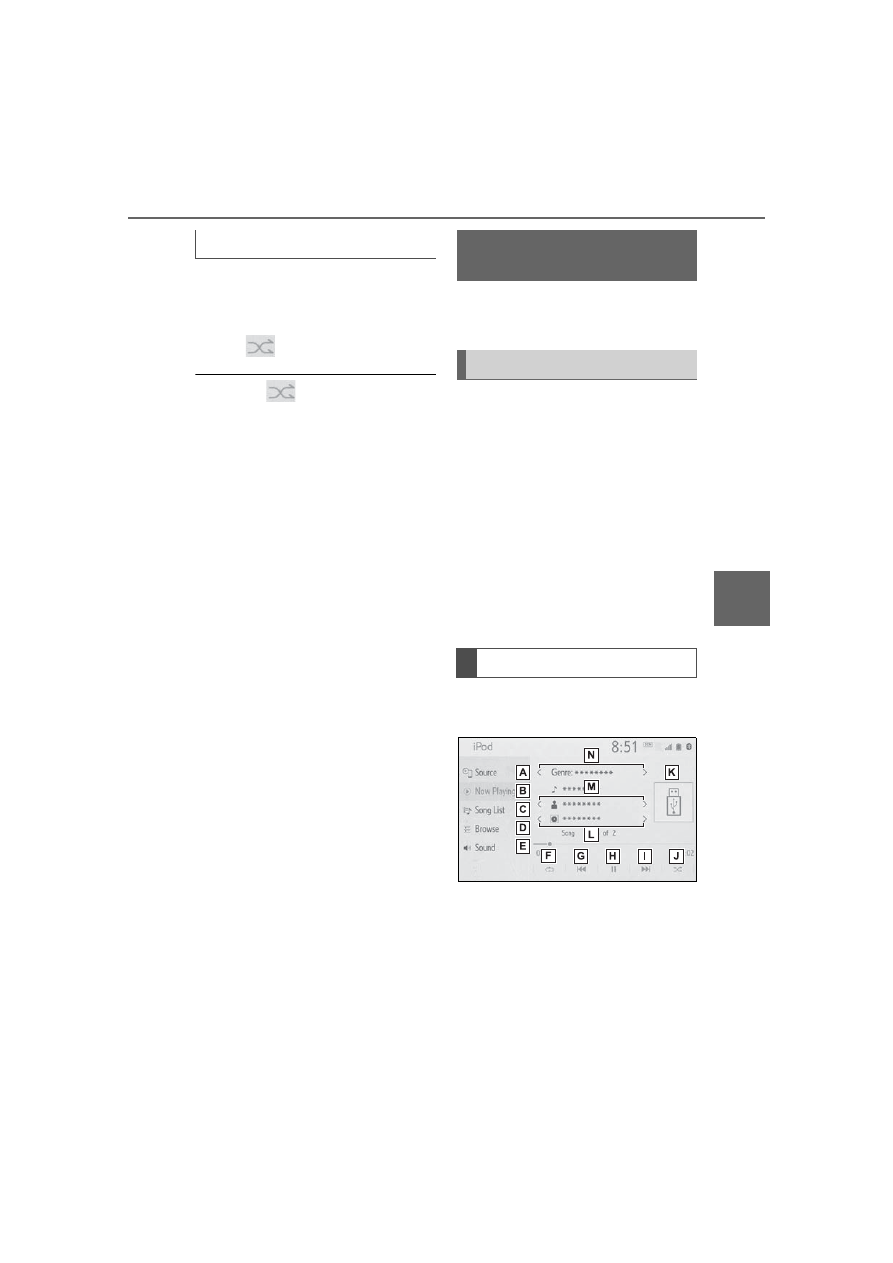

5-7. Media operation

5

Audio

COROLLA_U

Files/tracks or folders/albums
can be automatically and ran-
domly selected.

Select

.

Each time

 is selected, the

mode changes as follows:
Random (1 folder/album random)





folder/album random (all

folder/album random)



 off

*

: This function is not made avail-

able in some countries or areas.

The iPod/iPhone(Apple Car-
Play) operation screen can be
reached by the following meth-
ods:



P.329

Connecting an iPod/iPhone
(



P.314, 330)

When an Android Auto connec-
tion is established, this function
will be unavailable.

*

*

: This function is not made avail-

able in some countries or areas.



An Apple CarPlay connection
is not established

Random order

iPod/iPhone (Apple

CarPlay

*

)

Overview

Control screen

342

5-7. Media operation

COROLLA_U



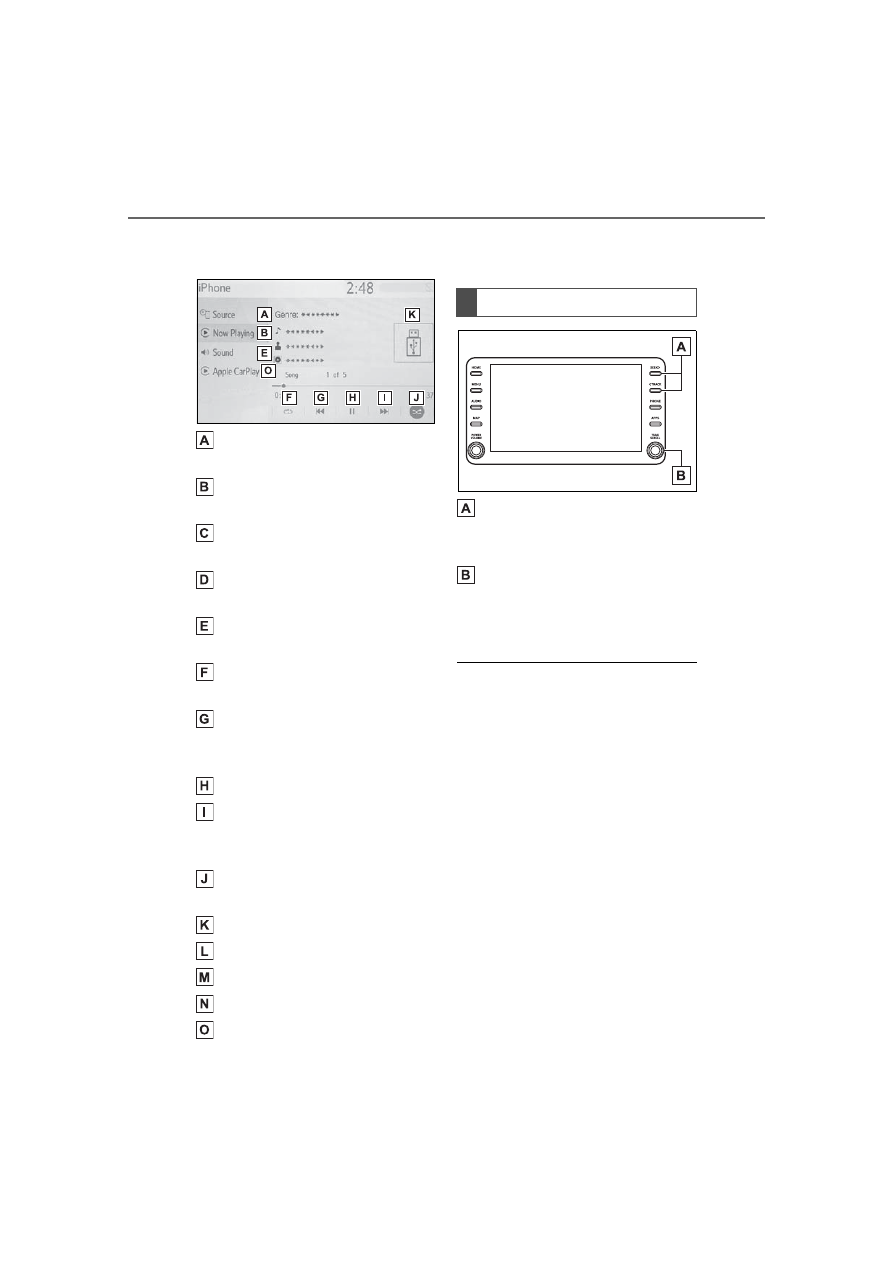

An Apple CarPlay connection
is established

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the sound
setting screen. (



P.330)

Select to set repeat playback.
(



P.343)

Select to change the track.
Select and hold to fast
rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast for-
ward.
Select to set random play-
back. (



P.343)

Displays cover art
Select to change the album.
Select to change the artist.
Select to change the playlist.
Select to display the audio

control screen of Apple Car-
Play.

Press to change the track.
Press and hold to fast for-
ward/rewind.
Turn to move up/down the
list. Also, the knob can be
used to enter selections on
the list screens by pressing it.

●

Some functions may not be avail-

able depending on the type of

model.

●

When an iPod/iPhone is con-

nected using a genuine

iPod/iPhone cable, the

iPod/iPhone starts charging its

battery.

●

Depending on the iPod/iPhone,

the video sound may not be able

to be heard.

●

Depending on the iPod/iPhone

and the songs in the iPod/iPhone,

a cover art may be displayed. This

function can be changed to “On”

or “Off”. (



P.351) It may take time

to display the cover art, and the

iPod/iPhone may not be operated

while the cover art display is in

process.

●

When an iPod/iPhone is con-

nected and the audio source is

changed to iPod/iPhone mode,

Control panel

343

5-7. Media operation

5

Audio

COROLLA_U

the iPod/iPhone will resume play-

ing from the same point it was last

used.

●

Tracks selected by operating a

connected iPod/iPhone may not

be recognized or displayed prop-

erly.

●

The system may not function

properly if a conversion adapter is

used to connect a device.

The track currently being lis-
tened to can be repeated.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:



When shuffle is off (iPhone 5 or

later)

• Track repeat



 album repeat





off



When shuffle is off (iPhone 4s or

earlier)

• Track repeat



 off



When shuffle is on

• Track repeat



 off

Tracks or albums can be auto-
matically and randomly
selected.

1

Select

.

●

Each time

 is selected, the

mode changes as follows:

• Shuffle (1 album shuffle)



 album

shuffle (all album shuffle)



 off

Repeating

Random order

WARNING

Do not operate the player’s con-

trols or connect the iPod/iPhone

while driving.

NOTICE

●

Do not leave your portable

player in the vehicle. In particu-

lar, high temperatures inside the

vehicle may damage the porta-

ble player.

●

Do not push down on or apply

unnecessary pressure to the

portable player while it is con-

nected as this may damage the

portable player or its terminal.

●

Do not insert foreign objects into

the port as this may damage the

portable player or its terminal.

344

5-7. Media operation

COROLLA_U

*

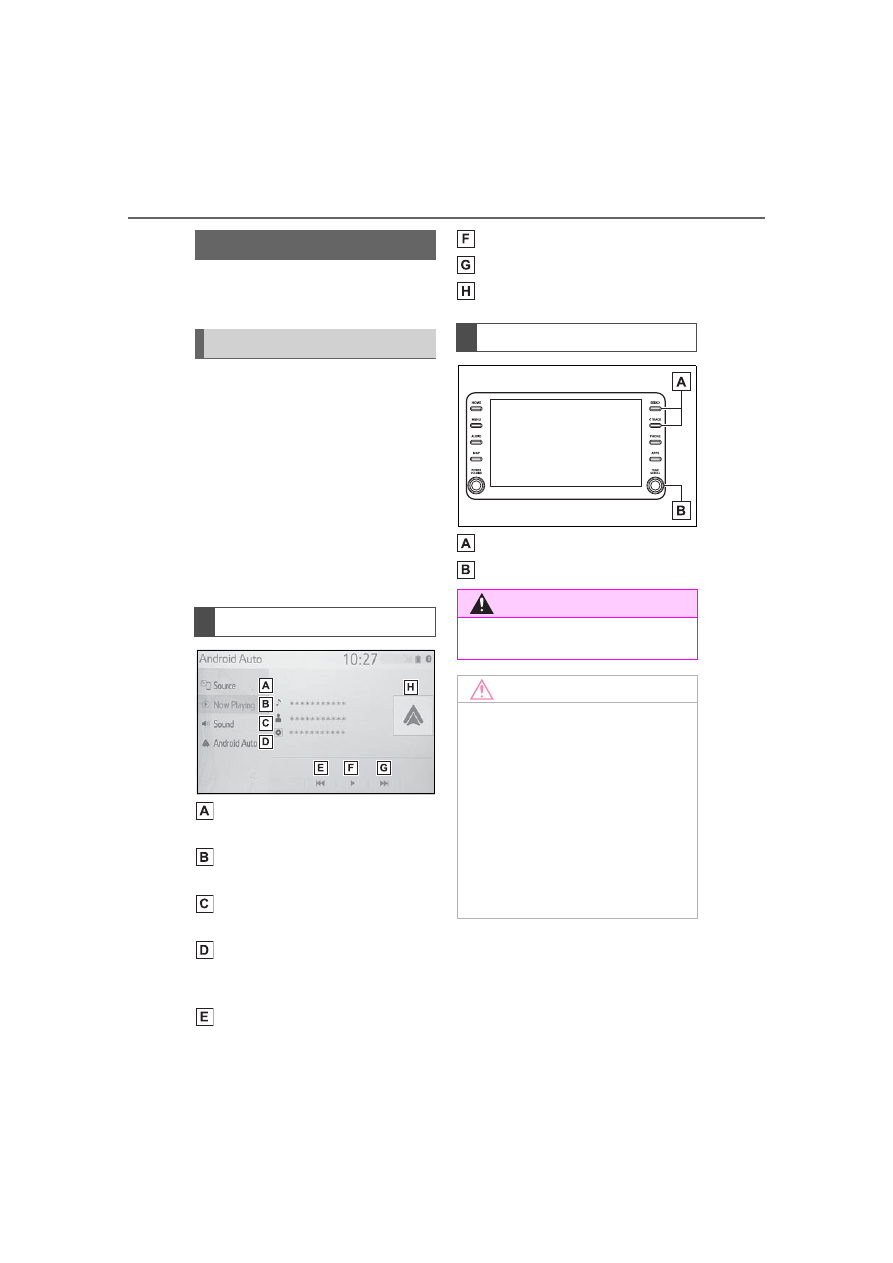

: This function is not made avail-

able in some countries or areas.

The Android Auto operation
screen can be reached by the
following methods:



P.329

Connecting an Android device
(



P.314, 330)

When an Apple CarPlay con-
nection is established, this func-
tion will be unavailable.

*

*

: This function is not made avail-

able in some countries or areas.

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display the sound
setting screen. (



P.330)

Select to display the audio
control screen of Android
Auto.
Select to change the track.

Select to play/pause.
Select to change the track.
Displays cover art

Press to change the track.
Turn to change the track.

Android Auto

*

Overview

Control screen

Control panel

WARNING

Do not connect smartphone or

operate the controls while driving.

NOTICE

●

Do not leave your smartphone

in the vehicle. In particular, high

temperatures inside the vehicle

may damage the smartphone.

●

Do not push down on or apply

unnecessary pressure to the

smartphone while it is con-

nected as this may damage the

smartphone or its terminal.

●

Do not insert foreign objects into

the port as this may damage the

smartphone or its terminal.

345

5-7. Media operation

5

Audio

COROLLA_U

●

Depending on the Bluetooth

®



device that is connected to the

system, the music may start play-
ing when selecting

 while it is

paused. Conversely, the music
may pause when selecting



while it is playing.

●

In the following conditions, the

system may not function:

• The Bluetooth

®

 device is turned

off.

• The Bluetooth

®

 device is not con-

nected.

• The Bluetooth

®

 device has a low

battery.

●

When using the Bluetooth

®

 audio

and Wi-Fi

®

 Hotspot functions at

the same time, the following prob-

lems may occur:

• It may take longer than normal to

connect to the Bluetooth

®

 device.

• The sound may cut out.

●

It may take time to connect the

phone when Bluetooth

®

 audio is

being played.

●

For operating the portable player,

see the instruction manual that

comes with it.

●

If the Bluetooth

®

 device is discon-

nected due to poor reception from
the Bluetooth

®

 network when the

engine switch is in ACC or ON,

the system automatically recon-

nects the portable player.

●

If the Bluetooth

®

 device is discon-

nected on purpose, such as it was

turned off, this does not happen.

Reconnect the portable player

manually.

●

Bluetooth

®

 device information is

registered when the Bluetooth

®



device is connected to the Blue-
tooth

®

 audio system. When selling

or disposing of the vehicle,
remove the Bluetooth

®

 audio

information from the system.

(



P.324)

●

In some situations, sound output
via the Bluetooth

®

 audio system

may be out of sync with the con-

nected device or output intermit-

tently.

Bluetooth

®

 audio

The Bluetooth

®

 audio sys-

tem enables users to enjoy
listening to music that is
played on a portable player
on the vehicle speakers via
wireless communication.

This audio/visual system
supports Bluetooth

®

, a wire-

less data system capable of
playing portable audio
music without cables. If
your device does not sup-
port Bluetooth

®

, the Blue-

tooth

®

 audio system will not

function.

WARNING

●

Do not operate the player’s con-

trols or connect to the Blue-
tooth

®

 audio system while

driving.

346

5-7. Media operation

COROLLA_U

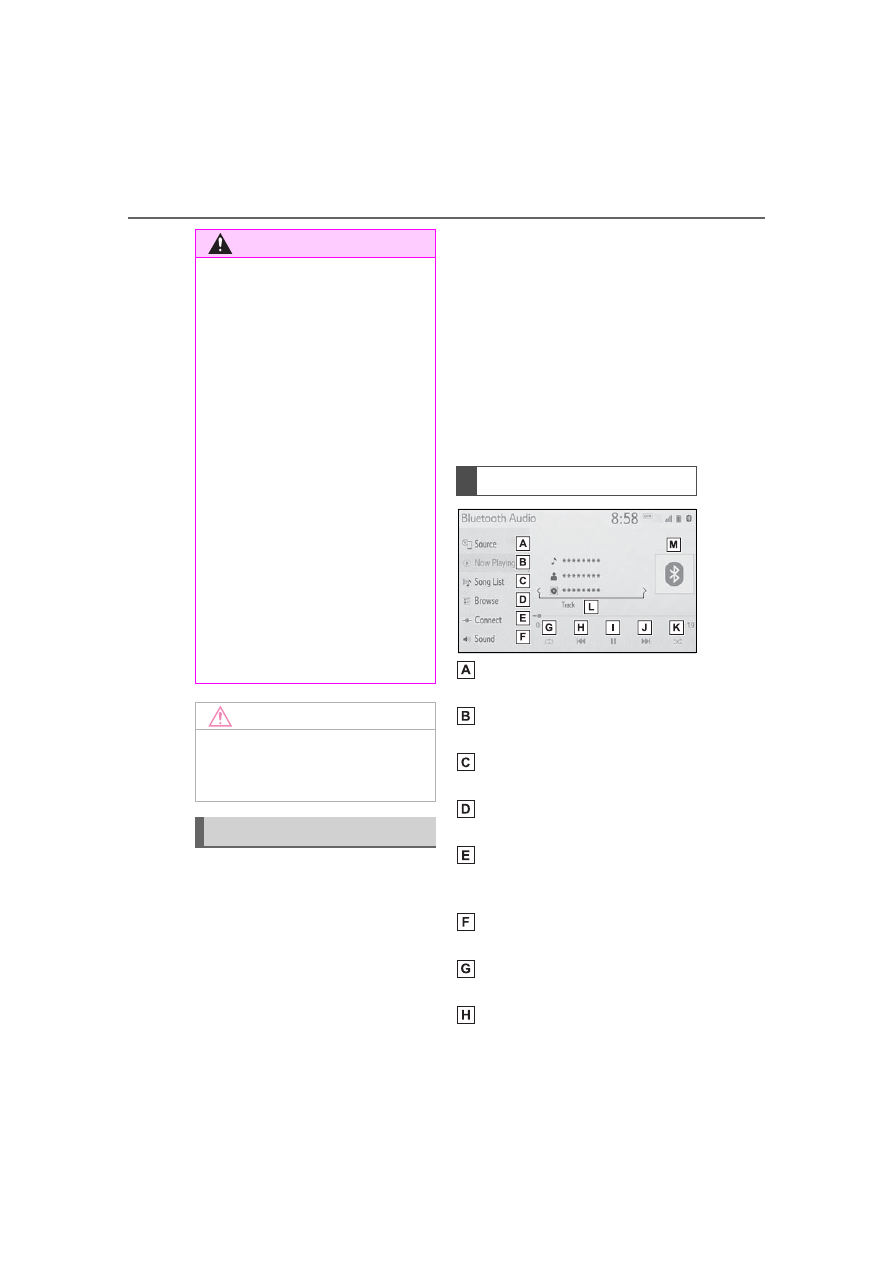

The Bluetooth

®

 audio operation

screen can be reached by the
following methods:



P.329

Connecting a Bluetooth

®

 audio

device (



P.347)

Depending on the type of porta-
ble player connected, some
functions may not be available

and/or the screen may look dif-
ferently than shown in this man-
ual.
When an Apple CarPlay/Android
Auto connection is established,
Bluetooth

®

 audio will be sus-

pended and become unavail-
able

*

.

*

: This function is not made avail-

able in some countries or areas.

Select to display the audio
source selection screen.
Select to return to the top
screen.
Select to display a song list
screen.
Select to display the play
mode selection screen.
Select to display the portable
device connection screen.
(



P.347)

Select to display the sound
setting screen. (



P.330)

Select to set repeat playback.
(



P.347)

Select to change the track.
Select and hold to fast

WARNING

●

Your audio unit is fitted with
Bluetooth

®

 antennas. People

with implantable cardiac pace-

makers, cardiac resynchroniza-

tion therapy-pacemakers or

implantable cardioverter defibril-

lators should maintain a reason-

able distance between
themselves and the Bluetooth

®



antennas. The radio waves may

affect the operation of such

devices.

●

Before using Bluetooth

®



devices, users of any electrical

medical device other than

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should consult the manufacturer

of the device for information

about its operation under the

influence of radio waves. Radio

waves could have unexpected

effects on the operation of such

medical devices.

NOTICE

Do not leave your portable player

in the vehicle. In particular, high

temperatures inside the vehicle

may damage the portable player.

Overview

Control screen

347

5-7. Media operation

5

Audio

COROLLA_U

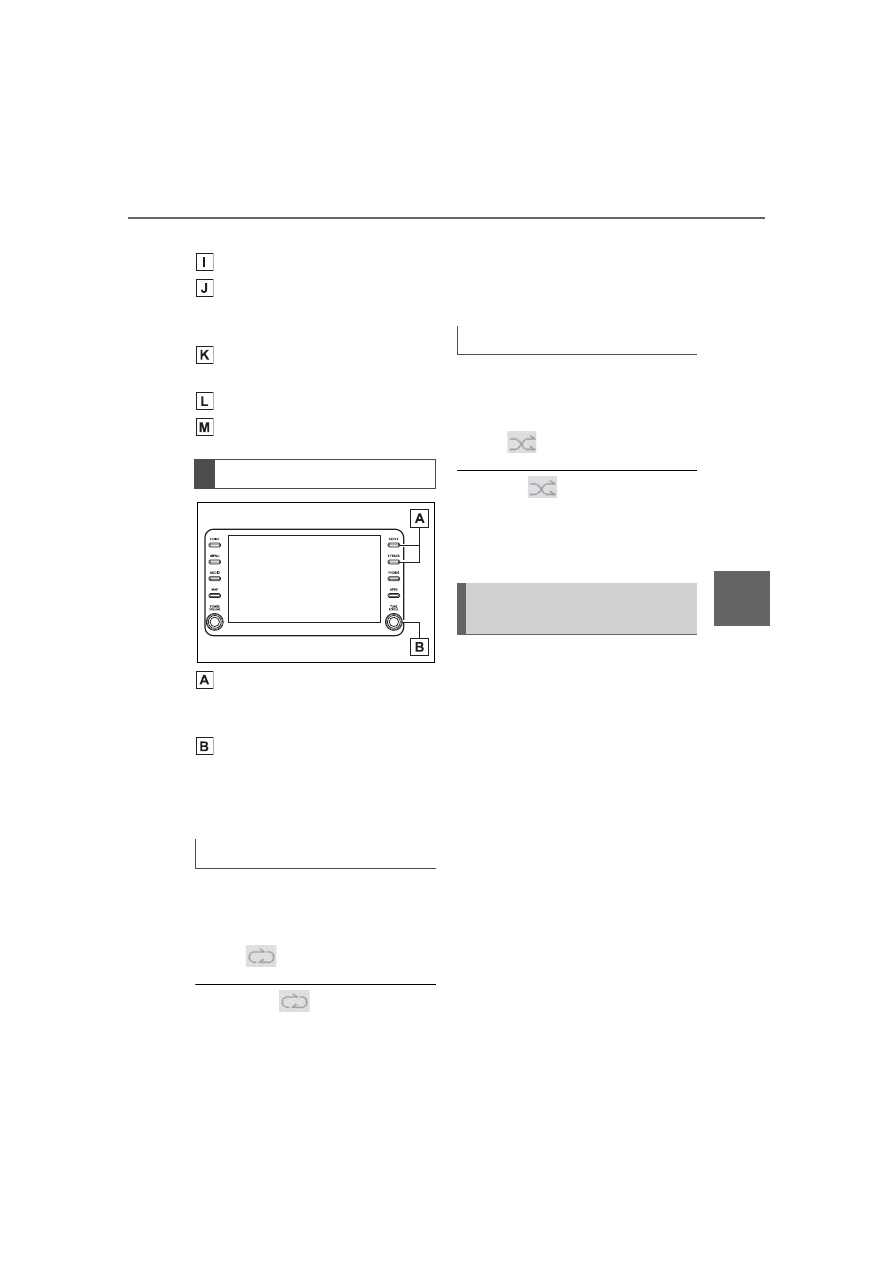

rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast for-
ward.
Select to set random play-
back. (



P.347)

Select to change the album.
Displays cover art

Press to change the track.
Press and hold to fast for-
ward/rewind.
Turn to move up/down the
list. Also, the knob can be
used to enter selections on
the list screens by pressing it.

The track or album currently
being listened to can be
repeated.

Select

.

●

Each time

 is selected, the

mode changes as follows:



When random playback is off

Track repeat



 album repeat



 off



When random playback is on

Track repeat



 off

Tracks or albums can be auto-
matically and randomly
selected.

Select

.

Each time

 is selected, the

mode changes as follows:
Random (1 album random)





album random (all album random)



 off

To use the Bluetooth

®

 audio

system, it is necessary to regis-
ter a Bluetooth

®

 device with the

system.



Registering an additional
device

1

Display the Bluetooth

®

 audio

control screen. (



P.346)

2

Select “Connect”.

3

Select “Add Device”.

When another Bluetooth

®

 device is

connected, a confirmation screen

will be displayed. To disconnect the
Bluetooth

®

 device, select “Yes”.

4

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.298)

Control panel

Repeating

Random order

Registering/Connecting a
Bluetooth

®

 device

348

5-7. Media operation

COROLLA_U



Selecting a registered device

1

Display the Bluetooth

®

 audio

control screen. (



P.346)

2

Select “Connect”.

3

Select the desired device to
be connected.

4

Check that a confirmation
screen is displayed when the
connection is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

349

5-8. Audio/visual remote controls

5

Audio

COROLLA_U

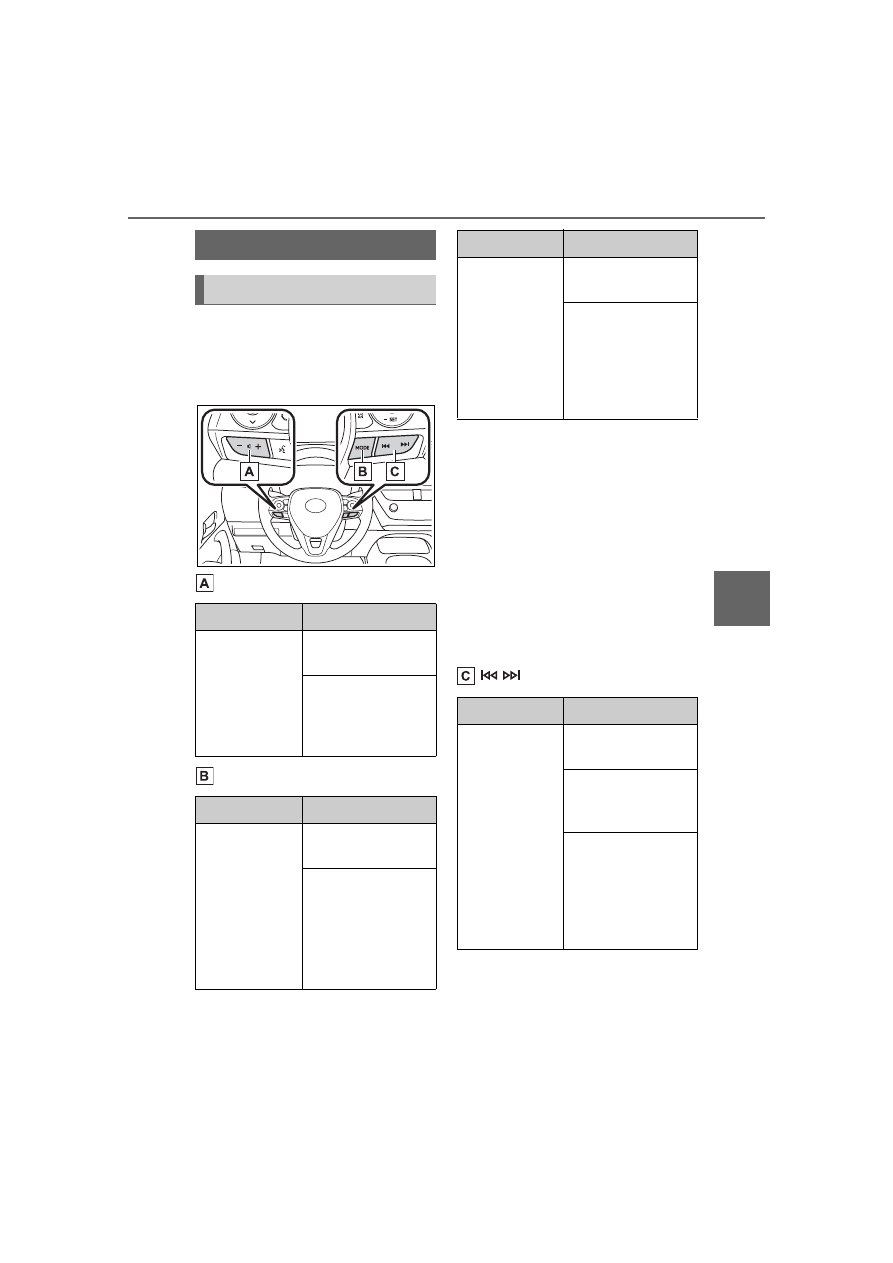

5-8.Audio/visual remote controls

Some parts of the audio/visual
system can be adjusted using
the switches on the steering
wheel.

Volume control switch

“MODE” switch

*1

:If equipped

*2

:If cached radio is enabled, press-

ing and holding the “MODE”
switch pauses the broadcast.
(Press and hold again to play
back the cached radio program.)

*3

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

*4

:When an Android Auto is estab-

lished, this function will be
unavailable.

 switch

Steering switches

Steering switch operation

Mode

Operation/function

All

Press: Volume
up/down

Press and hold
(0.8 sec. or more):
Volume up/down
continuously

Mode

Operation/function

AM/FM/

SXM

*1

Press: Change
audio modes

Press and hold
(0.8 sec. or more):
Mute

*2

 (Press and

hold again to
resume the
sound.)

USB

*3, 4

,

iPod/iPhone

*4

,

Android

Auto

*3

, Blue-

tooth

®

 audio

*3,

4

, APPS

*3, 4

Press: Change
audio modes

Press and hold
(0.8 sec. or more):
Pause (Press and
hold again to
resume the play
mode.)

Mode

Operation/function

AM/FM

Press: Preset
channel up/down

Press and hold
(0.8 sec. or more):
Seek up/down

Press and hold
(1.5 sec. or more):
Seek up/down con-
tinuously while the
switch is being
pressed

Mode

Operation/function

350

5-8. Audio/visual remote controls

COROLLA_U

*1

:If equipped

*2

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

*3

:When an Android Auto is estab-

lished, this function will be
unavailable.

In the APPS mode, some operation

may be done on the screen depend

on the selected APPS.

SXM

*1

Press: Preset
channel up/down

Press and hold
(0.8 sec. or more):
Seek for stations in
the relevant pro-
gram type/channel
category

Press and hold
(1.5 sec. or more):
Fast channel
up/down

USB

*2, 3

,

iPod/iPhone

*3

,

Bluetooth

®



audio

*2, 3

Press: Track/file
up/down

Press and hold
(0.8 sec. or more):
Fast for-
ward/rewind

Android Auto

*2

Press: Track
up/down

Mode

Operation/function

351

5-9. Audio settings

5

Audio

COROLLA_U

5-9.Audio settings

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Audio”.

4

Select the desired items to
be set.

Select to set the common
settings. (



P.351)

Select to set the radio set-
tings. (



P.351)

1

Display the audio settings
screen. (



P.351)

2

Select “Common”.

3

Select the desired items to
be set.

Select to set the cover art
display on/off.
Select to prioritize the display
of information from the Gra-
cenote database.
Select to change the screen
size.

*

 (



P.331)

Select to display the image
quality adjustment screen.

*



(



P.332)

*

: Only in USB video mode

1

Display the audio settings
screen. (



P.351)

2

Select “Radio”.

3

Select the desired number of
preset radio stations dis-
played on the screen.

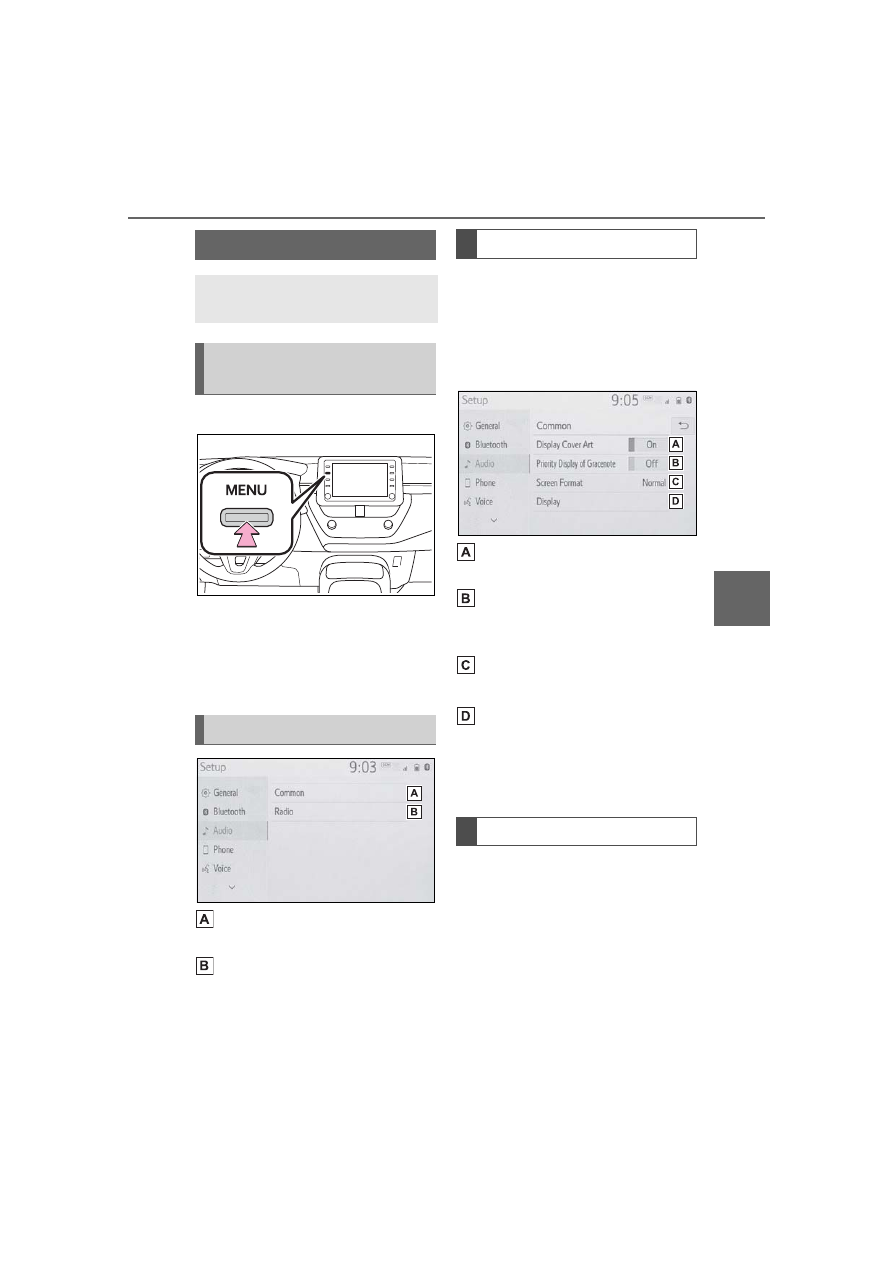

Setup

Detailed audio settings can
be programmed.

Displaying the audio set-
tings screen

Audio settings screen

Common settings

Radio settings

352

5-10. Tips for operating the audio/visual system

COROLLA_U

5-10.Tips for operating the audio/visual system

The use of a cellular phone inside or

near the vehicle may cause a noise

from the speakers of the

audio/visual system which you are

listening to. However, this does not

indicate a malfunction.

Usually, a problem with radio
reception does not mean there
is a problem with the radio



 it

is just the normal result of condi-
tions outside the vehicle.
For example, nearby buildings
and terrain can interfere with FM
reception. Power lines or phone
wires can interfere with AM sig-
nals. And of course, radio sig-
nals have a limited range. The
farther the vehicle is from a sta-
tion, the weaker its signal will
be. In addition, reception condi-
tions change constantly as the
vehicle moves.
Here are some common recep-
tion problems that may not indi-
cate a problem with the radio as
described.

■

FM

Fading and drifting stations:
Generally, the effective range of

FM is about 25 miles (40 km).
Once outside this range, you
may notice fading and drifting,
which increase with the distance
from the radio transmitter. They
are often accompanied by dis-
tortion.
Multi-path: FM signals are
reflective, making it possible for
2 signals to reach the vehicle’s
antenna at the same time. If this
happens, the signals will cancel
each other out, causing a
momentary flutter or loss of
reception.
Static and fluttering: These
occur when signals are blocked
by buildings, trees or other large
objects. Increasing the bass
level may reduce static and flut-
tering.
Station swapping: If the FM sig-
nal being listened to is inter-
rupted or weakened, and there
is another strong station nearby
on the FM band, the radio may
tune in the second station until
the original signal can be picked
up again.

■

AM

Fading: AM broadcasts are
reflected by the upper atmo-
sphere



 especially at night.

These reflected signals can
interfere with those received
directly from the radio station,
causing the radio station to
sound alternately strong and
weak.

Operating information

NOTICE

To avoid damage to the

audio/visual system:
Be careful not to spill beverages

over the audio/visual system.

Radio

353

5-10. Tips for operating the audio/visual system

5

Audio

COROLLA_U

Station interference: When a
reflected signal and a signal
received directly from a radio
station are very nearly the same
frequency, they can interfere
with each other, making it diffi-
cult to hear the broadcast.
Static: AM is easily affected by
external sources of electrical
noise, such as high tension
power lines, lightening or electri-
cal motors. This results in static.

■

SiriusXM



Cargo loaded on the roof lug-
gage carrier, especially metal
objects, may adversely affect
the reception of SiriusXM Sat-
ellite Radio.



Alternation or modifications
carried out without appropri-
ate authorization may invali-
date the user’s right to
operate the equipment.

■

Certification



Use of the Made for Apple
badge means that an acces-
sory has been designed to
connect specifically to the
Apple product(s) identified in
the badge, and has been cer-
tified by the developer to meet
Apple performance stan-
dards. Apple is not responsi-
ble for the operation of this
device or its compliance with
safety and regulatory stan-
dards. Please note that the
use of this accessory with an
Apple product may affect
wireless performance.



iPhone

®

, iPod

®

, iPod clas-

sic

®

, iPod nano

®

, iPod

touch

®

, and Lightning

®

 are

trademarks of Apple Inc., reg-
istered in the U.S. and other
countries.

■

Compatible models

Made for
• iPhone X
• iPhone 8
• iPhone 8 Plus
• iPhone 7
• iPhone 7 Plus
• iPhone SE
• iPhone 6s
• iPhone 6s Plus

iPod

354

5-10. Tips for operating the audio/visual system

COROLLA_U

• iPhone 6
• iPhone 6 Plus
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch (6th generation)
• iPod touch (5th generation)

●

This system only supports audio

playback.

●

Depending on difference between

models or software versions etc.,

some models might be incompati-

ble with this system.

This device supports high-reso-
lution sound sources.
The definition of high-resolution
is based on the standards of
groups such as the CTA (Con-
sumer Technology Association).
Supported formats and play-
able media are as follows.

■

Supported formats

WAV, FLAC, ALAC, OGG Vorbis

■

Playable media

USB memory

*

: USB video only

High-resolution sound
source

File information

Compatible USB devices

USB communi-
cation formats

USB 2.0 HS (480
Mbps)

File formats

FAT 16/32

Correspon-
dence class

Mass storage
class

Compatible audio format

Compatible compressed files

Item

USB

Compatible file

format

MP3/WMA/AAC

WAV(LPCM)/FL

AC/ALAC/OGG

Vorbis

MP4/AVI/WMV

Compatible file

format (video)

*

MP4/AVI/WMV

Folders in the

device

Maximum

3000

Files in the

device

Maximum

9999

Files per folder

Maximum

255

Corresponding sampling fre-
quency

File type

Frequency (kHz)

MP3 files:
MPEG 1 LAYER
3

32/44.1/48

MP3 files:
MPEG 2 LSF
LAYER 3

16/22.05/24

355

5-10. Tips for operating the audio/visual system

5

Audio

COROLLA_U

*1

:Only compatible with Windows

Media Audio Standard

*2

:Sound source of 48kHz or more

is down-converted to
48kHz/24bit.

*1

:Variable Bit Rate (VBR) compati-

ble

*2

:Only compatible with Windows

Media Audio Standard



MP3 (MPEG Audio Layer 3),
WMA (Windows Media Audio)

WMA files:
Ver. 7, 8, 9

*1



(9.1/9.2)

32/44.1/48

AAC files:
MPEG4/AAC-LC

11.025/12/16/

22.05/24/32/

44.1/48

WAV (LPCM)
files

*2

8/11.025/12/16/

22.05/24/32/

44.1/48/88.2/
96/176.4/192

FLAC

*2

8/11.025/12/16/

22.05/24/32/

44.1/48/88.2/
96/176.4/192

ALAC

*2

8/11.025/12/16/

22.05/24/32/

44.1/48/64/

88.2/96

OGG Vorbis

*2

8/11.025/16/

22.05/32/44.1/

48

Corresponding bit rates

*1

File type

Bit rate (kbps)

MP3 files:
MPEG 1 LAYER
3

32 - 320

MP3 files:
MPEG 2 LSF
LAYER 3

8 - 160

File type

Frequency (kHz)

WMA files: Ver.
7, 8

CBR 48 - 192

WMA files:
Ver. 9

*2

 (9.1/9.2)

CBR 48 - 320

AAC files:
MPEG4/AAC-LC

8 - 320

OGG Vorbis

32-500

File type

Quantization bit

rate (bit)

WAV (LPCM)
files

16/24

FLAC

ALAC

Compatible channel modes

File type

Channel mode

MP3 files

Stereo, joint ste-
reo, dual chan-
nel and
monaural

WMA files

2ch

AAC files

1ch, 2ch (Dual
channel is not
supported)

WAV (LPCM)/

FLAC/ALAC/

OGG Vorbis

2ch

File type

Bit rate (kbps)

356

5-10. Tips for operating the audio/visual system

COROLLA_U

and AAC (Advanced Audio
Coding) are audio compres-
sion standards.



This system can play
MP3/WMA/AAC files on USB
memory.



MP4, WMV and AVI files can
use the following resolutions:
128x96, 160x120, 176x144
(QCIF), 320x240 (QVGA),
352x240 (SIF), 352x288
(CIF), 640x480 (VGA),
720x480 (NTSC), 720x576
(PAL)



When naming an
MP3/WMA/AAC file, add an
appropriate file extension
(.mp3/.wma/.m4a).



This system plays back files
with .mp3/.wma/.m4a file
extensions as
MP3/WMA/AAC files respec-
tively. To prevent noise and
playback errors, use the
appropriate file extension.



MP3 files are compatible with
the ID3 Tag Ver. 1.0, Ver. 1.1,
Ver. 2.2 and Ver. 2.3 formats.
This system cannot display
disc title, track title and artist
name in other formats.



WMA/AAC files can contain a
WMA/AAC tag that is used in
the same way as an ID3 tag.
WMA/AAC tags carry infor-
mation such as track title and
artist name.



The emphasis function is

available only when playing
MP3 files.



This system can play back
AAC files encoded by iTunes.



The sound quality of
MP3/WMA files generally
improves with higher bit rates.



m3u playlists are not compati-
ble with the audio player.



MP3i (MP3 interactive) and
MP3PRO formats are not
compatible with the audio
player.



The player is compatible with
VBR (Variable Bit Rate).



When playing back files
recorded as VBR (Variable Bit
Rate) files, the play time will
not be correctly displayed if
the fast forward or reverse
operations are used.



It is not possible to check fold-
ers that do not include
MP3/WMA/AAC files.



MP3/WMA/AAC files in fold-
ers up to 8 levels deep can be
played. However, the start of
playback may be delayed
when using USB memory
containing numerous levels of
folders. For this reason, we
recommend creating USB
memory with no more than 2
levels of folders.

357

5-10. Tips for operating the audio/visual system

5

Audio

COROLLA_U



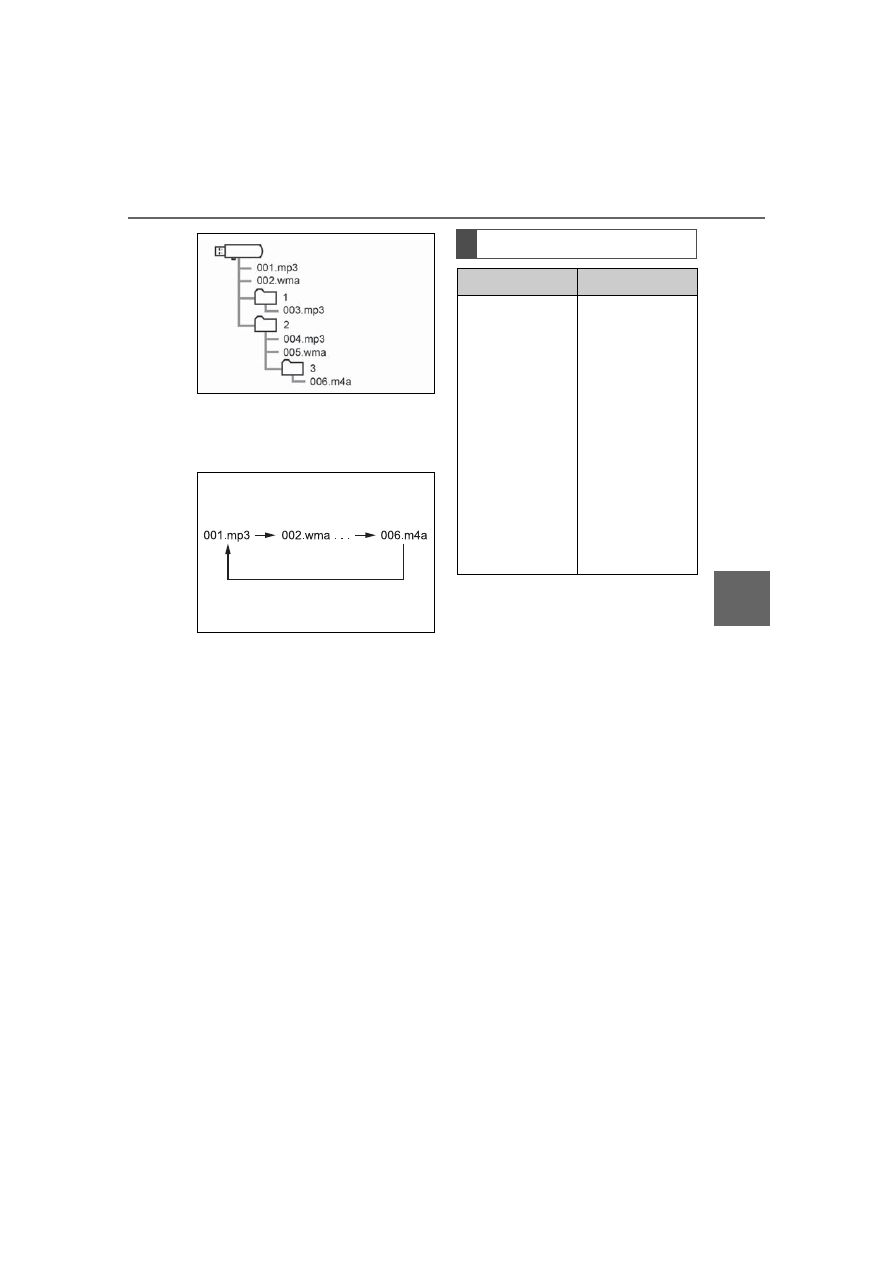

The play order of the USB
memory with the structure
shown above is as follows:



The order changes depending
on the personal computer and
MP3/WMA/AAC encoding
software you use.

Compatible video format

Format

Codec

MPEG-4

Video codec:



H.264/MPEG-4
AVC



MPEG4

Audio codec:



AAC



MP3

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

358

5-10. Tips for operating the audio/visual system

COROLLA_U

■

ID3 tag

This is a method of embedding

track-related information in an
MP3 file. This embedded infor-
mation can include the track
number, track title, the artist’s
name, the album title, the music
genre, the year of production,
comments, cover art and other
data. The contents can be freely
edited using software with ID3
tag editing functions. Although
the tags are restricted to a num-
ber of characters, the informa-
tion can be viewed when the
track is played back.

■

WMA tag

WMA files can contain a WMA
tag that is used in the same way
as an ID3 tag. WMA tags carry
information such as track title
and artist name.

■

MP3

MP3 is an audio compression
standard determined by a work-
ing group (MPEG) of the ISO
(International Standard Organi-
zation). MP3 compresses audio
data to about 1/10 the size of
that on conventional discs.

■

WMA



WMA (Windows Media Audio)
is an audio compression for-
mat developed by Microsoft

®

.

It compresses files into a size
smaller than that of MP3 files.
The decoding formats for
WMA files are Ver. 7, 8 and 9.



This product includes technol-
ogy owned by Microsoft Cor-

AVI Container

Video codec:



H.264/MPEG-4
AVC



MPEG4



WMV9



WMV9
Advanced pro-
file

Audio codec:



AAC



MP3



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Windows Media
Video

Video codec:



WMV9



WMV9
Advanced pro-
file

Audio codec:



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Terms

Format

Codec

359

5-10. Tips for operating the audio/visual system

5

Audio

COROLLA_U

poration and cannot be used
or distributed without a
license from Microsoft Licens-
ing, Inc.

■

AAC

AAC is short for Advanced
Audio Coding and refers to an
audio compression technology
standard used with MPEG2 and
MPEG4.

■

USB

■

iPod

■

Bluetooth

®

 audio

If the malfunction is not rectified:

Take your vehicle to your Toyota

dealer.

Error messages

Message

Explanation

“USB Error”

This indicates a
problem in the
USB memory or
its connection.

“No music files
found.”

This indicates
that no
MP3/WMA/AAC
files are included
in the USB mem-
ory.

“No video files
found.”

This indicates
that no video
files are included
in the USB mem-
ory.

Message

Explanation

“iPod Error”

This indicates a
problem in the
iPod or its con-
nection.

“No music files
found.”

This indicates
that there is no
music data in the
iPod.

“Please check
the iPod firm-
ware version.”

This indicates
that the software
version is not
compatible. Per-
form the iPod
firmware
updates and try
again.

“Unable to
authorize the
iPod.”

This indicates
that it failed to
authorize the
iPod.
Please check
your iPod.

Message

Explanation

“Music tracks not
supported.
Please check
your portable
player.”

This indicates a
problem in the
Bluetooth

®



device.

360

5-10. Tips for operating the audio/visual system

COROLLA_U

■

Except for vehicles sold in Canada

Certification

361

5-10. Tips for operating the audio/visual system

5

Audio

COROLLA_U

■

For vehicles sold in Canada

362

5-10. Tips for operating the audio/visual system

COROLLA_U

■

Gracenote

363

5-10. Tips for operating the audio/visual system

5

Audio

COROLLA_U

■

For U.S. owners

364

5-11. Voice command system operation

COROLLA_U

5-11.Voice command system operation

■

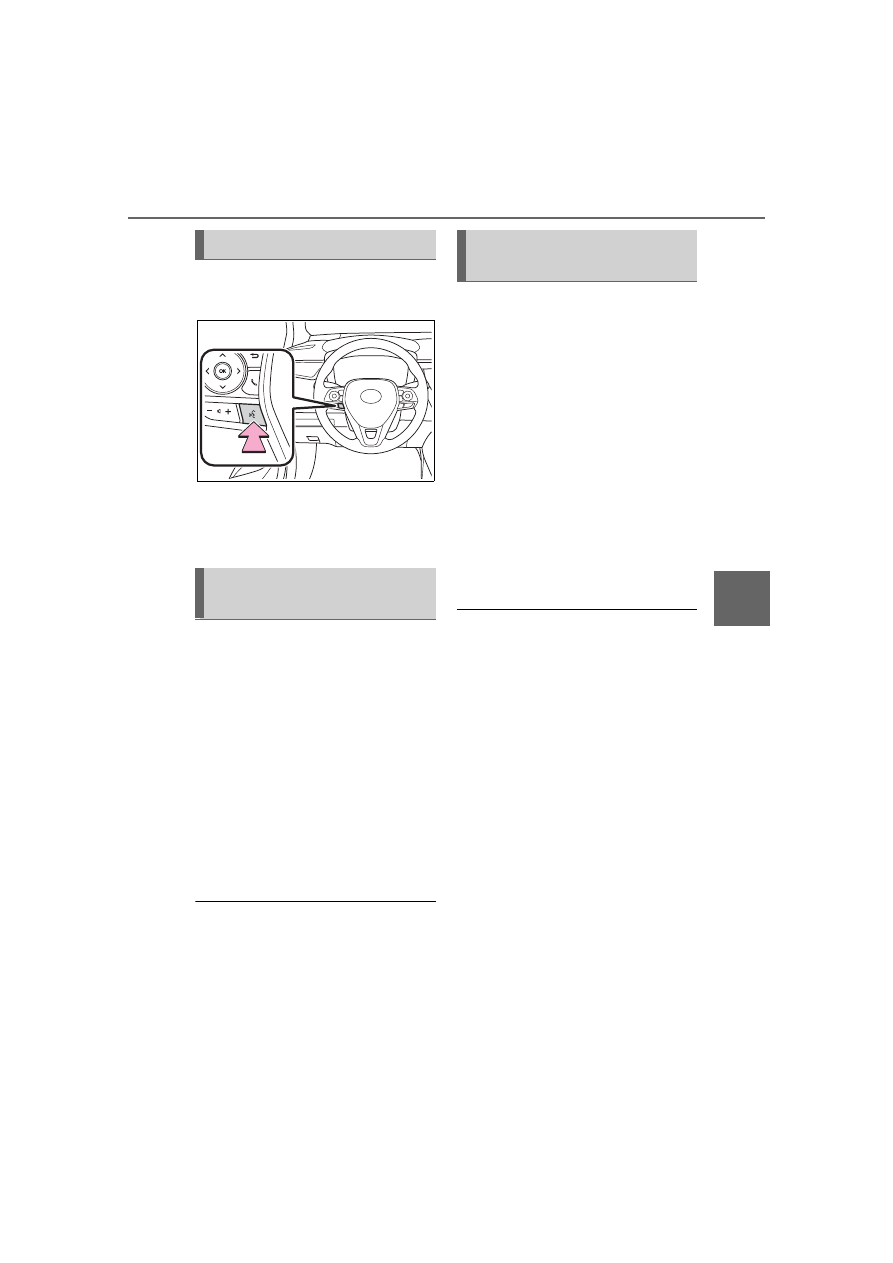

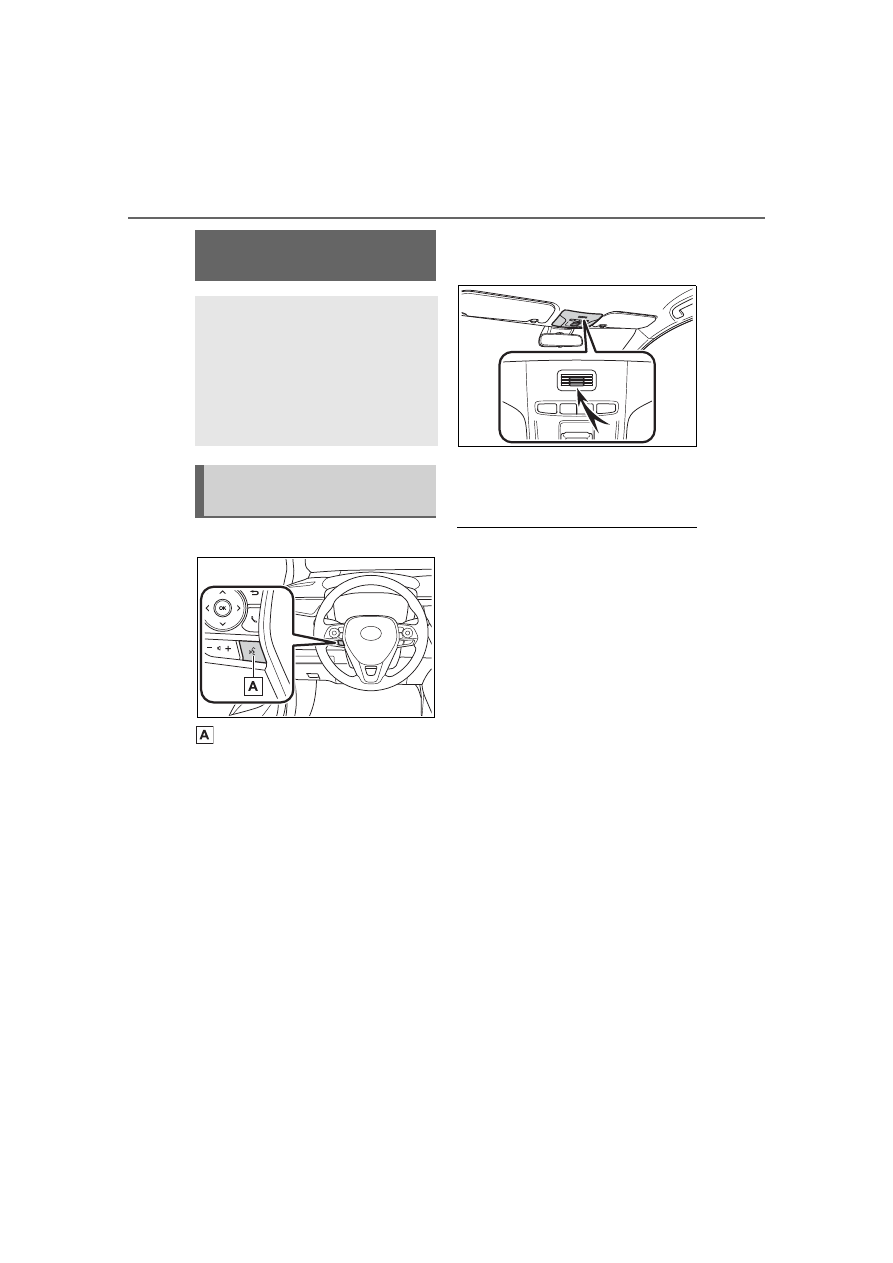

Steering switch

Talk switch



Voice command system

Press the talk switch to start the
voice command system. To can-
cel voice command, press and
hold the talk switch.



When an Apple Car-
Play/Android Auto connec-
tion is established



Press and hold the talk switch
to start Siri/Google Assistant.
To cancel Siri/Google Assis-
tant, press the talk switch.



Press the talk switch to start

the voice command system.

■

Microphone

It is unnecessary to speak
directly into the microphone
when giving a command.

●

Voice commands may not be rec-

ognized if:

• Spoken too quickly.

• Spoken at a low or high volume.

• The windows are open.

• Passengers are talking while

voice commands are spoken.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned towards the microphone.

●

In the following conditions, the

system may not recognize the

command properly and using

voice commands may not be pos-

sible:

• The command is incorrect or

unclear. Note that certain words,

accents or speech patterns may

be difficult for the system to recog-

nize.

• There is excessive background

noise, such as wind noise.

●

Normally, it is necessary to wait

for a beep before saying a com-

mand. To enable the ability to talk

over prompts and say commands

before the beep, enable the voice

prompt interrupt function.

(



P.325)

●

This system may not operate

immediately after the engine

Voice command sys-

tem

The voice command sys-
tem enables the radio,
phone dialing, etc. to be
operated using voice com-
mands. Refer to the com-
mand list for samples of
voice commands. (



P.367)

Using the voice command
system

365

5-11. Voice command system operation

5

Audio

COROLLA_U

switch is in ACC or ON.

The voice command system is
operated by saying commands
which correspond to a sup-
ported function. To display
examples of commands for sup-
ported functions, select a func-
tion button on the screen after
starting the voice command sys-
tem.

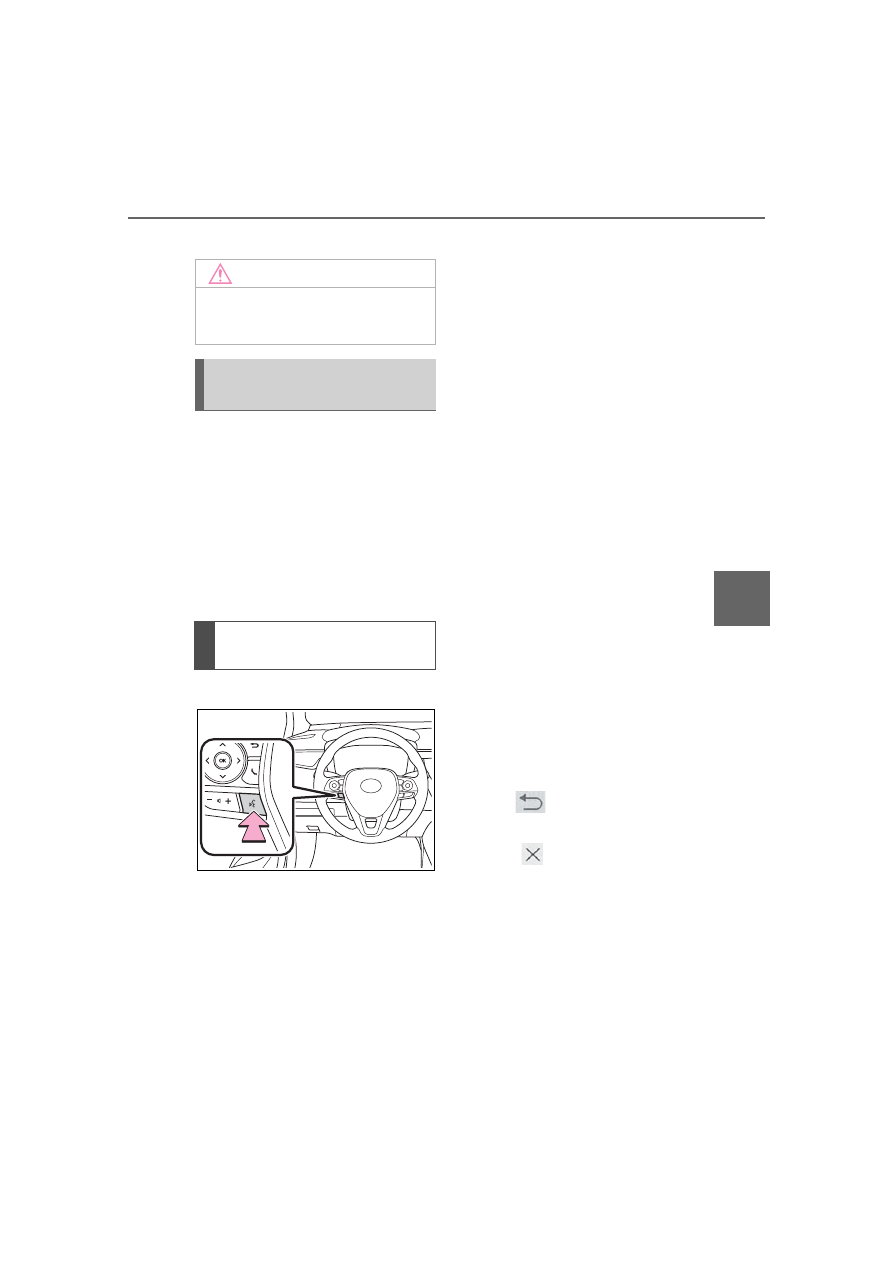

1

Press the talk switch.

Voice guidance for the voice com-

mand system can be skipped by

pressing the talk switch.

2

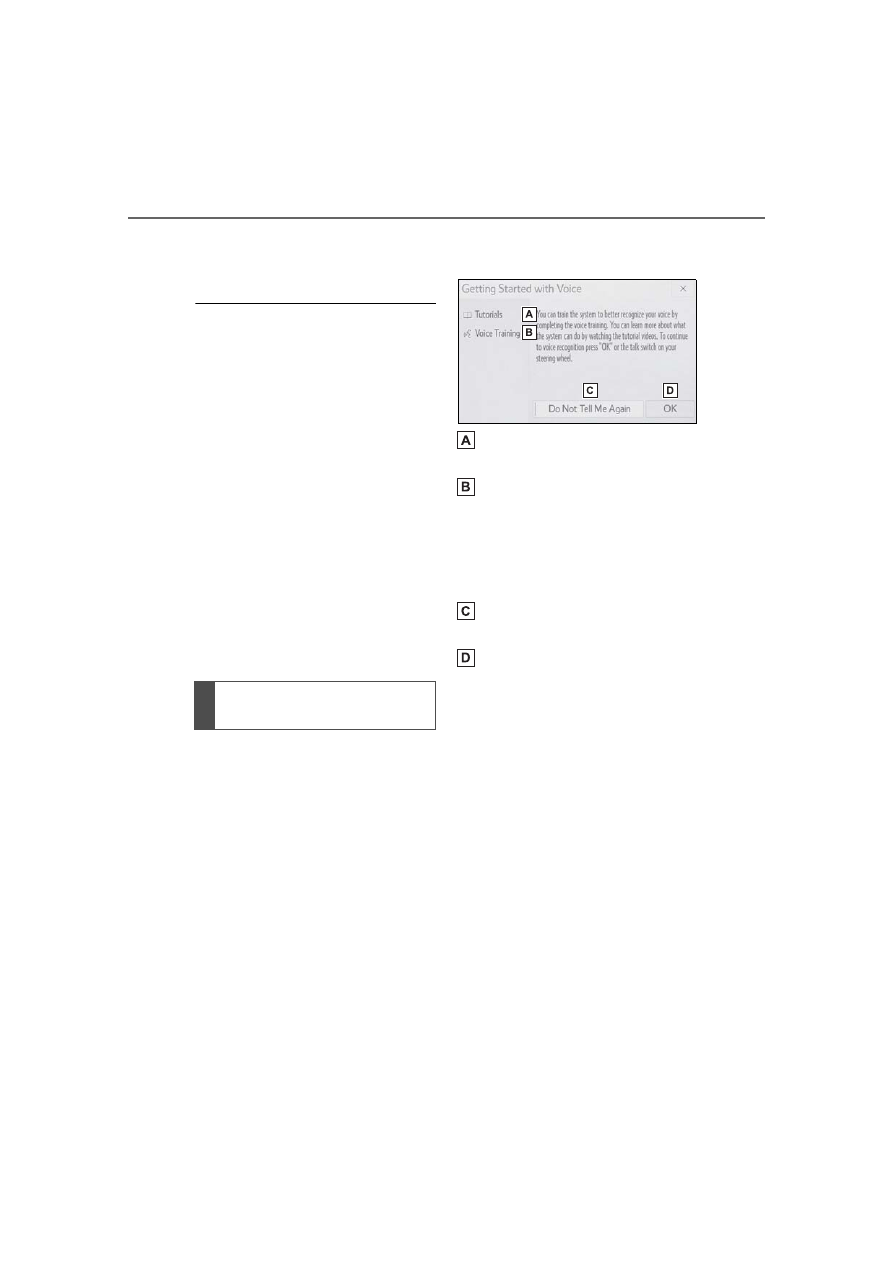

If “Getting Started with Voice”
screen is displayed, select
“OK” or press the talk switch.
(



P.366)

3

After hearing a beep, say a
supported command.



To display sample commands
of the desired function, say
the desired function or select
the desired function button. To
display more commands,
select “More Commands”.



Selecting “Help” or saying
“Help” prompts the voice com-
mand system to offer exam-
ples of commands and
operation methods.



Registered POIs, registered
names in the contacts list etc.,
can be said in the place of the
“<>” next to the commands.
(



P.367)

For example: Say “Find a restau-
rant”, “Call John Smith” etc.



If a desired outcome is not
shown, or if no selections are
available, perform one of the
following to return to the pre-
vious screen:

• Say “Go back”.

• Select

.



To cancel voice recognition,
select

, say “Cancel”, or

press and hold the talk switch.



To perform the voice com-
mand operation again, select
“Start Over” or say “Start
over”.



To suspend voice command
operation, select “Pause” or
say “Pause”. To resume the

NOTICE

Do not touch and put a sharp

object to the microphone. It may

cause failure.

Voice command system
operation

Operation from the main
menu

366

5-11. Voice command system operation

COROLLA_U

voice command operation,
select “Resume” or press the
talk switch.

●

If the system does not respond or

the confirmation screen does not

disappear, press the talk switch

and try again.

●

If a voice command cannot be rec-

ognized 3 consecutive times,

voice recognition will be canceled.

●

Voice recognition prompts can be

changed on the voice settings

screen. (



P.325)

This function can be used to cancel

voice guidance by turning the voice

prompts off. When you press the

talk switch while using this setting, a

beep sounds, and then you can

immediately say a command.

●

Some voice guidance can be can-

celed by setting voice prompts to

off. Use this setting when it is

desirable to say a command

immediately after pressing the talk

switch and hearing a beep.

To increase voice recognition
performance, use the “Tutori-
als” and “Voice Training” func-
tions on the “Getting Started
with Voice” screen. These func-
tions are only available when
the vehicle is not moving.
The “Tutorials” and “Voice Train-
ing” functions can also be
started on the voice settings
screen. (



P.325)

1

Press the talk switch.

2

Select the desired item to be
set.

Select to display the voice
command tutorials.
Select to train the voice com-
mand system.

The user will be asked to say 10
sample phrases. This will help the
voice command system adapt to
the user’s accent.

Select to prevent the screen
from being displayed again.
Select to proceed to the
voice command screen.

Increasing the voice rec-
ognition performance

367

5-11. Voice command system operation

5

Audio

COROLLA_U

Recognizable voice commands
and their actions are shown
below.



Frequently used commands
are listed in the following
tables.



For devices that are not
installed to the vehicle, com-
mands relating to that device
may not be displayed on the
screen. Also, depending on
other conditions, such as
compatibility, some com-
mands may not be displayed
on the screen.



The functions available may
vary according to the system
installed.



When an Apple Car-
Play/Android Auto connec-
tion is established, some
commands will become
unavailable.



Voice recognition language
can be changed. (



P.321)

■

Common

■

Top menu

*

: Vehicle must be parked

Command list

Command list overview

Command list

Command

Action

“Help”

Displays exam-
ples of some of
the available
commands

“Go back”

Returns to the
previous screen

“Cancel”

Cancels the
voice command
system

“Start over”

Returns to top
menu screen

“Pause”

Temporarily
pauses a voice
session until it is
resumed by
pressing the talk
switch again.

Command

Action

“Show com-
mand examples
for <menu>”

Displays the
command list of
the selected
menu

“More com-
mands”

Displays more
commonly used
commands

“Voice settings”

Displays Voice
Setting screen

“Train my voice”

Displays Train
Voice Recogni-
tion screen

*

368

5-11. Voice command system operation

COROLLA_U

■

Phone

*1

*1

:When an Apple CarPlay connec-

tion is established, this voice
commands will be unavailable.

*2

:If the system does not recognize

the name of a contact, create a
voice tag. (



P.390) The name of

a contact can also be recognized
by adding a voice tag.

■

While in a phone call

*

*

: When an Apple CarPlay connec-

tion is established, this voice
commands will be unavailable.

■

While incoming message
notification is displayed

*1, 2

*1

:Full screen message notification

must be turned on within the
phone settings (



P.388)

*2

:When an Apple CarPlay connec-

tion is established, this voice

Command

Action

“Call <con-
tact>”

*2

Places a call to
the specified
contact from the
phone book

“Call <contact>
<phone type>”

*2

Places a call to
the specified
phone type of
the contact from
the phone book

“Dial <phone
number>”

Places a call to
the specified
phone number

“Redial”

Places a call to
the phone num-
ber of the latest
outgoing call

“Call back”

Places a call to
the phone num-
ber of latest
incoming call

“Show recent
calls”

Displays the call
history screen

“Send a mes-
sage to <con-
tact>”

Sends a text
message to
specified con-
tact from the
phone book

Command

Action

“Send <digits>”

Sends DTMF
tones has speci-
fied

“Mute”

Mutes the micro-
phone (far side
cannot hear the
conversation)

“Unmute”

Unmutes the
microphone

Command

Action

“Read message”

Reads the
incoming mes-
sage over the
vehicle speakers

“Ignore”

Ignores the
incoming mes-
sage notification

“Reply”

Initiates sending
a reply to the
incoming mes-
sage

“Call”

Places a call to
the phone num-
ber of incoming
message

369

5-11. Voice command system operation

5

Audio

COROLLA_U

commands will be unavailable.

■

Radio

*1

:A station list must be built first

using the radio screen (



P.333)

*2

:Requires a satellite radio sub-

scription

■

Audio

*1

*1

:The audio device must be con-

nected via a USB cable to use

Command

Action

“Tune to <fre-
quency> AM”

Changes the
radio to the
specified AM fre-
quency

“Tune to <fre-
quency> FM”

Changes the
radio to the
specified FM fre-
quency

“Play a <genre>
station”

Changes the
radio to an FM
station of the
specified genre

*1

“Tune to preset
<1-36>”

Changes the
radio to the
specified preset
radio station

“Tune to a
<genre> satel-
lite station”

Changes the
radio to a satel-
lite radio channel
of the specified
genre

*2

“Tune to <satel-
lite channel
name>”

Changes the
radio to the sat-
ellite radio chan-
nel with the
specified name

*2

“Tune to chan-
nel <number> on
XM”

Changes the
radio to a satel-
lite radio channel
of the specified
number

*2

Command

Action

“Play Playlist
<name>”

*2

Plays tracks
from the
selected playlist

“Play Artist
<name>”

*2

Plays tracks
from the
selected artist

“Play Song
<name>”

*2

Plays the
selected track

“Play Album
<name>”

*2

Plays tracks
from the
selected album

“Play Genre
<name>”

*2

Plays tracks
from the
selected genre

“Play Composer
<name>”

*2

Plays tracks
from the
selected com-
poser

“Play Podcast
<name>”

*2

Plays tracks
from the
selected podcast

“Play Audiobook
<name>”

*2

Plays tracks
from the
selected audio-
book

“Audio On”

Turns the
audio/visual sys-
tem on

“Audio Off”

Turns the
audio/visual sys-
tem off

“Change the
audio source to
<source name>”

Sets the source
to the specified
audio mode

370

5-11. Voice command system operation

COROLLA_U

the functionality in this section

*2

:When an Apple CarPlay connec-

tion is established, this voice
commands will be unavailable.

■

Toyota apps

*

: When an application is opened

and is in full screen mode, press-
ing the talk switch will start the
voice command system and com-
mands for the currently displayed
application will be available

Commands relating to operation of

the audio/visual system can only be

performed when the audio/visual

system is turned on.

Command

Action

“Launch <appli-
cation name>”

*

Activates the
Toyota apps

371

5-12. Mobile Assistant operation

5

Audio

COROLLA_U

5-12.Mobile Assistant operation

●

While a phone call is active, the

Mobile Assistant cannot be used.

●

If using the navigation feature of

the cellular phone, ensure the
active audio source is Bluetooth

®



audio or iPod in order to hear turn

by turn direction prompts.

●

Wait for the listening beeps before

using the Mobile Assistant.

●

The Mobile Assistant may not rec-

ognize commands in the following

situations:

• Spoken too quickly.

• Spoken at a low or high volume.

• The windows are open.

• Passengers are talking while the

Mobile Assistant is being used.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned toward the microphone.

Mobile Assist supports the Siri
Eyes Free Mode and Google
App. The available features and
functions may vary based on the
iOS/Android version installed on
the connected device.



Type A

1

Press and hold the talk
switch on the steering wheel
until Mobile Assistant screen
is displayed.



Type B

1

Press and hold the

 switch

on the steering wheel until

Mobile Assistant

The Mobile Assistant func-
tion is a voice input assist
function. Mobile Assist sup-
ports the Siri Eyes Free
Mode and Google App.
(Google App can be used
only with the corresponding
device.) Instructions can be
spoken into the vehicle
microphone as if speaking a
command to the phone. The
content of the request is
then interpreted by the
phone and the result is out-
put from the vehicle speak-
ers. To operate the Mobile
Assistant, a compatible
device must be registered
and connected to this sys-
tem via Bluetooth

®

.

(



P.298)

When an Apple CarPlay
connection is established,
this function will be unavail-
able.

Connectable devices and
available functions

Mobile Assistant opera-
tion

372

5-12. Mobile Assistant operation

COROLLA_U

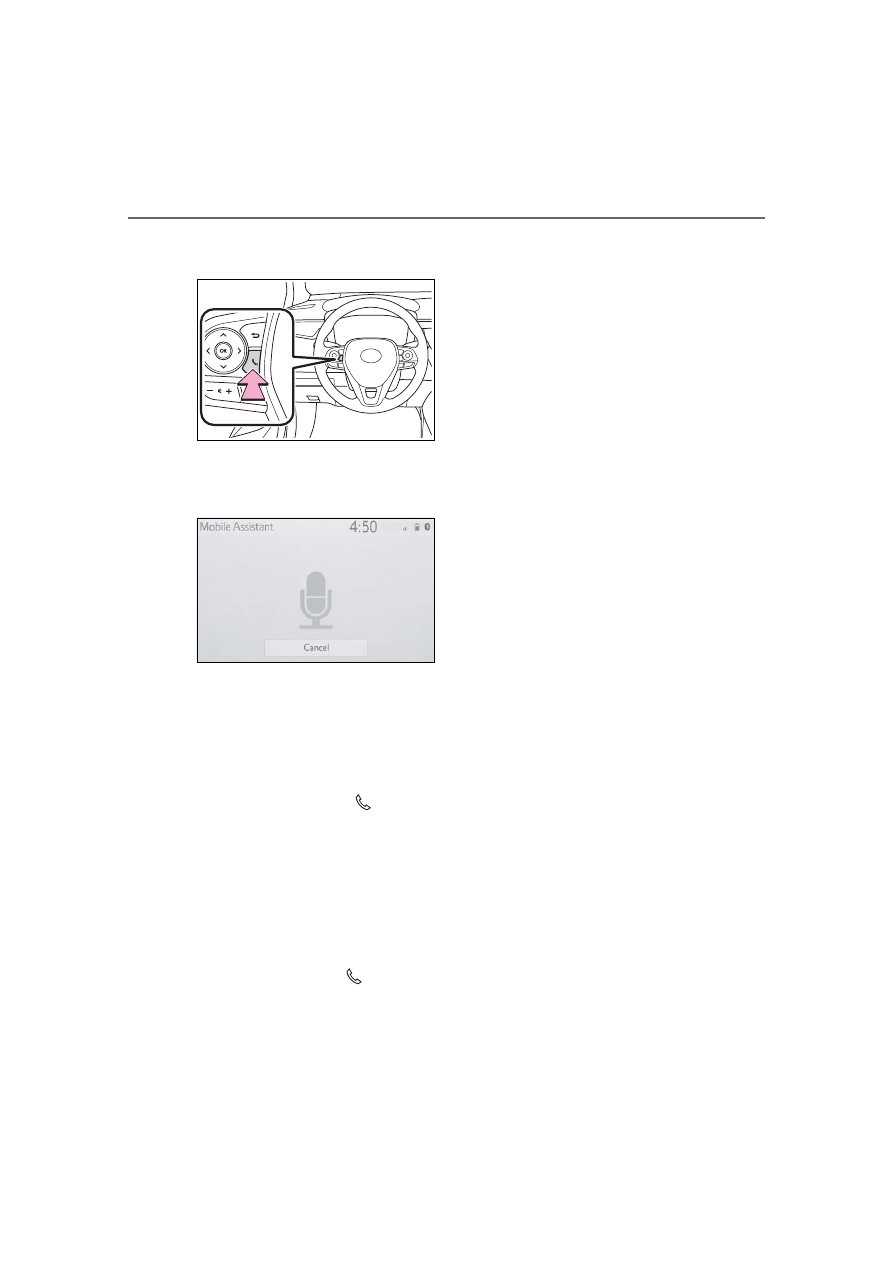

Mobile Assistant screen is
displayed.

2

The Mobile Assistant can be
used only when the following
screen is displayed.



Type A: To cancel the Mobile
Assistant, select “Cancel” or
press and hold the talk switch
on the steering wheel.
Type B: To cancel the Mobile
Assistant, select “Cancel” or
press and hold the

 switch

on the steering wheel.



Type A: To restart the Mobile
Assistant for additional com-
mands, press the talk switch
on the steering wheel.
Type B: To restart the Mobile
Assistant for additional com-
mands, press the

 switch

on the steering wheel.

• Mobile Assistant can only be

restarted after the system
responds to a voice command.

• After some phone and music

commands, the Mobile Assistant
feature will automatically end to
complete the requested action.



The volume of the Mobile
Assistant can be adjusted
using the “POWER VOLUME”
knob or steering wheel vol-
ume control switches. The
Mobile Assistant and phone
call volumes are synchro-
nized.

373

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

5-13.Phone operation (Hands-free system for cellular phones)

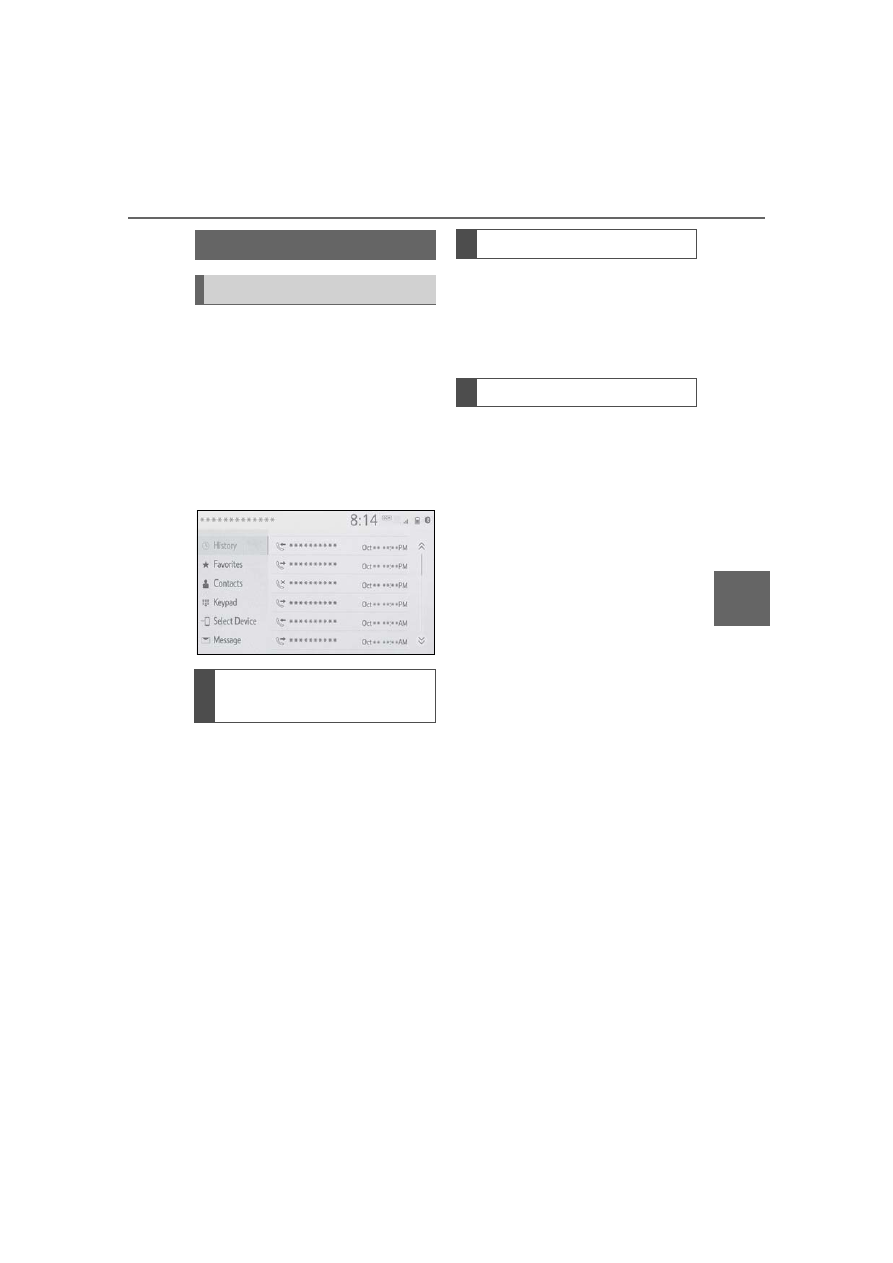

The phone screen can be
reached by the following meth-
ods:



From the “PHONE” button

Press the “PHONE” button.



From the “MENU” button

Press the “MENU” button, then
select “Phone”.

The following functions can be
used on phone operation:



Registering/connecting a
Bluetooth

®

 device (



P.298)



Placing a call using the Blue-
tooth

®

 hands-free system

(



P.378)



Receiving a call using the
Bluetooth

®

 hands-free system

(



P.381)



Talking on the Bluetooth

®



hands-free system (



P.382)

The following function can be
used on message function:

Using the Bluetooth

®

 phone

message function (



P.384)

The following functions can be
made in the system:



Phone settings (



P.388)



Bluetooth

®

 settings (



P.302)

Quick reference

Phone screen operation

Bluetooth

®

 hands-free

system operation

Message function

Setting up a phone

374

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA_U

●

This system is not guaranteed to
operate with all Bluetooth

®



devices.

●

If your cellular phone does not
support Bluetooth

®

, this system

cannot function.

●

In the following conditions, the

system may not function:

• The cellular phone is turned off.

• The current position is outside the

communication area.

• The cellular phone is not con-

nected.

• The cellular phone has a low bat-

tery.

●

Depending on the type of Blue-
tooth

®

 phone, some function is

not available.

●

When using the hands-free sys-
tem or Bluetooth

®

 audio and

Wi-Fi

®

 Hotspot functions at the

same time, the following problems

may occur:

• The Bluetooth

®

 connection may

be cut.

• Noise may be heard on the Blue-

tooth

®

 audio playback.

• A noise may be heard during

phone calls.

●

Bluetooth

®

 uses the 2.4 GHz fre-

quency band. If both a Wi-Fi

®

 con-

nection and Bluetooth

®



connection are being used simul-

taneously, each connection may

be affected.

●

If a Bluetooth

®

 device is attempt-

ing to connect to the vehicle while

another device is connected as a
Bluetooth

®

 audio device or con-

nected using the hands-free sys-
tem or Wi-Fi

®

 Hotspot function,

the communication speed may

decrease or malfunctions may

occur, such as image distortion or
audio skipping. If a Bluetooth

®



device is connected to the system,

the interference it may cause will

be reduced. When carrying a
device with its Bluetooth

®

 connec-

tion enabled, make sure to regis-

ter it to the system and connect it
or disable its Bluetooth

®

 function.

●

When a device is connected via
Bluetooth

®

, the Bluetooth

®

 icon

on the status bar will be displayed

in blue. (



P.286)

Some basics

The hands-free system
enables calls to be made
and received without having
to take your hands off the
steering wheel.

This system supports Blue-
tooth

®

. Bluetooth

®

 is a wire-

less data system that
enables cellular phones to
be used without being con-
nected by a cable or placed
in a cradle.

The operating procedure of
the phone is explained here.

When an Apple CarPlay
connection is established,
phone functions will be per-
formed by Apple CarPlay
instead of the hands-free
system.

WARNING

●

While driving, do not operate a

cellular phone.

375

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

To use the hands-free system
for cellular phones, it is neces-
sary to register a cellular phone
with the system. (



P.298)

■

Connecting a Bluetooth

®



device



Registering an additional
device

1

Display the phone top
screen. (



P.373)

2

Select “Select Device”.

3

Select “Add Device”.

When another Bluetooth

®

 device is

connected, a confirmation screen

will be displayed. To disconnect the
Bluetooth

®

 device, select “Yes”.

4

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.298)



Selecting a registered device

1

Display the phone top
screen. (



P.373)

2

Select “Select Device”.

3

Select the desired device to
be connected.

4

Check that a confirmation
screen is displayed when the
connection is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

■

Bluetooth

®

 phone condition

display

The condition of the Bluetooth

®



phone appears on the upper
right side of the screen.
(



P.287)

WARNING

●

Your audio unit is fitted with
Bluetooth

®

 antennas. People

with implantable cardiac pace-

makers, cardiac resynchroniza-

tion therapy-pacemakers or

implantable cardioverter defibril-

lators should maintain a reason-

able distance between
themselves and the Bluetooth

®



antennas. The radio waves may

affect the operation of such

devices.

●

Before using Bluetooth

®



devices, users of any electrical

medical device other than

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should consult the manufacturer

of the device for information

about its operation under the

influence of radio waves. Radio

waves could have unexpected

effects on the operation of such

medical devices.

NOTICE

Do not leave your cellular phone

in the vehicle. The temperature

inside may rise to a level that

could damage the phone.

Registering/Connecting a
Bluetooth

®

 phone

376

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA_U

■

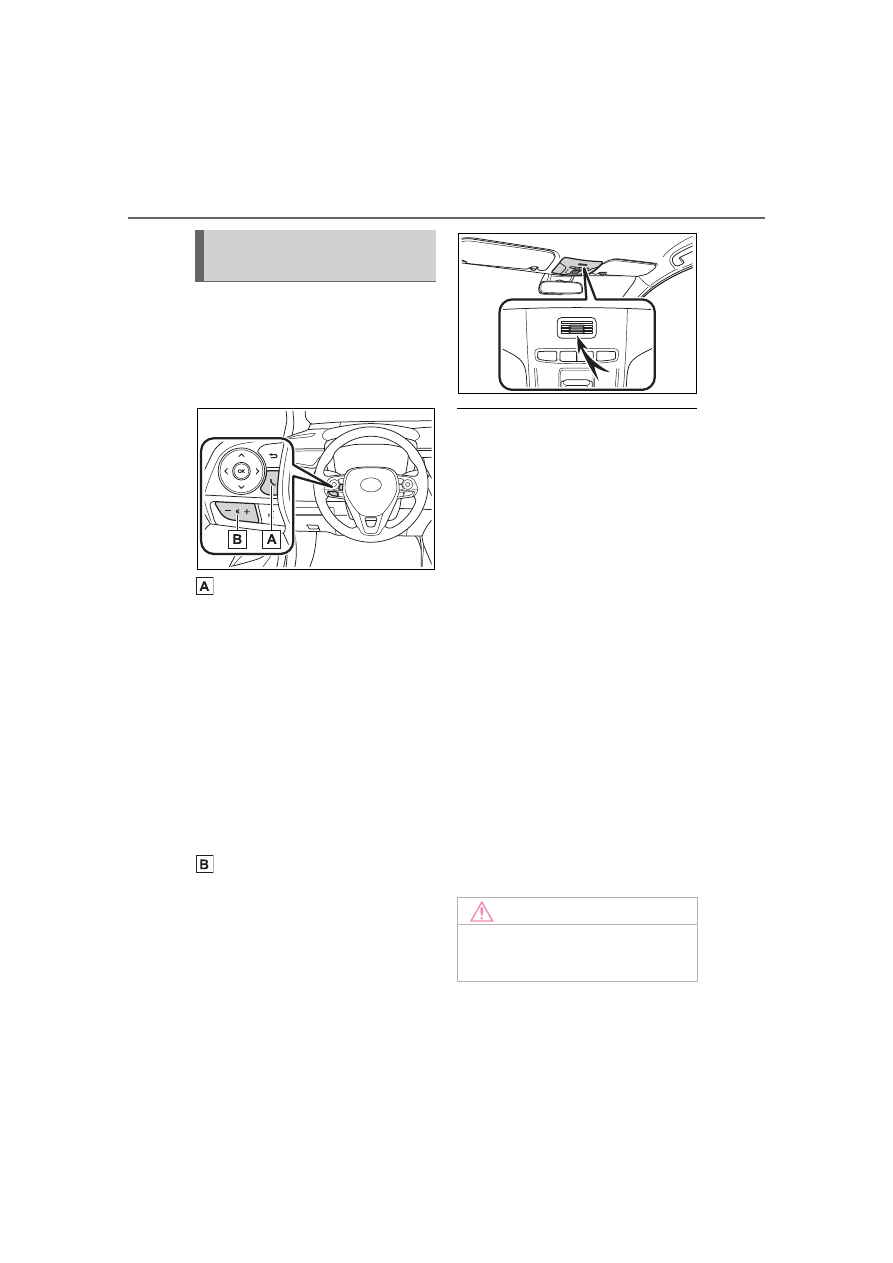

Steering switch

By pressing the phone switch, a
call can be received or ended
without taking your hands off the
steering wheel.

Phone switch

• If the switch is pressed during a

call, the call will end.

• If the switch is pressed when an

incoming call is received, the call
will be answered.

• If the switch is pressed during a

call when a separate incoming
call is waiting, the waiting call will
be answered.

• If the switch is pressed when an

Apple CarPlay connection is
established, the Apple CarPlay
phone application will be dis-
played on the system screen.

Volume control switch

• Press the “+” side to increase the

volume.

• Press the “-” side to decrease the

volume.

■

Microphone

The microphone is used when
talking on the phone.

●

The other party’s voice will be

heard from the front speakers.

The audio/visual system will be

muted during phone calls or when

hands-free voice commands are

used.

●

Talk alternately with the other

party on the phone. If both parties

speak at the same time, the other

party may not hear what has been

said. (This is not a malfunction.)

●

Keep call volume down. Other-

wise, the other party’s voice may

be audible outside the vehicle and

voice echo may increase. When

talking on the phone, speak

clearly towards the microphone.

●

The other party may not hear you

clearly when:

• Driving on an unpaved road.

(Making excessive traffic noise.)

• Driving at high speeds.

• The windows are open.

• The air conditioning vents are

pointed towards the microphone.

• The sound of the air conditioning

fan is loud.

• There is a negative effect on

sound quality due to the phone

and/or network being used.

Using the phone
switch/microphone

NOTICE

Do not touch and put a sharp

object to the microphone. It may

cause failure.

377

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

Press this switch to operate the
voice command system.

The voice command system and
its list of commands can be
operated. (



P.364)

The following data is stored for
every registered phone. When
another phone is connected, the
following registered data cannot
be read:



Contact data



Call history data



Favorites data



Image data



All phone settings



Message settings

When a phone’s registration is

deleted, the above-mentioned data

is also deleted.

A lot of personal data is regis-
tered when the hands-free sys-
tem is used. When selling or
disposing of the vehicle, initial-
ize the data. (



P.324)

The following data in the system
can be initialized:



Contact data



Call history data



Favorites data



Image data



All phone settings



Message settings

Once initialized, the data and set-

tings will be erased. Pay additional

attention when initializing the data.

Voice command system

About the contacts in the
contact list

When selling or disposing
of the vehicle

378

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA_U

1

Display the phone top
screen. (



P.373)

2

Select the desired method to
call from.

■

Calling methods from
phone screen



By call history (



P.378)



By favorites (



P.378)



By contacts (



P.379)



By keypad (



P.380)



By message (



P.387)

■

Also the following lists are
available from each func-
tion’s screen



By voice command system
(



P.365)



By home screen (



P.380)

Up to 30 of the latest call history

items (missed, incoming and
outgoing) can be selected.

1

Display the phone top
screen. (



P.373)

2

Select “History” and select
the desired contact.

If the contact which is not regis-

tered on the contact list is selected,

the name is displayed as “Unknown

Contact”. In this case, select the

number to make a call properly.

3

Check that the dialing screen
is displayed.

●

The icons of call type are dis-

played.

: Missed call

: Incoming call

: Outgoing call

●

When making a call to the same

number continuously, only the

most recent call is listed in call his-

tory.

●

When a phone number registered

in the contact list is received, the

name is displayed.

●

Number-withheld calls are also

memorized in the system.

●

International phone calls may not

be made depending on the type of
Bluetooth

®

 phone you have.

●

The list should group together

consecutive entries with the same

phone number and same call

type. For example, two calls from

John’s mobile would be displayed

as follows: John (2)

Calls can be made using regis-
tered contacts which can be

Placing a call using

the Bluetooth

®



hands-free system

After a Bluetooth

®

 phone

has been registered, a call
can be made using the
hands-free system. There
are several methods by
which a call can be made, as
described below.

Calling methods on the
Bluetooth

®

 phone

By call history

By favorites list

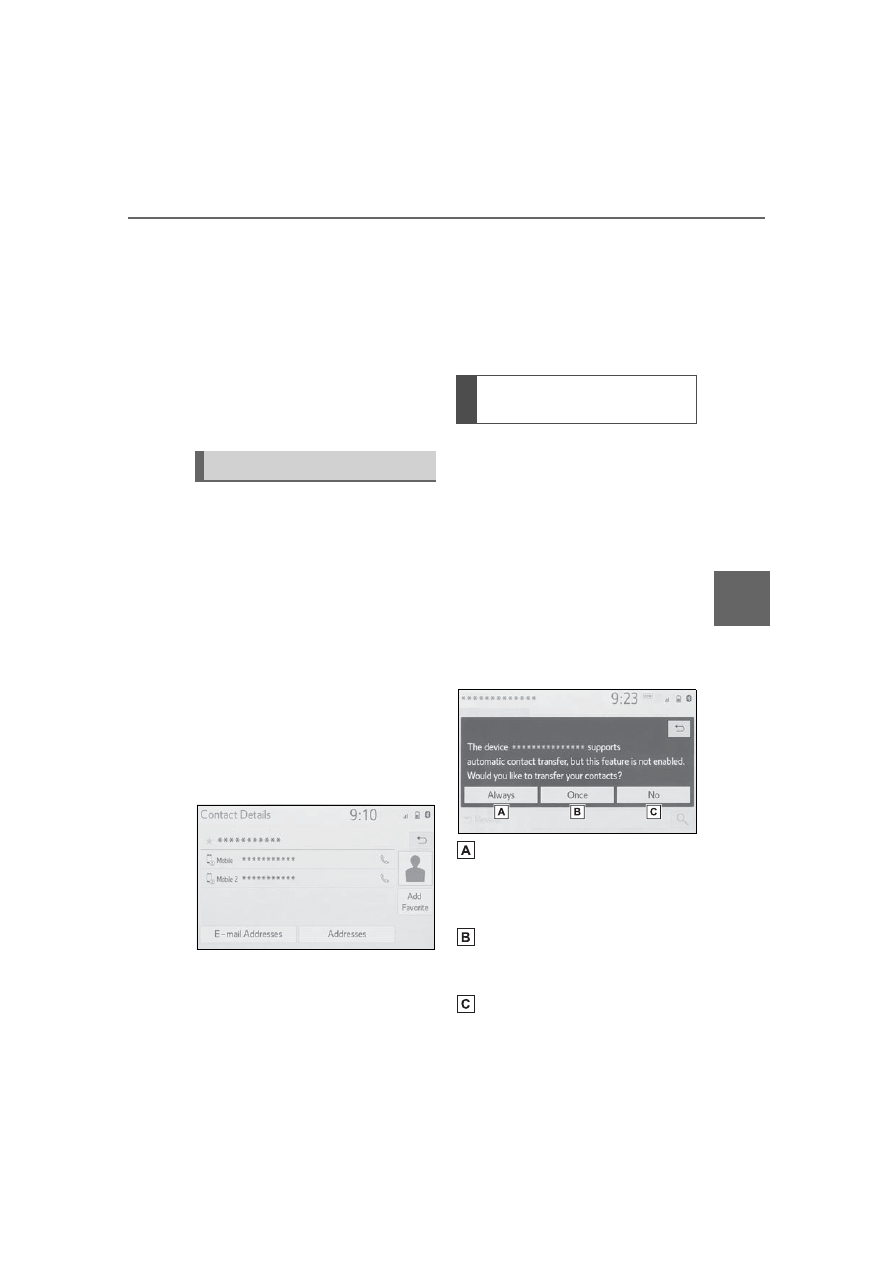

379

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

selected from a contact list.
(



P.379)

1

Display the phone top
screen. (



P.373)

2

Select “Favorites” and select
the desired contact.

3

Select the desired number.

4

Check that the dialing screen
is displayed.

Calls can be made by using
contact data which is transferred
from a registered cellular phone.
(



P.390)

Up to 5000 contacts (maximum
of 4 phone numbers, e-mail
addresses and addresses per
contact) can be registered in the
contact list.

1

Display the phone top
screen. (



P.373)

2

Select “Contacts” and select
the desired contact.

3

Select the desired number.

“Add Favorite”/“Remove Favorite”:

Select to register/remove the con-

tact in the favorites list. (



P.394,

395)
“E-mail Addresses”: Select to dis-

play all registered e-mail addresses

for the contact.
“Addresses”: Select to display all

registered addresses for the con-

tact.

4

Check that the dialing screen
is displayed.

■

For PBAP compatible Blue-
tooth

®

 phones when “Auto-

matic Transfer” is set to on
(



P.390)

Contacts are transferred auto-
matically.

■

For PBAP compatible Blue-
tooth

®

 phones when “Auto-

matic Transfer” is set to off
(



P.390)

1

Select the desired item.

Select to always transfer all
the contacts from a con-
nected cellular phone auto-
matically.
Select to transfer all the con-
tacts from a connected cellu-
lar phone only once.
Select to cancel transferring.

By contacts list

When the contact list is
empty

380

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA_U

2

Check that a confirmation
screen is displayed when the
operation is complete.

■

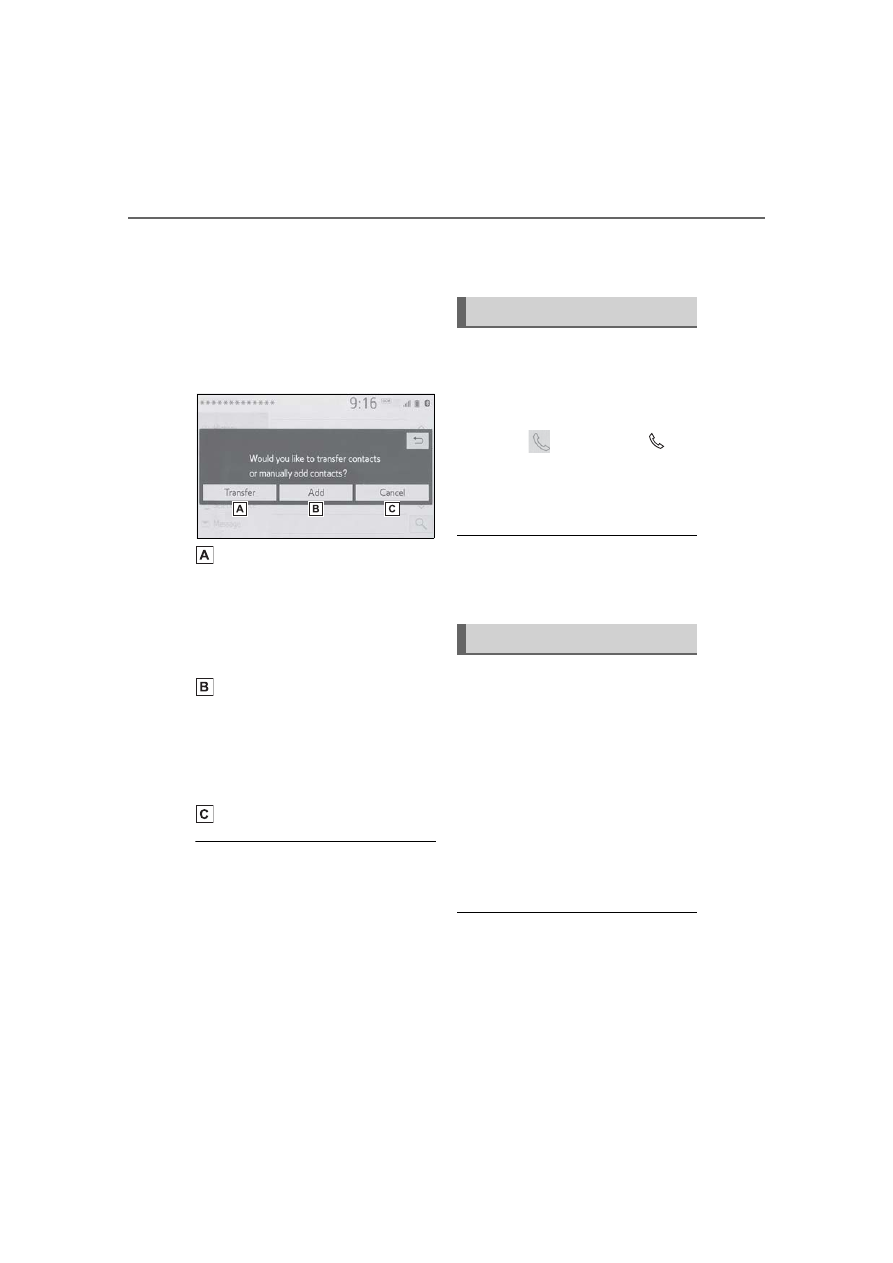

For PBAP incompatible but
OPP compatible Blue-
tooth

®

 phones

1

Select the desired item.

Select to transfer the con-
tacts from the connected cel-
lular phone.
Transfer the contact data to
the system using a Blue-
tooth

®

 phone.

Select to add a new contact
manually.
Follow the steps in “Register-
ing a new contact to the con-
tacts list” from step

2

.

(



P.393)

Select to cancel transferring.

●

If your cellular phone is neither

PBAP nor OPP compatible, the

contacts cannot be transferred
using Bluetooth

®

. But the contacts

can be transferred from USB

device. (



P.393)

●

Depending on the type of Blue-
tooth

®

 phone:

• It may be necessary to perform

additional steps on the phone

when transferring contact data.

• The registered image in the con-

tact list may not transfer depend-
ing on the type of Bluetooth

®



phone connected.

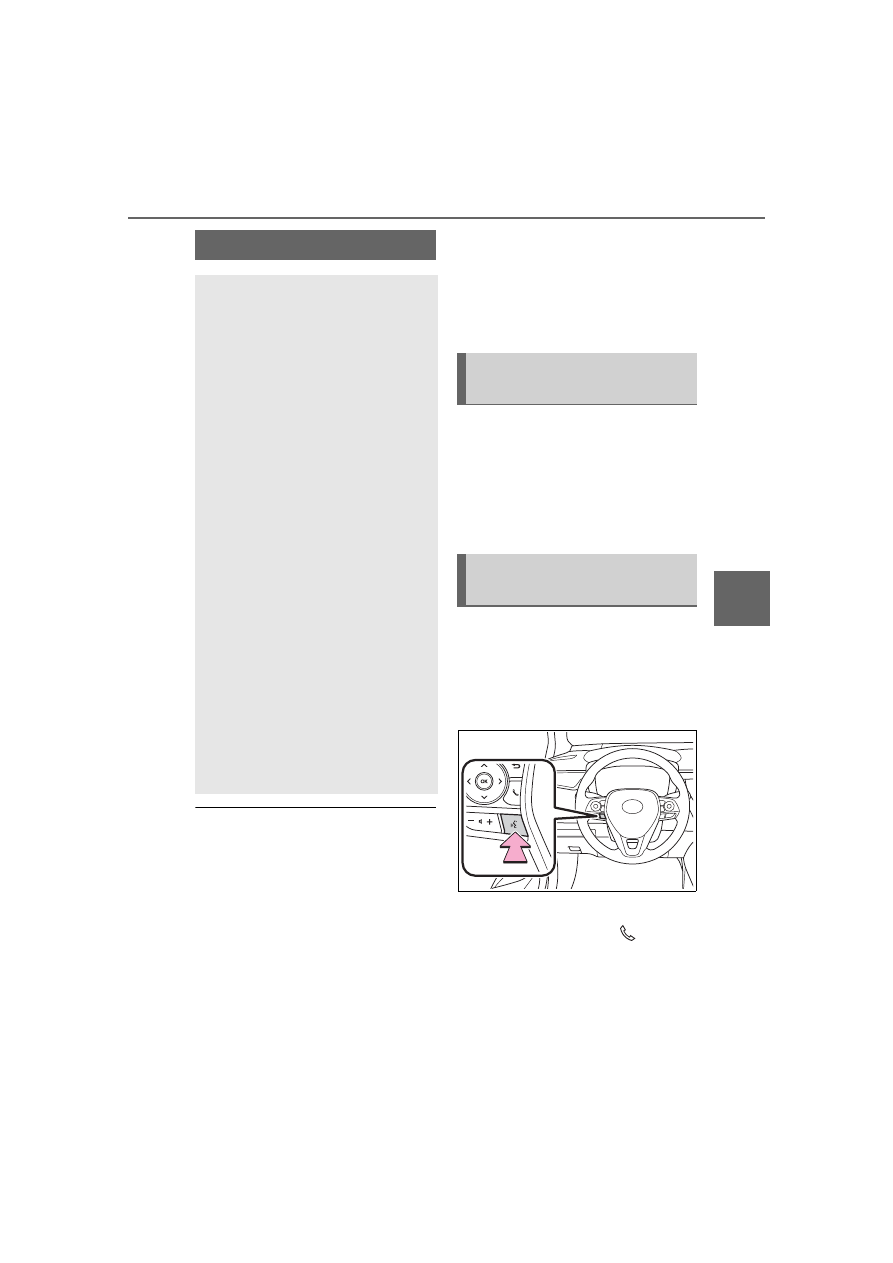

1

Display the phone top
screen. (



P.373)

2

Select “Keypad” and enter
the phone number.

3

Select

 or press the



switch on the steering wheel.

4

Check that the dialing screen
is displayed.

Depending on the type of Blue-
tooth

®

 phone being connected, it

may be necessary to perform addi-

tional steps on the phone.

1

Display the home screen.
(



P.292)

2

Select the desired contact.

3

Check that the dialing screen
is displayed.

■

Registering a new contact

1

Select and hold the screen
button to add a contact.

2

Select the desired contact.

3

Select the desired number.

●

If there is no contact in the con-

tacts list, the contacts cannot be

registered at the home screen.

●

The contact cannot be registered

at the home screen while driving.

By keypad

By home screen

381

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

1

Select “Answer” or press the

 switch on the steering

wheel to talk on the phone.

“Decline”: Select to refuse to
receive the call.
To adjust the volume of a received
call: Turn the “POWER VOLUME”
knob, or use the volume control
switch on the steering wheel.

●

The contact image picture can be

displayed only when the vehicle is

not moving.

●

During international phone calls,

the other party’s name or number

may not be displayed correctly

depending on the type of Blue-
tooth

®

 phone you have.

●

The incoming call display mode

can be set. (



P.389)

●

The ringtone that has been set in

the sound settings screen can be

heard when there is an incoming

call. Depending on the type of

Bluetooth

®

 phone, both the sys-

tem and Bluetooth

®

 phone may

ring simultaneously when there is

an incoming call. (



P.388)

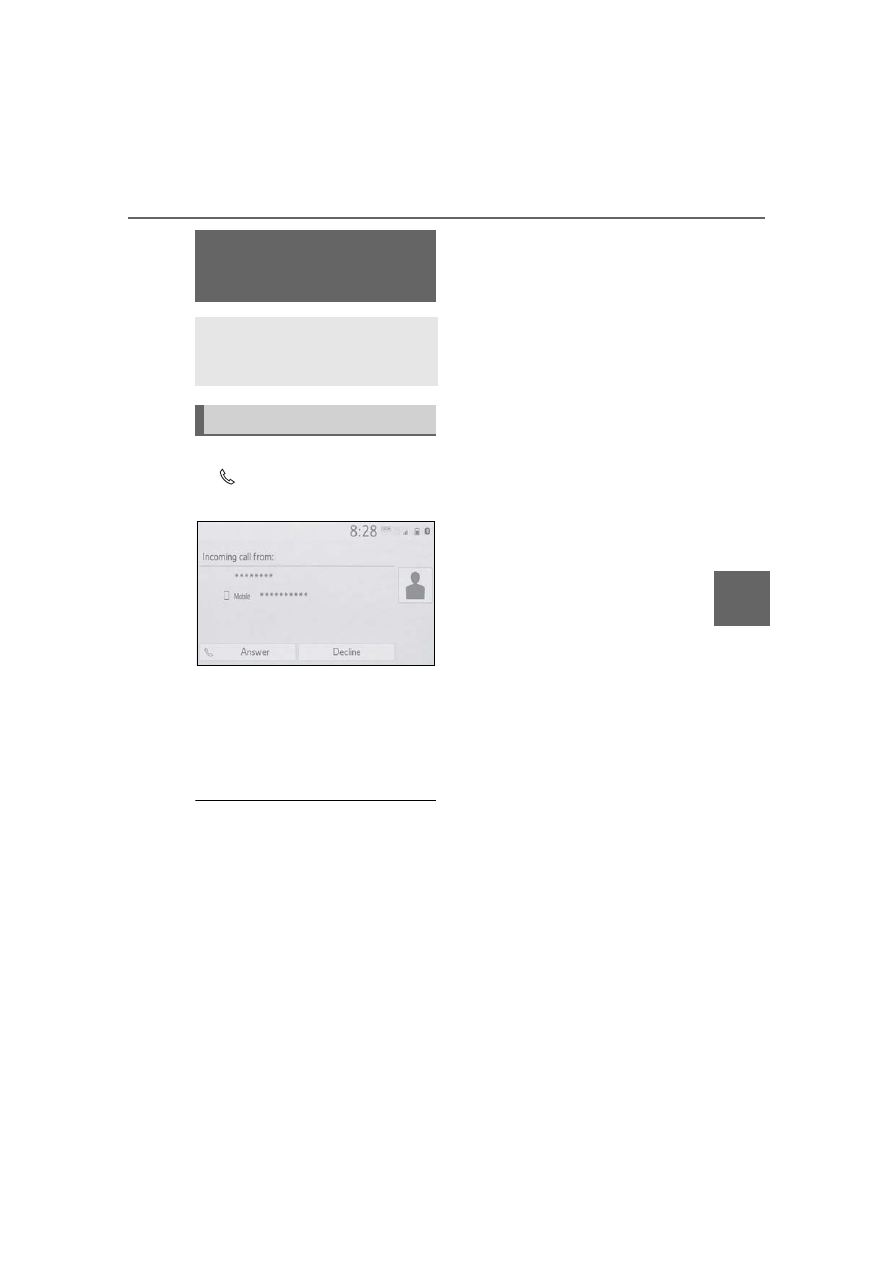

Receiving a call using

the Bluetooth

®



hands-free system

When a call is received, the
following screen is dis-
played with a sound.

Incoming calls

382

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA_U

Select to display the keypad
to send tones. (



P.382)

Select to send tones. This
button only appears when a
number that contains a (w) is
dialed in hands-free mode.
(



P.382)

Select to adjust your voice
volume that the other party
hears from their speaker.
(



P.383)

Select to mute your voice to
the other party.
Select to change handset
modes between hands-free
and cellular phone.
Select to put a call on hold.
To cancel this function, select

“Activate”.
Select to hang up the phone.

●

Changing from hands-free call to

cellular phone call is not possible

while driving.

●

Only when the vehicle is not mov-

ing, the contact image can be dis-

played.

●

When cellular phone call is

changed to hands-free call, the

hands-free screen will be dis-

played and its functions can be

operated on the screen.

●

Changing between cellular phone

call and hands-free call can be

performed by operating the cellu-

lar phone directly.

●

Transferring methods and opera-

tions will be different depending

on the type of cellular phone you

have.

●

For the operation of the cellular

phone, see the manual that

comes with it.

■

By keypad

This operation cannot be per-
formed while driving.

1

Select “0-9”.

2

Enter the desired number.

■

By selecting “Release
Tones”

“Release Tones” appear when a
continuous tone signal (s) con-
taining a (w) is registered in the
contact list.
This operation can be per-
formed while driving.
Select “Release Tones”.

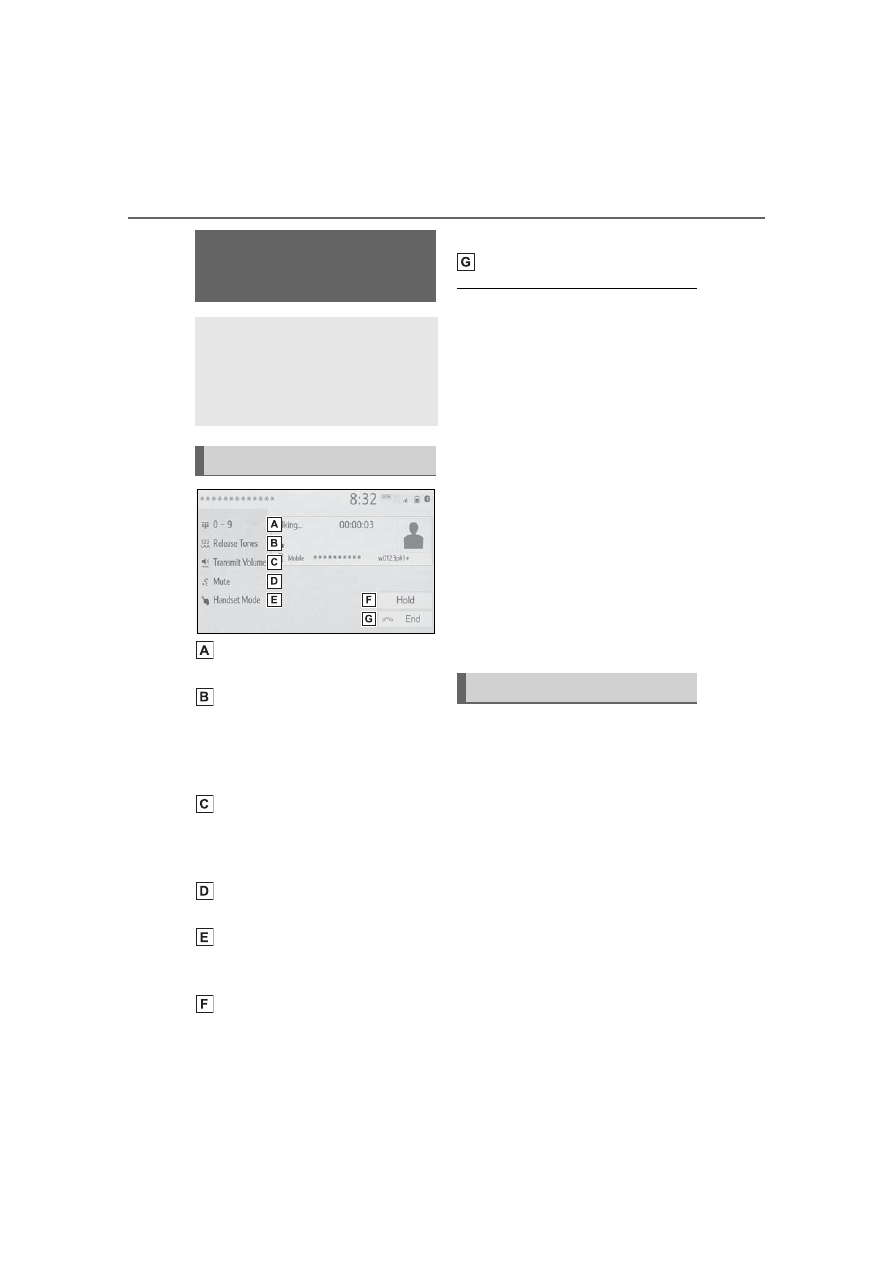

Talking on the Blue-

tooth

®

 hands-free sys-

tem

While talking on the phone,
the following screen is dis-
played. The operations out-
lined below can be
performed on this screen.

Call screen operation

Sending tones

383

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

●

A continuous tone signal is a char-

acter string that consists of num-

bers and the characters “p” or “w”.

(e.g. 056133w0123p#1)

●

When the “p” pause tone is used,

the tone data up until the next

pause tone will be automatically

sent after 2 seconds have

elapsed. When the “w” pause tone

is used, the tone data up until the

next pause tone will be automati-

cally sent after a user operation is

performed.

●

Release tones can be used when

automated operation of a phone

based service such as an answer-

ing machine or bank phone ser-

vice is desired. A phone number

with continuous tone signals can

be registered in the contact list.

●

Tone data after a “w” pause tone

can be operated by voice com-

mand during a call.

1

Select “Transmit Volume”.

2

Select the desired level for
the transmit volume.

3

Select

 to display previ-

ous screen.

●

The sound quality of the voice

heard from the other party’s

speaker may be negatively

impacted.

●

“Transmit Volume” is dimmed

when mute is on.



When there are no calls on
hold during a call: “Hold” is
displayed. When selected, the

current call is placed on hold.



When there is no current call,
but there is a call on hold:
“Activate” is displayed. When
selected, the system switches
to the call that was on hold.



When there is another call on
hold during a call: “Swap
Calls” is displayed. When
selected, the current call is
placed on hold, and the sys-
tem switches to the call that
was on hold.

This function may not be available

depending on the type of cellular

phone.

When a call is interrupted by a
third party while talking, the
incoming screen is displayed.

Select “Answer” or press the



switch on the steering wheel to
start talking with the other party.



To refuse to receive the call:
Select “Decline”.



Each time “Swap Calls” is
selected, the party who is on
hold will be switched.

This function may not be available
depending on the type of Bluetooth

®



phone.

Transmit volume setting

Switching calls while a
call is in progress

Incoming call waiting

384

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA_U

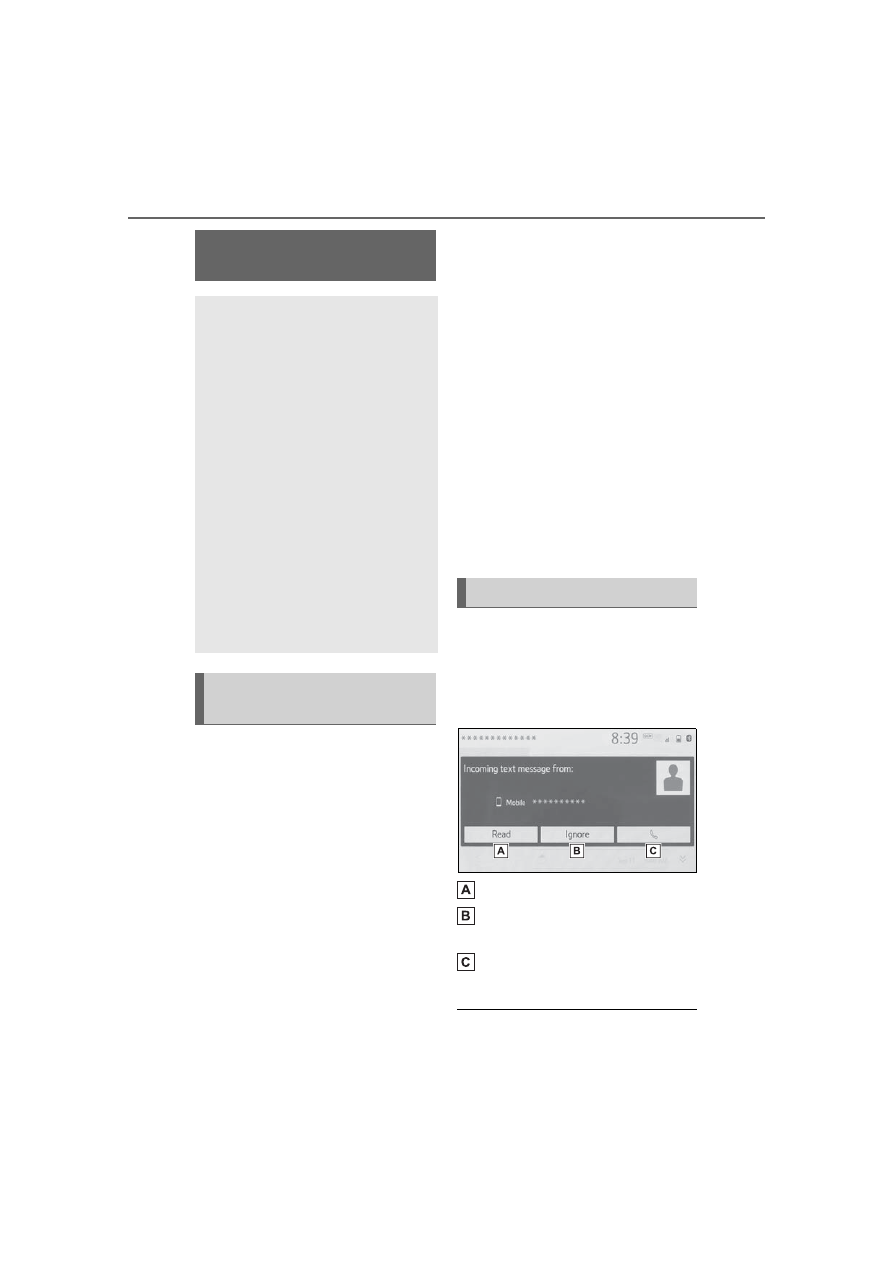

1

Display the phone top
screen. (



P.373)

2

Select “Message”.

A confirmation message appears

when the “Automatic Message

Transfer” function is set to off

(



P.396), select “Yes”.

3

Check that the message
screen is displayed.

“Phone”: Select to change to phone

mode.



The account name is dis-
played on the left side of
screen.



Account names are the

names of the accounts that
exist on the currently con-
nected phone.



The following functions can
be used on message function:

• Receiving a message

(



P.384)

• Checking messages

(



P.385)

• Replying to a message (dicta-

tion reply) (



P.386)

• Replying to a message (quick

reply) (



P.386)

• Calling the message sender

(



P.387)

• Message settings (



P.396)

When an e-mail/SMS/MMS is
received, the incoming message
screen pops up with sound and
is ready to be operated on the
screen.

Select to check the message.
Select to not open the mes-
sage.
Select to call the message
sender.

●

Depending on the type of Blue-

Bluetooth

®

 phone

message function

Received messages can be
forwarded from the con-
nected Bluetooth

®

 phone,

enabling checking and
replying using the system.

Depending on the type of
Bluetooth

®

 phone con-

nected, received messages
may not be transferred to
the system.

If the phone does not sup-
port the message function,
this function cannot be
used. Even when the sup-
ported phone is used, reply
function may not be used.

Displaying the message
screen

Receiving a message

385

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

tooth

®

 phone used for receiving

messages, or its registration sta-

tus with the system, some infor-

mation may not be displayed.

●

The pop-up screen is separately

available for incoming e-mail and

SMS/MMS messages under the

following conditions:

E-mail:
• “Incoming E-mail Display” is set to

“Full Screen”. (



P.389)

• “E-mail Notification Pop-up” is set

to on. (



P.389)

SMS/MMS:
• “Incoming SMS/MMS Display” is

set to “Full Screen”. (



P.389)

• “SMS/MMS Notification Pop-up” is

set to on. (



P.389)

●

Depending on the type of Blue-
tooth

®

 phone being connected,

E-Mail function cannot be used via
Bluetooth

®

.

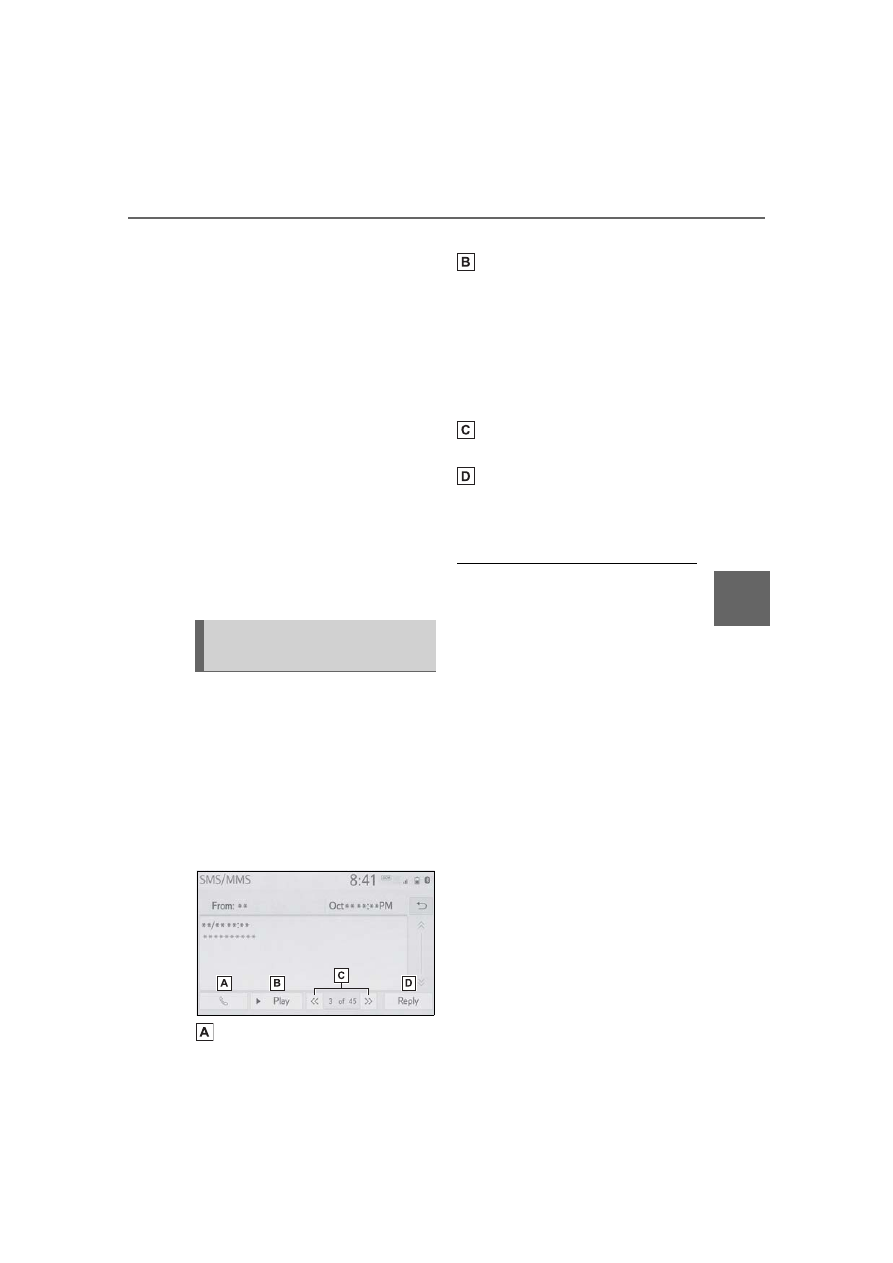

1

Display the message screen.
(



P.384)

2

Select a desired account
name.

3

Select the desired message
from the list.

4

Check that the message is
displayed.

Select to call the message

sender.
Select to have messages
read out.
To cancel this function, select
“Stop”.
When “Automatic Message
Readout” is set to on, mes-
sages will be automatically
read out. (



P.396)

Select to display the previous
or next message.
This function can be chosen
the method to reply mes-
sage with “Dictation” or
“Quick Message”.

●

Reading a text message is not

available while driving.

●

Depending on the type of Blue-
tooth

®

 phone being connected,

this function cannot be used.

●

Depending on the type of Blue-
tooth

®

 phone being connected, it

may be necessary to perform

additional steps on the phone.

●

Messages are displayed in the

appropriate connected Blue-
tooth

®

 phone’s registered mail

address folder. Select the desired

folder to be displayed.

●

Only received messages on the
connected Bluetooth

®

 phone can

be displayed.

●

The text of the message is not dis-

played while driving.

●

Turn the “POWER VOLUME”

knob, or use the volume control

switch on the steering wheel to

adjust the message read out vol-

ume.

●

“Subject:” field is not shown on

SMS case.

●

E-mail only: Select “Mark Unread”

Checking received mes-
sages

386

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA_U

or “Mark Read” to mark mail

unread or read on the message

screen.

This function is available when

“Update Message Read Status on

Phone” is set to on. (



P.396)

*

: If equipped

1

Display the message screen.
(



P.384)

2

Select the desired message
from the list.

3

Select “Reply”.

4

Select “Dictation”.

5

When the “Say Your Mes-
sage” screen is displayed,
speak message that you
want to send.

6

Select “Send” to send mes-
sage.

“Cancel”: Select to cancel sending

the message.
“Retry”: Select to retry speaking

message that you want to send.
While the message is being sent, a

sending message screen is dis-

played.

7

Check that a confirmation
screen is displayed when the
operation is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

15 messages have already

been stored.

1

Display the message screen.
(



P.384)

2

Select the desired message
from the list.

3

Select “Reply”.

4

Select “Quick Message”.

5

Select the desired message.

: Select to edit the message.

(



P.386)

6

Select “Send”.

“Cancel”: Select to cancel sending

the message.
While the message is being sent, a

sending message screen is dis-

played.

7

Check that a confirmation
screen is displayed when the
operation is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

Depending on the type of Blue-
tooth

®

 phone, reply function is not

available.

■

Editing quick reply mes-
sages

This operation cannot be per-
formed while driving.

1

Select

 corresponding to

the desired message to edit.

2

Select “OK” when editing is
completed.

To reset the edited quick reply mes-

sages, select “Default”.

Replying to a message
(dictation reply)

*

Replying to a message
(quick reply)

387

5-13. Phone operation (Hands-free system for cellular phones)

5

Audio

COROLLA_U

Calls can be made to an
e-mail/SMS/MMS message
sender’s phone number.
This operation can be per-
formed while driving.

■

Calling from
e-mail/SMS/MMS message
display

1

Display the message screen.
(



P.384)

2

Select the desired message.

3

Select

, or press the



switch on the steering wheel.

If there are 2 or more phone num-

bers, select the desired number.

4

Check that the dialing screen
is displayed.

■

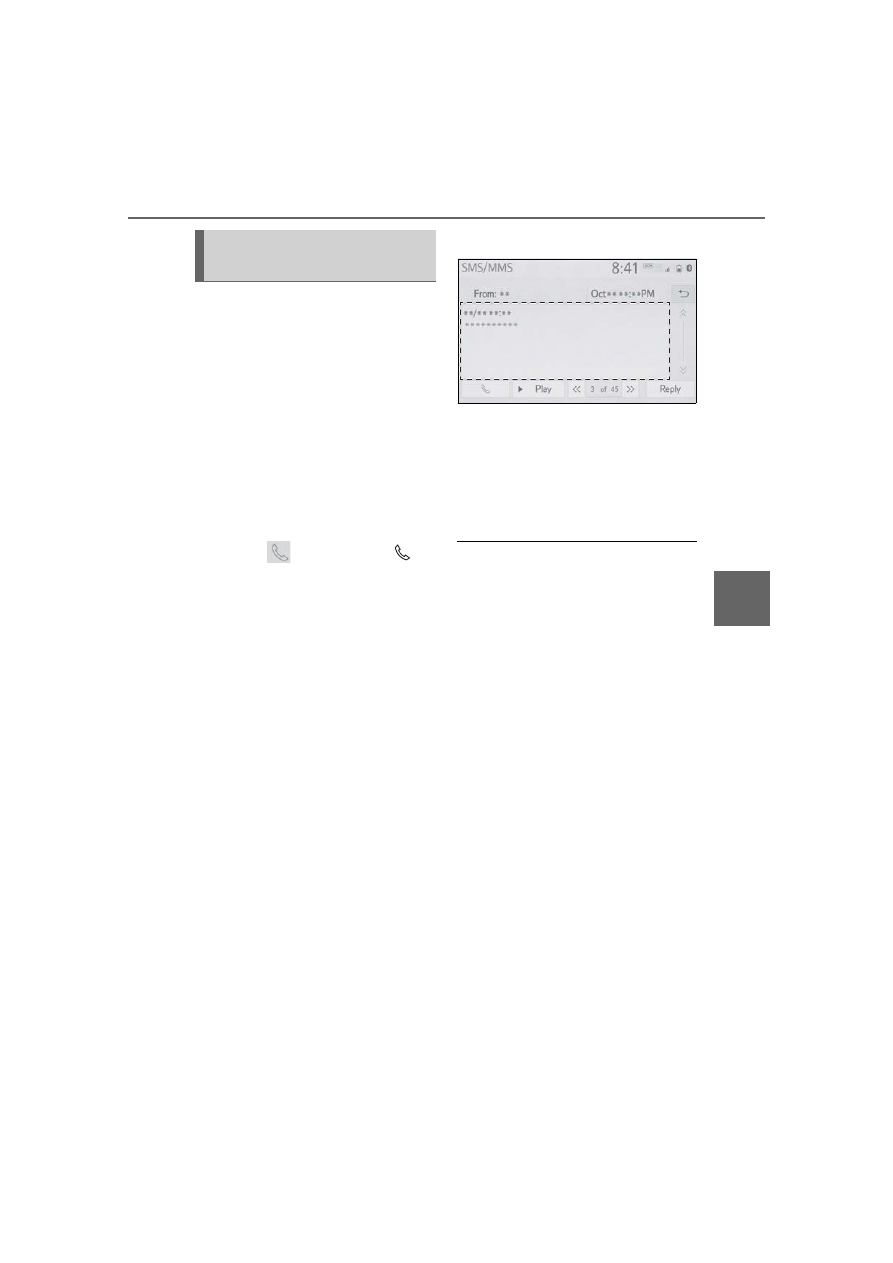

Calling from a number
within a message

Calls can be made to a number
identified in a message’s text
area.
This operation cannot be per-
formed while driving.

1

Display the message screen.
(



P.384)

2

Select the desired message.

3

Select the text area.

Identified phone numbers con-

tained in the message are dis-

played in blue text.

4

Select the desired number.

5

Check that the dialing screen
is displayed.

A series of numbers may be recog-

nized as a phone number. Addition-

ally, some phone numbers may not

be recognized, such as those for

other countries.

■

Calling from the incoming
message screen

For detail, refer to “Receiving a
message”. (



P.384)

Calling the message
sender

388

5-14. Phone settings

COROLLA_U

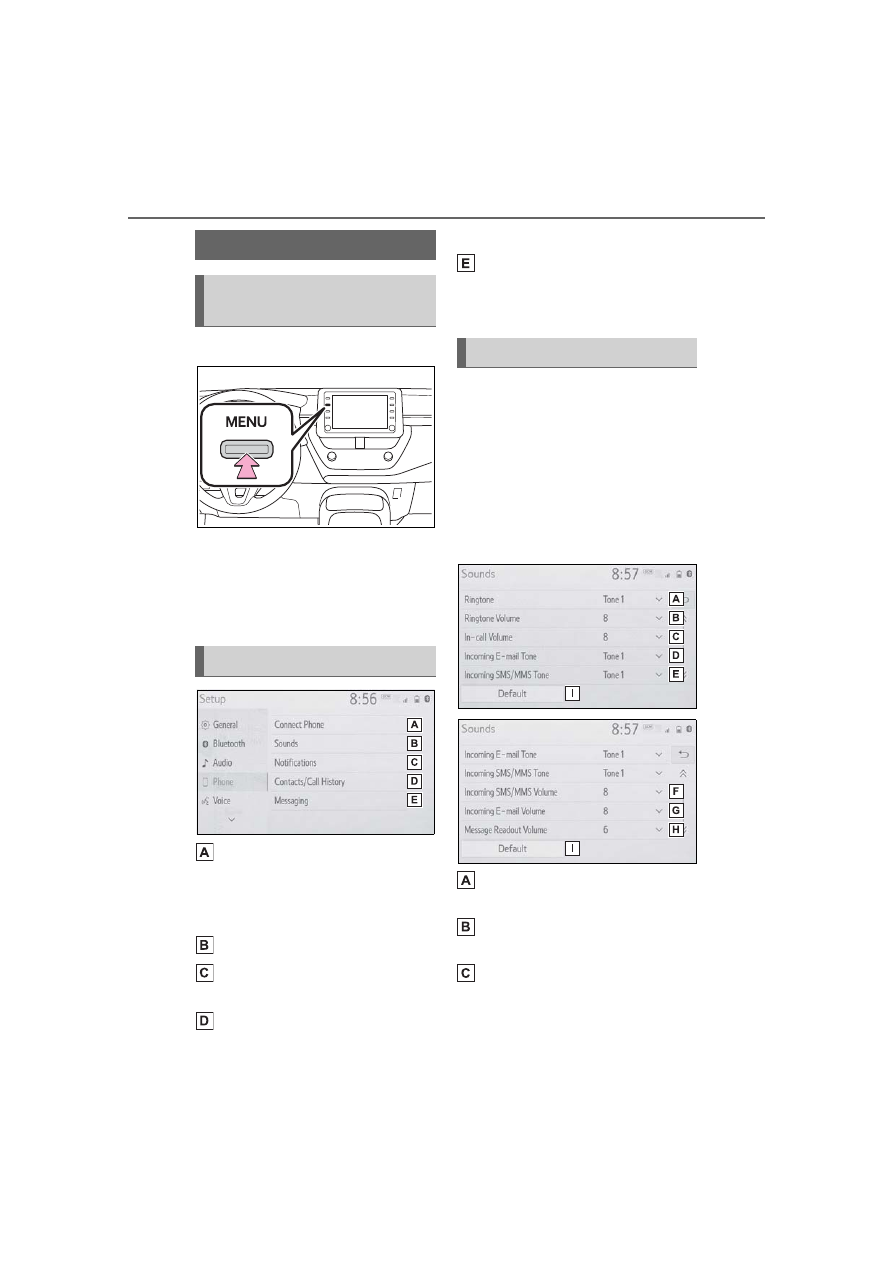

5-14.Phone settings

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Phone”.

4

Select the desired item to be
set.

Connecting a Bluetooth

®



device and editing the Blue-
tooth

®

 device information

(



P.302, 306)

Sound settings

*

 (



P.388)

Notification settings

*



(



P.389)

Contact/call history settings

*



(



P.390)

Message settings

*

 (



P.396)

*

: This operation cannot be per-

formed while driving.

The call and ringtone volume
can be adjusted. A ringtone can
be selected.

1

Display the phone settings
screen. (



P.388)

2

Select “Sounds”.

3

Select the desired item to be
set.

Select to set the desired ring-
tone.
Select “-” or “+” to adjust the
ringtone volume.
Select “-” or “+” to adjust the
default volume of the other
party’s voice.

Setup

Displaying the phone set-
tings screen

Phone settings screen

Sounds settings screen

389

5-14. Phone settings

5

Audio

COROLLA_U

Select to set the desired
incoming e-mail tone.
Select to set the desired
incoming SMS/MMS tone.
Select “-” or “+” to adjust the
incoming SMS/MMS tone
volume.
Select “-” or “+” to adjust the
incoming e-mail tone volume.
Select “-” or “+” to adjust the
message readout volume.
Select to reset all setup
items.

Depending on the type of Blue-
tooth

®

 phone, certain functions may

not be available.

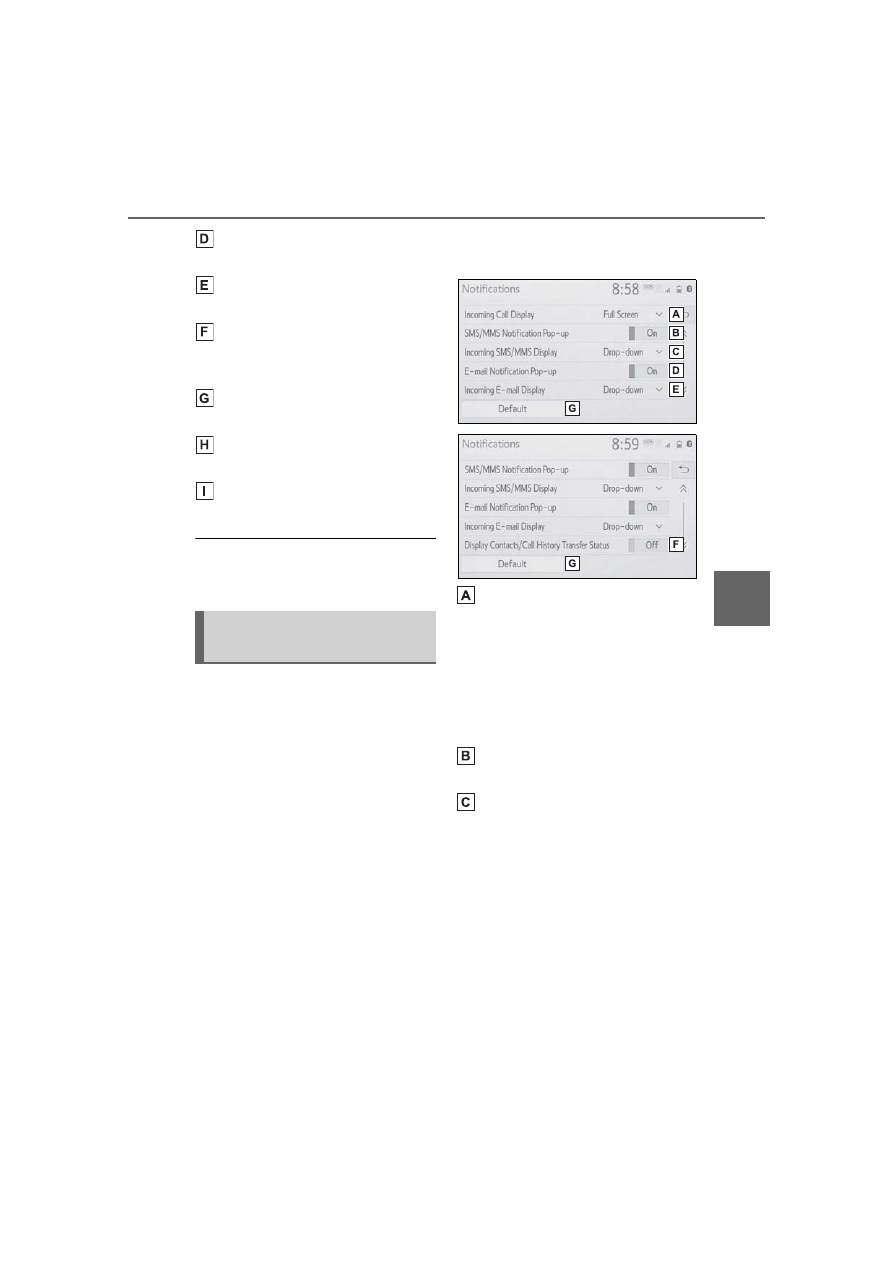

1

Display the phone settings
screen. (



P.388)

2

Select “Notifications”.

3

Select the desired item to be
set.

Select to change the incom-
ing call display.

“Full Screen”: When a call is
received, the incoming call screen
is displayed and can be operated
on the screen.
“Drop-down”: A message is dis-
played at the top of the screen.

Select to set the SMS/MMS
notification pop-up on/off.
Select to change the incom-
ing SMS/MMS display.
“Full Screen”: When an
SMS/MMS message is
received, the incoming
SMS/MMS display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
SMS/MMS message is
received, a message is dis-
played at the top of the

Notifications settings
screen

390

5-14. Phone settings

COROLLA_U

screen.
Select to set the e-mail notifi-
cation pop-up on/off.
Select to change the incom-
ing e-mail display.
“Full Screen”: When an
e-mail is received, the incom-
ing e-mail display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
e-mail is received, a mes-
sage is displayed at the top
of the screen.
Select to set display of the
contact/history transfer com-
pletion message on/off.
Select to reset all setup
items.

Depending on the type of Blue-
tooth

®

 phone, these functions may

not be available.

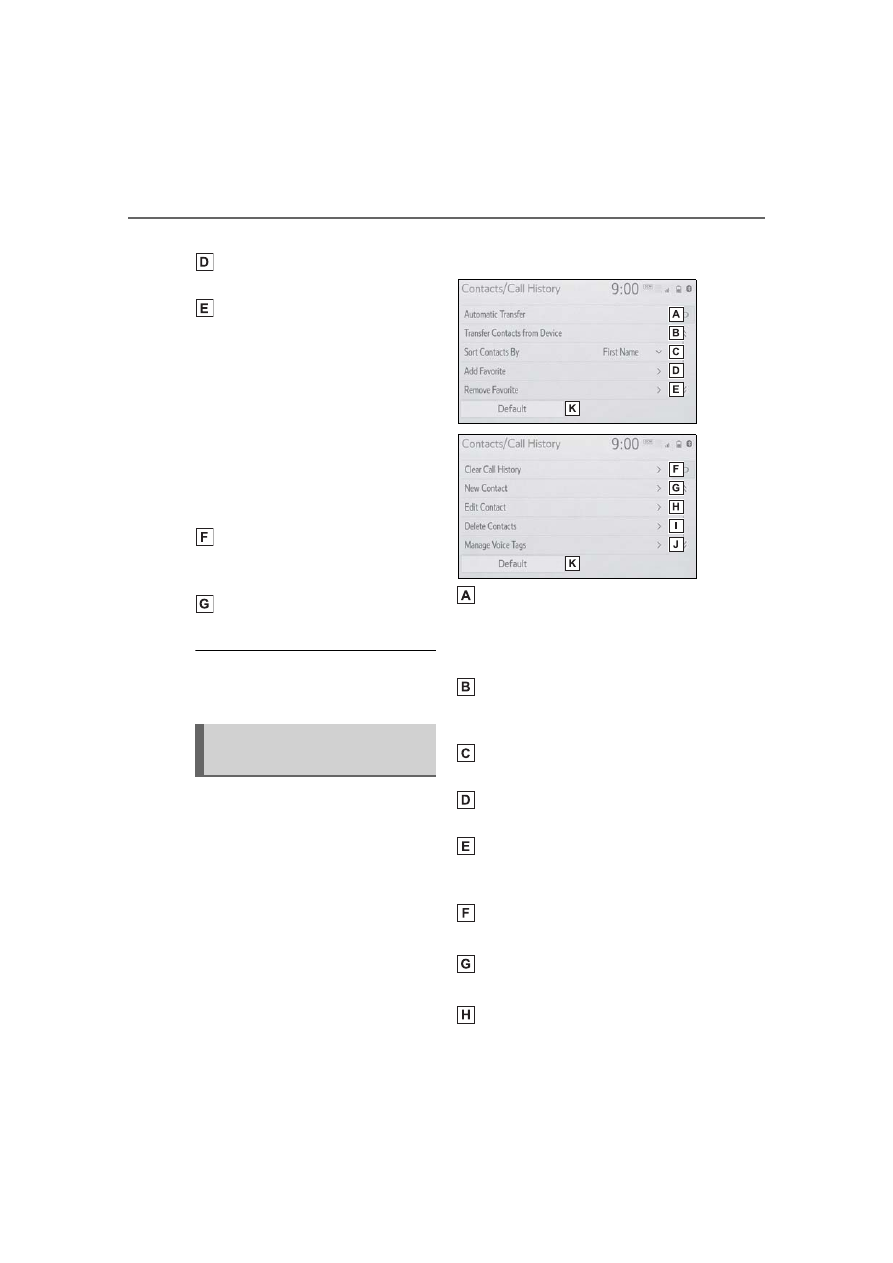

Contacts can be transferred
from a Bluetooth

®

 phone to this

system. Contacts and favorites
can be added, edited and
deleted. Also, the call history
can be deleted.

1

Display the phone settings
screen. (



P.388)

2

Select “Contacts/Call His-
tory”.

3

Select the desired item to be
set.

For PBAP compatible Blue-
tooth

®

 phones: Select to

change the contact/history
transfer settings. (



P.391)

Select to update contacts
from the connected device.
(



P.391)

Select to sort contacts by the
first name or last name field.
Select to add contacts to the
favorites list. (



P.394)

Select to delete contacts
from the favorites list.
(



P.394)

Select to clear the call his-
tory.

*

Select to add new contacts to
the contact list.

*

 (



P.393)

Select to edit contacts in the

Contacts/Call history set-
tings screen

391

5-14. Phone settings

5

Audio

COROLLA_U

contact list.

*

 (



P.394)

Select to delete contacts
from the contact list.

*



(



P.394)

Select to set the voice tags.
(



P.395)

Select to reset all setup
items.

*

: For PBAP compatible Bluetooth

®



phones, this function is available
when “Automatic Transfer” is set
to off. (



P.391)

●

Depending on the type of Blue-
tooth

®

 phone, certain functions

may not be available.

●

Contact data is managed inde-

pendently for every registered

phone. When one phone is con-

nected, another phone’s regis-

tered data cannot be read.

The automatic contact/history
function is available for PBAP
compatible Bluetooth

®

 phones

only.

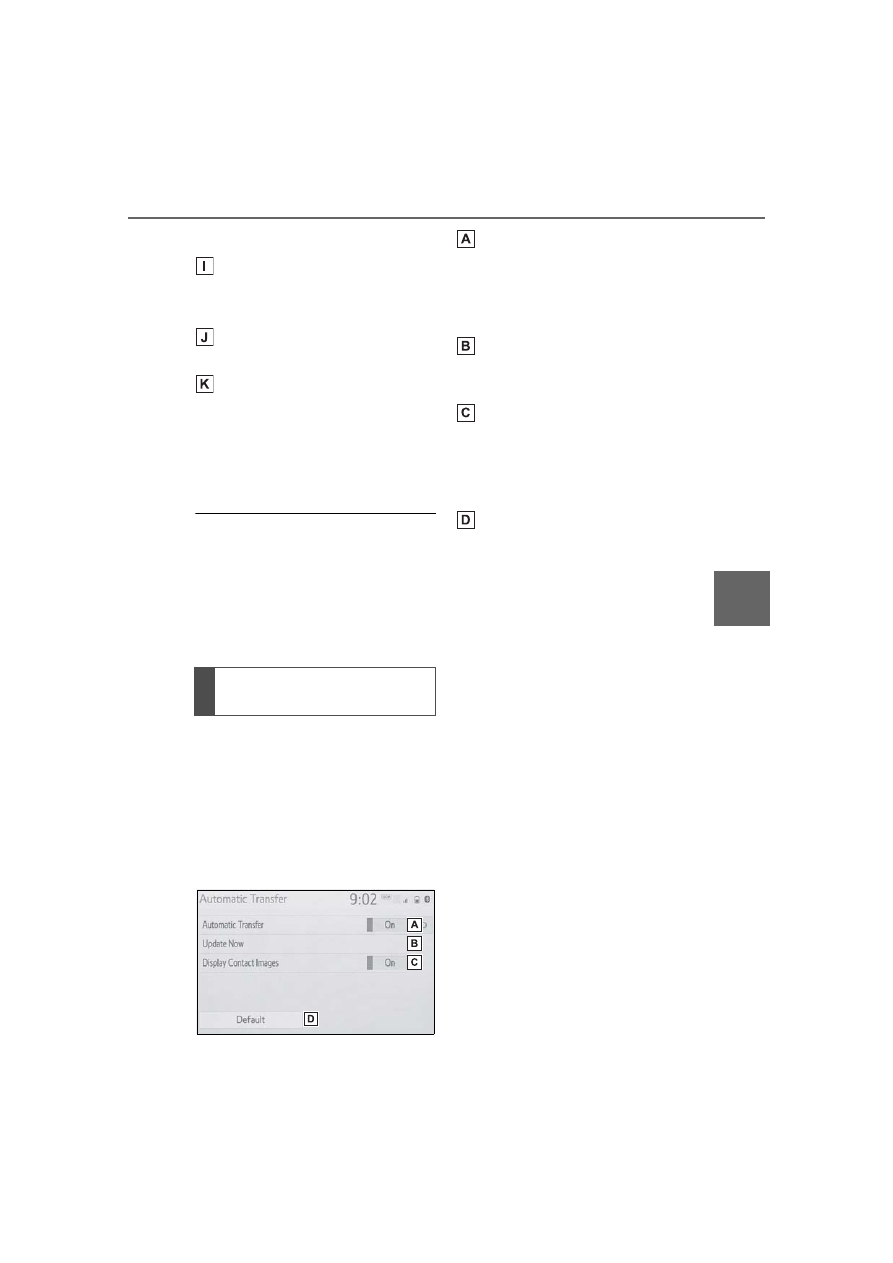

1

Select “Automatic Transfer”.

2

Select the desired item to be
set.

Select to set automatic con-
tact/history transfer on/off.
When set to on, the phone’s
contact data and history are
automatically transferred.
Select to update contacts
from the connected phone.
(



P.391)

Select to set the transferred
contact image display on/off.
Only when the vehicle is not
moving, the contact image
can be displayed.
Select to reset all setup
items.

■

Updating contacts from
phone

1

Select “Update Now”.

Contacts are transferred automati-

cally.

2

Check that a confirmation
screen is displayed when the
operation is complete.



This operation may be unnec-
essary depending on the type
of Bluetooth

®

 phone.



If another Bluetooth

®

 device

is connected when transfer-
ring contact data, depending
on the phone, the connected
Bluetooth

®

 device may need

to be disconnected.



Depending on the type of
Bluetooth

®

 phone being con-

nected, it may be necessary
to perform additional steps on
the phone.

Setting automatic con-
tact/history transfer

392

5-14. Phone settings

COROLLA_U

■

Updating the contacts in a
different way (from the call
history screen)

*

1

Display the phone top
screen. (



P.373)

2

Select “History” and select a
contact not yet registered in
the contact list.

3

Select “Update Contact”.

4

Select the desired contact.

5

Select a phone type for the
phone number.

*

: For PBAP compatible Bluetooth

®



phones, this function is available
when “Automatic Transfer” is set
to off. (



P.390)

When an Android Auto connec-
tion is established, this function
will be unavailable.

*

*

: This function is not made avail-

able in some countries or areas.



When the contact is not regis-
tered

1

Select “Transfer Contacts
from Device”.

2

Select “From Phone (Blue-
tooth)”.

3

Transfer the contact data to
the system using a Blue-
tooth

®

 phone.



This operation may be unnec-
essary depending on the type
of Bluetooth

®

 phone.



To cancel this function, select
“Cancel”.

4

Check that a confirmation
screen is displayed when the
operation is complete.



When the contact is regis-
tered

1

Select “Transfer Contacts
from Device”.

2

Select “From Phone (Blue-
tooth)”.

3

Select “Replace Contacts” or
“Add Contact”.

“Replace Contacts”: Select to trans-

fer the contact from the connected

cellular phone and replace the cur-

rent one.
“Add Contact”: Select to transfer

the desired contact data from the

connected cellular phone to add to

the current one.

4

Transfer the contact data to
the system using a Blue-
tooth

®

 phone.



This operation may be unnec-
essary depending on the type
of Bluetooth

®

 phone.



To cancel this function, select
“Cancel”.

5

Check that a confirmation
screen is displayed when the
operation is complete.

Transfer contacts from
device

From phone (OPP compati-
ble Bluetooth

®

 phones only)

393

5-14. Phone settings

5

Audio

COROLLA_U

Backed-up contact data (vCard
formatted) can be transferred
from USB device or Bluetooth

®



phone to this system.

1

Connect a USB device.
(



P.330)

2

Select “Transfer Contacts
from Device”.

3

Select “From USB”.

4

Select “USB 1” or “USB 2”
when the multiple USB
devices are connected. If a
USB device is connected,
skip this procedure.

5

Select “Replace Contacts” or
“Add Contact”. If the contact
is already registered, skip
this procedure.

“Replace Contacts”: Select to trans-

fer the contact from the connected
USB device or Bluetooth

®

 phone

and replace the current one.
“Add Contact”: Select to transfer

the desired contact data from the

connected USB device or Blue-
tooth

®

 phone to add to the current

one.

6

Select a desired file from
vCard file list.

7

Check that a confirmation
screen is displayed when the
operation is complete.

●

Depending on the type of Blue-
tooth

®

 phone used and number of

files, it may take time to display

vCard file lists and download con-

tacts.

●

Downloading may not complete

correctly in the following cases:

• If the engine switch is turned off

during downloading.

• If the USB device or Bluetooth

®



phone is removed before down-

loading is complete.

New contact data can be regis-
tered.
Up to 4 numbers per person can
be registered. For PBAP com-
patible Bluetooth

®

 phones, this

function is available when “Auto-
matic Transfer” is set to off.
(



P.390)

1

Select “New Contact”.

2

Enter the name and select
“OK”.

3

Enter the phone number and
select “OK”.

4

Select the phone type for the
phone number.

5

To add another number to
this contact, select “Yes”.

■

Registering a new contact
in a different way (from the
call history screen)

1

Display the phone top
screen. (



P.373)

2

Select “History” and select a
contact not yet registered in
the contact list.

3

Select “Add to Contacts”.

4

Follow the steps in “Register-
ing a new contact to the con-

From USB device

Registering a new contact
to the contacts list

394

5-14. Phone settings

COROLLA_U

tacts list” from step

2

.

(



P.393)

For PBAP compatible Blue-
tooth

®

 phones, this function is

available when “Automatic
Transfer” is set to off. (



P.390)

1

Select “Edit Contact”.

2

Select the desired contact.

3

Select

 next to the name

or desired number.

4

Enter the name or the phone
number and select “OK”.

For PBAP compatible Blue-
tooth

®

 phones, this function is

available when “Automatic
Transfer” is set to off. (



P.390)

1

Select “Delete Contacts”.

2

Select the desired contact
and select “Delete”.

3

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and

deleted at the same time.

●

When a Bluetooth

®

 phone is

deleted, the contact data will be

deleted at the same time.

Up to 15 contacts (maximum of
4 numbers per contact) can be
registered in the favorites list.

■

Registering the contacts in
the favorites list

1

Select “Add Favorite”.

2

Select the desired contact to
add to the favorites list.

Dimmed contacts are already

stored as a favorite.

3

Check that a confirmation
screen is displayed when the
operation is complete.



When 15 contacts have
already been registered to the
favorites list

1

When 15 contacts have
already been registered to
the favorites list, a registered
contact needs to be replaced.
Select “Yes” when the confir-
mation screen appears to
replace a contact.

2

Select the contact to be
replaced.

3

Check that a confirmation
screen is displayed when the
operation is complete.

■

Registering contacts in the
favorites list in a different
way (from the contact
details screen)

1

Display the phone top
screen. (



P.373)

2

Select “Contacts” and select
the desired contact.

3

Select “Add Favorite”.

4

Check that a confirmation
screen is displayed when the
operation is complete.

Editing the contact data

Deleting the contact data

Favorites list setting

395

5-14. Phone settings

5

Audio

COROLLA_U

■

Deleting the contacts in the
favorites list

1

Select “Remove Favorite”.

2

Select the desired contacts
and select “Remove”.

3

Select “Yes” when the confir-
mation screen appears.

4

Check that a confirmation
screen is displayed when the
operation is complete.

■

Deleting contacts in the
favorites list in a different
way (from the contact
details screen)

1

Display the phone top
screen. (



P.373)

2

Select “Favorites” or “Con-
tacts” and select the desired
contact to delete.

3

Select “Remove Favorite”.

4

Select “Yes” when the confir-
mation screen appears.

5

Check that a confirmation
screen is displayed when the
operation is complete.

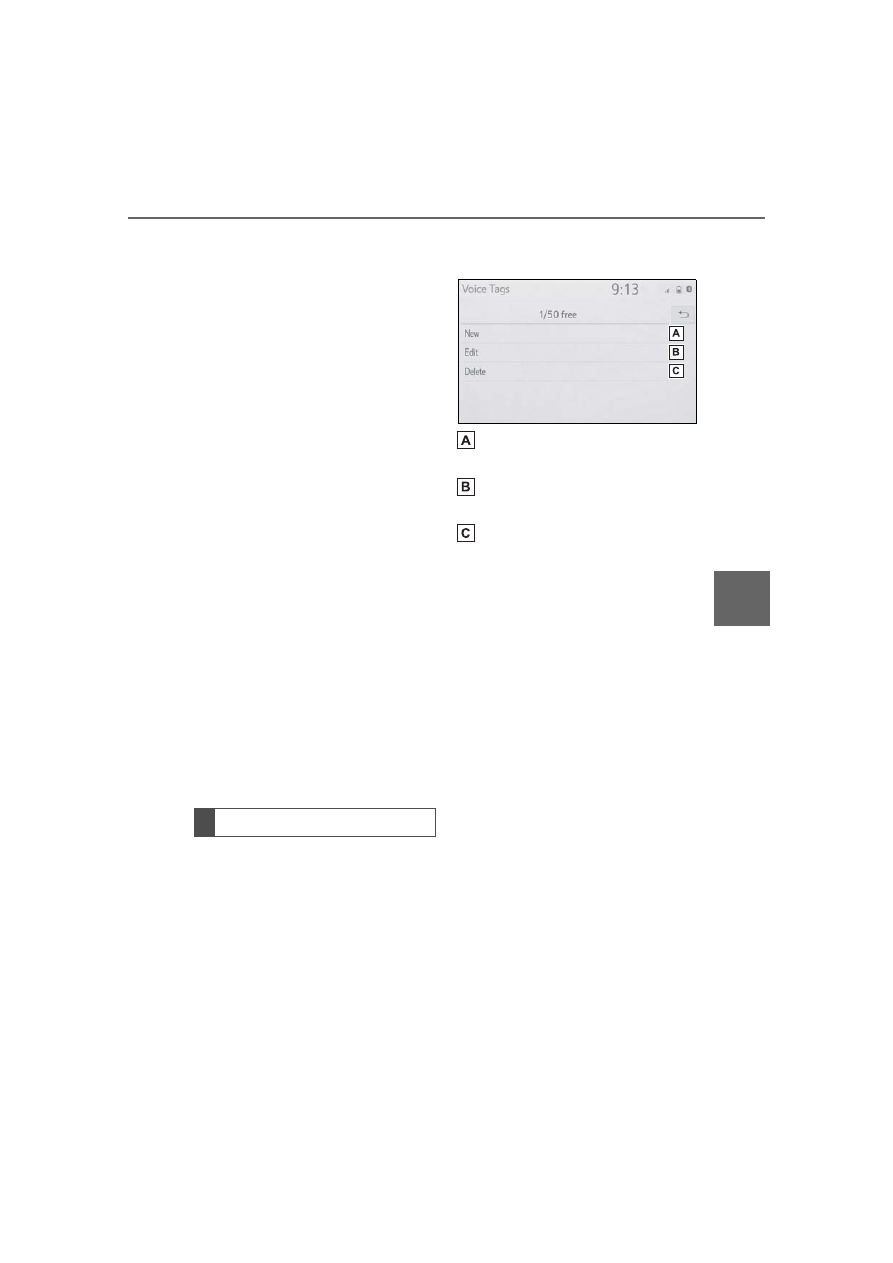

Calls can be made by saying the
voice tag of a registered contact
in the contact list. (



P.364)

1

Select “Manage Voice Tags”.

2

Select the desired item to be
set.

Select to register a new voice
tag. (



P.395)

Select to edit a voice tag.
(



P.395)

Select to delete a voice tag.
(



P.396)

■

Registering a voice tag

Up to 50 voice tags can be reg-
istered.

1

Select “New”.

2

Select the desired contact to
register a voice tag for.

3

Select “REC” and record a
voice tag.

When recording a voice tag, do so

in a quiet area.
“Play”: Select to play the voice tag.

4

Select “OK” when voice tag
registration is complete.

■

Editing a voice tag

1

Select “Edit”.

2

Select the desired contact to
edit.

3

Follow the steps in “Register-
ing a voice tag” from step

3

.

(



P.395)

Setting voice tags

396

5-14. Phone settings

COROLLA_U

■

Deleting the voice tag

1

Select “Delete”.

2

Select the desired contact
and select “Delete”.

3

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and

deleted at the same time.

●

Voice tags are deleted when the

set language of the system is

changed. (



P.321)

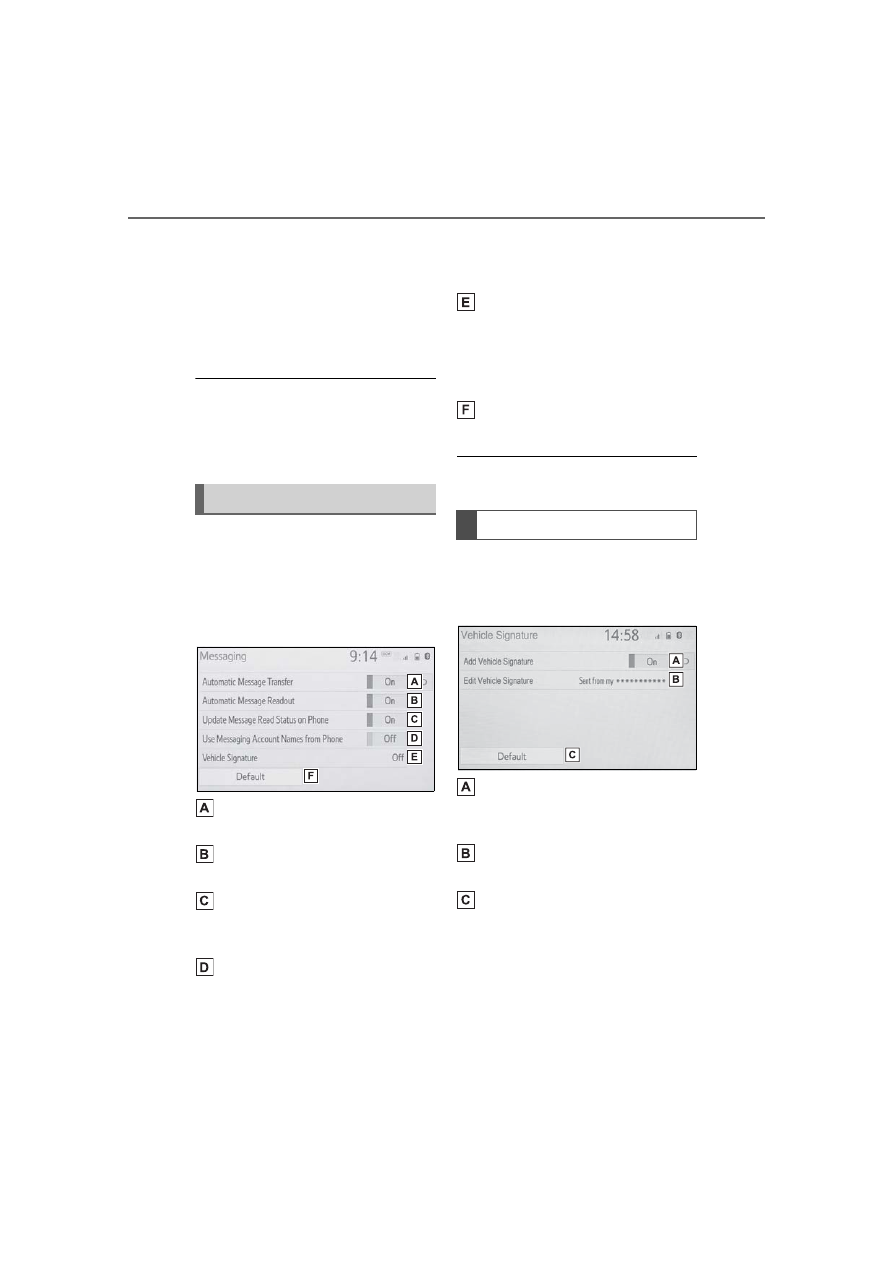

1

Display the phone settings
screen. (



P.388)

2

Select “Messaging”.

3

Select the desired item to be
set.

Select to set automatic mes-
sage transfer on/off.
Select to set automatic mes-
sage readout on/off.
Select to set updating mes-
sage read status on phone
on/off.
Select to set display of mes-
saging account names on the
message screen on/off.
When set to on, messaging

account names used on the
cellular phone will be dis-
played.
Select to set adding the vehi-
cle signature to outgoing
messages on/off.
The vehicle signature can be
edited. (



P.396)

Select to reset all setup
items.

Depending on the phone, these

functions may not be available.

1

Select “Vehicle Signature”.

2

Select the desired item to be
set.

Select to set adding the vehi-
cle signature to outgoing
messages on/off.
Select to edit the vehicle sig-
nature. (



P.396)

Select to reset all setup
items.

■

Editing vehicle signature

1

Select “Edit Vehicle Signa-
ture”.

Message settings screen

Vehicle signature settings
