Toyota Corolla (2021 year). Manual in english - part 4

205

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

■

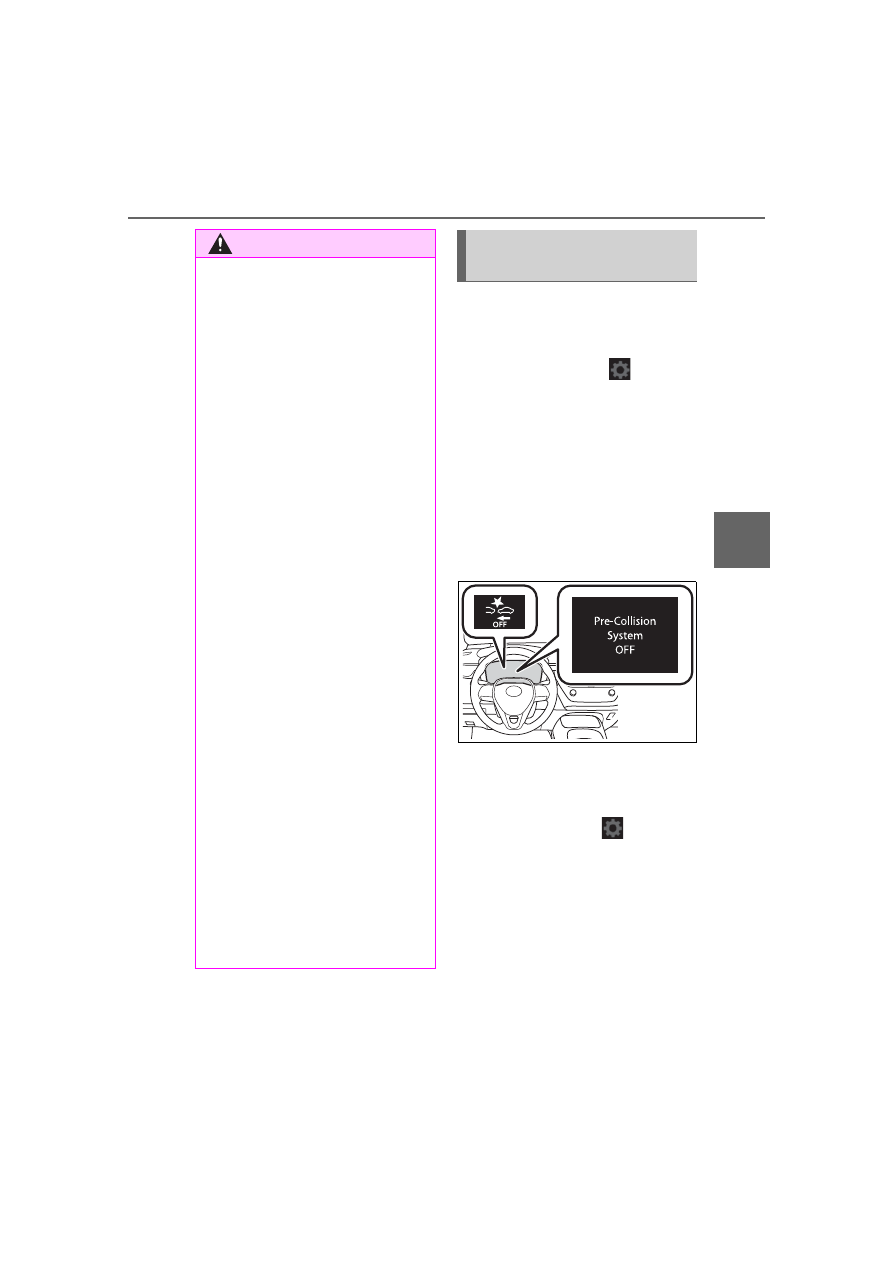

Enabling/disabling the
pre-collision system

The pre-collision system can be
enabled/disabled on



(



P.581) of the multi-informa-

tion display.

The system is automatically
enabled each time the engine
switch is turned to ON.

If the system is disabled, the
PCS warning light will turn on
and a message will be displayed
on the multi-information display.

■

Changing the pre-collision
warning timing

The pre-collision warning timing
can be changed on



(



P.581) of the multi-informa-

tion display.

The warning timing setting is
retained when the engine switch is
turned off. However, if the pre-colli-
sion system is disabled and
re-enabled, the operation timing will
return to the default setting (mid-
dle).

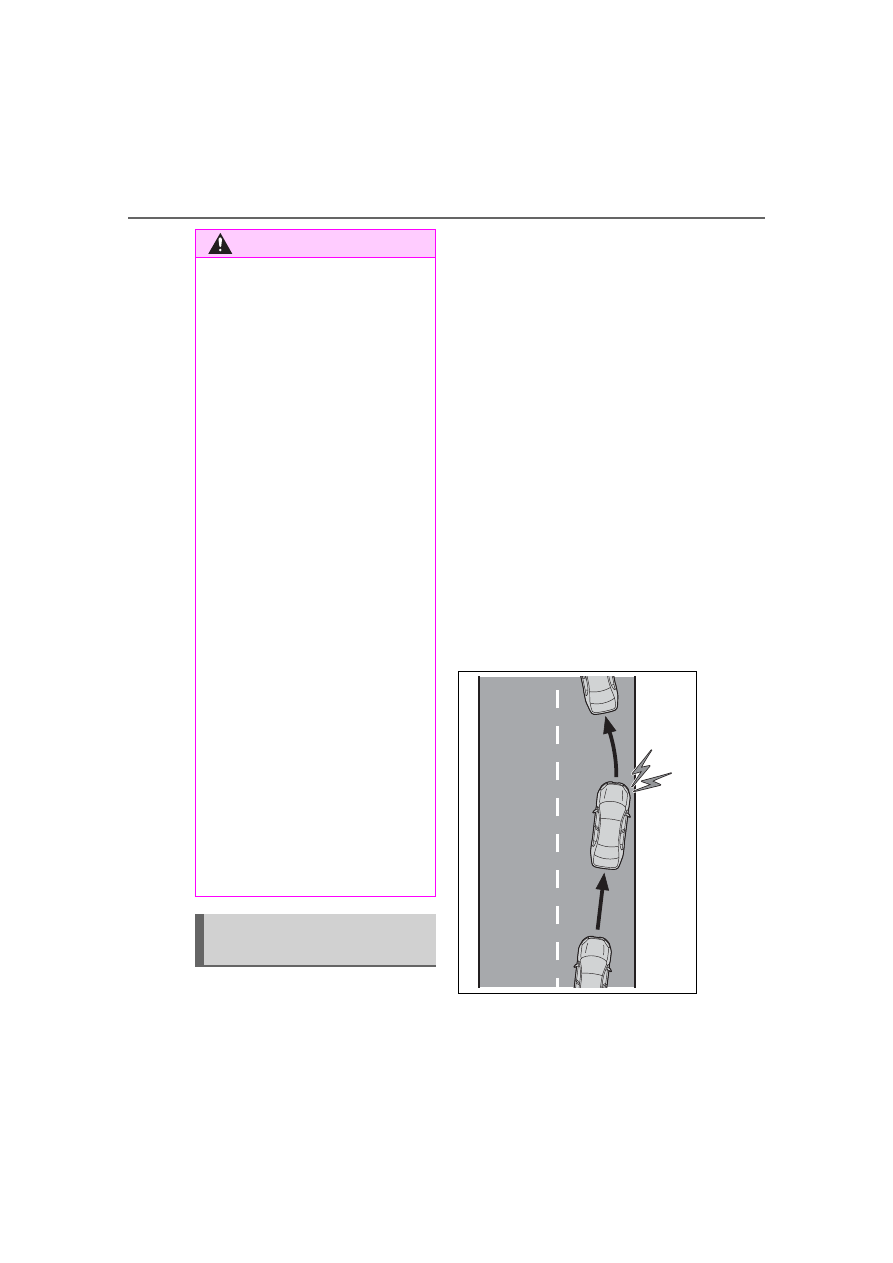

WARNING

●

When your vehicle is towing

another vehicle

●

When transporting the vehicle

via truck, boat, train or similar

means of transportation

●

When the vehicle is raised on a

lift with the engine running and

the tires are allowed to rotate

freely

●

When inspecting the vehicle

using a drum tester such as a

chassis dynamometer or speed-

ometer tester, or when using an

on vehicle wheel balancer

●

When a strong impact is applied

to the front bumper or front

grille, due to an accident or

other reasons

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When tires of a size other than

specified are installed

●

When tire chains are installed

●

When a compact spare tire or

an emergency tire puncture

repair kit is used

●

If equipment (snow plow, etc.)

that may obstruct the radar sen-

sor or front camera is temporar-

ily installed to the vehicle

Changing settings of the
pre-collision system

206

4-5. Using the driving support systems

COROLLA_U

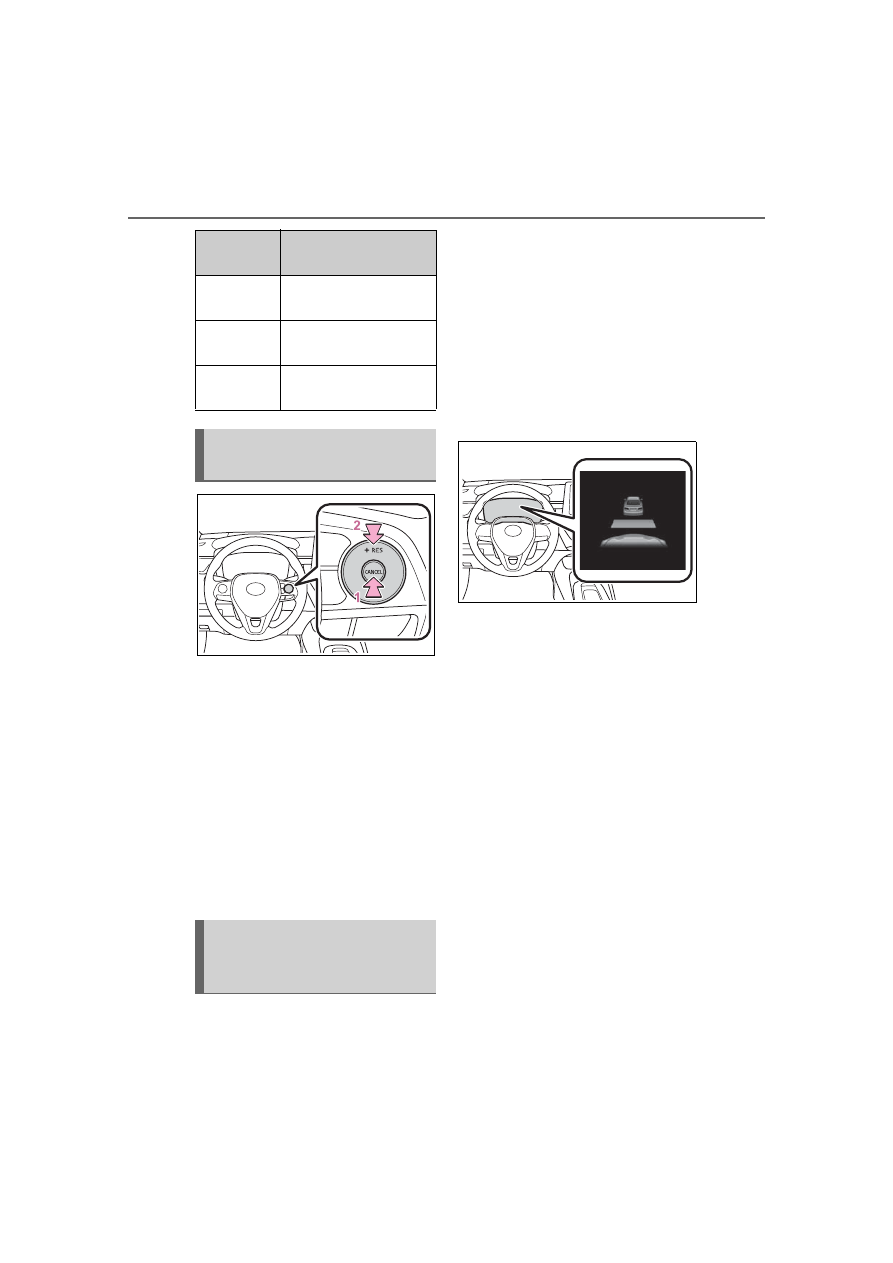

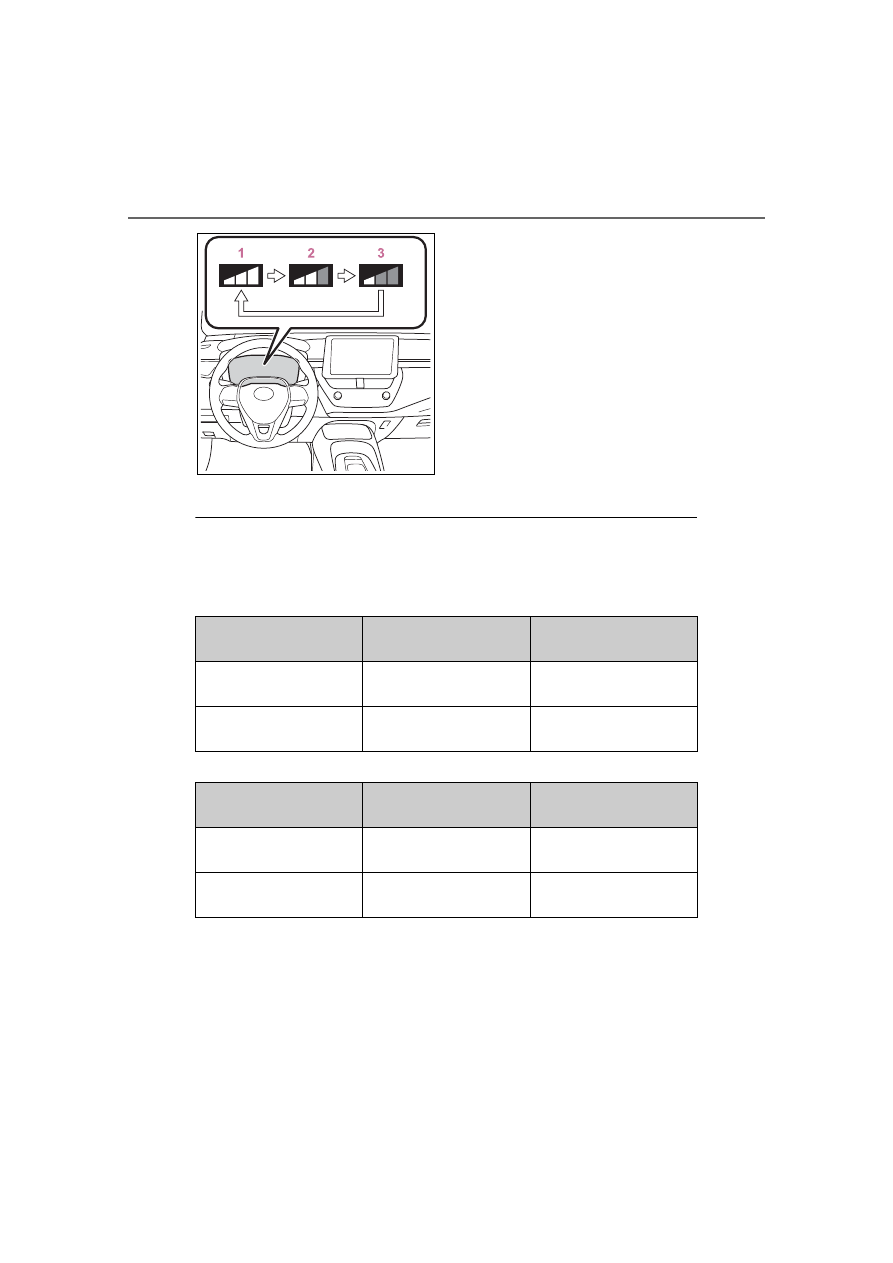

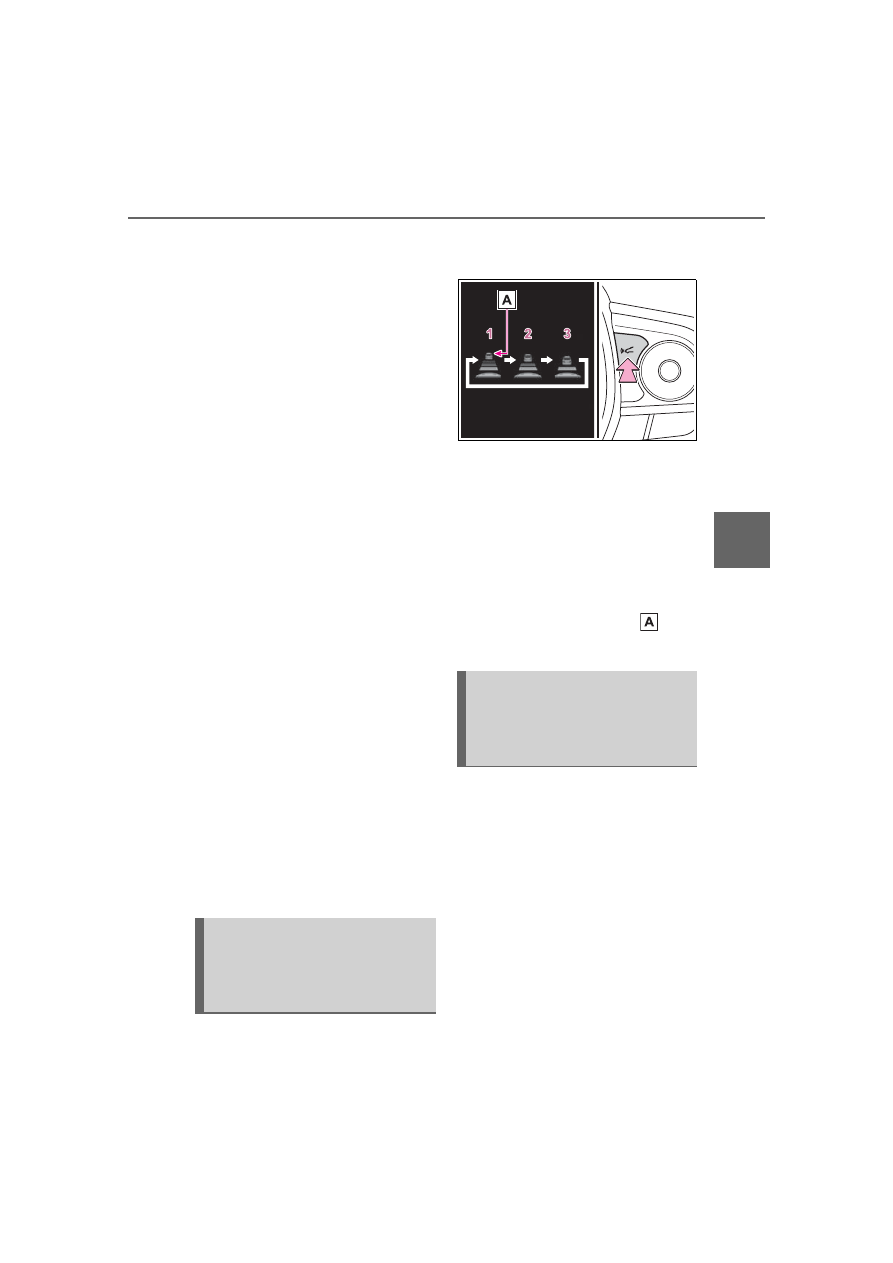

1

Early

2

Middle

This is the default setting.

3

Late

■

Operational conditions

The pre-collision system is enabled and the system determines that the pos-

sibility of a frontal collision with a detected object is high.

Each function is operational at the following speed

●

Pre-collision warning

●

Pre-collision brake assist

●

Pre-collision braking

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 7 to 110 mph

(10 to 180 km/h)

Approx. 7 to 110 mph

(10 to 180 km/h)

Bicyclists and pedestri-

ans

Approx. 7 to 50 mph (10

to 80 km/h)

Approx. 7 to 50 mph (10

to 80 km/h)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 20 to 110 mph

(30 to 180 km/h)

Approx. 20 to 110 mph

(30 to 180 km/h)

Bicyclists and pedestri-

ans

Approx. 20 to 50 mph

(30 to 80 km/h)

Approx. 20 to 50 mph

(30 to 80 km/h)

207

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

The system may not operate in the following situations:

●

If a battery terminal has been disconnected and reconnected and then the

vehicle has not been driven for a certain amount of time

●

If the shift lever is in R

●

When the VSC OFF indicator is illuminated (only the pre-collision warning

function will be operational)

■

Object detection function

The system detects objects based

on their size, profile, motion, etc.

However, an object may not be

detected depending on the sur-

rounding brightness and the motion,

posture, and angle of the detected

object, preventing the system from

operating properly. (



P.208)

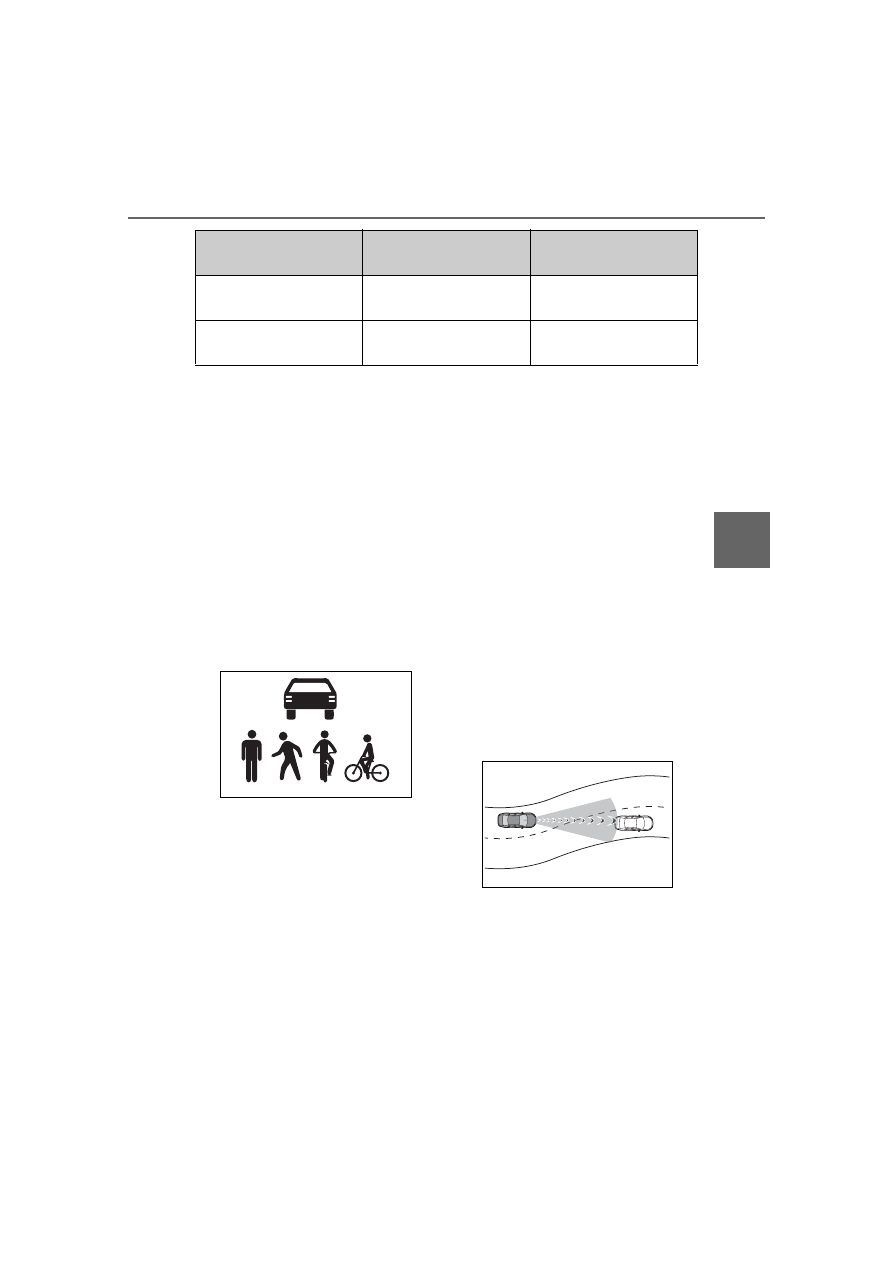

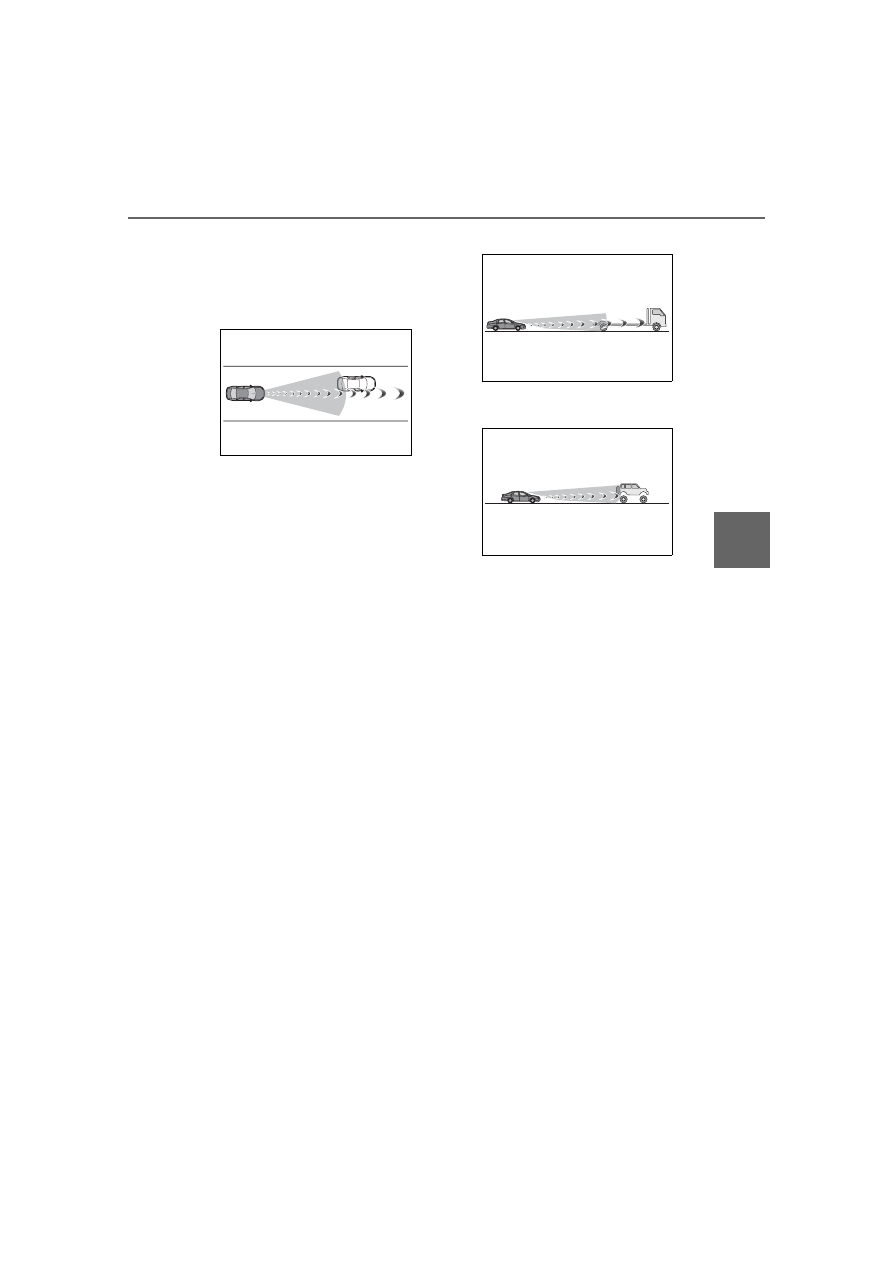

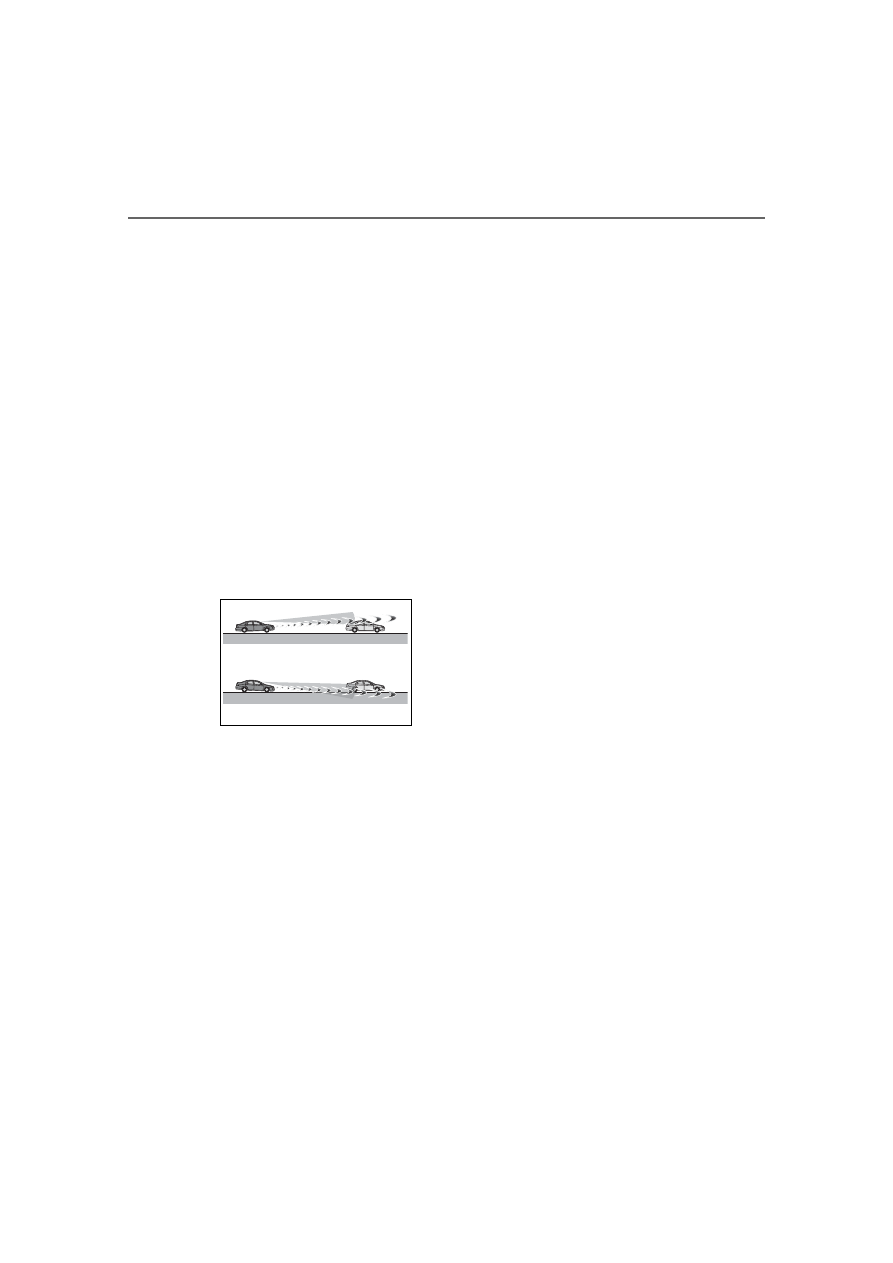

The illustration shows an image of

detectable objects.

■

Cancelation of the pre-collision

braking

If either of the following occur while

the pre-collision braking function is

operating, it will be canceled:

●

The accelerator pedal is

depressed strongly.

●

The steering wheel is turned

sharply or abruptly.

■

Conditions under which the

system may operate even if

there is no possibility of a colli-

sion

●

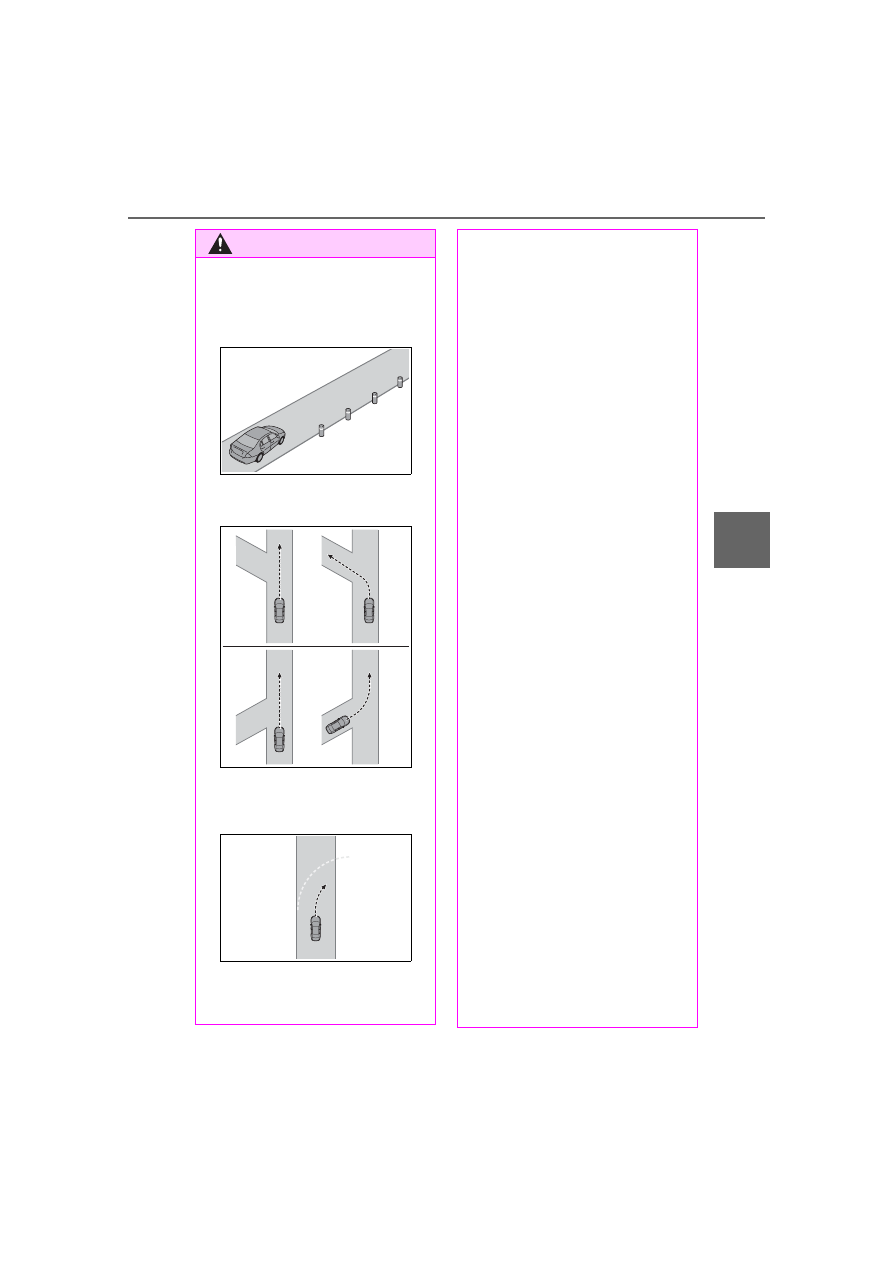

In some situations such as the fol-

lowing, the system may determine

that there is a possibility of a fron-

tal collision and operate.

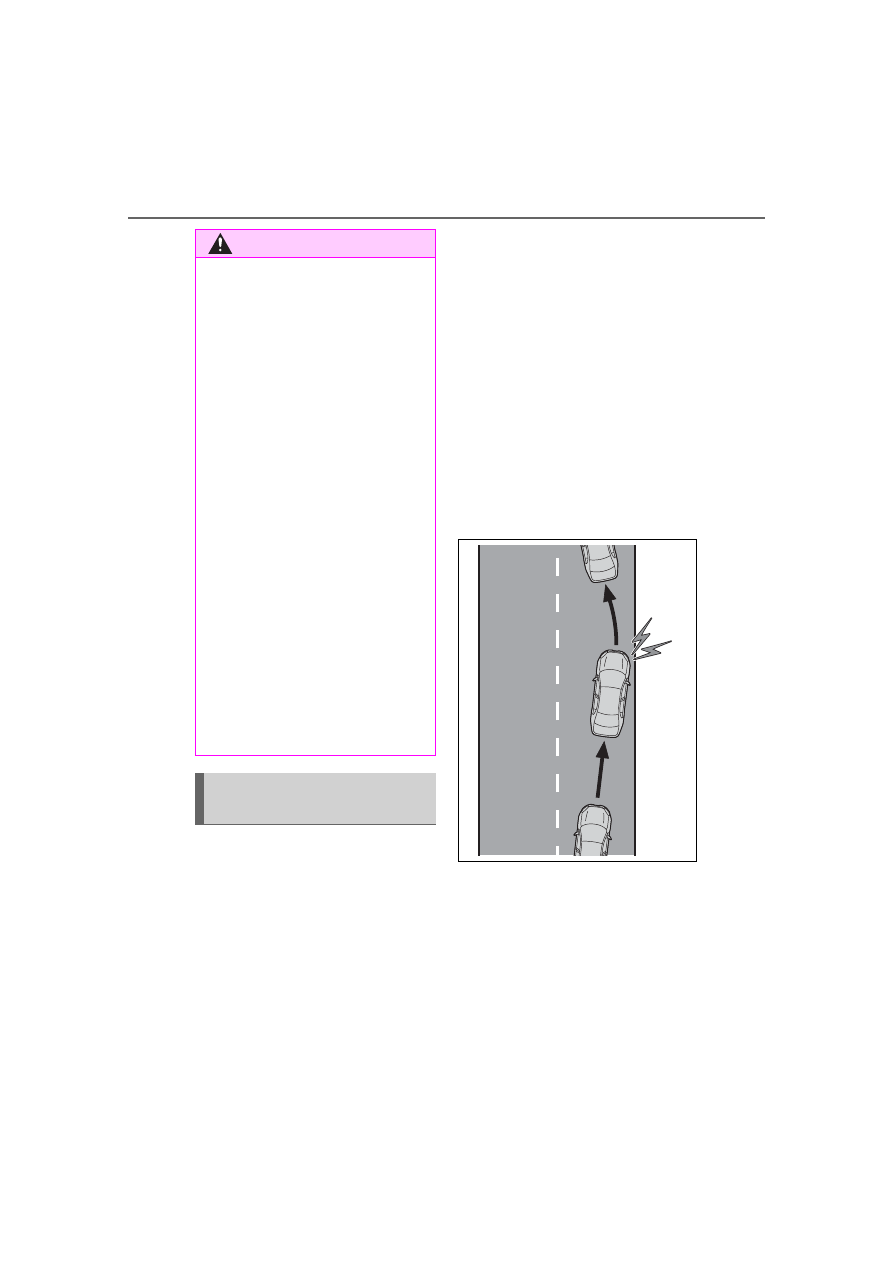

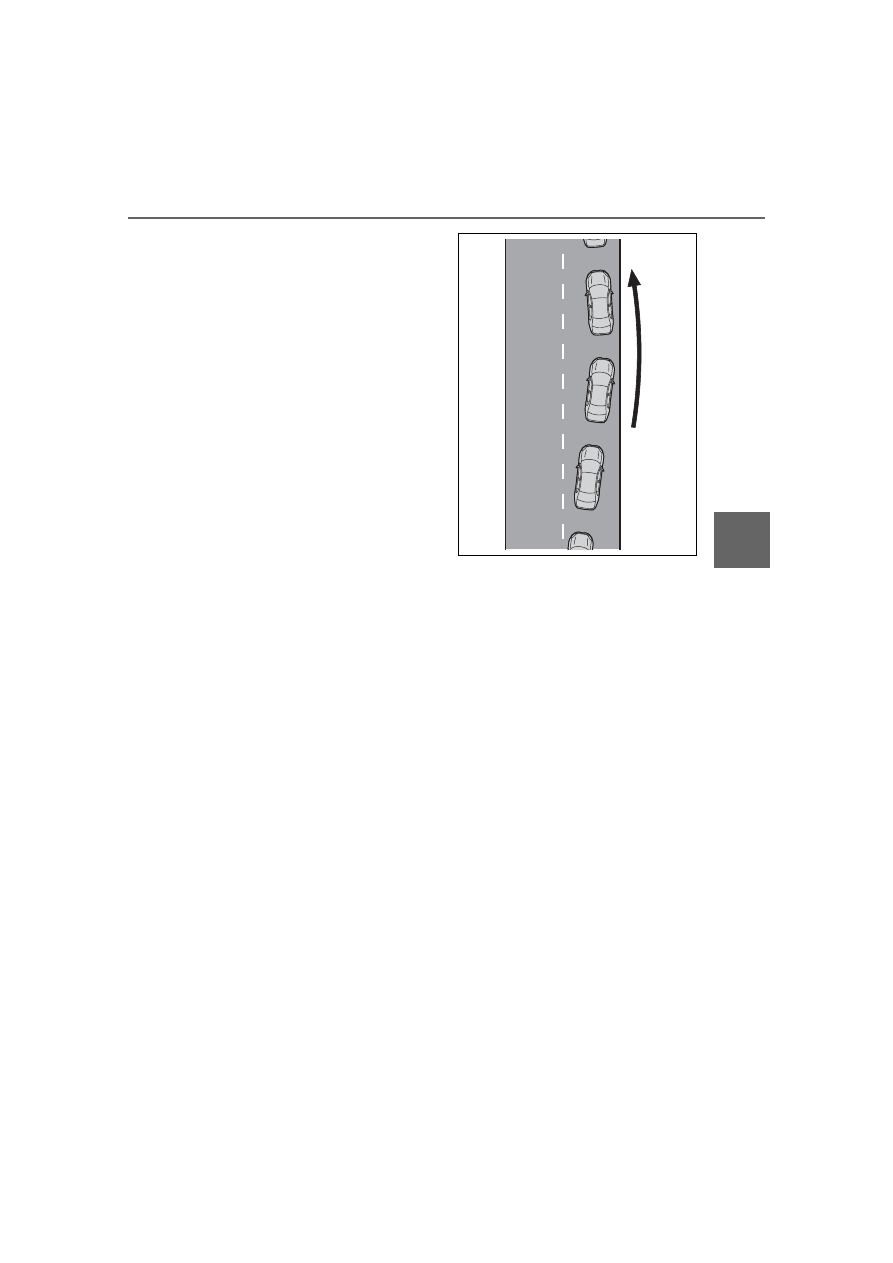

• When passing a detectable object,

etc.

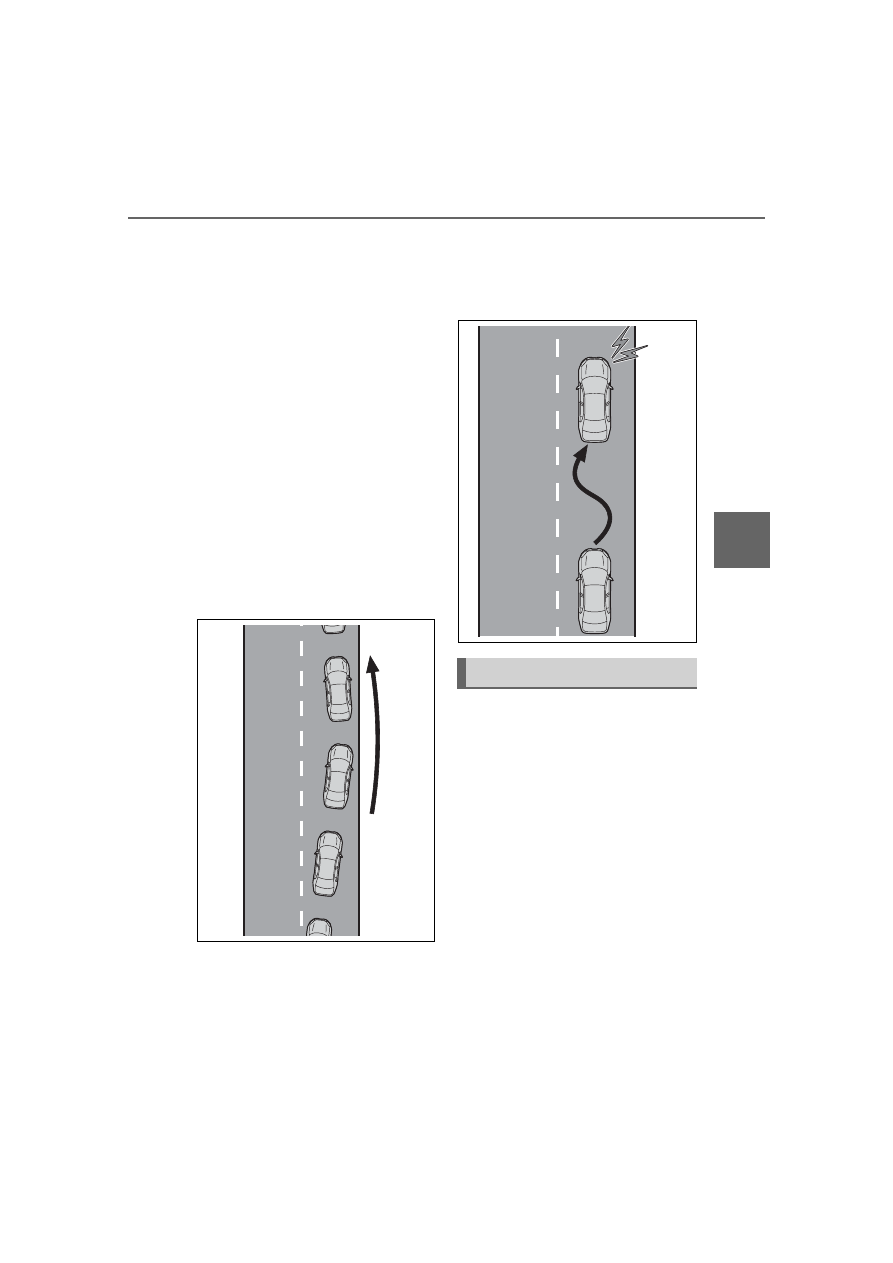

• When changing lanes while over-

taking a detectable object, etc.

• When approaching a detectable

object in an adjacent lane or on

the roadside, such as when

changing the course of travel or

driving on a winding road

• When rapidly closing on a detect-

able object, etc.

• When approaching objects on the

roadside, such as detectable

objects, guardrails, utility poles,

trees, or walls

• When there is a detectable object

or other object by the roadside at

the entrance of a curve

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 7 to 110 mph

(10 to 180 km/h)

Approx. 7 to 110 mph

(10 to 180 km/h)

Bicyclists and pedestri-

ans

Approx. 7 to 50 mph (10

to 80 km/h)

Approx. 7 to 50 mph (10

to 80 km/h)

208

4-5. Using the driving support systems

COROLLA_U

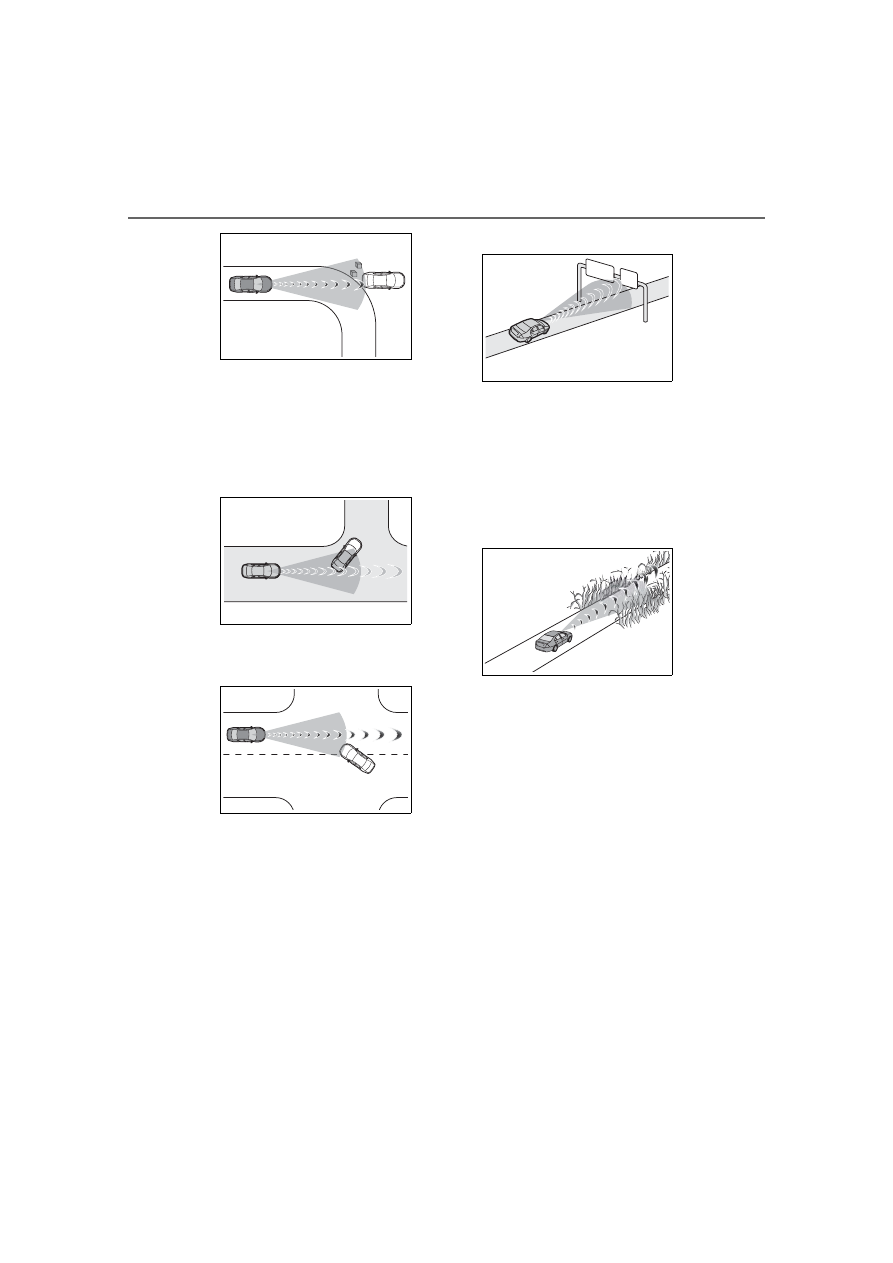

• When there are patterns or paint

in front of your vehicle that may be

mistaken for a detectable object

• When the front of your vehicle is

hit by water, snow, dust, etc.

• When overtaking a detectable

object that is changing lanes or

making a right/left turn

• When passing a detectable object

in an oncoming lane that is

stopped to make a right/left turn

• When a detectable object

approaches very close and then

stops before entering the path of

your vehicle

• If the front of your vehicle is raised

or lowered, such as when on an

uneven or undulating road surface

• When driving on a road sur-

rounded by a structure, such as in

a tunnel or on an iron bridge

• When there is a metal object

(manhole cover, steel plate, etc.),

steps, or a protrusion in front of

your vehicle

• When passing under an object

(road sign, billboard, etc.)

• When approaching an electric toll

gate barrier, parking area barrier,

or other barrier that opens and

closes

• When using an automatic car

wash

• When driving through or under

objects that may contact your

vehicle, such as thick grass, tree

branches, or a banner

• When driving through steam or

smoke

• When driving near an object that

reflects radio waves, such as a

large truck or guardrail

• When driving near a TV tower,

broadcasting station, electric

power plant, or other location

where strong radio waves or elec-

trical noise may be present

■

Situations in which the system

may not operate properly

●

In some situations such as the fol-

lowing, an object may not be

detected by the radar sensor and

front camera, preventing the sys-

tem from operating properly:

• When a detectable object is

approaching your vehicle

• When your vehicle or a detectable

object is wobbling

• If a detectable object makes an

abrupt maneuver (such as sudden

209

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

swerving, acceleration or deceler-

ation)

• When your vehicle approaches a

detectable object rapidly

• When a detectable object is not

directly in front of your vehicle

• When a detectable object is near

a wall, fence, guardrail, manhole

cover, vehicle, steel plate on the

road, etc.

• When a detectable object is under

a structure

• When part of a detectable object

is hidden by an object, such as

large baggage, an umbrella, or

guardrail

• When multiple detectable objects

are close together

• If the sun or other light is shining

directly on a detectable object

• When a detectable object is a

shade of white and looks

extremely bright

• When a detectable object appears

to be nearly the same color or

brightness as its surroundings

• If a detectable object cuts or sud-

denly emerges in front of your

vehicle

• When the front of your vehicle is

hit by water, snow, dust, etc.

• When a very bright light ahead,

such as the sun or the headlights

of oncoming traffic, shines directly

into the front camera

• When approaching the side or

front of a vehicle ahead

• If a vehicle ahead is a motorcycle

• If a vehicle ahead is narrow, such

as a personal mobility vehicle

• If a preceding vehicle has a small

rear end, such as an unloaded

truck

• If a preceding vehicle has a low

rear end, such as a low bed trailer

• If a vehicle ahead has extremely

high ground clearance

• If a vehicle ahead is carrying a

load which protrudes past its rear

bumper

• If a vehicle ahead is irregularly

shaped, such as a tractor or side

car

• If a vehicle ahead is a child sized

bicycle, a bicycle that is carrying a

large load, a bicycle ridden by

more than one person, or a

uniquely shaped bicycle (bicycle

with a child seat, tandem bicycle,

etc.)

• If a pedestrian/or the riding height

of a bicyclist ahead is shorter than

approximately 3.2 ft. (1 m) or taller

than approximately 6.5 ft. (2 m)

• If a pedestrian/bicyclist is wearing

oversized clothing (a rain coat,

long skirt, etc.), making their sil-

houette obscure

• If a pedestrian is bending forward

or squatting or bicyclist is bending

forward

• If a pedestrian/bicyclist is moving

fast

• If a pedestrian is pushing a

stroller, wheelchair, bicycle or

other vehicle

• When driving in inclement weather

such as heavy rain, fog, snow or a

sandstorm

210

4-5. Using the driving support systems

COROLLA_U

• When driving through steam or

smoke

• When the surrounding area is dim,

such as at dawn or dusk, or while

at night or in a tunnel, making a

detectable object appear to be

nearly the same color as its sur-

roundings

• When driving in a place where the

surrounding brightness changes

suddenly, such as at the entrance

or exit of a tunnel

• After the engine has started the

vehicle has not been driven for a

certain amount of time

• While making a left/right turn and

for a few seconds after making a

left/right turn

• While driving on a curve and for a

few seconds after driving on a

curve

• If your vehicle is skidding

• If the front of the vehicle is raised

or lowered

• If the wheels are misaligned

• If a wiper blade is blocking the

front camera

• The vehicle is being driven at

extremely high speeds

• When driving on a hill

• If the radar sensor or front camera

is misaligned

●

In some situations such as the fol-

lowing, sufficient braking force

may not be obtained, preventing

the system from performing prop-

erly:

• If the braking functions cannot

operate to their full extent, such as

when the brake parts are

extremely cold, extremely hot, or

wet

• If the vehicle is not properly main-

tained (brakes or tires are exces-

sively worn, improper tire inflation

pressure, etc.)

• When the vehicle is being driven

on a gravel road or other slippery

surface

■

If VSC is disabled

●

If VSC is disabled (



P.273), the

pre-collision brake assist and

pre-collision braking functions are

also disabled.

●

The PCS warning light will turn on

and “VSC Turned OFF Pre-Colli-

sion Brake System Unavailable”

will be displayed on the

multi-information display.

211

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

*

: If equipped

LTA (Lane Tracing

Assist)

*

When driving on highways
and freeways with white
(yellow) lane lines, this
function alerts the driver
when the vehicle might
depart from its lane or
course

*

 and provides assis-

tance by operating the
steering wheel to keep the
vehicle in its lane or
course

*

. Furthermore, the

system provides steering
assistance when dynamic
radar cruise control with
full-speed range is operat-
ing to keep the vehicle in its
lane.

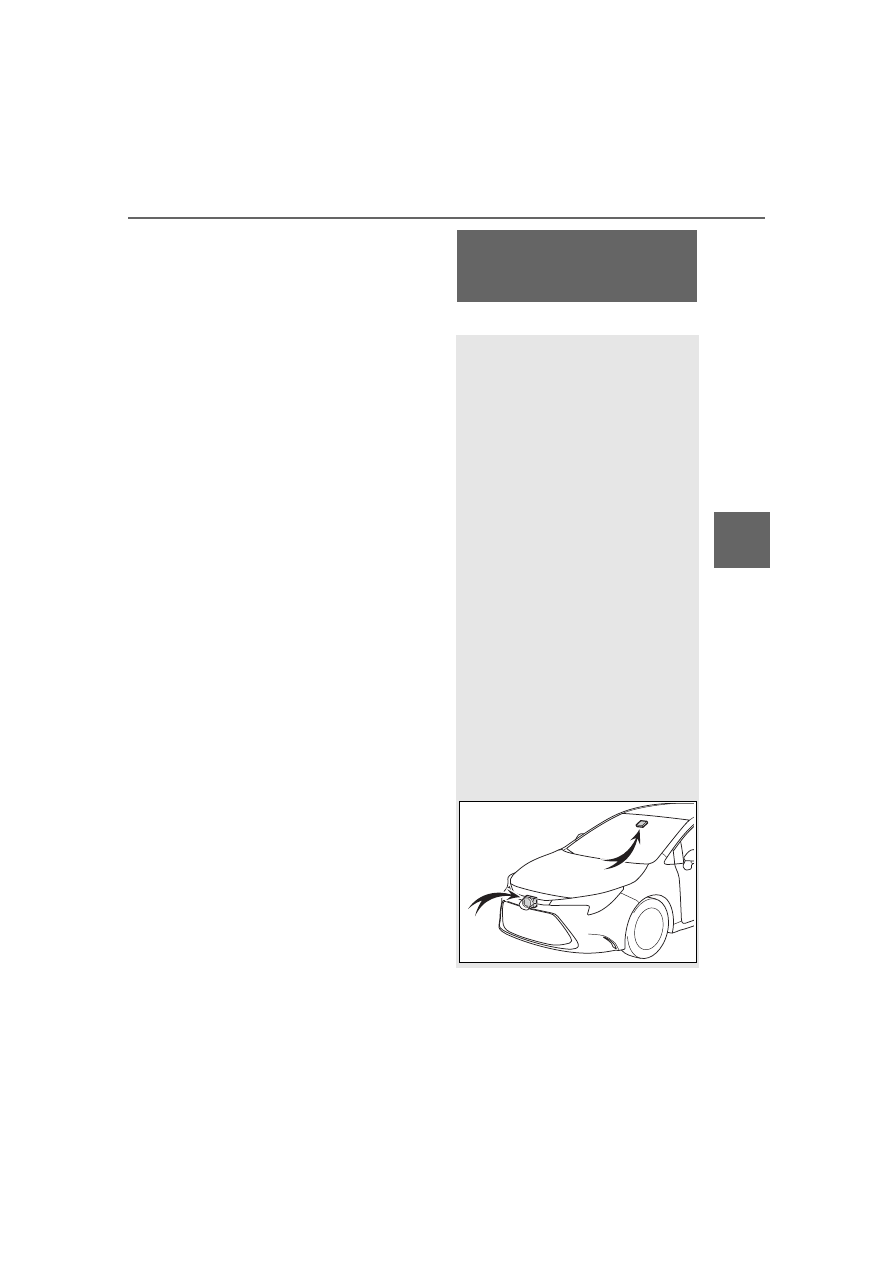

The LTA system recognizes
white (yellow) lane lines or a
course

*

 using the front cam-

era. Additionally, it detects
preceding vehicles using
the front camera and radar.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

WARNING

■

Before using LTA system

●

Do not rely solely upon the LTA

system. The LTA system does

not automatically drive the vehi-

cle or reduce the amount of

attention that must be paid to

the area in front of the vehicle.

The driver must always assume

full responsibility for driving

safely by paying careful atten-

tion to the surrounding condi-

tions and operating the steering

wheel to correct the path of the

vehicle. Also, the driver must

take adequate breaks when

fatigued, such as from driving

for a long period of time.

●

Failure to perform appropriate

driving operations and pay care-

ful attention may lead to an

accident, resulting in death or

serious injury.

●

When not using the LTA system,

use the LTA switch to turn the

system off.

■

Situations unsuitable for LTA

system

In the following situations, use the

LTA switch to turn the system off.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

212

4-5. Using the driving support systems

COROLLA_U

WARNING

●

Vehicle is driven on a road sur-

face which is slippery due to

rainy weather, fallen snow,

freezing, etc.

●

Vehicle is driven on a snow-cov-

ered road.

●

White (yellow) lines are difficult

to see due to rain, snow, fog,

dust, etc.

●

Vehicle is driven in a temporary

lane or restricted lane due to

construction work.

●

Vehicle is driven in a construc-

tion zone.

●

A spare tire, tire chains, etc. are

equipped.

●

When the tires have been

excessively worn, or when the

tire inflation pressure is low.

●

When tires of a size other than

specified are installed.

●

Vehicle is driven in traffic lanes

other than that highways and

freeways.

●

During emergency towing.

■

Preventing LTA system mal-

functions and operations per-

formed by mistake

●

Do not modify the headlights or

place stickers, etc. on the sur-

face of the lights.

●

Do not modify the suspension

etc. If the suspension etc. needs

to be replaced, contact your

Toyota dealer.

●

Do not install or place anything

on the hood or grille. Also, do

not install a grille guard (bull

bars, kangaroo bar, etc.).

●

If your windshield needs

repairs, contact your Toyota

dealer.

■

Conditions in which functions

may not operate properly

In the following situations, the

functions may not operate prop-

erly and the vehicle may depart

from its lane. Drive safely by

always paying careful attention to

your surroundings and operate

the steering wheel to correct the

path of the vehicle without relying

solely on the functions.

●

When the follow-up cruising dis-

play is displayed (



P.217) and

the preceding vehicle changes

lanes. (Your vehicle may follow

the preceding vehicle and also

change lanes.)

●

When the follow-up cruising dis-

play is displayed (



P.217) and

the preceding vehicle is sway-

ing. (Your vehicle may sway

accordingly and depart from the

lane.)

●

When the follow-up cruising dis-

play is displayed (



P.217) and

the preceding vehicle departs

from its lane. (Your vehicle may

follow the preceding vehicle and

depart from the lane.)

●

When the follow-up cruising dis-

play is displayed (



P.217) and

the preceding vehicle is being

driven extremely close to the

left/right lane line. (Your vehicle

may follow the preceding vehi-

cle and depart from the lane.)

213

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

WARNING

●

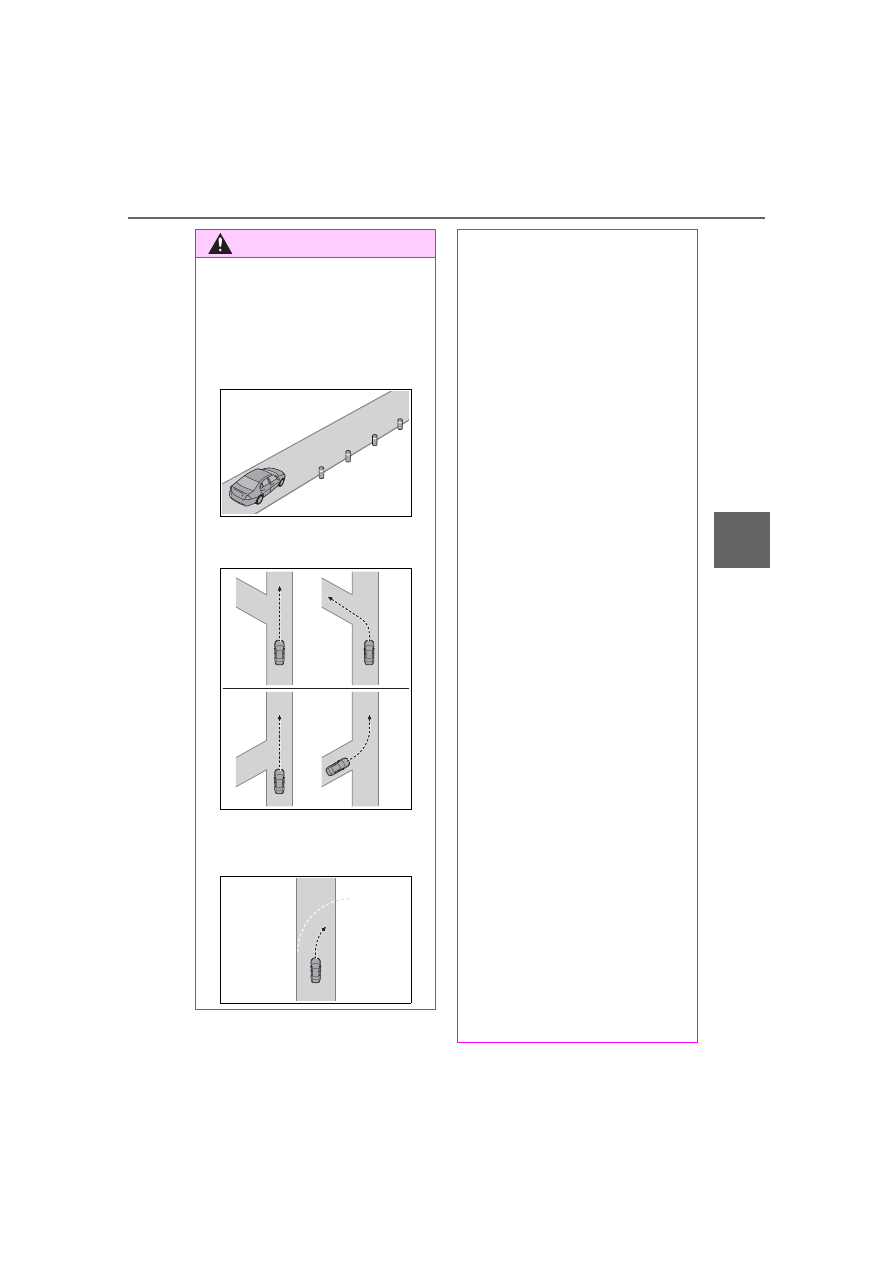

Vehicle is being driven around a

sharp curve.

●

Objects or patterns that could

be mistaken for white (yellow)

lines are present on the side of

the road (guardrails, reflective

poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white

(yellow) lines, etc. are present

due to road repair.

●

There are shadows on the road

that run parallel with, or cover,

the white (yellow) lines.

●

The vehicle is driven in an area

without white (yellow) lines,

such as in front of a tollgate or

checkpoint, or at an intersec-

tion, etc.

●

The white (yellow) lines are

cracked, “Botts’ dots”, “Raised

pavement marker” or stones are

present.

●

The white (yellow) lines cannot

be seen or are difficult to see

due to sand, etc.

●

The vehicle is driven on a road

surface that is wet due to rain,

puddles, etc.

●

The traffic lines are yellow

(which may be more difficult to

recognize than lines that are

white).

●

The white (yellow) lines cross

over a curb, etc.

●

The vehicle is driven on a bright

surface, such as concrete.

●

If the edge of the road is not

clear or straight.

●

The vehicle is driven on a sur-

face that is bright due to

reflected light, etc.

●

The vehicle is driven in an area

where the brightness changes

suddenly, such as at the

entrances and exits of tunnels,

etc.

●

Light from the headlights of an

oncoming vehicle, the sun, etc.

enters the camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road

which tilts left or right, or a wind-

ing road.

214

4-5. Using the driving support systems

COROLLA_U

■

Lane departure alert func-
tion

When the system determines

that the vehicle might depart
from its lane or course

*

, a warn-

ing is displayed on the
multi-information display, and a
warning buzzer will sound to
alert the driver.

When the warning buzzer sounds,
check the area around your vehicle
and carefully operate the steering
wheel to move the vehicle back to
the center of the lane.
Vehicle with BSM: When the sys-
tem determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the lane departure
alert will operate even if the turn
signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Steering assist function

When the system determines

WARNING

●

The vehicle is driven on an

unpaved or rough road.

●

The traffic lane is excessively

narrow or wide.

●

The vehicle is extremely tilted

due to carrying heavy luggage

or having improper tire pres-

sure.

●

The distance to the preceding

vehicle is extremely short.

●

The vehicle is moving up and

down a large amount due to

road conditions during driving

(poor roads or road seams).

●

When driving in a tunnel or at

night with the headlights off or

when a headlight is dim due to

its lens being dirty or it being

misaligned.

●

The vehicle is struck by a cross-

wind.

●

The vehicle is affected by wind

from a vehicle driven in a

nearby lane.

●

The vehicle has just changed

lanes or crossed an intersec-

tion.

●

Tires which differ by structure,

manufacturer, brand or tread

pattern are used.

●

Snow tires, etc. are equipped.

●

The vehicle is being driven at

extremely high speeds.

Functions included in LTA
system

215

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

that the vehicle might depart
from its lane or course

*

, the sys-

tem provides assistance as nec-
essary by operating the steering
wheel in small amounts for a
short period of time to keep the
vehicle in its lane.

If the system detects that the steer-
ing wheel has not been operated
for a fixed amount of time or the
steering wheel is not being firmly
gripped, a warning is displayed on
the multi-information display and
the function is temporarily can-
celed.
Vehicle with BSM: When the sys-
tem determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the steering assist
function will operate even if the turn
signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

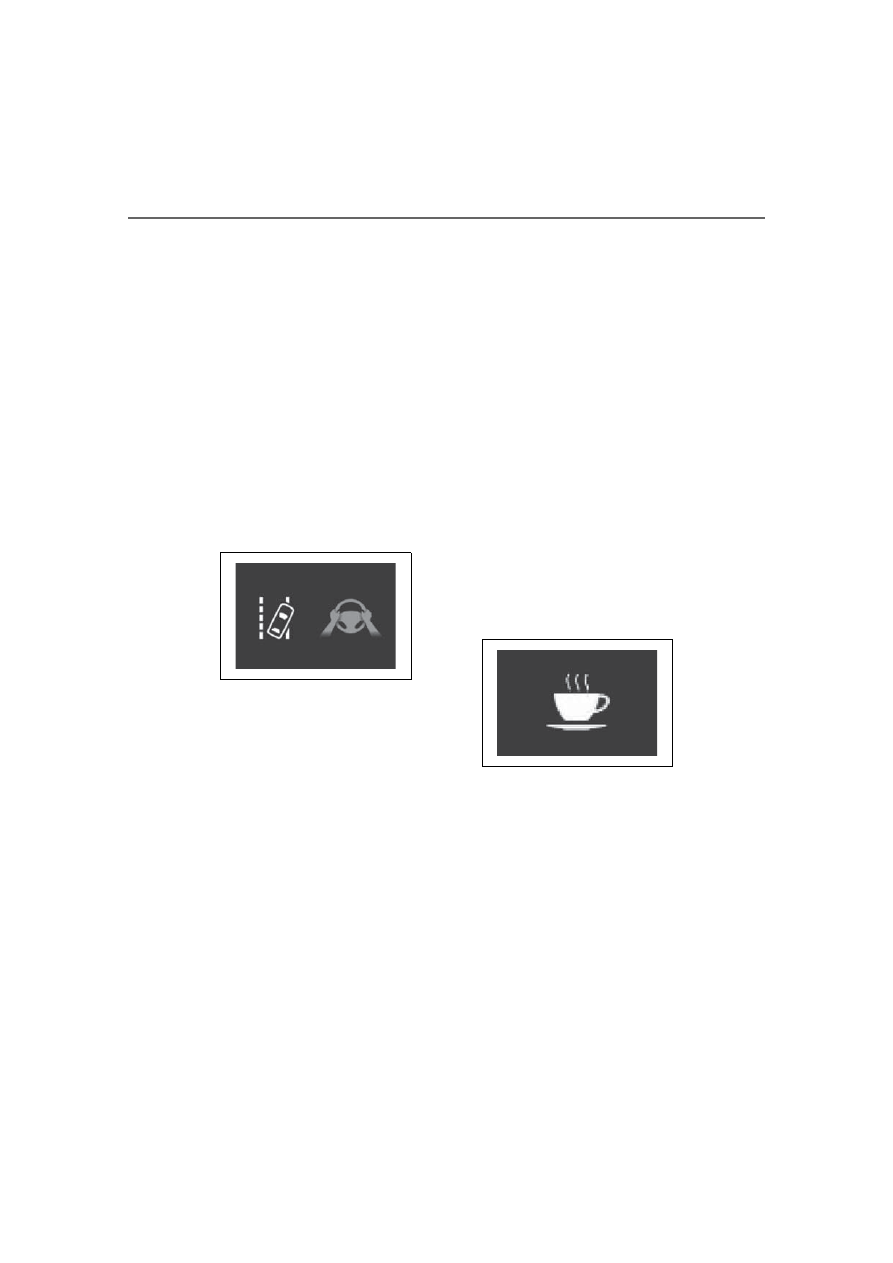

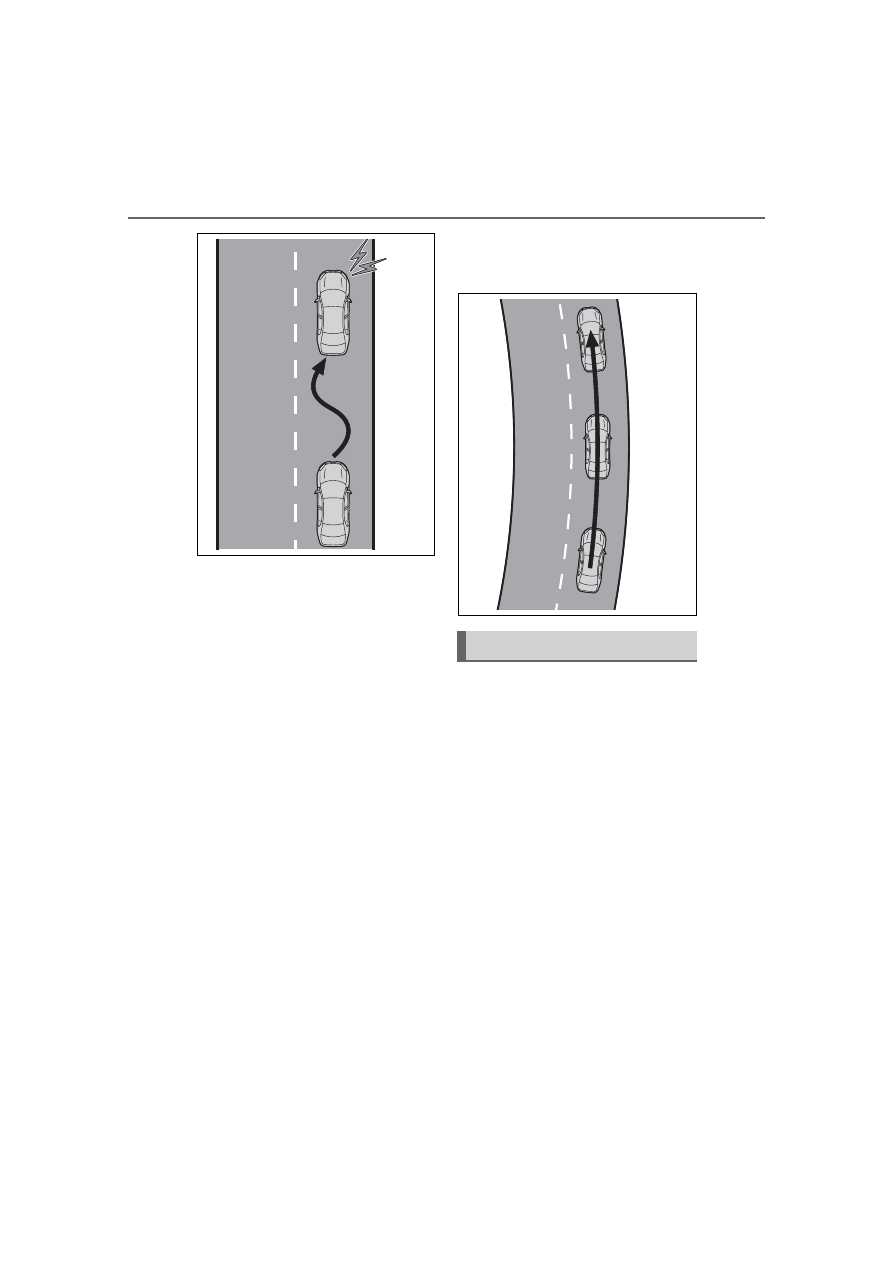

Vehicle sway warning func-
tion

When the vehicle is swaying
within a lane, the warning
buzzer will sound and a mes-
sage will be displayed on the
multi-information display to alert
the driver.

216

4-5. Using the driving support systems

COROLLA_U

■

Lane centering function

This function is linked with
dynamic radar cruise control
with full-speed range and pro-
vides the required assistance by
operating the steering wheel to
keep the vehicle in its current
lane.

When dynamic radar cruise control
with full-speed range is not operat-
ing, the lane centering function
does not operate.
In situations where the white (yel-
low) lane lines are difficult to see or
are not visible, such as when in a
traffic jam, this function will operate
to help follow a preceding vehicle
by monitoring the position of the
preceding vehicle.
If the system detects that the steer-
ing wheel has not been operated
for a fixed amount of time or the
steering wheel is not being firmly
gripped, a warning is displayed on

the multi-information display and
the function is temporarily can-
celed.

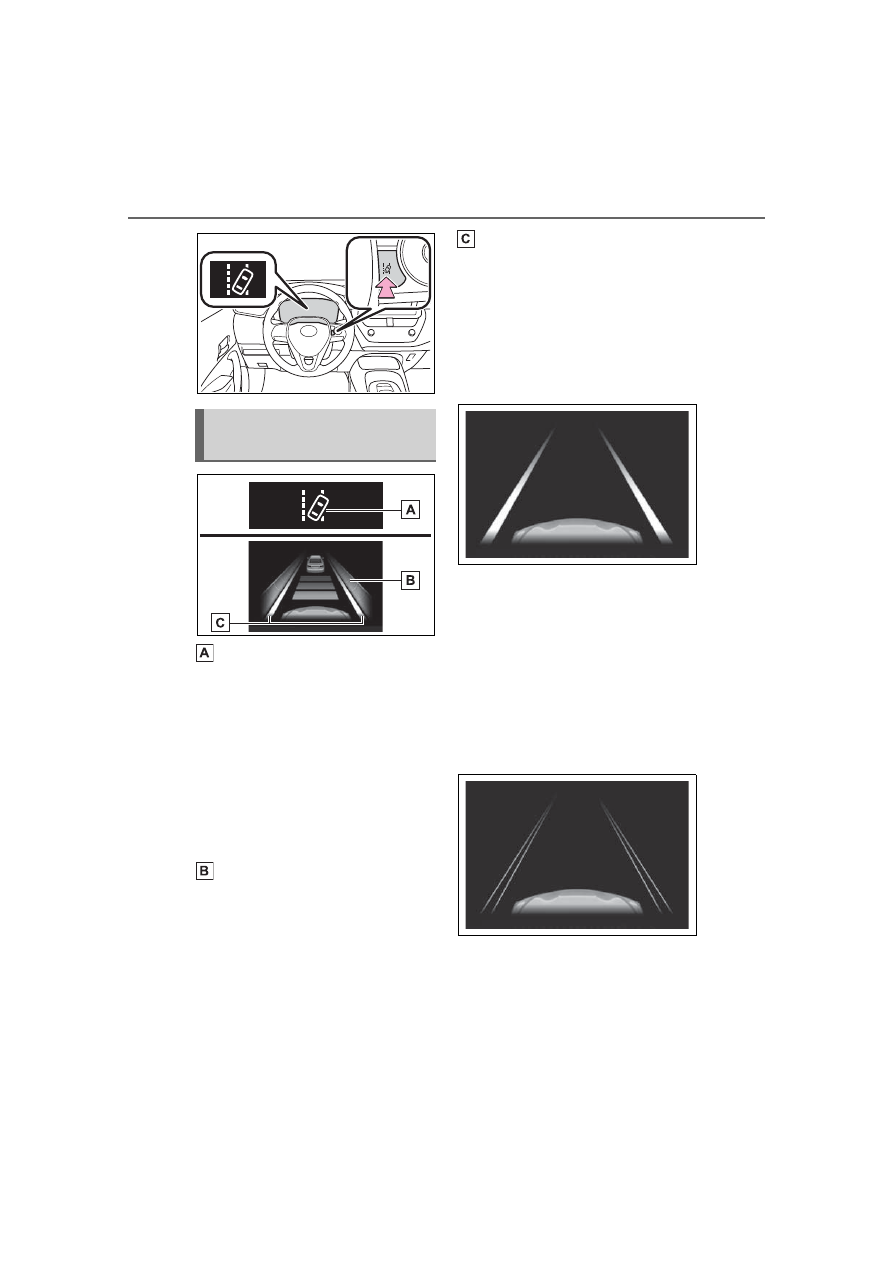

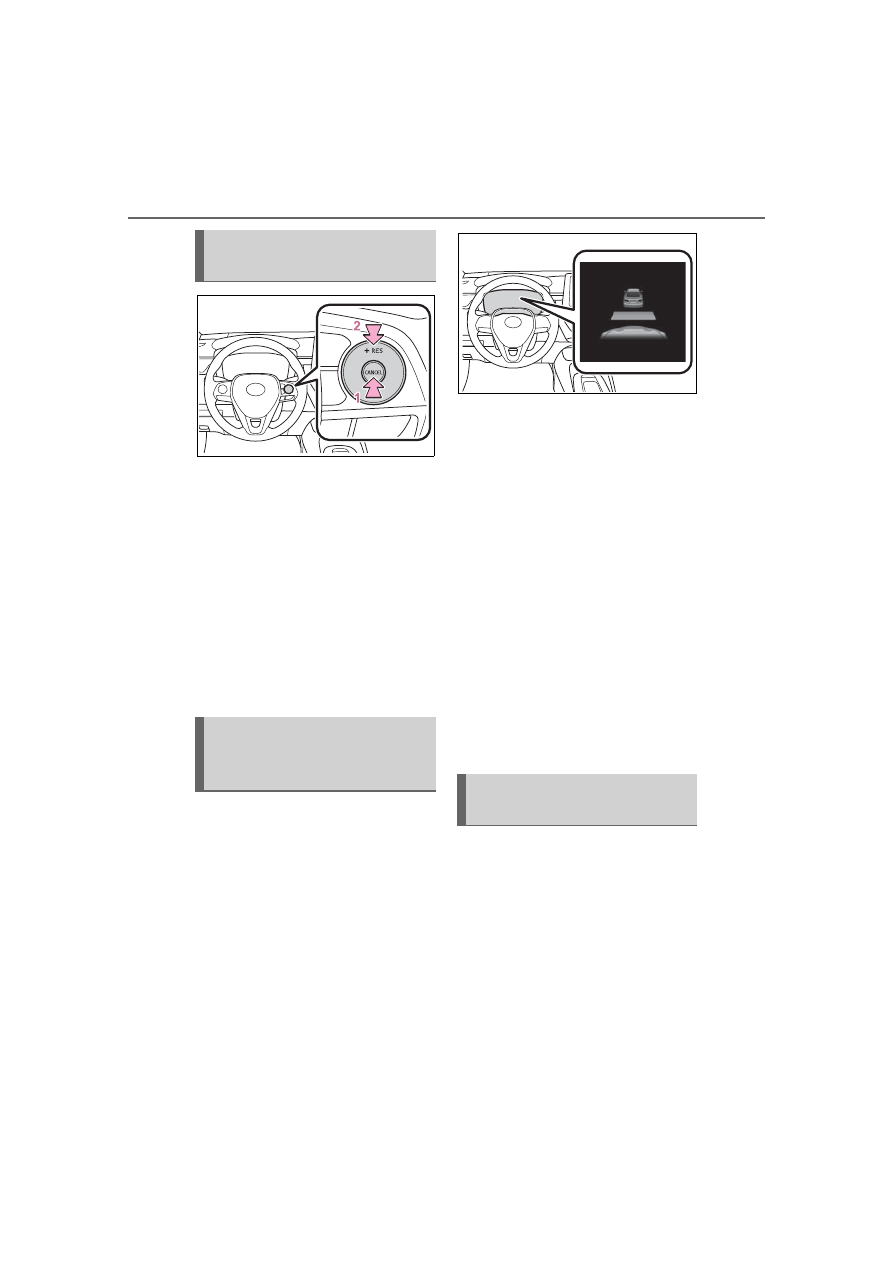

Press the LTA switch to turn the
LTA system on.

The LTA indicator illuminates and a
message is displayed on the
multi-information display.
Press the LTA switch again to turn
the LTA system off.
When the LTA system is turned on
or off, operation of the LTA system
continues in the same condition the
next time the engine is started.

Turning LTA system on

217

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

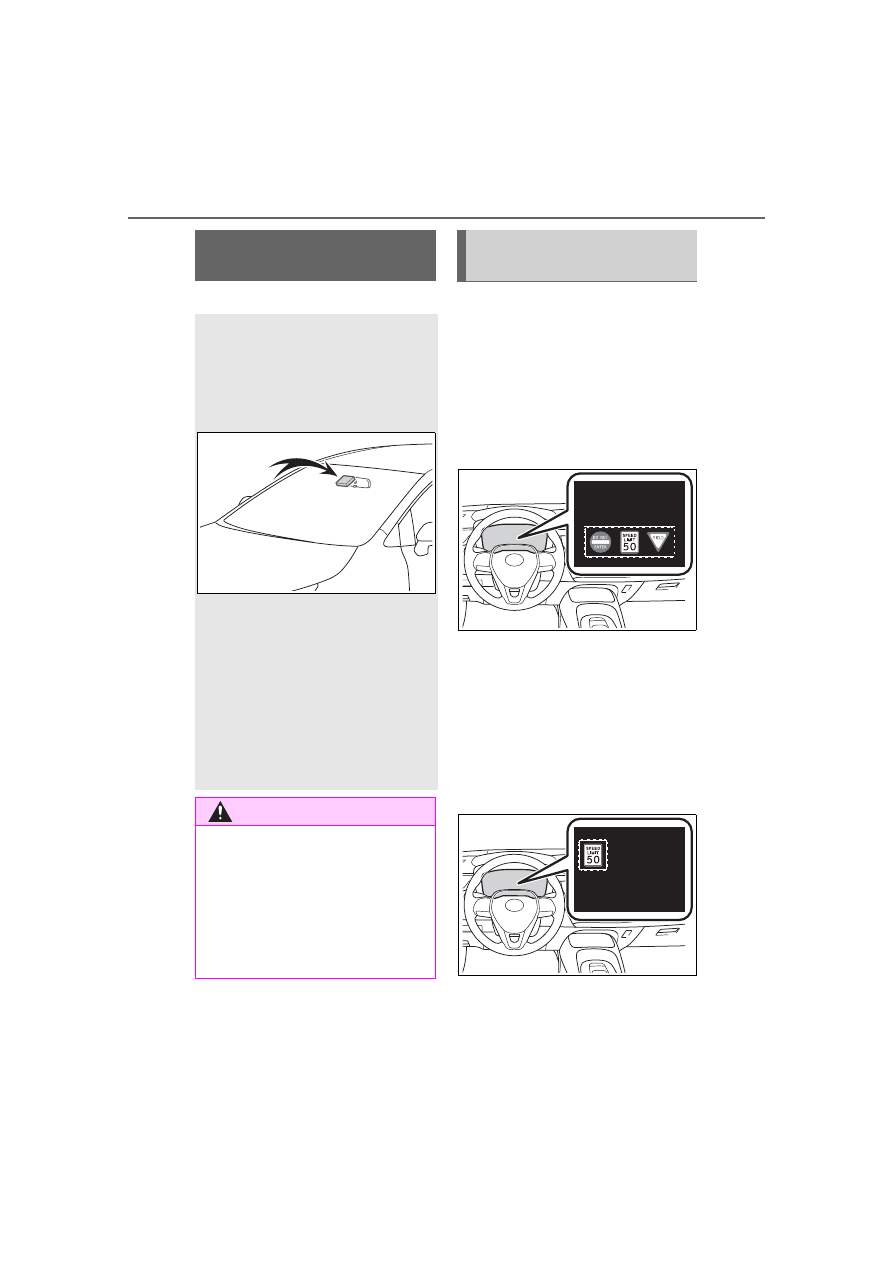

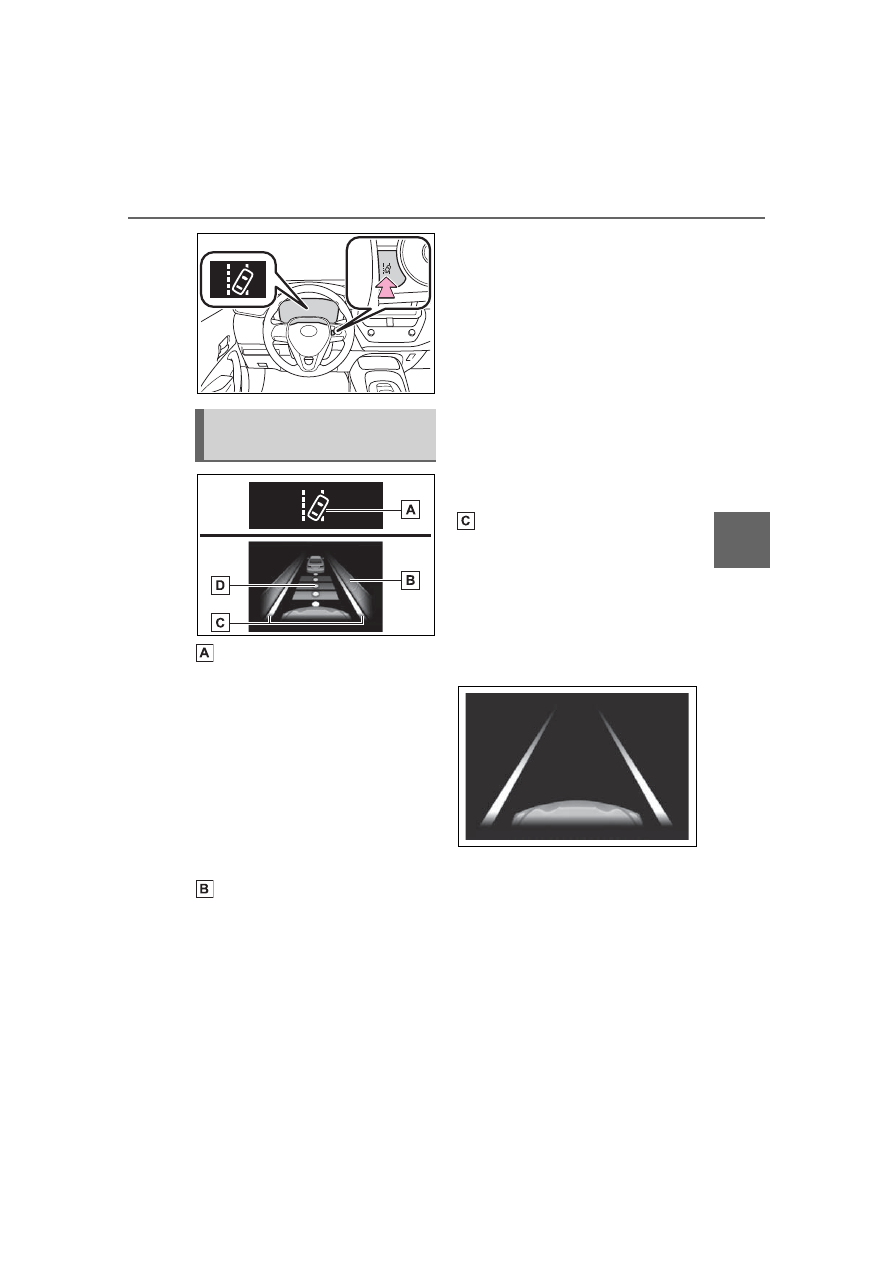

LTA indicator

The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white: LTA system is
operating.
Illuminated in green: Steering wheel
assistance of the steering assist
function or lane centering function
is operating.
Flashing in orange: Lane departure
alert function is operating.

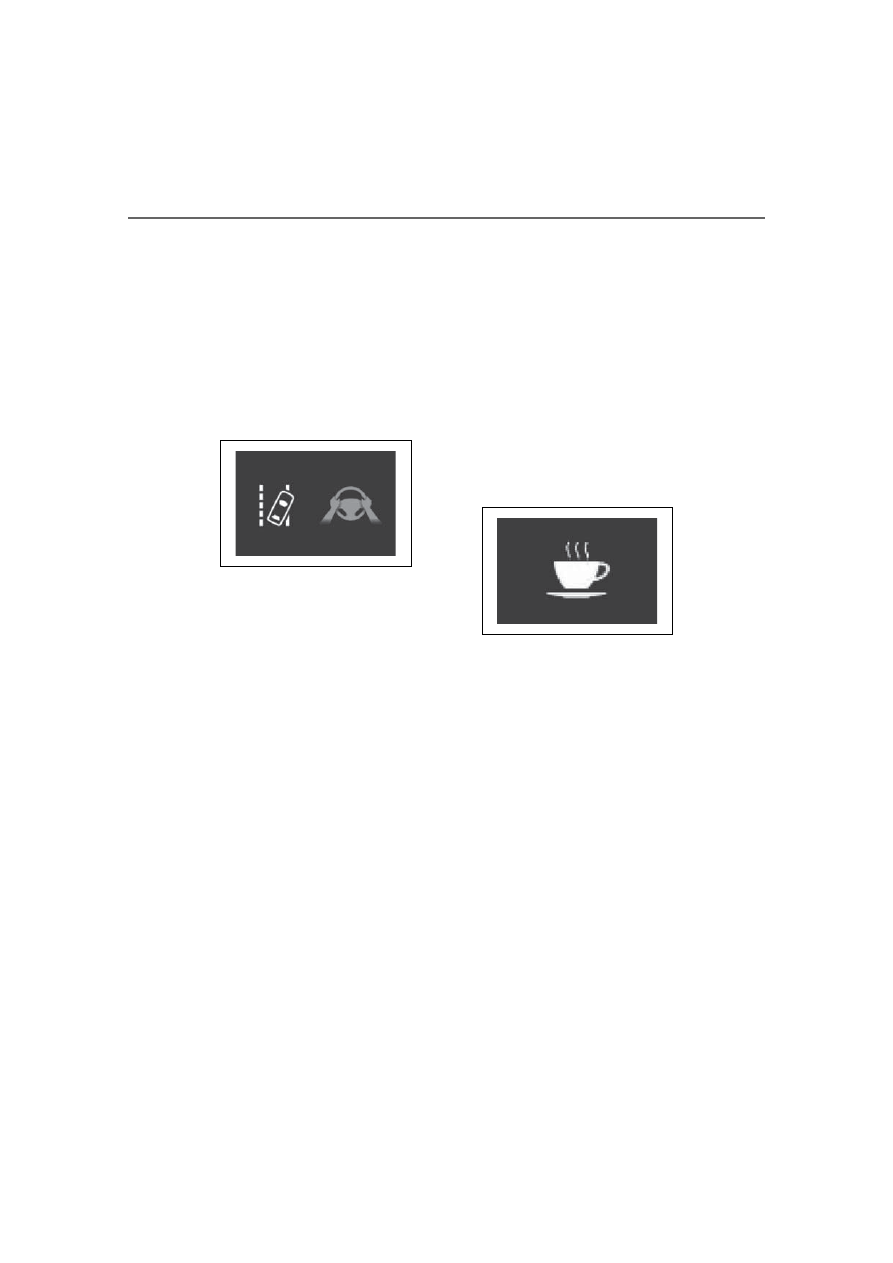

Operation display of steering
wheel operation support

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.
Indicates that steering wheel assis-
tance of the steering assist function

or lane centering function is operat-
ing.
Both outer sides of the lane are dis-
played: Indicates that steering
wheel assist of the lane centering
function is operating.
One outer side of the lane is dis-
played: Indicates that steering
wheel assist of the steering assist
function is operating.
Both outer sides of the lane are
flashing: Alerts the driver that their
input is necessary to stay in the
center of the lane (lane centering
function).

Lane departure alert function
display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.



Inside of displayed lines is
white

Indicates that the system is rec-
ognizing white (yellow) lines or a
course

*

. When the vehicle

departs from its lane, the white
line displayed on the side the
vehicle departs from flashes
orange.

Indications on multi-infor-
mation display

218

4-5. Using the driving support systems

COROLLA_U



Inside of displayed lines is
black

Indicates that the system is not
able to recognize white (yellow)
lines or a course

*

 or is temporar-

ily canceled.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

Follow-up cruising display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.
Indicates that steering assist of the
lane centering function is operating
by monitoring the position of a pre-
ceding vehicle.
When the follow-up cruising display
is displayed, if the preceding vehi-
cle moves, your vehicle may move
in the same way. Always pay care-
ful attention to your surroundings
and operate the steering wheel as
necessary to correct the path of the
vehicle and ensure safety.

■

Operation conditions of each

function

●

Lane departure alert function

This function operates when all of
the following conditions are met.
• LTA is turned on.

• Vehicle speed is approximately 32

mph (50 km/h) or more.

*1

• System recognizes white (yellow)

lane lines or a course

*2

. (When a

white [yellow] line or course

*2

 is

recognized on only one side, the

system will operate only for the

recognized side.)

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

(Vehicle with BSM: Except when

another vehicle is in the lane on

the side where the turn signal was

operated)

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.220)

*1

:The function operates even if the

vehicle speed is less than
approximately 32 mph (50 km/h)
when the lane centering function
is operating.

*2

:Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

●

Steering assist function

This function operates when all of
the following conditions are met in
addition to the operation conditions
for the lane departure alert function.
• Setting for “Steering Assist” in



of the multi-information display is

set to “ON”. (



P.581)

• Vehicle is not accelerated or

decelerated by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.220)

●

Vehicle sway warning function

This function operates when all of

219

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

the following conditions are met.
• Setting for “Sway Warning” in



of the multi-information display is

set to “ON”. (



P.581)

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• No system malfunctions are

detected. (



P.220)

●

Lane centering function

This function operates when all of
the following conditions are met.
• LTA is turned on.

• Setting for “Steering Assist” and

“Lane Center” in

 of the

multi-information display are set to

“ON”. (



P.581)

• This function recognizes white

(yellow) lane lines or the position

of a preceding vehicle (except

when the preceding vehicle is

small, such as a motorcycle).

• The dynamic radar cruise control

with full-speed range is operating

in vehicle-to-vehicle distance con-

trol mode.

• Width of traffic lane is approxi-

mately 10 to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.220)

• Vehicle does not accelerate or

decelerate by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.220)

• The vehicle is being driven in the

center of a lane.

• Steering assist function is not

operating.

■

Temporary cancelation of func-

tions

●

When operation conditions are no

longer met, a function may be

temporarily canceled. However,

when the operation conditions are

met again, operation of the func-

tion is automatically restored.

(



P.218)

●

If the operation conditions

(



P.216) are no longer met while

the lane centering function is

operating, the buzzer may sound

to indicate that the function has

been temporarily canceled.

■

Steering assist function/lane

centering function

●

Depending on the vehicle speed,

lane departure situation, road con-

ditions, etc., the driver may not

feel the function is operating or

the function may not operate at

all.

●

The steering control of the func-

tion is overridden by the driver’s

steering wheel operation.

●

Do not attempt to test the opera-

tion of the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be diffi-

cult to hear due to external noise,

audio playback, etc.

●

If the edge of the course

*

 is not

clear or straight, the lane depar-

ture alert function may not oper-

ate.

●

Vehicle with BSM: It may not be

possible for the system to deter-

mine if there is a danger of a colli-

sion with a vehicle in an adjacent

lane.

●

Do not attempt to test the opera-

tion of the lane departure alert

function.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

220

4-5. Using the driving support systems

COROLLA_U

■

Hands off steering wheel warn-

ing

In the following situations, a warning

message urging the driver to hold

the steering wheel and the symbol

shown in the illustration are dis-

played on the multi-information dis-

play to warn the driver. The warning

stops when the system determines

that the driver holds the steering

wheel. Always keep your hands on

the steering wheel when using this

system, regardless of warnings.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

system is operating

If the driver continues to keep their

hands off of the steering wheel, the

buzzer sounds, the driver is warned

and the function is temporarily can-

celed. This warning also operates in

the same way when the driver con-

tinuously operates the steering

wheel only a small amount.

●

When the system determines that

the vehicle may not turn and

instead depart from its lane while

driving around a curve

Depending on the vehicle condition

and road conditions, the warning

may not operate. Also, if the system

determines that the vehicle is driv-

ing around a curve, warnings will

occur earlier than during

straight-lane driving.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

steering wheel assist of the steer-

ing assist function is operating.

If the driver continues to keep their

hands off of the steering wheel and

the steering wheel assist is operat-

ing, the buzzer sounds and the

driver is warned. Each time the

buzzer sounds, the continuing time

of the buzzer becomes longer.

■

Vehicle sway warning function

When the system determines that

the vehicle is swaying while the

vehicle sway warning function is

operating, a buzzer sounds and a

warning message urging the driver

to rest and the symbol shown in the

illustration are simultaneously dis-

played on the multi-information dis-

play.

Depending on the vehicle and road

conditions, the warning may not

operate.

■

Warning message

If the following warning message is

displayed on the multi-information

display and the LTA indicator illumi-

nates in orange, follow the appropri-

ate troubleshooting procedure. Also,

if a different warning message is

displayed, follow the instructions

displayed on the screen.

●

“LTA Malfunction Visit Your

Dealer”

The system may not be operating

properly. Have the vehicle inspected

by your Toyota dealer.

●

“LTA Unavailable”

The system is temporarily canceled

due to a malfunction in a sensor

other than the front camera. Turn

the LTA system off, wait for a little

while, and then turn the LTA system

back on.

221

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

●

“LTA Unavailable at Current

Speed”

The function cannot be used as the

vehicle speed exceeds the LTA

operation range. Drive slower.

■

Customization

Function settings can be changed.

(



P.581)

*

: If equipped

LDA (Lane Departure

Alert with steering

control)

*

When driving on highways
and freeways with white
(yellow) lane lines, this
function alerts the driver
when the vehicle might
depart from its lane or
course

*

 and provides assis-

tance by operating the
steering wheel to keep the
vehicle in its lane or
course

*

.

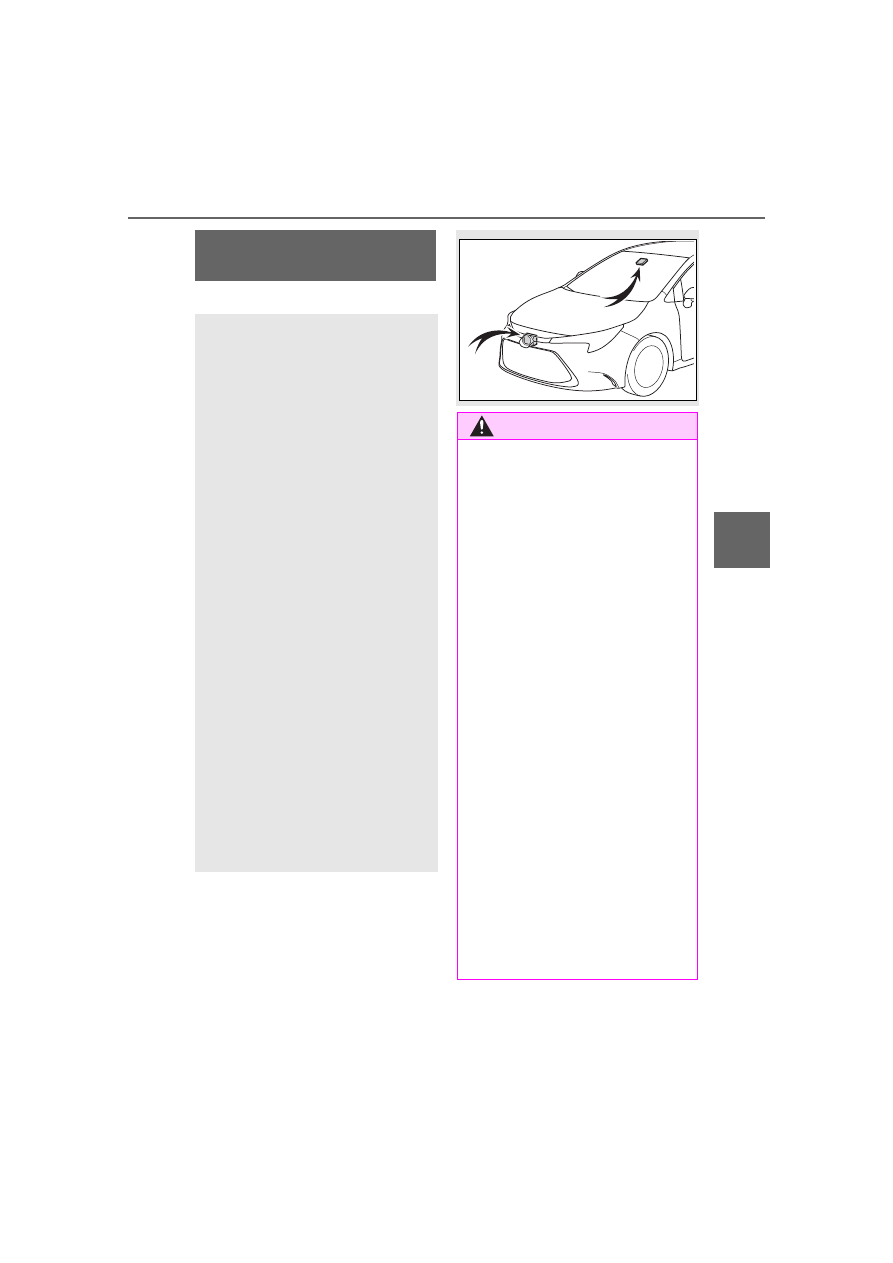

The LDA system recog-
nizes white (yellow) lane
lines or a course

*

 using the

front camera. Additionally, it
detects preceding vehicles
using the front camera and
radar.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

222

4-5. Using the driving support systems

COROLLA_U

WARNING

■

Before using LDA system

●

Do not rely solely upon the LDA

system. The LDA system does

not automatically drive the vehi-

cle or reduce the amount of

attention that must be paid to

the area in front of the vehicle.

The driver must always assume

full responsibility for driving

safely by paying careful atten-

tion to the surrounding condi-

tions and operating the steering

wheel to correct the path of the

vehicle. Also, the driver must

take adequate breaks when

fatigued, such as from driving

for a long period of time.

●

Failure to perform appropriate

driving operations and pay care-

ful attention may lead to an

accident, resulting in death or

serious injury.

●

When not using the LDA sys-

tem, use the LDA switch to turn

the system off.

■

Situations unsuitable for LDA

system

In the following situations, use the

LDA switch to turn the system off.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

●

Vehicle is driven on a road sur-

face which is slippery due to

rainy weather, fallen snow,

freezing, etc.

●

Vehicle is driven on a snow-cov-

ered road.

●

White (yellow) lines are difficult

to see due to rain, snow, fog,

dust, etc.

●

A spare tire, tire chains, etc. are

equipped.

●

When the tires have been

excessively worn, or when the

tire inflation pressure is low.

●

When tires of a size other than

specified are installed.

●

Vehicle is driven in traffic lanes

other than that highways and

freeways.

●

During emergency towing.

■

Preventing LDA system mal-

functions and operations per-

formed by mistake

●

Do not modify the headlights or

place stickers, etc. on the sur-

face of the lights.

●

Do not modify the suspension

etc. If the suspension etc. needs

to be replaced, contact your

Toyota dealer.

●

Do not install or place anything

on the hood or grille. Also, do

not install a grille guard (bull

bars, kangaroo bar, etc.).

●

If your windshield needs

repairs, contact your Toyota

dealer.

■

Conditions in which functions

may not operate properly

In the following situations, the

functions may not operate prop-

erly and the vehicle may depart

from its lane. Drive safely by

always paying careful attention to

your surroundings and operate

the steering wheel to correct the

path of the vehicle without relying

solely on the functions.

●

Vehicle is being driven around a

sharp curve.

223

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

WARNING

●

Objects or patterns that could

be mistaken for white (yellow)

lines are present on the side of

the road (guardrails, reflective

poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white

(yellow) lines, etc. are present

due to road repair.

●

There are shadows on the road

that run parallel with, or cover,

the white (yellow) lines.

●

The vehicle is driven in an area

without white (yellow) lines,

such as in front of a tollgate or

checkpoint, or at an intersec-

tion, etc.

●

The white (yellow) lines are

cracked, “Botts’ dots”, “Raised

pavement marker” or stones are

present.

●

The white (yellow) lines cannot

be seen or are difficult to see

due to sand, etc.

●

The vehicle is driven on a road

surface that is wet due to rain,

puddles, etc.

●

The traffic lines are yellow

(which may be more difficult to

recognize than lines that are

white).

●

The white (yellow) lines cross

over a curb, etc.

●

The vehicle is driven on a bright

surface, such as concrete.

●

If the edge of the road is not

clear or straight.

●

The vehicle is driven on a sur-

face that is bright due to

reflected light, etc.

●

The vehicle is driven in an area

where the brightness changes

suddenly, such as at the

entrances and exits of tunnels,

etc.

●

Light from the headlights of an

oncoming vehicle, the sun, etc.

enters the camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road

which tilts left or right, or a wind-

ing road.

●

The vehicle is driven on an

unpaved or rough road.

224

4-5. Using the driving support systems

COROLLA_U

■

Lane departure alert func-
tion

When the system determines
that the vehicle might depart
from its lane or course

*

, a warn-

ing is displayed on the
multi-information display, and a
warning buzzer will sound to
alert the driver.

When the warning buzzer sounds,
check the area around your vehicle
and carefully operate the steering
wheel to move the vehicle back to
the center of the lane.
Vehicle with BSM: When the sys-
tem determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the lane departure
alert will operate even if the turn
signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Steering assist function

When the system determines
that the vehicle might depart
from its lane or course

*

, the sys-

tem provides assistance as nec-
essary by operating the steering
wheel in small amounts for a
short period of time to keep the

WARNING

●

The traffic lane is excessively

narrow or wide.

●

The vehicle is extremely tilted

due to carrying heavy luggage

or having improper tire pres-

sure.

●

The distance to the preceding

vehicle is extremely short.

●

The vehicle is moving up and

down a large amount due to

road conditions during driving

(poor roads or road seams).

●

When driving in a tunnel or at

night with the headlights off or

when a headlight is dim due to

its lens being dirty or it being

misaligned.

●

The vehicle is struck by a cross-

wind.

●

The vehicle has just changed

lanes or crossed an intersec-

tion.

●

Tires which differ by structure,

manufacturer, brand or tread

pattern are used.

●

Snow tires, etc. are equipped.

Functions included in
LDA system

225

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

vehicle in its lane.

If the system detects that the steer-
ing wheel has not been operated
for a fixed amount of time or the
steering wheel is not being firmly
gripped, a warning is displayed on
the multi-information display and
the function is temporarily can-
celed.
Vehicle with BSM: When the sys-
tem determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the steering assist
function will operate even if the turn
signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Vehicle sway warning func-
tion

When the vehicle is swaying
within a lane, the warning

buzzer will sound and a mes-
sage will be displayed on the
multi-information display to alert
the driver.

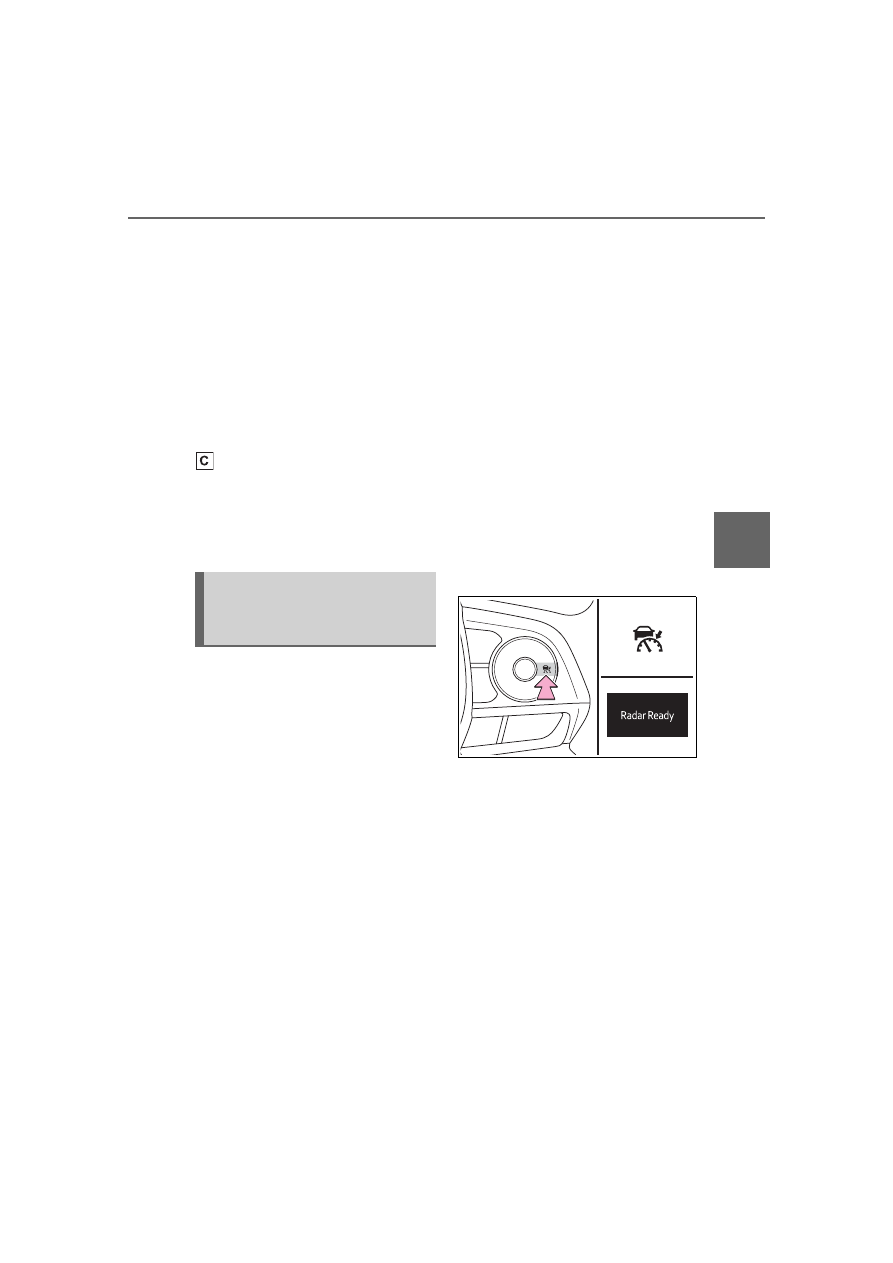

Press the LDA switch to turn the
LDA system on.

The LDA indicator illuminates and a
message is displayed on the
multi-information display.
Press the LDA switch again to turn
the LDA system off.
When the LDA system is turned on
or off, operation of the LDA system
continues in the same condition the
next time the engine is started.

Turning LDA system on

226

4-5. Using the driving support systems

COROLLA_U

LDA indicator

The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white: LDA system is
operating.
Illuminated in green: Steering wheel
assistance of the steering assist
function is operating.
Flashing in orange: Lane departure
alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.
Indicates that steering wheel assis-
tance of the steering assist function
is operating.

Lane departure alert function
display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
screen.



Inside of displayed lines is
white

Indicates that the system is rec-
ognizing white (yellow) lines or a
course

*

. When the vehicle

departs from its lane, the white
line displayed on the side the
vehicle departs from flashes
orange.



Inside of displayed lines is
black

Indicates that the system is not
able to recognize white (yellow)
lines or a course

*

 or is temporar-

ily canceled.

Indications on multi-infor-
mation display

227

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Operation conditions of each

function

●

Lane departure alert function

This function operates when all of
the following conditions are met.
• LDA is turned on.

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• System recognizes white (yellow)

lane lines or a course

*

. (When a

white [yellow] line or course

*

 is

recognized on only one side, the

system will operate only for the

recognized side.)

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

(Vehicle with BSM: Except when

another vehicle is in the lane on

the side where the turn signal was

operated)

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.228)

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

●

Steering assist function

This function operates when all of
the following conditions are met in
addition to the operation conditions
for the lane departure alert function.
• Setting for “Steering Assist” in



of the multi-information display is

set to “ON”. (



P.581)

• Vehicle is not accelerated or

decelerated by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.228)

●

Vehicle sway warning function

This function operates when all of
the following conditions are met.
• Setting for “Sway Warning” in



of the multi-information display is

set to “ON”. (



P.581)

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• No system malfunctions are

detected. (



P.228)

■

Temporary cancelation of func-

tions

When operation conditions are no

longer met, a function may be tem-

porarily canceled. However, when

the operation conditions are met

again, operation of the function is

automatically restored. (



P.227)

■

Steering assist function

●

Depending on the vehicle speed,

lane departure situation, road con-

ditions, etc., the driver may not

feel the function is operating or

the function may not operate at

all.

●

The steering control of the func-

tion is overridden by the driver’s

steering wheel operation.

●

Do not attempt to test the opera-

tion of the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be diffi-

cult to hear due to external noise,

audio playback, etc.

●

If the edge of the course

*

 is not

clear or straight, the lane depar-

ture alert function may not oper-

ate.

●

Vehicle with BSM: It may not be

possible for the system to deter-

mine if there is a danger of a colli-

sion with a vehicle in an adjacent

lane.

228

4-5. Using the driving support systems

COROLLA_U

●

Do not attempt to test the opera-

tion of the lane departure alert

function.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Hands off steering wheel warn-

ing

In the following situations, a warning

message urging the driver to hold

the steering wheel and the symbol

shown in the illustration are dis-

played on the multi-information dis-

play to warn the driver. The warning

stops when the system determines

that the driver holds the steering

wheel. Always keep your hands on

the steering wheel when using this

system, regardless of warnings.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

system is operating

If the driver continues to keep their

hands off of the steering wheel, the

buzzer sounds, the driver is warned

and the function is temporarily can-

celed. This warning also operates in

the same way when the driver con-

tinuously operates the steering

wheel only a small amount.

●

When the system determines that

the vehicle may not turn and

instead depart from its lane while

driving around a curve

Depending on the vehicle condition

and road conditions, the warning

may not operate. Also, if the system

determines that the vehicle is driv-

ing around a curve, warnings will

occur earlier than during

straight-lane driving.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

steering wheel assist of the steer-

ing assist function is operating.

If the driver continues to keep their

hands off of the steering wheel and

the steering wheel assist is operat-

ing, the buzzer sounds and the

driver is warned. Each time the

buzzer sounds, the continuing time

of the buzzer becomes longer.

■

Vehicle sway warning function

When the system determines that

the vehicle is swaying while the

vehicle sway warning function is

operating, a buzzer sounds and a

warning message urging the driver

to rest and the symbol shown in the

illustration are simultaneously dis-

played on the multi-information dis-

play.

Depending on the vehicle and road

conditions, the warning may not

operate.

■

Warning message

If the following warning message is

displayed on the multi-information

display and the LDA indicator illumi-

nates in orange, follow the appropri-

ate troubleshooting procedure. Also,

if a different warning message is

displayed, follow the instructions

displayed on the screen.

●

“LDA Malfunction Visit Your

Dealer”

229

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

The system may not be operating

properly. Have the vehicle inspected

by your Toyota dealer.

●

“LDA Unavailable”

The system is temporarily canceled

due to a malfunction in a sensor

other than the front camera. Turn

the LDA system off, wait for a little

while, and then turn the LDA system

back on.

●

“LDA Unavailable at Current

Speed”

The function cannot be used as the

vehicle speed exceeds the LDA

operation range. Drive slower.

●

“LDA Unavailable Below Approx.

32MPH”

The LDA system cannot be used as

the vehicle speed is less than

approximately 32 mph (50 km/h).

Drive the vehicle at approximately

32 mph (50 km/h) or more.

■

Customization

Function settings can be changed.

(



P.581)

*

: If equipped

■

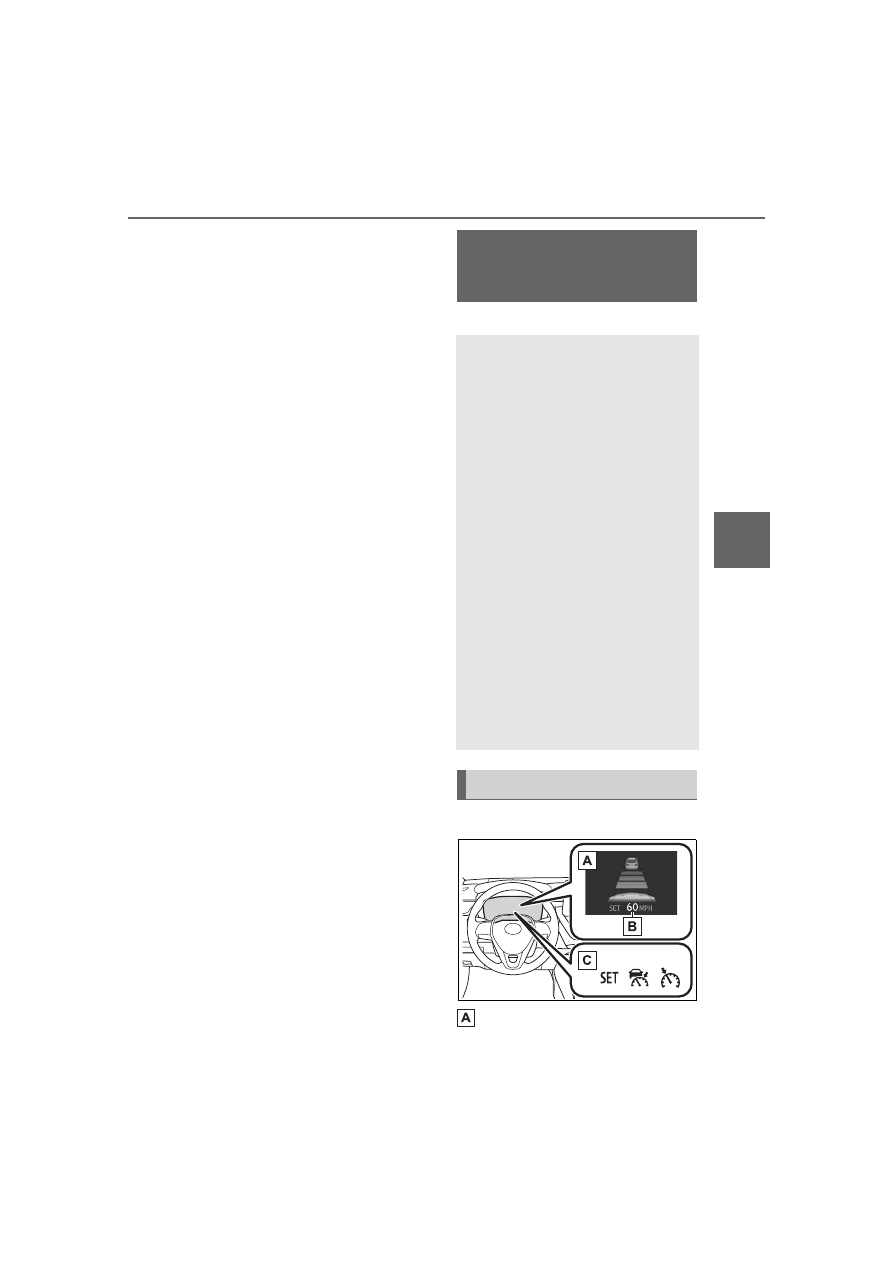

Meter display

Multi-information display

Dynamic radar cruise

control with full-speed

range

*

In vehicle-to-vehicle dis-
tance control mode, the
vehicle automatically accel-
erates, decelerates and
stops to match the speed
changes of the preceding
vehicle even if the accelera-
tor pedal is not depressed.
In constant speed control
mode, the vehicle runs at a
fixed speed.

Use the dynamic radar
cruise control with
full-speed range on free-
ways and highways.



Vehicle-to-vehicle distance
control mode (



P.232)



Constant speed control
mode (



P.236)

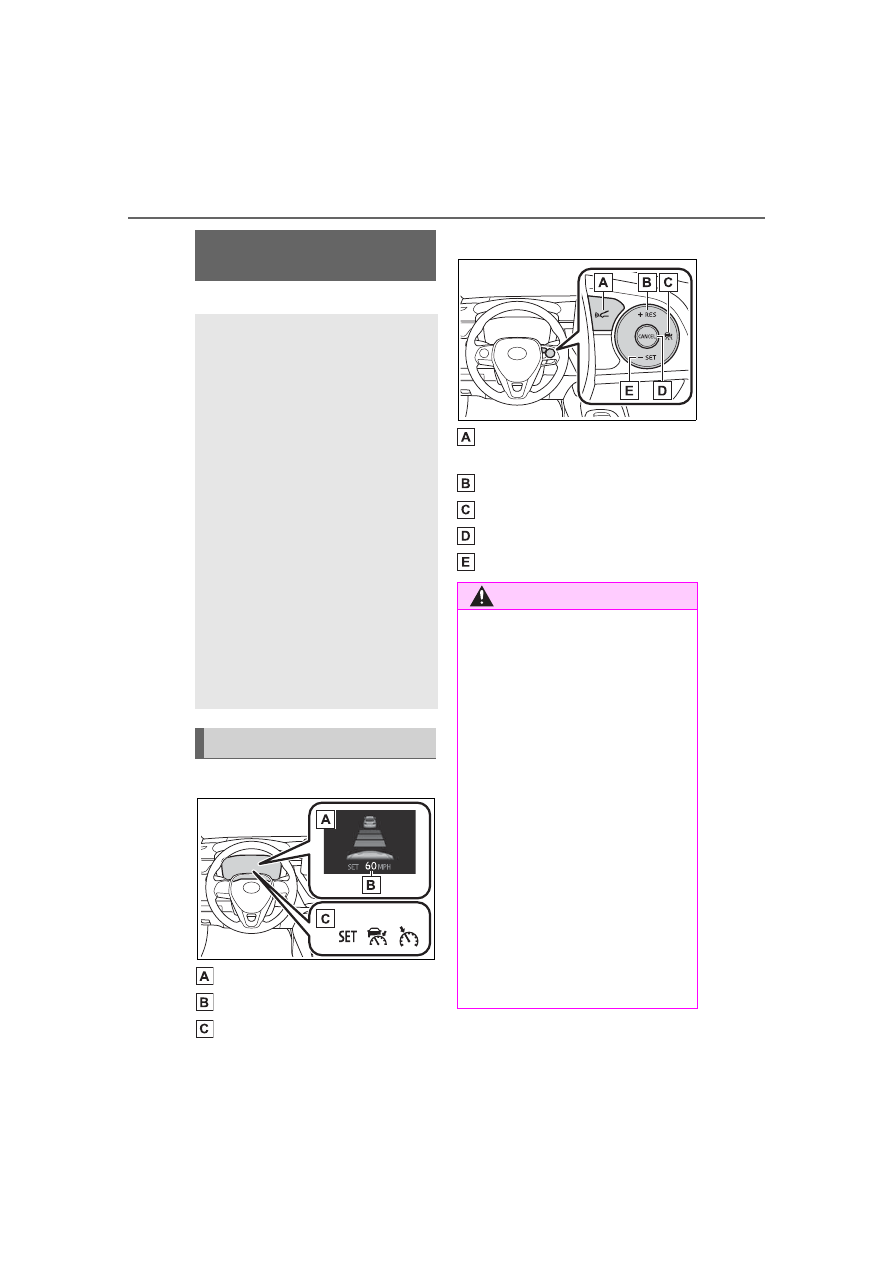

System Components

230

4-5. Using the driving support systems

COROLLA_U

Set speed
Indicators

■

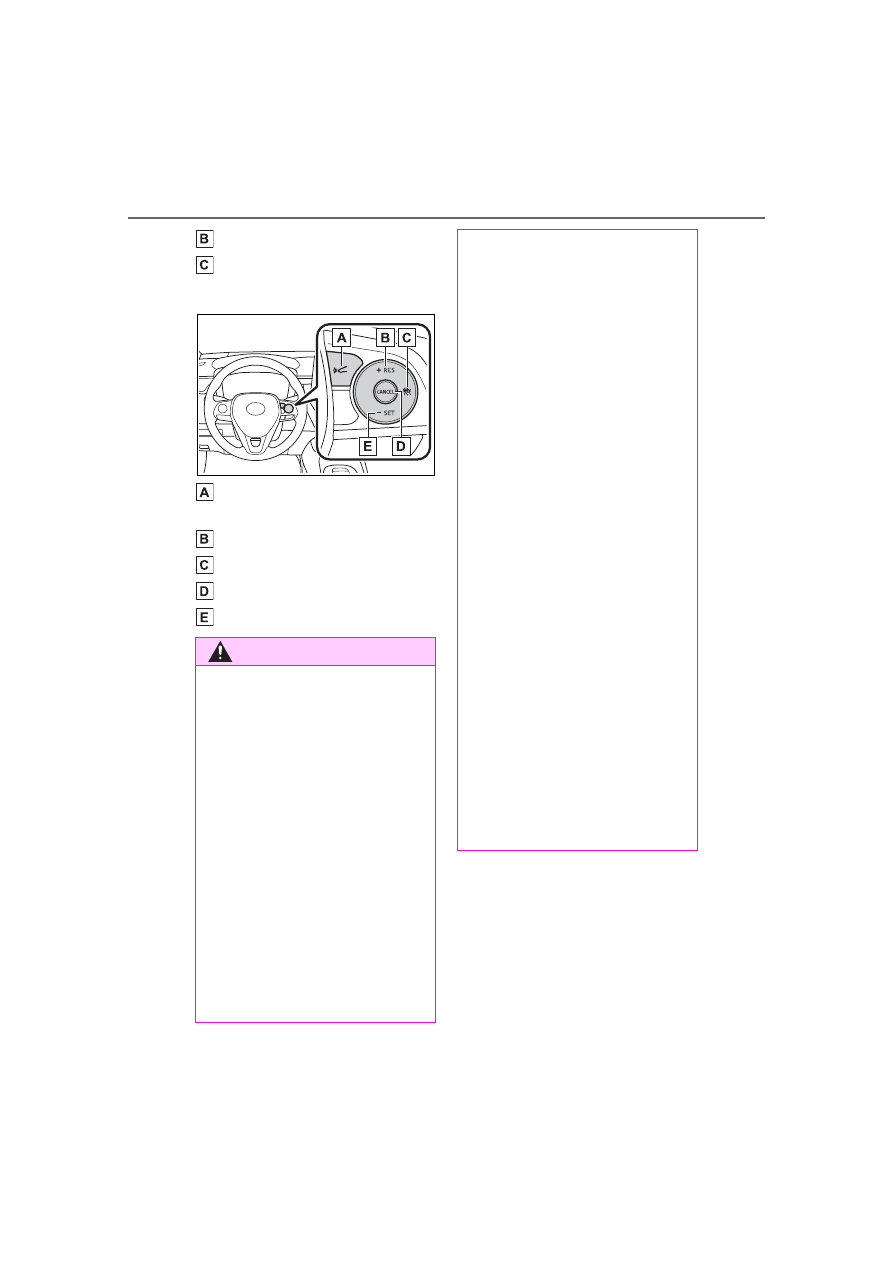

Operation switches

Vehicle-to-vehicle distance
switch
“+RES” switch
Cruise control main switch
Cancel switch
“-SET” switch

WARNING

■

Before using dynamic radar

cruise control with full-speed

range

●

Driving safely is the sole

responsibility of the driver. Do

not rely solely on the system,

and drive safely by always pay-

ing careful attention to your sur-

roundings.

●

The dynamic radar cruise con-

trol with full-speed range pro-

vides driving assistance to

reduce the driver’s burden.

However, there are limitations to

the assistance provided.

Read the following conditions

carefully. Do not overly rely on this

system and always drive carefully.
• When the sensor may not be

correctly detecting the vehicle

ahead:



P.238

• Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly:



P.239

●

Set the speed appropriately

depending on the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for check-

ing the set speed.

●

Even when the system is func-

tioning normally, the condition of

the preceding vehicle as

detected by the system may dif-

fer from the condition observed

by the driver. Therefore, the

driver must always remain alert,

assess the danger of each situ-

ation and drive safely. Relying

solely on this system or assum-

ing the system ensures safety

while driving can lead to an

accident, resulting in death or

serious injury.

●

Switch the dynamic radar cruise

control with full-speed range

setting to off, using the cruise

control main switch when not in

use.

■

Cautions regarding the driv-

ing assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Failure to do so may

cause an accident resulting in

death or serious injury.

231

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

WARNING

●

Assisting the driver to measure

following distance

The dynamic radar cruise control

with full-speed range is only

intended to help the driver in

determining the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead. It is not a mechanism that

allows careless or inattentive driv-

ing, and it is not a system that can

assist the driver in low-visibility

conditions.
It is still necessary for driver to

pay close attention to the vehi-

cle’s surroundings.

●

Assisting the driver to judge

proper following distance

The dynamic radar cruise control

with full-speed range determines

whether the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead is within a set range. It is

not capable of making any other

type of judgement. Therefore, it is

absolutely necessary for the

driver to remain vigilant and to

determine whether or not there is

a possibility of danger in any

given situation.

●

Assisting the driver to operate

the vehicle

The dynamic radar cruise control

with full-speed range does not

include functions which will pre-

vent or avoid collisions with vehi-

cles ahead of your vehicle.

Therefore, if there is ever any

possibility of danger, the driver

must take immediate and direct

control of the vehicle and act

appropriately in order to ensure

the safety of all involved.

■

Situations unsuitable for

dynamic radar cruise control

with full-speed range

Do not use dynamic radar cruise

control with full-speed range in

any of the following situations.

Doing so may result in inappropri-

ate speed control and could

cause an accident resulting in

death or serious injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

Vehicle speed may exceed the set

speed when driving down a steep

hill.

●

At entrances to freeways and

highways

●

When weather conditions are

bad enough that they may pre-

vent the sensors from detecting

correctly (fog, snow, sand-

storm, heavy rain, etc.)

●

When there is rain, snow, etc.

on the front surface of the radar

or front camera

●

In traffic conditions that require

frequent repeated acceleration

and deceleration

●

During emergency towing

●

When an approach warning

buzzer is heard often

232

4-5. Using the driving support systems

COROLLA_U

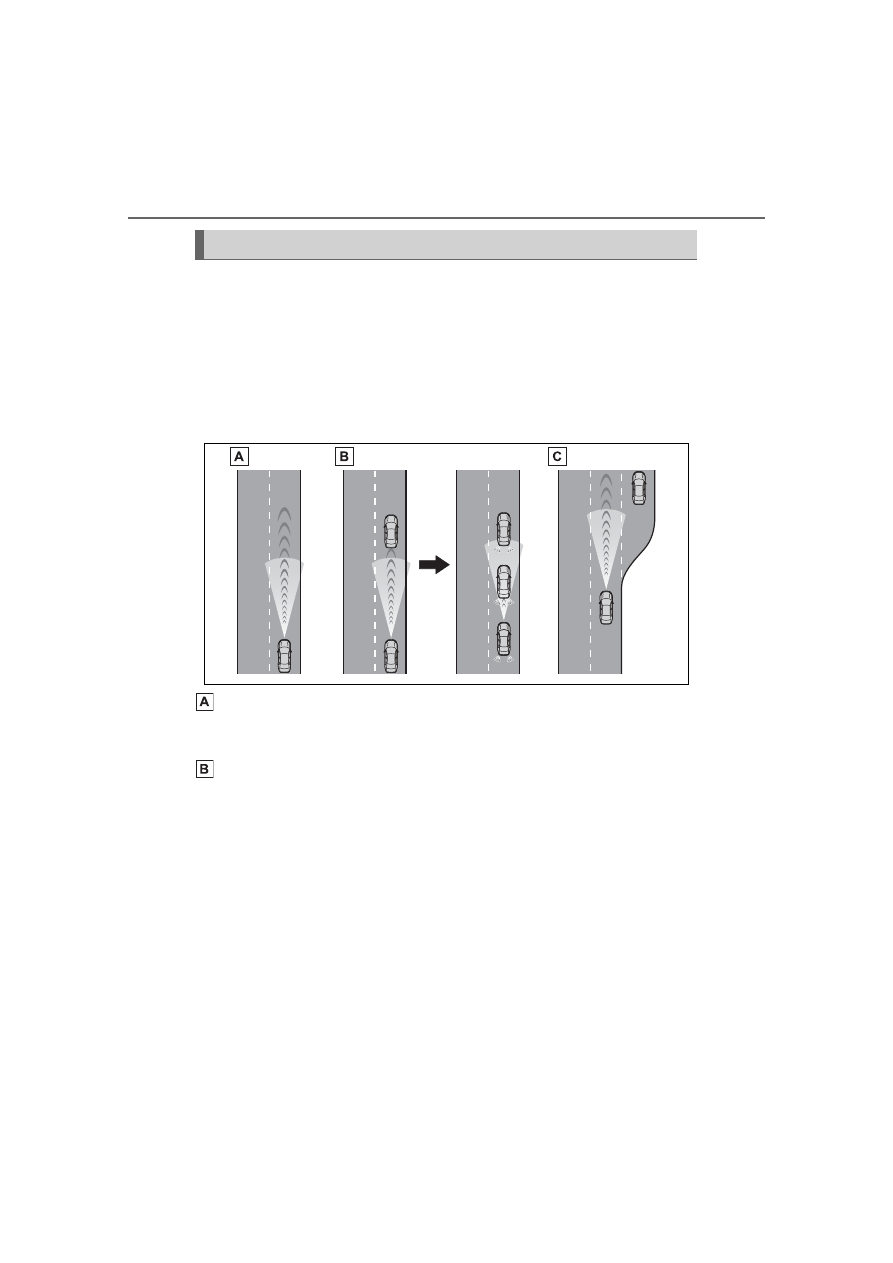

This mode employs a radar to detect the presence of vehicles up to
approximately 328 ft. (100 m) ahead, determines the current vehi-
cle-to-vehicle following distance, and operates to maintain a suitable
following distance from the vehicle ahead. The desired vehi-
cle-to-vehicle distance can also be set by operating the vehi-
cle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may
become shorter.

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is nec-
essary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is
stopped by system control). After the vehicle ahead starts off, pressing the
“+RES” switch or depressing the accelerator pedal (start-off operation) will
resume follow-up cruising. If the start-off operation is not performed, system
control continues to keep your vehicle stopped.

Driving in vehicle-to-vehicle distance control mode

233

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

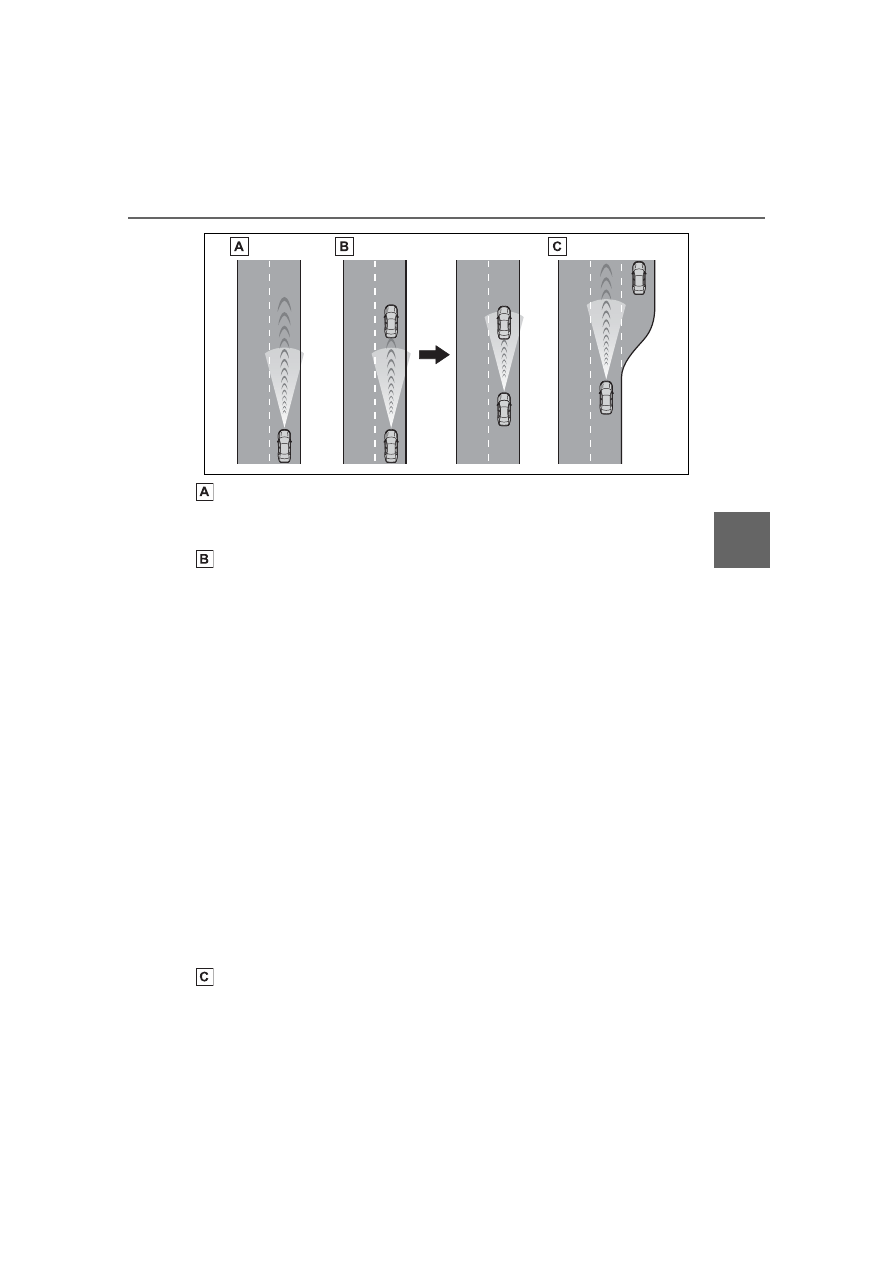

When the turn signal lever is operated and your vehicle moves to an over-
taking lane while driving at 50 mph (80 km/h) or more, the vehicle will accel-
erate to help to overtake a passing vehicle.
The system’s identification of what is an overtaking lane may be determined
solely based on the location of the steering wheel in the vehicle (left side
driver position versus right side driver position.) If the vehicle is driven to a
region where the overtaking lane is on a different side from where the vehi-
cle is normally driven, the vehicle may accelerate when the turn signal lever
is operated in the opposite direction to the overtaking lane (e.g., if the driver
normally operates the vehicle in a region where the overtaking lane is to the
right but then drives to a region where the overtaking lane is to the left, the
vehicle may accelerate when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

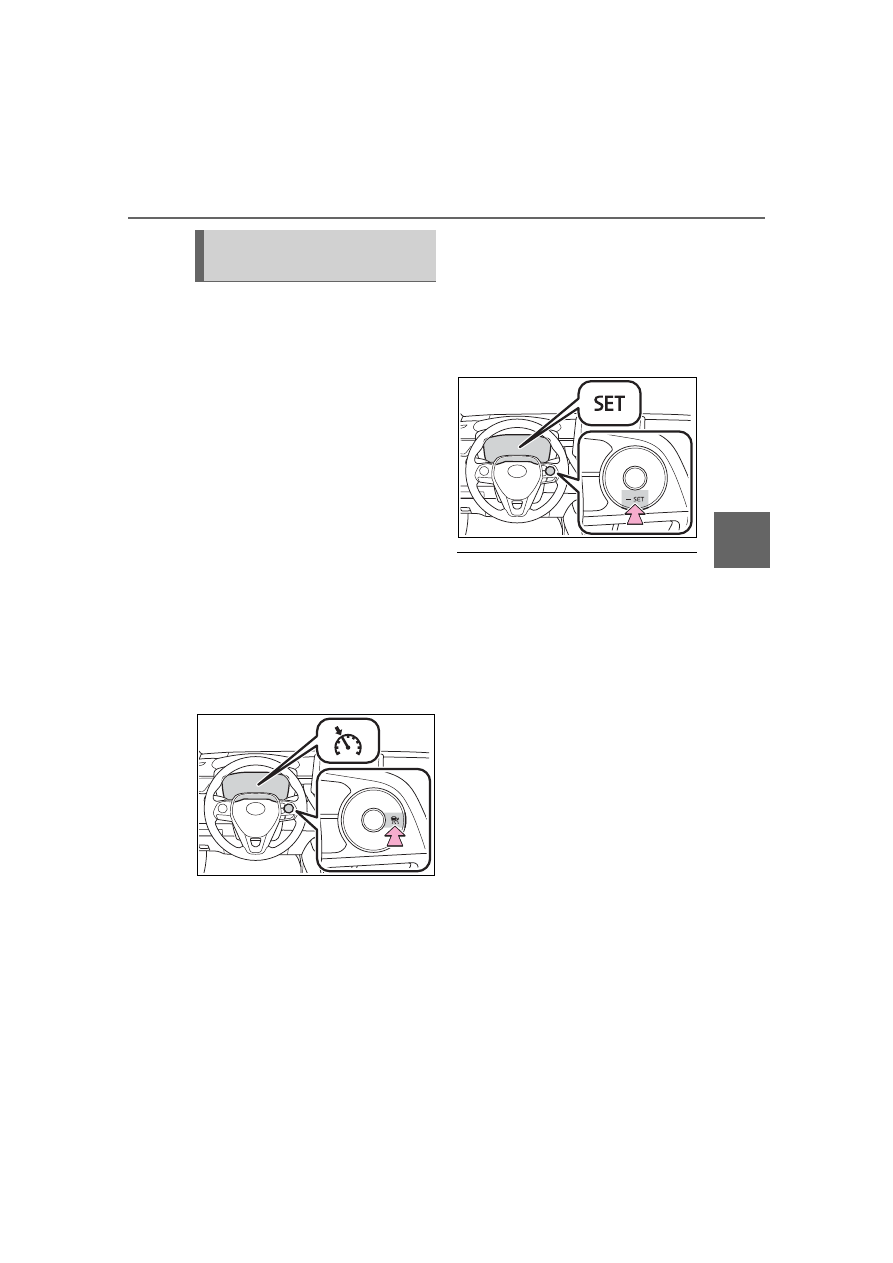

1

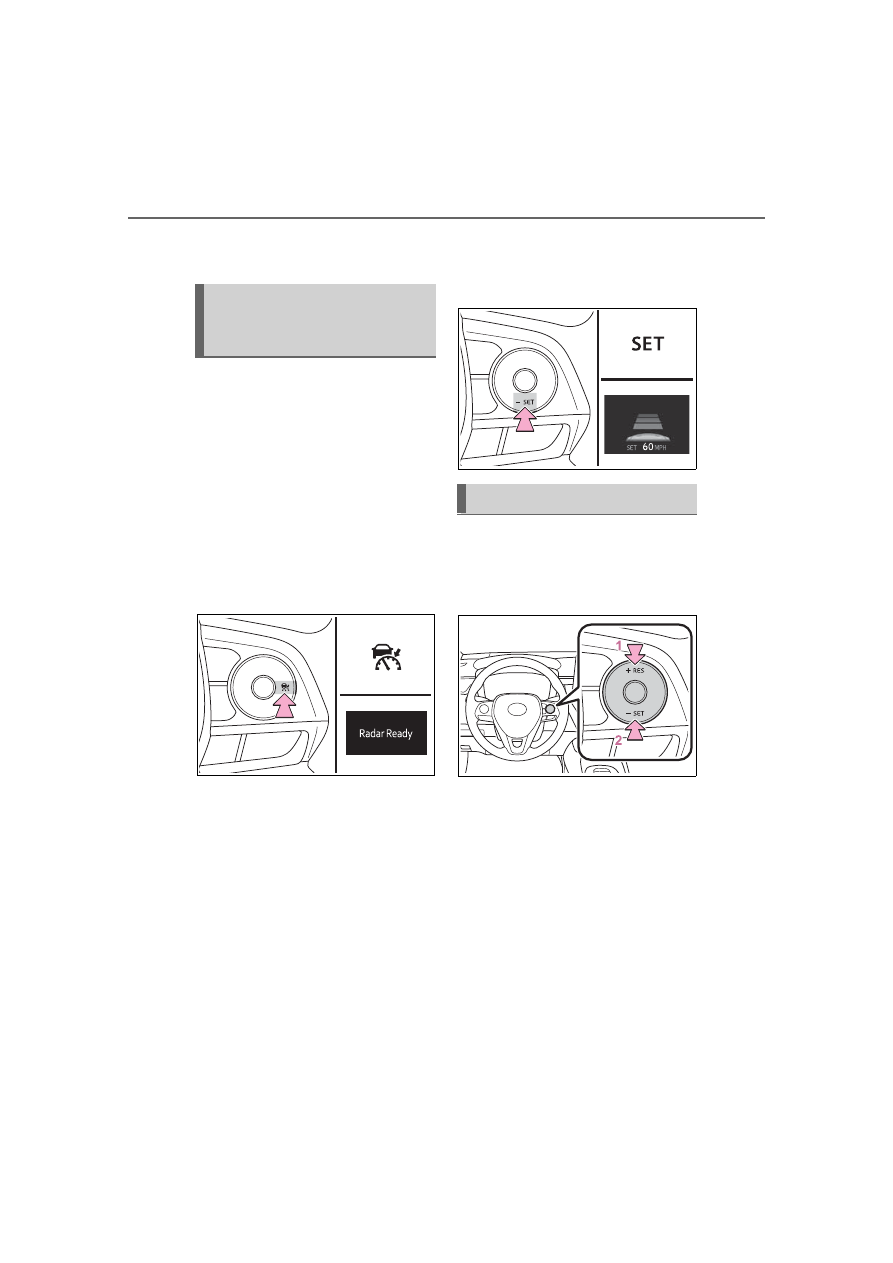

Press the cruise control main
switch to activate the cruise
control.

Dynamic radar cruise control indi-

cator will come on and a message

will be displayed on the multi-infor-

mation display. Press the switch

again to deactivate the cruise con-

trol.
If the cruise control main switch is

pressed and held for 1.5 seconds

or more, the system turns on in

constant speed control mode.

(



P.236)

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

Setting the vehicle speed
(vehicle-to-vehicle dis-
tance control mode)

234

4-5. Using the driving support systems

COROLLA_U

set speed.

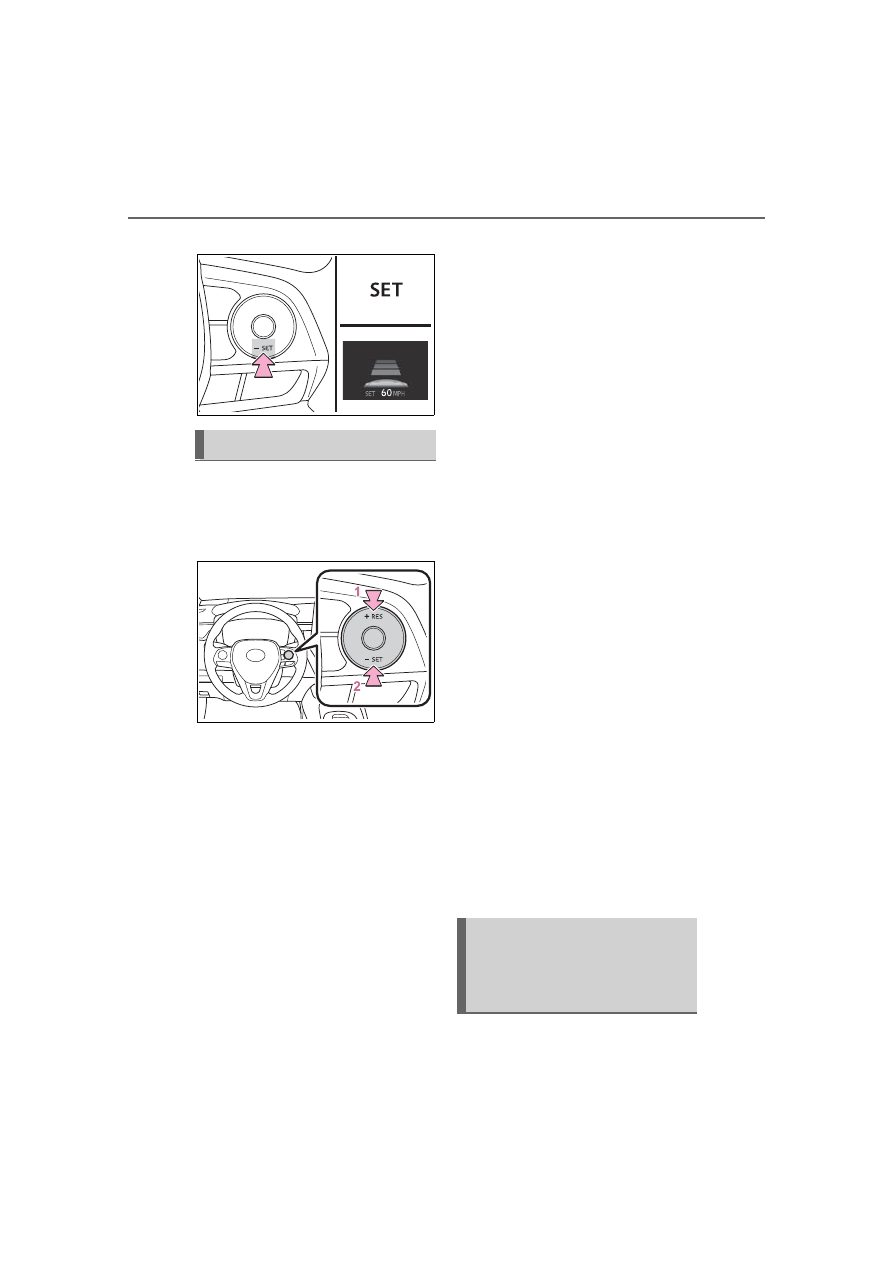

To change the set speed, press
the “+RES” or “-SET” switch
until the desired set speed is
displayed.

1

Increases the speed (Except
when the vehicle has been
stopped by system control in
vehicle-to-vehicle distance
control mode)

2

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.

In the vehicle-to-vehicle dis-
tance control mode, the set
speed will be increased or
decreased as follows:



For the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 1 mph (1.6 km/h)

*1

 or

1 km/h (0.6 mph)

*2

 increments for

as long as the switch is held



Except for the U.S. mainland
and Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 5 mph (8 km/h)

*1

 or 5

km/h (3.1 mph)

*2

 increments for as

long as the switch is held

In the constant speed control
mode (



P.236), the set speed

will be increased or decreased
as follows:

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: The speed will
continue to change while the switch
is held.

*1

:When the set speed is shown in

“MPH”

*2

:When the set speed is shown in

“km/h”

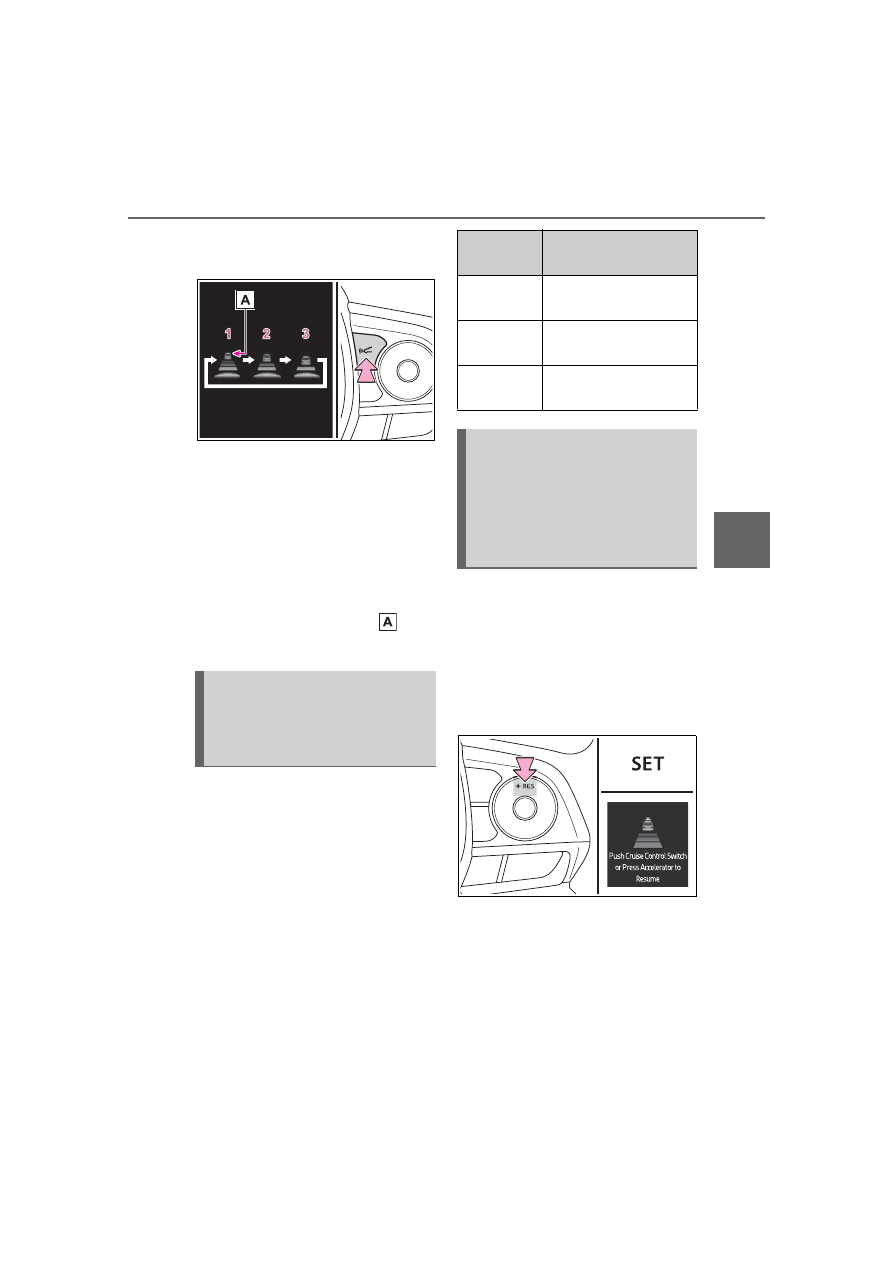

Pressing the switch changes the

Adjusting the set speed

Changing the vehi-
cle-to-vehicle distance
(vehicle-to-vehicle dis-
tance control mode)

235

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

vehicle-to-vehicle distance as
follows:

1

Long

2

Medium

3

Short

The vehicle-to-vehicle distance is
set automatically to long mode
when the engine switch is turned to
ON.
If a vehicle is running ahead of you,
the preceding vehicle mark

 will

also be displayed.

Select a distance from the table
below. Note that the distances
shown correspond to a vehicle
speed of 50 mph (80 km/h).
Vehicle-to-vehicle distance
increases/decreases in accor-
dance with vehicle speed. When
the vehicle is stopped by system
control, the vehicle stops at a
certain vehicle-to-vehicle dis-
tance depending on the situa-
tion.

After the vehicle ahead of you
starts off, press the “+RES”
switch.
Your vehicle will also resume
follow-up cruising if the acceler-
ator pedal is depressed after the
vehicle ahead of you starts off.

Vehicle-to-vehicle dis-
tance settings (vehi-
cle-to-vehicle distance
control mode)

Distance

options

Vehicle-to-vehicle dis-

tance

Long

Approximately 160 ft.

(50 m)

Medium

Approximately 130 ft.

(40 m)

Short

Approximately 100 ft.

(30 m)

Resuming follow-up
cruising when the vehicle
has been stopped by sys-
tem control (vehi-
cle-to-vehicle distance
control mode)

236

4-5. Using the driving support systems

COROLLA_U

1

Pressing the cancel switch
cancels the speed control.

The speed control is also canceled
when the brake pedal is depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)

2

Pressing the “+RES” switch
resumes the cruise control
and returns vehicle speed to
the set speed.

When your vehicle is too close
to a vehicle ahead, and suffi-
cient automatic deceleration via
the cruise control is not possi-
ble, the display will flash and the
buzzer will sound to alert the
driver. An example of this would
be if another driver cuts in front
of you while you are following a
vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.

■

Warnings may not occur
when

In the following instances, warn-
ings may not occur even when
the vehicle-to-vehicle distance is
small.



When the speed of the pre-
ceding vehicle matches or
exceeds your vehicle speed



When the preceding vehicle is
traveling at an extremely slow
speed



Immediately after the cruise
control speed was set



When depressing the acceler-
ator pedal

When constant speed control
mode is selected, your vehicle
will maintain a set speed without
controlling the vehicle-to-vehi-
cle distance. Select this mode
only when vehicle-to-vehicle dis-
tance control mode does not
function correctly due to a dirty
radar, etc.

Canceling and resuming
the speed control

Approach warning (vehi-
cle-to-vehicle distance
control mode)

Selecting constant speed
control mode

237

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

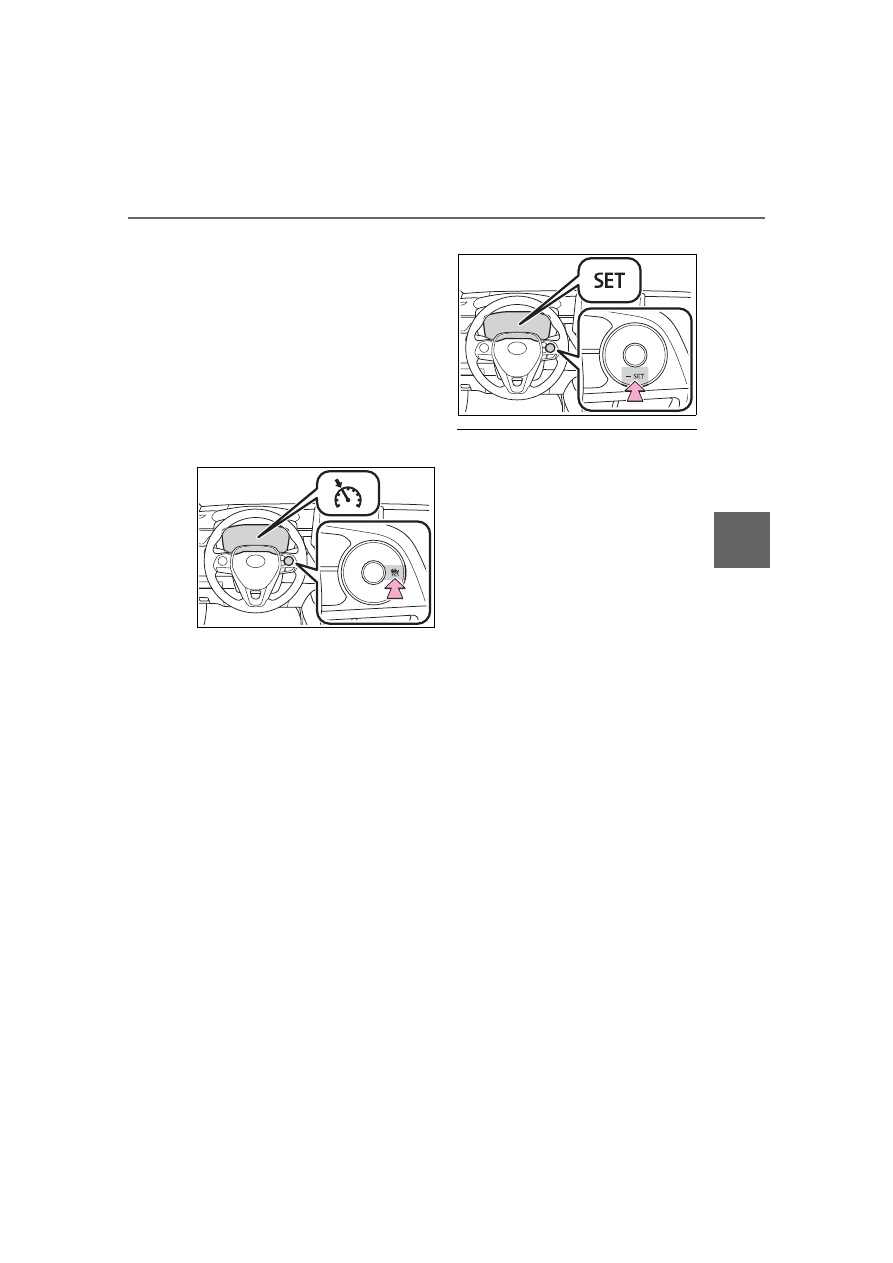

1

With the cruise control off,
press and hold the cruise
control main switch for 1.5
seconds or more.

Immediately after the switch is

pressed, the dynamic radar cruise

control indicator will come on. After-

wards, it switches to the cruise con-

trol indicator.
Switching to constant speed control

mode is only possible when operat-

ing the switch with the cruise con-

trol off.

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

set speed.
Adjusting the speed setting:



P.234

Canceling and resuming the speed

setting:



P.236

■

Dynamic radar cruise control

with full-speed range can be set

when

●

The shift lever is in D.

●

The desired set speed can be set

when the vehicle speed is approx-

imately 20 mph (30 km/h) or more.

(However, when the vehicle speed

is set while driving at below

approximately 20 mph [30 km/h],

the set speed will be set to

approximately 20 mph [30 km/h].)

■

Accelerating after setting the

vehicle speed

The vehicle can accelerate by oper-

ating the accelerator pedal. After

accelerating, the set speed

resumes. However, during vehi-

cle-to-vehicle distance control

mode, the vehicle speed may

decrease below the set speed in

order to maintain the distance to the

preceding vehicle.

■

When the vehicle stops while

follow-up cruising

●

Pressing the “+RES” switch while

the vehicle ahead stops will

resume follow-up cruising if the

vehicle ahead starts off within

approximately 3 seconds after the

switch is pressed.

●

If the vehicle ahead starts off

within 3 seconds after your vehicle

stops, follow-up cruising will be

resumed.

238

4-5. Using the driving support systems

COROLLA_U

■

Automatic cancelation of vehi-

cle-to-vehicle distance control

mode

Vehicle-to-vehicle distance control

mode is automatically canceled in

the following situations.

●

VSC is activated.

●

TRAC is activated for a period of

time.

●

When the VSC or TRAC system is

turned off.

●

The sensor cannot detect cor-

rectly because it is covered in

some way.

●

Pre-collision braking is activated.

●

The parking brake is operated.

●

The vehicle is stopped by system

control on a steep incline.

●

The following are detected when

the vehicle has been stopped by

system control:

• The driver is not wearing a seat

belt.

• The driver’s door is opened.

• The vehicle has been stopped for

about 3 minutes

If vehicle-to-vehicle distance control

mode is automatically canceled for

any reasons other than the above,

there may be a malfunction in the

system. Contact your Toyota dealer.

■

Automatic cancelation of con-

stant speed control mode

Constant speed control mode is

automatically canceled in the follow-

ing situations:

●

Actual vehicle speed is more than

approximately 10 mph (16 km/h)

below the set vehicle speed.

●

Actual vehicle speed falls below

approximately 20 mph (30 km/h).

●

VSC is activated.

●

TRAC is activated for a period of

time.

●

When the VSC or TRAC system is

turned off.

●

Pre-collision braking is activated.

If constant speed control mode is

automatically canceled for any rea-

sons other than the above, there

may be a malfunction in the system.

Contact your Toyota dealer.

■

Brake operation

A brake operation sound may be

heard and the brake pedal response

may change, but these are not mal-

functions.

■

Warning messages and buzzers

for dynamic radar cruise con-

trol with full-speed range

Warning messages and buzzers are

used to indicate a system malfunc-

tion or to inform the driver of the

need for caution while driving. If a

warning message is shown on the

multi-information display, read the

message and follow the instructions.

(



P.201, 521)

■

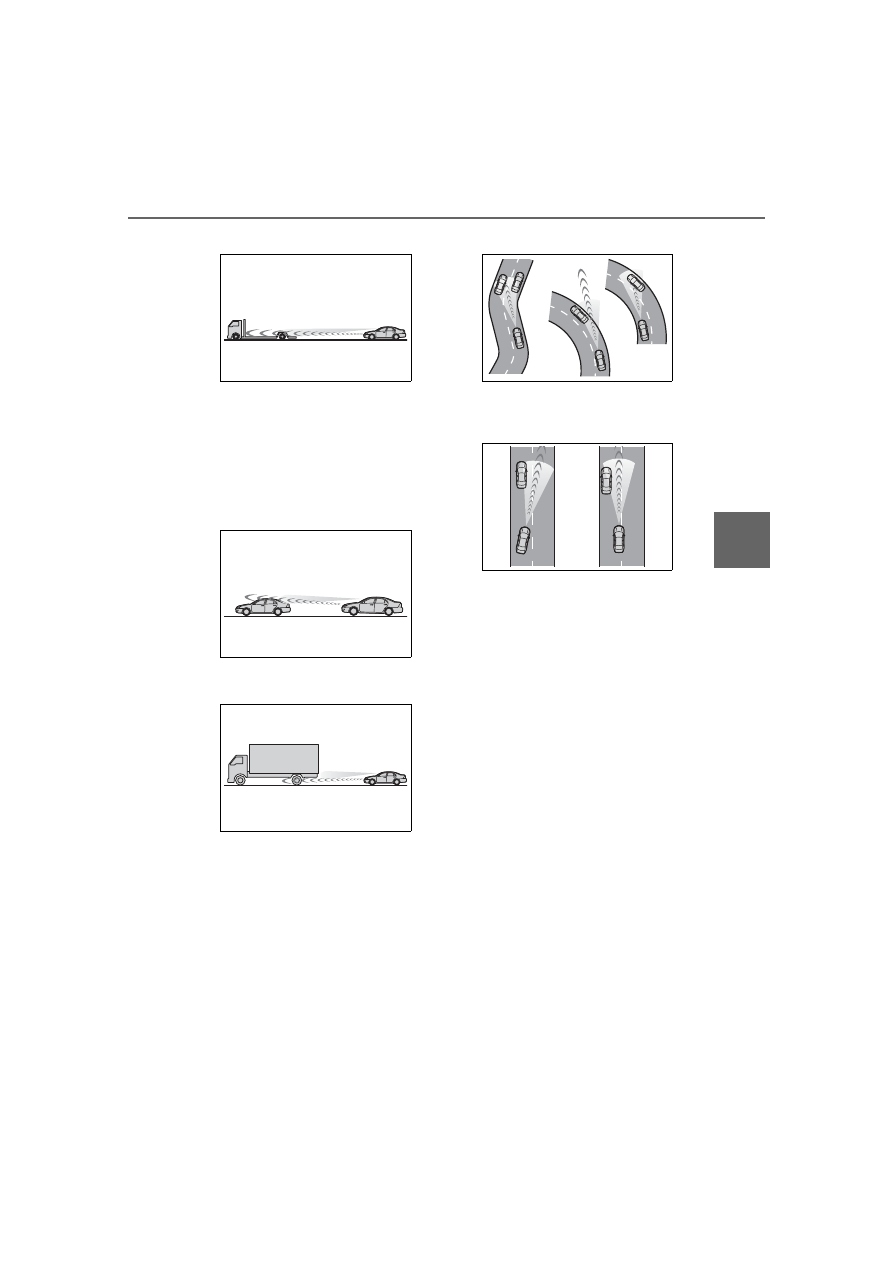

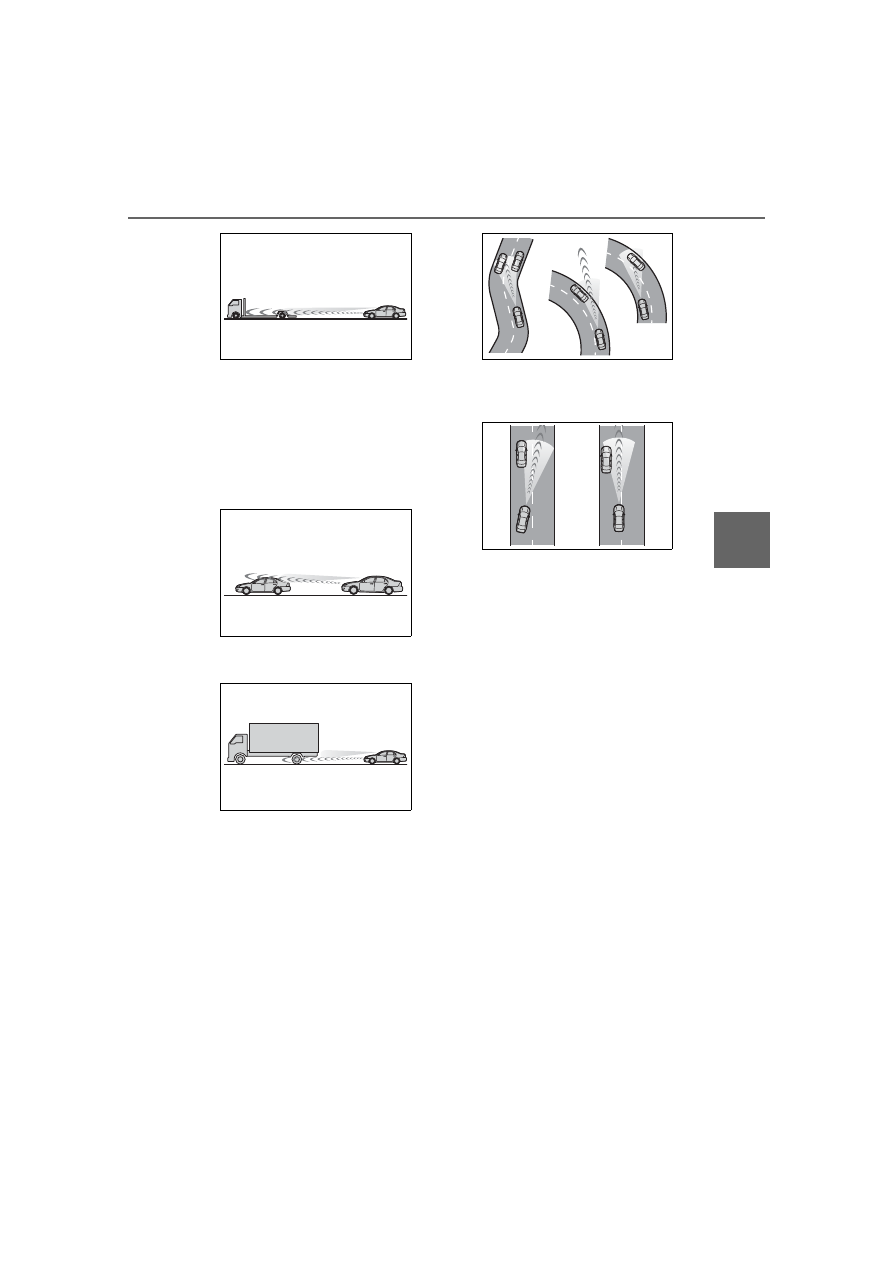

When the sensor may not be

correctly detecting the vehicle

ahead

In the case of the following and

depending on the conditions, oper-

ate the brake pedal when decelera-

tion of the system is insufficient or

operate the accelerator pedal when

acceleration is required.
As the sensor may not be able to

correctly detect these types of vehi-

cles, the approach warning

(



P.236) may not be activated.

●

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the

same lane

●

Vehicles with small rear ends

(trailers with no load on board,

etc.)

239

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

●

Motorcycles traveling in the same

lane

●

When water or snow thrown up by

the surrounding vehicles hinders

the detecting of the sensor

●

When your vehicle is pointing

upwards (caused by a heavy load

in the luggage compartment, etc.)

●

Preceding vehicle has an

extremely high ground clearance

■

Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly

In the case of the following condi-

tions, operate the brake pedal (or

accelerator pedal, depending on the

situation) as necessary.
As the sensor may not be able to

correctly detect vehicles ahead, the

system may not operate properly.

●

When the road curves or when the

lanes are narrow

●

When steering wheel operation or

your position in the lane is unsta-

ble

●

When the vehicle ahead of you

decelerates suddenly

●

When driving on a road sur-

rounded by a structure, such as in

a tunnel or on a bridge

●

While the vehicle speed is

decreasing to the set speed after

the vehicle accelerates by

depressing the accelerator pedal

240

4-5. Using the driving support systems

COROLLA_U

*

: If equipped

■

Meter display

Multi-information display
Set speed
Indicators

■

Operation switches

Vehicle-to-vehicle distance
switch
“+RES” switch
Cruise control main switch
Cancel switch
“-SET” switch

Dynamic radar cruise

control

*

In vehicle-to-vehicle dis-
tance control mode, the
vehicle automatically accel-
erates and decelerates to
match the speed changes of
the preceding vehicle even
if the accelerator pedal is
not depressed. In constant
speed control mode, the
vehicle runs at a fixed
speed.

Use the dynamic radar
cruise control on freeways
and highways.



Vehicle-to-vehicle distance
control mode (



P.242)



Constant speed control
mode (



P.247)

System Components

WARNING

■

Before using dynamic radar

cruise control

●

Driving safely is the sole

responsibility of the driver. Do

not rely solely on the system,

and drive safely by always pay-

ing careful attention to your sur-

roundings.

●

The dynamic radar cruise con-

trol provides driving assistance

to reduce the driver’s burden.

However, there are limitations to

the assistance provided.

Read the following conditions

carefully. Do not overly rely on this

system and always drive carefully.
• When the sensor may not be

correctly detecting the vehicle

ahead:



P.248

• Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly:



P.249

241

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

WARNING

●

Set the speed appropriately

depending on the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for check-

ing the set speed.

●

Even when the system is func-

tioning normally, the condition of

the preceding vehicle as

detected by the system may dif-

fer from the condition observed

by the driver. Therefore, the

driver must always remain alert,

assess the danger of each situ-

ation and drive safely. Relying

solely on this system or assum-

ing the system ensures safety

while driving can lead to an

accident, resulting in death or

serious injury.

●

Switch the dynamic radar cruise

control setting to off, using the

cruise control main switch when

not in use.

■

Cautions regarding the driv-

ing assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Failure to do so may

cause an accident resulting in

death or serious injury.

●

Assisting the driver to measure

following distance

The dynamic radar cruise control

is only intended to help the driver

in determining the following dis-

tance between the driver’s own

vehicle and a designated vehicle

traveling ahead. It is not a mecha-

nism that allows careless or inat-

tentive driving, and it is not a

system that can assist the driver

in low-visibility conditions.
It is still necessary for driver to

pay close attention to the vehi-

cle’s surroundings.

●

Assisting the driver to judge

proper following distance

The dynamic radar cruise control

determines whether the following

distance between the driver’s own

vehicle and a designated vehicle

traveling ahead is within a set

range. It is not capable of making

any other type of judgement.

Therefore, it is absolutely neces-

sary for the driver to remain vigi-

lant and to determine whether or

not there is a possibility of danger

in any given situation.

●

Assisting the driver to operate

the vehicle

The dynamic radar cruise control

does not include functions which

will prevent or avoid collisions

with vehicles ahead of your vehi-

cle. Therefore, if there is ever any

possibility of danger, the driver

must take immediate and direct

control of the vehicle and act

appropriately in order to ensure

the safety of all involved.

■

Situations unsuitable for

dynamic radar cruise control

Do not use dynamic radar cruise

control in any of the following situ-

ations. Doing so may result in

inappropriate speed control and

could cause an accident resulting

in death or serious injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

242

4-5. Using the driving support systems

COROLLA_U

This mode employs a radar to detect the presence of vehicles up to
approximately 328 ft. (100 m) ahead, determines the current vehi-
cle-to-vehicle following distance, and operates to maintain a suitable
following distance from the vehicle ahead. The desired vehi-
cle-to-vehicle distance can also be set by operating the vehi-
cle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may
become shorter.

WARNING

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

Vehicle speed may exceed the set

speed when driving down a steep

hill.

●

At entrances to freeways and

highways

●

When weather conditions are

bad enough that they may pre-

vent the sensors from detecting

correctly (fog, snow, sand-

storm, heavy rain, etc.)

●

When there is rain, snow, etc.

on the front surface of the radar

or front camera

●

In traffic conditions that require

frequent repeated acceleration

and deceleration

●

During emergency towing

●

When an approach warning

buzzer is heard often

Driving in vehicle-to-vehicle distance control mode

243

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is nec-
essary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the turn signal lever is operated and your vehicle moves to an over-
taking lane while driving at 50 mph (80 km/h) or more, the vehicle will accel-
erate to help to overtake a passing vehicle.
The system’s identification of what is an overtaking lane may be determined
solely based on the location of the steering wheel in the vehicle (left side
driver position versus right side driver position.) If the vehicle is driven to a
region where the overtaking lane is on a different side from where the vehi-
cle is normally driven, the vehicle may accelerate when the turn signal lever
is operated in the opposite direction to the overtaking lane (e.g., if the driver
normally operates the vehicle in a region where the overtaking lane is to the
right but then drives to a region where the overtaking lane is to the left, the
vehicle may accelerate when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower
than the set speed

244

4-5. Using the driving support systems

COROLLA_U

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

1

Press the cruise control main
switch to activate the cruise
control.

Dynamic radar cruise control indi-

cator will come on and a message

will be displayed on the multi-infor-

mation display. Press the switch

again to deactivate the cruise con-

trol.
If the cruise control main switch is

pressed and held for 1.5 seconds

or more, the system turns on in

constant speed control mode.

(



P.247)

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

set speed.

To change the set speed, press
the “+RES” or “-SET” switch
until the desired set speed is
displayed.

1

Increases the speed

2

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.

In the vehicle-to-vehicle dis-
tance control mode, the set
speed will be increased or
decreased as follows:

Setting the vehicle speed
(vehicle-to-vehicle dis-
tance control mode)

Adjusting the set speed

245

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U



For the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 1 mph (1.6 km/h)

*1

 or

1 km/h (0.6 mph)

*2

 increments for

as long as the switch is held



Except for the U.S. mainland
and Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 5 mph (8 km/h)

*1

 or 5

km/h (3.1 mph)

*2

 increments for as

long as the switch is held

In the constant speed control
mode (



P.247), the set speed

will be increased or decreased
as follows:

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: The speed will
continue to change while the switch
is held.

*1

:When the set speed is shown in

“MPH”

*2

:When the set speed is shown in

“km/h”

Pressing the switch changes the

vehicle-to-vehicle distance as
follows:

1

Long

2

Medium

3

Short

The vehicle-to-vehicle distance is
set automatically to long mode
when the engine switch is turned to
ON.
If a vehicle is running ahead of you,
the preceding vehicle mark

 will

also be displayed.

Select a distance from the table
below. Note that the distances
shown correspond to a vehicle
speed of 50 mph (80 km/h).
Vehicle-to-vehicle distance
increases/decreases in accor-
dance with vehicle speed.

Changing the vehi-
cle-to-vehicle distance
(vehicle-to-vehicle dis-
tance control mode)

Vehicle-to-vehicle dis-
tance settings (vehi-
cle-to-vehicle distance
control mode)

246

4-5. Using the driving support systems

COROLLA_U

1

Pressing the cancel switch
cancels the speed control.

The speed control is also canceled
when the brake pedal is depressed.

2

Pressing the “+RES” switch
resumes the cruise control
and returns vehicle speed to
the set speed.

However, cruise control does not
resume when the vehicle speed is
approximately 16 mph (25 km/h) or
less.

When your vehicle is too close
to a vehicle ahead, and suffi-

cient automatic deceleration via
the cruise control is not possi-
ble, the display will flash and the
buzzer will sound to alert the
driver. An example of this would
be if another driver cuts in front
of you while you are following a
vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.

■

Warnings may not occur
when

In the following instances, warn-
ings may not occur even when
the vehicle-to-vehicle distance is
small.



When the speed of the pre-
ceding vehicle matches or
exceeds your vehicle speed



When the preceding vehicle is
traveling at an extremely slow
speed



Immediately after the cruise
control speed was set



When depressing the acceler-
ator pedal

Distance

options

Vehicle-to-vehicle dis-

tance

Long

Approximately 160 ft.

(50 m)

Medium

Approximately 130 ft.

(40 m)

Short

Approximately 100 ft.

(30 m)

Canceling and resuming
the speed control

Approach warning (vehi-
cle-to-vehicle distance
control mode)

247

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

When constant speed control
mode is selected, your vehicle
will maintain a set speed without
controlling the vehicle-to-vehi-
cle distance. Select this mode
only when vehicle-to-vehicle dis-
tance control mode does not
function correctly due to a dirty
radar, etc.

1

With the cruise control off,
press and hold the cruise
control main switch for 1.5
seconds or more.

Immediately after the switch is

pressed, the dynamic radar cruise

control indicator will come on. After-

wards, it switches to the cruise con-

trol indicator.
Switching to constant speed control

mode is only possible when operat-

ing the switch with the cruise con-

trol off.

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

set speed.
Adjusting the speed setting:



P.244

Canceling and resuming the speed

setting:



P.246

■

Dynamic radar cruise control

can be set when

●

Vehicles with a continuously vari-

able transmission: The shift lever

is in D.

●

Vehicles with a manual transmis-

sion: The shift lever is in range

2nd or higher.

●

Depending on the control mode,

this item can be set at the follow-

ing speeds.

• Vehicle-to-vehicle distance con-

trol mode: Approximately 20 mph

(30 km/h) or more

• Constant speed control mode:

Approximately 20 mph (30 km/h)

or more

■

Accelerating after setting the

vehicle speed

The vehicle can accelerate by oper-

ating the accelerator pedal. After

accelerating, the set speed

resumes. However, during vehi-

cle-to-vehicle distance control

mode, the vehicle speed may

decrease below the set speed in

order to maintain the distance to the

preceding vehicle.

Selecting constant speed
control mode

248

4-5. Using the driving support systems

COROLLA_U

■

Shift position selection (vehi-

cles with a manual transmis-

sion)

Select a shift position according to

the vehicle speed. If the engine

speed is too high or too low, control

may be automatically canceled.

■

Automatic cancelation of vehi-

cle-to-vehicle distance control

mode

Vehicle-to-vehicle distance control

mode is automatically canceled in

the following situations.

●

Actual vehicle speed falls below

approximately 16 mph (25 km/h).

●

VSC is activated.

●

TRAC is activated for a period of

time.

●

When the VSC or TRAC system is

turned off.

●

The sensor cannot detect cor-

rectly because it is covered in

some way.

●

Pre-collision braking is activated.

●

Vehicles with a manual transmis-

sion: When the shift lever is in N

or the clutch pedal is depressed

for a certain amount of time or

more.

If vehicle-to-vehicle distance control

mode is automatically canceled for

any reasons other than the above,

there may be a malfunction in the

system. Contact your Toyota dealer.

■

Automatic cancelation of con-

stant speed control mode

Constant speed control mode is

automatically canceled in the follow-

ing situations:

●

Actual vehicle speed is more than

approximately 10 mph (16 km/h)

below the set vehicle speed.

●

Actual vehicle speed falls below

approximately 20 mph (30 km/h).

●

VSC is activated.

●

TRAC is activated for a period of

time.

●

When the VSC or TRAC system is

turned off.

●

Pre-collision braking is activated.

●

Vehicles with a manual transmis-

sion: When the shift lever is in N

or the clutch pedal is depressed

for a certain amount of time or

more.

If constant speed control mode is

automatically canceled for any rea-

sons other than the above, there

may be a malfunction in the system.

Contact your Toyota dealer.

■

Brake operation

A brake operation sound may be

heard and the brake pedal response

may change, but these are not mal-

functions.

■

Warning messages and buzzers

for dynamic radar cruise con-

trol

Warning messages and buzzers are

used to indicate a system malfunc-

tion or to inform the driver of the

need for caution while driving. If a

warning message is shown on the

multi-information display, read the

message and follow the instructions.

(



P.201, 521)

■

When the sensor may not be

correctly detecting the vehicle

ahead

In the case of the following and

depending on the conditions, oper-

ate the brake pedal when decelera-

tion of the system is insufficient or

operate the accelerator pedal when

acceleration is required.
As the sensor may not be able to

correctly detect these types of vehi-

cles, the approach warning

(



P.246) may not be activated.

●

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the

same lane

●

Vehicles with small rear ends

(trailers with no load on board,

249

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

etc.)

●

Motorcycles traveling in the same

lane

●

When water or snow thrown up by

the surrounding vehicles hinders

the detecting of the sensor

●

When your vehicle is pointing

upwards (caused by a heavy load

in the luggage compartment, etc.)

●

Preceding vehicle has an

extremely high ground clearance

■

Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly

In the case of the following condi-

tions, operate the brake pedal (or

accelerator pedal, depending on the

situation) as necessary.
As the sensor may not be able to

correctly detect vehicles ahead, the

system may not operate properly.

●

When the road curves or when the

lanes are narrow

●

When steering wheel operation or

your position in the lane is unsta-

ble

●

When the vehicle ahead of you

decelerates suddenly

●

When driving on a road sur-

rounded by a structure, such as in

a tunnel or on a bridge

●

While the vehicle speed is

decreasing to the set speed after

the vehicle accelerates by

depressing the accelerator pedal

250

4-5. Using the driving support systems

COROLLA_U

*

: If equipped

When the front camera recog-
nizes a sign, the sign will be dis-
played on the multi-information
display.



When the driving support sys-
tem information is selected, a
maximum of 3 signs can be
displayed. (



P.100)



When a tab other than the
driving support system infor-
mation is selected, the follow-
ing types of road signs will be
displayed. (



P.100)

• Speed limit sign
• Do Not Enter sign (when notifica-

tion is necessary)

If signs other than speed limit signs
are recognized, they will be dis-
played in an overlapping stack

RSA (Road Sign

Assist)

*

The RSA system recognizes
specific road signs using
the front camera to provide
information to the driver via
the display.

If the system judges that the
vehicle is being driven over
the speed limit, performing
prohibited actions, etc.
according to the recog-
nized road signs, it notifies
the driver through a visual
notification and notification
buzzer.

WARNING

■

Before using the RSA

Do not rely solely upon the RSA

system. RSA is a system which

supports the driver by providing

information, but it is not a replace-

ment for a driver’s own vision and

awareness. Drive safely by

always paying careful attention to

the traffic rules.

Indication on the
multi-information display

251

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

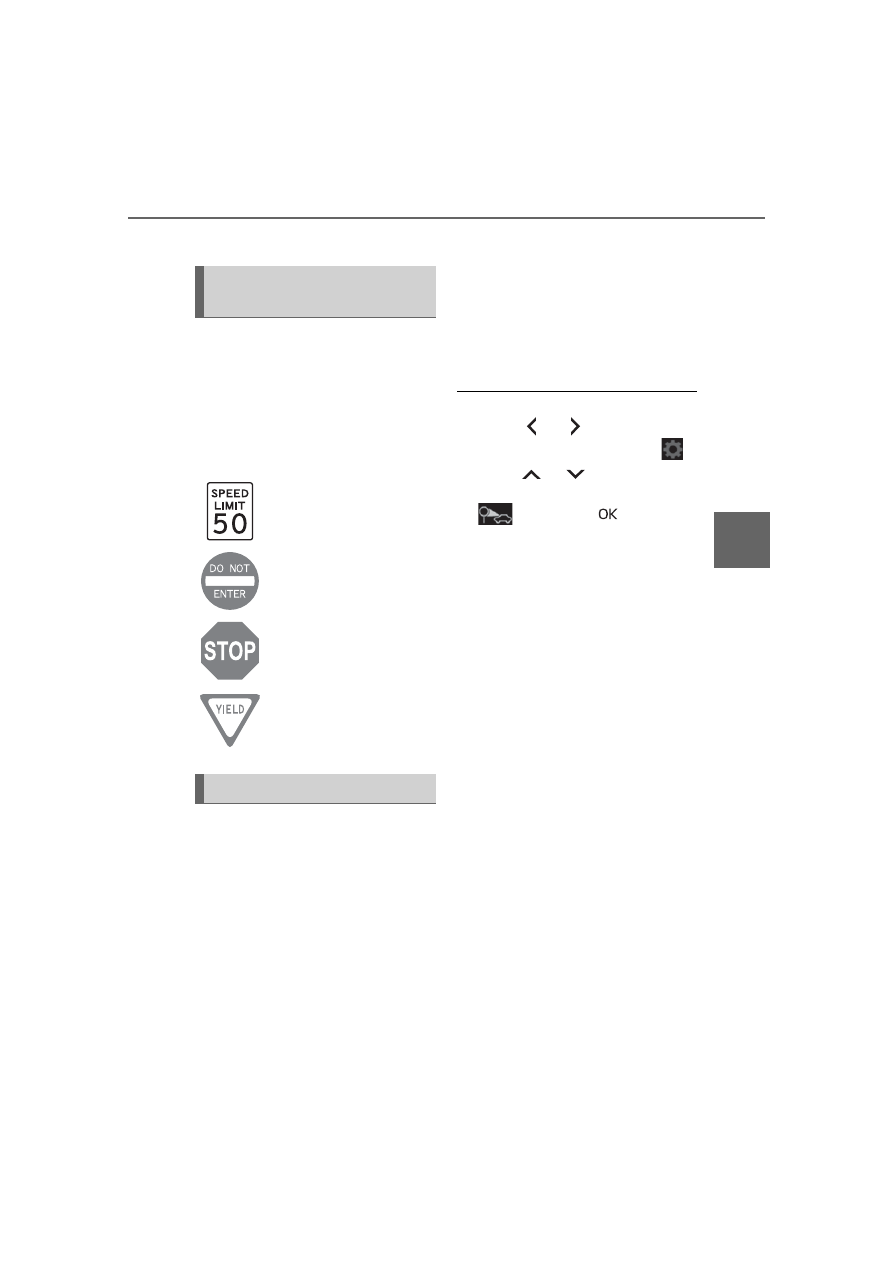

under the current speed limit sign.

The following types of road
signs, including electronic signs
and blinking signs, are recog-
nized.

A non-official or a recently intro-
duced traffic sign may not be recog-
nized.

In the following situations, the
RSA system will notify the
driver.



When the vehicle speed
exceeds the speed notifica-
tion threshold of the speed
limit sign displayed, the sign
display will be emphasized
and a buzzer will sound.



When the RSA system recog-
nizes a do not enter sign and

determines that your vehicle
has entered a no-entry area,
the displayed sign will flash
and a buzzer will sound.

Depending on the situation, a
notification function may not
operate properly.

■

Setting procedure

1

Press

 or

 of the meter

control switches and select

2

Press

 or

 of the meter

control switches and select

, then press

■

Automatic turn-off of RSA sign

display

In the following situations, a dis-

played speed limit sign and/or do

not enter sign will stop being dis-

played automatically:

●

No sign has been recognized for a

certain distance.

●

The road changes due to a left or

right turn, etc.

In the following situations, stop and

yield signs will stop being displayed

automatically:

●

The system determines that your

vehicle has passed the sign.

●

The road changes due to a left or

right turn, etc.

■

Conditions in which the func-

tion may not operate or detect

correctly

In the following situations, RSA

does not operate normally and may

not recognize signs, display the

incorrect sign, etc. However, this

does not indicate a malfunction.

●

The front camera is misaligned

due to a strong impact being

applied to the sensor, etc.

●

Dirt, snow, stickers, etc. are on the

Supported types of road
signs

Speed limit

Do Not Enter

Stop

Yield

Notification function

252

4-5. Using the driving support systems

COROLLA_U

windshield near the front camera.

●

In inclement weather such as

heavy rain, fog, snow or sand

storms.

●

Light from an oncoming vehicle,

the sun, etc. enters the front cam-

era.

●

The sign is dirty, faded, tilted or

bent.

●

The contrast of electronic sign is

low.

●

All or part of the sign is hidden by

the leaves of a tree, a pole, etc.

●

The sign is only visible to the front

camera for a short amount of time.

●

The driving scene (turning, lane

change, etc.) is judged incorrectly.

●

If a sign not appropriate for the

currently traveled lane, but the

sign exists directly after a freeway

branches, or in an adjacent lane

just before merging.

●

Stickers are attached to the rear of

the preceding vehicle.

●

A sign resembling a system com-

patible sign is recognized.

●

Side road speed signs may be

detected and displayed (if posi-

tioned in sight of the front camera)

while the vehicle is traveling on

the main road.

●

Roundabout exit road speed signs

may be detected and displayed (if

positioned in sight of the front

camera) while traveling on a

roundabout.

●

The front of the vehicle is raised or

lowered due to the carried load.

●

The surrounding brightness is not

sufficient or changes suddenly.

●

When a sign intended for trucks,

etc. is recognized.

●

The speed information displayed

on the meter and on the naviga-

tion system may be different due

to the navigation system using

map data.

■

Speed limit sign display

If the engine switch was last turned

off while a speed limit sign was dis-

played on the multi-information dis-

play, the same sign displays again

when the engine switch is turned to

ON.

■

If “RSA Malfunction Visit Your

Dealer” is shown

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

Customization

Some functions can be customized.

(



P.581)

253

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

*

: If equipped

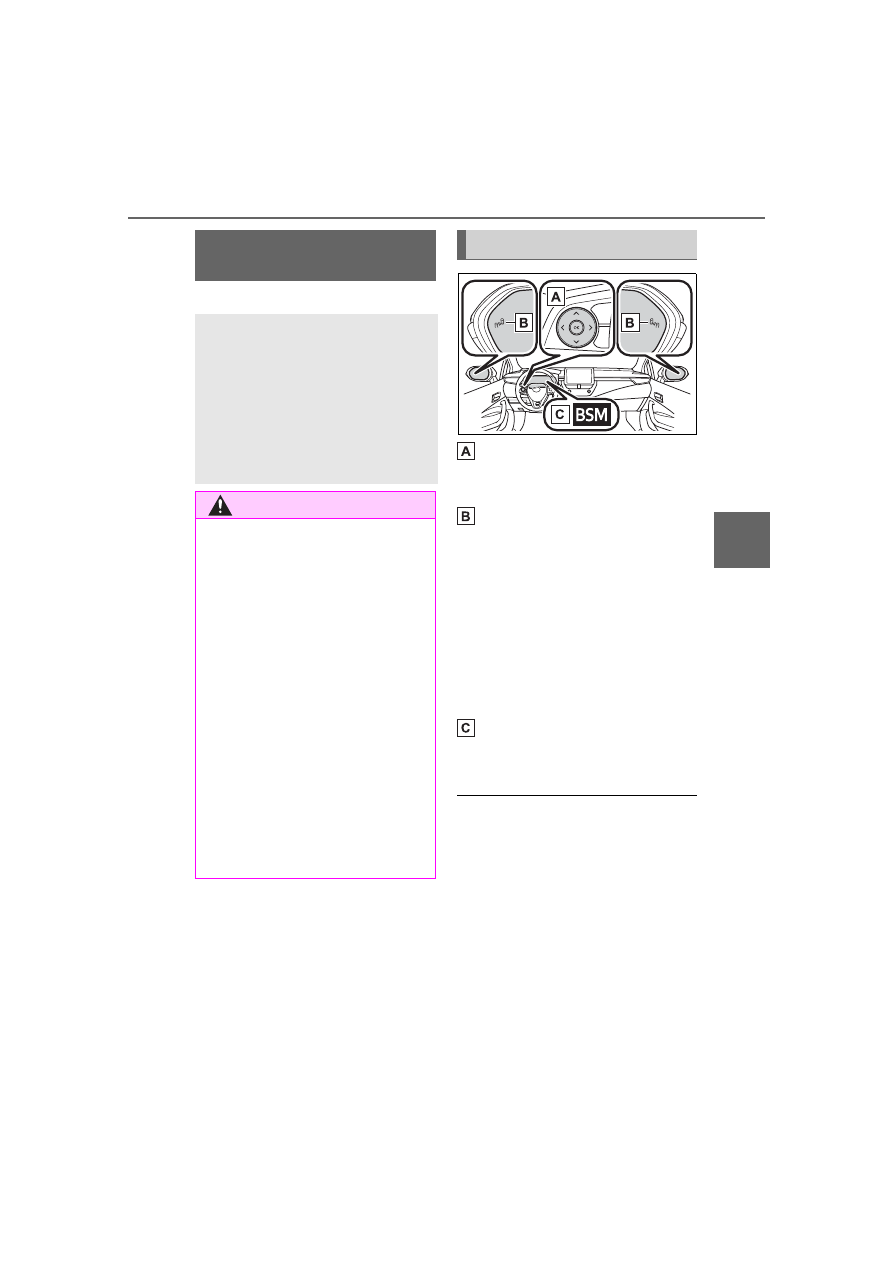

Meter control switches

Turning the Blind Spot Monitor
on/off.

Outside rear view mirror indi-
cators

When a vehicle is detected in a
blind spot of the outside rear view
mirrors or approaching rapidly from
behind into a blind spot, the outside
rear view mirror indicator on the
detected side will illuminate. If the
turn signal lever is operated toward
the detected side, the outside rear
view mirror indicator flashes.

BSM indicator

Illuminates when the Blind Spot
Monitor is enabled

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

When “Blind Spot Monitor

Unavailable” is shown on the

multi-information display

Ice, snow, mud, etc., may be

attached to the rear bumper around

the sensors. (



P.255) The system

should return to normal operation

after removing the ice, snow, mud,

etc. from the rear bumper. Addition-

ally, the sensors may not operate

BSM (Blind Spot Moni-

tor)

*

The Blind Spot Monitor is a
system that uses rear side
radar sensors installed on
the inner side of the rear
bumper on the left and right
side to assist the driver in
confirming safety when
changing lanes.

WARNING

■

Cautions regarding the use of

the system

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The Blind Spot Monitor is a sup-

plementary function which alerts

the driver that a vehicle is in a

blind spot of the outside rear view

mirrors or is approaching rapidly

from behind into a blind spot. Do

not overly rely on the Blind Spot

Monitor. As the function cannot

judge if it is safe to change lanes,

over reliance could lead to an

accident resulting in death or seri-

ous injury.
As the system may not function

correctly under certain condi-

tions, the driver’s own visual con-

firmation of safety is necessary.

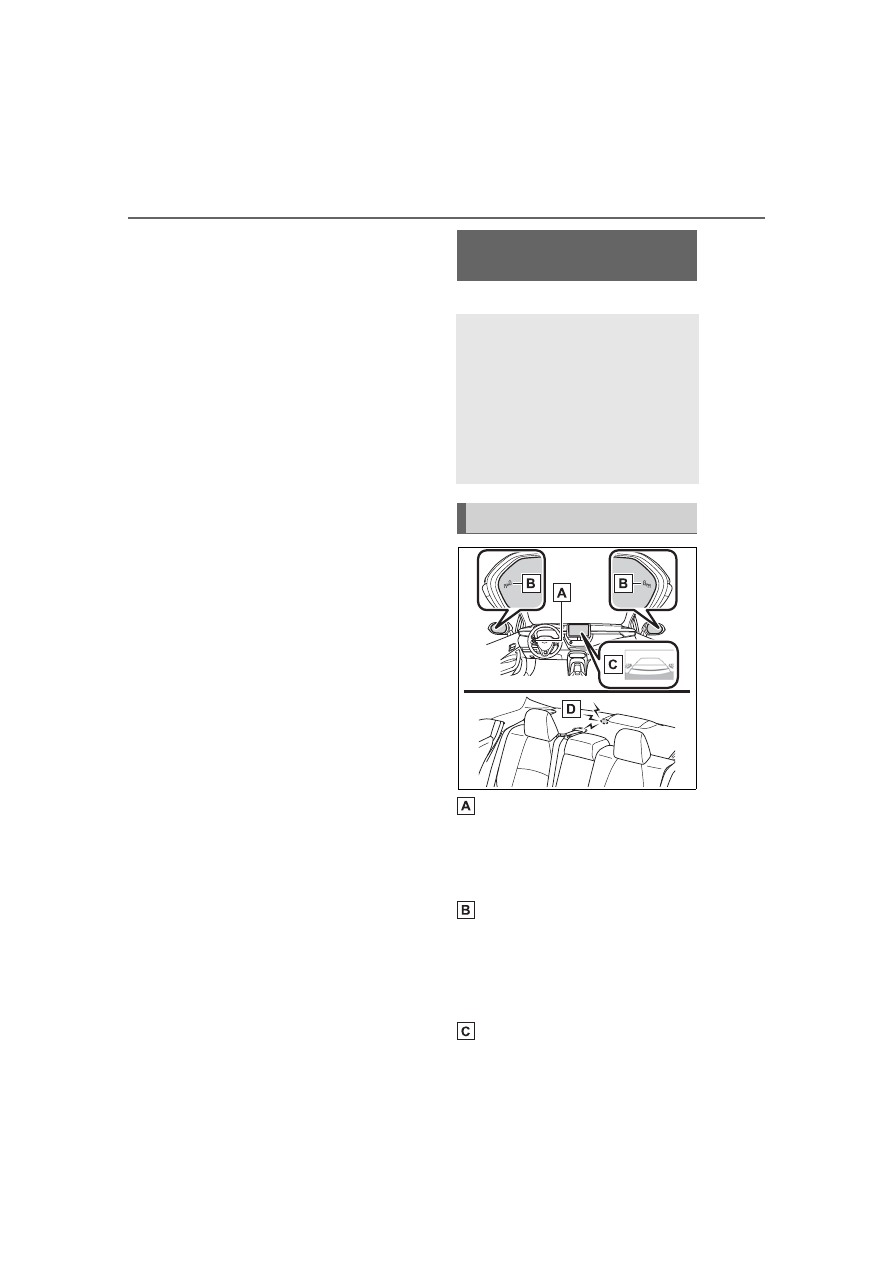

System components

254

4-5. Using the driving support systems

COROLLA_U

normally when driving in extremely

hot or cold environments.

■

When “Blind Spot Monitor Mal-

function Visit Your Dealer” is

shown on the multi-information

display

There may be a sensor malfunction

of misaligned. Have the vehicle

inspected by your Toyota dealer.

■

Customization

Some functions can be customized.

(



P.581)

■

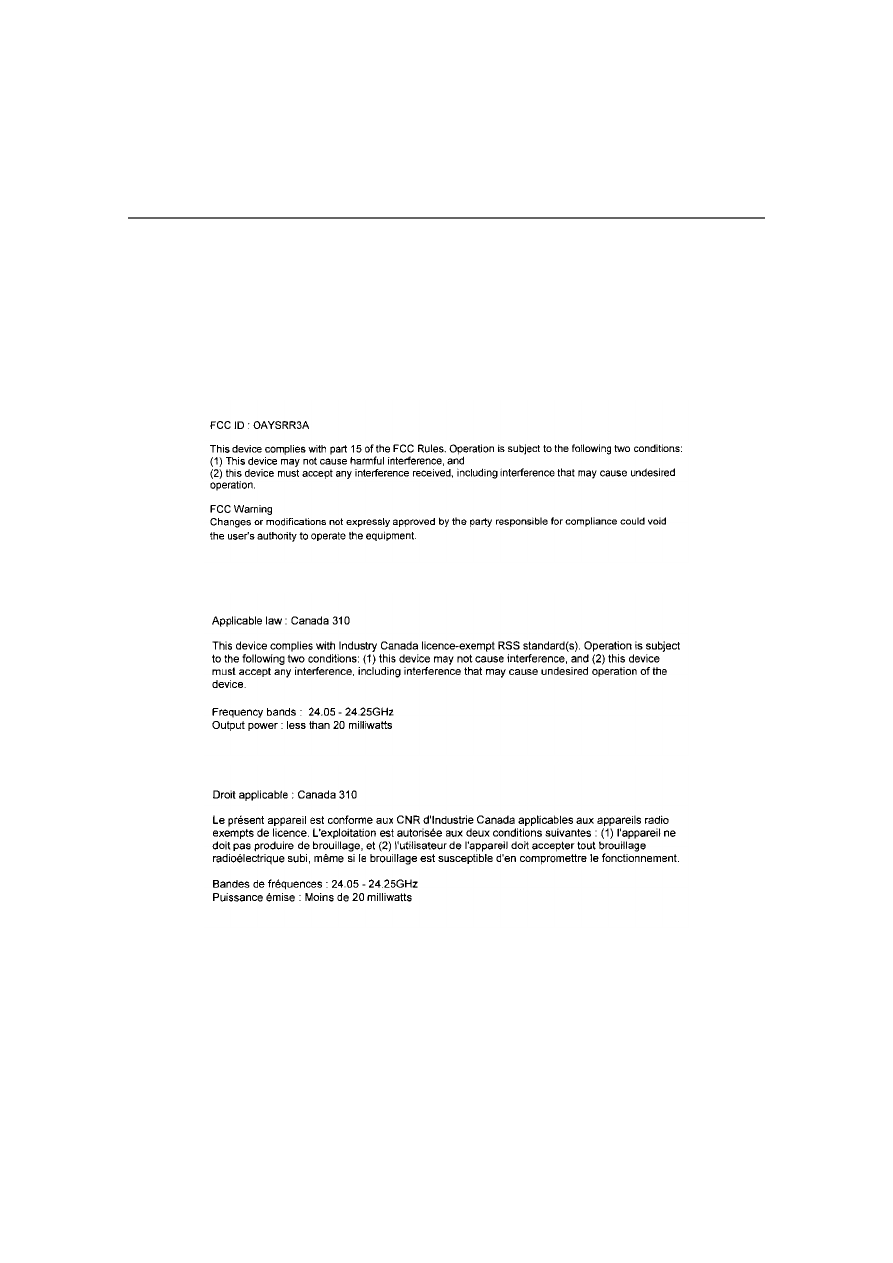

Certification



Except for vehicles sold in Canada



For vehicles sold in Canada

255

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

Use the meter control switches
to turn on/off the function.

1

Press

 or

 to select

.

2

Press

 or

 to select



and then press

.

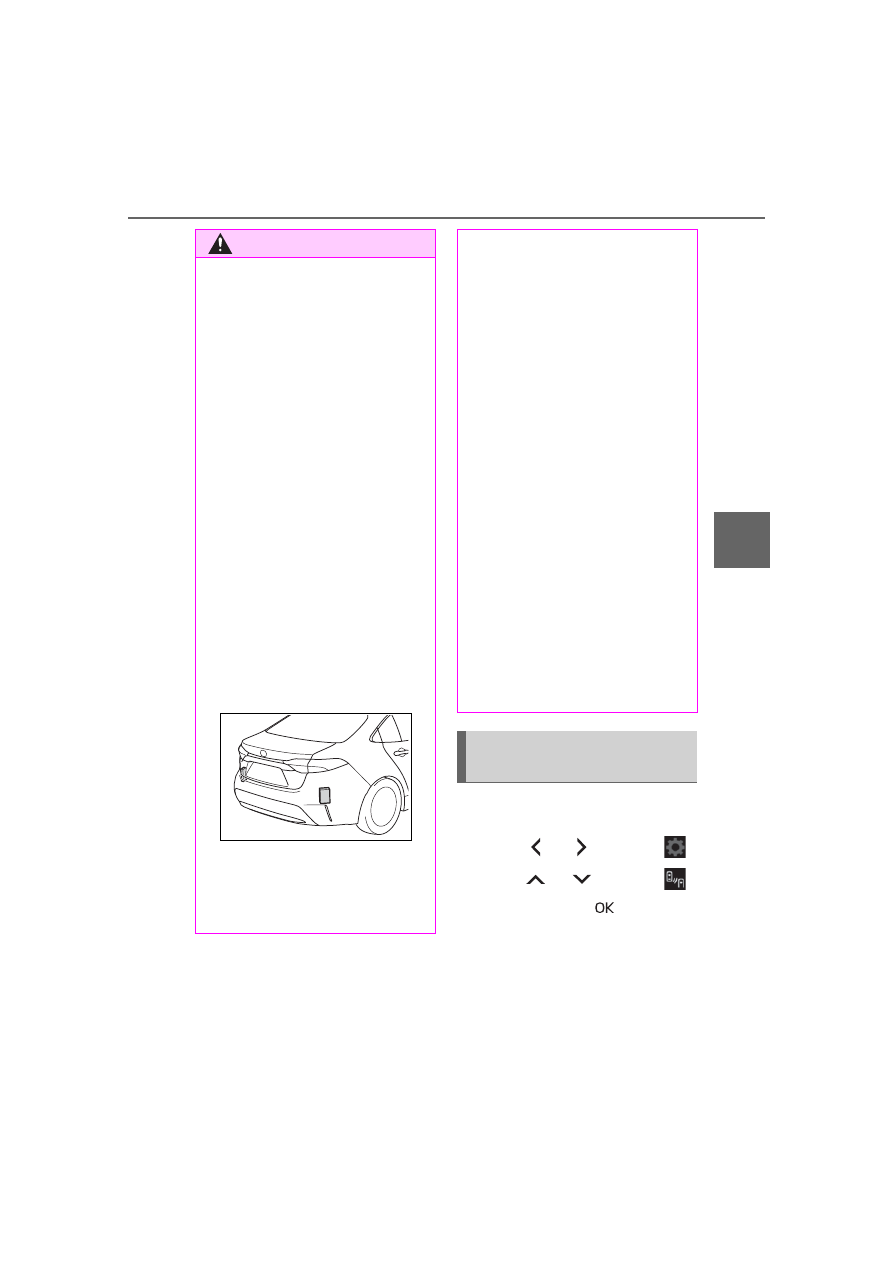

WARNING

■

Handling the rear side radar

sensor

Blind Spot Monitor sensors are

installed behind the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

operate correctly.

●

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding area
on the rear bumper is dirty or cov-
ered with snow, the Blind Spot
Monitor may not operate and a
warning message (



P.253) will

be displayed. In this situation,
clear off the dirt or snow and drive
the vehicle with the operation con-
ditions of the BSM function
(



P.257) satisfied for approxi-

mately 10 minutes. If the warning
message does not disappear,
have the vehicle inspected by
your Toyota dealer.

●

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a sensor or its surrounding area

on the rear bumper.

●

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or sur-

rounding area on the rear

bumper.

●

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your Toyota

dealer.

●

Do not paint the rear bumper

any color other than an official

Toyota color.

Turning the Blind Spot
Monitor on/off

256

4-5. Using the driving support systems

COROLLA_U

■

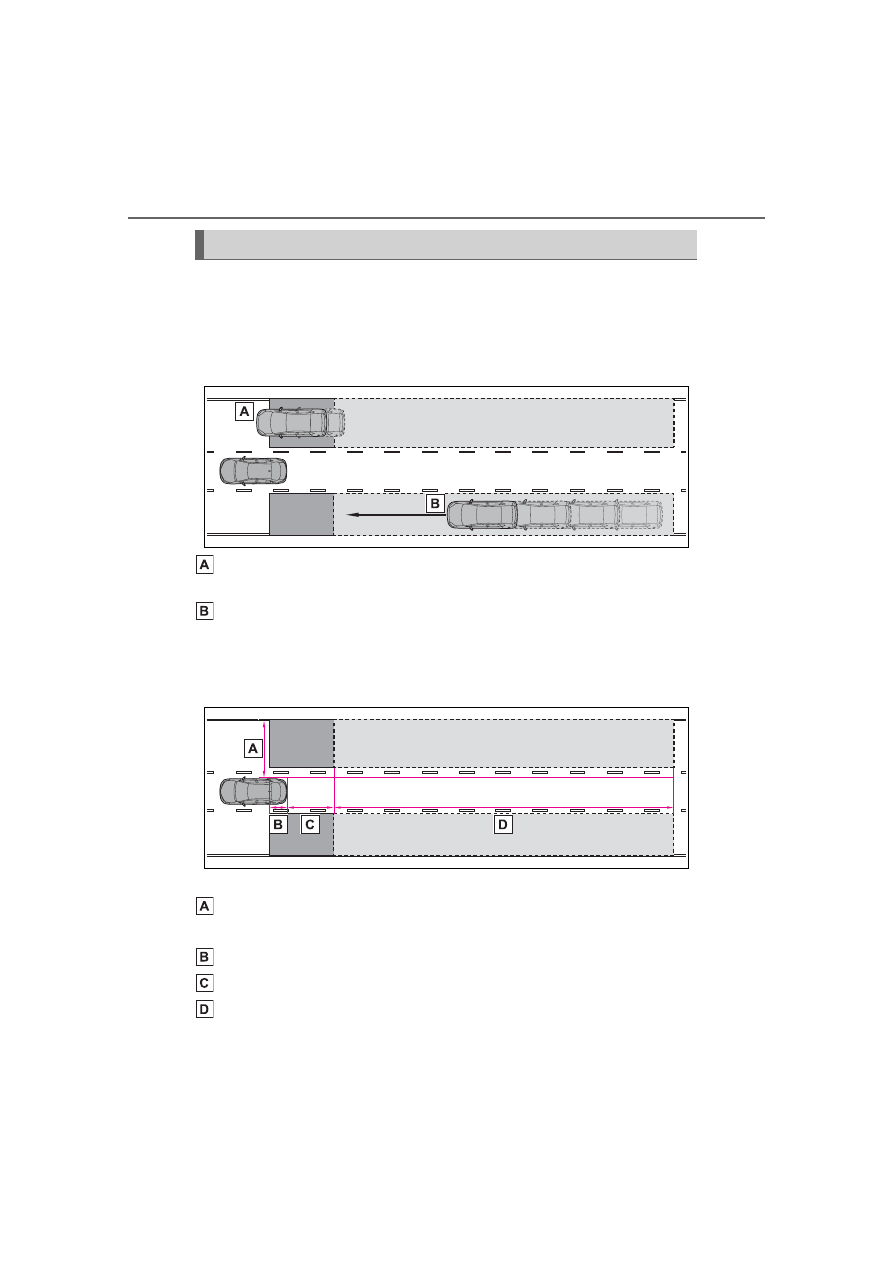

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the fol-
lowing vehicles traveling in adjacent lanes and advises the driver of
the presence of such vehicles via the indicators on the outside rear
view mirrors.

Vehicles that are traveling in areas that are not visible using the
outside rear view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that
are not visible using the outside rear view mirrors (the blind spots)

■

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper
Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear
bumper

*2

Blind Spot Monitor operation

257

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

*1

:The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

*2

:The greater the difference in speed between your vehicle and the

detected vehicle is, the farther away the vehicle will be detected, causing
the outside rear view mirror indicator to illuminate or flash.

■

The Blind Spot Monitor is oper-

ational when

The Blind Spot Monitor is opera-

tional when all of the following con-

ditions are met:

●

The Blind Spot Monitor is on.

●

The shift lever is in a position

other than R.

●

The vehicle speed is greater than

approximately 10 mph (16 km/h).

■

The Blind Spot Monitor will

detect a vehicle when

The Blind Spot Monitor will detect a

vehicle present in the detection area

in the following situations:

●

A vehicle in an adjacent lane over-

takes your vehicle.

●

You overtake a vehicle in adjacent

lane slowly.

●

Another vehicle enters the detec-

tion area when it changes lanes.

■

Conditions under which the

Blind Spot Monitor will not

detect a vehicle

The Blind Spot Monitor is not

designed to detect the following

types of vehicles and/or objects:

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles traveling in the opposite

direction

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Following vehicles that are in the
same lane

*

●

Vehicles traveling 2 lanes away
from your vehicle

*

●

Vehicles which are being over-
taken rapidly by your vehicle

*

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the

Blind Spot Monitor may not

function correctly

●

The Blind Spot Monitor may not

detect vehicles correctly in the fol-

lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When the distance between your

vehicle and a following vehicle is

short

• When there is a significant differ-

ence in speed between your vehi-

cle and the vehicle that enters the

detection area

• When the difference in speed

between your vehicle and another

vehicle is changing

• When a vehicle enters a detection

area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection

area

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or

258

4-5. Using the driving support systems

COROLLA_U

uneven surfaces

• When vehicle lanes are wide, or

when driving on the edge of a

lane, and the vehicle in an adja-

cent lane is far away from your

vehicle

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

• Immediately after the Blind Spot

Monitor is turned on

●

Instances of the Blind Spot Moni-

tor unnecessarily detecting a vehi-

cle and/or object may increase in

the following situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.

that enters the detection area is

short

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a

lane, and a vehicle traveling in a

lane other than the adjacent lanes

enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is

short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

*

: If equipped

Meter control switches

Turning the RCTA function on/off.
When the RCTA function is dis-
abled, the RCTA OFF indicator illu-
minates.

Outside rear view mirror indi-
cators

When a vehicle approaching from
the right or left at the rear of the
vehicle is detected, both outside
rear view mirror indicators will flash.

Audio system display

RCTA (Rear Cross Traf-

fic Alert) function

*

The RCTA function uses the
BSM rear side radar sensors
installed behind the rear
bumper. This function is
intended to assist the driver
in checking areas that are
not easily visible when
backing up.

System components

259

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, the RCTA icon
(



P.260) for the detected side will

be displayed on the audio system
display. This illustration shows an
example of a vehicle approaching
from both sides of the vehicle.

RCTA buzzer

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, a buzzer will sound.
The buzzer also sounds for approx-
imately 1 second immediately after
the RCTA function is turned on.

Use the meter control switches
to enable/disable the RCTA
function. (



P.101)

1

Press

 or

 to select

.

2

Press

 or

 to select

“RCTA” and then press

.

When the RCTA function is dis-

abled, the RCTA OFF indicator

(



P.88) illuminates. (Each time the

engine switch is turned off then

changed to ON, the RCTA function

will be enabled automatically.)

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to

hear over loud noises, such as if the

audio system volume is high.

■

When “Rear Cross Traffic Alert

Unavailable” is shown on the

multi-information display

Water, snow, mud, etc., may be

attached to the rear bumper around

the sensors. (



P.255) Removing

the water, snow, mud, etc., from the

attached to the rear bumper around

the sensors to normal.
Additionally, the function may not

function normally when used in

extremely hot or cold environments.

■

Rear side radar sensors



P.255

Turning the RCTA func-
tion on/off

WARNING

■

Cautions regarding the use of

the function

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The RCTA function is only a sup-

plementary function which alerts

the driver that a vehicle is

approaching from the right or left

at the rear of the vehicle. As the

RCTA function may not function

correctly under certain condi-

tions, the driver’s own visual con-

firmation of safety is necessary.

Over reliance on this function may

lead to an accident resulting

death or serious injury.

260

4-5. Using the driving support systems

COROLLA_U

■

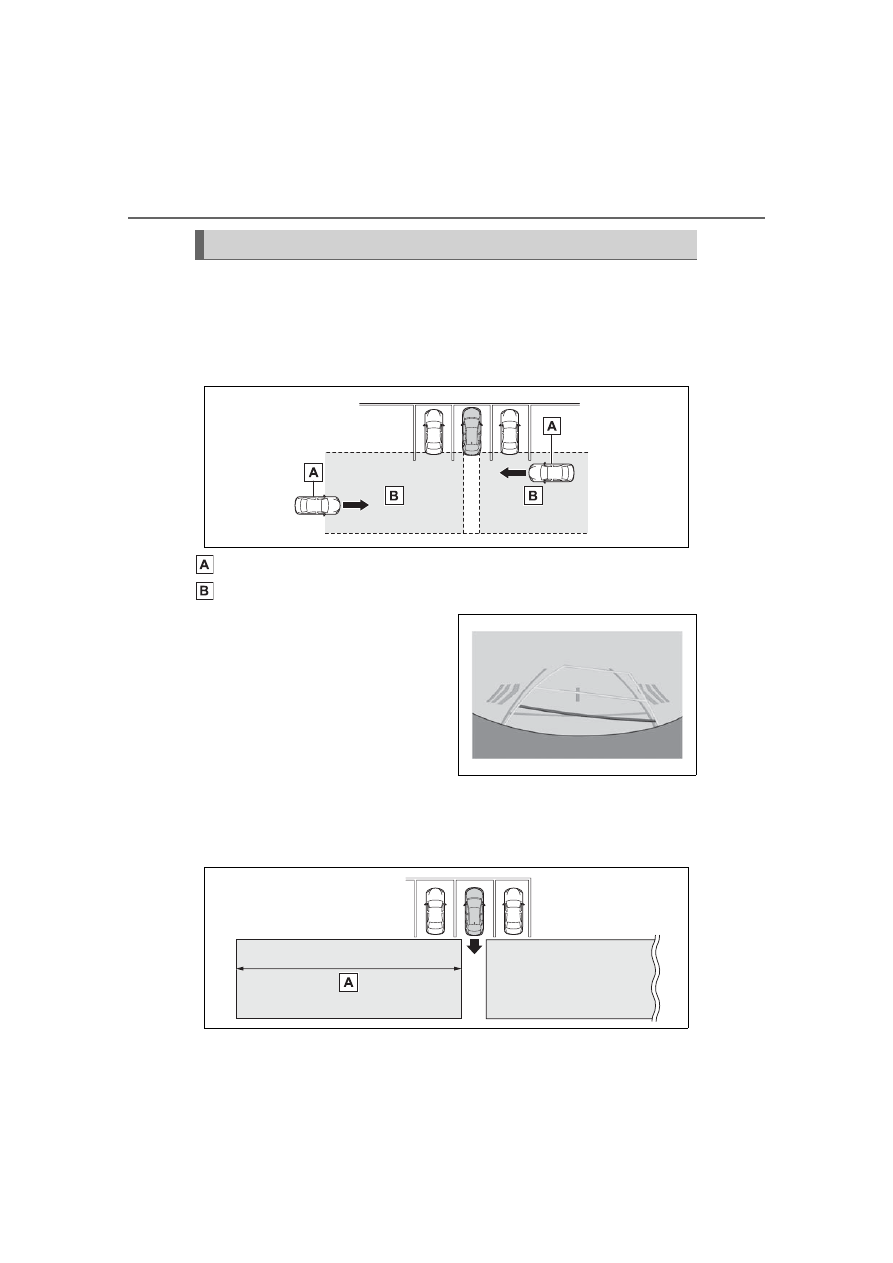

Operation of the RCTA function

The RCTA function uses rear side radar sensors to detect vehicles
approaching from the right or left at the rear of the vehicle and alerts
the driver of the presence of such vehicles by flashing the outside
rear view mirror indicators and sounding a buzzer.

Approaching vehicles
Detection areas of approaching vehicles

■

RCTA icon display

When a vehicle approaching
from the right or left at the rear
of the vehicle is detected, the
following will be displayed on
the audio system display.



Toyota parking assist moni-
tor: Vehicles are approaching
from both sides of the vehicle

■

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

 RCTA function

261

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

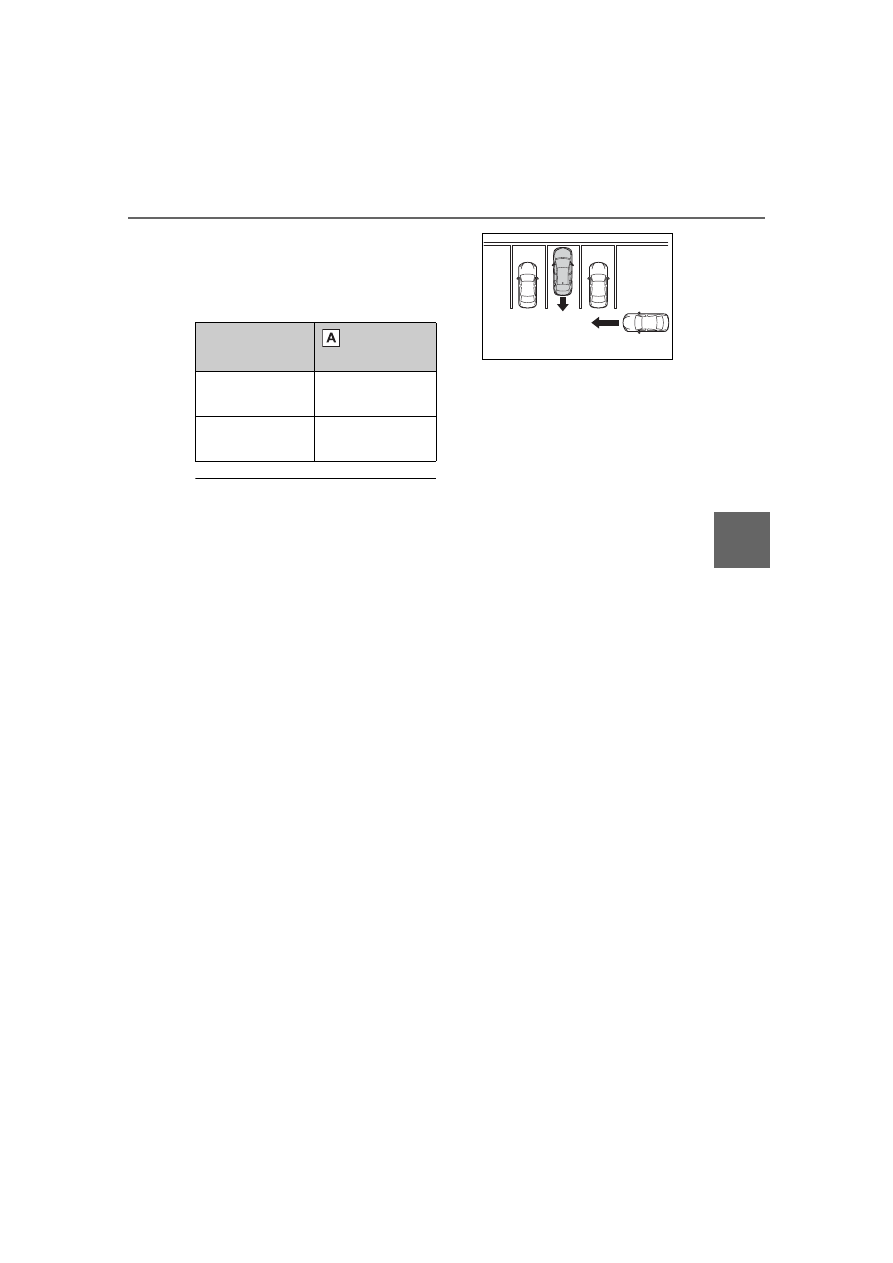

The buzzer can alert the driver
of faster vehicles approaching
from farther away.
Example:

■

The RCTA function is opera-

tional when

The RCTA function operates when

all of the following conditions are

met:

●

The engine switch is in ON.

●

The RCTA function is on.

●

The shift lever is in R.

●

The vehicle speed is less than

approximately 5 mph (8 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8

km/h) and 18 mph (28 km/h).

■

Conditions under which the

RCTA function will not detect a

vehicle

The RCTA function is not designed

to detect the following types of vehi-

cles and/or objects:

●

Vehicles approaching from directly

behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles moving away from your

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-
cle

*

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the

RCTA function may not function

correctly

●

The RCTA function may not detect

vehicles correctly in the following

situations:

• When a sensor is misaligned due

to a strong impact to the sensor or

its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering a sensor or its sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• If a vehicle is approaching the rear

of your vehicle rapidly

• When a towing eyelet is installed

to the rear of the vehicle. (if

equipped)

• When backing up on a slope with

a sharp change in grade

Approaching

vehicle speed

 Approximate

alert distance

18 mph (28
km/h) (fast)

65 ft. (20 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

262

4-5. Using the driving support systems

COROLLA_U

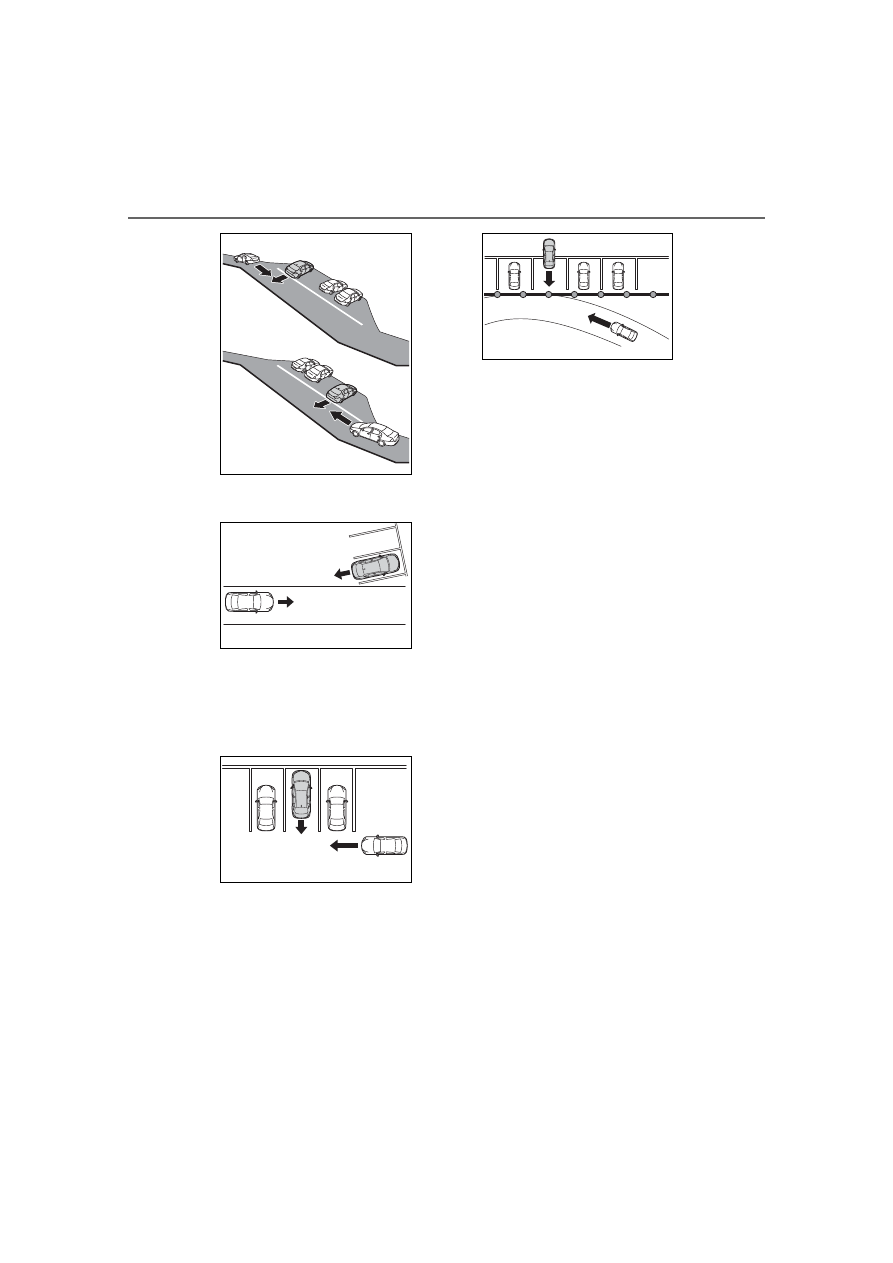

• When backing out of a shallow

angle parking spot

• Immediately after the RCTA func-

tion is turned on

• Immediately after the engine is

started with the RCTA function on

• When the sensors cannot detect a

vehicle due to obstructions

●

Instances of the RCTA function

unnecessarily detecting a vehicle

and/or object may increase in the

following situations:

• When a vehicle passes by the

side of your vehicle

• When the parking space faces a

street and vehicles are being

driven on the street

• When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sign, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

• When a towing eyelet is installed

to the rear of the vehicle (if

equipped)

263

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

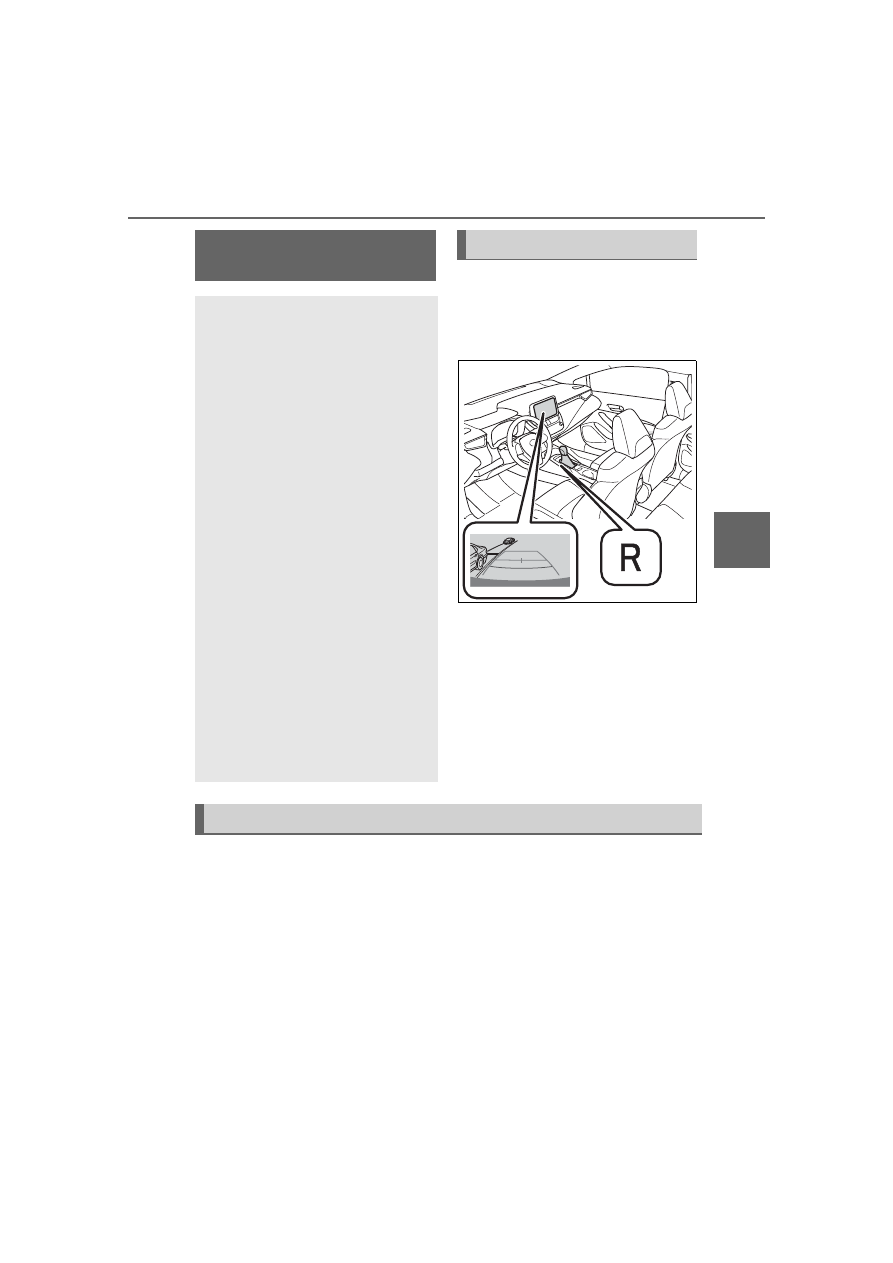

The rear view image is dis-
played when the shift lever is in
R and the engine switch is in
ON.

The rear view monitor system
will be deactivated when the
shift lever is shifted to any posi-
tion other than R.

■

Screen description

The rear view monitor system screen will be displayed if the shift
lever is shifted to R while the engine switch is in ON.

Rear view monitor sys-

tem



Audio

The rear view monitor sys-
tem assists the driver by
displaying an image of the
view behind the vehicle with
fixed guide lines on the
screen while backing up, for
example while parking.

The screen illustrations
used in this text are
intended as examples, and
may differ from the image
that is actually displayed on
the screen.



Audio Plus or Premium
Audio

Owners of models equipped
with a navigation/multime-
dia system should refer to
the “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

System overview

Using the rear view monitor system

264

4-5. Using the driving support systems

COROLLA_U

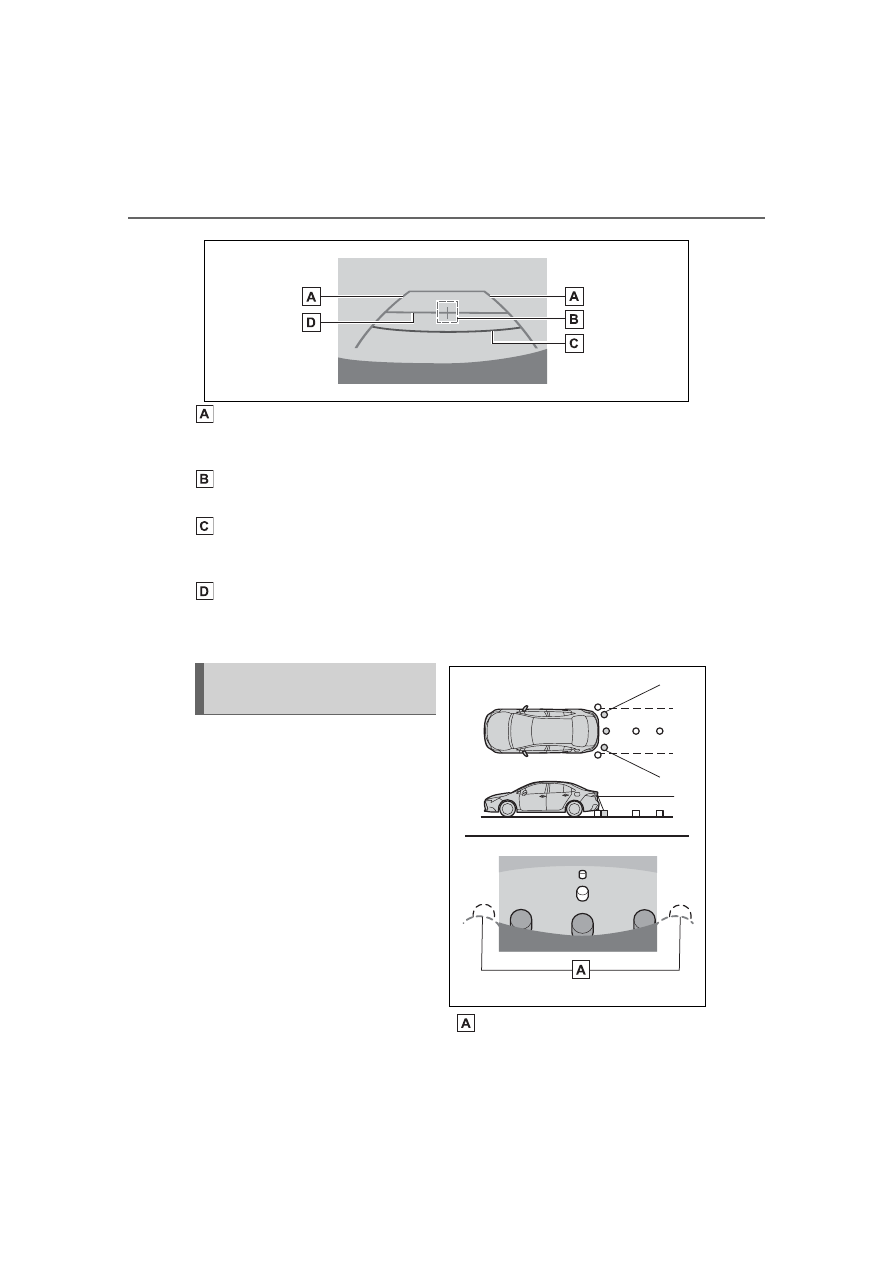

Vehicle width extension guide line

Displays a guide path when the vehicle is being backed straight up. The
displayed width is wider than the actual vehicle width.

Vehicle center guide line

This line indicates the estimated vehicle center on the ground.

Distance guide line

Displays a point approximately 1.5 ft. (0.5 m) (red) from the edge of the
bumper.

Distance guide line

Displays a point approximately 3 ft. (1 m) (blue) from the edge of the
bumper.

■

Area displayed on screen

Corners of bumper

Rear view monitor system
precautions

265

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

The rear view monitor system
displays an image of the view
from the bumper of the rear area
of the vehicle.
The image adjustment proce-
dure for the rear view monitor
system screen is the same as
the procedure for adjusting the
screen. (



P.296)



The area displayed on the
screen may vary according to
vehicle orientation conditions.



Objects which are close to
either corner of the bumper or
under the bumper cannot be
displayed.



The camera uses a special
lens. The distance of the
image that appears on the
screen differs from the actual
distance.



Items which are located
higher than the camera may
not be displayed on the moni-
tor.

■

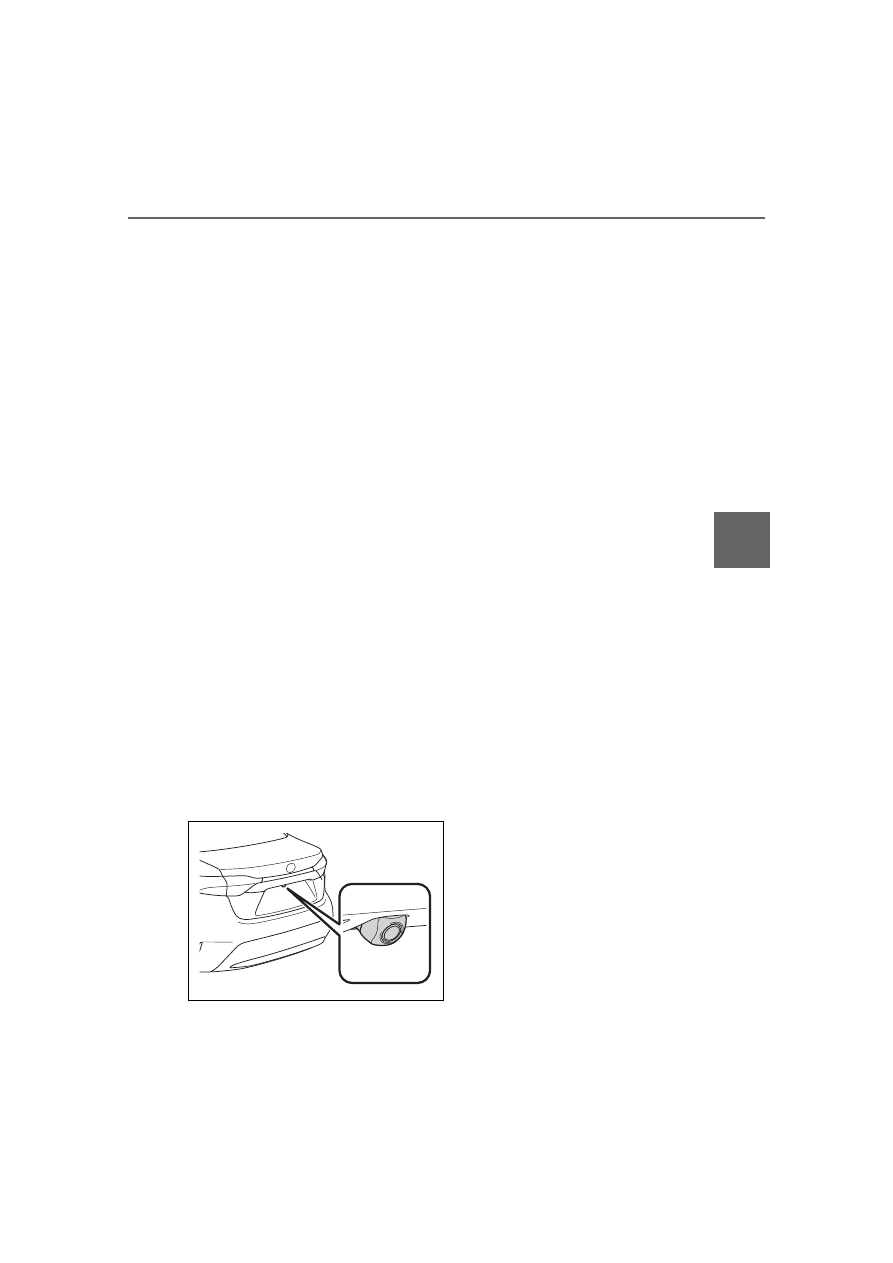

Rear view monitor system
camera

The camera for the rear view
monitor system is located as

shown in the illustration.



Using the camera

If dirt or foreign matter (such as
water droplets, snow, mud etc.) is
adhering to the camera, it cannot
transmit a clear image. In this case,
flush it with a large quantity of water
and wipe the camera lens clean
with a soft and wet cloth.

■

Differences between the
screen and the actual road

The distance guide lines and the
vehicle width guide lines may
not actually be parallel with the
dividing lines of the parking
space, even when they appear
to be so. Be sure to check visu-
ally.
The distances between the vehi-
cle width guide lines and the left
and right dividing lines of the
parking space may not be equal,
even when they appear to be
so. Be sure to check visually.
The distance guide lines give a
distance guide for flat road sur-
faces. In any of the following sit-
uations, there is a margin of
error between the fixed guide
lines on the screen and the
actual distance/course on the
road.



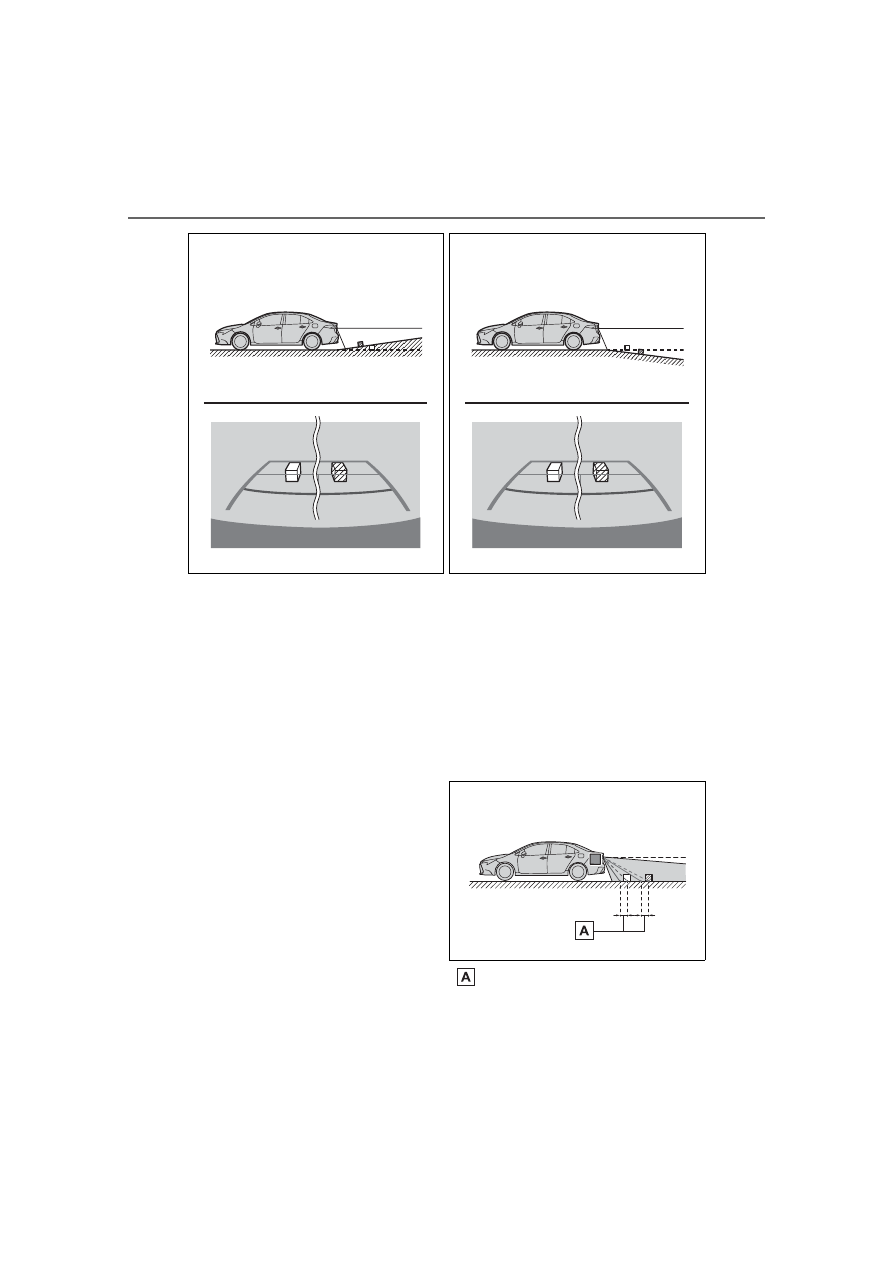

When the ground behind the
vehicle slopes up sharply

266

4-5. Using the driving support systems

COROLLA_U

The distance guide lines will appear
to be closer to the vehicle than the
actual distance. Because of this,
objects will appear to be farther
away than they actually are. In the
same way, there will be a margin of
error between the guide lines and
the actual distance/course on the
road.



When the ground behind the
vehicle slopes down sharply

The distance guide lines will appear
to be further from the vehicle than
the actual distance. Because of
this, objects will appear to be closer
than they actually are. In the same
way, there will be a margin of error
between the guide lines and the
actual distance/course on the road.



When any part of the vehicle
sags

A margin of error

When any part of the vehicle sags
due to the number of passengers or

267

4-5. Using the driving support systems

4

Dr

iv

ing

COROLLA_U

the distribution of the load, there is
a margin of error between the fixed
guide lines on the screen and the
actual distance/course on the road.

■

When approaching
three-dimensional objects

The distance guide lines are dis-
played according to flat surfaced
objects (such as the road). It is
not possible to determine the
position of three-dimensional
objects (such as vehicles) using
the distance guide lines. When
approaching a three-dimen-
sional object that extends out-
ward (such as the flatbed of a
truck), be careful of the follow-
ing.



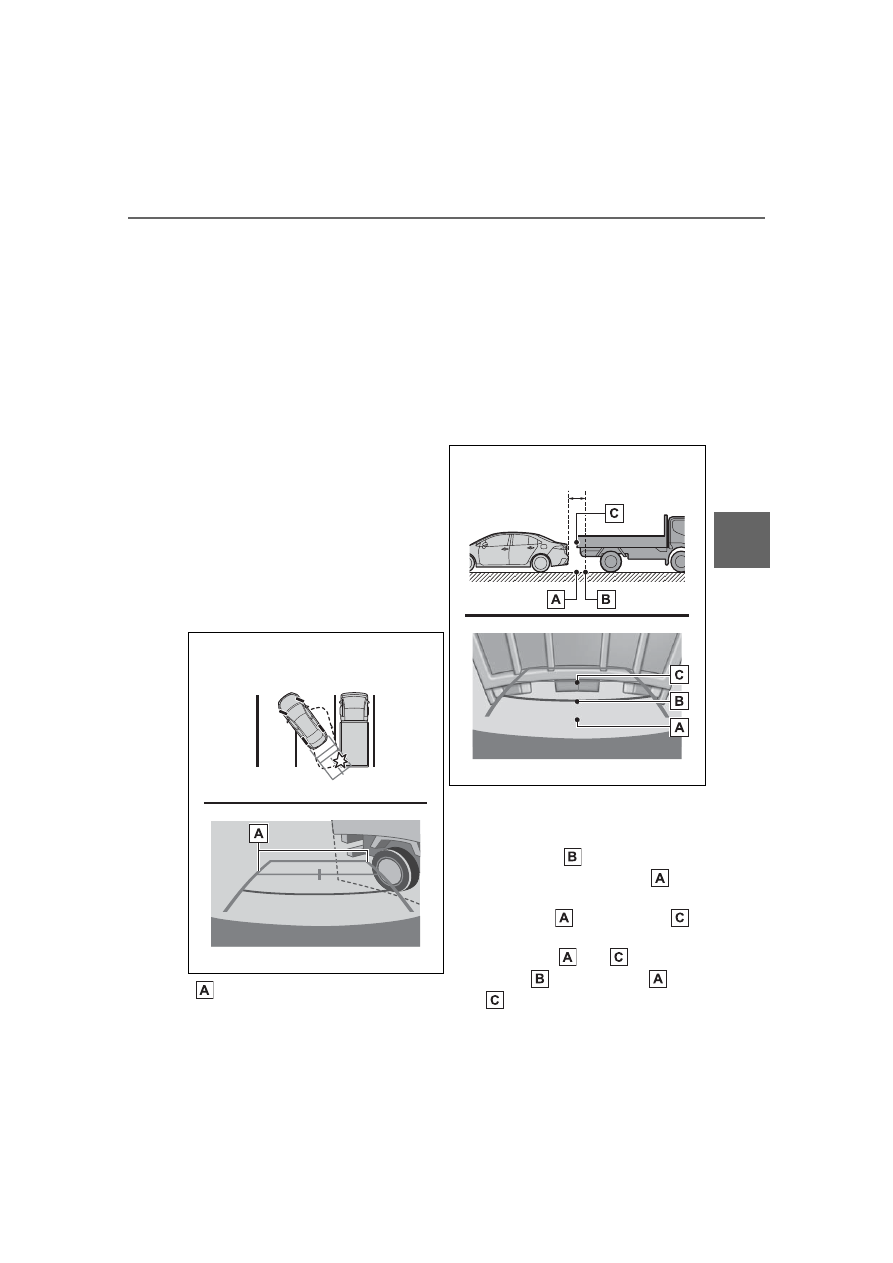

Vehicle width guide lines

Vehicle width guide lines

Visually check the surroundings
and the area behind the vehicle. In

the case shown below, the truck
appears to be outside of the vehicle
width guide lines and the vehicle
does not look as if it hits the truck.
However, the rear body of the truck
may actually cross over the vehicle
width guide lines. In reality if you
back up as guided by the vehicle
width guide lines, the vehicle may
hit the truck.



Distance guide lines

Visually check the surroundings
and the area behind the vehicle. On
the screen, it appears that a truck is
parking at point

. However, in

reality if you back up to point

,

you will hit the truck. On the screen,
it appears that

 is closest and



is farthest away. However, in reality,
the distance to

 and

 is the

same, and

 is farther than



and

.

268

4-5. Using the driving support systems

COROLLA_U

■

If you notice any symptoms

If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.

Things you should know

Symptom

Likely cause

Solution

The image is difficult to
see



The vehicle is in a dark
area



The temperature
around the lens is
either high or low



The outside tempera-
ture is low



There are water drop-
lets on the camera



It is raining or humid



Foreign matter (mud
etc.) is adhering to the
camera



Sunlight or headlights
are shining directly
into the camera



The vehicle is under
fluorescent lights,
sodium lights, mer-
cury lights etc.

If this happens due to
these causes, it does
not indicate a malfunc-
tion. Back up while visu-
ally checking the
vehicle’s surroundings.
(Use the monitor again
once conditions have
been improved.) The
procedure for adjusting
the picture quality of the
rear view monitor sys-
tem is the same as the
procedure for adjusting
the screen. (



P.296)

The image is blurry

Dirt or foreign matter
(such as water droplets,
snow, mud etc.) is
adhering to the camera.

Flush the camera with a
large quantity of water
and wipe the camera
lens clean with a soft
and wet cloth.

The image is out of
alignment

The camera or sur-
rounding area has
received a strong
impact.

Have the vehicle
inspected by your Toy-
ota dealer.
