P.549)

■

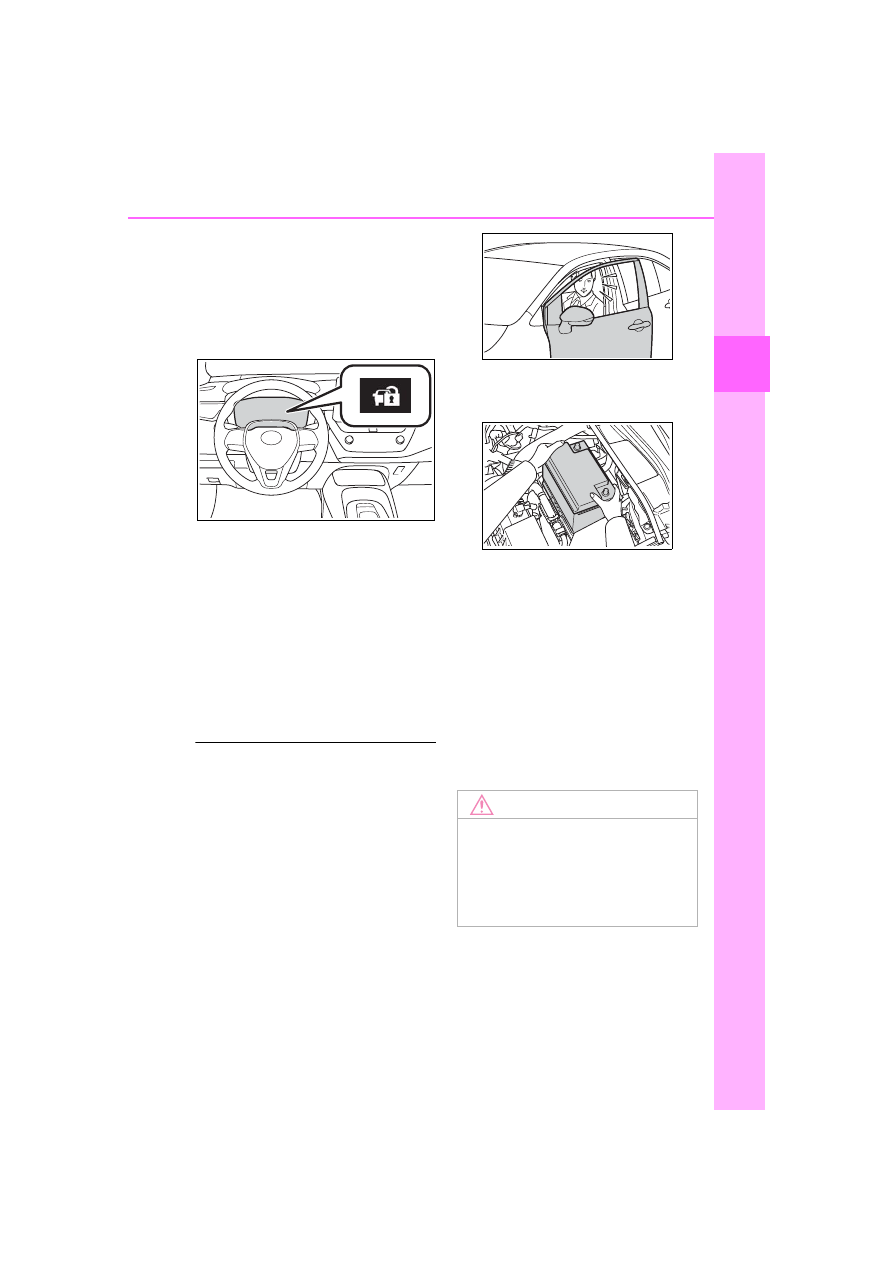

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U



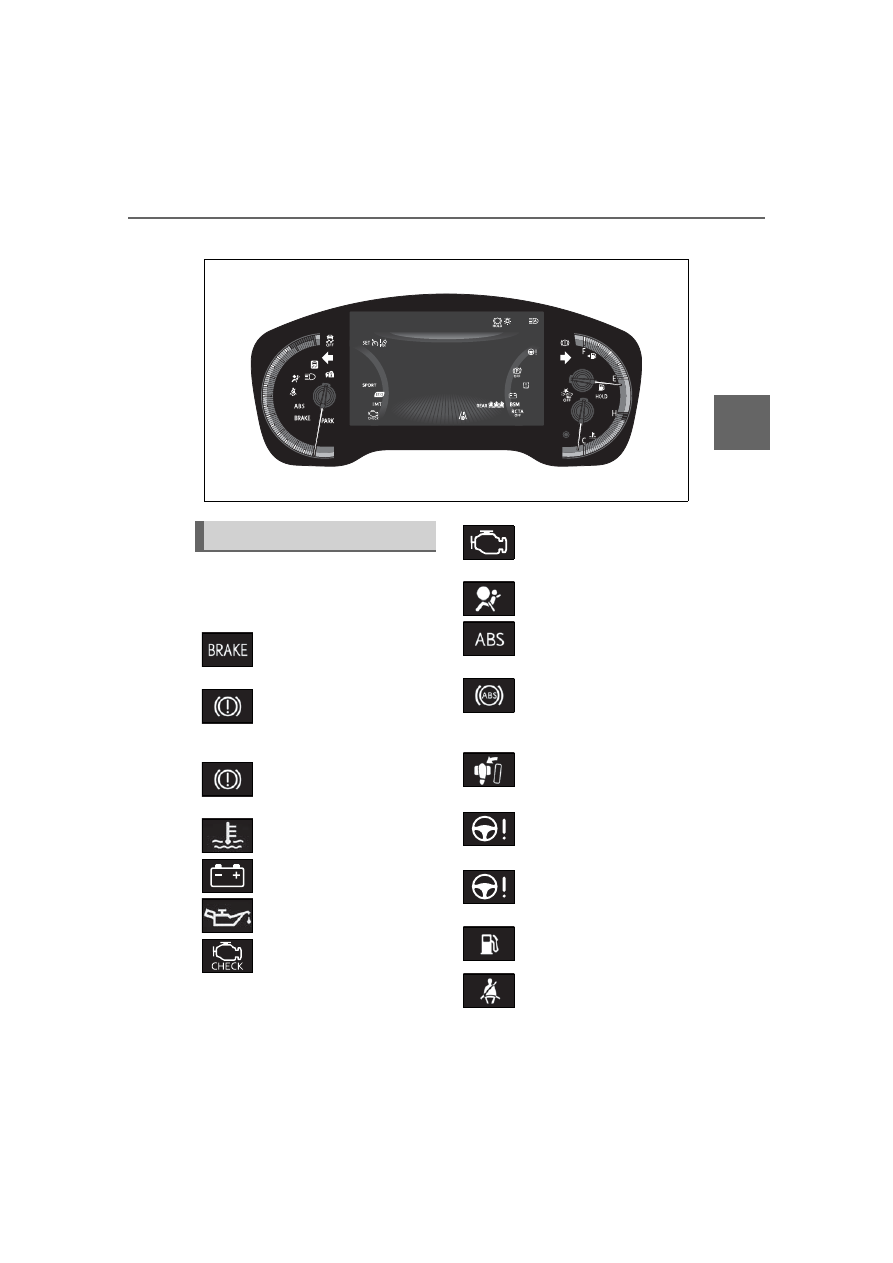

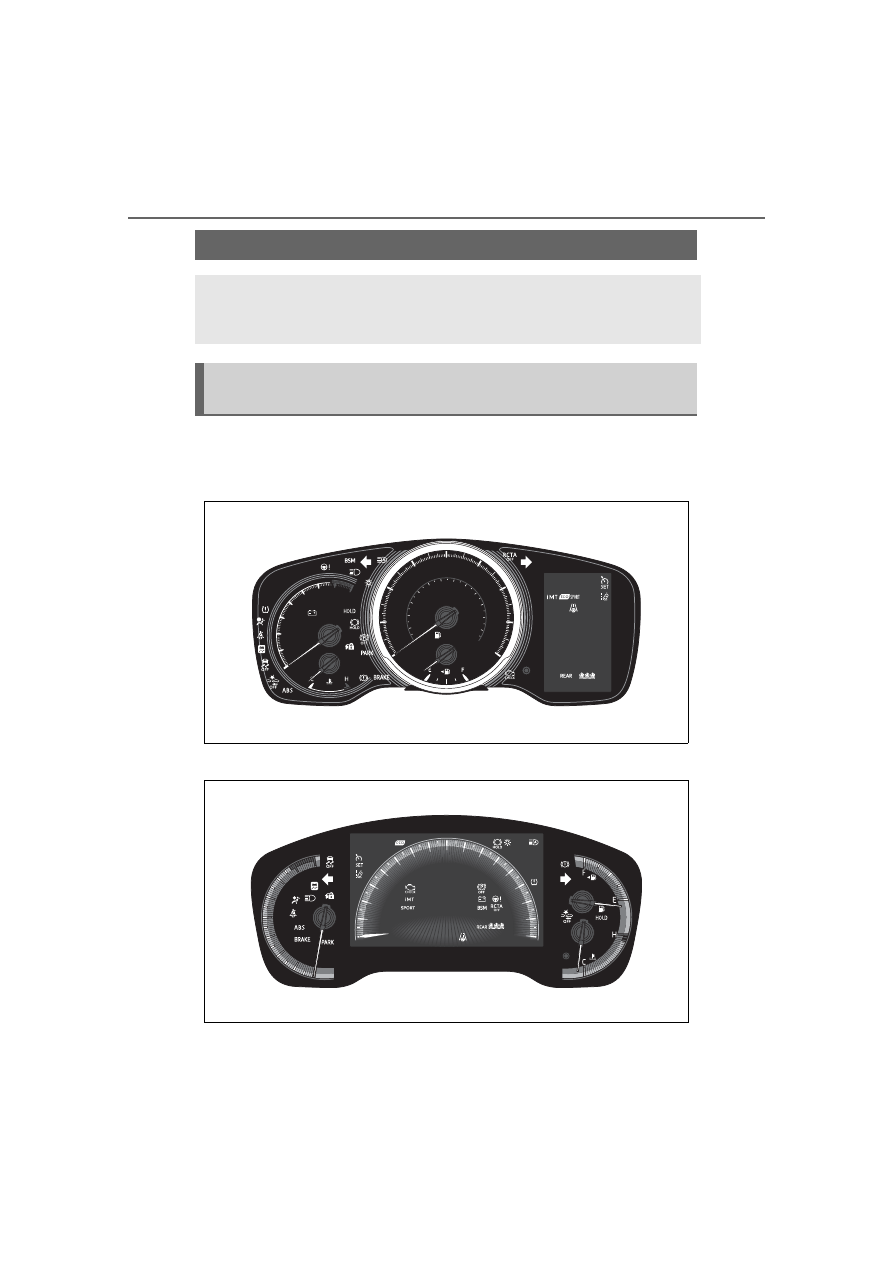

7-inch display (when digital speedometer is displayed)

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warning
light

(



(Red)

(Canada)

Brake system warning
light

(



(Yellow)

Brake system warning
light

(



High coolant temperature
warning light

(



Charging system warning
light

(



Low engine oil pressure
warning light

(



(U.S.A.)

Malfunction indicator
lamp

(

(Canada)

Malfunction indicator
lamp

(



SRS warning light

(



(U.S.A.)

ABS warning light

(



P.513)

(Canada)

ABS warning light

(



P.513)

Brake Override System
warning light/Drive-Start
Control warning light

(



P.513)

(Red)

Electric power steering
system warning light

(



(Yellow)

Electric power steering
system warning light

(



Low fuel level warning
light (

Driver’s and front passen-
ger’s seat belt reminder
light (

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA_U

:These lights come on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the lights do not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

:This light illuminates on the

multi-information display.

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

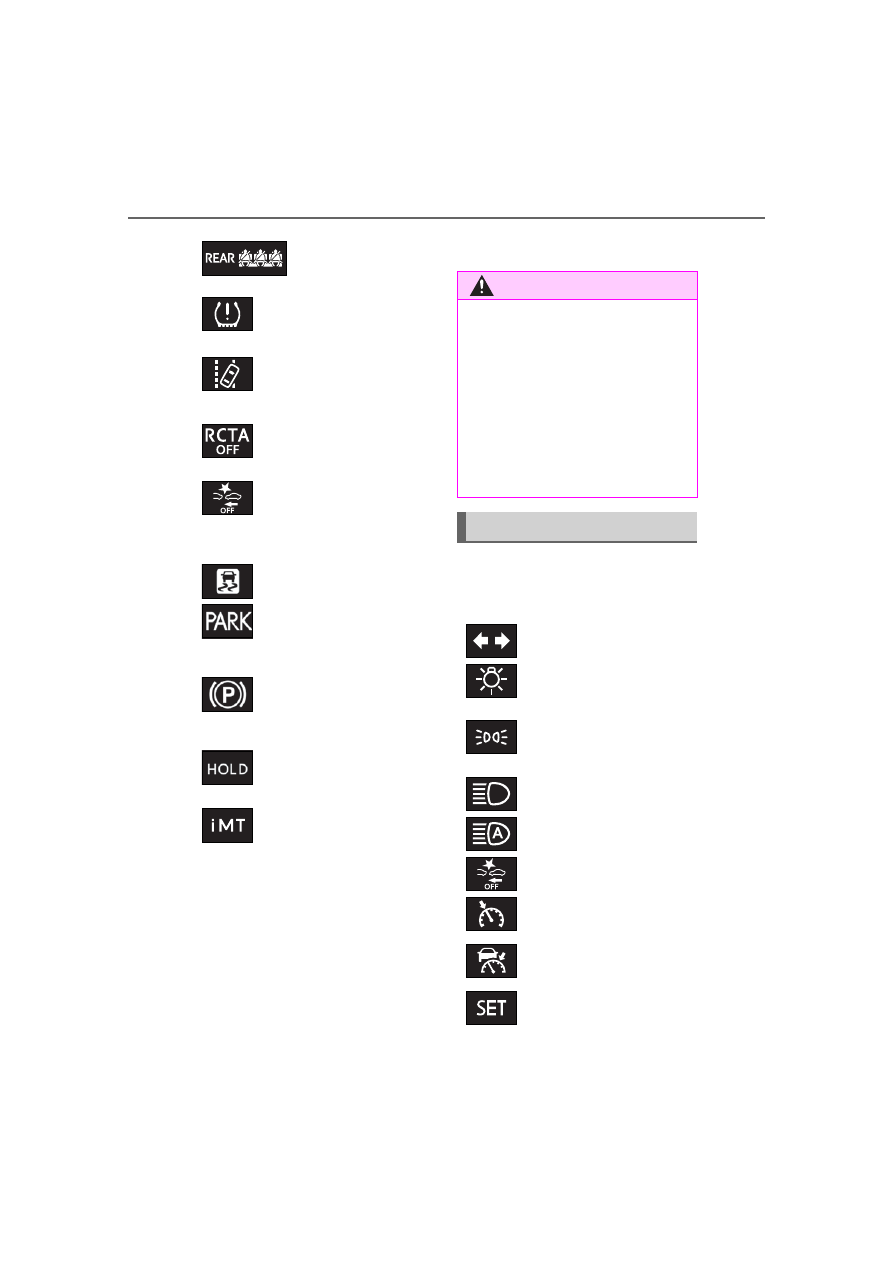

Rear passengers’
seat belt reminder
lights (

Tire pressure warning
light

(if equipped)

(

(Orange)

LTA indicator (if equipped)
(

LDA indicator (if equipped)
(

(Flashes)

RCTA OFF indicator

(if

equipped) (



P.516)

(Flashes

or illumi-

nates)

PCS warning light

(

P.516)

Slip indicator

(

P.516)

(Flashes)

(U.S.A.)

Parking brake indicator
(

(Flashes)
(Canada)

Parking brake indicator
(

(Flashes)

Brake hold operated indi-
cator

(if equipped)

(

(Orange)

iMT indicator

(if

equipped) (



WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

engine, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

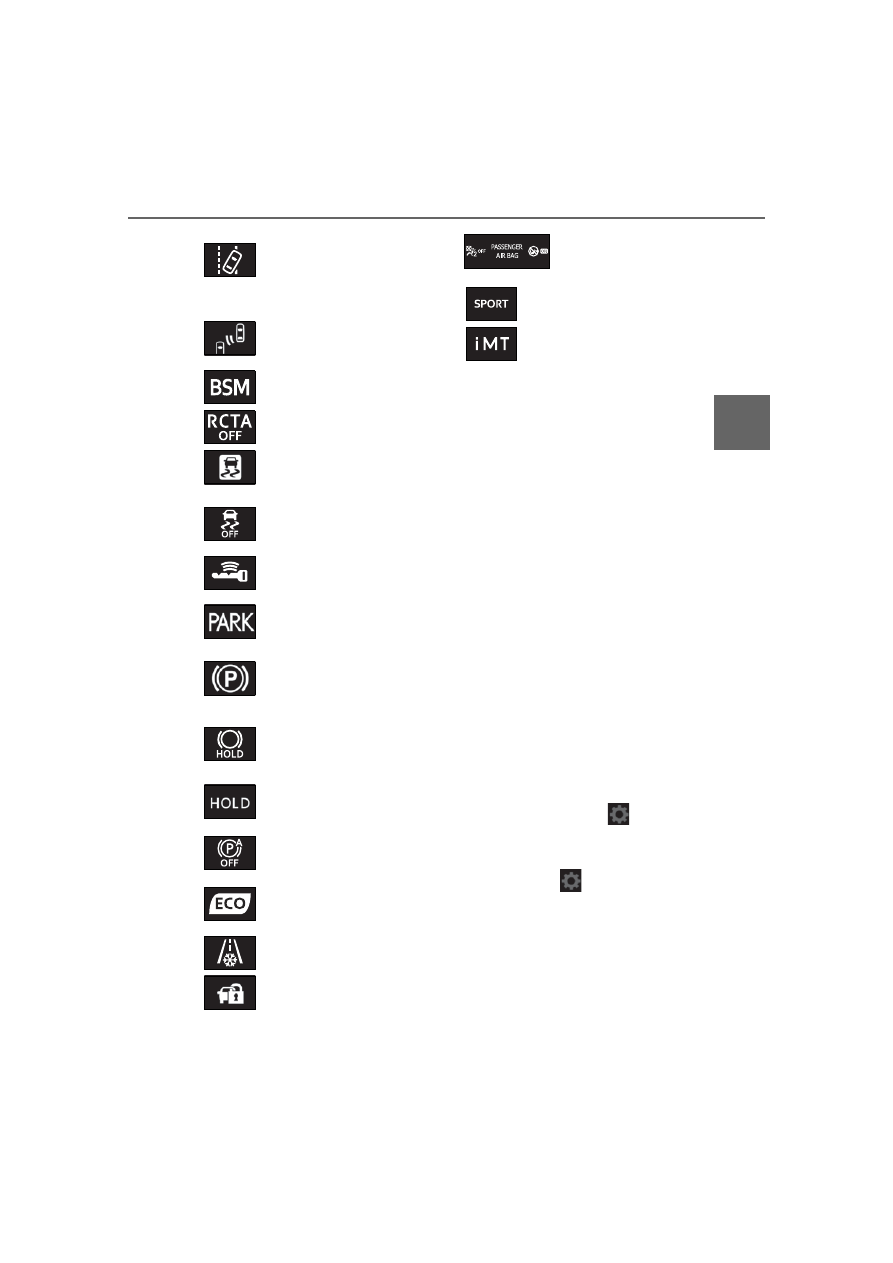

Indicators

Turn signal indicator
(

P.179)

(U.S.A.)

Headlight indicator
(

P.186)

(Canada)

Tail light indicator
(

P.186)

Headlight high beam indi-
cator (



P.188)

Automatic High Beam
indicator (



P.189)

PCS warning light

*1, 2

(

P.205)

Cruise control indicator
(

P.229, 240 )

Dynamic radar cruise con-
trol indicator (



P.229,

240)
Cruise control “SET” indi-
cator (



P.229, 240)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

:These lights come on when the

:This light comes on when the

system is turned off.

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

:In order to confirm operation, the

BSM outside rear view mirror
indicators illuminate in the follow-
ing situations:

• When the engine switch is

turned to ON, the BSM func-
tion is enabled on

of the

multi-information display.

• When the BSM function is

enabled on

of the

multi-information display, the
engine switch is turned to ON.

If the system is functioning cor-
rectly, the BSM outside rear view
mirror indicators will turn off after a
few seconds.

LTA indicator (if equipped)
(



P.216)

LDA indicator (if
equipped) (



P.225)

BSM outside rear view
mirror indicators

*4, 5

(if

equipped) (



P.253)

BSM indicator (if
equipped) (



P.253)

RCTA OFF indicator

*1, 2

(if equipped) (

P.258)

(Flashes)

Slip indicator

(



P.273)

VSC OFF indicator

*1, 2

(



P.273)

Smart key system indica-
tor

(if equipped)

(



P.164)

(U.S.A.)

Parking brake indicator
(



P.180, 1 81)

(Canada)

Parking brake indicator
(



P.180, 1 81)

Brake hold standby indi-
cator

(if equipped)

(



P.184)

Brake hold operated indi-
cator

(if equipped)

(



P.184)

Auto EPB OFF indicator

*1,

(if equipped) (



P.181)

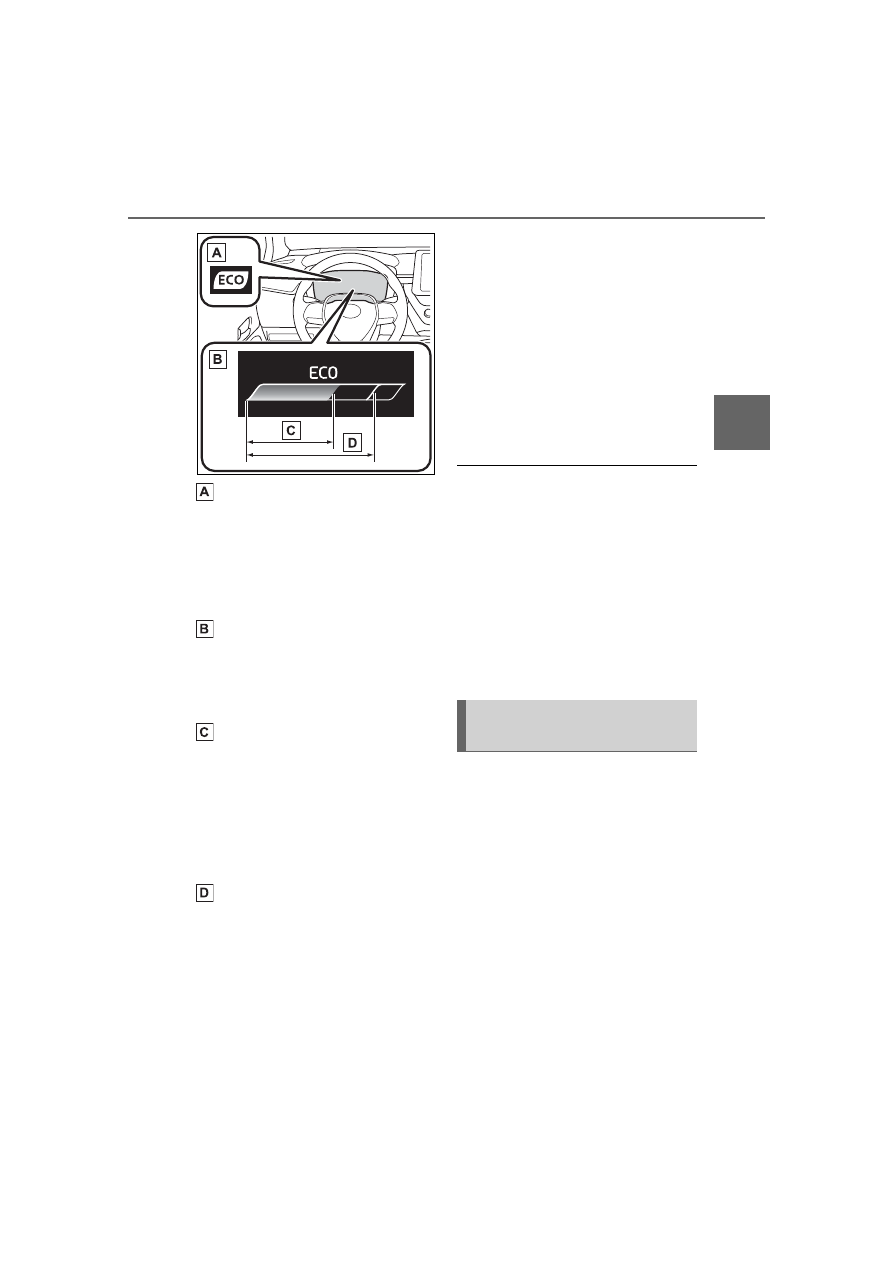

Eco Driving Indicator
Light

(if equipped)

(



P.102)

Low outside temperature
indicator

(



Security indicator (

“AIR BAG ON/OFF”
indicator

*1, 8

(

P.41)

Sport mode indicator (if
equipped) (



P.271)

(Green)

iMT indicator (if equipped)
(

P.178)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

■

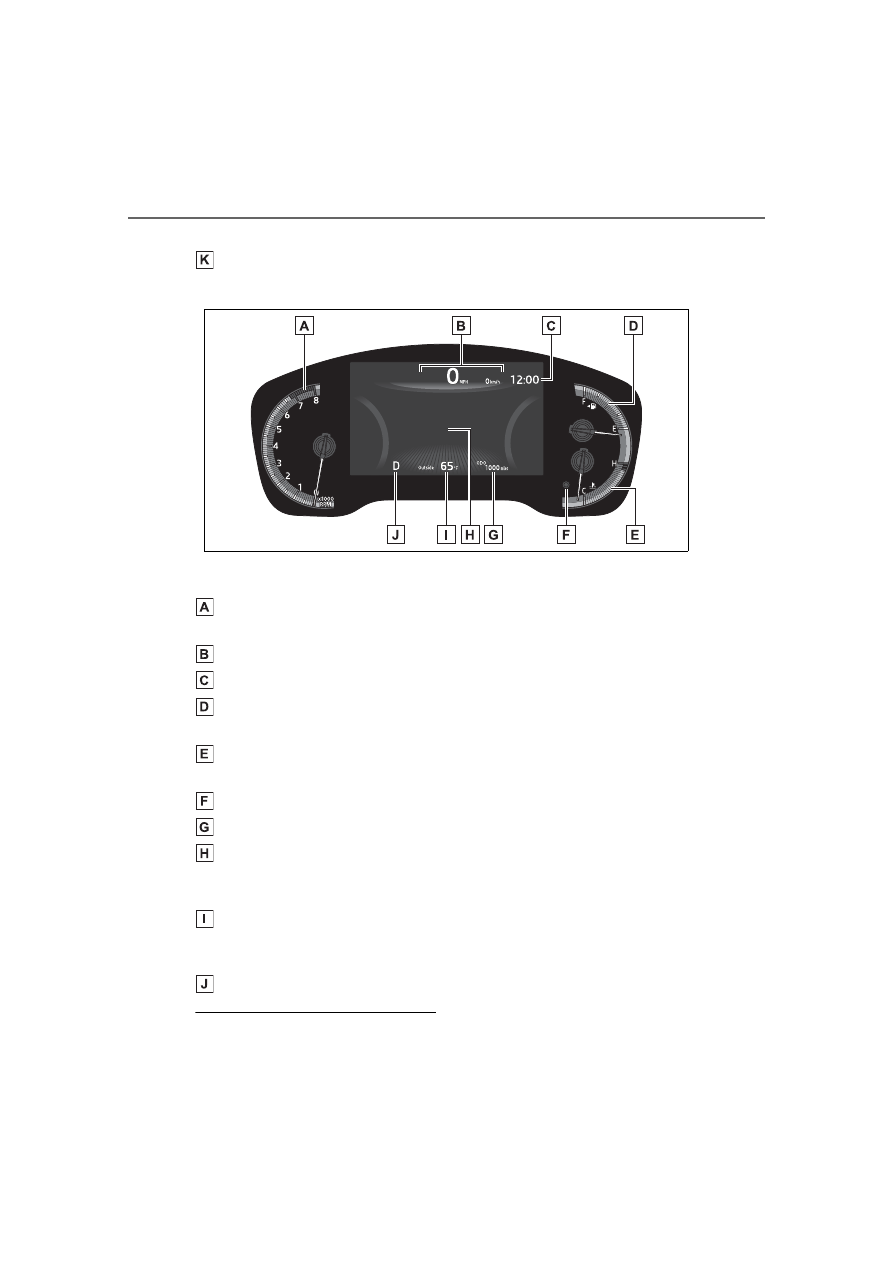

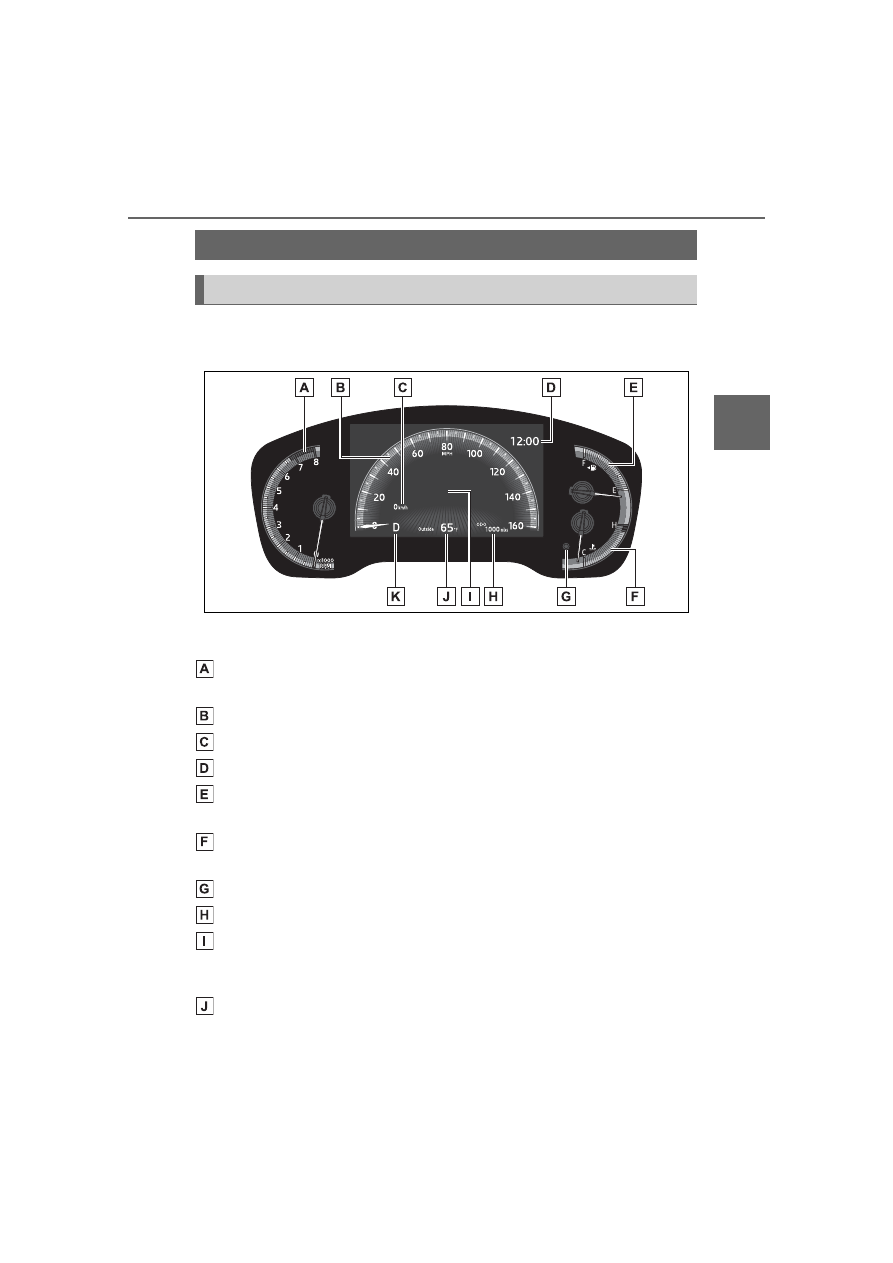

Locations of gauges and meters

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Clock (

P.93)

Multi-information display

Presents the driver with a variety of vehicle data (



P.100)

Displays warning messages if a malfunction occurs (



Odometer and trip meter display (



P.92)

Shift position indicator (

P.169)

Display change button (

P.92)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

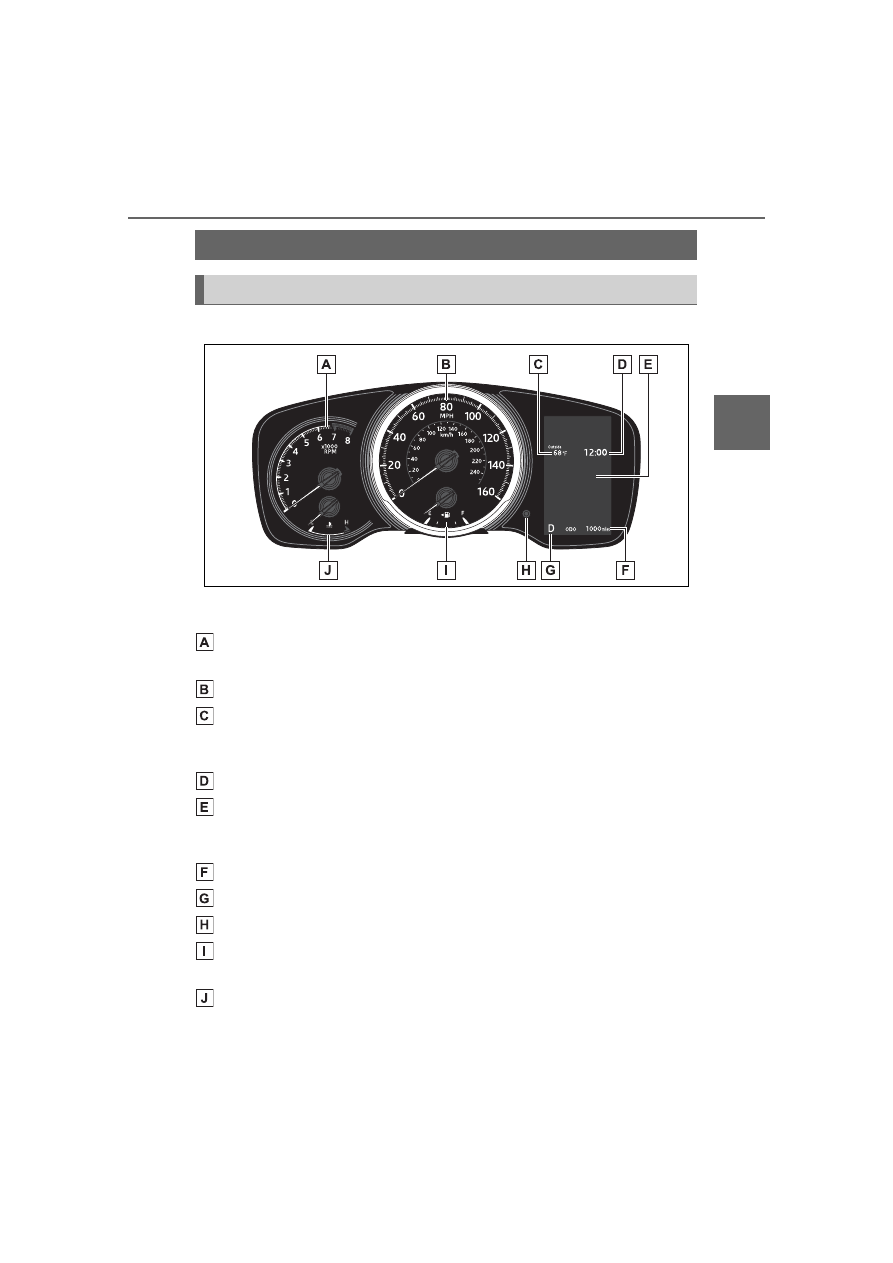

Gauges and meters (4.2-inch display)

Meter display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA_U

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

P.101

■

Changing the display

Press the display change button
until the desired item is dis-
played.

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.550)

Odometer and trip meter
display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

different distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.

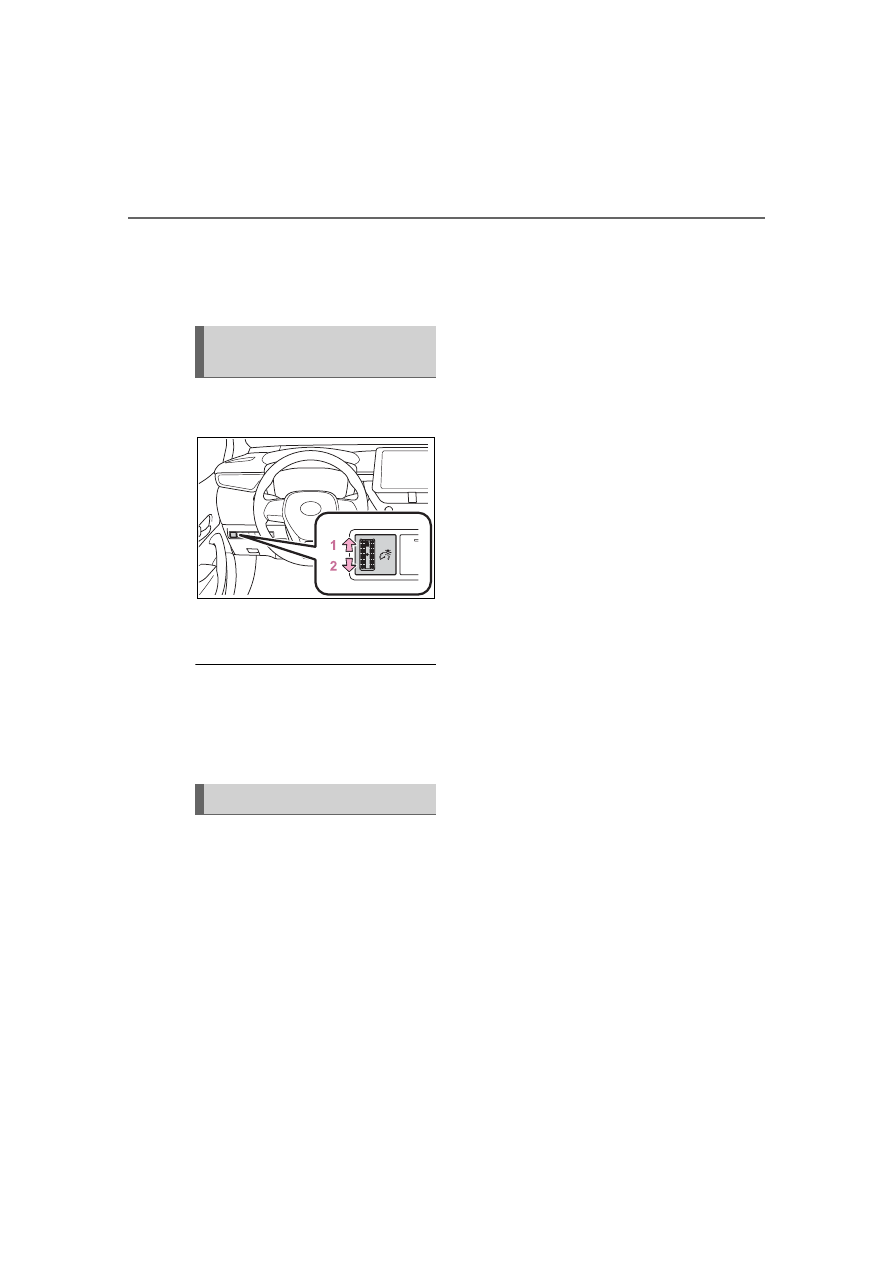

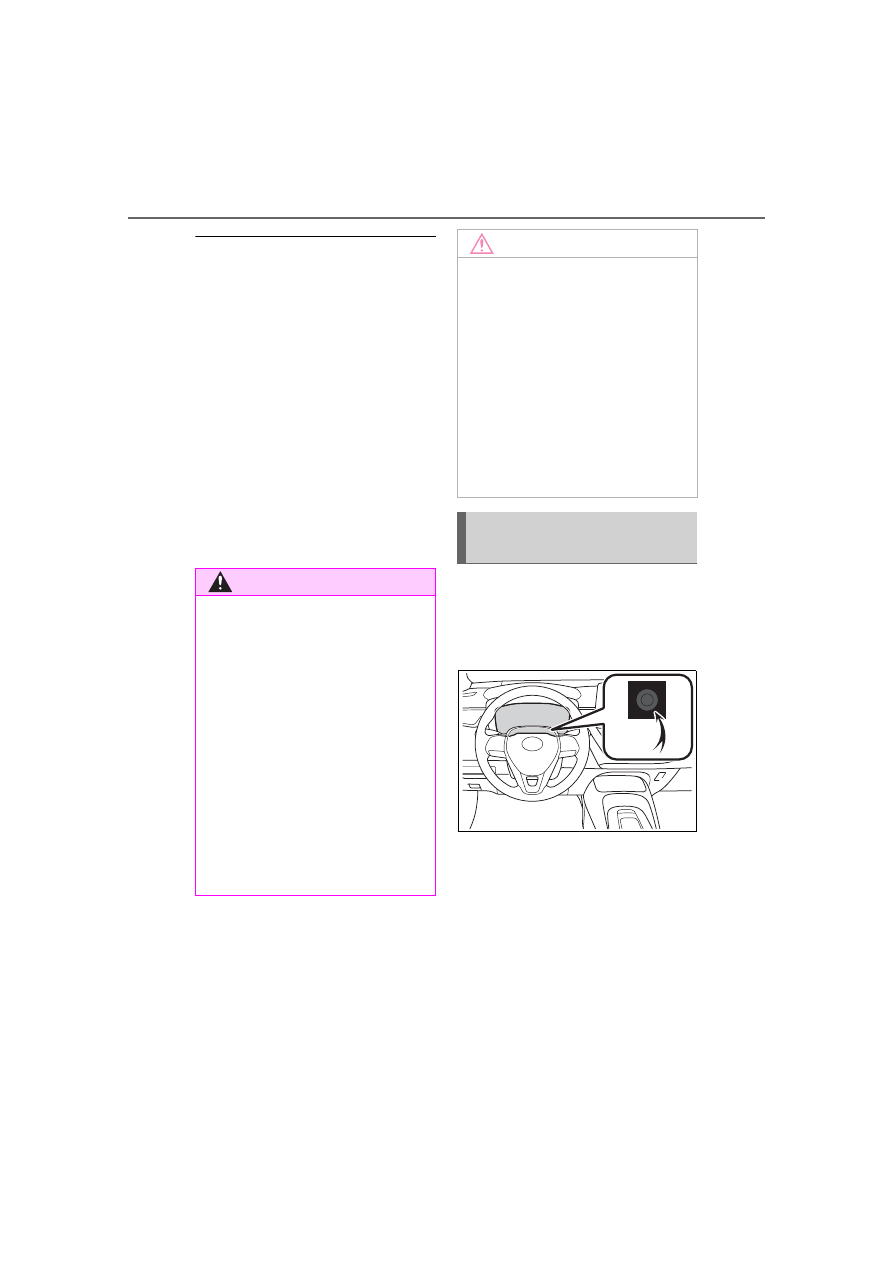

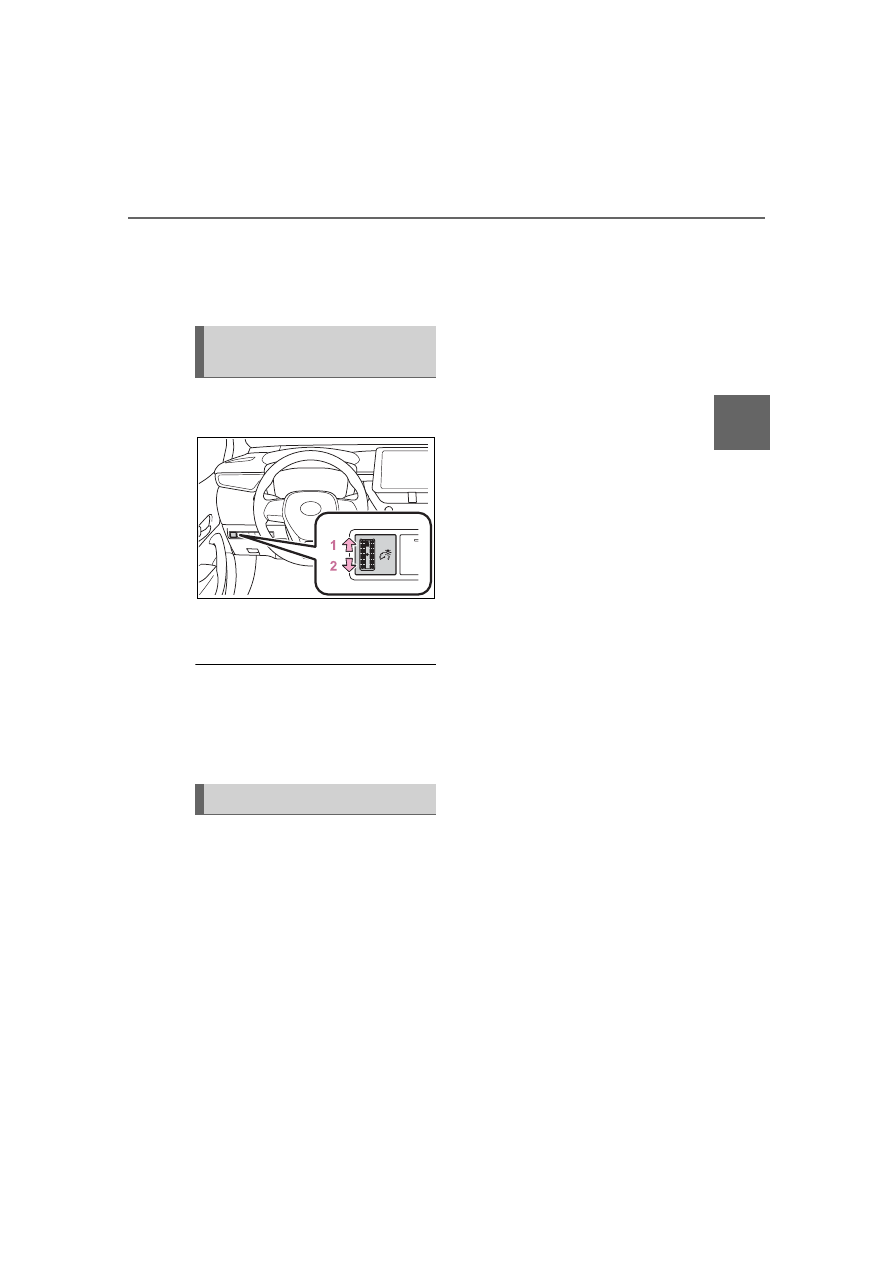

The brightness of the instrument
panel lights can be adjusted.

Brighter

Darker

■

Instrument panel light bright-

ness adjustment

The brightness of the instrument

panel lights can be adjusted sepa-

rately for when the tail lights are on

and off.

■

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.



Multi-information display



Audio system screen

■

Setting the clock to be
adjusted automatically by
GPS (Audio [for
U.S.A.]/Audio Plus)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to on.

■

Adjusting the clock manu-
ally



Audio (except for U.S.A.)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00



Audio (for U.S.A.)/Audio Plus

Press the “MENU” button.

Changing the instrument
panel light brightness

Adjusting the clock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA_U

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to off.

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00

■

Setting the time zone
(Audio [for U.S.A.]/Audio
Plus)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Time Zone”.

Select the desired time zone.

■

Setting daylight saving time
(Audio [for U.S.A.]/Audio
Plus)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Daylight Saving
Time” then on/off.

■

Changing the clock
between 12-hour/24-hour
format

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

■

Clock settings screen (Audio

[for U.S.A.]/Audio Plus)

If “Clock : 00” is displayed when

is selected on the multi-information

display, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

■

Locations of gauges and meters



Analog speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Sub speedometer
Clock (

P.98)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (

Odometer and trip meter display (



Multi-information display

Presents the driver with a variety of vehicle data (



P.100)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F

Gauges and meters (7-inch display)

Meter display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA_U

(50°C)

Shift position indicator (

P.169)



Digital speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Clock (

P.98)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (

Odometer and trip meter display (



Multi-information display

Presents the driver with a variety of vehicle data (



P.100)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Shift position indicator (

P.169)

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

P.101

■

Customization

The gauges and meters can be cus-
tomized in

of the multi-informa-

tion display. (



■

Changing the display

Press the display change button
until the desired item is dis-
played.

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.550)

Odometer and trip meter
display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA_U

different distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.

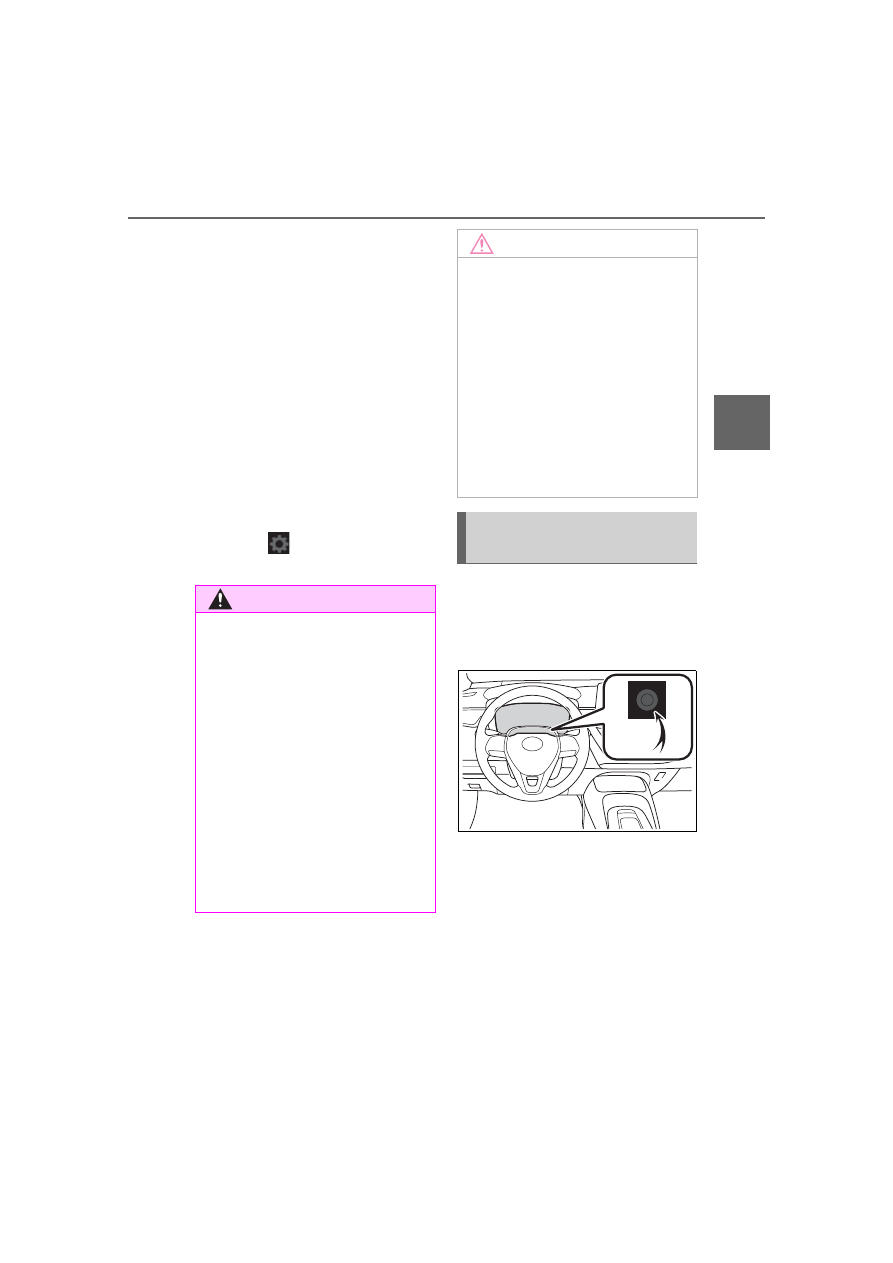

The brightness of the instrument
panel lights can be adjusted.

Brighter

Darker

■

Instrument panel light bright-

ness adjustment

The brightness of the instrument

panel lights can be adjusted sepa-

rately for when the tail lights are on

and off.

■

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.



Multi-information display



Audio system screen

■

Setting the clock to be
adjusted automatically by
GPS

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to on.

■

Adjusting the clock manu-
ally

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to off.

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00

■

Setting the time zone

Press the “MENU” button.

Changing the instrument
panel light brightness

Adjusting the clock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Time Zone”.

Select the desired time zone.

Premium Audio only:
If “Auto” is selected, the time zone
is selected automatically by current
vehicle position.

■

Setting daylight saving time

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Daylight Saving
Time” then on/off/auto

: Premium Audio only

■

Changing the clock
between 12-hour/24-hour
format

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

■

Clock settings screen

If “Clock : 00” is displayed when

is selected on the multi-information

display, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

2-1. Instrument cluster

COROLLA_U

■

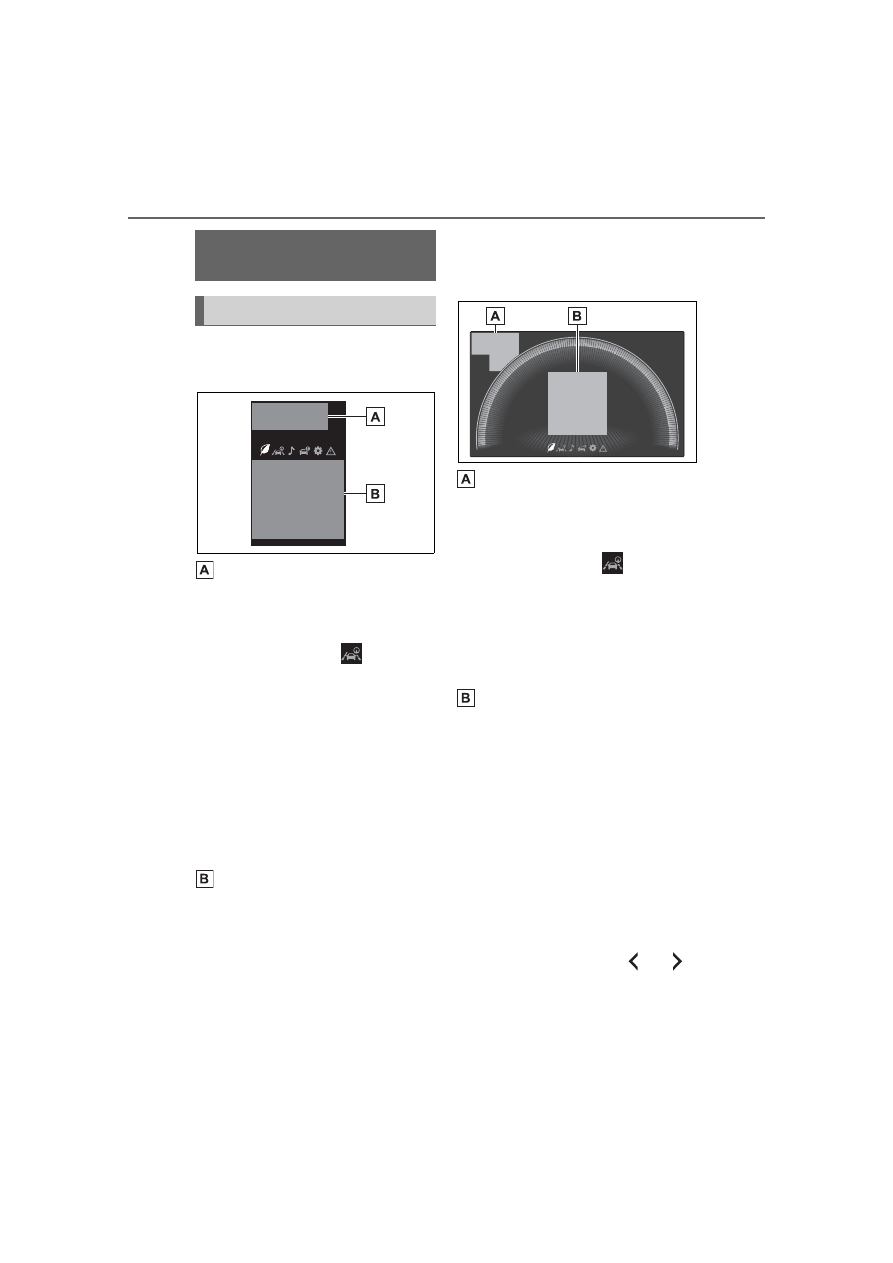

Display



4.2-inch display

Driving support system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist) (if

equipped)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• Dynamic radar cruise control (if

equipped)

• Dynamic radar cruise control with

full-speed range (if equipped)

• RSA (Road Sign Assist) (if

equipped) (



P.250)

Content display area

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.
Warning or advice pop-up displays

are also displayed in certain situa-
tions.



7-inch display

Driving support system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)
• Dynamic radar cruise control with

full-speed range

• RSA (Road Sign Assist) (if

equipped) (

P.250)

Content display area

■

Menu icons

The menu icons will be dis-
played by pressing the

meter control switch.

Multi-information dis-

play

Display and menu icons

-------------------------------------------------------------------------------------------------------------------------------------------------------------

101

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

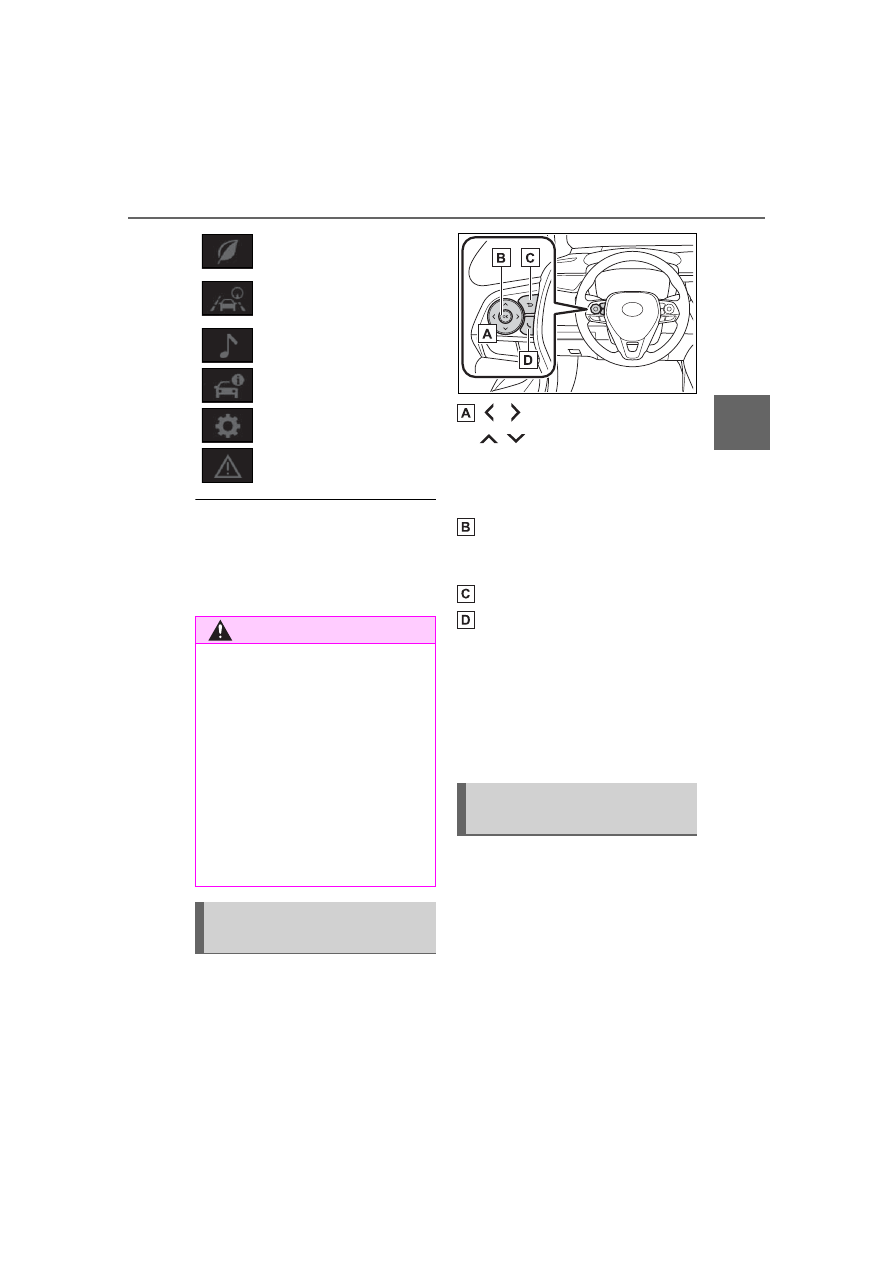

The multi-information display is
operated using the meter control
switches.

: Select menu icons

: Change displayed

content, scroll up/down the
screen and move the cursor
up/down
Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Display items



Speedometer display/Driving
range (4.2-inch display)



Fuel economy



Eco Driving Indicator/Driving
range (if equipped)

Driving information display
(

P.101)

Driving support system
information display
(

P.103)

Audio system-linked dis-
play (



Vehicle information dis-
play (



Settings display (

Warning message display
(

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.92 , 97

Changing the meter dis-
play

Content of driving infor-
mation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

102

2-1. Instrument cluster

COROLLA_U

■

Speedometer display/Driv-
ing range (4.2-inch display)



Speedometer display



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Average fuel economy (after
reset)

To reset the average fuel economy

display, press and hold the

meter control switch.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Driving range

Displays driving range with remain-
ing fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

The average fuel economy dis-
play can be changed in

(





Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

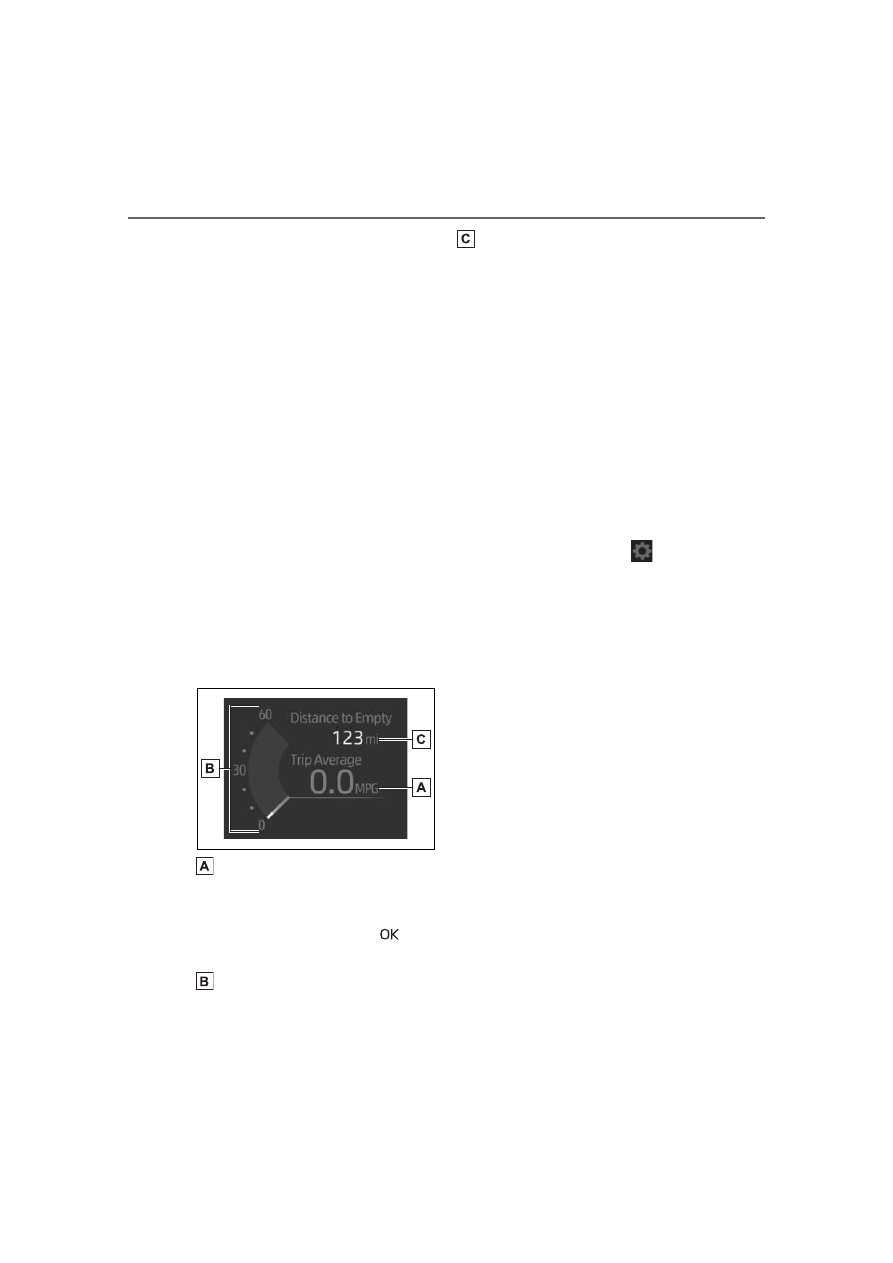

Eco Driving Indicator/Driv-
ing range (if equipped)



Eco Driving Indicator

-------------------------------------------------------------------------------------------------------------------------------------------------------------

103

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

Eco Driving Indicator Light

During Eco-friendly acceleration
(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-

ate under the following conditions:

●

The shift lever is in any position

other than D.

●

A paddle shift switch is operated.

(If equipped)

●

The driving mode is set to sport

mode. (If equipped)

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.211)



LDA (Lane Departure Alert
with steering control) (if
equipped) (



P.221)



Dynamic radar cruise control
(if equipped) (



P.240)



Dynamic radar cruise control

Driving support system
information display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

104

2-1. Instrument cluster

COROLLA_U

with full-speed range (if
equipped) (

P.229)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (head-
ing-up display)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Drive information

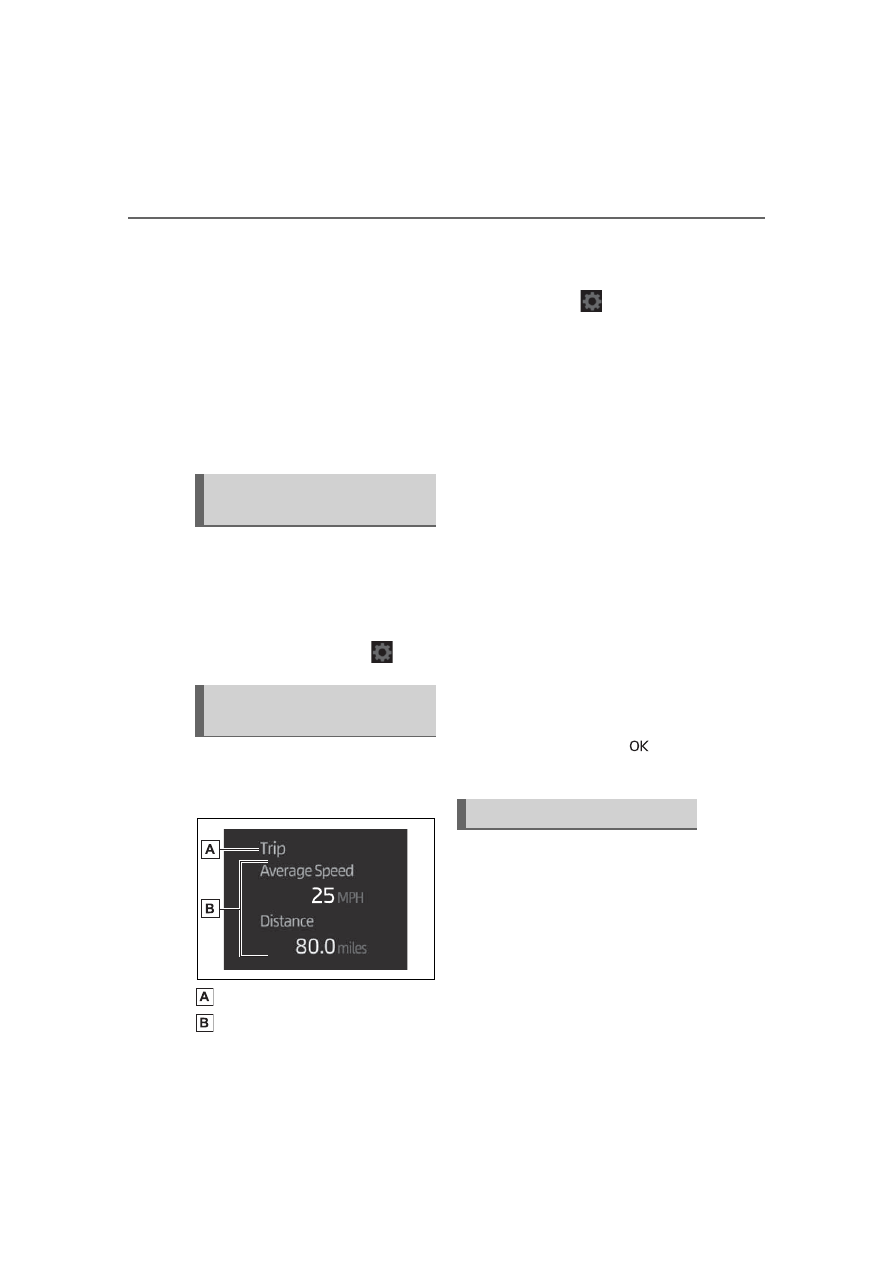

Displays drive information such as
the following:

Drive information type
Drive information items

Displays the following depend-
ing on which drive information
type and drive information items
were selected in

. (



After start

• Distance: Displays the distance

driven since engine start

• Elapsed time: Displays the

elapsed time since engine start

• Average vehicle speed: Displays

the average vehicle speed since
engine start



After reset

• Distance: Displays the distance

driven since the display was
reset

• Elapsed time: Displays the

elapsed time since the display
was reset

• Average vehicle speed: Displays

the average vehicle speed since
the display was reset

: To reset, display the desired item

and press and hold the

meter control switch.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Speedometer display (7-inch

Audio system-linked dis-
play

Vehicle information dis-
play

Settings display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

105

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

display)

Select to set the display of the
speedometer to analog/digital.



Eco Driving Indicator Light (if
equipped)

Select to enable/disable the Eco
Driving Indicator Light.



• Fuel economy display
Select to change the average fuel
consumption display between after
start/after reset. (

P.102)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.
To turn the multi-information display
on again, press any of the following
meter control switches



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed

P.581

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

WARNING

■

Cautions during setting up

the display

If the engine is running when

changing the display settings,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

106

2-1. Instrument cluster

COROLLA_U

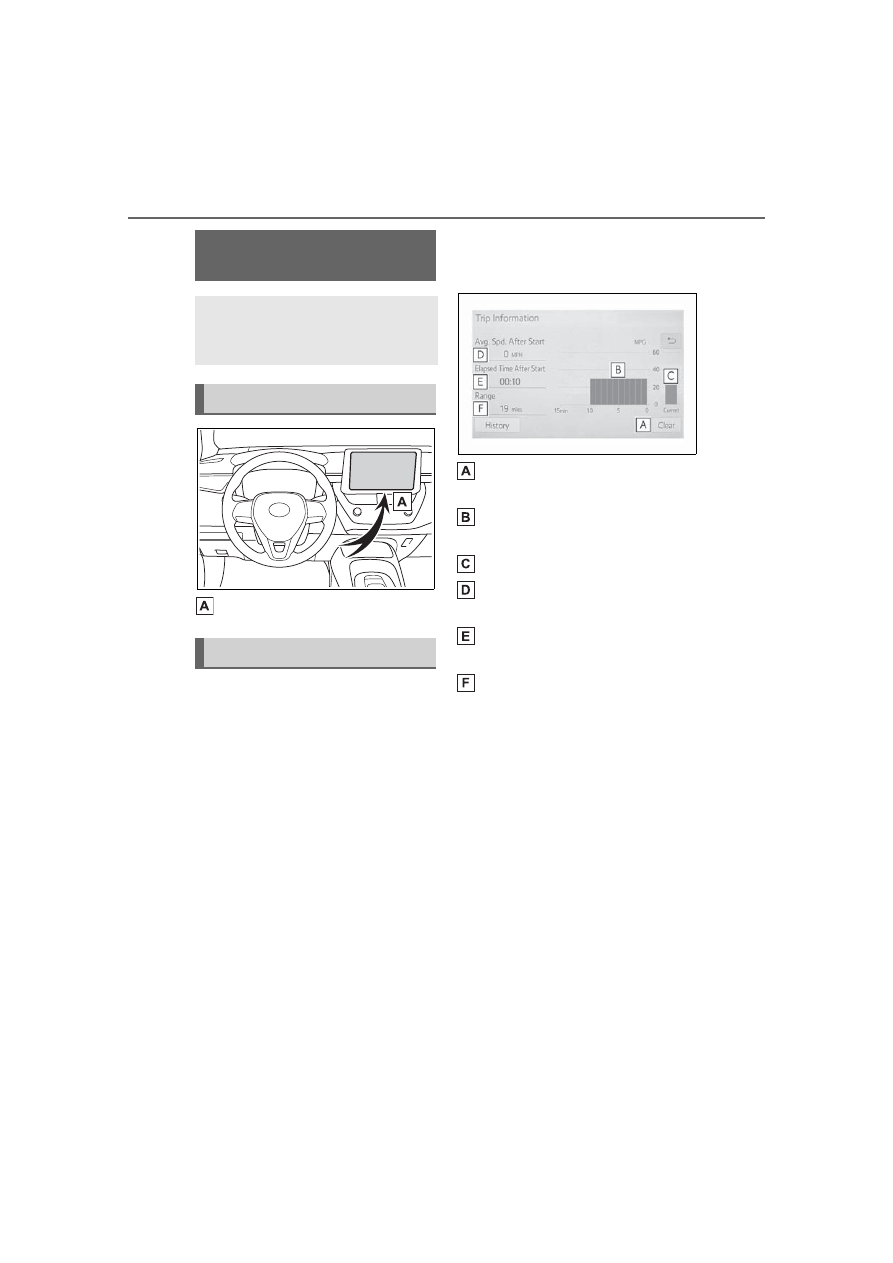

Audio system screen

■

Trip information



Audio without DCM/Audio
Plus without DCM

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.



Audio with DCM/Audio Plus
with DCM/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.

Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Average vehicle speed since
the engine was started.
Elapsed time since the
engine was started.
Cruising range

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
engine switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

The image is an example only, and
may vary slightly from actual condi-
tions.

■

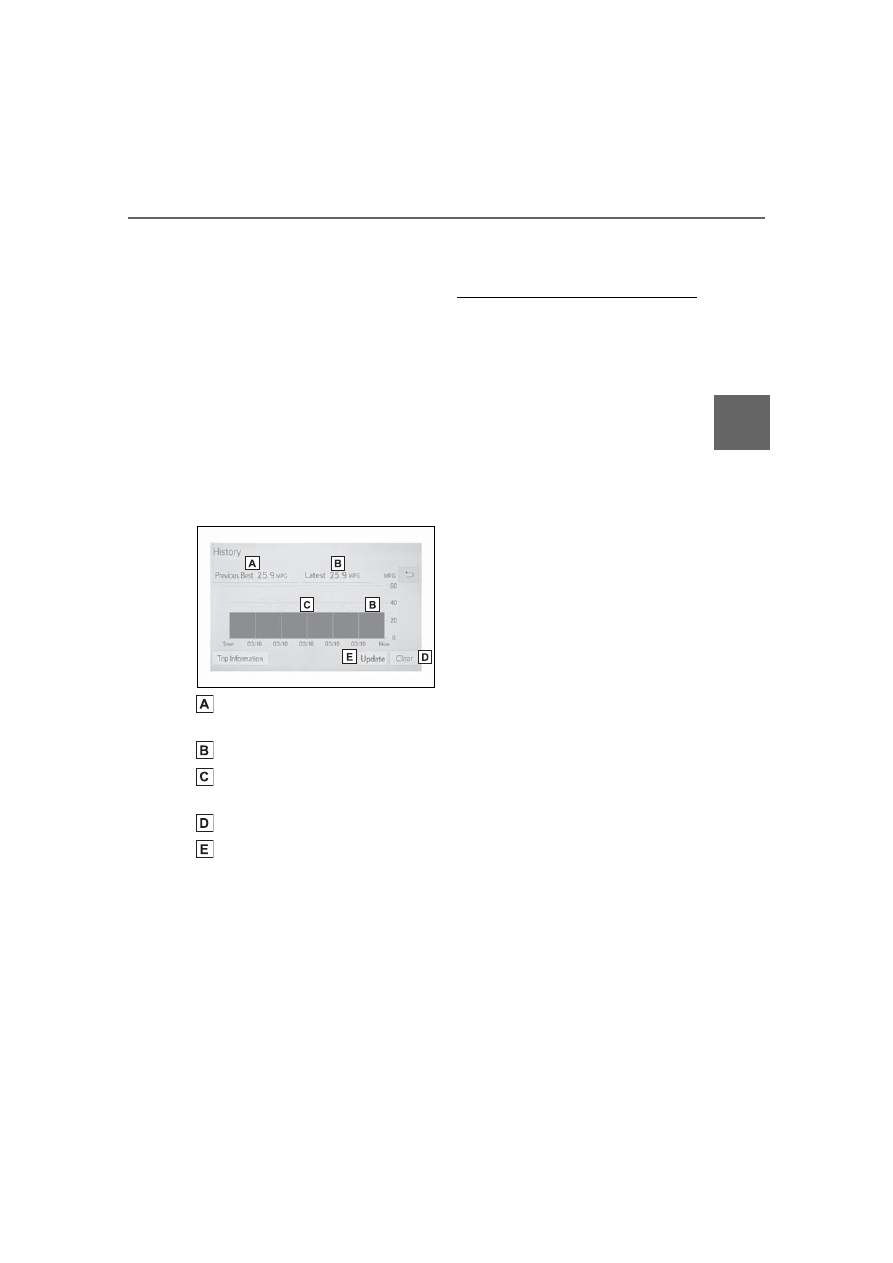

History



Audio without DCM/Audio
Plus without DCM

Press the “MENU” button.

Fuel consumption

information

Fuel consumption informa-
tion can be displayed on the
audio system screen.

System components

Consumption

-------------------------------------------------------------------------------------------------------------------------------------------------------------

107

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

COROLLA_U

Select “Info” on the “Menu”
screen.

If a screen other than “History” is
displayed, select “History”.



Audio with DCM/Audio Plus
with DCM/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “History” is
displayed, select “History”.

Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Resetting the history data
Updating the latest fuel con-
sumption data

The average fuel consumption
history is divided by color into
past averages and the average
fuel consumption since the last
updated. Use the displayed
average fuel consumption as a
reference.

The image is an example only, and
may vary slightly from actual condi-
tions.

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption.

As a result, the actual distance that

can be driven may differ from that

displayed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

109

Before driv

ing

COROLLA_U

Before driving

3-1. Key information

Keys ............................

110

3-2. Opening, closing and

locking the doors

Doors ..........................

117

Trunk ...........................

122

Smart key system .......

125

3-3. Adjusting the seats

Front seats ..................

133

Rear seats...................

134

Head restraints............

136

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

138

Inside rear view mirror

..................................

139

Outside rear view mirrors

..................................

140

3-5. Opening and closing the

windows

Power windows ...........

142

Moon roof....................

145

-------------------------------------------------------------------------------------------------------------------------------------------------------------

110

3-1. Key information

COROLLA_U

3-1.Key information

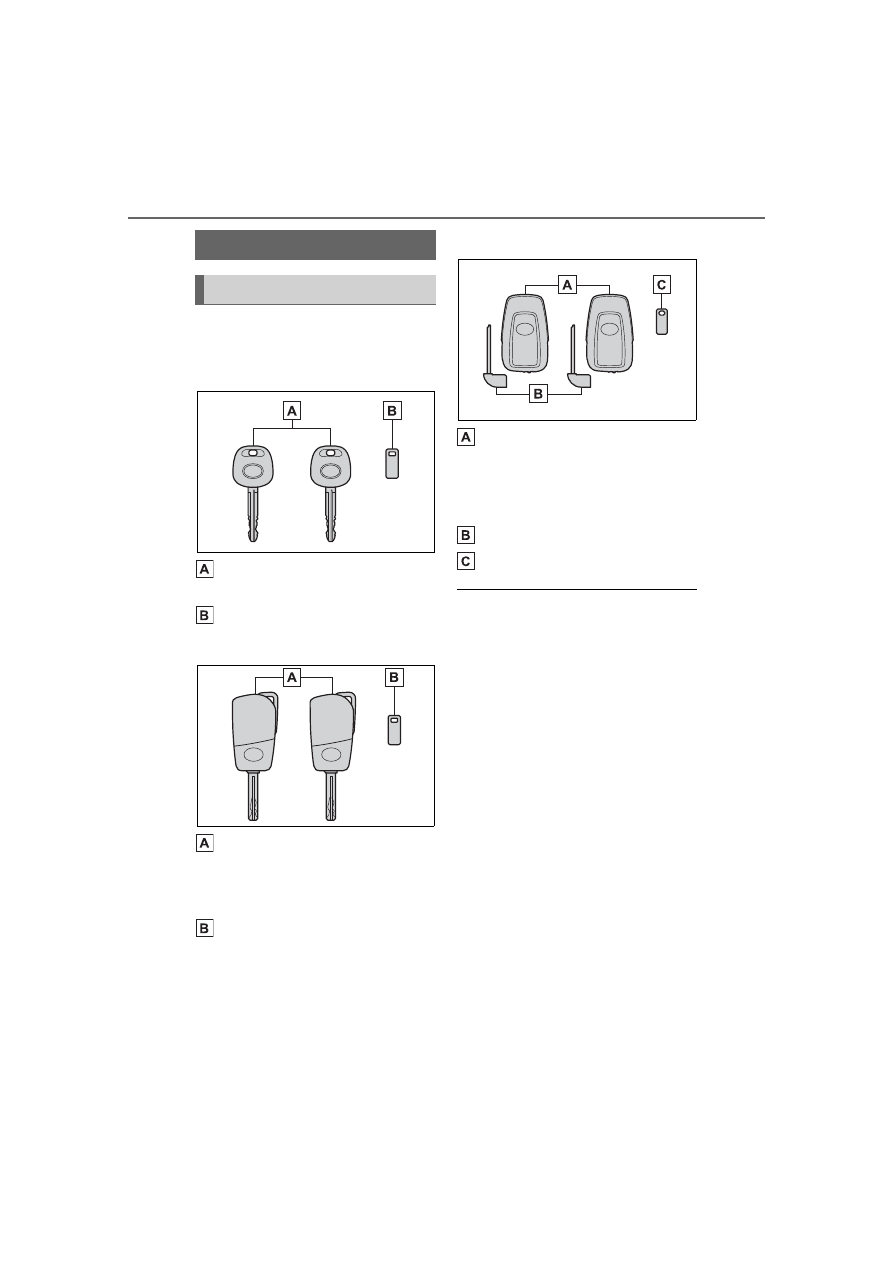

The following keys are provided
with the vehicle.



Type A

Keys (without a wireless
remote control function)
Key number plate



Type B

Keys (with a wireless remote
control function)

Operating the wireless remote con-
trol function (



P.112)

Key number plate



Type C

Electronic keys

• Operating the smart key system

(



P.125)

• Operating the wireless remote

control function (

P.112)

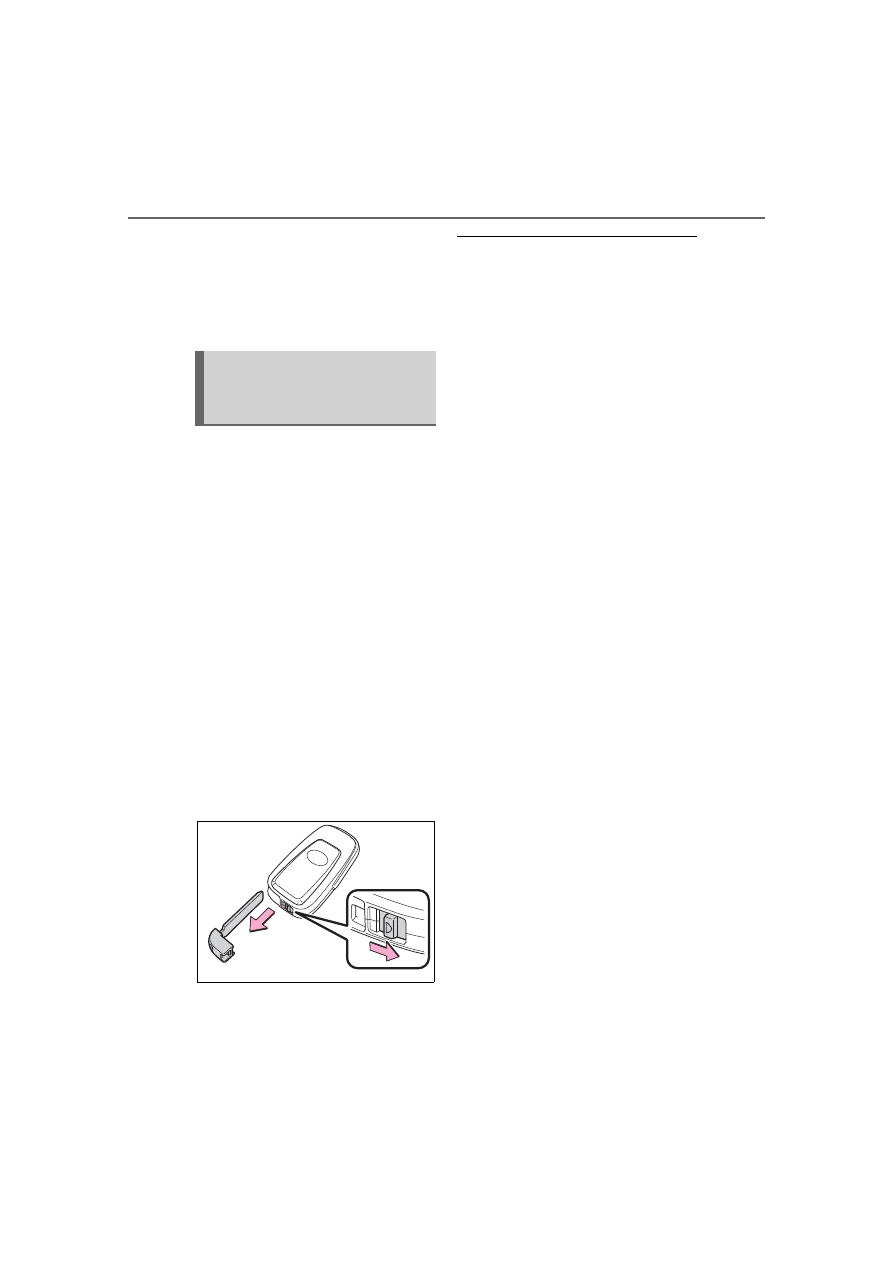

Mechanical keys
Key number plate

■

When riding in an aircraft (with

a wireless remote control func-

tion)

When bringing a key with wireless

remote control function onto an air-

craft, make sure you do not press

any buttons on the key while inside

the aircraft cabin. If you are carrying

the key in your bag, etc., ensure that

the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the key to emit

radio waves that could interfere with

the operation of the aircraft.

■

Key battery depletion (with a

wireless remote control func-

tion)



Vehicles without a smart key sys-

tem

●

The standard battery life is 1 to 2

years.

●

The battery will become depleted

even if the key is not used. The

following symptoms indicate that

the key battery may be depleted.

Replace the battery when neces-

sary. (

Keys

The keys

-------------------------------------------------------------------------------------------------------------------------------------------------------------

111

3-1. Key information

Before driv

ing

COROLLA_U

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with a smart key system

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be shown on the

multi-information display when the

engine is stopped.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (

P.127)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary. (



• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

Replacing the battery (with a

wireless remote control func-

tion)



P.489

■

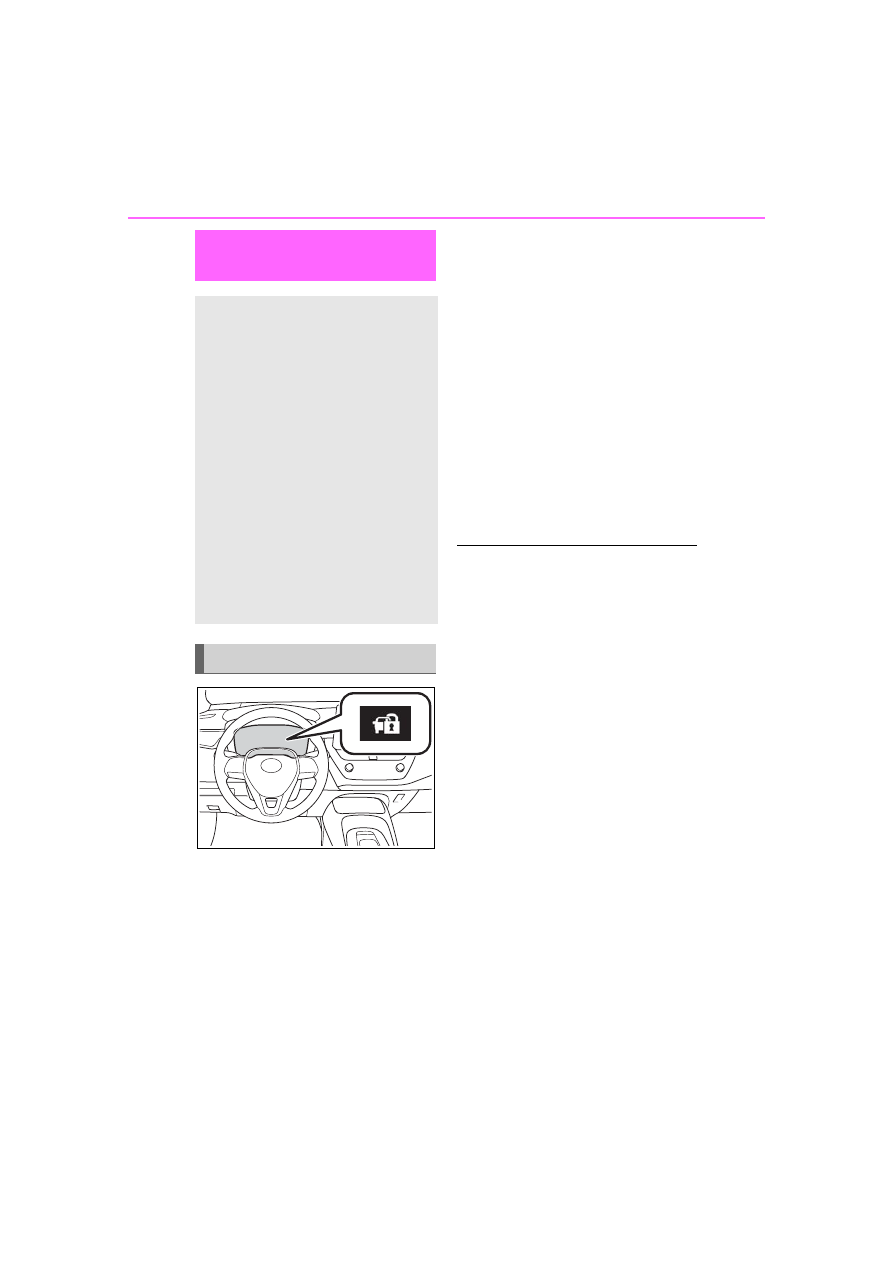

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the

multi-information display (vehi-

cles with a smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

■

If a wrong key is used (with a

wireless remote control func-

tion)

The key cylinder rotates freely, iso-

lated from the internal mechanism.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer

etc.

●

Vehicles with a smart key sys-

tem: Do not attach metallic or

magnetic materials to the keys

or place the keys close to such

materials.

●

Do not disassemble the keys.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

112

3-1. Key information

COROLLA_U

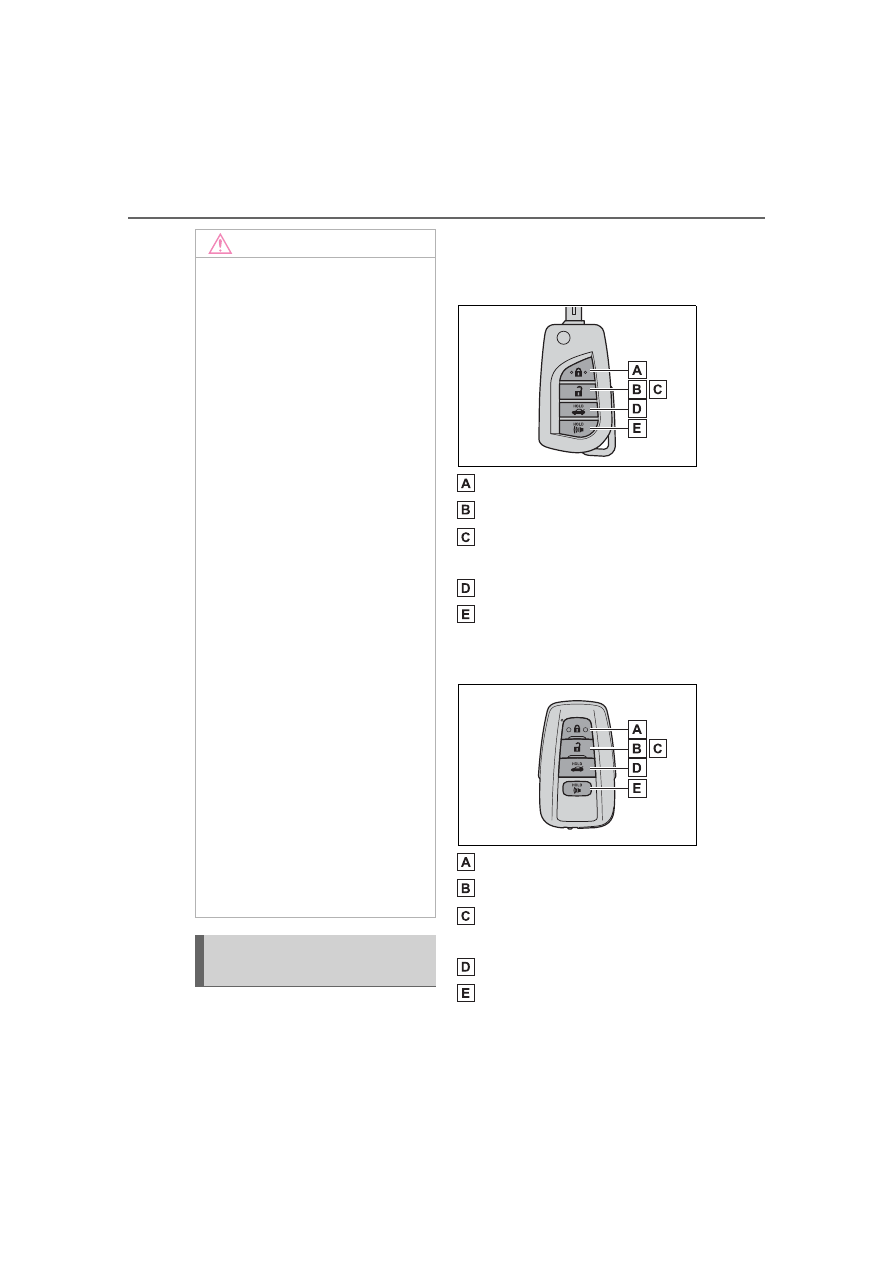

The keys are equipped with the
following wireless remote con-

trol:



Vehicles without a smart key
system

Locks the doors (



Unlocks the doors (

Opens the windows

and

moon roof

*1, 2

(



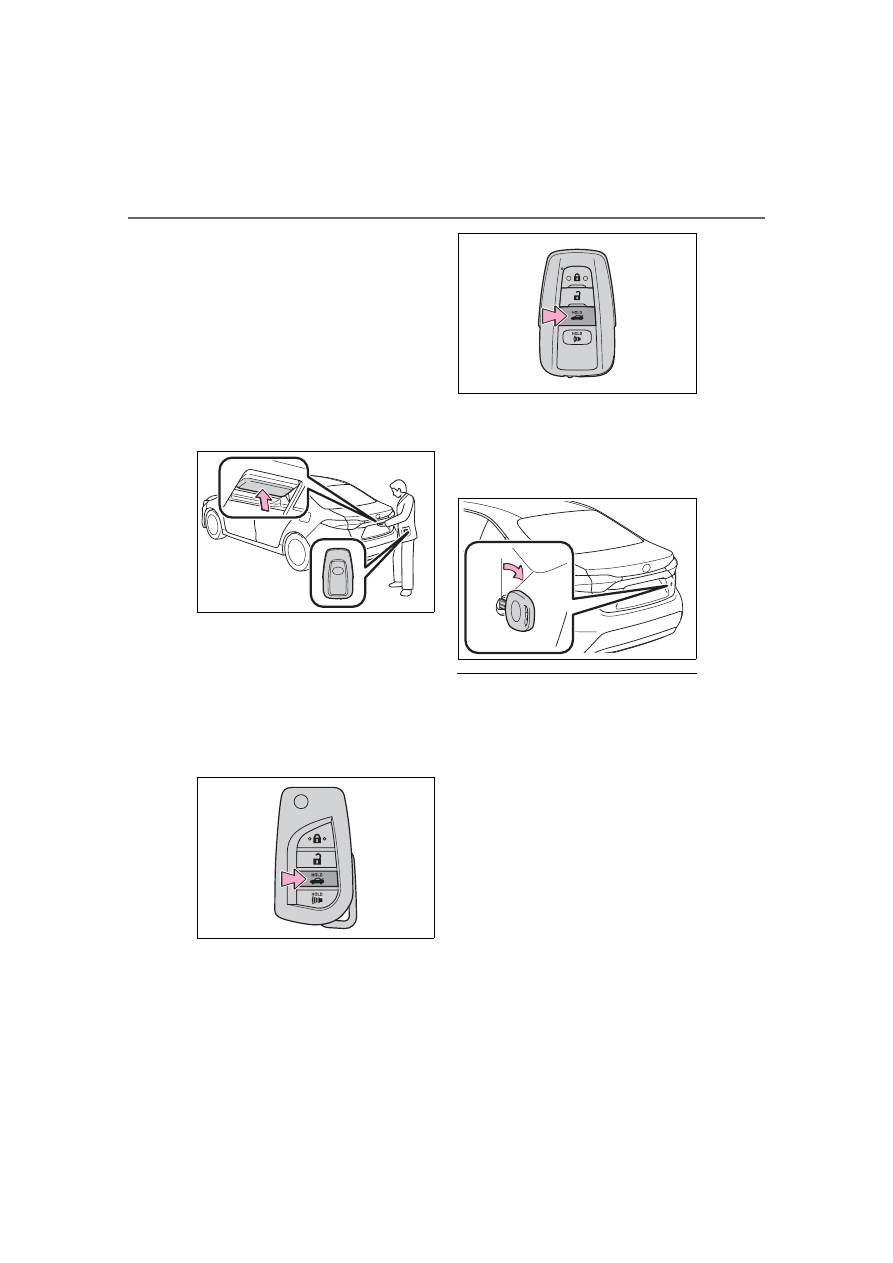

Opens the trunk (



P.124)

Sounds the alarm (



P.113)



Vehicles with a smart key sys-
tem

Locks the doors (



Unlocks the doors (

Opens the windows

and

moon roof

*1, 2

(



Opens the trunk (



P.124)

Sounds the alarm (



P.113)

:This setting must be customized

NOTICE

●

Do not attach a sticker or any-

thing else to the surface of the

key.

●

Vehicles with a smart entry &

start system: Do not place the

keys near objects that produce

magnetic fields, such as TVs,

audio systems and induction

cookers.

●

Vehicles with a smart entry &

start system: Do not place the

keys near medical electrical

equipment such as low-fre-

quency therapy equipment or

microwave therapy equipment,

and do not receive medical

attention with the keys on your

person.

■

Carrying the electronic key

on your person (vehicles with

a smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other

key-related problems (vehi-

cles with a smart key system)



P.544

■

When an electronic key is lost

(vehicles with a smart key

system)



P.544

Wireless remote control
(if equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

113

3-1. Key information

Before driv

ing

COROLLA_U

at your Toyota dealer.

:If equipped

■

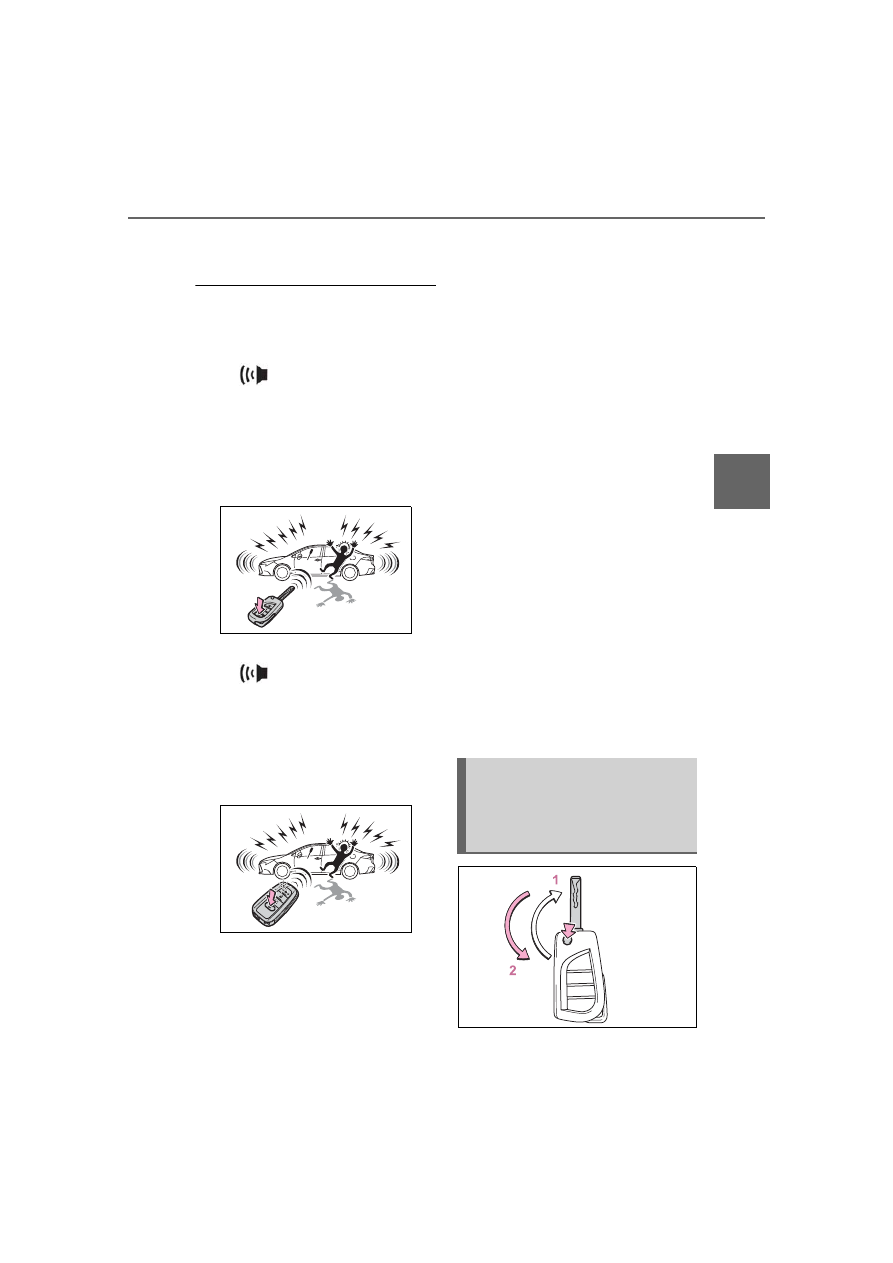

Panic mode (with a wireless

remote control function)



Vehicles without a smart key sys-

tem

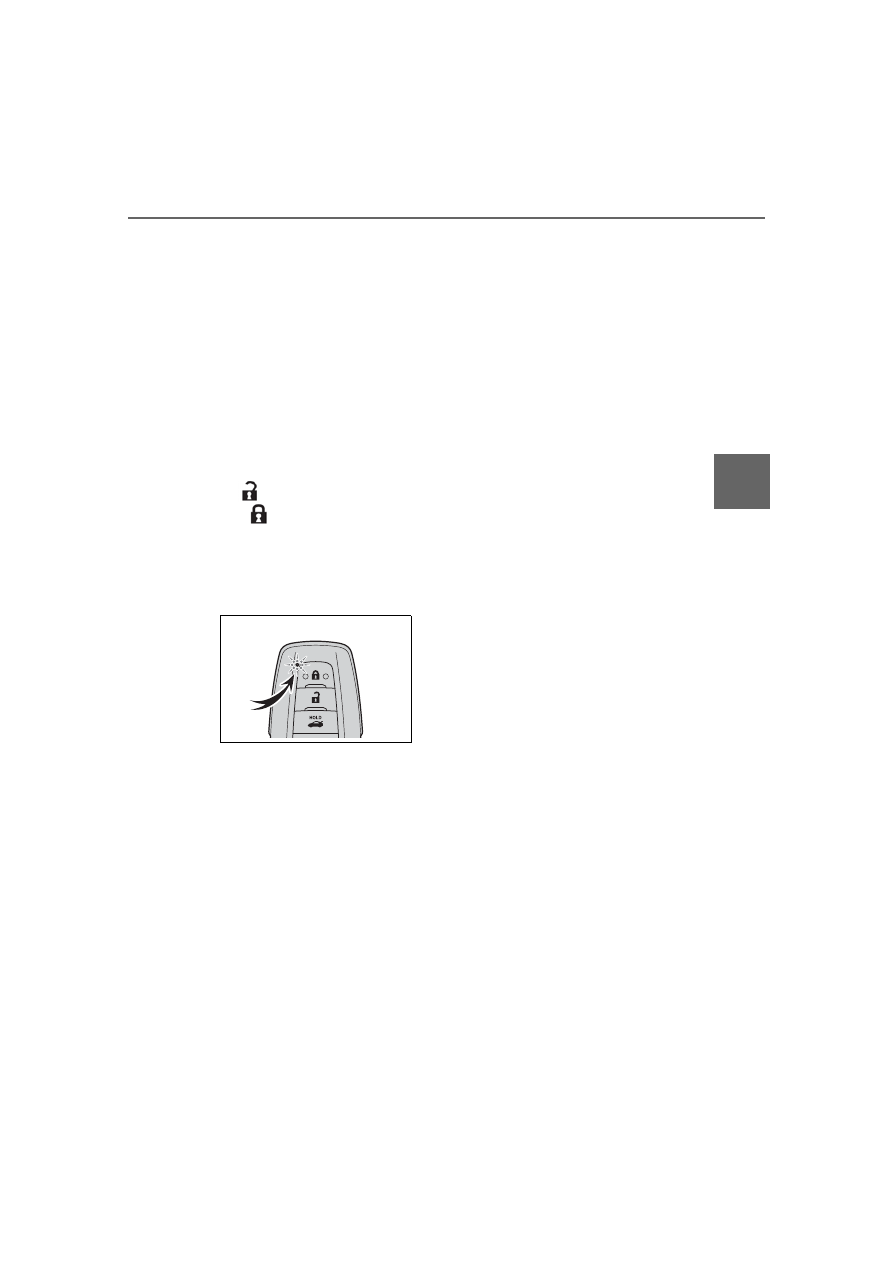

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the wireless remote control.



Vehicles with a smart key system

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the electronic key.

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control (with a

wireless remote control func-

tion)



Vehicles without a smart key sys-

tem

The wireless remote control function

may not operate normally in the fol-

lowing situations:

●

When the wireless key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone or other wireless

communication devices

●

When the wireless key is in con-

tact with, or is covered by a metal-

lic object

●

When a wireless key (that emits

radio waves) is being used nearby

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window



Vehicles with a smart key system



P.127

Using the key (vehicles
without a smart key sys-
tem and with a wireless
remote control function)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

117

3-2. Opening, closing and locking the doors

Before driv

ing

COROLLA_U

3-2.Opening, closing and locking the doors

■

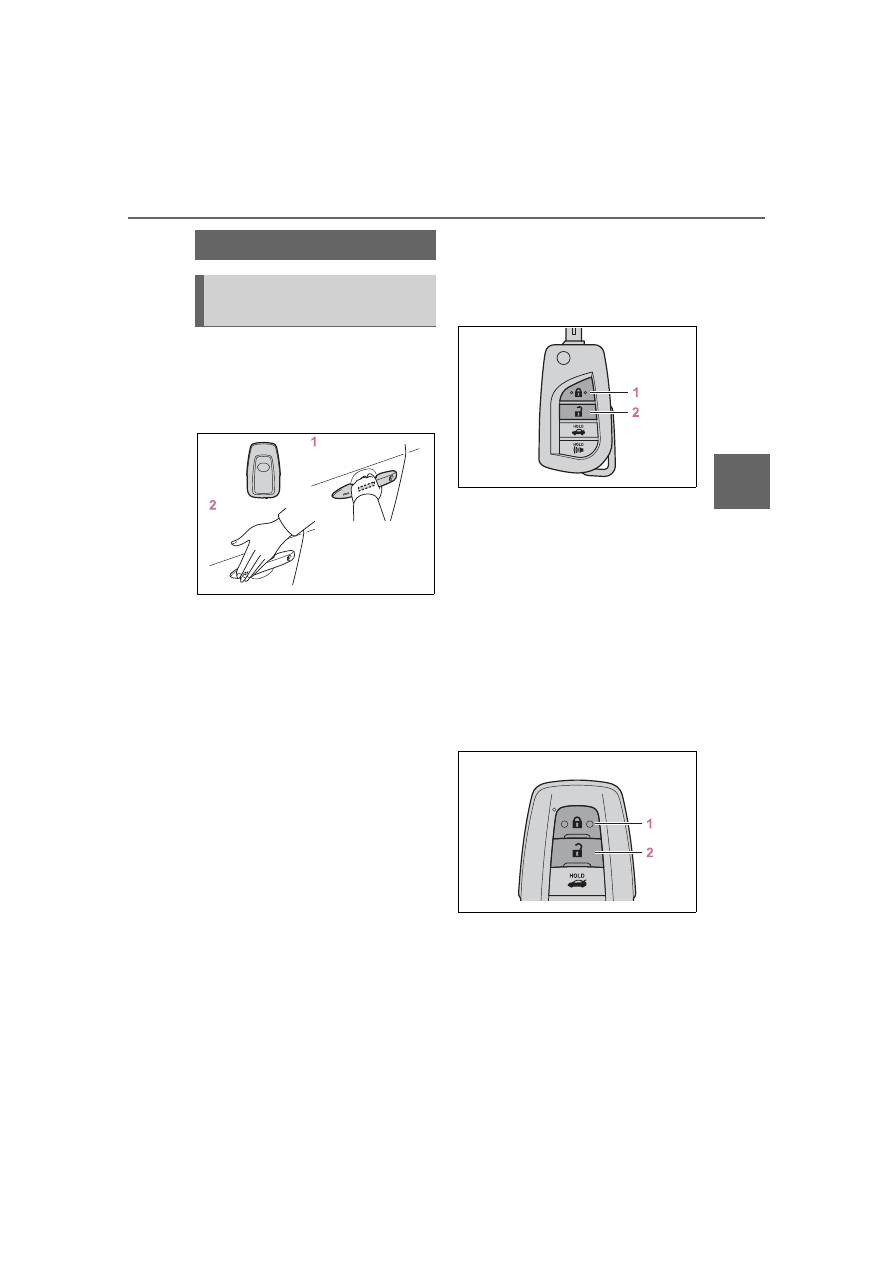

Smart key system (if
equipped)

Carry the electronic key to
enable this function.

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors. Grip
the front passenger’s door
handle to unlock all the
doors.

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

: The door unlock settings can be

changed. (



P.118, 581)

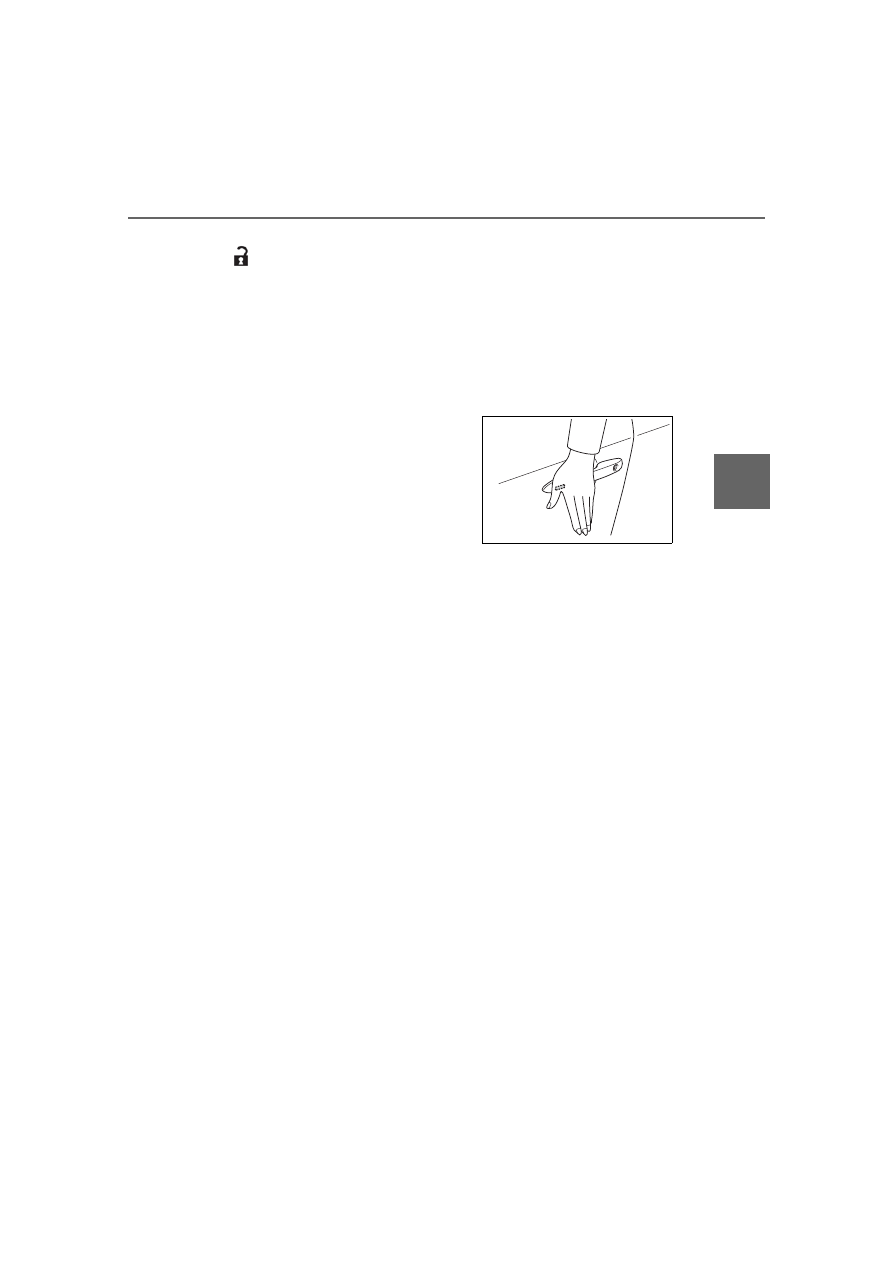

Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.

Check that the door is securely
locked.

■

Wireless remote control (if
equipped)



Vehicles without a smart key
system

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Press and hold to open the win-
dows

and moon roof.

*1, 2



Vehicles with a smart key sys-
tem

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button

Doors

Unlocking and locking the
doors from the outside

-------------------------------------------------------------------------------------------------------------------------------------------------------------

118

3-2. Opening, closing and locking the doors

COROLLA_U

again within 3 seconds unlocks the
other doors.
Press and hold to open the win-
dows

and moon roof.

*1, 2

:This setting must be customized

at your Toyota dealer.

:If equipped

■

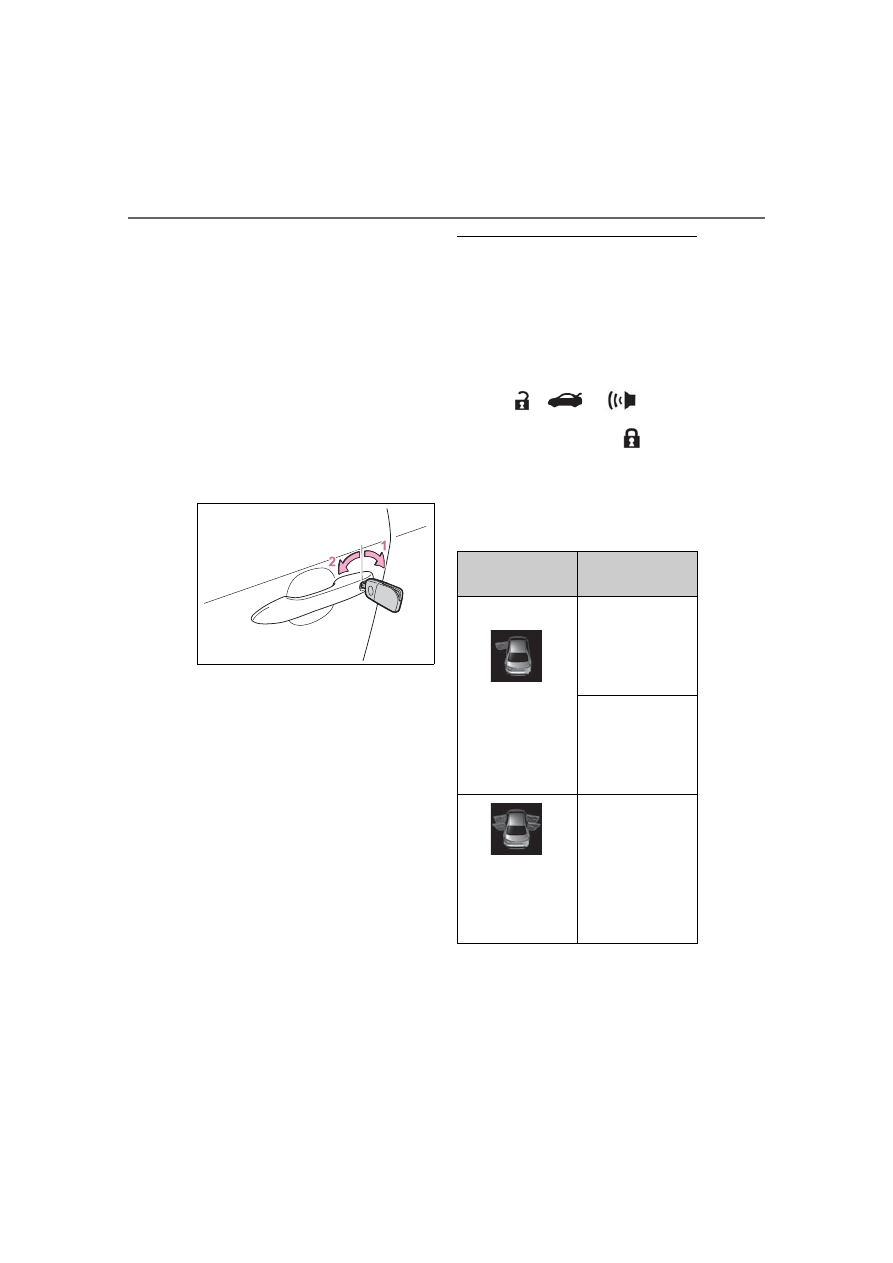

Key

Turning the key operates the
doors as follows:



Vehicles without a smart key
system

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.
Turn and hold to open the win-
dows

and moon roof.

*1, 2

Locks all the doors

Turn and hold to close the win-
dows

and moon roof.

*1, 2

:This setting must be customized

at your Toyota dealer.

:If equipped



Vehicles with a smart key sys-
tem

The doors can also be locked
and unlocked with the mechani-
cal key. (

■

Switching the door unlock func-

tion (vehicles with a smart key

system)

It is possible to set which doors the

entry function unlocks using the

wireless remote control.

Turn the engine switch off.

When the indicator light on the

key surface is not on, press and
hold

for

approximately 5 seconds while
pressing and holding

The setting changes each time an

operation is performed, as shown

below. (When changing the setting

continuously, release the buttons,

wait for at least 5 seconds, and

repeat step

For vehicles with an alarm: To pre-

vent unintended triggering of the

alarm, unlock the doors using the

wireless remote control and open

and close a door once after the set-

tings have been changed. (If a door

Multi-informa-

tion display/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door
handle unlocks
only the driver’s
door.

Holding the front
passenger’s
door handle
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding either
front door handle
unlocks all the
doors.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

119

3-2. Opening, closing and locking the doors

Before driv

ing

COROLLA_U

is not opened within 60 seconds
after

is pressed, the doors will

be locked again and the alarm will

automatically be set.)

In case that the alarm is triggered,

immediately stop the alarm. (



P.83)

■

Operation signals (with a wire-

less remote control function)



Vehicles without a smart key sys-

tem

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the wireless

remote control. (Locked: Once;

Unlocked: Twice)



Vehicles with a smart key system

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the entry

function or wireless remote control.

(Locked: Once; Unlocked: Twice)
A buzzer sounds to indicate that the
windows and moon roof

are operat-

ing.

: If equipped

■

Security feature (with a wireless

remote control function)



Vehicles without a smart key sys-

tem

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the wire-

less remote control, the security fea-

ture automatically locks the vehicle

again.



Vehicles with a smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again.

■

When the door cannot be

locked by the lock sensor on

the surface of the front door

handle (vehicles with a smart

key system)

If the doors cannot be locked by

touching the lock sensor with a fin-

ger, touch the lock sensor with the

palm of your hand.
If you are wearing gloves, remove

them.

■

Door lock buzzer (vehicles with

a smart key system)

If an attempt to lock the doors using

the entry function or wireless remote

control is made when a door is not

fully closed, a buzzer will sound

continuously for 5 seconds. Fully

close the door to stop the buzzer,

and lock the doors again.

■

Alarm (if equipped)

Locking the doors will set the alarm

system. (



P.82)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control (if

equipped)



Vehicles without a smart key sys-

tem



P.113



Vehicles with a smart key system



P.127

-------------------------------------------------------------------------------------------------------------------------------------------------------------

120

3-2. Opening, closing and locking the doors

COROLLA_U

■

If the smart key system or the

wireless remote control does

not operate properly (if

equipped)



Vehicles without a smart key sys-

tem

Replace the key battery with a new

one if it is depleted. (





Vehicles with a smart key system

Use the mechanical key to lock and

unlock the doors. (



Replace the key battery with a new

one if it is depleted. (



■

If the battery is discharged

(vehicles with a smart key sys-

tem)

The doors cannot be locked and

unlocked using the smart key sys-

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



■

Customization

Some functions can be customized.

(

■

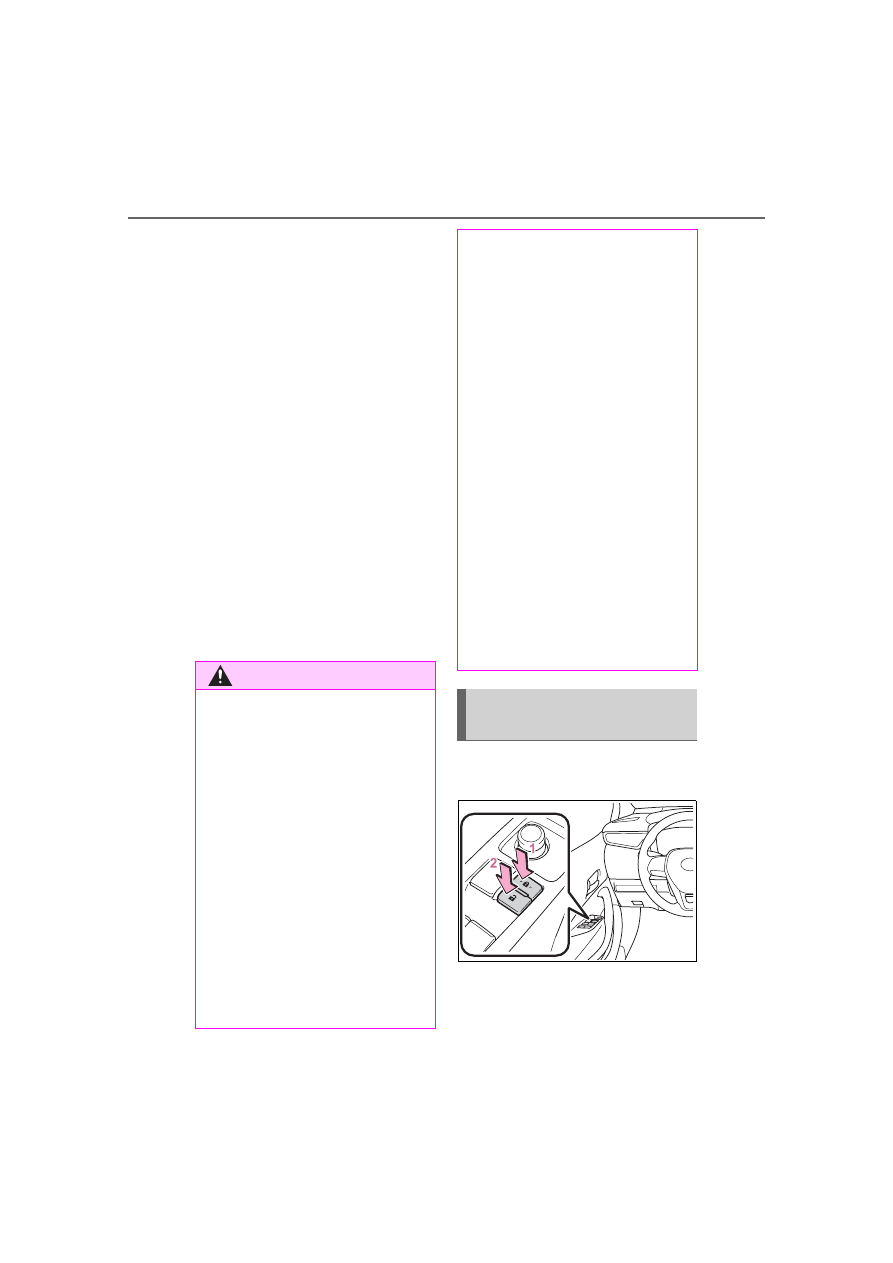

Door lock switches (to
lock/unlock)

Locks all the doors

Unlocks all the doors

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

being thrown out of the vehicle,

resulting in death or serious injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside door han-

dle while driving.

Be especially careful of the front

doors, as the doors may be

opened even if the inside lock

buttons are in the locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

■

When using the wireless

remote control or the key and

operating the power win-

dows or moon roof (if

equipped)

Operate the power windows or

moon roof after checking to make

sure that there is no possibility of

any passenger having any of their

body parts caught in the windows

or moon roof. Also, do not allow

children to operate the wireless

remote control or the key. It is

possible for children and other

passengers to get caught in the

power windows or moon roof.

Unlocking and locking the
doors from the inside

-------------------------------------------------------------------------------------------------------------------------------------------------------------

121

3-2. Opening, closing and locking the doors

Before driv

ing

COROLLA_U

■

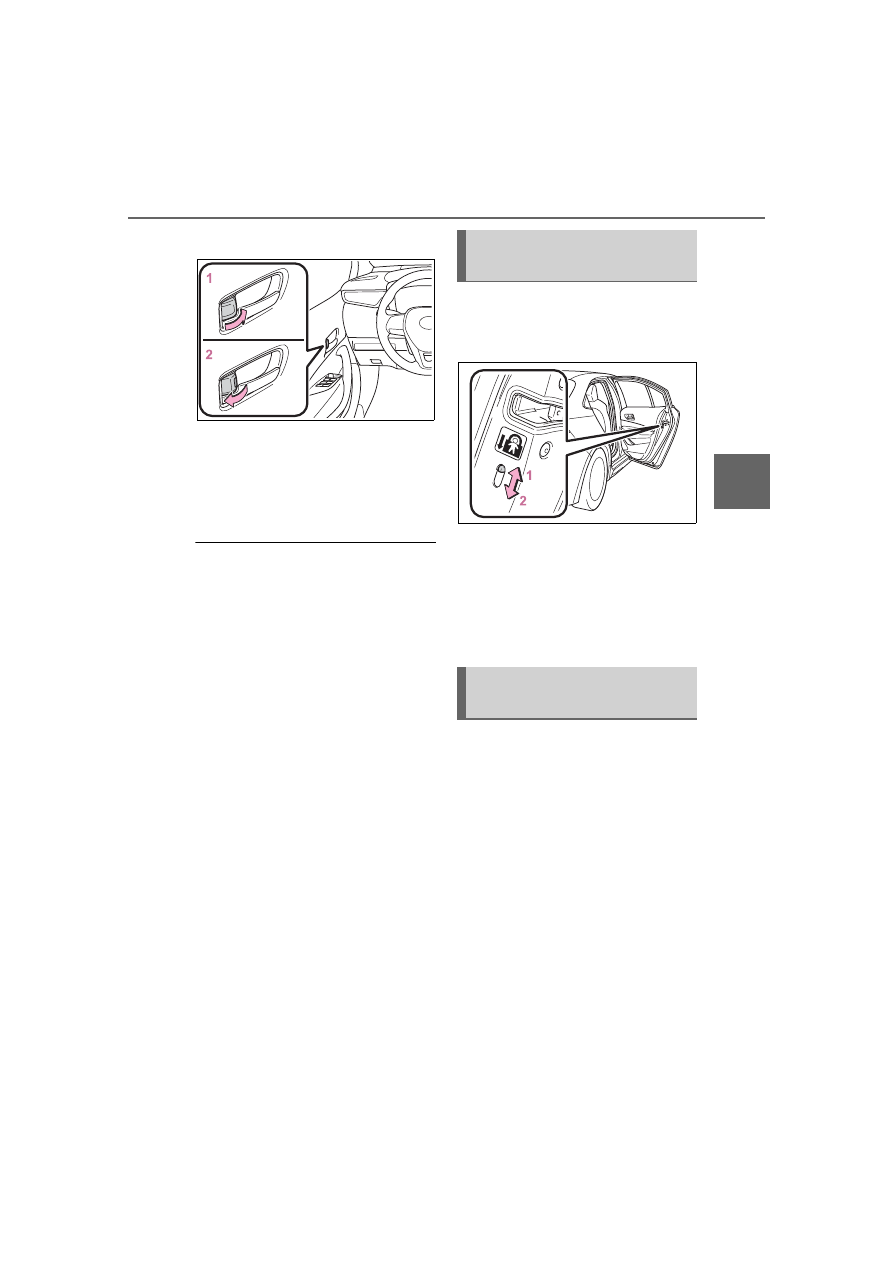

Inside lock buttons

Locks the door

Unlocks the door

The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

Move the inside lock button to

the lock position.

Close the door.



Vehicles without a smart key sys-

tem

The door cannot be locked if the key

is in the engine switch.



Vehicles with a smart key system

The door cannot be locked if the

engine switch is in ACC or ON, or

the electronic key is left inside the

vehicle.
The key may not be detected cor-

rectly and the door may be locked.

■

Open door warning buzzer

If a door or the trunk is not fully

closed, a buzzer will sound when

the vehicle speed reaches 3 mph (5

km/h).
The open door(s) or trunk is indi-

cated on the multi-information dis-

play.

The door cannot be opened
from inside the vehicle when
lock is set.

Unlock

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

The following functions can be
set or canceled:

For instructions on customizing,
refer to P.581.

Rear door child-protector
lock

Automatic door locking
and unlocking systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

122

3-2. Opening, closing and locking the doors

COROLLA_U

: Vehicles with a continuously vari-

able transmission

Function

Operation

Speed linked
door locking
function

All doors are auto-
matically locked
when vehicle
speed is approxi-
mately 12 mph (20
km/h) or higher.

Shift position
linked door
locking func-
tion

All doors are auto-
matically locked
when shifting the
shift lever out of P.

Shift position
linked door
unlocking
function

All doors are auto-
matically unlocked
when shifting the
shift lever to P.

Driver’s door
linked door
unlocking
function

All doors are auto-
matically unlocked
when driver’s door
is opened.

Trunk

The trunk can be opened
using the trunk opener,
entry function or wireless
remote control or key.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before driving

●

Make sure that the trunk lid is

fully closed. If the trunk lid is not

fully closed, it may open unex-

pectedly while driving and hit

near-by objects or luggage in

the trunk may be thrown out,

causing an accident.

●

Do not allow children to play in

the trunk.

If a child is accidentally locked

in the trunk, they could suffer

from heat exhaustion, suffoca-

tion or other injuries.

●

Do not allow a child to open or

close the trunk lid.

Doing so may cause the trunk

lid to open unexpectedly, or

cause the child’s hands, head,

or neck to be caught by the

closing trunk lid.

■

Important points while driving

Never let anyone sit in the trunk.

In the event of sudden braking or

a collision, they are susceptible to

death or serious injury.

■

Using the trunk

Observe the following precau-

tions.

Failure to do so may cause parts

of the body to be caught, resulting

in serious injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

123

3-2. Opening, closing and locking the doors

Before driv

ing

COROLLA_U

■

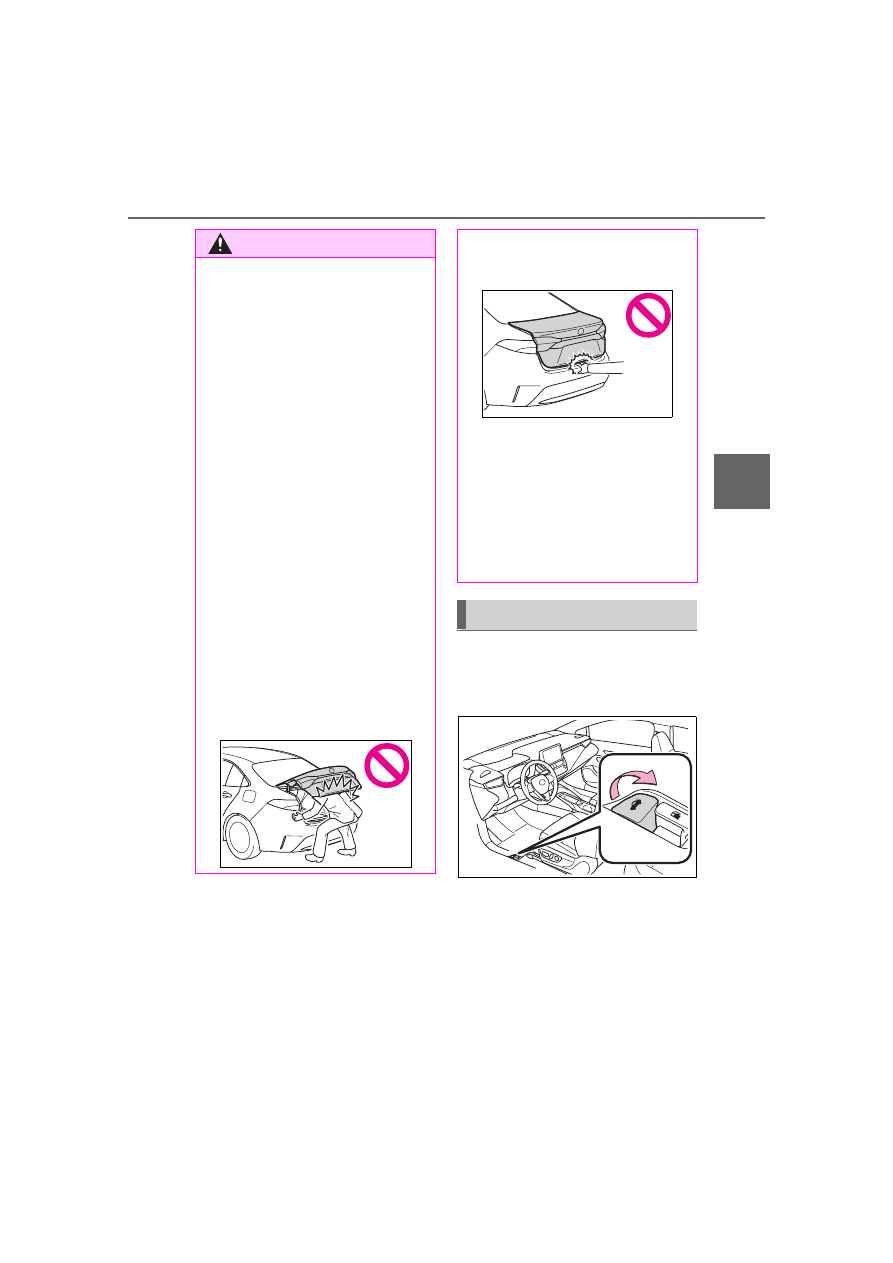

Trunk opener

Pull the lever upward to release
the trunk lid.

■

Trunk release button (vehi-
cles with a smart key sys-
tem)

While carrying the electronic
key, press the button on the
trunk lid.
When all the doors are unlocked

WARNING

●

Remove any heavy loads, such

as snow and ice, from the trunk

lid before opening it. Failure to

do so may cause the trunk lid to

suddenly shut again after it is

opened.

●

When opening or closing the

trunk lid, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the trunk is about to

open or close.

●

Use caution when opening or

closing the trunk lid in windy

weather as it may move

abruptly in strong wind.

●

The trunk lid may suddenly shut

if it is not opened fully. It is more

difficult to open or close the

trunk lid on an incline than on a

level surface, so beware of the

trunk lid unexpectedly opening

or closing by itself. Make sure

that the trunk lid is fully open

and secure before using the

trunk.

●

When closing the trunk lid, take

extra care to prevent your fin-

gers etc. from being caught.

●

When closing the trunk lid,

make sure to press it lightly on

its outer surface.

●

Do not attach any accessories

other than genuine Toyota parts

to the trunk lid. Such additional

weight on the trunk lid may

cause the lid to suddenly shut

again after it is opened.

Opening the trunk

-------------------------------------------------------------------------------------------------------------------------------------------------------------

124

3-2. Opening, closing and locking the doors

COROLLA_U

using one of the following meth-
ods, the trunk can be opened
without the electronic key:



Entry function



Wireless remote control



Door lock switches



Automatic door unlocking sys-
tem



Mechanical key

■

Wireless remote control (if
equipped)



Vehicles without a smart key
system

Press and hold the switch.

A buzzer sounds.



Vehicles with a smart key sys-
tem

Press and hold the switch.

A buzzer sounds.

■

Key (vehicles with a key
cylinder on the trunk lid)

Turn the key clockwise to
release the trunk lid.

■

Trunk light

●

The trunk light turns on when the

trunk is opened.

●

If the trunk light is left on when the

engine switch is turned off, the

light will go off automatically after

20 minutes.

■

Function to prevent the trunk

being locked with the electronic

key inside (vehicles with a

smart key system)

●

When all doors are locked, closing

the trunk lid with the electronic key

left inside the trunk will sound an

alarm.

In this case, the trunk lid can be

opened pressing the trunk release

button on the trunk lid.

●

If the spare electronic key is put in

the trunk with all the doors locked,

the key confinement prevention

function is activated so the trunk

-------------------------------------------------------------------------------------------------------------------------------------------------------------

125

3-2. Opening, closing and locking the doors

Before driv

ing

COROLLA_U

can be opened. In order to pre-

vent theft, take all electronic keys

with you when leaving the vehicle.

●

If the electronic key is put in the

trunk with all the doors locked, the

key may not be detected depend-

ing on the location of the key and

the surrounding radio wave condi-

tions. In this case, the key con-

finement prevention function

cannot be activated, causing the

doors to lock when the trunk is

closed. Make sure to check where

the key is before closing the trunk.

●

The key confinement prevention

function cannot be activated if any

one of the doors is unlocked. In

this case, open the trunk using the

trunk opener.

■

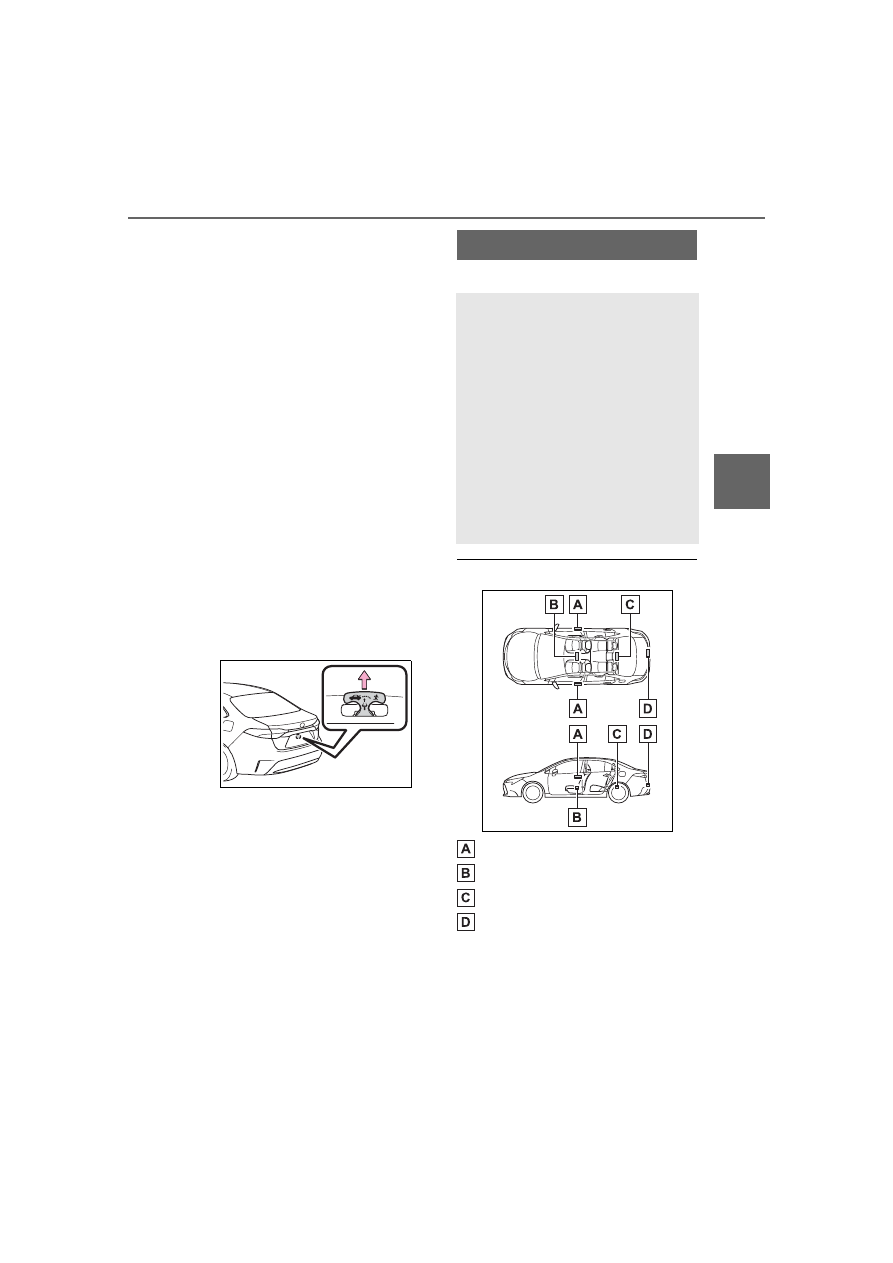

Internal trunk release lever

The trunk lid can be opened by pull-

ing up the glow-in-the-dark lever

located on the inside of the trunk lid.
The lever will continue to glow for

some time after the trunk lid is

closed.

■

If the smart key system or the

wireless remote control does

not operate properly (if

equipped)

Replace the key battery with a new

one if it is depleted. (



■

Open door warning buzzer

P.121

■

Customization

Some functions can be customized.

(

: If equipped

■

Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk

Smart key system

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the
doors (



Opens the trunk (

P.123)



Starts the engine (



P.164)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126

3-2. Opening, closing and locking the doors

COROLLA_U

■

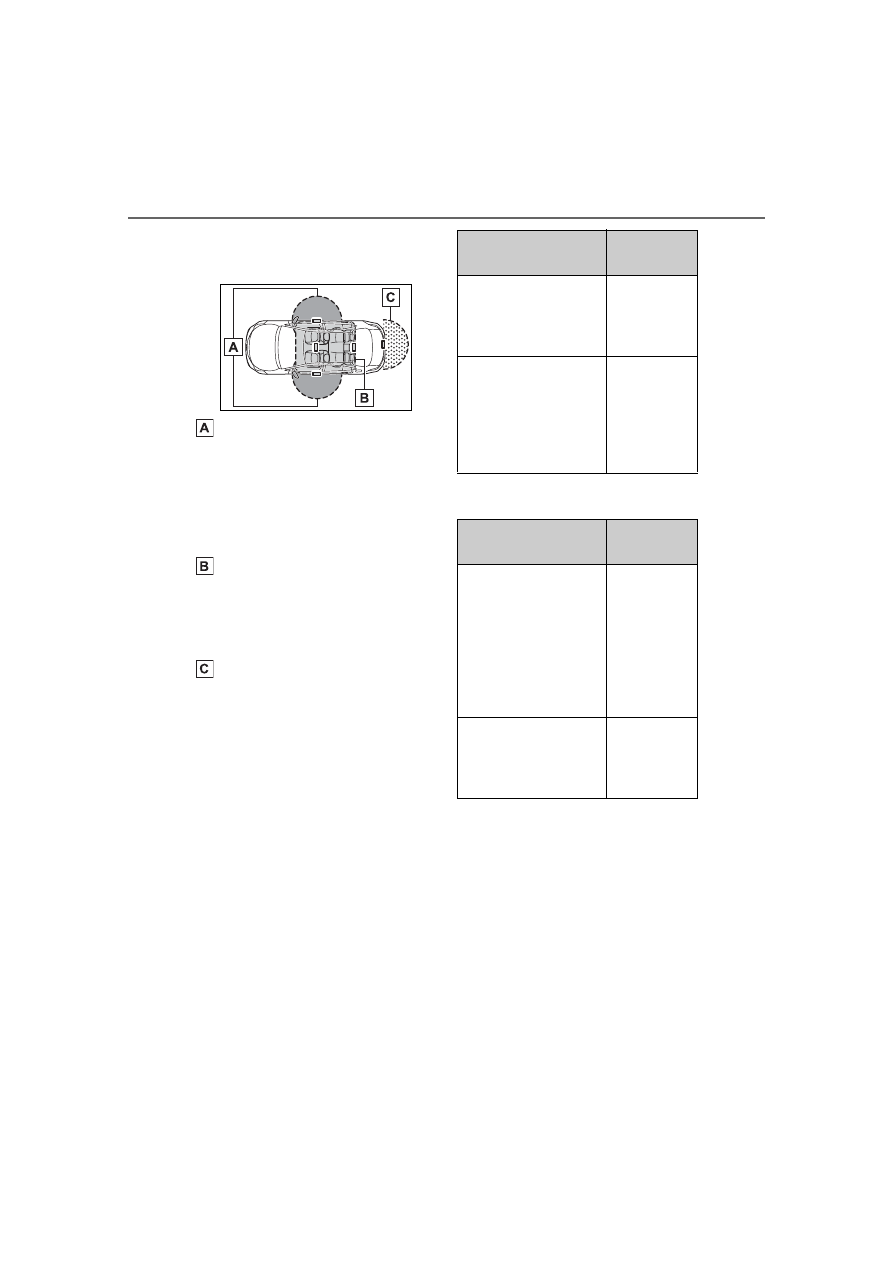

Effective range (areas within

which the electronic key is

detected)

When locking or unlocking the
doors

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of either of the front out-
side door handles. (Only the doors
detecting the key can be operated.)

When starting the engine or
changing engine switch modes

The system can be operated when
the electronic key is inside the vehi-
cle.

When opening the trunk

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of the trunk release but-
ton.

■

Alarms and warning messages

A combination of exterior and inte-

rior buzzers as well as warning mes-

sages shown on the

multi-information display are used to

prevent theft of the vehicle and acci-

dents resulting from erroneous

operation. Take appropriate mea-

sures based on the displayed mes-

sage. (

When only an alarm sounds, cir-

cumstances and correction proce-

dures are as follows.

●

Exterior buzzer sounds once for 5

seconds

●

Interior buzzer sounds continu-

ously

■

Battery-saving function

The battery-saving function will be

activated in order to prevent the

electronic key battery and the vehi-

cle battery from being discharged

while the vehicle is not operated for

a long time.

●

In the following situations, the

smart key system may take some

time to unlock the doors.

• The electronic key has been left

within approximately 11 ft. (3.5 m)

of the outside of the vehicle for 2

minutes or longer.

• The smart key system has not

Situation

Correction

procedure

An attempt was
made to lock the
vehicle while a door
was open.

Close all of
the doors
and lock the
doors again.

The trunk was closed
while the electronic
key was still inside
the trunk and all the
doors were locked.

Retrieve the
electronic
key from the
trunk and
close the
trunk lid.

Situation

Correction

procedure

The engine switch
was turned to ACC
while the driver’s
door was open (or
the driver’s door was
opened while the
engine switch was in
ACC).

Turn the
engine
switch off
and close
the driver’s
door.

The engine switch
was turned to off
while the driver’s
door was open.

Close the
driver’s door

-------------------------------------------------------------------------------------------------------------------------------------------------------------

127

3-2. Opening, closing and locking the doors

Before driv

ing

COROLLA_U

been used for 5 days or longer.

●

If the smart key system has not

been used for 14 days or longer,

the doors cannot be unlocked

from any door except the driver’s

door. In this case, hold the driver’s

door handle, or use the wireless

remote control or mechanical key

to unlock the doors.

■

Electronic key battery-saving

function

When battery-saving mode is set,

battery depletion is minimized by

stopping the electronic key from

receiving radio waves.

Press

twice while pressing and

holding

. Confirm that the elec-

tronic key indicator flashes 4 times.
While the battery-saving mode is

set, the smart key system cannot be

used. To cancel the function, press

any of the electronic key buttons.

■

Conditions affecting operation

The smart key system uses weak

radio waves. In the following situa-

tions, the communication between

the electronic key and the vehicle

may be affected, preventing the

smart key system, wireless remote

control and engine immobilizer sys-

tem from operating properly.

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone, cordless phone or

other wireless communication

device

●

When the electronic key is in con-

tact with, or is covered by the fol-

lowing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that

emit radio waves) are being used

nearby

●

When carrying the electronic key

together with the following devices

that emit radio waves

• Another vehicle’s electronic key or

a wireless key that emits radio

waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window

●

When the electronic key is placed

near a battery charger or elec-

tronic devices

●

When the vehicle is parked in a

pay parking spot where radio

waves are emitted

If the doors cannot be

locked/unlocked using the smart key

system, lock/unlock the doors by

performing any of the following:

●

Bring the electronic key close to

either front door handle and oper-

ate the entry function.

●

Operate the wireless remote con-

trol.

If the doors cannot be

locked/unlocked using the above

methods, use the mechanical key.

(



If the engine cannot be started using

the smart key system, refer to

-------------------------------------------------------------------------------------------------------------------------------------------------------------

128

3-2. Opening, closing and locking the doors

COROLLA_U

P.545.

■

Note for the entry function

●

Even when the electronic key is

within the effective range (detec-

tion areas), the system may not

operate properly in the following

cases:

• The electronic key is too close to

the window or outside door han-

dle, near the ground, or in a high

place when the doors are locked

or unlocked.

• The electronic key is near the

ground or in a high place, or too

close to the center of the rear

bumper when the trunk is opened.

• The electronic key is on the instru-

ment panel, rear package tray or

floor, or in the door pockets or

glove box when the engine is

started or engine switch modes

are changed.

●

Do not leave the electronic key on

top of the instrument panel or near

the door pockets when exiting the

vehicle. Depending on the radio

wave reception conditions, it may

be detected by the antenna out-

side the cabin and the door will

become lockable from the outside,

possibly trapping the electronic

key inside the vehicle.

●

As long as the electronic key is

within the effective range, the

doors may be locked or unlocked

by anyone. However, only the

doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not

inside the vehicle, it may be possi-

ble to start the engine if the elec-

tronic key is near the window.

●

The doors may unlock or lock if a

large amount of water splashes on

the door handle, such as in the

rain or in a car wash when the

electronic key is within the effec-

tive range. (The doors will auto-

matically be locked after

approximately 60 seconds if the

doors are not opened and closed.)

●

If the wireless remote control is

used to lock the doors when the

electronic key is near the vehicle,

there is a possibility that the door

may not be unlocked by the entry

function. (Use the wireless remote

control to unlock the doors.)

●

If the doors have been locked

from outside of the vehicle and are

then not unlocked using the wire-

less remote control or smart key

system, the engine cannot be

started using the smart key sys-

tem. (However, if the doors have

been locked from inside the vehi-

cle, the engine can be started

using the smart key system.)

If it is necessary to start the

engine, it can be started using the

procedure in “If the electronic key

dose not operate properly”

(



P.545).

●

Touching the door lock or unlock

sensor while wearing gloves may

prevent lock or unlock operation.

●

When the lock operation is per-

formed using the lock sensor, rec-

ognition signals will be shown up

to two consecutive times. After

this, no recognition signals will be

given.

●

If the door handle becomes wet

while the electronic key is within

the effective range, the door may

lock and unlock repeatedly. In that

case, follow the following correc-

tion procedures to wash the vehi-

cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from

the vehicle. (Take care to ensure

that the key is not stolen.)

• Set the electronic key to bat-

tery-saving mode to disable the

smart key system. (



P.127)

●

If the electronic key is inside the

vehicle and a door handle

becomes wet during a car wash, a

message may be shown on the

multi-information display and a

buzzer will sound outside the vehi-

cle. To turn off the alarm, lock all

-------------------------------------------------------------------------------------------------------------------------------------------------------------

129

3-2. Opening, closing and locking the doors

Before driv

ing

COROLLA_U

the doors.

●

The lock sensor may not work

properly if it comes into contact

with ice, snow, mud, etc. Clean

the lock sensor and attempt to

operate it again.

●

A sudden handle operation or a

handle operation immediately

after entering the effective range

may prevent the doors from being

unlocked. Touch the door unlock

sensor and check that the doors

are unlocked before pulling the

door handle again.

●

If there is another electronic key in

the detection area, it may take

slightly longer to unlock the doors

after the door handle is gripped.

■

When the vehicle is not driven

for extended periods

●

To prevent theft of the vehicle, do

not leave the electronic key within

6 ft. (2 m) of the vehicle.

●

The smart key system can be

deactivated in advance. (



●

Setting the electronic key to bat-

tery-saving mode helps to reduce

key battery depletion. (



P.127)

■

To operate the system properly

●

Make sure to carry the electronic

key when operating the system.

Do not get the electronic key too

close to the vehicle when operat-

ing the system from the outside of

the vehicle.

Depending on the position and hold-

ing condition of the electronic key,

the key may not be detected cor-

rectly and the system may not oper-

ate properly. (The alarm may go off

accidentally, or the door lock pre-

vention function may not operate.)

●

Do not leave the electronic key

inside the trunk.

The key confinement prevention

function may not operate, depend-

ing on the location of the key (the

inside edge of the trunk), condi-

tions (inside a metal bag, close to

metallic objects) and the radio

waves in the surrounding area.

(



P.124)

■

If the smart key system does

not operate properly

●

Locking and unlocking the doors:



P.544

●

Starting the engine:



P.545

■

Customization

Some functions can be customized.

(



■

If the smart key system has

been deactivated in a custom-

ized setting

●

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (

P.117, 544)

●

Starting the engine and changing

engine switch modes:



P.545

●

Stopping the engine:

P.166

-------------------------------------------------------------------------------------------------------------------------------------------------------------

132

3-2. Opening, closing and locking the doors

COROLLA_U

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

keep away from the smart key

system antennas. (



P.125)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your Toy-

ota dealer for details, such as

the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

●

Users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

on disabling the entry function.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

133

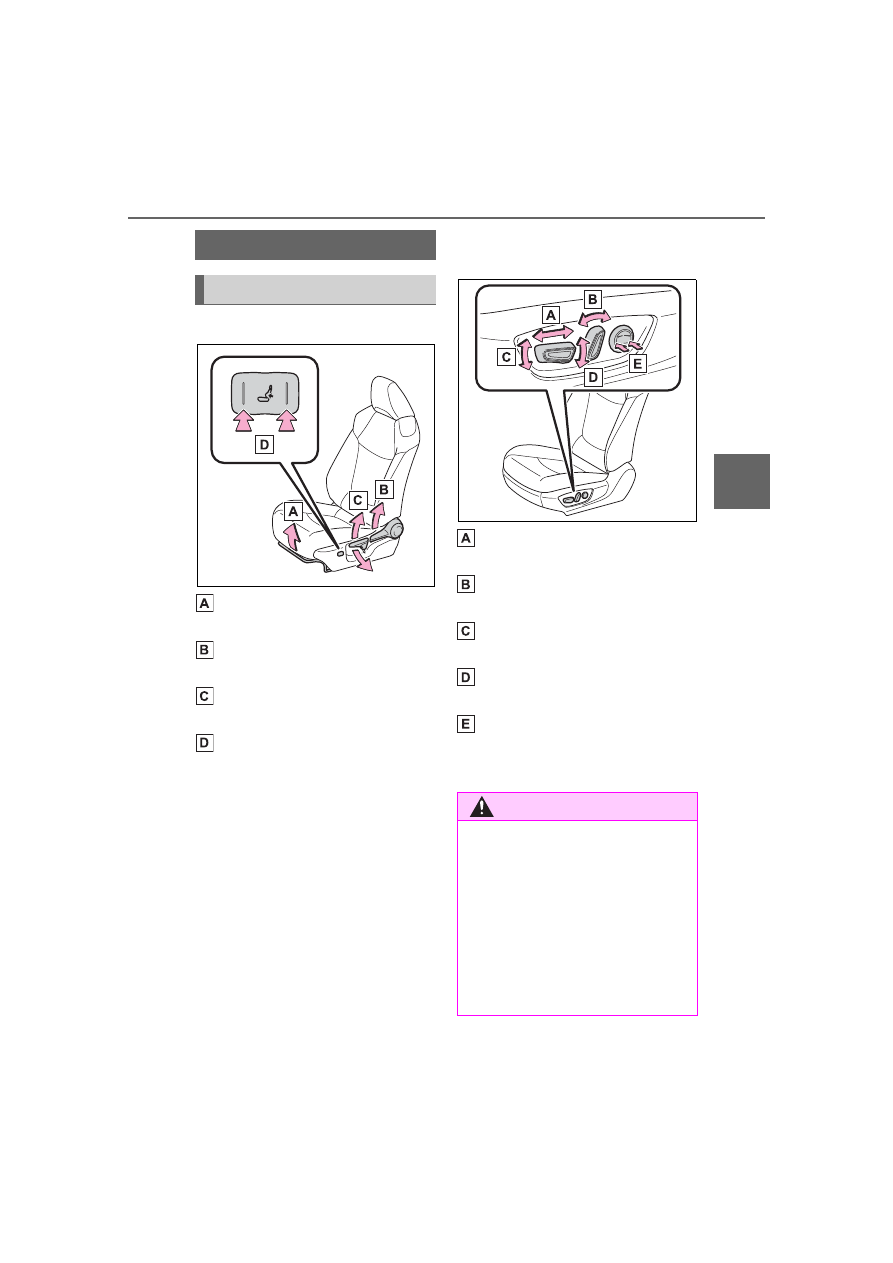

3-3. Adjusting the seats

Before driv

ing

COROLLA_U

3-3.Adjusting the seats



Manual seat

Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)
Lumbar support adjustment
switch

(driver’s side only)

: If equipped



Power seat (driver’s side
only)

Seat position adjustment
switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Lumbar support adjustment
switch

: If equipped

Front seats

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

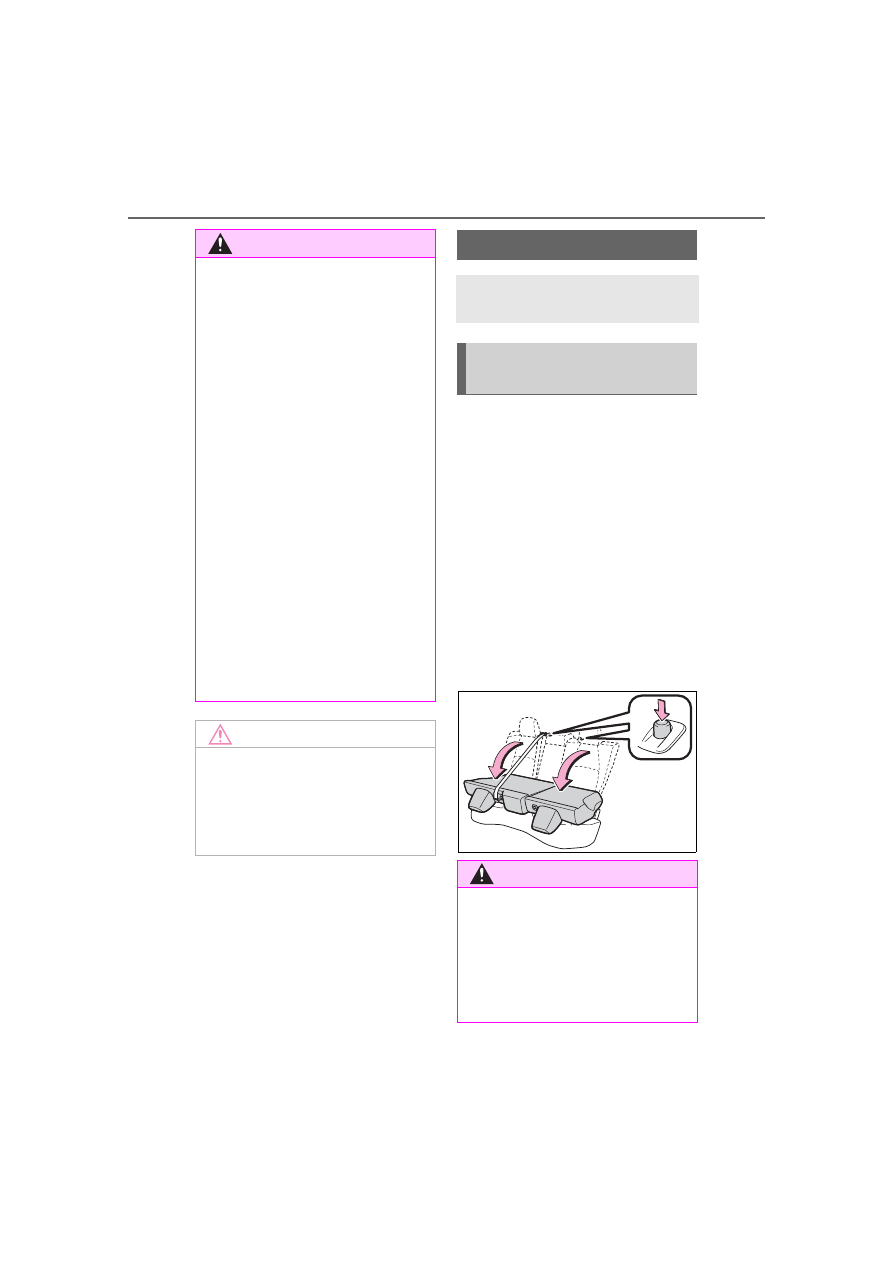

134

3-3. Adjusting the seats

COROLLA_U

Move the front seats forward.
(
