3-1. Key information

Keys

The keys

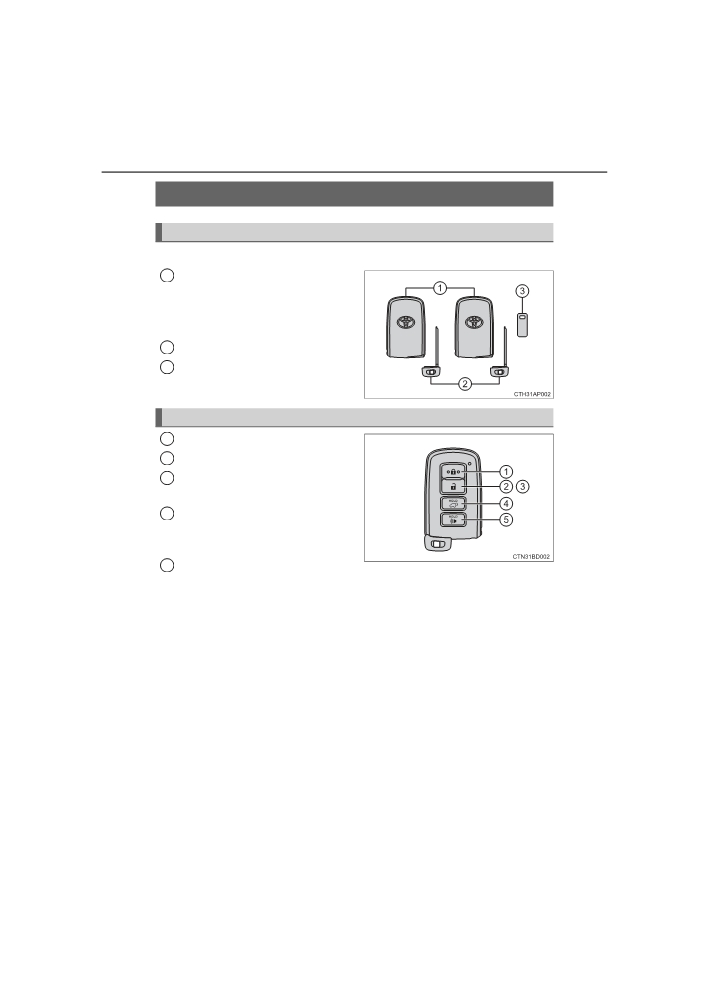

The following keys are provided with the vehicle.

1

Electronic keys

• Operating the smart key system

(→P. 146)

• Operating the wireless remote

control function

2

Mechanical keys

3

Key number plate

Wireless remote control

1

Locks the doors (→P. 125)

2

Unlocks the doors (→P. 125)

3

Opens the windows and moon

roof* (→P. 125)

Opens and closes the power

4

back door (if equipped)

(→P. 131)

Sounds the alarm (→P. 121)

5

*: This setting must be customized at your Toyota dealer.

HIGHLANDER_HV_U (OM0E032U)

3-1. Key information

121

Using the mechanical key

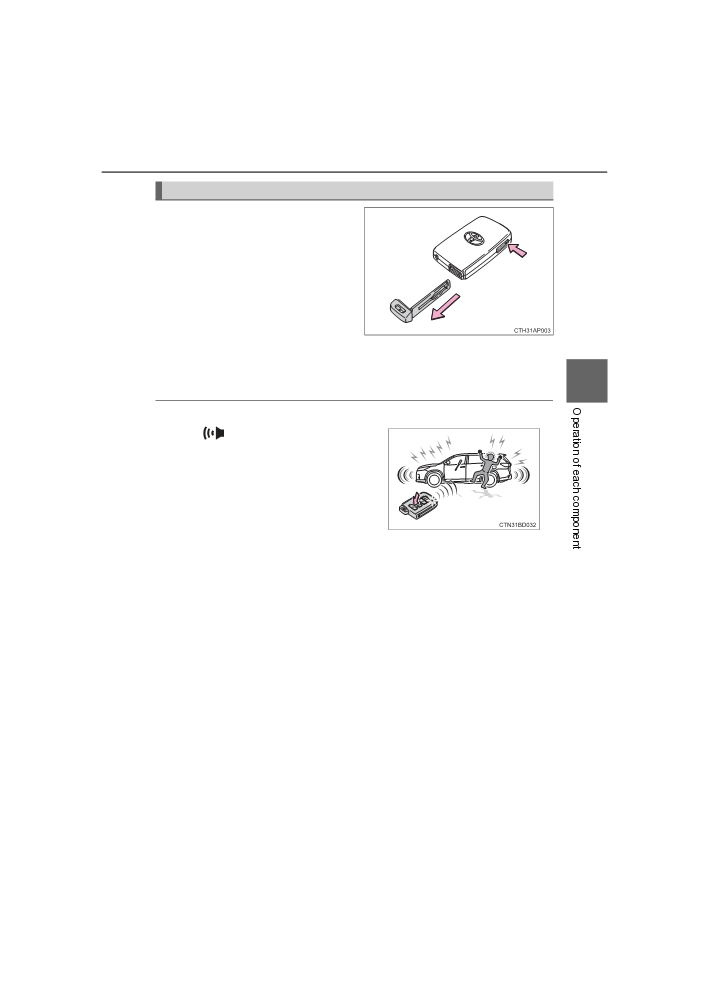

To take out the mechanical key,

push the release button and take

the key out.

The mechanical key can only be

inserted in one direction, as the

key only has grooves on one side.

If the key cannot be inserted in a

lock cylinder, turn it over and re-

attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the

mechanical key together with the electronic key. If the electronic key bat-

tery is depleted or the entry function does not operate properly, you will

3

need the mechanical key. (→P. 622)

■Panic mode

When

is pressed for longer than

about one second, an alarm will sound

intermittently and the vehicle lights will

flash to deter any person from trying to

break into or damage your vehicle.

To stop the alarm, press any button on the

electronic key.

■ When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (→P. 450)

Remove the mechanical key for your own use and provide the attendant with

the electronic key only.

■ If you lose your keys

New genuine keys can be made by your Toyota dealer using the mechanical

key and the key number stamped on your key number plate. Keep the plate in

a safe place such as your wallet, not in the vehicle.

HIGHLANDER_HV_U (OM0E032U)

3-1. Key information

123

NOTICE

■ To prevent key damage

● Do not drop the keys, subject them to strong shocks or bend them.

● Do not expose the keys to high temperatures for long periods of time.

● Do not get the keys wet or wash them in an ultrasonic washer etc.

● Do not attach metallic or magnetic materials to the keys or place the keys

close to such materials.

● Do not disassemble the keys.

● Do not attach a sticker or anything else to the surface of the electronic key.

● Do not place the keys near objects that produce magnetic fields, such as

TVs, audio systems and induction cookers, or medical electrical equip-

ment, such as low-frequency therapy equipment.

3

■Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-

ances that are turned on. Radio waves emitted from electric appliances

within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-

ing the key to not function properly.

■ In case of a smart key system malfunction or other key-related prob-

lems

Take your vehicle with all the electronic keys provided with your vehicle to

your Toyota dealer.

■ When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-

cantly. Visit your Toyota dealer immediately with all remaining electronic

keys that was provided with your vehicle.

HIGHLANDER_HV_U (OM0E032U)

124

3-2. Opening, closing and locking the doors

Side doors

Unlocking and locking the doors from the outside

◆ Entry function

Carry the electronic key to enable this function.

 Front doors

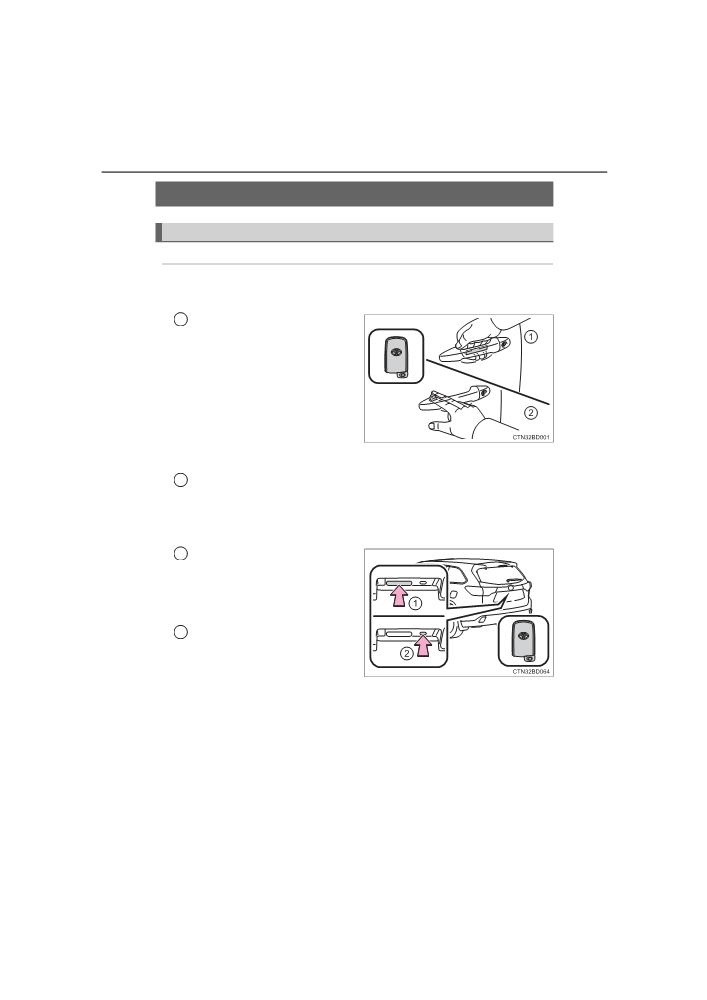

Grip the driver's door handle

1

to unlock the door. Grip the

passenger's door handle to

unlock all the doors.*

Make sure to touch the sensor

on the back of the handle.

The doors cannot be unlocked

for 3 seconds after the doors are

locked.

*: The door unlock settings can be changed. (→P. 128)

Touch the lock sensor (indentation on the upper part of the door

2

handle) to lock all the doors.

Check that the door is securely locked.

 Back door

Press the unlock button to

1

unlock all the doors.

The doors cannot be unlocked

for 3 seconds after the doors are

locked.

2

Press the lock button to lock

all the doors.

Check that the door is securely

locked.

HIGHLANDER_HV_U (OM0E032U)

3-2. Opening, closing and locking the doors

125

◆ Wireless remote control

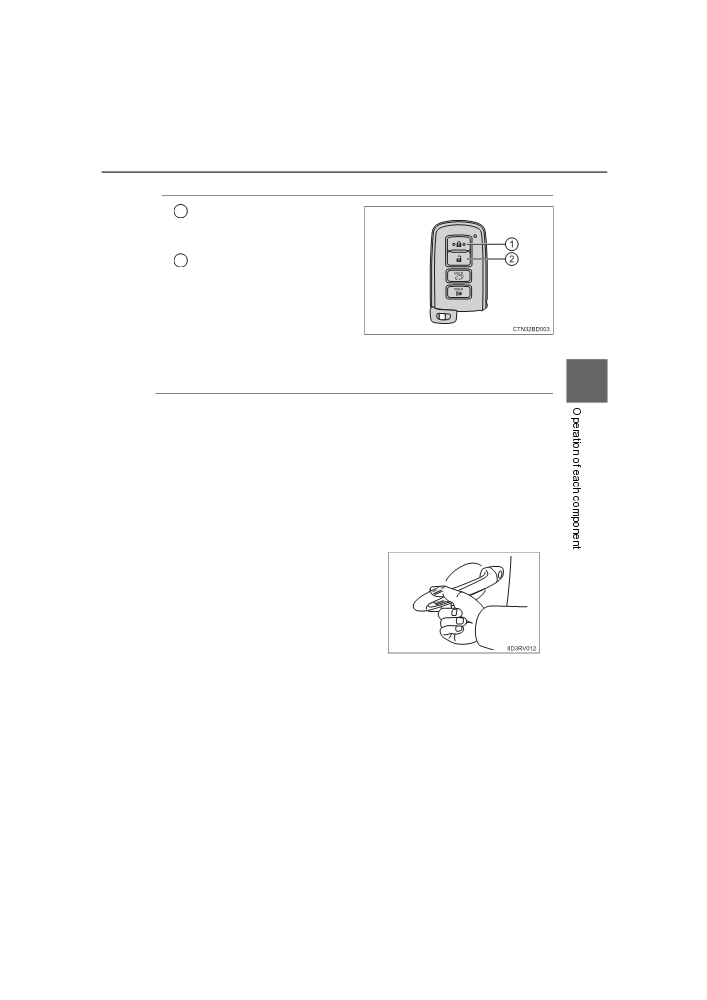

Locks all the doors

1

Check that the door is securely

locked.

Unlocks the door.

2

Pressing the button unlocks the

driver’s door. Pressing the but-

ton again within

5 seconds

unlocks the other doors.

Press and hold to open the win-

dows and moon roof.*

(→P. 179, 182)

*: This setting must be customized at your Toyota dealer.

3

■ Operation signals

● Doors: A buzzer sounds and the emergency flashers flash to indicate that

the doors have been locked/unlocked. (Locked: once; Unlocked: twice)

● Windows and moon roof: A buzzer sounds to indicate that the windows and

moon roof are operating.

■ Security feature

If a door is not opened within approximately 60 seconds after the doors are

unlocked, the security feature automatically locks the doors again.

■ When the door cannot be locked by the lock sensor on the upper part of

the front door handle

If the door will not lock even when the top-

side sensor area is touched, try touching

both the topside and underside sensor

areas at the same time.

■ Door lock buzzer

If an attempt to lock the doors is made when a door is not fully closed, a

buzzer will sound continuously for 5 seconds. Fully close the door to stop the

buzzer, and lock the doors again.

■Power back door reservation lock (vehicles with a power back door)

If the wireless remote control is used to lock the doors while the power back

door is closing with all side doors fully closed, a buzzer will sound and the

emergency flashers will flash to indicate that the reservation lock is activated.

At this time the side doors are locked. The back door will be locked when it is

fully closed.

HIGHLANDER_HV_U (OM0E032U)

126

3-2. Opening, closing and locking the doors

■Alarm (if equipped)

Locking the doors will set the alarm system. (→P. 93)

■ If the smart key system or the wireless remote control does not operate

properly

Use the mechanical key to lock and unlock the doors. (→P. 622)

Replace the key battery with a new one if it is depleted. (→P. 539)

Unlocking and locking the doors from the inside

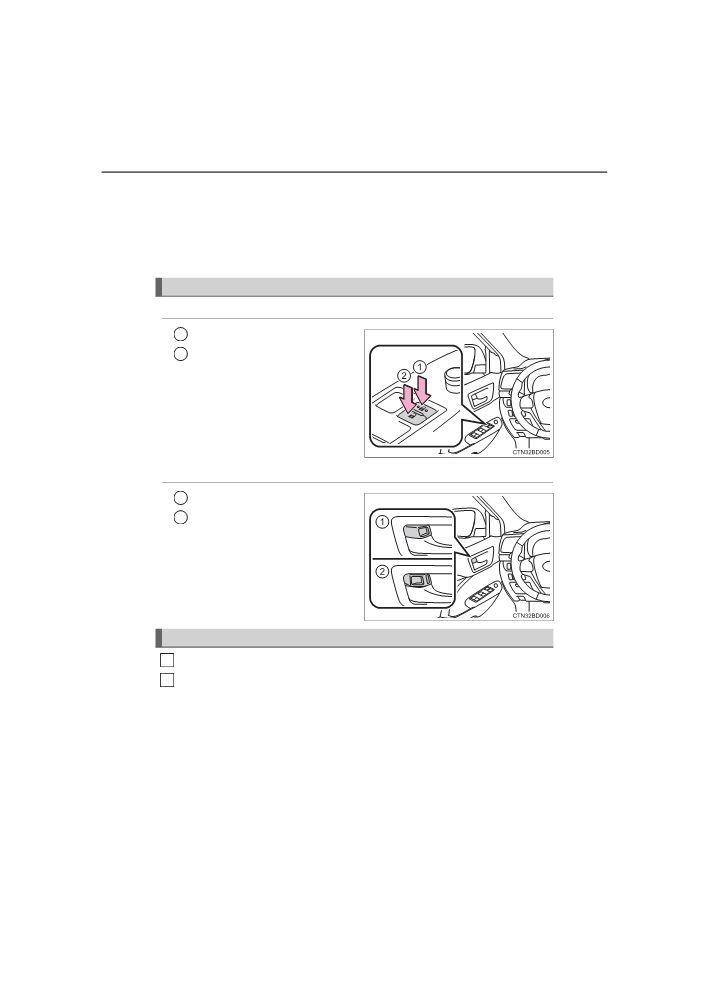

◆ Door lock switch

1

Locks all the doors

2

Unlocks all the doors

◆ Inside lock buttons

1

Locks the doors

2

Unlocks the doors

The front doors can be opened

by pulling the inside handle

even if the lock buttons are in

the lock position.

Locking the front doors from the outside without a key

1

Move the inside lock button to the lock position.

2

Close the door.

The door cannot be locked if the power switch is in ACCESSORY or

ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

HIGHLANDER_HV_U (OM0E032U)

3-2. Opening, closing and locking the doors

127

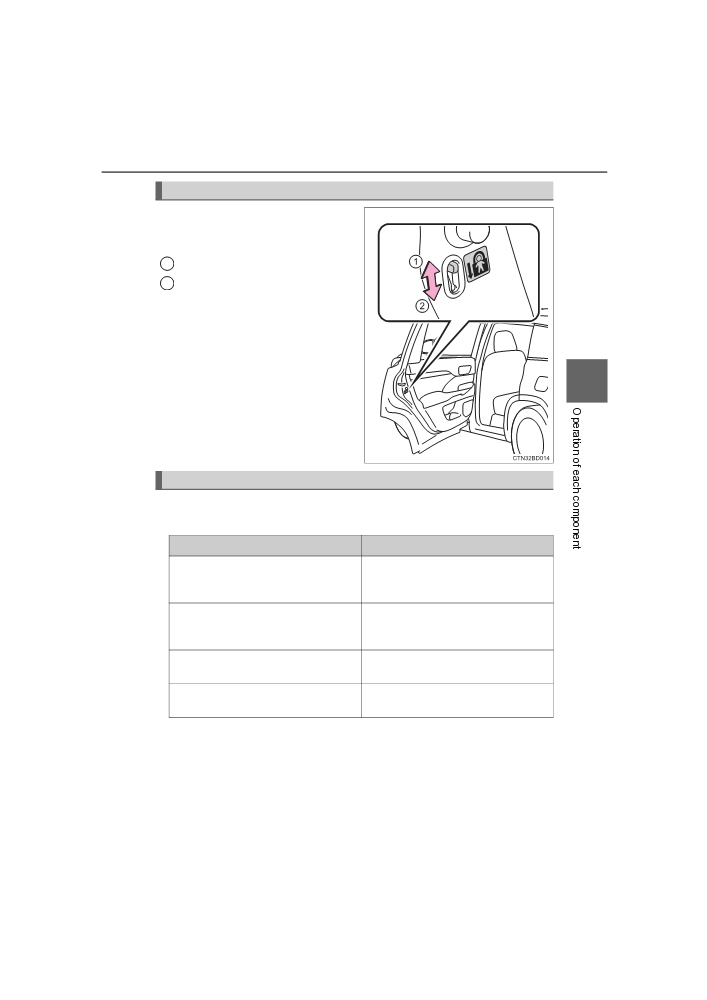

Rear door child-protector lock

The door cannot be opened from

inside the vehicle when the lock is

set.

1

Unlock

2

Lock

These locks can be set to prevent

children from opening the rear

doors. Push down on each rear

door switch to lock both rear doors.

3

Automatic door locking and unlocking systems

The following functions can be set or canceled:

For instructions on customizing, refer to P. 670.

Function

Operation

All doors are automatically locked

Speed linked door locking function

when vehicle speed is approxi-

mately 12 mph (20 km/h) or higher.

All doors are automatically locked

Shift position linked door locking

when shifting the shift lever to a

function

position other than P.

Shift position linked door unlocking

All doors are automatically unlocked

function

when shifting the shift lever to P.

Driver’s door linked door unlocking

All doors are automatically unlocked

function

when the driver’s door is opened.

HIGHLANDER_HV_U (OM0E032U)

128

3-2. Opening, closing and locking the doors

■Switching the door unlock function

It is possible to set which doors the entry function unlocks using the wireless

remote control.

1

Turn the power switch off.

2

When the indicator light on the key surface is not on, press and hold

,

or

for approximately 5 seconds while pressing and holding

The setting changes each time an operation is performed, as shown below.

(When changing the setting continuously, release the buttons, wait for at least

5 seconds, and repeat step

2

.)

Multi-information

Unlocking function

Beep

display

Holding the driver’s door handle

Exterior:

unlocks only the driver's door.

Beeps 3 times

Interior:

Holding a passenger’s door

Pings once

handle unlocks all the doors.

Exterior:

Holding a door handle unlocks

Beeps twice

all the doors.

Interior:

Pings once

For vehicles with an alarm: To prevent unintended triggering of the alarm,

unlock the doors using the wireless remote control and open and close a door

once after the settings have been changed. (If a door is not opened within 60

seconds after

is pressed, the doors will be locked again and the alarm

will automatically be set.)

In case that the alarm is triggered, immediately stop the alarm. (→P. 94)

HIGHLANDER_HV_U (OM0E032U)

3-2. Opening, closing and locking the doors

129

■ Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are

unlocked. Depending on the force of the impact or the type of accident, how-

ever, the system may not operate.

■Using the mechanical key

The doors can also be locked and unlocked with the mechanical key.

(→P. 622)

■Conditions affecting the operation of the smart key system or wireless

remote control

→P. 149

■ Customization

Settings (e.g. unlocking function using a key) can be changed.

(Customizable features: →P. 666)

3

WARNING

■ To prevent an accident

Observe the following precautions while driving the vehicle.

Failure to do so may result in a door opening and an occupant falling out of

the vehicle, resulting in death or serious injury.

● Ensure that all doors are properly closed and locked.

● Do not pull the inside handle of the doors while driving.

Be especially careful for the front doors, as the doors may be opened even

if the inside lock buttons are in locked position.

● Set the rear door child-protector locks when children are seated in the rear

seats.

HIGHLANDER_HV_U (OM0E032U)

130

3-2. Opening, closing and locking the doors

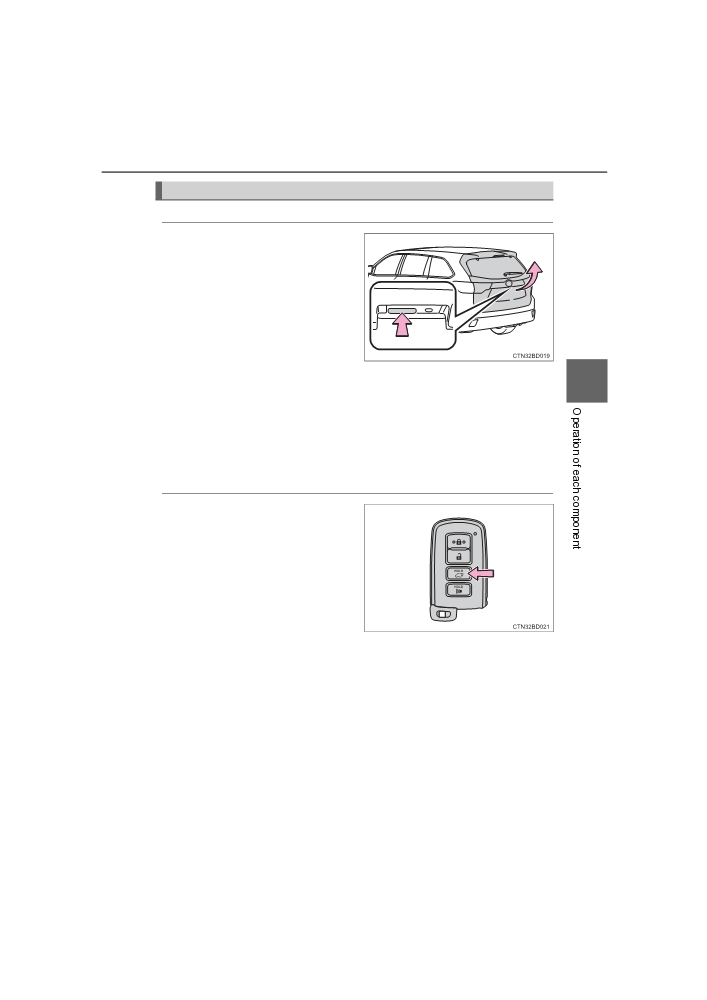

Back door

The back door can be locked/unlocked and opened/closed by

the following procedures.

Locking and unlocking the back door

■ Door lock switch

→P. 126

■ Entry function

→P. 124

■ Wireless remote control

→P. 125

Opening/closing the back door from inside the vehicle (vehicles

with a power back door)

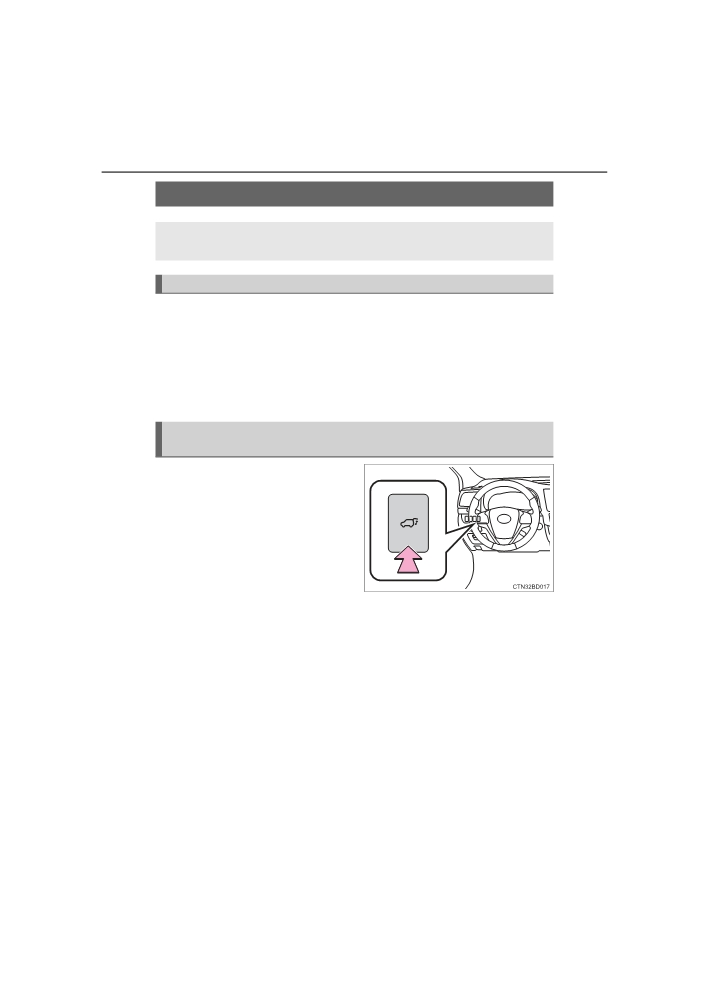

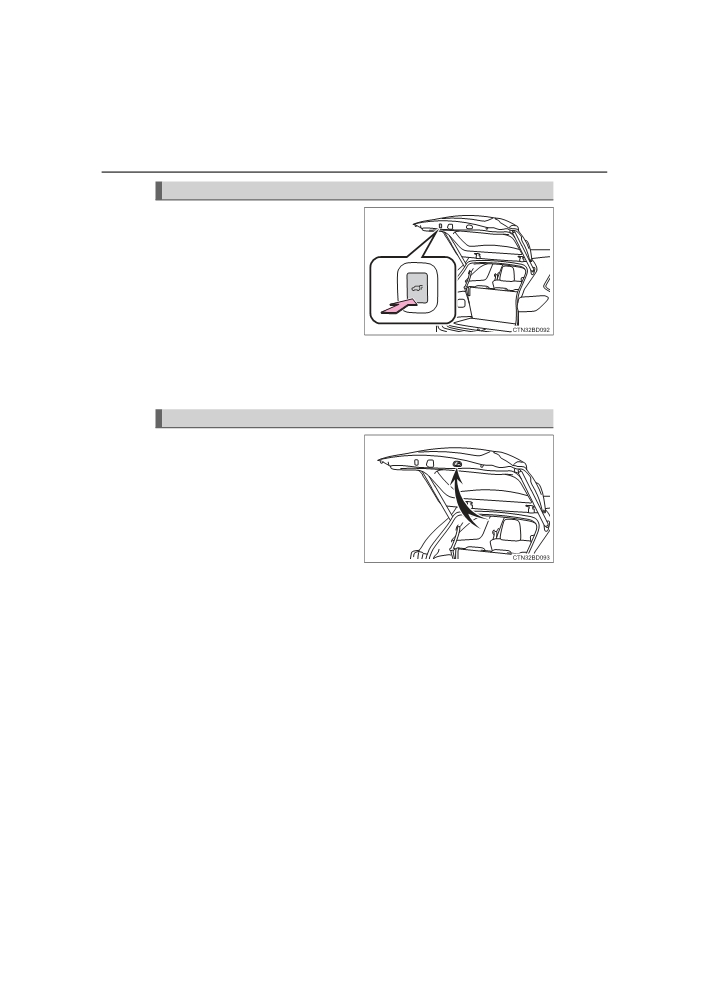

Press and hold the switch to open

or close the back door, when the

back door is unlocked.

Pressing the switch while the back

door is opening/closing stops the

operation.

To operate the back door again,

press and hold the switch. The

back door will then move in the

opposite direction.

HIGHLANDER_HV_U (OM0E032U)

3-2. Opening, closing and locking the doors

131

Opening the back door from outside the vehicle

◆ Back door opener

 Vehicles without a power

back door

Raise the back door while

pressing up the back door

opener switch.

 Vehicles with a power back

door

When the back door is

unlocked: Press the back door

3

opener switch.

When the back door is locked: While carrying the electronic key on

your person, press and hold the back door opener switch.

Pressing the switch while the back door is opening/closing stops the

operation.

◆ Wireless remote control (vehicles with a power back door)

Opens and closes the power

back door (press and hold)

Pressing the button while the

back door is opening/closing

stops the operation.

To operate the back door again,

press and hold the button. The

back door will then move in the

opposite direction.

HIGHLANDER_HV_U (OM0E032U)

132

3-2. Opening, closing and locking the doors

Power back door switch (vehicles with a power back door)

Quickly press and release the

switch to close the back door.

Pressing the switch while the back

door is opening/closing stops the

operation.

To operate the back door again,

quickly press and release the

switch. The back door will then

move in the opposite direction. (If

the back door is stopped at a posi-

tion close to the fully closed posi-

tion, the back door will only open

when the switch is quickly pressed

and released.)

When closing the back door

Lower the back door using the

back door handle.

 Vehicles without a power back

door

Make sure to push the back door

down from the outside to close it.

 Vehicles with a power back

door

The back door closing assist will activate and the back door will fully

close automatically.

HIGHLANDER_HV_U (OM0E032U)

3-2. Opening, closing and locking the doors

133

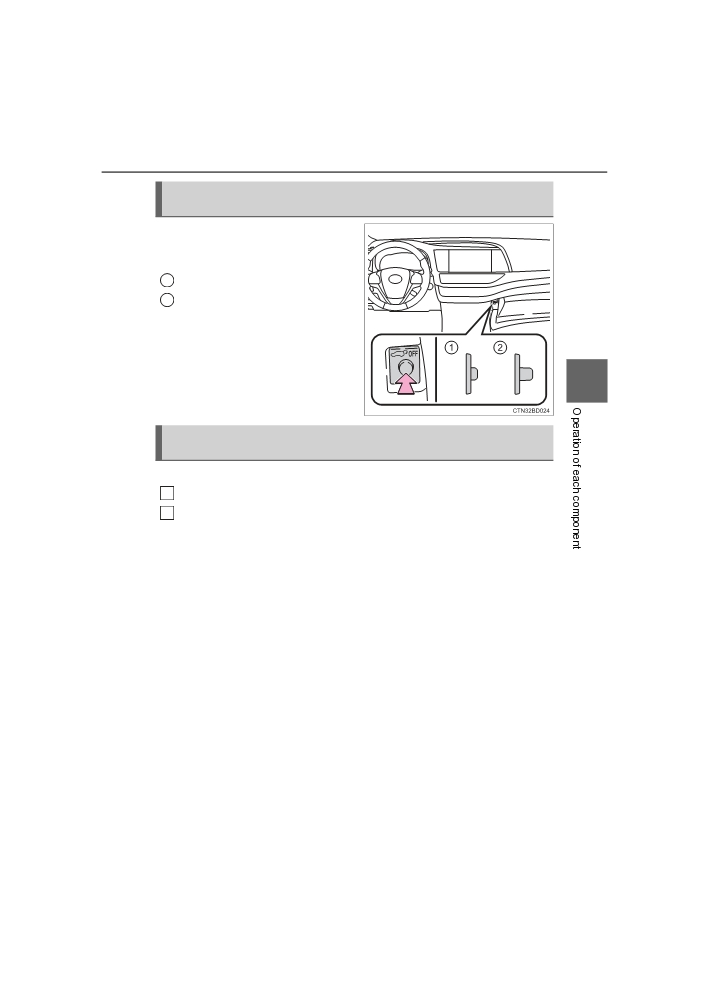

Canceling the power back door system (vehicles with a power

back door)

Turn the main switch in the glove

box off to disable the power back

door system.

1

On (enabled)

2

Off (disabled)

3

Adjusting the open position of the back door (vehicles with a

power back door)

The open position of the power back door can be adjusted.

Open the back door and adjust it to the desired position.

1

Press and hold the power back door switch on the back door

2

approximately 2 seconds until a buzzer sounds 4 times.

HIGHLANDER_HV_U (OM0E032U)

134

3-2. Opening, closing and locking the doors

■Luggage compartment light

The luggage compartment light turns on when the back door or glass hatch is

opened with the luggage compartment light switch on.

1

On

2

Off

When the power switch is turned off, the

light will go off automatically after 20 min-

utes.

■ After the back door has been opened and then closed

Lock the back door again as the back door will not lock automatically.

■ If the back door opener is inoperative

The back door can be unlocked from the inside.

1

Remove the cover on the back door

trim.

Use a cloth to prevent scratches.

Move the lever for the back door motor.

2

 Vehicles without a power back door

 Vehicles with a power back door

HIGHLANDER_HV_U (OM0E032U)

3-2. Opening, closing and locking the doors

135

■ The power back door can be operated when (vehicles with a power back

door)

The power back door main switch is turned on and the glass hatch is closed.

■The power back door can be opened when (vehicles with a power back

door)

● The power switch is in ON mode and the shift lever is in P.

● The power switch is in ACCESSORY mode or off.

■ Back door closer (vehicles with a power back door)

In the event that the back door is left slightly open, the back door closer will

automatically close it to the fully closed position.

● The back door closer will operate regardless of the power switch mode.

● The back door can be opened while the back door closer is operating by

pressing the back door opener button.

3

■Power back door operation (vehicles with a power back door)

● A buzzer sounds and the emergency flashers flash twice to indicate that the

back door is opening/closing.

● The back door can be opened and closed manually even when the power

back door main switch is off.

■ Power back door operation using the entry function or wireless remote

control (vehicles with a power back door)

The back door can be opened even if it is locked. All the doors are unlocked

when the power back door is operated. Make sure to lock all the doors again

when you leave the vehicle. The doors will not lock automatically after the

back door has been closed.

■ Back door closing assist (vehicles with a power back door)

If the back door is lowered manually when the back door is stopped at an

open position, the back door will fully close automatically.

■ Jam protection function (vehicles with a power back door)

● If anything obstructs the power back door while it is closing, the back door

will open slightly then stop.

● If anything obstructs the power back door while it is opening, the back door

will immediately stop.

■ Fall-down protection function (vehicles with a power back door)

While the power back door is opening automatically, applying excessive force

to it will stop the opening operation to prevent the power back door from sud-

denly shutting.

■ Canceling the adjusted open position of the back door (vehicles with a

power back door)

Press and hold the power back door switch on the back door until a buzzer

sounds 4 times, pauses momentarily, and then sounds 2 times. The open

position is initialized to the fully opened position.

HIGHLANDER_HV_U (OM0E032U)

Content   ..  6  7  8  9   ..
