Toyota Highlander Hybrid (2018 year). Instruction - part 7
102

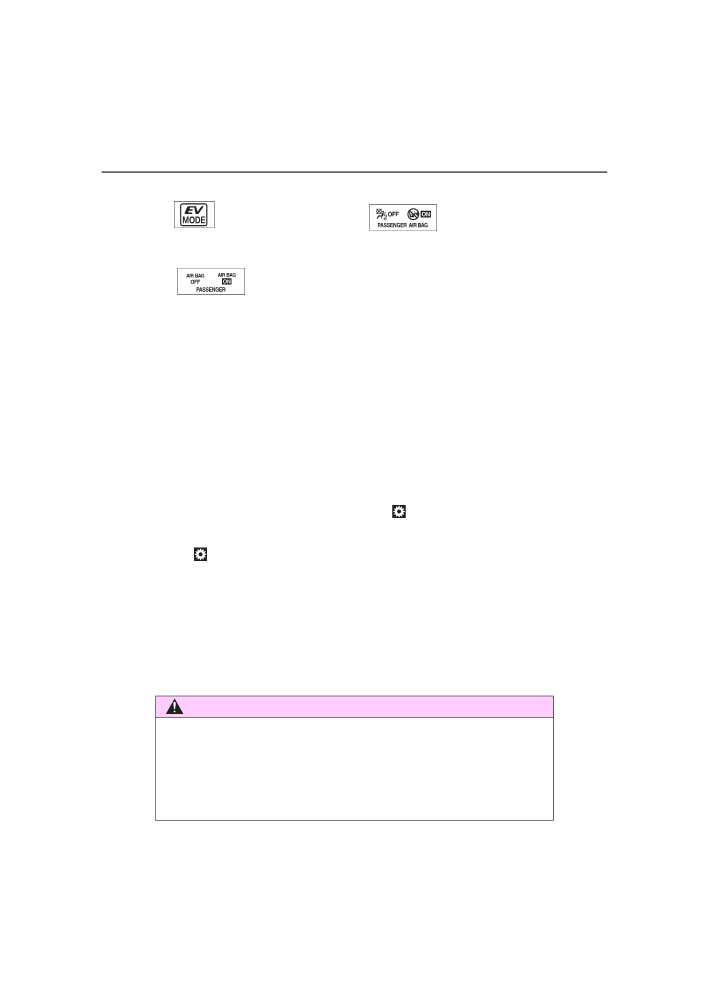

2. Instrument cluster
*1, 7
“AIR BAG ON/
EV drive mode indicator
OFF” indicator
(→P. 231)
(→P. 54)
(Canada)
*1, 7
“AIR BAG ON/
OFF” indicator
(→P. 54)
(U.S.A.)
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
*4: This light comes on when the system is turned off.
*5: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the BSM function is enabled on
of the multi-information dis-
play, the power switch is turned to ON mode.
• When the power switch is in ON mode, the BSM function is enabled on
of the multi-information display.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: This light flashes to indicate that the system is operating.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
103

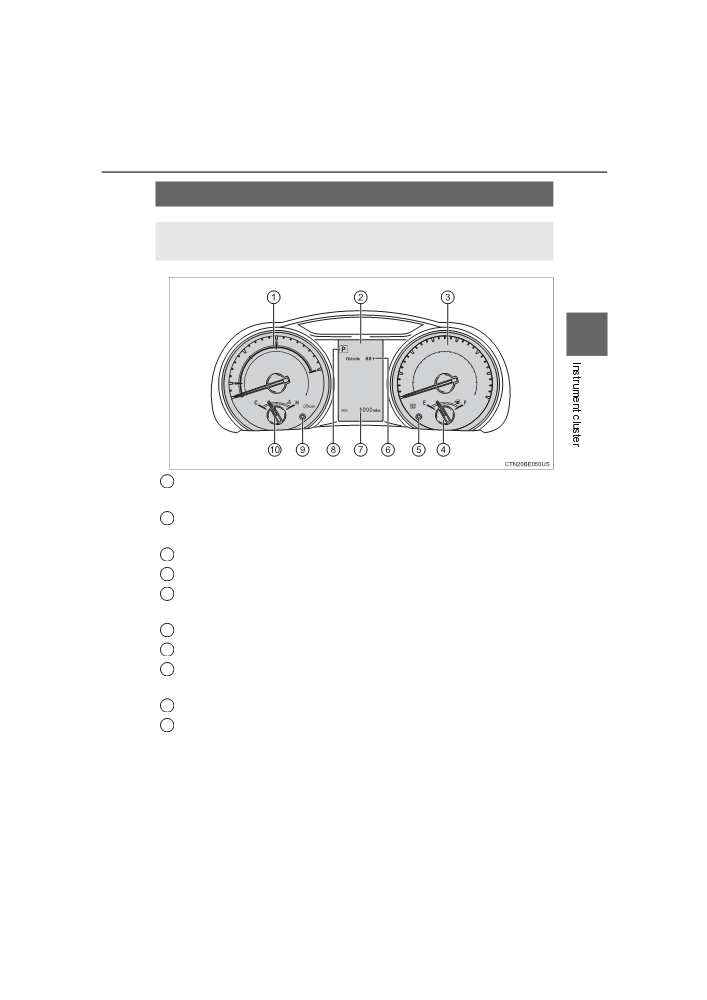

Gauge and meters
The displayed content may differ depending on the type of
meter.
2
1
Hybrid System Indicator
Displays hybrid system output or regeneration level.
2
Multi-information display
Presents the driver with a variety of driving-related data.
3
Speedometer
4
Fuel gauge
5
Trip meter reset knob
Switches the trip information.
6
Outside temperature
7
Odometer and trip meter display
8
Shift position and shift range
Displays the selected shift position or selected shift range. (→P. 233)
9
Instrument panel light control button
10
Engine coolant temperature gauge
Displays the engine coolant temperature.
HIGHLANDER_HV_U (OM0E032U)
104
2. Instrument cluster

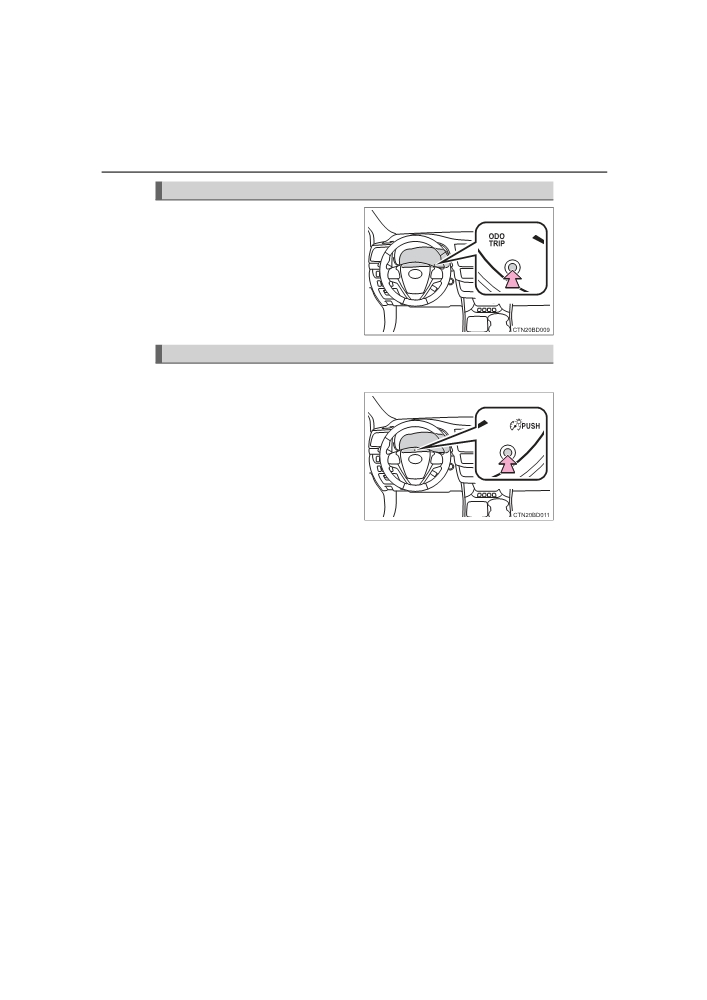

Changing the trip meter display
Switches between the trip meter
“A” and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.
Instrument panel light
control
The brightness of the instrument panel lights can be adjusted.
Pressing the button will adjust the
brightness of the instrument panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
105
■ The meters and display illuminate when
The power switch is in ON mode.

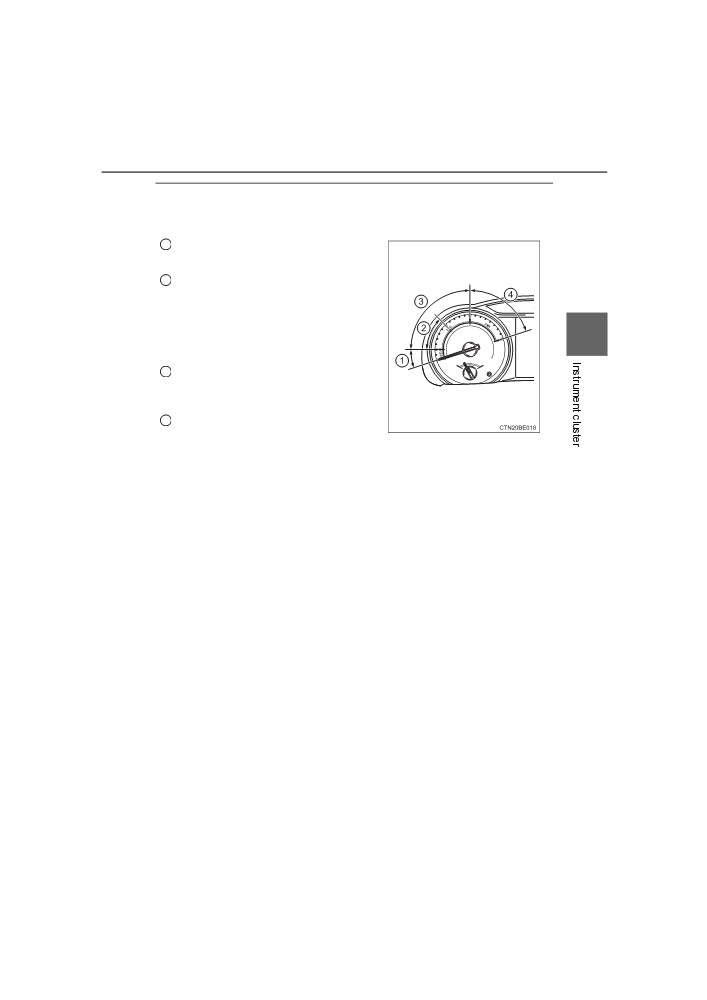

■ Hybrid System Indicator
1
Charge area
Shows regenerative charging.
2
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
2
stop and restart under various condi-
tions.
3
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
4
Power area
Shows that an Eco-friendly driving
range is being exceeded
(during full
power driving etc.)
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
● When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
HIGHLANDER_HV_U (OM0E032U)
106
2. Instrument cluster
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (→P. 630)
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
107

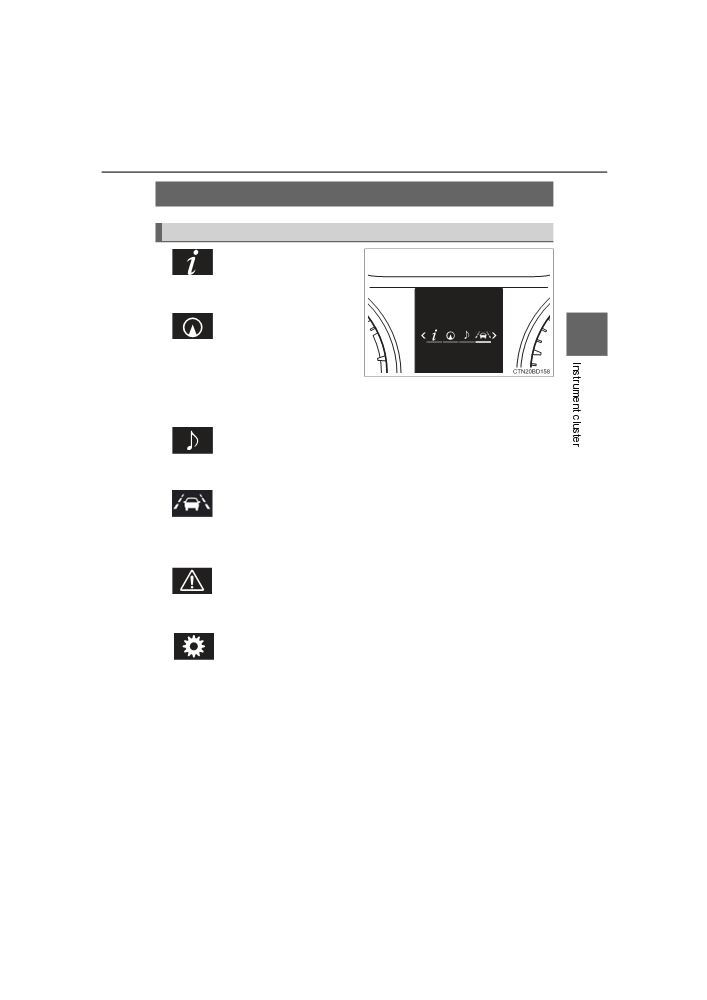

Multi-information display
Display contents
Drive information
Select to display various drive
data. (→P. 109)
Navigation
system-
2
linked
display
(if
equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information
Select to display the operational status of the following systems:
• Dynamic radar cruise control (→P. 292)
• LDA (Lane Departure Alert with steering control) (→P. 282)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (→P. 576)
Settings display
Select to change the meter display settings. (→P. 110)
HIGHLANDER_HV_U (OM0E032U)
108
2. Instrument cluster
■ Operating the meter control switches
1
Enter/Set/Reset
2
Select an item/change pages
3
Return to the previous
screen
4
Press: Displays the screen
registered
as the top screen
When no screen has been regis-
tered, the drive information
screen will be displayed.
Press and hold: Registers the currently displayed screen as the
top screen
When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
109
Drive information
● Current fuel consumption*1
Displays the current rate of fuel consumption
● Average fuel economy (after reset*2/after start/after refuel)*1
Displays the average fuel economy since the function was reset,
the hybrid system was started, and the vehicle was refueled,
respectively
Use the displayed average fuel economy as a reference.
2
● Average vehicle speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset
and the hybrid system was started, respectively
● Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the
hybrid system was started, respectively
● Distance (driving range/after start/after reset*2)*1
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining and the distance driven after the
hybrid system was started, respectively.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.

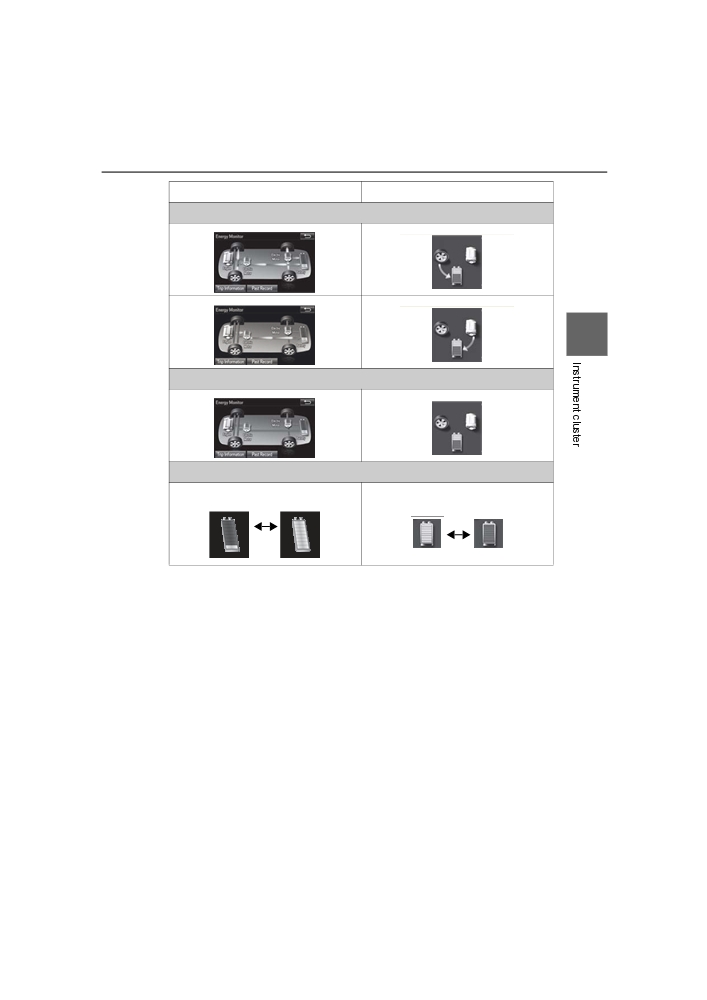

● Energy monitor
→P. 113
● Display off
A blank screen is displayed
*
1: Can be registered to Drive information 1 through 3. (→P. 110)
*2: Resetting procedures
• Select a function to be reset using the meter control switches and then
press and hold to reset.
• If there are two functions that can be reset, check boxes will be dis-
played next to those functions.
HIGHLANDER_HV_U (OM0E032U)
110
2. Instrument cluster
Settings display
1
Select
using the meter control switches.
2
Select an item and then set it with the center button.
■ LDA (Lane Departure Alert with steering control) settings
→P. 669
■ PCS (Pre-Collision System) settings
→P. 669
■ BSM (Blind Spot Monitor) settings (if equipped)
Select to activate/deactivate the BSM (Blind Spot Monitor).
(→P. 669)
■ Meter settings
● Language
Select to change the language on the display.
● Units
Select to change the unit of measure for fuel consumption.
● Maintenance system (for U.S.A)
Select to reset the maintenance data after the required mainte-
nance is performed. (→P. 498)
● EV Indicator Light
Select to activate/deactivate the EV Indicator Light.
● switch settings
You can register 1 screen as the top screen. To register, press
and hold
while the desired screen is displayed.
● Drive information 1 through 3
Select to select up to 2 items that will be displayed on a Drive
information screen, up to 3 Drive information screens can be set.
● Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.
• Route guidance display of the navigation system-linked sys-
tem (if equipped)
• Incoming call display of the hands-free phone system
• Instrument panel brightness adjustment display
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
111
● Accent color
Select to change the accent colors on the screen, such as the
cursor color.
● Speed limit display* (if equipped)
Select to set the display of speed limit information stored in the
navigation system to on with the speed limit caution indicator
(yellow) enabled, on with the speed limit caution not enabled, or
off. If enabled, the speed limit caution indicator will come on if the
vehicle speed exceeds the displayed speed limit.
2
● Initialization
Registered or changed meter settings will be deleted or returned
to their default setting.
*: Speed limit display may not be available for some regions.
■ Settings can be changed
Customizable features: →P. 666
■Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display, will be temporarily displayed on the multi-information display.
The pop-up display function can be set on/off.
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the meter control switch will automatically be turned off.
● When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
HIGHLANDER_HV_U (OM0E032U)
112
2. Instrument cluster
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■ During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
113

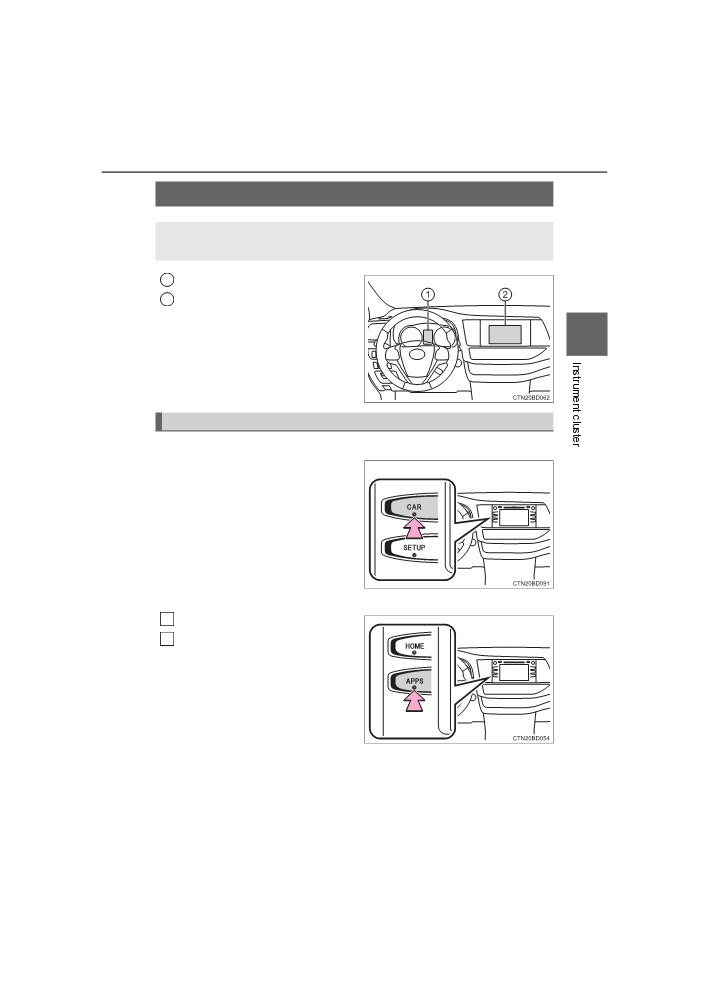

Energy monitor/consumption screen
You can view the status of the hybrid system on the multi-infor-
mation display or audio system screen.
1
Multi-information display
2
Audio system screen
2
Energy monitor
Entune Audio
Press the “CAR” button.
If the
“Trip Information” or
“Past
Record” screen is displayed, touch
“Energy”.
Entune Audio Plus or Entune Premium Audio
1
Press the “APPS” button.
2
Touch
“ECO” on the
“Apps”
screen.
If the
“Trip Information” or
“Past
Record” screen is displayed, touch
“Energy”.
HIGHLANDER_HV_U (OM0E032U)
114
2. Instrument cluster

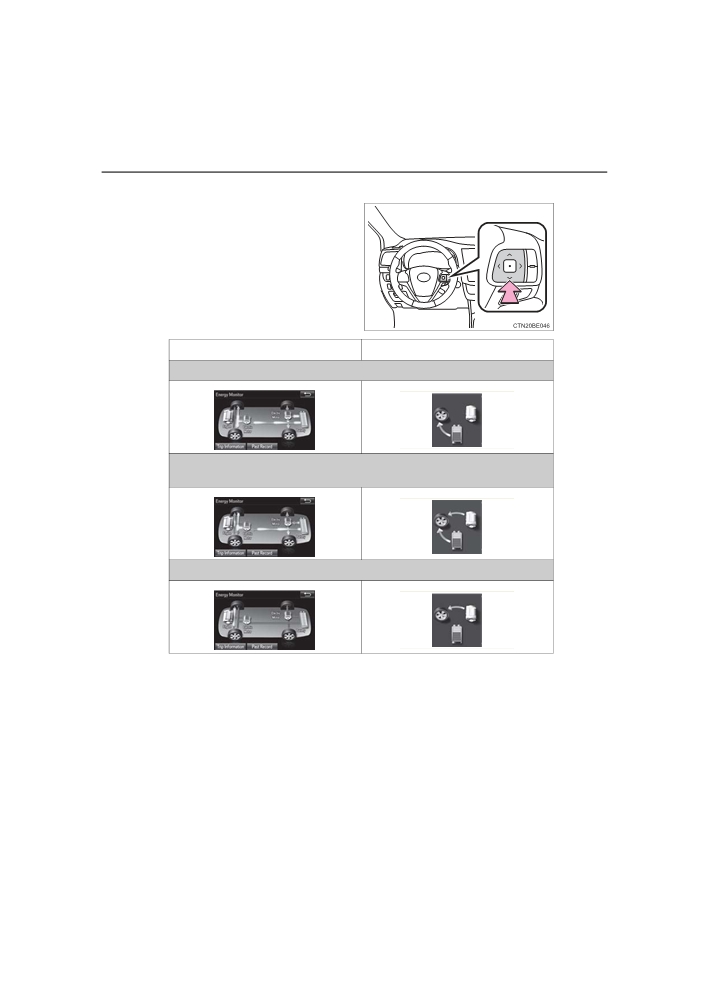

Multi-information display
To select the energy monitor dis-
play, push the meter control
switches several times
Audio system screen
Multi-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
115
Audio system screen
Multi-information display
When the vehicle is charging the hybrid battery (traction battery)
2
When there is no energy flow
Hybrid battery (traction battery) status
Low
Full
Low
Full
These images are examples only.
HIGHLANDER_HV_U (OM0E032U)
116
2. Instrument cluster

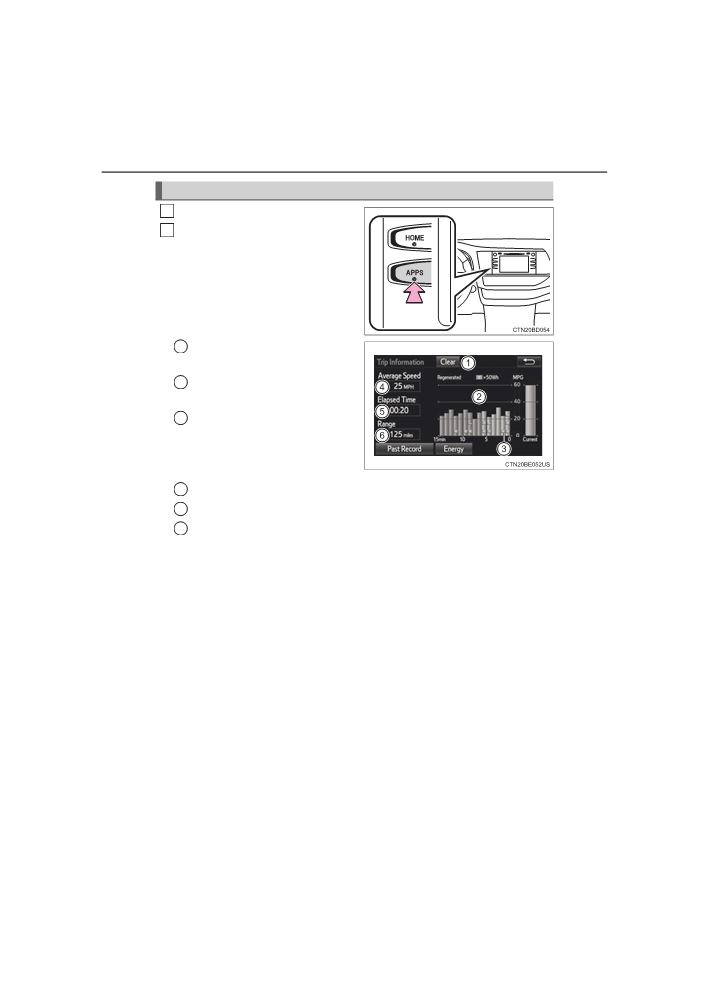

Trip Information (audio system screen)
1
Press the “APPS” button.
2
Touch
“ECO” on the
“Apps”
screen.
If the
“Energy Monitor” or
“Past
Record” screen is displayed, touch
“Trip Information”.
1
Resetting the consumption
data
2
Fuel consumption in the past
15 minutes
3
Regenerated energy in the
past 15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
4
Average vehicle speed since the hybrid system was started.
5
Elapsed time since the hybrid system was started.
6
Cruising range
This image is an example only, and may vary slightly from actual condi-
tions.
HIGHLANDER_HV_U (OM0E032U)
2. Instrument cluster
117

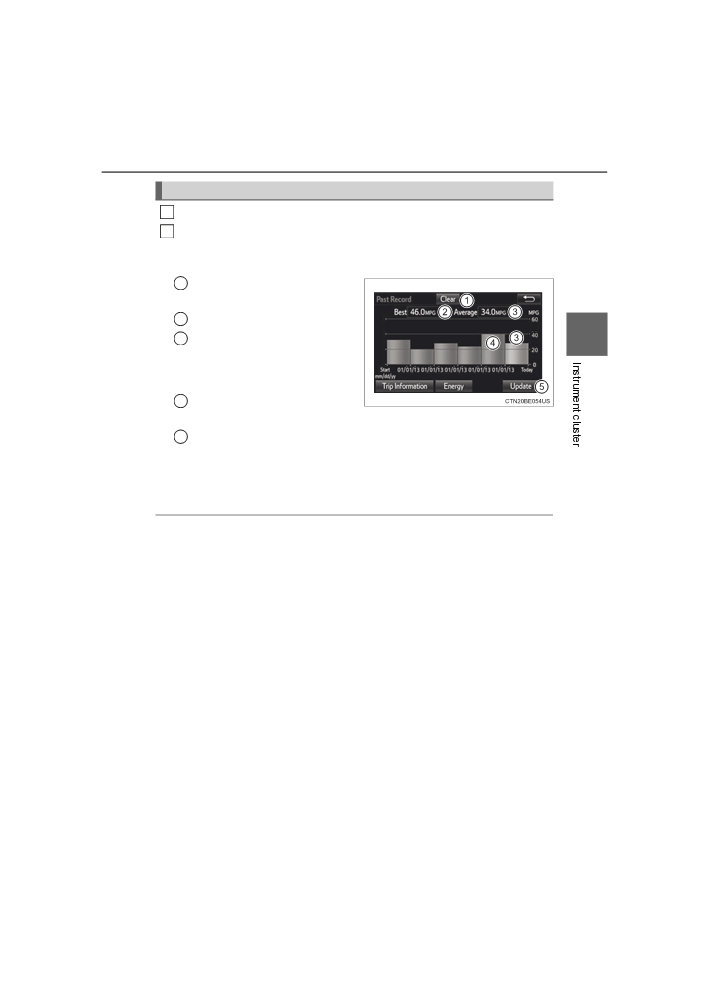

Past Record screen (audio system screen)
1
Press the “APPS” button.
2
Touch “ECO” on the “Apps” screen.
If the
“Energy Monitor” or “Trip Information” screen is displayed, touch
“Past Record”.
1
Resetting the past record
data
2
Best past fuel consumption
2
Average fuel consumption
3
Displays a maximum of five past
records of the average fuel con-
sumption.
4
Previous fuel consumption
record
5
Update
The average fuel consumption and graph are updated, and a new aver-
age fuel consumption record begins.
This image is an example only, and may vary slightly from actual condi-
tions.
■ Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and regenerated energy for the last 15 minutes. Selecting “Clear” on the
“Past Record” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.
HIGHLANDER_HV_U (OM0E032U)
118
2. Instrument cluster
HIGHLANDER_HV_U (OM0E032U)
