Toyota Aygo (2017 year). Instruction - part 17

272

5-8. Bluetooth® Phone

Making a phone call

To enter the “TEL” mode, press the off-hook switch.

Dialing by selecting a name

1

Select “Phonebook” using the “MENU” knob.

2

Select the desired name using the knob and press the off-hook

switch.

By pressing

(Add S. Dial) and one of the speed dial buttons

(from

[1] to

[5]) while the desired name is selected, it can

be registered as a speed dial.

Press

(A-Z) to display the registered names in alphabetical

order of the initial.

Speed dialing

1

Select “Speed dials” using the “MENU” knob.

2

Press the desired preset button (from

[1] to

[5]) and

press the off-hook switch.

To delete a registered speed dial, after selecting the desired preset

button (from

[1] to

[5]) press

(Delete) and then

press

(Yes).

: If equipped

AYGO_OM_Europe_OM99P46E

5-8. Bluetooth® Phone

273

Dialing by entering the number

1

Select “Dial by number” using the “MENU” knob.

2

Enter the phone number and press the off-hook switch.

Dialing from call histories

1

Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”

using the “MENU” knob.

2

Select a desired number using the knob and press the off-hook

switch.

The following operations can be performed:

● Registering a number as a speed dial

Press

(Add S. Dial) and then press the desired preset button

(from

[1] to

[5]).

● Deleting the selected number

Press

(Delete) and press

(Yes).

5

AYGO_OM_Europe_OM99P46E

274

5-8. Bluetooth® Phone

Receiving a phone call

Answering the phone

Press the off-hook switch.

Refusing the call

Press the on-hook switch.

Receiving a call when on another call

Press the off-hook switch.

Pressing the off-hook switch again returns you to the previous call.

Adjusting the ring tone volume when receiving a call

To decrease the volume: Turn

counterclockwise.

To increase the volume: Turn

clockwise.

: If equipped

AYGO_OM_Europe_OM99P46E

5-8. Bluetooth® Phone

275

Speaking on the phone

Transferring a call

A call can be transferred between the cellular phone and system while

dialing, receiving a call, or during a call. Use one of the following

methods:

a. Operate the cellular phone.

Refer to the manual that comes with the cellular phone for the operation

of the phone.

b. Press the

(Phone).*

*: This operation can be performed only when transferring a call from the

cellular phone to the system during a call.

Muting your voice

Press

(Mute).

5

Inputting digits

Press

(0-9) and use the “MENU” knob to input the desired dig-

its.

• To send the input digits press

(Send).

• When finished, press

(Exit) to return to the previous screen.

Setting call volume

To decrease the volume: Turn

counterclockwise.

To increase the volume: Turn

clockwise.

: If equipped

AYGO_OM_Europe_OM99P46E

5-9. Bluetooth®

277

Bluetooth®

■ When using the Bluetooth® audio/phone

● In the following situations, the system may not function.

• The portable player does not support Bluetooth®

• The cellular phone is located outside the service area

• The Bluetooth® device is switched off

• The Bluetooth® device has a low battery

• The Bluetooth® device is not connected to the system

• The Bluetooth® device is behind the seat or in the glove box or

console box, or metal material covers or touches the device

● There may be a delay if a cellular phone connection is made

during Bluetooth® audio play.

● Depending on the type of portable audio player that is connected

to the system, operation may differ slightly and certain functions

may not be available.

5

: If equipped

AYGO_OM_Europe_OM99P46E

278

5-9. Bluetooth®

■ When transferring ownership of the vehicle

Be sure to initialize the system to prevent personal data from being improp-

erly accessed. (P. 266)

■ About Bluetooth®

The Bluetooth word mark and logos are

registered trademarks owned by Blue-

tooth SIG, Inc. and any use of such marks

by Panasonic Corporation is under

license. Other trademarks and trade

names are those of their respective own-

ers.

■ Compatible models

●Bluetooth® specifications:

Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher)

●Following Profiles:

• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (recom-

mended: Ver. 1.2 or higher)

• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom-

mended: Ver. 1.3 or higher)

Portable players must correspond to the above specifications in order to be

connected to the Bluetooth® audio/phone. However, please note that some

functions may be limited depending on the type of portable player.

● Cellular phone

• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5)

• OPP (Object Push Profile) Ver. 1.1

• PBAP (Phone Book Access Profile) Ver. 1.0

AYGO_OM_Europe_OM99P46E

®

5-9. Bluetooth

279

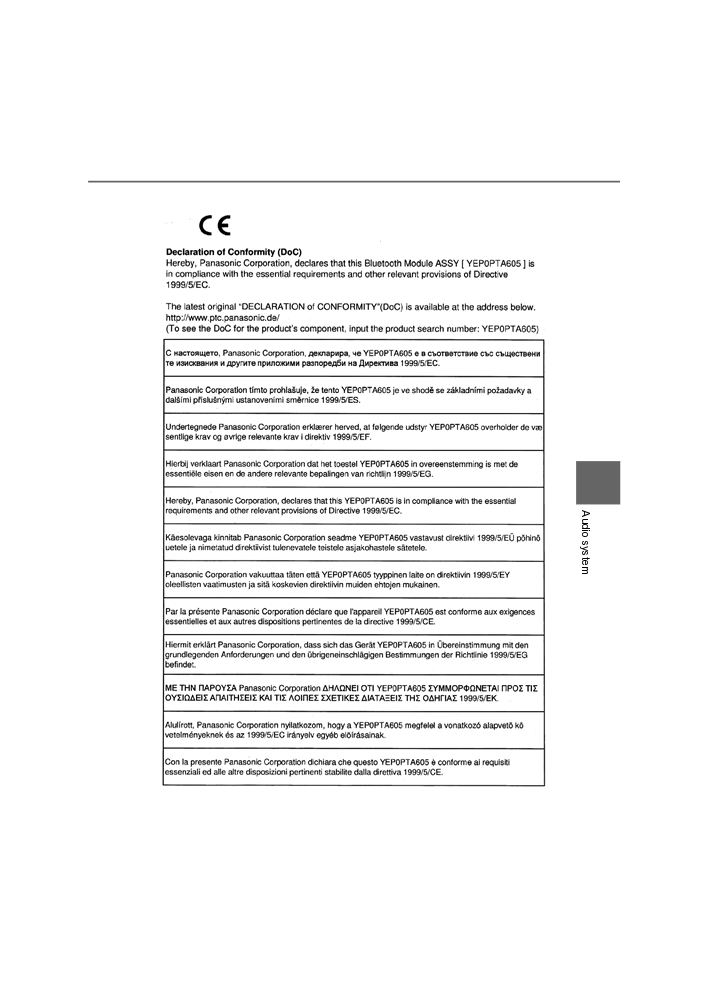

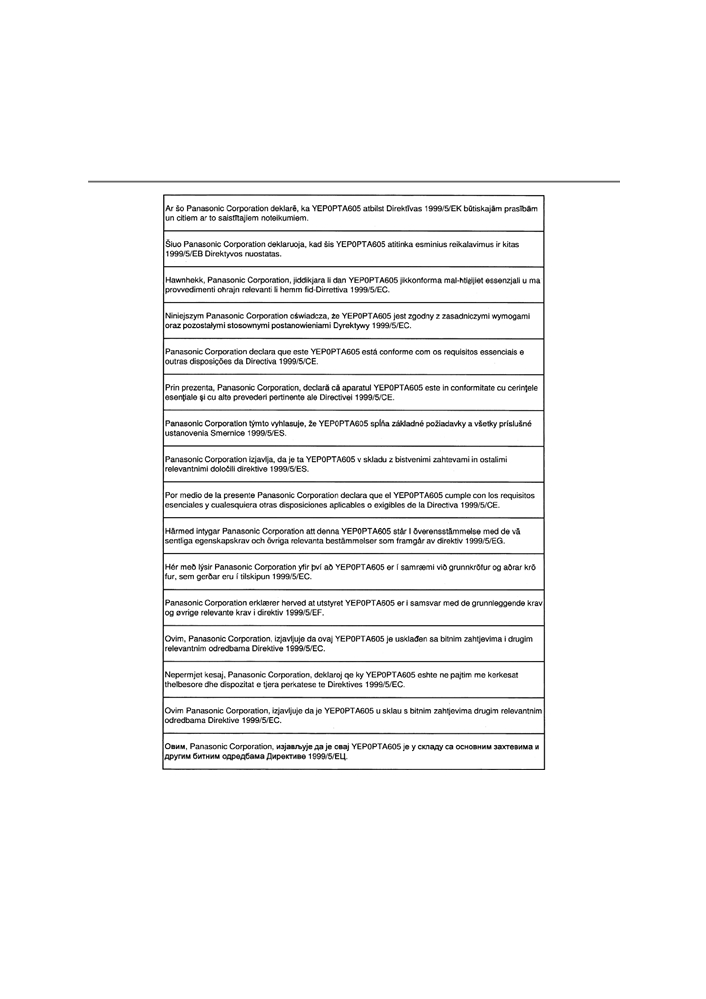

■ Certification

5

AYGO_OM_Europe_OM99P46E

280

5-9. Bluetooth®

AYGO_OM_Europe_OM99P46E

®

5-9. Bluetooth

281

WARNING

■ While driving

Do not use the portable audio player, cellular phone or connect a device to

the Bluetooth® system.

■ Caution regarding interference with electronic devices

● Your audio unit is fitted with Bluetooth® antennas. People with implantable

cardiac pacemakers, cardiac resynchronization therapy-pacemakers or

implantable cardioverter defibrillators should maintain a reasonable dis-

tance between themselves and the Bluetooth® antennas. The radio waves

may affect the operation of such devices.

●Before using Bluetooth® devices, users of any electrical medical device

other than implantable cardiac pacemakers, cardiac resynchronization

therapy-pacemakers or implantable cardioverter defibrillators should con-

sult the manufacturer of the device for information about its operation

under the influence of radio waves. Radio waves could have unexpected

effects on the operation of such medical devices.

NOTICE

5

■ When leaving the vehicle

Do not leave portable audio player or cellular phone in the vehicle. The

inside of the vehicle may become hot, causing damage to the portable

audio player or cellular phone.

AYGO_OM_Europe_OM99P46E

284

6-1. Using the air conditioning system and defogger

Manual air conditioning system

Air conditioning controls

 Type A

 Type B

: If equipped

AYGO_OM_Europe_OM99P46E

6-1. Using the air conditioning system and defogger

285

■ Adjusting the temperature setting

Type A:

To adjust the temperature set-

ting, turn the temperature con-

trol dial clockwise (warm).

Type B:

To adjust the temperature set-

ting, turn the temperature con-

trol dial clockwise

(warm) or

counterclockwise (cool).

If

is not pressed, the system will blow ambient temperature air or

heated air.

■ Adjusting the fan speed setting

To adjust the fan speed, turn

the fan speed control dial clock-

wise (increase) or counterclock-

wise (decrease).

Turning the dial to “0” turns off

the fan.

6

■ Change the airflow mode

To select the airflow, set the air

outlet selector dial to the

desired position.

1

Air flows to the upper body

2

Air flows to the upper body

and feet

3

Air flows to the feet

4

Air flows to the feet and the

windshield defogger operate

Air flows to the windshield

5

defogger operate

The positions between the air

outlet selections can also be

selected for more delicate

adjustment.

AYGO_OM_Europe_OM99P46E

286

6-1. Using the air conditioning system and defogger

Other functions

■ Switching between outside air and recirculated air modes

(type B only)

Turn the outside/recirculated air mode knob to

(outside air

mode) or

(recirculated air mode).

■ Defogging the windshield

Defoggers are used to defog the windshield and front side win-

dows.

Set the air outlet selector dial to

position.

Type A:

To defog the windshield and the side windows early, turn the air flow and

temperature up.

Type B:

Set the outside/recirculated air mode knob to outside air mode if the recir-

culated air mode is used.

To defog the windshield and the side windows early, turn the air flow and

temperature up.

If the dehumidification function is not operating, press

to operate the

dehumidification function.

■ Defogging the rear window and outside rear view mirrors

 Vehicles without outside rear view mirror defoggers

Defogger is used to defog the rear window.

 Vehicles with outside rear view mirror defoggers

Defoggers are used to defog the rear window, and to remove rain-

drops, dew and frost from the outside rear view mirrors.

Press

The defoggers will automatically turn off after approximately 15 minutes.

Vehicles with outside rear view mirror defoggers: Turning the rear win-

dow defogger on will turn the outside rear view mirror defoggers on.

AYGO_OM_Europe_OM99P46E

6-1. Using the air conditioning system and defogger

287

Air outlets

■ Location of air outlets

Air outlets and air volume

changes according to the

selected airflow mode.

*: Some models

*

*

■ Adjusting the position and opening and closing the air outlets

Direct air flow to the left or right,

up or down.

6

1

Open the vent

2

Close the vent

The outlets does not make com-

plete revolutions.

AYGO_OM_Europe_OM99P46E

288

6-1. Using the air conditioning system and defogger

■ Fogging up of the windows (type B only)

●The windows will easily fog up when the humidity in the vehicle is high.

Turning

on will dehumidify the air from the outlets and defog the wind-

shield effectively.

● If you turn

off, the windows may fog up more easily.

● The windows may fog up if the recirculated air mode is used.

■ Outside/recirculated air mode (type B only)

When driving on dusty roads such as tunnels or in heavy traffic, set the out-

side/recirculated air mode button to the recirculated air mode. This is effective

in preventing outside air from entering the vehicle interior. During cooling

operation, setting the recirculated air mode will also cool the vehicle interior

effectively.

■ When the outside temperature falls to nearly 0C (32F) (type B only)

The dehumidification function may not operate even when

is pressed.

■ Ventilation and air conditioning odors (type B only)

● To let fresh air in, set the air conditioning system to the outside air mode.

● During use, various odors from inside and outside the vehicle may enter into

and accumulate in the air conditioning system. This may then cause odor to

be emitted from the vents.

● To reduce potential odors from occurring:

It is recommended that the air conditioning system be set to outside air

mode prior to turning the vehicle off.

■ An odor comes from the air conditioning system due to the Stop & Start

system operation (vehicles with a Stop & Start system)

When the engine is stopped due to the Stop & Start system, an odor caused

by moisture may be detected. This does not indicate a malfunction.

■ Air conditioning filter

P. 347

AYGO_OM_Europe_OM99P46E
