3-2. Opening, closing and locking the doors
Side doors
The vehicle can be locked and unlocked using the key, wireless
remote control or smart entry & start system.
Unlocking and locking the doors from the outside

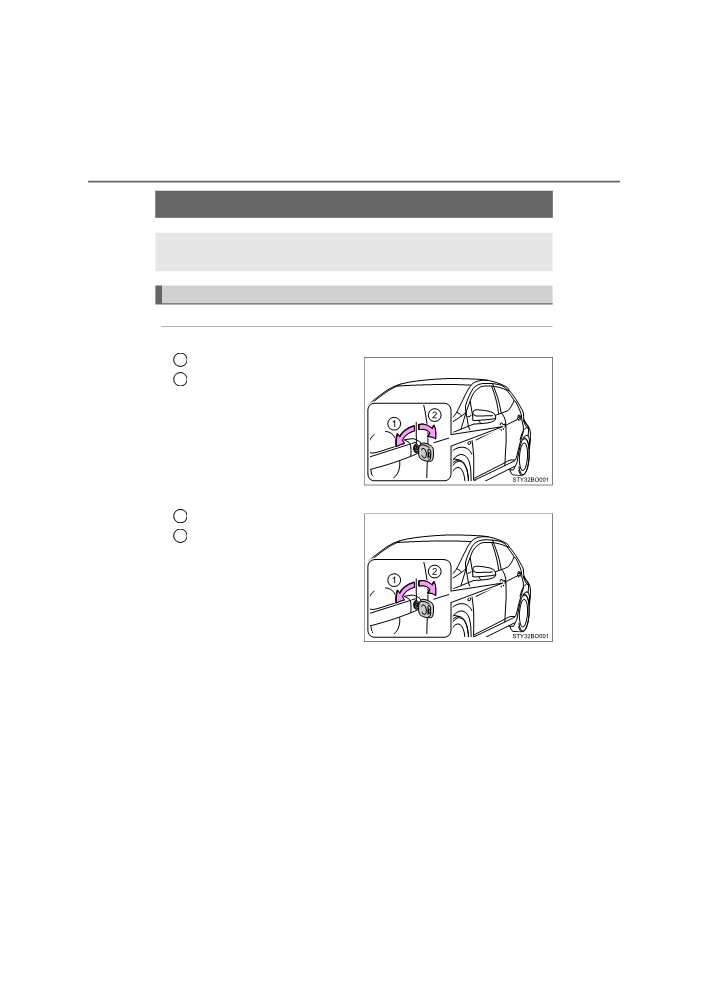

◆ Key
Vehicles without a power door lock system
1
Locks the door
2
Unlocks the door
Vehicles with a power door lock system
1
Locks all the doors
2
Unlocks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 423)
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
103

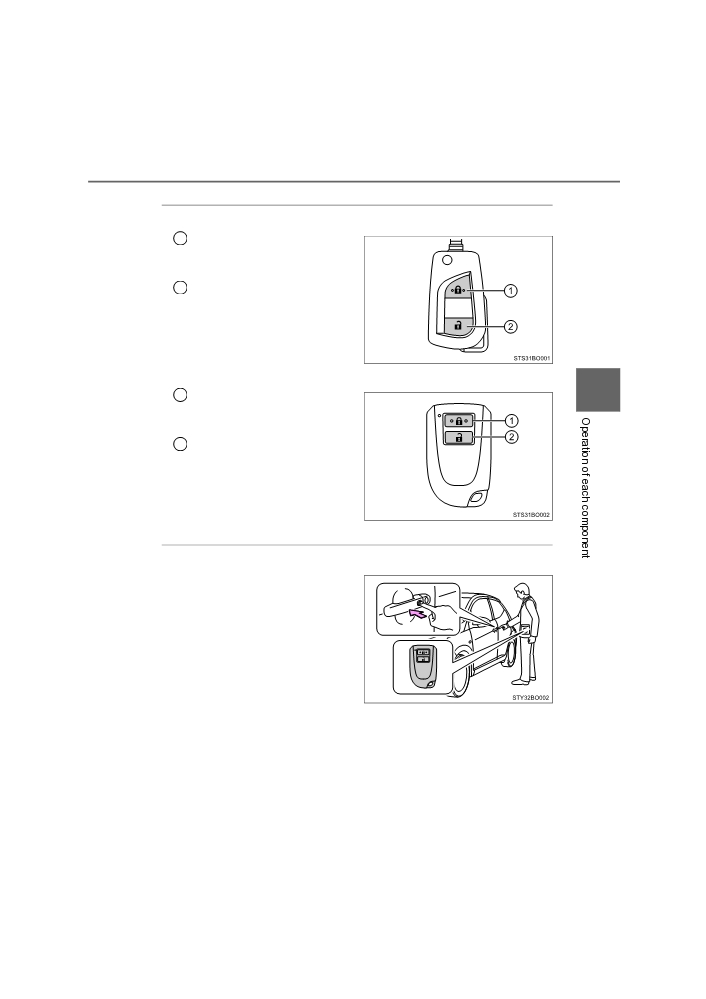

◆ Wireless remote control (if equipped)
Vehicles without a smart entry & start system
Locks all the doors
1
Check that the door is securely
locked.
Unlocks all the doors
2
Vehicles with a smart entry & start system
3
Locks all the doors
1
Check that the door is securely
locked.
Unlocks all the doors
2

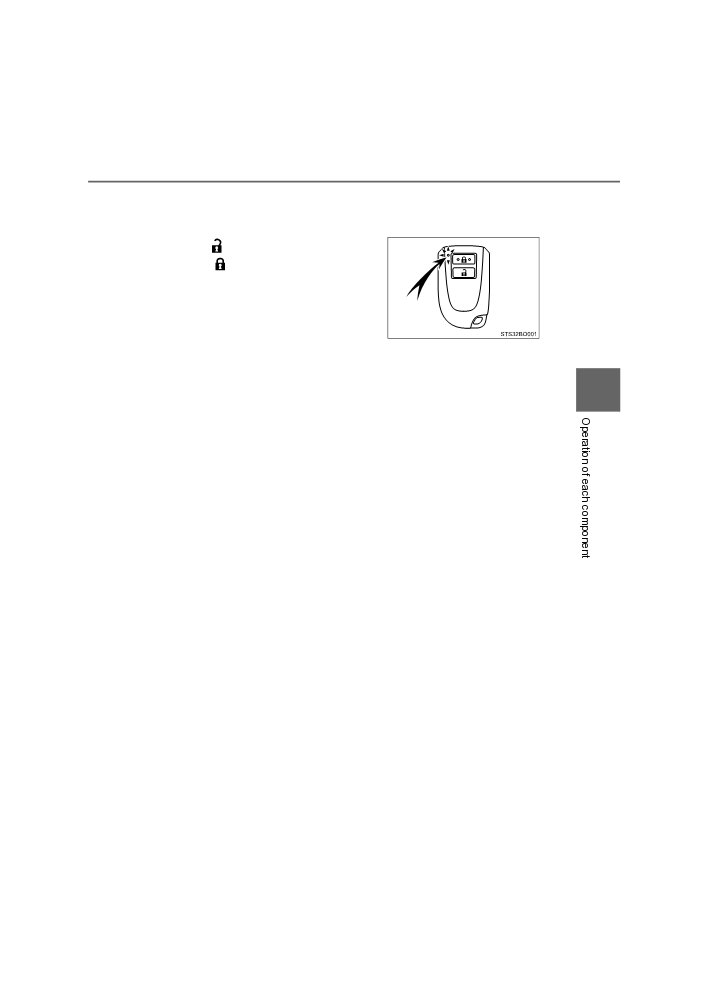

◆ Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
Press the button to lock/unlock
the doors.
Press the button to be certain.
Check that the door is securely
locked.
AYGO_OM_Europe_OM99P46E
104
3-2. Opening, closing and locking the doors
■ Operation signals (vehicles with a wireless remote control system or
smart entry & start system)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ Security feature (vehicles with a smart entry & start system)
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ If the smart entry & start system does not operate properly (if equipped)
● Use the mechanical key to lock and unlock the doors. (P. 423)
● Replace the battery with a new one if it is depleted. (P. 348)
Unlocking and locking the doors from the inside

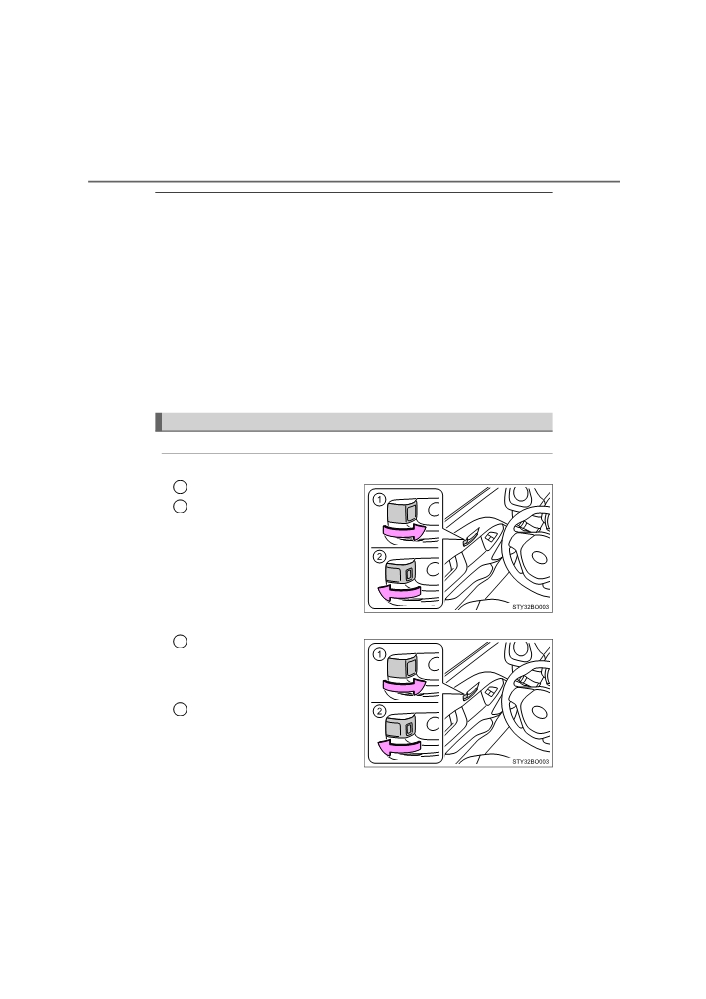

◆ Inside lock buttons
Vehicles without a power door lock system
1
Locks the door
2
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
Vehicles with a power door lock system
1
Driver’s side:
Locks all the doors
Passenger’s side:
Locks the door
2
Driver’s side:
Unlocks all the doors
Passenger’s side:
Unlocks the door
The front doors can be opened by pulling the inside handle even if the
lock button is in the lock position.
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
105
Locking the front doors from the outside without a key
1
Move the inside lock button to the lock position.
2
Close the door while pulling the door handle.
Vehicles with a power door lock system
Vehicles without a smart entry & start system:
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system:
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
3

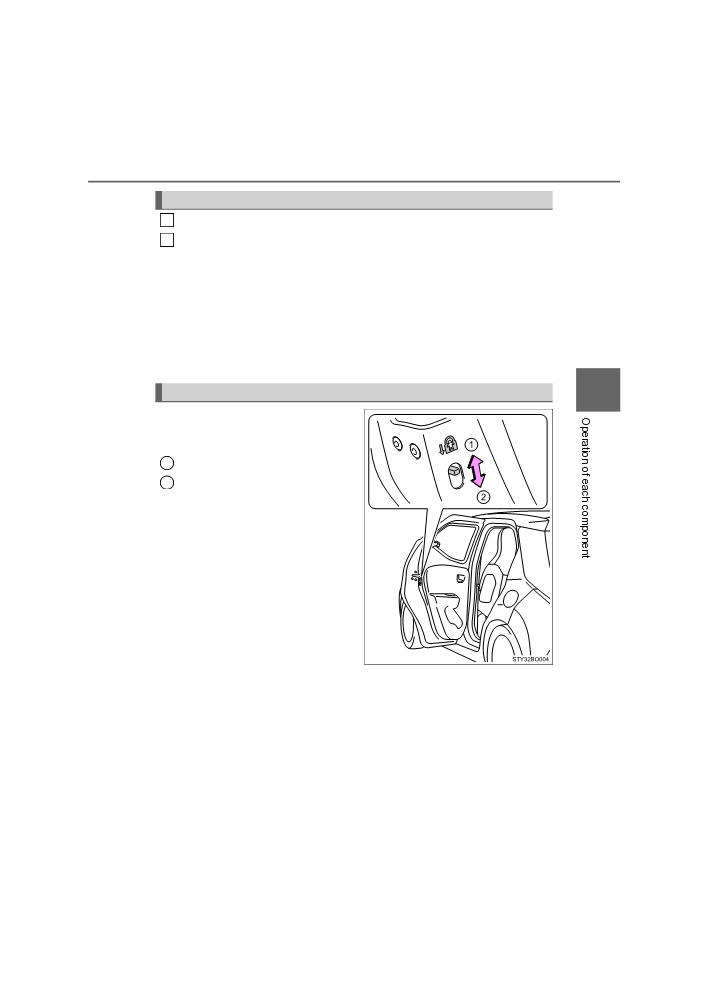

Rear door child-protector lock (5-door models)
The door cannot be opened from
inside the vehicle when the lock is
set.
1
Unlock
2
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
AYGO_OM_Europe_OM99P46E
106
3-2. Opening, closing and locking the doors
■ Conditions affecting operation of the wireless remote control
(if
equipped)
The wireless remote control function may not operate normally in the follow-
ing situations.
● When the wireless key battery is depleted
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation device
● When multiple wireless keys are in the vicinity
● When the wireless key has come into contact with, or is covered by a metal-
lic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
●If window tint with a metallic content or metallic objects are attached to the
rear window
■ Conditions affecting operation of the smart entry & start system (if
equipped)
P. 115
WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● 5-door models: Set the rear door child-protector locks when children are
seated in the rear seats.
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
107
Back door
The back door can be locked/unlocked and opened/closed by
the following procedures.
Locking and unlocking the back door from the outside

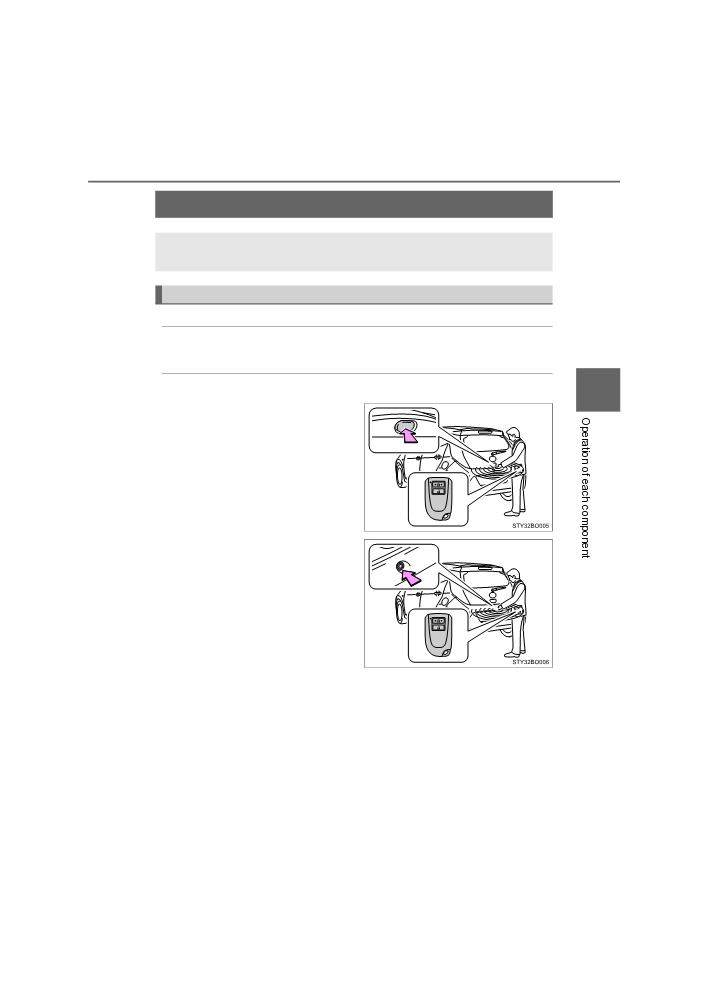

◆ Wireless remote control (if equipped)
P. 103
◆ Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
3
Press the button to unlock the
back door.
Press the button to lock the
back door.
Check that the door is securely
locked.
AYGO_OM_Europe_OM99P46E
108
3-2. Opening, closing and locking the doors

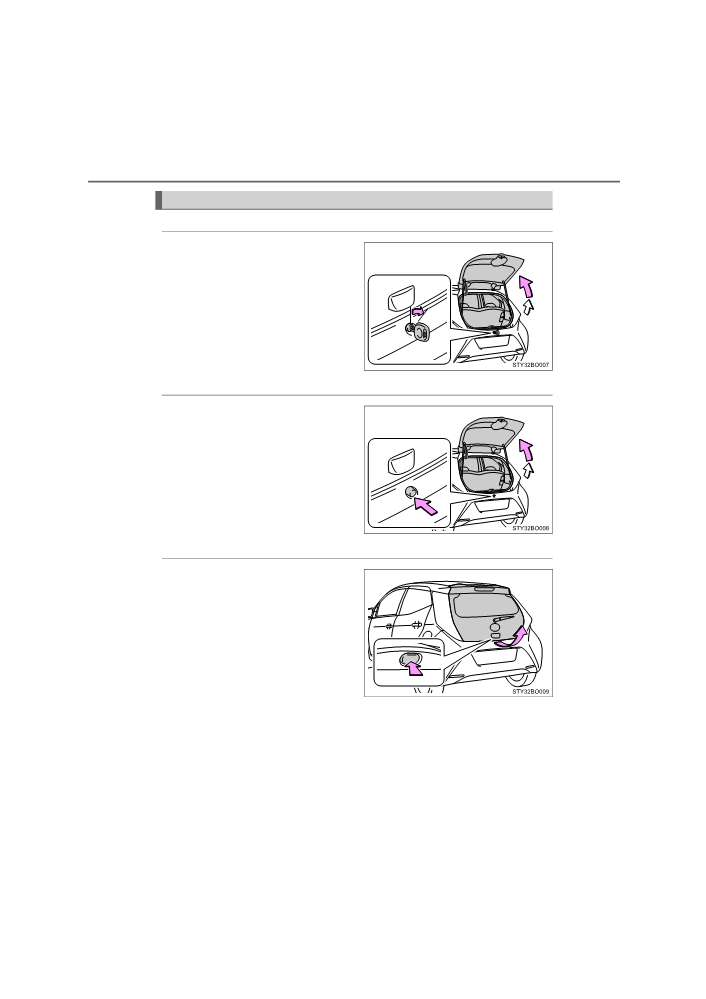

Opening the back door from outside the vehicle
◆ Key (vehicles without a power door lock system)
Turning the key clockwise then
raise the back door.
◆ Wireless remote control (if equipped)
Pressing the button and raise
the back door.
◆ Smart entry & start system (if equipped)
Raise the back door while
pushing up the back door
opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
109
■ Luggage compartment light (if equipped)
The luggage compartment light turns on
when the back door is opened.

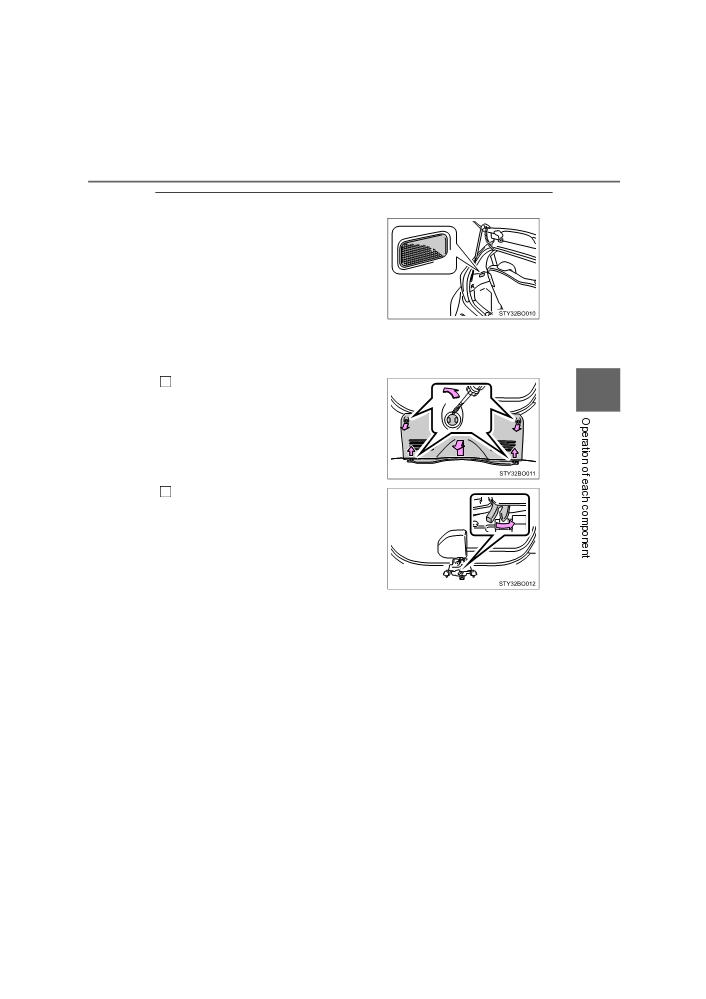

■ If the back door opener is inoperative (vehicles with a smart entry & start
system)
The back door can be unlocked from the inside.
1
Remove the 4 clips and the luggage
3
trim.
To prevent damage, cover the tip of the
flathead screwdriver with a tape.
Move the lever.
2
AYGO_OM_Europe_OM99P46E
110
3-2. Opening, closing and locking the doors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Before driving
● Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
●Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.

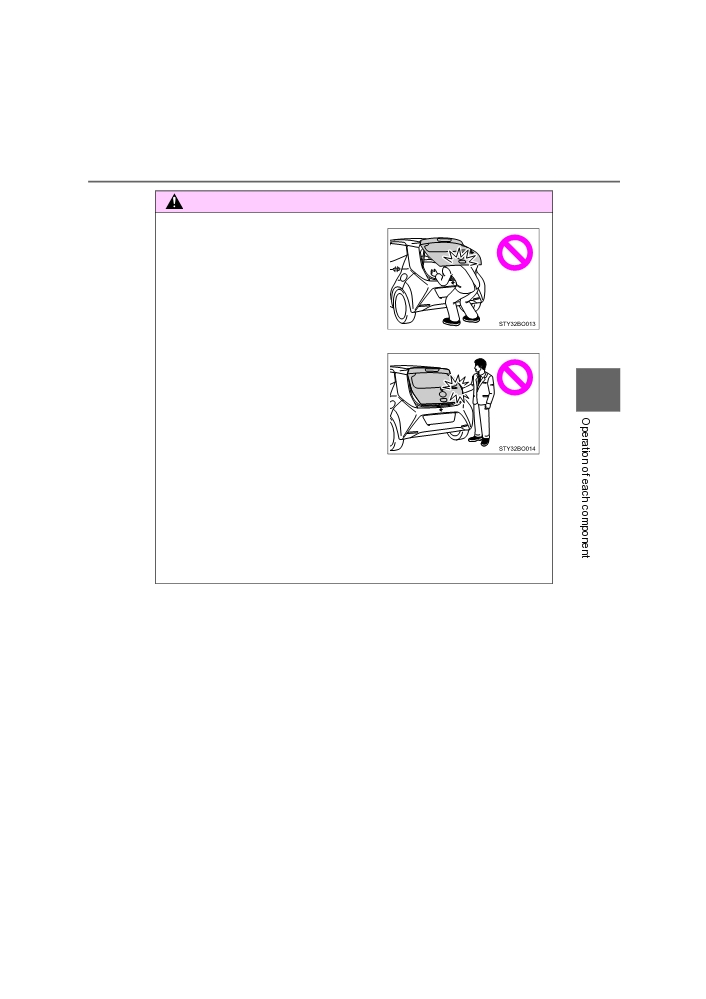

■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door suddenly shut
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
●Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
111
WARNING
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers, etc., from
being caught.
3

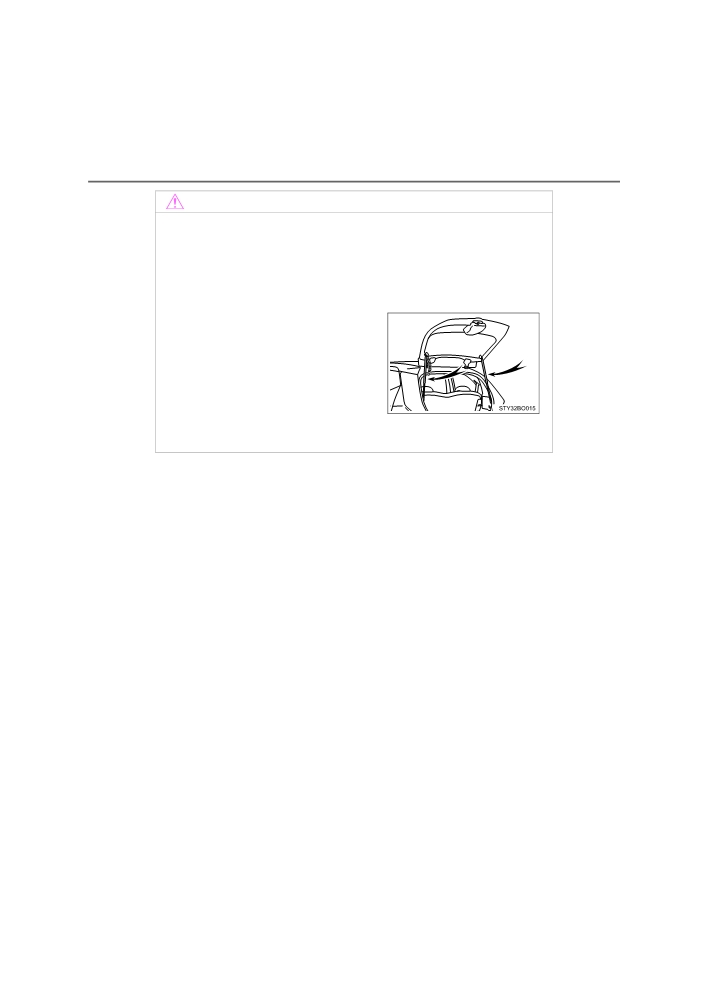

●Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
AYGO_OM_Europe_OM99P46E
112
3-2. Opening, closing and locking the doors
NOTICE
■ Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
●Do not touch the damper stay rod with
gloves or other fabric items.
●Do not attach any accessories other
than genuine Toyota parts to the back
door.
●Do not place your hand on the damper stay or apply lateral forces to it.
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
113
Smart entry & start system
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
● Locks and unlocks the side doors (P. 103)
● Locks and unlocks the back door (P. 107)
● Starts the engine (P. 152)

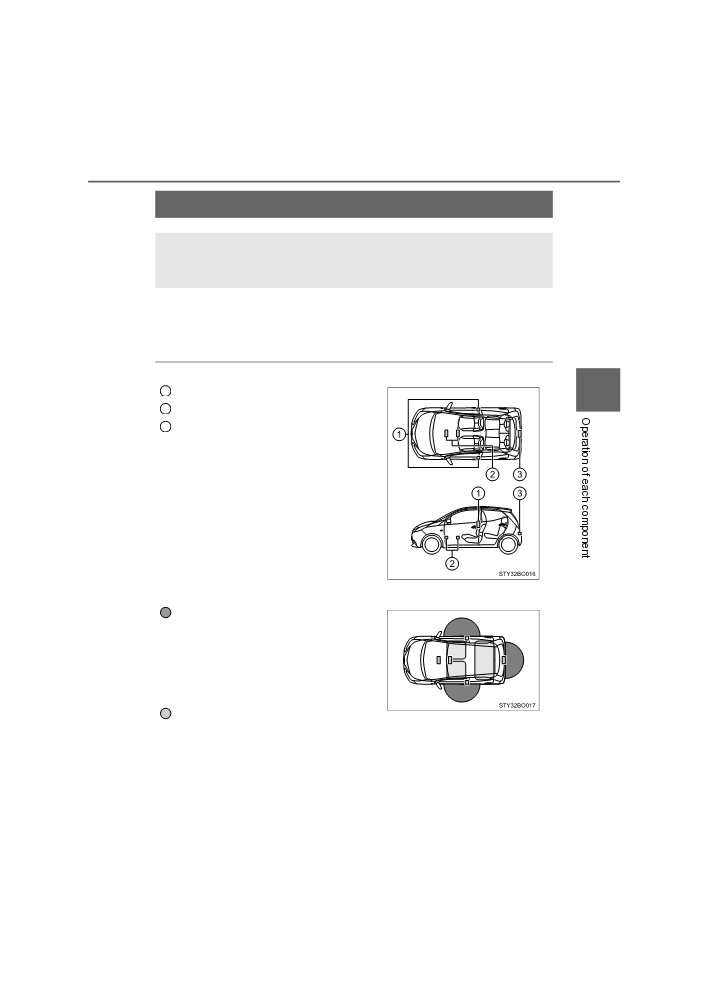

■ Antenna location
3
1
Antennas inside/outside the cabin
2
Antennas inside the cabin
3
Antenna outside the luggage compart-
ment
■ Effective range (areas within which the electronic key is detected)
When locking or unlocking the doors
The system can be operated when the
electronic key is within about
0.7 m
(2.3 ft.) of either of the outside front
door handles and back door opener
switch.
(Only the doors detecting the
key can be operated.)
When starting the engine or changing
engine switch modes
The system can be operated when the electronic key is inside the vehicle.
: If equipped
AYGO_OM_Europe_OM99P46E
114
3-2. Opening, closing and locking the doors
■ Alarms and warning indicators
A combination of exterior and interior alarms as well as warning lights are
used to prevent theft of the vehicle and unforeseeable accidents resulting
from erroneous operation. Take appropriate measures for the warning light
that comes on. (P. 391)
The following table describes circumstances and correction procedures when
only alarms are sounded.
Alarm
Situation
Correction procedure
An attempt was made
to lock the doors using
Retrieve the electronic
the smart entry & start
key from the vehicle
system while the elec-
and lock the doors
Exterior alarm sounds
tronic key was still
again.
once for 5 seconds
inside the vehicle.
An attempt was made
Close all of the doors
to lock the vehicle while
and lock the doors
a door was open.
again.
An attempt was made
to lock any door by
opening a door and
Interior alarm pings
putting the inside lock
Retrieve the electronic
once and exterior alarm
button into the lock
key from the vehicle
sounds once for 5 sec-
position, then closing
and lock the doors
onds
the door by pulling on
again.
the outside door handle
with the electronic key
still inside the vehicle.
The engine switch was
turned to ACCESSORY
mode while the driver’s
Turn the engine switch
door was open (or the
off
and close the
driver’s
door was
driver’s door.
Interior alarm sounds
opened while the
continuously
engine switch was in
ACCESSORY mode).
The engine switch was
turned to off while the
Close the driver’s door.
driver’s door was open.
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
115
■ Electronic key battery-saving function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
Press
twice while pressing and
holding
. Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
3
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: P. 423)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-
nication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
AYGO_OM_Europe_OM99P46E
116
3-2. Opening, closing and locking the doors
■ Note for the entry function
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, luggage cover (if equipped)
or floor, or in the door pockets or glove box when the engine is started or
engine switch modes are changed.
● As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
Depending on the situation, even when the electronic key in the vicinity of
opposite side door to the door to be unlocked, the electronic key may be
detected and the door unlocks.
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
■ Note for the unlocking function
● There are cases when pulling the door handle while pressing the Lock/
Unlock button that the door will not unlock. In those cases, after returning
the door handle to the original position, press the Lock/Unlock button once
again and check that the doors unlock before pulling the door handle.
● If there is another electronic key in the detection area, it may take slightly
longer for the doors to unlock after the Lock/Unlock button is pressed.
■ When the vehicle is not driven for extended periods
● To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
● The smart entry & start system can be deactivated in advance. (P. 453)
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)
■ If the smart entry & start system does not operate properly
●Locking and unlocking the doors: Use the mechanical key. (P. 423)
● Starting the engine: P. 424
AYGO_OM_Europe_OM99P46E
3-2. Opening, closing and locking the doors
117
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 392)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 348)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
3
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 453)
■ If the smart entry & start system has been deactivated in a customized
setting
● Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (P. 93, 423)
● Starting the engine and changing engine switch modes: P. 424
● Stopping the engine: P. 153
AYGO_OM_Europe_OM99P46E
118
3-2. Opening, closing and locking the doors
■ Certifications for the smart entry & start system
The DECLARATION of CONFORMITY (DoC) is available at the following address:
AYGO_OM_Europe_OM99P46E
