1-1. For safe use
WARNING
■ To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of sudden braking, sudden swerving or an accident.
■ When the child restraint system is not in use
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers in
the event of a sudden braking, sudden swerving or an accident.
AYGO_OM_Europe_OM99P46E
1-1. For safe use
69
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhale.
WARNING
1
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the back door closed.
●If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
AYGO_OM_Europe_OM99P46E
70
1-2. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.
Vehicles without a smart entry & start system
The system begins operating after the engine switch is turned from
the “ON” to the “LOCK” position.
The system is canceled after the registered key has been inserted into
the engine switch and turned to the “ON” position.
Vehicles with a smart entry & start system
The system begins operating after the engine switch has been turned
off.
The system is canceled after the engine switch has been turned to
IGNITION ON mode.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
AYGO_OM_Europe_OM99P46E
1-2. Theft deterrent system
71
■ Certifications for the engine immobilizer system
Vehicles without a smart entry & start system

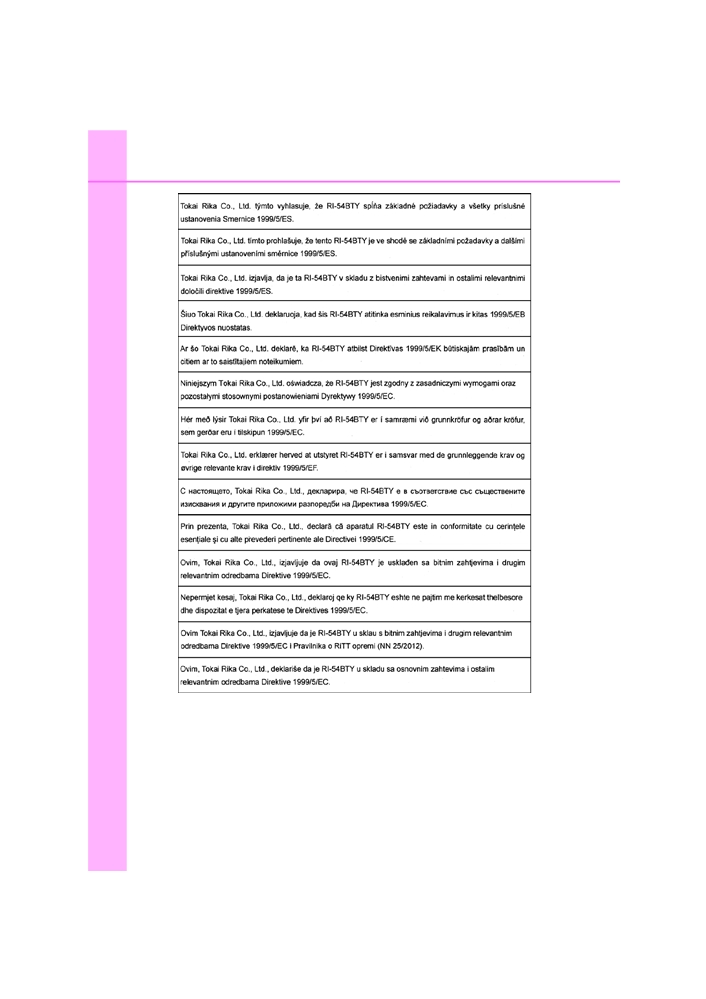

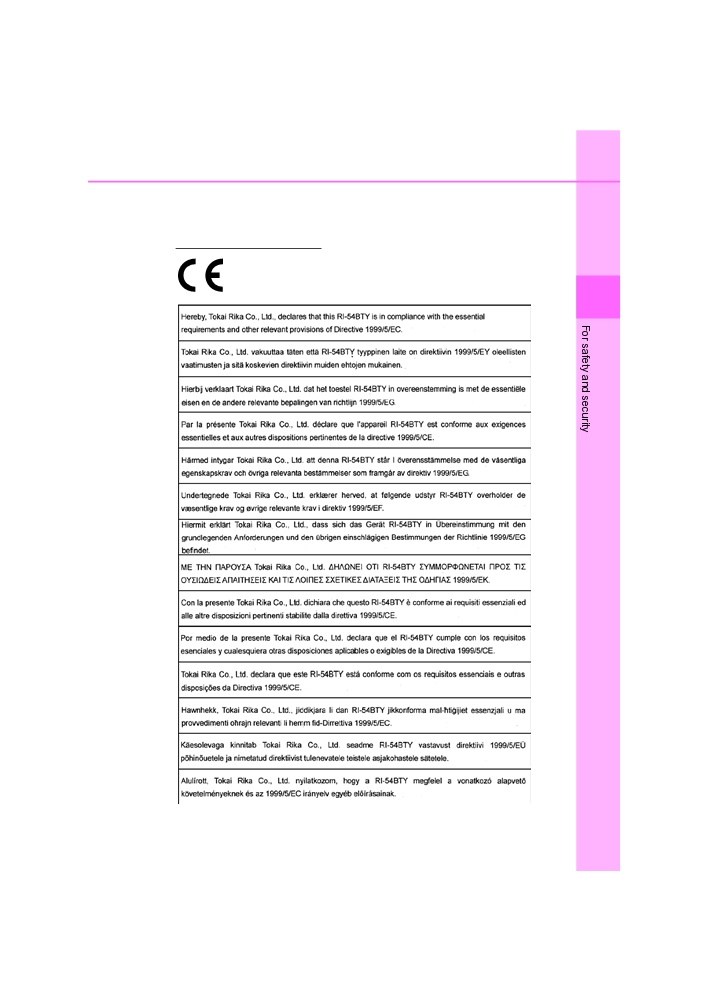

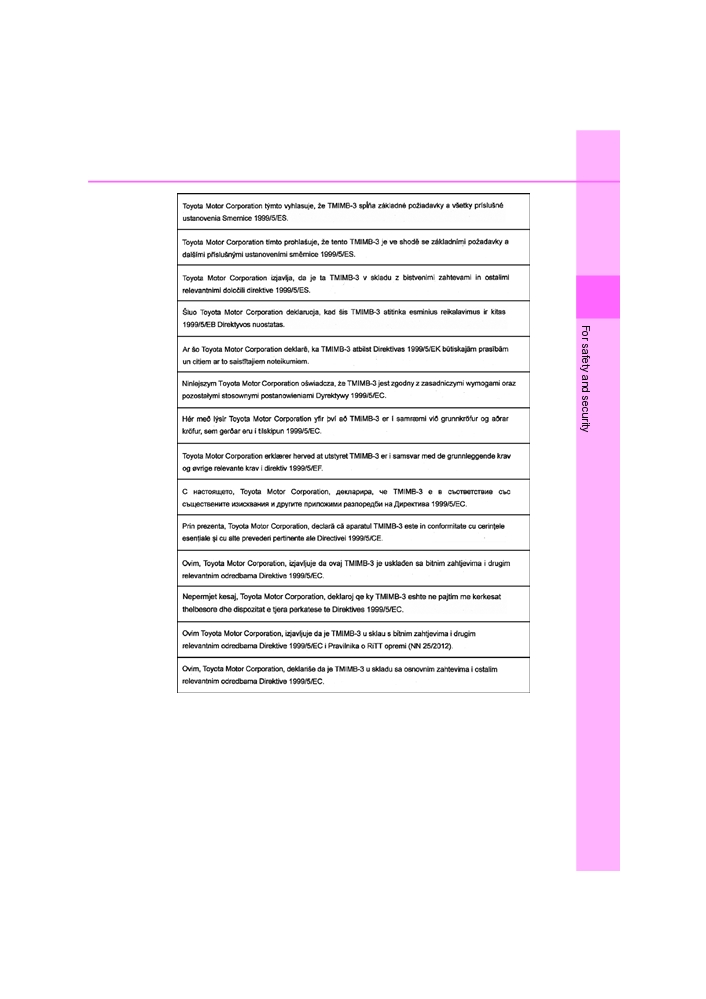

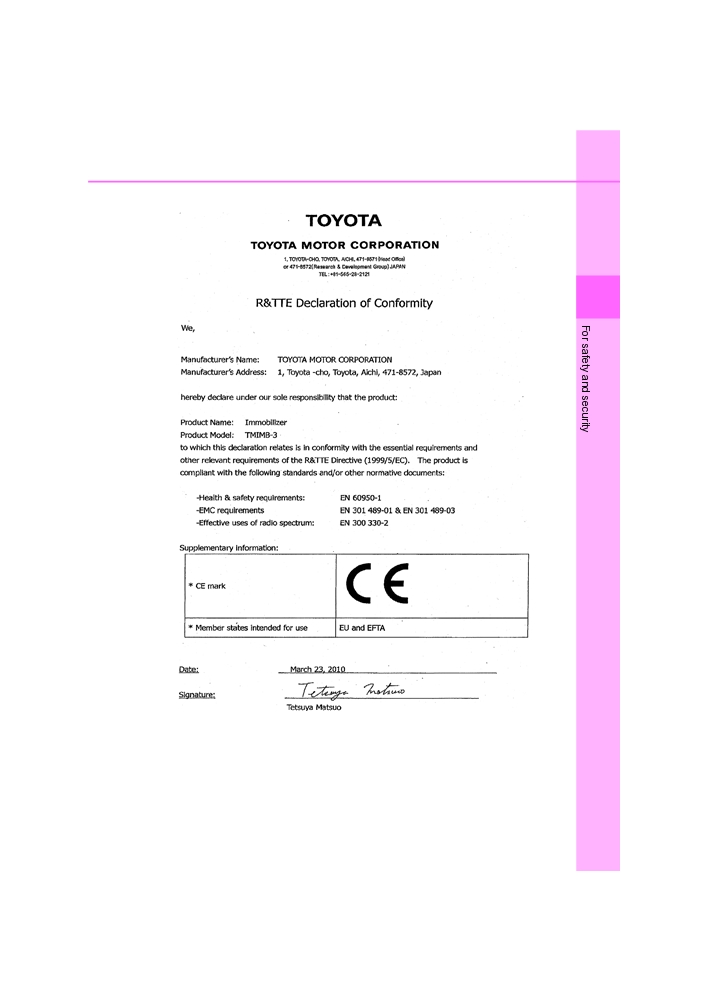

The DECLARATION of CONFORMITY (DoC) is available at the following address:
1
AYGO_OM_Europe_OM99P46E
72
1-2. Theft deterrent system
AYGO_OM_Europe_OM99P46E
1-2. Theft deterrent system
73

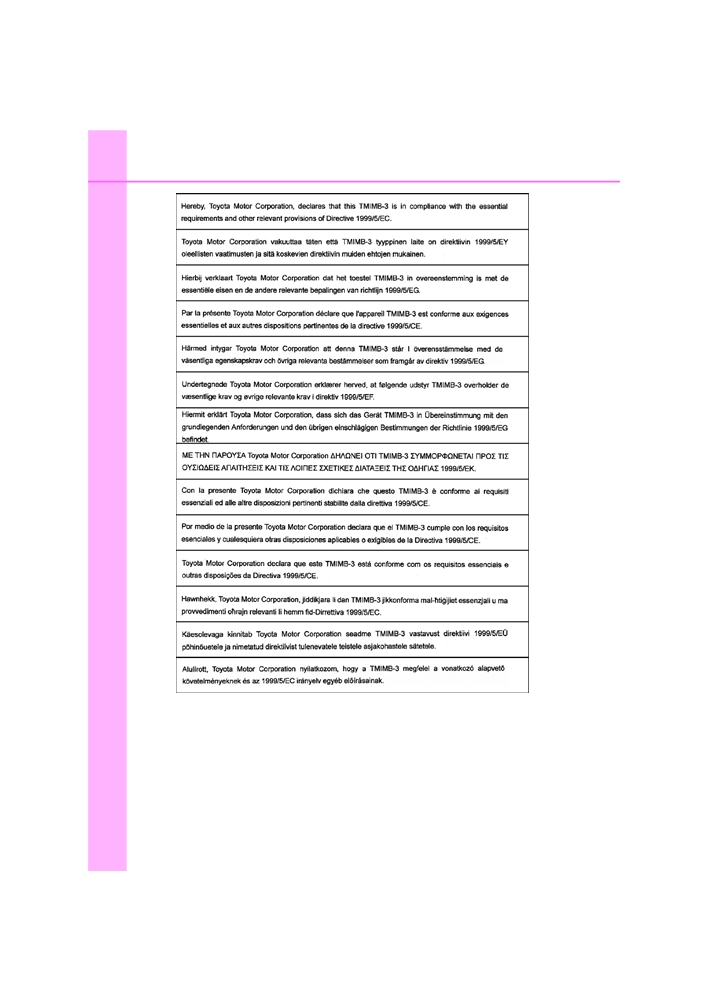

Vehicles with a smart entry & start system
1
AYGO_OM_Europe_OM99P46E
74
1-2. Theft deterrent system
AYGO_OM_Europe_OM99P46E
1-2. Theft deterrent system
75
1
AYGO_OM_Europe_OM99P46E
76
1-2. Theft deterrent system
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
AYGO_OM_Europe_OM99P46E
77
Instrument cluster
2
2.
Instrument cluster
Warning lights
and indicators
78
Gauges and meters
83
Drive monitor display
85
AYGO_OM_Europe_OM99P46E
78
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
Vehicles without a tachometer
Vehicles with a tachometer
AYGO_OM_Europe_OM99P46E
2. Instrument cluster
79

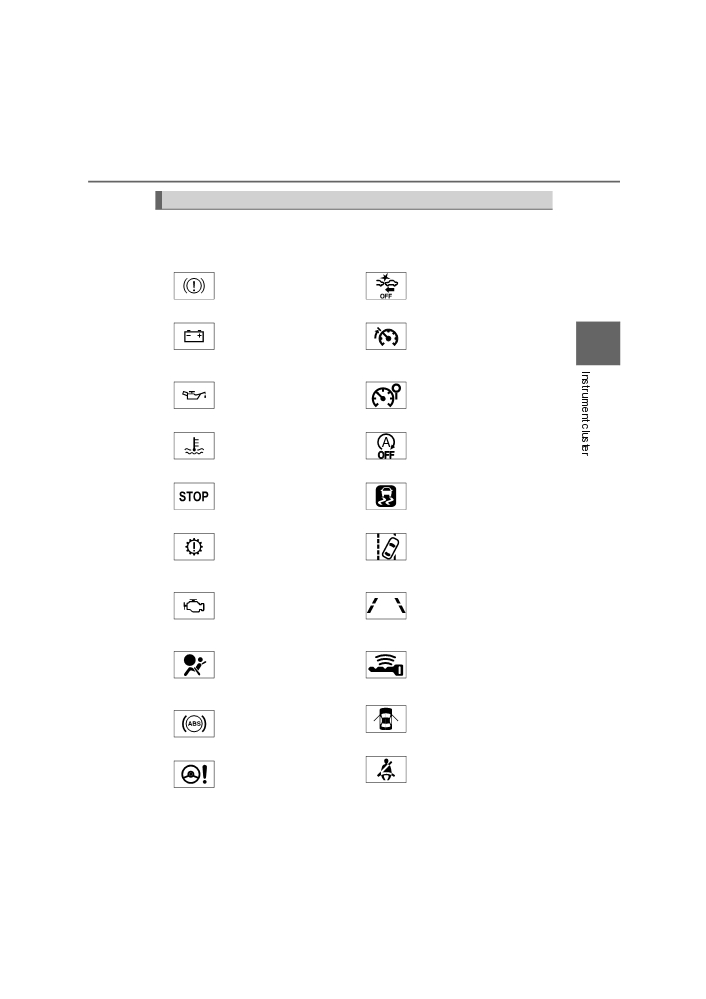

Warning lights
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
*1
*1, 2, 6
Brake system warning
PCS warning light
light (P. 383)
(P. 386)
*1
*2, 3, 4
Speed limiter indicator
Charging system
(P. 386)
2
warning light (P. 383)
(Yellow)
*1
*2, 5
Low engine oil pressure
Speed limiter indicator
warning light (P. 383)
(P. 386)
*1
*1, 2, 6
High engine coolant
Stop & Start cancel
temperature warning
indicator (P. 386)
light (P. 383, 384)
*1
*1, 2
“STOP” warning light
Slip indicator (P. 387)
(P. 384)
*1, 2
*2
Multi-mode manual
transmission
LDA indicator (P. 387)
warning light (P. 384)
(Yellow)
*1
*2, 9
Lane marker indicators
Malfunction indicator
(P. 387)
lamp (P. 385)
(Yellow)
*1
*2, 7
Smart entry & start
SRS warning light
system indicator light
(P. 385)
(P. 387, 391)
(Yellow)
*1
ABS warning light
Open door warning light
(P. 385)
(P. 387)
*1
Driver’s and front pas-
Electric power steering
system warning light
senger’s
seat
belt
(P. 385)
reminder light (P. 387)
AYGO_OM_Europe_OM99P46E
80
2. Instrument cluster
*8
*1, 2
Rear passengers’ seat
Tire pressure warning
belt reminder lights
light (P. 388)
(P. 387)
Low fuel level warning
light (P. 387)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system), to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
*2: If equipped
*3: The light comes in yellow to indicate a malfunction.
*4: For 1KR engine
*5: For HM01 engine
*6: The light flashes to indicate a malfunction.
*7: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*8: This light illuminates on the center panel.
*9: The lights turn on with LDA indicator to indicate a malfunction.

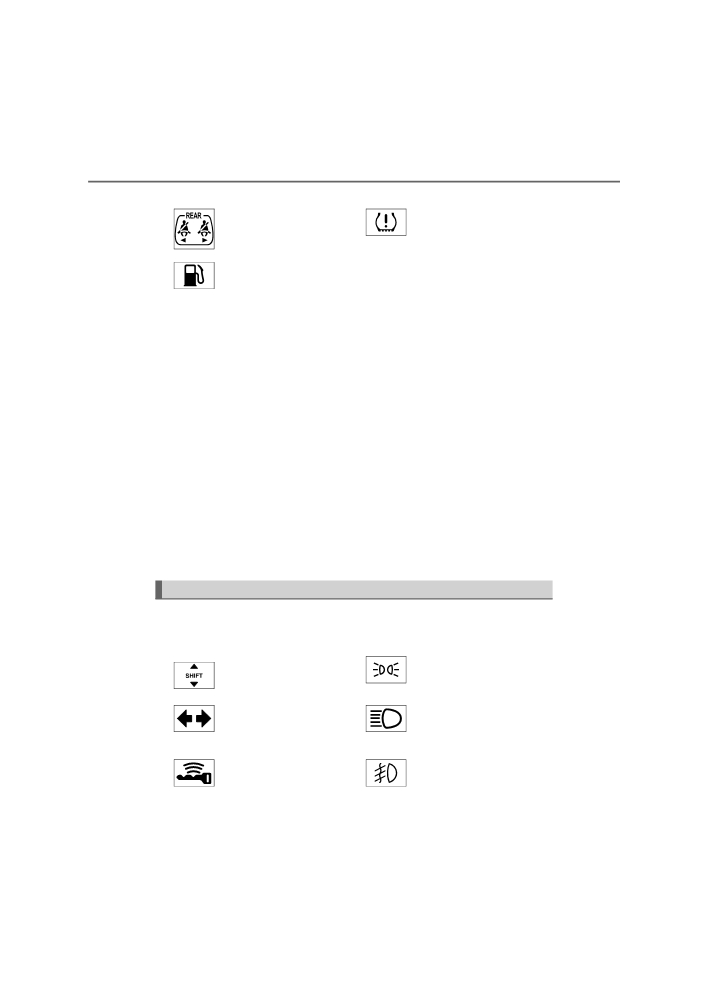

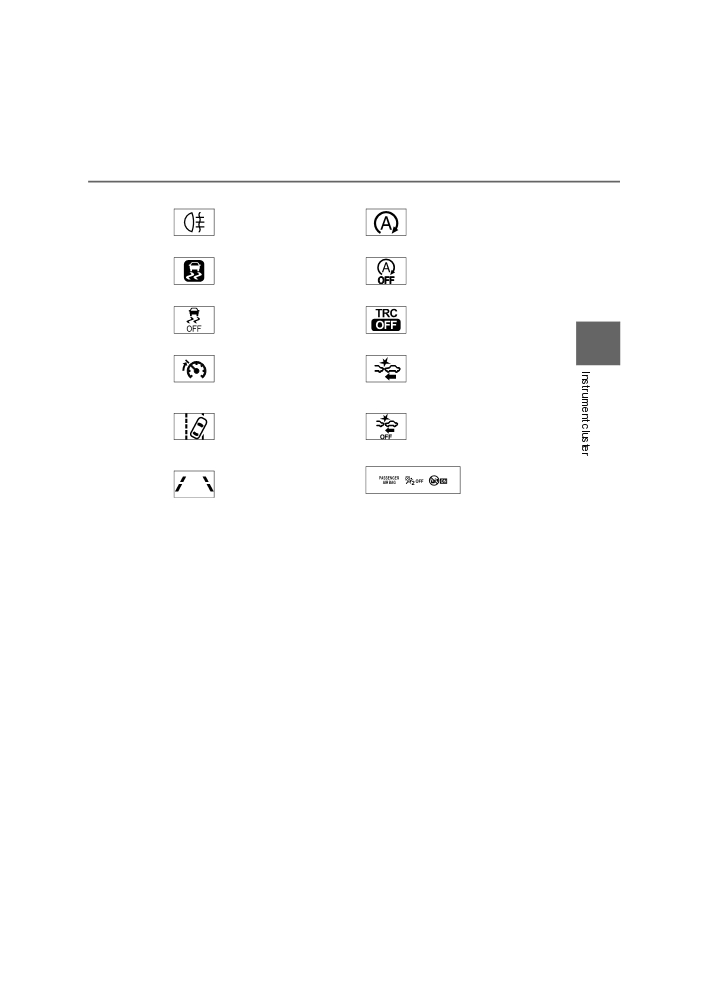

Indicators
The indicators inform the driver of the operating state of the vehicle’s
various systems.
*1
Tail light indicator
Gear Shift indicator
(P. 166)
(P. 159, 162)
Turn signal indicator
Headlight high beam
(P. 164)
indicator (P. 167)
*2
*2
Smart entry & start
Front fog light indicator
system indicator light
(P. 170)
(P. 152)
(Green)
AYGO_OM_Europe_OM99P46E
2. Instrument cluster
81
*1, 2
Rear fog light indicator
Stop & Start indicator
(P. 170)
light (P. 210)
*1, 2, 3
*1, 2
Stop & Start cancel
Slip indicator light
(P. 218)
indicator (P. 211)
*1, 2
*1, 2
VSC off indicator
“TRC OFF” indicator
(P. 218)
(P. 218)
2
*2, 4
*2, 3, 7
Speed limiter indicator
PCS activation indicator
light (P. 206)
(P. 186, 189)
(Green)
*2
*1, 2, 6
PCS warning light
LDA indicator (P. 200)
(P. 189)
(Green)
*1, 5
*2, 8
Lane marker indicators
(P. 201)
(Green)
“PASSENGER AIR BAG” indicator
(P. 46)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system), to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: For 1KR engine
*5: This light illuminates on the center panel.
*6: The light comes on when the system is turned off.
*7: The light comes on when system settings are changed.
*8: The light flashes in yellow to indicate that the vehicle is deviating from the
lane.
AYGO_OM_Europe_OM99P46E
82
2. Instrument cluster
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(P. 430)
AYGO_OM_Europe_OM99P46E
2. Instrument cluster
83

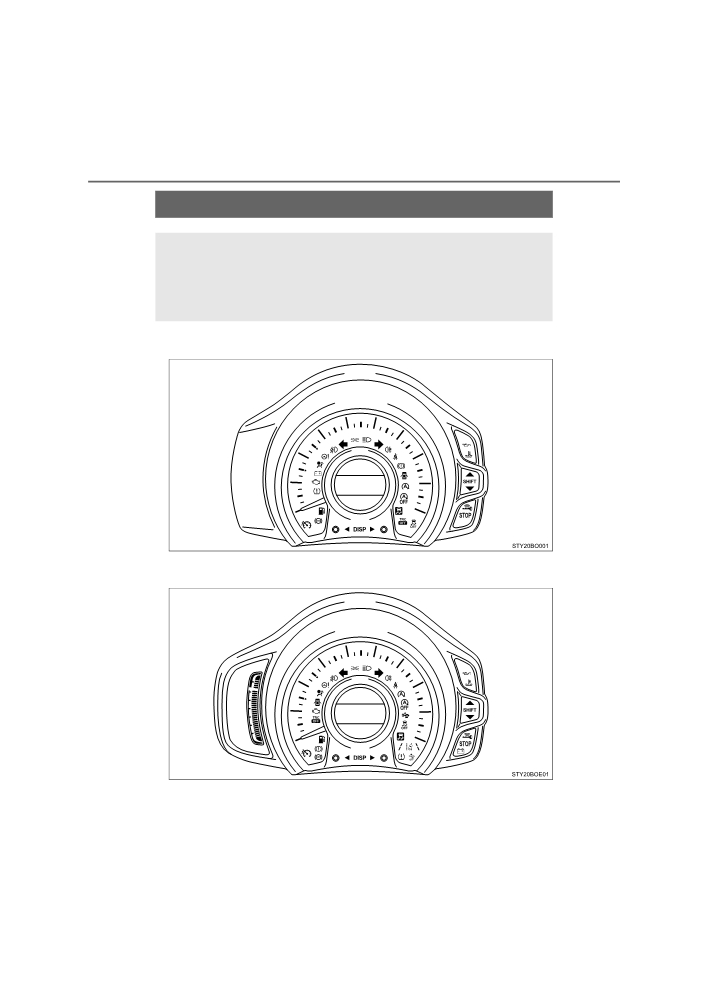

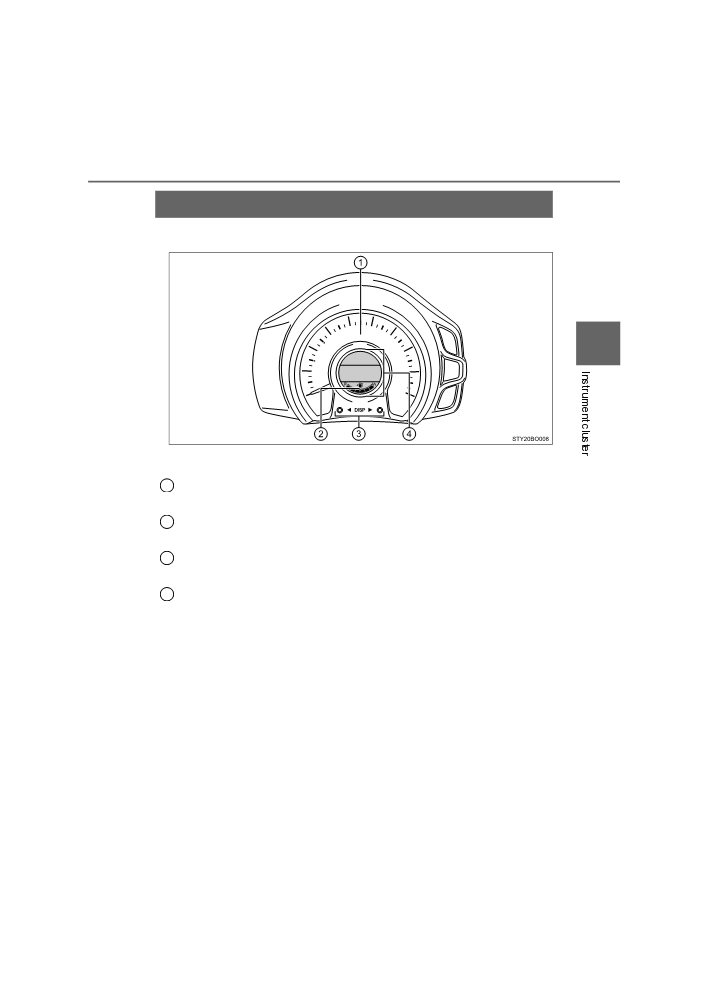

Gauges and meters
Vehicles without a tachometer
2
The units used on the speedometer may differ depending on the target
region.
1
Speedometer
Displays the vehicle speed
2
Fuel gauge
Displays the quantity of fuel remaining in the tank
3
“DISP” buttons
P. 85
Drive monitor display
4
Presents the driver with a variety of driving-related data (P. 85)
AYGO_OM_Europe_OM99P46E
84

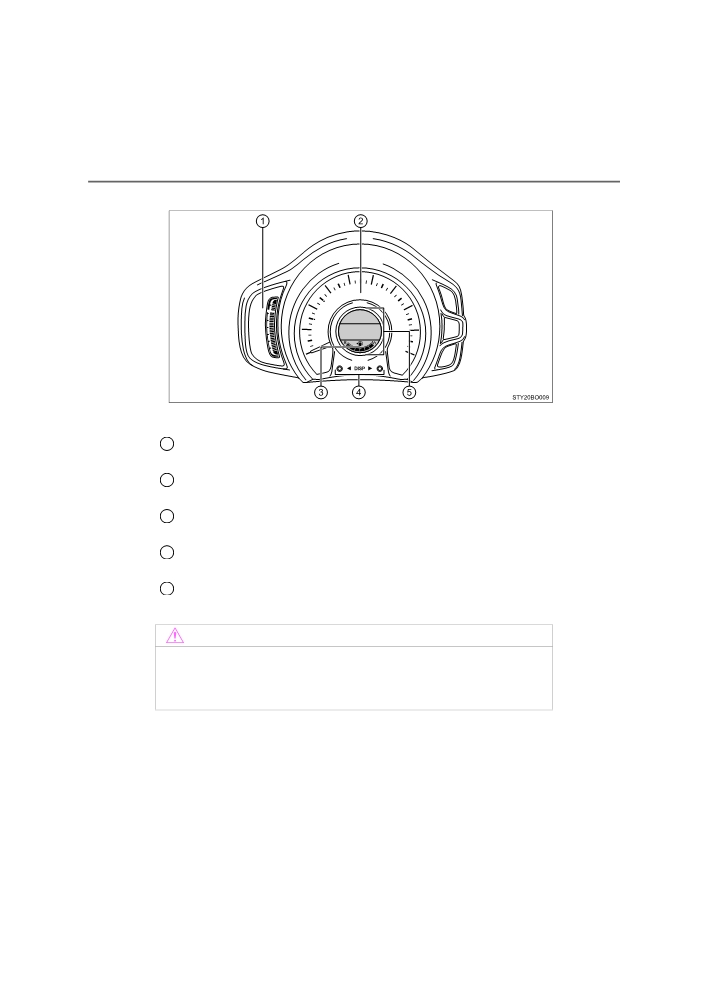

2. Instrument cluster
Vehicles with a tachometer
The units used on the speedometer may differ depending on the target
region.
1
Tachometer
Displays the engine speed in revolutions per minute
2
Speedometer
Displays the vehicle speed
3
Fuel gauge
Displays the quantity of fuel remaining in the tank
4
“DISP” buttons
P. 85
Drive monitor display
5
Presents the driver with a variety of driving-related data (P. 85)
NOTICE
■ To prevent damage to the engine and its components
Do not let the indicator level of the tachometer enter the red zone, which
indicates the maximum engine speed.
