Toyota Aygo (2017 year). Instruction - part 6
2. Instrument cluster
85

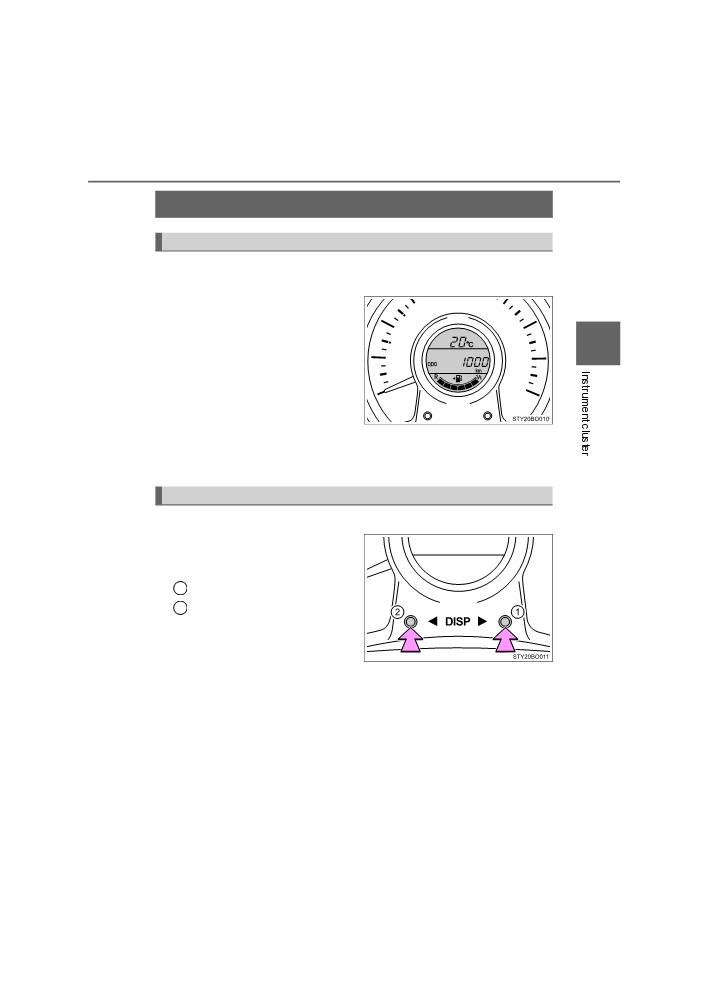

Drive monitor display
Display contents
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
● Outside temperature display
(P. 307)
● Trip information (P.
85)
2
Displays driving range, fuel con-
sumption and other cruising related
information
● Instrument cluster light control
(P. 88)
● Shift position (vehicles with a multi-mode manual transmission)
Displays the selected shift position (P. 157)
● Speed limiter display (if equipped) (P. 206)
Trip information

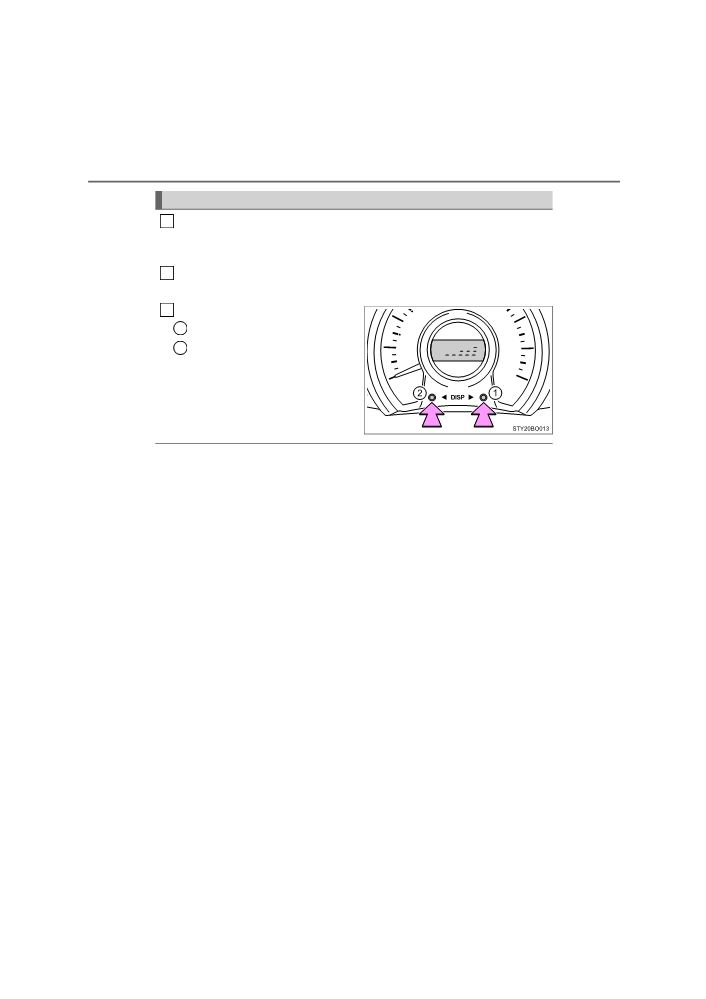

■ Switching the display
Items displayed
can be
switched by pushing one of the
“DISP” buttons.
1
Forward
2
Backward
■ Odometer
Displays the total distance the vehicle has been driven.
■ Trip meters “A” and “B”
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Push and holding one of the “DISP” buttons will reset the trip meter that
is currently displayed.
AYGO_OM_Europe_OM99P46E
86
2. Instrument cluster
■ Stop & Start system operation time (if equipped)
● Displays the amount of time the engine was stopped due to oper-
ation of the Stop & Start system during the current trip.
Vehicles without a smart entry & start system: From the engine switch in
the “ON” position to the engine switch in the “LOCK” position.
Vehicles with a smart entry & start system: From the engine switch in
IGNITION ON mode to the engine switch off.
● When the Stop & Start system is operating, the presently dis-
played screen is interrupted and the Stop & Start system opera-
tion time automatically displayed.
• Push one of the “DISP” buttons to return to the previous screen.
• The automatically displayed function of the Stop & Start system oper-
ation time activated or deactivated switch over method. (P. 87)
■ Stop & Start system total operation time (if equipped)
Displays the total amount of time that the engine has been stopped
due to operation of the Stop & Start system since the system was
last reset.
Push and hold one of the “DISP” buttons to reset.
■ Outside temperature (except manual transmission vehicles
with a 1KR engine)
Displays the outside temperature. (P. 307)
■ Current fuel consumption
Displays the current rate of fuel consumption.
■ Average fuel consumption
Displays the average fuel consumption since the function was
reset.
• The function can be reset by pushing one of the “DISP” buttons for lon-
ger than 1 second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
AYGO_OM_Europe_OM99P46E
2. Instrument cluster
87
■ Driving range
Displays the estimated approximate distance that can be driven
with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart entry
2
& start system). If the vehicle is refueled without turning the engine
switch to the “LOCK” position or off, the display may not be updated.
• The display shows “LoFUEL” when the remaining is very low.
■ Average vehicle speed
Displays the average vehicle speed since the function was reset.
The function can be reset by pushing one of the “DISP” button for longer
than 1 second when the average vehicle speed is displayed.
■ Instrument cluster light control
Displays the instrument cluster light control display.
• This screen is only displayed when the tail lights are on.
• The brightness of the instrument cluster light can be adjusted. (P. 88)

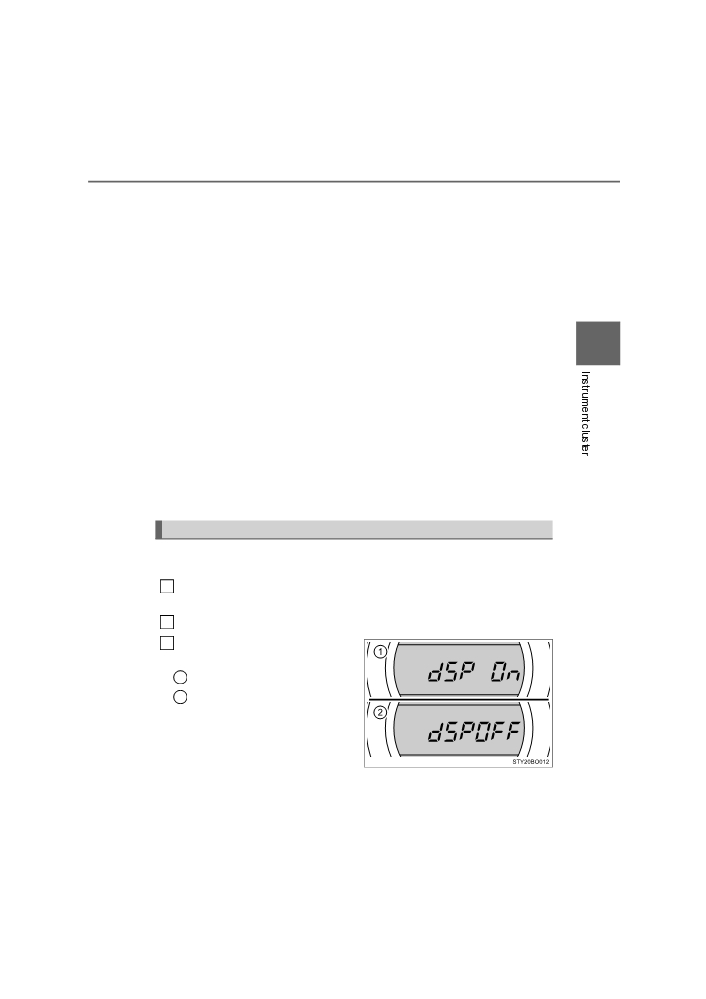

Stop & Start system operation time customization (if equipped)
The automatically displayed function of the Stop & Start system oper-
ation time can be activated or deactivated.
1
Push one of the “DISP” buttons and the Stop & Start system opera-
tion time is displayed, while the vehicle is stopped.
2
Push and hold
the “DISP” buttons
for 5 seconds.
3
Push the
“DISP” buttons to
switch activate or
deactivate.
1
Activated
2
Deactivated
The screen will change back to the
previous screen
after 6 seconds or
by push and holding one of the
“DISP” buttons for 2 seconds.
AYGO_OM_Europe_OM99P46E
88
2. Instrument cluster
Instrument cluster light control
Push the one of the “DISP” buttons and the instrument cluster light
1
control display while the tail lights is turned on and vehicle is
stopped.
2
Push and hold one of the “DISP” buttons until instrument cluster
light control display flashes.
3
Push one of the “DISP” buttons.
1
Brighter
2
Darker
The illumination level can be
set by
push and holding one of the “DISP”
buttons, turning off the tail lights, or
automatically 6 seconds after the
last button push has elapsed.
■ When disconnecting and reconnecting battery terminals
The following information data will be reset:
● Trip meters “A” and “B”
●Stop & Start system total operation time (if equipped)
● Average fuel consumption
● Average vehicle speed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
AYGO_OM_Europe_OM99P46E
2. Instrument cluster
89
WARNING
■ The information display at low temperatures (vehicles with a multi-
mode manual transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or serious injury.
2
■ Cautions during setting up the display
As the engine needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ The information display at low temperatures (vehicles with a manual
transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
AYGO_OM_Europe_OM99P46E
90
2. Instrument cluster
AYGO_OM_Europe_OM99P46E
91
Operation of
3
each component
3-1.
Key information
Keys
92
3-2.
Opening, closing and
locking the doors
Side doors
102
Back door
107
Smart entry & start
system
113
3-3.
Adjusting the seats
Front seats
121
Rear seats
123
Head restraints
125
3-4.
Adjusting the steering
wheel and mirrors
Steering wheel
126
Inside rear view mirror
128
Outside rear view
mirrors
129
3-5.
Opening, closing
the windows and
canvas top
Power windows
131
Rear side windows
(5-door models)
132
Canvas top
134
AYGO_OM_Europe_OM99P46E
92
3-1. Key information
Keys
The keys

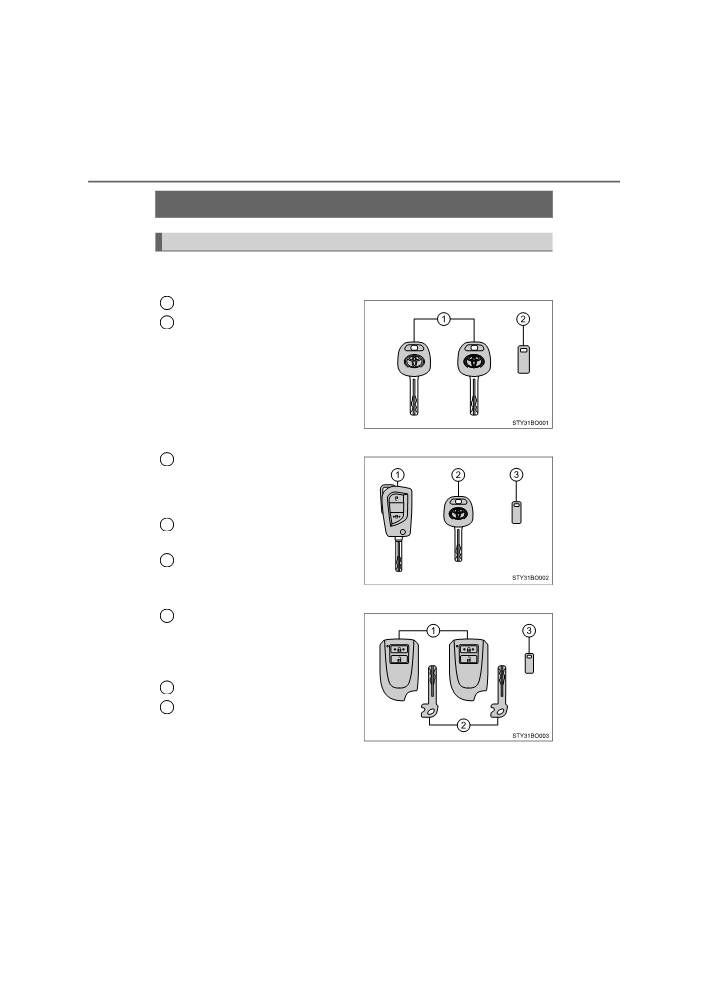

The following keys are provided with the vehicle.
Type A
1
Keys
2
Key number plate
Type B
1
Key (with wireless remote con-
trol function)
Operating the wireless remote con-
trol function
2
Key (without wireless remote
control function)
3
Key number plate
Type C
1
Electronic keys
• Operating the smart entry &
start system (P. 113)
• Operating the wireless remote
control function
2
Mechanical keys
3
Key number plate
AYGO_OM_Europe_OM99P46E
3-1. Key information
93

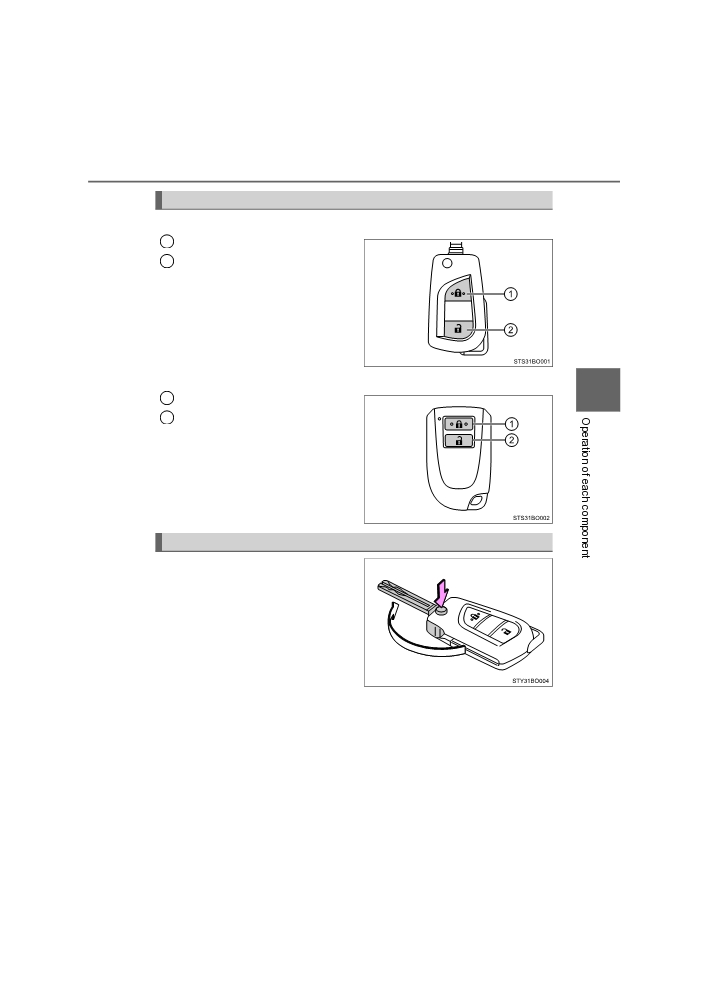

Wireless remote control (if equipped)
Type B
1
Lock the doors (P. 102, 107)
2
Unlock the doors
(P. 102, 107)
Type C
3
1
Lock the doors (P. 102, 107)
2
Unlock the doors
(P. 102, 107)
Using the wireless remote control key (type B)
Press the button to open the key.
To stow, press the button then fold
the key.
AYGO_OM_Europe_OM99P46E
94
3-1. Key information
Using the mechanical key (type C)

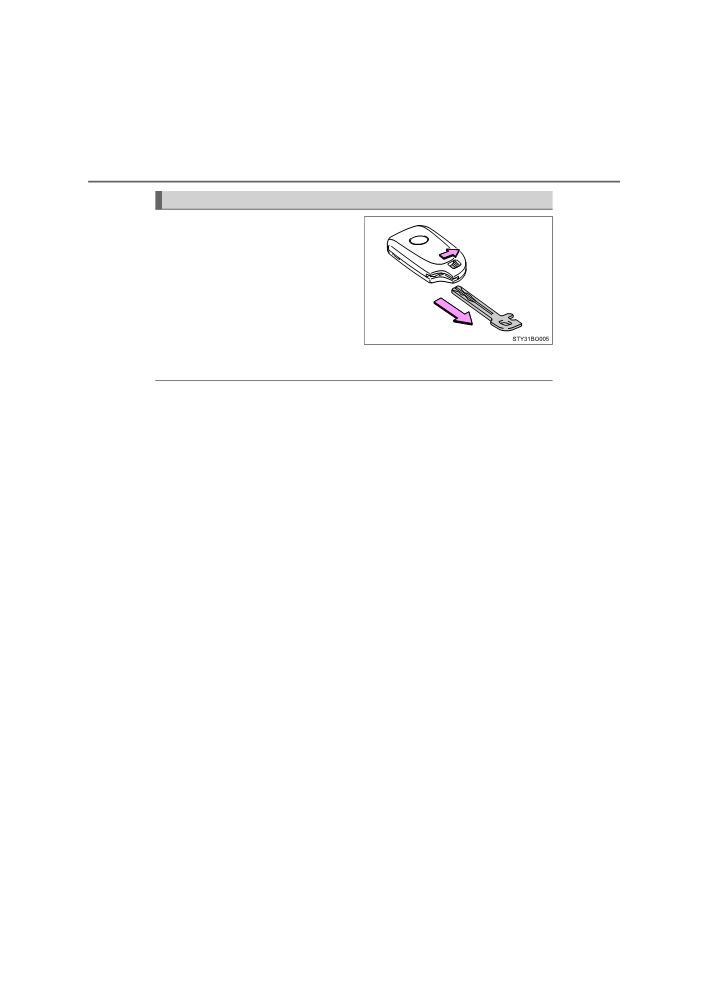

To take out the mechanical key,
slide the release knob and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 423)
■ If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using a key (type A or
type B) or the other key (type C) and the key number stamped on your key
number plate. Keep the plate in a safe place such as your wallet, not in the
vehicle.
■When riding in an aircraft (type B or type C)
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Key battery depletion
Type B
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 348)
Type C
P. 117
■ Replacing the battery (type B or type C)
P. 348
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
AYGO_OM_Europe_OM99P46E
3-1. Key information
95

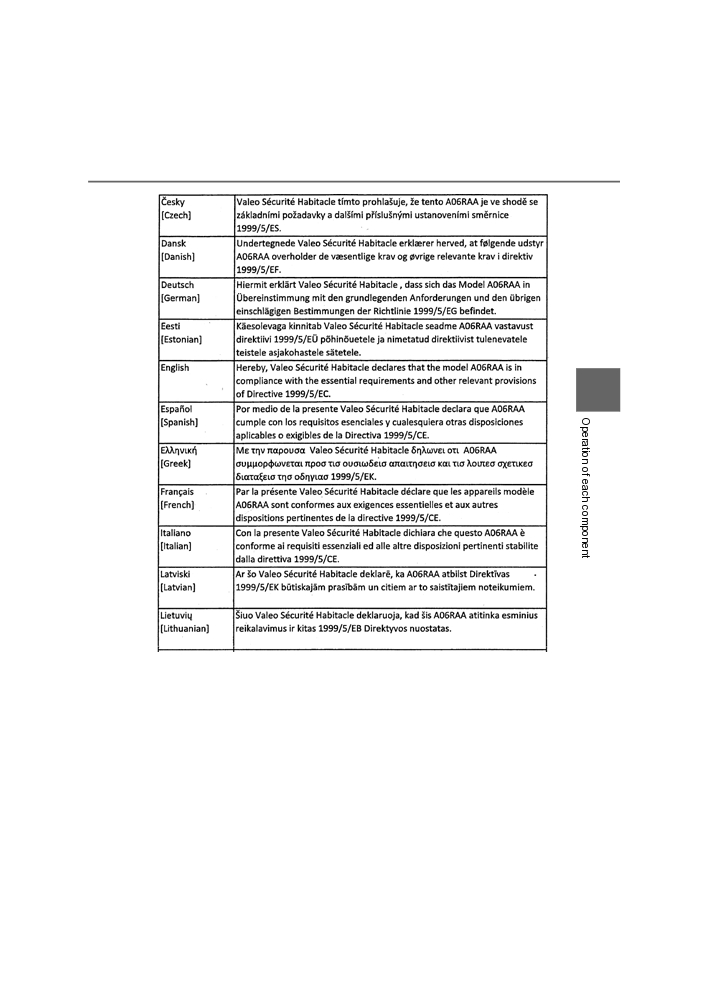

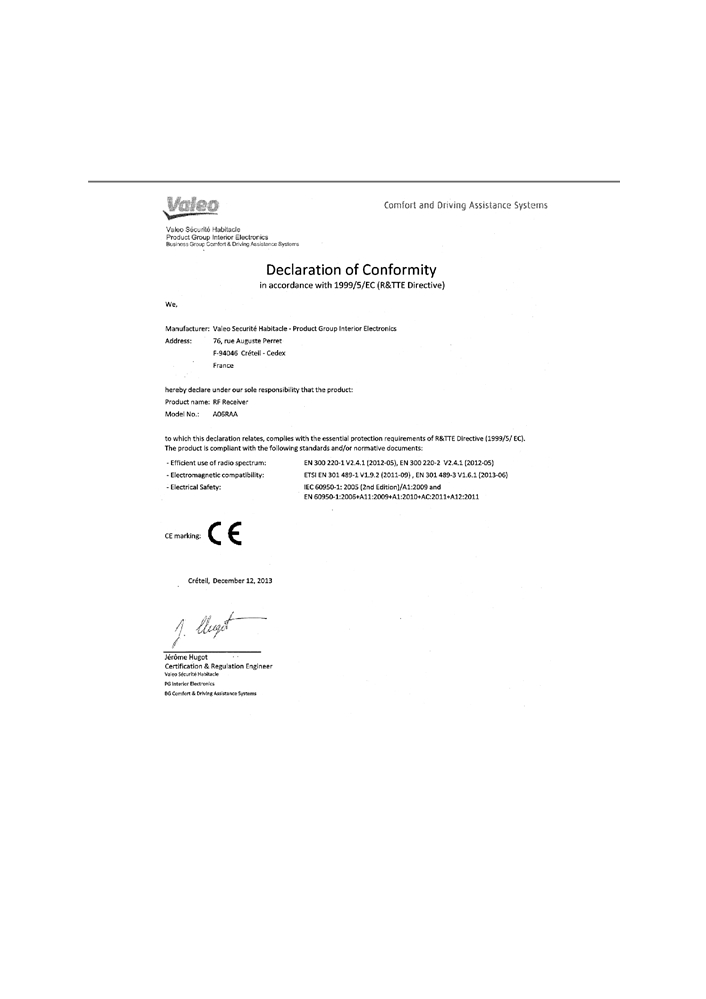

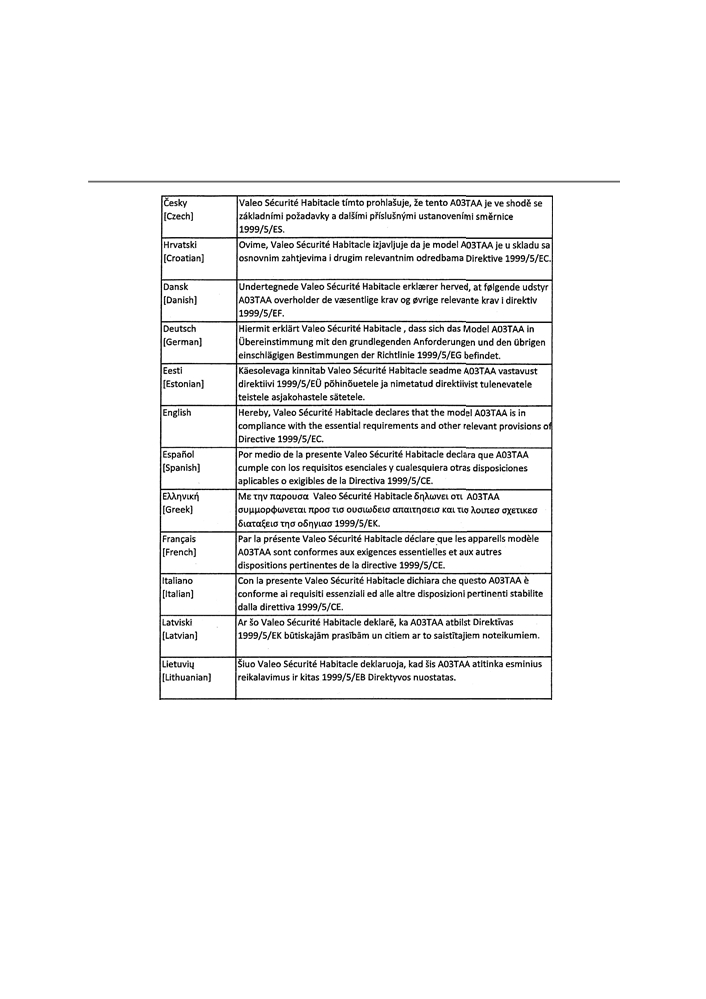

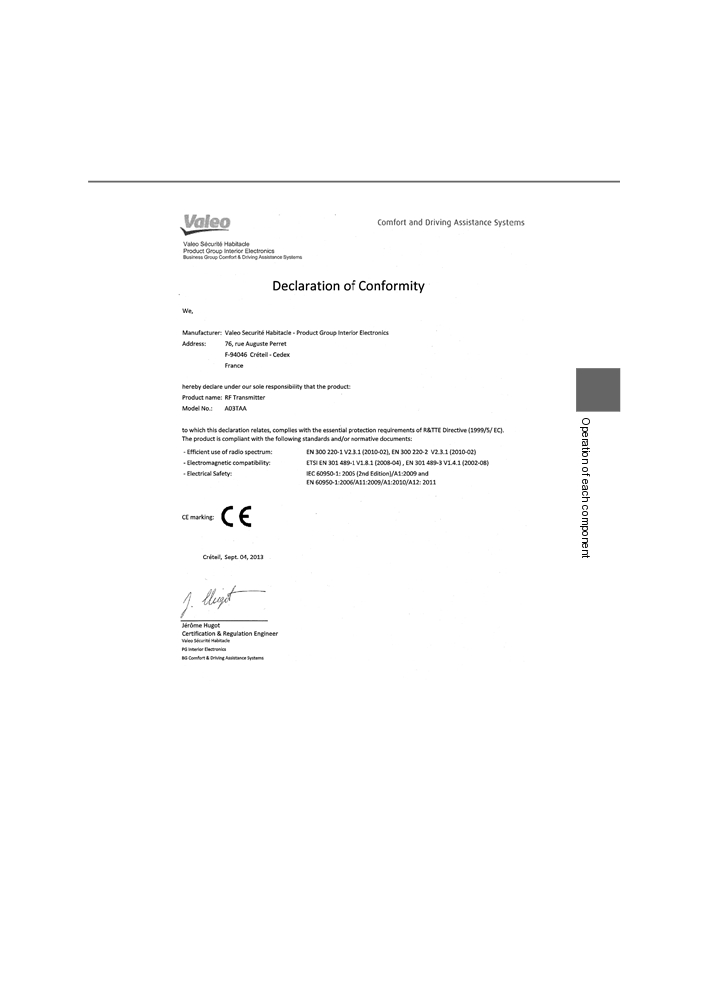

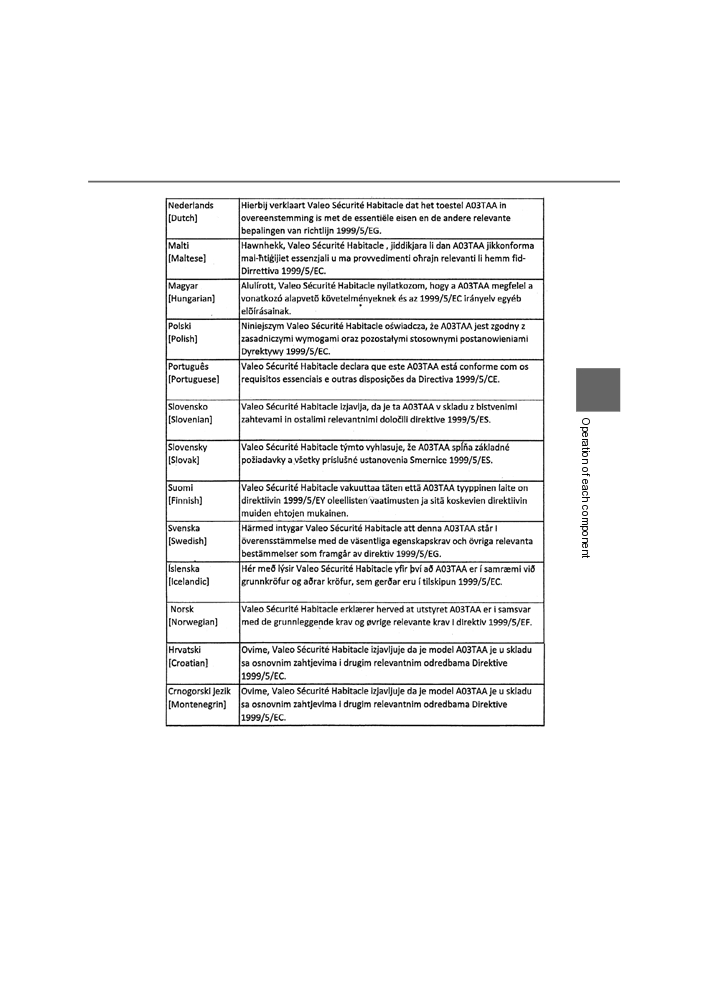

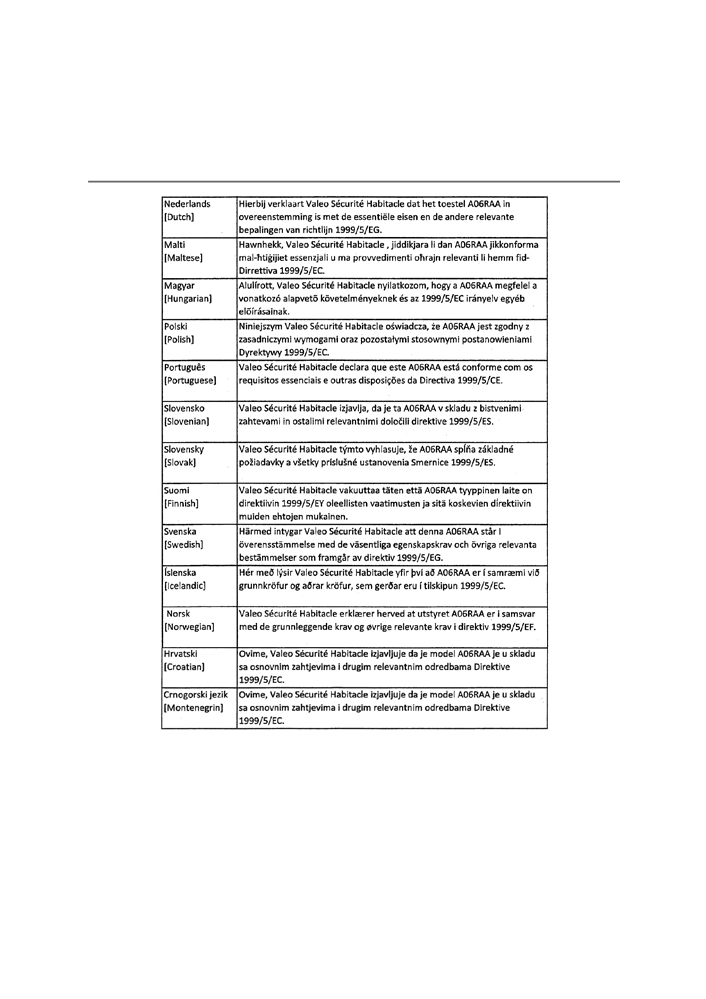

■ Certification for wireless remote control
3
AYGO_OM_Europe_OM99P46E
96
3-1. Key information
AYGO_OM_Europe_OM99P46E
3-1. Key information
97
3
AYGO_OM_Europe_OM99P46E
98
3-1. Key information
AYGO_OM_Europe_OM99P46E
3-1. Key information
99
3
AYGO_OM_Europe_OM99P46E
100
3-1. Key information
AYGO_OM_Europe_OM99P46E
3-1. Key information
101
NOTICE
■ To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer, etc.
●Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
3
■ Carrying the electronic key on your person (type C)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (type C)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When an electronic key is lost (type C)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that was provided with your vehicle.
AYGO_OM_Europe_OM99P46E
