Toyota RM06H0E engine. Manual - part 54

F–15

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

429

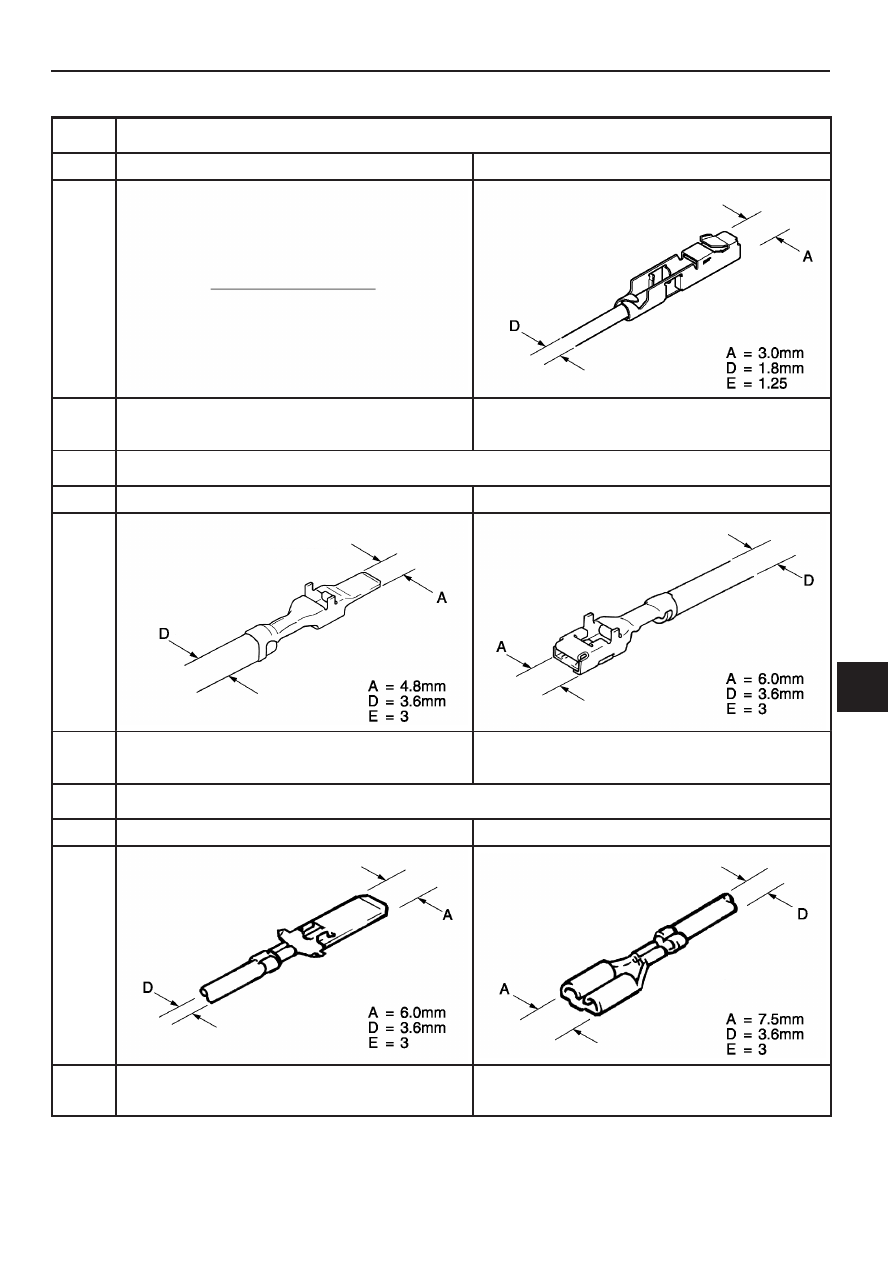

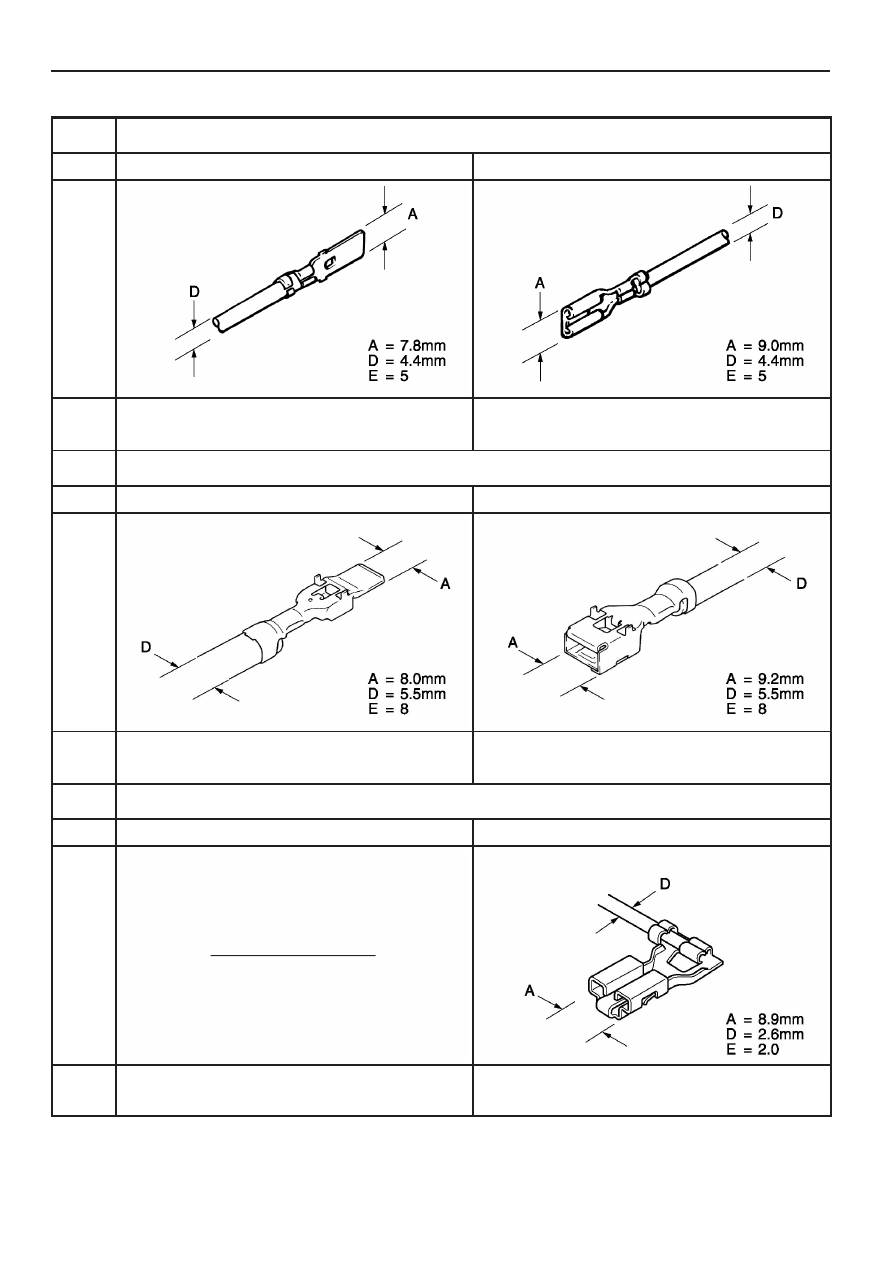

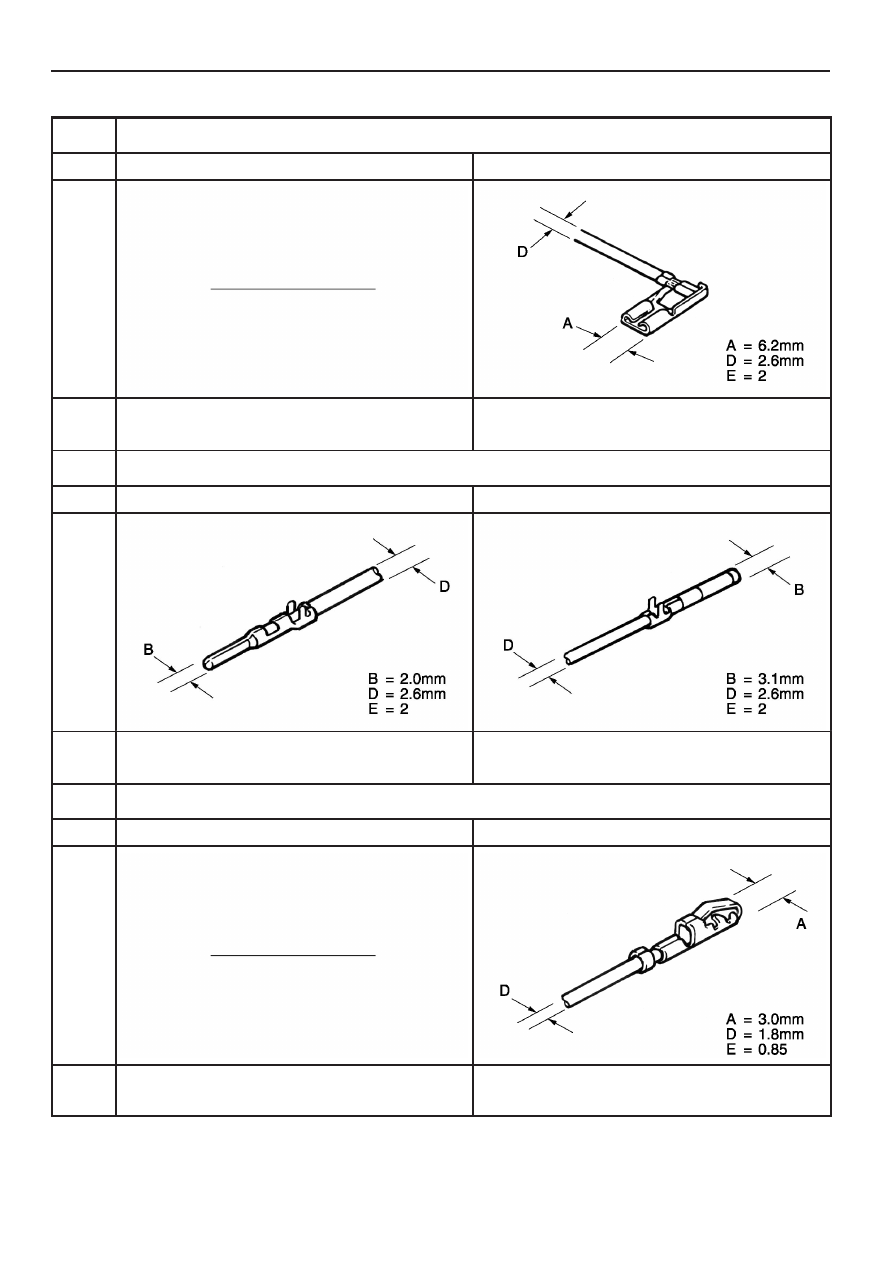

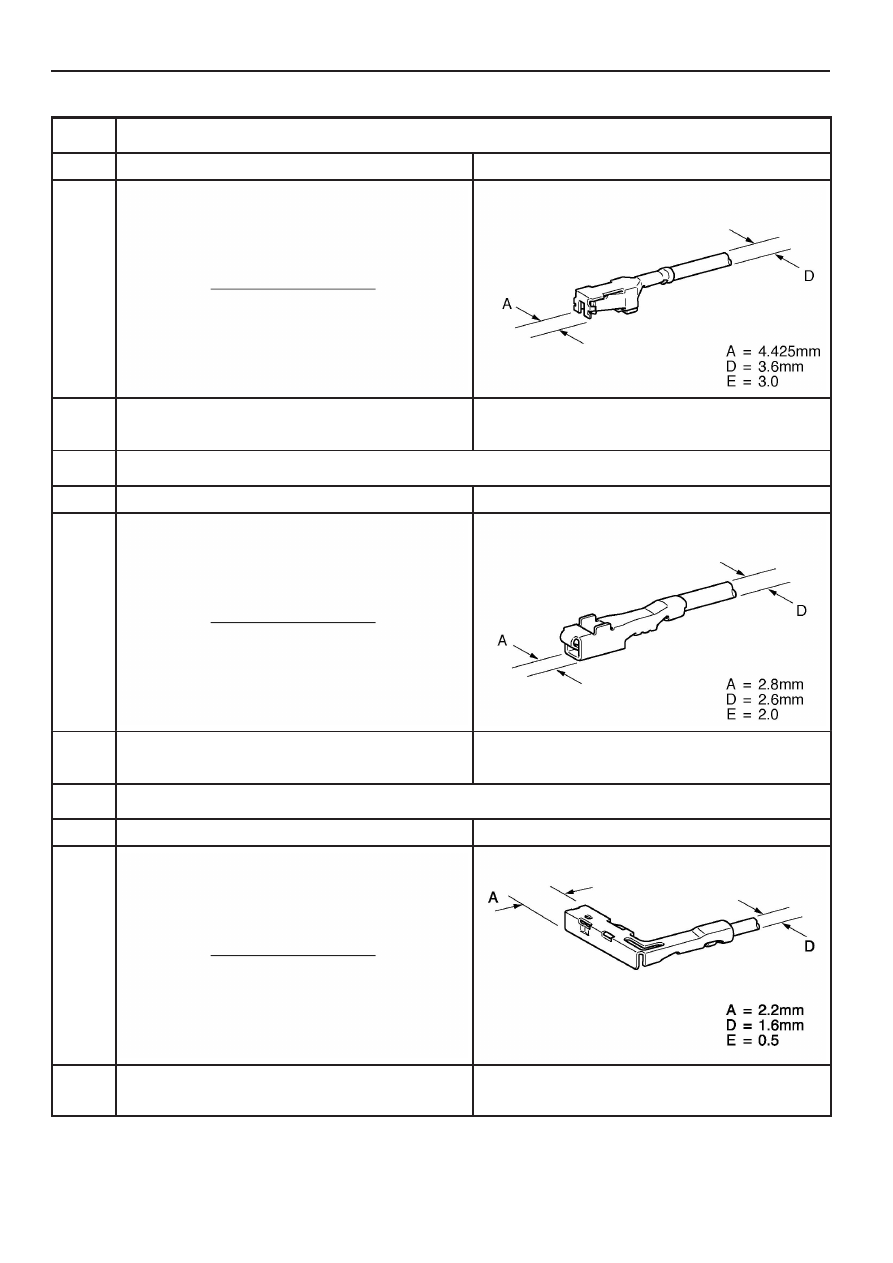

Repair Wire (Non–waterproof Type)

Type

2.3II IDC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24220

Type

4.8

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12370

82998–12380

Type

6.3 Housing Lance

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12050

82998–12060

(160mm)

82998–12580

(500mm)

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–16

430

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

Type

6.3 Terminal Lance

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12070

Type

6.3II

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24170

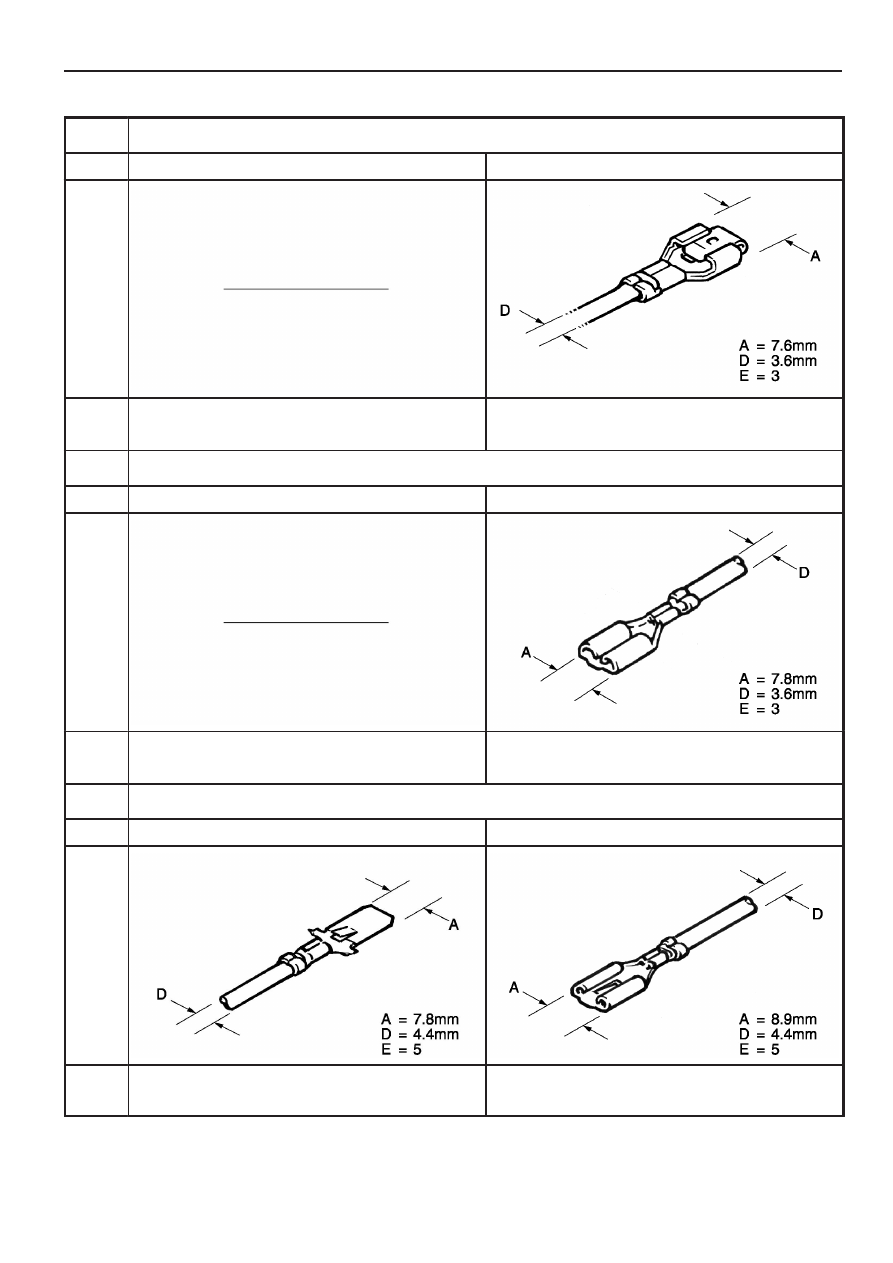

Type

7.7 Terminal Lance

Male

Female

P/N

82998–12010

82998–12020

F–17

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

431

Repair Wire (Non–waterproof Type)

Type

7.7 Housing Lance

Male

Female

P/N

82998–12030

82998–12040

Type

8.0

Male

Female

P/N

82998–12390

82998–12400

Type

8.0 (HEAD LAMP)

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24140

(160mm)

82998–24200

(500mm)

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–18

432

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

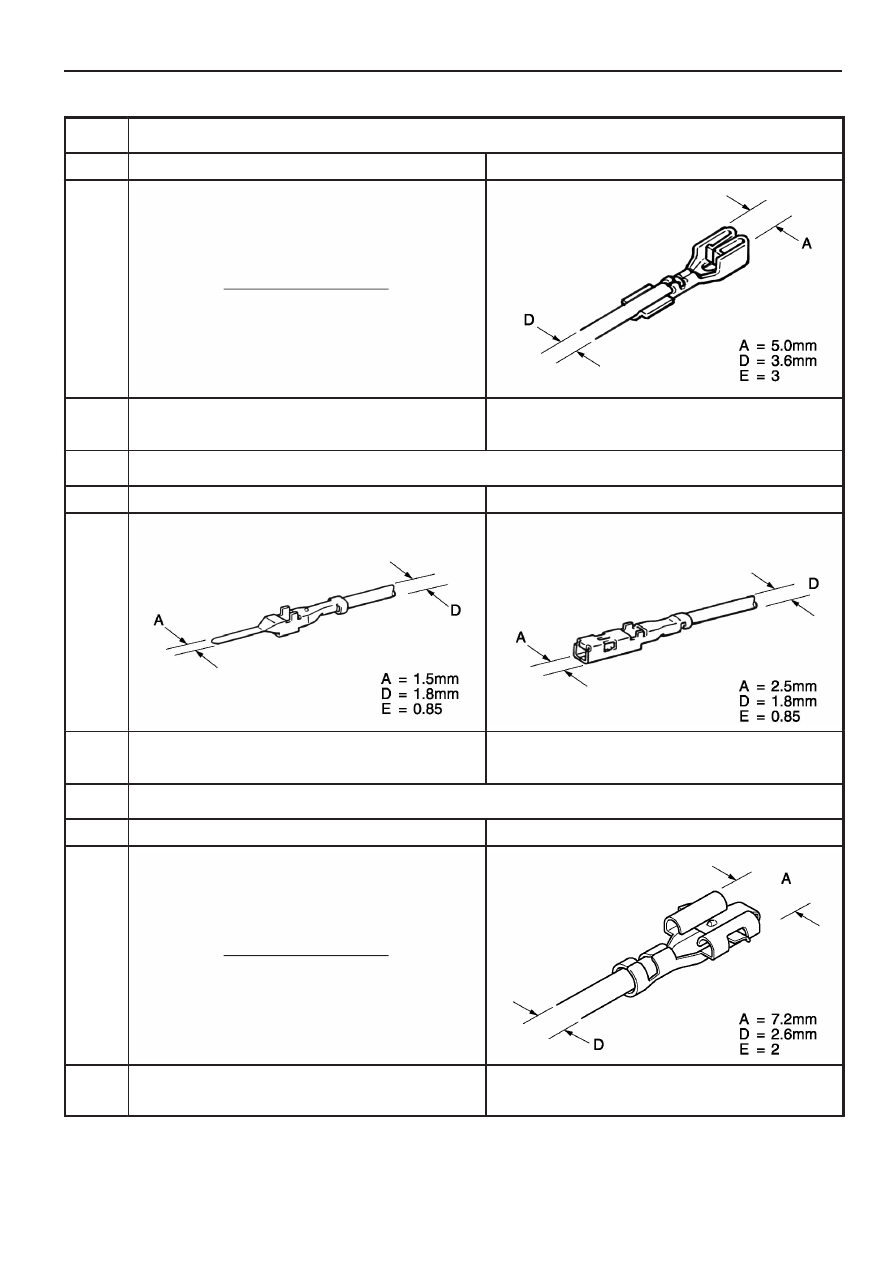

Type

BLADE FUSE

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12140

Type

C–Type

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12560

82998–12570

Type

FOG–LP

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24210

(500mm)

F–19

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

433

Repair Wire (Non–waterproof Type)

Type

FTC

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12510

Type

LAC

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12100

82998–12110

Type

MFPC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12150

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–20

434

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

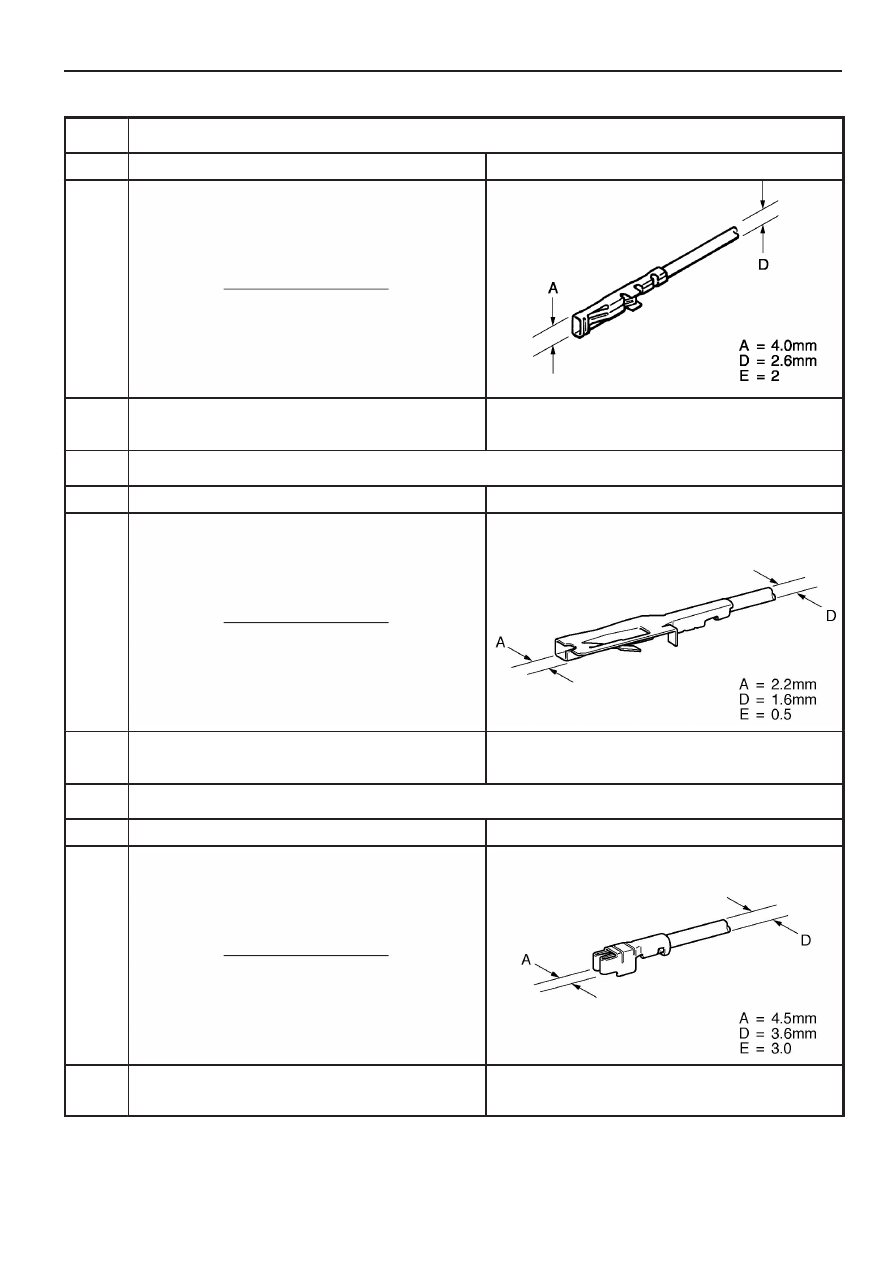

Type

MIC

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12120

Type

MIC100

Male

Female

Sleeve : Medium (Blue)

P/N

82998–01010

Type

MINI FUSE

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12810

F–21

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

435

Repair Wire (Non–waterproof Type)

Type

MINI FUSE (Low Profile)

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12820

Type

MP280

Male

Female

Sleeve : Large (Yellow)

P/N

82998–01020

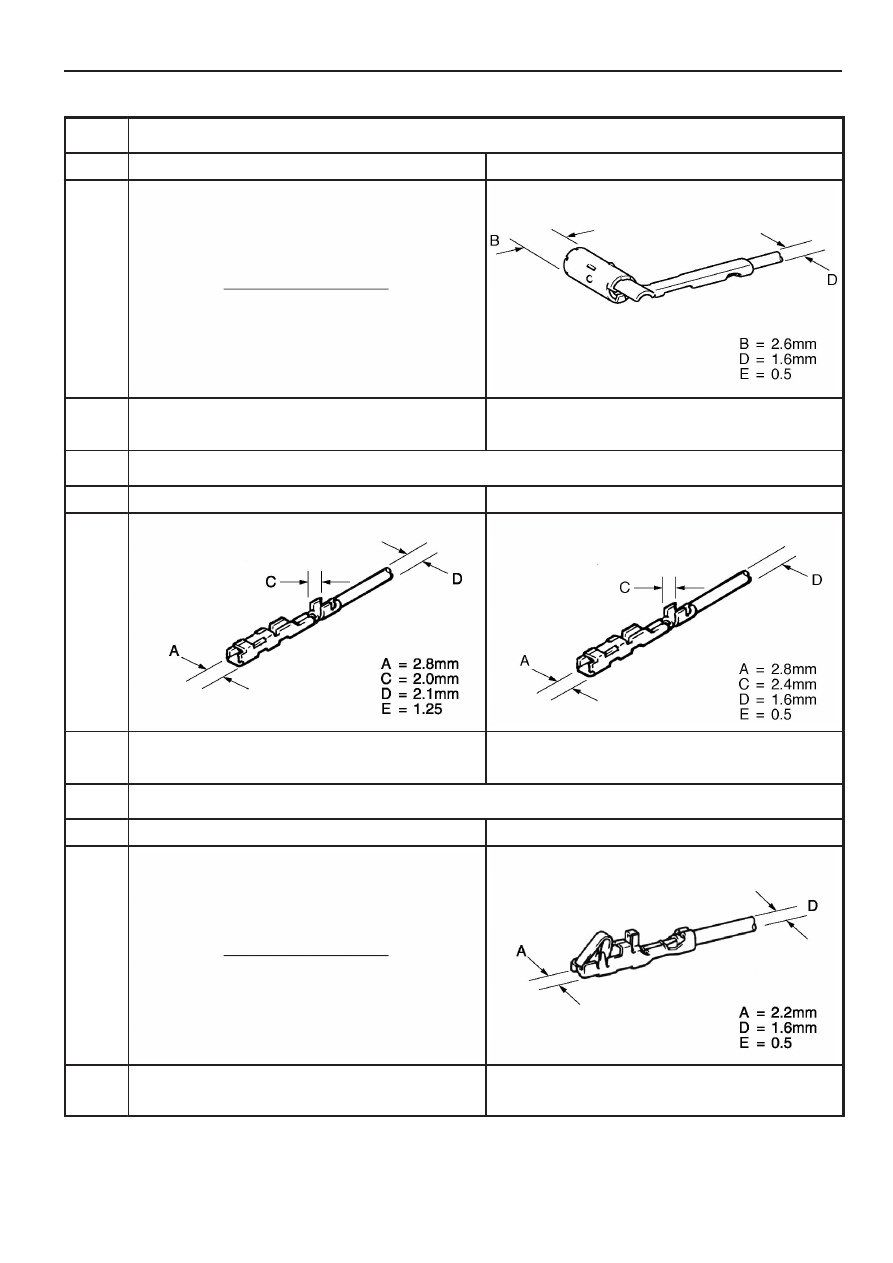

Type

PAI1

Male

Female

Sleeve : Medium (Blue)

P/N

82988–12010*

(500mm)

82988–12030*

(500mm)

82988–12020*

(500mm)

82988–12040*

(500mm)

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–22

436

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

Type

PAI1

Male

Female

Sleeve : Medium (Blue)

P/N

82988–12050*

(500mm)

82988–12060*

(500mm)

Type

PULSE LOCK

Female (Power)

Female (Signal)

Sleeve : Medium (Blue)

P/N

82998–12200

82998–12210

Type

SFPC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24180
