Toyota RM06H0E engine. Manual - part 52

Wire Harness Repair Manual

413

TABLE OF REPAIR WIRE, TERMINAL PACKING,

HOLE PLUG AND PRESS SLEEVE

REPAIR WIRE

WATERPROOF TYPE

F–1

. . . . . . . . . . . . . . . . . . .

NON–WATERPROOF TYPE

F–7

. . . . . . . . . . . . .

TERMINAL PACKING

F–25

. . . . . . . . . . . . . . . . . . . . . .

HOLE PLUG

F–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PRESS SLEEVE

F–28

. . . . . . . . . . . . . . . . . . . . . . . . . .

HINT:
Waterproof exclusive repair wires for 7.7 and TODC are not
available.
(Available wires are for both waterproof and
non–waterproof)

NOTES:
The following marks are used in the table.

A

Terminal width

B

Terminal diameter

C

Terminal guide width

D

Wire outside diameter

E

Nominal size of wire

*

Glod plated (Gilded)

F

414

Wire Harness Repair Manual

F

F–1

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

415

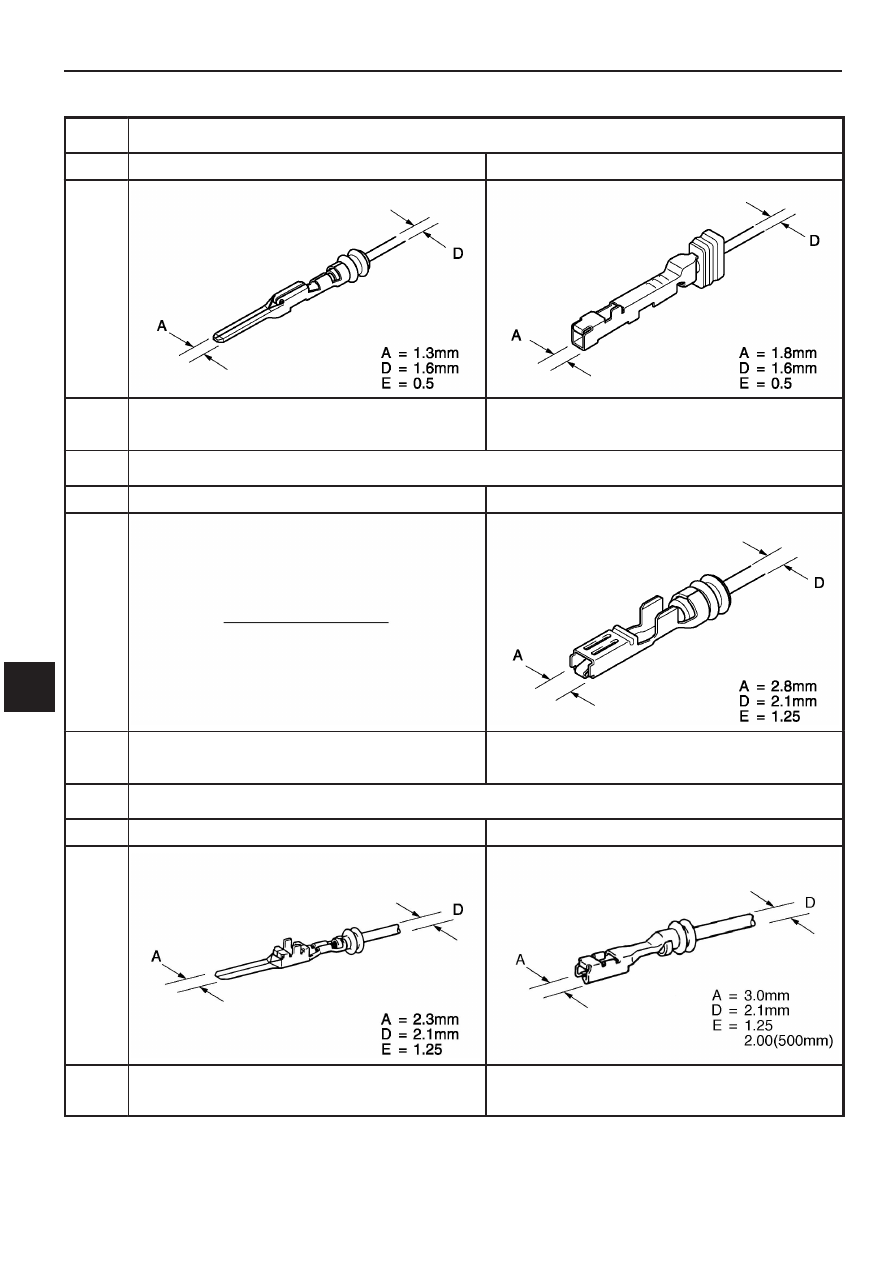

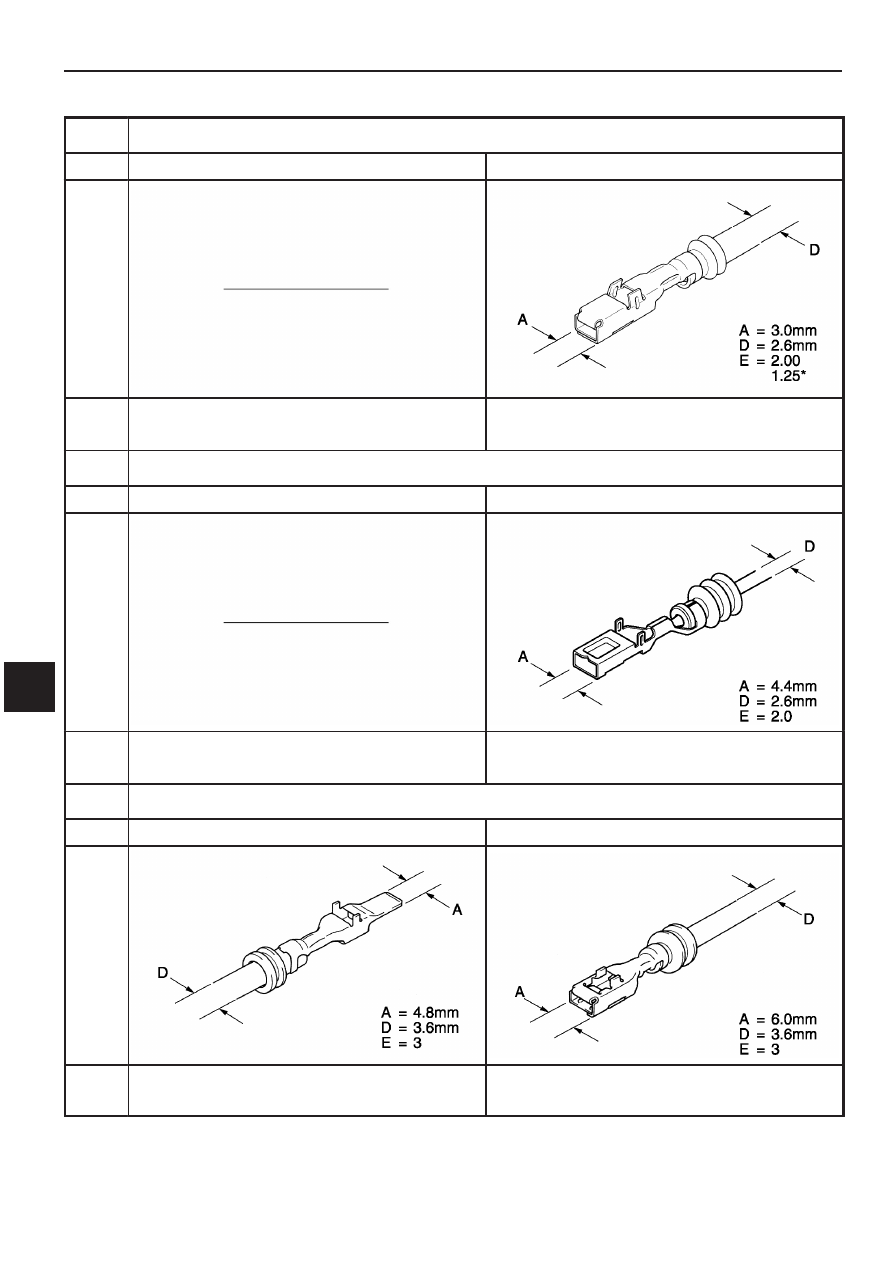

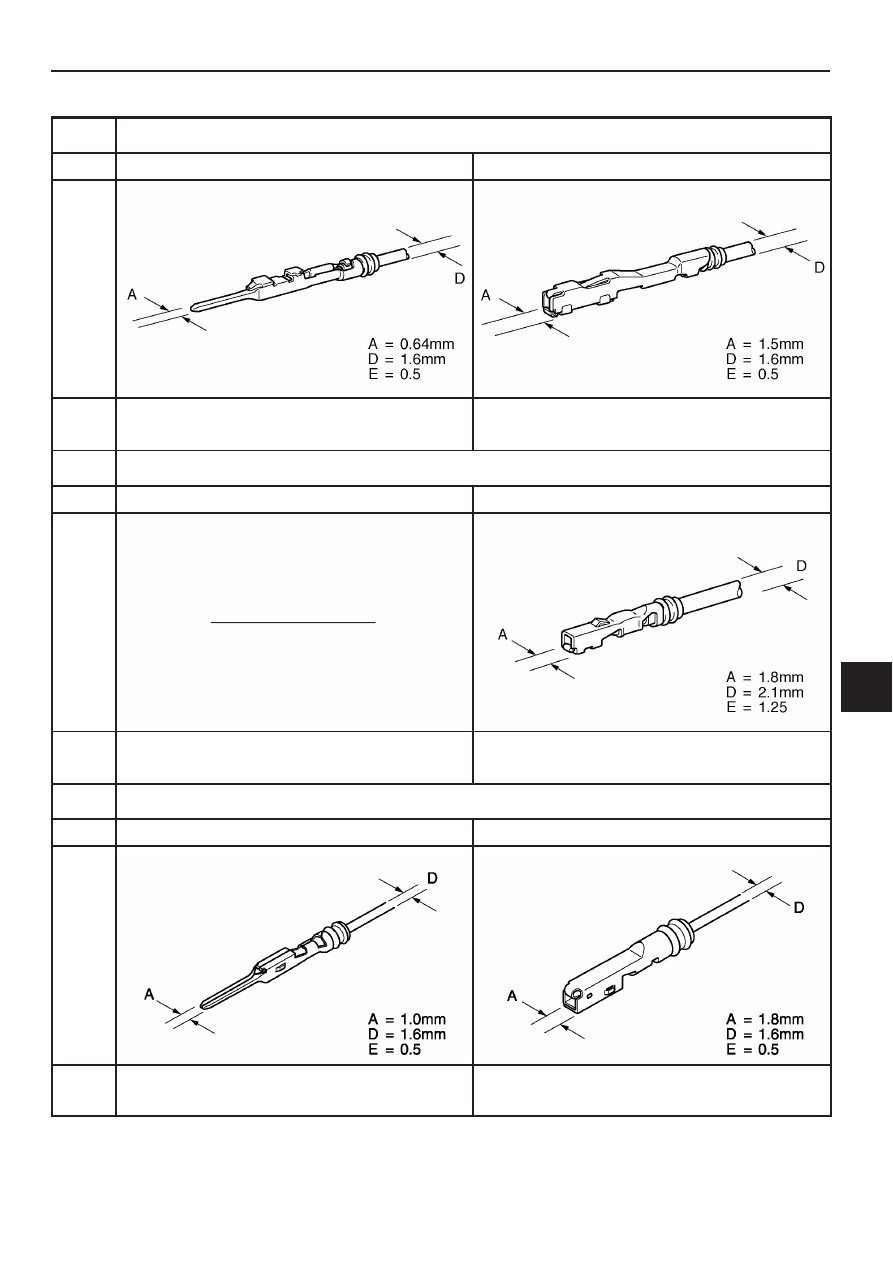

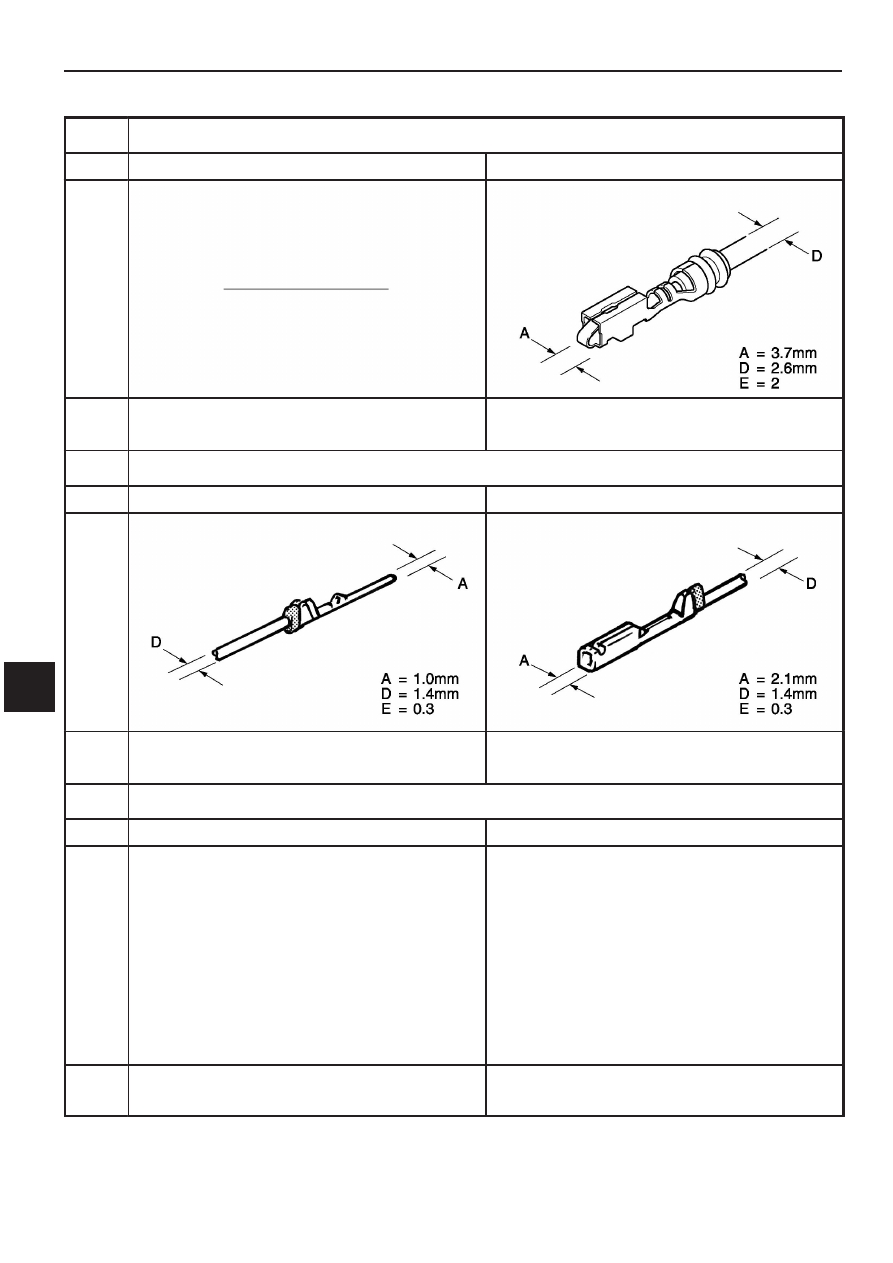

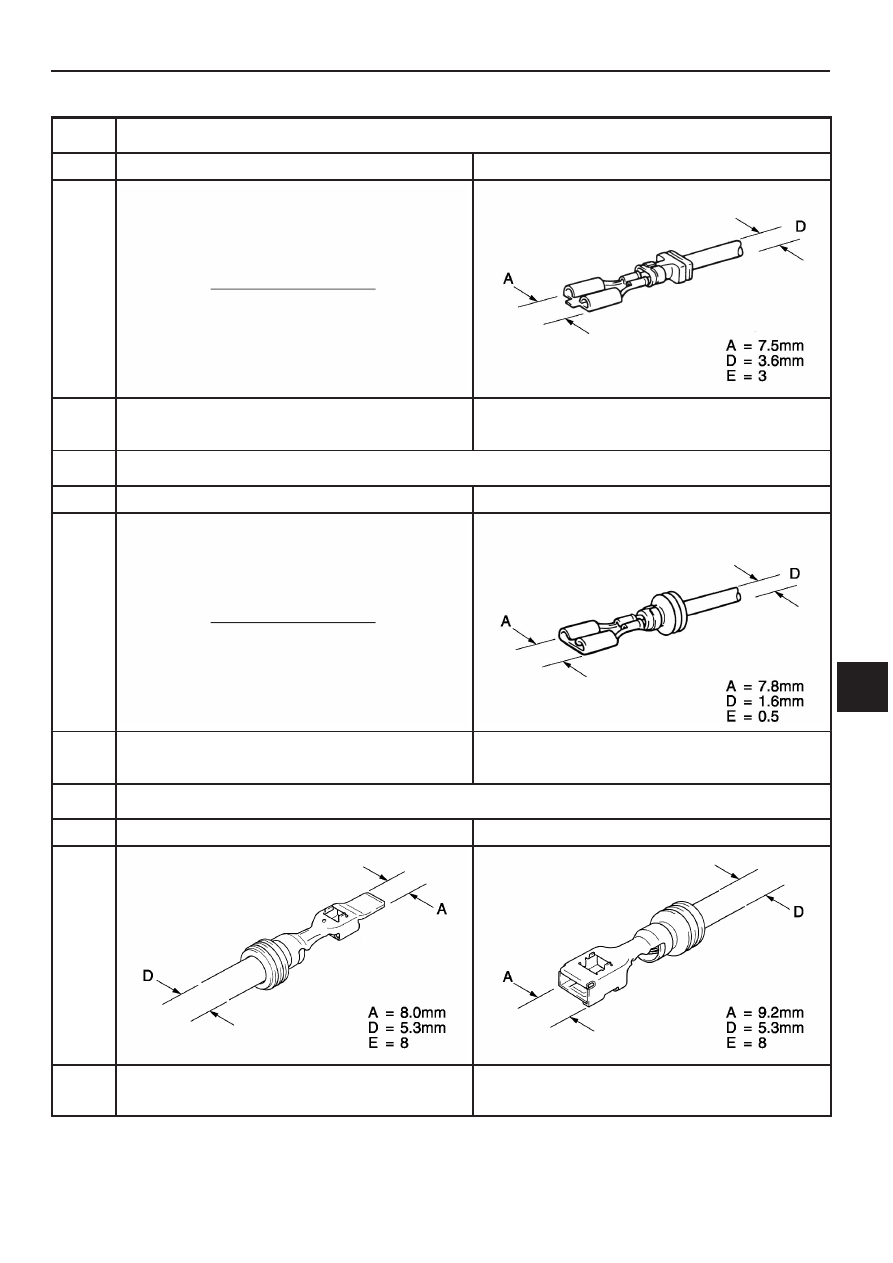

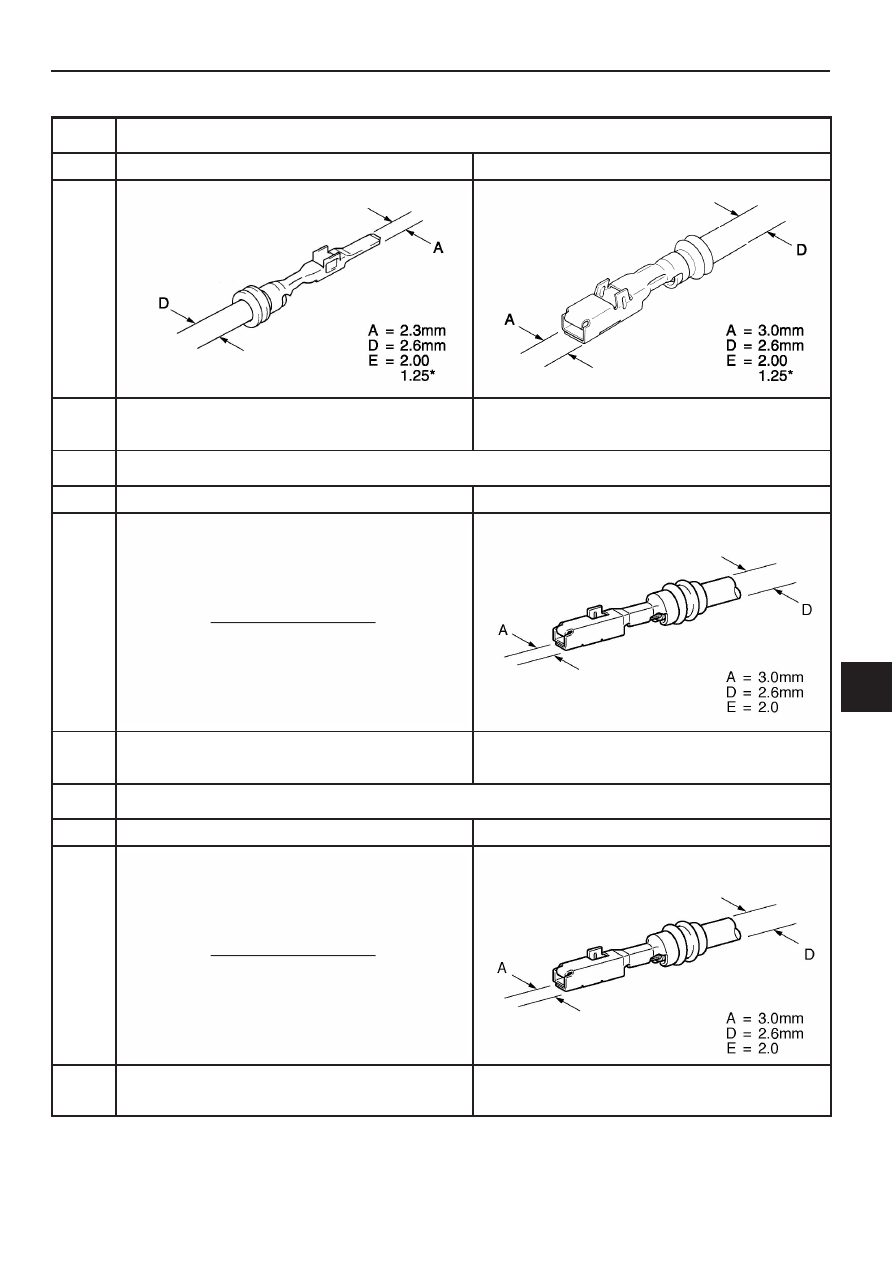

Repair Wire (Waterproof Type)

Type

0.64

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–24360

(500mm)

82998–24370*

82998–24250

(500mm)

82998–24260*

Type

1.0II

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24060*

Type

1.0III

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12710*

82998–12720
82998–12730*

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–2

416

Wire Harness Repair Manual

Repair Wire (Waterproof Type)

Type

1.3

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12630

82998–12650

Type

1.8

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12620

Type

2.3

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12260
82998–24070*

82998–12270

(160mm)

   82998–12600

(500mm)

82998–24080*

F

F–3

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

417

Repair Wire (Waterproof Type)

Type

2.3II (6mm Pitch Type)

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12430
82998–12450*

82998–12440

(160mm)

   82998–12590

(500mm)

82998–12460 *             82998–12800

(500mm)

Type

2.3II (6mm Pitch Type Low Insertion Force)

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24400

(500mm)

82998–24410

(500mm)

Type

2.3II (5mm Pitch Type Low Insertion Force)

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24420

(500mm)

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–4

418

Wire Harness Repair Manual

Repair Wire (Waterproof Type)

Type

2.3II (5mm Pitch Type)

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12790

(500mm)

82998–12780*

Type

2.8 (HB3, HB4)

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12550

(160mm)

   82998–12610

(500mm)

Type

4.8

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12470

82998–12480

F

F–5

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

419

Repair Wire (Waterproof Type)

Type

6.3

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12540

Type

6.3II

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24160

Type

8.0

Male

Female

P/N

82998–12490

82998–12500

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–6

420

Wire Harness Repair Manual

Repair Wire (Waterproof Type)

Type

HEAD LAMP

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24150

(160mm)

   82998–24190

(500mm)

Type

TLC

Male

Female

Sleeve : Small (Red)

Sleeve : Small (Red)

P/N

82998–12280

82998–12290

F
