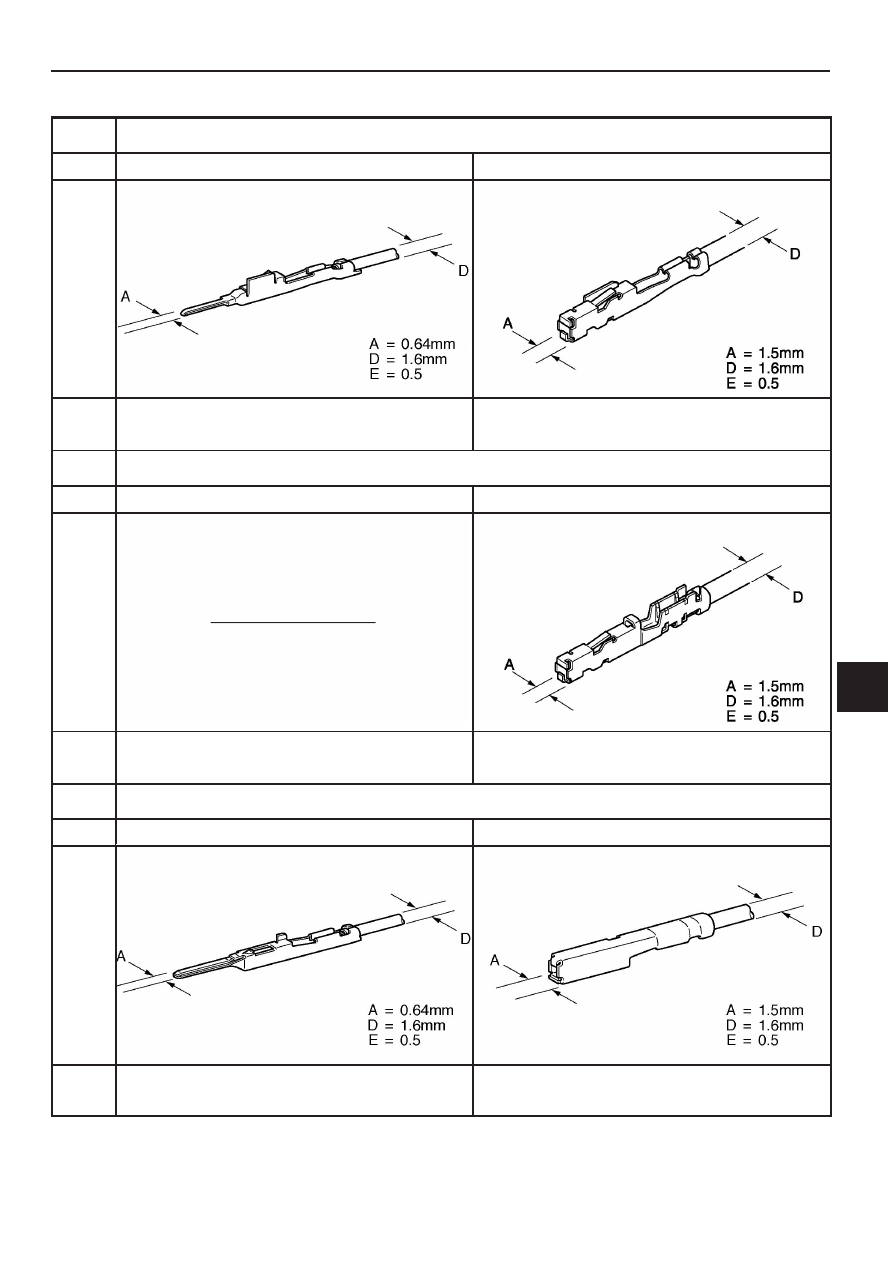

F–7

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

421

Repair Wire (Non–waterproof Type)

Type

0.64

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–24230
82998–24240*

82998–12750
82998–12760*

Type

0.64 IDC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12770

Type

0.64II

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–24270
82998–24280*

82998–24290
82998–24300*

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

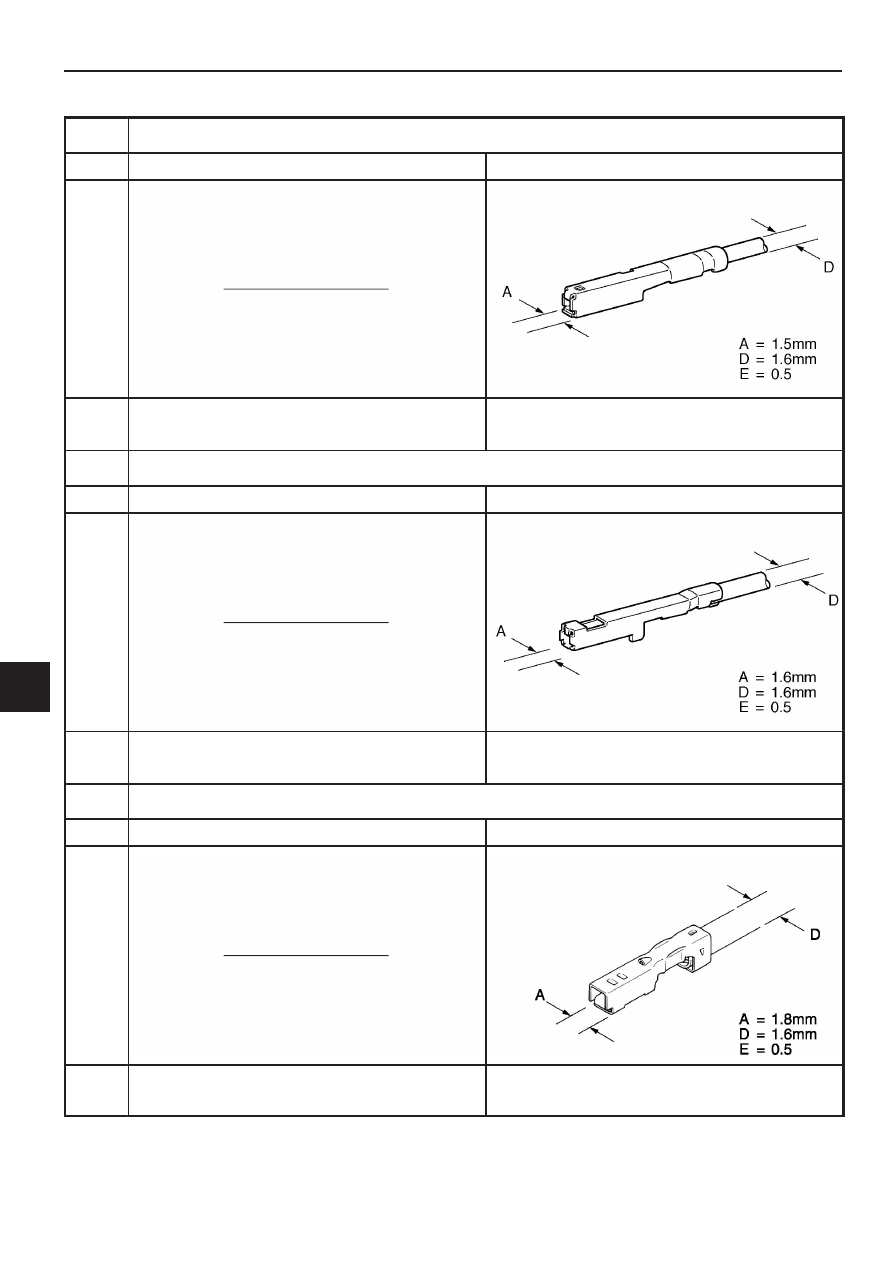

F–8

422

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

Type

0.64II

Male

Female (Outer)

Sleeve : Medium (Blue)

P/N

82998–24390*

Type

0.64III

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12870
82998–12860*

Type

1.0

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12310
82998–12320*

F

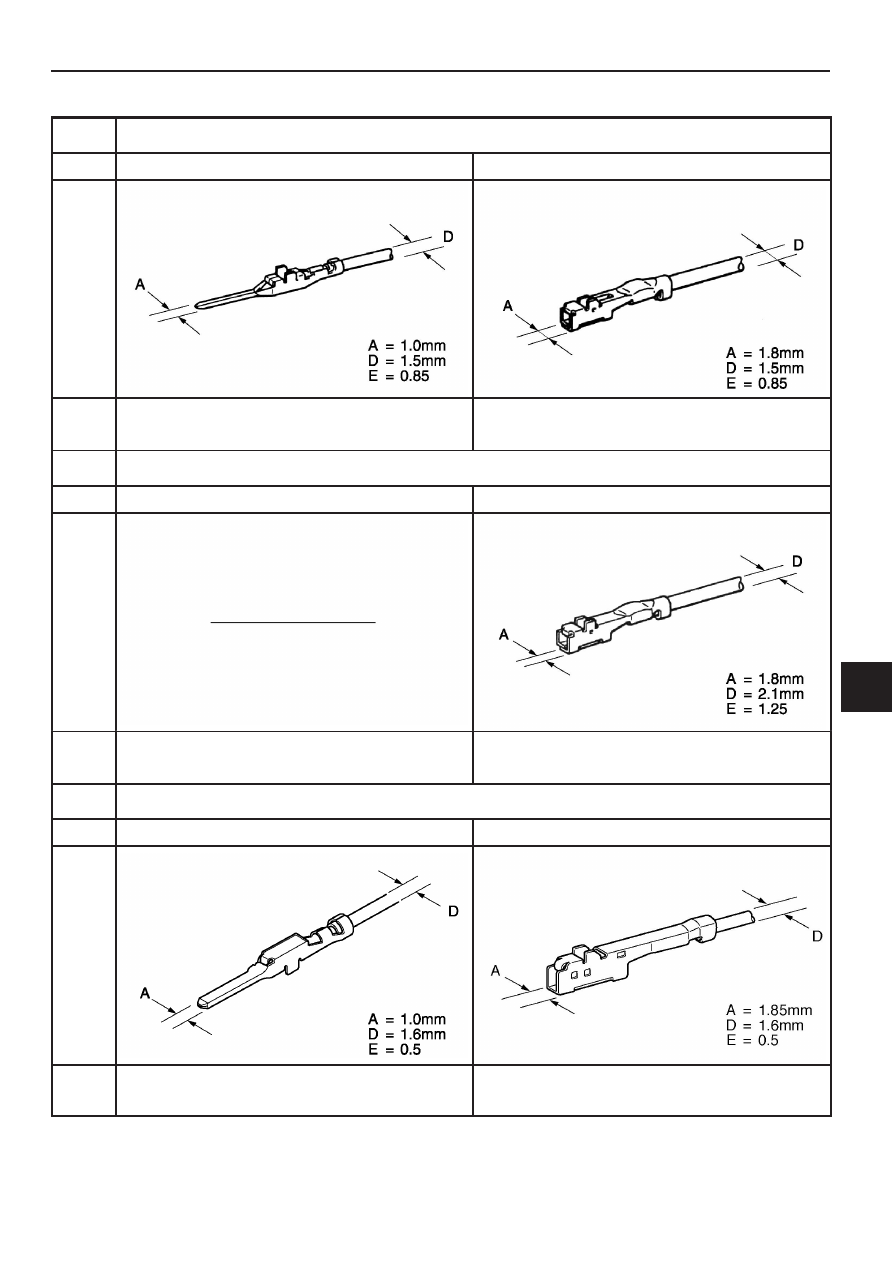

F–9

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

423

Repair Wire (Non–waterproof Type)

Type

1.0II

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)
Size : S

P/N

82998–24010

82998–24020
82998–24110*

Type

1.0II

Male

Female

Sleeve : Medium (Blue)
Size : M

P/N

82998–24120*

Type

1.0III

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12670
82998–12680*

82998–12690
82998–12880*

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

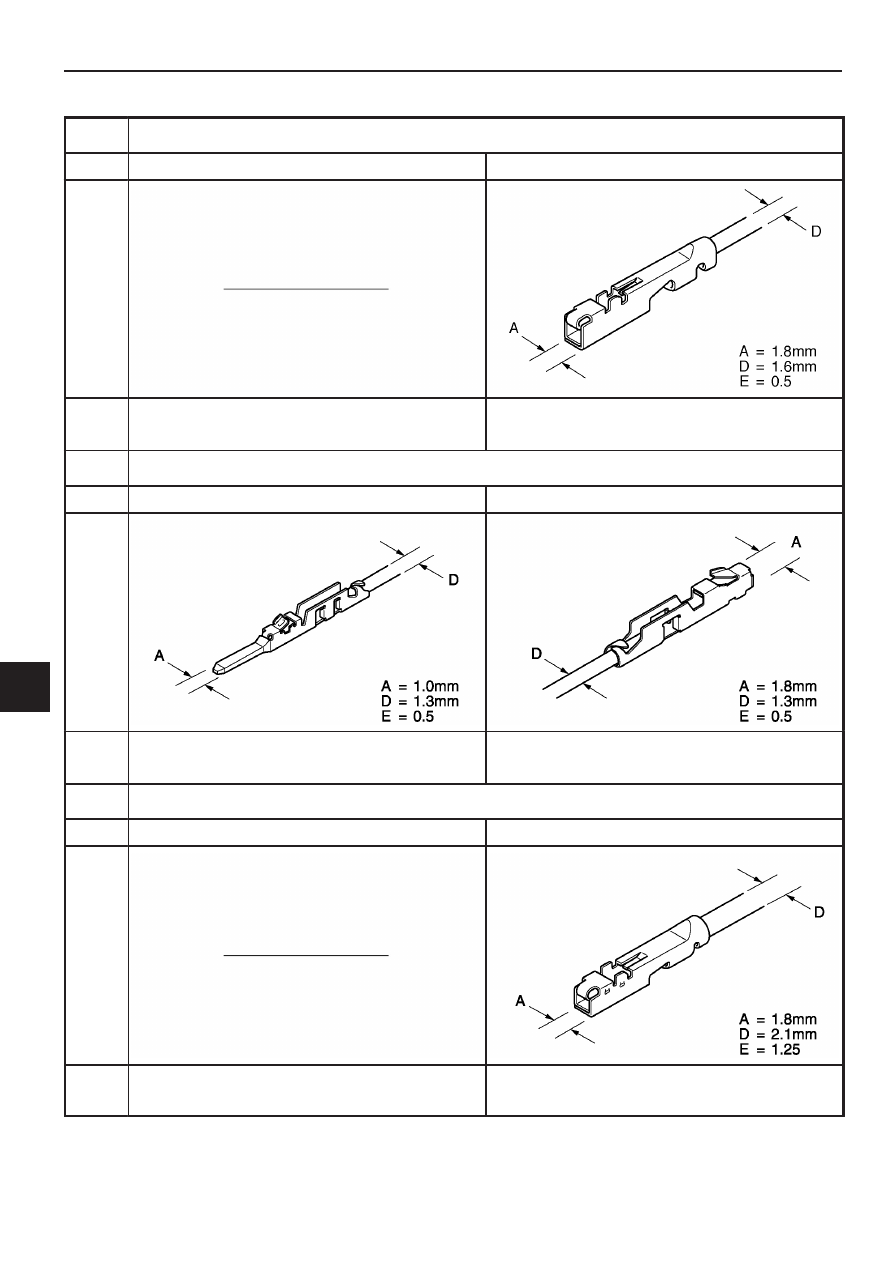

F–10

424

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

Type

1.0III

Male

Female (Outer)

Sleeve : Medium (Blue)

P/N

82998–12700*

Type

1.0III IDC

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12660

82998–12640

Type

1.0IV

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12740

F

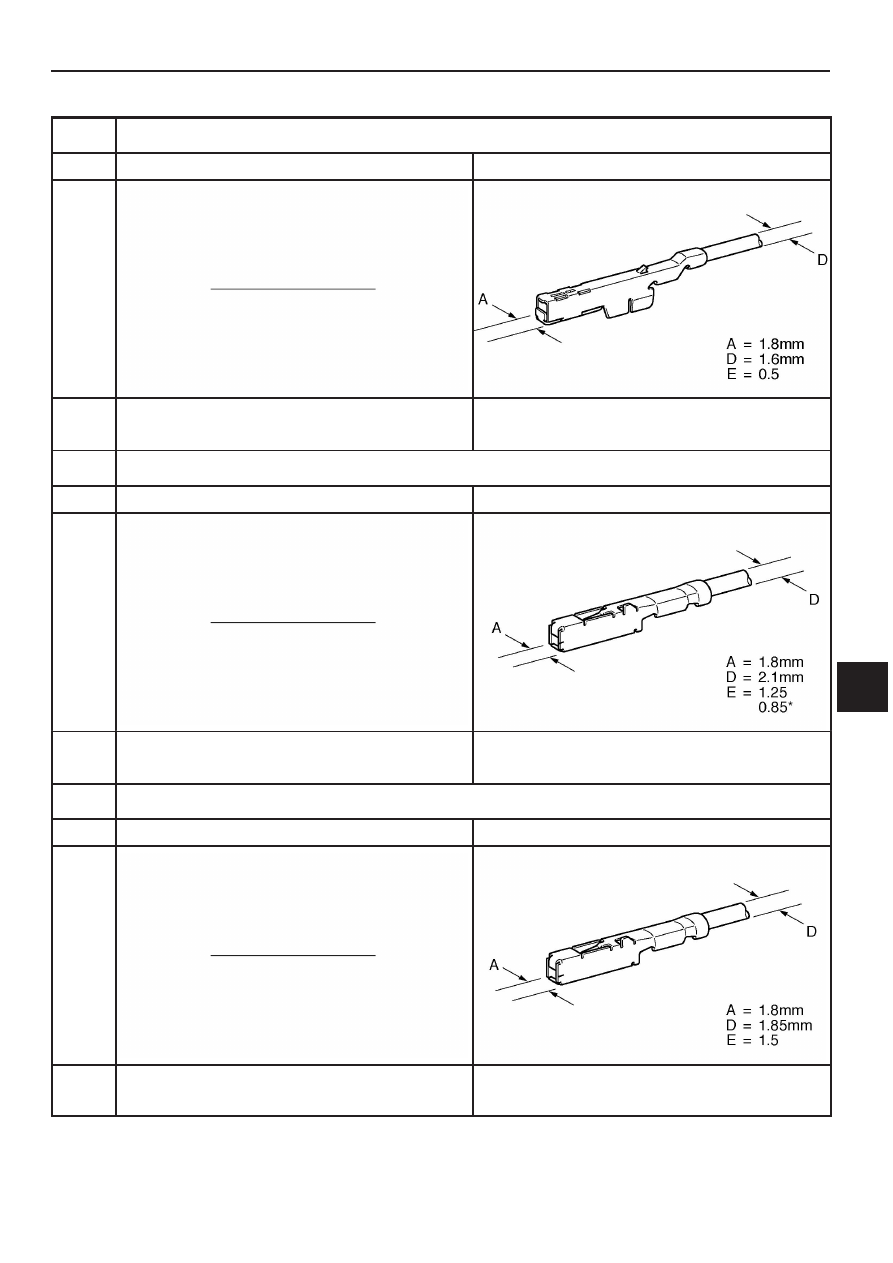

F–11

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

425

Repair Wire (Non–waterproof Type)

Type

1.0J

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24310
82998–24320*

Type

1.0JII

Male

Female

Sleeve : Medium (Blue)
Size : S, M

P/N

82998–12830
82998–12850*

Type

1.0JII

Male

Female

Sleeve : Medium (Blue)
Size : L

P/N

82998–12840

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

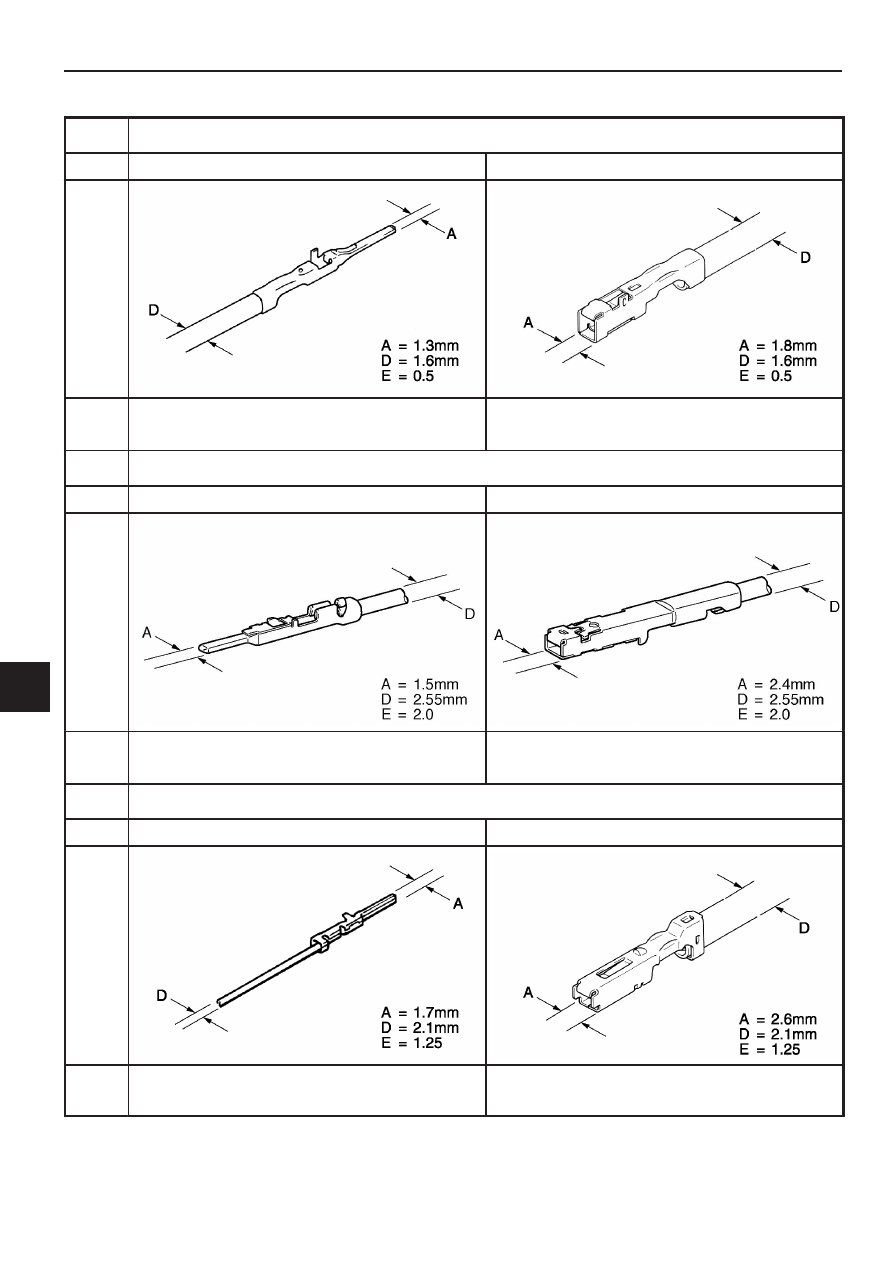

F–12

426

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

Type

1.3

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12410

82998–12420

Type

1.5

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–24340

82998–24350

Type

1.8

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12180

82998–12190
82998–12300*

F

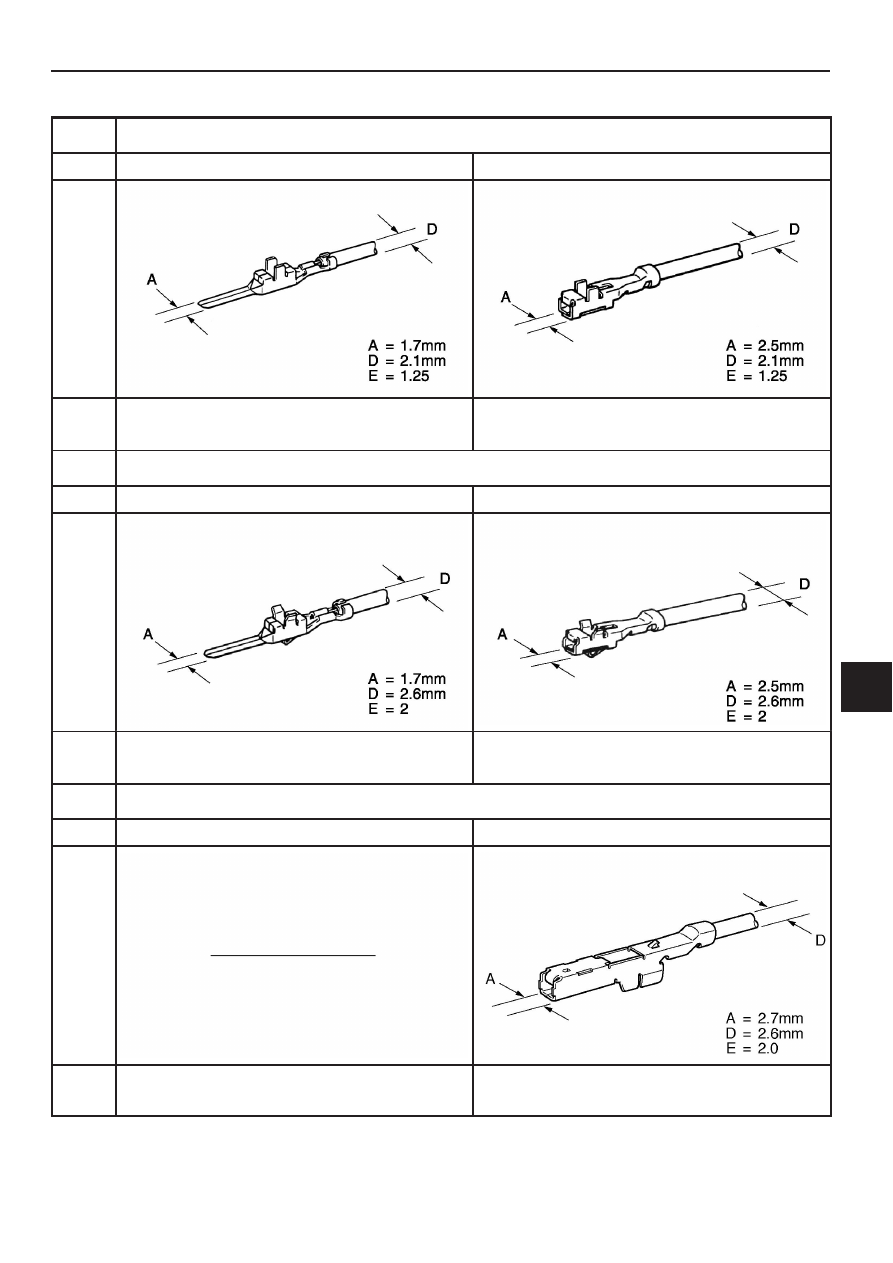

F–13

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual

427

Repair Wire (Non–waterproof Type)

Type

1.8II

Male

Female

Sleeve : Medium (Blue)
Size : S, M

Sleeve : Medium (Blue)
Size : S, M

P/N

82998–24090
82998–24130*

82998–24100

Type

1.8II

Male

Female

Sleeve : Large (Yellow)
Size : L

Sleeve : Large (Yellow)
Size : L

P/N

82998–24030

82998–24040

Type

1.8J

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24330

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

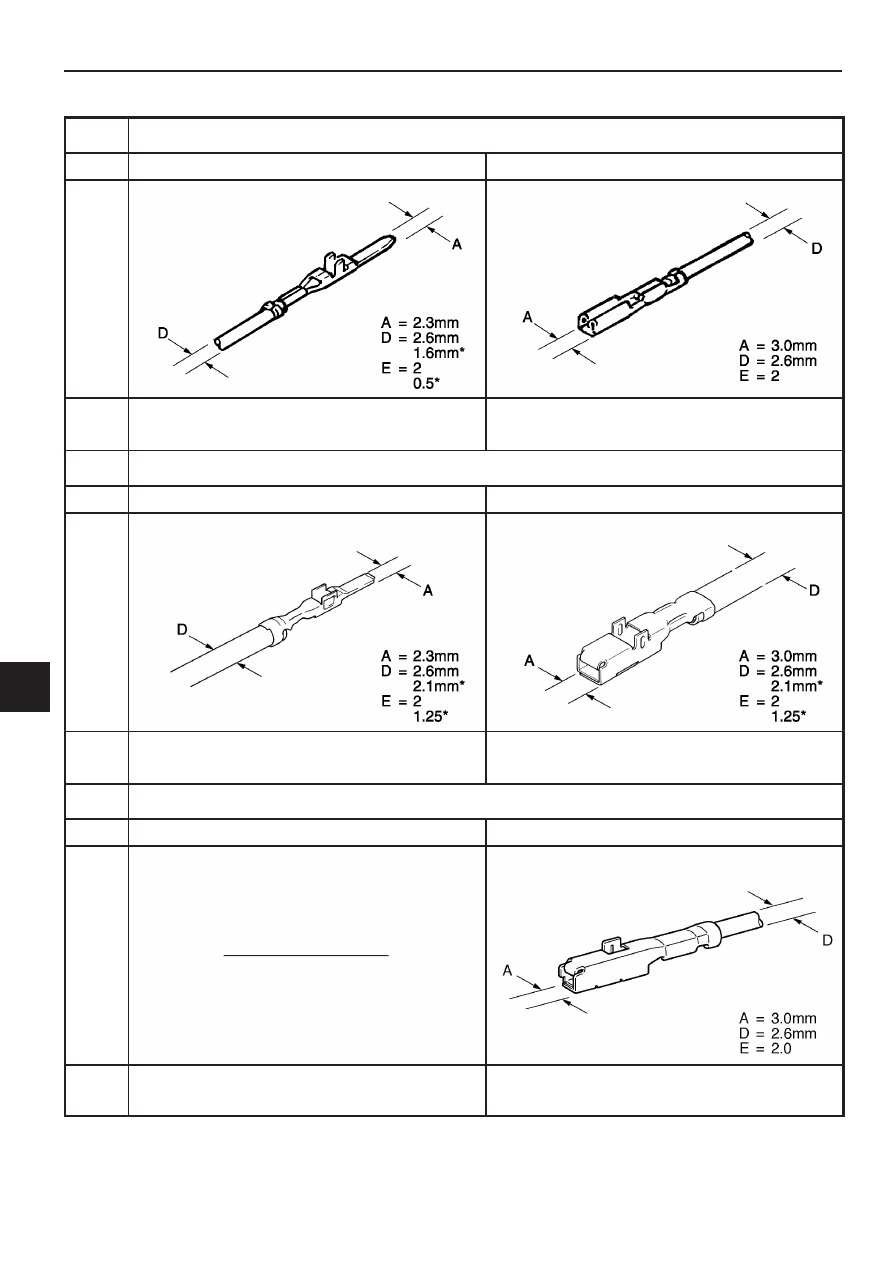

F–14

428

Wire Harness Repair Manual

Repair Wire (Non–waterproof Type)

Type

2.3

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12160
82998–24050*

82998–12170

Type

2.3II

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12330
82998–12350*

82998–12340
82998–12360*

Type

2.3II (Low Insertion Force)

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24380

F
