SEAT  –  FRONT SEAT ASSEMBLY

SE

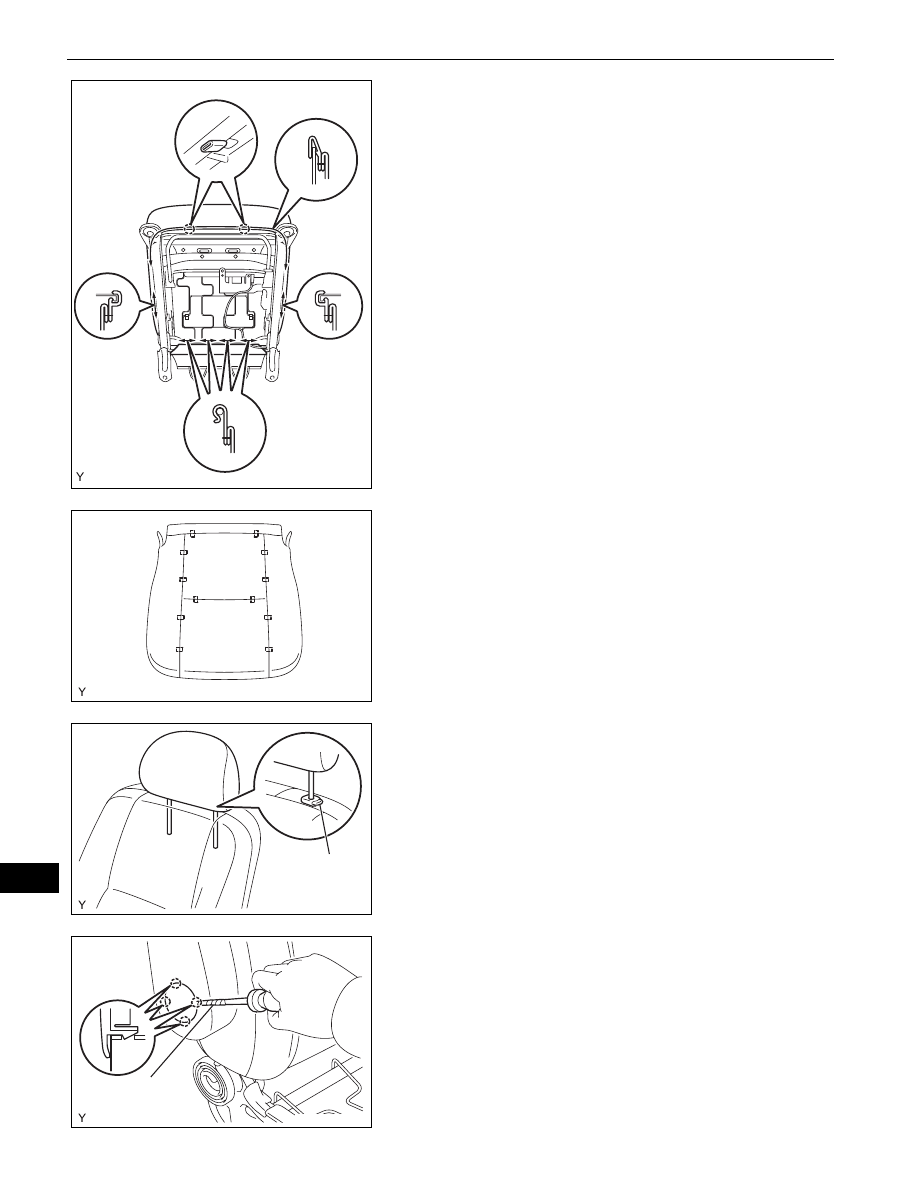

(c) Disengage the 2 claws and the 7 hooks and remove

the front seat cushion.

9.

REMOVE FRONT SEAT CUSHION COVER
(a) Remove the 12 hog rings and the front seat cushion

cover.

10. REMOVE FRONT SEAT HEADREST ASSEMBLY

(a) Push in the lock button of the front seat headrest

support and remove the front seat headrest.

11. REMOVE FRONT SEAT ARMREST CAP (for Driver

Side)
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and remove
the front seat armrest cap.

B130681

B130682

Lock Button

B130684E01

Protective Tape

B130685E01

SEAT  –  FRONT SEAT ASSEMBLY

SE–11

SE

12. REMOVE FRONT SEAT ARMREST COVER (for Front

Passenger Side)
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 2 claws and remove
the front seat armrest cover.

13. REMOVE FRONT SEAT ARMREST ASSEMBLY (for

Driver Side)
(a) Remove the bolt, the bush and the front seat

armrest.

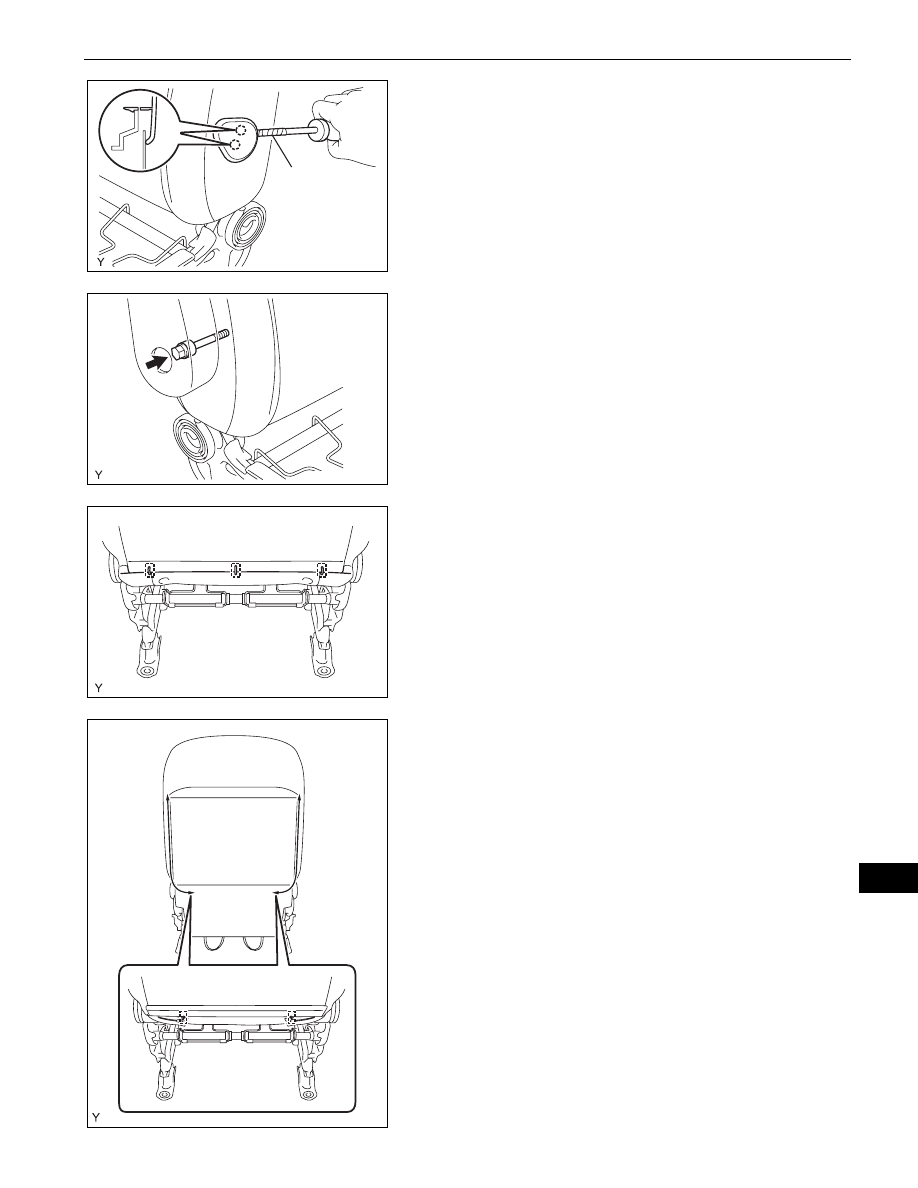

14. REMOVE FRONT SEAT HEADREST SUPPORT

(a) Remove the 3 hog rings.

(b) Remove the 2 hog rings.
(c) Unfasten the 2 zippers.

Protective Tape

B130687E01

B130689

B130690

B130692

SE–12

SEAT  –  FRONT SEAT ASSEMBLY

SE

(d) Disengage the 2 claws and remove the front seat

headrest support.
HINT:
Use the same procedure for both sides.

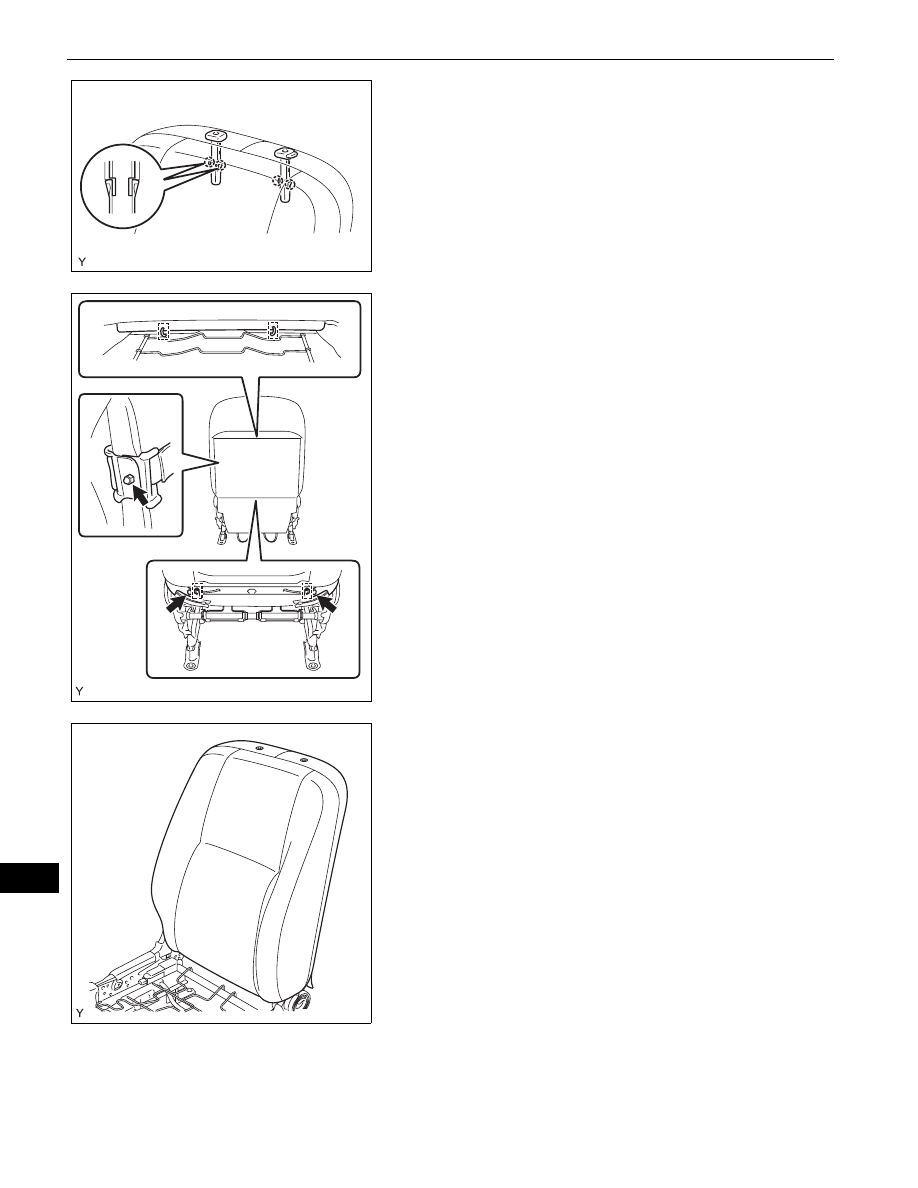

15. REMOVE FRONT SEATBACK ASSEMBLY

(a) Using a clip remover, remove the 2 clips.
(b) Remove the 4 hog rings.
(c) w/ Front Seat Side Airbag:

(1) Remove the nut.

(d) Remove the front seatback.

B130694

B130696

B130698

SEAT  –  FRONT SEAT ASSEMBLY

SE–13

SE

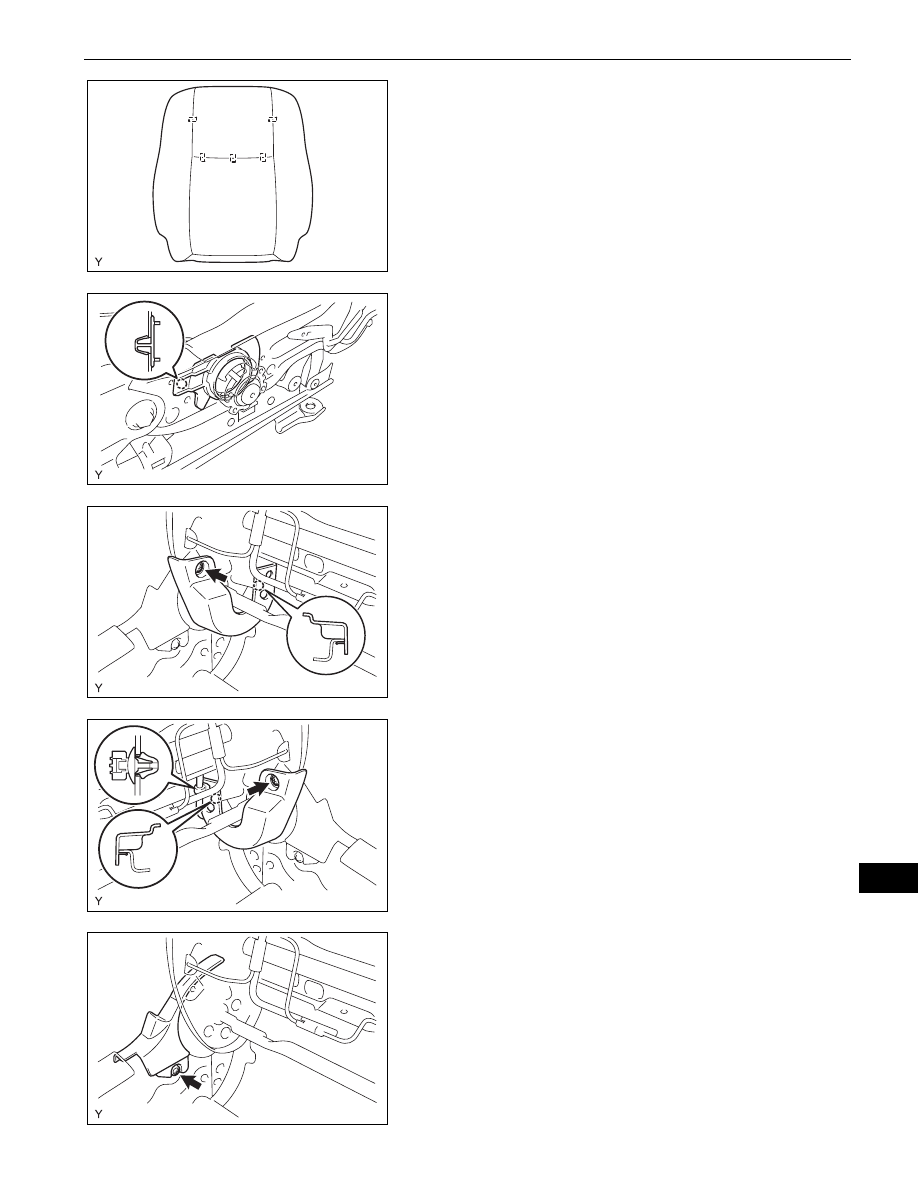

16. REMOVE FRONT SEATBACK COVER

(a) Remove the 5 hog rings and the front seatback

cover.

17. REMOVE VERTICAL SEAT ADJUSTER BUSH (for

Driver Side)
(a) Disengage the claw and remove the vertical seat

adjuster bush.

18. REMOVE RECLINING ADJUSTER INSIDE COVER RH

(a) Remove the screw.
(b) Disengage the claw and remove the reclining

adjuster inside cover.

19. REMOVE RECLINING ADJUSTER INSIDE COVER LH

(a) Remove the screw.
(b) w/ Front Seat Side Airbag:

(1) Using a clip remover, remove the clamp.

(c) Disengage the claw and remove the reclining

adjuster inside cover.

20. REMOVE RECLINING ADJUSTER OUTSIDE COVER

RH
(a) Remove the screw and the reclining adjuster

outside cover.

21. REMOVE RECLINING ADJUSTER OUTSIDE COVER

LH
HINT:
Use the same procedure as for the RH side.
