SEAT  –  FRONT SEAT ASSEMBLY

SE

22. REMOVE FRONT SEAT CUSHION LOWER SHIELD

RH
(a) Disengage the claw and remove the front seat

cushion lower shield.

23. REMOVE FRONT SEAT CUSHION LOWER SHIELD

LH
HINT:
Use the same procedure as for the RH side.

24. REMOVE FRONT SEAT CUSHION EDGE

PROTECTOR
(a) Remove the 2 front seat cushion edge protectors.

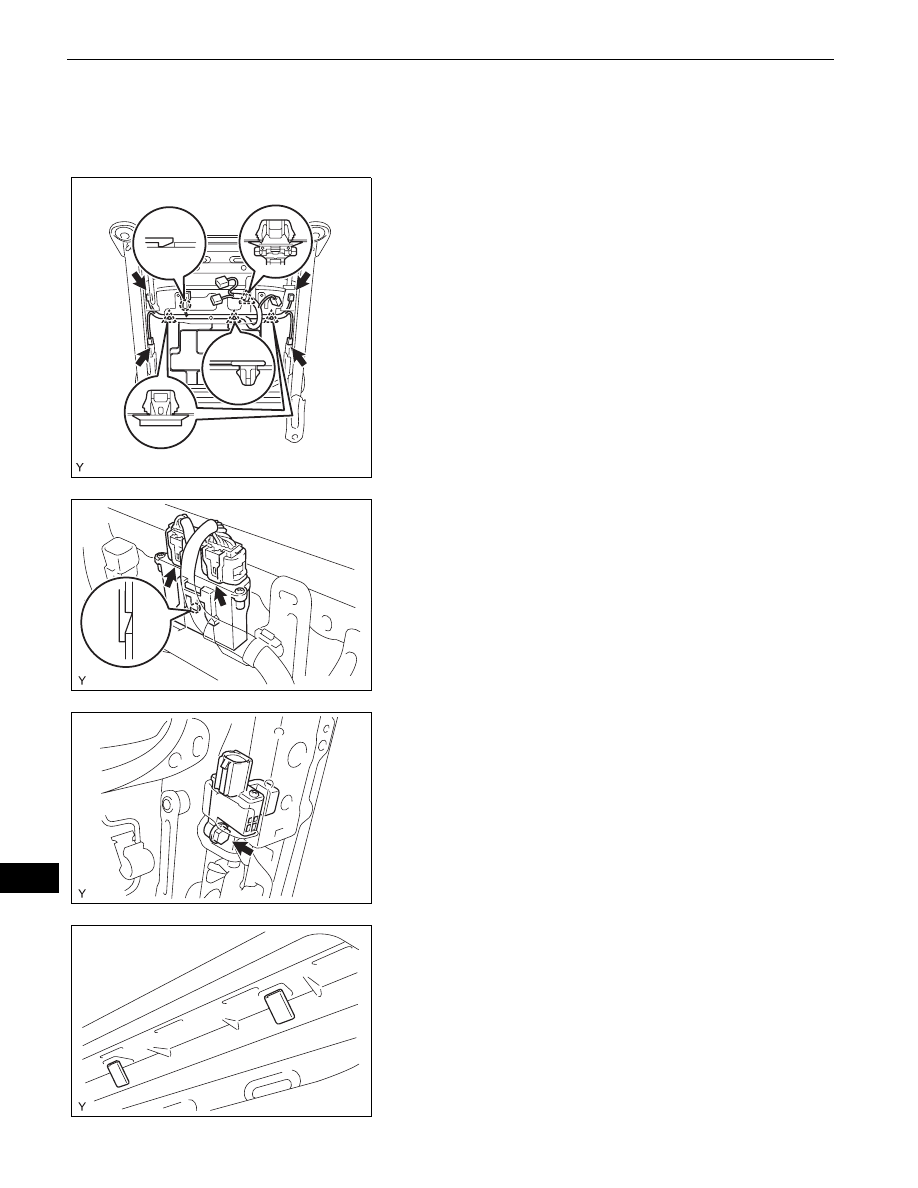

25. REMOVE SEAT POSITION SENSOR (for Driver Side)

(a) Remove the bolt and the seat position sensor.

26. REMOVE OCCUPANT CLASSIFICATION ECU (for

Front Passenger Side)
(a) Disconnect the 2 connectors.

(b) Using a screwdriver, disengage the claw and

remove the occupant classification ECU.

B130706

B130707

B130708

B130709

SEAT  –  FRONT SEAT ASSEMBLY

SE–15

SE

27. REMOVE FRONT SEAT WIRE (for Front Passenger

Side)
(a) Disconnect the 4 connectors.
(b) Disengage the claw and remove the connector.
(c) Using a clip remover, remove the 4 clamps and the

front seat wire.

B130710

SE–16

SEAT  –  FRONT SEAT ASSEMBLY

SE

REASSEMBLY

CAUTION:
Wear protective gloves. Sharp surfaces on the front seat
adjuster could cause injuries to your hands.

1.

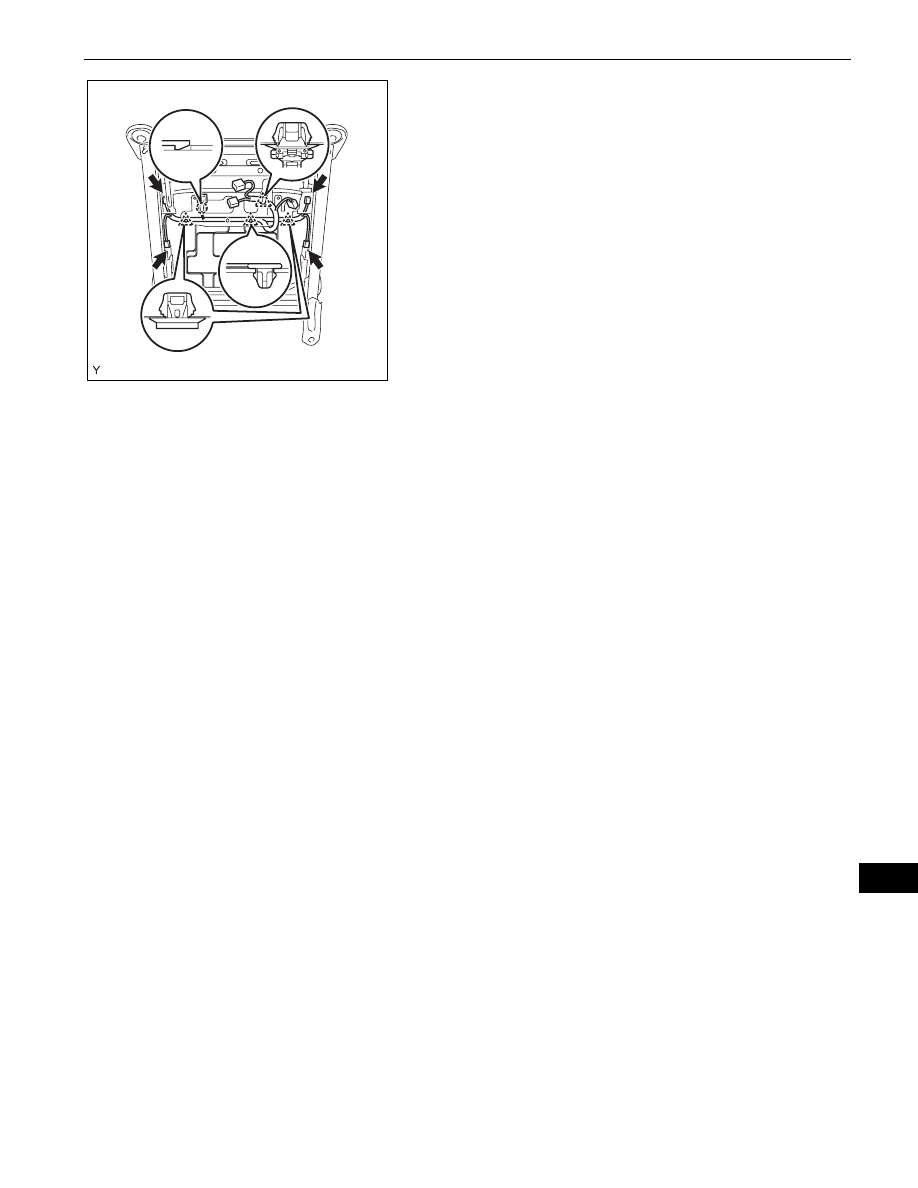

INSTALL FRONT SEAT WIRE (for Front Passenger
Side)
(a) Install the seat wire with the 4 clamps.
(b) Engage the claw and install the connector.
(c) Connect the 4 connectors.

2.

INSTALL OCCUPANT CLASSIFICATION ECU (for
Front Passenger Side)
(a) Engage the claw and install the occupant

classification ECU.

(b) Connect the 2 connectors.

3.

INSTALL SEAT POSITION SENSOR (for Driver Side)
(a) Install the seat position sensor with the bolt.

Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

4.

INSTALL FRONT SEAT CUSHION EDGE
PROTECTOR
(a) Install the 2 front seat cushion edge protectors.

B130710

B130709

B130708

B130707

SEAT  –  FRONT SEAT ASSEMBLY

SE–17

SE

5.

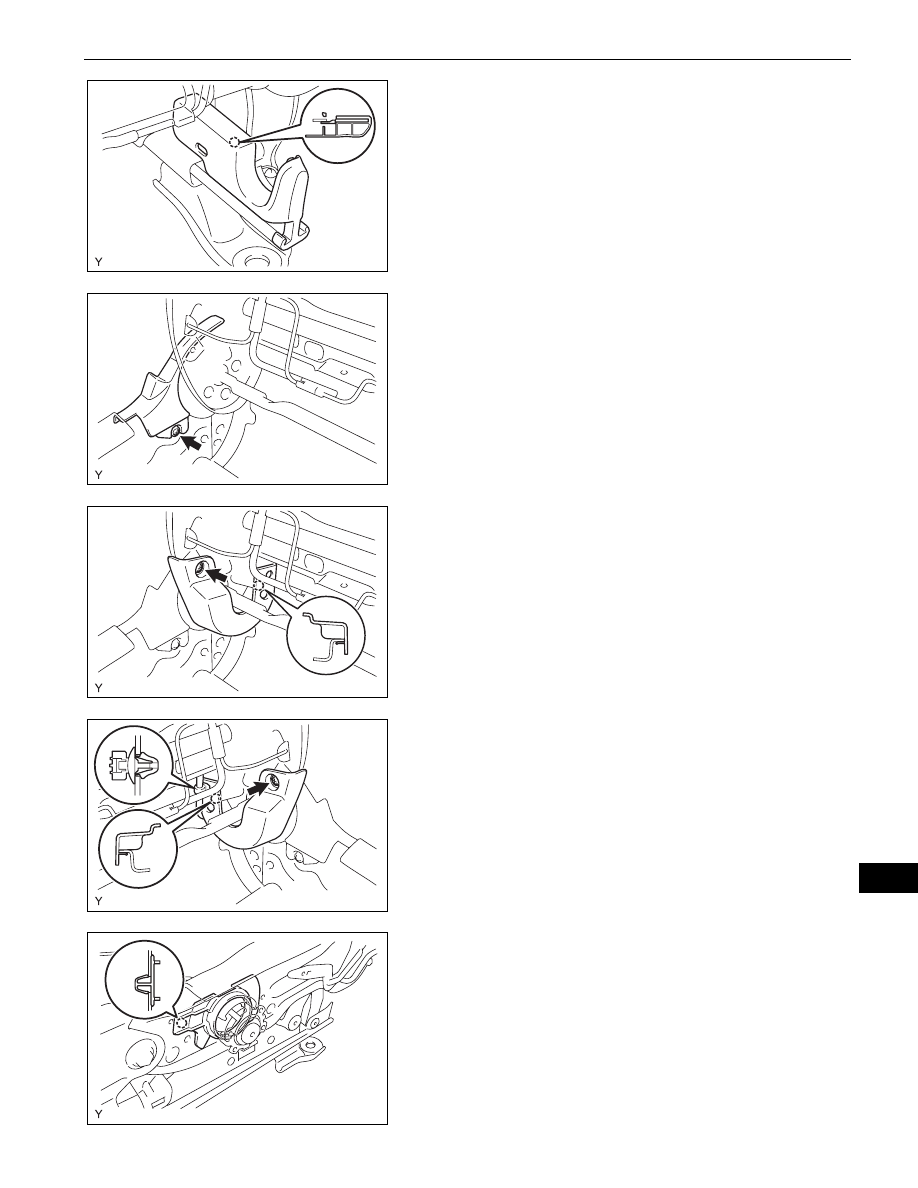

INSTALL FRONT SEAT CUSHION LOWER SHIELD
RH
(a) Engage the claw and install the front seat cushion

lower shield.

6.

INSTALL FRONT SEAT CUSHION LOWER SHIELD LH
HINT:
Use the same procedure as for the RH side.

7.

INSTALL RECLINING ADJUSTER OUTSIDE COVER
RH
(a) Install the reclining adjuster outside cover with the

screw.

8.

INSTALL RECLINING ADJUSTER OUTSIDE COVER
LH
HINT:
Use the same procedure as for the RH side.

9.

INSTALL RECLINING ADJUSTER INSIDE COVER RH
(a) Engage the claw and install the reclining adjuster

inside cover.

(b) Tighten the screw.

10. INSTALL RECLINING ADJUSTER INSIDE COVER LH

(a) Engage the claw and install the reclining adjuster

inside cover.

(b) w/ Front Seat Side Airbag:

(1) Install the clamp.

(c) Tighten the screw.

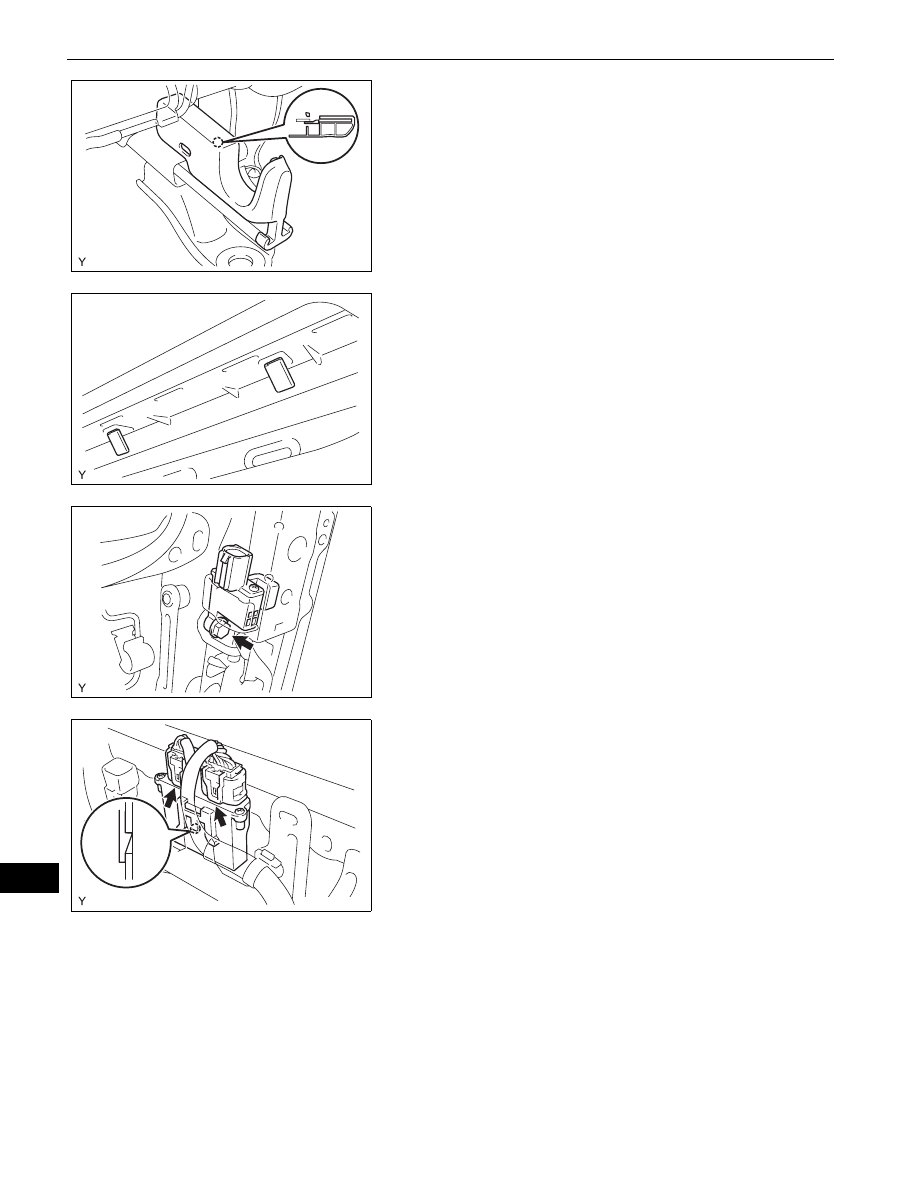

11. INSTALL VERTICAL SEAT ADJUSTER BUSH (for

Driver Side)
(a) Engage the claw and install the vertical seat

adjuster bush.

B130706

B130705

B130703

B130704

B135121
