Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 455

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE–53

SE

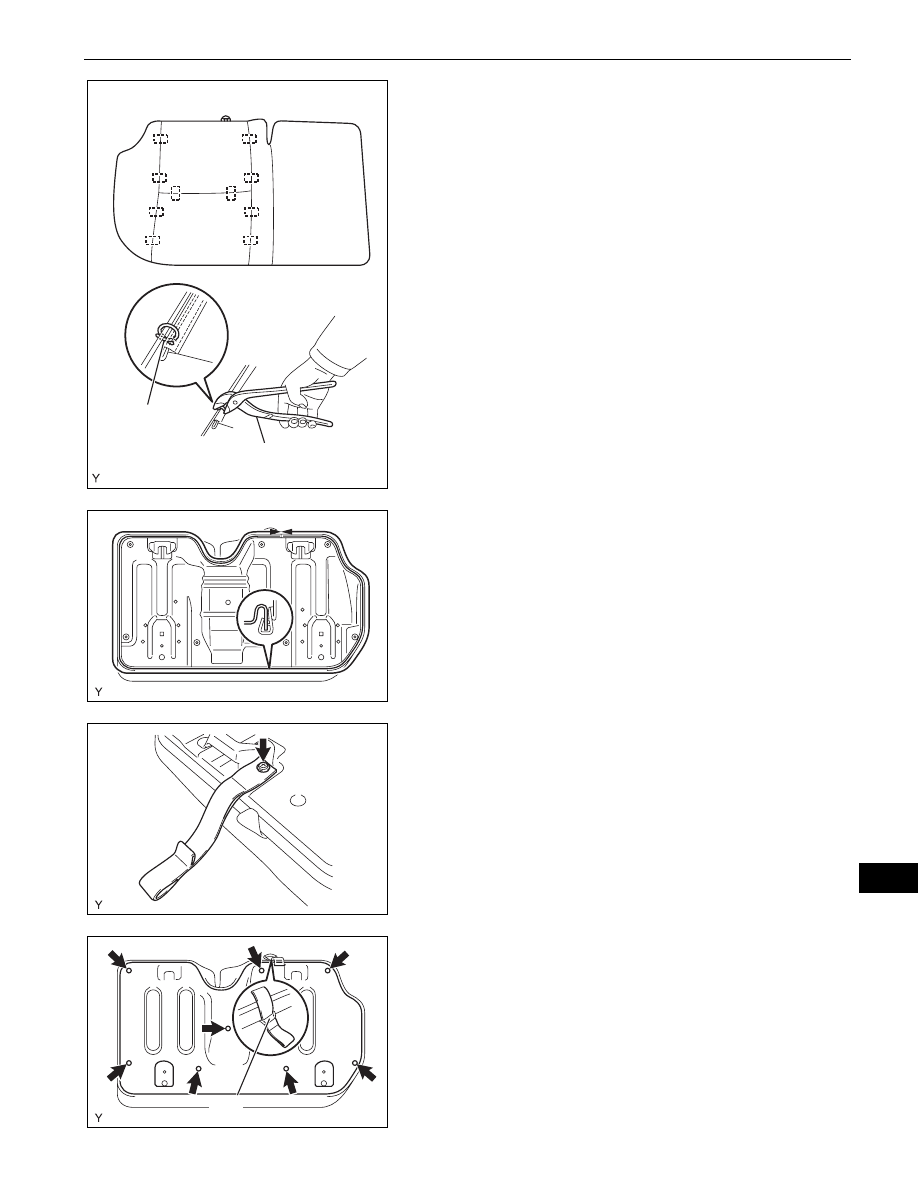

13. INSTALL REAR SEAT CUSHION COVER

(a) Using hog ring pliers, install the rear seat cushion

cover with 10 new hog rings.
NOTICE:
•

Do not soil or scratch the rear seat cushion
cover.

•

When installing the hog rings, minimize
wrinkles as far as possible.

14. INSTALL REAR SEAT CUSHION FRAME SUB-

ASSEMBLY
(a) Engage the hook and install the rear seat cushion

frame.

15. INSTALL REAR SEAT CUSHION STOPPER

(a) Install the rear seat cushion stopper with the screw.

16. INSTALL REAR SEAT CUSHION UNDER COVER

(a) Insert the rear seat cushion stopper into the slit of

the rear seat cushion under cover.

(b) Install the rear seat cushion under cover with the 7

clips.

(c) Install the rear seat cushion stopper into the rear

seat cushion cover band.

New Hog Ring

Hog Ring Pliers

B130757E01

B130755

B130754

Band

B130753E01

SE–54

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE

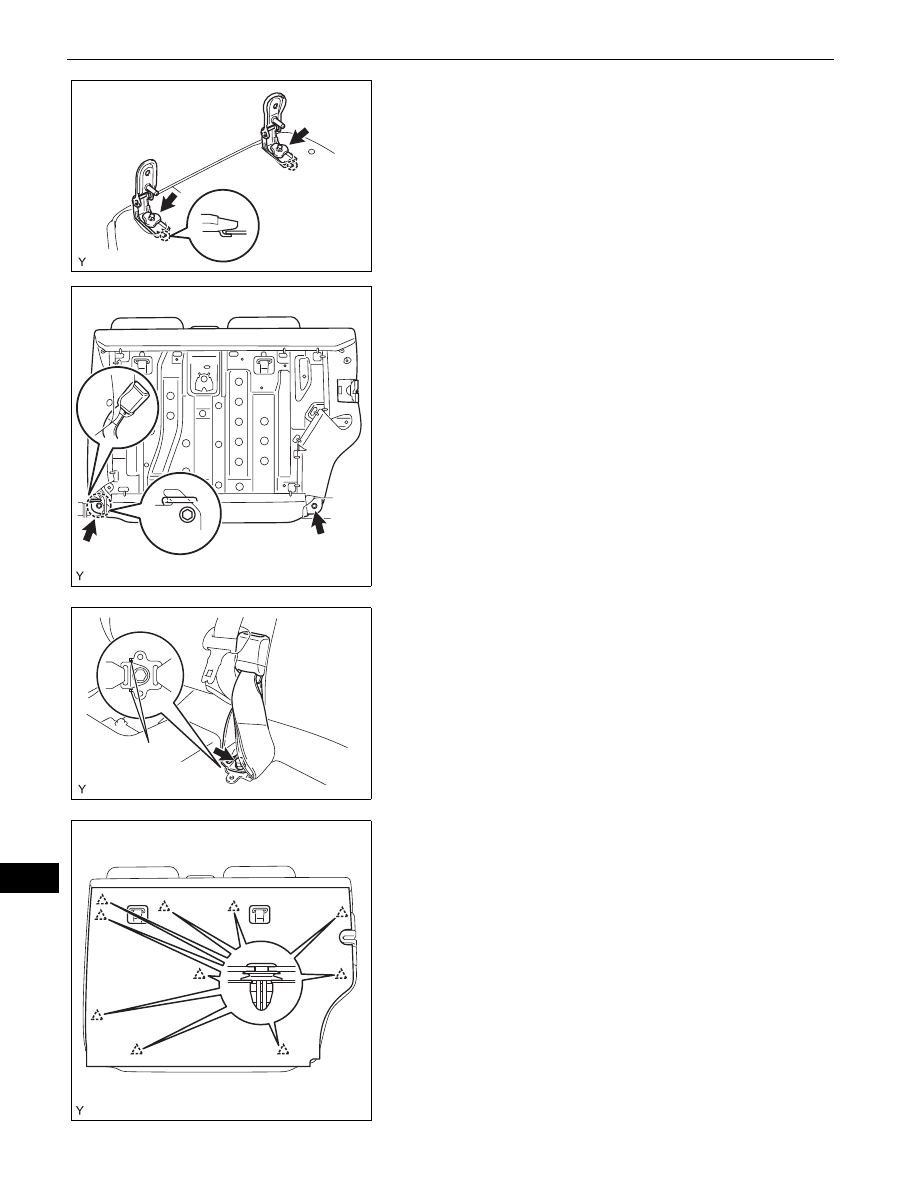

17. INSTALL REAR SEAT CUSHION HINGE SUB-

ASSEMBLY
HINT:
Use the same procedure for both sides.
(a) Engage the hook and install the rear seat cushion

hinge.

(b) Install the rear seat cushion hinge with the bolt.

Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

INSTALLATION

1.

INSTALL REAR SEATBACK ASSEMBLY
(a) Engage the hook and temporarily install the rear

seatback with the 2 bolts.

(b) Tighten the 2 bolts in the sequence shown in the

illustration.
Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

(c) Pull up the rear seatback.

(d) Install the rear seat inner belt into the rear seatback

holder.

(e) Install the anchor plate of the rear center seat outer

belt with the bolt.
Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)
NOTICE:
Do not place the anchor plate over the convex
area of the rear seat inner belt.

2.

INSTALL REAR SEATBACK BOARD CARPET
ASSEMBLY
(a) Pull the rear seatback lock release button and tilt

the rear seatback forward.

(b) Engage the 10 clips and install the rear seatback

board carpet.

(c) Pull up the rear seatback.

B130752

1

2

B130750E01

Convex

B135128E01

B130749

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE–55

SE

3.

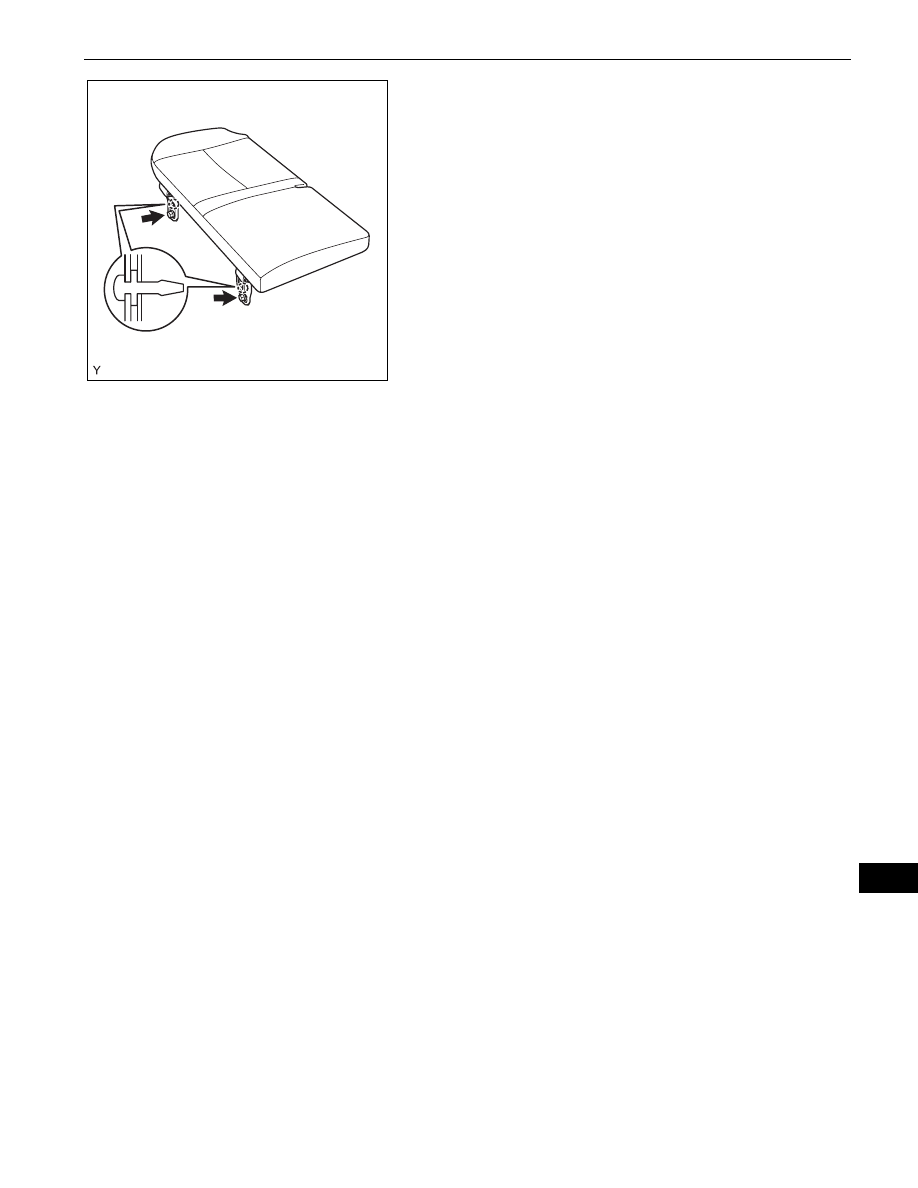

INSTALL REAR SEAT CUSHION ASSEMBLY
(a) Insert the locating pin into the body hole.
(b) Temporarily install the rear seat cushion with the 2

bolts.

(c) Tighten the 2 bolts in the sequence shown in the

illustration.
Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

2

1

B130748E01

SEAT  –  FRONT SEAT ASSEMBLY

SE–5

SE

REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag
system. Read the precautionary notices concerning the
SRS airbag system before servicing (w/ Front Seat Side
Airbag) (See page

RS-1

).

HINT:
The procedure described below is for the driver side. Use the
same procedure for both the driver and front passenger
sides, unless otherwise specified.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait for at least 90 seconds after disconnecting the
cable to prevent the airbag from working (w/ Front
Seat Side Airbag).

2.

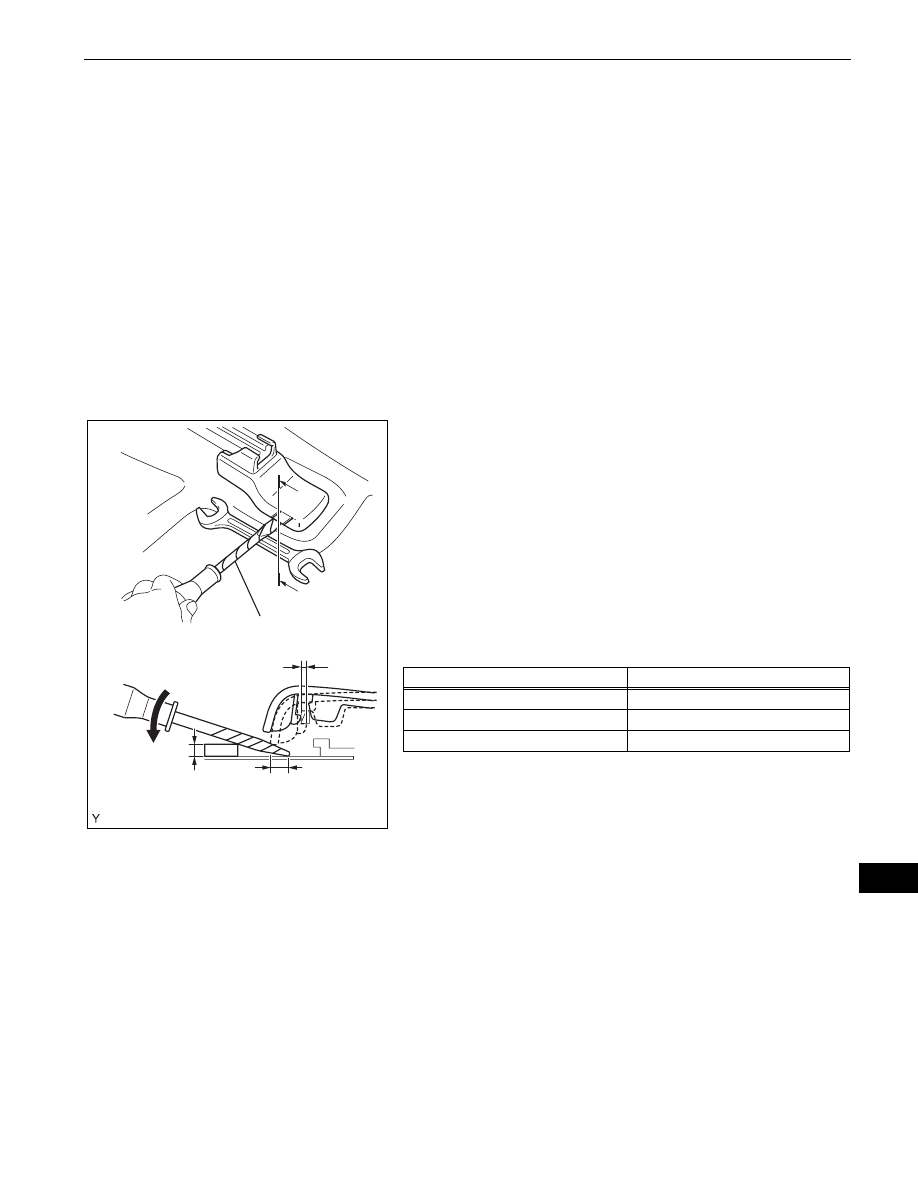

REMOVE FRONT SEAT TRACK COVER
HINT:
Use the same procedure for both sides.
(a) Insert a flat- head screwdriver (diameter:

approximately above 5 mm (0.197 in.)) between the
front seat track cover inside claw lower part and
floor mat.

(b) Place an object with a height of approximately 5 to 8

mm (0.197 to 0.315 in.) below the screwdriver. Use
the object as the screwdriver fulcrum and push
down on the screwdriver to remove the front seat
track cover inside claw, as shown in the illustration.
Specification:

Protective Tape

A-A

Push Down

a

b

c

A

A

B130664E01

Area

Measurement

a

1.6 mm (0.063 in.)

b

5.0 mm (0.197 in.)

c

5.0 to 8.0 mm (0.197 to 0.315 in.)
