Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 453





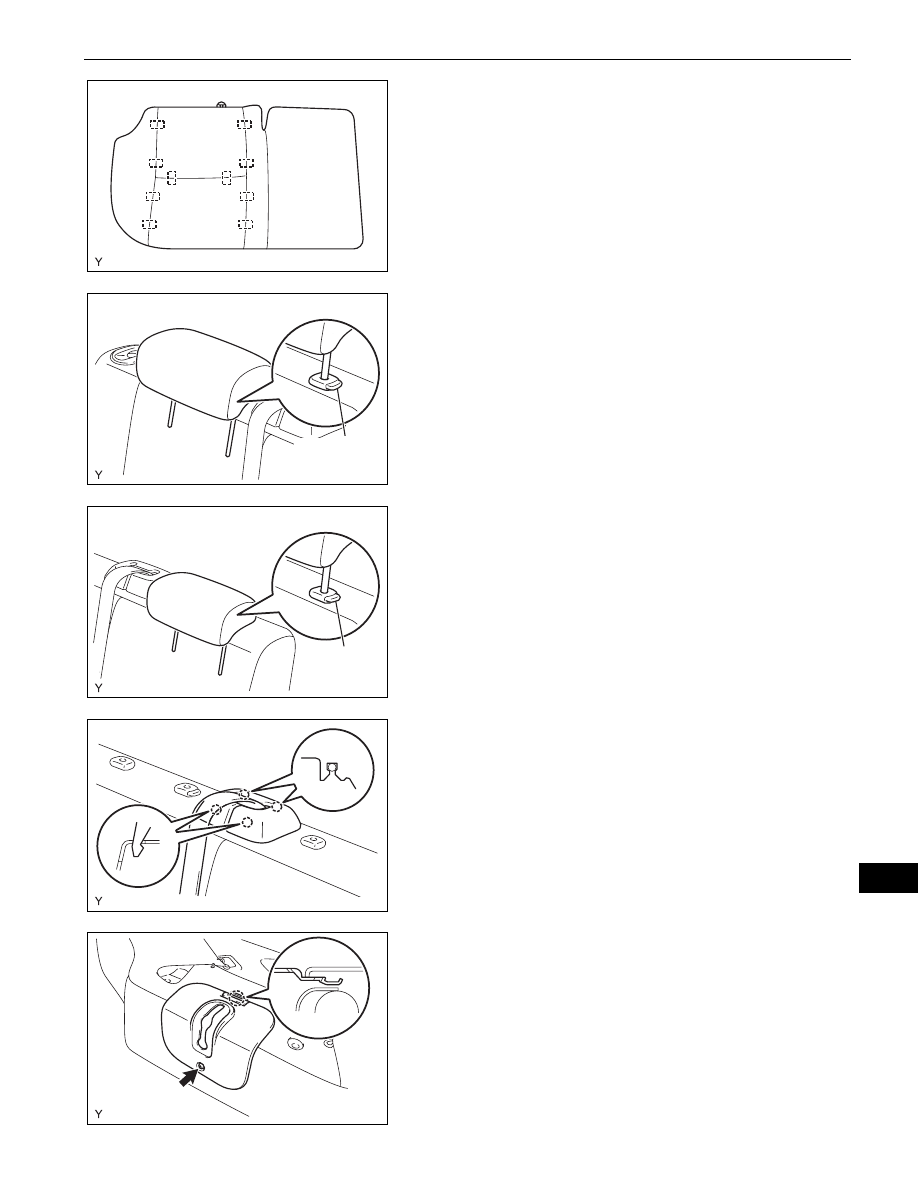

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE–45

SE

5.

REMOVE REAR SEAT CUSHION COVER
(a) Remove the 10 hog rings and the rear seat cushion

cover.

6.

REMOVE REAR SEAT HEADREST ASSEMBLY
(a) Push the lock button of the rear seat headrest

support and remove the rear seat headrest.

7.

REMOVE REAR CENTER SEAT HEADREST
ASSEMBLY
(a) Push the lock button of the rear seat headrest

support and remove the rear seat headrest.

8.

REMOVE REAR SEAT SHOULDER BELT COVER
(a) Disengage the 4 claws and remove the rear seat

shoulder belt cover.

9.

REMOVE REAR SEATBACK LOCK COVER
(a) Remove the screw.
(b) Disengage the claw and remove the rear seatback

lock cover.

B130756

Lock Button

B130759E01

Lock Button

B130760E01

B135122

B130761

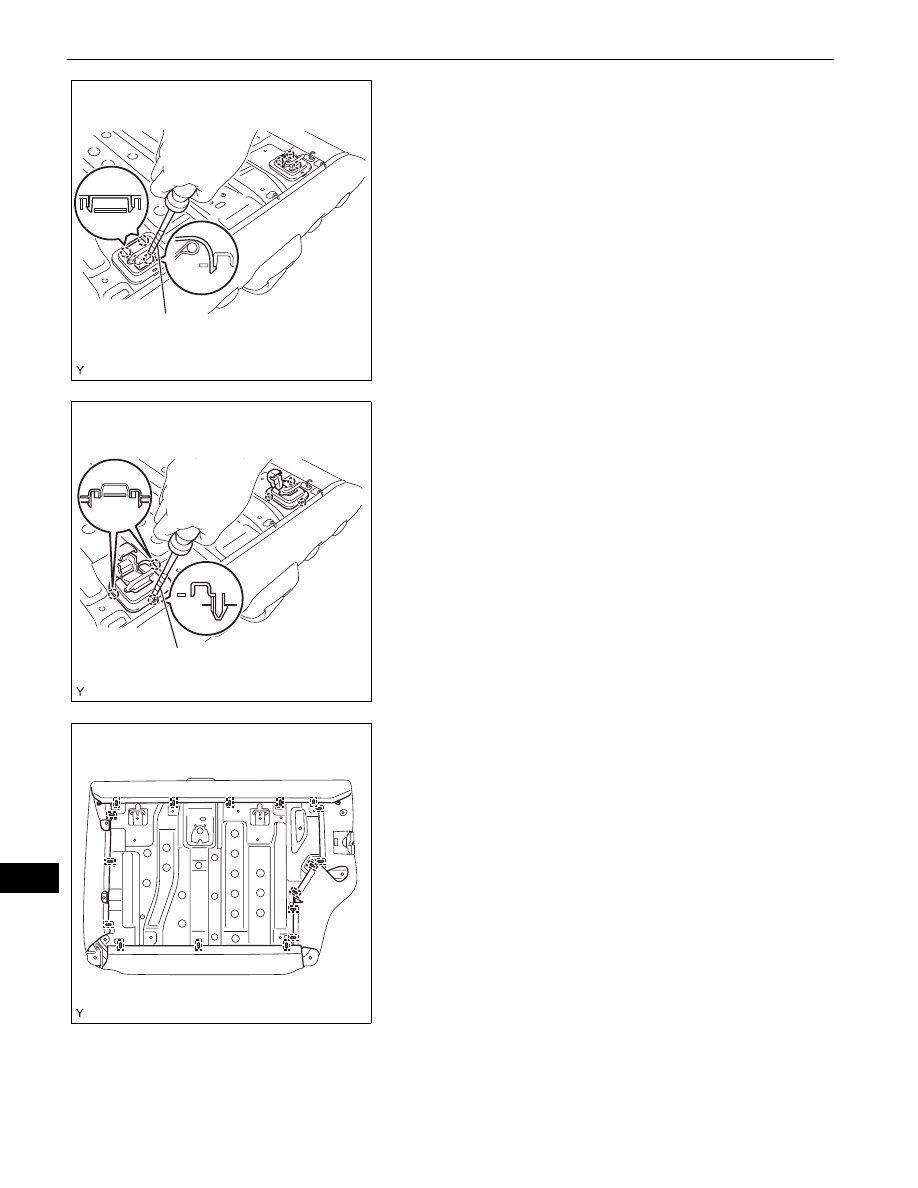

SE–46

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE

10. REMOVE TETHER ANCHOR COVER

HINT:
Use the same procedure for both sides.
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 2 claws and open the
cover.

(b) Using a screwdriver with its tip wrapped in

protective tape, disengage the 3 claws and remove
the tether anchor cover.

11. REMOVE REAR SEAT HEADREST SUPPORT

(a) Remove the 17 hog rings.

Protective Tape

B130762E01

Protective Tape

B130764E01

B130766

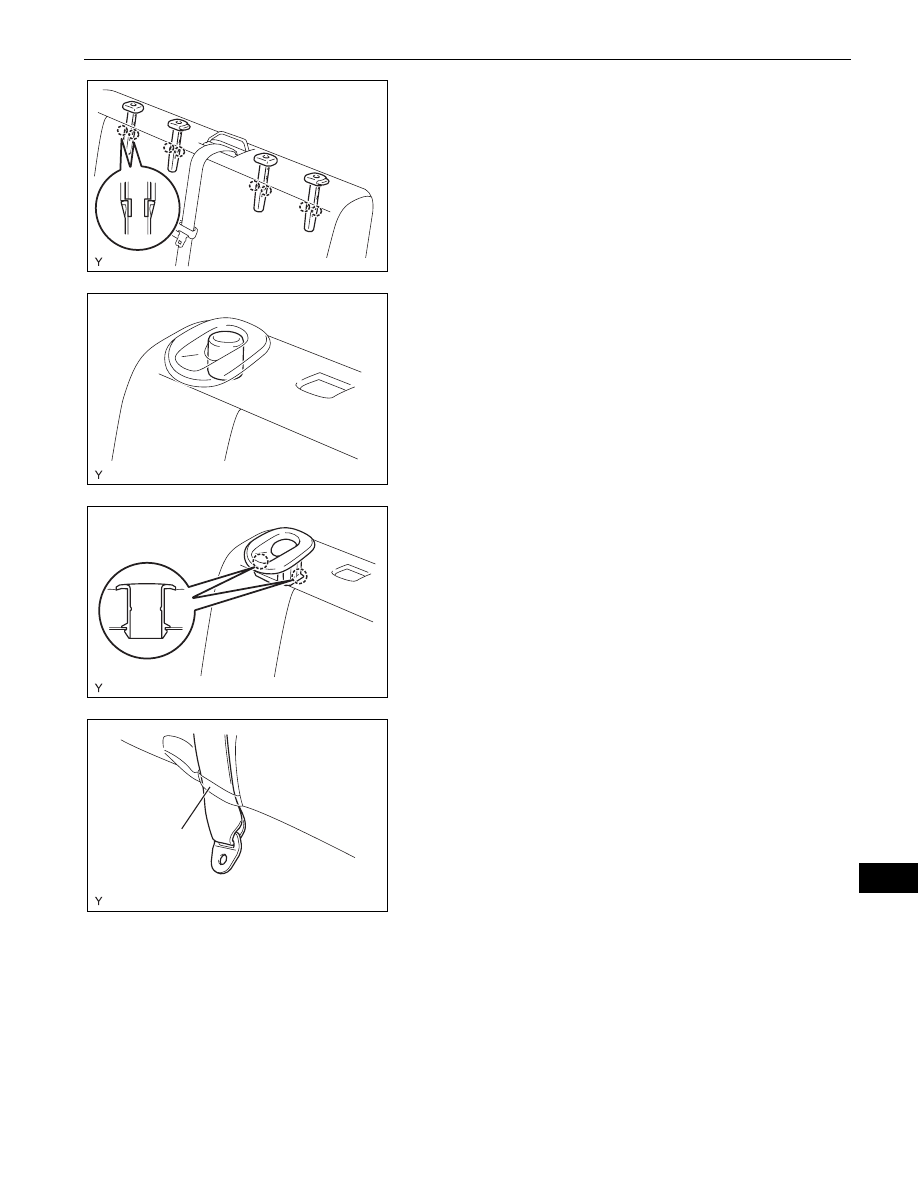

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE–47

SE

(b) Disengage the 2 claws and remove the rear seat

headrest support.
HINT:
Use the same procedure to remove all the rear seat
headrest supports.

12. REMOVE REAR SEATBACK LOCK RELEASE

BUTTON
(a) Remove the rear seatback lock release button.

13. REMOVE REAR SEATBACK STOP BUTTON

GROMMET
(a) Disengage the 2 claws and remove the rear

seatback stop button grommet.

14. REMOVE REAR SEATBACK FRAME SUB-

ASSEMBLY
(a) Remove the belt of the rear center seat outer belt

from the rear seatback cover band.

B130769

B130773

B130771

Band

B135129E01

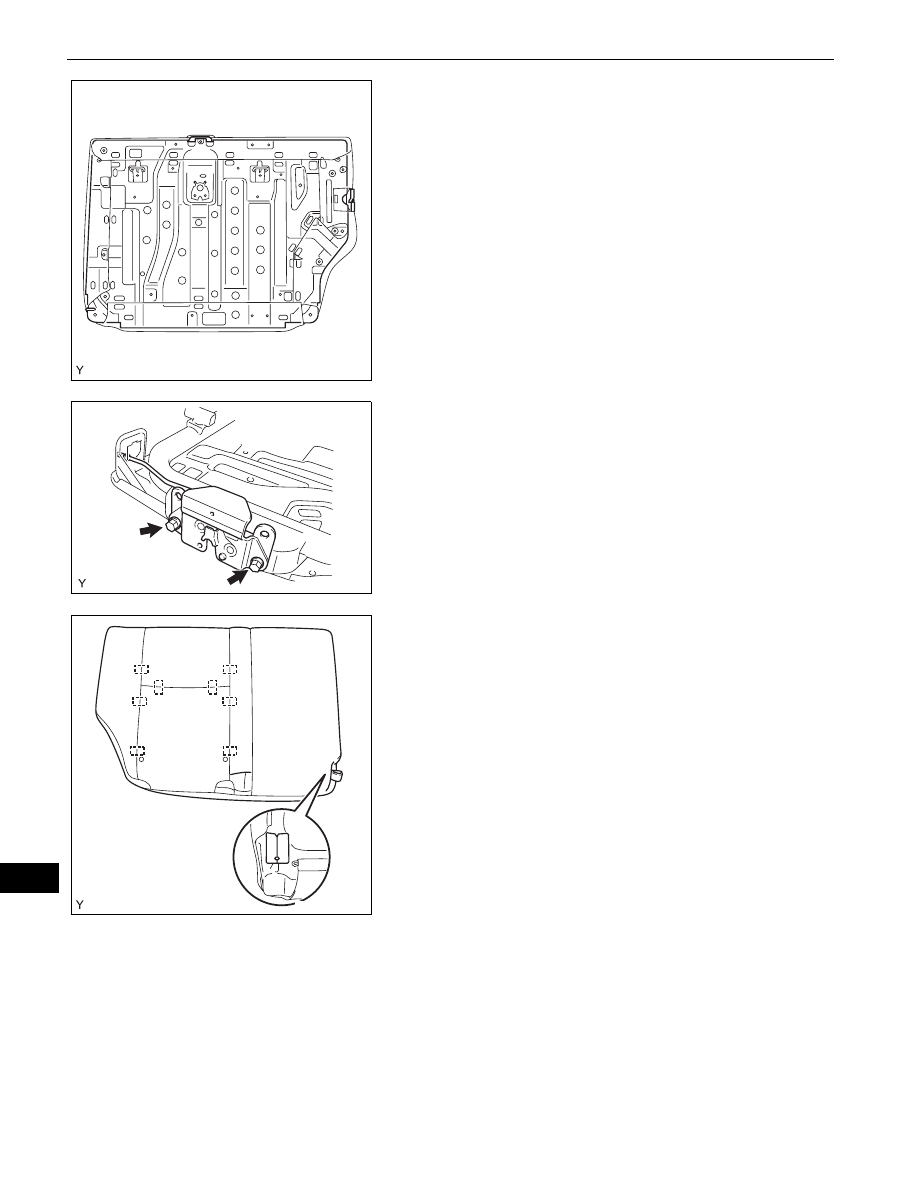

SE–48

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE

(b) Remove the rear seatback frame.

15. REMOVE REAR SEATBACK LOCK ASSEMBLY

(a) Remove the 2 bolts and the rear seatback lock.

16. REMOVE REAR CENTER SEAT OUTER BELT

ASSEMBLY (See page

SB-67

)

17. REMOVE REAR SEATBACK COVER

(a) Pass the hook of the rear seatback cover through

the slit in the rear seatback pad.

(b) Remove the 8 hog rings and the rear seatback

cover.

B130768

B130772

B130774
