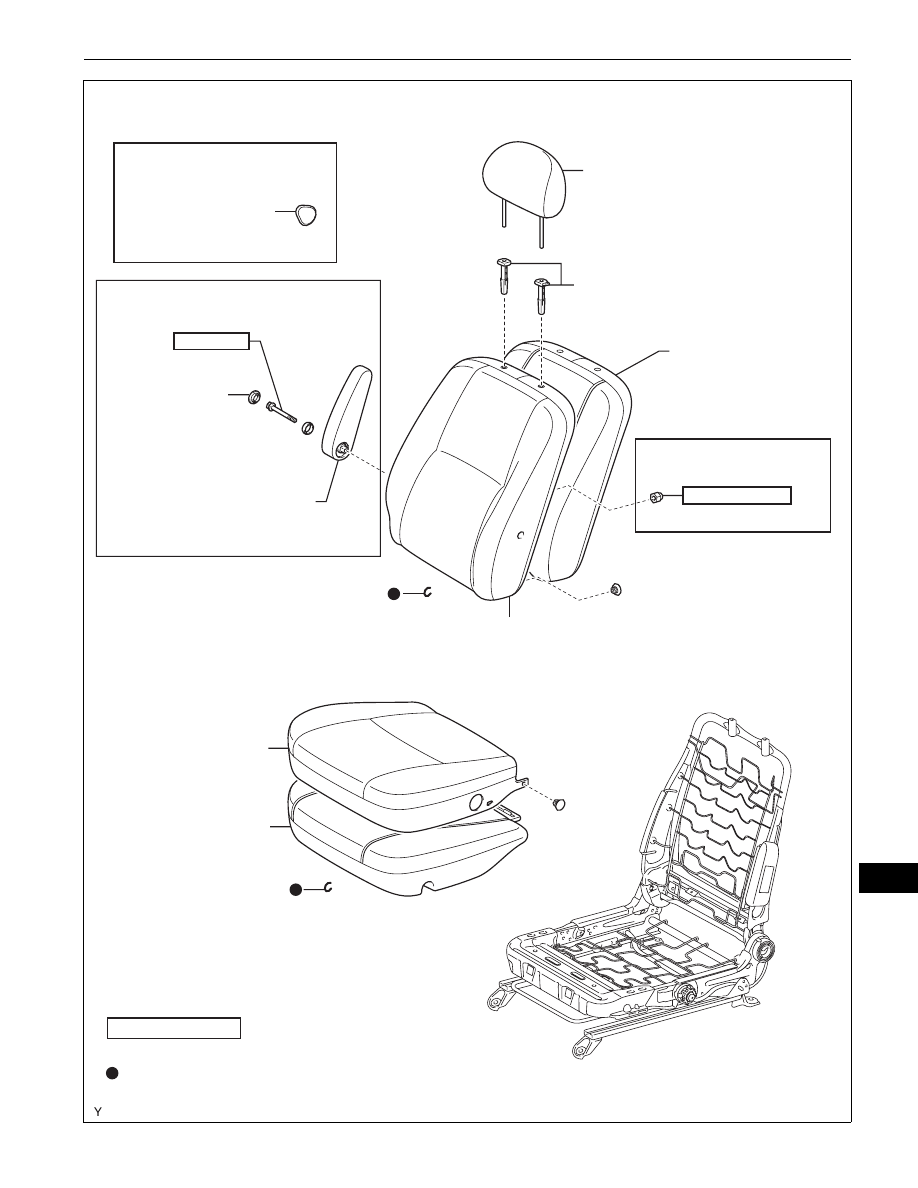

SEAT  –  FRONT SEAT ASSEMBLY

SE–3

SE

FRONT SEAT ARMREST
ASSEMBLY

FRONT SEAT
ARMREST CAP

FRONT SEAT
ARMREST COVER

FRONT SEAT
CUSHION COVER

FRONT SEAT HEADREST
ASSEMBLY

FRONT SEAT HEADREST
SUPPORT

FRONT SEATBACK
COVER

FRONT SEAT
CUSHION PAD

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

38 (385, 28)

5.5 (55, 49 in.*lbf)

FRONT SEATBACK
PAD

for Front Passenger Side:

for Driver Side:

w/ Front Seat Side Airbag:

x2

x14

x12

x2

B130679E01

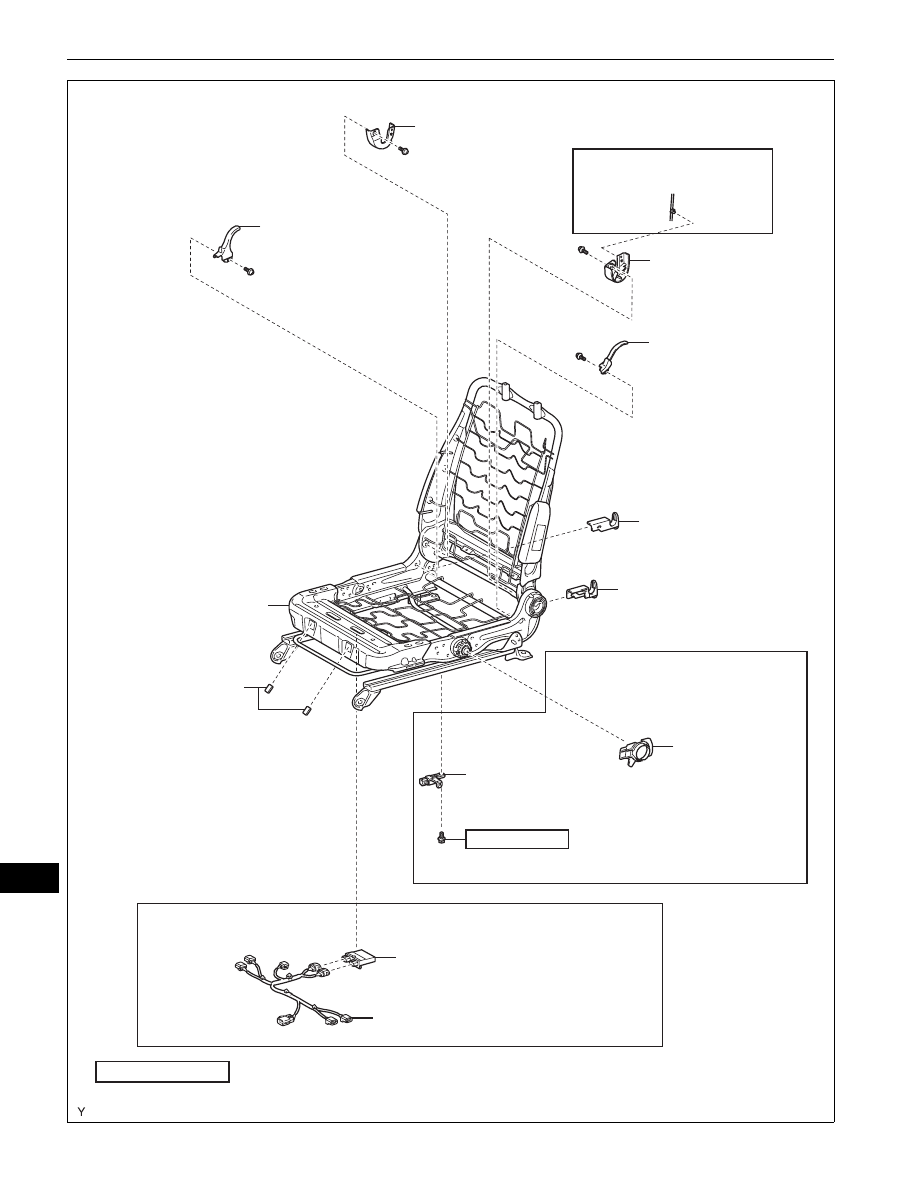

SE–4

SEAT  –  FRONT SEAT ASSEMBLY

SE

FRONT SEAT CUSHION
LOWER SHIELD LH

FRONT SEAT CUSHION
LOWER SHIELD RH

OCCUPANT CLASSIFICATION ECU

RECLINING ADJUSTER
INSIDE COVER LH

RECLINING ADJUSTER
INSIDE COVER RH

RECLINING ADJUSTER
OUTSIDE COVER LH

RECLINING ADJUSTER
OUTSIDE COVER RH

SEAT POSITION
SENSOR

FRONT SEAT WIRE

VERTICAL SEAT
ADJUSTER BUSH

FRONT SEAT CUSHION
EDGE PROTECTOR

FRONT SEAT ADJUSTER
SUB-ASSEMBLY

for Front Passenger Side:

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (80, 71 in.*lbf)

for Driver Side:

w/ Front Seat Side Airbag:

B130702E01

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE–43

SE

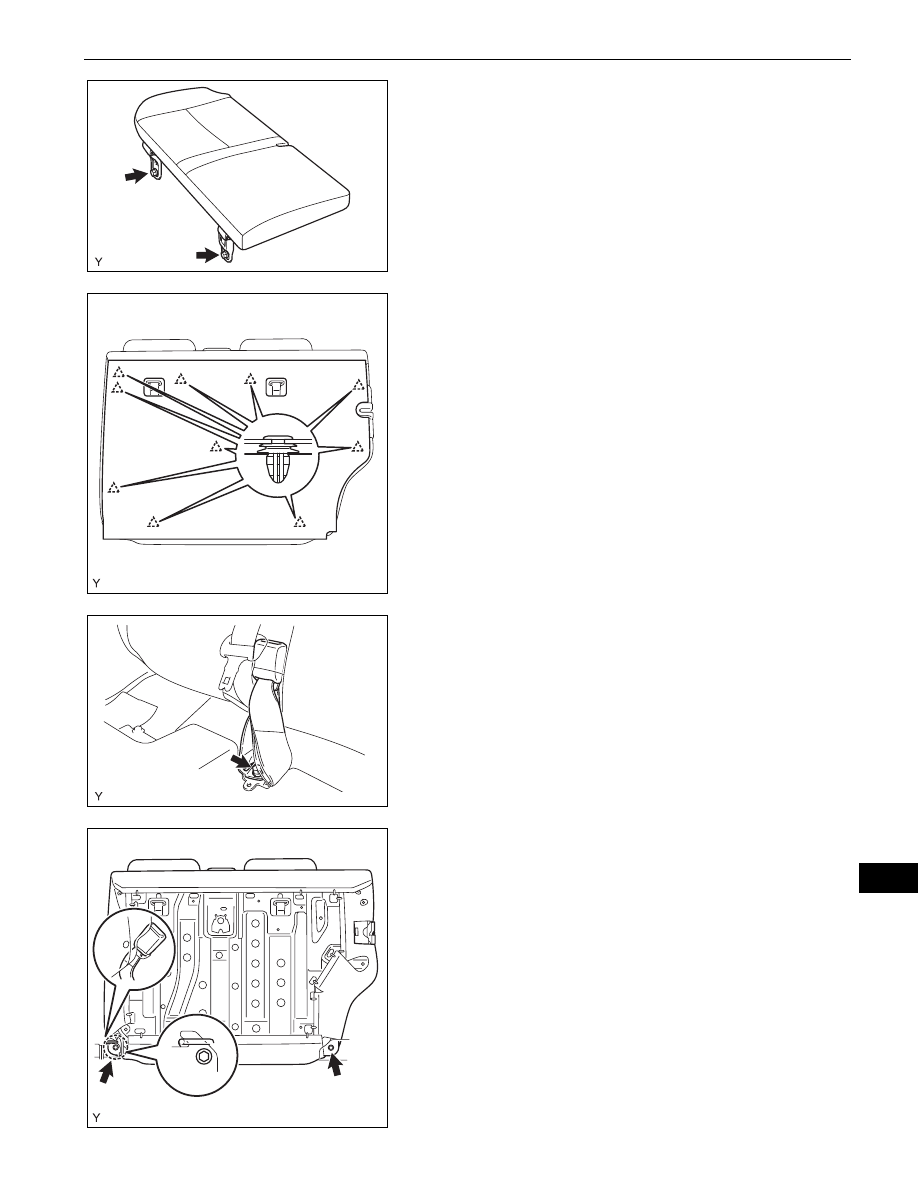

REMOVAL

1.

REMOVE REAR SEAT CUSHION ASSEMBLY
(a) Remove the 2 bolts and the rear seat cushion.

2.

REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY
(a) Pull the rear seatback lock release button and tilt

the rear seatback forward.

(b) Disengage the 10 clips and remove the rear

seatback board carpet.

3.

REMOVE REAR SEATBACK ASSEMBLY
(a) Pull up the rear seatback.
(b) Remove the bolt and the anchor plate of the rear

center seat outer belt.

(c) Remove the rear seat inner belt from the rear

seatback holder.

(d) Pull the rear seatback lock release button and tilt

the rear seatback forward.

(e) Remove the 2 bolts.
(f)

Disengage the hook and remove the rear seatback.

B130747

B130749

B135127

B130750

SE–44

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE

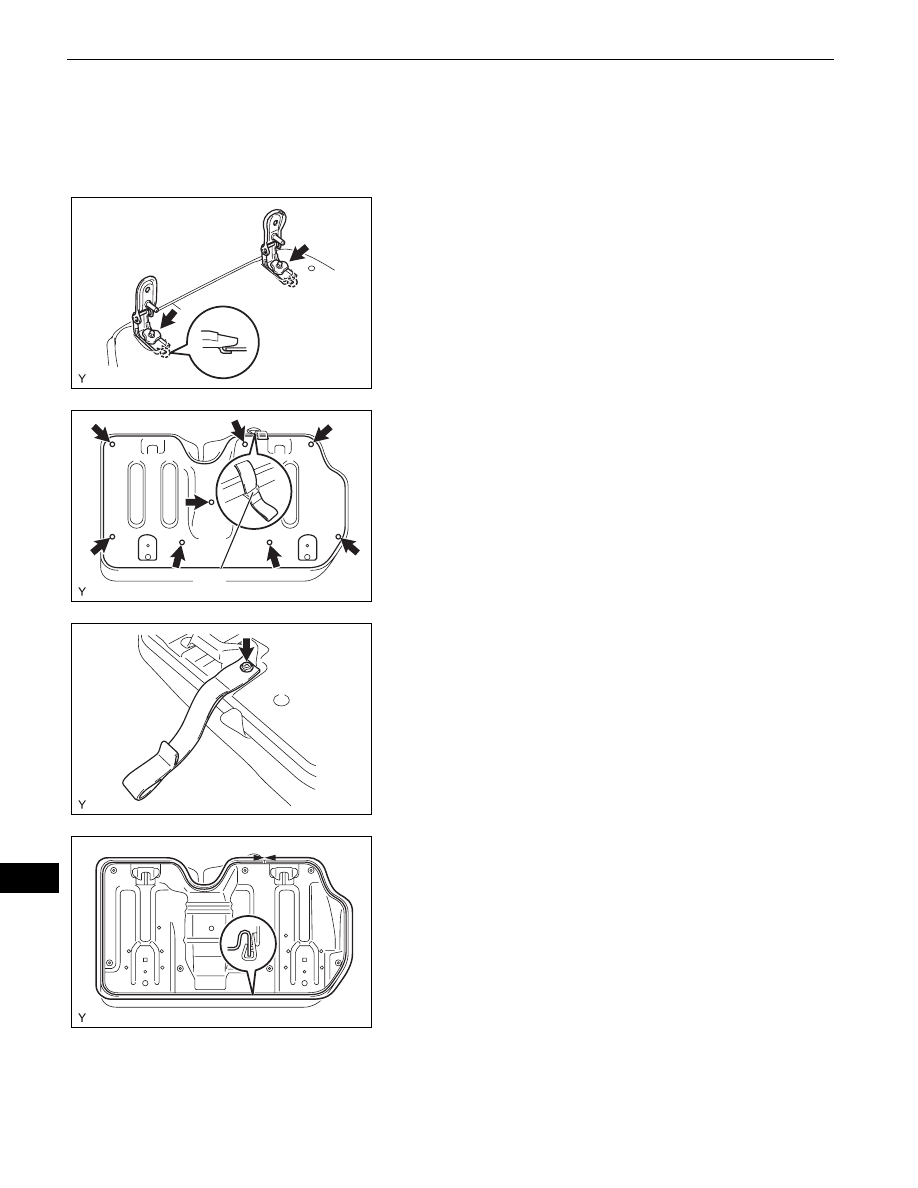

DISASSEMBLY

CAUTION:
Wear protective gloves. Sharp surfaces on the rear seat
cushion frame and the rear seatback frame could cause
injuries to your hands.

1.

REMOVE REAR SEAT CUSHION HINGE SUB-
ASSEMBLY
HINT:
Use the same procedure for both sides.
(a) Remove the bolt.
(b) Disengage the hook and remove the rear seat

cushion hinge.

2.

REMOVE REAR SEAT CUSHION UNDER COVER
(a) Remove the rear seat cushion stopper from the rear

seat cushion cover band and the slit of the rear seat
cushion under cover.

(b) Using a clip remover, remove the 7 clips and the

rear seat cushion under cover.

3.

REMOVE REAR SEAT CUSHION STOPPER
(a) Remove the screw and the rear seat cushion

stopper.

4.

REMOVE REAR SEAT CUSHION FRAME SUB-
ASSEMBLY
(a) Disengage the hook and remove the rear seat

cushion frame.

B130752

Band

B130753E01

B130754

B130755
