SEAT BELT – REAR CENTER SEAT OUTER BELT ASSEMBLY
SB–67
SB
REMOVAL
1.
REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY (See page
2.
REMOVE REAR SEATBACK ASSEMBLY (See page
)
3.
REMOVE REAR SEAT HEADREST ASSEMBLY (See
page
4.
REMOVE REAR CENTER SEAT HEADREST
ASSEMBLY (See page
5.
REMOVE REAR SEAT SHOULDER BELT COVER
(See page
)
6.
REMOVE REAR SEATBACK LOCK COVER (See page
)
7.
REMOVE REAR SEAT HEADREST SUPPORT (See
page
8.
REMOVE REAR SEATBACK LOCK RELEASE
BUTTON (See page
)
9.
REMOVE REAR SEATBACK STOP BUTTON
GROMMET (See page
10. REMOVE REAR SEATBACK FRAME SUB-
ASSEMBLY (See page

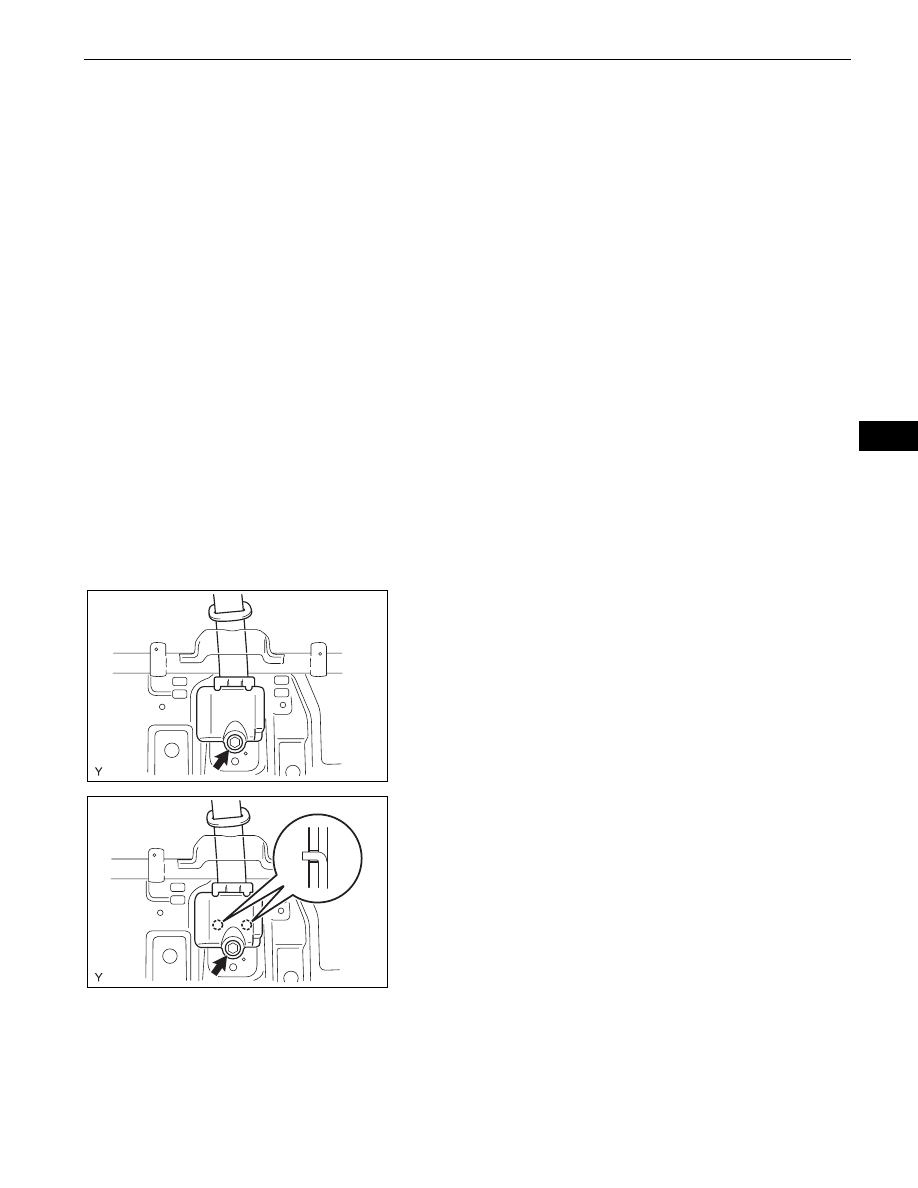

11. REMOVE REAR CENTER SEAT OUTER BELT
ASSEMBLY
(a) Remove the nut and the rear center seat outer belt.
INSTALLATION
1.
INSTALL REAR CENTER SEAT OUTER BELT
ASSEMBLY
(a) Hook the stay of the retractor onto the 2 rear
seatback frame hooks and install the retractor with
the nut.
Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)
(b) Check that the ELR locks.
NOTICE:
Perform the check with the front seat outer belt
installed.
(1) With the belt installed, check that the belt locks
when it pulled out quickly.
If the operation is not as specified, replace the
rear seat outer belt.
2.
INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY
(See page
)
B135154
B135155
