SB–60

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB

INSTALLATION

HINT:
The procedure described below is for the RH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

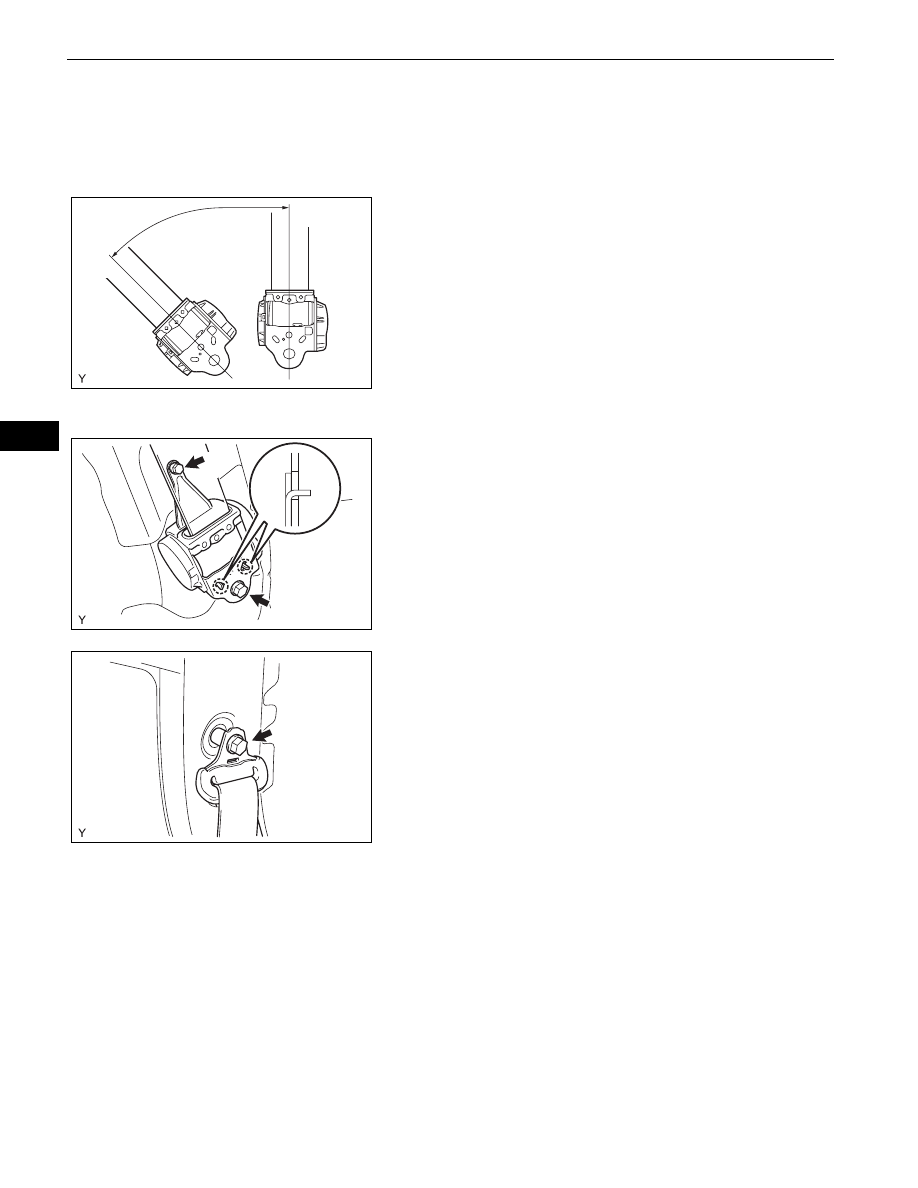

1.

INSTALL REAR SEAT OUTER BELT ASSEMBLY
(a) Check the angle of inclination required to lock the

retractor.
(1) Gently incline the retractor from its initial

position. Check that the belt does not lock
when the retractor is inclined 15

° or less in any

direction. Also, check that the belt locks when
the inclination of the retractor is 45

° or more.

NOTICE:
Do not disassemble the retractor.
If the operation is not as specified, replace the
rear seat outer belt.

(b) Hook the lower stay of the retractor onto the 2 body

hooks and provisionally install the retractor with the
2 bolts.

(c) Tighten bolt A and then bolt B.

Torque: 8.5 N*m (85 kgf*cm, 75 in.*lbf)  for bolt A

42 N*m (430 kgf*cm, 31 ft.*lbf)  for bolt B

(d) Install the through anchor with the bolt.

Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

(e) Make sure that the shoulder anchor rotates

smoothly.

(f)

Check that the ELR locks.
NOTICE:
Perform the check with the front seat outer belt
installed.
(1) With the belt installed, check that the belt locks

when it is pulled out quickly.
If the operation is not as specified, replace the
rear seat outer belt.

2.

INSTALL ROOF SIDE INNER GARNISH (See page

IR-

38

)

Lock

Unlock

45 °

B130782E01

B

A

B130780E01

B130781

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB–61

SB

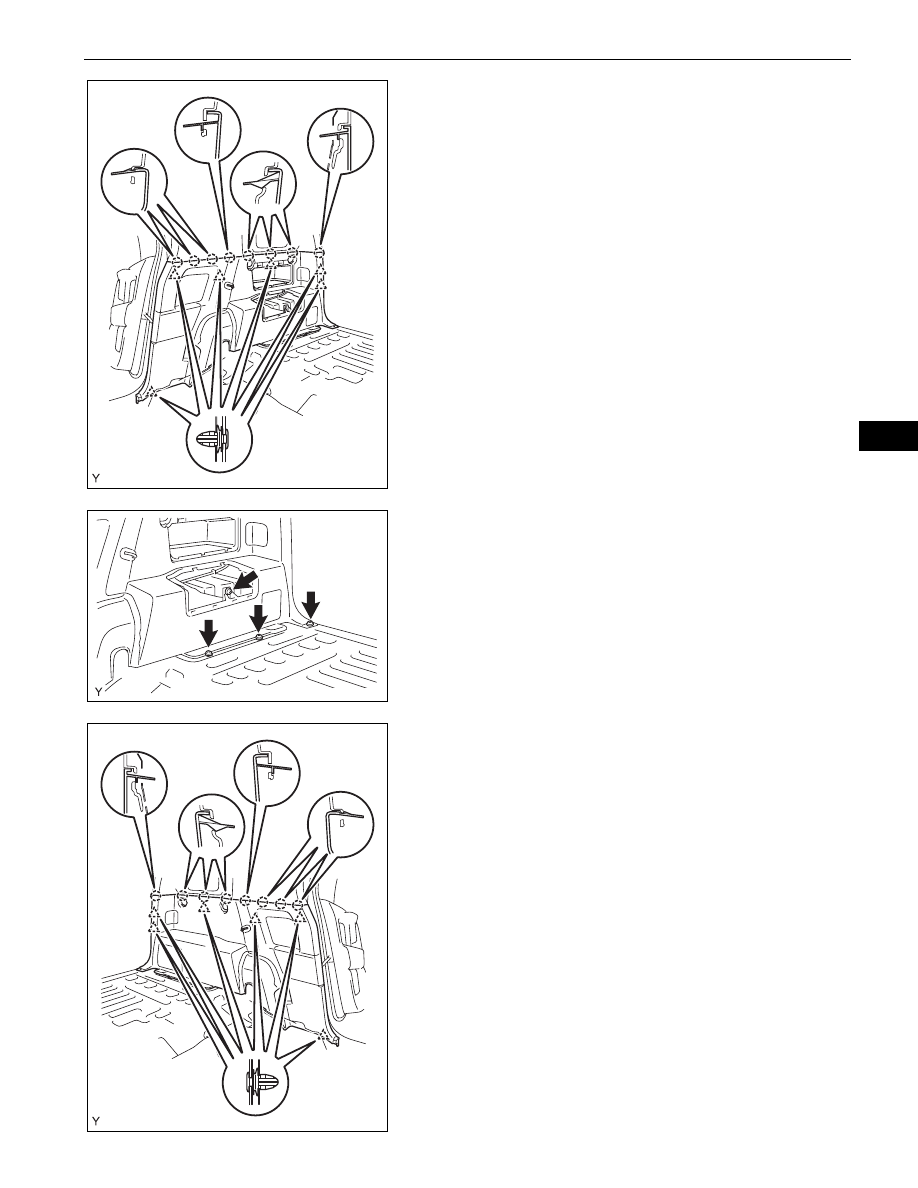

3.

INSTALL DECK TRIM SIDE PANEL ASSEMBLY
(a) for RH Side:

(1) Engage the 6 clips and the 8 claws and install

the deck trim side panel.

(2) Tighten the 4 screws.

(b) for LH Side:

(1) Engage the 6 clips and the 8 claws and install

the deck trim side panel.

B130617

B130616

B130619

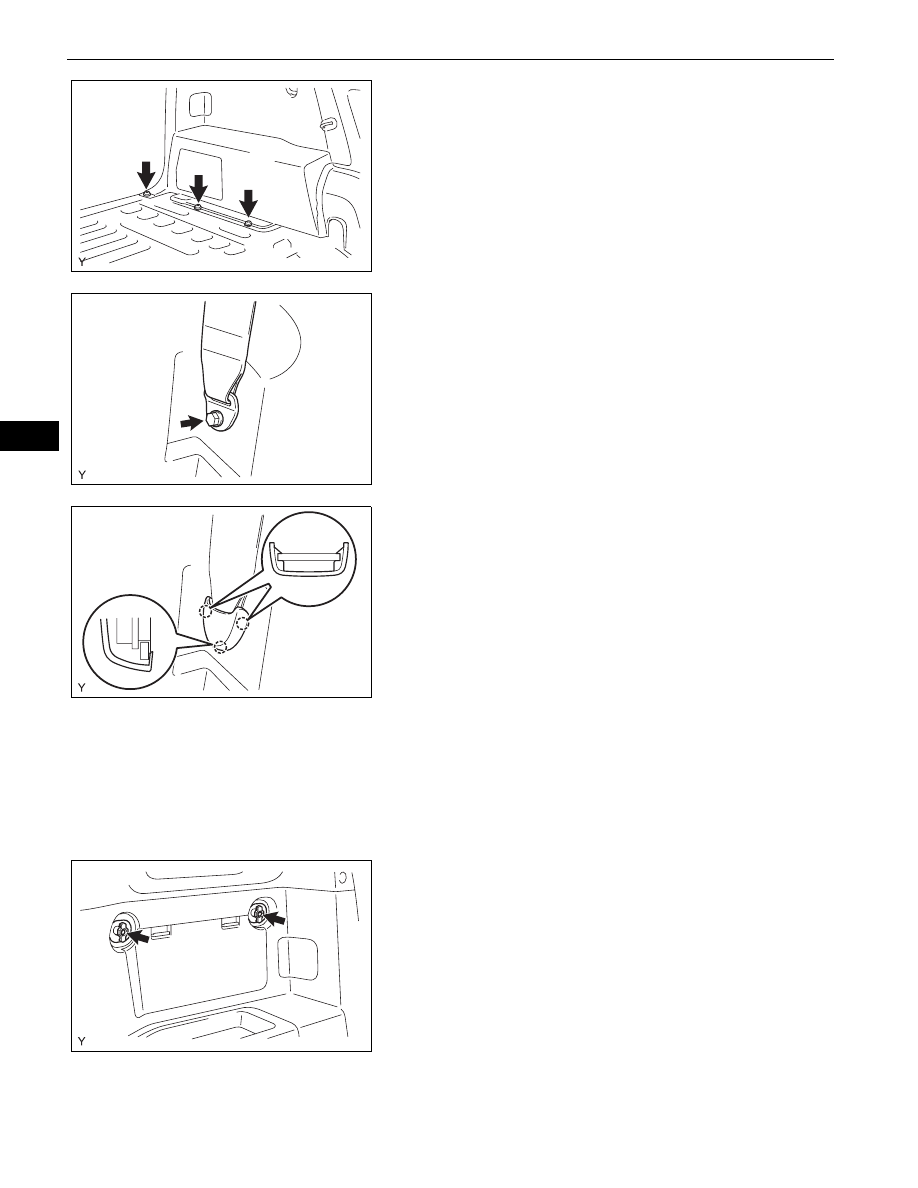

SB–62

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB

(2) Tighten the 3 screws.

(c) Install the anchor plate with the bolt.

Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

(d) Make sure that the shoulder anchor plate rotates

smoothly.

4.

INSTALL REAR DECK TRIM COVER (w/ Power Outlet
Socket) (See page

IR-40

)

5.

INSTALL LAP BELT OUTER ANCHOR COVER
(a) Engage the 3 claws and install the lap belt outer

anchor cover.

6.

INSTALL AMPLIFIER BOX SPEAKER ASSEMBLY (w/
Woofer) (See page

AV-90

)

7.

INSTALL SPEAKER MOUNTING COVER (w/ Woofer)
(See page

AV-91

)

8.

INSTALL DECK SIDE GARNISH (w/ Woofer) (See
page

IR-41

)

9.

INSTALL QUARTER TRIM POCKET (w/o Woofer)
(See page

IR-41

)

10. INSTALL SIDE TRIM COVER (w/o Woofer) (See page

IR-42

)

11. INSTALL QUARTER TRIM POCKET TRAY (w/o

Woofer) (See page

IR-42

)

12. INSTALL PACKAGE HOLDER NET HOOK (w/o

Woofer)
HINT:
Use the same procedure for both sides.
(a) Install the package holder net hook with the screw.

B130618

B130615

B138385

B138474

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB–63

SB

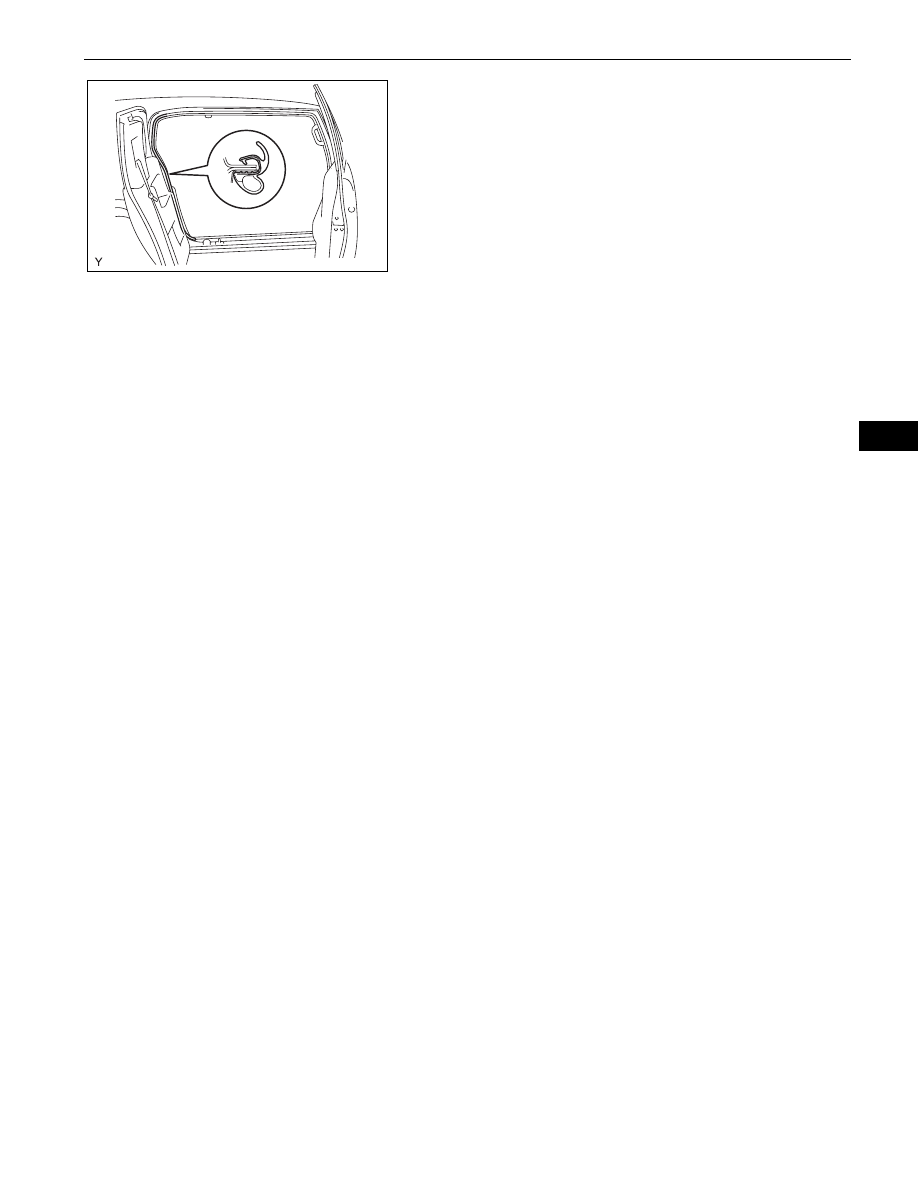

13. INSTALL FRONT DOOR OPENING TRIM

WEATHERSTRIP
(a) Install the front door opening trim weatherstrip.

14. INSTALL ACCESS DOOR SCUFF PLATE (See page

IR-45

)

15. INSTALL FRONT DOOR SCUFF PLATE (See page

IR-

45

)

16. INSTALL REAR FLOOR MAT ASSEMBLY (See page

IR-46

)

17. INSTALL LUGGAGE HOLD BELT STRIKER

ASSEMBLY (See page

IR-46

)

18. INSTALL REAR FLOOR MAT SUPPORT PLATE (See

page

IR-46

)

19. INSTALL REAR FLOOR BOARD (See page

IR-47

)

20. INSTALL REAR SEATBACK ASSEMBLY

(a) for RH Side:

(1) Install the rear seatback assembly (See page

SE-54

).

(b) for LH Side:

(1) Install the rear seatback assembly (See page

SE-38

).

21. INSTALL REAR SEATBACK BOARD CARPET

ASSEMBLY
(a) for RH Side:

(1) Install the rear seatback board carpet assembly

(See page

SE-54

).

(b) for LH Side:

(1) Install the rear seatback board carpet assembly

(See page

SE-38

).

22. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B138384
